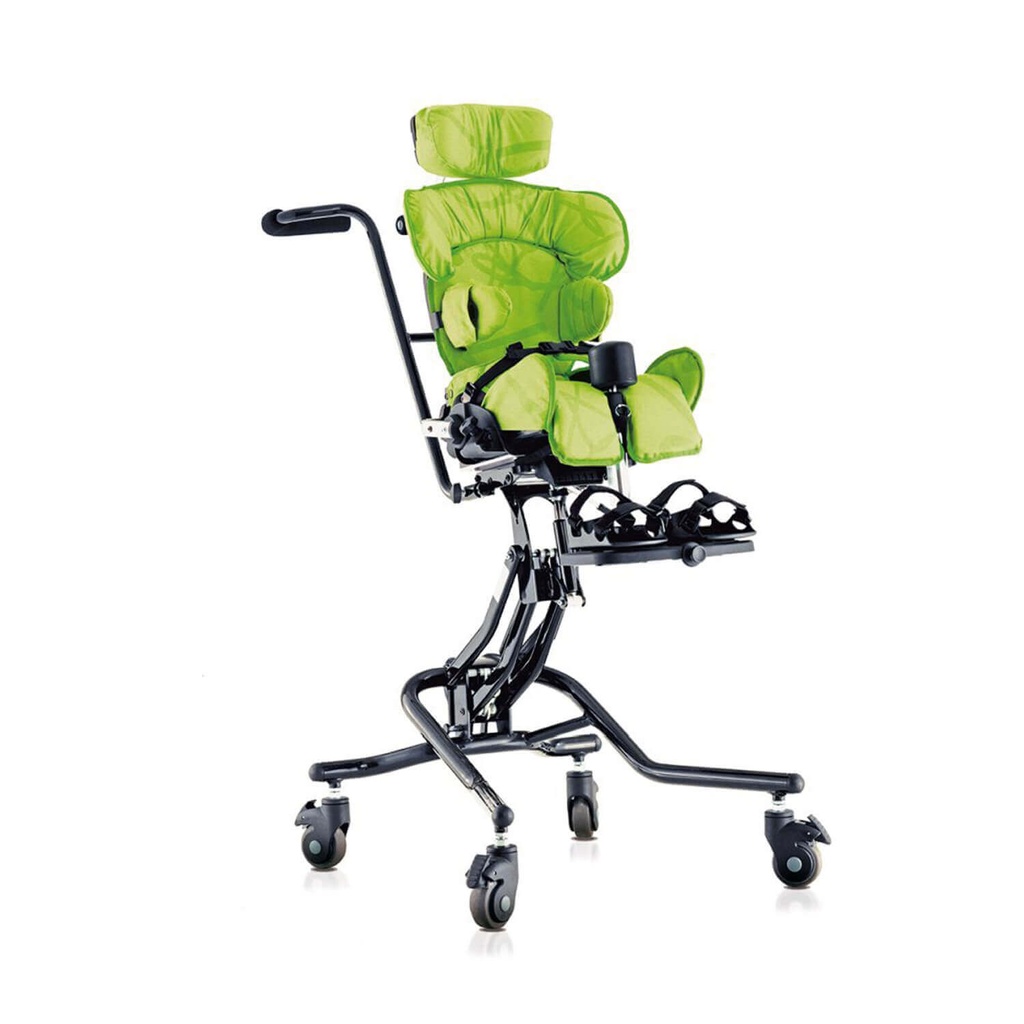

Leckey Squiggles Seating System

The Leckey Squiggles Seating System is Leckey's pediatric seating system for young children who need a therapy chair at home or school. Westin Healthcare quotes it after a clinical assessment, then delivers and sets it up for families in Brampton and the Greater Toronto Area.

Sunrise Medical Canada prints Squiggles for children about 1-5 years, 29.5-43.3 in (75-110 cm) tall, up to 48.4 lb (22 kg). It is a free-standing activity and therapy seat on a Hi-Low or Easy chassis, not a wheelchair cushion. The child's occupational therapist or physiotherapist measures the pelvis, trunk, and legs. We do not give clinical advice.

Who this seating system is for

This seat is for a young child whose therapy team wants pelvic, trunk, head, and leg support in a colourful chair that still leaves the arms free. Families usually call us when a therapist has named Squiggles, or when they need to choose between Squiggles and the larger Mygo seat.

• Children in the 1-5 year / 29.5-43.3 in band who need a four-point pelvic harness and a flexible sacral cushion
• Homes that want a gas-spring Hi-Low base so the child meets the table or the floor without a second chair
• Classrooms that need tilt-in-space without rebuilding the child's posture every time

If the child is already closer to the Mygo height band (from about 41 in), start with the Leckey Mygo Seating System instead.

How Squiggles seats

Pelvic stability is the starting point. The four-point harness buckles at the centre. A flexible sacral cushion sits behind the pelvis. Laterals, harnesses, specialist headrests, trays, and footing options are quote accessories.

The Hi-Low chassis changes height with a gas-compression foot pedal so the child can work, rest, or play at eye level. Tilt-in-space on the Hi-Low chassis is 10 degrees prone and 30 degrees recline. The Easy chassis tilts 20 degrees either way. The seat unit itself reclines 25 degrees and comes 10 degrees prone.

Growth and fit

Leckey prints continuous back-height growth of 2.3 in, an optional shoulder guide that adds 3.9 in, and a seat surface that grows 3.9 in in width and in depth. Seat width between hip guides is 6.3-10.2 in. Seat depth is 7.5-11.4 in. Seat to footplate is 4.8-10.6 in. Sitting shoulder height is 12.6-15 in, or 16.5-18.9 in with shoulder support.

When the child leaves that band, the next Leckey seat is usually Mygo, not a bigger Squiggles shell. We requote from new measurements.

Leckey Squiggles Seating System specifications

These figures are from Sunrise Medical Canada's current Squiggles Seating card. The specification tab holds the stored values.

Seat unit 15.7 in high by 14.6 in wide by 14.6 in long. Hi-Low chassis 12.4 x 21.3 x 25.2 in. Easy chassis 10.4 x 20.7 x 24.8 in. Seat plus Hi-Low 33 lb. Seat plus Easy chassis 23.1 lb excluding the push bar. Chest width 6.3-8.75 in. Footplate 10 degrees plantar and 10 degrees dorsiflex. Tray 18.1 x 22 in, 4.5-6.7 in above the seat. Leckey manuals print a three year warranty on manufactured products and components. Sunrise Canada notes provincial and funding variation.

Chassis and accessories we quote

The quote names the chassis (Hi-Low or Easy), the pelvic harness, laterals, head support, tray, and footing. There is no single stock package and no on-page size radio. The therapist's measurements write the list.

Squiggles or Mygo

Stay with Squiggles when the child is in the early height and weight band and the seat will live on a Hi-Low or Easy chassis at home or school. Move to Mygo when the child needs the 3-14 year (and Size 3) band, or when the seat must mount on a ZIPPIE IRIS mobility base.

• Leckey Mygo Seating System, the next size band and the ZIPPIE interface
• Leckey Everyday Activity Seat, a slimmer everyday therapy chair to 18 years
• Leckey PAL Seating System, a wooden classroom seat for milder needs

Funding help for pediatric seating in Ontario

Funding support may be available for prescribed pediatric seating in Ontario depending on the assessment and the equipment. Talk to the child's therapy team and to us before you buy. March of Dimes Canada, Easter Seals Ontario, Veterans Affairs Canada (VAC), extended health plans, and community programs can help with pediatric equipment. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through.

Delivery and setup in Brampton and the GTA

Westin's own team delivers and sets up this seating system across Brampton and the Greater Toronto Area. We bring it in, assemble the quoted chassis, and show you the harness, tilt, and height pedal before we leave.

We have three stores in the Brampton and Toronto area if you would rather see a therapy seat first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Purchased seats are delivered and set up on a scheduled date.

Configured pediatric seating is not the Canada-wide free ground-shipping offer on smaller goods. If the seat is going outside the GTA, ask us for a freight quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.

Related mobility products from Westin

• Leckey Mygo Seating System, for the next age and height band
• Leckey Squiggles Stander, when the same child also has a standing program
• Leckey Early Activity System, a floor mat for younger infants

Service, repairs, and warranty

When something on the seat needs work, you call the shop that set it up. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.

Leckey manufacturer warranty

Leckey's current owner manuals print a three year warranty on Leckey-manufactured products and components. Sunrise Medical Canada notes that warranty coverage may vary from one province to another depending on funding requirements. We handle the warranty claim with you.

Frequently asked questions

Does ADP cover pediatric seating in Ontario?

Ontario funds positioning devices when they are required for use with a wheelchair. Squiggles on a Hi-Low or Easy chassis is a free-standing therapy seat. Talk to the child's therapy team and call (905) 451-7743 before anyone orders. We will not guess a funding code.

What age is the Leckey Squiggles Seating System for?

Sunrise Medical Canada prints the Squiggles Seating System for children about 1-5 years, 29.5-43.3 inches tall, up to 48.4 lb. The therapist's measurements pick the setup inside that band.

How is Squiggles different from Mygo?

Squiggles is the younger, lighter seat (to 48.4 lb and about 43 in). Mygo starts around 41 in and 40 lb and grows through the school years, including a Size 3 on the Canada card. Mygo is also the Leckey seat Sunrise mounts on a ZIPPIE IRIS base.

Does Squiggles mount on a wheelchair?

The Canada Squiggles card lists a home chair, a school chair, and Hi-Low or Easy chassis. It does not list a ZIPPIE interface. That interface is printed on the Mygo seating card. Ask us if the therapist named a mobility base.

Does the Squiggles seat grow with the child?

Yes, inside the printed band. Back height grows 2.3 inches. An optional shoulder guide adds 3.9 inches. The seat surface grows 3.9 inches in width and depth. After that band, we requote Mygo or another seat.

What is the weight capacity of the Squiggles Seating System?

The Leckey Squiggles Seating System is printed at 48.4 lb (22 kg). Stay inside that figure for the child.

What chassis options does Squiggles have?

Sunrise Canada lists a Hi-Low chassis and an Easy chassis. Hi-Low uses a gas-spring foot pedal and tilts 10 degrees prone / 30 degrees recline. Easy tilts 20 / 20. The quote names one chassis.

Is Squiggles the same as the Squiggles Stander?

No. The Squiggles Seating System is a sitting chair. The Squiggles Stander is a 3-in-1 standing frame in the same age band. They are separate quotes.

What is included with the Leckey Squiggles Seating System?

You get the quoted seat unit, the quoted chassis, and the accessories on the quote. There is no single stock package. Westin Healthcare delivers and sets up across Brampton and the GTA.

What is the warranty on the Squiggles Seating System?

Leckey prints three years on manufactured products and components. Sunrise Canada notes provincial and funding variation. Westin Healthcare processes the claim through our service and repairs page.
