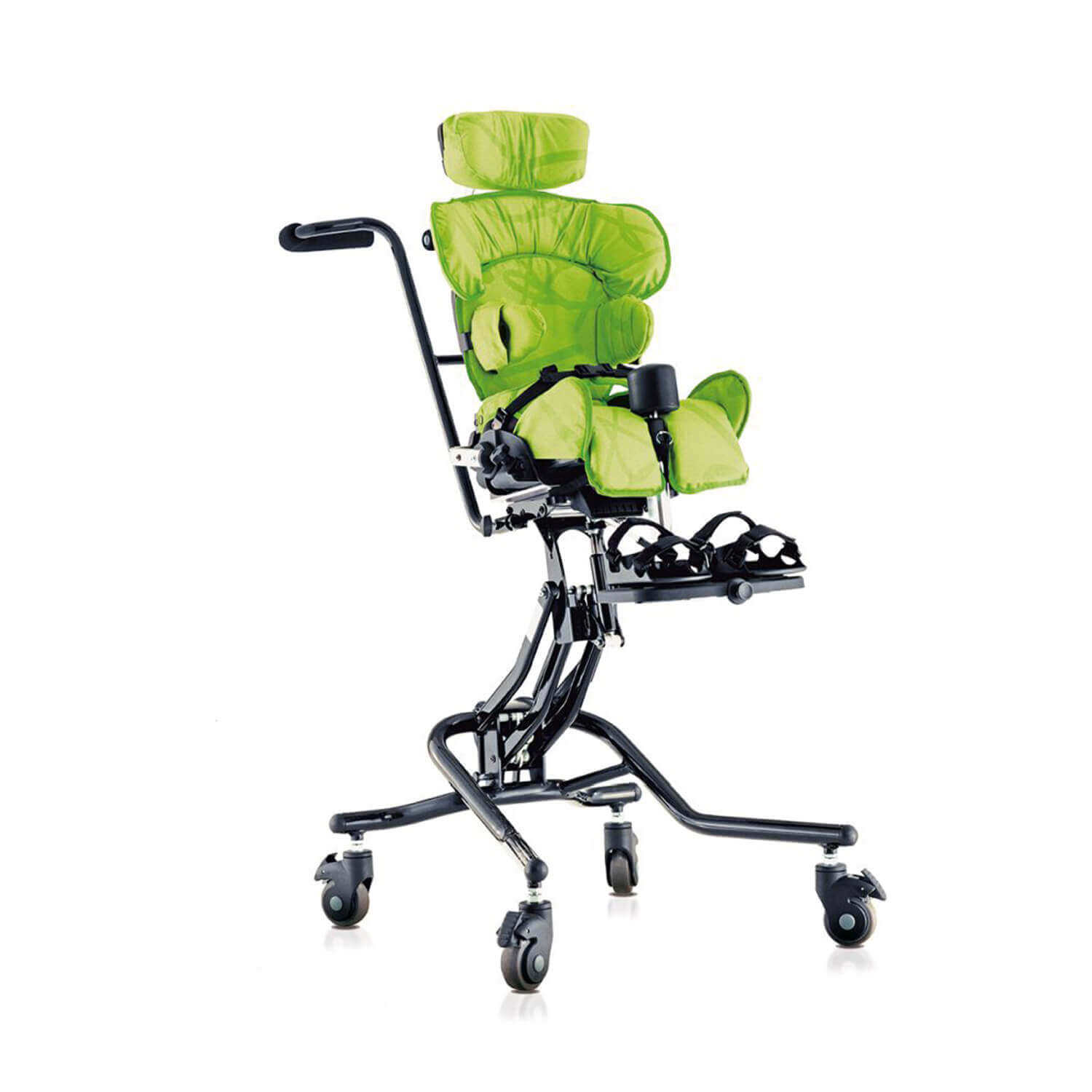

Replacement parts for the Leckey Squiggles Seating System
The exploded view below is numbered. Click a number on the drawing to jump to that part, or search the list. Every price shown is the current online price; anything quoted is priced by our order desk.
Loading the drawing
Squiggles Seat Spare Parts - Hi-Low Chassis

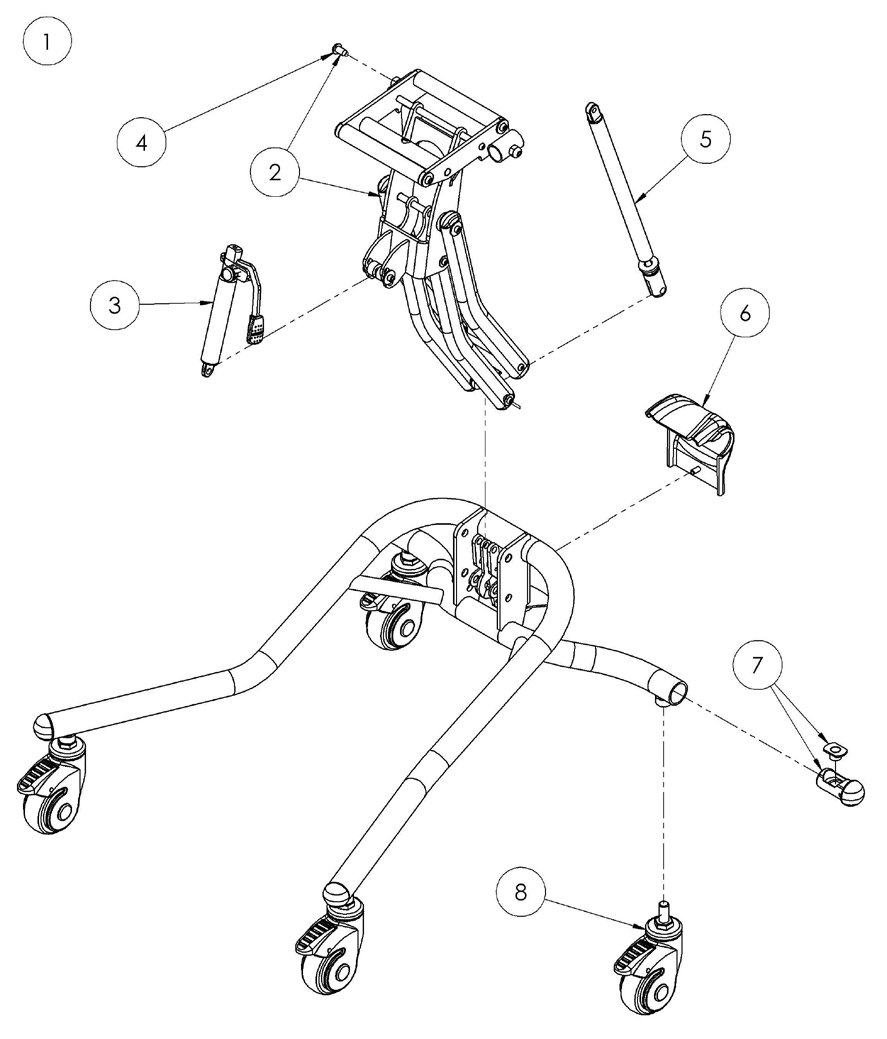

8 partsExploded view from the manufacturer's parts manual (Squiggles Seating System Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | Hi-Low Chassis UnitManufacturer no. 120-800 | 1 | Quote | Ask for a quote |
| 2 | Chassis Arm AssemblyManufacturer no. 120-802 | 1 | Quote | Ask for a quote |
| 3 | Bansback Tilt Spring AssemblyManufacturer no. 120-812 | 1 | Quote | Ask for a quote |
| 4 | M8x20 Button Screw [Single]Manufacturer no. SJ220 | 1 | Quote | Ask for a quote |
| 5 | Lift Spring AssemblyManufacturer no. 120-811 | 1 | Quote | Ask for a quote |
| 6 | Chassis Rear MouldingManufacturer no. 120-373 | 1 | Quote | Ask for a quote |
| 7 | Castor Tube Insert Kit [Single]Manufacturer no. 118-161 | 1 | Quote | Ask for a quote |
| 8 | Castor [Single]Manufacturer no. IA34 | 1 | Quote | Ask for a quote |
Cushion, Laterals & Lateral Covers

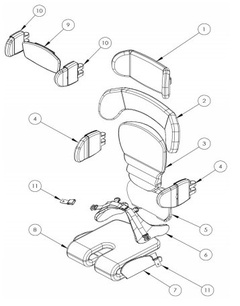

7 partsExploded view from the manufacturer's parts manual (Squiggles Seating System Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | Flat Head Support & Cushion -01 -03 -04 -05Manufacturer no. 117-851-XX | 1 | Quote | Ask for a quote |
| 2 | Flat Headrest Support (Hardware Only)Manufacturer no. 117-697 | 1 | Quote | Ask for a quote |
| 3 | Wing Nut AssemblyManufacturer no. 137-9056 | 1 | Quote | Ask for a quote |
| 4 | Flat Headrest Cover -01 -03 -04 -05Manufacturer no. 117-850-XX | 1 | Quote | Ask for a quote |
| 5 | Flat Headrest Laterals & Covers [Pair] -01 -03 -04 -05Manufacturer no. 120-893-XX | 1 | Quote | Ask for a quote |
| 6 | Flat Headrest Lateral Bracket [Pair]Manufacturer no. 118-667 | 1 | Quote | Ask for a quote |
| 7 | Headrest / Hip Laterals Covers [Pair] -01 -03 -04 -05Manufacturer no. 137-807-XX | 1 | Quote | Ask for a quote |
Exploded view, page 4
5 partsExploded view from the manufacturer's parts manual (Squiggles Seating System Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | Shoulder Support AssemblyManufacturer no. 120-702 | 1 | Quote | Ask for a quote |
| 2 | Shoulder Wings [Pair]Manufacturer no. 120-706 | 1 | Quote | Ask for a quote |
| 3 | Taperlock Adjustment Bolt KitManufacturer no. SP-1016 | 1 | Quote | Ask for a quote |
| 4 | Shoulder Attachment Bolt KitManufacturer no. SP-1015 | 1 | Quote | Ask for a quote |
| 5 | Shoulder Cushion -01 -03 -04Manufacturer no. 120-828-XX | 1 | Quote | Ask for a quote |
Squiggles Seat Spare Parts - Backrest Assembly
13 partsExploded view from the manufacturer's parts manual (Squiggles Seating System Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | Backrest AssemblyManufacturer no. 120-645 | 1 | Quote | Ask for a quote |
| 2 | Head Support Ratchet Assembly [Single]Manufacturer no. SP-1020 | 1 | Quote | Ask for a quote |
| 3 | Head Support Collar [Single]Manufacturer no. 118-166 | 1 | Quote | Ask for a quote |
| 4 | Whitmyer Casting AssemblyManufacturer no. 120-9005 | 1 | Quote | Ask for a quote |
| 5 | Backrest Adjustment AssemblyManufacturer no. 120-9002 | 1 | Quote | Ask for a quote |
| 6 | Backrest Angle HandleManufacturer no. 120-9059 | 1 | Quote | Ask for a quote |
| 7 | LH Hip Guide Bracket AssemblyManufacturer no. 120-678 | 1 | Quote | Ask for a quote |
| 8 | RH Hip Guide Bracket AssemblyManufacturer no. 120-679 | 1 | Quote | Ask for a quote |
| 9 | Hip Guide Locking Assembly [Single]Manufacturer no. 120-9003 | 1 | Quote | Ask for a quote |
| 10 | Backrest Pivot Mould [Single]Manufacturer no. 120-190 | 1 | Quote | Ask for a quote |
| 11 | Pelvic Harness Strap [Single]Manufacturer no. 117-749 | 1 | Quote | Ask for a quote |
| 11 | Pelvic Harness Attachment Kit [Pair]Manufacturer no. 120-9004 | 1 | Quote | Ask for a quote |
| 12 | Seatbase Attachment Screw Kit [Single]Manufacturer no. SP-1014 | 1 | Quote | Ask for a quote |
Exploded view, page 6

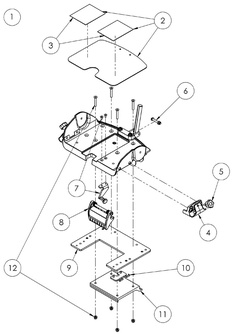

12 partsExploded view from the manufacturer's parts manual (Squiggles Seating System Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | Static Seatbase & Seat Interface AssemblyManufacturer no. 120-666 | 1 | Quote | Ask for a quote |
| 2 | Seatbase ShelfManufacturer no. 120-851 | 1 | Quote | Ask for a quote |
| 3 | Seatbase Shelf VelcroManufacturer no. 120-9013 | 1 | Quote | Ask for a quote |
| 4 | Tray Holder Assembly [Single]Manufacturer no. 120-9006 | 1 | Quote | Ask for a quote |
| 5 | Tray Holder Knob Assembly [Single]Manufacturer no. 120-9007 | 1 | Quote | Ask for a quote |
| 6 | Back Angle Bar Screw KitManufacturer no. SP-1013 | 1 | Quote | Ask for a quote |
| 7 | Interface Pin AssemblyManufacturer no. 120-9017 | 1 | Quote | Ask for a quote |
| 8 | Interface Handle AssemblyManufacturer no. 120-9016 | 1 | Quote | Ask for a quote |
| 9 | Interface Aluminium PlateManufacturer no. 120-387 | 1 | Quote | Ask for a quote |
| 10 | Long Sitting Spacer Plate AssemblyManufacturer no. 120-9008 | 1 | Quote | Ask for a quote |
| 11 | Interface PlateManufacturer no. 120-326 | 1 | Quote | Ask for a quote |
| 12 | Interface Attachment Screw KitManufacturer no. SP-1018 | 1 | Quote | Ask for a quote |
Squiggles Seat Spare Parts - Sliding Seatbase
4 partsExploded view from the manufacturer's parts manual (Squiggles Seating System Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | Sliding Seatbase AssemblyManufacturer no. 120-634 | 1 | Quote | Ask for a quote |
| 2 | Seatbase Attachment ScrewsManufacturer no. 120-643 | 1 | Quote | Ask for a quote |
| 3 | Pommel, Pin & Lanyard Complete AssemblyManufacturer no. 120-641 | 1 | Quote | Ask for a quote |
| 4 | Pin & LanyardManufacturer no. 120-162 | 1 | Quote | Ask for a quote |
Exploded view, page 8
6 partsExploded view from the manufacturer's parts manual (Squiggles Seating System Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | Rigid Laterals [Pair]Manufacturer no. 120-656 | 1 | Quote | Ask for a quote |
| 2 | Lateral [Single]Manufacturer no. 118-049 | 1 | Quote | Ask for a quote |
| 3 | Lateral Bracket & Screw Kit [Single]Manufacturer no. 120-9032 | 1 | Quote | Ask for a quote |
| 4 | Harness Buckle Attachment [Single]Manufacturer no. 117-700 | 1 | Quote | Ask for a quote |
| 5 | Angle Lock Assembly [Single]Manufacturer no. 120-9027 | 1 | Quote | Ask for a quote |
| 6 | Lateral Covers [Pair] -01 -03 -04Manufacturer no. 120-838-XX | 1 | Quote | Ask for a quote |
Exploded view, page 9
6 partsExploded view from the manufacturer's parts manual (Squiggles Seating System Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | Flipaway Laterals [Pair]Manufacturer no. 120-855 | 1 | Quote | Ask for a quote |
| 2 | Lateral [Single]Manufacturer no. 118-049 | 1 | Quote | Ask for a quote |
| 3 | Lateral Bracket & Screw Kit [Single]Manufacturer no. 120-9035 | 1 | Quote | Ask for a quote |
| 4 | Harness Buckle Attachment [Single]Manufacturer no. 117-700 | 1 | Quote | Ask for a quote |
| 5 | Angle Lock Assembly [Single]Manufacturer no. 120-9027 | 1 | Quote | Ask for a quote |
| 6 | Lateral Covers [Pair] -01 -03 -04Manufacturer no. 120-838-XX | 1 | Quote | Ask for a quote |
Squiggles Seat Spare Parts - Protraction Pads
9 partsExploded view from the manufacturer's parts manual (Squiggles Seating System Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | Protraction Pads [Pair]Manufacturer no. 120-954 | 1 | Quote | Ask for a quote |
| 2 | Lateral [Single]Manufacturer no. 117-176 | 1 | Quote | Ask for a quote |
| 3 | LH Lateral Bracket & Screw Kit [Single]Manufacturer no. 120-9057 | 1 | Quote | Ask for a quote |
| 3 | RH Lateral Bracket & Screw Kit [Single]Manufacturer no. 120-9056 | 1 | Quote | Ask for a quote |
| 4 | Harness Buckle Attachment [Single]Manufacturer no. 117-700 | 1 | Quote | Ask for a quote |
| 5 | Angle Lock Assembly [Single]Manufacturer no. 120-9027 | 1 | Quote | Ask for a quote |
| 6 | Protraction Pads with Covers [Pair]Manufacturer no. 120-9058 | 1 | Quote | Ask for a quote |
| 7 | Protraction Pads Covers - Black [Pair]Manufacturer no. 137-295 | 1 | Quote | Ask for a quote |
| 8 | Lateral Covers [Pair] -05 -05VINManufacturer no. 137-806-XX | 1 | Quote | Ask for a quote |
Squiggles Seat Spare Parts - Upholstery
12 partsExploded view from the manufacturer's parts manual (Squiggles Seating System Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | Contoured Headrest Cushion -05Manufacturer no. 137-800-XX | 1 | Quote | Ask for a quote |
| 2 | Shoulder CushionManufacturer no. 120-828-XX | 1 | Quote | Ask for a quote |
| 3 | Backrest CushionManufacturer no. 120-845-XX | 1 | Quote | Ask for a quote |
| 4 | Lateral Covers [Pair]Manufacturer no. 120-838-XX | 1 | Quote | Ask for a quote |
| 5 | Sacral CushionManufacturer no. 120-833-XX | 1 | Quote | Ask for a quote |
| 6 | Pelvic Harness SmallManufacturer no. 120-844-XX | 1 | Quote | Ask for a quote |
| 6 | Pelvic Harness Medium -05Manufacturer no. 117-848-XX | 1 | Quote | Ask for a quote |
| 7 | 1-Piece Femoral GuideManufacturer no. 120-836-XX | 1 | Quote | Ask for a quote |
| 8 | Seat Base CushionManufacturer no. 120-834-XX | 1 | Quote | Ask for a quote |
| 9 | Flat Headrest Cover -05Manufacturer no. 117-850-XX | 1 | Quote | Ask for a quote |
| 10 | Headrest / Hip Laterals Covers [Pair] -05Manufacturer no. 137-807-XX | 1 | Quote | Ask for a quote |
| 11 | Pelvic Harness Attachment KitManufacturer no. 120-9004 | 1 | Quote | Ask for a quote |
