Description

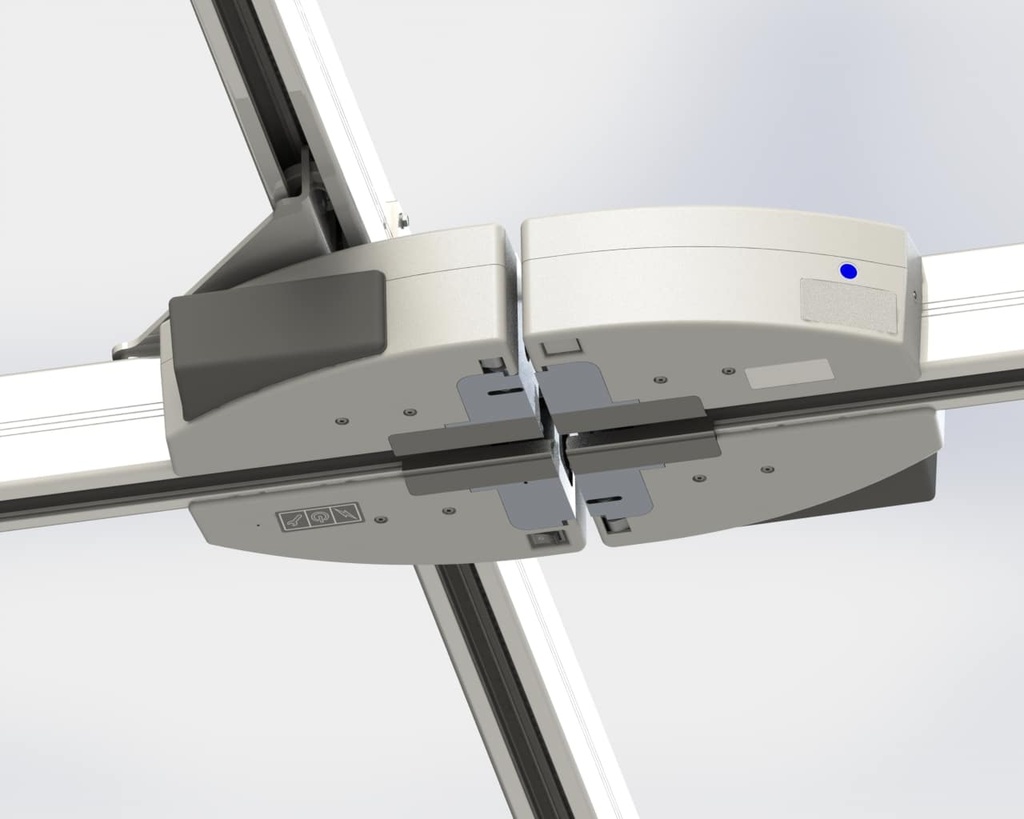

The Savaria Ceiling Track Bridge joins a mobile X-Y rail to a fixed rail so a portable or fixed Savaria ceiling lift can travel both routes. Westin Healthcare quotes the bridge, plans it with the track layout, and installs it across Brampton and the Greater Toronto Area. This is ceiling-track hardware. It is not a wheelchair-ramp bridge and it is not a track turntable.
Savaria prints two codes. M92940x is 272 kg (600 lb). M92942x is the bariatric bridge at 544 kg (1200 lb). Both need Savaria ceiling track, a Savaria ceiling lift, and the magnetic block that ships with the bridge.
Which lifts and tracks this fits
Savaria's owner's manual (001300-EN) says the bridge is for portable, fixed, and bariatric ceiling lifts that carry the supplied magnetic block, on Savaria ceiling track only. It does not work with a constant-charge CCR motor or with a portable swivel trolley.
- M92940x (600 lb) matches a 450 lb or 600 lb motor that is not on CCR, including the Handicare C450, the Handicare A450, and a docking-charge Savaria M-Series.
- M92942x (1200 lb) is the code when the motor is above 600 lb, including the Handicare C625.
- A portable such as the Handicare AP300 or the Savaria Monarch needs the magnetic block on a non-swivel trolley.
The installed system is limited by the lowest rating among the bridge, the lift, the track, and the sling. The Handicare FST-300 gantry does not take this bridge. A turntable is a different Savaria part.
Savaria Ceiling Track Bridge specifications
These figures are from Savaria's live Bridge card and owner's manual 001300-EN, Rev. 007. They are not the turntable sheet.
Product weight 9.8 kg (21.6 lb). Safe working load 272 kg (600 lb) or 544 kg (1200 lb). Housing 264 mm (10-3/8 in) across the rail, 94.3 mm (3-11/16 in) tall, each half 245 mm (9-5/8 in) along the rail. Replaceable lithium-ion pack 25.2 V, 2500 mAh. Charger 100-240 VAC in, 29.4 V DC out, max 1 A. IP20. Noise at or under 54 dBA. Duty 1 minute continuous, max 10%. Product life 10 years. ISO 10535:2021 and CAN/CSA Z10535.1:15. The IFU does not print a warranty year count.
Bridge rating
Use Bridge rating for Track Bridge 600 lb (M92940x) or Track Bridge Bariatric 1200 lb (M92942x). Track, motor, carry bar, and slings are quoted with the room. Call (905) 451-7743 for a layout and a written quote.
Delivery and setup in Brampton and the GTA
Westin's own team delivers and installs the Savaria Ceiling Track Bridge across Brampton and the Greater Toronto Area. We set it on the Savaria track with the matching motor, then show you the lock, unlock, and on/off switch.
We have three stores in the Brampton and Toronto area if you would rather see a ceiling-track layout first. For a scheduled in-home setup, call (905) 451-7743. Purchased track hardware is installed on a scheduled date.
Ceiling track is oversized. The Canada-wide free ground-shipping offer on smaller goods does not apply. If the system is going outside the GTA, ask us for a freight quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.
Warranty
When something on the bridge needs work, you call the shop that set it up. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.
Savaria Track Bridge product life
Savaria prints a 10-year product life on the Track Bridge card and in the owner's manual, after which the device must be replaced. The manual requires dealer maintenance on the published schedule. The IFU does not print a separate warranty year count. We handle the claim with you.
Frequently asked questions
What Does The Savaria Ceiling Track Bridge Do?
The Savaria Ceiling Track Bridge locks a mobile X-Y rail to a neighbouring fixed rail so the ceiling lift can travel both routes without coming off the track. Typical use is a bedroom grid to a bathroom rail.
Which Ceiling Lifts Does It Fit?
The Savaria Ceiling Track Bridge fits Savaria portable, fixed, and bariatric ceiling lifts that carry the supplied magnetic block, on Savaria ceiling track. That includes a docking-charge C450, A450, or M-Series at or under 600 lb on M92940x, and a C625 or bariatric cabin on M92942x.
Does It Work With A Constant-Charge (CCR) Motor?
No. Savaria's owner's manual says the Track Bridge is not compatible with the constant charging system CCR on fixed and bariatric lifts.
Which Code Do I Need, 600 Lb Or 1200 Lb?
Use M92940x on the Savaria Ceiling Track Bridge for a motor at or under 600 lb. Use M92942x when the motor is above 600 lb, including the 625 lb C625. The installed system still uses the lowest rating among bridge, motor, track, and sling.
Is This The Same As A QRamp Bridge Section?
No. The Savaria Ceiling Track Bridge is ceiling-track hardware. QRamp modules are wheelchair-ramp pieces on a different listing.
How Is A Track Bridge Different From A Track Turntable?
The Savaria Ceiling Track Bridge joins an X-Y rail to a fixed rail, like a gate between rooms. A turntable sits at a crossing and turns the lift onto the other rail. They are different Savaria parts.
Can I Install The Bridge Myself?
No. Savaria requires an authorized dealer to install the track system and the bridge. Westin Healthcare does that install in the GTA.
What Is The Product Life?
Savaria prints 10 years on the Track Bridge, then the device must be replaced. Keep the dealer inspections in the owner's manual. Call (905) 451-7743 if a light on the housing asks for service.
Specifications
| Model | Track Bridge / Track Bridge Bariatric (X-Y rail to fixed rail) |
|---|---|
| Brands | Savaria |
| Product Weight | 9.8 kg (21.6 lb) |
| Dimensions | 264 mm across rail; each half 245 mm along rail; housing 94.3 mm tall |
| Safe Working Load | 272 kg (600 lb) on M92940x; 544 kg (1200 lb) on M92942x |
| Compatibility | Savaria portable, fixed, bariatric lifts with magnetic block, on Savaria track |
| Does Not Fit | CCR motors; portable swivel trolley; no magnetic block; non-Savaria track; gantries |
| Function | Joins a mobile X-Y rail to a fixed rail so a portable or fixed ceiling lift can travel both routes |
| Standards | ISO 10535:2021; CAN/CSA Z10535.1:15 |
| Charger | 100-240 VAC, 50-60 Hz in; 29.4 VDC, max 1 A out |
| Manufacturer Codes | M92940x (600 lb); M92942x (1200 lb) |
| What Is Included | Track Bridge pair (mobile Primary and fixed Secondary) and the magnetic block kit |
| Intended Setting | Home care, assisted living, and hospital rooms with a Savaria X-Y rail and a neighbouring fixed rail |
| Country of Support | Savaria Concord Lifts, Inc., 2 Walker Drive, Brampton, Ontario |
| Product Life | 10 years |
| Power Source | Lithium-ion 25.2 V, 2500 mAh, replaceable |
| Ingress / Noise / Duty | IP20; max 54 dBA; max 10% duty, 1 min continuous use |
