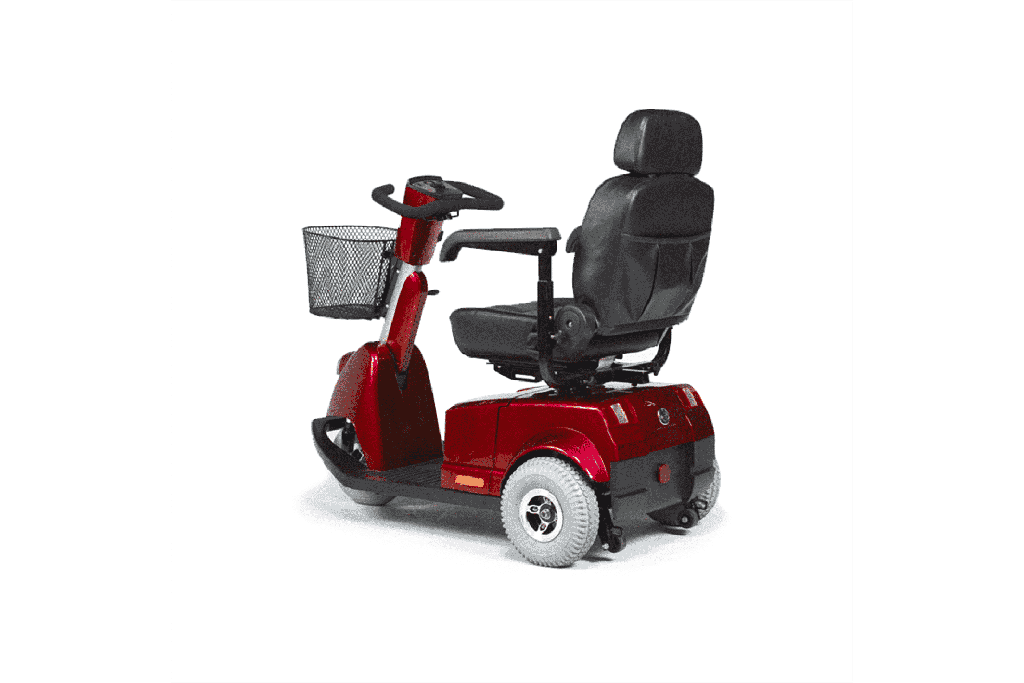

Fortress 1700-DT 3-Wheel Scooter

(0 review)

The Fortress 1700-DT 3-Wheel Scooter is a Canadian mid-size 3-wheel mobility scooter with a Duro-Torque 4-pole drive, a 350 lb (159 kg) rating, a 5.5 mph (8.9 km/h) top speed, and a range of up to 30 miles (50 km) on Group 22 batteries. Sunrise no longer takes new 1700 factory orders. The current Fortress models are the S410, S425, and S700.

Weight capacityTop speedRangeTurning radiusWarranty
350 lbs (159 kg)5.5 mph (8.9 km/h)Up to 30 miles (50 km)42"Lifetime frame weldment; 3 yr DT drive; 2 yr electronics

What is included? The Fortress 1700-DT 3-wheel scooter with the Duro-Torque drive, deluxe extra-large front basket, captain seat, delta tiller, and deluxe light package. Group 22 batteries are sold separately. Westin Healthcare delivers and sets it up across Brampton and the GTA.

Discontinued

This product has been discontinued

It is no longer available to order. See what we carry today, or contact us and we will help you find the right match.

Description

The Fortress 1700-DT 3-wheel scooter is a Canadian mid-size mobility scooter with Sunrise Medical Canada's Duro-Torque drive. Westin Healthcare sells it, delivers it, and sets it up for homes in Brampton and the Greater Toronto Area.

This is the 3-wheel DT trim (SKU family HC-018433, ADP code WS1FS0015), not the transaxle TA trim and not the 4-wheel DT. Sunrise has stopped making the 1700 series. Westin still services the 1700-DT. For a new factory Fortress, the current CA lineup is the S410, the S425, and the S700. The 1700-DT is rated at 350 lbs (159 kg), 5.5 mph (8.9 km/h), and up to 30 miles (50 km) per charge on Group 22 batteries. Those batteries are sold separately.

Who this scooter is for

This scooter is for a person who wants a mid-size 3-wheel for mixed indoor and outdoor use on hard, reasonably flat ground, and who fits a 350 lb rating and an 18 inch captain seat. Families usually call us when a travel scooter feels too small and a full-size 15 km/h scooter feels too large.

If you want the same DT drive with a wider stance, see the Fortress 1700-DT 4-wheel scooter. If you want a current factory 4-wheel with a tight turn, start with the Fortress S410. If you need a scooter that folds for a car trunk or a flight, start with the Solax Transformer folding scooter. The 1700-DT is not a folding travel scooter.

  • Mid-size 3-wheel for neighbourhood streets, shops, and wider indoor halls
  • 350 lb (159 kg) rating and a 42 inch turning radius
  • Duro-Torque 4-pole drive, not the TA transaxle

Range, speed, and batteries

The 1700-DT has a top speed of 5.5 mph (8.9 km/h) and a theoretical maximum distance of up to 30 miles (50 km) per charge. That range figure varies with rider weight, tire condition, terrain, battery charge, and battery condition.

The battery bay takes two U-1 / Group 22 gel batteries, 40 Ah. They are sold separately. Charge after each full day of use. The minimum charge time for gel batteries is about 8 hours, and most packs reach about 80 percent after 8 to 12 hours. Charge at least once a week if you only ride occasionally. In winter, capacity drops to about 75 percent in light frost and to about 50 percent below -5 C, which shortens range. Keep the batteries fully charged. Do not run them flat.

Portability and transport

The Fortress 1700-DT 3-wheel scooter is a mid-size machine, not a suitcase scooter. It weighs 160 lbs (73 kg) without batteries. When the scooter is separated, the heaviest piece is 65 lbs (29 kg). The tiller folds. The seat lifts off. Westin delivers and assembles it; do not plan to lift the whole scooter into a car by yourself.

If the assembled scooter fits in a suitable vehicle, do not use it as a passenger seat, do not lift it by the plastic covers, and secure it so it is not in freewheel. This is not an airline scooter. Lead-acid Group 22 batteries are not a cabin lithium pack.

Fortress 1700-DT 3-wheel scooter specifications

These figures are for the Fortress 1700-DT 3-wheel (HC-018433).

Weight capacity 350 lbs (159 kg). Top speed 5.5 mph (8.9 km/h). Range up to 30 miles (50 km). Turning radius 42 inches. Overall length 47.5 inches. Overall width 24.5 inches. Ground clearance 4 inches. Obstacle height 3 inches. Tires 10 x 3 inches, pneumatic, 50 psi. Captain seat 18 inches wide by 17.5 inches deep. Seat height to the floor pan 17, 18, or 19 inches (17 inches by removing the seat slider). Weight without batteries 160 lbs (73 kg). Heaviest piece 65 lbs (29 kg). Charger 8 amp off-board. Controller 70 to 90 amp.

Colours are Continental Red, Midnight Blue, and Classic Black. The high-back captain seat is not available on 3-wheel models.

Color

Use Color to pick Black, Blue, or Red. Sunrise names them Classic Black, Midnight Blue, and Continental Red.

3-wheel or 4-wheel Fortress 1700-DT

The 3-wheel DT turns in 42 inches and weighs 160 lbs without batteries. The 4-wheel DT turns in 57.5 inches, weighs 171 lbs without batteries, and uses the 19.75 inch high-back captain seat as standard. Speed, range, capacity, and the Duro-Torque drive are the same. Choose 3-wheel if doorways and indoor turns come first. Choose 4-wheel if you want the wider stance outdoors. Both are mid-size. Neither is a folding travel scooter.

For a new factory Fortress, the current CA 4-wheels are the S410 (58.2 in turn, 34 km range), the S425 (12 km/h outdoor), and the S700 (15 km/h outdoor). There is no current 3-wheel S-series.

Funding help for a mobility scooter in Ontario

Ontario's Assistive Devices Program (ADP) can fund 75% of the ADP-approved price of a mobility scooter when the need is long-term and the scooter is prescribed through an assessment by an ADP-registered occupational therapist or physiotherapist, and some income-support programs cover the full cost. Not every scooter qualifies. Veterans Affairs Canada (VAC) and community programs can also help. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through.

Delivery and setup in Brampton and the GTA

Westin's own team delivers and sets up the Fortress 1700-DT 3-wheel scooter across Brampton and the Greater Toronto Area. We bring it in, assemble it, and show you the tiller, charger, and freewheel lever before we leave.

You are welcome to visit our Brampton showroom, or Mobility Specialties, our partner store in Etobicoke, if you would rather see a mid-size 3-wheel first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased scooters are delivered and set up on a scheduled date.

This mobility scooter is oversized. The Canada-wide free ground-shipping offer on smaller goods does not apply. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.

Related mobility scooters from Westin

Service and warranty

When something on the scooter needs work, you call the shop that set it up, not a distant parts desk. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.

Sunrise Medical Fortress warranty for the Fortress 1700-DT 3-Wheel Scooter (WS1FS0015)

Sunrise Medical Canada's warranty for the original purchaser is lifetime on the main frame weldment, 3 years non-prorated on the Duro-Torque motor and differential and on the tiller structure, 2 years non-prorated on the controller, wiring, electronics, and charger, 1 year on the seat assembly, and 1 year on DT differential bearings. Batteries follow the battery maker's warranty. Tires, tubes, plastic covers, the basket, bulbs, and upholstery are wear items. Labour and shipping sit outside that term. Prolonged rain or snow is treated as abuse. We handle the claim with you. It needs an annual service inspection.

Frequently asked questions

How far can a mobility scooter go for the Fortress 1700-DT 3-Wheel Scooter (WS1FS0015)?

The Fortress 1700-DT 3-wheel scooter is rated at up to 30 miles (50 km) per charge. Real range shortens with rider weight, soft tires, hills, cold, and aging Group 22 batteries.

How long does a mobility scooter take to charge for the Fortress 1700-DT 3-Wheel Scooter (WS1FS0015)?

The Fortress 1700-DT uses two gel Group 22 batteries. The minimum charge is about 8 hours, and most packs reach about 80 percent after 8 to 12 hours. Charge after each full day, or at least once a week if you ride less often.

Can I take a mobility scooter on a plane for the Fortress 1700-DT 3-Wheel Scooter (WS1FS0015)?

The Fortress 1700-DT 3-wheel scooter is not an airline travel scooter. It is a 160 lb mid-size chassis plus two Group 22 gel batteries. Tell the airline only if you are shipping freight. For a folding lithium scooter, see the Solax Transformer.

Does ADP cover scooters for the Fortress 1700-DT 3-Wheel Scooter (WS1FS0015)?

Ontario's Assistive Devices Program can help fund a power scooter after an ADP-registered therapist assessment. The Fortress 1700-DT 3-wheel carries device code WS1FS0015. Eligibility is personal. The funding section above is the starting point.

3 wheel vs 4 wheel scooter for the Fortress 1700-DT 3-Wheel Scooter (WS1FS0015)?

A 3-wheel mobility scooter turns tighter. The Fortress 1700-DT 3-wheel turns in 42 inches. The 4-wheel DT turns in 57.5 inches and sits on a wider stance. Speed, range, and the 350 lb rating are the same on both DT trims.

Can you use a mobility scooter in the rain for the Fortress 1700-DT 3-Wheel Scooter (WS1FS0015)?

The Fortress 1700-DT can be driven carefully on wet pavement. Go slowly on rain, ice, or snow, keep salt water and sand off the scooter, and do not spray or pour water on it. Store it clean and dry. Prolonged rain or snow voids the warranty as abuse.

Do mobility scooters work in winter for the Fortress 1700-DT 3-Wheel Scooter (WS1FS0015)?

The Fortress 1700-DT can be used in cold weather with care. Light frost cuts battery capacity to about 75 percent, and below -5 C capacity is about 50 percent, so range falls. Keep it off road salt.

What is the weight limit for a mobility scooter for the Fortress 1700-DT 3-Wheel Scooter (WS1FS0015)?

The Fortress 1700-DT 3-wheel scooter is rated at 350 lbs (159 kg). Stay at or under that figure. The TA trim is a different, lower rating and is not this product.

How wide is a mobility scooter for the Fortress 1700-DT 3-Wheel Scooter (WS1FS0015)?

The Fortress 1700-DT 3-wheel scooter is 24.5 inches wide and 47.5 inches long. Measure doorways and lifts against those numbers, plus the rider's elbows on the armrests (18 to 24 inches between arms).

Can a mobility scooter go in a car trunk for the Fortress 1700-DT 3-Wheel Scooter (WS1FS0015)?

The Fortress 1700-DT 3-wheel scooter is not a trunk-fold travel scooter. It can be taken apart (heaviest piece 65 lbs), or loaded assembled into a suitable vehicle with proper tie-downs. Westin delivers it so you do not have to lift it.

Is the Fortress 1700 discontinued for the Fortress 1700-DT 3-Wheel Scooter (WS1FS0015)?

Yes. Sunrise no longer makes it. Westin Healthcare still services the 1700-DT 3-wheel. The current factory Fortress lineup is the S410, S425, and S700.

Specifications

Seat Height 17", 18", or 19" to floor pan; 17" by removing seat slider
Seat Width 20"
Seat Depth 20"
Brands Fortress
Warranty Lifetime main frame weldment; 3 yr DT drive; 2 yr electronics and charger; 1 yr seat
Weight Capacity 350 lbs (159 kg)
Drive Terrain Type Rear Wheel Drive
Foldable No
Ground Clearance 4"
Top Speed 5.5 mph (8.9 km/h)
Turning Radius 42"
Wheel Size 10" x 3" pneumatic, 50 psi
Scooter Type 3 Wheel Scooter
Scooter Weight 160 lbs (73 kg) without batteries
Overall Length 47.5"
Overall Width 24.5"
Battery Charger 8A Off-board
Heaviest Piece 65 lbs (29 kg) when separated
Battery Two U-1 / Group 22 gel, 40 Ah; batteries sold separately
Freshness 1700 series no longer available to order; current CA Fortress is S410, S425, S700
ADP Device Code WS1FS0015 Category 1
Drive System Duro-Torque, extra-large 4-pole, 70A-90A controller
Obstacle Height 3"
