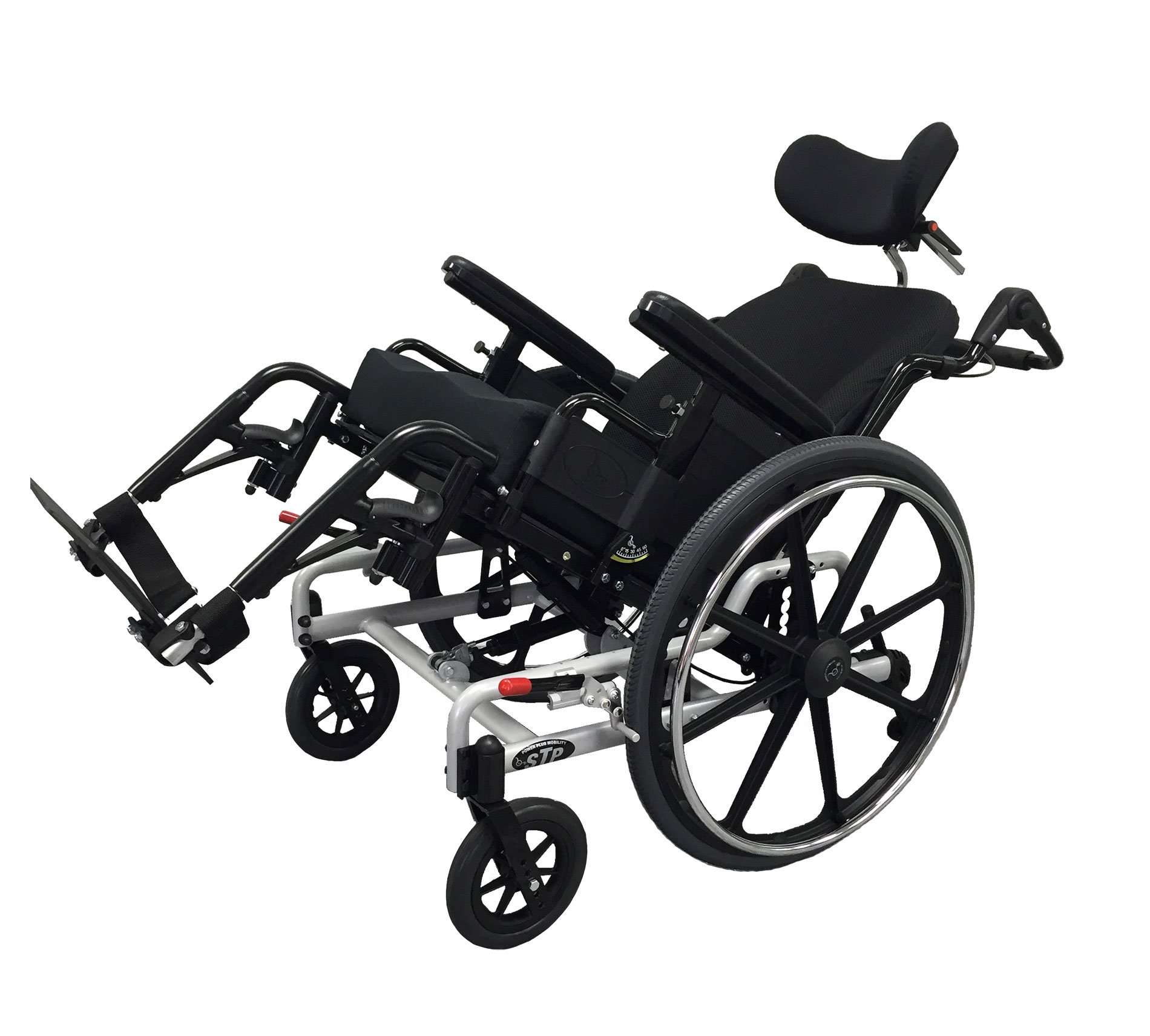

STP Tilt Wheelchair by Power Plus Mobility

Parts finder

Replacement parts for the STP Tilt Wheelchair by Power Plus Mobility

The exploded view below is numbered. Click a number on the drawing to jump to that part, or search the list. Every price shown is the current online price; anything quoted is priced by our order desk.

Ask about a part Product page 968 parts listed

Showing all 968 parts

1 of 84
Exploded view of the Supertilt Plus - Upper Frame

Loading the drawing

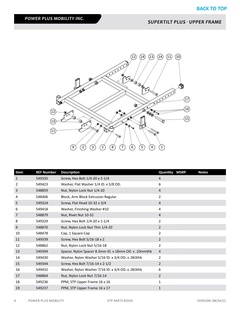

Supertilt Plus - Upper Frame. Numbers match the list.
Supertilt Plus - Upper Frame (Recline). Numbers match the list.
Supertilt Plus - Lower Frame. Numbers match the list.
Supertilt Plus - Lower Frame (Inside Mount). Numbers match the list.
Supertilt Plus - Lower Frame (Attendant. Numbers match the list.

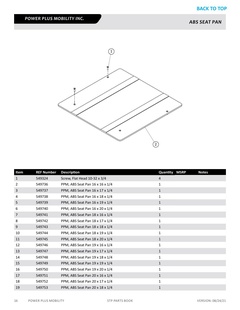

Abs Seat Pan. Numbers match the list.

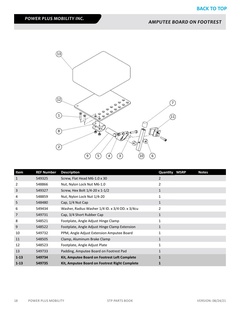

Amputee Board On Footrest. Numbers match the list.

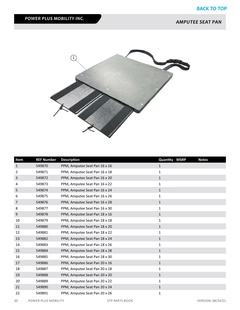

Amputee Seat Pan. Numbers match the list.

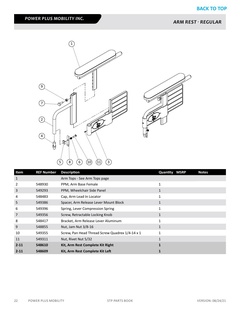

Arm Rest - Regular. Numbers match the list.

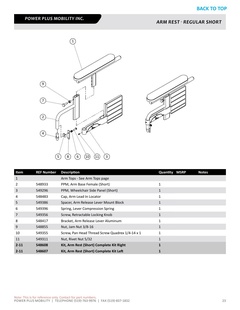

Arm Rest - Regular Short. Numbers match the list.

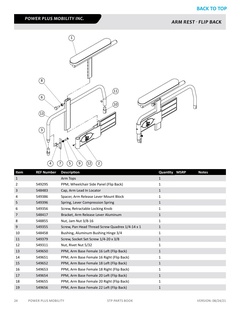

Arm Rest - Flip Back. Numbers match the list.

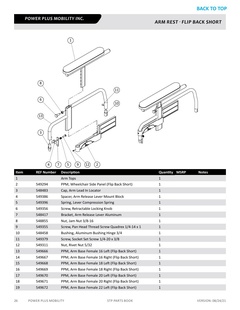

Arm Rest - Flip Back Short. Numbers match the list.

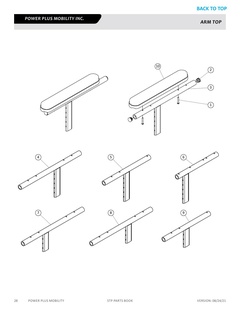

Arm Top. Numbers match the list.

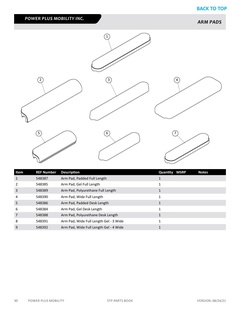

Arm Pads. Numbers match the list.
Arm Block - Standard. Numbers match the list.

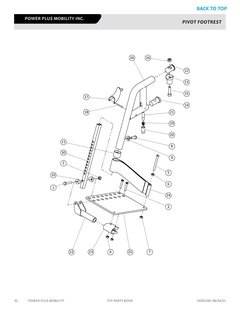

Pivot Footrest. Numbers match the list.

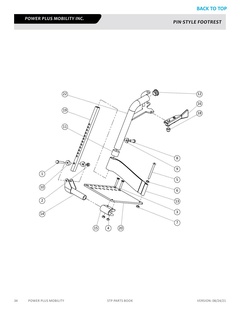

Pin-Style Footrest. Numbers match the list.
Elevating Legrest Pivot. Numbers match the list.

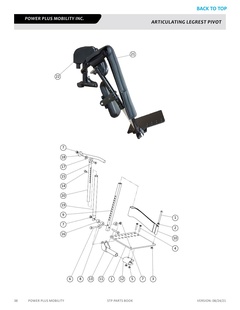

Articulating Legrest Pivot. Numbers match the list.
Elevating Legrest Pin-Style. Numbers match the list.

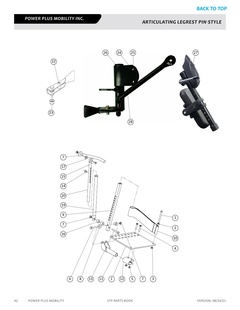

Articulating Legrest Pin-Style. Numbers match the list.

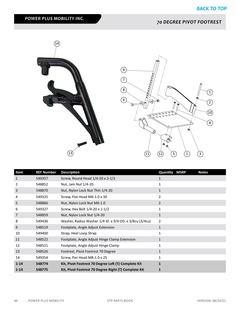

70 Degree Pivot Footrest. Numbers match the list.
One Piece Foot Board. Numbers match the list.

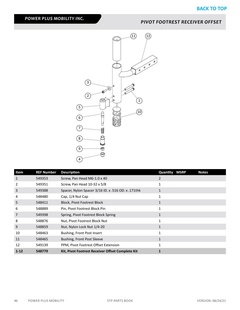

Pivot Footrest Receiver Offset. Numbers match the list.

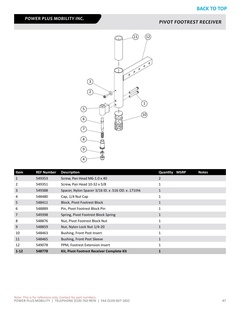

Pivot Footrest Receiver. Numbers match the list.

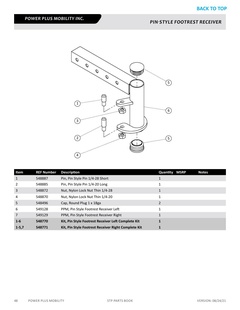

Pin-Style Footrest Receiver. Numbers match the list.

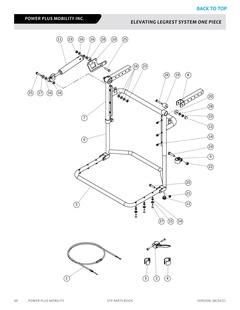

Elevating Legrest System One Piece. Numbers match the list.

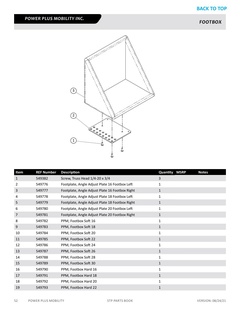

Footbox. Numbers match the list.

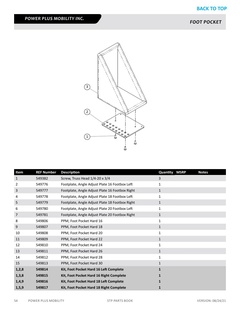

Foot Pocket. Numbers match the list.

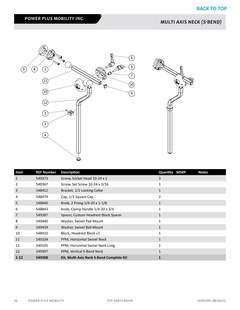

Multi Axis Neck (S-Bend). Numbers match the list.

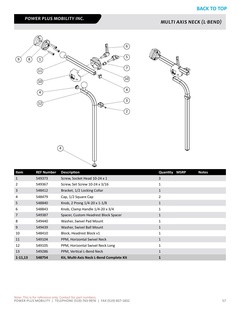

Multi Axis Neck (L-Bend). Numbers match the list.
Vertical Horizontal Neck 1/2. Numbers match the list.
Vertical Horizontal Neck 3/4. Numbers match the list.

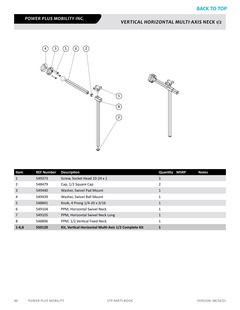

Vertical Horizontal Multi-Axis Neck 1/2. Numbers match the list.

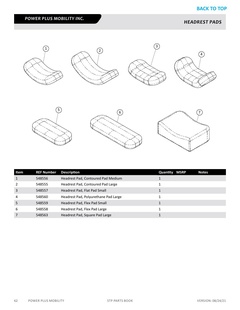

Headrest Pads. Numbers match the list.

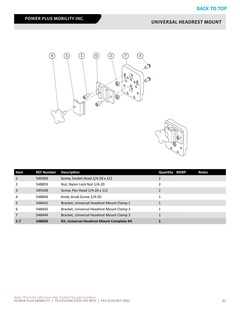

Universal Headrest Mount. Numbers match the list.

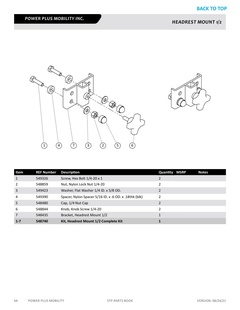

Headrest Mount 1/2. Numbers match the list.

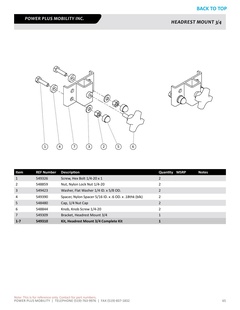

Headrest Mount 3/4. Numbers match the list.

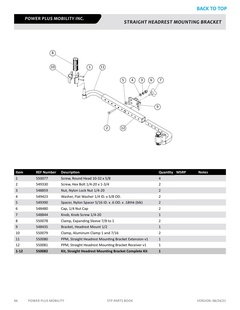

Straight Headrest Mounting Bracket. Numbers match the list.

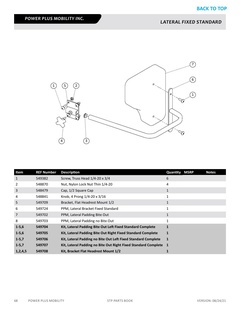

Lateral Fixed Standard. Numbers match the list.

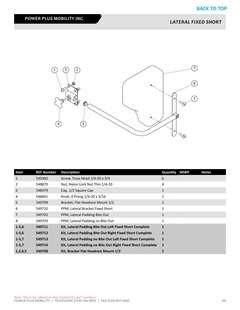

Lateral Fixed Short. Numbers match the list.

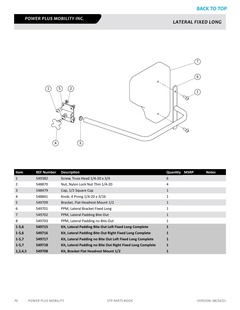

Lateral Fixed Long. Numbers match the list.

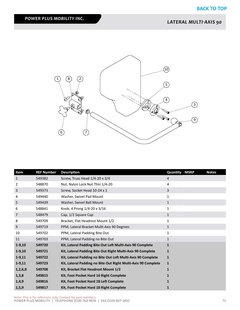

Lateral Multi-Axis 90. Numbers match the list.

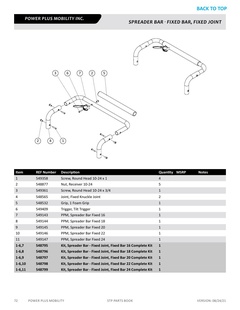

Spreader Bar - Fixed Bar, Fixed Joint. Numbers match the list.

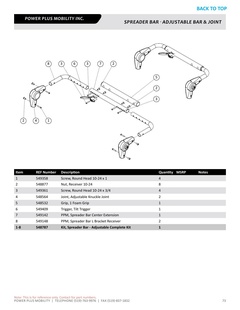

Spreader Bar - Adjustable Bar & Joint. Numbers match the list.

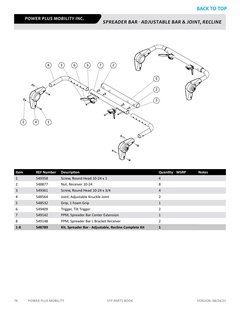

Spreader Bar - Adjustable Bar & Joint, Recline. Numbers match the list.

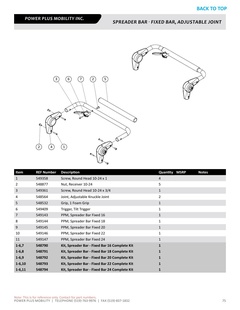

Spreader Bar - Fixed Bar, Adjustable Joint. Numbers match the list.

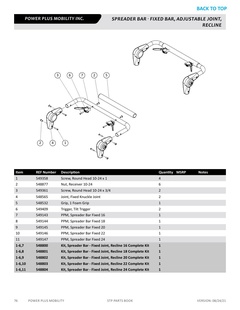

Spreader Bar - Fixed Bar, Adjustable Joint, Recline. Numbers match the list.

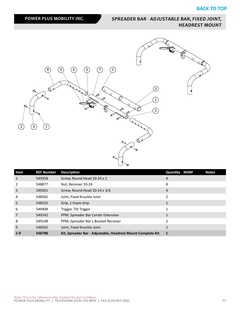

Spreader Bar - Adjustable Bar, Fixed Joint, Headrest Mount. Numbers match the list.

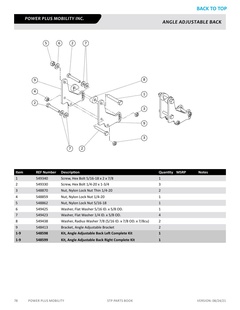

Angle Adjustable Back. Numbers match the list.

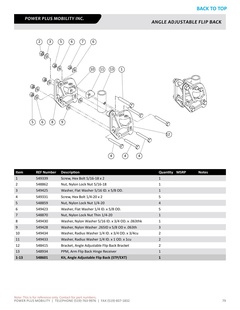

Angle Adjustable Flip Back. Numbers match the list.
Back Pins. Numbers match the list.

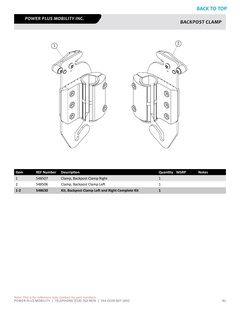

Backpost Clamp. Numbers match the list.
Backpost Regular. Numbers match the list.

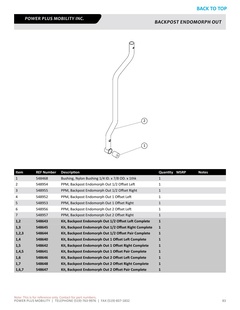

Backpost Endomorph Out. Numbers match the list.

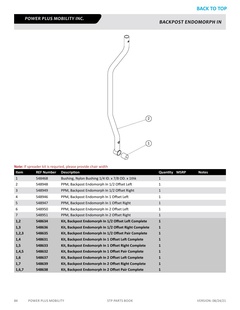

Backpost Endomorph In. Numbers match the list.

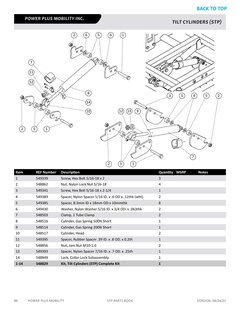

Tilt Cylinders (Stp). Numbers match the list.

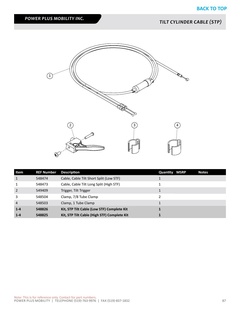

Tilt Cylinder Cable (Stp). Numbers match the list.

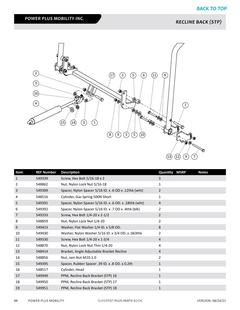

Recline Back (Stp). Numbers match the list.

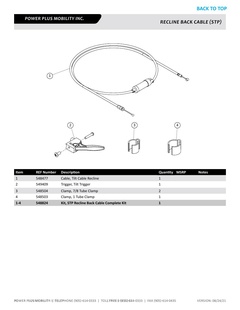

Recline Back Cable (Stp). Numbers match the list.

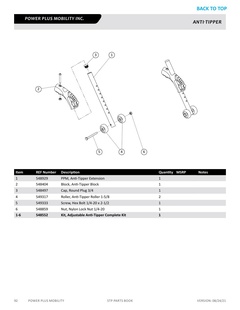

Anti-Tipper. Numbers match the list.

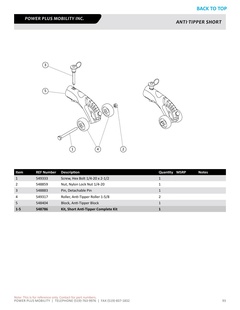

Anti-Tipper Short. Numbers match the list.

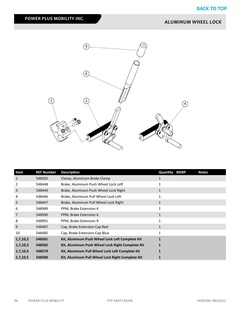

Aluminum Wheel Lock. Numbers match the list.

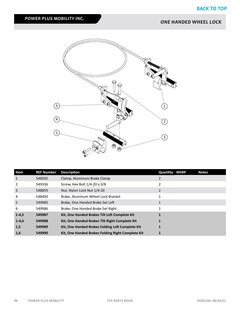

One Handed Wheel Lock. Numbers match the list.

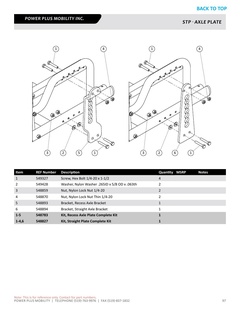

Stp - Axle Plate. Numbers match the list.

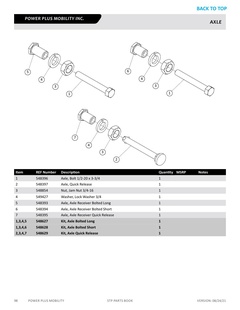

Axle. Numbers match the list.

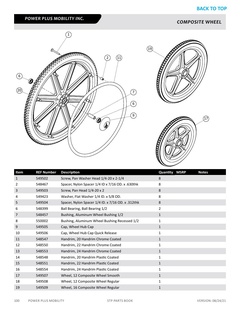

Composite Wheel. Numbers match the list.

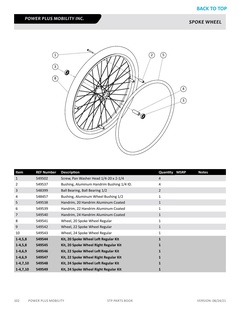

Spoke Wheel. Numbers match the list.

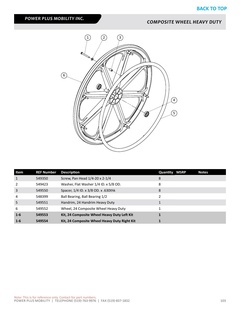

Composite Wheel Heavy Duty. Numbers match the list.

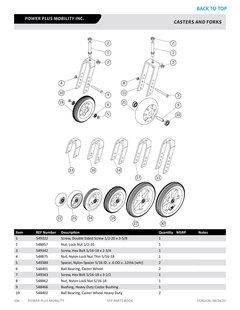

Casters And Forks. Numbers match the list.

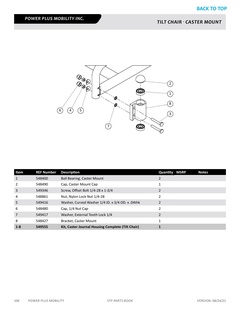

Tilt Chair - Caster Mount. Numbers match the list.

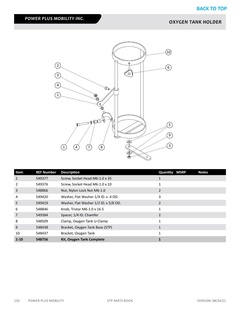

Oxygen Tank Holder. Numbers match the list.

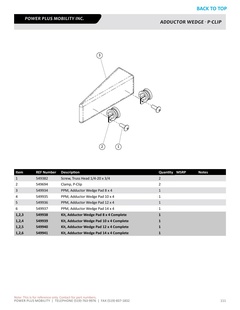

Adductor Wedge - P-Clip. Numbers match the list.

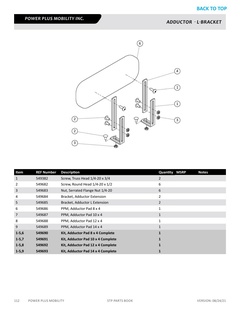

Adductor - L-Bracket. Numbers match the list.

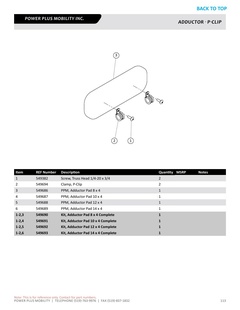

Adductor - P-Clip. Numbers match the list.

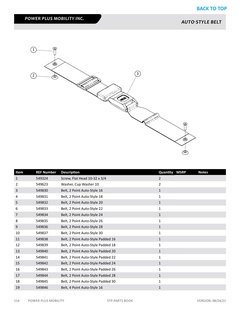

Auto-Style Belt. Numbers match the list.
Nylon Leg Strap. Numbers match the list.

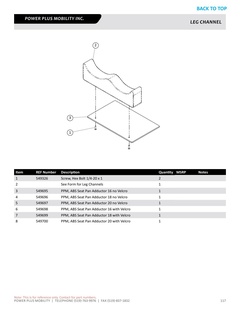

Leg Channel. Numbers match the list.

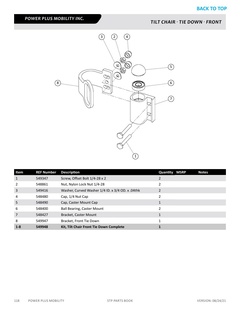

Tilt Chair - Tie Down - Front. Numbers match the list.
Tilt Chair - Tie Down - Rear. Numbers match the list.

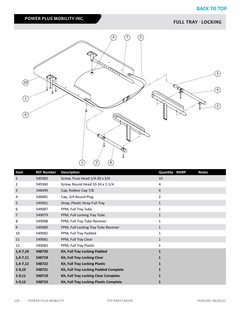

Full Tray - Locking. Numbers match the list.

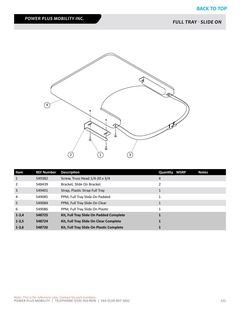

Full Tray - Slide On. Numbers match the list.

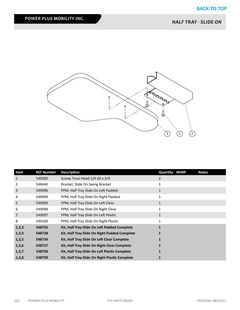

Half Tray - Slide On. Numbers match the list.

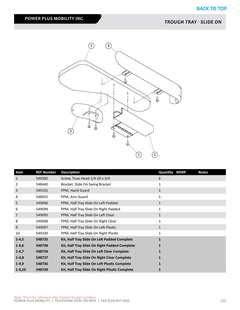

Trough Tray - Slide On. Numbers match the list.

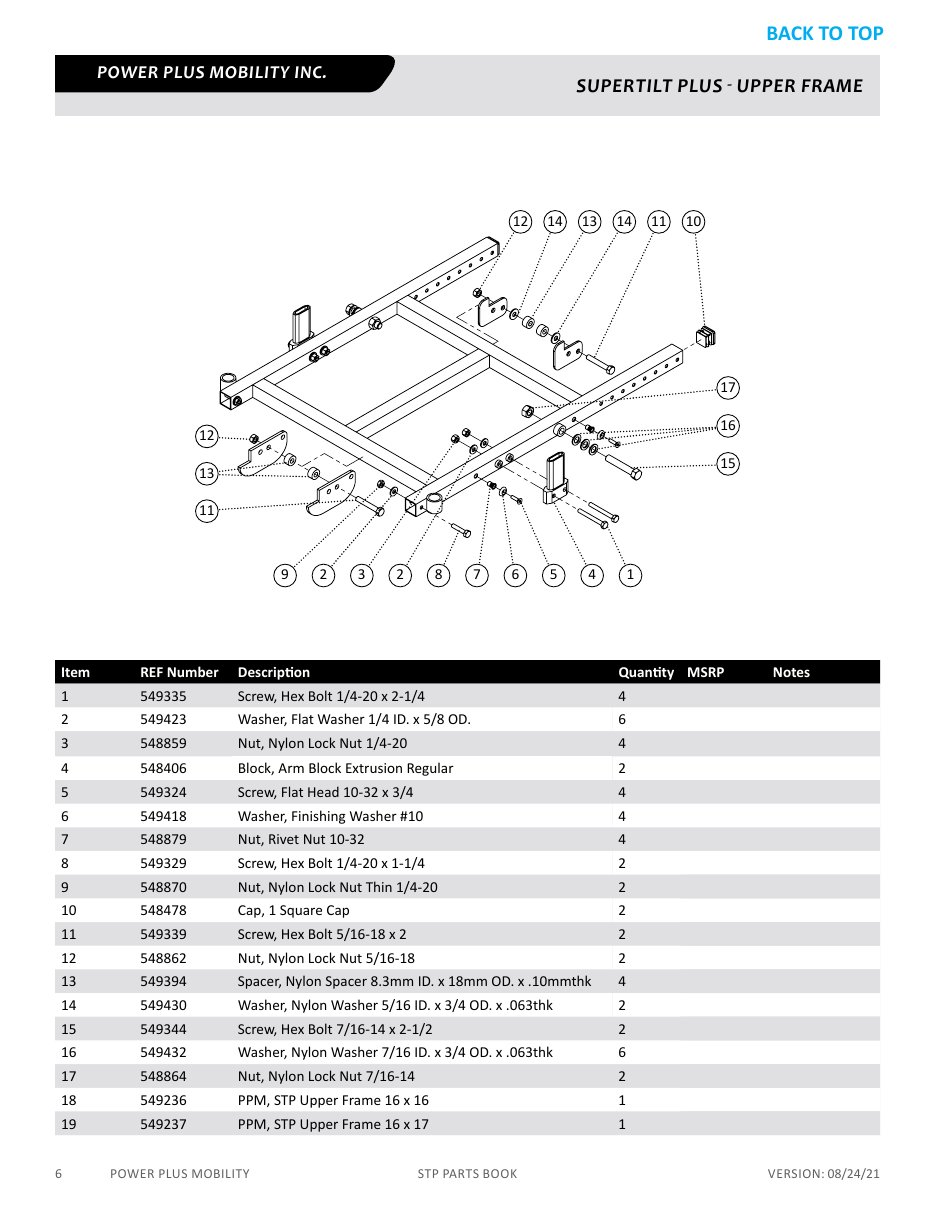

Supertilt Plus - Upper Frame

19 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Supertilt Plus - Upper Frame
No.PartQtyPriceAction
1 Screw, Hex Bolt 1/4-20 x 2-1/4Manufacturer no. 549335 4Quote Ask for a quote
2 Washer, Flat Washer 1/4 ID. x 5/8 OD.Manufacturer no. 549423 6Quote Ask for a quote
3 Nut, Nylon Lock Nut 1/4-20Manufacturer no. 548859 4Quote Ask for a quote
4 Block, Arm Block Extrusion RegularManufacturer no. 548406 2Quote Ask for a quote
5 Screw, Flat Head 10-32 x 3/4Manufacturer no. 549324 4Quote Ask for a quote
6 Washer, Finishing Washer #10Manufacturer no. 549418 4Quote Ask for a quote
7 Nut, Rivet Nut 10-32Manufacturer no. 548879 4Quote Ask for a quote
8 Screw, Hex Bolt 1/4-20 x 1-1/4Manufacturer no. 549329 2Quote Ask for a quote
9 Nut, Nylon Lock Nut Thin 1/4-20Manufacturer no. 548870 2Quote Ask for a quote
10 Cap, 1 Square CapManufacturer no. 548478 2Quote Ask for a quote
11 Screw, Hex Bolt 5/16-18 x 2Manufacturer no. 549339 2Quote Ask for a quote
12 Nut, Nylon Lock Nut 5/16-18Manufacturer no. 548862 2Quote Ask for a quote
13 Spacer, Nylon Spacer 8.3mm ID. x 18mm OD. x .10mmthkManufacturer no. 549394 4Quote Ask for a quote
14 Washer, Nylon Washer 5/16 ID. x 3/4 OD. x .063thkManufacturer no. 549430 2Quote Ask for a quote
15 Screw, Hex Bolt 7/16-14 x 2-1/2Manufacturer no. 549344 2Quote Ask for a quote
16 Washer, Nylon Washer 7/16 ID. x 3/4 OD. x .063thkManufacturer no. 549432 6Quote Ask for a quote
17 Nut, Nylon Lock Nut 7/16-14Manufacturer no. 548864 2Quote Ask for a quote
18 PPM, STP Upper Frame 16 x 16Manufacturer no. 549236 1Quote Ask for a quote
19 PPM, STP Upper Frame 16 x 17Manufacturer no. 549237 1Quote Ask for a quote

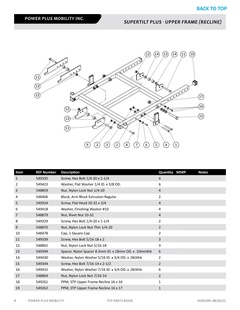

Supertilt Plus - Upper Frame (Recline)

19 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Supertilt Plus - Upper Frame (Recline)
No.PartQtyPriceAction
1 Screw, Hex Bolt 1/4-20 x 2-1/4Manufacturer no. 549335 4Quote Ask for a quote
2 Washer, Flat Washer 1/4 ID. x 5/8 OD.Manufacturer no. 549423 6Quote Ask for a quote
3 Nut, Nylon Lock Nut 1/4-20Manufacturer no. 548859 4Quote Ask for a quote
4 Block, Arm Block Extrusion RegularManufacturer no. 548406 2Quote Ask for a quote
5 Screw, Flat Head 10-32 x 3/4Manufacturer no. 549324 4Quote Ask for a quote
6 Washer, Finishing Washer #10Manufacturer no. 549418 4Quote Ask for a quote
7 Nut, Rivet Nut 10-32Manufacturer no. 548879 4Quote Ask for a quote
8 Screw, Hex Bolt 1/4-20 x 1-1/4Manufacturer no. 549329 2Quote Ask for a quote
9 Nut, Nylon Lock Nut Thin 1/4-20Manufacturer no. 548870 2Quote Ask for a quote
10 Cap, 1 Square CapManufacturer no. 548478 2Quote Ask for a quote
11 Screw, Hex Bolt 5/16-18 x 2Manufacturer no. 549339 3Quote Ask for a quote
12 Nut, Nylon Lock Nut 5/16-18Manufacturer no. 548862 3Quote Ask for a quote
13 Spacer, Nylon Spacer 8.3mm ID. x 18mm OD. x .10mmthkManufacturer no. 549394 6Quote Ask for a quote
14 Washer, Nylon Washer 5/16 ID. x 3/4 OD. x .063thkManufacturer no. 549430 2Quote Ask for a quote
15 Screw, Hex Bolt 7/16-14 x 2-1/2Manufacturer no. 549344 2Quote Ask for a quote
16 Washer, Nylon Washer 7/16 ID. x 3/4 OD. x .063thkManufacturer no. 549432 6Quote Ask for a quote
17 Nut, Nylon Lock Nut 7/16-14Manufacturer no. 548864 2Quote Ask for a quote
18 PPM, STP Upper Frame Recline 16 x 16Manufacturer no. 549261 1Quote Ask for a quote
19 PPM, STP Upper Frame Recline 16 x 17Manufacturer no. 549262 1Quote Ask for a quote

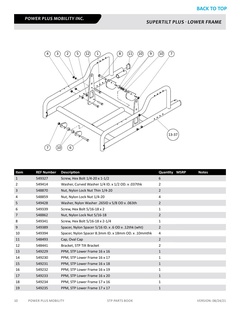

Supertilt Plus - Lower Frame

19 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Supertilt Plus - Lower Frame
No.PartQtyPriceAction
1 Screw, Hex Bolt 1/4-20 x 1-1/2Manufacturer no. 549327 6Quote Ask for a quote
2 Washer, Curved Washer 1/4 ID. x 1/2 OD. x .037thkManufacturer no. 549414 2Quote Ask for a quote
3 Nut, Nylon Lock Nut Thin 1/4-20Manufacturer no. 548870 2Quote Ask for a quote
4 Nut, Nylon Lock Nut 1/4-20Manufacturer no. 548859 4Quote Ask for a quote
5 Washer, Nylon Washer .265ID x 5/8 OD x .063thManufacturer no. 549428 2Quote Ask for a quote
6 Screw, Hex Bolt 5/16-18 x 2Manufacturer no. 549339 1Quote Ask for a quote
7 Nut, Nylon Lock Nut 5/16-18Manufacturer no. 548862 2Quote Ask for a quote
8 Screw, Hex Bolt 5/16-18 x 2-1/4Manufacturer no. 549341 1Quote Ask for a quote
9 Spacer, Nylon Spacer 5/16 ID. x .6 OD x .12thk (Wht)Manufacturer no. 549389 2Quote Ask for a quote
10 Spacer, Nylon Spacer 8.3mm ID. x 18mm OD. x .10mmthkManufacturer no. 549394 4Quote Ask for a quote
11 Cap, Oval CapManufacturer no. 548493 2Quote Ask for a quote
12 Bracket, STP Tilt BracketManufacturer no. 548441 2Quote Ask for a quote
13 PPM, STP Lower Frame 16 x 16Manufacturer no. 549229 1Quote Ask for a quote
14 PPM, STP Lower Frame 16 x 17Manufacturer no. 549230 1Quote Ask for a quote
15 PPM, STP Lower Frame 16 x 18Manufacturer no. 549231 1Quote Ask for a quote
16 PPM, STP Lower Frame 16 x 19Manufacturer no. 549232 1Quote Ask for a quote
17 PPM, STP Lower Frame 16 x 20Manufacturer no. 549233 1Quote Ask for a quote
18 PPM, STP Lower Frame 17 x 16Manufacturer no. 549234 1Quote Ask for a quote
19 PPM, STP Lower Frame 17 x 17Manufacturer no. 549235 1Quote Ask for a quote

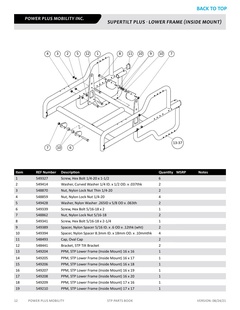

Supertilt Plus - Lower Frame (Inside Mount)

19 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Supertilt Plus - Lower Frame (Inside Mount)
No.PartQtyPriceAction
1 Screw, Hex Bolt 1/4-20 x 1-1/2Manufacturer no. 549327 6Quote Ask for a quote
2 Washer, Curved Washer 1/4 ID. x 1/2 OD. x .037thkManufacturer no. 549414 2Quote Ask for a quote
3 Nut, Nylon Lock Nut Thin 1/4-20Manufacturer no. 548870 2Quote Ask for a quote
4 Nut, Nylon Lock Nut 1/4-20Manufacturer no. 548859 4Quote Ask for a quote
5 Washer, Nylon Washer .265ID x 5/8 OD x .063thManufacturer no. 549428 2Quote Ask for a quote
6 Screw, Hex Bolt 5/16-18 x 2Manufacturer no. 549339 1Quote Ask for a quote
7 Nut, Nylon Lock Nut 5/16-18Manufacturer no. 548862 2Quote Ask for a quote
8 Screw, Hex Bolt 5/16-18 x 2-1/4Manufacturer no. 549341 1Quote Ask for a quote
9 Spacer, Nylon Spacer 5/16 ID. x .6 OD x .12thk (Wht)Manufacturer no. 549389 2Quote Ask for a quote
10 Spacer, Nylon Spacer 8.3mm ID. x 18mm OD. x .10mmthkManufacturer no. 549394 4Quote Ask for a quote
11 Cap, Oval CapManufacturer no. 548493 2Quote Ask for a quote
12 Bracket, STP Tilt BracketManufacturer no. 548441 2Quote Ask for a quote
13 PPM, STP Lower Frame (Inside Mount) 16 x 16Manufacturer no. 549204 1Quote Ask for a quote
14 PPM, STP Lower Frame (Inside Mount) 16 x 17Manufacturer no. 549205 1Quote Ask for a quote
15 PPM, STP Lower Frame (Inside Mount) 16 x 18Manufacturer no. 549206 1Quote Ask for a quote
16 PPM, STP Lower Frame (Inside Mount) 16 x 19Manufacturer no. 549207 1Quote Ask for a quote
17 PPM, STP Lower Frame (Inside Mount) 16 x 20Manufacturer no. 549208 1Quote Ask for a quote
18 PPM, STP Lower Frame (Inside Mount) 17 x 16Manufacturer no. 549209 1Quote Ask for a quote
19 PPM, STP Lower Frame (Inside Mount) 17 x 17Manufacturer no. 549210 1Quote Ask for a quote

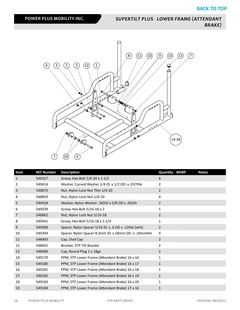

Supertilt Plus - Lower Frame (Attendant

19 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Supertilt Plus - Lower Frame (Attendant
No.PartQtyPriceAction
1 Screw, Hex Bolt 1/4-20 x 1-1/2Manufacturer no. 549327 6Quote Ask for a quote
2 Washer, Curved Washer 1/4 ID. x 1/2 OD. x .037thkManufacturer no. 549414 2Quote Ask for a quote
3 Nut, Nylon Lock Nut Thin 1/4-20Manufacturer no. 548870 2Quote Ask for a quote
4 Nut, Nylon Lock Nut 1/4-20Manufacturer no. 548859 4Quote Ask for a quote
5 Washer, Nylon Washer .265ID x 5/8 OD x .063thManufacturer no. 549428 2Quote Ask for a quote
6 Screw, Hex Bolt 5/16-18 x 2Manufacturer no. 549339 1Quote Ask for a quote
7 Nut, Nylon Lock Nut 5/16-18Manufacturer no. 548862 2Quote Ask for a quote
8 Screw, Hex Bolt 5/16-18 x 2-1/4Manufacturer no. 549341 1Quote Ask for a quote
9 Spacer, Nylon Spacer 5/16 ID. x .6 OD x .12thk (Wht)Manufacturer no. 549389 2Quote Ask for a quote
10 Spacer, Nylon Spacer 8.3mm ID. x 18mm OD. x .10mmthkManufacturer no. 549394 4Quote Ask for a quote
11 Cap, Oval CapManufacturer no. 548493 2Quote Ask for a quote
12 Bracket, STP Tilt BracketManufacturer no. 548441 2Quote Ask for a quote
13 Cap, Round Plug 1 x 18gaManufacturer no. 548496 2Quote Ask for a quote
14 PPM, STP Lower Frame (Attendant Brake) 16 x 16Manufacturer no. 549179 1Quote Ask for a quote
15 PPM, STP Lower Frame (Attendant Brake) 16 x 17Manufacturer no. 549180 1Quote Ask for a quote
16 PPM, STP Lower Frame (Attendant Brake) 16 x 18Manufacturer no. 549181 1Quote Ask for a quote
17 PPM, STP Lower Frame (Attendant Brake) 16 x 19Manufacturer no. 549182 1Quote Ask for a quote
18 PPM, STP Lower Frame (Attendant Brake) 16 x 20Manufacturer no. 549183 1Quote Ask for a quote
19 PPM, STP Lower Frame (Attendant Brake) 17 x 16Manufacturer no. 549184 1Quote Ask for a quote

Abs Seat Pan

19 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Abs Seat Pan
No.PartQtyPriceAction
1 Screw, Flat Head 10-32 x 3/4Manufacturer no. 549324 4Quote Ask for a quote
2 PPM, ABS Seat Pan 16 x 16 x 1/4Manufacturer no. 549736 1Quote Ask for a quote
3 PPM, ABS Seat Pan 16 x 17 x 1/4Manufacturer no. 549737 1Quote Ask for a quote
4 PPM, ABS Seat Pan 16 x 18 x 1/4Manufacturer no. 549738 1Quote Ask for a quote
5 PPM, ABS Seat Pan 16 x 19 x 1/4Manufacturer no. 549739 1Quote Ask for a quote
6 PPM, ABS Seat Pan 16 x 20 x 1/4Manufacturer no. 549740 1Quote Ask for a quote
7 PPM, ABS Seat Pan 18 x 16 x 1/4Manufacturer no. 549741 1Quote Ask for a quote
8 PPM, ABS Seat Pan 18 x 17 x 1/4Manufacturer no. 549742 1Quote Ask for a quote
9 PPM, ABS Seat Pan 18 x 18 x 1/4Manufacturer no. 549743 1Quote Ask for a quote
10 PPM, ABS Seat Pan 18 x 19 x 1/4Manufacturer no. 549744 1Quote Ask for a quote
11 PPM, ABS Seat Pan 18 x 20 x 1/4Manufacturer no. 549745 1Quote Ask for a quote
12 PPM, ABS Seat Pan 19 x 16 x 1/4Manufacturer no. 549746 1Quote Ask for a quote
13 PPM, ABS Seat Pan 19 x 17 x 1/4Manufacturer no. 549747 1Quote Ask for a quote
14 PPM, ABS Seat Pan 19 x 18 x 1/4Manufacturer no. 549748 1Quote Ask for a quote
15 PPM, ABS Seat Pan 19 x 19 x 1/4Manufacturer no. 549749 1Quote Ask for a quote
16 PPM, ABS Seat Pan 19 x 20 x 1/4Manufacturer no. 549750 1Quote Ask for a quote
17 PPM, ABS Seat Pan 20 x 16 x 1/4Manufacturer no. 549751 1Quote Ask for a quote
18 PPM, ABS Seat Pan 20 x 17 x 1/4Manufacturer no. 549752 1Quote Ask for a quote
19 PPM, ABS Seat Pan 20 x 18 x 1/4Manufacturer no. 549753 1Quote Ask for a quote

Amputee Board On Footrest

15 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Amputee Board On Footrest
No.PartQtyPriceAction
1-13 Kit, Amputee Board On Footrest Left CompleteManufacturer no. 549734 1Quote Ask for a quote
1-13 Kit, Amputee Board On Footrest Right CompleteManufacturer no. 549735 1Quote Ask for a quote
1 Screw, Flat Head M6-1.0 x 30Manufacturer no. 549325 2Quote Ask for a quote
2 Nut, Nylon Lock Nut M6-1.0Manufacturer no. 548866 2Quote Ask for a quote
3 Screw, Hex Bolt 1/4-20 x 1-1/2Manufacturer no. 549327 1Quote Ask for a quote
4 Nut, Nylon Lock Nut 1/4-20Manufacturer no. 548859 1Quote Ask for a quote
5 Cap, 1/4 Nut CapManufacturer no. 548480 1Quote Ask for a quote
6 Washer, Radius Washer 1/4 ID. x 3/4 OD. x 3/4cuManufacturer no. 549434 2Quote Ask for a quote
7 Cap, 3/4 Short Rubber CapManufacturer no. 549731 1Quote Ask for a quote
8 Footplate, Angle Adjust Hinge ClampManufacturer no. 548521 1Quote Ask for a quote
9 Footplate, Angle Adjust Hinge Clamp ExtensionManufacturer no. 548522 1Quote Ask for a quote
10 PPM, Angle Adjust Extension Amputee BoardManufacturer no. 549732 1Quote Ask for a quote
11 Clamp, Aluminum Brake ClampManufacturer no. 548505 1Quote Ask for a quote
12 Footplate, Angle Adjust PlateManufacturer no. 548523 1Quote Ask for a quote
13 Padding, Amputee Board On Footrest PadManufacturer no. 549733 1Quote Ask for a quote

Amputee Seat Pan

22 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Amputee Seat Pan
No.PartQtyPriceAction
1 PPM, Amputee Seat Pan 16 x 16Manufacturer no. 549870 1Quote Ask for a quote
2 PPM, Amputee Seat Pan 16 x 18Manufacturer no. 549871 1Quote Ask for a quote
3 PPM, Amputee Seat Pan 16 x 20Manufacturer no. 549872 1Quote Ask for a quote
4 PPM, Amputee Seat Pan 16 x 22Manufacturer no. 549873 1Quote Ask for a quote
5 PPM, Amputee Seat Pan 16 x 24Manufacturer no. 549874 1Quote Ask for a quote
6 PPM, Amputee Seat Pan 16 x 26Manufacturer no. 549875 1Quote Ask for a quote
7 PPM, Amputee Seat Pan 16 x 28Manufacturer no. 549876 1Quote Ask for a quote
8 PPM, Amputee Seat Pan 16 x 30Manufacturer no. 549877 1Quote Ask for a quote
9 PPM, Amputee Seat Pan 18 x 16Manufacturer no. 549878 1Quote Ask for a quote
10 PPM, Amputee Seat Pan 18 x 18Manufacturer no. 549879 1Quote Ask for a quote
11 PPM, Amputee Seat Pan 18 x 20Manufacturer no. 549880 1Quote Ask for a quote
12 PPM, Amputee Seat Pan 18 x 22Manufacturer no. 549881 1Quote Ask for a quote
13 PPM, Amputee Seat Pan 18 x 24Manufacturer no. 549882 1Quote Ask for a quote
14 PPM, Amputee Seat Pan 18 x 26Manufacturer no. 549883 1Quote Ask for a quote
15 PPM, Amputee Seat Pan 18 x 28Manufacturer no. 549884 1Quote Ask for a quote
16 PPM, Amputee Seat Pan 18 x 30Manufacturer no. 549885 1Quote Ask for a quote
17 PPM, Amputee Seat Pan 20 x 16Manufacturer no. 549886 1Quote Ask for a quote
18 PPM, Amputee Seat Pan 20 x 18Manufacturer no. 549887 1Quote Ask for a quote
19 PPM, Amputee Seat Pan 20 x 20Manufacturer no. 549888 1Quote Ask for a quote
20 PPM, Amputee Seat Pan 20 x 22Manufacturer no. 549889 1Quote Ask for a quote
21 PPM, Amputee Seat Pan 20 x 24Manufacturer no. 549890 1Quote Ask for a quote
22 PPM, Amputee Seat Pan 20 x 26Manufacturer no. 549891 1Quote Ask for a quote

Arm Rest - Regular

12 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Arm Rest - Regular
No.PartQtyPriceAction
2-11 Kit, Arm Rest Complete Kit RightManufacturer no. 548610 1Quote Ask for a quote
2-11 Kit, Arm Rest Complete Kit LeftManufacturer no. 548609 1Quote Ask for a quote
2 PPM, Arm Base FemaleManufacturer no. 548930 1Quote Ask for a quote
3 PPM, Wheelchair Side PanelManufacturer no. 549293 1Quote Ask for a quote
4 Cap, Arm Lead In LocatorManufacturer no. 548483 1Quote Ask for a quote
5 Spacer, Arm Release Lever Mount BlockManufacturer no. 549386 1Quote Ask for a quote
6 Spring, Lever Compression SpringManufacturer no. 549396 1Quote Ask for a quote
7 Screw, Retractable Locking KnobManufacturer no. 549356 1Quote Ask for a quote
8 Bracket, Arm Release Lever AluminumManufacturer no. 548417 1Quote Ask for a quote
9 Nut, Jam Nut 3/8-16Manufacturer no. 548855 1Quote Ask for a quote
10 Screw, Pan Head Thread Screw Quadrex 1/4-14 x 1Manufacturer no. 549355 1Quote Ask for a quote
11 Nut, Rivet Nut 5/32Manufacturer no. 549311 1Quote Ask for a quote

Arm Rest - Regular Short

12 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Arm Rest - Regular Short
No.PartQtyPriceAction
2-11 Kit, Arm Rest (Short) Complete Kit RightManufacturer no. 548608 1Quote Ask for a quote
2-11 Kit, Arm Rest (Short) Complete Kit LeftManufacturer no. 548607 1Quote Ask for a quote
2 PPM, Arm Base Female (Short)Manufacturer no. 548933 1Quote Ask for a quote
3 PPM, Wheelchair Side Panel (Short)Manufacturer no. 549296 1Quote Ask for a quote
4 Cap, Arm Lead In LocatorManufacturer no. 548483 1Quote Ask for a quote
5 Spacer, Arm Release Lever Mount BlockManufacturer no. 549386 1Quote Ask for a quote
6 Spring, Lever Compression SpringManufacturer no. 549396 1Quote Ask for a quote
7 Screw, Retractable Locking KnobManufacturer no. 549356 1Quote Ask for a quote
8 Bracket, Arm Release Lever AluminumManufacturer no. 548417 1Quote Ask for a quote
9 Nut, Jam Nut 3/8-16Manufacturer no. 548855 1Quote Ask for a quote
10 Screw, Pan Head Thread Screw Quadrex 1/4-14 x 1Manufacturer no. 549355 1Quote Ask for a quote
11 Nut, Rivet Nut 5/32Manufacturer no. 549311 1Quote Ask for a quote

Arm Rest - Flip Back

18 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Arm Rest - Flip Back
No.PartQtyPriceAction
2 PPM, Wheelchair Side Panel (Flip Back)Manufacturer no. 549295 1Quote Ask for a quote
3 Cap, Arm Lead In LocatorManufacturer no. 548483 1Quote Ask for a quote
4 Spacer, Arm Release Lever Mount BlockManufacturer no. 549386 1Quote Ask for a quote
5 Spring, Lever Compression SpringManufacturer no. 549396 1Quote Ask for a quote
6 Screw, Retractable Locking KnobManufacturer no. 549356 1Quote Ask for a quote
7 Bracket, Arm Release Lever AluminumManufacturer no. 548417 1Quote Ask for a quote
8 Nut, Jam Nut 3/8-16Manufacturer no. 548855 1Quote Ask for a quote
9 Screw, Pan Head Thread Screw Quadrex 1/4-14 x 1Manufacturer no. 549355 1Quote Ask for a quote
10 Bushing, Aluminum Bushing Hinge 3/4Manufacturer no. 548458 1Quote Ask for a quote
11 Screw, Socket Set Screw 1/4-20 x 3/8Manufacturer no. 549379 1Quote Ask for a quote
12 Nut, Rivet Nut 5/32Manufacturer no. 549311 1Quote Ask for a quote
13 PPM, Arm Base Female 16 Left (Flip Back)Manufacturer no. 549650 1Quote Ask for a quote
14 PPM, Arm Base Female 16 Right (Flip Back)Manufacturer no. 549651 1Quote Ask for a quote
15 PPM, Arm Base Female 18 Left (Flip Back)Manufacturer no. 549652 1Quote Ask for a quote
16 PPM, Arm Base Female 18 Right (Flip Back)Manufacturer no. 549653 1Quote Ask for a quote
17 PPM, Arm Base Female 20 Left (Flip Back)Manufacturer no. 549654 1Quote Ask for a quote
18 PPM, Arm Base Female 20 Right (Flip Back)Manufacturer no. 549655 1Quote Ask for a quote
19 PPM, Arm Base Female 22 Left (Flip Back)Manufacturer no. 549656 1Quote Ask for a quote

Arm Rest - Flip Back Short

18 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Arm Rest - Flip Back Short
No.PartQtyPriceAction
2 PPM, Wheelchair Side Panel (Flip Back Short)Manufacturer no. 549294 1Quote Ask for a quote
3 Cap, Arm Lead In LocatorManufacturer no. 548483 1Quote Ask for a quote
4 Spacer, Arm Release Lever Mount BlockManufacturer no. 549386 1Quote Ask for a quote
5 Spring, Lever Compression SpringManufacturer no. 549396 1Quote Ask for a quote
6 Screw, Retractable Locking KnobManufacturer no. 549356 1Quote Ask for a quote
7 Bracket, Arm Release Lever AluminumManufacturer no. 548417 1Quote Ask for a quote
8 Nut, Jam Nut 3/8-16Manufacturer no. 548855 1Quote Ask for a quote
9 Screw, Pan Head Thread Screw Quadrex 1/4-14 x 1Manufacturer no. 549355 1Quote Ask for a quote
10 Bushing, Aluminum Bushing Hinge 3/4Manufacturer no. 548458 1Quote Ask for a quote
11 Screw, Socket Set Screw 1/4-20 x 3/8Manufacturer no. 549379 1Quote Ask for a quote
12 Nut, Rivet Nut 5/32Manufacturer no. 549311 1Quote Ask for a quote
13 PPM, Arm Base Female 16 Left (Flip Back Short)Manufacturer no. 549666 1Quote Ask for a quote
14 PPM, Arm Base Female 16 Right (Flip Back Short)Manufacturer no. 549667 1Quote Ask for a quote
15 PPM, Arm Base Female 18 Left (Flip Back Short)Manufacturer no. 549668 1Quote Ask for a quote
16 PPM, Arm Base Female 18 Right (Flip Back Short)Manufacturer no. 549669 1Quote Ask for a quote
17 PPM, Arm Base Female 20 Left (Flip Back Short)Manufacturer no. 549670 1Quote Ask for a quote
18 PPM, Arm Base Female 20 Right (Flip Back Short)Manufacturer no. 549671 1Quote Ask for a quote
19 PPM, Arm Base Female 22 Left (Flip Back Short)Manufacturer no. 549672 1Quote Ask for a quote

Arm Top

9 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Arm Top
No.PartQtyPriceAction
1 Screw, Round Head 10-24 x 1-1/4Manufacturer no. 549360 1Quote Ask for a quote
2 Cap, Round Plug 3/4Manufacturer no. 548497 1Quote Ask for a quote
3 PPM, Arm Top Regular LongManufacturer no. 548939 1Quote Ask for a quote
4 PPM, Arm Top Forward LongManufacturer no. 548937 1Quote Ask for a quote
5 PPM, Arm Top Short LongManufacturer no. 548941 1Quote Ask for a quote
6 PPM, Arm Top Desk LongManufacturer no. 548936 1Quote Ask for a quote
7 PPM, Arm Top Regular ShortManufacturer no. 548940 1Quote Ask for a quote
8 PPM, Arm Top Forward ShortManufacturer no. 548938 1Quote Ask for a quote
9 PPM, Arm Top Short ShortManufacturer no. 548942 1Quote Ask for a quote

Arm Pads

9 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Arm Pads
No.PartQtyPriceAction
1 Arm Pad, Padded Full LengthManufacturer no. 548387 1Quote Ask for a quote
2 Arm Pad, Gel Full LengthManufacturer no. 548385 1Quote Ask for a quote
3 Arm Pad, Polyurethane Full LengthManufacturer no. 548389 1Quote Ask for a quote
4 Arm Pad, Wide Full LengthManufacturer no. 548390 1Quote Ask for a quote
5 Arm Pad, Padded Desk LengthManufacturer no. 548386 1Quote Ask for a quote
6 Arm Pad, Gel Desk LengthManufacturer no. 548384 1Quote Ask for a quote
7 Arm Pad, Polyurethane Desk LengthManufacturer no. 548388 1Quote Ask for a quote
8 Arm Pad, Wide Full Length Gel - 3 WideManufacturer no. 548391 1Quote Ask for a quote
9 Arm Pad, Wide Full Length Gel - 4 WideManufacturer no. 548392 1Quote Ask for a quote

Arm Block - Standard

5 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Arm Block - Standard
No.PartQtyPriceAction
1-4 Kit, Arm Block Extrustion Standard CompleteManufacturer no. 550119 1Quote Ask for a quote
1 Screw, Hex Bolt 1/4-20 x 2-1/4Manufacturer no. 549335 2Quote Ask for a quote
2 Nut, Nylon Lock Nut 1/4-20Manufacturer no. 548859 2Quote Ask for a quote
3 Washer, Flat Washer 1/4 ID. x 5/8 OD.Manufacturer no. 549423 2Quote Ask for a quote
4 Block, Arm Block Extrusion RegularManufacturer no. 548406 1Quote Ask for a quote

Pivot Footrest

30 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Pivot Footrest
No.PartQtyPriceAction
1 Screw, Hex Bolt 1/4-20 x 1-1/2Manufacturer no. 549327 1Quote Ask for a quote
2 Nut, Nylon Lock Nut 1/4-20Manufacturer no. 548859 1Quote Ask for a quote
3 Screw, Flat Head M6-1.0 x 30Manufacturer no. 549325 2Quote Ask for a quote
4 Nut, Nylon Lock Nut M6-1.0Manufacturer no. 548866 2Quote Ask for a quote
5 Screw, Round Head 1/4-20 x 2-1/2Manufacturer no. 549357 1Quote Ask for a quote
6 Nut, Jam Nut 1/4-20Manufacturer no. 548852 1Quote Ask for a quote
7 Nut, Nylon Lock Nut Thin 1/4-20Manufacturer no. 548870 1Quote Ask for a quote
8 Screw, Pan Head M8-1.0 x 25Manufacturer no. 549354 1Quote Ask for a quote
9 Washer, Curved Washer .323 ID. x 3/4 OD. x .07thkManufacturer no. 549413 1Quote Ask for a quote
10 Washer, Radius Washer 1/4 ID. x 3/4 OD. x 3/4cuManufacturer no. 549434 2Quote Ask for a quote
11 Cap, Footrest End Cap 1Manufacturer no. 548491 1Quote Ask for a quote
12 Cap, Bushing Attaching InsertManufacturer no. 548488 1Quote Ask for a quote
13 Bushing, Radius Insert BushingManufacturer no. 548471 1Quote Ask for a quote
14 Cap, Radius Bushing Attaching InsertManufacturer no. 548494 1Quote Ask for a quote
15 Screw, Socket Head M8-1.0 x 35Manufacturer no. 549378 1Quote Ask for a quote
16 Nut, Nylon Lock Nut M8-1.0Manufacturer no. 548868 1Quote Ask for a quote
17 Handle, Release HandleManufacturer no. 548545 1Quote Ask for a quote
18 Pin, Fixing PinManufacturer no. 548884 1Quote Ask for a quote
19 Spring, Release SpringManufacturer no. 549399 1Quote Ask for a quote
20 Bushing, Brass BushingManufacturer no. 548459 1Quote Ask for a quote
21 Pin, Release PinManufacturer no. 548890 1Quote Ask for a quote
22 Footplate, Angle Adjust Hinge Clamp ExtensionManufacturer no. 548522 1Quote Ask for a quote
23 Footplate, Angle Adjust Hinge ClampManufacturer no. 548521 1Quote Ask for a quote
24 Strap, Heel Loop StrapManufacturer no. 549400 1Quote Ask for a quote
25 Footplate, Angle Adjust PlateManufacturer no. 548523 1Quote Ask for a quote
26 PPM, Pivot Footrest 60 DegreeManufacturer no. 549135 1Quote Ask for a quote
27 PPM, Pivot Footrest 70 DegreeManufacturer no. 549136 1Quote Ask for a quote
28 PPM, Pivot Footrest 80 DegreeManufacturer no. 549137 1Quote Ask for a quote
29 PPM, Pivot Footrest 90 DegreeManufacturer no. 549138 1Quote Ask for a quote
30 Footplate, Angle Adjust ExtensionManufacturer no. 548519 1Quote Ask for a quote

Pin-Style Footrest

29 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Pin-Style Footrest
No.PartQtyPriceAction
1 Screw, Hex Bolt 1/4-20 x 1-1/2Manufacturer no. 549327 1Quote Ask for a quote
2 Nut, Nylon Lock Nut 1/4-20Manufacturer no. 548859 1Quote Ask for a quote
3 Screw, Flat Head M6-1.0 x 30Manufacturer no. 549325 2Quote Ask for a quote
4 Nut, Nylon Lock Nut M6-1.0Manufacturer no. 548866 2Quote Ask for a quote
5 Screw, Round Head 1/4-20 x 2-1/2Manufacturer no. 549357 1Quote Ask for a quote
6 Nut, Jam Nut 1/4-20Manufacturer no. 548852 1Quote Ask for a quote
7 Nut, Nylon Lock Nut Thin 1/4-20Manufacturer no. 548870 1Quote Ask for a quote
8 Screw, Pan Head M8-1.0 x 25Manufacturer no. 549354 1Quote Ask for a quote
9 Washer, Curved Washer .323 ID. x 3/4 OD. x .07thkManufacturer no. 549413 1Quote Ask for a quote
10 Washer, Radius Washer 1/4 ID. x 3/4 OD. x 3/8cuManufacturer no. 549435 2Quote Ask for a quote
11 Cap, Footrest End Cap 1Manufacturer no. 548491 1Quote Ask for a quote
12 Cap, Round Plug 1 x 14gaManufacturer no. 548495 1Quote Ask for a quote
13 Strap, Heel Loop StrapManufacturer no. 549400 1Quote Ask for a quote
14 Footplate, Angle Adjust Hinge Clamp ExtensionManufacturer no. 548522 1Quote Ask for a quote
15 Footplate, Angle Adjust Hinge ClampManufacturer no. 548521 1Quote Ask for a quote
16 Handle, Pin-Style Release Handle LeftManufacturer no. 549594 1Quote Ask for a quote
17 Handle, Pin-Style Release Handle RightManufacturer no. 549595 1Quote Ask for a quote
18 Cap, 1/4 Nut CapManufacturer no. 548480 1Quote Ask for a quote
19 Footplate, Angle Adjust ExtensionManufacturer no. 548519 1Quote Ask for a quote
20 Footplate, Angle Adjust PlateManufacturer no. 548523 1Quote Ask for a quote
21 Footplate, Angle Adjust Plate XL ABSManufacturer no. 548524 1Quote Ask for a quote
22 PPM, Pin Style Footrest 60 Degree LeftManufacturer no. 549117 1Quote Ask for a quote
23 PPM, Pin Style Footrest 60 Degree RightManufacturer no. 549118 1Quote Ask for a quote
24 PPM, Pin Style Footrest 70 Degree LeftManufacturer no. 549120 1Quote Ask for a quote
25 PPM, Pin Style Footrest 70 Degree RightManufacturer no. 549121 1Quote Ask for a quote
26 PPM, Pin Style Footrest 80 Degree LeftManufacturer no. 549123 1Quote Ask for a quote
27 PPM, Pin Style Footrest 80 Degree RightManufacturer no. 549124 1Quote Ask for a quote
28 PPM, Pin Style Footrest 90 Degree LeftManufacturer no. 549126 1Quote Ask for a quote
29 PPM, Pin Style Footrest 90 Degree RightManufacturer no. 549127 1Quote Ask for a quote

Elevating Legrest Pivot

17 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Elevating Legrest Pivot
No.PartQtyPriceAction
1-15 Kit, Elevating Pivot Footrest Left Complete KitManufacturer no. 548711 1Quote Ask for a quote
1-15 Kit, Elevating Pivot Footrest Right Complete KitManufacturer no. 548712 1Quote Ask for a quote
1 Screw, Round Head 1/4-20 x 2-1/2Manufacturer no. 549357 1Quote Ask for a quote
2 Nut, Jam Nut 1/4-20Manufacturer no. 548852 1Quote Ask for a quote
3 Nut, Nylon Lock Nut Thin 1/4-20Manufacturer no. 548870 1Quote Ask for a quote
4 Screw, Flat Head M6-1.0 x 30Manufacturer no. 549325 2Quote Ask for a quote
5 Nut, Nylon Lock Nut M6-1.0Manufacturer no. 548866 2Quote Ask for a quote
6 Screw, Hex Bolt 1/4-20 x 1-1/2Manufacturer no. 549327 1Quote Ask for a quote
7 Nut, Nylon Lock Nut 1/4-20Manufacturer no. 548859 1Quote Ask for a quote
8 Washer, Radius Washer 1/4 ID. x 3/4 OD. x 3/8cu (3/4cu)Manufacturer no. 549436 2Quote Ask for a quote
9 Footplate, Angle Adjust ExtensionManufacturer no. 548519 1Quote Ask for a quote
10 Strap, Heel Loop StrapManufacturer no. 549400 1Quote Ask for a quote
11 Footplate, Angle Adjust Hinge Clamp ExtensionManufacturer no. 548522 1Quote Ask for a quote
12 Footplate, Angle Adjust Hinge ClampManufacturer no. 548521 1Quote Ask for a quote
13 Kit, Elevating Footrest Hanger UpperManufacturer no. 548708 1Quote Ask for a quote
14 Kit, Elevating Footrest Extension TubeManufacturer no. 548706 1Quote Ask for a quote
15 Kit, Elevating Footrest Calf PadManufacturer no. 548705 1Quote Ask for a quote

Articulating Legrest Pivot

24 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Articulating Legrest Pivot
No.PartQtyPriceAction
1-22 Kit, Articulating Pivot Footrest Left Complete KitManufacturer no. 548623 1Quote Ask for a quote
1 Screw, Round Head 1/4-20 x 2-1/2Manufacturer no. 549357 1Quote Ask for a quote
2 Nut, Jam Nut 1/4-20Manufacturer no. 548852 1Quote Ask for a quote
3 Nut, Nylon Lock Nut Thin 1/4-20Manufacturer no. 548870 1Quote Ask for a quote
4 Screw, Flat Head M6-1.0 x 30Manufacturer no. 549325 2Quote Ask for a quote
5 Nut, Nylon Lock Nut M6-1.0Manufacturer no. 548866 2Quote Ask for a quote
6 Screw, Hex Bolt 1/4-20 x 1-1/2Manufacturer no. 549327 1Quote Ask for a quote
7 Nut, Nylon Lock Nut 1/4-20Manufacturer no. 548859 1Quote Ask for a quote
8 Washer, Radius Washer 1/4 ID. x 3/4 OD. x 3/8cu (3/4cu)Manufacturer no. 549436 2Quote Ask for a quote
9 Footplate, Angle Adjust Extension ArticulatingManufacturer no. 548520 1Quote Ask for a quote
10 Strap, Heel Loop StrapManufacturer no. 549400 1Quote Ask for a quote
11 Footplate, Angle Adjust Hinge Clamp ExtensionManufacturer no. 548522 1Quote Ask for a quote
12 Footplate, Angle Adjust Hinge ClampManufacturer no. 548521 1Quote Ask for a quote
13 Screw, Hex Bolt 1/4-20 x 1-3/4Manufacturer no. 549330 1Quote Ask for a quote
14 Screw, Socket Head 1/4-20 x 3/8Manufacturer no. 549372 1Quote Ask for a quote
15 Screw, Flat Head 1/4-20 x 5/8Manufacturer no. 549323 1Quote Ask for a quote
16 Spacer, Nylon Spacer 5/16 ID. x .7 OD x .4thk (Blk)Manufacturer no. 549392 1Quote Ask for a quote
17 Washer, Nylon Washer 5/16 ID. x 3/4 OD. x .063thkManufacturer no. 549430 1Quote Ask for a quote
18 PPM, Pivot Articulating ArmManufacturer no. 549134 1Quote Ask for a quote
19 PPM, Articulating ReceiverManufacturer no. 548945 1Quote Ask for a quote
20 PPM, Articulating ExtensionManufacturer no. 548944 1Quote Ask for a quote
21 Guard, Articulating Arm GuardManufacturer no. 548533 1Quote Ask for a quote
22 Kit, Articulating Pivot Footrest Left HangerManufacturer no. 548624 1Quote Ask for a quote
23 Kit, Articulating Pivot Footrest Right HangerManufacturer no. 548626 1Quote Ask for a quote

Elevating Legrest Pin-Style

21 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Elevating Legrest Pin-Style
No.PartQtyPriceAction
1 Screw, Round Head 1/4-20 x 2-1/2Manufacturer no. 549357 1Quote Ask for a quote
2 Nut, Jam Nut 1/4-20Manufacturer no. 548852 1Quote Ask for a quote
3 Nut, Nylon Lock Nut Thin 1/4-20Manufacturer no. 548870 1Quote Ask for a quote
4 Screw, Flat Head M6-1.0 x 30Manufacturer no. 549325 2Quote Ask for a quote
5 Nut, Nylon Lock Nut M6-1.0Manufacturer no. 548866 2Quote Ask for a quote
6 Screw, Hex Bolt 1/4-20 x 1-1/2Manufacturer no. 549327 1Quote Ask for a quote
7 Nut, Nylon Lock Nut 1/4-20Manufacturer no. 548859 1Quote Ask for a quote
8 Washer, Radius Washer 1/4 ID. x 3/4 OD. x 3/8cu (3/4cu)Manufacturer no. 549436 2Quote Ask for a quote
9 Footplate, Angle Adjust ExtensionManufacturer no. 548519 1Quote Ask for a quote
10 Strap, Heel Loop StrapManufacturer no. 549400 1Quote Ask for a quote
11 Footplate, Angle Adjust Hinge Clamp ExtensionManufacturer no. 548522 1Quote Ask for a quote
12 Footplate, Angle Adjust Hinge ClampManufacturer no. 548521 1Quote Ask for a quote
13 Handle, Pin-Style Release Handle LeftManufacturer no. 549594 1Quote Ask for a quote
14 Handle, Pin-Style Release Handle RightManufacturer no. 549595 1Quote Ask for a quote
15 Cap, 1/4 Nut CapManufacturer no. 548480 1Quote Ask for a quote
16 Screw, Round Head M6-1.0 x 12Manufacturer no. 549362 1Quote Ask for a quote
17 Nut, Round Head Receiver M6-1.0 x 12Manufacturer no. 549363 1Quote Ask for a quote
18 Cap, Round Plug 1 x 18gaManufacturer no. 548496 1Quote Ask for a quote
19 Kit, Elevating Footrest Extension Tube And Calf PadManufacturer no. 548707 1Quote Ask for a quote
20 PPM, Pin-Style Hanger Elevating LeftManufacturer no. 549132 1Quote Ask for a quote
21 PPM, Pin-Style Hanger Elevating RightManufacturer no. 549133 1Quote Ask for a quote

Articulating Legrest Pin-Style

29 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Articulating Legrest Pin-Style
No.PartQtyPriceAction
1 Screw, Round Head 1/4-20 x 2-1/2Manufacturer no. 549357 1Quote Ask for a quote
2 Nut, Jam Nut 1/4-20Manufacturer no. 548852 1Quote Ask for a quote
3 Nut, Nylon Lock Nut Thin 1/4-20Manufacturer no. 548870 1Quote Ask for a quote
4 Screw, Flat Head M6-1.0 x 30Manufacturer no. 549325 2Quote Ask for a quote
5 Nut, Nylon Lock Nut M6-1.0Manufacturer no. 548866 2Quote Ask for a quote
6 Screw, Hex Bolt 1/4-20 x 1-1/2Manufacturer no. 549327 1Quote Ask for a quote
7 Nut, Nylon Lock Nut 1/4-20Manufacturer no. 548859 1Quote Ask for a quote
8 Washer, Radius Washer 1/4 ID. x 3/4 OD. x 3/8cu (3/4cu)Manufacturer no. 549436 2Quote Ask for a quote
9 Footplate, Angle Adjust Extension ArticulatingManufacturer no. 548520 1Quote Ask for a quote
10 Strap, Heel Loop StrapManufacturer no. 549400 1Quote Ask for a quote
11 Footplate, Angle Adjust Hinge Clamp ExtensionManufacturer no. 548522 1Quote Ask for a quote
12 Footplate, Angle Adjust Hinge ClampManufacturer no. 548521 1Quote Ask for a quote
13 Screw, Hex Bolt 1/4-20 x 1-3/4Manufacturer no. 549330 1Quote Ask for a quote
14 Screw, Socket Head 1/4-20 x 3/8Manufacturer no. 549372 1Quote Ask for a quote
15 Screw, Flat Head 1/4-20 x 5/8Manufacturer no. 549323 1Quote Ask for a quote
16 Spacer, Nylon Spacer 5/16 ID. x .7 OD x .4thk (Blk)Manufacturer no. 549392 1Quote Ask for a quote
17 Washer, Nylon Washer 5/16 ID. x 3/4 OD. x .063thkManufacturer no. 549430 1Quote Ask for a quote
18 PPM, Articulating ReceiverManufacturer no. 548945 1Quote Ask for a quote
19 PPM, Articulating ExtensionManufacturer no. 548944 1Quote Ask for a quote
20 Guard, Articulating Arm GuardManufacturer no. 548533 1Quote Ask for a quote
21 Handle, Pin-Style Release Handle LeftManufacturer no. 549594 1Quote Ask for a quote
22 Handle, Pin-Style Release Handle RightManufacturer no. 549595 1Quote Ask for a quote
23 Cap, 1/4 Nut CapManufacturer no. 548480 1Quote Ask for a quote
24 Screw, Round Head M6-1.0 x 12Manufacturer no. 549362 1Quote Ask for a quote
25 Nut, Round Head Receiver M6-1.0 x 12Manufacturer no. 549363 1Quote Ask for a quote
26 Cap, Round Plug 1 x 18gaManufacturer no. 548496 1Quote Ask for a quote
27 Kit, Articulating Footrest Extension Tube And Calf PadManufacturer no. 548618 1Quote Ask for a quote
28 PPM, Pin-Style Hanger Articulating LeftManufacturer no. 549130 1Quote Ask for a quote
29 PPM, Pin-Style Hanger Articulating RightManufacturer no. 549131 1Quote Ask for a quote

70 Degree Pivot Footrest

16 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 70 Degree Pivot Footrest
No.PartQtyPriceAction
1-14 Kit, Pivot Footrest 70 Degree Left (T) Complete KitManufacturer no. 548774 1Quote Ask for a quote
1-14 Kit, Pivot Footrest 70 Degree Right (T) Complete KitManufacturer no. 548775 1Quote Ask for a quote
1 Screw, Round Head 1/4-20 x 2-1/2Manufacturer no. 549357 1Quote Ask for a quote
2 Nut, Jam Nut 1/4-20Manufacturer no. 548852 1Quote Ask for a quote
3 Nut, Nylon Lock Nut Thin 1/4-20Manufacturer no. 548870 1Quote Ask for a quote
4 Screw, Flat Head M6-1.0 x 30Manufacturer no. 549325 2Quote Ask for a quote
5 Nut, Nylon Lock Nut M6-1.0Manufacturer no. 548866 2Quote Ask for a quote
6 Screw, Hex Bolt 1/4-20 x 1-1/2Manufacturer no. 549327 1Quote Ask for a quote
7 Nut, Nylon Lock Nut 1/4-20Manufacturer no. 548859 1Quote Ask for a quote
8 Washer, Radius Washer 1/4 ID. x 3/4 OD. x 3/8cu (3/4cu)Manufacturer no. 549436 2Quote Ask for a quote
9 Footplate, Angle Adjust ExtensionManufacturer no. 548519 1Quote Ask for a quote
10 Strap, Heel Loop StrapManufacturer no. 549400 1Quote Ask for a quote
11 Footplate, Angle Adjust Hinge Clamp ExtensionManufacturer no. 548522 1Quote Ask for a quote
12 Footplate, Angle Adjust Hinge ClampManufacturer no. 548521 1Quote Ask for a quote
13 Footrest, Pivot Footrest 70 DegreeManufacturer no. 548526 1Quote Ask for a quote
14 Screw, Pan Head M8-1.0 x 25Manufacturer no. 549354 1Quote Ask for a quote

One Piece Foot Board

3 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in One Piece Foot Board
No.PartQtyPriceAction
1 Padding, One Piece Footboard PadManufacturer no. 548881 1Quote Ask for a quote
2 Screw, Truss Head 1/4-20 x 3/4Manufacturer no. 549382 4Quote Ask for a quote
3 Clamp, Rubber Clamp 1Manufacturer no. 548510 1Quote Ask for a quote

Pivot Footrest Receiver Offset

13 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Pivot Footrest Receiver Offset
No.PartQtyPriceAction
1-12 Kit, Pivot Footrest Receiver Offset Complete KitManufacturer no. 548779 1Quote Ask for a quote
1 Screw, Pan Head M6-1.0 x 40Manufacturer no. 549353 2Quote Ask for a quote
2 Screw, Pan Head 10-32 x 5/8Manufacturer no. 549351 1Quote Ask for a quote
3 Spacer, Nylon Spacer 3/16 ID. x .516 OD. x .171thkManufacturer no. 549388 1Quote Ask for a quote
4 Cap, 1/4 Nut CapManufacturer no. 548480 1Quote Ask for a quote
5 Block, Pivot Footrest BlockManufacturer no. 548411 1Quote Ask for a quote
6 Pin, Pivot Footrest Block PinManufacturer no. 548889 1Quote Ask for a quote
7 Spring, Pivot Footrest Block SpringManufacturer no. 549398 1Quote Ask for a quote
8 Nut, Pivot Footrest Block NutManufacturer no. 548876 1Quote Ask for a quote
9 Nut, Nylon Lock Nut 1/4-20Manufacturer no. 548859 1Quote Ask for a quote
10 Bushing, Front Post InsertManufacturer no. 548463 1Quote Ask for a quote
11 Bushing, Front Post SleeveManufacturer no. 548465 1Quote Ask for a quote
12 PPM, Pivot Footrest Offset ExtensionManufacturer no. 549139 1Quote Ask for a quote

Pivot Footrest Receiver

13 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Pivot Footrest Receiver
No.PartQtyPriceAction
1-12 Kit, Pivot Footrest Receiver Complete KitManufacturer no. 548778 1Quote Ask for a quote
1 Screw, Pan Head M6-1.0 x 40Manufacturer no. 549353 2Quote Ask for a quote
2 Screw, Pan Head 10-32 x 5/8Manufacturer no. 549351 1Quote Ask for a quote
3 Spacer, Nylon Spacer 3/16 ID. x .516 OD. x .171thkManufacturer no. 549388 1Quote Ask for a quote
4 Cap, 1/4 Nut CapManufacturer no. 548480 1Quote Ask for a quote
5 Block, Pivot Footrest BlockManufacturer no. 548411 1Quote Ask for a quote
6 Pin, Pivot Footrest Block PinManufacturer no. 548889 1Quote Ask for a quote
7 Spring, Pivot Footrest Block SpringManufacturer no. 549398 1Quote Ask for a quote
8 Nut, Pivot Footrest Block NutManufacturer no. 548876 1Quote Ask for a quote
9 Nut, Nylon Lock Nut 1/4-20Manufacturer no. 548859 1Quote Ask for a quote
10 Bushing, Front Post InsertManufacturer no. 548463 1Quote Ask for a quote
11 Bushing, Front Post SleeveManufacturer no. 548465 1Quote Ask for a quote
12 PPM, Footrest Extension InsertManufacturer no. 549078 1Quote Ask for a quote

Pin-Style Footrest Receiver

8 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Pin-Style Footrest Receiver
No.PartQtyPriceAction
1-6 Kit, Pin Style Footrest Receiver Left Complete KitManufacturer no. 548770 1Quote Ask for a quote
1 Pin, Pin Style Pin 1/4-28 ShortManufacturer no. 548887 1Quote Ask for a quote
2 Pin, Pin Style Pin 1/4-20 LongManufacturer no. 548885 1Quote Ask for a quote
3 Nut, Nylon Lock Nut Thin 1/4-28Manufacturer no. 548872 1Quote Ask for a quote
4 Nut, Nylon Lock Nut Thin 1/4-20Manufacturer no. 548870 1Quote Ask for a quote
5 Cap, Round Plug 1 x 18gaManufacturer no. 548496 2Quote Ask for a quote
6 PPM, Pin Style Footrest Receiver LeftManufacturer no. 549128 1Quote Ask for a quote
7 PPM, Pin Style Footrest Receiver RightManufacturer no. 549129 1Quote Ask for a quote

Elevating Legrest System One Piece

1 part

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Elevating Legrest System One Piece
No.PartQtyPriceAction
23 16 18 10Manufacturer no. 1611 25Quote Ask for a quote

Footbox

19 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Footbox
No.PartQtyPriceAction
1 Screw, Truss Head 1/4-20 x 3/4Manufacturer no. 549382 3Quote Ask for a quote
2 Footplate, Angle Adjust Plate 16 Footbox LeftManufacturer no. 549776 1Quote Ask for a quote
3 Footplate, Angle Adjust Plate 16 Footbox RightManufacturer no. 549777 1Quote Ask for a quote
4 Footplate, Angle Adjust Plate 18 Footbox LeftManufacturer no. 549778 1Quote Ask for a quote
5 Footplate, Angle Adjust Plate 18 Footbox RightManufacturer no. 549779 1Quote Ask for a quote
6 Footplate, Angle Adjust Plate 20 Footbox LeftManufacturer no. 549780 1Quote Ask for a quote
7 Footplate, Angle Adjust Plate 20 Footbox RightManufacturer no. 549781 1Quote Ask for a quote
8 PPM, Footbox Soft 16Manufacturer no. 549782 1Quote Ask for a quote
9 PPM, Footbox Soft 18Manufacturer no. 549783 1Quote Ask for a quote
10 PPM, Footbox Soft 20Manufacturer no. 549784 1Quote Ask for a quote
11 PPM, Footbox Soft 22Manufacturer no. 549785 1Quote Ask for a quote
12 PPM, Footbox Soft 24Manufacturer no. 549786 1Quote Ask for a quote
13 PPM, Footbox Soft 26Manufacturer no. 549787 1Quote Ask for a quote
14 PPM, Footbox Soft 28Manufacturer no. 549788 1Quote Ask for a quote
15 PPM, Footbox Soft 30Manufacturer no. 549789 1Quote Ask for a quote
16 PPM, Footbox Hard 16Manufacturer no. 549790 1Quote Ask for a quote
17 PPM, Footbox Hard 18Manufacturer no. 549791 1Quote Ask for a quote
18 PPM, Footbox Hard 20Manufacturer no. 549792 1Quote Ask for a quote
19 PPM, Footbox Hard 22Manufacturer no. 549793 1Quote Ask for a quote

Foot Pocket

15 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Foot Pocket
No.PartQtyPriceAction
1 Screw, Truss Head 1/4-20 x 3/4Manufacturer no. 549382 3Quote Ask for a quote
2 Footplate, Angle Adjust Plate 16 Footbox LeftManufacturer no. 549776 1Quote Ask for a quote
3 Footplate, Angle Adjust Plate 16 Footbox RightManufacturer no. 549777 1Quote Ask for a quote
4 Footplate, Angle Adjust Plate 18 Footbox LeftManufacturer no. 549778 1Quote Ask for a quote
5 Footplate, Angle Adjust Plate 18 Footbox RightManufacturer no. 549779 1Quote Ask for a quote
6 Footplate, Angle Adjust Plate 20 Footbox LeftManufacturer no. 549780 1Quote Ask for a quote
7 Footplate, Angle Adjust Plate 20 Footbox RightManufacturer no. 549781 1Quote Ask for a quote
8 PPM, Foot Pocket Hard 16Manufacturer no. 549806 1Quote Ask for a quote
9 PPM, Foot Pocket Hard 18Manufacturer no. 549807 1Quote Ask for a quote
10 PPM, Foot Pocket Hard 20Manufacturer no. 549808 1Quote Ask for a quote
11 PPM, Foot Pocket Hard 22Manufacturer no. 549809 1Quote Ask for a quote
12 PPM, Foot Pocket Hard 24Manufacturer no. 549810 1Quote Ask for a quote
13 PPM, Foot Pocket Hard 26Manufacturer no. 549811 1Quote Ask for a quote
14 PPM, Foot Pocket Hard 28Manufacturer no. 549812 1Quote Ask for a quote
15 PPM, Foot Pocket Hard 30Manufacturer no. 549813 1Quote Ask for a quote

Multi Axis Neck (S-Bend)

14 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Multi Axis Neck (S-Bend)
No.PartQtyPriceAction
1 Screw, Socket Head 10-24 x 1Manufacturer no. 549373 3Quote Ask for a quote
2 Screw, Set Screw 10-24 x 3/16Manufacturer no. 549367 1Quote Ask for a quote
3 Bracket, 1/2 Locking CollarManufacturer no. 548412 1Quote Ask for a quote
4 Cap, 1/2 Square CapManufacturer no. 548479 2Quote Ask for a quote
5 Knob, 2 Prong 1/4-20 x 1-1/8Manufacturer no. 548840 1Quote Ask for a quote
6 Knob, Clamp Handle 1/4-20 x 3/4Manufacturer no. 548843 1Quote Ask for a quote
7 Spacer, Custom Headrest Block SpacerManufacturer no. 549387 1Quote Ask for a quote
8 Washer, Swivel Pad MountManufacturer no. 549440 1Quote Ask for a quote
9 Washer, Swivel Ball MountManufacturer no. 549439 1Quote Ask for a quote
10 Block, Headrest Block V1Manufacturer no. 548410 1Quote Ask for a quote
11 PPM, Horizontal Swivel NeckManufacturer no. 549104 1Quote Ask for a quote
11 PPM, Horizontal Swivel Neck LongManufacturer no. 549105 1Quote Ask for a quote
12 PPM, Vertical S-Bend NeckManufacturer no. 549307 1Quote Ask for a quote
1-12 Kit, Multi-Axis Neck S-Bend Complete KitManufacturer no. 549308 1Quote Ask for a quote

Multi Axis Neck (L-Bend)

13 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Multi Axis Neck (L-Bend)
No.PartQtyPriceAction
1 Screw, Socket Head 10-24 x 1Manufacturer no. 549373 3Quote Ask for a quote
2 Screw, Set Screw 10-24 x 3/16Manufacturer no. 549367 1Quote Ask for a quote
3 Bracket, 1/2 Locking CollarManufacturer no. 548412 1Quote Ask for a quote
4 Cap, 1/2 Square CapManufacturer no. 548479 2Quote Ask for a quote
5 Knob, 2 Prong 1/4-20 x 1-1/8Manufacturer no. 548840 1Quote Ask for a quote
6 Knob, Clamp Handle 1/4-20 x 3/4Manufacturer no. 548843 1Quote Ask for a quote
7 Spacer, Custom Headrest Block SpacerManufacturer no. 549387 1Quote Ask for a quote
8 Washer, Swivel Pad MountManufacturer no. 549440 1Quote Ask for a quote
9 Washer, Swivel Ball MountManufacturer no. 549439 1Quote Ask for a quote
10 Block, Headrest Block V1Manufacturer no. 548410 1Quote Ask for a quote
11 PPM, Horizontal Swivel NeckManufacturer no. 549104 1Quote Ask for a quote
12 PPM, Horizontal Swivel Neck LongManufacturer no. 549105 1Quote Ask for a quote
13 PPM, Vertical L-Bend NeckManufacturer no. 549286 1Quote Ask for a quote

Vertical Horizontal Neck 1/2

6 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Vertical Horizontal Neck 1/2
No.PartQtyPriceAction
1-5 Kit, Vertical Horizontal 1/2 Complete KitManufacturer no. 548831 1Quote Ask for a quote
1 Screw, Truss Head 1/4-20 x 3/4Manufacturer no. 549382 2Quote Ask for a quote
2 Cap, 1/2 Square CapManufacturer no. 548479 2Quote Ask for a quote
3 Knob, 4 Prong 1/4-20 x 3/16Manufacturer no. 548841 1Quote Ask for a quote
4 PPM, 1/2 Horizontal Fixed NeckManufacturer no. 548895 1Quote Ask for a quote
5 PPM, 1/2 Vertical Fixed NeckManufacturer no. 548896 1Quote Ask for a quote

Vertical Horizontal Neck 3/4

6 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Vertical Horizontal Neck 3/4
No.PartQtyPriceAction
1-5 Kit, Vertical Horizontal 3/4 Complete KitManufacturer no. 548832 1Quote Ask for a quote
1 Screw, Truss Head 1/4-20 x 3/4Manufacturer no. 549382 2Quote Ask for a quote
2 Cap, 3/4 Square CapManufacturer no. 548482 2Quote Ask for a quote
3 Knob, 4 Prong 1/4-20 x 3/16Manufacturer no. 548841 1Quote Ask for a quote
4 PPM, 3/4 Horizontal Fixed NeckManufacturer no. 548897 1Quote Ask for a quote
5 PPM, 3/4 Vertical Fixed NeckManufacturer no. 548898 1Quote Ask for a quote

Vertical Horizontal Multi-Axis Neck 1/2

8 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Vertical Horizontal Multi-Axis Neck 1/2
No.PartQtyPriceAction
1 Screw, Socket Head 10-24 x 1Manufacturer no. 549373 3Quote Ask for a quote
2 Cap, 1/2 Square CapManufacturer no. 548479 2Quote Ask for a quote
3 Washer, Swivel Pad MountManufacturer no. 549440 1Quote Ask for a quote
4 Washer, Swivel Ball MountManufacturer no. 549439 1Quote Ask for a quote
5 Knob, 4 Prong 1/4-20 x 3/16Manufacturer no. 548841 1Quote Ask for a quote
6 PPM, Horizontal Swivel NeckManufacturer no. 549104 1Quote Ask for a quote
7 PPM, Horizontal Swivel Neck LongManufacturer no. 549105 1Quote Ask for a quote
8 PPM, 1/2 Vertical Fixed NeckManufacturer no. 548896 1Quote Ask for a quote

Headrest Pads

7 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Headrest Pads
No.PartQtyPriceAction
1 Headrest Pad, Contoured Pad MediumManufacturer no. 548556 1Quote Ask for a quote
2 Headrest Pad, Contoured Pad LargeManufacturer no. 548555 1Quote Ask for a quote
3 Headrest Pad, Flat Pad SmallManufacturer no. 548557 1Quote Ask for a quote
4 Headrest Pad, Polyurethane Pad LargeManufacturer no. 548560 1Quote Ask for a quote
5 Headrest Pad, Flex Pad SmallManufacturer no. 548559 1Quote Ask for a quote
6 Headrest Pad, Flex Pad LargeManufacturer no. 548558 1Quote Ask for a quote
7 Headrest Pad, Square Pad LargeManufacturer no. 548563 1Quote Ask for a quote

Universal Headrest Mount

8 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Universal Headrest Mount
No.PartQtyPriceAction
1-7 Kit, Universal Headrest Mount Complete KitManufacturer no. 548830 1Quote Ask for a quote
1 Screw, Socket Head 1/4-20 x 1/2Manufacturer no. 549369 2Quote Ask for a quote
2 Nut, Nylon Lock Nut 1/4-20Manufacturer no. 548859 2Quote Ask for a quote
3 Screw, Pan Head 1/4-20 x 1/2Manufacturer no. 549348 2Quote Ask for a quote
4 Knob, Knob Screw 1/4-20Manufacturer no. 548844 1Quote Ask for a quote
5 Bracket, Universal Headrest Mount Clamp 1Manufacturer no. 548442 1Quote Ask for a quote
6 Bracket, Universal Headrest Mount Clamp 2Manufacturer no. 548443 1Quote Ask for a quote
7 Bracket, Universal Headrest Mount Clamp 3Manufacturer no. 548444 1Quote Ask for a quote

Headrest Mount 1/2

8 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Headrest Mount 1/2
No.PartQtyPriceAction
1-7 Kit, Headrest Mount 1/2 Complete KitManufacturer no. 548740 1Quote Ask for a quote
1 Screw, Hex Bolt 1/4-20 x 1Manufacturer no. 549326 2Quote Ask for a quote
2 Nut, Nylon Lock Nut 1/4-20Manufacturer no. 548859 2Quote Ask for a quote
3 Washer, Flat Washer 1/4 ID. x 5/8 OD.Manufacturer no. 549423 2Quote Ask for a quote
4 Spacer, Nylon Spacer 5/16 ID. x .6 OD. x .18thk (Blk)Manufacturer no. 549390 2Quote Ask for a quote
5 Cap, 1/4 Nut CapManufacturer no. 548480 2Quote Ask for a quote
6 Knob, Knob Screw 1/4-20Manufacturer no. 548844 2Quote Ask for a quote
7 Bracket, Headrest Mount 1/2Manufacturer no. 548435 1Quote Ask for a quote

Headrest Mount 3/4

8 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Headrest Mount 3/4
No.PartQtyPriceAction
1-7 Kit, Headrest Mount 3/4 Complete KitManufacturer no. 549310 1Quote Ask for a quote
1 Screw, Hex Bolt 1/4-20 x 1Manufacturer no. 549326 2Quote Ask for a quote
2 Nut, Nylon Lock Nut 1/4-20Manufacturer no. 548859 2Quote Ask for a quote
3 Washer, Flat Washer 1/4 ID. x 5/8 OD.Manufacturer no. 549423 2Quote Ask for a quote
4 Spacer, Nylon Spacer 5/16 ID. x .6 OD. x .18thk (Blk)Manufacturer no. 549390 2Quote Ask for a quote
5 Cap, 1/4 Nut CapManufacturer no. 548480 2Quote Ask for a quote
6 Knob, Knob Screw 1/4-20Manufacturer no. 548844 2Quote Ask for a quote
7 Bracket, Headrest Mount 3/4Manufacturer no. 549309 1Quote Ask for a quote

Straight Headrest Mounting Bracket

13 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Straight Headrest Mounting Bracket
No.PartQtyPriceAction
1-12 Kit, Straight Headrest Mounting Bracket Complete KitManufacturer no. 550082 1Quote Ask for a quote
1 Screw, Round Head 10-32 x 5/8Manufacturer no. 550077 4Quote Ask for a quote
2 Screw, Hex Bolt 1/4-20 x 1-3/4Manufacturer no. 549330 2Quote Ask for a quote
3 Nut, Nylon Lock Nut 1/4-20Manufacturer no. 548859 2Quote Ask for a quote
4 Washer, Flat Washer 1/4 ID. x 5/8 OD.Manufacturer no. 549423 2Quote Ask for a quote
5 Spacer, Nylon Spacer 5/16 ID. x .6 OD. x .18thk (Blk)Manufacturer no. 549390 2Quote Ask for a quote
6 Cap, 1/4 Nut CapManufacturer no. 548480 2Quote Ask for a quote
7 Knob, Knob Screw 1/4-20Manufacturer no. 548844 1Quote Ask for a quote
8 Clamp, Expanding Sleeve 7/8 To 1Manufacturer no. 550078 2Quote Ask for a quote
9 Bracket, Headrest Mount 1/2Manufacturer no. 548435 1Quote Ask for a quote
10 Clamp, Aluminum Clamp 1 And 7/16Manufacturer no. 550079 2Quote Ask for a quote
11 PPM, Straight Headrest Mounting Bracket Extension V1Manufacturer no. 550080 1Quote Ask for a quote
12 PPM, Straight Headrest Mounting Bracket Receiver V1Manufacturer no. 550081 1Quote Ask for a quote

Lateral Fixed Standard

8 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Lateral Fixed Standard
No.PartQtyPriceAction
1 Screw, Truss Head 1/4-20 x 3/4Manufacturer no. 549382 6Quote Ask for a quote
2 Nut, Nylon Lock Nut Thin 1/4-20Manufacturer no. 548870 4Quote Ask for a quote
3 Cap, 1/2 Square CapManufacturer no. 548479 1Quote Ask for a quote
4 Knob, 4 Prong 1/4-20 x 3/16Manufacturer no. 548841 1Quote Ask for a quote
5 Bracket, Flat Headrest Mount 1/2Manufacturer no. 549709 1Quote Ask for a quote
6 PPM, Lateral Bracket Fixed StandardManufacturer no. 549724 1Quote Ask for a quote
7 PPM, Lateral Padding Bite OutManufacturer no. 549702 1Quote Ask for a quote
8 PPM, Lateral Padding No Bite OutManufacturer no. 549703 1Quote Ask for a quote

Lateral Fixed Short

8 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Lateral Fixed Short
No.PartQtyPriceAction
1 Screw, Truss Head 1/4-20 x 3/4Manufacturer no. 549382 6Quote Ask for a quote
2 Nut, Nylon Lock Nut Thin 1/4-20Manufacturer no. 548870 4Quote Ask for a quote
3 Cap, 1/2 Square CapManufacturer no. 548479 1Quote Ask for a quote
4 Knob, 4 Prong 1/4-20 x 3/16Manufacturer no. 548841 1Quote Ask for a quote
5 Bracket, Flat Headrest Mount 1/2Manufacturer no. 549709 1Quote Ask for a quote
6 PPM, Lateral Bracket Fixed ShortManufacturer no. 549710 1Quote Ask for a quote
7 PPM, Lateral Padding Bite OutManufacturer no. 549702 1Quote Ask for a quote
8 PPM, Lateral Padding No Bite OutManufacturer no. 549703 1Quote Ask for a quote

Lateral Fixed Long

8 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Lateral Fixed Long
No.PartQtyPriceAction
1 Screw, Truss Head 1/4-20 x 3/4Manufacturer no. 549382 6Quote Ask for a quote
2 Nut, Nylon Lock Nut Thin 1/4-20Manufacturer no. 548870 4Quote Ask for a quote
3 Cap, 1/2 Square CapManufacturer no. 548479 1Quote Ask for a quote
4 Knob, 4 Prong 1/4-20 x 3/16Manufacturer no. 548841 1Quote Ask for a quote
5 Bracket, Flat Headrest Mount 1/2Manufacturer no. 549709 1Quote Ask for a quote
6 PPM, Lateral Bracket Fixed LongManufacturer no. 549701 1Quote Ask for a quote
7 PPM, Lateral Padding Bite OutManufacturer no. 549702 1Quote Ask for a quote
8 PPM, Lateral Padding No Bite OutManufacturer no. 549703 1Quote Ask for a quote

Lateral Multi-Axis 90

11 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Lateral Multi-Axis 90
No.PartQtyPriceAction
1 Screw, Truss Head 1/4-20 x 3/4Manufacturer no. 549382 4Quote Ask for a quote
2 Nut, Nylon Lock Nut Thin 1/4-20Manufacturer no. 548870 4Quote Ask for a quote
3 Screw, Socket Head 10-24 x 1Manufacturer no. 549373 3Quote Ask for a quote
4 Washer, Swivel Pad MountManufacturer no. 549440 1Quote Ask for a quote
5 Washer, Swivel Ball MountManufacturer no. 549439 1Quote Ask for a quote
6 Knob, 4 Prong 1/4-20 x 3/16Manufacturer no. 548841 1Quote Ask for a quote
7 Cap, 1/2 Square CapManufacturer no. 548479 1Quote Ask for a quote
8 Bracket, Flat Headrest Mount 1/2Manufacturer no. 549709 1Quote Ask for a quote
9 PPM, Lateral Bracket Multi-Axis 90 DegreesManufacturer no. 549719 1Quote Ask for a quote
10 PPM, Lateral Padding Bite OutManufacturer no. 549702 1Quote Ask for a quote
11 PPM, Lateral Padding No Bite OutManufacturer no. 549703 1Quote Ask for a quote

Spreader Bar - Fixed Bar, Fixed Joint

11 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Spreader Bar - Fixed Bar, Fixed Joint
No.PartQtyPriceAction
1 Screw, Round Head 10-24 x 1Manufacturer no. 549358 4Quote Ask for a quote
2 Nut, Receiver 10-24Manufacturer no. 548877 5Quote Ask for a quote
3 Screw, Round Head 10-24 x 3/4Manufacturer no. 549361 1Quote Ask for a quote
4 Joint, Fixed Knuckle JointManufacturer no. 548565 2Quote Ask for a quote
5 Grip, 1 Foam GripManufacturer no. 548532 1Quote Ask for a quote
6 Trigger, Tilt TriggerManufacturer no. 549409 1Quote Ask for a quote
7 PPM, Spreader Bar Fixed 16Manufacturer no. 549143 1Quote Ask for a quote
8 PPM, Spreader Bar Fixed 18Manufacturer no. 549144 1Quote Ask for a quote
9 PPM, Spreader Bar Fixed 20Manufacturer no. 549145 1Quote Ask for a quote
10 PPM, Spreader Bar Fixed 22Manufacturer no. 549146 1Quote Ask for a quote
11 PPM, Spreader Bar Fixed 24Manufacturer no. 549147 1Quote Ask for a quote

Spreader Bar - Adjustable Bar & Joint

9 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Spreader Bar - Adjustable Bar & Joint
No.PartQtyPriceAction
1-8 Kit, Spreader Bar - Adjustable Complete KitManufacturer no. 548787 1Quote Ask for a quote
1 Screw, Round Head 10-24 x 1Manufacturer no. 549358 4Quote Ask for a quote
2 Nut, Receiver 10-24Manufacturer no. 548877 8Quote Ask for a quote
3 Screw, Round Head 10-24 x 3/4Manufacturer no. 549361 4Quote Ask for a quote
4 Joint, Adjustable Knuckle JointManufacturer no. 548564 2Quote Ask for a quote
5 Grip, 1 Foam GripManufacturer no. 548532 1Quote Ask for a quote
6 Trigger, Tilt TriggerManufacturer no. 549409 1Quote Ask for a quote
7 PPM, Spreader Bar Center ExtensionManufacturer no. 549142 1Quote Ask for a quote
8 PPM, Spreader Bar L Bracket ReceiverManufacturer no. 549148 2Quote Ask for a quote

Spreader Bar - Adjustable Bar & Joint, Recline

9 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Spreader Bar - Adjustable Bar & Joint, Recline
No.PartQtyPriceAction
1-8 Kit, Spreader Bar - Adjustable, Recline Complete KitManufacturer no. 548789 1Quote Ask for a quote
1 Screw, Round Head 10-24 x 1Manufacturer no. 549358 4Quote Ask for a quote
2 Nut, Receiver 10-24Manufacturer no. 548877 8Quote Ask for a quote
3 Screw, Round Head 10-24 x 3/4Manufacturer no. 549361 4Quote Ask for a quote
4 Joint, Adjustable Knuckle JointManufacturer no. 548564 2Quote Ask for a quote
5 Grip, 1 Foam GripManufacturer no. 548532 1Quote Ask for a quote
6 Trigger, Tilt TriggerManufacturer no. 549409 2Quote Ask for a quote
7 PPM, Spreader Bar Center ExtensionManufacturer no. 549142 1Quote Ask for a quote
8 PPM, Spreader Bar L Bracket ReceiverManufacturer no. 549148 2Quote Ask for a quote

Spreader Bar - Fixed Bar, Adjustable Joint

11 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Spreader Bar - Fixed Bar, Adjustable Joint
No.PartQtyPriceAction
1 Screw, Round Head 10-24 x 1Manufacturer no. 549358 4Quote Ask for a quote
2 Nut, Receiver 10-24Manufacturer no. 548877 5Quote Ask for a quote
3 Screw, Round Head 10-24 x 3/4Manufacturer no. 549361 1Quote Ask for a quote
4 Joint, Adjustable Knuckle JointManufacturer no. 548564 2Quote Ask for a quote
5 Grip, 1 Foam GripManufacturer no. 548532 1Quote Ask for a quote
6 Trigger, Tilt TriggerManufacturer no. 549409 1Quote Ask for a quote
7 PPM, Spreader Bar Fixed 16Manufacturer no. 549143 1Quote Ask for a quote
8 PPM, Spreader Bar Fixed 18Manufacturer no. 549144 1Quote Ask for a quote
9 PPM, Spreader Bar Fixed 20Manufacturer no. 549145 1Quote Ask for a quote
10 PPM, Spreader Bar Fixed 22Manufacturer no. 549146 1Quote Ask for a quote
11 PPM, Spreader Bar Fixed 24Manufacturer no. 549147 1Quote Ask for a quote

Spreader Bar - Fixed Bar, Adjustable Joint, Recline

11 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Spreader Bar - Fixed Bar, Adjustable Joint, Recline
No.PartQtyPriceAction
1 Screw, Round Head 10-24 x 1Manufacturer no. 549358 4Quote Ask for a quote
2 Nut, Receiver 10-24Manufacturer no. 548877 6Quote Ask for a quote
3 Screw, Round Head 10-24 x 3/4Manufacturer no. 549361 2Quote Ask for a quote
4 Joint, Fixed Knuckle JointManufacturer no. 548565 2Quote Ask for a quote
5 Grip, 1 Foam GripManufacturer no. 548532 1Quote Ask for a quote
6 Trigger, Tilt TriggerManufacturer no. 549409 2Quote Ask for a quote
7 PPM, Spreader Bar Fixed 16Manufacturer no. 549143 1Quote Ask for a quote
8 PPM, Spreader Bar Fixed 18Manufacturer no. 549144 1Quote Ask for a quote
9 PPM, Spreader Bar Fixed 20Manufacturer no. 549145 1Quote Ask for a quote
10 PPM, Spreader Bar Fixed 22Manufacturer no. 549146 1Quote Ask for a quote
11 PPM, Spreader Bar Fixed 24Manufacturer no. 549147 1Quote Ask for a quote

Spreader Bar - Adjustable Bar, Fixed Joint, Headrest Mount

10 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Spreader Bar - Adjustable Bar, Fixed Joint, Headrest Mount
No.PartQtyPriceAction
1-9 Kit, Spreader Bar - Adjustable, Headrest Mount Complete KitManufacturer no. 548788 1Quote Ask for a quote
1 Screw, Round Head 10-24 x 1Manufacturer no. 549358 4Quote Ask for a quote
2 Nut, Receiver 10-24Manufacturer no. 548877 8Quote Ask for a quote
3 Screw, Round Head 10-24 x 3/4Manufacturer no. 549361 4Quote Ask for a quote
4 Joint, Fixed Knuckle JointManufacturer no. 548565 2Quote Ask for a quote
5 Grip, 1 Foam GripManufacturer no. 548532 1Quote Ask for a quote
6 Trigger, Tilt TriggerManufacturer no. 549409 1Quote Ask for a quote
7 PPM, Spreader Bar Center ExtensionManufacturer no. 549142 1Quote Ask for a quote
8 PPM, Spreader Bar L Bracket ReceiverManufacturer no. 549148 2Quote Ask for a quote
9 Joint, Fixed Knuckle JointManufacturer no. 548565 2Quote Ask for a quote

Angle Adjustable Back

11 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Angle Adjustable Back
No.PartQtyPriceAction
1-9 Kit, Angle Adjustable Back Left Complete KitManufacturer no. 548598 1Quote Ask for a quote
1-9 Kit, Angle Adjustable Back Right Complete KitManufacturer no. 548599 1Quote Ask for a quote
1 Screw, Hex Bolt 5/16-18 x 2 x 7/8Manufacturer no. 549340 1Quote Ask for a quote
2 Screw, Hex Bolt 1/4-20 x 1-3/4Manufacturer no. 549330 3Quote Ask for a quote
3 Nut, Nylon Lock Nut Thin 1/4-20Manufacturer no. 548870 2Quote Ask for a quote
4 Nut, Nylon Lock Nut 1/4-20Manufacturer no. 548859 1Quote Ask for a quote
5 Nut, Nylon Lock Nut 5/16-18Manufacturer no. 548862 1Quote Ask for a quote
6 Washer, Flat Washer 5/16 ID. x 5/8 OD.Manufacturer no. 549425 1Quote Ask for a quote
7 Washer, Flat Washer 1/4 ID. x 5/8 OD.Manufacturer no. 549423 4Quote Ask for a quote
8 Washer, Radius Washer 7/8 (5/16 ID. x 7/8 OD. x 7/8cu)Manufacturer no. 549438 2Quote Ask for a quote
9 Bracket, Angle Adjustable BracketManufacturer no. 548413 2Quote Ask for a quote

Angle Adjustable Flip Back

14 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Angle Adjustable Flip Back
No.PartQtyPriceAction
1-13 Kit, Angle Adjustable Flip Back (STP/EXT)Manufacturer no. 548601 1Quote Ask for a quote
1 Screw, Hex Bolt 5/16-18 x 2Manufacturer no. 549339 1Quote Ask for a quote
2 Nut, Nylon Lock Nut 5/16-18Manufacturer no. 548862 1Quote Ask for a quote
3 Washer, Flat Washer 5/16 ID. x 5/8 OD.Manufacturer no. 549425 1Quote Ask for a quote
4 Screw, Hex Bolt 1/4-20 x 2Manufacturer no. 549331 5Quote Ask for a quote
5 Nut, Nylon Lock Nut 1/4-20Manufacturer no. 548859 4Quote Ask for a quote
6 Washer, Flat Washer 1/4 ID. x 5/8 OD.Manufacturer no. 549423 5Quote Ask for a quote
7 Nut, Nylon Lock Nut Thin 1/4-20Manufacturer no. 548870 1Quote Ask for a quote
8 Washer, Nylon Washer 5/16 ID. x 3/4 OD. x .063thkManufacturer no. 549430 1Quote Ask for a quote
9 Washer, Nylon Washer .265ID x 5/8 OD x .063thManufacturer no. 549428 3Quote Ask for a quote
10 Washer, Radius Washer 1/4 ID. x 3/4 OD. x 3/4cuManufacturer no. 549434 2Quote Ask for a quote
11 Washer, Radius Washer 1/4 ID. x 1 OD. x 1cuManufacturer no. 549433 2Quote Ask for a quote
12 Bracket, Angle Adjustable Flip Back BracketManufacturer no. 548415 2Quote Ask for a quote
13 PPM, Arm Flip Back Hinge ReceiverManufacturer no. 548934 1Quote Ask for a quote

Back Pins

4 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Back Pins
No.PartQtyPriceAction
1 Nut, Nylon Lock Nut Thin 1/4-28Manufacturer no. 548872 1Quote Ask for a quote
2 Pin, Back Pin StandardManufacturer no. 549725 1Quote Ask for a quote
3 Pin, Back Pin 1 Total WidthManufacturer no. 549726 1Quote Ask for a quote
4 Pin, Back Pin 2 Total WidthManufacturer no. 549727 1Quote Ask for a quote

Backpost Clamp

3 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Backpost Clamp
No.PartQtyPriceAction
1 Clamp, Backpost Clamp RightManufacturer no. 548507 1Quote Ask for a quote
2 Clamp, Backpost Clamp LeftManufacturer no. 548506 1Quote Ask for a quote
1-2 Kit, Backpost Clamp Left And Right Complete KitManufacturer no. 548630 1Quote Ask for a quote

Backpost Regular

3 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Backpost Regular
No.PartQtyPriceAction
1 Bushing, Nylon Bushing 1/4 ID. x 7/8 OD. x 1thkManufacturer no. 548468 1Quote Ask for a quote
2 PPM, Backpost Regular LengthManufacturer no. 548959 1Quote Ask for a quote
3 PPM, Backpost Long LengthManufacturer no. 548958 1Quote Ask for a quote

Backpost Endomorph Out

7 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Backpost Endomorph Out
No.PartQtyPriceAction
1 Bushing, Nylon Bushing 1/4 ID. x 7/8 OD. x 1thkManufacturer no. 548468 1Quote Ask for a quote
2 PPM, Backpost Endomorph Out 1/2 Offset LeftManufacturer no. 548954 1Quote Ask for a quote
3 PPM, Backpost Endomorph Out 1/2 Offset RightManufacturer no. 548955 1Quote Ask for a quote
4 PPM, Backpost Endomorph Out 1 Offset LeftManufacturer no. 548952 1Quote Ask for a quote
5 PPM, Backpost Endomorph Out 1 Offset RightManufacturer no. 548953 1Quote Ask for a quote
6 PPM, Backpost Endomorph Out 2 Offset LeftManufacturer no. 548956 1Quote Ask for a quote
7 PPM, Backpost Endomorph Out 2 Offset RightManufacturer no. 548957 1Quote Ask for a quote

Backpost Endomorph In

7 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Backpost Endomorph In
No.PartQtyPriceAction
1 Bushing, Nylon Bushing 1/4 ID. x 7/8 OD. x 1thkManufacturer no. 548468 1Quote Ask for a quote
2 PPM, Backpost Endomorph In 1/2 Offset LeftManufacturer no. 548948 1Quote Ask for a quote
3 PPM, Backpost Endomorph In 1/2 Offset RightManufacturer no. 548949 1Quote Ask for a quote
4 PPM, Backpost Endomorph In 1 Offset LeftManufacturer no. 548946 1Quote Ask for a quote
5 PPM, Backpost Endomorph In 1 Offset RightManufacturer no. 548947 1Quote Ask for a quote
6 PPM, Backpost Endomorph In 2 Offset LeftManufacturer no. 548950 1Quote Ask for a quote
7 PPM, Backpost Endomorph In 2 Offset RightManufacturer no. 548951 1Quote Ask for a quote

Tilt Cylinders (Stp)

15 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Tilt Cylinders (Stp)
No.PartQtyPriceAction
1-14 Kit, Tilt Cylinders (STP) Complete KitManufacturer no. 548829 1Quote Ask for a quote
1 Screw, Hex Bolt 5/16-18 x 2Manufacturer no. 549339 3Quote Ask for a quote
2 Nut, Nylon Lock Nut 5/16-18Manufacturer no. 548862 4Quote Ask for a quote
3 Screw, Hex Bolt 5/16-18 x 2-1/4Manufacturer no. 549341 1Quote Ask for a quote
4 Spacer, Nylon Spacer 5/16 ID. x .6 OD x .12thk (Wht)Manufacturer no. 549389 2Quote Ask for a quote
5 Spacer, 8.3mm ID x 18mm OD x 10mmthkManufacturer no. 549385 8Quote Ask for a quote
6 Washer, Nylon Washer 5/16 ID. x 3/4 OD. x .063thkManufacturer no. 549430 2Quote Ask for a quote
7 Clamp, 1 Tube ClampManufacturer no. 548503 2Quote Ask for a quote
8 Cylinder, Gas Spring 500n ShortManufacturer no. 548516 1Quote Ask for a quote
9 Cylinder, Gas Spring 200n ShortManufacturer no. 548514 1Quote Ask for a quote
10 Cylinder, HeadManufacturer no. 548517 2Quote Ask for a quote
11 Spacer, Rubber Spacer .39 ID. x .8 OD. x 0.2thManufacturer no. 549395 1Quote Ask for a quote
12 Nut, Jam Nut M10-1.0Manufacturer no. 548856 2Quote Ask for a quote
13 Spacer, Nylon Spacer 7/16 ID. x .7 OD. x .25thManufacturer no. 549393 1Quote Ask for a quote
14 Lock, Collar Lock SubassemblyManufacturer no. 548849 1Quote Ask for a quote

Tilt Cylinder Cable (Stp)

7 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Tilt Cylinder Cable (Stp)
No.PartQtyPriceAction
1-4 Kit, STP Tilt Cable (Low STF) Complete KitManufacturer no. 548826 1Quote Ask for a quote
1-4 Kit, STP Tilt Cable (High STF) Complete KitManufacturer no. 548825 1Quote Ask for a quote
1 Cable, Cable Tilt Short Split (Low STF)Manufacturer no. 548474 1Quote Ask for a quote
1 Cable, Cable Tilt Long Split (High STF)Manufacturer no. 548473 1Quote Ask for a quote
2 Trigger, Tilt TriggerManufacturer no. 549409 1Quote Ask for a quote
3 Clamp, 7/8 Tube ClampManufacturer no. 548504 2Quote Ask for a quote
4 Clamp, 1 Tube ClampManufacturer no. 548503 1Quote Ask for a quote

Recline Back (Stp)

19 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Recline Back (Stp)
No.PartQtyPriceAction
1 Screw, Hex Bolt 5/16-18 x 2Manufacturer no. 549339 3Quote Ask for a quote
2 Nut, Nylon Lock Nut 5/16-18Manufacturer no. 548862 1Quote Ask for a quote
3 Spacer, Nylon Spacer 5/16 ID. x .6 OD x .12thk (Wht)Manufacturer no. 549389 2Quote Ask for a quote
4 Cylinder, Gas Spring 500n ShortManufacturer no. 548516 1Quote Ask for a quote
5 Spacer, Nylon Spacer 5/16 ID. x .6 OD. x .18thk (Wht)Manufacturer no. 549391 4Quote Ask for a quote
6 Spacer, Nylon Spacer 5/16 ID. x .7 OD x .4thk (Blk)Manufacturer no. 549392 2Quote Ask for a quote
7 Screw, Hex Bolt 1/4-20 x 2-1/2Manufacturer no. 549333 2Quote Ask for a quote
8 Nut, Nylon Lock Nut 1/4-20Manufacturer no. 548859 2Quote Ask for a quote
9 Washer, Flat Washer 1/4 ID. x 5/8 OD.Manufacturer no. 549423 8Quote Ask for a quote
10 Washer, Nylon Washer 5/16 ID. x 3/4 OD. x .063thkManufacturer no. 549430 2Quote Ask for a quote
11 Screw, Hex Bolt 1/4-20 x 1-3/4Manufacturer no. 549330 4Quote Ask for a quote
12 Nut, Nylon Lock Nut Thin 1/4-20Manufacturer no. 548870 4Quote Ask for a quote
13 Bracket, Angle Adjustable Bracket ReclineManufacturer no. 548414 4Quote Ask for a quote
14 Nut, Jam Nut M10-1.0Manufacturer no. 548856 2Quote Ask for a quote
15 Spacer, Rubber Spacer .39 ID. x .8 OD. x 0.2thManufacturer no. 549395 1Quote Ask for a quote
16 Cylinder, HeadManufacturer no. 548517 1Quote Ask for a quote
17 PPM, Recline Back Bracket (STP) 16Manufacturer no. 549949 1Quote Ask for a quote
18 PPM, Recline Back Bracket (STP) 17Manufacturer no. 549950 1Quote Ask for a quote
19 PPM, Recline Back Bracket (STP) 18Manufacturer no. 549951 1Quote Ask for a quote

Recline Back Cable (Stp)

5 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Recline Back Cable (Stp)
No.PartQtyPriceAction
1-4 Kit, STP Recline Back Cable Complete KitManufacturer no. 548824 1Quote Ask for a quote
1 Cable, Tilt Cable ReclineManufacturer no. 548477 1Quote Ask for a quote
2 Trigger, Tilt TriggerManufacturer no. 549409 1Quote Ask for a quote
3 Clamp, 7/8 Tube ClampManufacturer no. 548504 2Quote Ask for a quote
4 Clamp, 1 Tube ClampManufacturer no. 548503 1Quote Ask for a quote

Anti-Tipper

7 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Anti-Tipper
No.PartQtyPriceAction
1-6 Kit, Adjustable Anti-Tipper Complete KitManufacturer no. 548552 1Quote Ask for a quote
1 PPM, Anti-Tipper ExtensionManufacturer no. 548929 1Quote Ask for a quote
2 Block, Anti-Tipper BlockManufacturer no. 548404 1Quote Ask for a quote
3 Cap, Round Plug 3/4Manufacturer no. 548497 1Quote Ask for a quote
4 Roller, Anti-Tipper Roller 1-5/8Manufacturer no. 549317 2Quote Ask for a quote
5 Screw, Hex Bolt 1/4-20 x 2-1/2Manufacturer no. 549333 1Quote Ask for a quote
6 Nut, Nylon Lock Nut 1/4-20Manufacturer no. 548859 1Quote Ask for a quote

Anti-Tipper Short

6 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Anti-Tipper Short
No.PartQtyPriceAction
1-5 Kit, Short Anti-Tipper Complete KitManufacturer no. 548786 1Quote Ask for a quote
1 Screw, Hex Bolt 1/4-20 x 2-1/2Manufacturer no. 549333 1Quote Ask for a quote
2 Nut, Nylon Lock Nut 1/4-20Manufacturer no. 548859 1Quote Ask for a quote
3 Pin, Detachable PinManufacturer no. 548883 1Quote Ask for a quote
4 Roller, Anti-Tipper Roller 1-5/8Manufacturer no. 549317 2Quote Ask for a quote
5 Block, Anti-Tipper BlockManufacturer no. 548404 1Quote Ask for a quote

Aluminum Wheel Lock

10 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Aluminum Wheel Lock
No.PartQtyPriceAction
1 Clamp, Aluminum Brake ClampManufacturer no. 548505 1Quote Ask for a quote
2 Brake, Aluminum Push Wheel Lock LeftManufacturer no. 548448 1Quote Ask for a quote
3 Brake, Aluminum Push Wheel Lock RightManufacturer no. 548449 1Quote Ask for a quote
4 Brake, Aluminum Pull Wheel Lock LeftManufacturer no. 548446 1Quote Ask for a quote
5 Brake, Aluminum Pull Wheel Lock RightManufacturer no. 548447 1Quote Ask for a quote
6 PPM, Brake Extension 4Manufacturer no. 548989 1Quote Ask for a quote
7 PPM, Brake Extension 6Manufacturer no. 548990 1Quote Ask for a quote
8 PPM, Brake Extension 9Manufacturer no. 548991 1Quote Ask for a quote
9 Cap, Brake Extension Cap RedManufacturer no. 548487 1Quote Ask for a quote
10 Cap, Brake Extension Cap BlueManufacturer no. 548485 1Quote Ask for a quote

One Handed Wheel Lock

6 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in One Handed Wheel Lock
No.PartQtyPriceAction
1 Clamp, Aluminum Brake ClampManufacturer no. 548505 2Quote Ask for a quote
2 Screw, Hex Bolt 1/4-20 x 3/8Manufacturer no. 549336 2Quote Ask for a quote
3 Nut, Nylon Lock Nut 1/4-20Manufacturer no. 548859 2Quote Ask for a quote
4 Brake, Aluminum Wheel Lock BracketManufacturer no. 548450 1Quote Ask for a quote
5 Brake, One Handed Brake Set LeftManufacturer no. 549985 1Quote Ask for a quote
6 Brake, One Handed Brake Set RightManufacturer no. 549986 1Quote Ask for a quote

Stp - Axle Plate

7 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Stp - Axle Plate
No.PartQtyPriceAction
1-5 Kit, Recess Axle Plate Complete KitManufacturer no. 548783 1Quote Ask for a quote
1 Screw, Hex Bolt 1/4-20 x 1-1/2Manufacturer no. 549327 4Quote Ask for a quote
2 Washer, Nylon Washer .265ID x 5/8 OD x .063thManufacturer no. 549428 2Quote Ask for a quote
3 Nut, Nylon Lock Nut 1/4-20Manufacturer no. 548859 2Quote Ask for a quote
4 Nut, Nylon Lock Nut Thin 1/4-20Manufacturer no. 548870 2Quote Ask for a quote
5 Bracket, Recess Axle BracketManufacturer no. 548893 1Quote Ask for a quote
6 Bracket, Straight Axle BracketManufacturer no. 548894 1Quote Ask for a quote

Axle

7 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Axle
No.PartQtyPriceAction
1 Axle, Bolt 1/2-20 x 3-3/4Manufacturer no. 548396 1Quote Ask for a quote
2 Axle, Quick ReleaseManufacturer no. 548397 1Quote Ask for a quote
3 Nut, Jam Nut 3/4-16Manufacturer no. 548854 1Quote Ask for a quote
4 Washer, Lock Washer 3/4Manufacturer no. 549427 1Quote Ask for a quote
5 Axle, Axle Receiver Bolted LongManufacturer no. 548393 1Quote Ask for a quote
6 Axle, Axle Receiver Bolted ShortManufacturer no. 548394 1Quote Ask for a quote
7 Axle, Axle Receiver Quick ReleaseManufacturer no. 548395 1Quote Ask for a quote

Composite Wheel

19 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Composite Wheel
No.PartQtyPriceAction
1 Screw, Pan Washer Head 1/4-20 x 2-1/4Manufacturer no. 549502 8Quote Ask for a quote
2 Spacer, Nylon Spacer 1/4 ID x 7/16 OD. x .630thkManufacturer no. 548467 8Quote Ask for a quote
3 Screw, Pan Head 1/4-20 x 2Manufacturer no. 549503 8Quote Ask for a quote
4 Washer, Flat Washer 1/4 ID. x 5/8 OD.Manufacturer no. 549423 8Quote Ask for a quote
5 Spacer, Nylon Spacer 1/4 ID. x 7/16 OD. x .312thkManufacturer no. 549504 8Quote Ask for a quote
6 Ball Bearing, Ball Bearing 1/2Manufacturer no. 548399 2Quote Ask for a quote
7 Bushing, Aluminum Wheel Bushing 1/2Manufacturer no. 548457 1Quote Ask for a quote
8 Bushing, Aluminum Wheel Bushing Recessed 1/2Manufacturer no. 550002 1Quote Ask for a quote
9 Cap, Wheel Hub CapManufacturer no. 549505 1Quote Ask for a quote
10 Cap, Wheel Hub Cap Quick ReleaseManufacturer no. 549506 1Quote Ask for a quote
11 Handrim, 20 Handrim Chrome CoatedManufacturer no. 548547 1Quote Ask for a quote
12 Handrim, 22 Handrim Chrome CoatedManufacturer no. 548550 1Quote Ask for a quote
13 Handrim, 24 Handrim Chrome CoatedManufacturer no. 548553 1Quote Ask for a quote
14 Handrim, 20 Handrim Plastic CoatedManufacturer no. 548548 1Quote Ask for a quote
15 Handrim, 22 Handrim Plastic CoatedManufacturer no. 548551 1Quote Ask for a quote
16 Handrim, 24 Handrim Plastic CoatedManufacturer no. 548554 1Quote Ask for a quote
17 Wheel, 12 Composite Wheel SmoothManufacturer no. 549507 1Quote Ask for a quote
18 Wheel, 12 Composite Wheel RegularManufacturer no. 549508 1Quote Ask for a quote
19 Wheel, 16 Composite Wheel RegularManufacturer no. 549509 1Quote Ask for a quote

Spoke Wheel

10 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Spoke Wheel
No.PartQtyPriceAction
1 Screw, Pan Washer Head 1/4-20 x 2-1/4Manufacturer no. 549502 4Quote Ask for a quote
2 Bushing, Aluminum Handrim Bushing 1/4 ID.Manufacturer no. 549537 4Quote Ask for a quote
3 Ball Bearing, Ball Bearing 1/2Manufacturer no. 548399 2Quote Ask for a quote
4 Bushing, Aluminum Wheel Bushing 1/2Manufacturer no. 548457 1Quote Ask for a quote
5 Handrim, 20 Handrim Aluminum CoatedManufacturer no. 549538 1Quote Ask for a quote
6 Handrim, 22 Handrim Aluminum CoatedManufacturer no. 549539 1Quote Ask for a quote
7 Handrim, 24 Handrim Aluminum CoatedManufacturer no. 549540 1Quote Ask for a quote
8 Wheel, 20 Spoke Wheel RegularManufacturer no. 549541 1Quote Ask for a quote
9 Wheel, 22 Spoke Wheel RegularManufacturer no. 549542 1Quote Ask for a quote
10 Wheel, 24 Spoke Wheel RegularManufacturer no. 549543 1Quote Ask for a quote

Composite Wheel Heavy Duty

8 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Composite Wheel Heavy Duty
No.PartQtyPriceAction
1-6 Kit, 24 Composite Wheel Heavy Duty Left KitManufacturer no. 549553 1Quote Ask for a quote
1-6 Kit, 24 Composite Wheel Heavy Duty Right KitManufacturer no. 549554 1Quote Ask for a quote
1 Screw, Pan Head 1/4-20 x 2-1/4Manufacturer no. 549350 8Quote Ask for a quote
2 Washer, Flat Washer 1/4 ID. x 5/8 OD.Manufacturer no. 549423 8Quote Ask for a quote
3 Spacer, 1/4 ID. x 3/8 OD. x .630thkManufacturer no. 549550 8Quote Ask for a quote
4 Ball Bearing, Ball Bearing 1/2Manufacturer no. 548399 2Quote Ask for a quote
5 Handrim, 24 Handrim Heavy DutyManufacturer no. 549551 1Quote Ask for a quote
6 Wheel, 24 Composite Wheel Heavy DutyManufacturer no. 549552 1Quote Ask for a quote

Casters And Forks

10 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Casters And Forks
No.PartQtyPriceAction
1 Screw, Double Sided Screw 1/2-20 x 3-5/8Manufacturer no. 549322 1Quote Ask for a quote
2 Nut, Lock Nut 1/2-20Manufacturer no. 548857 1Quote Ask for a quote
3 Screw, Hex Bolt 5/16-18 x 2-3/4Manufacturer no. 549342 1Quote Ask for a quote
4 Nut, Nylon Lock Nut Thin 5/16-18Manufacturer no. 548875 1Quote Ask for a quote
5 Spacer, Nylon Spacer 5/16 ID. x .6 OD x .12thk (Wht)Manufacturer no. 549389 2Quote Ask for a quote
6 Ball Bearing, Caster WheelManufacturer no. 548401 2Quote Ask for a quote
7 Screw, Hex Bolt 5/16-18 x 3-1/2Manufacturer no. 549343 1Quote Ask for a quote
8 Nut, Nylon Lock Nut 5/16-18Manufacturer no. 548862 1Quote Ask for a quote
9 Bushing, Heavy Duty Caster BushingManufacturer no. 548466 1Quote Ask for a quote
10 Ball Bearing, Caster Wheel Heavy DutyManufacturer no. 548402 2Quote Ask for a quote

Tilt Chair - Caster Mount

9 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Tilt Chair - Caster Mount
No.PartQtyPriceAction
1-8 Kit, Caster Journal Housing Complete (Tilt Chair)Manufacturer no. 549555 1Quote Ask for a quote
1 Ball Bearing, Caster MountManufacturer no. 548400 2Quote Ask for a quote
2 Cap, Caster Mount CapManufacturer no. 548490 1Quote Ask for a quote
3 Screw, Offset Bolt 1/4-28 x 1-3/4Manufacturer no. 549346 2Quote Ask for a quote
4 Nut, Nylon Lock Nut 1/4-28Manufacturer no. 548861 2Quote Ask for a quote
5 Washer, Curved Washer 1/4 ID. x 3/4 OD. x .04thkManufacturer no. 549416 2Quote Ask for a quote
6 Cap, 1/4 Nut CapManufacturer no. 548480 2Quote Ask for a quote
7 Washer, External Tooth Lock 1/4Manufacturer no. 549417 2Quote Ask for a quote
8 Bracket, Caster MountManufacturer no. 548427 1Quote Ask for a quote

Oxygen Tank Holder

11 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Oxygen Tank Holder
No.PartQtyPriceAction
1-10 Kit, Oxygen Tank CompleteManufacturer no. 548756 1Quote Ask for a quote
1 Screw, Socket Head M6-1.0 x 35Manufacturer no. 549377 1Quote Ask for a quote
2 Screw, Socket Head M6-1.0 x 10Manufacturer no. 549376 1Quote Ask for a quote
3 Nut, Nylon Lock Nut M6-1.0Manufacturer no. 548866 2Quote Ask for a quote
4 Washer, Flat Washer 1/4 ID. x .4 OD.Manufacturer no. 549420 3Quote Ask for a quote
5 Washer, Flat Washer 1/2 ID. x 5/8 OD.Manufacturer no. 549419 2Quote Ask for a quote
6 Knob, Tristar M6-1.0 x 16.5Manufacturer no. 548846 1Quote Ask for a quote
7 Spacer, 1/4 ID. ChamferManufacturer no. 549384 2Quote Ask for a quote
8 Clamp, Oxygen Tank U-ClampManufacturer no. 548509 1Quote Ask for a quote
9 Bracket, Oxygen Tank Base (STP)Manufacturer no. 548438 1Quote Ask for a quote
10 Bracket, Oxygen TankManufacturer no. 548437 1Quote Ask for a quote

Adductor Wedge - P-Clip

6 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Adductor Wedge - P-Clip
No.PartQtyPriceAction
1 Screw, Truss Head 1/4-20 x 3/4Manufacturer no. 549382 2Quote Ask for a quote
2 Clamp, P-ClipManufacturer no. 549694 2Quote Ask for a quote
3 PPM, Adductor Wedge Pad 8 x 4Manufacturer no. 549934 1Quote Ask for a quote
4 PPM, Adductor Wedge Pad 10 x 4Manufacturer no. 549935 1Quote Ask for a quote
5 PPM, Adductor Wedge Pad 12 x 4Manufacturer no. 549936 1Quote Ask for a quote
6 PPM, Adductor Wedge Pad 14 x 4Manufacturer no. 549937 1Quote Ask for a quote

Adductor - L-Bracket

9 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Adductor - L-Bracket
No.PartQtyPriceAction
1 Screw, Truss Head 1/4-20 x 3/4Manufacturer no. 549382 2Quote Ask for a quote
2 Screw, Round Head 1/4-20 x 1/2Manufacturer no. 549682 6Quote Ask for a quote
3 Nut, Serrated Flange Nut 1/4-20Manufacturer no. 549683 6Quote Ask for a quote
4 Bracket, Adductor ExtensionManufacturer no. 549684 2Quote Ask for a quote
5 Bracket, Adductor L ExtensionManufacturer no. 549685 2Quote Ask for a quote
6 PPM, Adductor Pad 8 x 4Manufacturer no. 549686 1Quote Ask for a quote
7 PPM, Adductor Pad 10 x 4Manufacturer no. 549687 1Quote Ask for a quote
8 PPM, Adductor Pad 12 x 4Manufacturer no. 549688 1Quote Ask for a quote
9 PPM, Adductor Pad 14 x 4Manufacturer no. 549689 1Quote Ask for a quote

Adductor - P-Clip

6 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Adductor - P-Clip
No.PartQtyPriceAction
1 Screw, Truss Head 1/4-20 x 3/4Manufacturer no. 549382 2Quote Ask for a quote
2 Clamp, P-ClipManufacturer no. 549694 2Quote Ask for a quote
3 PPM, Adductor Pad 8 x 4Manufacturer no. 549686 1Quote Ask for a quote
4 PPM, Adductor Pad 10 x 4Manufacturer no. 549687 1Quote Ask for a quote
5 PPM, Adductor Pad 12 x 4Manufacturer no. 549688 1Quote Ask for a quote
6 PPM, Adductor Pad 14 x 4Manufacturer no. 549689 1Quote Ask for a quote

Auto-Style Belt

19 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Auto-Style Belt
No.PartQtyPriceAction
1 Screw, Flat Head 10-32 x 3/4Manufacturer no. 549324 2Quote Ask for a quote
2 Washer, Cup Washer 10Manufacturer no. 549623 2Quote Ask for a quote
3 Belt, 2 Point Auto-Style 16Manufacturer no. 549830 1Quote Ask for a quote
4 Belt, 2 Point Auto-Style 18Manufacturer no. 549831 1Quote Ask for a quote
5 Belt, 2 Point Auto-Style 20Manufacturer no. 549832 1Quote Ask for a quote
6 Belt, 2 Point Auto-Style 22Manufacturer no. 549833 1Quote Ask for a quote
7 Belt, 2 Point Auto-Style 24Manufacturer no. 549834 1Quote Ask for a quote
8 Belt, 2 Point Auto-Style 26Manufacturer no. 549835 1Quote Ask for a quote
9 Belt, 2 Point Auto-Style 28Manufacturer no. 549836 1Quote Ask for a quote
10 Belt, 2 Point Auto-Style 30Manufacturer no. 549837 1Quote Ask for a quote
11 Belt, 2 Point Auto-Style Padded 16Manufacturer no. 549838 1Quote Ask for a quote
12 Belt, 2 Point Auto-Style Padded 18Manufacturer no. 549839 1Quote Ask for a quote
13 Belt, 2 Point Auto-Style Padded 20Manufacturer no. 549840 1Quote Ask for a quote
14 Belt, 2 Point Auto-Style Padded 22Manufacturer no. 549841 1Quote Ask for a quote
15 Belt, 2 Point Auto-Style Padded 24Manufacturer no. 549842 1Quote Ask for a quote
16 Belt, 2 Point Auto-Style Padded 26Manufacturer no. 549843 1Quote Ask for a quote
17 Belt, 2 Point Auto-Style Padded 28Manufacturer no. 549844 1Quote Ask for a quote
18 Belt, 2 Point Auto-Style Padded 30Manufacturer no. 549845 1Quote Ask for a quote
19 Belt, 4 Point Auto-Style 16Manufacturer no. 549846 1Quote Ask for a quote

Nylon Leg Strap

8 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Nylon Leg Strap
No.PartQtyPriceAction
1 Strap, Nylon Leg Strap 16Manufacturer no. 549862 1Quote Ask for a quote
2 Strap, Nylon Leg Strap 18Manufacturer no. 549863 1Quote Ask for a quote
3 Strap, Nylon Leg Strap 20Manufacturer no. 549864 1Quote Ask for a quote
4 Strap, Nylon Leg Strap 22Manufacturer no. 549865 1Quote Ask for a quote
5 Strap, Nylon Leg Strap 24Manufacturer no. 549866 1Quote Ask for a quote
6 Strap, Nylon Leg Strap 26Manufacturer no. 549867 1Quote Ask for a quote
7 Strap, Nylon Leg Strap 28Manufacturer no. 549868 1Quote Ask for a quote
8 Strap, Nylon Leg Strap 30Manufacturer no. 549869 1Quote Ask for a quote

Leg Channel

7 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Leg Channel
No.PartQtyPriceAction
1 Screw, Hex Bolt 1/4-20 x 1Manufacturer no. 549326 2Quote Ask for a quote
3 PPM, ABS Seat Pan Adductor 16 No VelcroManufacturer no. 549695 1Quote Ask for a quote
4 PPM, ABS Seat Pan Adductor 18 No VelcroManufacturer no. 549696 1Quote Ask for a quote
5 PPM, ABS Seat Pan Adductor 20 No VelcroManufacturer no. 549697 1Quote Ask for a quote
6 PPM, ABS Seat Pan Adductor 16 With VelcroManufacturer no. 549698 1Quote Ask for a quote
7 PPM, ABS Seat Pan Adductor 18 With VelcroManufacturer no. 549699 1Quote Ask for a quote
8 PPM, ABS Seat Pan Adductor 20 With VelcroManufacturer no. 549700 1Quote Ask for a quote

Tilt Chair - Tie Down - Front

9 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Tilt Chair - Tie Down - Front
No.PartQtyPriceAction
1-8 Kit, Tilt Chair Front Tie Down CompleteManufacturer no. 549948 1Quote Ask for a quote
1 Screw, Offset Bolt 1/4-28 x 2Manufacturer no. 549347 2Quote Ask for a quote
2 Nut, Nylon Lock Nut 1/4-28Manufacturer no. 548861 2Quote Ask for a quote
3 Washer, Curved Washer 1/4 ID. x 3/4 OD. x .04thkManufacturer no. 549416 2Quote Ask for a quote
4 Cap, 1/4 Nut CapManufacturer no. 548480 2Quote Ask for a quote
5 Cap, Caster Mount CapManufacturer no. 548490 1Quote Ask for a quote
6 Ball Bearing, Caster MountManufacturer no. 548400 2Quote Ask for a quote
7 Bracket, Caster MountManufacturer no. 548427 1Quote Ask for a quote
8 Bracket, Front Tie DownManufacturer no. 549947 1Quote Ask for a quote

Tilt Chair - Tie Down - Rear

4 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Tilt Chair - Tie Down - Rear
No.PartQtyPriceAction
1-3 Kit, Tilt Chair Rear Tie Down CompleteManufacturer no. 549946 1Quote Ask for a quote
1 Screw, Hex Bolt 1/4-20 x 1-1/2Manufacturer no. 549327 2Quote Ask for a quote
2 Nut, Nylon Lock Nut Thin 1/4-20Manufacturer no. 548870 2Quote Ask for a quote
3 Bracket, Rear Tie DownManufacturer no. 549942 1Quote Ask for a quote

Full Tray - Locking

12 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Full Tray - Locking
No.PartQtyPriceAction
1 Screw, Truss Head 1/4-20 x 3/4Manufacturer no. 549382 10Quote Ask for a quote
2 Screw, Round Head 10-24 x 1-1/4Manufacturer no. 549360 4Quote Ask for a quote
3 Cap, Rubber Cap 7/8Manufacturer no. 548499 4Quote Ask for a quote
4 Cap, 3/4 Round PlugManufacturer no. 548481 2Quote Ask for a quote
5 Strap, Plastic Strap Full TrayManufacturer no. 549401 1Quote Ask for a quote
6 PPM, Full Tray TubeManufacturer no. 549087 1Quote Ask for a quote
7 PPM, Full Locking Tray TubeManufacturer no. 549079 1Quote Ask for a quote
8 PPM, Full Tray Tube ReceiverManufacturer no. 549088 1Quote Ask for a quote
9 PPM, Full Locking Tray Tube ReceiverManufacturer no. 549080 1Quote Ask for a quote
10 PPM, Full Tray PaddedManufacturer no. 549082 1Quote Ask for a quote
11 PPM, Full Tray ClearManufacturer no. 549081 1Quote Ask for a quote
12 PPM, Full Tray PlasticManufacturer no. 549083 1Quote Ask for a quote

Full Tray - Slide On

6 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Full Tray - Slide On
No.PartQtyPriceAction
1 Screw, Truss Head 1/4-20 x 3/4Manufacturer no. 549382 4Quote Ask for a quote
2 Bracket, Slide On BracketManufacturer no. 548439 2Quote Ask for a quote
3 Strap, Plastic Strap Full TrayManufacturer no. 549401 1Quote Ask for a quote
4 PPM, Full Tray Slide On PaddedManufacturer no. 549085 1Quote Ask for a quote
5 PPM, Full Tray Slide On ClearManufacturer no. 549084 1Quote Ask for a quote
6 PPM, Full Tray Slide On PlasticManufacturer no. 549086 1Quote Ask for a quote

Half Tray - Slide On

8 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Half Tray - Slide On
No.PartQtyPriceAction
1 Screw, Truss Head 1/4-20 x 3/4Manufacturer no. 549382 2Quote Ask for a quote
2 Bracket, Slide On Swing BracketManufacturer no. 548440 1Quote Ask for a quote
3 PPM, Half Tray Slide On Left PaddedManufacturer no. 549096 1Quote Ask for a quote
4 PPM, Half Tray Slide On Right PaddedManufacturer no. 549099 1Quote Ask for a quote
5 PPM, Half Tray Slide On Left ClearManufacturer no. 549095 1Quote Ask for a quote
6 PPM, Half Tray Slide On Right ClearManufacturer no. 549098 1Quote Ask for a quote
7 PPM, Half Tray Slide On Left PlasticManufacturer no. 549097 1Quote Ask for a quote
8 PPM, Half Tray Slide On Right PlasticManufacturer no. 549100 1Quote Ask for a quote

Trough Tray - Slide On

10 parts

Exploded view from the manufacturer's parts manual (Power Plus STP Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Trough Tray - Slide On
No.PartQtyPriceAction
1 Screw, Truss Head 1/4-20 x 3/4Manufacturer no. 549382 6Quote Ask for a quote
2 Bracket, Slide On Swing BracketManufacturer no. 548440 1Quote Ask for a quote
3 PPM, Hand GuardManufacturer no. 549101 1Quote Ask for a quote
4 PPM, Arm GuardManufacturer no. 548935 1Quote Ask for a quote
5 PPM, Half Tray Slide On Left PaddedManufacturer no. 549096 1Quote Ask for a quote
6 PPM, Half Tray Slide On Right PaddedManufacturer no. 549099 1Quote Ask for a quote
7 PPM, Half Tray Slide On Left ClearManufacturer no. 549095 1Quote Ask for a quote
8 PPM, Half Tray Slide On Right ClearManufacturer no. 549098 1Quote Ask for a quote
9 PPM, Half Tray Slide On Left PlasticManufacturer no. 549097 1Quote Ask for a quote
10 PPM, Half Tray Slide On Right PlasticManufacturer no. 549100 1Quote Ask for a quote

Parts manuals for this model

The manufacturer parts lists and exploded diagrams we hold. If you can find the number on one of these, quote it to us and we will match it.

Power Plus STP Parts Book

Manufacturer parts document, PDF.

Not sure which part you need?

Send us a photo of the part, or of where it sits, and tell us what it is doing. Our order desk identifies parts for this equipment every day, and we would rather ask you one question than ship you the wrong bolt.

Or call 905 451-7743 and describe it to us.

Where to go next

The product page

Specifications, documents and the full product page for the STP Tilt Wheelchair by Power Plus Mobility.

All replacement parts

Search every part we stock, or browse by the equipment it fits.

Have us fit it

Our technicians service what we sell, in the home and in the showroom.
