Parts finder
Replacement parts for the Joerns EasyCare Hospital Bed Premium
The exploded view below is numbered. Click a number on the drawing to jump to that part, or search the list. Every price shown is the current online price; anything quoted is priced by our order desk.
Loading the drawing
©2025 Joerns Healthcare • 6130144 RevB • 001712

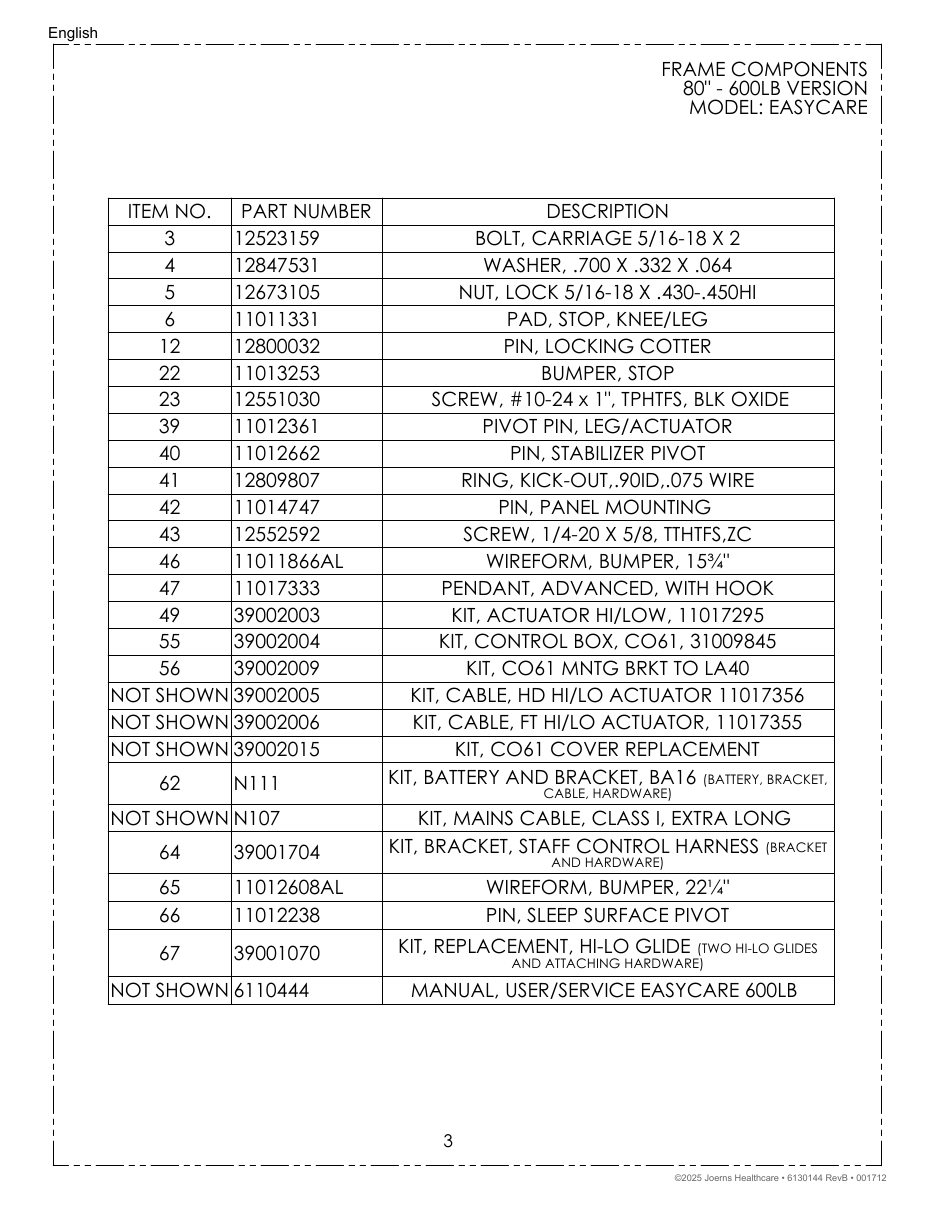

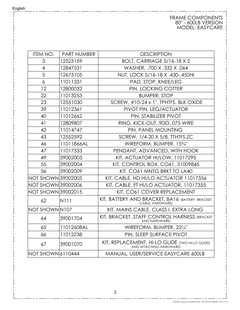

22 partsExploded view from the manufacturer's parts manual (EasyCare Parts List 600 lb). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 3 | BOLT, CARRIAGE 5/16-18 X 2Manufacturer no. 12523159 | 1 | Quote | Ask for a quote |
| 4 | WASHER, .700 X .332 X .064Manufacturer no. 12847531 | 1 | Quote | Ask for a quote |
| 5 | NUT, LOCK 5/16-18 X .430-.450HIManufacturer no. 12673105 | 1 | Quote | Ask for a quote |
| 6 | PAD, STOP, KNEE/LEGManufacturer no. 11011331 | 1 | Quote | Ask for a quote |
| 12 | PIN, LOCKING COTTERManufacturer no. 12800032 | 1 | Quote | Ask for a quote |
| 22 | BUMPER, STOPManufacturer no. 11013253 | 1 | Quote | Ask for a quote |
| 23 | SCREW, #10-24 x 1", TPHTFS, BLK OXIDEManufacturer no. 12551030 | 1 | Quote | Ask for a quote |
| 39 | PIVOT PIN, LEG/ACTUATORManufacturer no. 11012361 | 1 | Quote | Ask for a quote |
| 40 | PIN, STABILIZER PIVOTManufacturer no. 11012662 | 1 | Quote | Ask for a quote |
| 41 | RING, KICK-OUT,.90ID,.075 WIREManufacturer no. 12809807 | 1 | Quote | Ask for a quote |
| 42 | PIN, PANEL MOUNTINGManufacturer no. 11014747 | 1 | Quote | Ask for a quote |
| 43 | SCREW, 1/4-20 X 5/8, TTHTFS,ZCManufacturer no. 12552592 | 1 | Quote | Ask for a quote |
| 46 | WIREFORM, BUMPER, 15¾"Manufacturer no. 11011866AL | 1 | Quote | Ask for a quote |
| 47 | PENDANT, ADVANCED, WITH HOOKManufacturer no. 11017333 | 1 | Quote | Ask for a quote |
| 49 | KIT, ACTUATOR HI/LOW, 11017295Manufacturer no. 39002003 | 1 | Quote | Ask for a quote |
| 55 | KIT, CONTROL BOX, CO61, 31009845Manufacturer no. 39002004 | 1 | Quote | Ask for a quote |
| 56 | KIT, CO61 MNTG BRKT TO LA40Manufacturer no. 39002009 | 1 | Quote | Ask for a quote |

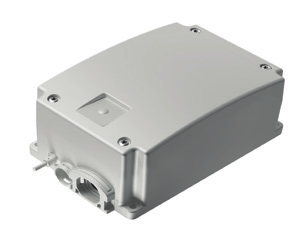

| 62 |  Joerns 24v Bed Backup BatteryN111 |
1 | $567.00 | Add to cart |
| 64 | KIT, BRACKET, STAFF CONTROL HARNESS (BRACKETManufacturer no. 39001704 | 1 | Quote | Ask for a quote |
| 65 | WIREFORM, BUMPER, 22¼"Manufacturer no. 11012608AL | 1 | Quote | Ask for a quote |
| 66 | PIN, SLEEP SURFACE PIVOTManufacturer no. 11012238 | 1 | Quote | Ask for a quote |
| 67 | KIT, REPLACEMENT, HI-LO GLIDE (TWO HI-LO GLIDESManufacturer no. 39001070 | 1 | Quote | Ask for a quote |
©2025 Joerns Healthcare • 6130144 RevB • 001712 (page 4)

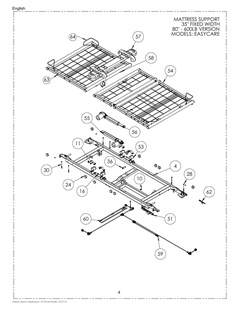

0 partsExploded view from the manufacturer's parts manual (EasyCare Parts List 600 lb). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
©2025 Joerns Healthcare • 6130144 RevB • 001712 (page 5)

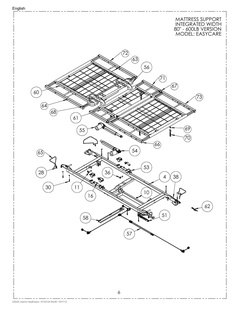

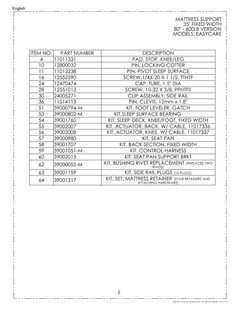

20 partsExploded view from the manufacturer's parts manual (EasyCare Parts List 600 lb). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 4 | PAD, STOP, KNEE/LEGManufacturer no. 11011331 | 1 | Quote | Ask for a quote |
| 10 | PIN, LOCKING COTTERManufacturer no. 12800032 | 1 | Quote | Ask for a quote |
| 11 | PIN, PIVOT SLEEP SURFACEManufacturer no. 11012238 | 1 | Quote | Ask for a quote |
| 16 | SCREW,1/4X-20 X 1 1/2, TTHTFManufacturer no. 12552590 | 1 | Quote | Ask for a quote |
| 24 | CAP, TUBE, 1.5" DIAManufacturer no. 12470474 | 1 | Quote | Ask for a quote |
| 28 | SCREW, 10-32 X 3/8, PPHTFSManufacturer no. 12551013 | 1 | Quote | Ask for a quote |
| 30 | CLIP ASSEMBLY, SIDE RAILManufacturer no. 24005271 | 1 | Quote | Ask for a quote |
| 36 | PIN, CLEVIS, 12mm x 1.8"Manufacturer no. 11014113 | 1 | Quote | Ask for a quote |
| 51 | KIT, FOOT LEVELER, GATCHManufacturer no. 39000794-M | 1 | Quote | Ask for a quote |
| 53 | KIT,SLEEP SURFACE BEARINGManufacturer no. 39000802-M | 1 | Quote | Ask for a quote |
| 54 | KIT, SLEEP DECK, KNEE/FOOT, FIXED WIDTHManufacturer no. 39001760 | 1 | Quote | Ask for a quote |
| 55 | KIT, ACTUATOR, BACK, W/ CABLE, 11017336Manufacturer no. 39002007 | 1 | Quote | Ask for a quote |
| 56 | KIT, ACTUATOR, KNEE, W/ CABLE, 11017337Manufacturer no. 39002008 | 1 | Quote | Ask for a quote |
| 57 | KIT, SEAT PANManufacturer no. 39000980 | 1 | Quote | Ask for a quote |
| 58 | KIT, BACK SECTION, FIXED WIDTHManufacturer no. 39001707 | 1 | Quote | Ask for a quote |
| 59 | KIT, CONTROL HARNESSManufacturer no. 39001051-M | 1 | Quote | Ask for a quote |
| 60 | KIT, SEAT PAN SUPPORT BRKTManufacturer no. 39002013 | 1 | Quote | Ask for a quote |
| 62 | KIT, BUSHING RIVET REPLACEMENT (REPLACES TWOManufacturer no. 39000052-M | 1 | Quote | Ask for a quote |
| 63 | KIT, SIDE RAIL PLUGS (16 PLUGS)Manufacturer no. 39001159 | 1 | Quote | Ask for a quote |
| 64 |  Joerns Mattress Retainer Set39001317 |
1 | $83.00 | Add to cart |
©2025 Joerns Healthcare • 6130144 RevB • 001712 (page 6)
0 partsExploded view from the manufacturer's parts manual (EasyCare Parts List 600 lb). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
©2025 Joerns Healthcare • 6130144 RevB • 001712 (page 8)

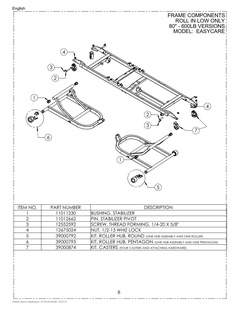

7 partsExploded view from the manufacturer's parts manual (EasyCare Parts List 600 lb). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | BUSHING, STABILIZERManufacturer no. 11011230 | 1 | Quote | Ask for a quote |
| 2 | PIN, STABILIZER PIVOTManufacturer no. 11012662 | 1 | Quote | Ask for a quote |
| 3 | SCREW, THREAD FORMING, 1/4-20 X 5/8"Manufacturer no. 12552592 | 1 | Quote | Ask for a quote |
| 4 | NUT, 1/2-13 WHIZ LOCKManufacturer no. 12675024 | 1 | Quote | Ask for a quote |
| 5 | KIT, ROLLER HUB, ROUND (ONE HUB ASSEMBLY AND ONE ROLLER)Manufacturer no. 39000792 | 1 | Quote | Ask for a quote |
| 6 | KIT, ROLLER HUB, PENTAGON (ONE HUB ASSEMBLY AND ONE PENTAGON)Manufacturer no. 39000793 | 1 | Quote | Ask for a quote |
| 7 | KIT, CASTERS (FOUR CASTERS AND ATTACHING HARDWARE)Manufacturer no. 39000874 | 1 | Quote | Ask for a quote |
©2025 Joerns Healthcare • 6130144 RevB • 001712 (page 9)
0 partsExploded view from the manufacturer's parts manual (EasyCare Parts List 600 lb). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
©2025 Joerns Healthcare • 6130144 RevB • 001712 (page 10)

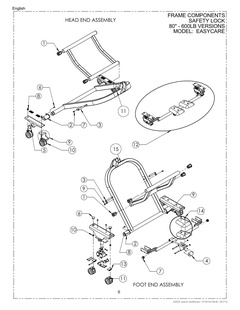

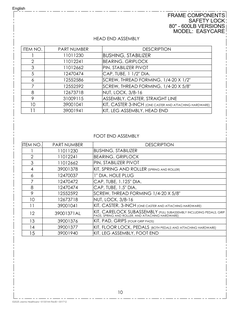

21 partsExploded view from the manufacturer's parts manual (EasyCare Parts List 600 lb). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | BUSHING, STABILIZERManufacturer no. 11011230 | 1 | Quote | Ask for a quote |
| 2 | BEARING, GRIPLOCKManufacturer no. 11012241 | 1 | Quote | Ask for a quote |
| 3 | PIN, STABILIZER PIVOTManufacturer no. 11012662 | 1 | Quote | Ask for a quote |
| 5 | CAP, TUBE, 1 1/2" DIA.Manufacturer no. 12470474 | 1 | Quote | Ask for a quote |
| 6 | SCREW, THREAD FORMING, 1/4-20 X 1/2"Manufacturer no. 12552586 | 1 | Quote | Ask for a quote |
| 7 | SCREW, THREAD FORMING, 1/4-20 X 5/8"Manufacturer no. 12552592 | 1 | Quote | Ask for a quote |
| 8 | NUT, LOCK, 3/8-16Manufacturer no. 12673718 | 1 | Quote | Ask for a quote |
| 9 | ASSEMBLY, CASTER, STRAIGHT LINEManufacturer no. 31009115 | 1 | Quote | Ask for a quote |
| 10 | KIT, CASTER 3-INCH (ONE CASTER AND ATTACHING HARDWARE)Manufacturer no. 39001041 | 1 | Quote | Ask for a quote |
| 11 | KIT, LEG ASSEMBLY, HEAD ENDManufacturer no. 39001941 | 1 | Quote | Ask for a quote |
| 4 | KIT, SPRING AND ROLLER (SPRING AND ROLLER)Manufacturer no. 39001378 | 1 | Quote | Ask for a quote |
| 6 | 1" DIA. HOLE PLUGManufacturer no. 12470037 | 1 | Quote | Ask for a quote |
| 7 | CAP, TUBE, 1.125" DIA.Manufacturer no. 12470472 | 1 | Quote | Ask for a quote |
| 8 | CAP, TUBE, 1.5" DIA.Manufacturer no. 12470474 | 1 | Quote | Ask for a quote |
| 9 | SCREW, THREAD FORMING 1/4-20 X 5/8"Manufacturer no. 12552592 | 1 | Quote | Ask for a quote |
| 10 | NUT, LOCK, 3/8-16Manufacturer no. 12673718 | 1 | Quote | Ask for a quote |
| 11 | KIT, CASTER, 3-INCH (ONE CASTER AND ATTACHING HARDWARE)Manufacturer no. 39001041 | 1 | Quote | Ask for a quote |
| 12 | KIT, CARELOCK SUBASSEMBLY (FULL SUBASSEMBLY INCLUDING PEDALS, GRIPManufacturer no. 39001371AL | 1 | Quote | Ask for a quote |
| 13 | KIT, PAD, GRIPS (FOUR GRIP PADS)Manufacturer no. 39001376 | 1 | Quote | Ask for a quote |
| 14 | KIT, FLOOR LOCK, PEDALS (BOTH PEDALS AND ATTACHING HARDWARE)Manufacturer no. 39001377 | 1 | Quote | Ask for a quote |
| 15 | KIT, LEG ASSEMBLY, FOOT ENDManufacturer no. 39001940 | 1 | Quote | Ask for a quote |
©2025 Joerns Healthcare • 6130144 RevB • 001712 (page 11)

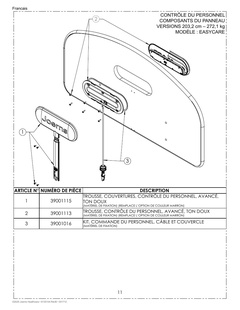

3 partsExploded view from the manufacturer's parts manual (EasyCare Parts List 600 lb). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | KIT, COVERS, STAFF CONTROL, ADVANCED, SOFT TONEManufacturer no. 39001115 | 1 | Quote | Ask for a quote |
| 2 | KIT, STAFF CONTROL, ADVANCED, SOFT TONEManufacturer no. 39001113 | 1 | Quote | Ask for a quote |
| 3 | KIT, STAFF CONTROL, CABLE AND COVERManufacturer no. 39001016 | 1 | Quote | Ask for a quote |
©2025 Joerns Healthcare • 6130144 RevB • 001712 (page 12)

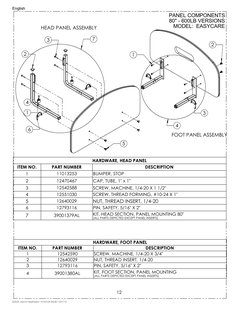

11 partsExploded view from the manufacturer's parts manual (EasyCare Parts List 600 lb). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | BUMPER, STOPManufacturer no. 11013253 | 1 | Quote | Ask for a quote |
| 2 | CAP, TUBE, 1" x 1"Manufacturer no. 12470467 | 1 | Quote | Ask for a quote |
| 3 | SCREW, MACHINE, 1/4-20 X 1 1/2"Manufacturer no. 12542588 | 1 | Quote | Ask for a quote |
| 4 | SCREW, THREAD FORMING, #10-24 X 1"Manufacturer no. 12551030 | 1 | Quote | Ask for a quote |
| 5 | NUT, THREAD INSERT, 1/4-20Manufacturer no. 12640029 | 1 | Quote | Ask for a quote |
| 6 | PIN, SAFETY, 5/16" X 2"Manufacturer no. 12793116 | 1 | Quote | Ask for a quote |
| 7 | KIT, HEAD SECTION, PANEL MOUNTING 80"Manufacturer no. 39001379AL | 1 | Quote | Ask for a quote |
| 1 | SCREW, MACHINE, 1/4-20 X 3/4"Manufacturer no. 12542590 | 1 | Quote | Ask for a quote |
| 2 | NUT, THREAD INSERT, 1/4-20Manufacturer no. 12640029 | 1 | Quote | Ask for a quote |
| 3 | PIN, SAFETY, 5/16" X 2"Manufacturer no. 12793116 | 1 | Quote | Ask for a quote |
| 4 | KIT, FOOT SECTION, PANEL MOUNTINGManufacturer no. 39001380AL | 1 | Quote | Ask for a quote |
©2025 Joerns Healthcare • 6130144 RévB • 001712

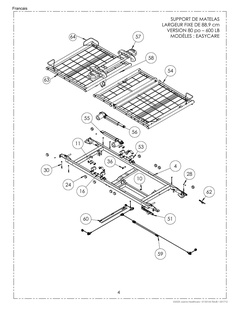

0 partsExploded view from the manufacturer's parts manual (EasyCare Parts List 600 lb). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
©2025 Joerns Healthcare • 6130144 RévB • 001712 (page 16)

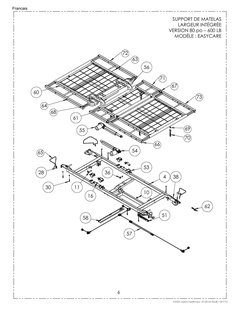

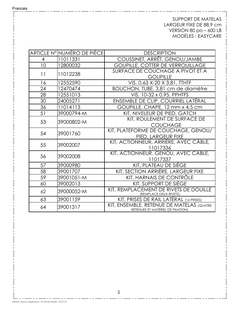

20 partsExploded view from the manufacturer's parts manual (EasyCare Parts List 600 lb). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 4 | COUSSINET, ARRÊT, GENOU/JAMBEManufacturer no. 11011331 | 1 | Quote | Ask for a quote |
| 10 | GOUPILLE, COTTER DE VERROUILLAGEManufacturer no. 12800032 | 1 | Quote | Ask for a quote |
| 11 | SURFACE DE COUCHAGE À PIVOT ET ÀManufacturer no. 11012238 | 1 | Quote | Ask for a quote |
| 16 | VIS, 0,63 X-20 X 3,81, TTHTFManufacturer no. 12552590 | 1 | Quote | Ask for a quote |
| 24 | BOUCHON, TUBE, 3,81 cm de diamètreManufacturer no. 12470474 | 1 | Quote | Ask for a quote |
| 28 | VIS, 10-32 x 0,95, PPHTFSManufacturer no. 12551013 | 1 | Quote | Ask for a quote |
| 30 | ENSEMBLE DE CLIP, COURRIEL LATÉRALManufacturer no. 24005271 | 1 | Quote | Ask for a quote |
| 36 | GOUPILLE, CHAPE, 12 mm x 4,5 cmManufacturer no. 11014113 | 1 | Quote | Ask for a quote |
| 51 | KIT, NIVELEUR DE PIED, GATCHManufacturer no. 39000794-M | 1 | Quote | Ask for a quote |
| 53 | KIT, ROULEMENT DE SURFACE DEManufacturer no. 39000802-M | 1 | Quote | Ask for a quote |
| 54 | KIT, PLATEFORME DE COUCHAGE, GENOU/Manufacturer no. 39001760 | 1 | Quote | Ask for a quote |
| 55 | KIT, ACTIONNEUR, ARRIÈRE, AVEC CÂBLE,Manufacturer no. 39002007 | 1 | Quote | Ask for a quote |
| 56 | KIT, ACTIONNEUR, GENOU, AVEC CÂBLE,Manufacturer no. 39002008 | 1 | Quote | Ask for a quote |
| 57 | KIT, PLATEAU DE SIÈGEManufacturer no. 39000980 | 1 | Quote | Ask for a quote |
| 58 | KIT, SECTION ARRIÈRE, LARGEUR FIXEManufacturer no. 39001707 | 1 | Quote | Ask for a quote |
| 59 | KIT, HARNAIS DE CONTRÔLEManufacturer no. 39001051-M | 1 | Quote | Ask for a quote |
| 60 | KIT, SUPPORT DE SIÈGEManufacturer no. 39002013 | 1 | Quote | Ask for a quote |
| 62 | KIT, REMPLACEMENT DE RIVETS DE DOUILLEManufacturer no. 39000052-M | 1 | Quote | Ask for a quote |
| 63 | KIT, PRISES DE RAIL LATÉRAL (16 PRISES)Manufacturer no. 39001159 | 1 | Quote | Ask for a quote |

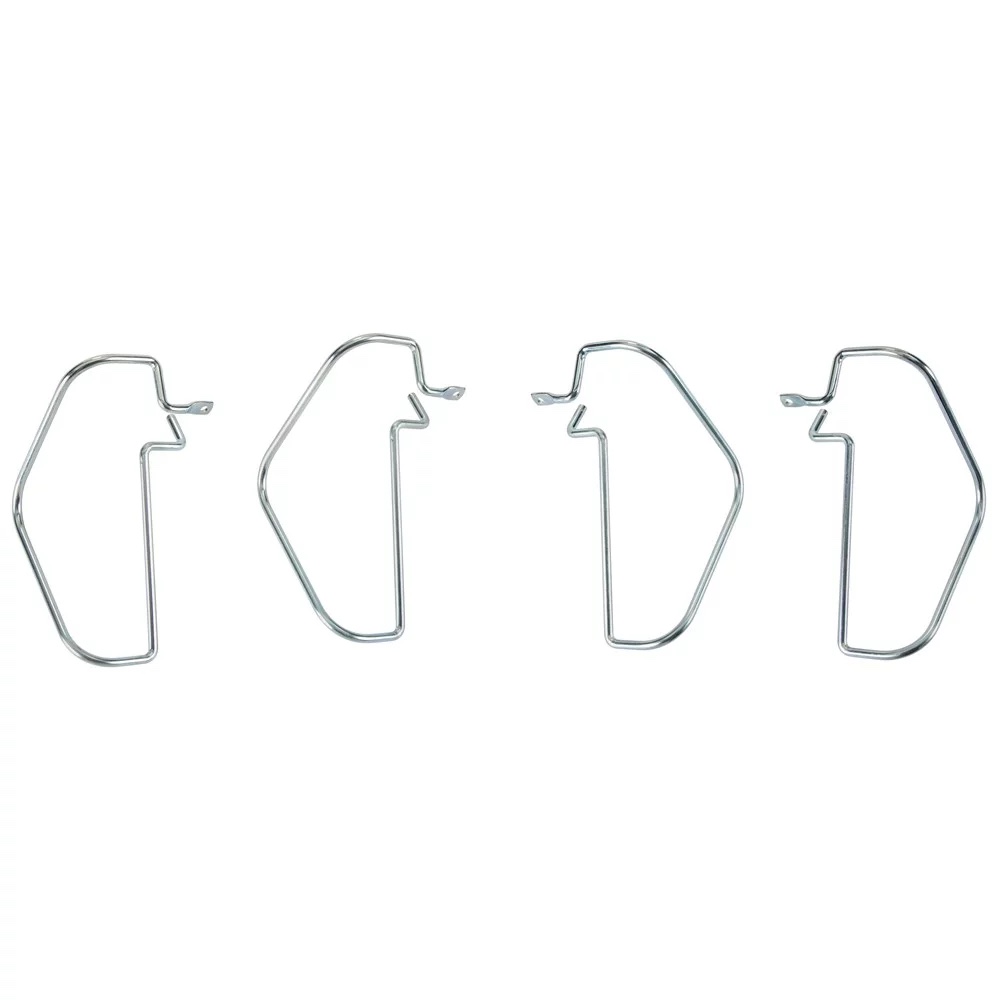

| 64 | Joerns Mattress Retainer Set39001317 |
1 | $83.00 | Add to cart |
©2025 Joerns Healthcare • 6130144 RévB • 001712 (page 17)
0 partsExploded view from the manufacturer's parts manual (EasyCare Parts List 600 lb). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
©2025 Joerns Healthcare • 6130144 RévB • 001712 (page 19)

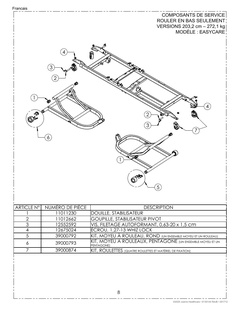

7 partsExploded view from the manufacturer's parts manual (EasyCare Parts List 600 lb). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | DOUILLE, STABILISATEURManufacturer no. 11011230 | 1 | Quote | Ask for a quote |
| 2 | GOUPILLE, STABILISATEUR PIVOTManufacturer no. 11012662 | 1 | Quote | Ask for a quote |
| 3 | VIS, FILETAGE AUTOFORMANT, 0,63-20 x 1,5 cmManufacturer no. 12552592 | 1 | Quote | Ask for a quote |
| 4 | ÉCROU, 1,27-13 WHIZ LOCKManufacturer no. 12675024 | 1 | Quote | Ask for a quote |
| 5 | KIT, MOYEU À ROULEAU, ROND (UN ENSEMBLE MOYEU ET UN ROULEAU)Manufacturer no. 39000792 | 1 | Quote | Ask for a quote |
| 6 | KIT, MOYEU À ROULEAUX, PENTAGONE (UN ENSEMBLE MOYEU ET UNManufacturer no. 39000793 | 1 | Quote | Ask for a quote |
| 7 | KIT, ROULETTES (QUATRE ROULETTES ET MATÉRIEL DE FIXATION)Manufacturer no. 39000874 | 1 | Quote | Ask for a quote |
©2025 Joerns Healthcare • 6130144 RévB • 001712 (page 20)
0 partsExploded view from the manufacturer's parts manual (EasyCare Parts List 600 lb). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
©2025 Joerns Healthcare • 6130144 RévB • 001712 (page 21)
20 partsExploded view from the manufacturer's parts manual (EasyCare Parts List 600 lb). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | DOUILLE, STABILISATEURManufacturer no. 11011230 | 1 | Quote | Ask for a quote |
| 2 | ROULEMENT, GRIPLOCKManufacturer no. 11012241 | 1 | Quote | Ask for a quote |
| 3 | GOUPILLE, STABILISATEUR PIVOTManufacturer no. 11012662 | 1 | Quote | Ask for a quote |
| 5 | BOUCHON, TUBE, 3,81 cm de diamètre.Manufacturer no. 12470474 | 1 | Quote | Ask for a quote |
| 6 | VIS, FILETAGE AUTOFORMANT, 0,63-20 x 1,27 cmManufacturer no. 12552586 | 1 | Quote | Ask for a quote |
| 7 | VIS, FILETAGE AUTOFORMANT, 0,63-20 x 1,5 cmManufacturer no. 12552592 | 1 | Quote | Ask for a quote |
| 8 | ÉCROU DE FREIN, 3/8-16Manufacturer no. 12673718 | 1 | Quote | Ask for a quote |
| 9 | ASSEMBLAGE, ROULETTE, LIGNE DROITEManufacturer no. 31009115 | 1 | Quote | Ask for a quote |
| 10 | KIT, ROULETTE DE 7,62 cm (UNE ROULETTE ET LE MATÉRIEL DEManufacturer no. 39001041 | 1 | Quote | Ask for a quote |
| 11 | KIT, ASSEMBLAGE DE PIEDS, EXTRÉMITÉ DE TÊTEManufacturer no. 39001941 | 1 | Quote | Ask for a quote |
| 4 | KIT, RESSORT ET ROULEAU (RESSORT ET ROULEAU)Manufacturer no. 39001378 | 1 | Quote | Ask for a quote |
| 6 | 2,5 cm de diamètre BOUCHON DE TROUManufacturer no. 12470037 | 1 | Quote | Ask for a quote |
| 7 | BOUCHON, TUBE, 2,85 cm DE DIAMÈTREManufacturer no. 12470472 | 1 | Quote | Ask for a quote |
| 8 | BOUCHON, TUBE, 3,81 cm DE DIAMÈTREManufacturer no. 12470474 | 1 | Quote | Ask for a quote |
| 9 | VIS, FILETAGE AUTOFORMANT, 0,63-50,8 x 1,58 cmManufacturer no. 12552592 | 1 | Quote | Ask for a quote |
| 10 | ÉCROU DE FREIN, 3/8-16Manufacturer no. 12673718 | 1 | Quote | Ask for a quote |
| 11 | KIT, ROULETTE, 7,62 cm (UNE ROULETTE ET LE MATÉRIEL DE FIXATION)Manufacturer no. 39001041 | 1 | Quote | Ask for a quote |
| 13 | KIT, COUSSINET, POIGNÉES (QUATRE COUSSINETS DE POIGNÉE)Manufacturer no. 39001376 | 1 | Quote | Ask for a quote |
| 14 | KIT, VERROUILLAGE AU PLANCHER, PÉDALES (PÉDALES ET MATÉRIEL DEManufacturer no. 39001377 | 1 | Quote | Ask for a quote |
| 15 | KIT, ASSEMBLAGE DE PIEDS, EXTRÉMITÉ DE PIEDManufacturer no. 39001940 | 1 | Quote | Ask for a quote |
©2025 Joerns Healthcare • 6130144 RévB • 001712 (page 22)
2 partsExploded view from the manufacturer's parts manual (EasyCare Parts List 600 lb). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 2 | TROUSSE, CONTRÔLE DU PERSONNEL, AVANCÉ, TON DOUXManufacturer no. 39001113 | 1 | Quote | Ask for a quote |
| 3 | KIT, COMMANDE DU PERSONNEL, CÂBLE ET COUVERCLEManufacturer no. 39001016 | 1 | Quote | Ask for a quote |
©2025 Joerns Healthcare • 6130144 RévB • 001712 (page 23)

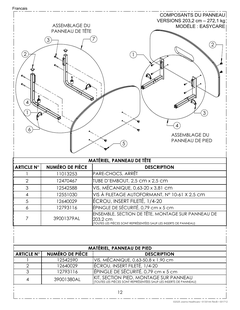

10 partsExploded view from the manufacturer's parts manual (EasyCare Parts List 600 lb). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | PARE-CHOCS, ARRÊTManufacturer no. 11013253 | 1 | Quote | Ask for a quote |
| 2 | TUBE D’EMBOUT, 2,5 cm x 2,5 cmManufacturer no. 12470467 | 1 | Quote | Ask for a quote |
| 3 | VIS, MÉCANIQUE, 0,63-20 x 3,81 cmManufacturer no. 12542588 | 1 | Quote | Ask for a quote |
| 4 | VIS À FILETAGE AUTOFORMANT, N° 10-61 X 2,5 cmManufacturer no. 12551030 | 1 | Quote | Ask for a quote |
| 5 | ÉCROU, INSERT FILETÉ, 1/4-20Manufacturer no. 12640029 | 1 | Quote | Ask for a quote |
| 6 | ÉPINGLE DE SÉCURITÉ, 0,79 cm x 5 cmManufacturer no. 12793116 | 1 | Quote | Ask for a quote |
| 1 | VIS, MÉCANIQUE, 0,63-50,8 x 1,90 cmManufacturer no. 12542590 | 1 | Quote | Ask for a quote |
| 2 | ÉCROU, INSERT FILETÉ, 1/4-20Manufacturer no. 12640029 | 1 | Quote | Ask for a quote |
| 3 | ÉPINGLE DE SÉCURITÉ, 0,79 cm x 5 cmManufacturer no. 12793116 | 1 | Quote | Ask for a quote |
| 4 | KIT, SECTION PIED, MONTAGE SUR PANNEAUManufacturer no. 39001380AL | 1 | Quote | Ask for a quote |
Parts manuals for this model
The manufacturer parts lists and exploded diagrams we hold. If you can find the number on one of these, quote it to us and we will match it.
Not sure which part you need?
Send us a photo of the part, or of where it sits, and tell us what it is doing. Our order desk identifies parts for this equipment every day, and we would rather ask you one question than ship you the wrong bolt.
