Replacement parts for the Handicare minilift200 Base Complete
The exploded view below is numbered. Click a number on the drawing to jump to that part, or search the list. Every price shown is the current online price; anything quoted is priced by our order desk.
Loading the drawing

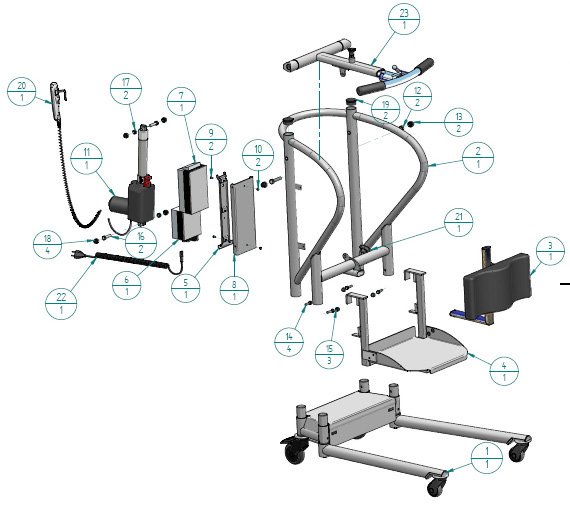

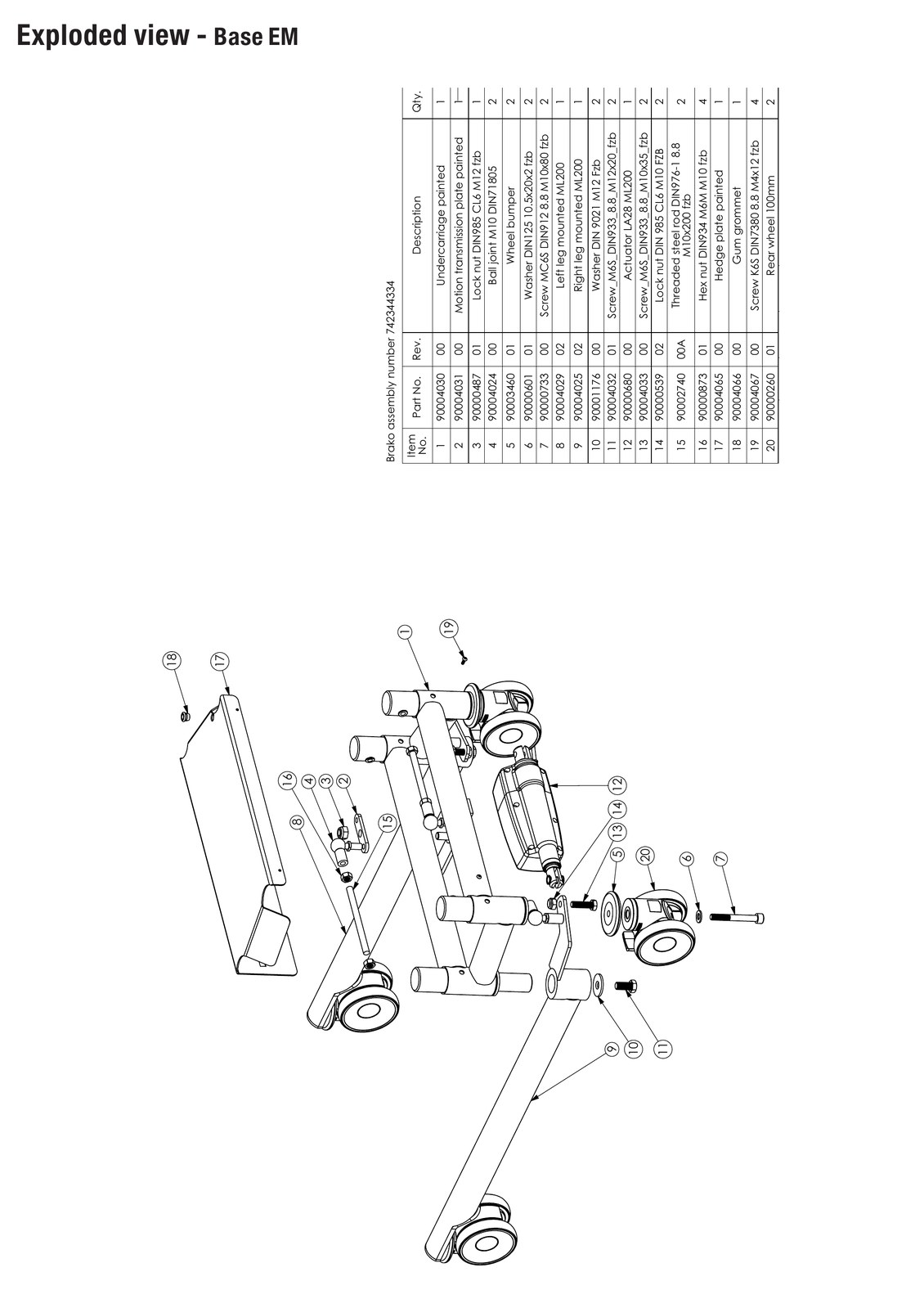

Exploded view and components
0 partsExploded view from the manufacturer's parts manual (Service Manual, SystemRoMedic MiniLift200, 883-En Ver. 7). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

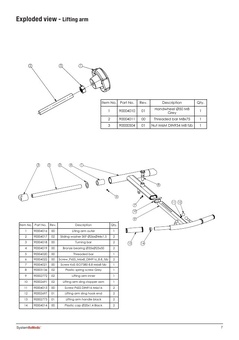

Exploded view - Lifting arm
17 partsExploded view from the manufacturer's parts manual (Service Manual, SystemRoMedic MiniLift200, 883-En Ver. 7). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | 01 Handwheel Ø50 M8Manufacturer no. 90004010 | 1 | Quote | Ask for a quote |
| 2 | 00 Threaded bar M8x75 1Manufacturer no. 90004011 | 1 | Quote | Ask for a quote |
| 3 | 01 Nut M6M DIN934 M8 fzb 1Manufacturer no. 90000504 | 1 | Quote | Ask for a quote |
| 1 | 00 Liting arm outer 1Manufacturer no. 90004016 | 1 | Quote | Ask for a quote |
| 2 | 02 Sliding washer SKF Ø26xØ44x1,5 2Manufacturer no. 90004017 | 1 | Quote | Ask for a quote |
| 3 | 00 Turning bar 2Manufacturer no. 90004018 | 1 | Quote | Ask for a quote |
| 4 | 00 Bronze bearing Ø35xØ25x50 2Manufacturer no. 90004019 | 1 | Quote | Ask for a quote |
| 5 | 00 Threaded bar 1Manufacturer no. 90004020 | 1 | Quote | Ask for a quote |
| 6 | 00 Screw_P6SS_M6x8_DIN916_8.8_fzb 2Manufacturer no. 90004022 | 1 | Quote | Ask for a quote |
| 7 | 00 Screw K6S ISO7380 8.8 M6x8 fzb 1Manufacturer no. 90004021 | 1 | Quote | Ask for a quote |
| 8 | 02 Plastic spring screw Grey 1Manufacturer no. 90003136 | 1 | Quote | Ask for a quote |
| 9 | 02 Lifting arm inner 1Manufacturer no. 90002772 | 1 | Quote | Ask for a quote |
| 10 | 02 Lifting arm sling stopper asm 1Manufacturer no. 90002691 | 1 | Quote | Ask for a quote |
| 11 | 00 Screw P6SS DIN916 M6x16 2Manufacturer no. 90004013 | 1 | Quote | Ask for a quote |
| 12 | 01 Lifting arm sling hook end 2Manufacturer no. 90002697 | 1 | Quote | Ask for a quote |
| 13 | 01 Lifting arm handle black 2Manufacturer no. 90002773 | 1 | Quote | Ask for a quote |
| 14 | 00 Plastic cap Ø20x1,4 Black 2Manufacturer no. 90004014 | 1 | Quote | Ask for a quote |

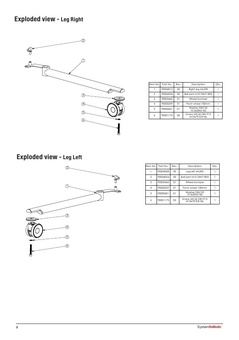

Exploded view - Leg Right
7 partsExploded view from the manufacturer's parts manual (Service Manual, SystemRoMedic MiniLift200, 883-En Ver. 7). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | 00 Leg left ML200 1Manufacturer no. 90004028 | 1 | Quote | Ask for a quote |
| 2 | 00 Ball joint M10 DIN71805 1Manufacturer no. 90004024 | 1 | Quote | Ask for a quote |
| 3 | 01 Wheel bumper 1Manufacturer no. 90003460 | 1 | Quote | Ask for a quote |
| 4 | 01 Front wheel 100mm 1Manufacturer no. 90000259 | 1 | Quote | Ask for a quote |
| 5 | 01 Washer DIN125Manufacturer no. 90000601 | 1 | Quote | Ask for a quote |
| 6 | 00 Screw MC6S DIN 912Manufacturer no. 90001175 | 1 | Quote | Ask for a quote |
| 1 | 00 Right leg ML200 1Manufacturer no. 90004015 | 1 | Quote | Ask for a quote |

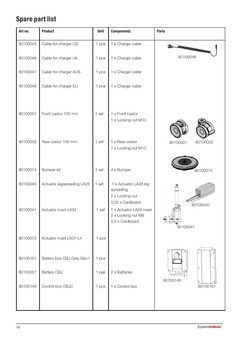

Art no. Product Unit Components Parts
0 partsExploded view from the manufacturer's parts manual (Service Manual, SystemRoMedic MiniLift200, 883-En Ver. 7). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

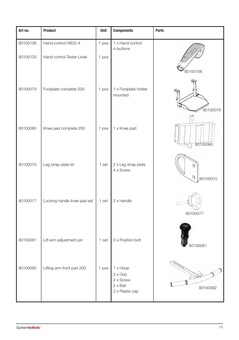

Art no. Product Unit Components Parts (page 11)
0 partsExploded view from the manufacturer's parts manual (Service Manual, SystemRoMedic MiniLift200, 883-En Ver. 7). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
Exploded view, page 15
0 partsExploded view from the manufacturer's parts manual (Service Manual, SystemRoMedic MiniLift200, 883-En Ver. 7). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

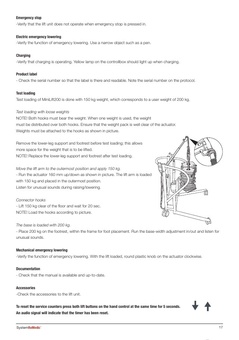

Emergency stop
0 partsExploded view from the manufacturer's parts manual (Service Manual, SystemRoMedic MiniLift200, 883-En Ver. 7). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

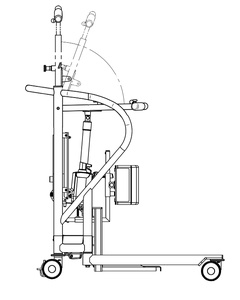

Dimensions
