Handicare MiniLift200 Base Complete

The Handicare MiniLift200 Base Complete is the whole undercarriage of a MiniLift200 stand aid, supplied as one assembly, manufacturer code 742344334. Handicare's own service drawing titles it "Undercarriage mounted ML200". It arrives with the legs, the base-widening actuator, the rear castors and the bumpers already on it, so a lift with a damaged chassis becomes a bolt-on repair instead of a write-off. Westin Healthcare stocks lift parts in Brampton and our technicians fit them across the Greater Toronto Area.

This is the largest single part on the machine and it is a service item, not a shelf item. It is bought when a base is bent, cracked or corroded beyond repair, or when a lift has taken an impact and the chassis has to be replaced as a unit rather than piece by piece.

What the base actually does on a MiniLift200

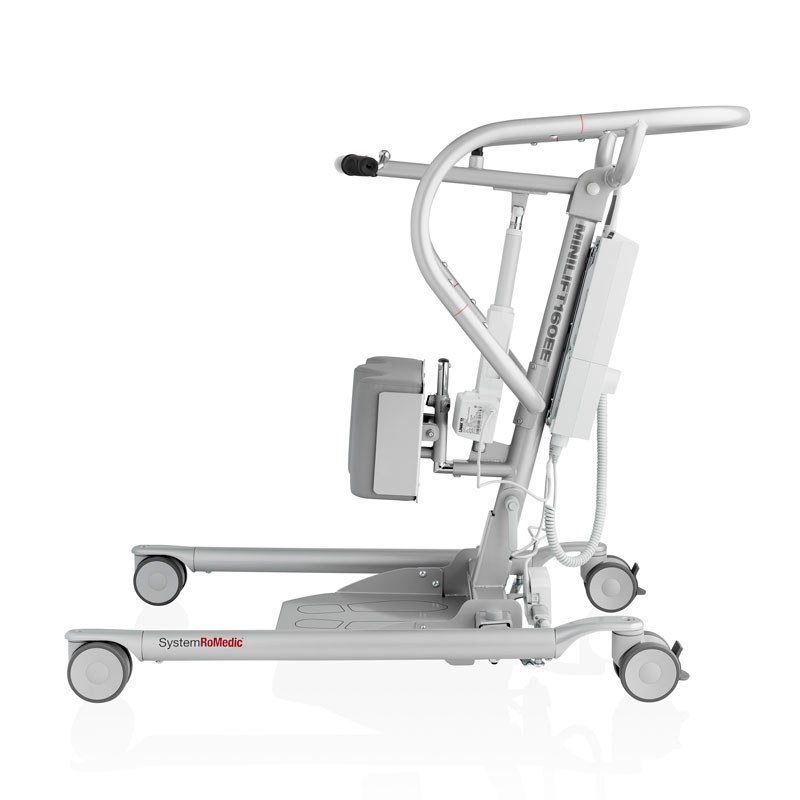

On a sit-to-stand lift, the base is doing more work than it looks like. It carries the person's whole weight through the mast, it opens and closes electrically to get around a wheelchair or a commode and back through a doorway, and it holds the geometry that decides whether the lift feels stable to somebody standing up out of it.

The MiniLift200 spreads from 450 to 875 mm (17.7 to 34.4 in) inside the legs and 590 to 1030 mm (23.2 to 40.6 in) outside them, and it does that on a Linak LA28 actuator that lives inside the chassis. A base that has been knocked out of true does not spread evenly, and a base that does not spread evenly is a lift that starts to feel wrong before anybody can point at a fault.

What comes in the assembly

Handicare's exploded view for assembly 742344334 lists twenty positions. The ones that matter to a buyer are the parts you are not paying to fit separately:

• The painted undercarriage and the motion transmission plate, which is the linkage that turns actuator travel into leg spread.
• Left and right legs, mounted. Handicare's own part descriptions are "Left leg mounted ML200" and "Right leg mounted ML200", so the legs arrive on the chassis rather than in a box beside it.
• The base-widening actuator, listed in the assembly as "Actuator LA28 ML200". This is the motor that opens and closes the legs.
• Two rear castors, 100 mm (3.9 in), and two wheel bumpers.
• The ball joints, threaded rods, washers, screws and lock nuts that hold it together, plus the hedge plate and gum grommet.

In other words, this is the chassis as a working sub-assembly, not a bare frame. That is what makes it worth buying as one part: the labour of stripping a damaged base and rebuilding it onto a new frame is usually worth more than the difference in the part.

Fitting it

This is a technician job and Handicare says so plainly: repairs and maintenance may only be done by authorized personnel using original spare parts. There is no home-fit path for a chassis, and there should not be. The mast, the lift actuator, the control box and the footplate all come off the old base and go onto the new one, and the lift then has to be function-tested before it goes back into service.

Handicare's own pre-use checks after any service work are the ones our technicians run before we leave: confirm the product is correctly assembled, check the slingbar connection and the safety latch function, check the lift and the base-width movement, and check that the actuator is correctly installed.

Before you order a base, check it is the base

A chassis assembly is the most expensive way to fix a MiniLift200, and several cheaper parts produce symptoms that feel like a base problem. Handicare publishes all of them as individually orderable spares with their own replacement procedures:

• Legs will not spread, or spread unevenly. Often the base-widening actuator (Linak LA28) on its own, not the chassis it sits in.
• The lift rolls badly, wanders or drags. Front castor 100 mm, rear castor 100 mm, or the bumper kit. Handicare's own note on the bumper kit is that the direction of the lift is adjusted by turning the bumper.
• Nothing moves at all. Battery box, control box or hand control, all of which are separate parts with their own procedures.

Call (905) 451-7743 with the model and serial number before ordering a base. We would rather sell you an actuator.

Handicare MiniLift200 Base Complete specifications

The base widths and the safe working load above are the assembled lift's published figures, from the SystemRoMedic MiniLift200 technical datasheet and the Handicare North America MiniLift brochure. Handicare publishes no shipping mass, no packed dimensions and no standalone rating for the assembly itself, so none are printed here.

One line on the manufacturer's drawing is worth flagging rather than hiding. The exploded view carrying assembly number 742344334 is headed "Exploded view - Base EM", but every part in its bill of materials is named for the ML200, and the bill includes the Linak LA28 leg-spreading actuator. The MiniLift200 is built only with electrical base widening, and an actuator in the parts list is what electrical base widening looks like. The header is best read as a drawing-sheet title that was not updated. Ask us to confirm it with Savaria against your serial number when you order, which we would do for a part of this size anyway.

Which lift this fits

One machine, and one serial-number condition.

Read your serial number first. The MiniLift200 service manual that documents this assembly states that it is valid from serial number 200005000. A lift built before that is a different revision, and a chassis is not a part to fit on an assumption. If your serial number is lower, or you cannot find it, call (905) 451-7743 and we will check it with Savaria before anything is ordered.

It does not fit a MiniLift160 in any build, and it does not fit a MiniLift125. Those are 160 kg (350 lb) machines on a different chassis with their own base widths, castor sizes and low-leg options, and Handicare gives them their own part numbers. It does not fit a Beka Nora, a Bure, a QuickMove or a Span America F500S either.

Related MiniLift parts and machines

The MiniLift200 is well supported as a repairable machine, which is a good reason to fix one rather than replace it. Handicare publishes individually orderable spares for the castors, bumpers, both actuators, the control box, the battery box, the hand control, the footplate, the knee pad, the leg strap plates, the knee pad locking handles, the lift arm adjustment pin and the lift arm front part. We can quote any of them. Call (905) 451-7743 with your model and serial number.

The soft accessories for the MiniLift range are on our lift parts shelf, and the complete machine is on its own page:

• The Handicare MiniLift200, 200 kg (440 lb), electrical base widening.
• The MiniLift160 range at 160 kg (350 lb), in four builds: 160EM, 160EM low legs, 160EE and 160EE low legs.

If the machine is beyond a chassis repair, the other stand aids we stock are on the sit to stand lifts hub, and everything else is on the patient lifts hub. We will give you an honest answer about which way to go once we have seen the lift.

Delivery and setup in Brampton and the GTA

Westin's own team delivers across Brampton and the Greater Toronto Area, and our technicians fit parts of this size on site rather than leaving a carton at the door. You are welcome to visit our Brampton showroom, or Mobility Specialties, our partner store in Etobicoke, if you would rather match the part to your lift in person.

Call (905) 451-7743 with the model and serial number off your lift and we will confirm the fit before the order goes out. This is an oversized item, so the Canada-wide free ground-shipping offer on smaller goods does not apply and freight outside the GTA is quoted. Shipping terms are on the shipping policy page, and any charge is confirmed on your order.

Service, repairs, and warranty

When something on the lift needs work, you call the shop that set it up, not an overseas parts desk. Westin Healthcare has a service and repairs department, and our technicians come to the home or workplace.

Handicare warranty, inspection and service life

The SystemRoMedic manual states that repairs and maintenance may only be done by authorized personnel using original spare parts, and that the warranty applies only if repairs or alterations are done by an authorized technician. No year count is printed, so ask us for the current terms that ship against your serial number and we will handle a claim with you.

Handicare requires a thorough inspection of the lift at least once per year, performed by authorized personnel in accordance with the Handicare service manual, and publishes an expected product lifetime of 10 years for the MiniLift range. A chassis replacement is a sensible point at which to book that inspection, and we will quote the two together.

Frequently asked questions

What is "base complete"?

It is the entire undercarriage of the lift supplied as one assembly: the painted chassis with the left and right legs already mounted, the motion transmission plate, the Linak LA28 base-widening actuator, two 100 mm rear castors, two wheel bumpers and all the fixings. Handicare's drawing title for it is "Undercarriage mounted ML200".

Will it fit my lift?

It fits the Handicare SystemRoMedic MiniLift200, manufacturer code 401100334, from serial number 200005000. It does not fit a MiniLift160 or a MiniLift125, which are different machines on a different chassis. Read the serial number off your lift and call (905) 451-7743 before ordering.

Can I fit it myself?

No. Handicare restricts repairs and maintenance to authorized personnel using original spare parts, and this is the part everything else on the lift bolts to. Our technicians move the mast, actuator, control box and footplate across, then run Handicare's own post-service checks before the lift goes back into use.

My legs will not spread. Do I need a whole base?

Probably not. That symptom is most often the base-widening actuator, which Handicare sells on its own with its own replacement procedure. Uneven rolling is usually castors or the bumper kit. Nothing moving at all is usually the battery box, control box or hand control. Call us before you order a chassis.

Do the castors come with it?

The two rear 100 mm castors and the two wheel bumpers are in the assembly's bill of materials. The front castors are separately orderable parts on the MiniLift200 spare-part list, so ask us to confirm what arrives on your assembly when you order.

Why does the drawing say "Base EM" when the MiniLift200 is electrical?

Because the sheet title looks like it was not updated. Every part in the bill of materials on that drawing is named for the ML200, and the list includes the Linak LA28 leg-spreading actuator, which is exactly what electrical base widening needs. We will confirm it with Savaria against your serial number when you order, as we would for any part this size.

Is it worth repairing a MiniLift200 at this level?

Often, yes. Handicare publishes an expected product lifetime of 10 years and supports the machine with individually orderable spares down to the locking handles, so a lift with a damaged base and good electronics is a sensible repair. A lift that is near the end of that ten years and needs a chassis is a different conversation, and we will have it with you honestly.

Should the annual inspection happen at the same time?

It is the obvious moment. Handicare requires a thorough inspection at least once a year by authorized personnel following its service manual, and the lift is already in our hands. We will quote the two together.
