Leckey Mygo Stander

Parts finder

Replacement parts for the Leckey Mygo Stander

The exploded view below is numbered. Click a number on the drawing to jump to that part, or search the list. Every price shown is the current online price; anything quoted is priced by our order desk.

Ask about a part Product page 110 parts listed

Showing all 110 parts

1 of 15
Exploded view of the Mygo Stander Spare Parts - Chassis

Loading the drawing

Mygo Stander Spare Parts - Chassis. Numbers match the list.
Mygo Stander Spare Parts - Shoulder. Numbers match the list.
Mygo Stander Spare Parts - Chest Pad. Numbers match the list.
Mygo Stander Spare Parts - Chest Lateral. Numbers match the list.
Mygo Stander Spare Parts - Complex Chest Lateral. Numbers match the list.
Exploded view, page 7. Numbers match the list.
Mygo Stander Spare Parts - Footplate. Numbers match the list.
Mygo Stander Spare Parts - Linear Drive. Numbers match the list.
Mygo Stander Spare Parts - Knee. Numbers match the list.
Exploded view, page 12. Numbers match the list.
Mygo Stander Spare Parts - Hip. Numbers match the list.
Mygo Stander Spare Parts - Hip Derotation Belt. Numbers match the list.
Mygo Stander Spare Parts - Hip Infill Pad. Numbers match the list.
Mygo Stander Spare Parts - Hip Lateral. Numbers match the list.
Mygo Stander Spare Parts - Grab Rail. Numbers match the list.

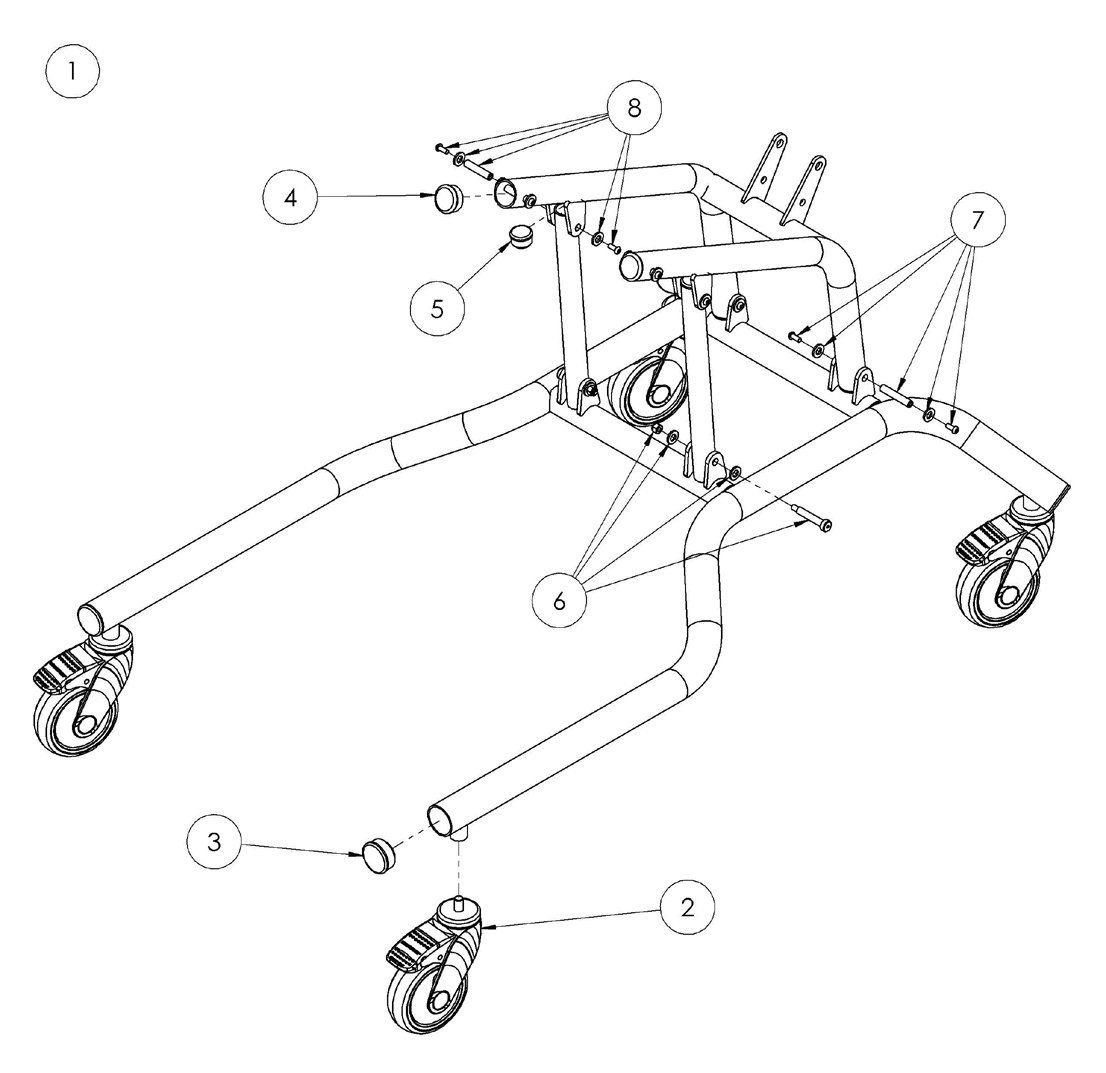

Mygo Stander Spare Parts - Chassis

8 parts

Exploded view from the manufacturer's parts manual (Mygo Stander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Mygo Stander Spare Parts - Chassis
No.PartQtyPriceAction
1 Chassis - Size 1Manufacturer no. 143-1627 1Quote Ask for a quote
2 Black CastorManufacturer no. IA13 1Quote Ask for a quote
3 1-1/2" Ribbed Tube Inserts (Pack of 4)Manufacturer no. SF56 1Quote Ask for a quote
4 1 1/4" Round Black Insert (Pack of 4)Manufacturer no. SH62 1Quote Ask for a quote
5 1" Round Ribbed Tube Insert (Pack of 2)Manufacturer no. SF68 1Quote Ask for a quote
6 Support Arm Fixing KitManufacturer no. 143-9001 1Quote Ask for a quote
7 Base/Welded Arm Fixing KitManufacturer no. 143-9075 1Quote Ask for a quote
8 Support/Welded Arm Fixing KitManufacturer no. 143-9076 1Quote Ask for a quote

Mygo Stander Spare Parts - Shoulder

8 parts

Exploded view from the manufacturer's parts manual (Mygo Stander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Mygo Stander Spare Parts - Shoulder
No.PartQtyPriceAction
1 Shoulder AssemblyManufacturer no. 143-1638 1Quote Ask for a quote
2 Shoulder PU AssemblyManufacturer no. 143-9035 1Quote Ask for a quote
3 Shoulder PU KitManufacturer no. 143-9077 1Quote Ask for a quote
4 Lateral Attachment KitManufacturer no. 143-9036 1Quote Ask for a quote
5 Shoulder Lateral PUManufacturer no. 143-1637 1Quote Ask for a quote
6 Handle AssemblyManufacturer no. 143-9039 1Quote Ask for a quote
7 Head Support Attachment AssemblyManufacturer no. 143-9040 1Quote Ask for a quote
8 Head Support CollarManufacturer no. 118-166 1Quote Ask for a quote

Mygo Stander Spare Parts - Chest Pad

6 parts

Exploded view from the manufacturer's parts manual (Mygo Stander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Mygo Stander Spare Parts - Chest Pad
No.PartQtyPriceAction
1 Chest Pad Assembly - Size 1Manufacturer no. 143-1626 1Quote Ask for a quote
2 Chest Pad Assembly - Size 1Manufacturer no. 143-9031 1Quote Ask for a quote
3 Chest Shroud Assembly - Size 1Manufacturer no. 143-9030 1Quote Ask for a quote
4 Chest Shroud Fixing KitManufacturer no. 143-9078 1Quote Ask for a quote
5 Upholstery Fixing Stud KitManufacturer no. 143-9029 1Quote Ask for a quote
6 Chest Height Adjust Fixing KitManufacturer no. 143-9028 1Quote Ask for a quote

Mygo Stander Spare Parts - Chest Lateral

5 parts

Exploded view from the manufacturer's parts manual (Mygo Stander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Mygo Stander Spare Parts - Chest Lateral
No.PartQtyPriceAction
1 Chest Lateral (Pair) - Size 1Manufacturer no. 143-1619 1Quote Ask for a quote
2 Chest Lateral Brackets (Pair) - Size 1Manufacturer no. 143-1144 1Quote Ask for a quote
3 Angle Adjust Fixing Kit (Pair)Manufacturer no. 143-9041 1Quote Ask for a quote
4 Lateral Assembly Kit (Pair)Manufacturer no. 143-9042 1Quote Ask for a quote
5 25mm Buckle Assembly (Pair)Manufacturer no. 143-1800 1Quote Ask for a quote

Mygo Stander Spare Parts - Complex Chest Lateral

10 parts

Exploded view from the manufacturer's parts manual (Mygo Stander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Mygo Stander Spare Parts - Complex Chest Lateral
No.PartQtyPriceAction
1 Complex Chest Lateral Ass. (RHS)Manufacturer no. 143-1673 1Quote Ask for a quote
2 Complex Chest Lateral Plate Ass.Manufacturer no. 143-9048 1Quote Ask for a quote
3 Fixing KitManufacturer no. 143-9049 1Quote Ask for a quote
4 Taperlock AssemblyManufacturer no. 143-9050 1Quote Ask for a quote
5 Lateral Attachment AssemblyManufacturer no. 143-9051 1Quote Ask for a quote
6 Flip Away Lateral (Pair)Manufacturer no. 117-824 1Quote Ask for a quote
7 Angle Adjust Bracket AssemblyManufacturer no. 143-9053 1Quote Ask for a quote
8 Angle Adjust Fixing KitManufacturer no. 143-9052 1Quote Ask for a quote
9 Foam Pocket w. Spacer FoamManufacturer no. 137-295 1Quote Ask for a quote
10 Lateral & Bracket Covers (Single)Manufacturer no. 133-726 1Quote Ask for a quote

Exploded view, page 7

8 parts

Exploded view from the manufacturer's parts manual (Mygo Stander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 7
No.PartQtyPriceAction
1 Flip Away Lateral Assembly (Pair)Manufacturer no. 143-1675 1Quote Ask for a quote
2 Lateral Assembly Kit (Pair)Manufacturer no. 143-9044 1Quote Ask for a quote
3 25mm Buckle Assembly (Pair)Manufacturer no. 143-1800 1Quote Ask for a quote
4 Lateral Attachment Kit (Pair)Manufacturer no. 143-9045 1Quote Ask for a quote
5 Flip Away Lateral (Pair)Manufacturer no. 117-824 1Quote Ask for a quote
6 Angle Adjust Bracket Assembly (Pair)Manufacturer no. 143-9046 1Quote Ask for a quote
7 Angle Adjust Fixing Kit (Pair)Manufacturer no. 143-9047 1Quote Ask for a quote
8 Lateral & Bracket Covers (Single)Manufacturer no. 133-726 1Quote Ask for a quote

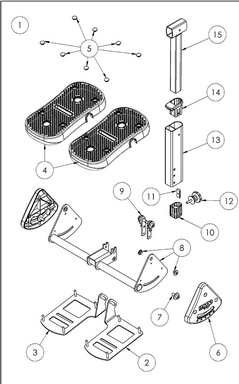

Mygo Stander Spare Parts - Footplate

15 parts

Exploded view from the manufacturer's parts manual (Mygo Stander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Mygo Stander Spare Parts - Footplate
No.PartQtyPriceAction
1 Footplate Assembly - Size 1Manufacturer no. 143-1607 1Quote Ask for a quote
2 Footplate Angle Assembly (LHS)Manufacturer no. 143-9003 1Quote Ask for a quote
3 Footplate Angle Assembly (RHS)Manufacturer no. 143-9004 1Quote Ask for a quote
4 Footplates (Pair)Manufacturer no. 143-9005 1Quote Ask for a quote
5 Orb Knob Cap (Pack of 8)Manufacturer no. 118-153 1Quote Ask for a quote
6 Footplate Shroud Assembly (Pair)Manufacturer no. 143-9006 1Quote Ask for a quote
7 Footplate Angle Adjust Fixing KitManufacturer no. 143-9007 1Quote Ask for a quote
8 Footplate Support Assembly - Size 1Manufacturer no. 143-9008 1Quote Ask for a quote
9 Footplate Support Fixing KitManufacturer no. 143-9009 1Quote Ask for a quote
10 Hip Tube Bottom BushManufacturer no. 143-1189 1Quote Ask for a quote
11 Calf Locking PlateManufacturer no. 120-235 1Quote Ask for a quote
12 Knee Height Adjustment Fixing KitManufacturer no. 143-9010 1Quote Ask for a quote
13 Knee Post Outer - Size 1Manufacturer no. 143-1115 1Quote Ask for a quote
14 Extrusion Top & BushManufacturer no. 143-1110 1Quote Ask for a quote
15 Knee Post AssemblyManufacturer no. 143-1616 1Quote Ask for a quote

Mygo Stander Spare Parts - Linear Drive

6 parts

Exploded view from the manufacturer's parts manual (Mygo Stander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Mygo Stander Spare Parts - Linear Drive
No.PartQtyPriceAction
1 Linear Drive AssemblyManufacturer no. 143-1640 1Quote Ask for a quote
2 Linear Drive PartManufacturer no. 143-9014 1Quote Ask for a quote
3 Pivot Fixing KitManufacturer no. 143-9015 1Quote Ask for a quote
4 Pull PinManufacturer no. IA56 1Quote Ask for a quote
5 Handle AssemblyManufacturer no. 143-9016 1Quote Ask for a quote
6 Chassis Interface Fixing KitManufacturer no. 143-9017 1Quote Ask for a quote

Mygo Stander Spare Parts - Knee

10 parts

Exploded view from the manufacturer's parts manual (Mygo Stander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Mygo Stander Spare Parts - Knee
No.PartQtyPriceAction
1 Knee Assembly (Size 1) [Pair]Manufacturer no. 143-1606 1Quote Ask for a quote
1 Knee Assembly (Size 2) [Pair]Manufacturer no. 143-2606 1Quote Ask for a quote
2 Knee PU Assembly (Size 1) [Pair]Manufacturer no. 143-9018 1Quote Ask for a quote
2 Knee PU Assembly (Size 2) [Pair]Manufacturer no. 143-9022 1Quote Ask for a quote
3 Knee Screw KitManufacturer no. 143-9079 1Quote Ask for a quote
4 Knee Strap AssemblyManufacturer no. 143-1825 1Quote Ask for a quote
5 Knee Strap Fixing Assembly [Pair]Manufacturer no. 143-9019 1Quote Ask for a quote
6 Knee Adjustment Fixing KitManufacturer no. 143-9020 1Quote Ask for a quote
7 Kneecup Extrusion [Pair]Manufacturer no. 143-1190 1Quote Ask for a quote
8 Knee Slider Fixing KitManufacturer no. 143-9021 1Quote Ask for a quote

Exploded view, page 12

1 part

Exploded view from the manufacturer's parts manual (Mygo Stander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 12
No.PartQtyPriceAction
1 Knee Height Extension (Pair)Manufacturer no. 143-1690 1Quote Ask for a quote

Mygo Stander Spare Parts - Hip

10 parts

Exploded view from the manufacturer's parts manual (Mygo Stander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Mygo Stander Spare Parts - Hip
No.PartQtyPriceAction
1 Hip Assembly - Size 1Manufacturer no. 143-1620 1Quote Ask for a quote
2 Hip Height Adjust Assembly - RHSManufacturer no. 143-9023 1Quote Ask for a quote
3 Hip Height Adjust Assembly - LHSManufacturer no. 143-9024 1Quote Ask for a quote
4 Chest Height Adjust AssemblyManufacturer no. 143-9025 1Quote Ask for a quote
5 Hip Pad PU - Size 1Manufacturer no. 143-1611 1Quote Ask for a quote
6 Tray Tube Bush (Pair)Manufacturer no. 143-1193 1Quote Ask for a quote
7 Tray Height Adjust Fixing KitManufacturer no. 143-9026 1Quote Ask for a quote
8 Calf Locking Plate (Single)Manufacturer no. 120-235 1Quote Ask for a quote
9 Hip Tube Bottom Bush (Single)Manufacturer no. 143-1189 1Quote Ask for a quote
10 Hip Height Adjust Fixing Kit (Pair)Manufacturer no. 143-9027 1Quote Ask for a quote

Mygo Stander Spare Parts - Hip Derotation Belt

1 part

Exploded view from the manufacturer's parts manual (Mygo Stander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Mygo Stander Spare Parts - Hip Derotation Belt
No.PartQtyPriceAction
1 Hip Belt BracketManufacturer no. 143-1229 1Quote Ask for a quote

Mygo Stander Spare Parts - Hip Infill Pad

11 parts

Exploded view from the manufacturer's parts manual (Mygo Stander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Mygo Stander Spare Parts - Hip Infill Pad
No.PartQtyPriceAction
1 Hip Infill Pad (Size 1) -07 -08 -09 ●Manufacturer no. 143-1666-XX 1Quote Ask for a quote
1 Hip Infill Pad (Size 2) -07 -08 -09 ●Manufacturer no. 143-2666-XX 1Quote Ask for a quote
2 Hip Infill Pad (Hardware Only)(Size 1) ●Manufacturer no. 143-1666 1Quote Ask for a quote
2 Hip Infill Pad (Hardware Only) (Size 2) ●Manufacturer no. 143-1667 1Quote Ask for a quote
3 Hip Pad PU (Size 1) ●Manufacturer no. 143-1611 1Quote Ask for a quote
3 Hip Pad PU (Size 2) ●Manufacturer no. 143-2611 1Quote Ask for a quote
4 Hip Pad Cover Bracket [Single] ● ●Manufacturer no. 143-1276 1Quote Ask for a quote
5 Hip Infill Support [Single] ● ●Manufacturer no. 143-1667 1Quote Ask for a quote
6 Hip Infill Screw Kit ● ●Manufacturer no. 143-9084 1Quote Ask for a quote
7 Hip Infill Cover (Size 1) -07 -08 -09 ●Manufacturer no. 143-1799-XX 1Quote Ask for a quote
7 Hip Infill Cover (Size 2) -07 -08 -09 ●Manufacturer no. 143-2799-XX 1Quote Ask for a quote

Mygo Stander Spare Parts - Hip Lateral

5 parts

Exploded view from the manufacturer's parts manual (Mygo Stander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Mygo Stander Spare Parts - Hip Lateral
No.PartQtyPriceAction
1 Hip Lateral Assembly [Pair] ● ●Manufacturer no. 143-1663 1Quote Ask for a quote
2 Attachment Kit [Pair] ● ●Manufacturer no. 143-9054 1Quote Ask for a quote
3 Hip Lateral Bracket [Pair] ● ●Manufacturer no. 143-1181 1Quote Ask for a quote
4 Lateral Attachment Assembly [Pair] ● ●Manufacturer no. 143-9055 1Quote Ask for a quote
5 25mm Buckle Assembly [Pair] ● ●Manufacturer no. 143-1800 1Quote Ask for a quote

Mygo Stander Spare Parts - Grab Rail

6 parts

Exploded view from the manufacturer's parts manual (Mygo Stander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Mygo Stander Spare Parts - Grab Rail
No.PartQtyPriceAction
1 Grab Rail Assembly ● ●Manufacturer no. 143-1649 1Quote Ask for a quote
2 Grab Rail ● ●Manufacturer no. 117-769 1Quote Ask for a quote
3 Grab Rail Spacer [Pair] ● ●Manufacturer no. 143-1244 1Quote Ask for a quote
4 Grab Rail Sliding Plate [Pair] ● ●Manufacturer no. 143-1245 1Quote Ask for a quote
5 Grab Rail Screw Kit ● ●Manufacturer no. 143-9083 1Quote Ask for a quote
6 Elsa Locking Key M6 [Single] ● ●Manufacturer no. SF48 1Quote Ask for a quote

Parts manuals for this model

The manufacturer parts lists and exploded diagrams we hold. If you can find the number on one of these, quote it to us and we will match it.

Mygo Stander Parts Manual

Manufacturer parts document, PDF.

Not sure which part you need?

Send us a photo of the part, or of where it sits, and tell us what it is doing. Our order desk identifies parts for this equipment every day, and we would rather ask you one question than ship you the wrong bolt.

Or call 905 451-7743 and describe it to us.

Where to go next

The product page

Specifications, documents and the full product page for the Leckey Mygo Stander.

All replacement parts

Search every part we stock, or browse by the equipment it fits.

Have us fit it

Our technicians service what we sell, in the home and in the showroom.
