Replacement parts for the Leckey Squiggles Plus Stander
The exploded view below is numbered. Click a number on the drawing to jump to that part, or search the list. Every price shown is the current online price; anything quoted is priced by our order desk.
Loading the drawing

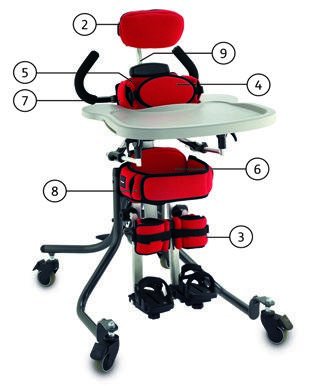

Squiggles+ Spare Parts - Covers
9 partsExploded view from the manufacturer's parts manual (Squiggles+ Stander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | Full Cover Pack -02 -04 -09 -09VINManufacturer no. 184-1800-XX | 1 | Quote | Ask for a quote |
| 3 | Knee Support [Pair] -02 -04 -09 -09VINManufacturer no. 184-1820-XX | 1 | Quote | Ask for a quote |
| 3 | Knee Support [Pair] Size 2 -02 -04 -09 -09VINManufacturer no. 184-2810-XX | 1 | Quote | Ask for a quote |
| 4 | Support Harness -02 -04 -09 -09VINManufacturer no. 184-1822-XX | 1 | Quote | Ask for a quote |
| 5 | Chest Cushion -02 -04 -09 -09VINManufacturer no. 184-1824-XX | 1 | Quote | Ask for a quote |
| 6 | Hip Cushion -02 -04 -09 -09VINManufacturer no. 184-1826-XX | 1 | Quote | Ask for a quote |
| 7 | Chest Lateral Covers -02 -04 -09 -09VINManufacturer no. 184-1828-XX | 1 | Quote | Ask for a quote |
| 8 | Pelvic Support Harness -02 -04 -09 -09VINManufacturer no. 184-1836-XX | 1 | Quote | Ask for a quote |
| 9 | Spine Cap Cover -02 -04 -09 -09VINManufacturer no. 184-1838-XX | 1 | Quote | Ask for a quote |
Squiggles+ Spare Parts - Handlebar
4 partsExploded view from the manufacturer's parts manual (Squiggles+ Stander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | Push Handle AssemblyManufacturer no. 184-621 | 1 | Quote | Ask for a quote |
| 2 | Round Tube Insert [Single]Manufacturer no. SF53 | 1 | Quote | Ask for a quote |
| 3 | Adjustable HandleManufacturer no. SF95 | 1 | Quote | Ask for a quote |
| 4 | Extrusion Outer CapManufacturer no. 118-154 | 1 | Quote | Ask for a quote |
Squiggles+ Spare Parts - Inner Spine
3 partsExploded view from the manufacturer's parts manual (Squiggles+ Stander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | Inner Spine AssemblyManufacturer no. 184-611 | 1 | Quote | Ask for a quote |
| 2 | Head Support Clamp Assembly SQ+Manufacturer no. 184-712 | 1 | Quote | Ask for a quote |
| 3 | Head Support CollarManufacturer no. 118-166 | 1 | Quote | Ask for a quote |
Squiggles+ Spare Parts - Chest Pad and Orb
4 partsExploded view from the manufacturer's parts manual (Squiggles+ Stander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | Chest Pad AssemblyManufacturer no. 118-663 | 1 | Quote | Ask for a quote |
| 2 | Orb AssemblyManufacturer no. 118-680 | 1 | Quote | Ask for a quote |
| 3 | Sternum PadManufacturer no. 118-664 | 1 | Quote | Ask for a quote |
| 4 | Lateral Assembly [Single]Manufacturer no. 118-666 | 1 | Quote | Ask for a quote |
Squiggles+ Spare Parts - Hip Pad and Orb
3 partsExploded view from the manufacturer's parts manual (Squiggles+ Stander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | Hip Pad AssemblyManufacturer no. 184-612 | 1 | Quote | Ask for a quote |
| 2 | Lateral Assembly [Single]Manufacturer no. 118-666 | 1 | Quote | Ask for a quote |
| 3 | Orb AssemblyManufacturer no. 184-660 | 1 | Quote | Ask for a quote |
Squiggles+ Spare Parts - Knee Support
2 partsExploded view from the manufacturer's parts manual (Squiggles+ Stander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | Knee Block Assembly LeftManufacturer no. 184-613-LHS | 1 | Quote | Ask for a quote |
| 2 | Knee Block Assembly RightManufacturer no. 184-613-RHS | 1 | Quote | Ask for a quote |
Squiggles+ Spare Parts - Pivot Chassis
7 partsExploded view from the manufacturer's parts manual (Squiggles+ Stander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | Pivot ChassisManufacturer no. 188-764 | 1 | Quote | Ask for a quote |
| 2 | Castor Assembly - Front [Pair]Manufacturer no. 184-715 | 1 | Quote | Ask for a quote |
| 3 | Castor Assembly - Rear [Pair]Manufacturer no. 184-716 | 1 | Quote | Ask for a quote |
| 4 | Pedal AssemblyManufacturer no. 184-625 | 1 | Quote | Ask for a quote |
| 5 | Gas Spring AssemblyManufacturer no. 184-717 | 1 | Quote | Ask for a quote |
| 6 | Pivot Interface AssemblyManufacturer no. 118-713 | 1 | Quote | Ask for a quote |
| 7 | Pull Pin [Single]Manufacturer no. IA19 | 1 | Quote | Ask for a quote |
Squiggles+ Spare Parts - Tray
11 partsExploded view from the manufacturer's parts manual (Squiggles+ Stander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | Tray AssemblyManufacturer no. 118-619 | 1 | Quote | Ask for a quote |
| 2a | Tray Depth Adjustment Assembly LHManufacturer no. 118-710 | 1 | Quote | Ask for a quote |
| 2b | Tray Depth Adjustment Assembly RHManufacturer no. 118-618 | 1 | Quote | Ask for a quote |
| 3 | Round Tube Insert [Single]Manufacturer no. SF51 | 1 | Quote | Ask for a quote |
| 4 | Tray Grab RailManufacturer no. 117-769 | 1 | Quote | Ask for a quote |
| 5 | Tray Grab Rail Height Adjuster [Single]Manufacturer no. 118-646 | 1 | Quote | Ask for a quote |
| 6 | Locking Key M6 [Single]Manufacturer no. SF48 | 1 | Quote | Ask for a quote |
| 7 | M6 Washer [Single]Manufacturer no. SI09 | 1 | Quote | Ask for a quote |
| 8 | 3/4" Round Tube Insert [Single]Manufacturer no. SF52 | 1 | Quote | Ask for a quote |
| 9 | 7/8" Round Tube Insert [Single]Manufacturer no. SF53 | 1 | Quote | Ask for a quote |
| 10 | Padded Tray InsertManufacturer no. 120-270 | 1 | Quote | Ask for a quote |
Squiggles+ Spare Parts - Tray Support
3 partsExploded view from the manufacturer's parts manual (Squiggles+ Stander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | Orb AssemblyManufacturer no. 118-660 | 1 | Quote | Ask for a quote |
| 2 | Tray Horn AssemblyManufacturer no. 184-689 | 1 | Quote | Ask for a quote |
| 3 | Locking Key (M6x16) [Single]Manufacturer no. SF48 | 1 | Quote | Ask for a quote |
Parts manuals for this model
The manufacturer parts lists and exploded diagrams we hold. If you can find the number on one of these, quote it to us and we will match it.
Not sure which part you need?
Send us a photo of the part, or of where it sits, and tell us what it is doing. Our order desk identifies parts for this equipment every day, and we would rather ask you one question than ship you the wrong bolt.
