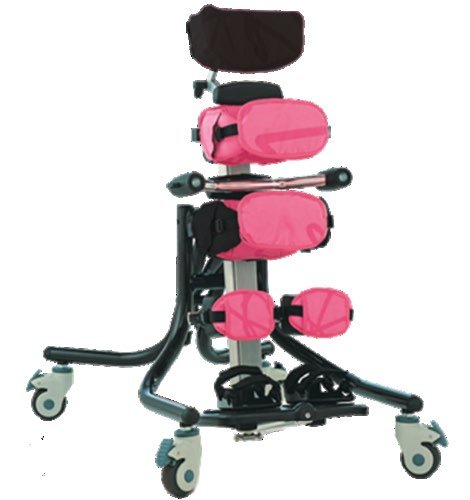

Replacement parts for the Leckey Squiggles Stander
The exploded view below is numbered. Click a number on the drawing to jump to that part, or search the list. Every price shown is the current online price; anything quoted is priced by our order desk.
Loading the drawing
Squiggles Stander Spare Parts - Covers
5 partsExploded view from the manufacturer's parts manual (Squiggles Stander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | SQST Stander Covers -760 -762 -763Manufacturer no. 118-XXX | 1 | Quote | Ask for a quote |
| 2 | Squiggles Stander FrameManufacturer no. 118-600 | 1 | Quote | Ask for a quote |
| 3 | Flat Headrest Cover - Black OnlyManufacturer no. 117-850-05 | 1 | Quote | Ask for a quote |
| 3 | Flat Headrest Hardware &Manufacturer no. 120-785-05 | 1 | Quote | Ask for a quote |
| 3 | Head/Hip Lateral Covers - Black onlyManufacturer no. 137-807-05 | 1 | Quote | Ask for a quote |

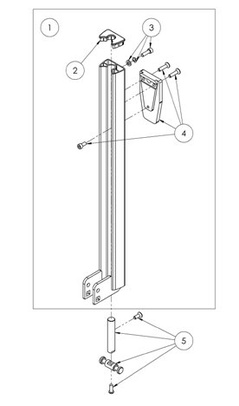

Squiggles Stander Spare Parts - Spine Outer
5 partsExploded view from the manufacturer's parts manual (Squiggles Stander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | Outer Spine AssemblyManufacturer no. 118-610 | 1 | Quote | Ask for a quote |
| 2 | Extrusion Outer CapManufacturer no. 118-154 | 1 | Quote | Ask for a quote |
| 3 | Outer Spine Screw KitManufacturer no. 118-121 | 1 | Quote | Ask for a quote |
| 4 | Interface KitManufacturer no. 118-122 | 1 | Quote | Ask for a quote |
| 5 | Easel Chassis Base Pin KitManufacturer no. 118-123 | 1 | Quote | Ask for a quote |
Squiggles Stander Spare Parts - Inner Spine
4 partsExploded view from the manufacturer's parts manual (Squiggles Stander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | Inner Spine AssemblyManufacturer no. 118-611 | 1 | Quote | Ask for a quote |
| 2 | Inner Extension KitManufacturer no. 118-124 | 1 | Quote | Ask for a quote |
| 3 | Cam Lever AssemblyManufacturer no. 118-712 | 1 | Quote | Ask for a quote |
| 4 | Head Support CollarManufacturer no. 118-166 | 1 | Quote | Ask for a quote |
Squiggles Stander Spare Parts - Knee Assembly
9 partsExploded view from the manufacturer's parts manual (Squiggles Stander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | PU Knee Cup Full Assembly (Size 2) [Single]Manufacturer no. 118-613 | 1 | Quote | Ask for a quote |
| 2 | PU Knee Cup & Strap (Size 2) [Single]Manufacturer no. 118-674 | 1 | Quote | Ask for a quote |
| 3 | PU Knee Cup (Size 1) [Single]Manufacturer no. 102-1640 | 1 | Quote | Ask for a quote |
| 3 | PU Knee Cup (Size 2) [Single]Manufacturer no. 102-2640 | 1 | Quote | Ask for a quote |
| 3 | PU Knee Cup (Size 3) [Single]Manufacturer no. 102-3640 | 1 | Quote | Ask for a quote |
| 4 | Knee Strap Kit [Single]Manufacturer no. 118-620 | 1 | Quote | Ask for a quote |
| 5 | Spine Orb Assembly [Single]Manufacturer no. 118-673 | 1 | Quote | Ask for a quote |
| 6 | Kneecup Extruded Plate [Single]Manufacturer no. 118-030 | 1 | Quote | Ask for a quote |
| 7 | Knee Orb Assembly [Single]Manufacturer no. 118-675 | 1 | Quote | Ask for a quote |
Exploded view, page 6
4 partsExploded view from the manufacturer's parts manual (Squiggles Stander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | Chest Pad Full AssemblyManufacturer no. 118-615 | 1 | Quote | Ask for a quote |
| 2 | Orb AssemblyManufacturer no. 118-680 | 1 | Quote | Ask for a quote |
| 3 | Sternum PadManufacturer no. 118-664 | 1 | Quote | Ask for a quote |
| 4 | Lateral Assembly [Single]Manufacturer no. 118-666 | 1 | Quote | Ask for a quote |
Squiggles Stander Spare Parts -
3 partsExploded view from the manufacturer's parts manual (Squiggles Stander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | Chest Pad Full AssemblyManufacturer no. 118-612 | 1 | Quote | Ask for a quote |
| 2 | Orb AssemblyManufacturer no. 118-660 | 1 | Quote | Ask for a quote |
| 3 | Lateral Assembly [Single]Manufacturer no. 118-666 | 1 | Quote | Ask for a quote |
Squiggles Stander Spare Parts - Footplate
2 partsExploded view from the manufacturer's parts manual (Squiggles Stander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | Footrest AssemblyManufacturer no. 118-614 | 1 | Quote | Ask for a quote |
| 2 | Rubber Pad SetManufacturer no. 118-207 | 1 | Quote | Ask for a quote |
Squiggles Stander Spare Parts - Tray Assembly
5 partsExploded view from the manufacturer's parts manual (Squiggles Stander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | Tray AssemblyManufacturer no. 118-619 | 1 | Quote | Ask for a quote |
| 2 | Tray Depth Adjustment Assembly LHManufacturer no. 118-710 | 1 | Quote | Ask for a quote |
| 3 | Tray Depth Adjustment Assembly RHManufacturer no. 118-618 | 1 | Quote | Ask for a quote |
| 4 | Round Tube Insert [Single]Manufacturer no. SF51 | 1 | Quote | Ask for a quote |
| 5 | Handle Kit [Pair]Manufacturer no. 118-621 | 1 | Quote | Ask for a quote |
Exploded view, page 10
4 partsExploded view from the manufacturer's parts manual (Squiggles Stander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | Tray Support AssemblyManufacturer no. 118-689 | 1 | Quote | Ask for a quote |
| 2 | Tray Attachment AssemblyManufacturer no. 118-709 | 1 | Quote | Ask for a quote |
| 3 | Orb AssemblyManufacturer no. 118-660 | 1 | Quote | Ask for a quote |
| 4 | Locking Key M6x16 [Single]Manufacturer no. SF48 | 1 | Quote | Ask for a quote |
Squiggles Stander Spare Parts - Pivot Chassis
7 partsExploded view from the manufacturer's parts manual (Squiggles Stander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | Pivot ChassisManufacturer no. 118-764 | 1 | Quote | Ask for a quote |
| 2 | Squiggles CastorManufacturer no. IA34 | 1 | Quote | Ask for a quote |
| 3 | Castor Tube Insert Kit [Single]Manufacturer no. 118-161 | 1 | Quote | Ask for a quote |
| 4 | Interface ExtrusionManufacturer no. 118-158 | 1 | Quote | Ask for a quote |
| 5 | Pivot Interface AssemblyManufacturer no. 118-713 | 1 | Quote | Ask for a quote |
| 6 | Gas Spring AssemblyManufacturer no. 118-717 | 1 | Quote | Ask for a quote |
| 7 | Tube Insert [4 Pack]Manufacturer no. SH62 | 1 | Quote | Ask for a quote |
Parts manuals for this model
The manufacturer parts lists and exploded diagrams we hold. If you can find the number on one of these, quote it to us and we will match it.
Not sure which part you need?
Send us a photo of the part, or of where it sits, and tell us what it is doing. Our order desk identifies parts for this equipment every day, and we would rather ask you one question than ship you the wrong bolt.
