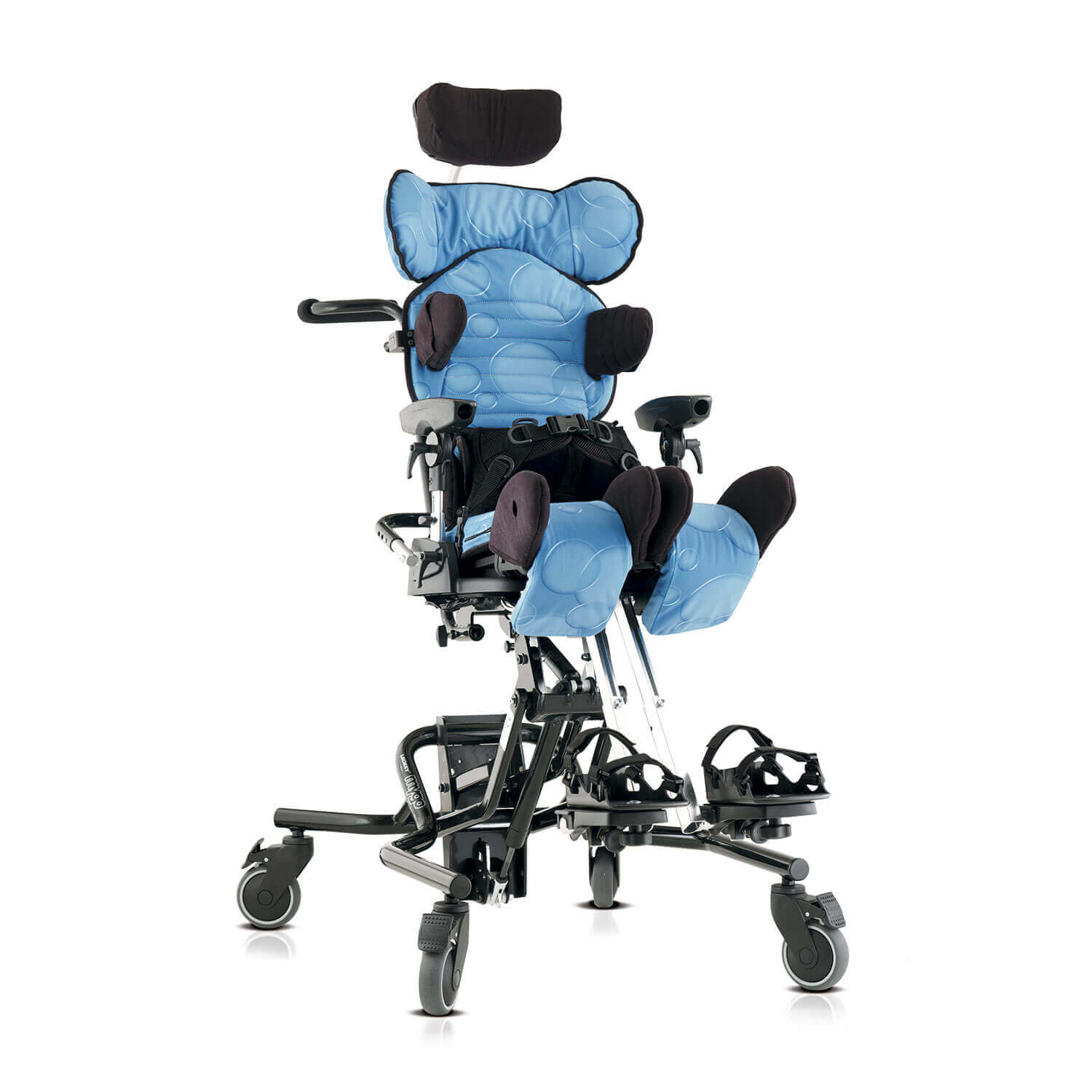

Leckey Mygo Seating System

Parts finder

Replacement parts for the Leckey Mygo Seating System

The exploded view below is numbered. Click a number on the drawing to jump to that part, or search the list. Every price shown is the current online price; anything quoted is priced by our order desk.

Ask about a part Product page 232 parts listed

Showing all 232 parts

1 of 20
Exploded view of the Mygo Seat Spare Parts - Shoulder Support

Loading the drawing

Mygo Seat Spare Parts - Shoulder Support. Numbers match the list.
Mygo Seat Spare Parts - Backrest. Numbers match the list.
Mygo Seat Spare Parts - Dynamic Backrest. Numbers match the list.
Mygo Seat Spare Parts - Rigid Laterals. Numbers match the list.
Exploded view, page 6. Numbers match the list.
Exploded view, page 7. Numbers match the list.
Exploded view, page 8. Numbers match the list.
Mygo Seat Spare Parts - Hip Laterals. Numbers match the list.
Mygo Seat Spare Parts - Armrest. Numbers match the list.
Mygo Seat Spare Parts - Footrest. Numbers match the list.
Exploded view, page 12. Numbers match the list.
Exploded view, page 13. Numbers match the list.
Mygo Seat Spare Parts - Tray Assembly. Numbers match the list.
Mygo Seat Spare Parts - Seatbase Assembly. Numbers match the list.
Exploded view, page 16. Numbers match the list.
Exploded view, page 17. Numbers match the list.
Mygo Seat Spare Parts -. Numbers match the list.
Mygo Seat Spare Parts - (page 20). Numbers match the list.
Mygo Seat Spare Parts - (page 21). Numbers match the list.
Mygo Seat Spare Parts - Upholstery. Numbers match the list.

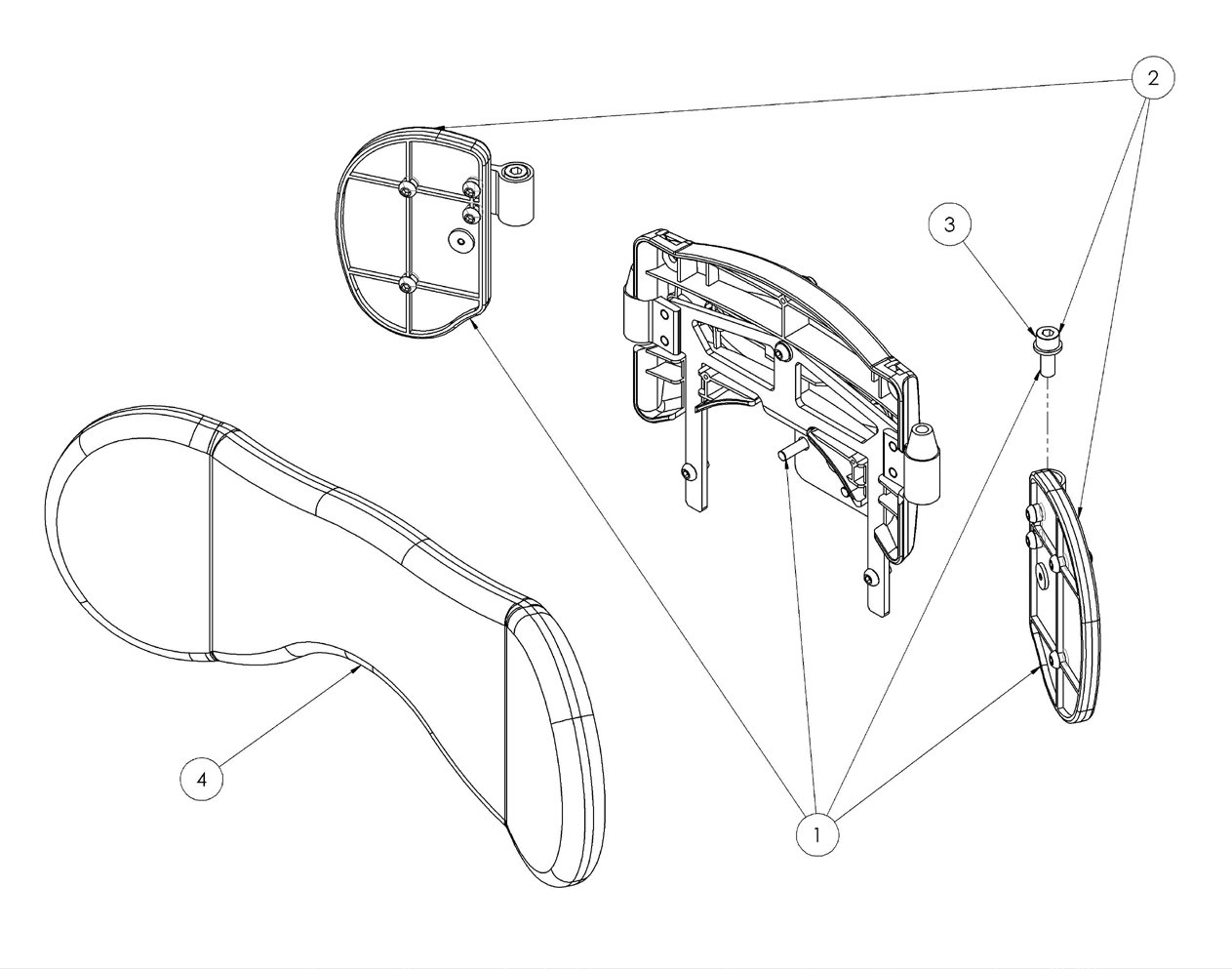

Mygo Seat Spare Parts - Shoulder Support

4 parts

Exploded view from the manufacturer's parts manual (Mygo Seating System Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Mygo Seat Spare Parts - Shoulder Support
No.PartQtyPriceAction
1 Shoulder Support Hardware ● ● ●Manufacturer no. 137-621 1Quote Ask for a quote
2 Shoulder Wing Assembly [Pair] ● ● ●Manufacturer no. 137-624 1Quote Ask for a quote
3 Taperlock Adjustment Screw [Pair] ● ● ●Manufacturer no. SP-1016 1Quote Ask for a quote
4 Shoulder Cushion ● ● ●Manufacturer no. 137-801-XX 1Quote Ask for a quote

Mygo Seat Spare Parts - Backrest

10 parts

Exploded view from the manufacturer's parts manual (Mygo Seating System Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Mygo Seat Spare Parts - Backrest
No.PartQtyPriceAction
1 Backrest Assembly (Size 1) ●Manufacturer no. 117-670 1Quote Ask for a quote
1 Backrest Assembly (Size 2) ●Manufacturer no. 137-670 1Quote Ask for a quote
1 Backrest Assembly (Size 3) ●Manufacturer no. 185-605 1Quote Ask for a quote
2 Sliding Backrest Attachment Kit ● ● ●Manufacturer no. SP-1001 1Quote Ask for a quote
3 Backrest Adjustment Kit ● ● ●Manufacturer no. 137-9015 1Quote Ask for a quote
4 Head Support Collar ● ● ●Manufacturer no. 118-166 1Quote Ask for a quote
5 Head Support Adjustment Kit ● ● ●Manufacturer no. SP-1000 1Quote Ask for a quote
6 Head Support Mtg Assembly (Size 1) ●Manufacturer no. 117-9016 1Quote Ask for a quote
6 Head Support Mtg Assembly (Size 2/3) ● ●Manufacturer no. 137-9016 1Quote Ask for a quote
7 Backrest Cushion ● ● ●Manufacturer no. 137-802-XX 1Quote Ask for a quote

Mygo Seat Spare Parts - Dynamic Backrest

5 parts

Exploded view from the manufacturer's parts manual (Mygo Seating System Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Mygo Seat Spare Parts - Dynamic Backrest
No.PartQtyPriceAction
1 Dynamic Backrest Assy (100N Gas Spring) ● ● ●Manufacturer no. 137-661 1Quote Ask for a quote
1 Dynamic Backrest Assy (150N Gas Spring) ● ● ●Manufacturer no. 137-662 1Quote Ask for a quote
2 Dynamic Backrest Assy Attachment Kit ● ● ●Manufacturer no. SP-1060 1Quote Ask for a quote
3 Dynamic Backrest Adjustment Kit ● ● ●Manufacturer no. SP-1061 1Quote Ask for a quote
4 Back Angle Attachment Kit ● ● ●Manufacturer no. SP-1004 1Quote Ask for a quote

Mygo Seat Spare Parts - Rigid Laterals

14 parts

Exploded view from the manufacturer's parts manual (Mygo Seating System Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Mygo Seat Spare Parts - Rigid Laterals
No.PartQtyPriceAction
1 Rigid Laterals & Covers - Black [Pair] ● ● ●Manufacturer no. 117-803 1Quote Ask for a quote
1 Rigid Laterals & Covers (No Buckle) - Black [Pair] ● ● ●Manufacturer no. 137-205 1Quote Ask for a quote
1 Rigid Laterals & Covers (Size 3) - Black [Pair] ●Manufacturer no. 185-608 1Quote Ask for a quote
2 Lateral Support [Single] ● ● ●Manufacturer no. 117-764 1Quote Ask for a quote
2 Lateral Support (No Buckle) [Single] ● ● ●Manufacturer no. 137-206 1Quote Ask for a quote
2 LH Lateral Support (Size 3) [Single] ●Manufacturer no. 185-606 1Quote Ask for a quote
2 RH Lateral Support (Size 3) [Single] ●Manufacturer no. 185-607 1Quote Ask for a quote
3 Lateral [Single] ● ● ●Manufacturer no. 117-176 1Quote Ask for a quote
4 Lateral Bracket & Screw Kit [Single] ● ● ●Manufacturer no. 117-9003 1Quote Ask for a quote
4 LH Lateral Bracket & Screw Kit (Size 3) [Single] ●Manufacturer no. 185-614 1Quote Ask for a quote
4 RH Lateral Bracket & Screw Kit (Size 3) [Single] ●Manufacturer no. 185-615 1Quote Ask for a quote
5 Harness Buckle Attachment [Single] ● ● ●Manufacturer no. 117-700 1Quote Ask for a quote
6 Angle Lock Assembly [Single] ● ● ●Manufacturer no. 120-9027 1Quote Ask for a quote
7 Lateral Covers - Black [Pair] ● ● ●Manufacturer no. 137-806-05 1Quote Ask for a quote

Exploded view, page 6

22 parts

Exploded view from the manufacturer's parts manual (Mygo Seating System Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 6
No.PartQtyPriceAction
1 Rigid Laterals Extended Height 50mmManufacturer no. 137-633 1Quote Ask for a quote
1 Rigid Laterals Extended Height 50mmManufacturer no. 137-207 1Quote Ask for a quote
1 Rigid Laterals Extended Height 100mmManufacturer no. 137-193 1Quote Ask for a quote
1 Rigid Laterals Extended Height & Covers -Manufacturer no. 185-633 1Quote Ask for a quote
2 LH Lateral Support 50mm [Single] ● ● ●Manufacturer no. 137-625 1Quote Ask for a quote
2 LH Lateral Support 50mm (No Buckle) [Single] ● ● ●Manufacturer no. 137-208 1Quote Ask for a quote
2 LH Lateral Support 100mm [Single] ● ● ●Manufacturer no. 137-622 1Quote Ask for a quote
2 LH Lateral Support - Mygo 3 [Single] ●Manufacturer no. 185-606 1Quote Ask for a quote
3 RH Lateral Support 50mm [Single] ● ● ●Manufacturer no. 137-626 1Quote Ask for a quote
3 RH Lateral Support 50mm (No Buckle) [Single] ● ● ●Manufacturer no. 137-209 1Quote Ask for a quote
3 RH Lateral Support 100mm [Single] ● ● ●Manufacturer no. 137-623 1Quote Ask for a quote
3 RH Lateral Support - Mygo 3 [Single] ●Manufacturer no. 185-607 1Quote Ask for a quote
4 Lateral [Single] ● ● ●Manufacturer no. 117-176 1Quote Ask for a quote
5 Lateral Bracket 50mm & Screw Kit LH [Single] ● ● ●Manufacturer no. 137-9018 1Quote Ask for a quote
5 Lateral Bracket 50mm & Screw Kit RH [Single] ● ● ●Manufacturer no. 137-9019 1Quote Ask for a quote
5 Lateral Bracket 100mm & Screw Kit LH [Single] ● ● ●Manufacturer no. 137-9007 1Quote Ask for a quote
5 Lateral Bracket 100mm & Screw Kit RH [Single] ● ● ●Manufacturer no. 137-9008 1Quote Ask for a quote
5 Lateral Bracket & Screw Kit LH - Mygo 3 [Single] ● ● ●Manufacturer no. 185-614 1Quote Ask for a quote
5 Lateral Bracket & Screw Kit RH - Mygo 3 [Single] ● ● ●Manufacturer no. 185-615 1Quote Ask for a quote
6 Harness Buckle Attachment [Single] ● ● ●Manufacturer no. 117-700 1Quote Ask for a quote
7 Angle Lock Assembly [Single] ● ● ●Manufacturer no. 120-9027 1Quote Ask for a quote
8 Lateral Covers [Pair] -05 -05VIN ● ● ●Manufacturer no. 137-806-XX 1Quote Ask for a quote

Exploded view, page 7

9 parts

Exploded view from the manufacturer's parts manual (Mygo Seating System Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 7
No.PartQtyPriceAction
1 Flip Away Laterals & Covers - Black [Pair] ● ● ●Manufacturer no. 117-837 1Quote Ask for a quote
1 Flip Away Laterals & Covers (No buckle) - Black [Pair] ● ● ●Manufacturer no. 137-200 1Quote Ask for a quote
2 Flip Away Laterals Support [Pair] ● ● ●Manufacturer no. 117-825 1Quote Ask for a quote
2 Flip Away Laterals Support (No buckle) [Pair] ● ● ●Manufacturer no. 137-201 1Quote Ask for a quote
3 Lateral [Single] ● ● ●Manufacturer no. 117-176 1Quote Ask for a quote
4 Lateral Bracket & Screw Kit [Single] ● ● ●Manufacturer no. 117-9006 1Quote Ask for a quote
5 Harness Buckle Attachment [Single] ● ● ●Manufacturer no. 117-700 1Quote Ask for a quote
6 Angle Lock Assembly [Single] ● ● ●Manufacturer no. 120-9027 1Quote Ask for a quote
7 Lateral Covers - Black [Pair] ● ● ●Manufacturer no. 137-806-05 1Quote Ask for a quote

Exploded view, page 8

12 parts

Exploded view from the manufacturer's parts manual (Mygo Seating System Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 8
No.PartQtyPriceAction
1 Flipaway Lateral Extended HeightManufacturer no. 137-634 1Quote Ask for a quote
1 Flipaway Lateral Extended HeightManufacturer no. 137-202 1Quote Ask for a quote
2 LH Flipaway Lateral Support [Single] ● ● ●Manufacturer no. 137-627 1Quote Ask for a quote
2 LH Flipaway Lateral Support (No Buckle) [Single] ● ● ●Manufacturer no. 137-203 1Quote Ask for a quote
3 RH Flipaway Lateral Support [Single] ● ● ●Manufacturer no. 137-628 1Quote Ask for a quote
3 RH Flipaway Lateral Support (No Buckle) [Single] ● ● ●Manufacturer no. 137-204 1Quote Ask for a quote
4 Lateral ● ● ●Manufacturer no. 117-176 1Quote Ask for a quote
5 Lateral Bracket & Screw Kit LH ● ● ●Manufacturer no. 137-9007 1Quote Ask for a quote
5 Lateral Bracket & Screw Kit RH ● ● ●Manufacturer no. 137-9008 1Quote Ask for a quote
6 Harness Buckle Attachment ● ● ●Manufacturer no. 117-700 1Quote Ask for a quote
7 Angle Lock Assembly ● ● ●Manufacturer no. 120-9027 1Quote Ask for a quote
8 Lateral Covers - Black [Pair] ● ● ●Manufacturer no. 137-806-05 1Quote Ask for a quote

Mygo Seat Spare Parts - Hip Laterals

6 parts

Exploded view from the manufacturer's parts manual (Mygo Seating System Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Mygo Seat Spare Parts - Hip Laterals
No.PartQtyPriceAction
1 Hip Laterals & Covers [Pair] ● ● ●Manufacturer no. 137-632 1Quote Ask for a quote
2 Hip Lateral Support [Single] ● ● ●Manufacturer no. 137-631 1Quote Ask for a quote
3 Lateral [Single] ● ● ●Manufacturer no. 118-049 1Quote Ask for a quote
4 Lateral Bracket & Screw Kit [Single] ● ● ●Manufacturer no. 137-9020 1Quote Ask for a quote
5 Hip Lateral Locking Kit [Single] ● ● ●Manufacturer no. SP-1003 1Quote Ask for a quote
6 Headrest / Hip Laterals Covers [Pair] ● ● ●Manufacturer no. 137-807-XX 1Quote Ask for a quote

Mygo Seat Spare Parts - Armrest

12 parts

Exploded view from the manufacturer's parts manual (Mygo Seating System Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Mygo Seat Spare Parts - Armrest
No.PartQtyPriceAction
1 Armrest Assembly (Size 1) [Single] ●Manufacturer no. 117-9004 1Quote Ask for a quote
1 Armrest Assembly (Size 2) [Single] ●Manufacturer no. 137-9017 1Quote Ask for a quote
2 Armrest Moulded Assembly ● ● ●Manufacturer no. 117-715 1Quote Ask for a quote
3 Armrest Adjustment Kit ● ● ●Manufacturer no. 137-9011 1Quote Ask for a quote
4 Armrest Locking Kit ● ● ●Manufacturer no. 137-9013 1Quote Ask for a quote
5 Armrest Outer Adjustment Assembly ● ● ●Manufacturer no. 137-9012 1Quote Ask for a quote
6 1/4 Single Popper [Pair] ● ● ●Manufacturer no. SJ109 1Quote Ask for a quote
7 Armrest Outer Extrusion [Single] ● ● ●Manufacturer no. 117-145 1Quote Ask for a quote
8 Armrest Adjuster (Size 1) [Single] ●Manufacturer no. 117-9005 1Quote Ask for a quote
8 Armrest Adjuster (Size 2/3) [Single] ● ●Manufacturer no. 137-9014 1Quote Ask for a quote
9 Armrest Assembly (Size 3) [Single] ●Manufacturer no. 185-603 1Quote Ask for a quote
10 Armrest (Size 3) [Single] ●Manufacturer no. 185-609 1Quote Ask for a quote

Mygo Seat Spare Parts - Footrest

13 parts

Exploded view from the manufacturer's parts manual (Mygo Seating System Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Mygo Seat Spare Parts - Footrest
No.PartQtyPriceAction
1 Footplate Assembly LH (Size 1) ●Manufacturer no. 117-695 1Quote Ask for a quote
1 Footplate Assembly LH (Size 2/3) ● ●Manufacturer no. 137-641 1Quote Ask for a quote
1 Footplate Assembly RH (Size 1) ●Manufacturer no. 117-696 1Quote Ask for a quote
1 Footplate Assembly RH (Size 2/3) ● ●Manufacturer no. 137-640 1Quote Ask for a quote
2 Calf Inner Support Assembly LH ● ● ●Manufacturer no. 117-703 1Quote Ask for a quote
2 Calf Inner Support Assembly RH ● ● ●Manufacturer no. 117-704 1Quote Ask for a quote
3 Footplate Locking Assembly ● ● ●Manufacturer no. 137-9005 1Quote Ask for a quote
4 Footplate Adjuster Assembly ● ● ●Manufacturer no. 137-9006 1Quote Ask for a quote
5 Footplate Rubber Matting ● ● ●Manufacturer no. 117-156 1Quote Ask for a quote
6 Footplate Assembly LH (Size 1) ●Manufacturer no. 117-9008 1Quote Ask for a quote
6 Footplate Assembly LH (Size 2/3) ● ●Manufacturer no. 137-9022 1Quote Ask for a quote
6 Footplate Assembly RH (Size 1) ●Manufacturer no. 117-9009 1Quote Ask for a quote
6 Footplate Assembly RH (Size 2/3) ● ●Manufacturer no. 137-9021 1Quote Ask for a quote

Exploded view, page 12

9 parts

Exploded view from the manufacturer's parts manual (Mygo Seating System Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 12
No.PartQtyPriceAction
1 Abduction Assembly LH (Size 1) ●Manufacturer no. 117-694 1Quote Ask for a quote
1 Abduction Assembly RH (Size 1) ●Manufacturer no. 117-693 1Quote Ask for a quote
2 LH Femoral Guards Assembly ●Manufacturer no. 117-705 1Quote Ask for a quote
3 Femoral Guide Attachment Kit (Size 1) ●Manufacturer no. SP-1011 1Quote Ask for a quote
4 Abduction Assembly Adjuster Kit (Size 1) ●Manufacturer no. SP-1010 1Quote Ask for a quote
5 LH Abduction Seat Base Attachment (Size 1) ●Manufacturer no. 117-707 1Quote Ask for a quote
6 Abduction Assembly RH (Size 1) ●Manufacturer no. 117-693 1Quote Ask for a quote
7 RH Femoral Guards Assembly ●Manufacturer no. 117-708 1Quote Ask for a quote
8 RH Abduction Seat Base Attachment (Size 1) ●Manufacturer no. 117-710 1Quote Ask for a quote

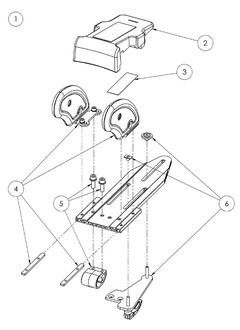

Exploded view, page 13

8 parts

Exploded view from the manufacturer's parts manual (Mygo Seating System Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 13
No.PartQtyPriceAction
1 Abduction Assembly LH (Size 2/3) ● ●Manufacturer no. 137-602 1Quote Ask for a quote
1 Abduction Assembly RH (Size 2/3) ● ●Manufacturer no. 137-601 1Quote Ask for a quote
2 Ramp ● ●Manufacturer no. 137-101 1Quote Ask for a quote
3 Ramp Attachment Velcro Kit ● ●Manufacturer no. 137-9009 1Quote Ask for a quote
4 Femoral Guards Assembly [Pair] ● ●Manufacturer no. 137-612 1Quote Ask for a quote
5 Calf Casting Assembly ● ●Manufacturer no. 137-613 1Quote Ask for a quote
6 LH Abduction Assembly Kit ● ●Manufacturer no. 137-614 1Quote Ask for a quote
6 RH Abduction Assembly Kit ● ●Manufacturer no. 137-615 1Quote Ask for a quote

Mygo Seat Spare Parts - Tray Assembly

9 parts

Exploded view from the manufacturer's parts manual (Mygo Seating System Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Mygo Seat Spare Parts - Tray Assembly
No.PartQtyPriceAction
1 Tray Assembly - Black ● ●Manufacturer no. 117-646 1Quote Ask for a quote
1 Tray Assembly (Size 3) ●Manufacturer no. 185-611 1Quote Ask for a quote
1 Tray Assembly - Black (Size 3) ●Manufacturer no. 117-647 1Quote Ask for a quote
1 Padded Tray Assembly - Black ● ●Manufacturer no. 117-652 1Quote Ask for a quote
2 Tray Bar Assembly LH ● ●Manufacturer no. 117-723 1Quote Ask for a quote
2 Tray Bar Assembly LH (Size 3) ●Manufacturer no. 185-616 1Quote Ask for a quote
3 Tray Bar Assembly RH ● ●Manufacturer no. 117-722 1Quote Ask for a quote
3 Tray Bar Assembly RH (Size 3) ●Manufacturer no. 185-617 1Quote Ask for a quote
4 Tray Bar Screw Kit ● ● ●Manufacturer no. SP-1021 1Quote Ask for a quote

Mygo Seat Spare Parts - Seatbase Assembly

11 parts

Exploded view from the manufacturer's parts manual (Mygo Seating System Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Mygo Seat Spare Parts - Seatbase Assembly
No.PartQtyPriceAction
1 Seatbase Assembly (Size 1/2) ● ●Manufacturer no. 137-713 1Quote Ask for a quote
1 Seatbase Assembly (Size 3) ●Manufacturer no. 185-713 1Quote Ask for a quote
2 Seatbase ABS Shelf (Size 1) ●Manufacturer no. 137-121 1Quote Ask for a quote
2 Seatbase ABS Shelf (Size 2) ●Manufacturer no. 137-120 1Quote Ask for a quote
2 Seatbase ABS Shelf (Size 3) ●Manufacturer no. 185-112 1Quote Ask for a quote
3 Pelvic Harness Strap ● ● ●Manufacturer no. 117-749 1Quote Ask for a quote
4 Harness Attachment Kit [Single] ● ● ●Manufacturer no. SP-9005 1Quote Ask for a quote
5 1/4 Single Popper Kit [Pair] ● ● ●Manufacturer no. SJ109 1Quote Ask for a quote
6 Back Angle AssemblyManufacturer no. 137-716 1Quote Ask for a quote
7 Back Angle Attachment Kit ● ● ●Manufacturer no. SP-1004 1Quote Ask for a quote
8 Interface Assembly ● ● ●Manufacturer no. 137-720 1Quote Ask for a quote

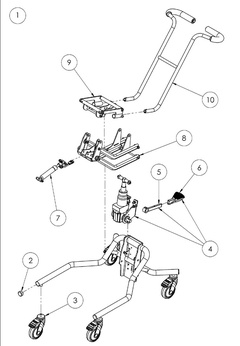

Exploded view, page 16

10 parts

Exploded view from the manufacturer's parts manual (Mygo Seating System Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 16
No.PartQtyPriceAction
1 Indoor Chassis Foot Operated - Manual ● ● ●Manufacturer no. 102-2753 1Quote Ask for a quote
2 1 1/4" Round Black Insert [4 Pack] ● ● ●Manufacturer no. SH62 1Quote Ask for a quote
3 Castor [Single] ● ● ●Manufacturer no. IA13 1Quote Ask for a quote
4 Chassis Gas Spring - Lift ● ● ●Manufacturer no. 117-938 1Quote Ask for a quote
5 Locking Pin Assy ● ● ●Manufacturer no. 102-1761 1Quote Ask for a quote
6 Long Foot Pedal ● ● ●Manufacturer no. 102-2692 1Quote Ask for a quote
7 Interface Arm Lever - Tilt ● ● ●Manufacturer no. 117-937 1Quote Ask for a quote
8 Lever Arm Assembly ● ● ●Manufacturer no. 117-651 1Quote Ask for a quote
9 Hi-Low Interface Assembly ● ● ●Manufacturer no. 117-7331 1Quote Ask for a quote
10 Removable Handlebar ● ● ●Manufacturer no. 122-710 1Quote Ask for a quote

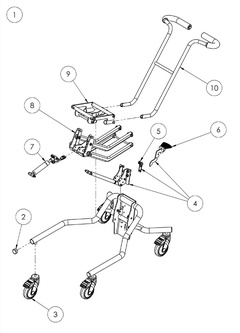

Exploded view, page 17

10 parts

Exploded view from the manufacturer's parts manual (Mygo Seating System Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 17
No.PartQtyPriceAction
1 Indoor Chassis Foot Operated - Hydraulic ● ● ●Manufacturer no. 102-2766 1Quote Ask for a quote
2 1 1/4" Round Black Insert [4 Pack] ● ● ●Manufacturer no. SH62 1Quote Ask for a quote
3 Castors [Single] ● ● ●Manufacturer no. IA13 1Quote Ask for a quote
4 Chassis Hydraulic Pack - Lift ● ● ●Manufacturer no. 117-823 1Quote Ask for a quote
5 Inner Pedal Assy ● ● ●Manufacturer no. 117-948 1Quote Ask for a quote
6 Outer Sliding Pedal ● ● ●Manufacturer no. 117-947 1Quote Ask for a quote
7 Interface Arm Lever - Tilt ● ● ●Manufacturer no. 117-937 1Quote Ask for a quote
8 Lever Arm Assembly ● ● ●Manufacturer no. 117-936 1Quote Ask for a quote
9 Hi-Low Interface Assembly ● ● ●Manufacturer no. 117-7331 1Quote Ask for a quote
10 Removable Handlebar ● ● ●Manufacturer no. 122-710 1Quote Ask for a quote

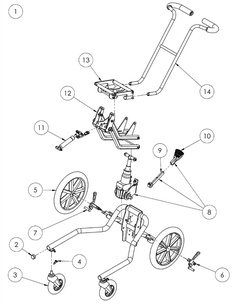

Mygo Seat Spare Parts -

14 parts

Exploded view from the manufacturer's parts manual (Mygo Seating System Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Mygo Seat Spare Parts -
No.PartQtyPriceAction
1 Indoor/Outdoor Chassis Foot Operated - Gas ● ● ●Manufacturer no. 102-2767 1Quote Ask for a quote
2 1 1/4" Round Black Insert [4 Pack] ● ● ●Manufacturer no. SH62 1Quote Ask for a quote
3 150mm Front Castor [Single] ● ● ●Manufacturer no. 133-2084 1Quote Ask for a quote
4 Lock Pin [Single] ● ● ●Manufacturer no. IA19 1Quote Ask for a quote
5 315mm Rear Wheel [Single] ● ● ●Manufacturer no. 133-2087 1Quote Ask for a quote
6 LH Brake Assy ● ● ●Manufacturer no. 133-2085 1Quote Ask for a quote
7 RH Brake Assy ● ● ●Manufacturer no. 133-2086 1Quote Ask for a quote
8 Chassis Gas Spring - Lift ● ● ●Manufacturer no. 117-938 1Quote Ask for a quote
9 Locking Pin Assy ● ● ●Manufacturer no. 102-1761 1Quote Ask for a quote
10 Long Foot Pedal ● ● ●Manufacturer no. 102-2692 1Quote Ask for a quote
11 Interface Arm Lever - Tilt ● ● ●Manufacturer no. 117-937 1Quote Ask for a quote
12 Lever Arm Assembly ● ● ●Manufacturer no. 117-651 1Quote Ask for a quote
13 Hi-Low Interface Assembly ● ● ●Manufacturer no. 117-7331 1Quote Ask for a quote
14 Removable Handlebar ● ● ●Manufacturer no. 122-710 1Quote Ask for a quote

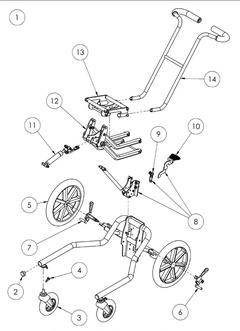

Mygo Seat Spare Parts - (page 20)

14 parts

Exploded view from the manufacturer's parts manual (Mygo Seating System Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Mygo Seat Spare Parts - (page 20)
No.PartQtyPriceAction
1 Indoor/Outdoor Chassis Foot Operated - Hydraulic ● ● ●Manufacturer no. 102-2768 1Quote Ask for a quote
2 1 1/4" Round Black Insert [4 Pack] ● ● ●Manufacturer no. SH62 1Quote Ask for a quote
3 150mm Front Castor [Single] ● ● ●Manufacturer no. 133-2084 1Quote Ask for a quote
4 Lock Pin [Single] ● ● ●Manufacturer no. IA19 1Quote Ask for a quote
5 315mm Rear Wheel [Single] ● ● ●Manufacturer no. 133-2087 1Quote Ask for a quote
6 LH Brake Assy ● ● ●Manufacturer no. 133-2085 1Quote Ask for a quote
7 RH Brake Assy ● ● ●Manufacturer no. 133-2086 1Quote Ask for a quote
8 Chassis Hydraulic Pack - Lift ● ● ●Manufacturer no. 117-823 1Quote Ask for a quote
9 Inner Pedal Assy ● ● ●Manufacturer no. 117-948 1Quote Ask for a quote
10 Outer Sliding Pedal ● ● ●Manufacturer no. 117-947 1Quote Ask for a quote
11 Interface Arm Lever - Tilt ● ● ●Manufacturer no. 117-937 1Quote Ask for a quote
12 Lever Arm Assembly ● ● ●Manufacturer no. 117-936 1Quote Ask for a quote
13 Hi-Low Interface Assembly ● ● ●Manufacturer no. 117-7331 1Quote Ask for a quote
14 Removable Handlebar ● ● ●Manufacturer no. 122-710 1Quote Ask for a quote

Mygo Seat Spare Parts - (page 21)

18 parts

Exploded view from the manufacturer's parts manual (Mygo Seating System Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Mygo Seat Spare Parts - (page 21)
No.PartQtyPriceAction
1 Indoor/Outdoor Hi-Low Chassis - Powered ● ● ●Manufacturer no. 102-2769 1Quote Ask for a quote
2 1 1/4" Round Black Insert [4 Pack] ● ● ●Manufacturer no. SH62 1Quote Ask for a quote
3 150mm Front Castor [Single] ● ● ●Manufacturer no. 133-2084 1Quote Ask for a quote
4 Lock Pin [Single] ● ● ●Manufacturer no. IA19 1Quote Ask for a quote
5 315mm Rear Wheel [Single] ● ● ●Manufacturer no. 133-2087 1Quote Ask for a quote
6 LH Brake Assy ● ● ●Manufacturer no. 133-2085 1Quote Ask for a quote
7 RH Brake Assy ● ● ●Manufacturer no. 133-2086 1Quote Ask for a quote
8 Actuator ● ● ●Manufacturer no. 102-1694 1Quote Ask for a quote
9 Battery ● ● ●Manufacturer no. SI64 1Quote Ask for a quote
10 Charger - UK ● ● ●Manufacturer no. SI124 1Quote Ask for a quote
10 Charger - EUR ● ● ●Manufacturer no. SI125 1Quote Ask for a quote
10 Charger - USA/Japan ● ● ●Manufacturer no. SI126 1Quote Ask for a quote
10 Charger - AUS ● ● ●Manufacturer no. SI127 1Quote Ask for a quote
11 Handset ● ● ●Manufacturer no. SI67 1Quote Ask for a quote
12 Interface Arm Lever - Tilt ● ● ●Manufacturer no. 117-937 1Quote Ask for a quote
13 Lever Arm Assembly ● ● ●Manufacturer no. 117-651 1Quote Ask for a quote
14 Hi-Low Interface Assembly ● ● ●Manufacturer no. 117-633 1Quote Ask for a quote
15 Removable Handlebar ● ● ●Manufacturer no. 122-710 1Quote Ask for a quote

Mygo Seat Spare Parts - Upholstery

22 parts

Exploded view from the manufacturer's parts manual (Mygo Seating System Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Mygo Seat Spare Parts - Upholstery
No.PartQtyPriceAction
1 Contoured Headrest Cushion ● ● ●Manufacturer no. 137-800-XX 1Quote Ask for a quote
2 Shoulder Cushion - (Size 2/3 only) ● ●Manufacturer no. 137-801-XX 1Quote Ask for a quote
3 Backrest Cushion ● ●Manufacturer no. 137-802-XX 1Quote Ask for a quote
4 Lateral Covers [Pair] ● ● ●Manufacturer no. 137-806-XX 1Quote Ask for a quote
5 Head/Hip Lateral Covers [Pair] ● ● ●Manufacturer no. 137-807-XX 1Quote Ask for a quote
6 Pelvic Harness Small with Hip Brackets ● ● ●Manufacturer no. 117-801 1Quote Ask for a quote
6 Pelvic Harness Medium with Hip Brackets ● ● ●Manufacturer no. 117-802 1Quote Ask for a quote
7 Seatbase Cushion - (Size 1 only) ●Manufacturer no. 117-852-XX 1Quote Ask for a quote
7 Seatbase Cushion - (Size 2 only) ●Manufacturer no. 137-804-XX 1Quote Ask for a quote
7 Seatbase Cushion - (Size 3 only) ●Manufacturer no. 185-814-XX 1Quote Ask for a quote
8 Femoral Guide Covers [Pair] ●Manufacturer no. 117-844-XX 1Quote Ask for a quote
9 Flat Headrest Cushion ● ● ●Manufacturer no. 117-850-XX 1Quote Ask for a quote
10 Chest Harness ● ● ●Manufacturer no. 137-808 1Quote Ask for a quote
11 Trunk Harness - Small (Size 1 only) ●Manufacturer no. 120-779 1Quote Ask for a quote
11 Trunk Harness - Medium ● ● ●Manufacturer no. 120-757 1Quote Ask for a quote
11 Trunk Harness - Large (Size 2/3 only) ● ●Manufacturer no. 117-761 1Quote Ask for a quote
12 Trunk Harness Attachment Kit ● ● ●Manufacturer no. 120-9029 1Quote Ask for a quote
13 Pelvic Harness Attachment Kit ● ● ●Manufacturer no. 117-749 1Quote Ask for a quote
14 Sacral Cushion ● ●Manufacturer no. 137-803-XX 1Quote Ask for a quote
14 Sacral Cushion (Size 3 only) ●Manufacturer no. 185-803-XX 1Quote Ask for a quote
15 Pelvic Cradle ● ● ●Manufacturer no. 133-728 1Quote Ask for a quote
16 Pelvic Cradle Attachment Kit ● ● ●Manufacturer no. 133-733 1Quote Ask for a quote

Parts manuals for this model

The manufacturer parts lists and exploded diagrams we hold. If you can find the number on one of these, quote it to us and we will match it.

Mygo Seating System Parts Manual

Manufacturer parts document, PDF.

Not sure which part you need?

Send us a photo of the part, or of where it sits, and tell us what it is doing. Our order desk identifies parts for this equipment every day, and we would rather ask you one question than ship you the wrong bolt.

Or call 905 451-7743 and describe it to us.

Where to go next

The product page

Specifications, documents and the full product page for the Leckey Mygo Seating System.

All replacement parts

Search every part we stock, or browse by the equipment it fits.

Have us fit it

Our technicians service what we sell, in the home and in the showroom.
