Description
The HealthCraft SuperPole with SuperBar is HealthCraft's floor to ceiling grab pole with the 16 in (406 mm) SuperBar, made in Ottawa, Ontario. Westin Healthcare sells it and delivers it for homes across the Greater Toronto Area. Use Choose Model for the 300 lb SuperPole with SuperBar (SPB-S) on an 8 ft ceiling, SPB-S plus Uni-Fit for 8-10 ft, or the 450 lb SuperPole with SuperBar (SPB-HD) on an 8 ft ceiling.
The SuperBar has eight locking positions, one every 45 degrees. Lift the bar to move it. Lower it to lock. This is SuperPole plus SuperBar, not the pole on its own. The pole-only bariatric sibling is the HealthCraft SuperPole bariatric.
Who this SuperPole with SuperBar is for

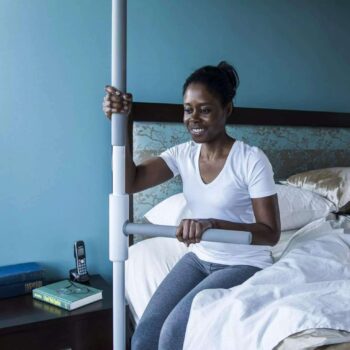

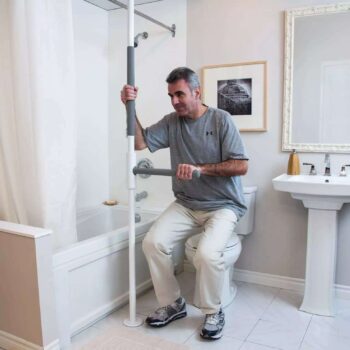

The HealthCraft SuperPole with SuperBar is for a person who wants a floor to ceiling grab pole plus a 16 in SuperBar, stays at or under the HealthCraft rating on the model they pick (300 lb / 136 kg on SPB-S, 450 lb / 204 kg on SPB-HD), and has a ceiling HealthCraft will accept. Families here usually call when they want the bar in front of them at the bed, toilet, or chair.
- SPB-S 300 lb (136 kg) or SPB-HD 450 lb (204 kg)
- 16 in (406 mm) SuperBar, eight locks at 45 degrees
- 8 ft (93-99 in) on both models. 8-10 ft Uni-Fit on standard only
Fit, ceiling height, and the SuperBar
HealthCraft prints a 1.50 in (38 mm) pole and a 16 in (406 mm) SuperBar. The SuperBar is typically installed 24-38 in (610-965 mm) from the floor. HealthCraft's height tip: just above the belt line when standing, or near the base of the ribcage when seated.
The top plate is 20 in (508 mm). The base plate is 5 in (127 mm). Finish is anti-microbial white powder coat. Grip is latex-free PVC foam. HealthCraft prints a limited lifetime warranty and says the product is not intended for outdoor use.
HealthCraft's load rating is based on the user's weight. HealthCraft also prints that the SuperPole with SuperBar is not intended to support an entire full body weight. Stay at or under the rating on the model you order.
Installation, as HealthCraft prints it
The SuperPole is a jackscrew tension mount between a structurally sound floor and ceiling. HealthCraft's current SuperPole FAQ: the ceiling top plate must extend across at least one ceiling beam. Check the tension monthly. On SuperPole HD, HealthCraft says the ceiling top plate must be secured to the ceiling.
HealthCraft SuperPole 101: place the pole under one joist, or between two joists with the plate under both. Do not install under a radiant ceiling. Do not install if you do not know what is above the ceiling. Do not install on a sloped floor or on loose rugs. An angled ceiling needs HealthCraft's Angled Ceiling Plate, which is screwed to a joist. Follow the HealthCraft instruction sheet in the carton. We follow that sheet when we install the pole.
Use Choose Model for Standard 8 ft (SPB-S, 93-99 in / 2362-2515 mm), Standard 8-10 ft (SPB-S plus HealthCraft's Uni-Fit Extender, 100-120 in / 2540-3048 mm), or Bariatric 8 ft (SPB-HD). HealthCraft prints that Uni-Fit cannot be used with SuperPole HD. For a 450 lb user and a ceiling over 99 in, HealthCraft's next product is a floor-mounted Advantage Rail or Advantage Pole.
HealthCraft SuperPole with SuperBar specifications
These figures are from HealthCraft's current SuperPole with SuperBar page and SuperPole 101. The specification tab holds the stored values. Use HealthCraft when they fight.
Maker: HealthCraft Products, Ottawa, Ontario. Default SKU SPB-S. Alloy steel, anti-microbial white powder coat. Pole 1.50 in (38 mm). SuperBar 16 in (406 mm). SuperBar height typically 24-38 in (610-965 mm) from the floor. Ceiling 93-99 in on 8 ft models; 100-120 in on standard plus Uni-Fit. Top plate 20 in (508 mm). Base plate 5 in (127 mm). Capacity 300 lb (136 kg) SPB-S or 450 lb (204 kg) SPB-HD. Eight lock positions. Limited lifetime. Not for outdoor use.
Choose Model
Use Choose Model for Standard 8 ft (SPB-S), Standard 8-10 ft (SPB-S plus Uni-Fit), or Bariatric 8 ft (SPB-HD). There is no bariatric 8-10 ft SuperPole. HealthCraft does not allow Uni-Fit on SuperPole HD.
SuperPole, SuperBar, or Advantage Rail
This page is SuperPole plus SuperBar. The HealthCraft SuperPole bariatric is the tension pole without the SuperBar. The HealthCraft SuperPole with SuperBar bariatric is the same SPB-HD row if you only want the 450 lb carton. The HealthCraft Advantage Rail is the floor-mounted version when the ceiling will not take a SuperPole.
Funding help for bathroom safety equipment in Ontario
Ontario's Assistive Devices Program (ADP) does not fund bathroom safety equipment, so plan around other routes. Funding that may help instead: March of Dimes Canada's Home and Vehicle Modification Program, Veterans Affairs Canada (VAC), extended health plans, and community programs. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through before you buy.
Delivery and setup in Brampton and the GTA
Westin's own team delivers this SuperPole with SuperBar across Brampton and the Greater Toronto Area. When we install it, we follow the HealthCraft sheet: find the joists, set the jackscrew, check the tension, and secure the bariatric ceiling plate when you order SPB-HD.
We have three stores in the Brampton and Toronto area if you would rather see the SuperBar swing first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased poles are delivered and set up on a scheduled date.
This is a long carton. If the pole is going outside the GTA, ask us for a freight quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.
Related bathroom safety products from Westin
- HealthCraft SuperPole Bariatric, the pole without the SuperBar
- HealthCraft SuperPole with SuperBar Bariatric, the SPB-HD page
- HealthCraft Advantage Rail, the floor-mounted pivot rail
Service and warranty
When the jackscrew or the SuperBar collar needs work, you call the shop that fitted the pole. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.
HealthCraft manufacturer warranty
HealthCraft prints a limited lifetime warranty on the SuperPole with SuperBar. The product is not intended for outdoor use. We handle the warranty claim with you. Ask us if an extended warranty is offered for your order.
Frequently asked questions
What Ceiling Height Does The SuperPole With SuperBar Need?
The HealthCraft SuperPole with SuperBar fits 93-99 in (2362-2515 mm) on the 8 ft models. Use Choose Model Standard 8-10 ft for SPB-S plus Uni-Fit at 100-120 in. HealthCraft does not allow Uni-Fit on SuperPole HD.
Does The SuperPole With SuperBar Need Screws In The Ceiling?
The HealthCraft SuperPole is a jackscrew tension mount. HealthCraft prints that the top plate must span at least one ceiling beam. On SuperPole HD, HealthCraft says that plate must be secured to the ceiling. Follow the HealthCraft sheet.
What Is The Weight Capacity Of The SuperPole With SuperBar?
HealthCraft rates SuperPole with SuperBar SPB-S at 300 lb (136 kg) and SPB-HD at 450 lb (204 kg). HealthCraft also prints that it is not intended to support an entire full body weight. Stay at or under the rating on the model you order.
How Many Positions Does The SuperBar Lock In?
The HealthCraft SuperBar has eight locking positions, one every 45 degrees. Lift to unlock, lower to lock.
Is This The Same As The SuperPole Without A SuperBar?
No. This HealthCraft SuperPole with SuperBar includes the 16 in SuperBar. The HealthCraft SuperPole bariatric is the pole only.
Is This A Bed Rail Assist Pole?
The HealthCraft SuperPole with SuperBar is a floor to ceiling grab pole that HealthCraft shows beside a bed, a toilet, and a chair. It is not a rail that clips to a mattress.
What Is The Warranty?
HealthCraft prints a limited lifetime warranty on the SuperPole with SuperBar. Westin Healthcare processes the manufacturer claim with you.
Can Funding Help With A SuperPole In Ontario?
Some Ontario routes can help with bathroom safety equipment, depending on the person's situation. Call (905) 451-7743 or use the funding page before you buy.
Specifications
| Model | SuperPole with SuperBar |
|---|---|
| Brands | HealthCraft |
| Warranty | Limited lifetime; not for outdoor use |
| Weight Capacity | SPB-S 300 lb (136 kg); SPB-HD 450 lb (204 kg); not full-body-weight support |
| Finish | Anti-microbial powder coat paint (white) |
| Rail Diameter | 1.50 in (38 mm) |
| Rail Height Range | Typically installed 24-38 in (610-965 mm) from floor |
| Base Plate Diameter | 5 in (127 mm) |
| Top Plate Length | 20 in (508 mm) |
| Ceiling Height Compatibility | 93-99 in (2362-2515 mm); Uni-Fit 100-120 in on standard only, not HD |
| Superbar Length | 16 in (406 mm) |
| SKU | SPB-S default; Choose Model also SPB-HD and SPB-S plus Uni-Fit |
| Lock Positions | 8 positions at 45 degrees; lift to unlock, lower to lock |
