Description

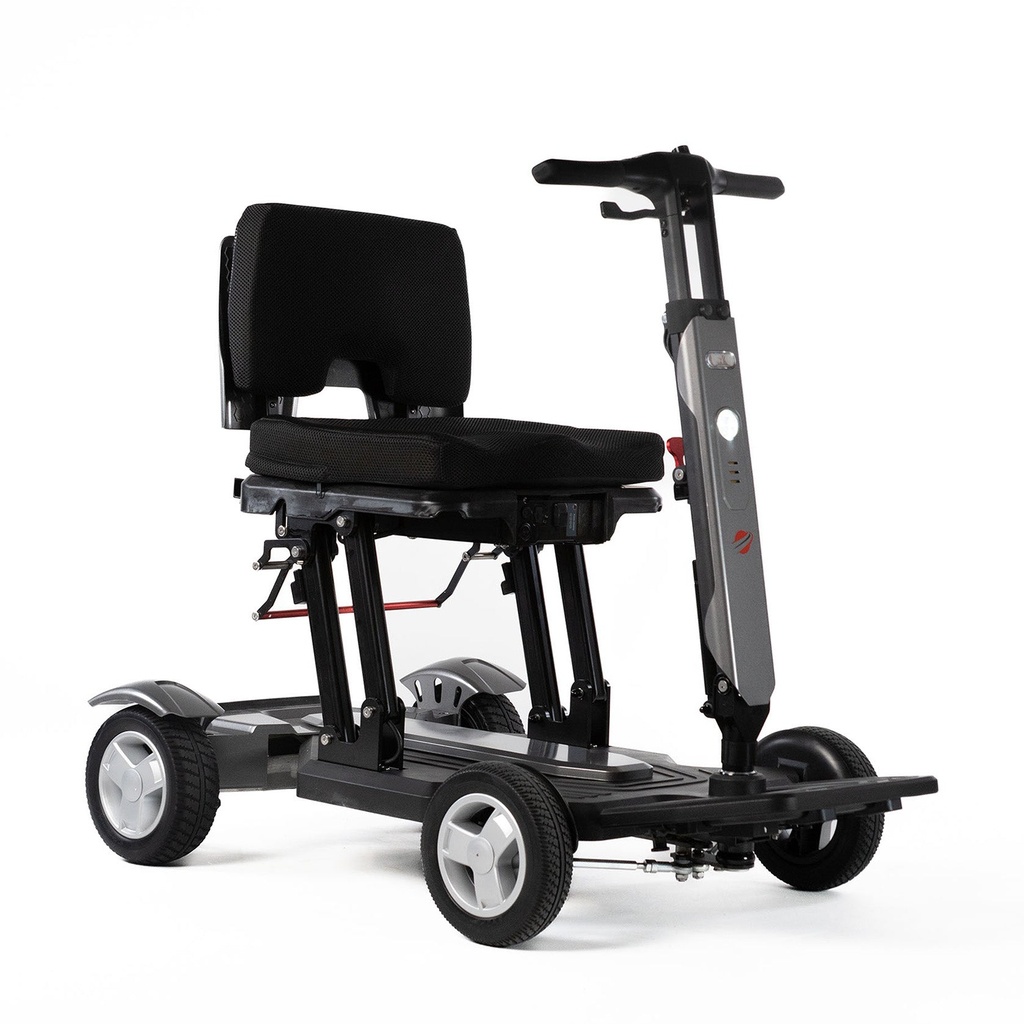

The Travel Buggy Helix is a 4-wheel folding mobility scooter from the Canadian manufacturer Travel Buggy. Westin Healthcare sells it and delivers it for homes in Brampton and the Greater Toronto Area. The person steers with a tiller, not a joystick. All four wheels pivot, so the scooter turns in a tighter circle than a typical 4-wheel travel scooter.
Travel Buggy's current Canadian card lists a 265 lb weight capacity, a 20 km (12.5 mile) range on the two 24V 5.8Ah packs, and a 6 km/h (3.7 mph) top speed. The scooter net weight is 55 lb. The card prints Airline Approved Battery. If you want a folding power chair instead of a tiller scooter, start with the Dash 3 or the Aerolux 2C.
Who this scooter is for
This scooter is for a person who wants a folding mobility scooter with 4-wheel stability, who fits the 15.75 by 14.75 inch seat, and who stays at or under Travel Buggy's 265 lb rating. Families usually call us when a take-apart travel scooter is too many lifts, or when they want a flat fold that stands up in a closet.
If you need Travel Buggy's 400 lb power-chair rating, see the City 2 Plus. If you want a 33 lb carbon power chair you lift like a suitcase, see the Aerolux 2C. The Helix is a mobility scooter, not a power wheelchair.
- 4-wheel pivot steering and a 37 inch turning radius
- 20 km printed range on two 24V 5.8Ah packs that switch automatically
- Flat One-Pull Fold, 55 lb net, 35 by 24 by 13.7 inches folded
Range, speed, and batteries
The Travel Buggy Helix travels up to 20 km (12.5 miles) per charge on the two Li-Ion 24 V / 5.8 Ah packs working together. Both packs sit under the seat. Travel Buggy says the scooter switches to the second pack on its own. Range changes with the person's weight, the ground, battery condition, and how much you stop and start.
Top speed is 6 km/h (3.7 mph). The charger Travel Buggy sells for this scooter is 24V / 2A, input 100-240V. Charge both packs with the charger that ships with the scooter. A spare 5.8Ah pack is sold separately.
Portability and transport
The Helix folds fully flat with Travel Buggy's One-Pull Fold. No take-apart. Folded size on the current card is 35 by 24 by 13.7 inches. The folded scooter can stand upright. A tow handle is built into the footrest so you can roll it. The tiller also folds flat.
Travel Buggy prints Airline Approved Battery on the Helix spec table. Air Canada and WestJet still set their own rules. Ask the airline before you book. We only repeat what Travel Buggy prints. The owner manual says not to treat the folded scooter as a vehicle seat.
Travel Buggy Helix specifications
These figures are from Travel Buggy's current Canadian Helix card and the compare-models table. The specification tab holds the stored values.
Weight capacity 265 lbs. Top speed 6 km/h (3.7 mph). Range 20 km (12.5 mi). Incline 10 degrees. Turning radius 37 inches. Motor 250 W brushless. Net weight 55 lbs. Compare table 59 lbs with the two batteries on.
Unfolded 40 by 24 by 30 inches. Folded 35 by 24 by 13.7 inches. Front wheels 8 by 2 inches. Rear wheels 8 by 2.5 inches. Seat 15.75 by 14.75 inches. Cushion 2.5 inches. Seat to deck 14 inches. Backrest 8.5 to 10 inches. Battery Li-Ion 24 V / 5.8 Ah, two pieces. Travel Ready: Airline Approved Battery.
Open span deck. Four-way adjustable tiller. Three backrest height settings. Front light, and a rear light that comes on when you reverse. Keyless controls. Armrests are sold separately.
Do not mix these numbers with the Helix owner-manual table (27.4 kg without battery, 350 mm unfold height). Copy follows the current card. Do not mix them with the Dash 3 power chair.
Warranty on Travel Buggy's policy page and in the Helix owner manual for the original purchaser is 5 years on the main frame, 2 years on the motor, 1 year on the controls and battery, and 90 days on wear items. Parts ship from Canada. Labour is not included.
Which Travel Buggy model is right for you
Travel Buggy sells five current Canadian models. Pick by lift, fold, and capacity.
- Aerolux 2C, the 33 lb carbon cross-fold power chair, 12 inch folded width, 350 lb Canadian card, 20 km on one battery
- Flightweight Dash 3, 42 lb without the battery, 24 inch turn, 265 lb, 15 km, rolls like a suitcase when folded
- Grand Tourer, 49 lb front-fold with loading wheels, 350 lb, 25 km, 18 by 18 inch seat
- City 2 Plus, 60 lb front-fold, 400 lb, 25 km, reclining 20.5 inch back, wheels off to 38 lb
- Helix, this 4-wheel folding scooter, 55 lb, 265 lb, 20 km, 37 inch turn, tiller not a joystick
The Helix is a mobility scooter. The other four are folding power chairs.
Funding help for a mobility scooter in Ontario
Ontario's Assistive Devices Program (ADP) can fund 75% of the cost of a mobility scooter when the need is long-term and the scooter is prescribed through an assessment by an ADP-registered occupational therapist or physiotherapist, and some income-support programs cover the full cost. Not every scooter qualifies, so talk to us before you buy. March of Dimes Canada, Veterans Affairs Canada (VAC), and community programs can also help. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through.
Delivery and setup in Brampton and the GTA
Westin's own team delivers and sets up this mobility scooter across Brampton and the Greater Toronto Area. We bring it in, unfold it, and show you the tiller, the One-Pull Fold, the lights, and the charger before we leave.
We have three stores in the Brampton and Toronto area if you would rather see a folding scooter first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased scooters are delivered and set up on a scheduled date.
This mobility scooter folds for a car trunk. If it is going outside the GTA, ask us for a freight quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.
Related mobility scooters from Westin
- Pride Go-Go Carbon Folding Mobility Scooter, a 35 lb carbon 4-wheel folder
- Drive ZooMe Auto Flex Folding Travel Scooter, a key-fob 4-wheel folder
- Travel Buggy Dash 3, the folding power-chair alternative in this family
Service and warranty
When something on the scooter needs work, you call the shop that sold it. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace. Travel Buggy also ships replacement parts from Canada and lists authorized service shops.
Travel Buggy manufacturer warranty
Travel Buggy prints 5 years on the main frame, 2 years on the brushless motor, 1 year on the controls and the battery, and 90 days on wear items such as tires and cushions. The warranty is parts only for the original purchaser. We handle the claim with you. Ask us if an extended warranty is offered for your order.
Frequently asked questions
How Far Will The Helix Go On A Charge?
The Travel Buggy Helix travels up to 20 km (12.5 miles) on the two 24V 5.8Ah packs working together. Range changes with the person's weight, the ground, and how much you stop and start.
What Batteries And Charger Does The Helix Use?
The Travel Buggy Helix uses two lithium-ion 24V 5.8Ah packs. The charger Travel Buggy lists is 24V / 2A, 100-240V. Both packs sit under the seat and the scooter switches packs on its own.
Will The Helix Fold Into A Car Trunk?
The Travel Buggy Helix folds flat to 35 by 24 by 13.7 inches. Travel Buggy says folded models fit most trunks. It can stand upright once folded. A tow handle is built into the footrest.
Can I Take The Helix On An Airplane?
Travel Buggy prints Airline Approved Battery on the Helix spec table. Air Canada and WestJet still set their own rules. Ask the airline before you book. We only repeat what Travel Buggy prints.
Is The Helix A 3-Wheel Or 4-Wheel Scooter?
The Travel Buggy Helix is a 4-wheel folding mobility scooter. All four wheels pivot. Travel Buggy prints a 37 inch turning radius on that layout.
What Is The Weight Capacity?
The Travel Buggy Helix is rated at 265 lbs. Stay at or under that rating.
How Much Does The Helix Weigh?
The Travel Buggy Helix is 55 lb net on the current Canadian card. The compare table prints 59 lb with the two batteries on.
Does The Helix Come With Armrests?
The Travel Buggy Helix does not include armrests on the current card. Adjustable armrests are sold as an accessory. Ask us if you want them on the order.
What Is The Warranty?
The Travel Buggy Helix warranty is 5 years on the frame, 2 years on the motor, 1 year on the controls and battery, and 90 days on wear items. Parts only. Westin Healthcare processes the claim.
Can Funding Help With This Scooter In Ontario?
Some Ontario routes can help with mobility equipment. Eligibility depends on the person's situation and assessment. Call (905) 451-7743 or use the funding page before you buy.
Who Services The Helix In Brampton?
Westin Healthcare services the Travel Buggy Helix. Call (905) 451-7743 or use the service and repairs page. Travel Buggy also has authorized shops across Canada.
Specifications
| Seat Height | 14" seat to deck |
|---|---|
| Brands | Travel Buggy |
| Warranty | 5 yr frame; 2 yr motor; 1 yr controls and battery; 90 day wear |
| Weight Capacity | 265 lbs |
| Caster Size | 8" x 2" front |
| Compatible Batteries | Two Li-Ion 24V 5.8Ah; Airline Approved Battery |
| Drive Terrain Type | 4-wheel pivot steering; 250 W brushless |
| Driving Range | 20 km (12.5 mi) on two 24V 5.8Ah packs |
| Foldable | Yes; One-Pull flat fold, stands upright; 35" L x 24" W x 13.7" H |
| Product Weight | 55 lbs net; 59 lbs with two batteries (compare table) |
| Top Speed | 6 km/h (3.7 mph) |
| Turning Radius | 37" |
| Wheel Size | 8" x 2.5" rear |
| Wheelchair Type | 4-wheel folding mobility scooter |
| Overall Length | 40" unfolded |
| Overall Width | 24" |
| Battery Charger | 24V 2A, 100-240V |
