Joerns Dolphin Fluid Immersion Simulation System

The Dolphin FIS system is Joerns' fluid-immersion mattress replacement. Westin Healthcare sells the complete kit (mattress plus AutoVector control unit) and delivers it for homes and facilities in Brampton and the Greater Toronto Area. It is not a low-air-loss mattress and it is not the pediatric kit.

Joerns' AutoVector module measures the person and builds an immersion profile. The 2021 manual says it samples the surface more than 100 times per second. A sealed 12 V battery keeps therapy running for about 12 hours when the bed is moved. Therapy mattress weight is 22 lb. The control unit is 10 lb.

Who this system is for

This system is for a person whose clinician has named fluid immersion simulation: flaps and grafts, Stage 3-4 injuries, or a person who cannot be turned. Joerns also lists spinal cord injury only after the acute injury is stabilised and a physician has cleared it. Stay at or under the spec-sheet capacity for the size you pick.

If the need is powered low air loss rather than FIS, start with the DermaFloat LAL. If the person is 5-300 lb on a 35 x 82 pediatric surface, see the Dolphin Pediatric FIS.

• Advanced wound care when the clinician names Dolphin or FIS
• A 48 in bariatric deck at 1000 lb
• Transport with the 12 hour battery still running therapy

Size and capacity

Joerns' 2021 therapy spec sheet groups 35 in and 42 in (8 in or 10 in deep) as Standard at 500 lb, and 48 x 82 x 10 in as Bariatric at 1000 lb. The expandable EX mattress is 35 x 80-92 x 8 in at 500 lb, for a bed that lengthens. We do not sell the 35 x 88 in step-deck V-Matt in this list.

Pick 10 in Autovector when the deck can take a 10 in replacement. Pick 8 in low profile when the siderails or low bed need the shorter surface. Pick expandable only when the frame itself extends from 80 to 92 in. The EX mattress has two foot knobs for the length cells. We set those at delivery.

Control unit and battery

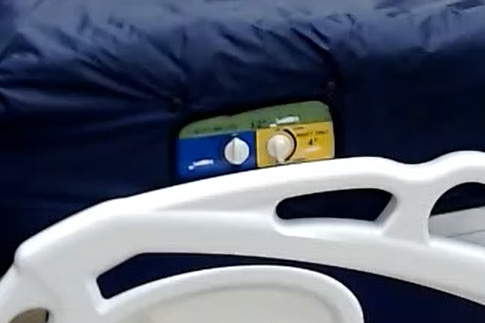

The adult AutoVector hangs on the footboard. Joerns' 2021 manual prints 11.5 in W x 12.5 in H x 6 in D. Modes on the panel include Bed vs Chair/Stretcher, Autofirm, Comfort Adjust, and Auto Feedback. The Storage Switch on the underside must be Battery On, or the unit will not charge. Replacement pumps are DLPH-OOOOOODMJ-CU.

Dolphin FIS specifications

These figures are from the Joerns Dolphin FIS product page, the 2021 therapy spec sheet (6220317 RevD), and the 2021 user manual (6110109 RevI).

Control unit 10 lb. Therapy mattress 22 lb. Electrical on the manual table: 115/230 VAC, 50/60 Hz, 0.34/0.21 A. Agency: IEC 60601-1 and 60601-1-2; spec sheet also lists UL 60601-1 and CAN/CSA C22.2 No. 601.1. Warranty: 2 years on the surface and 2 years on the control unit.

Funding help for a therapeutic mattress in Ontario

Ontario's Assistive Devices Program (ADP) does not fund mattresses or support surfaces. ADP funds, on purchase only, 75% of the approved price of manual and power wheelchairs, approved scooters, seating, and wheeled walkers for adults. OHIP does not reimburse this purchase. Ontario Health atHome (310-2222) and March of Dimes Canada can help some low-income applicants. Veterans Affairs Canada (VAC), WSIB, ODSP discretionary benefits, and private insurance are the other common routes. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through before you buy.

Delivery and setup in Brampton and the GTA

Westin's own team delivers and sets up this mattress across Brampton and the Greater Toronto Area. We bring it in, place it on the bed, connect a control unit when the order includes one, and check the fit before we leave.

You are welcome to visit our Brampton showroom at Unit 7, 15 Fisherman Drive if you would rather see a surface first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service. Purchased mattresses are delivered and set up on a scheduled date.

Hospital mattresses are oversized. The Canada-wide free ground-shipping offer on smaller goods does not apply. If the mattress is going outside the GTA, ask us for a freight quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order. HST is extra.

Related

• Joerns Dolphin Pediatric FIS, 5-300 lb
• Joerns DermaFloat LAL, powered low air loss
• Joerns WeCare hospital bed

Service and warranty

When something on the surface needs work, you call the shop that delivered it. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace. We handle the Joerns warranty claim with you.

Joerns manufacturer warranty

Joerns covers the original purchaser for 2 years on the Dolphin FIS surface and 2 years on the electromechanical components. Burns, chemicals, punctures, and use outside the manual sit outside that term.

Frequently asked questions

What is fluid immersion simulation?

Joerns' FIS surface uses the AutoVector to hold the body in a near-neutral buoyant profile, so tissue is not perched on a few high-pressure points. It is Joerns' analogue to floating in a fluid medium. It is not an air-fluidized bead bed.

Does the kit include the control unit?

Yes. These KIT SKUs are mattress plus adult AutoVector. Mattress-only SKUs are listed on the Dolphin FIS mattress page.

What is the weight limit on 42 in?

Joerns' 2021 spec sheet rates 35 in and 42 in at 500 lb and 48 in at 1000 lb. We use those figures, not dealer pages that print 1000 lb on 42 in.

Does ADP cover a Dolphin mattress?

No. Ontario ADP does not fund mattresses or support surfaces. OHIP does not reimburse this purchase.
