Description

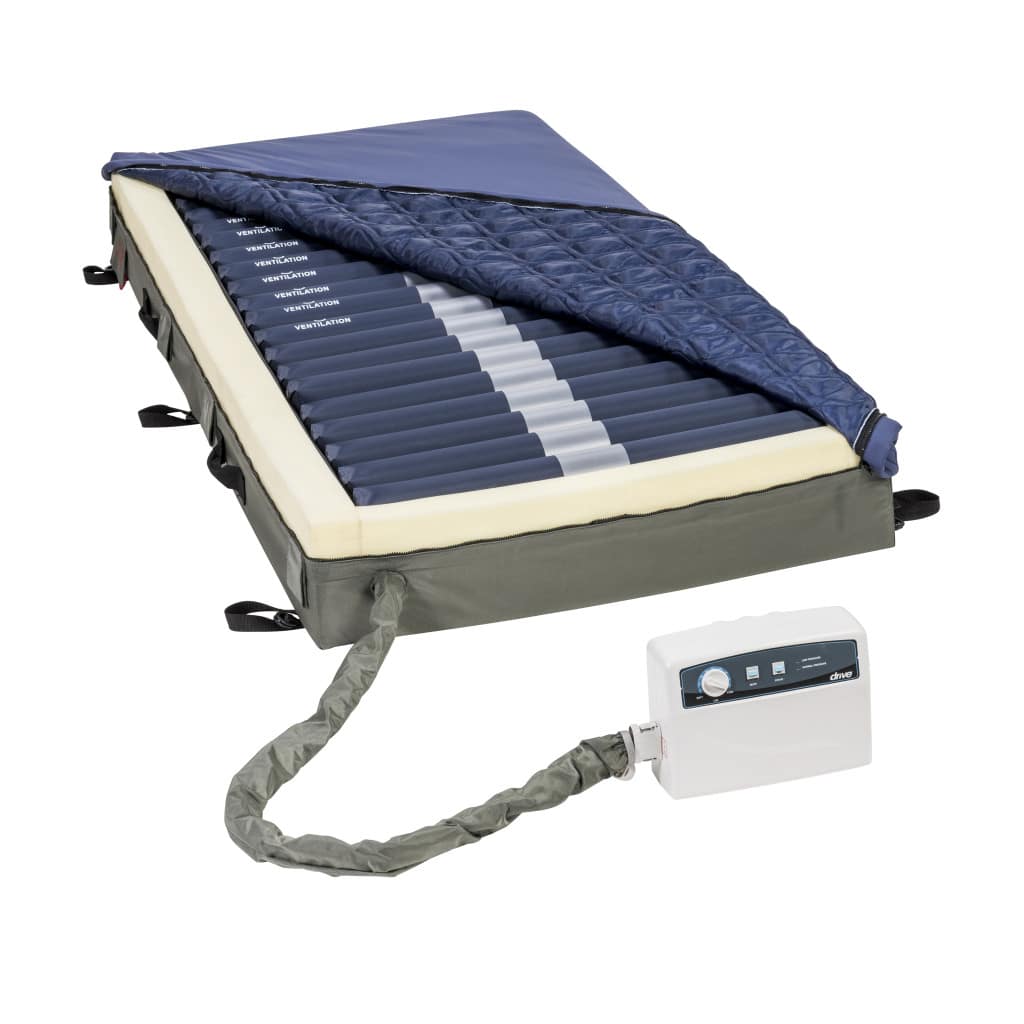

The PreserveTech Med-Aire Edge is Drive Medical's hybrid replacement with a foam edge and a foam base. Westin Healthcare sells it, delivers it, and sets it up for homes in Brampton and the Greater Toronto Area. The listing SKU is 14360-B, Drive's analog kit. Choose Control Type also offers Drive's digital kit, 14360-P.
Drive lists a 450 lb weight capacity and a 36-inch by 80-inch by 8-inch surface: 5-inch air cells on a 3-inch foam base, with an 8-inch firm foam perimeter. Both pumps are rated 8 litres per minute. Drive prints 45 dB for the control unit. The mattress alone is 35 lbs.
Who this mattress is for
This mattress is for a person on a 36-inch hospital bed who needs alternating pressure and low air loss, plus a firm foam edge for getting in and out of bed. Drive designed the Edge to help prevent, treat and heal pressure injuries in the home or long-term care setting. The clinician who knows the person's skin still decides if this class is right.
If you want foam under the cells but not a foam edge, start with the Med Aire Assure 14530 (350 lbs). If you want cell-on-cell air and no foam edge, use the Med Aire Plus 14029. If the person needs turning, that is the PreserveTech LS9500, not this Edge.
- Home care on a 36-inch by 80-inch hospital bed
- A therapist request for alternating pressure, low air loss, and a firm transfer edge
- Anyone within Drive's 450 lb rating who wants a printed 45 dB pump figure
Construction and how it works

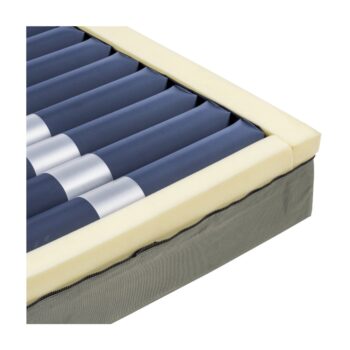

This is a mattress replacement. Twenty 5-inch cells sit on a 3-inch foam base. An 8-inch firm foam perimeter runs the edge for ingress, egress, transfers, and outage protection. Alternating pressure moves the load. Low air loss vents a little air for microclimate. Head-end cells stay more static (pillow feature).
The PreserveTech cover is a removable, machine-washable, 4-way stretch quilt. It is fluid-resistant, low-shear, and vapour-permeable. Drive treats the cover with an antimicrobial to protect the fabric, not the person. Cells disconnect for service. A CPR valve dumps the air. Tubing uses EZ Lock / Quick Release.

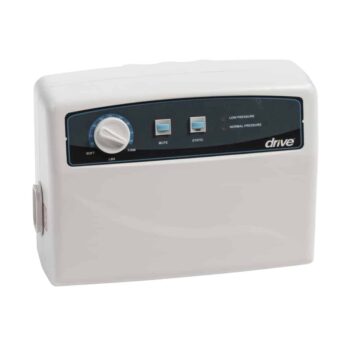

Analog (14360-B, the default on this listing) is a 10-minute cycle plus static, with a comfort dial by weight, at 30 to 60 mmHg. Digital (14360-P, the DIGITAL CONTROLLER choice) adds cycle times of 10, 15, 20, and 25 minutes, Auto-Firm, Seat Inflate, lock-out, and three diagnostic alarms, at 20 to 55 mmHg. Do not expect digital features on the analog kit.
PreserveTech Med-Aire Edge specifications
These figures are for Westin SKU 14360-B and the 14360-P option on Choose Control Type. The specification tab holds the stored values. Drive's sheet lists 450 lbs, 8 inches overall (5-inch air on 3-inch foam), 80-inch length, 35 lb mattress-only weight, and 45 dB. Both pumps are 8 litres per minute on the owner manual. Drive's 2025 catalog prints 36 inches by 80 inches by 8 inches for both kits.
Warranty for the original purchaser is 18 months on the control unit and mattress for both 14360-B and 14360-P.
Choose Control Type
Use Choose Control Type to pick the pump. The mattress is the same Edge surface either way.
- ANALOG CONTROLLER, Drive 14360-B: 10-minute cycle, static mode, comfort dial by weight
- DIGITAL CONTROLLER, Drive 14360-P: four cycle times, Auto-Firm, Seat Inflate, lock-out, three diagnostic alarms
You get the Edge mattress, the pump you pick, and the PreserveTech cover. Confirm the choice before we book delivery so we bring the right control unit.
Funding help for a therapeutic mattress in Ontario
Ontario's Assistive Devices Program (ADP) does not cover hospital beds or mattresses, so plan around other routes. Funding that may help instead: ODSP, March of Dimes Canada, Veterans Affairs Canada (VAC), hardship funding programs, and community programs. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through before you buy.
Delivery and setup in Brampton and the GTA
Westin's own team delivers and sets up this mattress across Brampton and the Greater Toronto Area. We bring it in, place it on the bed, connect the control unit, and show you the pump before we leave.
We have three stores in the Brampton and Toronto area if you would rather see a mattress first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased mattresses are delivered and set up on a scheduled date.
Hospital-bed mattresses are oversized. The Canada-wide free ground-shipping offer on smaller goods does not apply. If the mattress is going outside the GTA, ask us for a freight quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.
Which Westin beds this mattress fits
The sleep surface is 36 inches by 80 inches. It belongs on a standard-width homecare bed.
- Drive Delta 1000, the 36-inch full-electric homecare bed
- Drive Delta 15235 hi-low, when the deck needs to go lower
- Drive 15005LP, another 36-inch low-height full-electric frame
Service and warranty
When the pump or a cell needs work, you call the shop that set it up, not a US parts desk. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.
Drive manufacturer warranty
Drive's owner manual covers the original purchaser for 18 months on the control unit and mattress for both 14360-B and 14360-P. We handle the warranty claim with you. Ask us if an extended warranty is offered for your order.
Frequently asked questions
What is the difference between analog and digital on this listing?
Analog (14360-B) is a 10-minute cycle, static mode, and a weight dial. Digital (14360-P) adds 10/15/20/25 minute cycles, Auto-Firm, Seat Inflate, lock-out, and three diagnostic alarms. Both pumps are 8 LPM and 45 dB. The mattress is the same.
How is the Edge different from the Med Aire Assure?
Both are hybrids with 5-inch air over 3-inch foam. The Edge adds an 8-inch firm foam perimeter, a 450 lb rating, a PreserveTech cover, a printed 45 dB figure, and an 18-month warranty. The Assure is 350 lbs and 1 year, with no foam edge.
How do I clean the cover?
Drive lists the PreserveTech cover as removable and machine washable. It is fluid-resistant and vapour-permeable. Use the disinfectants named in the user manual. The antimicrobial treatment protects the cover, not the person. Do not immerse the control unit.
What is the weight rating?
Drive lists 450 lbs. Near that limit, ask us about a Med Aire Plus bariatric width instead of stretching this 36-inch Edge.
What size bed does it fit?
36 inches by 80 inches by 8 inches. It is not a bariatric width.
How loud is the pump?
Drive prints 45 dB on the Edge sheet. That is the only Med Aire family SKU in this batch with an official decibel number.
What happens if the power goes out?
The 3-inch foam base and the 8-inch foam perimeter stay under and around the person. The air cells go soft. That is foam hold-up, not Med Aire Plus cell-on-cell air hold-up.
What is the warranty?
18 months on the control unit and mattress for the original purchaser, analog or digital. Westin Healthcare processes the claim.
Does funding cover this mattress in Ontario?
Some Ontario routes can help with a therapeutic support surface. Eligibility depends on the person's situation and assessment. Call (905) 451-7743 or use the funding page before you buy.
Can I rent a powered mattress before I buy?
Westin Healthcare rents hospital-bed packages that include a therapeutic mattress. See current packages on the hospital bed rentals page. Ask us whether this Edge system can be added to a rental.
Specifications
| Height | 8" (5" air cells + 3" foam) |
|---|---|
| Length | 80" |
| Warranty | 18 Months |
| Weight Capacity | 450 lbs |
| Product Weight | 35 lbs (mattress only) |
| Mattress Height | 8" (H) |
| Mattress Length | 80" |
| Mattress Type | Air Mattress, Hybrid Mattress |
| Fabric | Nylon |
| Control Unit Airflow | 8 LPM |
| Air Cell Depth | 5" |
| Foam Base Height | 3" |
| Quilted Cover | Fluid resistant, low shear |
| Cover Care | Machine washable |
| Diagnostic Alarms | Yes |
| CPR Valve | Yes |
| Therapy Class | Hybrid Replacement, Alternating Pressure and Low Air Loss |
| Mattress Dimensions | 36" (W) x 80" (L) x 8" (H) |
| Control Unit Noise | 45 dB |
| Foam Perimeter Height | 8" |
| Analog Cycle Time | 10 Minutes (14360-B) |
| Digital Cycle Time | 10, 15, 20, 25 Minutes (14360-P) |
