Stellato II Folding Wheelchair

Parts finder

Replacement parts for the Stellato II Folding Wheelchair

The exploded view below is numbered. Click a number on the drawing to jump to that part, or search the list. Every price shown is the current online price; anything quoted is priced by our order desk.

Ask about a part Product page 109 parts listed

Showing all 109 parts

1 of 121
Exploded view of the Contents

Loading the drawing

Contents. Numbers match the list.
Exploded view, page 4. Numbers match the list.
Exploded view, page 5. Numbers match the list.
Frames And Crossbrace. Numbers match the list.
Stellato Ii Side Frame (Inside Rail) - Table. Numbers match the list.
Stellato Ii Side Frame (Over Rail). Numbers match the list.
Stellato Ii Side Frame (Over Rail) - Table. Numbers match the list.
Oval Cross Brace (Inside Rail). Numbers match the list.
Oval Insid. Numbers match the list.
Oval X-Brace Ass'Y Rt/Lt Gen (Inside Rail). Numbers match the list.
Inside Oval, X-Brace Ass'Y Rt/Lt Gen - Table. Numbers match the list.
Oval Cross Brace (Over Rail). Numbers match the list.
Oval Inside Cross Brace (Over Rail) - Table. Numbers match the list.
Oval X-Brace Ass'Y Rt/Lt Gen (Over Rail). Numbers match the list.
Over Oval, X-Brace Ass'Y Rt/Lt Gen - Table. Numbers match the list.
Back Cane Mounts. Numbers match the list.
3 1 Ref Side Tube, Seat Frame Simple Arm Ref. Numbers match the list.
Tube. Numbers match the list.

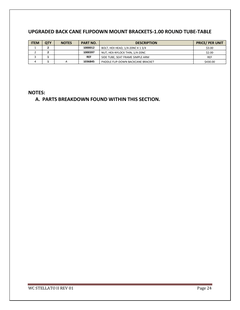

3 1 Ref Side Tube, Seat Frame Simple Arm Ref (page 24). Numbers match the list.
Exploded view, page 25. Numbers match the list.
5 1 1036203 Paddle Release Binding Pin $25.00. Numbers match the list.
Tube). Numbers match the list.
Table. Numbers match the list.
Upgraded Standard Push Cane. Numbers match the list.

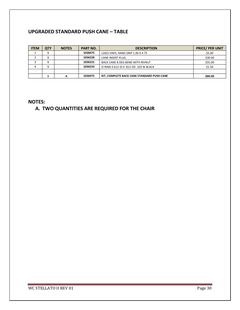

Upgraded Standard Push Cane – Table. Numbers match the list.

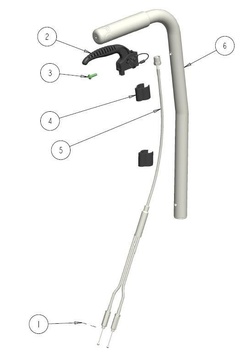

Upgraded Push Cane Cable Trigger Mount. Numbers match the list.

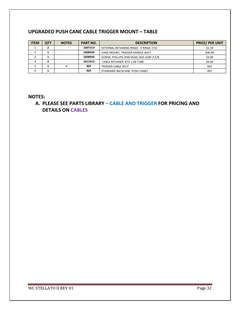

Upgraded Push Cane Cable Trigger Mount – Table. Numbers match the list.
Exploded view, page 33. Numbers match the list.
Notes:. Numbers match the list.
Notes: (page 36). Numbers match the list.

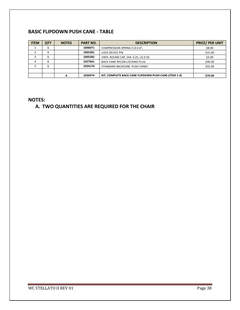

Basic Flipdown Push Cane - Table. Numbers match the list.
Notes: (page 40). Numbers match the list.
Back Sling. Numbers match the list.
Exploded view, page 42. Numbers match the list.
1 2 1004970 Tension Back Hook $9.00. Numbers match the list.
Rear Wheels And Mounts. Numbers match the list.

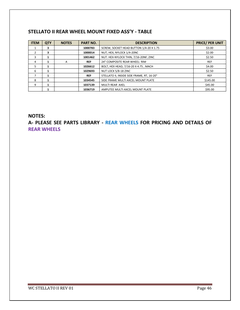

Stellato Ii Rear Wheel Mount Fixed Ass’Y - Table. Numbers match the list.

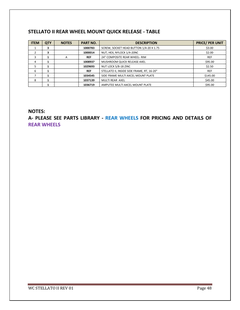

Stellato Ii Rear Wheel Mount Quick Release. Numbers match the list.
2 3 1000014 Nut, Hex, Nylock 1/4-20Nc $2.00. Numbers match the list.
Casters And Forks. Numbers match the list.
2 1 1000144 Stem, Caster Journal $43.00. Numbers match the list.

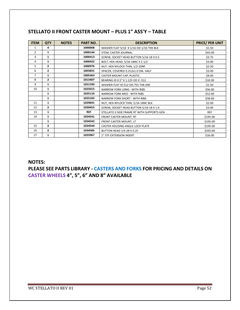

Stellato Ii Front Caster Mount – Plus 1” Ass'Y. Numbers match the list.
2 1 1000144 Stem, Caster Journal $43.00 (page 52). Numbers match the list.
2 1 1000144 Stem, Caster Journal $43.00 (page 54). Numbers match the list.

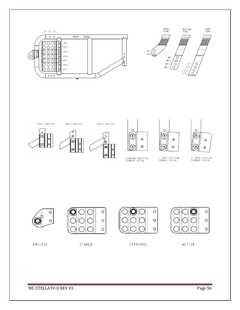

Exploded view, page 56. Numbers match the list.
Tie-Downs. Numbers match the list.

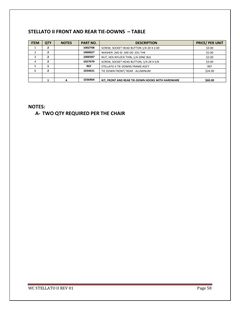

Stellato Ii Front And Rear Tie-Downs – Table. Numbers match the list.
Arms. Numbers match the list.
3 1 A Ref Welded Arm-Rest Top Gen Ass'Y Ref. Numbers match the list.

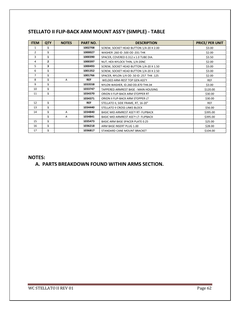

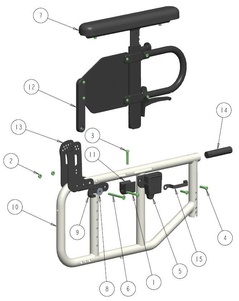

Stellato Ii Flip-Back Arm Mount Ass'Y (Simple). Numbers match the list.
8 1 A Ref Welded Arm-Rest Top Gen Ass'Y Ref. Numbers match the list.
Exploded view, page 63. Numbers match the list.
2 1 1011236 Arm-Rest Base 3-Hole $44.00. Numbers match the list.
Backcane - Table. Numbers match the list.
Paddle Backcane. Numbers match the list.
Backcane - Table (page 68). Numbers match the list.
Exploded view, page 69. Numbers match the list.
2 1 A Ref Welded Arm-Rest Top Gen Ass'Y Ref. Numbers match the list.
Simple Backcane. Numbers match the list.
Backcane – Table. Numbers match the list.
Paddle Backcane (page 73). Numbers match the list.
Backcane - Table (page 74). Numbers match the list.
Lever. Numbers match the list.
Table (page 76). Numbers match the list.

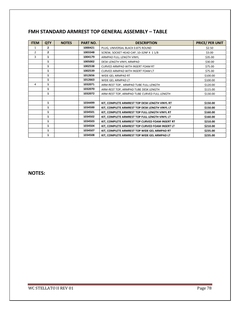

Fmh Standard Armrest Top General Assembly. Numbers match the list.
3 1 1004179 Armpad Full Length Vinyl $35.00. Numbers match the list.
Exploded view, page 79. Numbers match the list.
2 1 1011297 Release Lever Aluminum $10.00. Numbers match the list.
Exploded view, page 81. Numbers match the list.
3 1 1011297 Release Lever Aluminum $10.00. Numbers match the list.
Exploded view, page 83. Numbers match the list.
4 1 1034835 Arm Guard Adult 4-Hole $70.00. Numbers match the list.
Receiver). Numbers match the list.
4 1 1033555 Rotation Arm Flip Bar Rt $30.00. Numbers match the list.
Exploded view, page 87. Numbers match the list.
4 1 1034835 Arm Guard Adult 4-Hole $70.00 (page 88). Numbers match the list.
Receiver) (page 89). Numbers match the list.
4 1 1033555 Rotation Arm Flip Bar Rt $30.00 (page 90). Numbers match the list.
Mid Armrest Flip-Back - Under Lever. Numbers match the list.
Mid Armrest Flip-Back - Under Lever – Table. Numbers match the list.

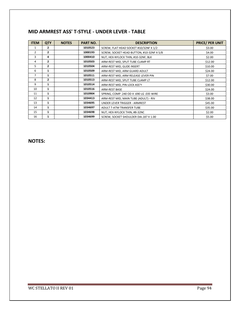

Mid Armrest Ass' T-Style - Under Lever. Numbers match the list.
Mid Armrest Ass' T-Style - Under Lever - Table. Numbers match the list.
Armpads. Numbers match the list.
All Armpads-Table. Numbers match the list.
Swing-Away Legrest. Numbers match the list.
4 1 Ref Stellato Ii, Side Frame,16-20" Rt Ref. Numbers match the list.
Stellato Ii Swing-Away U-Bolt Hanger Mount Ass'Y. Numbers match the list.

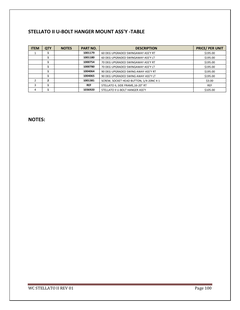

Stellato Ii U-Bolt Hanger Mount Ass'Y -Table. Numbers match the list.
Stellato Ii U-Bolt Hanger Ass'Y. Numbers match the list.
Stellato Ii U-Bolt Hanger Ass'Y - Table. Numbers match the list.
Exploded view, page 103. Numbers match the list.
2 1 Ref Stellato Ii, Side Frame,16-20" Rt Ref. Numbers match the list.
Stellato Ii 1.25 Inline Hanger Short Ass’Y. Numbers match the list.
2 1 1034735 Hanger Ring Insert Plug $5.00. Numbers match the list.
Exploded view, page 107. Numbers match the list.
2 1 Ref Stellato Ii, Side Frame,16-20" Rt Ref (page 108). Numbers match the list.
Stellato Ii 1.25 Rt Offset Legrest Hanger Ass’Y. Numbers match the list.
3 1 1034735 Hanger Ring Insert Plug $5.00. Numbers match the list.

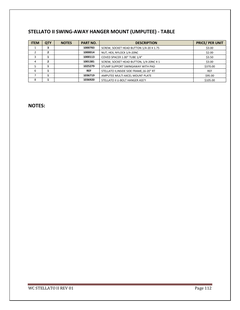

Stellato Ii Swing-Away Hanger Mount (Umputee). Numbers match the list.
2 2 1000014 Nut, Hex, Nylock 1/4-20Nc $2.00. Numbers match the list.

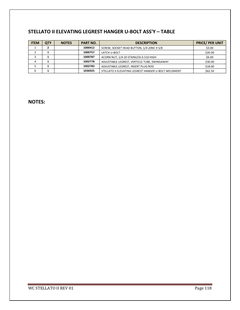

Elevating Legrest. Numbers match the list.
3 1 Ref Stellato Ii,Side Frame,16-20" Rt Ref. Numbers match the list.
Exploded view, page 117. Numbers match the list.
2 1 1000757 Latch U-Bolt $20.00. Numbers match the list.
Wheel Locks. Numbers match the list.
2 1 Ref Stellato Ii Side Frame Rt Ref. Numbers match the list.
Exploded view, page 121. Numbers match the list.
1 4 1000372 Bolt, Hex Head, 1/4-20Nc X 2 $4.00. Numbers match the list.
Exploded view, page 123. Numbers match the list.
2 1 1000372 Bolt, Hex Head, 1/4-20Nc X 2 $4.00. Numbers match the list.

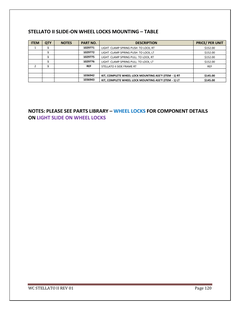

Locks). Numbers match the list.
1 2 1000372 Bolt, Hex Head, 1/4-20Nc X 2 $4.00. Numbers match the list.
Anti-Tips. Numbers match the list.
Stellato Ii Simple Anti-Tip Mounted– Table. Numbers match the list.
Simple Anti-Tip With Extension Ass'Y. Numbers match the list.

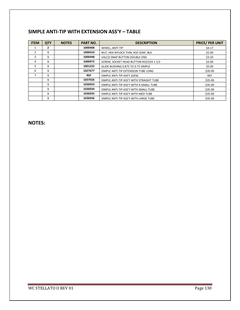

Simple Anti-Tip With Extension Ass'Y – Table. Numbers match the list.
Quick Flip Anti-Tip Plus Ass'Y. Numbers match the list.
Quick Flip Anti-Tip Plus Ass'Y – Table. Numbers match the list.
Accessories. Numbers match the list.

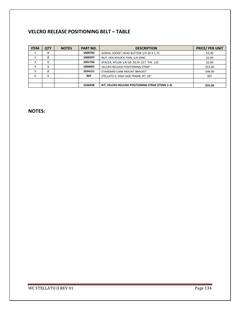

Velcro Release Positioning Belt – Table. Numbers match the list.

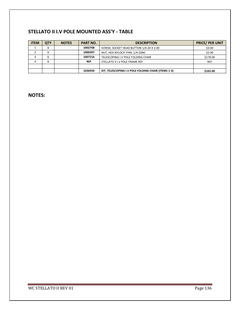

Stellato Ii I.V Pole Mounted Ass'Y - Table. Numbers match the list.

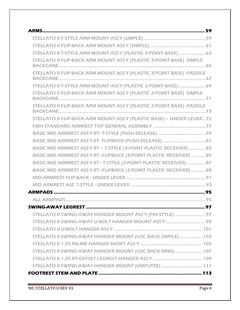

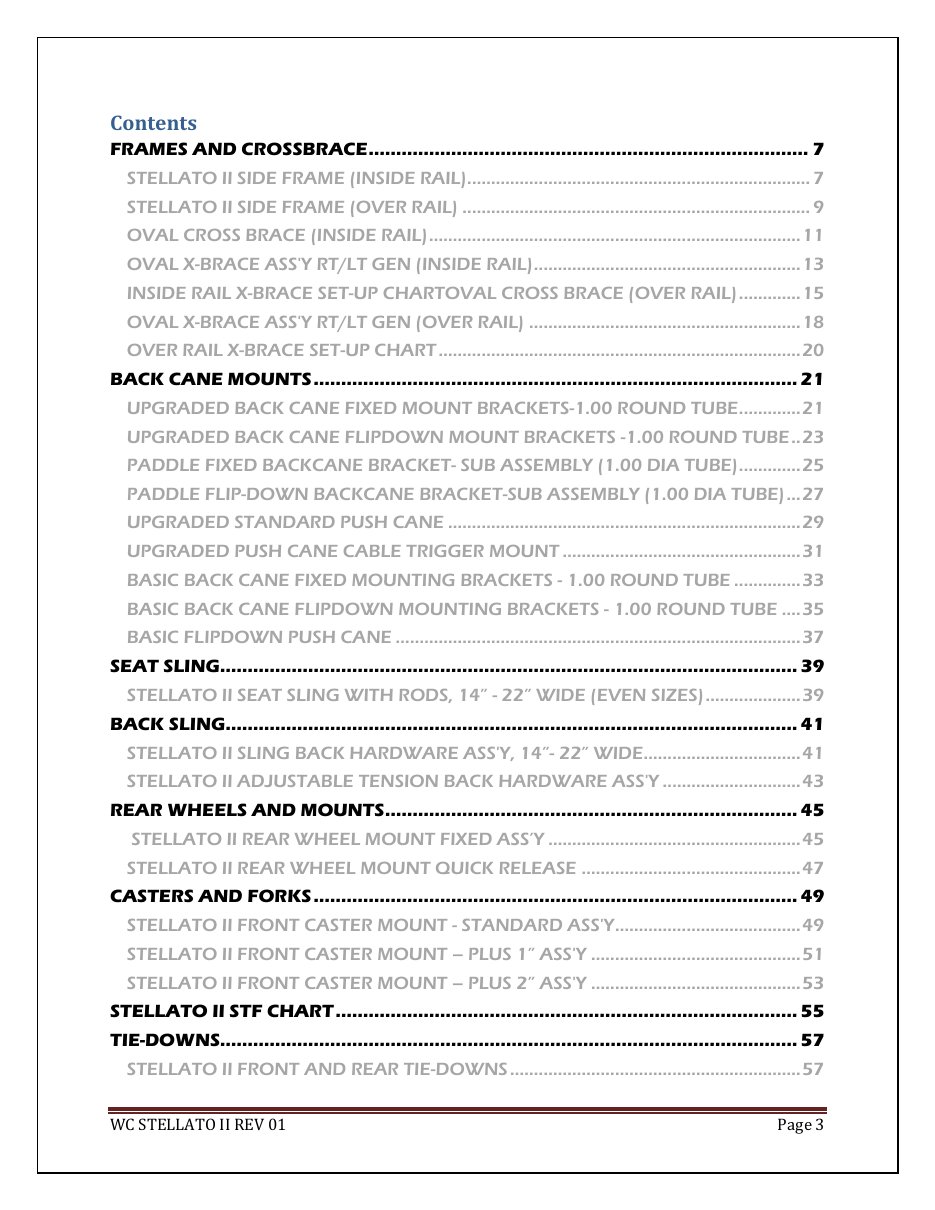

Contents

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Exploded view, page 4

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Exploded view, page 5

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Frames And Crossbrace

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

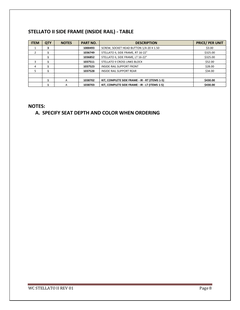

Stellato Ii Side Frame (Inside Rail) - Table

1 part

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Stellato Ii Side Frame (Inside Rail) - Table
No.PartQtyPriceAction
1 STELLATO II, SIDE FRAME, LT 16-22" $325.00Manufacturer no. 1036852 1Quote Ask for a quote

Stellato Ii Side Frame (Over Rail)

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Stellato Ii Side Frame (Over Rail) - Table

1 part

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Stellato Ii Side Frame (Over Rail) - Table
No.PartQtyPriceAction
1 STELLATO II, SIDE FRAME, LT 16-22" $325.00Manufacturer no. 1036852 1Quote Ask for a quote

Oval Cross Brace (Inside Rail)

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

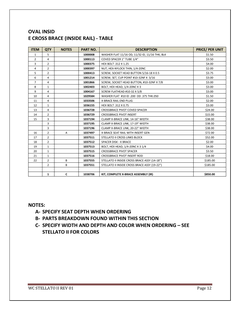

Oval Insid

2 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Oval Insid
No.PartQtyPriceAction
3 CLAMP X-BRACE LINK, 17-19" WIDTH $38.00Manufacturer no. 1037195 1Quote Ask for a quote
3 CLAMP X-BRACE LINK, 20-22" WIDTH $38.00Manufacturer no. 1037196 1Quote Ask for a quote

Oval X-Brace Ass'Y Rt/Lt Gen (Inside Rail)

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

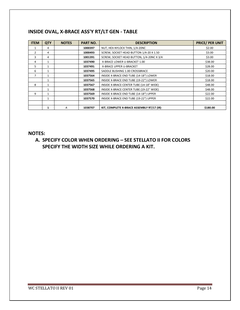

Inside Oval, X-Brace Ass'Y Rt/Lt Gen - Table

3 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Inside Oval, X-Brace Ass'Y Rt/Lt Gen - Table
No.PartQtyPriceAction
1 INSIDE X-BRACE END TUBE (19-22") LOWER $18.00Manufacturer no. 1037565 1Quote Ask for a quote
1 INSIDE X-BRACE CENTER TUBE (19-22" WIDE) $48.00Manufacturer no. 1037568 1Quote Ask for a quote
1 INSIDE X-BRACE END TUBE (19-22") UPPER $22.00Manufacturer no. 1037570 1Quote Ask for a quote

Oval Cross Brace (Over Rail)

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

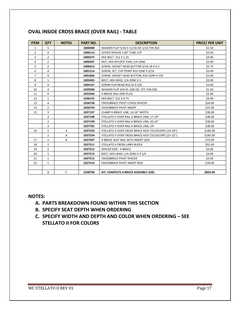

Oval Inside Cross Brace (Over Rail) - Table

3 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Oval Inside Cross Brace (Over Rail) - Table
No.PartQtyPriceAction
3 STELLATO II OVER RAIL X-BRACE LINK, 17-19" $38.00Manufacturer no. 1037198 1Quote Ask for a quote
3 STELLATO II OVER RAIL X-BRACE LINK, 20-22" $38.00Manufacturer no. 1037199 1Quote Ask for a quote
3 STELLATO II OVER RAIL X-BRACE LINK, 24" $38.00Manufacturer no. 1037765 1Quote Ask for a quote

Oval X-Brace Ass'Y Rt/Lt Gen (Over Rail)

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

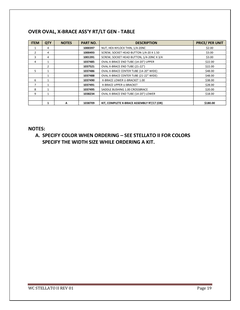

Over Oval, X-Brace Ass'Y Rt/Lt Gen - Table

2 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Over Oval, X-Brace Ass'Y Rt/Lt Gen - Table
No.PartQtyPriceAction
2 OVAL X-BRACE END TUBE (21-22") $22.00Manufacturer no. 1037521 1Quote Ask for a quote
1 OVAL X-BRACE CENTER TUBE (21-22" WIDE) $48.00Manufacturer no. 1037488 1Quote Ask for a quote

Back Cane Mounts

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

3 1 Ref Side Tube, Seat Frame Simple Arm Ref

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Tube

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

3 1 Ref Side Tube, Seat Frame Simple Arm Ref (page 24)

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Exploded view, page 25

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

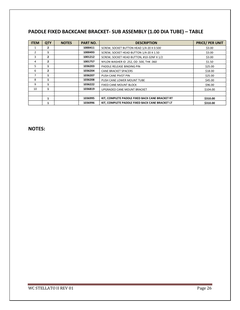

5 1 1036203 Paddle Release Binding Pin $25.00

2 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 5 1 1036203 Paddle Release Binding Pin $25.00
No.PartQtyPriceAction
1 KIT, COMPLETE PADDLE FIXED BACK CANE BRACKET RT $310.00Manufacturer no. 1036995 1Quote Ask for a quote
1 KIT, COMPLETE PADDLE FIXED BACK CANE BRACKET LT $310.00Manufacturer no. 1036996 1Quote Ask for a quote

Tube)

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Table

2 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Table
No.PartQtyPriceAction
1 KIT, COMPLETE PADDLE FLIP-DOWN BACK CANE BRACKET RT $430.00Manufacturer no. 1036997 1Quote Ask for a quote
1 KIT, COMPLETE PADDLE FLIP-DOWN BACK CANE BRACKET LT $430.00Manufacturer no. 1036998 1Quote Ask for a quote

Upgraded Standard Push Cane

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Upgraded Standard Push Cane – Table

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Upgraded Push Cane Cable Trigger Mount

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Upgraded Push Cane Cable Trigger Mount – Table

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Exploded view, page 33

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Notes:

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Notes: (page 36)

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Basic Flipdown Push Cane - Table

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

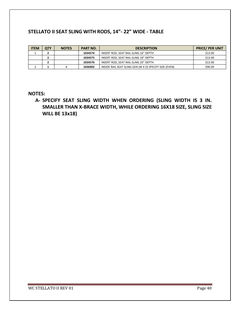

Notes: (page 40)

2 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Notes: (page 40)
No.PartQtyPriceAction
2 INSERT ROD, SEAT RAIL SLING 18" DEPTH $13.00Manufacturer no. 1034575 1Quote Ask for a quote
2 INSERT ROD, SEAT RAIL SLING 20" DEPTH $13.00Manufacturer no. 1034576 1Quote Ask for a quote

Back Sling

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

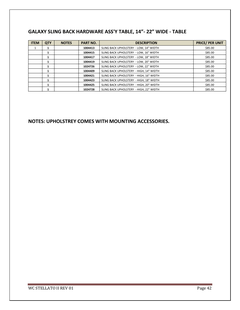

Exploded view, page 42

9 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 42
No.PartQtyPriceAction
1 SLING BACK UPHOLSTERY - LOW, 16" WIDTH $85.00Manufacturer no. 1004415 1Quote Ask for a quote
1 SLING BACK UPHOLSTERY - LOW, 18" WIDTH $85.00Manufacturer no. 1004417 1Quote Ask for a quote
1 SLING BACK UPHOLSTERY - LOW, 20" WIDTH $85.00Manufacturer no. 1004419 1Quote Ask for a quote
1 SLING BACK UPHOLSTERY - LOW, 22" WIDTH $85.00Manufacturer no. 1024726 1Quote Ask for a quote
1 SLING BACK UPHOLSTERY - HIGH, 14" WIDTH $85.00Manufacturer no. 1004409 1Quote Ask for a quote
1 SLING BACK UPHOLSTERY - HIGH, 16" WIDTH $85.00Manufacturer no. 1004421 1Quote Ask for a quote
1 SLING BACK UPHOLSTERY - HIGH, 18" WIDTH $85.00Manufacturer no. 1004423 1Quote Ask for a quote
1 SLING BACK UPHOLSTERY - HIGH, 20" WIDTH $85.00Manufacturer no. 1004425 1Quote Ask for a quote
1 SLING BACK UPHOLSTERY - HIGH, 22" WIDTH $85.00Manufacturer no. 1024728 1Quote Ask for a quote

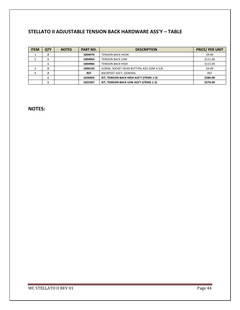

1 2 1004970 Tension Back Hook $9.00

3 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 1 2 1004970 Tension Back Hook $9.00
No.PartQtyPriceAction
1 TENSION BACK HIGH $115.00Manufacturer no. 1004966 1Quote Ask for a quote
1 KIT, TENSION BACK HIGH ASS'Y (ITEMS 1-3) $280.00Manufacturer no. 1036903 1Quote Ask for a quote
1 KIT, TENSION BACK LOW ASS'Y (ITEMS 1-3) $270.00Manufacturer no. 1025307 1Quote Ask for a quote

Rear Wheels And Mounts

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Stellato Ii Rear Wheel Mount Fixed Ass’Y - Table

1 part

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Stellato Ii Rear Wheel Mount Fixed Ass’Y - Table
No.PartQtyPriceAction
1 AMPUTEE MULTI AXCEL MOUNT PLATE $95.00Manufacturer no. 1036719 1Quote Ask for a quote

Stellato Ii Rear Wheel Mount Quick Release

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

2 3 1000014 Nut, Hex, Nylock 1/4-20Nc $2.00

1 part

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 2 3 1000014 Nut, Hex, Nylock 1/4-20Nc $2.00
No.PartQtyPriceAction
1 AMPUTEE MULTI AXCEL MOUNT PLATE $95.00Manufacturer no. 1036719 1Quote Ask for a quote

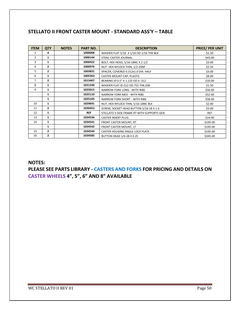

Casters And Forks

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

2 1 1000144 Stem, Caster Journal $43.00

3 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 2 1 1000144 Stem, Caster Journal $43.00
No.PartQtyPriceAction
1 NARROW FORK MED - WITH RIBS $52.00Manufacturer no. 1025110 1Quote Ask for a quote
1 NARROW FORK SHORT - WITH RIBS $58.00Manufacturer no. 1025105 1Quote Ask for a quote
1 FRONT CASTER MOUNT, LT $195.00Manufacturer no. 1034542 1Quote Ask for a quote

Stellato Ii Front Caster Mount – Plus 1” Ass'Y

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

2 1 1000144 Stem, Caster Journal $43.00 (page 52)

3 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 2 1 1000144 Stem, Caster Journal $43.00 (page 52)
No.PartQtyPriceAction
1 NARROW FORK MED - WITH RIBS $52.00Manufacturer no. 1025110 1Quote Ask for a quote
1 NARROW FORK SHORT - WITH RIBS $58.00Manufacturer no. 1025105 1Quote Ask for a quote
1 FRONT CASTER MOUNT, LT $195.00Manufacturer no. 1034542 1Quote Ask for a quote

2 1 1000144 Stem, Caster Journal $43.00 (page 54)

3 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 2 1 1000144 Stem, Caster Journal $43.00 (page 54)
No.PartQtyPriceAction
1 NARROW FORK MED - WITH RIBS $52.00Manufacturer no. 1025110 1Quote Ask for a quote
1 NARROW FORK SHORT - WITH RIBS $58.00Manufacturer no. 1025105 1Quote Ask for a quote
1 FRONT CASTER MOUNT, LT $195.00Manufacturer no. 1034542 1Quote Ask for a quote

Exploded view, page 56

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Tie-Downs

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Stellato Ii Front And Rear Tie-Downs – Table

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Arms

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

3 1 A Ref Welded Arm-Rest Top Gen Ass'Y Ref

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Stellato Ii Flip-Back Arm Mount Ass'Y (Simple)

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

8 1 A Ref Welded Arm-Rest Top Gen Ass'Y Ref

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Exploded view, page 63

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

2 1 1011236 Arm-Rest Base 3-Hole $44.00

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Backcane - Table

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

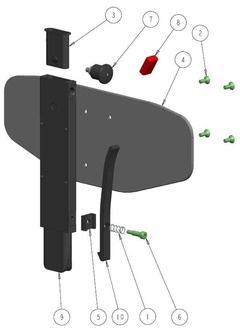

Paddle Backcane

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

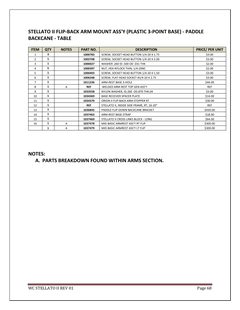

Backcane - Table (page 68)

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Exploded view, page 69

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

2 1 A Ref Welded Arm-Rest Top Gen Ass'Y Ref

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Simple Backcane

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

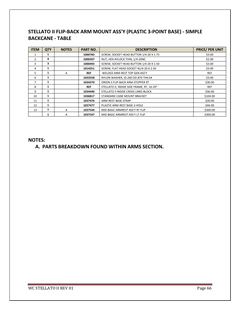

Backcane – Table

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Paddle Backcane (page 73)

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

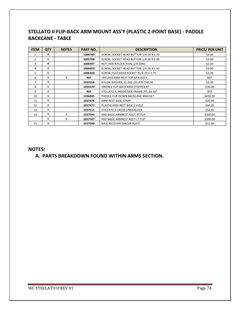

Backcane - Table (page 74)

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Lever

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Table (page 76)

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Fmh Standard Armrest Top General Assembly

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

3 1 1004179 Armpad Full Length Vinyl $35.00

15 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 3 1 1004179 Armpad Full Length Vinyl $35.00
No.PartQtyPriceAction
1 DESK LENGTH VINYL ARMPAD $30.00Manufacturer no. 1005002 1Quote Ask for a quote
1 CURVED ARMPAD WITH INSERT FOAM RT $75.00Manufacturer no. 1002538 1Quote Ask for a quote
1 CURVED ARMPAD WITH INSERT FOAM LT $75.00Manufacturer no. 1002539 1Quote Ask for a quote
1 WIDE GEL ARMPAD RT $100.00Manufacturer no. 1012656 1Quote Ask for a quote
1 WIDE GEL ARMPAD LT $100.00Manufacturer no. 1012663 1Quote Ask for a quote
1 ARM-REST TOP, ARMPAD TUBE DESK LENGTH $115.00Manufacturer no. 1032070 1Quote Ask for a quote
1 ARM-REST TOP, ARMPAD TUBE CURVED FULL LENGTH $130.00Manufacturer no. 1032072 1Quote Ask for a quote
1 KIT, COMPLETE ARMREST TOP DESK LENGTH VINYL RT $150.00Manufacturer no. 1034499 1Quote Ask for a quote
1 KIT, COMPLETE ARMREST TOP DESK LENGTH VINYL LT $150.00Manufacturer no. 1034500 1Quote Ask for a quote
1 KIT, COMPLETE ARMREST TOP FULL LENGTH VINYL RT $160.00Manufacturer no. 1034501 1Quote Ask for a quote
1 KIT, COMPLETE ARMREST TOP FULL LENGTH VINYL LT $160.00Manufacturer no. 1034502 1Quote Ask for a quote
1 KIT, COMPLETE ARMREST TOP CURVED FOAM INSERT RT $210.00Manufacturer no. 1034503 1Quote Ask for a quote
1 KIT, COMPLETE ARMREST TOP CURVED FOAM INSERT LT $210.00Manufacturer no. 1034504 1Quote Ask for a quote
1 KIT, COMPLETE ARMREST TOP WIDE GEL ARMPAD RT $235.00Manufacturer no. 1034507 1Quote Ask for a quote
1 KIT, COMPLETE ARMREST TOP WIDE GEL ARMPAD LT $235.00Manufacturer no. 1034508 1Quote Ask for a quote

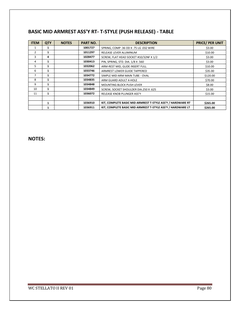

Exploded view, page 79

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

2 1 1011297 Release Lever Aluminum $10.00

2 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 2 1 1011297 Release Lever Aluminum $10.00
No.PartQtyPriceAction
1 KIT, COMPLETE BASIC MID ARMREST T-STYLE ASS'Y / HARDWARE RT $265.00Manufacturer no. 1036910 1Quote Ask for a quote
1 KIT, COMPLETE BASIC MID ARMREST T-STYLE ASS'Y / HARDWARE LT $265.00Manufacturer no. 1036911 1Quote Ask for a quote

Exploded view, page 81

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

3 1 1011297 Release Lever Aluminum $10.00

4 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 3 1 1011297 Release Lever Aluminum $10.00
No.PartQtyPriceAction
1 ROTATION ARM FLIP BAR LT $30.00Manufacturer no. 1033556 1Quote Ask for a quote
1 BASIC FLIP-BACK ARM GUARD LT $85.00Manufacturer no. 1034847 1Quote Ask for a quote
1 KIT, COMPLETE BASIC MID ARMREST FLIP-BACK ASS'Y - RT $310.00Manufacturer no. 1036912 1Quote Ask for a quote
1 KIT, COMPLETE BASIC MID ARMREST FLIP-BACK ASS'Y- LT $310.00Manufacturer no. 1036913 1Quote Ask for a quote

Exploded view, page 83

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

4 1 1034835 Arm Guard Adult 4-Hole $70.00

2 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 4 1 1034835 Arm Guard Adult 4-Hole $70.00
No.PartQtyPriceAction
1 KIT, COMPLETE BASIC MID ARMREST T-STYLE ASS'Y (3-POINT) RT $270.00Manufacturer no. 1037702 1Quote Ask for a quote
1 KIT, COMPLETE BASIC MID ARMREST T-STYLE ASS'Y (3-POINT) LT $270.00Manufacturer no. 1037703 1Quote Ask for a quote

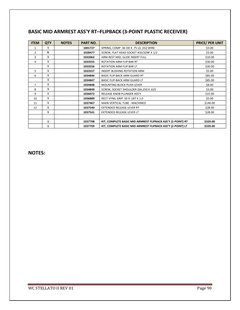

Receiver)

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

4 1 1033555 Rotation Arm Flip Bar Rt $30.00

4 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 4 1 1033555 Rotation Arm Flip Bar Rt $30.00
No.PartQtyPriceAction
1 ROTATION ARM FLIP BAR LT $30.00Manufacturer no. 1033556 1Quote Ask for a quote
1 BASIC FLIP-BACK ARM GUARD LT $85.00Manufacturer no. 1034847 1Quote Ask for a quote
1 KIT, COMPLETE BASIC MID ARMREST FLIPBACK ASS'Y (3-POINT) RT $320.00Manufacturer no. 1037704 1Quote Ask for a quote
1 KIT, COMPLETE BASIC MID ARMREST FLIPBACK ASS'Y (3-POINT) LT $320.00Manufacturer no. 1037705 1Quote Ask for a quote

Exploded view, page 87

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

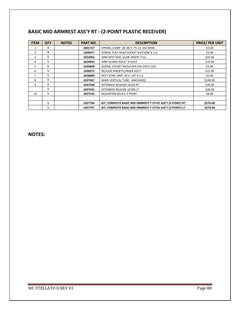

4 1 1034835 Arm Guard Adult 4-Hole $70.00 (page 88)

3 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 4 1 1034835 Arm Guard Adult 4-Hole $70.00 (page 88)
No.PartQtyPriceAction
1 EXTENDED RELEASE LEVER LT $28.00Manufacturer no. 1037541 1Quote Ask for a quote
1 KIT, COMPLETE BASIC MID ARMREST T-STYLE ASS'Y (2-POINT) RT $270.00Manufacturer no. 1037706 1Quote Ask for a quote
1 KIT, COMPLETE BASIC MID ARMREST T-STYLE ASS'Y (2-POINT) LT $270.00Manufacturer no. 1037707 1Quote Ask for a quote

Receiver) (page 89)

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

4 1 1033555 Rotation Arm Flip Bar Rt $30.00 (page 90)

5 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 4 1 1033555 Rotation Arm Flip Bar Rt $30.00 (page 90)
No.PartQtyPriceAction
1 ROTATION ARM FLIP BAR LT $30.00Manufacturer no. 1033556 1Quote Ask for a quote
1 BASIC FLIP-BACK ARM GUARD LT $85.00Manufacturer no. 1034847 1Quote Ask for a quote
1 EXTENDED RELEASE LEVER LT $28.00Manufacturer no. 1037541 1Quote Ask for a quote
1 KIT, COMPLETE BASIC MID ARMREST FLIPBACK ASS'Y (2-POINT) RT $320.00Manufacturer no. 1037708 1Quote Ask for a quote
1 KIT, COMPLETE BASIC MID ARMREST FLIPBACK ASS'Y (2-POINT) LT $320.00Manufacturer no. 1037709 1Quote Ask for a quote

Mid Armrest Flip-Back - Under Lever

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Mid Armrest Flip-Back - Under Lever – Table

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Mid Armrest Ass' T-Style - Under Lever

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Mid Armrest Ass' T-Style - Under Lever - Table

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Armpads

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

All Armpads-Table

2 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in All Armpads-Table
No.PartQtyPriceAction
1 ARMPAD WITH INSERT RT $75.00Manufacturer no. 1002538 1Quote Ask for a quote
1 WIDE GEL ARMPAD OVERMOLD RT $100.00Manufacturer no. 1012656 1Quote Ask for a quote

Swing-Away Legrest

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

4 1 Ref Stellato Ii, Side Frame,16-20" Rt Ref

6 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 4 1 Ref Stellato Ii, Side Frame,16-20" Rt Ref
No.PartQtyPriceAction
1 SWINGAWAY 60 DEG LEGREST, PIN STYLE, RT $110.00Manufacturer no. 1036716 1Quote Ask for a quote
1 SWINGAWAY 70 DEG LEGREST, PIN STYLE, LT $110.00Manufacturer no. 1003732 1Quote Ask for a quote
1 SWINGAWAY 70 DEG LEGREST, PIN STYLE, RT $110.00Manufacturer no. 1003733 1Quote Ask for a quote
1 SWINGAWAY 80 DEG LEGREST, PIN STYLE, LT $120.00Manufacturer no. 1004895 1Quote Ask for a quote
1 SWINGAWAY 80 DEG LEGREST, PIN STYLE, RT $120.00Manufacturer no. 1004894 1Quote Ask for a quote
1 STELLATO II PIN STYLE HANGER LT $84.00Manufacturer no. 1036919 1Quote Ask for a quote

Stellato Ii Swing-Away U-Bolt Hanger Mount Ass'Y

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Stellato Ii U-Bolt Hanger Mount Ass'Y -Table

5 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Stellato Ii U-Bolt Hanger Mount Ass'Y -Table
No.PartQtyPriceAction
1 60 DEG UPGRADED SWINGAWAY ASS'Y LT $195.00Manufacturer no. 1001180 1Quote Ask for a quote
1 70 DEG UPGRADED SWINGAWAY ASS'Y RT $195.00Manufacturer no. 1000754 1Quote Ask for a quote
1 70 DEG UPGRADED SWINGAWAY ASS'Y LT $195.00Manufacturer no. 1000780 1Quote Ask for a quote
1 90 DEG UPGRADED SWING AWAY ASS'Y RT $195.00Manufacturer no. 1004064 1Quote Ask for a quote
1 90 DEG UPGRADED SWING AWAY ASS'Y LT $195.00Manufacturer no. 1004065 1Quote Ask for a quote

Stellato Ii U-Bolt Hanger Ass'Y

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Stellato Ii U-Bolt Hanger Ass'Y - Table

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Exploded view, page 103

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

2 1 Ref Stellato Ii, Side Frame,16-20" Rt Ref

3 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 2 1 Ref Stellato Ii, Side Frame,16-20" Rt Ref
No.PartQtyPriceAction
1 70 DEGREE 1.25 PULL LOC SWINGAWAY $145.00Manufacturer no. 1034725 1Quote Ask for a quote
1 80 DEGREE 1.25 PULL DUAL SWINGAWAY ASS'Y $145.00Manufacturer no. 1034726 1Quote Ask for a quote
1 90 DEGREE 1.25 PULL DUAL SWINGAWAY ASS'Y $145.00Manufacturer no. 1034727 1Quote Ask for a quote

Stellato Ii 1.25 Inline Hanger Short Ass’Y

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

2 1 1034735 Hanger Ring Insert Plug $5.00

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Exploded view, page 107

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

2 1 Ref Stellato Ii, Side Frame,16-20" Rt Ref (page 108)

4 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 2 1 Ref Stellato Ii, Side Frame,16-20" Rt Ref (page 108)
No.PartQtyPriceAction
1 70 DEGREE 1.25 PULL LOC SWINGAWAY $145.00Manufacturer no. 1034725 1Quote Ask for a quote
1 80 DEGREE 1.25 PULL DUAL SWINGAWAY ASS'Y $145.00Manufacturer no. 1034726 1Quote Ask for a quote
1 90 DEGREE 1.25 PULL DUAL SWINGAWAY ASS'Y $145.00Manufacturer no. 1034727 1Quote Ask for a quote
1 1.25 LT OFFSET LEGREST HANGER $115.00Manufacturer no. 1034779 1Quote Ask for a quote

Stellato Ii 1.25 Rt Offset Legrest Hanger Ass’Y

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

3 1 1034735 Hanger Ring Insert Plug $5.00

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Stellato Ii Swing-Away Hanger Mount (Umputee)

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

2 2 1000014 Nut, Hex, Nylock 1/4-20Nc $2.00

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Elevating Legrest

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

3 1 Ref Stellato Ii,Side Frame,16-20" Rt Ref

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Exploded view, page 117

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

2 1 1000757 Latch U-Bolt $20.00

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Wheel Locks

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

2 1 Ref Stellato Ii Side Frame Rt Ref

3 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 2 1 Ref Stellato Ii Side Frame Rt Ref
No.PartQtyPriceAction
1 LIGHT CLAMP SPRING PUSH TO LOCK, LT $152.00Manufacturer no. 1029772 1Quote Ask for a quote
1 LIGHT CLAMP SPRING PULL TO LOCK, RT $152.00Manufacturer no. 1029775 1Quote Ask for a quote
1 LIGHT CLAMP SPRING PULL TO LOCK, LT $152.00Manufacturer no. 1029776 1Quote Ask for a quote

Exploded view, page 121

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

1 4 1000372 Bolt, Hex Head, 1/4-20Nc X 2 $4.00

1 part

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 1 4 1000372 Bolt, Hex Head, 1/4-20Nc X 2 $4.00
No.PartQtyPriceAction
1 UNILATERAL PUSH LOCK - HOUSING LT $180.00Manufacturer no. 1021604 1Quote Ask for a quote

Exploded view, page 123

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

2 1 1000372 Bolt, Hex Head, 1/4-20Nc X 2 $4.00

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Locks)

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

1 2 1000372 Bolt, Hex Head, 1/4-20Nc X 2 $4.00

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Anti-Tips

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Stellato Ii Simple Anti-Tip Mounted– Table

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Simple Anti-Tip With Extension Ass'Y

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Simple Anti-Tip With Extension Ass'Y – Table

5 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Simple Anti-Tip With Extension Ass'Y – Table
No.PartQtyPriceAction
1 SIMPLE ANTI-TIP ASS'Y WITH STRAIGHT TUBE $35.00Manufacturer no. 1037026 1Quote Ask for a quote
1 SIMPLE ANTI-TIP ASS'Y WITH X-SMALL TUBE $35.00Manufacturer no. 1036933 1Quote Ask for a quote
1 SIMPLE ANTI-TIP ASS'Y WITH SMALL TUBE $35.00Manufacturer no. 1036934 1Quote Ask for a quote
1 SIMPLE ANTI-TIP ASS'Y WITH MED TUBE $35.00Manufacturer no. 1036935 1Quote Ask for a quote
1 SIMPLE ANTI-TIP ASS'Y WITH LARGE TUBE $35.00Manufacturer no. 1036936 1Quote Ask for a quote

Quick Flip Anti-Tip Plus Ass'Y

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Quick Flip Anti-Tip Plus Ass'Y – Table

4 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Quick Flip Anti-Tip Plus Ass'Y – Table
No.PartQtyPriceAction
1 ANTI-TIP SHORT $31.00Manufacturer no. 1012830 1Quote Ask for a quote
1 ANTI-TIP BENT MEDIUM $31.00Manufacturer no. 1010290 1Quote Ask for a quote
1 ANTI-TIP BENT LONG $31.00Manufacturer no. 1025203 1Quote Ask for a quote
1 ANTI-TIP BENT X-LONG $31.00Manufacturer no. 1025205 1Quote Ask for a quote

Accessories

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Velcro Release Positioning Belt – Table

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Stellato Ii I.V Pole Mounted Ass'Y - Table

0 parts

Exploded view from the manufacturer's parts manual (Stellato II Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts manuals for this model

The manufacturer parts lists and exploded diagrams we hold. If you can find the number on one of these, quote it to us and we will match it.

Stellato II Parts Book

Manufacturer parts document, PDF.

Not sure which part you need?

Send us a photo of the part, or of where it sits, and tell us what it is doing. Our order desk identifies parts for this equipment every day, and we would rather ask you one question than ship you the wrong bolt.

Or call 905 451-7743 and describe it to us.

Where to go next

The product page

Specifications, documents and the full product page for the Stellato II Folding Wheelchair.

All replacement parts

Search every part we stock, or browse by the equipment it fits.

Have us fit it

Our technicians service what we sell, in the home and in the showroom.
