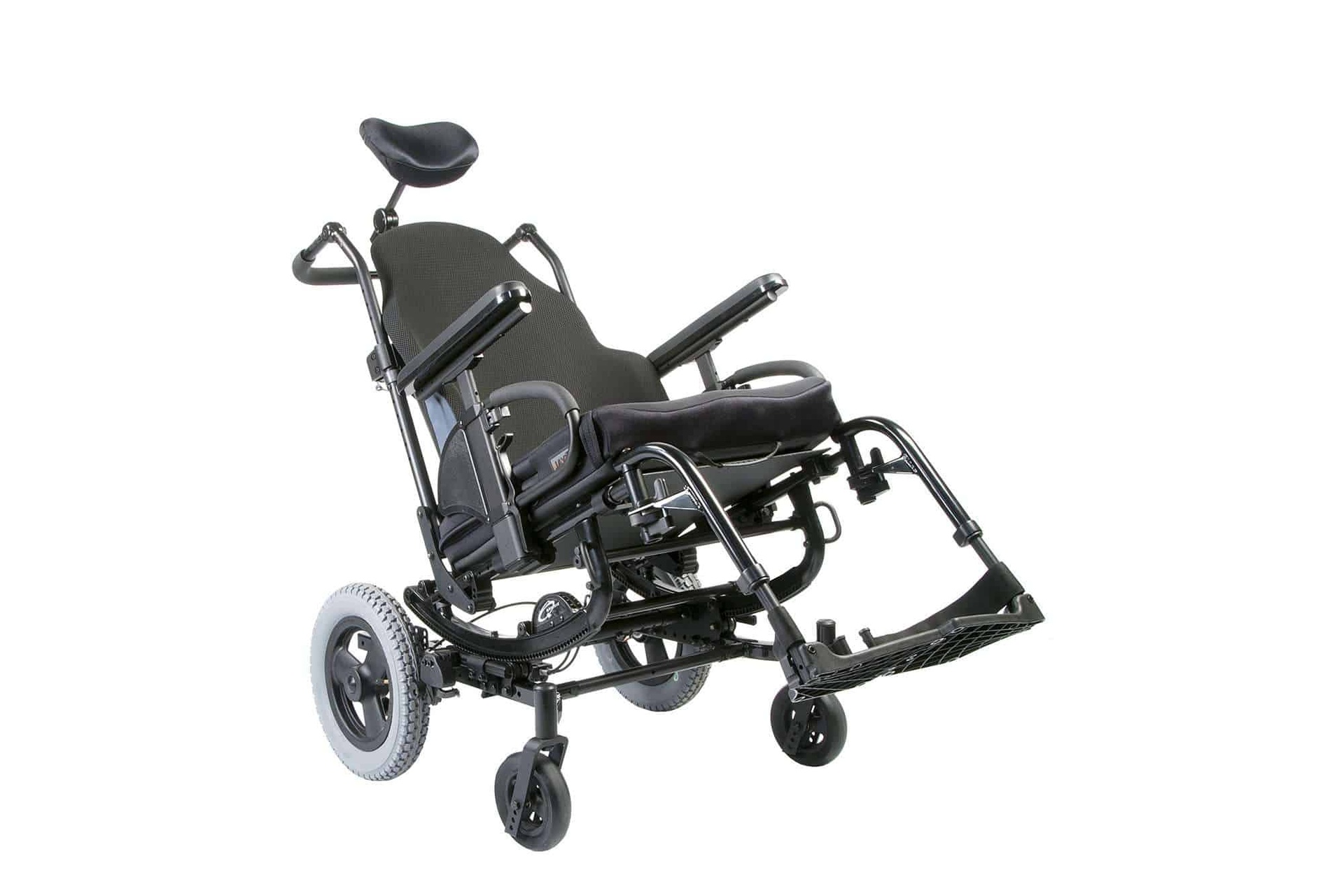

Sunrise Quickie SR45 Tilt Wheelchair

Parts finder

Replacement parts for the Sunrise Quickie SR45 Tilt Wheelchair

The exploded view below is numbered. Click a number on the drawing to jump to that part, or search the list. Every price shown is the current online price; anything quoted is priced by our order desk.

Ask about a part Product page 924 parts listed

Showing all 924 parts

1 of 95
Exploded view of the Base Frame

Loading the drawing

Base Frame. Numbers match the list.
Angle Indicator. Numbers match the list.
Foot Release. Numbers match the list.
Exploded view, page 10. Numbers match the list.
Tilt Handle & Cable For Hgt Adj Backrest. Numbers match the list.
Transit Kit. Numbers match the list.
Rocker Assembly. Numbers match the list.
Quick Release Axles Matrix. Numbers match the list.
Threaded Axle. Numbers match the list.
Axle Brackets. Numbers match the list.
Caster Fork Assm. Numbers match the list.
3 Spoke Casters. Numbers match the list.
8" x 2" CASTERS. Numbers match the list.
Wheel Locks. Numbers match the list.
Footlock Sr45. Numbers match the list.
Wheel Lock Extension Handle. Numbers match the list.
Traditional 6 Spoke Mag. Numbers match the list.
16" Mag. Numbers match the list.
12" Mag. Numbers match the list.
Plastic Coated (Screw Mount). Numbers match the list.
Aluminum Anodized (Screw Mount). Numbers match the list.
Pneumatic & Pneu. Airless Tire. Numbers match the list.
Full Poly Tire. Numbers match the list.
Tubes And Airless Inserts. Numbers match the list.
Seat Pan. Numbers match the list.
Folding Stroller Handle Backposts. Numbers match the list.
Fixed Stroller Handle Backposts. Numbers match the list.
Reclining Backrest. Numbers match the list.
Exploded view, page 44. Numbers match the list.
Stroller Handle Extension-Removable. Numbers match the list.
Battery, Charger & Control Box. Numbers match the list.
Mounting Plate And Actuator. Numbers match the list.
Power Tilt Retro Kit. Numbers match the list.
Sr45 Power Tilt Fixed Struts. Numbers match the list.
70 Deg Swing In/Out Hanger. Numbers match the list.
80 Deg Swing In/Out Hanger. Numbers match the list.
Composite Footplate. Numbers match the list.
Adult Angle-Adj Footplate Ext Mount. Numbers match the list.
70 Deg Front Mount Swing In/Out Hanger. Numbers match the list.
80 Deg Front Mount Swing In/Out Hanger. Numbers match the list.
Front Mount Hanger Extensions Sr45. Numbers match the list.
Adult Angle-Adj Footplate Front Mount. Numbers match the list.
Exploded view, page 68. Numbers match the list.
Elevating Hanger Sr45. Numbers match the list.
Elr & Alr Calf Pad 14 -15". Numbers match the list.
Elr & Alr Calf Pad 16-20". Numbers match the list.
Composite Footplate (page 74). Numbers match the list.
Elr/Alr Aluminum Footplate. Numbers match the list.
Adult Angle-Adj Footplate Ext Mount (page 80). Numbers match the list.
Exploded view, page 84. Numbers match the list.
90 Deg Elevating Calf Pad. Numbers match the list.
Front Mount Hanger Extensions Sr45 (page 87). Numbers match the list.
Adult Angle-Adj Footplate Front Mount (page 88). Numbers match the list.
Exploded view, page 89. Numbers match the list.
Exploded view, page 91. Numbers match the list.
Exploded view, page 92. Numbers match the list.
Elr & Alr Calf Pad 14 -15" (page 94). Numbers match the list.
Elr & Alr Calf Pad 16-20" (page 95). Numbers match the list.
Elr/Alr Aluminum Footplate (page 96). Numbers match the list.
Alr (Latch Stud Style) (Disc. 2/6/17). Numbers match the list.
Elr & Alr Calf Pad 14 -15" (page 100). Numbers match the list.
Elr & Alr Calf Pad 16-20" (page 101). Numbers match the list.
Composite Angle Adjustable Foot Plate. Numbers match the list.
Exploded view, page 106. Numbers match the list.
Elr/Alr Aluminum Footplate (page 108). Numbers match the list.
Exploded view, page 110. Numbers match the list.
Exploded view, page 111. Numbers match the list.
90 Deg Elevating Calf Pad (page 113). Numbers match the list.
Front Mount Hanger Ext. Numbers match the list.
Adult Angle-Adj Footplate Front Mount (page 115). Numbers match the list.
Kids Angle Adj Footplate Front Mount. Numbers match the list.
Exploded view, page 118. Numbers match the list.
Exploded view, page 120. Numbers match the list.
Exploded view, page 121. Numbers match the list.
Exploded view, page 123. Numbers match the list.
Elr & Alr Calf Pad 14 -15" (page 125). Numbers match the list.
Elr & Alr Calf Pad 16-20" (page 126). Numbers match the list.
Composite Footplate (page 127). Numbers match the list.
Composite Angle Adjustable Foot Plate (page 131). Numbers match the list.
Exploded view, page 135. Numbers match the list.
Kids Angle Adjustable Footplate Ext Mount. Numbers match the list.
Elr/Alr Aluminum Footplate (page 139). Numbers match the list.
Single Post Height Adjustable Armrest. Numbers match the list.
Dual Post Armrest (Transfer). Numbers match the list.
Dual Post Armrest (Non-Transfer). Numbers match the list.
Flip Back Dual Post Transfer Armrest Receiver. Numbers match the list.
Exploded view, page 147. Numbers match the list.
Fixed Dual Post Transfer Armrest Receiver. Numbers match the list.
Fixed Dual Post Non Transfer Armrest Receiver. Numbers match the list.
Single Post Armrest Receiver - Std. Numbers match the list.
Single Post Armrest Receiver - Low. Numbers match the list.
Hardware.. Numbers match the list.
Auto Buckle Positioning Belt & Attachment Kits. Numbers match the list.
Jay Lower Extremity S/A Support. Numbers match the list.
Water Bottle And Cage. Numbers match the list.

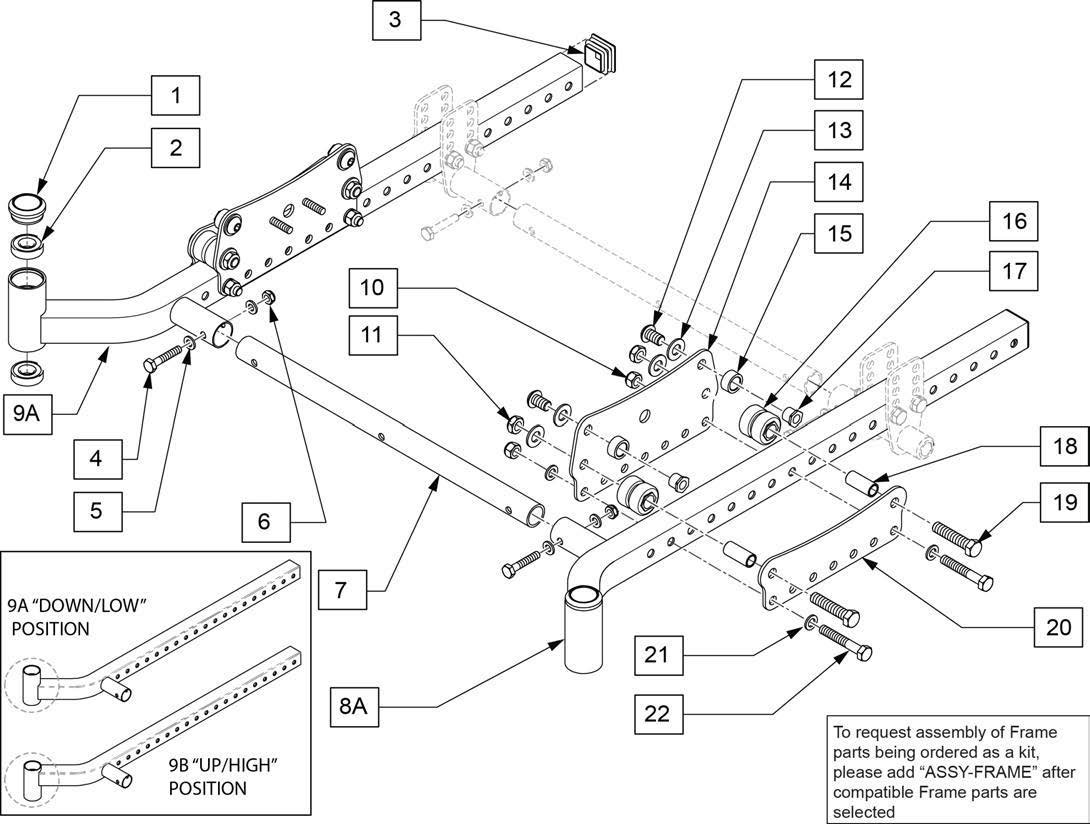

Base Frame

14 parts

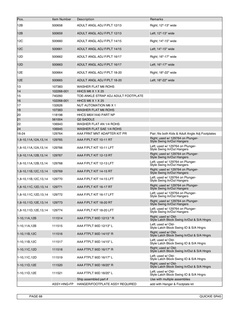

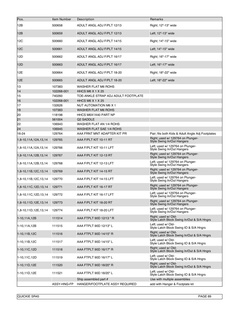

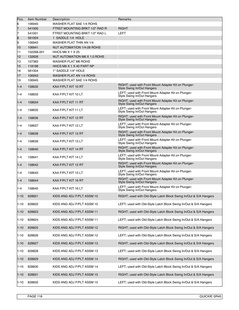

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Base Frame
No.PartQtyPriceAction
1 CASTER CAP PLASTICManufacturer no. 561070 1Quote Ask for a quote
2 BEARING 1-1/8 X 5/16IDManufacturer no. 349500 1Quote Ask for a quote
3 PLUG TUBE SQ 1-1/8Manufacturer no. 117928 1Quote Ask for a quote
4 HHCS 1/4-28 X 1-3/8 ROHSManufacturer no. 106971 1Quote Ask for a quote
5 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
6 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
10 NUT NYLOCK 5/16-24 ROHSManufacturer no. 106938 1Quote Ask for a quote
11 NUT NYLOCK THIN 3/8-24 ROHSManufacturer no. 105889 1Quote Ask for a quote
12 BHCS 3/8-24 X 5/8 PL ROHSManufacturer no. 105897 1Quote Ask for a quote
13 WASHER FLAT SAE 3/8 ROHSManufacturer no. 106948 1Quote Ask for a quote
19 HHCS 3/8-24 X 1-3/4 ROHSManufacturer no. 117948 1Quote Ask for a quote
21 WASHER FLAT AN 5/16 ROHSManufacturer no. 106946 1Quote Ask for a quote
22 HHCS 5/16-24 X 2 ROHSManufacturer no. 106985 1Quote Ask for a quote
4-7 STRUT TUBE AND HARDWARE 14WManufacturer no. 119548 1Quote Ask for a quote

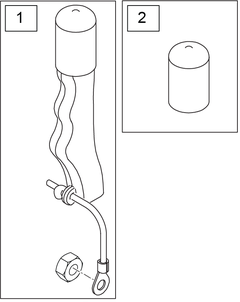

Angle Indicator

3 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Angle Indicator
No.PartQtyPriceAction
1 ANGLE INDICATOR W/ STICKERSManufacturer no. 882346 1Quote Ask for a quote
2 10-32 x 1/2 BH C/S BLKManufacturer no. 226043 1Quote Ask for a quote
3 ANGLE INDICATOR W/ HARDWAREManufacturer no. 920562 1Quote Ask for a quote

Foot Release

19 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Foot Release
No.PartQtyPriceAction
2 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106945 1Quote Ask for a quote
3 NUT NYLOCK 1/4-20 ROHSManufacturer no. 106932 1Quote Ask for a quote
4-8 ROCKER TUBE ASSM 13 -18" 13 -18" WIDEManufacturer no. 107239 1Quote Ask for a quote
4-8 ROCKER TUBE ASSM 15 -22" 15 -22" WIDEManufacturer no. 107240 1Quote Ask for a quote
9 E-CLIP 3/16"Manufacturer no. 106383 1Quote Ask for a quote
11 NUT NYLOCK THIN 10-32 ROHSManufacturer no. 106931 1Quote Ask for a quote
13 SHCS 10-32 X 1/2 ROHSManufacturer no. 107181 1Quote Ask for a quote
14 PEDAL FOOT RELEASEManufacturer no. 107165 1Quote Ask for a quote
15 WASHER SPLIT LOCK 5/16 ROHSManufacturer no. 106951 1Quote Ask for a quote
16 5/16 FENDER WASHER SS 3/4" ODManufacturer no. 263109 1Quote Ask for a quote
17 BHCS 5/16-18 X 3/4 ROHSManufacturer no. 106979 1Quote Ask for a quote
18 BHCS 5/16-18 X 1-3/4 SHLD ROHSManufacturer no. 106982 1Quote Ask for a quote
20 SHAFT PIVOT PEDALManufacturer no. 106377 1Quote Ask for a quote
22 NUT NYLOCK THIN 5/16-18 ROHSManufacturer no. 106937 1Quote Ask for a quote
23 HHCS 5/16-24 X 1-3/4 ROHSManufacturer no. 118453 1Quote Ask for a quote
24 WASHER FLAT AN 5/16 ROHSManufacturer no. 106946 1Quote Ask for a quote
25 NUT NYLOCK 5/16-24 ROHSManufacturer no. 106938 1Quote Ask for a quote
27 WASHER SPLIT LOCK 5/16 ROHSManufacturer no. 106951 1Quote Ask for a quote
28 PLUG TUBE SQ 1-1/8"Manufacturer no. 117928 1Quote Ask for a quote

Exploded view, page 10

5 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 10
No.PartQtyPriceAction
4 10/32 x 5/8 PAN HD PHILManufacturer no. 281120 1Quote Ask for a quote
5 CLIP CABLE 1" (10) PACK OF 10Manufacturer no. 108134 1Quote Ask for a quote
6 PLATE PLUNGER ROLLERManufacturer no. 500698 1Quote Ask for a quote
7 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106945 1Quote Ask for a quote
8 NUT NYLOCK 1/4 -20 ROHSManufacturer no. 106932 1Quote Ask for a quote

Tilt Handle & Cable For Hgt Adj Backrest

7 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Tilt Handle & Cable For Hgt Adj Backrest
No.PartQtyPriceAction
4 10/32 x 5/8 PAN HD PHILManufacturer no. 281120 1Quote Ask for a quote
5A CLIP CABLE 1" (10) Pack of 10 - used on lower backrest tubeManufacturer no. 108134 1Quote Ask for a quote
5B CLIP CABLE 7/8" (10) Pack of 10 - used on upper backrest tubeManufacturer no. 108135 1Quote Ask for a quote
6 PLATE PLUNGER ROLLERManufacturer no. 500698 1Quote Ask for a quote
7 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106945 1Quote Ask for a quote
8 NUT NYLOCK 1/4 -20 ROHSManufacturer no. 106932 1Quote Ask for a quote
9 7/16 AN WASHER please order in addition to kitManufacturer no. 263120 1Quote Ask for a quote

Transit Kit

4 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Transit Kit
No.PartQtyPriceAction
1 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
2 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
3 HHCS 1/4-28 X 1-1/2 ROHSManufacturer no. 106972 1Quote Ask for a quote
1-7 SR45 TRANSIT KITManufacturer no. 119875 1Quote Ask for a quote

Rocker Assembly

8 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Rocker Assembly
No.PartQtyPriceAction
2 SHCS 1/4-28 X 1-1/2 ROHSManufacturer no. 106976 1Quote Ask for a quote
4 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
5 1" SADDLE 1/4" HOLEManufacturer no. 561004 1Quote Ask for a quote
6 SHCS 1/4-28 X 5/8 ROHSManufacturer no. 118928 1Quote Ask for a quote
8 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
9B HANGER SPPRT 1IN FLARE RH Right- for 1" OffsetManufacturer no. 119846 1Quote Ask for a quote
9B HANGER SPPRT 1IN FLARE LH Left - for 1" OffsetManufacturer no. 119847 1Quote Ask for a quote
9A HANGER RECEIVERManufacturer no. 119572S 1Quote Ask for a quote

Quick Release Axles Matrix

3 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Quick Release Axles Matrix
No.PartQtyPriceAction
1A QR AXLE MAG W/M-12 NUTManufacturer no. 102063 1Quote Ask for a quote
1B QR AXLE W/M12 NUTManufacturer no. 102065 1Quote Ask for a quote
2 MAG SPACER 6S W/SET SCREWManufacturer no. 920117 1Quote Ask for a quote

Threaded Axle

6 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Threaded Axle
No.PartQtyPriceAction
2 WASHER FLAT AN 1/2 ROHSManufacturer no. 106949 1Quote Ask for a quote
3 NUT NYLOCK THIN 1/2-20 ROHSManufacturer no. 106940 1Quote Ask for a quote
6 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
7 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
8 HHCS 1/4-28 X 1-3/8 ROHSManufacturer no. 106971 1Quote Ask for a quote
1B-8 THREADED AXLE KIT LONG Used w/20-24" wheelsManufacturer no. 119555 1Quote Ask for a quote

Axle Brackets

15 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Axle Brackets
No.PartQtyPriceAction
2 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
3 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
4 HHCS 1/4-28 X 1-3/8 ROHSManufacturer no. 106971 1Quote Ask for a quote
6 WASHER FLAT AN 5/16 ROHSManufacturer no. 106946 1Quote Ask for a quote
7 HHCS 5/16-24 X 2 ROHSManufacturer no. 106985 1Quote Ask for a quote
8 NUT NYLOCK 5/16-24 ROHSManufacturer no. 106938 1Quote Ask for a quote
9 WASHER SPLIT LOCK 5/16Manufacturer no. 106951 1Quote Ask for a quote
1A-4 STRUT TUBE W/HARDWARE 14WManufacturer no. 119548 1Quote Ask for a quote
1B-4 STRUT TUBE W/HARDWARE 15WManufacturer no. 119549 1Quote Ask for a quote
1C-4 STRUT TUBE W/HARDWARE 16WManufacturer no. 119550 1Quote Ask for a quote
1D-4 STRUT TUBE W/HARDWARE 17WManufacturer no. 119551 1Quote Ask for a quote
1E-4 STRUT TUBE W/HARDWARE 18WManufacturer no. 119552 1Quote Ask for a quote
1F-4 STRUT TUBE W/HARDWARE 19WManufacturer no. 119553 1Quote Ask for a quote
1G-4 STRUT TUBE W/HARDWARE 20WManufacturer no. 119554 1Quote Ask for a quote
2-9 AXLE PLATE W/HARDWAREManufacturer no. 119473 1Quote Ask for a quote

Caster Fork Assm

8 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Caster Fork Assm
No.PartQtyPriceAction
1 1 1/8 x 1/2 BEARINGManufacturer no. 349500 1Quote Ask for a quote
2 WASHER FLAT AN 1/2 ROHSManufacturer no. 106949 1Quote Ask for a quote
3 NUT NYLOCK THIN 1/2-20 ROHSManufacturer no. 106940 1Quote Ask for a quote
4 CASTER STEM STDManufacturer no. 481063 1Quote Ask for a quote
6 NUT NYLOCK THIN 5/16 -24 ROHSManufacturer no. 106939 1Quote Ask for a quote
7A SPACER 5/16 x 0.380 Used w/ 3", 6" & 7" forksManufacturer no. 481113 1Quote Ask for a quote
7B WASHER FLAT AN 5/16 ROHS Used w/ 8" forkManufacturer no. 106946 1Quote Ask for a quote
8 HHCS 5/16 -24 x 2 1/2 ROHSManufacturer no. 106987 1Quote Ask for a quote

3 Spoke Casters

1 part

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 3 Spoke Casters
No.PartQtyPriceAction
3 CASTERSManufacturer no. SPOKE 1Quote Ask for a quote

8" x 2" CASTERS

5 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 8" x 2" CASTERS
No.PartQtyPriceAction
1 7/8"x 5/16" BEARINGManufacturer no. 349502 1Quote Ask for a quote
2A 8" X 2" CMPST W/PNEU & BEARING 8" x 2" PNEUMATICManufacturer no. 400700 1Quote Ask for a quote
2B 8" X 2" CMPST W/PNEU INSRT&BRG 8" x 2" PNEUMATIC W/ INSERTManufacturer no. 400702 1Quote Ask for a quote
2C TIRE PNEUMATIC 8" x 2"Manufacturer no. 384700 1Quote Ask for a quote
2D INNER TUBE CASTER 8" x 2"Manufacturer no. 384730 1Quote Ask for a quote

Wheel Locks

10 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Wheel Locks
No.PartQtyPriceAction
1A WHEEL LOCK PUSH R REV LNGManufacturer no. 104216-007 1Quote Ask for a quote
1A WHEEL LOCK PUSH L REV LNGManufacturer no. 104216-008 1Quote Ask for a quote
1B WHEEL LOCK PUSH R FWD LNGManufacturer no. 104216-005 1Quote Ask for a quote
1B WHEEL LOCK PUSH L FWD LNGManufacturer no. 104216-006 1Quote Ask for a quote
3 SHCS 1/4-28 X 5/8 PL ROHSManufacturer no. 107348 1Quote Ask for a quote
4 HHCS 5/16-24 X 2 ROHSManufacturer no. 106985 1Quote Ask for a quote
5 NUT NYLOCK 5/16-24 ROHSManufacturer no. 106938 1Quote Ask for a quote
6 WASHER FLAT AN 5/16 ROHSManufacturer no. 106946 1Quote Ask for a quote
2-6 WHEEL LOCK CLAMP W/HARDWARE TJManufacturer no. 119562 1Quote Ask for a quote
7 COVER CURVED WHEEL LOCK VINYLManufacturer no. 104141 1Quote Ask for a quote

Footlock Sr45

20 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Footlock Sr45
No.PartQtyPriceAction
1 ATTENDANT WHEEL LOCK CABLE ASSM SHORTManufacturer no. 342016 1Quote Ask for a quote
2 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
3 NUT NYLOCK 1/4-20 ROHSManufacturer no. 106932 1Quote Ask for a quote
5 HHCS 1/4 -20 x 2 HEX C/SManufacturer no. 106992 1Quote Ask for a quote
6 BEARING ATTENDANT WHEEL LOCK CABLEManufacturer no. 506185 1Quote Ask for a quote
7 SHOULDER SCREW .312 DIA x .375 LONGManufacturer no. 281048 1Quote Ask for a quote
9 SHOULDER SCREW .312 DIA x 1.75 LONGManufacturer no. 281041 1Quote Ask for a quote
10 SPACER, BEARINGManufacturer no. 481353 1Quote Ask for a quote
11 ZIP TIE BLACKManufacturer no. 560410 1Quote Ask for a quote
12 SHCS M6 x 1 x 60 PART NPManufacturer no. 103190-013 1Quote Ask for a quote
13 WASHER LOCK M6Manufacturer no. 262133 1Quote Ask for a quote
16 SLIDE ADJ FOOT LOCKManufacturer no. 112408 1Quote Ask for a quote
17 SPACER ATTENDANT WHEEL LOCKManufacturer no. 506184 1Quote Ask for a quote
18 SHCS 1/4-28 X 3/4 PLManufacturer no. 106974 1Quote Ask for a quote
19 HHCS 5/16-24 X 2 ROHSManufacturer no. 106985 1Quote Ask for a quote
21 WASHER FLAT AN 5/16 ROHSManufacturer no. 106946 1Quote Ask for a quote
22 NUT NYLOCK 5/16-24 ROHSManufacturer no. 106938 1Quote Ask for a quote
23 SPACER TUBE ATTENDANT WHLLCKManufacturer no. 050535 1Quote Ask for a quote
24 WASHER FLAT M6 ROHSManufacturer no. 107383 1Quote Ask for a quote
25 NUT NYLOCK 1/4-28Manufacturer no. 106934 1Quote Ask for a quote

Wheel Lock Extension Handle

2 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Wheel Lock Extension Handle
No.PartQtyPriceAction
1 WHEEL LOCK EXT ASSY (PAIR) KIT PairManufacturer no. 161930 1Quote Ask for a quote
2 FOAM GRIP 1 1/2 X 0.705 X 0.1Manufacturer no. 560600 1Quote Ask for a quote

Traditional 6 Spoke Mag

6 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Traditional 6 Spoke Mag
No.PartQtyPriceAction
1-3 20" MAG W/BRNG 6 SPOKE 20"Manufacturer no. 401094 1Quote Ask for a quote
1-3 22" MAG W/BRNG 6 SPOKE 22"(501mm)Manufacturer no. 401093 1Quote Ask for a quote
1-3 24" MAG W/BRNG 6 SPOKE 24"(540mm)Manufacturer no. 401092 1Quote Ask for a quote
2 1 1/8 X 1/2 BEARINGManufacturer no. 349500 1Quote Ask for a quote
3 MAG BEARING SPACERManufacturer no. 521564 1Quote Ask for a quote
4 SPCR .194ID X .375 OD X .750 Used when previously ordered with Omit handrims or Natural Fit HandrimsManufacturer no. 101932 1Quote Ask for a quote

16" Mag

6 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 16" Mag
No.PartQtyPriceAction
1A 16 IN MAG PNEU 3 SPOKEManufacturer no. 101667 1Quote Ask for a quote
1B 16 IN MAG PNEU W/INSERTManufacturer no. 101668 1Quote Ask for a quote
1C 16" X 1.75" PNEU TIRE Tire OnlyManufacturer no. 385237 1Quote Ask for a quote
2 1 1/8 X 1/2 BEARINGManufacturer no. 349500 1Quote Ask for a quote
3A 16" X 1.75" INNER TUBEManufacturer no. 384738 1Quote Ask for a quote
3B 16IN AIRLESS INSERTManufacturer no. 102973-001 1Quote Ask for a quote

12" Mag

11 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 12" Mag
No.PartQtyPriceAction
1A 12 IN MAG POLY TIRE 3 SPOKE Low PolyManufacturer no. 101466 1Quote Ask for a quote
1B 12" MAG PNEU 3 SPOKE Grey Tire; for Quickie & Zippie Iris see Black Wheel Assm p/n's belowManufacturer no. 101661 1Quote Ask for a quote
1C 12" MAG PNEU INSRT 3 SPK Grey Tire; for Quickie & Zippie Iris see Black Wheel Assm p/n's belowManufacturer no. 101662 1Quote Ask for a quote
1D TIRE PNEU 12-1/2" X 2-1/4" Grey Tire onlyManufacturer no. 384706 1Quote Ask for a quote
1E 12IN MAG PNEU 3 SPOKE BLK Black tire, only available on Quickie and Zippie IRIS at this timeManufacturer no. 243593 1Quote Ask for a quote
1F 12IN MAG PNEU INSRT 3 SPK BLK Black tire, only available on Quickie and Zippie IRIS at this timeManufacturer no. 243594 1Quote Ask for a quote
1G WHEEL HUB LOCK 12IN PNEU BLK Black tire for Hub lock, only available on Quickie and Zippie IRIS at this timeManufacturer no. 112226-004 1Quote Ask for a quote
1H WHEEL HUB LOCK 12IN INSRT BLK Black tire for Hub lock, only available on Quickie and Zippie IRIS at this timeManufacturer no. 112226-005 1Quote Ask for a quote
2 1 1/8 X 1/2 BEARINGManufacturer no. 349500 1Quote Ask for a quote
3A INNER TUBE 12-1/2" X 2-1/4"Manufacturer no. 384736 1Quote Ask for a quote
3B 12 1/2 IN AIRLESS INSERTManufacturer no. 102972-001 1Quote Ask for a quote

Plastic Coated (Screw Mount)

4 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Plastic Coated (Screw Mount)
No.PartQtyPriceAction
1-3 20" HR 6SMT PLST W/HDWR 20" SPOKEManufacturer no. 425933 1Quote Ask for a quote
1-3 22" HR 6SMT PLST W/HDWR 22" (501) SPOKEManufacturer no. 425943 1Quote Ask for a quote
1-3 24" HR 6SMT PLST W/HDWR 24" (540) SPOKEManufacturer no. 426004 1Quote Ask for a quote
4 10 -32 x 2 1/8 PAN PHIL SS 6 SPOKE MAGManufacturer no. 281175 1Quote Ask for a quote

Aluminum Anodized (Screw Mount)

1 part

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Aluminum Anodized (Screw Mount)
No.PartQtyPriceAction
3C 10-32 X 2 1/8 PAN PHIL SS MAGManufacturer no. 281175 1Quote Ask for a quote

Pneumatic & Pneu. Airless Tire

6 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Pneumatic & Pneu. Airless Tire
No.PartQtyPriceAction
1 16" X 1.75" PNEU TIREManufacturer no. 385237 1Quote Ask for a quote
1 20" PNEUMATIC TIREManufacturer no. 385250 1Quote Ask for a quote
1 22" PNEUMATIC TIRE 22" x 1 3/8 (501mm)Manufacturer no. 385275 1Quote Ask for a quote
1 24" PNEUMATIC TIRE 24" x 1 3/8 (540mm)Manufacturer no. 385300 1Quote Ask for a quote
1 26" PNEUMATIC TIRE 26" x 1 3/8 (590mm)Manufacturer no. 385325 1Quote Ask for a quote
1 24" x 2.125 PNEUMATIC TIRE 24"x2 1/8 (540mm) used w/ M6Manufacturer no. 384614 1Quote Ask for a quote

Full Poly Tire

3 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Full Poly Tire
No.PartQtyPriceAction
1 20" POLY TIRE STD 20"Manufacturer no. 386232 1Quote Ask for a quote
1 22" POLY TIRE STD 22" (501mm)Manufacturer no. 386242 1Quote Ask for a quote
1 24" POLY TIRE STD 24" (540mm)Manufacturer no. 386252 1Quote Ask for a quote

Tubes And Airless Inserts

22 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Tubes And Airless Inserts
No.PartQtyPriceAction
1A INNER TUBE 12-1/2" X 2-1/4"Manufacturer no. 384736 1Quote Ask for a quote
1A 16" X 1.75" INNER TUBEManufacturer no. 384738 1Quote Ask for a quote
1A TUBE 18" TIRE 18" X 1-3/4" TUBEManufacturer no. 382255 1Quote Ask for a quote
1A 20" TUBE 20" 1-3/8" TUBEManufacturer no. 382275 1Quote Ask for a quote
1A 22" TUBE 22" X 1-3/8" TUBEManufacturer no. 382300 1Quote Ask for a quote
1A TUBE PRIMO 24" 25-540 SV 24" X 1" TUBEManufacturer no. 382336 1Quote Ask for a quote
1A 24 X 1.3/8IN TUBE REGManufacturer no. 382325 1Quote Ask for a quote
1A TUBE INLINE 24 X 1.75Manufacturer no. 382334 1Quote Ask for a quote
1A 26" X 1" TUBE SCHRADERManufacturer no. 384551 1Quote Ask for a quote
1A 26" TUBE 26" X 1-3/8" TUBEManufacturer no. 382350 1Quote Ask for a quote
1A TUBE 26 X 1.5/1.95/ S/VManufacturer no. 382361 1Quote Ask for a quote
1A 26 X 1.25/1.5 TUBE SHRADERManufacturer no. 382365 1Quote Ask for a quote
1A 24" x 2.125 TUBEManufacturer no. 382375 1Quote Ask for a quote
1B 12 1/2 IN AIRLESS INSERT 12-1/2" X 2-1/4"Manufacturer no. 102972-001 1Quote Ask for a quote
1B 16IN AIRLESS INSERT 16" X 1-3/4"Manufacturer no. 102973-001 1Quote Ask for a quote
1B 18IN AIRLESS INSERT 18" X 1-3/4"Manufacturer no. 102973-002 1Quote Ask for a quote
1B 20IN AIRLESS INSERT 20" X 1-3/8"Manufacturer no. 102973-003 1Quote Ask for a quote
1B AIRLESS INSERT 20 X 2-1/8 P3Manufacturer no. 102972-002 1Quote Ask for a quote
1B 22IN AIRLESS INSERT 22" X 1-3/8"Manufacturer no. 102973-004 1Quote Ask for a quote
1B 24IN AIRLESS INSERT 24" X 1-3/8"Manufacturer no. 102973-005 1Quote Ask for a quote
1B AIRLESS INSERT 24 X 2-1/8Manufacturer no. 102972-003 1Quote Ask for a quote
1B 26" AIRLESS INSERT 26" X 1-3/8"Manufacturer no. 108259 1Quote Ask for a quote

Seat Pan

5 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Seat Pan
No.PartQtyPriceAction
2 SPACER SEAT PANManufacturer no. 560771 1Quote Ask for a quote
4 BHCS 5/16-18 X 2 SHLD ROHSManufacturer no. 107031 1Quote Ask for a quote
5 WASHER FLAT AN 5/16 ROHSManufacturer no. 106946 1Quote Ask for a quote
6 NUT NYLOCK THIN 5/16-18 ROHSManufacturer no. 106937 1Quote Ask for a quote
8 SEAT PAN CLAMP KITManufacturer no. 119523 1Quote Ask for a quote

Folding Stroller Handle Backposts

14 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Folding Stroller Handle Backposts
No.PartQtyPriceAction
1 QUICKIE GRIP 1" W/INSTR SHEETManufacturer no. 920027 1Quote Ask for a quote
2 1" INSERT PLUG .083Manufacturer no. 561002 1Quote Ask for a quote
4 QUICKIE GRIP 1" W/ HOLE W/ INSTRUCTIONS USED W/ REMOVABLE STROLLER HANDLE EXT.Manufacturer no. 920023 1Quote Ask for a quote
5 BUSHING REM STROLLER USED W/ REMOVABLE STROLLER HANDLE EXT.Manufacturer no. 117947 1Quote Ask for a quote
6 BACK PLATE PED ROUNDManufacturer no. 126571 1Quote Ask for a quote
7 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
8 NUT NYLOCK THIN 1/4 -28 ROHSManufacturer no. 106935 1Quote Ask for a quote
9 BHCS 1/4 -28 x 2 SHLDR ROHSManufacturer no. 106965 1Quote Ask for a quote
10 S/A LATCH SPRINGManufacturer no. 321110 1Quote Ask for a quote
11 PUSH ON ROUND CAPManufacturer no. 126238 1Quote Ask for a quote
12 BACK REL PIN Z2/QT/EXManufacturer no. 481084 1Quote Ask for a quote
13 S-A LATCH .885 ODManufacturer no. 560173 1Quote Ask for a quote
14 BACK REL STOP PIN QTSManufacturer no. 481042 1Quote Ask for a quote
15 BLOCK ANGLE BACKREST MOUNTManufacturer no. 560517 1Quote Ask for a quote

Fixed Stroller Handle Backposts

11 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Fixed Stroller Handle Backposts
No.PartQtyPriceAction
1 QUICKIE GRIP 1" W/INSTR SHEETManufacturer no. 920027 1Quote Ask for a quote
2 1" INSERT PLUG .083Manufacturer no. 561002 1Quote Ask for a quote
4 QUICKIE GRIP 1" W/ HOLE W/ INSTRUCTIONS USED W/ REMOVABLE STROLLER HANDLE EXT.Manufacturer no. 920023 1Quote Ask for a quote
5 BUSHING REM STROLLER USED W/ REMOVABLE STROLLER HANDLE EXT.Manufacturer no. 117947 1Quote Ask for a quote
6 BACK PLATE PED ROUNDManufacturer no. 126571 1Quote Ask for a quote
7 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
8 NUT NYLOCK THIN 1/4 -28 ROHSManufacturer no. 106935 1Quote Ask for a quote
9 BHCS 1/4 -28 x 2 SHLDR ROHSManufacturer no. 106965 1Quote Ask for a quote
10 1" SADDLE 1/4 HOLEManufacturer no. 561004 1Quote Ask for a quote
11 CLIP CABLE 1" PACK OF 10Manufacturer no. 108134 1Quote Ask for a quote
12 BLOCK ANGLE BACKREST MOUNTManufacturer no. 560517 1Quote Ask for a quote

Reclining Backrest

7 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Reclining Backrest
No.PartQtyPriceAction
1A WELDMOUNT WIDTH ADJ RECLINING BACK -MED RightManufacturer no. 105869-001 1Quote Ask for a quote
1A WELDMOUNT WIDTH ADJ RECLINING BACK -MED LeftManufacturer no. 105870-001 1Quote Ask for a quote
1B WELDMOUNT WIDTH ADJ RECLINING BACK -TALL RightManufacturer no. 105869-002 1Quote Ask for a quote
1B WELDMOUNT WIDTH ADJ RECLINING BACK -TALL LeftManufacturer no. 105870-002 1Quote Ask for a quote
2 BHCS 1/4 -28 x 7/8 ROHSManufacturer no. 106960 1Quote Ask for a quote
4 TRIGGER RELEASE PIN TS/QT/P5Manufacturer no. 349021 1Quote Ask for a quote
5 5/16 -18 x 1 1/2 BH C/SManufacturer no. 106981 1Quote Ask for a quote

Exploded view, page 44

18 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 44
No.PartQtyPriceAction
1A SHAFT GROWTH HANDLE SHORT 14" - 17" WideManufacturer no. 521272 1Quote Ask for a quote
1B SHAFT GROWTH HANDLE LONG 18" - 20" WideManufacturer no. 521392 1Quote Ask for a quote
2 BHCS 1/4 -28 x 7/8 ROHSManufacturer no. 106960 1Quote Ask for a quote
3A BACKREST UPPER HT ADJ R STD RIGHTManufacturer no. 110968-001 1Quote Ask for a quote
3A BACKREST UPPER HT ADJ L STD LEFTManufacturer no. 110969-001 1Quote Ask for a quote
3B BACKREST UPPER HT ADJ R EXT RIGHTManufacturer no. 110968-002 1Quote Ask for a quote
3B BACKREST UPPER HT ADJ L EXT LEFTManufacturer no. 110969-002 1Quote Ask for a quote
4 FOAM GRIP .840 ID SHORTManufacturer no. 560638 1Quote Ask for a quote
5A TUBE BACK FRAME LOWER StdManufacturer no. 520757 1Quote Ask for a quote
5B TUBE BACK FRAME LOWER TALL TallManufacturer no. 107171 1Quote Ask for a quote
6 BLOCK-LATCH STOPManufacturer no. 124612 1Quote Ask for a quote
7 BACK PLATE PED ROUNDManufacturer no. 126571 1Quote Ask for a quote
8 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
9 NUT NYLOCK THIN 1/4 -28 ROHSManufacturer no. 106935 1Quote Ask for a quote
10 BHCS 1/4 -28 x 1 3/4 SHLDR ROHSManufacturer no. 107027 1Quote Ask for a quote
11 BHCS 1/4 -28 x 2 SHLDR ROHSManufacturer no. 106965 1Quote Ask for a quote
12 BLOCK ANGLE BACKREST MOUNTManufacturer no. 560517 1Quote Ask for a quote
13 S/A SPRING RETAINERManufacturer no. 483020 1Quote Ask for a quote

Stroller Handle Extension-Removable

6 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Stroller Handle Extension-Removable
No.PartQtyPriceAction
2 5/16 SNAP BUTTON DUAL ONE SIDEManufacturer no. 301108 1Quote Ask for a quote
3A STROLLER EXTENSION GRIP 10 -13" 10 -13" WIDEManufacturer no. 560615 1Quote Ask for a quote
3B STROLLER EXTENSION GRIP 14 -17" 14 -17" WIDEManufacturer no. 560616 1Quote Ask for a quote
3C STROLLER EXTENSION GRIP 18 -20" 18 -20" WIDEManufacturer no. 560617 1Quote Ask for a quote
4 BUSHING REM STROLLERManufacturer no. 117947 1Quote Ask for a quote
5 QUICKIE GRIP 1 W/ HOLEManufacturer no. 920023 1Quote Ask for a quote

Battery, Charger & Control Box

5 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Battery, Charger & Control Box
No.PartQtyPriceAction
1 POWER TILT BATTERYManufacturer no. 164576 1Quote Ask for a quote
2 BATTERY/CONTROL BOX CABLEManufacturer no. 164575 1Quote Ask for a quote
3 POWER TILT CHARGERManufacturer no. 165409 1Quote Ask for a quote
4 CONTROL/BATTERY BOX HARDWAREManufacturer no. 165408 1Quote Ask for a quote
5 CONTROL BOXManufacturer no. 253358 1Quote Ask for a quote

Mounting Plate And Actuator

3 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Mounting Plate And Actuator
No.PartQtyPriceAction
1 ACTUATOR WITH MOUNTING HARDWAREManufacturer no. 165410 1Quote Ask for a quote
2 MOUNTING PLATE W HARDWAREManufacturer no. 165407 1Quote Ask for a quote
3 STRUT ADAPTERManufacturer no. 165406 1Quote Ask for a quote

Power Tilt Retro Kit

0 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Sr45 Power Tilt Fixed Struts

12 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Sr45 Power Tilt Fixed Struts
No.PartQtyPriceAction
1-2 14" FIXED STRUT RETRO KITManufacturer no. 164564 1Quote Ask for a quote
1-2 15" FIXED STRUT RETRO KITManufacturer no. 164565 1Quote Ask for a quote
1-2 16" FIXED STRUT RETRO KITManufacturer no. 164566 1Quote Ask for a quote
1-2 17" FIXED STRUT RETRO KITManufacturer no. 164567 1Quote Ask for a quote
1-2 18" FIXED STRUT RETRO KITManufacturer no. 164568 1Quote Ask for a quote
1-2 19" FIXED STRUT RETRO KITManufacturer no. 164569 1Quote Ask for a quote
1-2 20" FIXED STRUT RETRO KITManufacturer no. 164570 1Quote Ask for a quote
1-2 21" FIXED STRUT RETRO KITManufacturer no. 164571 1Quote Ask for a quote
1-2 22" FIXED STRUT RETRO KITManufacturer no. 164572 1Quote Ask for a quote
1-2 23" FIXED STRUT RETRO KITManufacturer no. 165403 1Quote Ask for a quote
1-2 24" FIXED STRUT RETRO KITManufacturer no. 165404 1Quote Ask for a quote
3 SR45 STRUT SPACER Qty 4Manufacturer no. 168276 1Quote Ask for a quote

70 Deg Swing In/Out Hanger

9 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 70 Deg Swing In/Out Hanger
No.PartQtyPriceAction
1 1" INSERT PLUG .065 RIBSManufacturer no. 561062 1Quote Ask for a quote
8 BUSHING FOOTRESTManufacturer no. 104160 1Quote Ask for a quote
13 FHCSM6X1X35FULLNPManufacturer no. 103500-010 1Quote Ask for a quote
14 NUT HEX NYLOCK M6X1.0Manufacturer no. 104381 1Quote Ask for a quote
15 WAVE WASHER 6 MMManufacturer no. 104414 1Quote Ask for a quote
1-11 70 D SWING I/O HNGR PNTD L LeftManufacturer no. 119458S 1Quote Ask for a quote
1-11 70 D SWING I/O HNGR PNTD R RightManufacturer no. 119459S 1Quote Ask for a quote
8-11 FOOTREST CLAMP ASSMManufacturer no. 107485 1Quote Ask for a quote
12-15 LATCH RECEIVER KITManufacturer no. 119514 1Quote Ask for a quote

80 Deg Swing In/Out Hanger

9 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 80 Deg Swing In/Out Hanger
No.PartQtyPriceAction
1 1" INSERT PLUG .065 RIBSManufacturer no. 561062 1Quote Ask for a quote
8 BUSHING FOOTRESTManufacturer no. 104160 1Quote Ask for a quote
13 FHCSM6X1X35FULLNPManufacturer no. 103500-010 1Quote Ask for a quote
14 NUT HEX NYLOCK M6X1.0Manufacturer no. 104381 1Quote Ask for a quote
15 WAVE WASHER 6 MMManufacturer no. 104414 1Quote Ask for a quote
1-11 80 D SWING I/O HNGR PNTD L LeftManufacturer no. 119466S 1Quote Ask for a quote
1-11 80 D SWING I/O HNGR PNTD R RightManufacturer no. 119467S 1Quote Ask for a quote
8-11 FOOTREST CLAMP ASSMManufacturer no. 107485 1Quote Ask for a quote
12-15 LATCH RECEIVER KITManufacturer no. 119514 1Quote Ask for a quote

Composite Footplate

0 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Adult Angle-Adj Footplate Ext Mount

0 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

70 Deg Front Mount Swing In/Out Hanger

23 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 70 Deg Front Mount Swing In/Out Hanger
No.PartQtyPriceAction
1 1" INSERT PLUG .065 RIBSManufacturer no. 561062 1Quote Ask for a quote
2 5/16-18 X 2" BH C/S BLKManufacturer no. 226217 1Quote Ask for a quote
4 PLASTIC PIVOT SADDLEManufacturer no. 561197 1Quote Ask for a quote
5 5/16-18 NYLOCK NUT THINManufacturer no. 202102 1Quote Ask for a quote
6 #8 LOW FLT HD TAP SCREWManufacturer no. 118695 1Quote Ask for a quote
9 FHCSM6X1X35FULLNPManufacturer no. 103500-010 1Quote Ask for a quote
10 NUT HEX NYLOCK M6X1.0Manufacturer no. 104381 1Quote Ask for a quote
11 WAVE WASHER 6 MMManufacturer no. 104414 1Quote Ask for a quote
12 HHCS M6 X 1 X 25Manufacturer no. 102268-001 1Quote Ask for a quote
13 NUT HEX NYLOCK M6 X 1Manufacturer no. 104381 1Quote Ask for a quote
14 WASHER FLAT M6 ROHSManufacturer no. 107383 1Quote Ask for a quote
15 FOOTPLATE ADAPTER FM 3" tallManufacturer no. 119240 1Quote Ask for a quote
16 HHCS M6X1X40 PART NPManufacturer no. 118198 1Quote Ask for a quote
17 1" SADDLE 1/4" HOLEManufacturer no. 561004 1Quote Ask for a quote
18 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
19 FOOTREST MOUNTING BRKT 1/2" RAD R RightManufacturer no. 541000 1Quote Ask for a quote
19 FOOTREST MOUNTING BRKT 1/2" RAD L LeftManufacturer no. 541001 1Quote Ask for a quote
20 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106945 1Quote Ask for a quote
1-7 70 D FRNT MNT SWING IN/OUT HANGER L LeftManufacturer no. 119456S 1Quote Ask for a quote
1-7 70 D FRNT MNT SWING IN/OUT HANGER R RightManufacturer no. 119457S 1Quote Ask for a quote
8-11 LATCH RECEIVER KITManufacturer no. 119514 1Quote Ask for a quote
12-20 AAA FRNT MNT ADAPTER KIT PR PairManufacturer no. 129764 1Quote Ask for a quote
21 1" INSERT PLUG .083Manufacturer no. 561002 1Quote Ask for a quote

80 Deg Front Mount Swing In/Out Hanger

23 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 80 Deg Front Mount Swing In/Out Hanger
No.PartQtyPriceAction
1 1" INSERT PLUG .065 RIBSManufacturer no. 561062 1Quote Ask for a quote
2 5/16-18 X 2" BH C/S BLKManufacturer no. 226217 1Quote Ask for a quote
4 PLASTIC PIVOT SADDLEManufacturer no. 561197 1Quote Ask for a quote
5 5/16-18 NYLOCK NUT THINManufacturer no. 202102 1Quote Ask for a quote
6 #8 LOW FLT HD TAP SCREWManufacturer no. 118695 1Quote Ask for a quote
9 FHCSM6X1X35FULLNPManufacturer no. 103500-010 1Quote Ask for a quote
10 NUT HEX NYLOCK M6X1.0Manufacturer no. 104381 1Quote Ask for a quote
11 WAVE WASHER 6 MMManufacturer no. 104414 1Quote Ask for a quote
12 HHCS M6 X 1 X 25Manufacturer no. 102268-001 1Quote Ask for a quote
13 NUT HEX NYLOCK M6 X 1Manufacturer no. 104381 1Quote Ask for a quote
14 WASHER FLAT M6 ROHSManufacturer no. 107383 1Quote Ask for a quote
15 FOOTPLATE ADAPTER FM 3" tallManufacturer no. 119240 1Quote Ask for a quote
16 HHCS M6X1X40 PART NPManufacturer no. 118198 1Quote Ask for a quote
17 1" SADDLE 1/4" HOLEManufacturer no. 561004 1Quote Ask for a quote
18 WASHER FLAT AN 1/4 ROHSManufacturer no. 106944 1Quote Ask for a quote
19 FOOTREST MOUNTING BRKT 1/2" RAD R RightManufacturer no. 541000 1Quote Ask for a quote
19 FOOTREST MOUNTING BRKT 1/2" RAD L LeftManufacturer no. 541001 1Quote Ask for a quote
20 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106944 1Quote Ask for a quote
1-7 80 D FRNT MNT SWING IN/OUT HANGER L LeftManufacturer no. 119464S 1Quote Ask for a quote
1-7 80 D FRNT MNT SWING IN/OUT HANGER R RightManufacturer no. 119465S 1Quote Ask for a quote
8-11 LATCH RECEIVER KITManufacturer no. 119514 1Quote Ask for a quote
21 1" INSERT PLUG .083Manufacturer no. 561002 1Quote Ask for a quote
12-20 AAA FRNT MNT ADAPTER KIT PR PairManufacturer no. 129764 1Quote Ask for a quote

Front Mount Hanger Extensions Sr45

3 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Front Mount Hanger Extensions Sr45
No.PartQtyPriceAction
1 NUT NYLOCK THIN 1/4 -28 ROHSManufacturer no. 106935 1Quote Ask for a quote
2 BHCS 1/4 -28 x 1 1/4 ROHSManufacturer no. 106961 1Quote Ask for a quote
4 WASHER FLAT M6 ROHSManufacturer no. 107383 1Quote Ask for a quote

Adult Angle-Adj Footplate Front Mount

17 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Adult Angle-Adj Footplate Front Mount
No.PartQtyPriceAction
1 FHCS 1/4-28 X 7/8Manufacturer no. 106978 1Quote Ask for a quote
2 NUT NYLOCK 1/4-28Manufacturer no. 106934 1Quote Ask for a quote
3 WASHER FLAT THIN AN 1/4Manufacturer no. 106944 1Quote Ask for a quote
4 Q2 SADDLEManufacturer no. 561004 1Quote Ask for a quote
5 FTRST MOUNTING BRKT 1/2" RAD R RightManufacturer no. 541000 1Quote Ask for a quote
5 FTRST MOUNTING BRKT 1/2" RAD L LeftManufacturer no. 541001 1Quote Ask for a quote
6 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106945 1Quote Ask for a quote
7 BHCS 1/4-28 X 2Manufacturer no. 106964 1Quote Ask for a quote
8 3/4 CLMP ADJ FT PLTManufacturer no. 550350 1Quote Ask for a quote
9 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
10 HEEL LOOP PEGManufacturer no. 561040 1Quote Ask for a quote
11A ADJ FOOTREST STRAP 14W Used on 10"-13" wideManufacturer no. 104380-001 1Quote Ask for a quote
11B ADJ FOOTREST STRAP 15-16W Used on 14"-15" wideManufacturer no. 104380-002 1Quote Ask for a quote
11C ADJ FOOTREST STRAP 17-18W Used on 16"-17" wideManufacturer no. 104380-003 1Quote Ask for a quote
11D ADJ FOOTREST STRAP 19-20W Used on 18"-20" wideManufacturer no. 104380-004 1Quote Ask for a quote
12A ADULT ANGL ADJ F/PLT 10/11 Right; 10"-11" wideManufacturer no. 500656 1Quote Ask for a quote
12A ADULT ANGL ADJ F/PLT 10/11 Left; 10"-11" wideManufacturer no. 500657 1Quote Ask for a quote

Exploded view, page 68

19 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 68
No.PartQtyPriceAction
12B ADULT ANGL ADJ F/PLT 12/13 Right; 12"-13" wideManufacturer no. 500658 1Quote Ask for a quote
12B ADULT ANGL ADJ F/PLT 12/13 Left; 12"-13" wideManufacturer no. 500659 1Quote Ask for a quote
12C ADULT ANGL ADJ F/PLT 14/15 Right; 14"-15" wideManufacturer no. 500660 1Quote Ask for a quote
12C ADULT ANGL ADJ F/PLT 14/15 Left; 14"-15" wideManufacturer no. 500661 1Quote Ask for a quote
12D ADULT ANGL ADJ F/PLT 16/17 Right; 16"-17" wideManufacturer no. 500662 1Quote Ask for a quote
12D ADULT ANGL ADJ F/PLT 16/17 Left; 16"-17" wideManufacturer no. 500663 1Quote Ask for a quote
12E ADULT ANGL ADJ F/PLT 18-20 Right; 18"-22" wideManufacturer no. 500664 1Quote Ask for a quote
12E ADULT ANGL ADJ F/PLT 18-20 Left; 18"-22" wideManufacturer no. 500665 1Quote Ask for a quote
13 WASHER FLAT M6 ROHSManufacturer no. 107383 1Quote Ask for a quote
14 HHCS M6 X 1 X 25Manufacturer no. 102268-001 1Quote Ask for a quote
15 TOE-ANKLE STRAP ADJ ADULT FOOTPLATEManufacturer no. 740260 1Quote Ask for a quote
16 HHCS M6 X 1 X 25Manufacturer no. 102268-001 1Quote Ask for a quote
17 NUT AUTOMATION M6 X 1Manufacturer no. 132626 1Quote Ask for a quote
18 WASHER FLAT M6 ROHSManufacturer no. 107383 1Quote Ask for a quote
20 HHCS M6X1X40 PART NPManufacturer no. 118198 1Quote Ask for a quote
21 Q2 SADDLEManufacturer no. 561004 1Quote Ask for a quote
22 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
24 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106945 1Quote Ask for a quote
16-24 AAA FRNT MNT ADAPTER KIT PR Pair; fits both Kids & Adult Angle Adj FootplatesManufacturer no. 129764 1Quote Ask for a quote

Elevating Hanger Sr45

15 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Elevating Hanger Sr45
No.PartQtyPriceAction
1 1/4-28 X 1 1/4 BH C/SManufacturer no. 106961 1Quote Ask for a quote
2 ELR CLEVISManufacturer no. 505281 1Quote Ask for a quote
3 BHCS 5/16-24 X 1-1/2 SHLD ROHSManufacturer no. 107037 1Quote Ask for a quote
4 ELR PIVOT PRSManufacturer no. 540252 1Quote Ask for a quote
5 WASHER FLAT AN 5/16 ROHSManufacturer no. 106946 1Quote Ask for a quote
6 NUT NYLOCK THIN 5/16-24 ROHSManufacturer no. 106939 1Quote Ask for a quote
7 ELR UPPER PIVOT PLSTManufacturer no. 560420 1Quote Ask for a quote
8 ELR ADJUSTMENT STOPManufacturer no. 560784 1Quote Ask for a quote
9 ELR LOCK RODManufacturer no. 481117 1Quote Ask for a quote
10 ELR CAM LOCKING POWDERED METALManufacturer no. 481119 1Quote Ask for a quote
11 BHCS 5/16-18 X 2 SHLDR ROHSManufacturer no. 106983 1Quote Ask for a quote
12 1" INSERT PLUG .065 RIBSManufacturer no. 561062 1Quote Ask for a quote
14 PLASTIC PIVOT SADDLEManufacturer no. 561197 1Quote Ask for a quote
15 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
16 BHCS 10-24 X .725 PL ROHSManufacturer no. 107035 1Quote Ask for a quote

Elr & Alr Calf Pad 14 -15"

8 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Elr & Alr Calf Pad 14 -15"
No.PartQtyPriceAction
1 BHCS 5/16-18 X 1-1/4 ROHSManufacturer no. 106980 1Quote Ask for a quote
2 CALF PAD TROUGH STYLE 14"/16"Manufacturer no. 755014 1Quote Ask for a quote
3 1/4-28 X 5/8 HEX C/S BZManufacturer no. 221097 1Quote Ask for a quote
4 1" WASHER 5/16" HOLEManufacturer no. 561016 1Quote Ask for a quote
5 CALF PAD BRACKET ASSEMBLYManufacturer no. 881413 1Quote Ask for a quote
6 NUT NYLOCK 1/4-28 ROHSManufacturer no. 106934 1Quote Ask for a quote
7 NUT NYLOCK THIN 5/16-18Manufacturer no. 106937 1Quote Ask for a quote
1-7 CALF PAD J-HOOK 14"-15" ASSEMBLYManufacturer no. 881414 1Quote Ask for a quote

Elr & Alr Calf Pad 16-20"

9 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Elr & Alr Calf Pad 16-20"
No.PartQtyPriceAction
1 NUT NYLOCK 1/4-28 ROHSManufacturer no. 106934 1Quote Ask for a quote
2A HHCS 5/16-18 X 2-1/2 ROHS 16"-17" wide onlyManufacturer no. 107018 1Quote Ask for a quote
2B HHCS 5/16-18 X 3-1/2 ROHS 18"-20" wide onlyManufacturer no. 107019 1Quote Ask for a quote
3 HHCS 1/4-28 X 5/8 ROHSManufacturer no. 107013 1Quote Ask for a quote
4 CALF PAD BRACKET ASSEMBLYManufacturer no. 881413 1Quote Ask for a quote
5 ELR CALF HINGE SPACER 18"-20" wide onlyManufacturer no. 560199 1Quote Ask for a quote
6 CALF PAD MOLDED 16"-20"Manufacturer no. 560108 1Quote Ask for a quote
7 NUT NYLOCK 5/16-18 ROHSManufacturer no. 106936 1Quote Ask for a quote
8 CALF PAD COVERManufacturer no. 751045 1Quote Ask for a quote

Composite Footplate (page 74)

0 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Elr/Alr Aluminum Footplate

15 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Elr/Alr Aluminum Footplate
No.PartQtyPriceAction
1 1/4-28 x 5/8 BH C/SManufacturer no. 226090 1Quote Ask for a quote
2 BRACKET FOOTPLATE ALUMManufacturer no. 118093 1Quote Ask for a quote
3 BHCS M6 X 1 X 50 INORGANICManufacturer no. 102262-008 1Quote Ask for a quote
4 #4 x 5/8 PAN PHIL S/TAPManufacturer no. 281043 1Quote Ask for a quote
5 END CAPS FOOTRESTManufacturer no. 560101 1Quote Ask for a quote
7 SHORT BENTManufacturer no. 107126 1Quote Ask for a quote
7 MED BENTManufacturer no. 107127 1Quote Ask for a quote
7 LONG BENTManufacturer no. 107128 1Quote Ask for a quote
7 TUBE FOOTREST EXT SHT HEMI Use for Hemi Extension optionManufacturer no. 128078 1Quote Ask for a quote
8 1/4-28 NYLOCK NUT THINManufacturer no. 106935 1Quote Ask for a quote
9 3/4" SADDLE THINManufacturer no. 561003 1Quote Ask for a quote
10 NUT AUTOMATION M6 X 1.0Manufacturer no. 132626 1Quote Ask for a quote
11 WASHER FLAT M6 ROHSManufacturer no. 107383 1Quote Ask for a quote
12-14 EXTENSION CLAMP KITManufacturer no. 119495 1Quote Ask for a quote
15 ALU FOOTPLATE HDWARE KIT Ext tube not included; bracket (118093) not includedManufacturer no. 129775 1Quote Ask for a quote

Adult Angle-Adj Footplate Ext Mount (page 80)

0 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Exploded view, page 84

14 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 84
No.PartQtyPriceAction
1 DIRECT MOUNT ELR KIT R Right-order item 25 when retro-fitting to chairManufacturer no. 129635S 1Quote Ask for a quote
1 DIRECT MOUNT ELR KIT L Left-order item 25 when retro-fitting to chairManufacturer no. 129636S 1Quote Ask for a quote
1 DIRECT MOUNT ELR PAIR KIT Pair-order item 25 when retro-fitting to chairManufacturer no. 129634S 1Quote Ask for a quote
3 BHCS 8-32 X 1/2 BLKManufacturer no. 127135 1Quote Ask for a quote
4 HEMI ELR SUB ASSMManufacturer no. 126992 1Quote Ask for a quote
5 ALR REL LEVER COVERManufacturer no. 560501 1Quote Ask for a quote
6 HEMI RECEIVER ASSM ELR ALR R RightManufacturer no. 127114 1Quote Ask for a quote
6 HEMI RECEIVER ASSM ELR ALR L LeftManufacturer no. 127115 1Quote Ask for a quote
7 WAVE WASHER 6 MMManufacturer no. 104414 1Quote Ask for a quote
8 BHCS 1/4 -28 x 1 1/4 ROHSManufacturer no. 106961 1Quote Ask for a quote
9 1/4-28 NYLOCK NUT THIN BLK ZNManufacturer no. 106935 1Quote Ask for a quote
10 BHCS 1/4-28 x 1-1/2Manufacturer no. 108623 1Quote Ask for a quote
11 WASHER FLAT AN #10 ROHSManufacturer no. 113282 1Quote Ask for a quote
12 1" INSERT PLUG .083Manufacturer no. 561002 1Quote Ask for a quote

90 Deg Elevating Calf Pad

10 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 90 Deg Elevating Calf Pad
No.PartQtyPriceAction
1 5/16-18 x 2" BH C/S BLKManufacturer no. 226217 1Quote Ask for a quote
2 CALF PAD TROUGH STYLE KIDSManufacturer no. 755013 1Quote Ask for a quote
3 1" WASHER 5/16" HOLEManufacturer no. 561016 1Quote Ask for a quote
4 ELR ELEVATING TUBE CLAMPManufacturer no. 561097 1Quote Ask for a quote
5 5/16 -18 NYLOCK NUT THINManufacturer no. 106937 1Quote Ask for a quote
6 HHCS 1/4-20 X 1 ROHSManufacturer no. 106958 1Quote Ask for a quote
7 6mm WASHER WAVEManufacturer no. 262130 1Quote Ask for a quote
8 1/4 x 1/4 ALUMINUM SPACERManufacturer no. 483027 1Quote Ask for a quote
9 KIDS ALR RETAINING PLUGManufacturer no. 500151 1Quote Ask for a quote
1-9 ELR TROUGH PAD ASSM KIDSManufacturer no. 880533 1Quote Ask for a quote

Front Mount Hanger Extensions Sr45 (page 87)

3 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Front Mount Hanger Extensions Sr45 (page 87)
No.PartQtyPriceAction
1 NUT NYLOCK THIN 1/4 -28 ROHSManufacturer no. 106935 1Quote Ask for a quote
2 BHCS 1/4 -28 x 1 1/4 ROHSManufacturer no. 106961 1Quote Ask for a quote
4 WASHER FLAT M6 ROHSManufacturer no. 107383 1Quote Ask for a quote

Adult Angle-Adj Footplate Front Mount (page 88)

17 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Adult Angle-Adj Footplate Front Mount (page 88)
No.PartQtyPriceAction
1 FHCS 1/4-28 X 7/8Manufacturer no. 106978 1Quote Ask for a quote
2 NUT NYLOCK 1/4-28Manufacturer no. 106934 1Quote Ask for a quote
3 WASHER FLAT THIN AN 1/4Manufacturer no. 106944 1Quote Ask for a quote
4 Q2 SADDLEManufacturer no. 561004 1Quote Ask for a quote
5 FTRST MOUNTING BRKT 1/2" RAD R RightManufacturer no. 541000 1Quote Ask for a quote
5 FTRST MOUNTING BRKT 1/2" RAD L LeftManufacturer no. 541001 1Quote Ask for a quote
6 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106945 1Quote Ask for a quote
7 BHCS 1/4-28 X 2Manufacturer no. 106964 1Quote Ask for a quote
8 3/4 CLMP ADJ FT PLTManufacturer no. 550350 1Quote Ask for a quote
9 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
10 HEEL LOOP PEGManufacturer no. 561040 1Quote Ask for a quote
11A ADJ FOOTREST STRAP 14W Used on 10"-13" wideManufacturer no. 104380-001 1Quote Ask for a quote
11B ADJ FOOTREST STRAP 15-16W Used on 14"-15" wideManufacturer no. 104380-002 1Quote Ask for a quote
11C ADJ FOOTREST STRAP 17-18W Used on 16"-17" wideManufacturer no. 104380-003 1Quote Ask for a quote
11D ADJ FOOTREST STRAP 19-20W Used on 18"-20" wideManufacturer no. 104380-004 1Quote Ask for a quote
12A ADULT ANGL ADJ F/PLT 10/11 Right; 10"-11" wideManufacturer no. 500656 1Quote Ask for a quote
12A ADULT ANGL ADJ F/PLT 10/11 Left; 10"-11" wideManufacturer no. 500657 1Quote Ask for a quote

Exploded view, page 89

19 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 89
No.PartQtyPriceAction
12B ADULT ANGL ADJ F/PLT 12/13 Right; 12"-13" wideManufacturer no. 500658 1Quote Ask for a quote
12B ADULT ANGL ADJ F/PLT 12/13 Left; 12"-13" wideManufacturer no. 500659 1Quote Ask for a quote
12C ADULT ANGL ADJ F/PLT 14/15 Right; 14"-15" wideManufacturer no. 500660 1Quote Ask for a quote
12C ADULT ANGL ADJ F/PLT 14/15 Left; 14"-15" wideManufacturer no. 500661 1Quote Ask for a quote
12D ADULT ANGL ADJ F/PLT 16/17 Right; 16"-17" wideManufacturer no. 500662 1Quote Ask for a quote
12D ADULT ANGL ADJ F/PLT 16/17 Left; 16"-17" wideManufacturer no. 500663 1Quote Ask for a quote
12E ADULT ANGL ADJ F/PLT 18-20 Right; 18"-22" wideManufacturer no. 500664 1Quote Ask for a quote
12E ADULT ANGL ADJ F/PLT 18-20 Left; 18"-22" wideManufacturer no. 500665 1Quote Ask for a quote
13 WASHER FLAT M6 ROHSManufacturer no. 107383 1Quote Ask for a quote
14 HHCS M6 X 1 X 25Manufacturer no. 102268-001 1Quote Ask for a quote
15 TOE-ANKLE STRAP ADJ ADULT FOOTPLATEManufacturer no. 740260 1Quote Ask for a quote
16 HHCS M6 X 1 X 25Manufacturer no. 102268-001 1Quote Ask for a quote
17 NUT AUTOMATION M6 X 1Manufacturer no. 132626 1Quote Ask for a quote
18 WASHER FLAT M6 ROHSManufacturer no. 107383 1Quote Ask for a quote
20 HHCS M6X1X40 PART NPManufacturer no. 118198 1Quote Ask for a quote
21 Q2 SADDLEManufacturer no. 561004 1Quote Ask for a quote
22 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
24 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106945 1Quote Ask for a quote
16-24 AAA FRNT MNT ADAPTER KIT PR Pair; fits both Kids & Adult Angle Adj FootplatesManufacturer no. 129764 1Quote Ask for a quote

Exploded view, page 91

4 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 91
No.PartQtyPriceAction
1A HEMI ELR HNGR ASM 14-15 W/PADManufacturer no. 131774S 1Quote Ask for a quote
1B HEMI ELR HNGR ASM 16-17 W/PADManufacturer no. 131775S 1Quote Ask for a quote
1C HEMI ELR HNGR ASM 18-20 W/PADManufacturer no. 131776S 1Quote Ask for a quote
2 LATCH STUD KIT order qty 2 when retro-fitting to chairManufacturer no. 107491 1Quote Ask for a quote

Exploded view, page 92

14 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 92
No.PartQtyPriceAction
1 EXTENSION MOUNT ELR KIT R Right-order item 26 when retro-fitting to chairManufacturer no. 129638S 1Quote Ask for a quote
1 EXTENSION MOUNT ELR KIT L Left-order item 26 when retro-fitting to chairManufacturer no. 129639S 1Quote Ask for a quote
1 EXTENSION MOUNT ELR PAIR KIT Pair-order item 26 when retro-fitting to chairManufacturer no. 129637S 1Quote Ask for a quote
3 BHCS 8-32 X 1/2 BLKManufacturer no. 127135 1Quote Ask for a quote
4 HEMI ELR SUB ASSMManufacturer no. 126992 1Quote Ask for a quote
5 ALR REL LEVER COVERManufacturer no. 560501 1Quote Ask for a quote
6 HEMI RECEIVER ASSM ELR ALR R RightManufacturer no. 127114 1Quote Ask for a quote
6 HEMI RECEIVER ASSM ELR ALR L LeftManufacturer no. 127115 1Quote Ask for a quote
7 SHCS 1/4-28 x 1/2Manufacturer no. 107350 1Quote Ask for a quote
8 ANGLE STOP ELRManufacturer no. 127129 1Quote Ask for a quote
9 NUT HEX THIN 1/4-28Manufacturer no. 107249 1Quote Ask for a quote
10 1/4-28 NYLOCK NUT THIN BLK ZNManufacturer no. 106935 1Quote Ask for a quote
11 WAVE WASHER 6 MMManufacturer no. 104414 1Quote Ask for a quote
12 BHCS 1/4 -28 x 1 1/4 ROHSManufacturer no. 106961 1Quote Ask for a quote

Elr & Alr Calf Pad 14 -15" (page 94)

8 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Elr & Alr Calf Pad 14 -15" (page 94)
No.PartQtyPriceAction
1 BHCS 5/16-18 X 1-1/4 ROHSManufacturer no. 106980 1Quote Ask for a quote
2 CALF PAD TROUGH STYLE 14"/16"Manufacturer no. 755014 1Quote Ask for a quote
3 1/4-28 X 5/8 HEX C/S BZManufacturer no. 221097 1Quote Ask for a quote
4 1" WASHER 5/16" HOLEManufacturer no. 561016 1Quote Ask for a quote
5 CALF PAD BRACKET ASSEMBLYManufacturer no. 881413 1Quote Ask for a quote
6 NUT NYLOCK 1/4-28 ROHSManufacturer no. 106934 1Quote Ask for a quote
7 NUT NYLOCK THIN 5/16-18Manufacturer no. 106937 1Quote Ask for a quote
1-7 CALF PAD J-HOOK 14"-15" ASSEMBLYManufacturer no. 881414 1Quote Ask for a quote

Elr & Alr Calf Pad 16-20" (page 95)

9 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Elr & Alr Calf Pad 16-20" (page 95)
No.PartQtyPriceAction
1 NUT NYLOCK 1/4-28 ROHSManufacturer no. 106934 1Quote Ask for a quote
2A HHCS 5/16-18 X 2-1/2 ROHS 16"-17" wide onlyManufacturer no. 107018 1Quote Ask for a quote
2B HHCS 5/16-18 X 3-1/2 ROHS 18"-20" wide onlyManufacturer no. 107019 1Quote Ask for a quote
3 HHCS 1/4-28 X 5/8 ROHSManufacturer no. 107013 1Quote Ask for a quote
4 CALF PAD BRACKET ASSEMBLYManufacturer no. 881413 1Quote Ask for a quote
5 ELR CALF HINGE SPACER 18"-20" wide onlyManufacturer no. 560199 1Quote Ask for a quote
6 CALF PAD MOLDED 16"-20"Manufacturer no. 560108 1Quote Ask for a quote
7 NUT NYLOCK 5/16-18 ROHSManufacturer no. 106936 1Quote Ask for a quote
8 CALF PAD COVERManufacturer no. 751045 1Quote Ask for a quote

Elr/Alr Aluminum Footplate (page 96)

15 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Elr/Alr Aluminum Footplate (page 96)
No.PartQtyPriceAction
1 1/4-28 x 5/8 BH C/SManufacturer no. 226090 1Quote Ask for a quote
2 BRACKET FOOTPLATE ALUMManufacturer no. 118093 1Quote Ask for a quote
3 BHCS M6 X 1 X 50 INORGANICManufacturer no. 102262-008 1Quote Ask for a quote
4 #4 x 5/8 PAN PHIL S/TAPManufacturer no. 281043 1Quote Ask for a quote
5 END CAPS FOOTRESTManufacturer no. 560101 1Quote Ask for a quote
7 SHORT BENTManufacturer no. 107126 1Quote Ask for a quote
7 MED BENTManufacturer no. 107127 1Quote Ask for a quote
7 LONG BENTManufacturer no. 107128 1Quote Ask for a quote
7 TUBE FOOTREST EXT SHT HEMI Use for Hemi Extension optionManufacturer no. 128078 1Quote Ask for a quote
8 1/4-28 NYLOCK NUT THINManufacturer no. 106935 1Quote Ask for a quote
9 3/4" SADDLE THINManufacturer no. 561003 1Quote Ask for a quote
10 NUT AUTOMATION M6 X 1.0Manufacturer no. 132626 1Quote Ask for a quote
11 WASHER FLAT M6 ROHSManufacturer no. 107383 1Quote Ask for a quote
12-14 EXTENSION CLAMP KITManufacturer no. 119495 1Quote Ask for a quote
15 ALU FOOTPLATE HDWARE KIT Ext tube not included; bracket (118093) not includedManufacturer no. 129775 1Quote Ask for a quote

Alr (Latch Stud Style) (Disc. 2/6/17)

14 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Alr (Latch Stud Style) (Disc. 2/6/17)
No.PartQtyPriceAction
1 ALR KIT R Right-order item 27 when retro-fitting to chairManufacturer no. 129631S 1Quote Ask for a quote
1 ALR KIT L Left-order item 27 when retro-fitting to chairManufacturer no. 129632S 1Quote Ask for a quote
1 ALR PAIR KIT Pair-order item 27 when retro-fitting to chairManufacturer no. 129630S 1Quote Ask for a quote
3 BHCS 8-32 X 1/2 BLKManufacturer no. 127135 1Quote Ask for a quote
4 HEMI ALR SUB ASSMManufacturer no. 127153 1Quote Ask for a quote
5 ALR REL LEVER COVERManufacturer no. 560501 1Quote Ask for a quote
6 HEMI RECEIVER ASSM ELR ALR R RightManufacturer no. 127114 1Quote Ask for a quote
6 HEMI RECEIVER ASSM ELR ALR L LeftManufacturer no. 127115 1Quote Ask for a quote
7 ANGLE STOP ELRManufacturer no. 127129 1Quote Ask for a quote
8 SHCS 1/4-28 x 1/2Manufacturer no. 107350 1Quote Ask for a quote
9 1/4-28 NYLOCK NUT THIN BLK ZNManufacturer no. 106935 1Quote Ask for a quote
10 BHCS 1/4-28 x 1-1/2Manufacturer no. 108623 1Quote Ask for a quote
11 BHCS 1/4-28 X 2Manufacturer no. 106964 1Quote Ask for a quote
12 1" HALF SADDLE 1/4" HOLEManufacturer no. 561086 1Quote Ask for a quote

Elr & Alr Calf Pad 14 -15" (page 100)

8 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Elr & Alr Calf Pad 14 -15" (page 100)
No.PartQtyPriceAction
1 BHCS 5/16-18 X 1-1/4 ROHSManufacturer no. 106980 1Quote Ask for a quote
2 CALF PAD TROUGH STYLE 14"/16"Manufacturer no. 755014 1Quote Ask for a quote
3 1/4-28 X 5/8 HEX C/S BZManufacturer no. 221097 1Quote Ask for a quote
4 1" WASHER 5/16" HOLEManufacturer no. 561016 1Quote Ask for a quote
5 CALF PAD BRACKET ASSEMBLYManufacturer no. 881413 1Quote Ask for a quote
6 NUT NYLOCK 1/4-28 ROHSManufacturer no. 106934 1Quote Ask for a quote
7 NUT NYLOCK THIN 5/16-18Manufacturer no. 106937 1Quote Ask for a quote
1-7 CALF PAD J-HOOK 14"-15" ASSEMBLYManufacturer no. 881414 1Quote Ask for a quote

Elr & Alr Calf Pad 16-20" (page 101)

9 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Elr & Alr Calf Pad 16-20" (page 101)
No.PartQtyPriceAction
1 NUT NYLOCK 1/4-28 ROHSManufacturer no. 106934 1Quote Ask for a quote
2A HHCS 5/16-18 X 2-1/2 ROHS 16"-17" wide onlyManufacturer no. 107018 1Quote Ask for a quote
2B HHCS 5/16-18 X 3-1/2 ROHS 18"-20" wide onlyManufacturer no. 107019 1Quote Ask for a quote
3 HHCS 1/4-28 X 5/8 ROHSManufacturer no. 107013 1Quote Ask for a quote
4 CALF PAD BRACKET ASSEMBLYManufacturer no. 881413 1Quote Ask for a quote
5 ELR CALF HINGE SPACER 18"-20" wide onlyManufacturer no. 560199 1Quote Ask for a quote
6 CALF PAD MOLDED 16"-20"Manufacturer no. 560108 1Quote Ask for a quote
7 NUT NYLOCK 5/16-18 ROHSManufacturer no. 106936 1Quote Ask for a quote
8 CALF PAD COVERManufacturer no. 751045 1Quote Ask for a quote

Composite Angle Adjustable Foot Plate

2 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Composite Angle Adjustable Foot Plate
No.PartQtyPriceAction
1D TUBE FTRST EXT STRGHT SHT HEMI Use for Hemi Ext Tube optionManufacturer no. 128079 1Quote Ask for a quote
2A COMPOSITE FOOTPLATE RIGHT RIGHT 15" Footrest WidthManufacturer no. 063216-006 1Quote Ask for a quote

Exploded view, page 106

17 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 106
No.PartQtyPriceAction
1D TUBE FTRST EXT STRGHT SHT HEMI Use for Hemi Ext Tube optionManufacturer no. 128079 1Quote Ask for a quote
2A ADULT ANG ADJ F/PLT 10/11" R RIGHT 10-11" Footrest WidthManufacturer no. 500656 1Quote Ask for a quote
2A ADULT ANG ADJ F/PLT 10/11" L LEFT 10-11" Footrest WidthManufacturer no. 500657 1Quote Ask for a quote
2B ADULT ANG ADJ F/PLT 12/13" R RIGHT 12-13" Footrest WidthManufacturer no. 500658 1Quote Ask for a quote
2B ADULT ANG ADJ F/PLT 12/13" L LEFT 12-13" Footrest WidthManufacturer no. 500659 1Quote Ask for a quote
2C ADLT ANGL ADJ F/PLT 14/15 RIGHT 14-15" Footrest WidthManufacturer no. 500660 1Quote Ask for a quote
2C ADLT ANGL ADJ F/PLT 14/15 LEFT 14-15" Footrest WidthManufacturer no. 500661 1Quote Ask for a quote
2D ADLT ANGL ADJ F/PLT 16/17 RIGHT 16-17" Footrest WidthManufacturer no. 500662 1Quote Ask for a quote
2D ADLT ANGL ADJ F/PLT 16/17 LEFT 16-17" Footrest WidthManufacturer no. 500663 1Quote Ask for a quote
2E ADLT ANGL ADJ F/PLT 18-20 RIGHT 18-22" Footrest WidthManufacturer no. 500664 1Quote Ask for a quote
2E ADLT ANGL ADJ F/PLT 18-20 LEFT 18-22" Footrest WidthManufacturer no. 500665 1Quote Ask for a quote
3 NUT AUTOMATION M6 X 1.0Manufacturer no. 132626 1Quote Ask for a quote
4 WASHER FLAT THIN AN 1/4 ROHSManufacturer no. 106944 1Quote Ask for a quote
5 HANGER EXTENSION SADDLEManufacturer no. 107199 1Quote Ask for a quote
6 3/4" SADDLE 1" ODManufacturer no. 561055 1Quote Ask for a quote
7 FTRST MOUNTING BRKT-3/8 RAD R RIGHTManufacturer no. 541002 1Quote Ask for a quote
7 FTRST MOUNTING BRKT-3/8 RAD L LEFTManufacturer no. 541003 1Quote Ask for a quote

Elr/Alr Aluminum Footplate (page 108)

15 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Elr/Alr Aluminum Footplate (page 108)
No.PartQtyPriceAction
1 1/4-28 x 5/8 BH C/SManufacturer no. 226090 1Quote Ask for a quote
2 BRACKET FOOTPLATE ALUMManufacturer no. 118093 1Quote Ask for a quote
3 BHCS M6 X 1 X 50 INORGANICManufacturer no. 102262-008 1Quote Ask for a quote
4 #4 x 5/8 PAN PHIL S/TAPManufacturer no. 281043 1Quote Ask for a quote
5 END CAPS FOOTRESTManufacturer no. 560101 1Quote Ask for a quote
7 SHORT BENTManufacturer no. 107126 1Quote Ask for a quote
7 MED BENTManufacturer no. 107127 1Quote Ask for a quote
7 LONG BENTManufacturer no. 107128 1Quote Ask for a quote
7 TUBE FOOTREST EXT SHT HEMI Use for Hemi Extension optionManufacturer no. 128078 1Quote Ask for a quote
8 1/4-28 NYLOCK NUT THINManufacturer no. 106935 1Quote Ask for a quote
9 3/4" SADDLE THINManufacturer no. 561003 1Quote Ask for a quote
10 NUT AUTOMATION M6 X 1.0Manufacturer no. 132626 1Quote Ask for a quote
11 WASHER FLAT M6 ROHSManufacturer no. 107383 1Quote Ask for a quote
12-14 EXTENSION CLAMP KITManufacturer no. 119495 1Quote Ask for a quote
15 ALU FOOTPLATE HDWARE KIT Ext tube not included; bracket (118093) not includedManufacturer no. 129775 1Quote Ask for a quote

Exploded view, page 110

2 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 110
No.PartQtyPriceAction
1 SWNG I/O ELR ASSM FM W/PAD Kit includes both right & left sides with calf padsManufacturer no. 162048S 1Quote Ask for a quote
2 LATCH RECEIVER KIT order qty 2 when retro-fitting to chairManufacturer no. 119514 1Quote Ask for a quote

Exploded view, page 111

18 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 111
No.PartQtyPriceAction
1 SWNG I/O ELR ASSM FM LH LeftManufacturer no. 162049S 1Quote Ask for a quote
1 SWNG I/O ELR ASSM FM RH RightManufacturer no. 162050S 1Quote Ask for a quote
2 LATCH RECEIVER KIT order qty 2 when retro-fitting to chairManufacturer no. 119514 1Quote Ask for a quote
3 ALR REL LEVER COVERManufacturer no. 560501 1Quote Ask for a quote
4 HEMI ELR SUB ASSMManufacturer no. 126992 1Quote Ask for a quote
5 RECEIVER ASSY ELR ALR RHManufacturer no. 134188 1Quote Ask for a quote
5 RECEIVER ASSY ELR ALR LHManufacturer no. 134186 1Quote Ask for a quote
6 BHCS 1/4-28 x 1-1/2Manufacturer no. 108623 1Quote Ask for a quote
7 BHCS 1/4 -28 x 1 1/4 ROHSManufacturer no. 106961 1Quote Ask for a quote
8 1/4-28 NYLOCK NUT THIN BLK ZNManufacturer no. 106935 1Quote Ask for a quote
9 WAVE WASHER 6 MMManufacturer no. 104414 1Quote Ask for a quote
10 1" INSERT PLUG .083Manufacturer no. 561002 1Quote Ask for a quote
12 WASHER FLAT AN #10 ROHSManufacturer no. 113282 1Quote Ask for a quote
13 BHCS 8-32 X 1/2 BLKManufacturer no. 127135 1Quote Ask for a quote
11-13 ELR SHROUD KIT Kit w/ 2 screwsManufacturer no. 129640 1Quote Ask for a quote
14 SQUARE END CAP CNTR LEGManufacturer no. 010615 1Quote Ask for a quote
15 5/16-18 X 2" BH C/S BLKManufacturer no. 226217 1Quote Ask for a quote
16 ENDPLUG BACKREST TNTManufacturer no. 560110 1Quote Ask for a quote

90 Deg Elevating Calf Pad (page 113)

10 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 90 Deg Elevating Calf Pad (page 113)
No.PartQtyPriceAction
1 5/16-18 x 2" BH C/S BLKManufacturer no. 226217 1Quote Ask for a quote
2 CALF PAD TROUGH STYLE KIDSManufacturer no. 755013 1Quote Ask for a quote
3 1" WASHER 5/16" HOLEManufacturer no. 561016 1Quote Ask for a quote
4 ELR ELEVATING TUBE CLAMPManufacturer no. 561097 1Quote Ask for a quote
5 5/16 -18 NYLOCK NUT THINManufacturer no. 106937 1Quote Ask for a quote
6 HHCS 1/4-20 X 1 ROHSManufacturer no. 106958 1Quote Ask for a quote
7 6mm WASHER WAVEManufacturer no. 262130 1Quote Ask for a quote
8 1/4 x 1/4 ALUMINUM SPACERManufacturer no. 483027 1Quote Ask for a quote
9 KIDS ALR RETAINING PLUGManufacturer no. 500151 1Quote Ask for a quote
1-9 ELR TROUGH PAD ASSM KIDSManufacturer no. 880533 1Quote Ask for a quote

Front Mount Hanger Ext

3 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Front Mount Hanger Ext
No.PartQtyPriceAction
1 NUT NYLOCK THIN 1/4 -28 ROHSManufacturer no. 106935 1Quote Ask for a quote
2 BHCS 1/4 -28 x 1 1/4 ROHSManufacturer no. 106961 1Quote Ask for a quote
1-3 2" FOOTREST EXTENSION TUBE W/ HDWR ASSM 2" EXT (PAIR)Manufacturer no. 111505 1Quote Ask for a quote

Adult Angle-Adj Footplate Front Mount (page 115)

23 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Adult Angle-Adj Footplate Front Mount (page 115)
No.PartQtyPriceAction
1 FHCS 1/4-28 X 7/8 ROHSManufacturer no. 106978 1Quote Ask for a quote
2 NUT AUTOMATION 1/4-28 ROHSManufacturer no. 106941 1Quote Ask for a quote
3 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
4 1" SADDLE 1/4" HOLEManufacturer no. 561004 1Quote Ask for a quote
5 FOOTREST MOUNTING BRKT 1/2" RAD R RIGHTManufacturer no. 541000 1Quote Ask for a quote
5 FOOTREST MOUNTING BRKT 1/2" RAD L LEFTManufacturer no. 541001 1Quote Ask for a quote
6 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106945 1Quote Ask for a quote
7 BHCS 1/4-28 X 2Manufacturer no. 106964 1Quote Ask for a quote
8 3/4" CLAMP ADJ FOOTPLATEManufacturer no. 550350 1Quote Ask for a quote
9 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
10 HEEL LOOP PEGManufacturer no. 561040 1Quote Ask for a quote
11 HEEL LOOP 18-20 CMPST/14-15 ANG ADJ USED W/ 14-15"/16-17" ADULT ANG ADJ FTPLTSManufacturer no. 741153 1Quote Ask for a quote
11 HEEL LOOP ADLT ADJ F/PLT 18-20 USED W/ 18 -20" ADULT ANG ADJ FTPLTSManufacturer no. 741253 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 10/11 RIGHTManufacturer no. 500656 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 10/11 LEFTManufacturer no. 500657 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 12/13 RIGHTManufacturer no. 500658 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 12/13 LEFTManufacturer no. 500659 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 14/15 RIGHTManufacturer no. 500660 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 14/15 LEFTManufacturer no. 500661 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 16/17 RIGHTManufacturer no. 500662 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 16/17 LEFTManufacturer no. 500663 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 18-20 RIGHTManufacturer no. 500664 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 18-20 LEFTManufacturer no. 500665 1Quote Ask for a quote

Kids Angle Adj Footplate Front Mount

18 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Kids Angle Adj Footplate Front Mount
No.PartQtyPriceAction
1 FHCS 1/4-28 X 7/8 ROHSManufacturer no. 106978 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 10 RIGHTManufacturer no. 500635 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 10 LEFTManufacturer no. 500636 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 11 RIGHTManufacturer no. 500637 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 11 LEFTManufacturer no. 500638 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 12 RIGHTManufacturer no. 500639 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 12 LEFTManufacturer no. 500640 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 13 RIGHTManufacturer no. 500641 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 13 LEFTManufacturer no. 500642 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 14 RIGHTManufacturer no. 500643 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 14 LEFTManufacturer no. 500644 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 15 RIGHTManufacturer no. 500645 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 15 LEFTManufacturer no. 500646 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 16 RIGHTManufacturer no. 500647 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 16 LEFTManufacturer no. 500648 1Quote Ask for a quote
3 3/4 CLAMP ADJ FOOTPLATEManufacturer no. 550350 1Quote Ask for a quote
4 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
5 1/4-28 X 1.85 BH C/S BLK ZNManufacturer no. 226147 1Quote Ask for a quote

Exploded view, page 118

39 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 118
No.PartQtyPriceAction
6 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106945 1Quote Ask for a quote
7 FTRST MOUNTING BRKT 1/2" RAD R RIGHTManufacturer no. 541000 1Quote Ask for a quote
7 FTRST MOUNTING BRKT 1/2" RAD L LEFTManufacturer no. 541001 1Quote Ask for a quote
8 1 SADDLE 1/4 HOLEManufacturer no. 561004 1Quote Ask for a quote
9 WASHER FLAT THIN AN 1/4Manufacturer no. 106943 1Quote Ask for a quote
10 NUT AUTOMATION 1/4-28 ROHSManufacturer no. 106941 1Quote Ask for a quote
11 HHCS M6 X 1 X 25Manufacturer no. 102268-001 1Quote Ask for a quote
12 NUT AUTOMATION M6 X 1.0 ROHSManufacturer no. 132626 1Quote Ask for a quote
13 WASHER FLAT M6 ROHSManufacturer no. 107383 1Quote Ask for a quote
15 HHCS M6 X 1 X 40 PART NPManufacturer no. 118198 1Quote Ask for a quote
16 1" SADDLE 1/4" HOLEManufacturer no. 561004 1Quote Ask for a quote
17 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
19 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106945 1Quote Ask for a quote
1-4 KAA F/PLT KIT 10 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158632 1Quote Ask for a quote
1-4 KAA F/PLT KIT 10 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158633 1Quote Ask for a quote
1-4 KAA F/PLT KIT 11 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158634 1Quote Ask for a quote
1-4 KAA F/PLT KIT 11 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158635 1Quote Ask for a quote
1-4 KAA F/PLT KIT 12 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158636 1Quote Ask for a quote
1-4 KAA F/PLT KIT 12 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158637 1Quote Ask for a quote
1-4 KAA F/PLT KIT 13 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158638 1Quote Ask for a quote
1-4 KAA F/PLT KIT 13 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158639 1Quote Ask for a quote
1-4 KAA F/PLT KIT 14 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158640 1Quote Ask for a quote
1-4 KAA F/PLT KIT 14 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158641 1Quote Ask for a quote
1-4 KAA F/PLT KIT 15 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158642 1Quote Ask for a quote
1-4 KAA F/PLT KIT 15 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158643 1Quote Ask for a quote
1-4 KAA F/PLT KIT 16 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158644 1Quote Ask for a quote
1-4 KAA F/PLT KIT 16 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158645 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 10 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828821 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 10 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828822 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 11 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828823 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 11 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828824 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 12 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828825 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 12 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828826 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 13 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828827 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 13 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828828 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 14 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828829 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 14 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828830 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 15 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828831 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 15 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828832 1Quote Ask for a quote

Exploded view, page 120

6 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 120
No.PartQtyPriceAction
1A SWNG I/O ELR ASM 14-15 W/PAD PairManufacturer no. 161233S 1Quote Ask for a quote
1B SWNG I/O ELR ASM 16-17 W/PAD PairManufacturer no. 161234S 1Quote Ask for a quote
1C SWNG I/O ELR ASM 18-20 W/PAD PairManufacturer no. 161235S 1Quote Ask for a quote
2A SWNG I/O ALR ASM 14-15 W/PAD PairManufacturer no. 161236S 1Quote Ask for a quote
2B SWNG I/O ALR ASM 16-17 W/PAD PairManufacturer no. 161237S 1Quote Ask for a quote
2C SWNG I/O ALR ASM 18-20 W/PAD PairManufacturer no. 161238S 1Quote Ask for a quote

Exploded view, page 121

18 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 121
No.PartQtyPriceAction
1 SWNG I/O ELR ASSM RH RightManufacturer no. 161239S 1Quote Ask for a quote
1 SWNG I/O ELR ASSM LH LeftManufacturer no. 161240S 1Quote Ask for a quote
1 SWNG I/O ELR ASSM PR PairManufacturer no. 161241S 1Quote Ask for a quote
3 BHCS 8-32 X 1/2 BLKManufacturer no. 127135 1Quote Ask for a quote
4 HEMI ELR SUB ASSMManufacturer no. 126992 1Quote Ask for a quote
5 ALR REL LEVER COVERManufacturer no. 560501 1Quote Ask for a quote
6 RECEIVER ASSY ELR ALR RHManufacturer no. 134188 1Quote Ask for a quote
6 RECEIVER ASSY ELR ALR LHManufacturer no. 134186 1Quote Ask for a quote
7 SHCS 1/4-28 x 1/2Manufacturer no. 107350 1Quote Ask for a quote
8 ANGLE STOP ELRManufacturer no. 127129 1Quote Ask for a quote
9 NUT HEX THIN 1/4-28Manufacturer no. 107249 1Quote Ask for a quote
10 1/4-28 NYLOCK NUT THIN BLK ZNManufacturer no. 106935 1Quote Ask for a quote
11 WAVE WASHER 6 MMManufacturer no. 104414 1Quote Ask for a quote
12 BHCS 1/4 -28 x 1 1/4 ROHSManufacturer no. 106961 1Quote Ask for a quote
13 BHCS 1/4-28 x 1-1/2Manufacturer no. 108623 1Quote Ask for a quote
14 EXTENSION CLAMP KITManufacturer no. 119495 1Quote Ask for a quote
15 SQUARE END CAP CNTR LEGManufacturer no. 010615 1Quote Ask for a quote
16 5/16-18 X 2" BH C/S BLKManufacturer no. 226217 1Quote Ask for a quote

Exploded view, page 123

19 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 123
No.PartQtyPriceAction
1 SWNG I/O ALR ASSM RH KIT RightManufacturer no. 161244S 1Quote Ask for a quote
1 SWNG I/O ALR ASSM LH KIT LeftManufacturer no. 161245S 1Quote Ask for a quote
1 SWNG I/O ALR ASSM PR KIT PairManufacturer no. 161246S 1Quote Ask for a quote
2 EXTENSION CLAMP KITManufacturer no. 119495 1Quote Ask for a quote
3 LATCH RECEIVER KIT order qty 2 when retro-fitting to chairManufacturer no. 119514 1Quote Ask for a quote
4 HEMI ALR SUB ASSMManufacturer no. 127153 1Quote Ask for a quote
5 ALR REL LEVER COVERManufacturer no. 560501 1Quote Ask for a quote
6 RECEIVER ASSY ELR ALR RHManufacturer no. 134188 1Quote Ask for a quote
6 RECEIVER ASSY ELR ALR LHManufacturer no. 134186 1Quote Ask for a quote
7 ANGLE STOP ELRManufacturer no. 127129 1Quote Ask for a quote
8 SHCS 1/4-28 x 1/2Manufacturer no. 107350 1Quote Ask for a quote
9 1/4-28 NYLOCK NUT THIN BLK ZNManufacturer no. 106935 1Quote Ask for a quote
10 BHCS 1/4-28 x 1-1/2Manufacturer no. 108623 1Quote Ask for a quote
11 BHCS 1/4-28 X 2Manufacturer no. 106964 1Quote Ask for a quote
12 1" HALF SADDLE 1/4" HOLEManufacturer no. 561086 1Quote Ask for a quote
13 WASHER NYLON 1IN OD X .312 IDManufacturer no. 113268 1Quote Ask for a quote
14 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
15 WASHER FLAT AN #10 ROHSManufacturer no. 113282 1Quote Ask for a quote
16 BHCS 8-32 X 1/2 BLKManufacturer no. 127135 1Quote Ask for a quote

Elr & Alr Calf Pad 14 -15" (page 125)

8 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Elr & Alr Calf Pad 14 -15" (page 125)
No.PartQtyPriceAction
1 BHCS 5/16-18 X 1-1/4 ROHSManufacturer no. 106980 1Quote Ask for a quote
2 CALF PAD TROUGH STYLE 14"/16"Manufacturer no. 755014 1Quote Ask for a quote
3 1/4-28 X 5/8 HEX C/S BZManufacturer no. 221097 1Quote Ask for a quote
4 1" WASHER 5/16" HOLEManufacturer no. 561016 1Quote Ask for a quote
5 CALF PAD BRACKET ASSEMBLYManufacturer no. 881413 1Quote Ask for a quote
6 NUT NYLOCK 1/4-28 ROHSManufacturer no. 106934 1Quote Ask for a quote
7 NUT NYLOCK THIN 5/16-18Manufacturer no. 106937 1Quote Ask for a quote
1-7 CALF PAD J-HOOK 14"-15" ASSEMBLYManufacturer no. 881414 1Quote Ask for a quote

Elr & Alr Calf Pad 16-20" (page 126)

9 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Elr & Alr Calf Pad 16-20" (page 126)
No.PartQtyPriceAction
1 NUT NYLOCK 1/4-28 ROHSManufacturer no. 106934 1Quote Ask for a quote
2A HHCS 5/16-18 X 2-1/2 ROHS 16"-17" wide onlyManufacturer no. 107018 1Quote Ask for a quote
2B HHCS 5/16-18 X 3-1/2 ROHS 18"-20" wide onlyManufacturer no. 107019 1Quote Ask for a quote
3 HHCS 1/4-28 X 5/8 ROHSManufacturer no. 107013 1Quote Ask for a quote
4 CALF PAD BRACKET ASSEMBLYManufacturer no. 881413 1Quote Ask for a quote
5 ELR CALF HINGE SPACER 18"-20" wide onlyManufacturer no. 560199 1Quote Ask for a quote
6 CALF PAD MOLDED 16"-20"Manufacturer no. 560108 1Quote Ask for a quote
7 NUT NYLOCK 5/16-18 ROHSManufacturer no. 106936 1Quote Ask for a quote
8 CALF PAD COVERManufacturer no. 751045 1Quote Ask for a quote

Composite Footplate (page 127)

0 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Composite Angle Adjustable Foot Plate (page 131)

2 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Composite Angle Adjustable Foot Plate (page 131)
No.PartQtyPriceAction
1D TUBE FTRST EXT STRGHT SHT HEMI Use for Hemi Ext Tube optionManufacturer no. 128079 1Quote Ask for a quote
2A COMPOSITE FOOTPLATE RIGHT RIGHT 15" Footrest WidthManufacturer no. 063216-006 1Quote Ask for a quote

Exploded view, page 135

17 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 135
No.PartQtyPriceAction
1D TUBE FTRST EXT STRGHT SHT HEMI Use for Hemi Ext Tube optionManufacturer no. 128079 1Quote Ask for a quote
2A ADULT ANG ADJ F/PLT 10/11" R RIGHT 10-11" Footrest WidthManufacturer no. 500656 1Quote Ask for a quote
2A ADULT ANG ADJ F/PLT 10/11" L LEFT 10-11" Footrest WidthManufacturer no. 500657 1Quote Ask for a quote
2B ADULT ANG ADJ F/PLT 12/13" R RIGHT 12-13" Footrest WidthManufacturer no. 500658 1Quote Ask for a quote
2B ADULT ANG ADJ F/PLT 12/13" L LEFT 12-13" Footrest WidthManufacturer no. 500659 1Quote Ask for a quote
2C ADLT ANGL ADJ F/PLT 14/15 RIGHT 14-15" Footrest WidthManufacturer no. 500660 1Quote Ask for a quote
2C ADLT ANGL ADJ F/PLT 14/15 LEFT 14-15" Footrest WidthManufacturer no. 500661 1Quote Ask for a quote
2D ADLT ANGL ADJ F/PLT 16/17 RIGHT 16-17" Footrest WidthManufacturer no. 500662 1Quote Ask for a quote
2D ADLT ANGL ADJ F/PLT 16/17 LEFT 16-17" Footrest WidthManufacturer no. 500663 1Quote Ask for a quote
2E ADLT ANGL ADJ F/PLT 18-20 RIGHT 18-22" Footrest WidthManufacturer no. 500664 1Quote Ask for a quote
2E ADLT ANGL ADJ F/PLT 18-20 LEFT 18-22" Footrest WidthManufacturer no. 500665 1Quote Ask for a quote
3 NUT AUTOMATION M6 X 1.0Manufacturer no. 132626 1Quote Ask for a quote
4 WASHER FLAT THIN AN 1/4 ROHSManufacturer no. 106944 1Quote Ask for a quote
5 HANGER EXTENSION SADDLEManufacturer no. 107199 1Quote Ask for a quote
6 3/4" SADDLE 1" ODManufacturer no. 561055 1Quote Ask for a quote
7 FTRST MOUNTING BRKT-3/8 RAD R RIGHTManufacturer no. 541002 1Quote Ask for a quote
7 FTRST MOUNTING BRKT-3/8 RAD L LEFTManufacturer no. 541003 1Quote Ask for a quote

Kids Angle Adjustable Footplate Ext Mount

2 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Kids Angle Adjustable Footplate Ext Mount
No.PartQtyPriceAction
1 FHCS 1/4 -28 x 7/8 ROHSManufacturer no. 106978 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 10" R RightManufacturer no. 500635 1Quote Ask for a quote

Elr/Alr Aluminum Footplate (page 139)

15 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Elr/Alr Aluminum Footplate (page 139)
No.PartQtyPriceAction
1 1/4-28 x 5/8 BH C/SManufacturer no. 226090 1Quote Ask for a quote
2 BRACKET FOOTPLATE ALUMManufacturer no. 118093 1Quote Ask for a quote
3 BHCS M6 X 1 X 50 INORGANICManufacturer no. 102262-008 1Quote Ask for a quote
4 #4 x 5/8 PAN PHIL S/TAPManufacturer no. 281043 1Quote Ask for a quote
5 END CAPS FOOTRESTManufacturer no. 560101 1Quote Ask for a quote
7 SHORT BENTManufacturer no. 107126 1Quote Ask for a quote
7 MED BENTManufacturer no. 107127 1Quote Ask for a quote
7 LONG BENTManufacturer no. 107128 1Quote Ask for a quote
7 TUBE FOOTREST EXT SHT HEMI Use for Hemi Extension optionManufacturer no. 128078 1Quote Ask for a quote
8 1/4-28 NYLOCK NUT THINManufacturer no. 106935 1Quote Ask for a quote
9 3/4" SADDLE THINManufacturer no. 561003 1Quote Ask for a quote
10 NUT AUTOMATION M6 X 1.0Manufacturer no. 132626 1Quote Ask for a quote
11 WASHER FLAT M6 ROHSManufacturer no. 107383 1Quote Ask for a quote
12-14 EXTENSION CLAMP KITManufacturer no. 119495 1Quote Ask for a quote
15 ALU FOOTPLATE HDWARE KIT Ext tube not included; bracket (118093) not includedManufacturer no. 129775 1Quote Ask for a quote

Single Post Height Adjustable Armrest

16 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Single Post Height Adjustable Armrest
No.PartQtyPriceAction
1A SPHA PAD DESK CONTOUR DESKManufacturer no. 104568-001 1Quote Ask for a quote
1B SPHA PAD FULL CONTOUR FULLManufacturer no. 104568-002 1Quote Ask for a quote
1C ARMREST PAD 10" DESK CLASSIC DESKManufacturer no. 561024 1Quote Ask for a quote
1D ARMREST PAD 14" FULL CLASSIC FULLManufacturer no. 561031 1Quote Ask for a quote
1E ARMREST PAD 10" LEFT W/F Left-Waterfall DeskManufacturer no. 561280 1Quote Ask for a quote
1E ARMREST PAD 10" RIGHT W/F Rightt-Waterfall DeskManufacturer no. 561281 1Quote Ask for a quote
1F ARMREST PAD 14" LEFT W/F Leftt-Waterfall FullManufacturer no. 561284 1Quote Ask for a quote
1F ARMREST PAD 14" RIGHT W/F Rightt-Waterfall FullManufacturer no. 561285 1Quote Ask for a quote
2 SNGL POST UPPR ASSM LOW LOW/SMALLManufacturer no. 116312 1Quote Ask for a quote
2 SNGL POST UPPR ASSM STD STANDARDManufacturer no. 116313 1Quote Ask for a quote
3 SHCS 10-32 X 3/4 ROHSManufacturer no. 106956 1Quote Ask for a quote
5A HT ADJ PD TUBE 10IN DESK POWE DeskManufacturer no. 521812 1Quote Ask for a quote
5B HT ADJ PD TUBE 14IN FULL POWE FullManufacturer no. 521813 1Quote Ask for a quote
6 BHCS 10-32 X 1 1/2 ROHSManufacturer no. 107024 1Quote Ask for a quote
7 7/8" ROUND TUBE PLUGManufacturer no. 560735 1Quote Ask for a quote
8 SHCS 10-32 X 1-1/4 PL Used with Full Length & WaterfallManufacturer no. 108534 1Quote Ask for a quote

Dual Post Armrest (Transfer)

10 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Dual Post Armrest (Transfer)
No.PartQtyPriceAction
1A ARMREST PAD 10" DESKManufacturer no. 561024 1Quote Ask for a quote
1B ARMREST PAD 14" FULLManufacturer no. 561031 1Quote Ask for a quote
2 BHCS 10-32 X 1-3/8 ROHSManufacturer no. 107023 1Quote Ask for a quote
5 EXTENSION ARMPAD FULL DPAManufacturer no. 117958 1Quote Ask for a quote
6 7/8" INSERT PLUG .083Manufacturer no. 561007 1Quote Ask for a quote
7 BHCS 10-32 X 7/8 ROHSManufacturer no. 118182 1Quote Ask for a quote
1A-3 UPPER DP DESK L LeftManufacturer no. 119558 1Quote Ask for a quote
1A-3 UPPER DP DESK R RightManufacturer no. 119559 1Quote Ask for a quote
1B-7 DUAL POST ARM TRANSFER FULL L LeftManufacturer no. 119492 1Quote Ask for a quote
1B-7 DUAL POST ARM TRANSFER FULL R RightManufacturer no. 119493 1Quote Ask for a quote

Dual Post Armrest (Non-Transfer)

10 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Dual Post Armrest (Non-Transfer)
No.PartQtyPriceAction
1A ARMREST PAD 10" DESKManufacturer no. 561024 1Quote Ask for a quote
1B ARMREST PAD 14" FULLManufacturer no. 561031 1Quote Ask for a quote
2 BHCS 10-32 X 1-3/8 ROHSManufacturer no. 107023 1Quote Ask for a quote
1A-3 UPPER DP DESK LManufacturer no. 119558 1Quote Ask for a quote
1A-3 UPPER DP DESK RManufacturer no. 119559 1Quote Ask for a quote
5 EXTENSION ARMPAD FULL DPAManufacturer no. 117958 1Quote Ask for a quote
6 7/8" INSERT PLUG .083Manufacturer no. 561007 1Quote Ask for a quote
7 BHCS 10-32 X 7/8 ROHSManufacturer no. 118182 1Quote Ask for a quote
1B-6 DUAL POST ARM NO-TRANS FULL L LeftManufacturer no. 119488 1Quote Ask for a quote
1B-6 DUAL POST ARM NO-TRANS FULL R RightManufacturer no. 119489 1Quote Ask for a quote

Flip Back Dual Post Transfer Armrest Receiver

9 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Flip Back Dual Post Transfer Armrest Receiver
No.PartQtyPriceAction
2 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
3 HHCS 1/4-28 X 1-1/4 ROHSManufacturer no. 106970 1Quote Ask for a quote
7 HHCS #10-32 X 3/8 PL ROHSManufacturer no. 106953 1Quote Ask for a quote
8 #10 WAHSER INT LOCK ZNManufacturer no. 267340 1Quote Ask for a quote
10 SHCS LOW HD 1/4-28 X 2 ROHSManufacturer no. 118088 1Quote Ask for a quote
13 BHCS 1/4-28 X 2-1/4 SHLDR ROHSManufacturer no. 106966 1Quote Ask for a quote
14 BHCS 1/4-28 X 2-1/2 SHLDR ROHSManufacturer no. 106967 1Quote Ask for a quote
1-8 DP TRANS ARMREST RECVR FRNT L LeftManufacturer no. 119484 1Quote Ask for a quote
1-8 DP TRANS ARMREST RECVR FRNT R RightManufacturer no. 119485 1Quote Ask for a quote

Exploded view, page 147

12 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 147
No.PartQtyPriceAction
2 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
3 HHCS 1/4-28 X 1-1/4 ROHSManufacturer no. 106970 1Quote Ask for a quote
7 HHCS #10-32 X 3/8 PL ROHSManufacturer no. 106953 1Quote Ask for a quote
8 #10 WAHSER INT LOCK ZNManufacturer no. 267340 1Quote Ask for a quote
10 SHCS #10-32 X 3/4 ROHSManufacturer no. 106956 1Quote Ask for a quote
12 BHCS 1/4-28 X 2-1/2 SHLDR ROHSManufacturer no. 106967 1Quote Ask for a quote
13 SHCS LOW HD 1/4-28 X 2 ROHSManufacturer no. 118088 1Quote Ask for a quote
15 BUSHING RECEIVER REAR DPAManufacturer no. 117975 1Quote Ask for a quote
16 BHCS 1/4-28 X 2-1/4 SHLDR ROHSManufacturer no. 106966 1Quote Ask for a quote
1-10 DP NO-TRANS ARM RECVR FRNT L LeftManufacturer no. 119482 1Quote Ask for a quote
1-10 DP NO-TRANS ARM RECVR FRNT R RightManufacturer no. 119483 1Quote Ask for a quote
9-10 PLUNGER KITManufacturer no. 119519 1Quote Ask for a quote

Fixed Dual Post Transfer Armrest Receiver

9 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Fixed Dual Post Transfer Armrest Receiver
No.PartQtyPriceAction
2 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
3 HHCS 1/4-28 X 1-1/4 ROHSManufacturer no. 106970 1Quote Ask for a quote
7 HHCS #10-32 X 3/8 PL ROHSManufacturer no. 106953 1Quote Ask for a quote
8 #10 WAHSER INT LOCK ZNManufacturer no. 267340 1Quote Ask for a quote
10 BHCS 1/4-28 X 2-1/2 SHLDR ROHSManufacturer no. 106967 1Quote Ask for a quote
12 BUSHING RECEIVER REAR DPAManufacturer no. 117975 1Quote Ask for a quote
1-8 DP TRANS ARMREST RECVR FRNT L LeftManufacturer no. 119484 1Quote Ask for a quote
1-8 DP TRANS ARMREST RECVR FRNT R RightManufacturer no. 119485 1Quote Ask for a quote
9-12 FIXED BACK ARM RECIVER REARManufacturer no. 119496 1Quote Ask for a quote

Fixed Dual Post Non Transfer Armrest Receiver

11 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Fixed Dual Post Non Transfer Armrest Receiver
No.PartQtyPriceAction
2 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
3 HHCS 1/4-28 X 1-1/4 ROHSManufacturer no. 106970 1Quote Ask for a quote
7 HHCS #10-32 X 3/8 PL ROHSManufacturer no. 106953 1Quote Ask for a quote
8 #10 WAHSER INT LOCK ZNManufacturer no. 267340 1Quote Ask for a quote
9 PLUNGER ASSYManufacturer no. 118074 1Quote Ask for a quote
10 SHCS #10-32 X 3/4 ROHSManufacturer no. 106956 1Quote Ask for a quote
12 BHCS 1/4-28 X 2-1/2 SHLDR ROHSManufacturer no. 106967 1Quote Ask for a quote
14 BUSHING RECEIVER REAR DPAManufacturer no. 117975 1Quote Ask for a quote
1-10 DP NO-TRANS ARM RECVR FRNT L LeftManufacturer no. 119482 1Quote Ask for a quote
1-10 DP NO-TRANS ARM RECVR FRNT R RightManufacturer no. 119483 1Quote Ask for a quote
11-14 FIXED BACK ARM RECIVER REARManufacturer no. 119496 1Quote Ask for a quote

Single Post Armrest Receiver - Std

5 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Single Post Armrest Receiver - Std
No.PartQtyPriceAction
1 HHCS 1/4 -28 x 1 1/4 ROHSManufacturer no. 106970 1Quote Ask for a quote
2 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
3 CLAMP ARMREST INNERManufacturer no. 111405 1Quote Ask for a quote
4 RECEIVER ARMREST STANDARDManufacturer no. 112422 1Quote Ask for a quote
1-4 RECEIVER ARMREST STANDARD ASSMManufacturer no. 118457 1Quote Ask for a quote

Single Post Armrest Receiver - Low

0 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Hardware.

14 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Hardware.
No.PartQtyPriceAction
1 SHCS M6 X 1 X 25 W/PL INORG MetricManufacturer no. 102263-003 1Quote Ask for a quote
2 WASHER FLAT M6 MetricManufacturer no. 250104 1Quote Ask for a quote
3 BHCS M6 X 1 X 12 FULL PL MetricManufacturer no. 103185-005 1Quote Ask for a quote
4 WASHER FLAT AN 1/4 ROHS Imperial (standard)Manufacturer no. 106943 1Quote Ask for a quote
5 1/4-20 X 1/2 BH C/S W/PATCH Imperial (standard)Manufacturer no. 226154 1Quote Ask for a quote
6 1/4-20 X 1 SOC HD BLK Imperial (standard)Manufacturer no. 221116 1Quote Ask for a quote
7 BHCS M6 X 1 X 12Manufacturer no. 230113 1Quote Ask for a quote
8 LOCKWASHER HIGH COLLAR M6Manufacturer no. 050129-001 1Quote Ask for a quote
9 NUT HEX NYLOCK M6 X 1.0Manufacturer no. 104381 1Quote Ask for a quote
10 WASHER FLAT M6Manufacturer no. 107383 1Quote Ask for a quote
11 HHCS M6 X 1 X 35 BLKManufacturer no. 102268-002 1Quote Ask for a quote
12 PSTN BELT CLAMP ASSM PR Metric; PairManufacturer no. 120750 1Quote Ask for a quote
13 POSITION BELT ATTACHMENT KIT Set of 2; Imperial (standard)Manufacturer no. 900116 1Quote Ask for a quote
14 OVAL CLAMP ASSM KIT Kit contains 1 ClampManufacturer no. 116268 1Quote Ask for a quote

Auto Buckle Positioning Belt & Attachment Kits

15 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Auto Buckle Positioning Belt & Attachment Kits
No.PartQtyPriceAction
1 SHCS M6 X 1 X 25 W/PL INORG MetricManufacturer no. 102263-003 1Quote Ask for a quote
2 WASHER FLAT M6 MetricManufacturer no. 250104 1Quote Ask for a quote
3 BHCS M6 X 1 X 12 FULL PL MetricManufacturer no. 103185-005 1Quote Ask for a quote
4 WASHER FLAT AN 1/4 ROHS Imperial (standard)Manufacturer no. 106943 1Quote Ask for a quote
5 1/4-20 X 1/2 BH C/S W/PATCH Imperial (standard)Manufacturer no. 226154 1Quote Ask for a quote
6 1/4-20 X 1 SOC HD BLK Imperial (standard)Manufacturer no. 221116 1Quote Ask for a quote
7 BHCS M6 X 1 X 12Manufacturer no. 230113 1Quote Ask for a quote
8 LOCKWASHER HIGH COLLAR M6Manufacturer no. 050129-001 1Quote Ask for a quote
9 NUT HEX NYLOCK M6 X 1.0Manufacturer no. 104381 1Quote Ask for a quote
10 WASHER FLAT M6Manufacturer no. 107383 1Quote Ask for a quote
11 HHCS M6 X 1 X 35 BLKManufacturer no. 102268-002 1Quote Ask for a quote
12 PSTN BELT CLAMP ASSM PR Metric; PairManufacturer no. 120750 1Quote Ask for a quote
13 POSITION BELT ATTACHMENT KIT Set of 2; Imperial (standard)Manufacturer no. 900116 1Quote Ask for a quote
14 OVAL CLAMP ASSM KIT Kit contains 1 ClampManufacturer no. 116268 1Quote Ask for a quote
15 POSITIONING BELT CLAMPS PRManufacturer no. 159122 1Quote Ask for a quote

Jay Lower Extremity S/A Support

2 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Jay Lower Extremity S/A Support
No.PartQtyPriceAction
10-13 LATCH RECEIVER KIT for 1 sideManufacturer no. 119514 1Quote Ask for a quote
17 STUMP SUPP FASTENER KIT for 1 sideManufacturer no. 161569 1Quote Ask for a quote

Water Bottle And Cage

4 parts

Exploded view from the manufacturer's parts manual (Parts Manual for SR45). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Water Bottle And Cage
No.PartQtyPriceAction
1 WATER BOTTLE CAGE W/ CLAMP BlackManufacturer no. 252135 1Quote Ask for a quote
2 QUICKIE WATER BOTTLE BlackManufacturer no. 252136 1Quote Ask for a quote
3 ADHESIVE RUBBER PADManufacturer no. 123526 1Quote Ask for a quote
1-3 WATER BOTTLE W/ CAGE AND CLAMPManufacturer no. 163680 1Quote Ask for a quote

Parts manuals for this model

The manufacturer parts lists and exploded diagrams we hold. If you can find the number on one of these, quote it to us and we will match it.

Parts Manual for SR45

Manufacturer parts document, PDF.

Not sure which part you need?

Send us a photo of the part, or of where it sits, and tell us what it is doing. Our order desk identifies parts for this equipment every day, and we would rather ask you one question than ship you the wrong bolt.

Or call 905 451-7743 and describe it to us.

Where to go next

The product page

Specifications, documents and the full product page for the Sunrise Quickie SR45 Tilt Wheelchair.

All replacement parts

Search every part we stock, or browse by the equipment it fits.

Have us fit it

Our technicians service what we sell, in the home and in the showroom.
