Parts finder

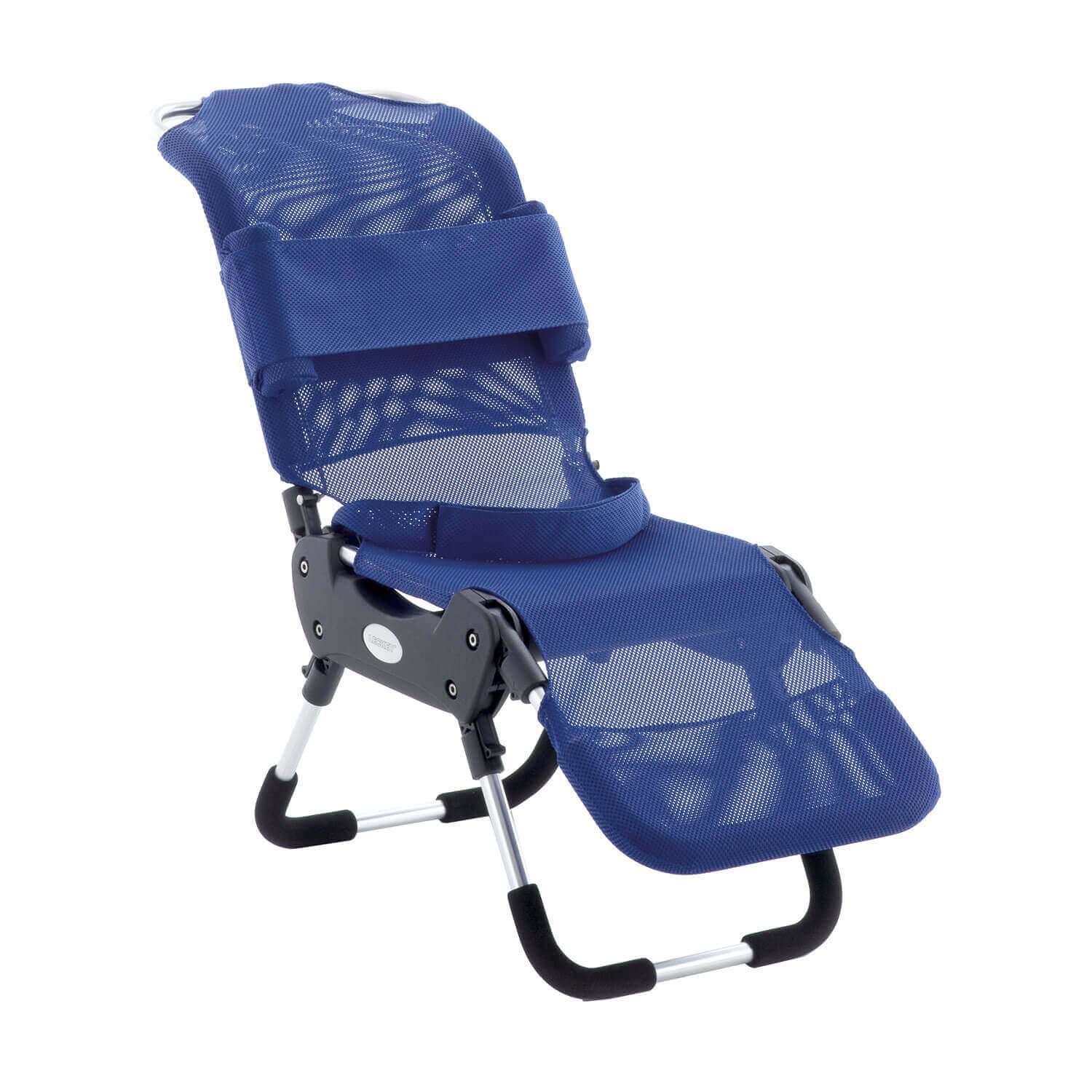

Replacement parts for the Leckey Advance Bath Chair
The exploded view below is numbered. Click a number on the drawing to jump to that part, or search the list. Every price shown is the current online price; anything quoted is priced by our order desk.
Loading the drawing

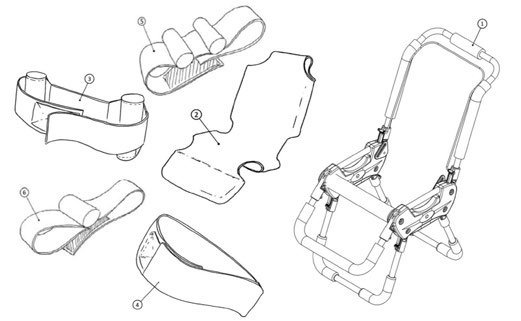

Leckey Advanced Bath Chair: Spare Parts- Covers
6 partsExploded view from the manufacturer's parts manual (Advance Bath Chair Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | Advanced Bath Chair Frame Size 1 1Manufacturer no. LAB/1/FR | 1 | Quote | Ask for a quote |
| 2 | Cover Size 1 1Manufacturer no. LAB/1/D-XX | 1 | Quote | Ask for a quote |
| 3 | Chest Belt 1Manufacturer no. LAB/1/A-XX | 1 | Quote | Ask for a quote |
| 4 | Hip Belt 1Manufacturer no. LAB/1/E-XX | 1 | Quote | Ask for a quote |
| 5 | Head Support All Sizes 1Manufacturer no. LAB/1/C-XX | 1 | Quote | Ask for a quote |
| 6 | Abduction Belt Size 1 & 2 1Manufacturer no. LAB/1/B-XX | 1 | Quote | Ask for a quote |
Exploded view, page 3
1 partExploded view from the manufacturer's parts manual (Advance Bath Chair Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | Calf Support Assembly Size 1 & 2 1Manufacturer no. RAP-4-1958 | 1 | Quote | Ask for a quote |
Leckey Advanced Bath Chair: Backrest Assembly
3 partsExploded view from the manufacturer's parts manual (Advance Bath Chair Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | Backrest Assembly Size 1 1Manufacturer no. RAP-4-1955 | 1 | Quote | Ask for a quote |
| 2 | Back Angle Adjuster Bar Size 1 1Manufacturer no. RAP-4-1039 | 1 | Quote | Ask for a quote |
| 3 | Poppers for Back Angle Adjuster Bar 50Manufacturer no. SI24 | 1 | Quote | Ask for a quote |
Leckey Advanced Bath Chair: Frame Assembly
6 partsExploded view from the manufacturer's parts manual (Advance Bath Chair Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | Backrest Assembly Size 1 1Manufacturer no. RAP-4-1955 | 1 | Quote | Ask for a quote |
| 2 | Side Moulding Assembly Size 1 1Manufacturer no. RAP-4-1956 | 1 | Quote | Ask for a quote |
| 3 | Lower Leg Assembly Size 1 - 4 1Manufacturer no. RAP-4-1900 | 1 | Quote | Ask for a quote |
| 4 | Knee Roll Assembly Size 1 - 4 1Manufacturer no. RAP-4-1957 | 1 | Quote | Ask for a quote |
| 5 | Calf Support Assembly Size 1 & 2 1Manufacturer no. RAP-4-1958 | 1 | Quote | Ask for a quote |
| 6 | Belt Plate Size 1 - 4 1Manufacturer no. RAP-4-1064 | 1 | Quote | Ask for a quote |
Leckey Advanced Bath Chair: Lower Leg Assembly
1 partExploded view from the manufacturer's parts manual (Advance Bath Chair Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | Lower Leg Assembly Size 1 - 4 1Manufacturer no. RAP-4-1900 | 1 | Quote | Ask for a quote |
Exploded view, page 7
1 partExploded view from the manufacturer's parts manual (Advance Bath Chair Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | Side Moulding Assembly Size 1 1Manufacturer no. RAP-4-1956 | 1 | Quote | Ask for a quote |
Parts manuals for this model
The manufacturer parts lists and exploded diagrams we hold. If you can find the number on one of these, quote it to us and we will match it.
Not sure which part you need?
Send us a photo of the part, or of where it sits, and tell us what it is doing. Our order desk identifies parts for this equipment every day, and we would rather ask you one question than ship you the wrong bolt.
