Parts finder

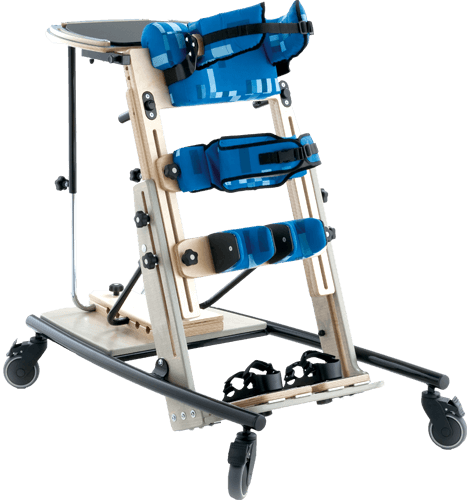

Replacement parts for the Leckey Pronestander
The exploded view below is numbered. Click a number on the drawing to jump to that part, or search the list. Every price shown is the current online price; anything quoted is priced by our order desk.
Loading the drawing
Pronestander Spare Parts - Main Frame
14 partsExploded view from the manufacturer's parts manual (Pronestander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | Angle Support (Size 1) ●Manufacturer no. RAS-4-1963 | 1 | Quote | Ask for a quote |
| 1 | Angle Support (Size 2) ●Manufacturer no. RAS-4-2963 | 1 | Quote | Ask for a quote |
| 1 | Angle Support (Size 3) ●Manufacturer no. RAS-4-3963 | 1 | Quote | Ask for a quote |
| 2 | 4-1035 Tray Lower Tube (Size 1) ●Manufacturer no. RAS- | 1 | Quote | Ask for a quote |
| 2 | Tray Lower Tube (Size 2) ●Manufacturer no. RAS-4-2035 | 1 | Quote | Ask for a quote |
| 2 | Tray Lower Tube (Size 3) ●Manufacturer no. RAS-4-3035 | 1 | Quote | Ask for a quote |
| 3 | Angle Bar (Size 1) ●Manufacturer no. RAS-4-1604 | 1 | Quote | Ask for a quote |
| 3 | Angle Bar (Size 2) ●Manufacturer no. RAS-4-2604 | 1 | Quote | Ask for a quote |
| 3 | Angle Bar (Size 3) ●Manufacturer no. RAS-4-3604 | 1 | Quote | Ask for a quote |
| 4 | Chassis (Size 1) ●Manufacturer no. RAS-4-1964 | 1 | Quote | Ask for a quote |
| 4 | Chassis (Size 2) ●Manufacturer no. RAS-4-2964 | 1 | Quote | Ask for a quote |
| 4 | Chassis (Size 3) ●Manufacturer no. RAS-4-3964 | 1 | Quote | Ask for a quote |
| 5 | 1-1/2" Ribbed Tube Inserts [4 Pack] ● ● ●Manufacturer no. SF56 | 1 | Quote | Ask for a quote |
| 6 | 4'' Castor [Single] ● ● ●Manufacturer no. IA13 | 1 | Quote | Ask for a quote |
Exploded view, page 3
10 partsExploded view from the manufacturer's parts manual (Pronestander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | Chest Pad (Size 1) -MW ●Manufacturer no. RAT-4-1611-XX | 1 | Quote | Ask for a quote |
| 1 | Chest Pad (Size 2) -MB ●Manufacturer no. RAT-4-2611-XX | 1 | Quote | Ask for a quote |
| 1 | Chest Pad (Size 3) -MB ●Manufacturer no. RAS-4-3611-XX | 1 | Quote | Ask for a quote |
| 2 | Inner Frame (Size 1) ●Manufacturer no. RAS-4-1961 | 1 | Quote | Ask for a quote |
| 2 | Inner Frame (Size 2) ●Manufacturer no. RAS-4-2961 | 1 | Quote | Ask for a quote |
| 2 | Inner Frame (Size 3) ●Manufacturer no. RAS-4-3961 | 1 | Quote | Ask for a quote |
| 3 | Flexi Chest Laterals (Size 1) -MW ●Manufacturer no. LPS/1/103-XX | 1 | Quote | Ask for a quote |
| 3 | Flexi Chest Laterals (Size 2) -MB ●Manufacturer no. LPS/2/103-XX | 1 | Quote | Ask for a quote |
| 3 | Flexi Chest Laterals (Size 3) -MB ●Manufacturer no. LPS/3/103-XX | 1 | Quote | Ask for a quote |
| 4 | Chest Fitting [Single] ● ● ●Manufacturer no. 101-1968 | 1 | Quote | Ask for a quote |
Pronestander Spare Parts - Hip Pad & Pelvic Band
7 partsExploded view from the manufacturer's parts manual (Pronestander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | Pelvic Band (Size 1) -MW ●Manufacturer no. LPS/1/B-XX | 1 | Quote | Ask for a quote |
| 1 | Pelvic Band (Size 2) -MB ● ●Manufacturer no. LPS/2/B-XX | 1 | Quote | Ask for a quote |
| 1 | Pelvic Band (Size 3) -MB ● ●Manufacturer no. LPS/3/B-XX | 1 | Quote | Ask for a quote |
| 2 | Hip Pad (Size 1) -MW ●Manufacturer no. RAS-4-1655-XX | 1 | Quote | Ask for a quote |
| 2 | Hip Pad (Size 2) -MB ●Manufacturer no. RAS-4-2655-XX | 1 | Quote | Ask for a quote |
| 2 | Hip Pad (Size 3) -MB ●Manufacturer no. RAS-4-3655-XX | 1 | Quote | Ask for a quote |
| 3 | Plate Fittings [Single] ● ● ●Manufacturer no. RAS-4-1033 | 1 | Quote | Ask for a quote |

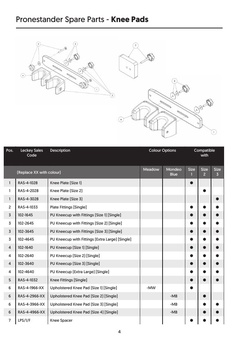

Pronestander Spare Parts - Knee Pads
18 partsExploded view from the manufacturer's parts manual (Pronestander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | Knee Plate (Size 1) ●Manufacturer no. RAS-4-1028 | 1 | Quote | Ask for a quote |
| 1 | Knee Plate (Size 2) ●Manufacturer no. RAS-4-2028 | 1 | Quote | Ask for a quote |
| 1 | Knee Plate (Size 3) ●Manufacturer no. RAS-4-3028 | 1 | Quote | Ask for a quote |
| 2 | Plate Fittings [Single] ● ● ●Manufacturer no. RAS-4-1033 | 1 | Quote | Ask for a quote |
| 3 | PU Kneecup with Fittings (Size 1) [Single] ● ● ●Manufacturer no. 102-1645 | 1 | Quote | Ask for a quote |
| 3 | PU Kneecup with Fittings (Size 2) [Single] ● ● ●Manufacturer no. 102-2645 | 1 | Quote | Ask for a quote |
| 3 | PU Kneecup with Fittings (Size 3) [Single] ● ● ●Manufacturer no. 102-3645 | 1 | Quote | Ask for a quote |
| 3 | PU Kneecup with Fittings (Extra Large) [Single] ● ● ●Manufacturer no. 102-4645 | 1 | Quote | Ask for a quote |
| 4 | PU Kneecup (Size 1) [Single] ● ● ●Manufacturer no. 102-1640 | 1 | Quote | Ask for a quote |
| 4 | PU Kneecup (Size 2) [Single] ● ● ●Manufacturer no. 102-2640 | 1 | Quote | Ask for a quote |
| 4 | PU Kneecup (Size 3) [Single] ● ● ●Manufacturer no. 102-3640 | 1 | Quote | Ask for a quote |
| 4 | PU Kneecup (Extra Large) [Single] ● ● ●Manufacturer no. 102-4640 | 1 | Quote | Ask for a quote |
| 5 | Knee Fittings [Single] ● ● ●Manufacturer no. RAS-4-1032 | 1 | Quote | Ask for a quote |
| 6 | Upholstered Knee Pad (Size 1) [Single] -MW ●Manufacturer no. RAS-4-1966-XX | 1 | Quote | Ask for a quote |
| 6 | Upholstered Knee Pad (Size 2) [Single] -MB ●Manufacturer no. RAS-4-2966-XX | 1 | Quote | Ask for a quote |
| 6 | Upholstered Knee Pad (Size 3) [Single] -MB ● ●Manufacturer no. RAS-4-3966-XX | 1 | Quote | Ask for a quote |
| 6 | Upholstered Knee Pad (Size 4) [Single] -MB ● ●Manufacturer no. RAS-4-4966-XX | 1 | Quote | Ask for a quote |
| 7 | Knee Spacer ● ● ●Manufacturer no. LPS/1/F | 1 | Quote | Ask for a quote |
Pronestander Spare Parts - Footplate & Sandals
15 partsExploded view from the manufacturer's parts manual (Pronestander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | Footplate (Size 1) ●Manufacturer no. RAS-4-1625 | 1 | Quote | Ask for a quote |
| 1 | Footplate (Size 2) ●Manufacturer no. RAS-4-2625 | 1 | Quote | Ask for a quote |
| 1 | Footplate (Size 3) ●Manufacturer no. RAS-4-3625 | 1 | Quote | Ask for a quote |
| 2 | Footplate Fittings [Single] ● ● ●Manufacturer no. RAS-4-1042 | 1 | Quote | Ask for a quote |
| 3 | Footplate Rubber Mat (Size 1/2) [Pair] ● ● ●Manufacturer no. 101-1925 | 1 | Quote | Ask for a quote |
| 4 | Sandal Size 1 ● ● ●Manufacturer no. 152-1600 | 1 | Quote | Ask for a quote |
| 4 | Sandal Size 2 ● ● ●Manufacturer no. 152-2600 | 1 | Quote | Ask for a quote |
| 4 | Sandal Size 3 ● ● ●Manufacturer no. 152-3600 | 1 | Quote | Ask for a quote |
| 5 | Sandal Fittings ● ● ●Manufacturer no. 152-1702 | 1 | Quote | Ask for a quote |
| 6 | Sandal Raiser (Size 1/2) [Single] ● ● ●Manufacturer no. LPS/1/J | 1 | Quote | Ask for a quote |
| 6 | Sandal Raiser (Size 3) [Single] ● ●Manufacturer no. LPS/3/J | 1 | Quote | Ask for a quote |
| 7 | Old Style Sandals (Size 1) [Pair] ● ● ●Manufacturer no. LPS/1/A | 1 | Quote | Ask for a quote |
| 7 | Old Style Sandals (Size 2) [Pair] ● ● ●Manufacturer no. LPS/2/A | 1 | Quote | Ask for a quote |
| 7 | Old Style Sandals (Size 3) [Pair] ● ● ●Manufacturer no. LPS/3/A | 1 | Quote | Ask for a quote |
| 7 | Old Style Sandals (Size 4) [Pair] ● ● ●Manufacturer no. LPS/4/A | 1 | Quote | Ask for a quote |

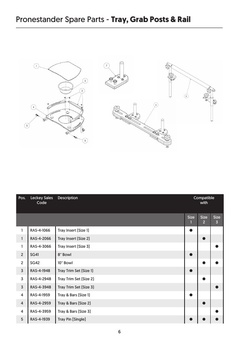

Exploded view, page 7
12 partsExploded view from the manufacturer's parts manual (Pronestander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | Tray Insert (Size 1) ●Manufacturer no. RAS-4-1066 | 1 | Quote | Ask for a quote |
| 1 | Tray Insert (Size 2) ●Manufacturer no. RAS-4-2066 | 1 | Quote | Ask for a quote |
| 1 | Tray Insert (Size 3) ●Manufacturer no. RAS-4-3066 | 1 | Quote | Ask for a quote |
| 2 | 8'' Bowl ●Manufacturer no. SG41 | 1 | Quote | Ask for a quote |
| 2 | 10'' Bowl ● ●Manufacturer no. SG42 | 1 | Quote | Ask for a quote |
| 3 | Tray Trim Set (Size 1) ●Manufacturer no. RAS-4-1948 | 1 | Quote | Ask for a quote |
| 3 | Tray Trim Set (Size 2) ●Manufacturer no. RAS-4-2948 | 1 | Quote | Ask for a quote |
| 3 | Tray Trim Set (Size 3) ●Manufacturer no. RAS-4-3948 | 1 | Quote | Ask for a quote |
| 4 | Tray & Bars (Size 1) ●Manufacturer no. RAS-4-1959 | 1 | Quote | Ask for a quote |
| 4 | Tray & Bars (Size 2) ●Manufacturer no. RAS-4-2959 | 1 | Quote | Ask for a quote |
| 4 | Tray & Bars (Size 3) ●Manufacturer no. RAS-4-3959 | 1 | Quote | Ask for a quote |
| 5 | Tray Pin [Single] ● ● ●Manufacturer no. RAS-4-1939 | 1 | Quote | Ask for a quote |
Parts manuals for this model
The manufacturer parts lists and exploded diagrams we hold. If you can find the number on one of these, quote it to us and we will match it.
Not sure which part you need?
Send us a photo of the part, or of where it sits, and tell us what it is doing. Our order desk identifies parts for this equipment every day, and we would rather ask you one question than ship you the wrong bolt.
