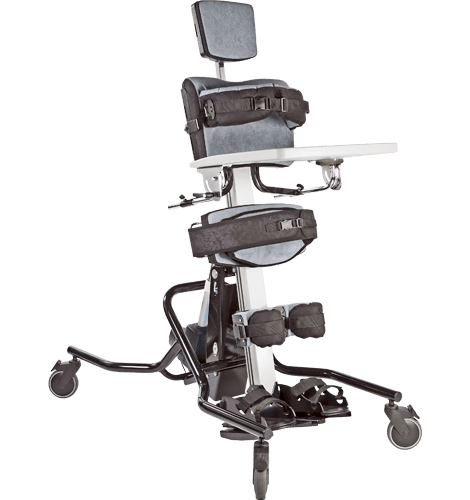

Replacement parts for the Leckey Horizon Stander
The exploded view below is numbered. Click a number on the drawing to jump to that part, or search the list. Every price shown is the current online price; anything quoted is priced by our order desk.
Loading the drawing

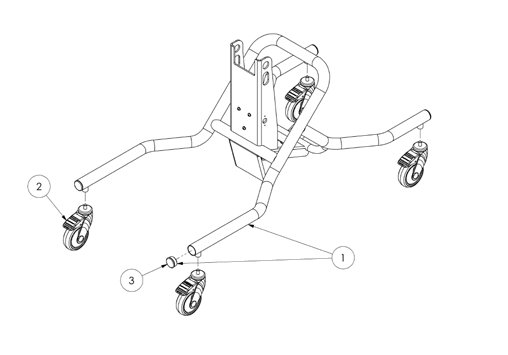

Horizon Spare Parts - Main Frame Assembly
7 partsExploded view from the manufacturer's parts manual (Horizon Stander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 0 | Main Frame - Complete (Size 1) 1 ●Manufacturer no. 101-1635 | 1 | Quote | Ask for a quote |
| 0 | Main Frame - Complete (Size 2/3) 1 ● ●Manufacturer no. 101-3635 | 1 | Quote | Ask for a quote |
| 1 | Chassis 1 ●Manufacturer no. 101-1956 | 1 | Quote | Ask for a quote |
| 1 | Chassis 1 ● ●Manufacturer no. 101-2956 | 1 | Quote | Ask for a quote |
| 2 | Tente Castor (4") [Single] 1 ●Manufacturer no. IA13 | 1 | Quote | Ask for a quote |
| 2 | Tente Castor (5") [Single] 1 ● ●Manufacturer no. IA31 | 1 | Quote | Ask for a quote |
| 3 | 1-1/2" Ribbed Tube Inserts [4 Pack] 1 ● ● ●Manufacturer no. SF56 | 1 | Quote | Ask for a quote |
Horizon Spare Parts - Head Support Assembly
16 partsExploded view from the manufacturer's parts manual (Horizon Stander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 0 | Head Support Complete (Size 1) ● ● ●Manufacturer no. LHZ/1/169-XX | 1 | Quote | Ask for a quote |
| 0 | Head Support Complete (Size 2) ● ● ●Manufacturer no. LHZ/2/169-XX | 1 | Quote | Ask for a quote |
| 0 | Head Support Complete (Size 3) ● ● ●Manufacturer no. LHZ/3/169-XX | 1 | Quote | Ask for a quote |
| 1 | Supine Head Support Pad (Size 1) ● ●Manufacturer no. 101-1957-XX | 1 | Quote | Ask for a quote |
| 1 | Supine Head Support Pad (Size 2/3) ● ●Manufacturer no. 101-2957-XX | 1 | Quote | Ask for a quote |
| 2 | Head Support (Size 1) ●Manufacturer no. 101-1654-XX | 1 | Quote | Ask for a quote |
| 2 | Head Support (Size 2/3) ● ●Manufacturer no. 101-2654-XX | 1 | Quote | Ask for a quote |
| 3 | Head Support Standard Bracket [Pair] ● ● ●Manufacturer no. 101-1958 | 1 | Quote | Ask for a quote |
| 3 | Head Support Bracket Extension 4" [Pair] ● ● ●Manufacturer no. 101-1959 | 1 | Quote | Ask for a quote |
| 4 | Head Support Cladding (Size 1) ●Manufacturer no. 101-1100 | 1 | Quote | Ask for a quote |
| 4 | Head Support Cladding (Size 2/3) ● ●Manufacturer no. 101-2100 | 1 | Quote | Ask for a quote |
| 5 | Head Support and Tube Insert ● ● ●Manufacturer no. 101-1960 | 1 | Quote | Ask for a quote |
| 6 | 1" x 1" Sq Ribbed Insert [Single] ● ● ●Manufacturer no. SF61 | 1 | Quote | Ask for a quote |
| 7 | Head Support Attachment Kit ● ● ●Manufacturer no. 101-1961 | 1 | Quote | Ask for a quote |
| 8 | Head Support Laterals [Pair] ● ● ●Manufacturer no. 101-1912-XX | 1 | Quote | Ask for a quote |
| 9 | Head Support Laterals Fittings ● ●Manufacturer no. 101-1962 | 1 | Quote | Ask for a quote |
Horizon Spare Parts - Outer Spine Assembly
7 partsExploded view from the manufacturer's parts manual (Horizon Stander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | Outer Extrusion (Size 1) ●Manufacturer no. 101-1676 | 1 | Quote | Ask for a quote |
| 1 | Outer Extrusion (Size 2) ●Manufacturer no. 101-2676 | 1 | Quote | Ask for a quote |
| 1 | Outer Extrusion (Size 3) ●Manufacturer no. 101-3676 | 1 | Quote | Ask for a quote |
| 2 | Actuator Attachment ● ● ●Manufacturer no. 101-1630 | 1 | Quote | Ask for a quote |
| 3 | Outer Spine Fittings ● ● ●Manufacturer no. 101-1963 | 1 | Quote | Ask for a quote |
| 4 | Inner Locking Plate ● ● ●Manufacturer no. 101-2149 | 1 | Quote | Ask for a quote |
| 5 | Outer Spine Bottom Fixings ● ● ●Manufacturer no. 101-1978 | 1 | Quote | Ask for a quote |

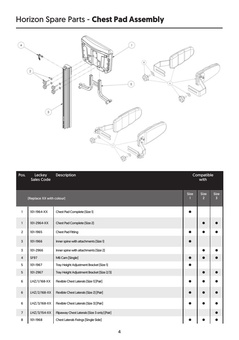

Horizon Spare Parts - Chest Pad Assembly
13 partsExploded view from the manufacturer's parts manual (Horizon Stander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | Chest Pad Complete (Size 1) ●Manufacturer no. 101-1964-XX | 1 | Quote | Ask for a quote |
| 1 | Chest Pad Complete (Size 2) ● ●Manufacturer no. 101-2964-XX | 1 | Quote | Ask for a quote |
| 2 | Chest Pad Fitting ● ● ●Manufacturer no. 101-1965 | 1 | Quote | Ask for a quote |
| 3 | Inner spine with attachments (Size 1) ●Manufacturer no. 101-1966 | 1 | Quote | Ask for a quote |
| 3 | Inner spine with attachments (Size 2) ● ●Manufacturer no. 101-2966 | 1 | Quote | Ask for a quote |
| 4 | M6 Cam [Single] ● ● ●Manufacturer no. SF97 | 1 | Quote | Ask for a quote |
| 5 | Tray Height Adjustment Bracket (Size 1) ●Manufacturer no. 101-1967 | 1 | Quote | Ask for a quote |
| 5 | Tray Height Adjustment Bracket (Size 2/3) ● ●Manufacturer no. 101-2967 | 1 | Quote | Ask for a quote |
| 6 | Flexible Chest Laterals (Size 1) [Pair] ● ● ●Manufacturer no. LHZ/1/168-XX | 1 | Quote | Ask for a quote |
| 6 | Flexible Chest Laterals (Size 2) [Pair] ● ● ●Manufacturer no. LHZ/2/168-XX | 1 | Quote | Ask for a quote |
| 6 | Flexible Chest Laterals (Size 3) [Pair] ● ● ●Manufacturer no. LHZ/3/168-XX | 1 | Quote | Ask for a quote |
| 7 | Flipaway Chest Laterals (Size 3 only) [Pair] ●Manufacturer no. LHZ/3/154-XX | 1 | Quote | Ask for a quote |
| 8 | Chest Laterals Fixings [Single Side] ● ● ●Manufacturer no. 101-1968 | 1 | Quote | Ask for a quote |
Horizon Spare Parts - Knee Support Assembly
15 partsExploded view from the manufacturer's parts manual (Horizon Stander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 0 | Knee Support - Standard (Size 1) [Pair] ● ● ●Manufacturer no. LHZ/1/167-XX | 1 | Quote | Ask for a quote |
| 0 | Knee Support - Standard (Size 2) [Pair] ● ● ●Manufacturer no. LHZ/2/167-XX | 1 | Quote | Ask for a quote |
| 0 | Knee Support - Medium (Size 1) [Pair] ● ● ●Manufacturer no. LHZ/1/183-XX | 1 | Quote | Ask for a quote |
| 0 | Knee Support - Medium (Size 2) [Pair] ● ● ●Manufacturer no. LHZ/2/183-XX | 1 | Quote | Ask for a quote |
| 0 | Knee Support - Long (Size 1) [Pair] ● ● ●Manufacturer no. LHZ/1/184-XX | 1 | Quote | Ask for a quote |
| 0 | Knee Support - Long (Size 2) [Pair] ● ● ●Manufacturer no. LHZ/2/184-XX | 1 | Quote | Ask for a quote |
| 1 | Front knee supports (Size 1) ● ● ●Manufacturer no. 101-1640-XX | 1 | Quote | Ask for a quote |
| 1 | Front knee supports (Size 2/3 & 4) ● ● ●Manufacturer no. 101-2640-XX | 1 | Quote | Ask for a quote |
| 2 | Knee bracket (Size 1) ● ● ●Manufacturer no. 101-1972-XX | 1 | Quote | Ask for a quote |
| 2 | Knee bracket (Size 2/3) ● ● ●Manufacturer no. 101-2972-XX | 1 | Quote | Ask for a quote |
| 2 | Knee bracket (Size 4) ● ● ●Manufacturer no. 101-4972-XX | 1 | Quote | Ask for a quote |
| 3 | Knee adjustment bracket (Standard) ● ● ●Manufacturer no. 101-2226 | 1 | Quote | Ask for a quote |
| 3 | Knee adjustment bracket (Medium) ● ● ●Manufacturer no. 101-2227 | 1 | Quote | Ask for a quote |
| 3 | Knee adjustment bracket (Long) ● ● ●Manufacturer no. 101-2228 | 1 | Quote | Ask for a quote |
| 4 | Knee Bracket Fitting [Single] ● ● ●Manufacturer no. 101-1973 | 1 | Quote | Ask for a quote |
Horizon Spare Parts - Footplates and Sandal
10 partsExploded view from the manufacturer's parts manual (Horizon Stander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 1 | Sandals with Straps (Size 1) [Pair] ● ● ●Manufacturer no. LHZ/1/100 | 1 | Quote | Ask for a quote |
| 1 | Sandals with Straps (Size 2) [Pair] ● ● ●Manufacturer no. LHZ/2/100 | 1 | Quote | Ask for a quote |
| 1 | Sandals with Straps (Size 3) [Pair] ● ● ●Manufacturer no. LHZ/3/100 | 1 | Quote | Ask for a quote |
| 1 | Sandals with Straps (Size 4) [Pair] ● ● ●Manufacturer no. LHZ/4/100 | 1 | Quote | Ask for a quote |
| 2 | Standard Footplate Complete (Size 1) [Pair] ● ● ●Manufacturer no. 101-1675 | 1 | Quote | Ask for a quote |
| 2 | Standard Footplate Complete (Size 2/3) [Pair] ● ●Manufacturer no. 101-2675 | 1 | Quote | Ask for a quote |
| 2 | Flip up Footplate Complete (Size 1) [Pair] ● ● ●Manufacturer no. LHZ/1/161 | 1 | Quote | Ask for a quote |
| 2 | Flip up Footplate Complete (Size 2/3) [Pair] ● ● ●Manufacturer no. LHZ/2/161 | 1 | Quote | Ask for a quote |
| 3 | Footplate Rubber Mat (Size 1/2) [Pair] ● ● ●Manufacturer no. 101-1925 | 1 | Quote | Ask for a quote |
| 4 | Slider Fixings [Pair] ● ● ●Manufacturer no. 101-1979 | 1 | Quote | Ask for a quote |
Exploded view, page 9
7 partsExploded view from the manufacturer's parts manual (Horizon Stander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 0 | Prone Tray Full Assembly (Size 1) ●Manufacturer no. LHZ/1/158 | 1 | Quote | Ask for a quote |
| 0 | Prone Tray Full Assembly (Size 2) ● ●Manufacturer no. LHZ/2/158 | 1 | Quote | Ask for a quote |
| 2 | Plastic Tray (Size 1) ●Manufacturer no. 102-2744 | 1 | Quote | Ask for a quote |
| 2 | Plastic Tray (Size 2/3) ● ●Manufacturer no. 102-3744 | 1 | Quote | Ask for a quote |
| 3 | Prone Tray Attachment Assembly (Size 1) ●Manufacturer no. 101-1974 | 1 | Quote | Ask for a quote |
| 3 | Prone Tray Attachment Assembly (Size 2/3) ● ●Manufacturer no. 101-2974 | 1 | Quote | Ask for a quote |
| 4 | Tray Handle [Single] ● ● ●Manufacturer no. 101-1980 | 1 | Quote | Ask for a quote |
Horizon Spare Parts - Supine Tray Assembly
12 partsExploded view from the manufacturer's parts manual (Horizon Stander Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.
| No. | Part | Qty | Price | Action |
|---|---|---|---|---|
| 0 | Supine Tray Full Assembly - Plastic (Size 1) 1 ●Manufacturer no. LHZ/1/143 | 1 | Quote | Ask for a quote |
| 0 | Supine Tray Full Assembly - Plastic (Size 2) 1 ● ●Manufacturer no. LHZ/2/143 | 1 | Quote | Ask for a quote |
| 0 | Supine Tray Full Assembly - Wooden (Size 3) 1 ● ●Manufacturer no. LHZ/3/143 | 1 | Quote | Ask for a quote |
| 1 | Plastic Tray (Size 1) 1 ●Manufacturer no. 102-2744 | 1 | Quote | Ask for a quote |
| 1 | Plastic Tray (Size 2/3) 1 ● ●Manufacturer no. 102-3744 | 1 | Quote | Ask for a quote |
| 1 | Wooden Supine Tray (Size 3) 1 ●Manufacturer no. 101-3105 | 1 | Quote | Ask for a quote |
| 2 | Supine Tray Attachment Assembly (LHS) (Size 1) 1 ●Manufacturer no. 101-1975 | 1 | Quote | Ask for a quote |
| 2 | Supine Tray Attachment Assembly (LHS) (Size 2) 1 ● ●Manufacturer no. 101-2975 | 1 | Quote | Ask for a quote |
| 3 | Supine Tray Attachment Assembly (RHS) (Size 1) 1 ●Manufacturer no. 101-1976 | 1 | Quote | Ask for a quote |
| 3 | Supine Tray Attachment Assembly (RHS) (Size 2) 1 ● ●Manufacturer no. 101-2976 | 1 | Quote | Ask for a quote |
| 4 | Tray Handle [Single] 1 ● ● ●Manufacturer no. 101-1980 | 1 | Quote | Ask for a quote |
| 5 | 3/4" Dia Ribbed Tube Insert [Single] 2 ● ● ●Manufacturer no. SF52 | 1 | Quote | Ask for a quote |
Parts manuals for this model
The manufacturer parts lists and exploded diagrams we hold. If you can find the number on one of these, quote it to us and we will match it.
