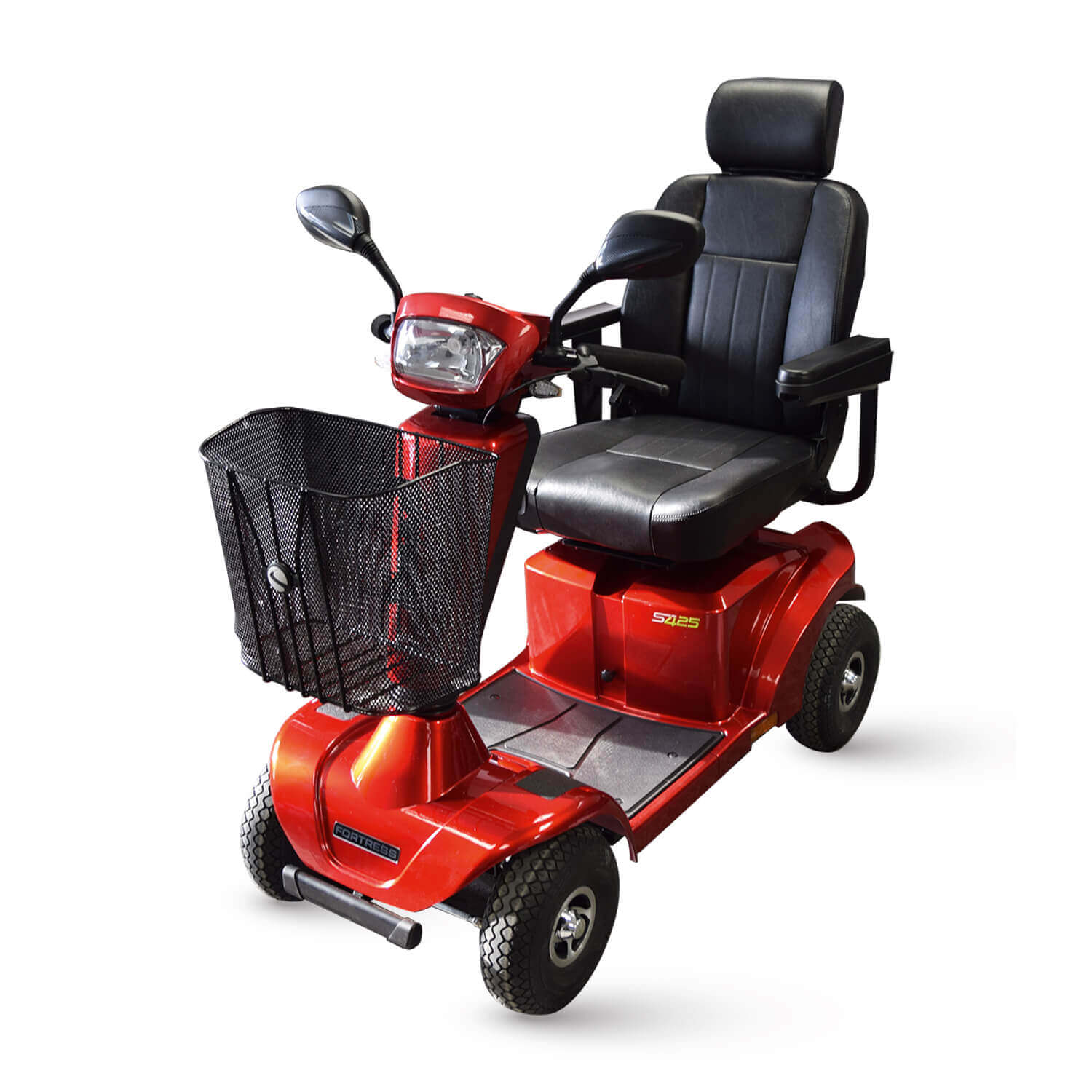

Fortress s425 Mobility Scooter

Parts finder

Replacement parts for the Fortress s425 Mobility Scooter

The exploded view below is numbered. Click a number on the drawing to jump to that part, or search the list. Every price shown is the current online price; anything quoted is priced by our order desk.

Ask about a part Product page 77 parts listed

Showing all 77 parts

1 of 32
Exploded view of the S425 S700 Lights And Indicators

Loading the drawing

S425 S700 Lights And Indicators. Numbers match the list.
S425 Shrouds. Numbers match the list.
S425 S700 Tiller Panels. Numbers match the list.
S425 S700 Pod Moldings. Numbers match the list.
S425 S700 Tiller. Numbers match the list.
4 HC-14751010 Bracket Basket Support 1. Numbers match the list.
S425 Chassis. Numbers match the list.
S700 Chassis. Numbers match the list.
Bumpers. Numbers match the list.
S425 Steering. Numbers match the list.
S700 Steering. Numbers match the list.
S425 Suspension. Numbers match the list.
S700 Suspension. Numbers match the list.
S425 Batteries. Numbers match the list.
S700 Batteries. Numbers match the list.
S700 Controller. Numbers match the list.
Battery Charger. Numbers match the list.
S425 S700 Display. Numbers match the list.
S425 S700 Potentiometer. Numbers match the list.
S425 S700 Sockets, Keys And Potentiometer. Numbers match the list.
S425 S700 Looms. Numbers match the list.
S700 Motor. Numbers match the list.
S425 Disc Brake. Numbers match the list.
S700 Disc Brake. Numbers match the list.
S425 S700 Seat. Numbers match the list.
S425 S700 Seat Accessories. Numbers match the list.
S425 Wheels. Numbers match the list.
S700 Wheels. Numbers match the list.
S425 Decals. Numbers match the list.
S700 Decals. Numbers match the list.
Common Accessories. Numbers match the list.
S700 Accessories. Numbers match the list.

S425 S700 Lights And Indicators

2 parts

Exploded view from the manufacturer's parts manual (Fortress S425 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in S425 S700 Lights And Indicators
No.PartQtyPriceAction
1 Head Light Plus HardwareManufacturer no. 22219001 1Quote Ask for a quote
5 LED Bulb and Holder Including LoomManufacturer no. 22211041 1Quote Ask for a quote

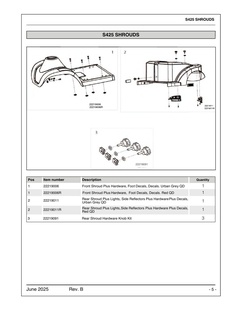

S425 Shrouds

5 parts

Exploded view from the manufacturer's parts manual (Fortress S425 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in S425 Shrouds
No.PartQtyPriceAction
1 Front Shroud Plus Hardware, Foot Decals, Decals. Urban Grey QDManufacturer no. 22219006 1Quote Ask for a quote
2 Rear Shroud Plus Lights, Side Reflectors Plus HardwarePlus Decals,Manufacturer no. 22219011 1Quote Ask for a quote
3 Rear Shroud Hardware Knob KitManufacturer no. 22219091 1Quote Ask for a quote
2 Rear Shroud Plus Lights,Side Reflectors Plus Hardware Plus Decals,Manufacturer no. 22219011R 1Quote Ask for a quote
1 FronManufacturer no. 22219006R 1Quote Ask for a quote

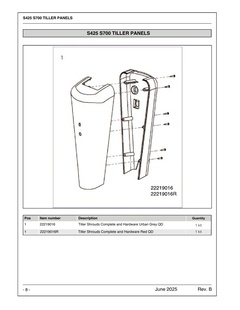

S425 S700 Tiller Panels

1 part

Exploded view from the manufacturer's parts manual (Fortress S425 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in S425 S700 Tiller Panels
No.PartQtyPriceAction
1 Tiller Shrouds Complete and Hardware Urban Grey QDManufacturer no. 22219016 1Quote Ask for a quote

S425 S700 Pod Moldings

2 parts

Exploded view from the manufacturer's parts manual (Fortress S425 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in S425 S700 Pod Moldings
No.PartQtyPriceAction
1 Headlight Shroud and Hardware Urban Grey QDManufacturer no. 22219120 1Quote Ask for a quote
2 Lower Pod and Hardware Urban Grey QDManufacturer no. 22219124 1Quote Ask for a quote

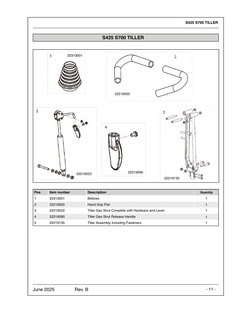

S425 S700 Tiller

5 parts

Exploded view from the manufacturer's parts manual (Fortress S425 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in S425 S700 Tiller
No.PartQtyPriceAction
1 BellowsManufacturer no. 22313001 1Quote Ask for a quote
2 Hand Grip PairManufacturer no. 22219020 1Quote Ask for a quote
3 Tiller Gas Strut Complete with Hardware and LeverManufacturer no. 22219022 1Quote Ask for a quote
4 Tiller Gas Strut Release HandleManufacturer no. 22219090 1Quote Ask for a quote
5 Tiller Assembly Including FastenersManufacturer no. 22219135 1Quote Ask for a quote

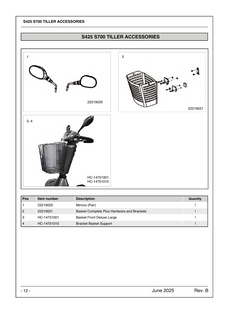

4 HC-14751010 Bracket Basket Support 1

3 parts

Exploded view from the manufacturer's parts manual (Fortress S425 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 4 HC-14751010 Bracket Basket Support 1
No.PartQtyPriceAction
4 Bracket Basket Support 1Manufacturer no. HC-14751010 1Quote Ask for a quote
1 Mirrors (Pair)Manufacturer no. 22219025 1Quote Ask for a quote
2 Basket Complete Plus Hardware and BracketsManufacturer no. 22219021 1Quote Ask for a quote

S425 Chassis

2 parts

Exploded view from the manufacturer's parts manual (Fortress S425 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in S425 Chassis
No.PartQtyPriceAction
1 Front Chassis S425Manufacturer no. 22201026 1Quote Ask for a quote
2 Rear Chassis S425Manufacturer no. 22201057 1Quote Ask for a quote

S700 Chassis

2 parts

Exploded view from the manufacturer's parts manual (Fortress S425 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in S700 Chassis
No.PartQtyPriceAction
1 Front Chassis S700Manufacturer no. 22301001 1Quote Ask for a quote
2 Rear Chassis S700Manufacturer no. 22301035 1Quote Ask for a quote

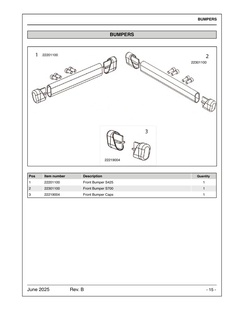

Bumpers

2 parts

Exploded view from the manufacturer's parts manual (Fortress S425 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Bumpers
No.PartQtyPriceAction
2 Front Bumper S700Manufacturer no. 22301100 1Quote Ask for a quote
3 Front Bumper CapsManufacturer no. 22219004 1Quote Ask for a quote

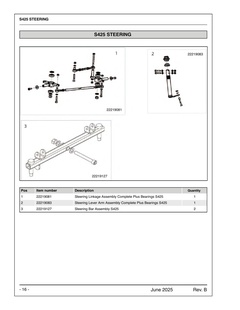

S425 Steering

3 parts

Exploded view from the manufacturer's parts manual (Fortress S425 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in S425 Steering
No.PartQtyPriceAction
1 Steering Linkage Assembly Complete Plus Bearings S425Manufacturer no. 22219081 1Quote Ask for a quote
2 Steering Lever Arm Assembly Complete Plus Bearings S425Manufacturer no. 22219083 1Quote Ask for a quote
3 Steering Bar Assembly S425Manufacturer no. 22219127 1Quote Ask for a quote

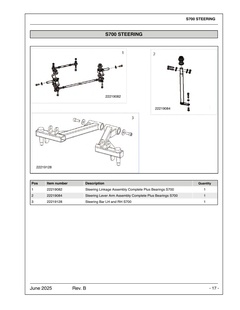

S700 Steering

3 parts

Exploded view from the manufacturer's parts manual (Fortress S425 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in S700 Steering
No.PartQtyPriceAction
1 Steering Linkage Assembly Complete Plus Bearings S700Manufacturer no. 22219082 1Quote Ask for a quote
2 Steering Lever Arm Assembly Complete Plus Bearings S700Manufacturer no. 22219084 1Quote Ask for a quote
3 Steering Bar LH and RH S700Manufacturer no. 22219128 1Quote Ask for a quote

S425 Suspension

1 part

Exploded view from the manufacturer's parts manual (Fortress S425 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in S425 Suspension
No.PartQtyPriceAction
1 Front & Rear Shock Plus Hardware S425Manufacturer no. 22219023 1Quote Ask for a quote

S700 Suspension

1 part

Exploded view from the manufacturer's parts manual (Fortress S425 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in S700 Suspension
No.PartQtyPriceAction
1 Front & Rear Shock Plus Hardware S700Manufacturer no. 22219024 1Quote Ask for a quote

S425 Batteries

0 parts

Exploded view from the manufacturer's parts manual (Fortress S425 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

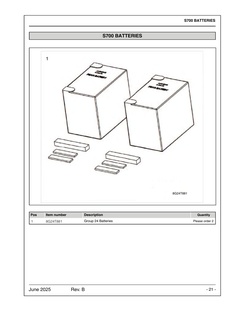

S700 Batteries

0 parts

Exploded view from the manufacturer's parts manual (Fortress S425 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

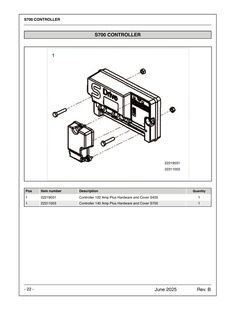

S700 Controller

1 part

Exploded view from the manufacturer's parts manual (Fortress S425 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in S700 Controller
No.PartQtyPriceAction
1 Controller 120 Amp Plus Hardware and Cover S425Manufacturer no. 22219031 1Quote Ask for a quote

Battery Charger

2 parts

Exploded view from the manufacturer's parts manual (Fortress S425 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Battery Charger
No.PartQtyPriceAction
1 Charger 8 Amp S425 S700Manufacturer no. 22219137 1Quote Ask for a quote
2 CAN Plug NEMA 3 ProngManufacturer no. 22219145 1Quote Ask for a quote

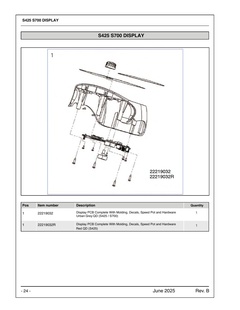

S425 S700 Display

0 parts

Exploded view from the manufacturer's parts manual (Fortress S425 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

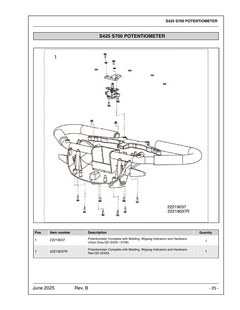

S425 S700 Potentiometer

1 part

Exploded view from the manufacturer's parts manual (Fortress S425 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in S425 S700 Potentiometer
No.PartQtyPriceAction
1 Potentiometer Complete with Molding, Wigwag Indicators and HardwareManufacturer no. 22219037 1Quote Ask for a quote

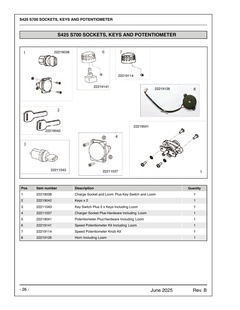

S425 S700 Sockets, Keys And Potentiometer

8 parts

Exploded view from the manufacturer's parts manual (Fortress S425 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in S425 S700 Sockets, Keys And Potentiometer
No.PartQtyPriceAction
1 Charge Socket and Loom Plus Key Switch and LoomManufacturer no. 22219038 1Quote Ask for a quote
2 Keys x 2Manufacturer no. 22219042 1Quote Ask for a quote
3 Key Switch Plus 2 x Keys Including LoomManufacturer no. 22211043 1Quote Ask for a quote
4 Charger Socket Plus Hardware Including LoomManufacturer no. 22211037 1Quote Ask for a quote
5 Potentiometer Plus Hardware Including LoomManufacturer no. 22219041 1Quote Ask for a quote
6 Speed Potentiometer Kit Including LoomManufacturer no. 22219141 1Quote Ask for a quote
7 Speed Potentiometer Knob KitManufacturer no. 22219114 1Quote Ask for a quote
8 Horn Including LoomManufacturer no. 22219126 1Quote Ask for a quote

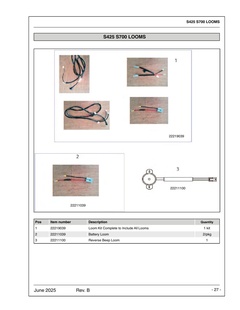

S425 S700 Looms

2 parts

Exploded view from the manufacturer's parts manual (Fortress S425 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in S425 S700 Looms
No.PartQtyPriceAction
1 Loom Kit Complete to Include All LoomsManufacturer no. 22219039 1Quote Ask for a quote
2 Battery Loom 2/pkgManufacturer no. 22211039 1Quote Ask for a quote

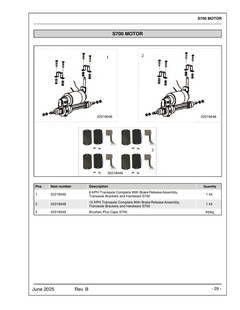

S700 Motor

1 part

Exploded view from the manufacturer's parts manual (Fortress S425 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in S700 Motor
No.PartQtyPriceAction
2 15 KPH Transaxle Complete With Brake Release Assembly,Manufacturer no. 22219048 1Quote Ask for a quote

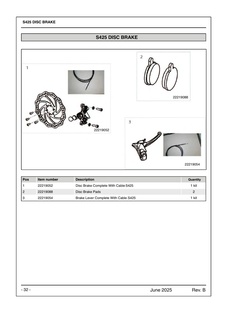

S425 Disc Brake

3 parts

Exploded view from the manufacturer's parts manual (Fortress S425 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in S425 Disc Brake
No.PartQtyPriceAction
1 Disc Brake Complete With Cable S425Manufacturer no. 22219052 1Quote Ask for a quote
2 Disc Brake PadsManufacturer no. 22219088 1Quote Ask for a quote
3 Brake Lever Complete With Cable S425Manufacturer no. 22219054 1Quote Ask for a quote

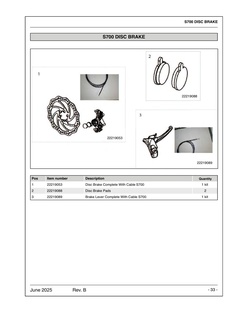

S700 Disc Brake

3 parts

Exploded view from the manufacturer's parts manual (Fortress S425 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in S700 Disc Brake
No.PartQtyPriceAction
1 Disc Brake Complete With Cable S700Manufacturer no. 22219053 1Quote Ask for a quote
2 Disc Brake PadsManufacturer no. 22219088 1Quote Ask for a quote
3 Brake Lever Complete With Cable S700Manufacturer no. 22219089 1Quote Ask for a quote

S425 S700 Seat

1 part

Exploded view from the manufacturer's parts manual (Fortress S425 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in S425 S700 Seat
No.PartQtyPriceAction
1 Seat Plate Complete With Seat Post and HardwareManufacturer no. 22219055 1Quote Ask for a quote

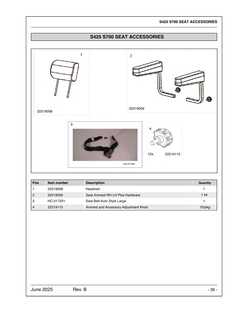

S425 S700 Seat Accessories

4 parts

Exploded view from the manufacturer's parts manual (Fortress S425 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in S425 S700 Seat Accessories
No.PartQtyPriceAction
1 HeadrestManufacturer no. 22219058 1Quote Ask for a quote
2 Seat Armrest RH LH Plus HardwareManufacturer no. 22219059 1Quote Ask for a quote
3 Seat Belt-Auto Style LargeManufacturer no. HC-017201 1Quote Ask for a quote
4 Armrest and Accessory Adjustment Knob 10/pkgManufacturer no. 22219115 1Quote Ask for a quote

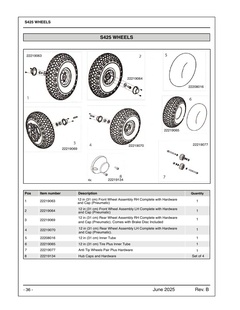

S425 Wheels

6 parts

Exploded view from the manufacturer's parts manual (Fortress S425 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in S425 Wheels
No.PartQtyPriceAction
2 12 in (31 cm) Front Wheel Assembly LH Complete with HardwareManufacturer no. 22219064 1Quote Ask for a quote
3 Comes with Brake Disc IncludedManufacturer no. 22219069 1Quote Ask for a quote
5 12 in (31 cm) Inner TubeManufacturer no. 22208016 1Quote Ask for a quote
6 12 in (31 cm) Tire Plus Inner TubeManufacturer no. 22219065 1Quote Ask for a quote
7 Anti Tip Wheels Pair Plus HardwareManufacturer no. 22219077 1Quote Ask for a quote
8 Hub Caps and Hardware Set of 4Manufacturer no. 22219134 1Quote Ask for a quote

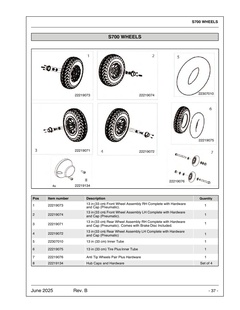

S700 Wheels

4 parts

Exploded view from the manufacturer's parts manual (Fortress S425 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in S700 Wheels
No.PartQtyPriceAction
5 13 in (33 cm) Inner TubeManufacturer no. 22307010 1Quote Ask for a quote
6 13 in (33 cm) Tire Plus Inner TubeManufacturer no. 22219075 1Quote Ask for a quote
7 Anti Tip Wheels Pair Plus HardwareManufacturer no. 22219076 1Quote Ask for a quote
8 Hub Caps and Hardware Set of 4Manufacturer no. 22219134 1Quote Ask for a quote

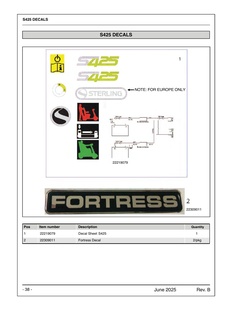

S425 Decals

2 parts

Exploded view from the manufacturer's parts manual (Fortress S425 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in S425 Decals
No.PartQtyPriceAction
1 Decal Sheet S425Manufacturer no. 22219079 1Quote Ask for a quote
2 Fortress DecalManufacturer no. 22309011 1Quote Ask for a quote

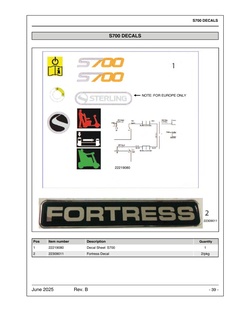

S700 Decals

2 parts

Exploded view from the manufacturer's parts manual (Fortress S425 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in S700 Decals
No.PartQtyPriceAction
1 Decal Sheet S700Manufacturer no. 22219080 1Quote Ask for a quote
2 Fortress Decal 2/pkgManufacturer no. 22309011 1Quote Ask for a quote

Common Accessories

4 parts

Exploded view from the manufacturer's parts manual (Fortress S425 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Common Accessories
No.PartQtyPriceAction
1 Crutch/Walking Stick Holder (Rear Bumper Mount)Manufacturer no. 22219095 1Quote Ask for a quote
2 Crutch/Walking Stick Holder (Rear Seat Mount)Manufacturer no. 22219094 1Quote Ask for a quote
3 Storage Bag (Seat Back Mount)Manufacturer no. 22219092 1Quote Ask for a quote
4 Wheelchair/Walker Holder (Seat Mount)Manufacturer no. 22219096 1Quote Ask for a quote

S700 Accessories

1 part

Exploded view from the manufacturer's parts manual (Fortress S425 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in S700 Accessories
No.PartQtyPriceAction
1 Solid Tire Kit (set of 4) 4/pkgManufacturer no. 22219102 1Quote Ask for a quote

Parts manuals for this model

The manufacturer parts lists and exploded diagrams we hold. If you can find the number on one of these, quote it to us and we will match it.

Fortress S425 Parts Manual

Manufacturer parts document, PDF.

Not sure which part you need?

Send us a photo of the part, or of where it sits, and tell us what it is doing. Our order desk identifies parts for this equipment every day, and we would rather ask you one question than ship you the wrong bolt.

Or call 905 451-7743 and describe it to us.

Where to go next

The product page

Specifications, documents and the full product page for the Fortress s425 Mobility Scooter.

All replacement parts

Search every part we stock, or browse by the equipment it fits.

Have us fit it

Our technicians service what we sell, in the home and in the showroom.
