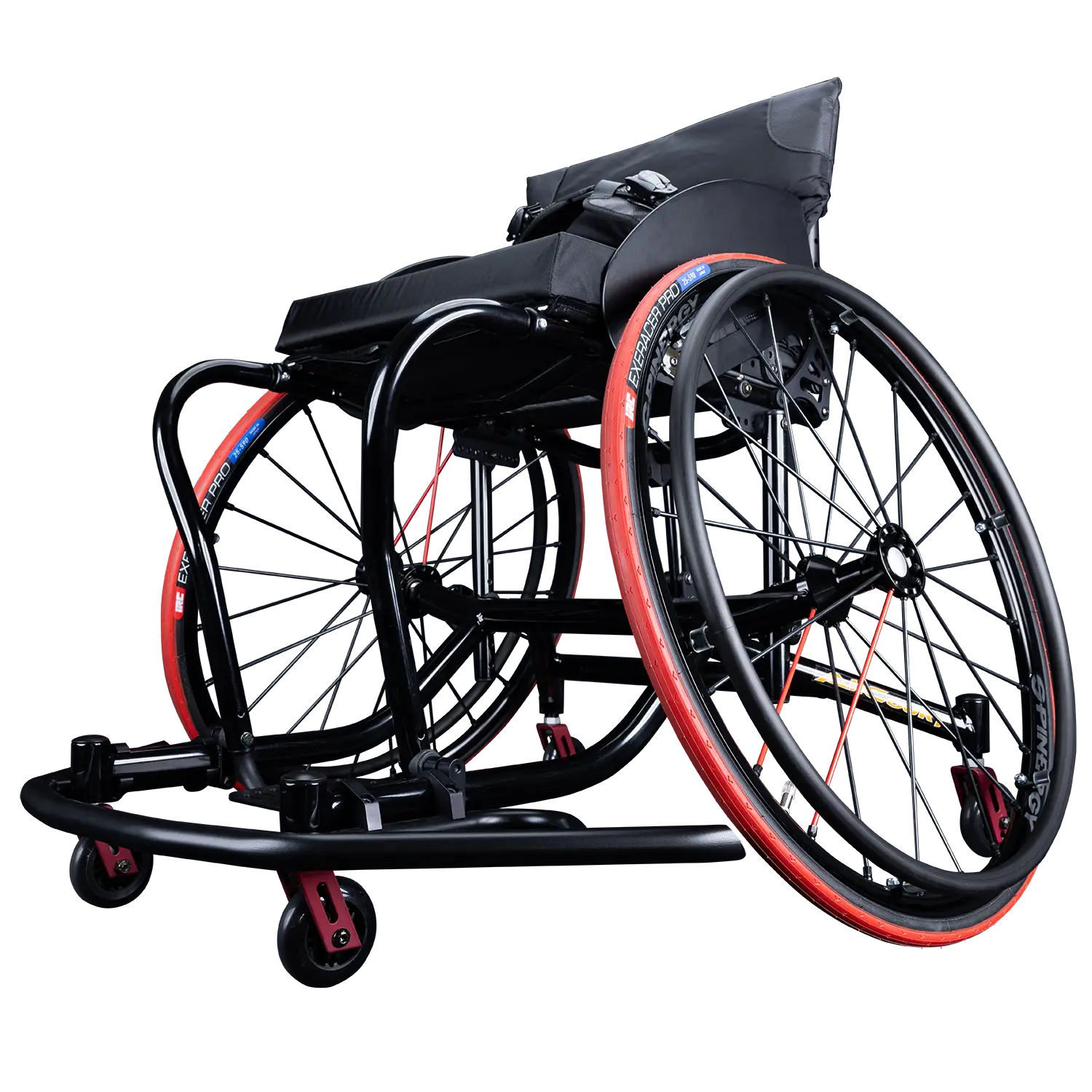

Rgk Allcourt Basketball Wheelchair

Parts finder

Replacement parts for the Rgk Allcourt Basketball Wheelchair

The exploded view below is numbered. Click a number on the drawing to jump to that part, or search the list. Every price shown is the current online price; anything quoted is priced by our order desk.

Ask about a part Product page 582 parts listed

Showing all 582 parts

1 of 47

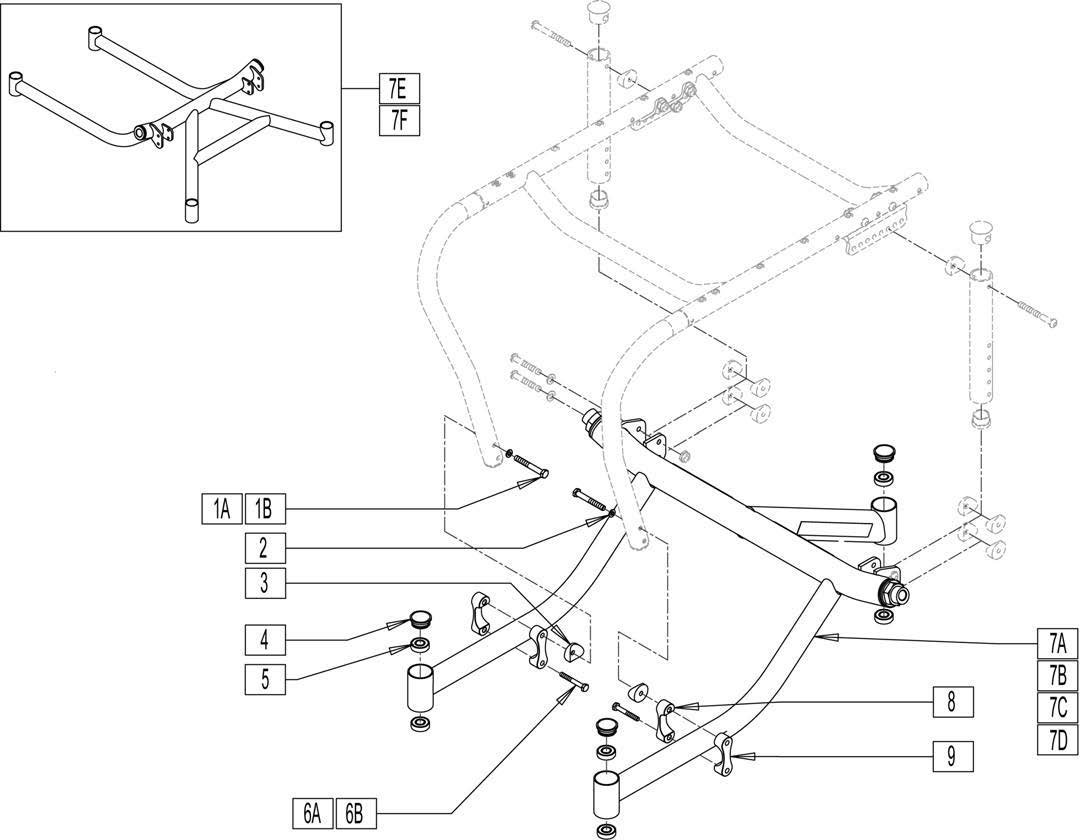

Exploded view of the Allcourt Base Frame

Loading the drawing

Allcourt Base Frame. Numbers match the list.
All Court Aluminum Seat Frame. Numbers match the list.
NEW QUICKIE ALLCOURT/Ti ALLCOURT. Numbers match the list.
All Court Basketball Wings. Numbers match the list.
Fifth Wheel Support Assembly. Numbers match the list.
Dual Anti Tip Fifth Wheel Support. Numbers match the list.
Axle Sleeves. Numbers match the list.
NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 19). Numbers match the list.
Front Fork Assembly. Numbers match the list.
NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 21). Numbers match the list.
All Court/Matchpoint Integral Anti-Tip Fork. Numbers match the list.
NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 23). Numbers match the list.
NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 25). Numbers match the list.
Quickie Performance Basketball. Numbers match the list.
NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 27). Numbers match the list.
Quickie Performance Heat Treated Basketball. Numbers match the list.
NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 29). Numbers match the list.
Spinergy Sport Lt Ex (18 Spoke). Numbers match the list.
NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 31). Numbers match the list.
Spinergy Spox (18 Spoke). Numbers match the list.
NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 33). Numbers match the list.
Discontinued QP TUBULAR TIRE. Numbers match the list.
NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 35). Numbers match the list.
Tubes And Airless Inserts. Numbers match the list.
NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 37). Numbers match the list.
NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 39). Numbers match the list.
Aluminum Back. Numbers match the list.
Folding Aluminum Back Lock. Numbers match the list.
Ti BACK. Numbers match the list.
FOLDING Ti BACK LOCK. Numbers match the list.
Matchpoint/Allcourt Adj Backrest Upholstery. Numbers match the list.
NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 53). Numbers match the list.
NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 55). Numbers match the list.
High Mount Platform Footrest. Numbers match the list.
NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 57). Numbers match the list.
Aluminum Side Guard For Folding Back. Numbers match the list.
NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 59). Numbers match the list.
Backpacks And Seat Pouches. Numbers match the list.
NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 61). Numbers match the list.
Ratchet Positioning Belt. Numbers match the list.
NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 63). Numbers match the list.
SPOKE GUARDS QUICKIE (Black & Clear). Numbers match the list.
Spoke Guards (Sport). Numbers match the list.
Leg Straps. Numbers match the list.
NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 69). Numbers match the list.
Toe Clips. Numbers match the list.
NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 71). Numbers match the list.

Allcourt Base Frame

10 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Allcourt Base Frame
No.PartQtyPriceAction
1A 1/4-28 X 2 1/2 G8 HEX C/SManufacturer no. 221181 1Quote Ask for a quote
1B 1/4-28 X 2 1/2 HEX C/S TIManufacturer no. 330105 1Quote Ask for a quote
2 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
3 BACK REL SADDLE RIGIDManufacturer no. 561087 1Quote Ask for a quote
4 CASTER CAP W/O-RING SPORT W/CManufacturer no. 880903 1Quote Ask for a quote
5 1 1/8 x 1/2 BEARINGManufacturer no. 349500 1Quote Ask for a quote
6A HHSC 1/4-28 X 1-1/4 PLManufacturer no. 107360 1Quote Ask for a quote
6B 1/4-28 X 1.25 TITANIUM HEX CSManufacturer no. 204125 1Quote Ask for a quote
8 CLAMP OVAL TUBE THRU BOLT A/CManufacturer no. 503013 1Quote Ask for a quote
9 CLAMP OVAL TUBE THRD A/CManufacturer no. 503014 1Quote Ask for a quote

All Court Aluminum Seat Frame

19 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in All Court Aluminum Seat Frame
No.PartQtyPriceAction
1 1/4-28 X 2 BH C/SManufacturer no. 106964 1Quote Ask for a quote
2 BOLT HEX SEX 10-32 X 1.115Manufacturer no. 221205 1Quote Ask for a quote
3 10-32 X 3/8" BH C/SManufacturer no. 226051 1Quote Ask for a quote
5 1" SADDLE 1/4" HOLEManufacturer no. 561004 1Quote Ask for a quote
6 PLUG SEAT FRAME REAR .083 WALLManufacturer no. 560286 1Quote Ask for a quote
7 1/4-28 NYLOCK NUTManufacturer no. 106934 1Quote Ask for a quote
8 SEAT FRM ASSM AL 12 X 10Manufacturer no. 661520S 1Quote Ask for a quote
8 SEAT FRM ASSM AL 12 X 11Manufacturer no. 661521S 1Quote Ask for a quote
8 SEAT FRM ASSM AL 12 X 12Manufacturer no. 661522S 1Quote Ask for a quote
8 SEAT FRM ASSM AL 12 X 13Manufacturer no. 661523S 1Quote Ask for a quote
8 SEAT FRM ASSM AL 12 X 14Manufacturer no. 661524S 1Quote Ask for a quote
8 SEAT FRM ASSM AL 12 X 15Manufacturer no. 661525S 1Quote Ask for a quote
8 SEAT FRM ASSM AL 12 X 16Manufacturer no. 661526S 1Quote Ask for a quote
8 SEAT FRM ASSM AL 13 X 11Manufacturer no. 661527S 1Quote Ask for a quote
8 SEAT FRM ASSM AL 13 X 12Manufacturer no. 661528S 1Quote Ask for a quote
8 SEAT FRM ASSM AL 13 X 13Manufacturer no. 661529S 1Quote Ask for a quote
8 SEAT FRM ASSM AL 13 X 14Manufacturer no. 661530S 1Quote Ask for a quote
8 SEAT FRM ASSM AL 13 X 15Manufacturer no. 661531S 1Quote Ask for a quote
8 SEAT FRM ASSM AL 13 X 16Manufacturer no. 661532S 1Quote Ask for a quote

NEW QUICKIE ALLCOURT/Ti ALLCOURT

19 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in NEW QUICKIE ALLCOURT/Ti ALLCOURT
No.PartQtyPriceAction
1 1/4-28 X 2 HEX C/S TIManufacturer no. 330100 1Quote Ask for a quote
2 BOLT HEX SEX 10-32 X 1.115Manufacturer no. 221205 1Quote Ask for a quote
3 10-32 X 3/8" BH C/SManufacturer no. 226051 1Quote Ask for a quote
5 1" SADDLE 1/4" HOLEManufacturer no. 561004 1Quote Ask for a quote
6 PLUG SEAT FRAME REAR .036 WALLManufacturer no. 560269 1Quote Ask for a quote
7 1/4-28 NYLOCK NUT ALUMManufacturer no. 330000-QU 1Quote Ask for a quote
8 SEAT FRM ASSM TI 12 X 10Manufacturer no. 661460S 1Quote Ask for a quote
8 SEAT FRM ASSM TI 12 X 11Manufacturer no. 661461S 1Quote Ask for a quote
8 SEAT FRM ASSM TI 12 X 12Manufacturer no. 661462S 1Quote Ask for a quote
8 SEAT FRM ASSM TI 12 X 13Manufacturer no. 661463S 1Quote Ask for a quote
8 SEAT FRM ASSM TI 12 X 14Manufacturer no. 661464S 1Quote Ask for a quote
8 SEAT FRM ASSM TI 12 X 15Manufacturer no. 661465S 1Quote Ask for a quote
8 SEAT FRM ASSM TI 12 X 16Manufacturer no. 661466S 1Quote Ask for a quote
8 SEAT FRM ASSM TI 13 X 11Manufacturer no. 661467S 1Quote Ask for a quote
8 SEAT FRM ASSM TI 13 X 12Manufacturer no. 661468S 1Quote Ask for a quote
8 SEAT FRM ASSM TI 13 X 13Manufacturer no. 661469S 1Quote Ask for a quote
8 SEAT FRM ASSM TI 13 X 14Manufacturer no. 661470S 1Quote Ask for a quote
8 SEAT FRM ASSM TI 13 X 15Manufacturer no. 661471S 1Quote Ask for a quote
8 SEAT FRM ASSM TI 13 X 16Manufacturer no. 661472S 1Quote Ask for a quote

All Court Basketball Wings

23 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in All Court Basketball Wings
No.PartQtyPriceAction
1A 1/4-28 X 1 SOC C/S BLKManufacturer no. 107032 1Quote Ask for a quote
1B 1/4-28 X 1 TITANIUM SOC CSManufacturer no. 204126 1Quote Ask for a quote
2 1/4 WASHER HI COLLAR LOCK ZNManufacturer no. 262114 1Quote Ask for a quote
5A BMPR WLDMNT A/C 12W 15-17LManufacturer no. 522682S 1Quote Ask for a quote
5A BMPR WLDMNT A/C 13W 15-17LManufacturer no. 522683S 1Quote Ask for a quote
5A BMPR WLDMNT A/C 14W 15-17LManufacturer no. 522684S 1Quote Ask for a quote
5A BMPR WLDMNT A/C 15W 15-17LManufacturer no. 522685S 1Quote Ask for a quote
5A BMPR WLDMNT A/C 16W 15-17LManufacturer no. 522686S 1Quote Ask for a quote
5A BMPR WLDMNT A/C 17W 15-17LManufacturer no. 522687S 1Quote Ask for a quote
5A BMPR WLDMNT A/C 18W 15-17LManufacturer no. 522688S 1Quote Ask for a quote
5A BMPR WLDMNT A/C 19W 15-17LManufacturer no. 522689S 1Quote Ask for a quote
5A BMPR WLDMNT A/C 20W 15-17LManufacturer no. 522690S 1Quote Ask for a quote
5A BMPR WLDMNT A/C 12W 19-21LManufacturer no. 526682S 1Quote Ask for a quote
5B BMPR WLDMNT A/C 13W 19-21LManufacturer no. 526683S 1Quote Ask for a quote
5B BMPR WLDMNT A/C 14W 19-21LManufacturer no. 526684S 1Quote Ask for a quote
5B BMPR WLDMNT A/C 15W 19-21LManufacturer no. 526685S 1Quote Ask for a quote
5B BMPR WLDMNT A/C 17W 19-21LManufacturer no. 526687S 1Quote Ask for a quote
5B BMPR WLDMNT A/C 18W 19-21LManufacturer no. 526688S 1Quote Ask for a quote
5B BMPR WLDMNT A/C 19W 19-21LManufacturer no. 526689S 1Quote Ask for a quote
5B BMPR WLDMNT A/C 20W 19-21LManufacturer no. 526690S 1Quote Ask for a quote
5C BMPR WLDMNT 12W 15-17L STD UPManufacturer no. 522692S 1Quote Ask for a quote
5C BMPR WLDMNT 13W 15-17L STD UPManufacturer no. 522693S 1Quote Ask for a quote
5C BMPR WLDMNT 14W 15-17L STD UPManufacturer no. 522694S 1Quote Ask for a quote

Fifth Wheel Support Assembly

17 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Fifth Wheel Support Assembly
No.PartQtyPriceAction
1 3/4" INSERT PLUG .049 (18GA)Manufacturer no. 560761 1Quote Ask for a quote
2 ANTI TIP SUPPORT TOP MOUNTManufacturer no. 550457 1Quote Ask for a quote
3 CLMP P300 CHRGNG/ADJ FL KDSManufacturer no. 550251 1Quote Ask for a quote
4 1/4 AN WASHER FLATManufacturer no. 106943 1Quote Ask for a quote
5 ANTI TIP CLAMP 1.7X1.17X.083Manufacturer no. 540309 1Quote Ask for a quote
6 3/4" SADDLE THINManufacturer no. 561003 1Quote Ask for a quote
8 STRAP SUPPORT REARManufacturer no. 500416 1Quote Ask for a quote
9A 1/4-28 X 2 1/2 G8 HEX C/S Steel HardwareManufacturer no. 221181 1Quote Ask for a quote
9B 1/4-28 X 2 1/2 HEX C/S TI Titanium HardwareManufacturer no. 330105 1Quote Ask for a quote
10A 1/4-28 X 1 1/2 BH C/S Steel HardwareManufacturer no. 226130 1Quote Ask for a quote
10B 1/4-28 X 1 3/4 HEX C/S TI Titanium HardwareManufacturer no. 330099 1Quote Ask for a quote
11A 1/4-28 X 1.85 BH C/S Steel HardwareManufacturer no. 226147 1Quote Ask for a quote
11B 1/4-28 X 2 HEX C/S TI Titanium HardwareManufacturer no. 330100 1Quote Ask for a quote
12A 1/4-28 X 1 3/4 BH C/S Steel HardwareManufacturer no. 226140 1Quote Ask for a quote
12B 1/4-28 X 1 3/4 HEX C/S TI Titanium HardwareManufacturer no. 330099 1Quote Ask for a quote
13A NUT NYLOCK THIN 1/4-28 ROHS Steel HardwareManufacturer no. 106935 1Quote Ask for a quote
13B 1/4-28 NYLOCK NUT ALUM Alum Hdwr: used w/ Titanium BoltsManufacturer no. 330000-QU 1Quote Ask for a quote

Dual Anti Tip Fifth Wheel Support

16 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Dual Anti Tip Fifth Wheel Support
No.PartQtyPriceAction
1 3/4" INSERT PLUG .049 (18GA)Manufacturer no. 560761 1Quote Ask for a quote
2 ANTI TIP SUPPORT TOP MOUNTManufacturer no. 550457 1Quote Ask for a quote
3 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
4A 1/4-28 NYLOCK NUT THINManufacturer no. 106935 1Quote Ask for a quote
4B 1/4-28 NYLOCK NUT ALUM Alum Hdwr: used w/ Titanium BoltsManufacturer no. 330000-QU 1Quote Ask for a quote
5A 1/4-28 X 1 3/4 BH C/S BLK ZNManufacturer no. 227140 1Quote Ask for a quote
5B 1/4-28 X 1 3/4 HEX C/S TIManufacturer no. 330099 1Quote Ask for a quote
6A 1/4-28 x 2 1/2 BH C/SManufacturer no. 221061 1Quote Ask for a quote
6B 1/4-28 X 2 1/2 HEX C/S TIManufacturer no. 330105 1Quote Ask for a quote
7A 1/4-28 X 1.85 BH C/SManufacturer no. 226148 1Quote Ask for a quote
7B 1/4-28 X 2 HEX C/S TIManufacturer no. 330100 1Quote Ask for a quote
8 TUBE SPPRT SEAT REAR X-SHT TI 13-15 STF Ht = 3 7/8Manufacturer no. 100873 1Quote Ask for a quote
8 TUBE SUPPORT SEAT REAR SHRT TI 16-17 STF Ht = 5 3/8Manufacturer no. 522746 1Quote Ask for a quote
8 TUBE SUPPORT SEAT REAR TALL TI 18-19 STF Ht = 7 3/8Manufacturer no. 522747 1Quote Ask for a quote
8 TUBE SUPPORT SEAT REAR MED TI 20-21 STF Ht = 9 3/8Manufacturer no. 522753 1Quote Ask for a quote
9 STRAP SUPPORT REARManufacturer no. 500416 1Quote Ask for a quote

Axle Sleeves

4 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Axle Sleeves
No.PartQtyPriceAction
1A 7/8-14 NUT JAM Used on legacy AllCourt & MatchPoint (S/N prefix AC- & MP-)Manufacturer no. 204005 1Quote Ask for a quote
1B 7/8-14 JAM NUT ALUM BLACK Used on current AllCourt & MatchPoint (S/N prefix SP1-,SP2-,SP3- & SP4-)Manufacturer no. 204006 1Quote Ask for a quote
2A 2° AXLE SLEEVE 7/8-14 ECCENTRIC Used on legacy AllCourt & MatchPoint (S/N prefix AC- & MP-)Manufacturer no. 481068 1Quote Ask for a quote
2B SLEEVE AXLE ALUM 2D 2 degrees; used on current AllCourt & MatchPoint (S/N prefix SP1-,SP2-Manufacturer no. 483330 1Quote Ask for a quote

NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 19)

8 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 19)
No.PartQtyPriceAction
1A QR AXLE NON-RECESS HUB W/NUT Standard Button, For QP wheelsManufacturer no. 920130 1Quote Ask for a quote
1B QR AXLE W/NUT TI Standard Button, For QP wheelsManufacturer no. 920137 1Quote Ask for a quote
1C AXLE QR TI SHORT W/NUT Standard Button, For Spinergy wheelsManufacturer no. 920912 1Quote Ask for a quote
1D QR AXLE NON RECESS W/QUAD NUT Quad Release, For QP wheelsManufacturer no. 920174 1Quote Ask for a quote
1E QR AXLE TI W/QUAD NUT Quad Release, For QP wheelsManufacturer no. 920173 1Quote Ask for a quote
1F QR AXLE STD W/QUAD NUT Quad Release, For Spinergy wheelsManufacturer no. 920170 1Quote Ask for a quote
1G AXLE QR TI SHORT W/QUAD NUT Quad Release, For Spinergy wheelsManufacturer no. 920913 1Quote Ask for a quote
1H QR AXLE/NUT LONG BG BTTN Big Button, For Spinergy wheelsManufacturer no. 109385 1Quote Ask for a quote

Front Fork Assembly

9 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Front Fork Assembly
No.PartQtyPriceAction
1 NUT NYLOCK THIN 1/2-20Manufacturer no. 106940 1Quote Ask for a quote
2 1/2 AN WASHER FLATManufacturer no. 106949 1Quote Ask for a quote
3A FRONT STEM/FORK ASSM ALUMINUM AluminumManufacturer no. 780480 1Quote Ask for a quote
3B FRONT STEM/FORK ASSM TITANIUM TitaniumManufacturer no. 780481 1Quote Ask for a quote
4A 5/16-18 NYLOCK NUT THIN Steel HardwareManufacturer no. 106937 1Quote Ask for a quote
4B 5/16-24 NYLOCK NUT ALUM Aluminum HardwareManufacturer no. 330005 1Quote Ask for a quote
5A BHCS 5/16-18 X 1-3/4 SHLD ROHS Steel HardwareManufacturer no. 106982 1Quote Ask for a quote
5B 5/16-24 X 1.75 TITANIUM HEX CS Aluminum HardwareManufacturer no. 204127 1Quote Ask for a quote
6 5/16 AN WASHER FLATManufacturer no. 263100 1Quote Ask for a quote

NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 21)

2 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 21)
No.PartQtyPriceAction
1A 3" MICRO CASTER LIGHTEDManufacturer no. 400107 1Quote Ask for a quote
1B CASTER ASSM MICRO 80MMManufacturer no. 400109 1Quote Ask for a quote

All Court/Matchpoint Integral Anti-Tip Fork

12 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in All Court/Matchpoint Integral Anti-Tip Fork
No.PartQtyPriceAction
1 NUT NYLOCK THIN 1/2-20Manufacturer no. 106940 1Quote Ask for a quote
2 1/2 AN WASHER FLATManufacturer no. 106949 1Quote Ask for a quote
3 SPACER .50 ID X .88 OD X .125Manufacturer no. 483254 1Quote Ask for a quote
4A STEM/FORK ANTI-TIP ASSM ALUM ALUMINUMManufacturer no. 780473 1Quote Ask for a quote
4B STEM/FORK ANTI-TIP ASSM TI TITANIUMManufacturer no. 780474 1Quote Ask for a quote
5A 5/16-18 NYLOCK NUT THIN Steel HardwareManufacturer no. 106937 1Quote Ask for a quote
5B 5/16-24 NYLOCK NUT ALUM Aluminum HardwareManufacturer no. 330005 1Quote Ask for a quote
6A BHCS 5/16-18 X 1-3/4 SHLD ROHS Steel HardwareManufacturer no. 106982 1Quote Ask for a quote
6B 5/16-24 X 1.75 TITANIUM HEX CS Aluminum HardwareManufacturer no. 204127 1Quote Ask for a quote
7 5/16 AN WASHER FLATManufacturer no. 263100 1Quote Ask for a quote
8 3" MICRO CASTER LIGHTEDManufacturer no. 400107 1Quote Ask for a quote
8 CASTER ASSM MICRO 80mmManufacturer no. 400109 1Quote Ask for a quote

NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 23)

10 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 23)
No.PartQtyPriceAction
1 CASTER CAP PLASTIC W/HOLEManufacturer no. 561170 1Quote Ask for a quote
2 SPACER .40 ANTI-TIP ACManufacturer no. 483206 1Quote Ask for a quote
3 SPACER .715 ANTI-TIP ACManufacturer no. 483205 1Quote Ask for a quote
4 STEM/FORK ANTI-TIP Q.R. ASSMManufacturer no. 780475 1Quote Ask for a quote
5A BHCS 5/16-18 X 1-3/4 SHLD ROHS Steel HardwareManufacturer no. 106982 1Quote Ask for a quote
5B 5/16-24 X 1.75 TITANIUM HEX CS Aluminum HardwareManufacturer no. 204127 1Quote Ask for a quote
6 CASTER ASSY 59MM 82A URETHANE Steel HardwareManufacturer no. 400170 1Quote Ask for a quote
7 5/16 AN WASHER FLATManufacturer no. 263100 1Quote Ask for a quote
8A 5/16-18 NYLOCK NUT THIN Steel HardwareManufacturer no. 106937 1Quote Ask for a quote
8B 5/16-24 NYLOCK NUT ALUM Aluminum HardwareManufacturer no. 330005 1Quote Ask for a quote

NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 25)

3 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 25)
No.PartQtyPriceAction
1 QP 24" TNNS RIM ASSM 25" (559mm)Manufacturer no. 761109 1Quote Ask for a quote
1 QP 26" TNNS RIM ASSM 26" (590mm)Manufacturer no. 761157 1Quote Ask for a quote
2 1 1/8 X 1/2 BEARINGManufacturer no. 349500 1Quote Ask for a quote

Quickie Performance Basketball

3 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Quickie Performance Basketball
No.PartQtyPriceAction
1 QP 24" BB RIM ASSM 24" (540mm)Manufacturer no. 761119 1Quote Ask for a quote
1 QP 26" BB RIM ASSM 26" (590mm)Manufacturer no. 761167 1Quote Ask for a quote
2 1 1/8 X 1/2 BEARINGManufacturer no. 349500 1Quote Ask for a quote

NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 27)

4 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 27)
No.PartQtyPriceAction
1 QP 24" HT TNNS RIM ASSM 32H 559-32 spokes-25" (559mm)Manufacturer no. 761128 1Quote Ask for a quote
1 QP 24" HT TNNS RIM ASSM 36 spokes-25" (559mm)Manufacturer no. 761139 1Quote Ask for a quote
1 QP 26" HT TNNS RIM ASSM 36 hole spokes -26" (590mm)Manufacturer no. 761178 1Quote Ask for a quote
2 1 1/8 X 1/2 BEARINGManufacturer no. 349500 1Quote Ask for a quote

Quickie Performance Heat Treated Basketball

3 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Quickie Performance Heat Treated Basketball
No.PartQtyPriceAction
1 QP 24" HT BB RIM ASSM 25" (559mm)Manufacturer no. 761149 1Quote Ask for a quote
1 QP 26" HT BB RIM ASSM 26" (590mm)Manufacturer no. 761188 1Quote Ask for a quote
2 1 1/8 X 1/2 BEARINGManufacturer no. 349500 1Quote Ask for a quote

NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 29)

19 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 29)
No.PartQtyPriceAction
1A SPINGERY LT EX WHL 22" BLK 22"(489mm); 12 SpokeManufacturer no. 108858 1Quote Ask for a quote
1A SPINERGY LT EX WHL 22" BLU 22"(489mm); 12 SpokeManufacturer no. 109215 1Quote Ask for a quote
1A SPINERGY LT EX WHL 22" RED 22"(489mm); 12 SpokeManufacturer no. 109216 1Quote Ask for a quote
1A SPINERGY LT EX WHL 22" WHT 22"(489mm); 12 SpokeManufacturer no. 109217 1Quote Ask for a quote
1A SPINERGY LT EX WHL 22" YLW 22"(489mm); 12 SpokeManufacturer no. 109218 1Quote Ask for a quote
1A SPINERGY LT EX WHEEL 540 BLK 24"(540mm); 12 SpokeManufacturer no. 101989-001 1Quote Ask for a quote
1A SPINERGY LT EX WHEEL 540 BLU 24"(540mm); 12 SpokeManufacturer no. 101989-002 1Quote Ask for a quote
1A SPINERGY LT EX WHEEL 540 RED 24"(540mm); 12 SpokeManufacturer no. 101989-003 1Quote Ask for a quote
1A SPINERGY LT EX WHEEL 540 WHT 24"(540mm); 12 SpokeManufacturer no. 101989-005 1Quote Ask for a quote
1A SPINERGY LT EX WHEEL 540 YLW 24"(540mm); 12 SpokeManufacturer no. 101989-004 1Quote Ask for a quote
1A SPINERGY LT EX WHEEL 559 BLK 25"(559mm); 12 SpokeManufacturer no. 101991-001 1Quote Ask for a quote
1A SPINERGY LT EX WHEEL 559 BLU 25"(559mm); 12 SpokeManufacturer no. 101991-002 1Quote Ask for a quote
1A SPINERGY LT EX WHEEL 559 RED 25"(559mm); 12 SpokeManufacturer no. 101991-003 1Quote Ask for a quote
1A SPINERGY LT EX WHEEL 559 YLW 25"(559mm); 12 SpokeManufacturer no. 101991-004 1Quote Ask for a quote
1A SPINERGY LT EX WHEEL 590 BLK 26"(590mm); 12 SpokeManufacturer no. 101993-001 1Quote Ask for a quote
1A SPINERGY LT EX WHEEL 590 YLW 26"(590mm); 12 SpokeManufacturer no. 101993-004 1Quote Ask for a quote
2 1 1/8 X 1/2 BEARINGManufacturer no. 349500 1Quote Ask for a quote
1B SPINERGY FLEXRIM LT 12 SPOKE 24"(540mm) BlackManufacturer no. 109232 1Quote Ask for a quote
1B RIM FLEX 25" SPINERGY BLK 25"(559mm) BlackManufacturer no. 109237 1Quote Ask for a quote

Spinergy Sport Lt Ex (18 Spoke)

16 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Spinergy Sport Lt Ex (18 Spoke)
No.PartQtyPriceAction
1 SPINRGY SPT LT EX WHL 540 BLK 24"(540mm), 18 spokeManufacturer no. 101988-001 1Quote Ask for a quote
1 SPINRGY SPT LT EX WHL 540 BLU 24"(540mm), 18 spokeManufacturer no. 101988-002 1Quote Ask for a quote
1 SPINRGY SPT LT EX WHL 540 RED 24"(540mm), 18 spokeManufacturer no. 101988-003 1Quote Ask for a quote
1 SPINRGY SPT LT EX WHL 540 YLW 24"(540mm), 18 spokeManufacturer no. 101988-004 1Quote Ask for a quote
1 SPINRGY SPT LT EX WHL 540 WHT 24"(540mm), 18 spokeManufacturer no. 101988-005 1Quote Ask for a quote
1 SPINRGY SPT LT EX WHL 559 BLK 25"(559mm), 18 spokeManufacturer no. 101990-001 1Quote Ask for a quote
1 SPINRGY SPT LT EX WHL 559 BLU 25"(559mm), 18 spokeManufacturer no. 101990-002 1Quote Ask for a quote
1 SPINRGY SPT LT EX WHL 559 RED 25"(559mm), 18 spokeManufacturer no. 101990-003 1Quote Ask for a quote
1 SPINRGY SPT LT EX WHL 559 YLW 25"(559mm), 18 spokeManufacturer no. 101990-004 1Quote Ask for a quote
1 SPINRGY SPT LT EX WHL 559 WHT 25"(559mm), 18 spokeManufacturer no. 101990-005 1Quote Ask for a quote
1 SPINRGY SPT LT EX WHL 590 BLK 26"(590mm), 18 spokeManufacturer no. 101992-001 1Quote Ask for a quote
1 SPINRGY SPT LT EX WHL 590 BLU 26"(590mm), 18 spokeManufacturer no. 101992-002 1Quote Ask for a quote
1 SPINRGY SPT LT EX WHL 590 RED 26"(590mm), 18 spokeManufacturer no. 101992-003 1Quote Ask for a quote
1 SPINRGY SPT LT EX WHL 590 YLW 26"(590mm), 18 spokeManufacturer no. 101992-004 1Quote Ask for a quote
1 SPINRGY SPT LT EX WHL 590 WHT 26"(590mm), 18 spokeManufacturer no. 101992-005 1Quote Ask for a quote
2 1 1/8 X 1/2 BEARINGManufacturer no. 349500 1Quote Ask for a quote

NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 31)

16 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 31)
No.PartQtyPriceAction
1 SPINERGY SPORT WHEEL 540 BLK 24"(540mm)Manufacturer no. 762434 1Quote Ask for a quote
1 SPINERGY SPORT WHEEL 559 BLK 25"(559mm)Manufacturer no. 762436 1Quote Ask for a quote
1 SPINERGY SPORT WHEEL 590 BLK 26"(590mm)Manufacturer no. 762435 1Quote Ask for a quote
1 SPINERGY SPORT WHEEL 540 BLU 24"(540mm)Manufacturer no. 762453 1Quote Ask for a quote
1 SPINERGY SPORT WHEEL 559 BLU 25"(559mm)Manufacturer no. 762457 1Quote Ask for a quote
1 SPINERGY SPORT WHEEL 590 BLU 26"(590mm)Manufacturer no. 762464 1Quote Ask for a quote
1 SPINERGY SPORT WHEEL 540 RED 24"(540mm)Manufacturer no. 762454 1Quote Ask for a quote
1 SPINERGY SPORT WHEEL 559 RED 25"(559mm)Manufacturer no. 762458 1Quote Ask for a quote
1 SPINERGY SPORT WHEEL 590 RED 26"(590mm)Manufacturer no. 762465 1Quote Ask for a quote
1 SPINERGY SPORT WHEEL 540 WHT 24"(540mm)Manufacturer no. 762429 1Quote Ask for a quote
1 SPINERGY SPORT WHEEL 559 WHT 25"(559mm)Manufacturer no. 762432 1Quote Ask for a quote
1 SPINERGY SPORT WHEEL 590 WHT 26"(590mm)Manufacturer no. 762430 1Quote Ask for a quote
1 SPINERGY SPORT WHEEL 540 YLW 24"(540mm)Manufacturer no. 762455 1Quote Ask for a quote
1 SPINERGY SPORT WHEEL 559 YLW 25"(559mm)Manufacturer no. 762459 1Quote Ask for a quote
1 SPINERGY SPORT WHEEL 590 YLW 26"(590mm)Manufacturer no. 762466 1Quote Ask for a quote
2 1 1/8 X 1/2 BEARINGManufacturer no. 349500 1Quote Ask for a quote

Spinergy Spox (18 Spoke)

15 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Spinergy Spox (18 Spoke)
No.PartQtyPriceAction
1 SPINERGY STD WHL 22" BLK SPK 22"(489mm)Manufacturer no. 109242 1Quote Ask for a quote
1 SPINERGY STD WHEEL 540 BLK SPK 24"(540mm)Manufacturer no. 762438 1Quote Ask for a quote
1 SPINERGY STD WHL 559 BLK SPK 25"(559mm)Manufacturer no. 762441 1Quote Ask for a quote
1 SPINERGY STD WHEEL 590 BLK SPK 26"(590mm)Manufacturer no. 762437 1Quote Ask for a quote
1 SPINERGY STD WHEEL 540 BLUE 24"(540mm)Manufacturer no. 762442 1Quote Ask for a quote
1 SPINERGY STD WHEEL 559 BLU 25"(559mm)Manufacturer no. 762444 1Quote Ask for a quote
1 SPINERGY STD WHEEL 590 BLUE 26"(590mm)Manufacturer no. 762446 1Quote Ask for a quote
1 SPINERGY STD WHEEL 540 RED 24"(540mm)Manufacturer no. 762443 1Quote Ask for a quote
1 SPINERGY STD WHEEL 559 RED 25"(559mm)Manufacturer no. 762445 1Quote Ask for a quote
1 SPINERGY STD WHEEL 590 RED 26"(590mm)Manufacturer no. 762447 1Quote Ask for a quote
1 SPINERGY STD WHEEL 540 WHT 24"(540mm)Manufacturer no. 762456 1Quote Ask for a quote
1 SPINERGY STD WHEEL 540 YELLOW 24"(540mm)Manufacturer no. 762433 1Quote Ask for a quote
1 SPINERGY STD WHL 559 YLW SPK 25"(559mm)Manufacturer no. 762462 1Quote Ask for a quote
1 SPINERGY STD WHEEL 590 YELLOW 26"(590mm)Manufacturer no. 762431 1Quote Ask for a quote
2 1 1/8 X 1/2 BEARINGManufacturer no. 349500 1Quote Ask for a quote

NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 33)

5 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 33)
No.PartQtyPriceAction
1 22" x 1" HI PRES CLINCHER 22" (501mm)Manufacturer no. 385280 1Quote Ask for a quote
1 24" x 1" HI PRES CLNCHR TIRE 24" (540mm)Manufacturer no. 389020 1Quote Ask for a quote
1 QP 24" x 1" HT TURB BLK WR/BD 559 25" (559mm)Manufacturer no. 389012 1Quote Ask for a quote
1 26" x 1" HI PRES CLNCHR TIRE 26" (590mm)Manufacturer no. 389030 1Quote Ask for a quote
1 22" x 1" HI PRESS CLNCHR ULTRALIGHT 22" (489mm)Manufacturer no. 105919 1Quote Ask for a quote

Discontinued QP TUBULAR TIRE

2 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Discontinued QP TUBULAR TIRE
No.PartQtyPriceAction
1 QP 24" X 1" TUBULAR TIRE DISCONTINUED - SEE NOTEManufacturer no. 389004 1Quote Ask for a quote
1 QP 26" X 1" TUBULAR TIRE DISCONTINUED - SEE NOTEManufacturer no. 389006 1Quote Ask for a quote

NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 35)

2 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 35)
No.PartQtyPriceAction
1 QP 24"X1"HT TURB BLK WR/BD 559 25"(559mm), black sidewallManufacturer no. 389012 1Quote Ask for a quote
2 26"X1"HT TIRE TURBO GY(700X28) tan sidewallManufacturer no. 388999 1Quote Ask for a quote

Tubes And Airless Inserts

22 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Tubes And Airless Inserts
No.PartQtyPriceAction
1A INNER TUBE 12-1/2" X 2-1/4"Manufacturer no. 384736 1Quote Ask for a quote
1A 16" X 1.75" INNER TUBEManufacturer no. 384738 1Quote Ask for a quote
1A TUBE 18" TIRE 18" X 1-3/4" TUBEManufacturer no. 382255 1Quote Ask for a quote
1A 20" TUBE 20" 1-3/8" TUBEManufacturer no. 382275 1Quote Ask for a quote
1A 22" TUBE 22" X 1-3/8" TUBEManufacturer no. 382300 1Quote Ask for a quote
1A TUBE PRIMO 24" 25-540 SV 24" X 1" TUBEManufacturer no. 382336 1Quote Ask for a quote
1A 24 X 1.3/8IN TUBE REGManufacturer no. 382325 1Quote Ask for a quote
1A TUBE INLINE 24 X 1.75Manufacturer no. 382334 1Quote Ask for a quote
1A 26" X 1" TUBE SCHRADERManufacturer no. 384551 1Quote Ask for a quote
1A 26" TUBE 26" X 1-3/8" TUBEManufacturer no. 382350 1Quote Ask for a quote
1A TUBE 26 X 1.5/1.95/ S/VManufacturer no. 382361 1Quote Ask for a quote
1A 26 X 1.25/1.5 TUBE SHRADERManufacturer no. 382365 1Quote Ask for a quote
1A 24" x 2.125 TUBEManufacturer no. 382375 1Quote Ask for a quote
1B 12 1/2 IN AIRLESS INSERT 12-1/2" X 2-1/4"Manufacturer no. 102972-001 1Quote Ask for a quote
1B 16IN AIRLESS INSERT 16" X 1-3/4"Manufacturer no. 102973-001 1Quote Ask for a quote
1B 18IN AIRLESS INSERT 18" X 1-3/4"Manufacturer no. 102973-002 1Quote Ask for a quote
1B 20IN AIRLESS INSERT 20" X 1-3/8"Manufacturer no. 102973-003 1Quote Ask for a quote
1B AIRLESS INSERT 20 X 2-1/8 P3Manufacturer no. 102972-002 1Quote Ask for a quote
1B 22IN AIRLESS INSERT 22" X 1-3/8"Manufacturer no. 102973-004 1Quote Ask for a quote
1B 24IN AIRLESS INSERT 24" X 1-3/8"Manufacturer no. 102973-005 1Quote Ask for a quote
1B AIRLESS INSERT 24 X 2-1/8Manufacturer no. 102972-003 1Quote Ask for a quote
1B 26" AIRLESS INSERT 26" X 1-3/8"Manufacturer no. 108259 1Quote Ask for a quote

NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 37)

58 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 37)
No.PartQtyPriceAction
1 SEAT SLING 12" X 10"Manufacturer no. 720100 1Quote Ask for a quote
1 SEAT SLING 12"W X 11"DManufacturer no. 109466 1Quote Ask for a quote
1 SEAT SLING 12"W X 12"DManufacturer no. 109467 1Quote Ask for a quote
1 SEAT SLING 12"W X 13"DManufacturer no. 109468 1Quote Ask for a quote
1 SEAT SLING 12"W X 14"DManufacturer no. 109469 1Quote Ask for a quote
1 SEAT SLING 12"W X 16"DManufacturer no. 109471 1Quote Ask for a quote
1 SEAT SLING 13"W X 11"DManufacturer no. 109474 1Quote Ask for a quote
1 SEAT SLING 13"W X 12"DManufacturer no. 109475 1Quote Ask for a quote
1 SEAT SLING 13"W X 13"DManufacturer no. 109476 1Quote Ask for a quote
1 SEAT SLING 13"W X 14"DManufacturer no. 109477 1Quote Ask for a quote
1 SEAT SLING 14" X 10"Manufacturer no. 720298 1Quote Ask for a quote
1 SEAT SLING 14"W X 12"DManufacturer no. 109483 1Quote Ask for a quote
1 SEAT SLING 14"W X 13"DManufacturer no. 109484 1Quote Ask for a quote
1 SEAT SLING 14"W X 14"DManufacturer no. 109485 1Quote Ask for a quote
1 SEAT SLING 14"W X 15"DManufacturer no. 109486 1Quote Ask for a quote
1 SEAT SLING 14"W X 16"DManufacturer no. 109487 1Quote Ask for a quote
1 SEAT SLING 14"W X 17"DManufacturer no. 109488 1Quote Ask for a quote
1 SEAT SLING 14"W X 18"DManufacturer no. 109489 1Quote Ask for a quote
1 SEAT SLING 15"W X 12"DManufacturer no. 109492 1Quote Ask for a quote
1 SEAT SLING 15"W X 13"DManufacturer no. 109493 1Quote Ask for a quote
1 SEAT SLING 15"W X 14"DManufacturer no. 109494 1Quote Ask for a quote
1 SEAT SLING 15"W X 15"DManufacturer no. 109495 1Quote Ask for a quote
1 SEAT SLING 15"W X 16"DManufacturer no. 109496 1Quote Ask for a quote
1 SEAT SLING 15"W X 17"DManufacturer no. 109497 1Quote Ask for a quote
1 SEAT SLING 15"W X 18"DManufacturer no. 109498 1Quote Ask for a quote
1 SEAT SLING 16"W X 13"DManufacturer no. 109502 1Quote Ask for a quote
1 SEAT SLING 16"W X 14"DManufacturer no. 109503 1Quote Ask for a quote
1 SEAT SLING 16"W X 15"DManufacturer no. 109504 1Quote Ask for a quote
1 SEAT SLING 16"W X 16"DManufacturer no. 109505 1Quote Ask for a quote
1 SEAT SLING 16"W X 17"DManufacturer no. 109506 1Quote Ask for a quote
1 SEAT SLING 16"W X 18"DManufacturer no. 109507 1Quote Ask for a quote
1 SEAT SLING 16"W X 19"DManufacturer no. 109508 1Quote Ask for a quote
1 SEAT SLING 16" X 20"Manufacturer no. 720508 1Quote Ask for a quote
1 SEAT SLING 17"W X 12"DManufacturer no. 109510 1Quote Ask for a quote
1 SEAT SLING 17"W X 13"DManufacturer no. 109511 1Quote Ask for a quote
1 SEAT SLING 17"W X 14"DManufacturer no. 109512 1Quote Ask for a quote
1 SEAT SLING 17"W X 15"DManufacturer no. 109513 1Quote Ask for a quote
1 SEAT SLING 17"W X 16"DManufacturer no. 109514 1Quote Ask for a quote
1 SEAT SLING 17"W X 17"DManufacturer no. 109515 1Quote Ask for a quote
1 SEAT SLING 17"W X 18"DManufacturer no. 109516 1Quote Ask for a quote
1 SEAT SLING 17"W X 19"DManufacturer no. 109517 1Quote Ask for a quote
1 SEAT SLING 18"W X 12"DManufacturer no. 109519 1Quote Ask for a quote
1 SEAT SLING 18"W X 14"DManufacturer no. 109521 1Quote Ask for a quote
1 SEAT SLING 18"W X 15"DManufacturer no. 109522 1Quote Ask for a quote
1 SEAT SLING 18"W X 16"DManufacturer no. 109523 1Quote Ask for a quote
1 SEAT SLING 18"W X 17"DManufacturer no. 109524 1Quote Ask for a quote
1 SEAT SLING 18"W X 18"DManufacturer no. 109525 1Quote Ask for a quote
1 SEAT SLING 18"W X 19"DManufacturer no. 109526 1Quote Ask for a quote
1 SEAT SLING 18" X 20"Manufacturer no. 720706 1Quote Ask for a quote
1 SEAT SLING 19"W X 14"DManufacturer no. 109530 1Quote Ask for a quote
1 SEAT SLING 19"W X 15"DManufacturer no. 109531 1Quote Ask for a quote
1 SEAT SLING 19"W X 16"DManufacturer no. 109532 1Quote Ask for a quote
1 SEAT SLING 19"W X 17"DManufacturer no. 109533 1Quote Ask for a quote
1 SEAT SLING 19"W X 18"DManufacturer no. 109534 1Quote Ask for a quote
1 SEAT SLING 19"W X 19"DManufacturer no. 109535 1Quote Ask for a quote
1 SEAT SLING 19" X 20"Manufacturer no. 720806 1Quote Ask for a quote
1 SEAT SLING 20"W X 14"DManufacturer no. 109539 1Quote Ask for a quote
1 SEAT SLING 20"W X 15"DManufacturer no. 109540 1Quote Ask for a quote

NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 39)

9 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 39)
No.PartQtyPriceAction
1 SEAT PAN HALF 12"W ALL COURTManufacturer no. 688280 1Quote Ask for a quote
1 SEAT PAN HALF 13"W ALL COURTManufacturer no. 688281 1Quote Ask for a quote
1 SEAT PAN HALF 14"W ALL COURTManufacturer no. 688282 1Quote Ask for a quote
1 SEAT PAN HALF 15"W ALL COURTManufacturer no. 688283 1Quote Ask for a quote
1 SEAT PAN HALF 16"W ALL COURTManufacturer no. 688284 1Quote Ask for a quote
1 SEAT PAN HALF 17"W ALL COURTManufacturer no. 688285 1Quote Ask for a quote
1 SEAT PAN HALF 18"W ALL COURTManufacturer no. 688286 1Quote Ask for a quote
1 SEAT PAN HALF 19"W ALL COURTManufacturer no. 688287 1Quote Ask for a quote
1 SEAT PAN HALF 20"W ALL COURTManufacturer no. 688288 1Quote Ask for a quote

Aluminum Back

16 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Aluminum Back
No.PartQtyPriceAction
1 1/4-28 NYLOCK NUTManufacturer no. 106934 1Quote Ask for a quote
2 BACK REL SADDLE RIGIDManufacturer no. 561087 1Quote Ask for a quote
3 BRKT FXD BK 1S R SPORTManufacturer no. 500532 1Quote Ask for a quote
3 BRKT FXD BK 1S L SPORTManufacturer no. 500533 1Quote Ask for a quote
3 BRKT FXD BK 3S R SPORTManufacturer no. 500534 1Quote Ask for a quote
3 BRKT FXD BK 3S L SPORTManufacturer no. 500535 1Quote Ask for a quote
4 WASHER ECCENTRIC LARGEManufacturer no. 341018 1Quote Ask for a quote
5 1/4-28 x 1 3/4 BH C/S BLK ZNManufacturer no. 106962 1Quote Ask for a quote
6 1/4-28 X 1.85 BH C/SManufacturer no. 226147 1Quote Ask for a quote
7 SADDLE SMALL 1.00 TUBE.25 HOLEManufacturer no. 482000 1Quote Ask for a quote
8 3/4" WASHER 1/4" HOLEManufacturer no. 561026 1Quote Ask for a quote
9 1" MED CAP Used in 9" back height onlyManufacturer no. 561014 1Quote Ask for a quote
10 1" INSERT PLUG Used in 9" back height onlyManufacturer no. 561002 1Quote Ask for a quote
11A BACK FRM 12" REG RGD BLK .115 12 wide 9"-16" back heightManufacturer no. 520440 1Quote Ask for a quote
11A BACK FRM 13" REG RGD BLK .115 13 wide 9"-16" back heightManufacturer no. 520441 1Quote Ask for a quote
11A BACK FRM 14" REG RGD BLK .115 14 wide 9"-16" back heightManufacturer no. 520442 1Quote Ask for a quote

Folding Aluminum Back Lock

19 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Folding Aluminum Back Lock
No.PartQtyPriceAction
1 1/4-28 NYLOCK NUTManufacturer no. 106934 1Quote Ask for a quote
2 BACK RELEASE SADDLE RIGIDManufacturer no. 561087 1Quote Ask for a quote
3 BACK REL BUSHING RIGIDManufacturer no. 481039 1Quote Ask for a quote
4 BACK REL SPRING L RIGID (NEW)Manufacturer no. 321153 1Quote Ask for a quote
4 BACK REL SPRING R RIGID (NEW)Manufacturer no. 321154 1Quote Ask for a quote
5 Q1/GP BACK REL BRACKET RManufacturer no. 505033 1Quote Ask for a quote
5 Q1/GP BACK REL BRACKET LManufacturer no. 505034 1Quote Ask for a quote
6 BRKT FLDG POS BCK 1S R SPORTManufacturer no. 500818 1Quote Ask for a quote
6 BRKT FLDG POS BCK 1S L SPORTManufacturer no. 500819 1Quote Ask for a quote
6 BRKT FLDG POS BK 3S R SPORTManufacturer no. 500824 1Quote Ask for a quote
6 BRKT FLDG POS BK 3S L SPORTManufacturer no. 500825 1Quote Ask for a quote
7 WASHER ECCENTRIC LARGEManufacturer no. 341018 1Quote Ask for a quote
8 1/4-28 x 1 3/4 BH C/S BLK ZNManufacturer no. 106962 1Quote Ask for a quote
9 1/4 AN WASHER FLATManufacturer no. 106943 1Quote Ask for a quote
10 1/4-28 X 1.85 BH C/SManufacturer no. 226147 1Quote Ask for a quote
11 SADDLE SMALL 1.00 TUBE.25 HOLEManufacturer no. 482000 1Quote Ask for a quote
12 3/4" WASHER 1/4" HOLEManufacturer no. 561026 1Quote Ask for a quote
13 BACK FRM 12" REG RGD BLK .115 12 wide 9"-16" back heightManufacturer no. 520440 1Quote Ask for a quote
13 BACK FRM 13" REG RGD BLK .115 13 wide 9"-16" back heightManufacturer no. 520441 1Quote Ask for a quote

Ti BACK

19 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Ti BACK
No.PartQtyPriceAction
1 NUT HEX NYLOCK M6 X 1 NUTManufacturer no. 200113 1Quote Ask for a quote
2 1/4-28 NYLOCK NUT ALUMManufacturer no. 330000-QU 1Quote Ask for a quote
3 BACK REL SADDLE RIGIDManufacturer no. 561087 1Quote Ask for a quote
4 BRKT FXD BK 1S R SPORTManufacturer no. 500532 1Quote Ask for a quote
4 BRKT FXD BK 1S L SPORTManufacturer no. 500533 1Quote Ask for a quote
4 BRKT FXD BK 3S R SPORTManufacturer no. 500534 1Quote Ask for a quote
4 BRKT FXD BK 3S L SPORTManufacturer no. 500535 1Quote Ask for a quote
5 WASHER ECCENTRIC LARGEManufacturer no. 341018 1Quote Ask for a quote
6 BHCS M6 X 1 X 45MMManufacturer no. 230118 1Quote Ask for a quote
7 1/4-28 X 1 3/4 HEX C/S TIManufacturer no. 330099 1Quote Ask for a quote
8 1/4-28 X 2 HEX C/S TIManufacturer no. 330100 1Quote Ask for a quote
9 SADDLE SMALL 1.00 TUBE.25 HOLEManufacturer no. 482000 1Quote Ask for a quote
10 3/4" WASHER 1/4" HOLEManufacturer no. 561026 1Quote Ask for a quote
11 WLDMNT BKRST FXD 12W 9TManufacturer no. 545503 1Quote Ask for a quote
11 WLDMNT BKRST FXD 12W 10TManufacturer no. 545504 1Quote Ask for a quote
11 WLDMNT BKRST FXD 12W 11TManufacturer no. 545505 1Quote Ask for a quote
11 WLDMNT BKRST FXD 12W 12TManufacturer no. 545506 1Quote Ask for a quote
11 WLDMNT BKRST FXD 12W 13TManufacturer no. 545507 1Quote Ask for a quote
11 WLDMNT BKRST FXD 12W 14TManufacturer no. 545508 1Quote Ask for a quote

FOLDING Ti BACK LOCK

18 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in FOLDING Ti BACK LOCK
No.PartQtyPriceAction
1 1/4-28 NYLOCK NUTManufacturer no. 106934 1Quote Ask for a quote
2 BACK RELEASE SADDLE RIGIDManufacturer no. 561087 1Quote Ask for a quote
3 BACK REL BUSHING RIGIDManufacturer no. 481039 1Quote Ask for a quote
4 BACK REL SPRING L RIGID (NEW) LEFTManufacturer no. 321153 1Quote Ask for a quote
4 BACK REL SPRING R RIGID (NEW) RIGHTManufacturer no. 321154 1Quote Ask for a quote
5 Q1/GP BACK REL BRACKET R RIGHTManufacturer no. 505033 1Quote Ask for a quote
5 Q1/GP BACK REL BRACKET L LEFTManufacturer no. 505034 1Quote Ask for a quote
6 BRKT FLDG POS BCK 1S R SPORT RIGHT -BRACKET SQUEEZE 1Manufacturer no. 500818 1Quote Ask for a quote
6 BRKT FLDG POS BCK 1S L SPORT LEFT -BRACKET SQUEEZE 1Manufacturer no. 500819 1Quote Ask for a quote
6 BRKT FLDG POS BK 3S R SPORT RIGHT -BRACKET SQUEEZE 3Manufacturer no. 500824 1Quote Ask for a quote
6 BRKT FLDG POS BK 3S L SPORT LEFT -BRACKET SQUEEZE 3Manufacturer no. 500825 1Quote Ask for a quote
7 WASHER ECCENTRIC LARGEManufacturer no. 341018 1Quote Ask for a quote
8 1/4-28 x 1 3/4 BH C/S BLK ZNManufacturer no. 106962 1Quote Ask for a quote
9 1/4 AN WASHER FLATManufacturer no. 106943 1Quote Ask for a quote
10 1/4-28 X 1.85 BH C/SManufacturer no. 226147 1Quote Ask for a quote
11 SADDLE SMALL 1.00 TUBE.25 HOLEManufacturer no. 482000 1Quote Ask for a quote
12 3/4" WASHER 1/4" HOLEManufacturer no. 561026 1Quote Ask for a quote
13 WLDMNT BKRST FXD 12W 9TManufacturer no. 545503 1Quote Ask for a quote

Matchpoint/Allcourt Adj Backrest Upholstery

33 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Matchpoint/Allcourt Adj Backrest Upholstery
No.PartQtyPriceAction
1 SIDE GRD STRP BACK 12-14" WIDEManufacturer no. 750096S 1Quote Ask for a quote
1 SIDE GRD STRP BACK 15-17" WIDEManufacturer no. 750116 1Quote Ask for a quote
1 SIDE GRD STRP BACK 18-20" WIDEManufacturer no. 750117 1Quote Ask for a quote
2 ANKLE/BACK STRAP 2"W X 43"L used for 13"-14" wideManufacturer no. 741500 1Quote Ask for a quote
2 ANKLE/BACK STRAP 2"W X 45"L used for 15"-17" wideManufacturer no. 741501 1Quote Ask for a quote
2 ANKLE/BACK STRAP 2"W X 48"L used for 18"-20" wideManufacturer no. 741502 1Quote Ask for a quote
2 ANKLE/BACK STRAP 2"2 X 51"L used for 21" wideManufacturer no. 741503 1Quote Ask for a quote
3 BACK UPH RGK ADJUSTABLE 13" SA Short Uph - 9"-13" Back Ht's; items 2&3 not includedManufacturer no. 685903 1Quote Ask for a quote
3 BACK UPH RGK ADJUSTABLE 14" SA Short Uph - 9"-13" Back Ht's; items 2&3 not includedManufacturer no. 685904 1Quote Ask for a quote
3 BACK UPH RGK ADJUSTABLE 15" SA Short Uph - 9"-13" Back Ht's; items 2&3 not includedManufacturer no. 685905 1Quote Ask for a quote
3 BACK UPH RGK ADJUSTABLE 16" SA Short Uph - 9"-13" Back Ht's; items 2&3 not includedManufacturer no. 685906 1Quote Ask for a quote
3 BACK UPH RGK ADJUSTABLE 17" SA Short Uph - 9"-13" Back Ht's; items 2&3 not includedManufacturer no. 685907 1Quote Ask for a quote
3 BACK UPH RGK ADJUSTABLE 18" SA Short Uph - 9"-13" Back Ht's; items 2&3 not includedManufacturer no. 685908 1Quote Ask for a quote
3 BACK UPH RGK ADJUSTABLE 19" SA Short Uph - 9"-13" Back Ht's; items 2&3 not includedManufacturer no. 685909 1Quote Ask for a quote
3 BACK UPH RGK ADJUSTABLE 20" SA Short Uph - 9"-13" Back Ht's; items 2&3 not includedManufacturer no. 685910 1Quote Ask for a quote
3 BACK UPH RGK ADJUSTABLE 21" SA Short Uph - 9"-13" Back Ht's; items 2&3 not includedManufacturer no. 685911 1Quote Ask for a quote
3 BACK UPH RGK ADJUSTABLE 13" MA Med Uph - 12"-18" Back Ht's; items 2&3 not includedManufacturer no. 685913 1Quote Ask for a quote
3 BACK UPH RGK ADJUSTABLE 14" MA Med Uph - 12"-18" Back Ht's; items 2&3 not includedManufacturer no. 685914 1Quote Ask for a quote
3 BACK UPH RGK ADJUSTABLE 15" MA Med Uph - 12"-18" Back Ht's; items 2&3 not includedManufacturer no. 685915 1Quote Ask for a quote
3 BACK UPH RGK ADJUSTABLE 16" MA Med Uph - 12"-18" Back Ht's; items 2&3 not includedManufacturer no. 685916 1Quote Ask for a quote
3 BACK UPH RGK ADJUSTABLE 17" MA Med Uph - 12"-18" Back Ht's; items 2&3 not includedManufacturer no. 685917 1Quote Ask for a quote
3 BACK UPH RGK ADJUSTABLE 18" MA Med Uph - 12"-18" Back Ht's; items 2&3 not includedManufacturer no. 685918 1Quote Ask for a quote
3 BACK UPH RGK ADJUSTABLE 19" MA Med Uph - 12"-18" Back Ht's; items 2&3 not includedManufacturer no. 685919 1Quote Ask for a quote
3 BACK UPH RGK ADJUSTABLE 20" MA Med Uph - 12"-18" Back Ht's; items 2&3 not includedManufacturer no. 685920 1Quote Ask for a quote
3 BACK UPH RGK ADJUSTABLE 21" MA Med Uph - 12"-18" Back Ht's; items 2&3 not includedManufacturer no. 685921 1Quote Ask for a quote
3 BACK UPH RGK ADJUSTABLE 13" LA Large Uph - 17"-20" Back Ht's; items 2&3 not includedManufacturer no. 685923 1Quote Ask for a quote
3 BACK UPH RGK ADJUSTABLE 14" LA Large Uph - 17"-20" Back Ht's; items 2&3 not includedManufacturer no. 685924 1Quote Ask for a quote
3 BACK UPH RGK ADJUSTABLE 15" LA Large Uph - 17"-20" Back Ht's; items 2&3 not includedManufacturer no. 685925 1Quote Ask for a quote
3 BACK UPH RGK ADJUSTABLE 16" LA Large Uph - 17"-20" Back Ht's; items 2&3 not includedManufacturer no. 685926 1Quote Ask for a quote
3 BACK UPH RGK ADJUSTABLE 17" LA Large Uph - 17"-20" Back Ht's; items 2&3 not includedManufacturer no. 685927 1Quote Ask for a quote
3 BACK UPH RGK ADJUSTABLE 18" LA Large Uph - 17"-20" Back Ht's; items 2&3 not includedManufacturer no. 685928 1Quote Ask for a quote
3 BACK UPH RGK ADJUSTABLE 19" LA Large Uph - 17"-20" Back Ht's; items 2&3 not includedManufacturer no. 685929 1Quote Ask for a quote
3 BACK UPH RGK ADJUSTABLE 20" LA Large Uph - 17"-20" Back Ht's; items 2&3 not includedManufacturer no. 685930 1Quote Ask for a quote

NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 53)

42 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 53)
No.PartQtyPriceAction
1A RGK-BACK UPH 12" 8-12" W/TAILManufacturer no. 256877 1Quote Ask for a quote
1A RGK-BACK UPH 12" 11-15" W/TAILManufacturer no. 256878 1Quote Ask for a quote
1A RGK-BACK UPH 12" 12-16" W/TAILManufacturer no. 256879 1Quote Ask for a quote
1A RGK-BACK UPH 12" 14-18" W/TAILManufacturer no. 256880 1Quote Ask for a quote
1A RGK-BACK UPH 12" 16-20" W/TAILManufacturer no. 256881 1Quote Ask for a quote
1B RGK-BACK UPH 13" 8-12" W/TAILManufacturer no. 256882 1Quote Ask for a quote
1B RGK-BACK UPH 13" 11-15" W/TAILManufacturer no. 256883 1Quote Ask for a quote
1B RGK-BACK UPH 13" 12-16" W/TAILManufacturer no. 256884 1Quote Ask for a quote
1B RGK-BACK UPH 13" 14-18" W/TAILManufacturer no. 256885 1Quote Ask for a quote
1B RGK-BACK UPH 13" 16-20" W/TAILManufacturer no. 256886 1Quote Ask for a quote
1C RGK-BACK UPH 14" 8-12" W/TAILManufacturer no. 256887 1Quote Ask for a quote
1C RGK-BACK UPH 14" 11-15" W/TAILManufacturer no. 256888 1Quote Ask for a quote
1C RGK-BACK UPH 14" 12-16" W/TAILManufacturer no. 256889 1Quote Ask for a quote
1C RGK-BACK UPH 14" 14-18" W/TAILManufacturer no. 256890 1Quote Ask for a quote
1C RGK-BACK UPH 14" 16-20" W/TAILManufacturer no. 256891 1Quote Ask for a quote
1D RGK-BACK UPH 15" 8-12" W/TAILManufacturer no. 256892 1Quote Ask for a quote
1D RGK-BACK UPH 15" 11-15" W/TAILManufacturer no. 256893 1Quote Ask for a quote
1D RGK-BACK UPH 15" 12-16" W/TAILManufacturer no. 256894 1Quote Ask for a quote
1D RGK-BACK UPH 15" 14-18" W/TAILManufacturer no. 256895 1Quote Ask for a quote
1D RGK-BACK UPH 15" 16-20" W/TAILManufacturer no. 256896 1Quote Ask for a quote
1E RGK-BACK UPH 16" 8-12" W/TAILManufacturer no. 256897 1Quote Ask for a quote
1E RGK-BACK UPH 16" 11-15" W/TAILManufacturer no. 256898 1Quote Ask for a quote
1E RGK-BACK UPH 16" 12-16" W/TAILManufacturer no. 256899 1Quote Ask for a quote
1E RGK-BACK UPH 16" 14-18" W/TAILManufacturer no. 256900 1Quote Ask for a quote
1E RGK-BACK UPH 16" 16-20" W/TAILManufacturer no. 256901 1Quote Ask for a quote
1F RGK-BACK UPH 17" 8-12" W/TAILManufacturer no. 256902 1Quote Ask for a quote
1F RGK-BACK UPH 17" 11-15" W/TAILManufacturer no. 256903 1Quote Ask for a quote
1F RGK-BACK UPH 17" 12-16" W/TAILManufacturer no. 256904 1Quote Ask for a quote
1F RGK-BACK UPH 17" 14-18" W/TAILManufacturer no. 256905 1Quote Ask for a quote
1F RGK-BACK UPH 17" 16-20" W/TAILManufacturer no. 256906 1Quote Ask for a quote
1G RGK-BACK UPH 18" 8-12" W/TAILManufacturer no. 256907 1Quote Ask for a quote
1G RGK-BACK UPH 18" 11-15" W/TAILManufacturer no. 256908 1Quote Ask for a quote
1G RGK-BACK UPH 18" 12-16" W/TAILManufacturer no. 256909 1Quote Ask for a quote
1G RGK-BACK UPH 18" 14-18" W/TAILManufacturer no. 256910 1Quote Ask for a quote
1G RGK-BACK UPH 18" 16-20" W/TAILManufacturer no. 256911 1Quote Ask for a quote
1H RGK-BACK UPH 19" 8-12" W/TAILManufacturer no. 256912 1Quote Ask for a quote
1H RGK-BACK UPH 19" 11-15" W/TAILManufacturer no. 256913 1Quote Ask for a quote
1H RGK-BACK UPH 19" 12-16" W/TAILManufacturer no. 256914 1Quote Ask for a quote
1H RGK-BACK UPH 19" 14-18" W/TAILManufacturer no. 256915 1Quote Ask for a quote
1I RGK-BACK UPH 19" 16-20" W/TAILManufacturer no. 256916 1Quote Ask for a quote
1I RGK-BACK UPH 20" 8-12" W/TAILManufacturer no. 256917 1Quote Ask for a quote
1I RGK-BACK UPH 20" 11-15" W/TAILManufacturer no. 256918 1Quote Ask for a quote

NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 55)

16 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 55)
No.PartQtyPriceAction
1A 1/4-28 x 1 FH C/S Used w/o spacerManufacturer no. 226259 1Quote Ask for a quote
1B 1/4-20 x 1 FH C/S BLK Used with footrest spacerManufacturer no. 226121 1Quote Ask for a quote
2A PLTFORM F/PLT 6" x 5 1/2" 12-15 wideManufacturer no. 500690 1Quote Ask for a quote
2B PLTFORM F/PLT 8" x 5 1/2" 16-17 wideManufacturer no. 500691 1Quote Ask for a quote
2C PLTFORM F/PLT 10" x 5 1/2" 18-19 wideManufacturer no. 500692 1Quote Ask for a quote
2D PLATFORM F/PLT 12" x 5 1/2" 20 wide All Court - 18-20 Match PointManufacturer no. 500693 1Quote Ask for a quote
3A ADAPTIVE FOOTREST SPACER 2"Manufacturer no. 481306 1Quote Ask for a quote
3B ADAPTIVE FOOTREST SPACER 4"Manufacturer no. 481307 1Quote Ask for a quote
3C ADAPTIVE FOOTREST SPACER 6"Manufacturer no. 481308 1Quote Ask for a quote
4 PLATFORM FOOTPLATE CLAMPManufacturer no. 550351 1Quote Ask for a quote
5 1/4-28 AUTOMATION NUT Used w/o spacerManufacturer no. 106941 1Quote Ask for a quote
6 1/4-20 X 1 HEX C/S Used with footrest spacerManufacturer no. 106958 1Quote Ask for a quote
7A FOOTREST TUBE 14/15" QTNTManufacturer no. 522247 1Quote Ask for a quote
7B FOOTREST TUBE 16/17" QTNTManufacturer no. 522248 1Quote Ask for a quote
7C FOOTREST TUBE 18" QTNTManufacturer no. 522249 1Quote Ask for a quote
7D FOOTREST TUBE 18"/19" MPManufacturer no. 522265 1Quote Ask for a quote

High Mount Platform Footrest

17 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in High Mount Platform Footrest
No.PartQtyPriceAction
1 1/4-28 X 1 FLAT HD C/S BLKManufacturer no. 226259 1Quote Ask for a quote
2A NEW PLTFORM F/PLT 6X5.5Manufacturer no. 500690 1Quote Ask for a quote
2B NEW PLTFORM F/PLT 8X5.5Manufacturer no. 500691 1Quote Ask for a quote
2C NEW PLTFORM F/PLT 10X5.5Manufacturer no. 500692 1Quote Ask for a quote
2D NEW PLTFORM F/PLT 12X5.5Manufacturer no. 500693 1Quote Ask for a quote
3 CLAMP, FOOTPLATEManufacturer no. 550351 1Quote Ask for a quote
4 1/4-28 AUTOMATION NUTManufacturer no. 106941 1Quote Ask for a quote
5 1/4 WASHER HI COLLAR LOCK ZNManufacturer no. 262114 1Quote Ask for a quote
6 1/4-28 x 1 SOC S/C BLKManufacturer no. 107032 1Quote Ask for a quote
7 CLAMP 1 1/4" RECESS FULL BLKManufacturer no. 550657 1Quote Ask for a quote
8 CLAMP 1 1/4" THREADED BLKManufacturer no. 550658 1Quote Ask for a quote
5-8 HI-MOUNT FR CLAMP ASSM BLKManufacturer no. 880538 1Quote Ask for a quote
9 FOOTREST TUBE 14/15" QTNTManufacturer no. 522247 1Quote Ask for a quote
9 FOOTREST TUBE 16/17" QTNTManufacturer no. 522248 1Quote Ask for a quote
9 FOOTREST TUBE 18" QTNTManufacturer no. 522249 1Quote Ask for a quote
9 FOOTREST TUBE 18/19" MPManufacturer no. 522265 1Quote Ask for a quote
10 3/4" INSERT PLUG .083Manufacturer no. 561000-QU 1Quote Ask for a quote

NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 57)

13 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 57)
No.PartQtyPriceAction
1 1" SADDLE 1/4" HOLEManufacturer no. 561004 1Quote Ask for a quote
2 SIDE GUARD STDManufacturer no. 500223 1Quote Ask for a quote
3A 1/4-28 x 1.85 BH C/S BLK ZN USED W/ ALUMINUM BACK FRAMEManufacturer no. 106962 1Quote Ask for a quote
3B BHCS M6 X 1 X 45 BLK USED W/ TITANIUM BACK FRAMEManufacturer no. 230118 1Quote Ask for a quote
3C 1/4-28 X 2 BH C/S USED W/ ALUMINUM BACK FRAMEManufacturer no. 106964 1Quote Ask for a quote
3D BHCS M6 X 1 X 50 INORGANIC USED W/ TITANIUM BACK FRAMEManufacturer no. 102262-008 1Quote Ask for a quote
4 1/4-28 x 1.85 BH C/SManufacturer no. 226147 1Quote Ask for a quote
5 SIDE GUARD BUSHINGManufacturer no. 481046 1Quote Ask for a quote
6 1" WASHER 3/8" HOLEManufacturer no. 561043 1Quote Ask for a quote
7 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
8 1/4-28 X 2 BH C/SManufacturer no. 106964 1Quote Ask for a quote
9 1-1/8" SADDLE 1/4" HOLEManufacturer no. 561001 1Quote Ask for a quote
10 WASHER FLAT AN 1/4Manufacturer no. 106943 1Quote Ask for a quote

Aluminum Side Guard For Folding Back

12 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Aluminum Side Guard For Folding Back
No.PartQtyPriceAction
1 1" SADDLE 1/4" HOLEManufacturer no. 561004 1Quote Ask for a quote
2 SIDE GUARD AL STD ACManufacturer no. 500223 1Quote Ask for a quote
3 SIDEGUARD BUSHINGManufacturer no. 481046 1Quote Ask for a quote
4A 1/4-28 x 1.85 BH C/S BLK ZN USED W/ ALUMINUM BACK FRAMEManufacturer no. 106962 1Quote Ask for a quote
4B BHCS M6 X 1 X 45 BLK USED W/ TITANIUM BACK FRAMEManufacturer no. 230118 1Quote Ask for a quote
5 1" WASHER 3/8" HOLEManufacturer no. 561043 1Quote Ask for a quote
6 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
7A 1/4-28 x 2 BH C/S USED W/ ALUMINUM BACK FRAMEManufacturer no. 106964 1Quote Ask for a quote
7B BHCS M6 X 1 X 50 INORGANIC USED W/ TITANIUM BACK FRAMEManufacturer no. 102262-008 1Quote Ask for a quote
8 1/4-28 x 1.85 BH C/SManufacturer no. 226147 1Quote Ask for a quote
9 1/4-28 X 2 BH C/SManufacturer no. 106964 1Quote Ask for a quote
10 WASHER FLAT AN 1/4Manufacturer no. 106943 1Quote Ask for a quote

NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 59)

9 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 59)
No.PartQtyPriceAction
1A SIDE GUARD ASSY STDManufacturer no. 104164-001 1Quote Ask for a quote
1B SIDE GUARD ASSY SMALLManufacturer no. 104164-002 1Quote Ask for a quote
2 1/4-28 x 1 3/8 HEX C/SManufacturer no. 106971 1Quote Ask for a quote
3 1/4 AN WASHER FLAT THINManufacturer no. 106944 1Quote Ask for a quote
4 CLAMP P300 CHARGING/ADJ FL KIDSManufacturer no. 550251 1Quote Ask for a quote
5 SIDE GUARD/KIDZ ARM RECEIVERManufacturer no. 550325 1Quote Ask for a quote
2-5 SIDE GUARD/KIDZ ARM RECEIVER W/CLAMPManufacturer no. 881200 1Quote Ask for a quote
1A-5 PLASTIC SIDE GUARD ASSM W/CLAMP STD PairManufacturer no. 170130 1Quote Ask for a quote
1B-5 PLASTIC SIDE GUARD ASSM W/CLAMP KIDS PairManufacturer no. 170129 1Quote Ask for a quote

Backpacks And Seat Pouches

3 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Backpacks And Seat Pouches
No.PartQtyPriceAction
1 BACK PACK QUICKIE Overall dimensions:width 12.5", height 18.5", depth 6.5"Manufacturer no. 750115 1Quote Ask for a quote
2 BACKPACK ZIPPIE Overall dimensions: width 12", height 16.5", depth 4.5"Manufacturer no. 104572 1Quote Ask for a quote
3 SEAT POUCH QUICKIE Dimensions: width 8.5", height 6", depth top 2.5", depth bottom 3.5"Manufacturer no. 750307 1Quote Ask for a quote

NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 61)

6 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 61)
No.PartQtyPriceAction
1 POSITION BLT HK/LP CLS 11"-12"Manufacturer no. 751019 1Quote Ask for a quote
1 POSITION BLT HK/LP CLS 13"-14"Manufacturer no. 751020 1Quote Ask for a quote
1 POSITION BLT HK/LP CLS 15"-16"Manufacturer no. 751026 1Quote Ask for a quote
1 POSITION BLT HK/LP CLS 17"-18"Manufacturer no. 751027 1Quote Ask for a quote
1 POSITION BLT HK/LP CLS 19"-20"Manufacturer no. 751028 1Quote Ask for a quote
2 POSITION BELT NYLN BKL SPC-DIMManufacturer no. 751025S 1Quote Ask for a quote

Ratchet Positioning Belt

6 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Ratchet Positioning Belt
No.PartQtyPriceAction
2 BHCS 1/4-28 X 5/8Manufacturer no. 106959 1Quote Ask for a quote
3 BRACKET STRAP RATCHET BELTManufacturer no. 483328 1Quote Ask for a quote
4 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
5 WASHER FLAT THIN AN 1/4Manufacturer no. 106944 1Quote Ask for a quote
1-5 RATCHET POS BELT LRG ASSM (PR) (PR) 36" LONGManufacturer no. 750218 1Quote Ask for a quote
1-5 RATCHET POS BELT XLG ASSM (PR) (PR) 42" LONGManufacturer no. 750219 1Quote Ask for a quote

NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 63)

6 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 63)
No.PartQtyPriceAction
1A CHEST STRAP 2" KIDZ REG (48")Manufacturer no. 740162 1Quote Ask for a quote
1B CHEST STRAP 2" ADLT REG (54")Manufacturer no. 740157 1Quote Ask for a quote
1C CHEST STRAP 2" ADLT LNG (60")Manufacturer no. 740163 1Quote Ask for a quote
2A CHEST STRAP 4" KIDZ REG (48")Manufacturer no. 740172 1Quote Ask for a quote
2B CHEST STRAP 4" ADLT REG (54")Manufacturer no. 740158 1Quote Ask for a quote
2C CHEST STRAP 4" ADLT LNG (60")Manufacturer no. 740173 1Quote Ask for a quote

SPOKE GUARDS QUICKIE (Black & Clear)

0 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Spoke Guards (Sport)

2 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Spoke Guards (Sport)
No.PartQtyPriceAction
1A SPK GRD 24"SPRT HI PRFL W/TIEManufacturer no. 902072 1Quote Ask for a quote
1B SPK GRD 24"HT SP LW PRFL W/TIEManufacturer no. 902077 1Quote Ask for a quote

Leg Straps

3 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Leg Straps
No.PartQtyPriceAction
1 LEG STRAP 10"-14" BLKManufacturer no. 740130 1Quote Ask for a quote
1 LEG STRAP 15"-17" BLKManufacturer no. 740131 1Quote Ask for a quote
1 LEG STRAP 18"-20" BLKManufacturer no. 740132 1Quote Ask for a quote

NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 69)

2 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 69)
No.PartQtyPriceAction
1 TIRE PUMPManufacturer no. 389050 1Quote Ask for a quote
2 VALVE ADAPTER PRESTAManufacturer no. 381230 1Quote Ask for a quote

Toe Clips

10 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Toe Clips
No.PartQtyPriceAction
1 STRAP TOE CLIPManufacturer no. 750026 1Quote Ask for a quote
2 TOE CLIP PLASTIC(PR)Manufacturer no. 560065 1Quote Ask for a quote
3 #10 AN WASHER .063Manufacturer no. 261204 1Quote Ask for a quote
4 10-32 X 1/2 BH C/S BLKManufacturer no. 226043 1Quote Ask for a quote
5 1/4-28 X 5/8 FH C/S BLK ZNManufacturer no. 227104 1Quote Ask for a quote
6 10-32 NYLOCK NUTManufacturer no. 200100-QU 1Quote Ask for a quote
7 WASHER FLAT THIN AN 1/4 ROHSManufacturer no. 106944 1Quote Ask for a quote
8 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
9 BRACKET FOOTPLATE TOE CLIPManufacturer no. 500270 1Quote Ask for a quote
1-9 TOE CLIP ASSM PairManufacturer no. 900829 1Quote Ask for a quote

NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 71)

4 parts

Exploded view from the manufacturer's parts manual (RGK AllCourt Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in NEW QUICKIE ALLCOURT/Ti ALLCOURT (page 71)
No.PartQtyPriceAction
1 WATER BOTTLE CAGE W/ CLAMP BlackManufacturer no. 252135 1Quote Ask for a quote
2 QUICKIE WATER BOTTLE BlackManufacturer no. 252136 1Quote Ask for a quote
3 ADHESIVE RUBBER PADManufacturer no. 123526 1Quote Ask for a quote
1-3 WATER BOTTLE W/ CAGE AND CLAMPManufacturer no. 163680 1Quote Ask for a quote

Parts manuals for this model

The manufacturer parts lists and exploded diagrams we hold. If you can find the number on one of these, quote it to us and we will match it.

RGK AllCourt Parts Manual

Manufacturer parts document, PDF.

Not sure which part you need?

Send us a photo of the part, or of where it sits, and tell us what it is doing. Our order desk identifies parts for this equipment every day, and we would rather ask you one question than ship you the wrong bolt.

Or call 905 451-7743 and describe it to us.

Where to go next

The product page

Specifications, documents and the full product page for the Rgk Allcourt Basketball Wheelchair.

All replacement parts

Search every part we stock, or browse by the equipment it fits.

Have us fit it

Our technicians service what we sell, in the home and in the showroom.
