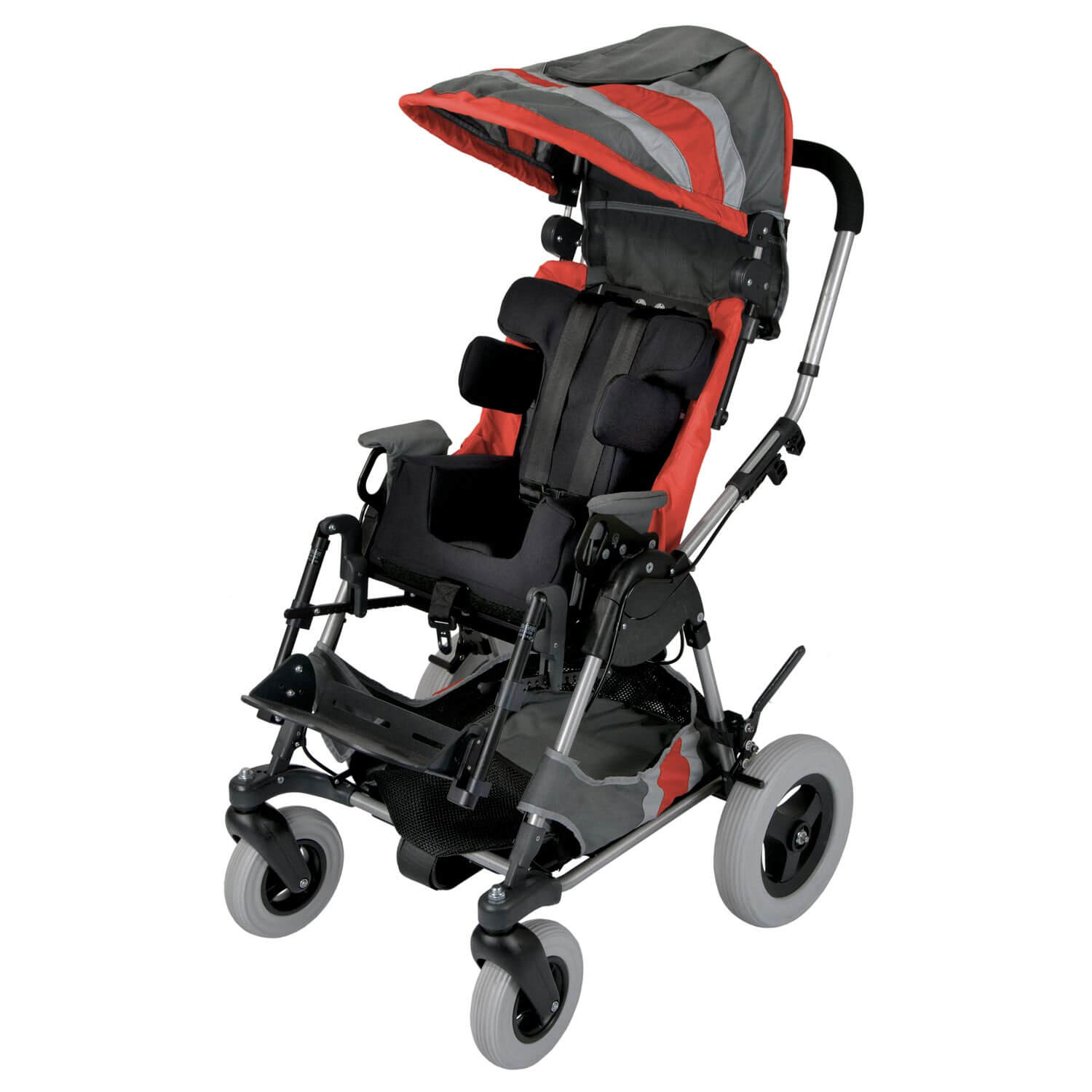

Zippie Xpress Early Intervention Stroller

Parts finder

Replacement parts for the Zippie Xpress Early Intervention Stroller

The exploded view below is numbered. Click a number on the drawing to jump to that part, or search the list. Every price shown is the current online price; anything quoted is priced by our order desk.

Ask about a part Product page 752 parts listed

Showing all 752 parts

1 of 57

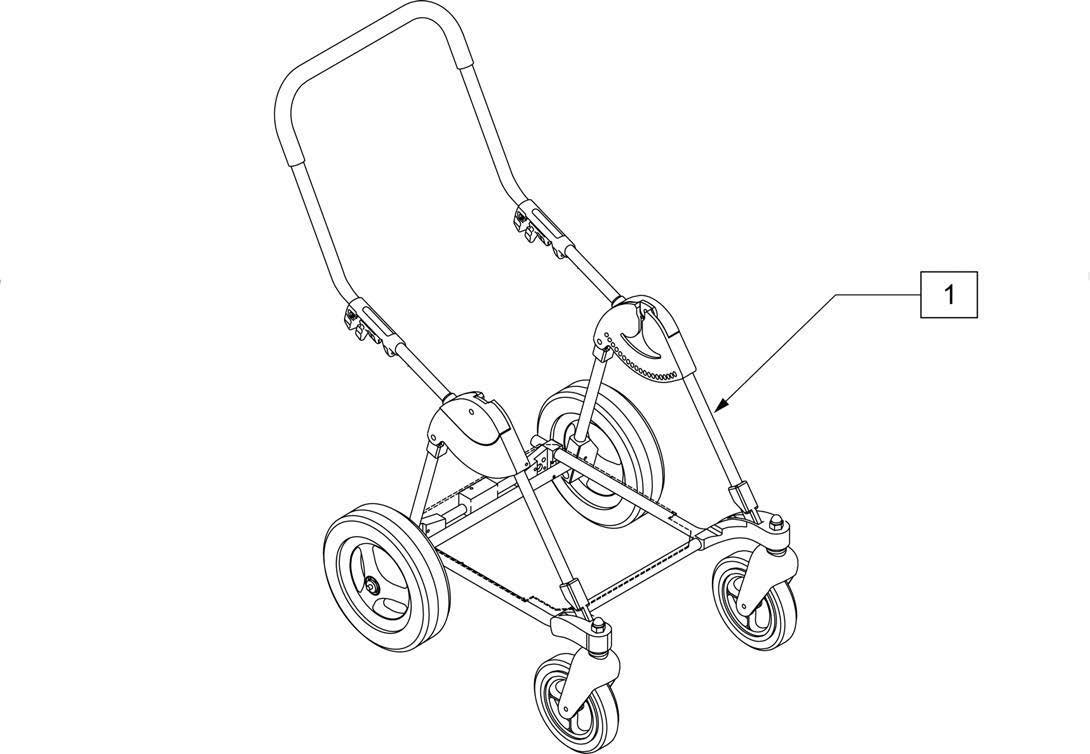

Exploded view of the Standard Base Frame

Loading the drawing

Standard Base Frame. Numbers match the list.
Frame And Push Handle Discontinued. Numbers match the list.
Frame And Push Handle. Numbers match the list.
Fold Release Mechanism Discontinued. Numbers match the list.
Fold Release Mechanism. Numbers match the list.
Mobase Anti-Tip. Numbers match the list.
Wheel Lock. Numbers match the list.
Wheel / Caster Assembly. Numbers match the list.
Vent Base Frame. Numbers match the list.
Wheel Locks. Numbers match the list.
Vent Wheels / Caster Assemblies. Numbers match the list.
Stroller Handle. Numbers match the list.
Vent Anti-Tips. Numbers match the list.
Seating Shell. Numbers match the list.
Seating Shell Discontinued. Numbers match the list.
Inside Back/Shell. Numbers match the list.
Inside Back/Shell Discontinued. Numbers match the list.
Rear Shell Attachments. Numbers match the list.
must include Tilt option Handle Assy.. Numbers match the list.
Mech-Lock Assembly For Recline Option. Numbers match the list.
Tilt-In-Space Seat Pan. Numbers match the list.
Adjustable Footbed Assembly. Numbers match the list.
Armrest (Upper Extremity Tray Supports). Numbers match the list.
Uphostery Package. Numbers match the list.
Sunshade. Numbers match the list.
Positioning Belts. Numbers match the list.
Transit Harness. Numbers match the list.
T-Back 2 1/2". Numbers match the list.
STANDARD SEAT CUSHION-w/outLateral Hip Support. Numbers match the list.
STANDARD SEAT CUSHION-with Lateral Hip Support. Numbers match the list.
Contour Adj Seat Cushion. Numbers match the list.
Planar Head Support. Numbers match the list.
Tri-Wing Head Support. Numbers match the list.
Micro Adjust Head Support. Numbers match the list.
Whitmyer Head Support. Numbers match the list.
Knee Adductor Package. Numbers match the list.
Hip Adductor Package. Numbers match the list.
Swing-Away Lateral Trunk Support. Numbers match the list.
Swing-Away Lateral Trunk Support Discontinued. Numbers match the list.
Non-Swing-Away (Fixed)Lateral Trunk Support. Numbers match the list.
Exploded view, page 63. Numbers match the list.
Anterior Trunk Support. Numbers match the list.
Abductor Block. Numbers match the list.
Fixed Height Feeder Base. Numbers match the list.
Booster Base - Top. Numbers match the list.
Booster Base - Bottom. Numbers match the list.
SPICA PLATFORM (Discontinued). Numbers match the list.
Adjustment Tools. Numbers match the list.
Shoe Holder Assembly. Numbers match the list.
Upper Extremity Support Tray - Xpress. Numbers match the list.
Vent And Battery Tray. Numbers match the list.
Tbird Vent Tray & Battery Tray. Numbers match the list.
O2 Holder. Numbers match the list.
Iv Pole Assembly W/Base. Numbers match the list.
O2 Holder And Iv Assembly. Numbers match the list.
Tire Pump. Numbers match the list.
Raincape. Numbers match the list.

Standard Base Frame

20 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Standard Base Frame
No.PartQtyPriceAction
1 10 SEMIPNEU w/7 CASTER PURPLEManufacturer no. 9140893151 1Quote Ask for a quote
1 10 SEMIPNEU w/ 7 CASTER PINKManufacturer no. 9140893171 1Quote Ask for a quote
1 10" SEMI-PNEU w/ 7" CASTER - SILVERManufacturer no. 102729 1Quote Ask for a quote
1 10 SEMIPNEU w/ 7 CASTER BLACKManufacturer no. 102724 1Quote Ask for a quote
1 12 PNEU w/7 CASTER PURPLEManufacturer no. 9140891151 1Quote Ask for a quote
1 12 PNEUMATIC w/ 7 CASTER PINKManufacturer no. 9140891171 1Quote Ask for a quote
1 12" PNEUMATIC w/ 7" CASTER - SILVERManufacturer no. 102730 1Quote Ask for a quote
1 12 PNEU w/7 CASTER BLACKManufacturer no. 102725 1Quote Ask for a quote
1 12 AIRLESS w/ 7 CASTER PURPLEManufacturer no. 9140891152 1Quote Ask for a quote
1 12 AIRLESS w/ 7 CASTER PINKManufacturer no. 9140891172 1Quote Ask for a quote
1 12" AIRLESS w/ 7" CASTER - SILVERManufacturer no. 102731 1Quote Ask for a quote
1 12 AIRLESS w/ 7 CASTER BLACKManufacturer no. 102726 1Quote Ask for a quote
1 14 PNEU w/8 CASTER PURPLEManufacturer no. 9140892151 1Quote Ask for a quote
1 14 PNEUMATIC w/ 8 CASTER PINKManufacturer no. 9140892171 1Quote Ask for a quote
1 14" PNEUMATIC w/ 8" CASTER - SILVERManufacturer no. 102732 1Quote Ask for a quote
1 14 PNEU w/8 CASTER BLACKManufacturer no. 102727 1Quote Ask for a quote
1 14 AIRLESS w/ 8 CASTER PURPLEManufacturer no. 9140892152 1Quote Ask for a quote
1 14 AIRLESS w/ 8 CASTER PINKManufacturer no. 9140892172 1Quote Ask for a quote
1 14" AIRLESS w/ 8" CASTER - SILVERManufacturer no. 102733 1Quote Ask for a quote
1 14 AIRLESS w/ 8 CASTER BLACKManufacturer no. 102728 1Quote Ask for a quote

Frame And Push Handle Discontinued

19 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Frame And Push Handle Discontinued
No.PartQtyPriceAction
1 GRIP HANDLE - 3/4" x 21" - BLACKManufacturer no. 9394107501 1Quote Ask for a quote
2 HANDLEBAR TUBE - PURPLE - XPManufacturer no. 9451343851 1Quote Ask for a quote
2 HANDLEBAR TUBE - TEAL - XPManufacturer no. 9451343861 1Quote Ask for a quote
2 HANDLEBAR TUBE - PINK - XPManufacturer no. 9451343871 1Quote Ask for a quote
3 INSERT (SLEEVE) 3/4" - PLASTICManufacturer no. 563065 1Quote Ask for a quote
4 SNAP BUTTON - SINGLE, B-141Manufacturer no. 9691121411 1Quote Ask for a quote
5 HANDLEBAR RELEASE PEG - PLASTICManufacturer no. 9541632001 1Quote Ask for a quote
6 HANDLEBAR RELEASE TRIGGERManufacturer no. 9320201014 1Quote Ask for a quote
7 SETSCREW 1/4-20 x 1/4 CPNT SSS ANSManufacturer no. 9627021604S 1Quote Ask for a quote
8 MACH SCREW #10-24 x 1/2 SBHCS ZPSManufacturer no. 9611000608 1Quote Ask for a quote
9 FOLD RETAINING GUIDEManufacturer no. 9559210201 1Quote Ask for a quote
10 MACH SCREW 1/4-20 x 1/2 FHS ZPSManufacturer no. 9612000908 1Quote Ask for a quote
11 HANDLEBAR PIVOT NUTManufacturer no. 9540608001 1Quote Ask for a quote
1-3 UPPER HANDLEBAR KIT - PURPLEManufacturer no. 9180110051 1Quote Ask for a quote
1-3 UPPER HANDLEBAR KIT - TEALManufacturer no. 9180110061 1Quote Ask for a quote
1-3 UPPER HANDLEBAR KIT - PINKManufacturer no. 9180110071 1Quote Ask for a quote
1-12 FRAME ASSY - PURPLE - XPManufacturer no. 9151324101 1Quote Ask for a quote
1-12 FRAME ASSY - TEAL - XPManufacturer no. 9151323101 1Quote Ask for a quote
1-12 FRAME ASSY - PINK - XPManufacturer no. 9151325101 1Quote Ask for a quote

Frame And Push Handle

22 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Frame And Push Handle
No.PartQtyPriceAction
1 GRIP HANDLE - 3/4" x 21" - BLACKManufacturer no. 9394107501 1Quote Ask for a quote
2 HANDLEBAR TUBE - PURPLE - XPManufacturer no. 9451343851 1Quote Ask for a quote
2 HANDLEBAR TUBE - TEAL - XPManufacturer no. 9451343861 1Quote Ask for a quote
2 HANDLEBAR TUBE - PINK - XPManufacturer no. 9451343871 1Quote Ask for a quote
2 HANDLEBAR TUBE - BLACK - XPManufacturer no. 211234 1Quote Ask for a quote
2 HANDLE BAR TUBE SILVER XPManufacturer no. 102708 1Quote Ask for a quote
3 INSERT (SLEEVE) 3/4" - PLASTICManufacturer no. 563065 1Quote Ask for a quote
4 SNAP BUTTON - SINGLE, B-141Manufacturer no. 9691121411 1Quote Ask for a quote
5 XP FRM FOLD RLS MOUNT PAIRManufacturer no. 102713S 1Quote Ask for a quote
6 HANDLEBAR RELEASE TRIGGERManufacturer no. 9320201014 1Quote Ask for a quote
7 SETSCREW 1/4-20 x 1/4 CPNT SSS ANSManufacturer no. 9627021604S 1Quote Ask for a quote
8 MACH SCREW #10-24 x 1/2 SBHCS ZPSManufacturer no. 9611000608 1Quote Ask for a quote
9 FOLD RETAINING GUIDEManufacturer no. 9559210201 1Quote Ask for a quote
10 MACH SCREW 1/4-20 x 1/2 FHS ZPSManufacturer no. 9612000908 1Quote Ask for a quote
11 HANDLEBAR PIVOT NUTManufacturer no. 9540608001 1Quote Ask for a quote
1-3 UPPER HANDLEBAR KIT - PURPLEManufacturer no. 9180110051 1Quote Ask for a quote
1-3 UPPER HANDLEBAR KIT - TEALManufacturer no. 9180110061 1Quote Ask for a quote
1-3 UPPER HANDLEBAR KIT - PINKManufacturer no. 9180110071 1Quote Ask for a quote
1-3 UPPER HANDLEBAR KIT - BLACKManufacturer no. 211235 1Quote Ask for a quote
1-3 HANDLEBAR KIT SILVER XPManufacturer no. 102704 1Quote Ask for a quote
1-12 FRAME ASSY - PURPLE - XPManufacturer no. 9151324101 1Quote Ask for a quote
1-12 FRAME ASSY - TEAL - XPManufacturer no. 9151323101 1Quote Ask for a quote

Fold Release Mechanism Discontinued

6 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Fold Release Mechanism Discontinued
No.PartQtyPriceAction
1 MACH SCREW #10-24 x 3/4 SBHCS ZPSManufacturer no. 9611000612 1Quote Ask for a quote
2 FOLD LOCKOUT PIN - XPManufacturer no. 9770201004 1Quote Ask for a quote
3 LATCH PINManufacturer no. 9540812001 1Quote Ask for a quote
4 MACH SCREW #10-24 x 1 SBHCS ZPSManufacturer no. 9611000616 1Quote Ask for a quote
5 FOLD RELEASE ASSEMBLY - XPManufacturer no. 888867 1Quote Ask for a quote
6 FOLD RELEASE LEVER - XPManufacturer no. 9320402002 1Quote Ask for a quote

Fold Release Mechanism

4 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Fold Release Mechanism
No.PartQtyPriceAction
1 MACH SCREW #10-24 x 3/4 SBHCS ZPSManufacturer no. 9611000612 1Quote Ask for a quote
2 FOLD LOCKOUT PIN ( lanyard included)Manufacturer no. 9770201004 1Quote Ask for a quote
3 LATCH PINManufacturer no. 9540812001 1Quote Ask for a quote
4 MACH SCREW #10-24 x 1 SBHCS ZPSManufacturer no. 9611000616 1Quote Ask for a quote

Mobase Anti-Tip

7 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Mobase Anti-Tip
No.PartQtyPriceAction
1 NYLOCK NUT 1/4-20 ZPSManufacturer no. 9650501012 1Quote Ask for a quote
2 INSERT (SLEEVE) 3/4" - PLASTICManufacturer no. 563065 1Quote Ask for a quote
3 SNAP BUTTON - SINGLE, B-141Manufacturer no. 9691121411 1Quote Ask for a quote
4 HEX BOLT 1/4-20 x 2 ZPSManufacturer no. 9611000932 1Quote Ask for a quote
5 ANTI-TIP WHEELManufacturer no. 561032 1Quote Ask for a quote
6A ANTI-TIP TUBE 10"-12" - XPManufacturer no. 9453105001 1Quote Ask for a quote
6B ANTI-TIP TUBE 14" - XPManufacturer no. 9453120001 1Quote Ask for a quote

Wheel Lock

3 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Wheel Lock
No.PartQtyPriceAction
1 WHEEL LOCK ASSEMBLY - L LEFTManufacturer no. 9180500102 1Quote Ask for a quote
1 WHEEL LOCK ASSEMBLY - R RIGHTManufacturer no. 9180500202 1Quote Ask for a quote
1 WHEEL LOCK ASSEMBLIES - XP PAIRManufacturer no. 920697 1Quote Ask for a quote

Wheel / Caster Assembly

16 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Wheel / Caster Assembly
No.PartQtyPriceAction
1 NYLOCK NUT, LOW 1/2-20 ZPSManufacturer no. 9650701021 1Quote Ask for a quote
2 BALL LOCK PIN - AXLE, 57193-1Manufacturer no. 9770104001 1Quote Ask for a quote
1-2 AXLE ASSEMBLYManufacturer no. 900080 1Quote Ask for a quote
3 NUT COVERManufacturer no. 888081 1Quote Ask for a quote
4 NYLOCK NUT 1/2-20 ZPSManufacturer no. 106940 1Quote Ask for a quote
5A CASTER ASSY - 7" URETHANEManufacturer no. 9180600003 1Quote Ask for a quote
5B CASTER ASSY - 8" AIRLESSManufacturer no. 9180600005 1Quote Ask for a quote
6A WHEEL 10" SEMI-PNEUMATICManufacturer no. 9711002001 1Quote Ask for a quote
6B WHEEL 12" PNEUMATICManufacturer no. 9711202002 1Quote Ask for a quote
6C WHEEL 14" PNEUMATICManufacturer no. 9711402003 1Quote Ask for a quote
6D WHEEL 12" w/AIRLESS INSERTManufacturer no. 9711202402 1Quote Ask for a quote
6E WHEEL 14" w/AIRLESS INSERTManufacturer no. 9711402401 1Quote Ask for a quote
7 WAVE SPRINGManufacturer no. 321166 1Quote Ask for a quote
8 WASHER 1/2" FLAT NYLONManufacturer no. 9640181205 1Quote Ask for a quote
7-8 CASTER ANTI-FLUTTER RETRO KITManufacturer no. 780186 1Quote Ask for a quote
9 CASTER STEM SPACER - 1-1/2", BLACK Use w/8"casterManufacturer no. 521562 1Quote Ask for a quote

Vent Base Frame

14 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Vent Base Frame
No.PartQtyPriceAction
1 T-I-S BLOCK VENT MOBASE - R RightManufacturer no. 9530650001 1Quote Ask for a quote
1 T-I-S BLOCK VENT MOBASE - L LeftManufacturer no. 9530650002 1Quote Ask for a quote
2 T-NUT 1/4-20 x 3/8 ROUND ZPSManufacturer no. 9681120106 1Quote Ask for a quote
3 T-NUT 5/16 x 3/4 ROUND ZPSManufacturer no. 9681140112 1Quote Ask for a quote
4 TOP LOCK JAM NUT #10-24 ZPSManufacturer no. 9651602010 1Quote Ask for a quote
5 SPRING - COMPRESSION 3/8" OD x 1-1/4"Manufacturer no. 9752503815 1Quote Ask for a quote
6 SPRING FOLLOWERManufacturer no. 9540430001 1Quote Ask for a quote
7 ACORN NUT 1/4-28 STL CHROMEManufacturer no. 9651001013 1Quote Ask for a quote
8 HEX JAM NUT 1/4-28 ZPSManufacturer no. 9650201013 1Quote Ask for a quote
9 MACH SCREW 1/4-20 x 1-1/4 SBHCS ANSManufacturer no. 9611000920 1Quote Ask for a quote
10 WASHER #12 FLAT ANSManufacturer no. 9640120601 1Quote Ask for a quote
11 MACH SCREW 1/4-20 x 1-1/2 SBHCS ANSManufacturer no. 9611000924 1Quote Ask for a quote
12 HANDLEBAR PIVOT BUSHINGManufacturer no. 9540524001 1Quote Ask for a quote
13 HANDLEBAR PLATEManufacturer no. 9510504001 1Quote Ask for a quote

Wheel Locks

11 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Wheel Locks
No.PartQtyPriceAction
1 NYLOCK NUT 1/4-20 ZPSManufacturer no. 9650501012 1Quote Ask for a quote
2 WHEEL LOCK BRACKET - LManufacturer no. 9730000102 1Quote Ask for a quote
2 WHEEL LOCK BRACKET - RManufacturer no. 9730000202 1Quote Ask for a quote
3 WHEEL LOCK SPACER 5/8"Manufacturer no. 9456006301 1Quote Ask for a quote
4 WHEEL LOCK MECHANISM - L - BR01Manufacturer no. 9730000102 1Quote Ask for a quote
4 WHEEL LOCK MECHANISM - R - BR02Manufacturer no. 9730000202 1Quote Ask for a quote
5 WHEEL LOCK HANDLEManufacturer no. 9730000001 1Quote Ask for a quote
6 WASHER 1/4" SHOULDER NYLONManufacturer no. 9645140515 1Quote Ask for a quote
7 MACH SCREW 1/4-20 x 1-3/4 SBHCS ZPSManufacturer no. 9611000928 1Quote Ask for a quote
1-7 WHEEL LOCK ASSEMBLY - LManufacturer no. 9180500101 1Quote Ask for a quote
1-7 WHEEL LOCK ASSEMBLY - RManufacturer no. 9180500201 1Quote Ask for a quote

Vent Wheels / Caster Assemblies

14 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Vent Wheels / Caster Assemblies
No.PartQtyPriceAction
1 ACORN NUT 1/2-20 BRASS CHROMEManufacturer no. 9651001021 1Quote Ask for a quote
2 WASHER 1/2" FLAT NYLONManufacturer no. 9640181205 1Quote Ask for a quote
3 BEARING 1/2" - FLANGEDManufacturer no. 9740818071 1Quote Ask for a quote
4 CASTER FORK w/STEM 8" CHROMEManufacturer no. 9720813001 1Quote Ask for a quote
5 NYLOCK NUT 5/16-18 ZPSManufacturer no. 9650501014 1Quote Ask for a quote
6A CASTER 8" - PNEUMATICManufacturer no. 9710802003 1Quote Ask for a quote
6B CASTER 8" - w/AIRLESS INSERTManufacturer no. 9710802004 1Quote Ask for a quote
7A WHEEL 14" - PNEUMATICManufacturer no. 9711402003 1Quote Ask for a quote
7B WHEEL 14" - w/AIRLESS INSERTManufacturer no. 9711402401 1Quote Ask for a quote
8 BALL LOCK PIN - AXLE - 57193-1Manufacturer no. 9770104001 1Quote Ask for a quote
9 NYLOCK NUT, LOW 1/2-20 ZPSManufacturer no. 9650701021 1Quote Ask for a quote
8-9 KID KART AXLE ASSEMBLYManufacturer no. 900080 1Quote Ask for a quote
10 HEX BOLT 5/16-18 x 3-1/4 GRADE 5 ZPSManufacturer no. 9630204526 1Quote Ask for a quote
11 WASHER 3/8" x 1/2" FLAT SSManufacturer no. 9640160761 1Quote Ask for a quote

Stroller Handle

0 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Vent Anti-Tips

3 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Vent Anti-Tips
No.PartQtyPriceAction
1 SNAP BUTTON - DOUBLEManufacturer no. 9691251101 1Quote Ask for a quote
3 CRUTCH TIP 3/4" - BLACKManufacturer no. 9395017501 1Quote Ask for a quote
1-3 ANTI-TIP ASSY 14" BLACK ANODIZ USE W/ 14" REAR WHEELSManufacturer no. 9180414001 1Quote Ask for a quote

Seating Shell

8 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Seating Shell
No.PartQtyPriceAction
1 SHELL, SHORT - TILTManufacturer no. 103627 1Quote Ask for a quote
1 SHELL, SHORT - TILT, TRANSITManufacturer no. 103628 1Quote Ask for a quote
1 SHELL, SHORT - TILT/RECLINEManufacturer no. 103629 1Quote Ask for a quote
1 SHELL, SHORT - TILT/RECLINE, TRANSITManufacturer no. 103630 1Quote Ask for a quote
1 SHELL, TALL - TILTManufacturer no. 103631S 1Quote Ask for a quote
1 SHELL, TALL - TILT, TRANSITManufacturer no. 103632 1Quote Ask for a quote
1 SHELL, TALL - TILT/RECLINEManufacturer no. 103633S 1Quote Ask for a quote
1 SHELL, TALL - TILT/RECLINE, TRANSITManufacturer no. 103634S 1Quote Ask for a quote

Seating Shell Discontinued

8 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Seating Shell Discontinued
No.PartQtyPriceAction
1 SHELL, SHORT - TILTManufacturer no. 9133000001 1Quote Ask for a quote
1 SHELL, SHORT - TILT, TRANSITManufacturer no. 9133200001 1Quote Ask for a quote
1 SHELL, SHORT - TILT/RECLINEManufacturer no. 9133110001 1Quote Ask for a quote
1 SHELL, SHORT - TILT/RECLINE, TRANSITManufacturer no. 9133310001 1Quote Ask for a quote
1 SHELL, TALL - TILTManufacturer no. 9133000002 1Quote Ask for a quote
1 SHELL, TALL - TILT, TRANSITManufacturer no. 9133200002 1Quote Ask for a quote
1 SHELL, TALL - TILT/RECLINEManufacturer no. 9133110002 1Quote Ask for a quote
1 SHELL, TALL - TILT/RECLINE, TRANSITManufacturer no. 9133310002 1Quote Ask for a quote

Inside Back/Shell

9 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Inside Back/Shell
No.PartQtyPriceAction
1 XP BACK SHELL MAINManufacturer no. 119202S 1Quote Ask for a quote
3 MACH SCREW 1/4-20 x 5/8 SBHCS ANSManufacturer no. 9611000910 1Quote Ask for a quote
5A XP BACK SHELL INNER-TOPManufacturer no. 119214S 1Quote Ask for a quote
5B XP BACK SHELL INNER-TOP TALLManufacturer no. 119209S 1Quote Ask for a quote
6 T-NUT 1/4-20 x 3/8 ROUND ZPSManufacturer no. 9681120106 1Quote Ask for a quote
7 WASHER FLAT THIN AN 1/4 ROHSManufacturer no. 106944 1Quote Ask for a quote
8 MACH SCREW 1/4-20 x 1-1/4 FHS ANSManufacturer no. 9612000920 1Quote Ask for a quote
9 NYLOCK NUT, LOW 1/4-20 ZPSManufacturer no. 9650701012 1Quote Ask for a quote
10 XP BACK SHELL INNER BOTTOMManufacturer no. 119206S 1Quote Ask for a quote

Inside Back/Shell Discontinued

14 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Inside Back/Shell Discontinued
No.PartQtyPriceAction
1 OUTER SEAT BACKManufacturer no. 9555201301 1Quote Ask for a quote
2 SMS #10-16 x 1-1/4 FHP, SELF-TAP ZPSManufacturer no. 226347 1Quote Ask for a quote
3A INNER BACK - UPPER - STANDARDManufacturer no. 9554130501 1Quote Ask for a quote
3B INNER BACK - UPPER - EXTENDEDManufacturer no. 9554130802 1Quote Ask for a quote
4 T-NUT 1/4-20 x 3/8 ROUND ZPSManufacturer no. 9681120106 1Quote Ask for a quote
5 INNER BACK - LOWERManufacturer no. 9554130502 1Quote Ask for a quote
6A INNER BACK OVERLAY - STANDARDManufacturer no. 9554130801 1Quote Ask for a quote
6B INNER BACK OVERLAY - EXTENDEDManufacturer no. 9554131102 1Quote Ask for a quote
7 WASHER FLAT THIN AN 1/4 ROHSManufacturer no. 106944 1Quote Ask for a quote
8 MACH SCREW 1/4-20 x 3/4 SBHCS ANSManufacturer no. 9611000912 1Quote Ask for a quote
9 MACH SCREW 1/4-20 x 5/8 SBHCS ANSManufacturer no. 9611000910 1Quote Ask for a quote
10 MACH SCREW 1/4-20 x 1-1/4 PFHS ANSManufacturer no. 9612000920 1Quote Ask for a quote
11 NYLOCK NUT, LOW 1/4-20 ZPSManufacturer no. 9650701012 1Quote Ask for a quote
12 T-NUT 1/4-20 x 1/4 SLOT-BASE ZPSManufacturer no. 9683120104 1Quote Ask for a quote

Rear Shell Attachments

18 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Rear Shell Attachments
No.PartQtyPriceAction
1 T-NUT 1/4-20 x 1/4 ROUND ZPSManufacturer no. 9681120104 1Quote Ask for a quote
2 NYLOCK NUT, LOW 1/4-20 ZPSManufacturer no. 9650701012 1Quote Ask for a quote
3 RECLINE BACKING PLATEManufacturer no. 9510301002 1Quote Ask for a quote
4 SMS #10-16 x 1-1/4 FHP, SELF-TAP ZPSManufacturer no. 226347 1Quote Ask for a quote
5 T-NUT #10-24 LOW 3-PRONGManufacturer no. 102688 1Quote Ask for a quote
6 CAM ADJUSTER 1-1/2"- TRANSITManufacturer no. 9341150001 1Quote Ask for a quote
7 MACH SCREW 5/16-18 x 1-1/2 THP ZPSManufacturer no. 9619101124 1Quote Ask for a quote
8 KNOB #10-24 x 1/2 - MALE, BLACKManufacturer no. 9761100002 1Quote Ask for a quote
9 SHELL BACK TUBE - XPManufacturer no. 9451118801 1Quote Ask for a quote
10 SADDLE OFFSET 3/4" - THINManufacturer no. 561003 1Quote Ask for a quote
11 MACH SCREW 1/4-20 x 1-1/4 SBHCS ANSManufacturer no. 9611000920 1Quote Ask for a quote
12 INSERT PLUG 3/4" - RIBBEDManufacturer no. 560741 1Quote Ask for a quote
13 MACH SCREW #10-24 x 3/8 SBHCS ANSManufacturer no. 220116 1Quote Ask for a quote
14 MACH SCREW 1/4-20 x 3/4 SBHCS ANSManufacturer no. 9611000912 1Quote Ask for a quote
15 ACORN NUT 5/16-18 ZPSManufacturer no. 9651001015 1Quote Ask for a quote
16 UPPER RECLINE MOUNTManufacturer no. 9510305002 1Quote Ask for a quote
17A LABEL: 'WARNING: USE SEAT BELT'Manufacturer no. 9931020102 1Quote Ask for a quote
17B LABEL: 'CAUTION: NEVER LEAVE CHILD'Manufacturer no. 9931030101 1Quote Ask for a quote

must include Tilt option Handle Assy.

12 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in must include Tilt option Handle Assy.
No.PartQtyPriceAction
1 SCREW #10-16 x 1-1/4 FHP, SELF-TAP ZPSManufacturer no. 226347 1Quote Ask for a quote
2 SHELL HANDLE BLOCK - L - XPManufacturer no. 9320201012 1Quote Ask for a quote
3 MACH SCREW #10-24 x 5/8 FHP ANSManufacturer no. 9612120610 1Quote Ask for a quote
4 KNOB #10-24 x 1/2 MALE - BLACKManufacturer no. 9761100002 1Quote Ask for a quote
5 CABLE MOUNT 3/16"Manufacturer no. 9696918001 1Quote Ask for a quote
6 NYLOCK NUT #10-24 ZPSManufacturer no. 9650501010 1Quote Ask for a quote
7 RECLINE FUNCTION LABELManufacturer no. 102777 1Quote Ask for a quote
8 TILT FUNCTION LABELManufacturer no. 102776 1Quote Ask for a quote
9 SHELL HANDLE BLOCK - R - XPManufacturer no. 9320201013 1Quote Ask for a quote
10 RECLINE CABLE RETENTION CLIPManufacturer no. 9699110106 1Quote Ask for a quote
1-10 HANDLE ASSY w/CABLE - TILT-ONLYManufacturer no. 920688 1Quote Ask for a quote
1-10 HANDLE ASSY w/CABLE(S) - TILT/RECLINEManufacturer no. 920689 1Quote Ask for a quote

Mech-Lock Assembly For Recline Option

14 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Mech-Lock Assembly For Recline Option
No.PartQtyPriceAction
1 MACH SCREW 1/4-20 x 1 FHS ANSManufacturer no. 9612000916 1Quote Ask for a quote
2 MACH SCREW 5/16-18 x 1-1/4 THP ZPSManufacturer no. 9619101120 1Quote Ask for a quote
3 ACORN NUT 5/16-18 ZPSManufacturer no. 9651001015 1Quote Ask for a quote
4 KNOB MECH-LOCK END - BLACKManufacturer no. 9761100005 1Quote Ask for a quote
5 WASHER 5/16" FLAT ANSManufacturer no. 9640161401 1Quote Ask for a quote
6 RECLINE ASSEMBLY (MECH-LOCK)Manufacturer no. 9299903002 1Quote Ask for a quote
7 SPACER 5/16"x1/2"x1/4" NYLONManufacturer no. 9670330804 1Quote Ask for a quote
1-7 RECLINE MECH-LOCK ASSEMBLYManufacturer no. 920690 1Quote Ask for a quote
8 RECLINE LIMITER - 10mm SPLIT COLLARManufacturer no. 342049 1Quote Ask for a quote
9 TUBE - FIXED (NON-) RECLINEManufacturer no. 9452092801 1Quote Ask for a quote
10 WASHER 5/16"x3/4"x1/8" NYLONManufacturer no. 9640151225 1Quote Ask for a quote
11 RING PIN - LOCKING 5/16" x 1-7/8"Manufacturer no. 9770202001 1Quote Ask for a quote
12 LANYARD 6" - NYLONManufacturer no. 9339000003 1Quote Ask for a quote
9-12 NON-RECLINE HARDWARE PKGManufacturer no. 103850 1Quote Ask for a quote

Tilt-In-Space Seat Pan

10 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Tilt-In-Space Seat Pan
No.PartQtyPriceAction
1A SEAT BASE - TRANSIT (BENT) - XPManufacturer no. 9430011407 1Quote Ask for a quote
1B SEAT BASE - NON-TRANSIT (BENT) - XPManufacturer no. 9430011406 1Quote Ask for a quote
2 VELCRO® LOOP 2" BLACK PSManufacturer no. 9261000032 1Quote Ask for a quote
3 HEX JAM NUT, LOW 1/4-20 ZPSManufacturer no. 9650201012 1Quote Ask for a quote
4 WASHER 5/16"x3/4"x1/8" NYLONManufacturer no. 9640151225 1Quote Ask for a quote
5 T-I-S LINKAGE - XPManufacturer no. 9470210601 1Quote Ask for a quote
6 T-I-S RELEASE PIN - XPManufacturer no. 9470420201 1Quote Ask for a quote
7 T-I-S RELEASE PIN MOUNT, L - XPManufacturer no. 9320202000 1Quote Ask for a quote
8 BLIND RIVET 1/8" x 7/16"Manufacturer no. 9660300404 1Quote Ask for a quote
9 MACH SCREW 1/4-20 x 1-1/2 SBHCS ANSManufacturer no. 9611000924 1Quote Ask for a quote

Adjustable Footbed Assembly

17 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Adjustable Footbed Assembly
No.PartQtyPriceAction
1 SEAT ADJUSTMENT TUBE - XPManufacturer no. 9451110002 1Quote Ask for a quote
2A KNEE ANGLE BLOCK - L - XPManufacturer no. 9320501001 1Quote Ask for a quote
2B KNEE ANGLE BLOCK - R - XPManufacturer no. 9320501002 1Quote Ask for a quote
3A KNEE ANGLE ADJUST BAR - L - XPManufacturer no. 9530901002 1Quote Ask for a quote
3B KNEE ANGLE ADJUST BAR - R - XPManufacturer no. 9530901001 1Quote Ask for a quote
4 FOOTBED XPManufacturer no. 119203S 1Quote Ask for a quote
5 MACH SCREW 1/4-20 x 1/2 SBHCS ANSManufacturer no. 9611000908 1Quote Ask for a quote
4-5 FOOTBED w/HARDWAREManufacturer no. 920680 1Quote Ask for a quote
6 MACH SCREW #10-24 x 1/4 SBHCS ANSManufacturer no. 9610000604 1Quote Ask for a quote
7 FOOTBED MOUNTING BRACKETManufacturer no. 9530103002 1Quote Ask for a quote
8 MACH SCREW 1/4-20 x 7/8 SBHCS ANSManufacturer no. 9611000914 1Quote Ask for a quote
9 MACH SCREW 1/4-20 x 3/4 SBHCS ANSManufacturer no. 9611000912 1Quote Ask for a quote
10 MACH SCREW #10-24 x 3/4 SBHCS ZPSManufacturer no. 9611000612 1Quote Ask for a quote
11 INSERT PLUG 3/4" - RIBBEDManufacturer no. 560741 1Quote Ask for a quote
12 SEAT TUBE NUTManufacturer no. 9652006010 1Quote Ask for a quote
13 FOOTBED ADJUSTMENT CLAMP 3/4"Manufacturer no. 9530101004 1Quote Ask for a quote
14 SET SCREW 5/16-18 x 1/2 CPNT SSManufacturer no. 9627011808 1Quote Ask for a quote

Armrest (Upper Extremity Tray Supports)

7 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Armrest (Upper Extremity Tray Supports)
No.PartQtyPriceAction
1 ARM REST PAIR (L/R) PAIRManufacturer no. 119227 1Quote Ask for a quote
2 ARM REST SPACER PLATE XPManufacturer no. 119201S 1Quote Ask for a quote
3 ARM REST RETAINERManufacturer no. 9510201005 1Quote Ask for a quote
4 MACH SCREW 1/4-20 x 7/8 FHS ANSManufacturer no. 9612000914 1Quote Ask for a quote
1-4 UPPER EXTREMITY ASSEMBLY - L LEFTManufacturer no. 920691 1Quote Ask for a quote
1-4 UPPER EXTREMITY ASSEMBLY - R RIGHTManufacturer no. 920692 1Quote Ask for a quote
1-4 UPPER EXTREMITY ASSEMBLY - (L/R) PAIRManufacturer no. 920693 1Quote Ask for a quote

Uphostery Package

19 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Uphostery Package
No.PartQtyPriceAction
1 ARM REST COVER JAZZ PATTERN R Color discontinued as of Sept 2011, parts onlyManufacturer no. 9170719401 1Quote Ask for a quote
1 ARM REST COVER JAZZ PATTERN L Color discontinued as of Sept 2011, parts onlyManufacturer no. 9170719402 1Quote Ask for a quote
1 ARM REST COVER CLASSIC NAVY R Color discontinued as of Sept 2011, parts onlyManufacturer no. 9170720401 1Quote Ask for a quote
1 ARM REST COVER CLASSIC NAVY L Color discontinued as of Sept 2011, parts onlyManufacturer no. 9170720402 1Quote Ask for a quote
1 ARMREST COVER ORIGINAL TEAL R Color discontinued as of Sept 2011, parts onlyManufacturer no. 9170721401 1Quote Ask for a quote
1 ARMREST COVER ORIGINAL TEAL L Color discontinued as of Sept 2011, parts onlyManufacturer no. 9170721402 1Quote Ask for a quote
1 ARM REST COVER KHAKI/SMOKE R Color discontinued as of Sept 2011, parts onlyManufacturer no. 102769 1Quote Ask for a quote
1 ARM REST COVER KHAKI/SMOKE L Color discontinued as of Sept 2011, parts onlyManufacturer no. 102773 1Quote Ask for a quote
1 ARMREST COVER TLC GRAY RIGHTManufacturer no. 102766 1Quote Ask for a quote
1 ARMREST COVER TLC GRAY LEFTManufacturer no. 102765 1Quote Ask for a quote
2 SHELL COVER - JAZZ (PATTERN) Color discontinued as of Sept 2011, parts onlyManufacturer no. 9170119401 1Quote Ask for a quote
2 SHELL COVER - CLASSIC (NAVY) Color discontinued as of Sept 2011, parts onlyManufacturer no. 9170120401 1Quote Ask for a quote
2 SHELL COVER - ORIGINAL (TEAL) Color discontinued as of Sept 2011, parts onlyManufacturer no. 9170121401 1Quote Ask for a quote
2 SHELL COVER - RED/BLACK Color discontinued as of Sept 2011, parts onlyManufacturer no. 102763 1Quote Ask for a quote
2 SHELL COVER - KHAKI/SMOKE Color discontinued as of Sept 2011, parts onlyManufacturer no. 102767 1Quote Ask for a quote
2 SHELL COVER XP BUTTERFLY PRPLManufacturer no. 211535 1Quote Ask for a quote
2 SHELL COVER XP RACER REDManufacturer no. 211536 1Quote Ask for a quote
2 SHELL COVER XP PINKManufacturer no. 211537 1Quote Ask for a quote
2 SHELL COVER XP GREENManufacturer no. 211538 1Quote Ask for a quote

Sunshade

19 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Sunshade
No.PartQtyPriceAction
1 SUNSHADE ROD - FRONTManufacturer no. 9470601701 1Quote Ask for a quote
2 SUNSHADE FOLD BLOCK (PR)Manufacturer no. 9329532001 1Quote Ask for a quote
3 MACH SCREW #10-24 x 1 SBHCS ANSManufacturer no. 9611000616 1Quote Ask for a quote
4 SUNSHADE ANGLE ADJ BLOCK - LManufacturer no. 9320302004 1Quote Ask for a quote
5 NYLOCK NUT #10-24 ZPSManufacturer no. 9650501010 1Quote Ask for a quote
6 MACH SCREW #10-24 x 1-1/8 SBHCS ANSManufacturer no. 9611000616 1Quote Ask for a quote
7 SUNSHADE ROD - REARManufacturer no. 9470601201 1Quote Ask for a quote
8 SUNSHADE MOUNTING TUBEManufacturer no. 9454067501 1Quote Ask for a quote
9 SPRING PIN 1/8" x 3/4"Manufacturer no. 9697212141 1Quote Ask for a quote
10 SPRING PIN 1/8" x 5/8"Manufacturer no. 9697212101 1Quote Ask for a quote
11 MACH SCREW #10-24 x 7/8 SBHCS ANSManufacturer no. 9611000614 1Quote Ask for a quote
12 SUNSHADE ANGLE ADJ BLOCK - RManufacturer no. 9320302003 1Quote Ask for a quote
1-12 SUNSHADE HARDWARE ASSEMBLYManufacturer no. 9180112004 1Quote Ask for a quote
13A CANOPY CURVED BUTTERFLIESManufacturer no. 211521 1Quote Ask for a quote
13A CANOPY CURVED RACERManufacturer no. 211522 1Quote Ask for a quote
13A CANOPY CURVED PINKManufacturer no. 211523 1Quote Ask for a quote
13A CANOPY CURVED GREENManufacturer no. 211524 1Quote Ask for a quote
13A CANOPY CURVED PURPLEManufacturer no. 211525 1Quote Ask for a quote
13A CANOPY CURVED ORANGEManufacturer no. 211526 1Quote Ask for a quote

Positioning Belts

7 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Positioning Belts
No.PartQtyPriceAction
1A-4 LAP BELT - 1" x 19" - PLASTIC BUCKLEManufacturer no. 9180310901 1Quote Ask for a quote
1B-4 LAP BELT - 1-1/2" x 19" - PLASTIC BUCKLEManufacturer no. 9180310903 1Quote Ask for a quote
1C-4 LAP BELT - 1-1/2" x 35" AUTO-STYLE BUCKLEManufacturer no. 900065 1Quote Ask for a quote
1D-4 LAP BELT - 1" x 35" AUTO-STYLE BUCKLEManufacturer no. 102686 1Quote Ask for a quote
2 MACH SCREW 1/4-20 x 3/8 SBHCS ZPSManufacturer no. 9611000906 1Quote Ask for a quote
3 WASHER FLAT THIN AN 1/4 ROHSManufacturer no. 106944 1Quote Ask for a quote
4 NYLOCK NUT, LOW 1/4-20 ZPSManufacturer no. 9650701012 1Quote Ask for a quote

Transit Harness

12 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Transit Harness
No.PartQtyPriceAction
1 STRAP 1-1/2"Manufacturer no. 9180316002 1Quote Ask for a quote
2 CHEST BUCKLEManufacturer no. 9339150001 1Quote Ask for a quote
3 PUSH BUTTON BUCKLEManufacturer no. 9340150001 1Quote Ask for a quote
4 NYLOCK NUT, LOW 1/4-20 ZPSManufacturer no. 9650501012 1Quote Ask for a quote
5 TRANSIT HARNESS ATTACHMENT ASSYManufacturer no. 9180310302 1Quote Ask for a quote
6 WASHER FLAT THIN AN 1/4 ROHSManufacturer no. 106944 1Quote Ask for a quote
7 MACH SCREW 1/4-20 x 7/8 SBHCS ANSManufacturer no. 9611000914 1Quote Ask for a quote
8 VELCRO® KIT - XPRESS FOOTBEDManufacturer no. 920682 1Quote Ask for a quote
9 SEAT MOUNTING BAR - XPManufacturer no. 9531301001 1Quote Ask for a quote
10 MACH SCREW 1/4-20 x 3/4 FHS ANSManufacturer no. 9612000912 1Quote Ask for a quote
1-3 CHEST STRAP ASSEMBLYManufacturer no. 900066 1Quote Ask for a quote
1-7 TRANSIT STRAP ASSEMBLY w/HDWRManufacturer no. 920681 1Quote Ask for a quote

T-Back 2 1/2"

17 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in T-Back 2 1/2"
No.PartQtyPriceAction
1A TBACK COVER 2-1/2 SHORT NAVYManufacturer no. 211284 1Quote Ask for a quote
1A TBACK COVER 2-1/2 SHORT GRAYManufacturer no. 211285 1Quote Ask for a quote
1A T-BACK COVER 2-1/2", SHORT - BLACKManufacturer no. 9170501105 1Quote Ask for a quote
1B TBACK COVER 2-1/2 REG NAVYManufacturer no. 751013 1Quote Ask for a quote
1B TBACK COVER 2-1/2 REG GRAYManufacturer no. 751017 1Quote Ask for a quote
1B T-BACK COVER 2-1/2", REG - BLACKManufacturer no. 751009 1Quote Ask for a quote
1C TBACK COVER 2-1/2 TALL NAVYManufacturer no. 751014 1Quote Ask for a quote
1C TBACK COVER 2-1/2 TALL GRAYManufacturer no. 211289 1Quote Ask for a quote
1C T-BACK COVER 2-1/2", TALL - BLACKManufacturer no. 751010 1Quote Ask for a quote
1D TBACK COVER 2-1/2 XTALL NAVYManufacturer no. 211290 1Quote Ask for a quote
1D TBACK COVER 2-1/2 XTALL GRAYManufacturer no. 751054S 1Quote Ask for a quote
1D T-BACK COVER 2-1/2", X-TALL - BLACKManufacturer no. 751055 1Quote Ask for a quote
2A T-BACK FOAM, SHORTManufacturer no. 9490110101 1Quote Ask for a quote
2B T-BACK FOAM, REGManufacturer no. 750800 1Quote Ask for a quote
2C T-BACK FOAM, TALLManufacturer no. 750801 1Quote Ask for a quote
2D T-BACK GROWTH FOAM, TALLManufacturer no. 750802 1Quote Ask for a quote
2E T-BACK FOAM, X-TALLManufacturer no. 750807 1Quote Ask for a quote

STANDARD SEAT CUSHION-w/outLateral Hip Support

22 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in STANDARD SEAT CUSHION-w/outLateral Hip Support
No.PartQtyPriceAction
1A SEAT COVER SHORT NAVYManufacturer no. 211300 1Quote Ask for a quote
1B SEAT COVER SHORT GRAYManufacturer no. 211301 1Quote Ask for a quote
1C SEAT COVER, SHORT - BLACKManufacturer no. 103691 1Quote Ask for a quote
1D SEAT COVER LONG NAVYManufacturer no. 9170418103 1Quote Ask for a quote
1E SEAT COVER LONG GRAYManufacturer no. 211303 1Quote Ask for a quote
1F SEAT COVER, LONG - BLACKManufacturer no. 103694 1Quote Ask for a quote
2A STANDARD CUSHION, SHORTManufacturer no. 101193 1Quote Ask for a quote
2B STANDARD CUSHION, LONGManufacturer no. 101203 1Quote Ask for a quote
3A WEDGE SEAT COVER SHORT NAVYManufacturer no. 211304 1Quote Ask for a quote
3B WEDGE SEAT COVER SHORT GRAYManufacturer no. 211305 1Quote Ask for a quote
3C WEDGE SEAT COVER, SHORT - BLACKManufacturer no. 9170401120 1Quote Ask for a quote
3D WEDGE SEAT COVER LONG NAVYManufacturer no. 211306 1Quote Ask for a quote
3E WEDGE SEAT COVER, LONG - GRAYManufacturer no. 9170412102 1Quote Ask for a quote
3F WEDGE SEAT COVER, LONG - BLACKManufacturer no. 9170401121 1Quote Ask for a quote
4A WEDGE CUSHION, SHORTManufacturer no. 9161017003 1Quote Ask for a quote
4B WEDGE CUSHION, LONGManufacturer no. 9161017005 1Quote Ask for a quote
5A LEDGE SEAT COVER SHORT NAVYManufacturer no. 211307 1Quote Ask for a quote
5B LEDGE SEAT COVER SHORT GRAYManufacturer no. 211308 1Quote Ask for a quote
5C LEDGE SEAT COVER, SHORT - BLACKManufacturer no. 9170401122 1Quote Ask for a quote
5D LEDGE SEAT COVER, LONG - NAVYManufacturer no. 9170418108 1Quote Ask for a quote
5E LEDGE SEAT COVER, LONG - GRAYManufacturer no. 9170412104 1Quote Ask for a quote
5F LEDGE SEAT COVER, LONG - BLACKManufacturer no. 9170401123 1Quote Ask for a quote

STANDARD SEAT CUSHION-with Lateral Hip Support

23 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in STANDARD SEAT CUSHION-with Lateral Hip Support
No.PartQtyPriceAction
1A SEAT COVER SHORT NAVYManufacturer no. 211317 1Quote Ask for a quote
1A SEAT COVER SHORT GRAYManufacturer no. 211318 1Quote Ask for a quote
1A SEAT COVER, SHORT - BLACKManufacturer no. 9170401116 1Quote Ask for a quote
1B SEAT COVER LONG NAVYManufacturer no. 9170418102 1Quote Ask for a quote
1B SEAT COVER LONG GRAYManufacturer no. 211320 1Quote Ask for a quote
1B SEAT COVER, LONG - BLACKManufacturer no. 9170401117 1Quote Ask for a quote
2A STANDARD CUSHION, SHORTManufacturer no. 9161017001 1Quote Ask for a quote
2B STANDARD CUSHION, LONGManufacturer no. 9161017002 1Quote Ask for a quote
3A WEDGE SEAT COVER SHORT NAVYManufacturer no. 211321 1Quote Ask for a quote
3A WEDGE SEAT COVER, SHORT - GRAYManufacturer no. 9170412101 1Quote Ask for a quote
3A WEDGE SEAT COVER, SHORT - BLACKManufacturer no. 9170401120 1Quote Ask for a quote
3B WEDGE SEAT COVER LONG NAVYManufacturer no. 211322 1Quote Ask for a quote
3B WEDGE SEAT COVER LONG GRAYManufacturer no. 211323 1Quote Ask for a quote
3B WEDGE SEAT COVER, LONG - BLACKManufacturer no. 9170401121 1Quote Ask for a quote
4A WEDGE CUSHION, SHORTManufacturer no. 9161017003 1Quote Ask for a quote
4B WEDGE CUSHION, LONGManufacturer no. 9161017005 1Quote Ask for a quote
5A LEDGE SEAT COVER, SHORT - NAVYManufacturer no. 9170418107 1Quote Ask for a quote
5A LEDGE SEAT COVER, SHORT - GRAYManufacturer no. 9170412103 1Quote Ask for a quote
5A LEDGE SEAT COVER, SHORT - BLACKManufacturer no. 9170401122 1Quote Ask for a quote
5B LEDGE SEAT COVER LONG NAVYManufacturer no. 9170418108 1Quote Ask for a quote
5B LEDGE SEAT COVER LONG GRAYManufacturer no. 211325 1Quote Ask for a quote
5B LEDGE SEAT COVER, LONG - BLACKManufacturer no. 9170401123S 1Quote Ask for a quote
6A LEDGE CUSHION, SHORTManufacturer no. 9161017004 1Quote Ask for a quote

Contour Adj Seat Cushion

23 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Contour Adj Seat Cushion
No.PartQtyPriceAction
1A XPRESS SEAT COVER SHORT NAVYManufacturer no. 9170418103 1Quote Ask for a quote
1A XPRESS SEAT COVER SHORT GRAYManufacturer no. 211335 1Quote Ask for a quote
1A XPRESS SEAT COVER, SHORT BLACKManufacturer no. 9170401118 1Quote Ask for a quote
1B XPRESS SEAT COVER LONG NAVYManufacturer no. 211336 1Quote Ask for a quote
1B XPRESS SEAT COVER LONG GRAYManufacturer no. 211337 1Quote Ask for a quote
1B XPRESS SEAT COVER, LONG BLACKManufacturer no. 9170401119 1Quote Ask for a quote
2A ADDUCTION WEDGE, SMALLManufacturer no. 9490903011 1Quote Ask for a quote
2B ADDUCTION WEDGE, LARGEManufacturer no. 9490904011 1Quote Ask for a quote
3A SEAT CUSHION, SHORT TRAYManufacturer no. 9555101001 1Quote Ask for a quote
3B SEAT CUSHION, LONG TRAYManufacturer no. 9555111101 1Quote Ask for a quote
4 SEAT CUSHION, ABDUCTORManufacturer no. 9490901011 1Quote Ask for a quote
5A REAR FOAM, SHORT - IV1Manufacturer no. 900083 1Quote Ask for a quote
5B REAR FOAM, SHORT - MEDManufacturer no. 900084 1Quote Ask for a quote
5C REAR FOAM, SHORT - MED/SOFTManufacturer no. 900085 1Quote Ask for a quote
5D REAR FOAM, SHORT - SOFTManufacturer no. 900086 1Quote Ask for a quote
6A REAR FOAM, LONG - IV1Manufacturer no. 900087 1Quote Ask for a quote
6B REAR FOAM, LONG - MEDManufacturer no. 900088 1Quote Ask for a quote
6C REAR FOAM, LONG - MED/SOFTManufacturer no. 900089 1Quote Ask for a quote
6D REAR FOAM, LONG - SOFTManufacturer no. 900090 1Quote Ask for a quote
7A SMALL GROWTH EXT - IV1Manufacturer no. 900091 1Quote Ask for a quote
7B SMALL GROWTH EXT - MEDManufacturer no. 900092 1Quote Ask for a quote
7C SMALL GROWTH EXT - MED/SOFTManufacturer no. 900093 1Quote Ask for a quote
7D SMALL GROWTH EXT - SOFTManufacturer no. 900094 1Quote Ask for a quote

Planar Head Support

13 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Planar Head Support
No.PartQtyPriceAction
1 SPACER 1/4"x1/2"x1/2" NYLONManufacturer no. 9670320808 1Quote Ask for a quote
2 HEX NUT 1/4-20 ZPSManufacturer no. 9650001012 1Quote Ask for a quote
3 PLANAR H/S 8" x 8" - PLASTICManufacturer no. 9553080801 1Quote Ask for a quote
4 MACH SCREW 1/4-20 x 2-1/2 SBHCS ANSManufacturer no. 9611000940 1Quote Ask for a quote
5 PLANAR HEAD SUPPORT FOAMManufacturer no. 9490408081 1Quote Ask for a quote
6A PLANAR HEAD SUPPORT COVER NAVYManufacturer no. 211354 1Quote Ask for a quote
6B PLANAR HEAD SUPPORT COVER GRAYManufacturer no. 211355 1Quote Ask for a quote
6C PLANAR HEAD SUPP COVER BLACKManufacturer no. 9171001105 1Quote Ask for a quote
7 HEAD SUPPORT HDWR COVER - BLACKManufacturer no. 9171001102 1Quote Ask for a quote
8 WING NUT 1/4-20 ZPSManufacturer no. 9651101012 1Quote Ask for a quote
9 HEAD SUPPORT VERTICAL - TCManufacturer no. 9553070303 1Quote Ask for a quote
10 SPACER 1/4"x1/2"x1/4" NYLONManufacturer no. 9670320804 1Quote Ask for a quote
11 DEPTH-ADJ H/R BRKT (OPTION) - XPManufacturer no. 882969 1Quote Ask for a quote

Tri-Wing Head Support

16 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Tri-Wing Head Support
No.PartQtyPriceAction
1A TRI-WING H/S COVER - NAVYManufacturer no. 9171018102 1Quote Ask for a quote
1B TRI-WING H/S COVER - GRAYManufacturer no. 9171012101 1Quote Ask for a quote
1A TRI-WING H/S COVER HALO NAVY Halo Strap not includedManufacturer no. 9171018104 1Quote Ask for a quote
1B TRI-WING H/S COVER HALO GRAY Halo Strap not includedManufacturer no. 9171012104 1Quote Ask for a quote
1C TRI-WING HEAD SUPP COVER BLACKManufacturer no. 9171001101S 1Quote Ask for a quote
2 TRI-WING H/S 2.5" x 12"- PLASTICManufacturer no. 9553120201 1Quote Ask for a quote
3 MACH SCREW 1/4-20 x 2-1/2 SBHCS ANSManufacturer no. 9611000940 1Quote Ask for a quote
4 TRI-WING HEAD SUPPORT FOAMManufacturer no. 9490303121 1Quote Ask for a quote
5 HEAD SUPPORT HDWR COVER - BLACKManufacturer no. 9171001102 1Quote Ask for a quote
6 WING NUT 1/4-20 ZPSManufacturer no. 9651101012 1Quote Ask for a quote
7 HEAD SUPPORT VERTICAL - TCManufacturer no. 9553070303 1Quote Ask for a quote
8 SPACER 1/4"x1/2"x1/4" NYLONManufacturer no. 9670320804 1Quote Ask for a quote
9 SPACER 1/4"x1/2"x1/2" NYLONManufacturer no. 9670320808 1Quote Ask for a quote
10 HEX NUT 1/4-20 ZPSManufacturer no. 9650001012 1Quote Ask for a quote
11 HALO STRAP 3/4" - BLACKManufacturer no. 9180312001 1Quote Ask for a quote
12 DEPTH ADJ H/R BRKT (OPTION) - XPManufacturer no. 882969 1Quote Ask for a quote

Micro Adjust Head Support

17 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Micro Adjust Head Support
No.PartQtyPriceAction
1 MACH SCREW 1/4-20 x 2-1/2 SBHCS ANSManufacturer no. 9611000940 1Quote Ask for a quote
2 WASHER FLAT THIN AN 1/4 ROHSManufacturer no. 106944 1Quote Ask for a quote
3 HEAD SUPPORT VERTICAL SPACERManufacturer no. 9553020301 1Quote Ask for a quote
4A MICRO ADJ H/S COVER - GRAYManufacturer no. 9171012102 1Quote Ask for a quote
4B MICRO ADJ H/S COVER - NAVYManufacturer no. 9171018103 1Quote Ask for a quote
4C MICRO ADJ H/S COVER HALO NAVY Halo Strap not includedManufacturer no. 211367 1Quote Ask for a quote
4D MICRO ADJ H/S COVER HALO GRAY Halo Strap not includedManufacturer no. 211368 1Quote Ask for a quote
4E MICRO HEAD SUPP COVER BLACKManufacturer no. 9171001103S 1Quote Ask for a quote
4F MICRO H/SUPP CVR BLACK W/HALO Halo Strap not includedManufacturer no. 923645 1Quote Ask for a quote
5 ABS SUPPORT 6" x 12.5" w/PADSManufacturer no. 9553120601 1Quote Ask for a quote
6 HEAD SUPPORT HDWR COVER - BLACKManufacturer no. 9171001102 1Quote Ask for a quote
7 MACH SCREW #10-24 x 3/4 SBHCS ANSManufacturer no. 9611000612 1Quote Ask for a quote
8 DEPTH ADJ HEADREST BRACKET - XPManufacturer no. 882969 1Quote Ask for a quote
9 T-NUT 1/4-20 x 7/16 SB 2-BARB ZPSManufacturer no. 9682160105 1Quote Ask for a quote
10 T-NUT #10-24 x 5/16 ROUND ZPSManufacturer no. 9681100105 1Quote Ask for a quote
11 MACH SCREW #10-24 x 1/2 SBHCS ANSManufacturer no. 9611000608 1Quote Ask for a quote
12 H/S BACKING PLATE - OUTERManufacturer no. 9553040203 1Quote Ask for a quote

Whitmyer Head Support

21 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Whitmyer Head Support
No.PartQtyPriceAction
1 ADJUST-A-PLUSH PAD NARROW - ASSYManufacturer no. WH-P8044L 1Quote Ask for a quote
1 ADJUST-A-PLUSH - COVER ONLYManufacturer no. PC8044L 1Quote Ask for a quote
2 10" PLUSH PAD - ASSEMBLYManufacturer no. WH-P1000L 1Quote Ask for a quote
2 10" PLUSH - COVER ONLYManufacturer no. PC1000L 1Quote Ask for a quote
3 8" PLUSH PAD - ASSEMBLYManufacturer no. WH-P800L 1Quote Ask for a quote
3 8" PLUSH - COVER ONLYManufacturer no. PC800L 1Quote Ask for a quote
4 CONTOUR CRADLE PAD - SM ASSYManufacturer no. WH-P200L 1Quote Ask for a quote
4 CONTOUR CRADLE - SM, COVER ONLYManufacturer no. PC200L 1Quote Ask for a quote
5 CONTOUR CRADLE PAD - MED ASSYManufacturer no. WH-P300L 1Quote Ask for a quote
5 CONTOUR CRADLE - MED, COVER ONLYManufacturer no. PC300L 1Quote Ask for a quote
6 DFS2 PED SINGLE PAD w/HARDWAREManufacturer no. WH-DFSQ30 1Quote Ask for a quote
7 1-1/4" SHORT SCREWBALLManufacturer no. WH-MF022100 1Quote Ask for a quote
8 MACH SCREW 1/4-28 x 5/8 SHCSManufacturer no. WH-MF014600 1Quote Ask for a quote
9 WASHER 1/4" SAE, BLACKManufacturer no. WH-MF014650 1Quote Ask for a quote
10 HEAD SUPPORT - HORIZONTALManufacturer no. 102757 1Quote Ask for a quote
11 HEAD SUPPORT - VERTICALManufacturer no. 102756 1Quote Ask for a quote
12 NUT 1/4-28 SLIDE, DUAL - 3/4" CENTERSManufacturer no. WH-MF014754 1Quote Ask for a quote
14 MACH SCREW 1/4-20 x 1/2 FHCSS ANSManufacturer no. 226072 1Quote Ask for a quote
15 HEAD SUPPORT MOUNTManufacturer no. 102753 1Quote Ask for a quote
16 T-NUT 1/4-20 x 1/4 SLOT BASE ANSManufacturer no. 9683120104 1Quote Ask for a quote
7-16 HEAD SUPPORT BRACKET ASSEMBLYManufacturer no. 102751 1Quote Ask for a quote

Knee Adductor Package

14 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Knee Adductor Package
No.PartQtyPriceAction
1 T-NUT 1/4-20 x 1/4 SLOT-BASE ZPSManufacturer no. 9683120104 1Quote Ask for a quote
2 KNEE ADDUCTION BLADE - LManufacturer no. 9510403001 1Quote Ask for a quote
2 KNEE ADDUCTION BLADE - RManufacturer no. 9510403002 1Quote Ask for a quote
3 WASHER FLAT THIN AN 1/4 ROHSManufacturer no. 106944 1Quote Ask for a quote
4 MACH SCREW 1/4-20 x 3/8 SBHCS ANSManufacturer no. 9611000906 1Quote Ask for a quote
5 MACH SCR 1/4-20 x 3/8 WA SBHCS ANSManufacturer no. 9619000906 1Quote Ask for a quote
6A ADDUCTOR COVER, SMALL - NAVY Xpress onlyManufacturer no. 9171418101 1Quote Ask for a quote
6B ADDUCTOR COVER, LARGE - NAVY Xpress onlyManufacturer no. 211386 1Quote Ask for a quote
6A ADDUCTOR COVER, SMALL - GRAYManufacturer no. 9171412103 1Quote Ask for a quote
6B ADDUCTOR COVER, LARGE - GRAYManufacturer no. 211388 1Quote Ask for a quote
6A ADDUCTOR COVER, SMALL - BLACKManufacturer no. 9171401102 1Quote Ask for a quote
6B ADDUCTOR COVER, LARGE - BLACKManufacturer no. 9171401103 1Quote Ask for a quote
7A ADDUCTION PAD, SMALL B662Manufacturer no. 882446 1Quote Ask for a quote
7B ADDUCTION PAD, LARGE B672Manufacturer no. 882447 1Quote Ask for a quote

Hip Adductor Package

15 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Hip Adductor Package
No.PartQtyPriceAction
1 MACH SCREW 1/4-20 x 5/8 SBHCS ANSManufacturer no. 9611000910 1Quote Ask for a quote
2 T-NUT 1/4-20 x 1/4 SLOT-BASE ZPSManufacturer no. 9683120104 1Quote Ask for a quote
3 HIP ADDUCTOR BLADE - XPManufacturer no. 9510602002 1Quote Ask for a quote
4 MACH SCREW 1/4-20 x 3/8 SBHCS ANSManufacturer no. 9611000906 1Quote Ask for a quote
5 WASHER FLAT THIN AN 1/4 ROHSManufacturer no. 106944 1Quote Ask for a quote
6A ADDUCTOR COVER, SMALL - NAVY XPRESS ONLYManufacturer no. 9171418101 1Quote Ask for a quote
6B ADDUCTOR COVER, LARGE - NAVY XPRESS ONLYManufacturer no. 9171418102 1Quote Ask for a quote
6C ADDUCTOR COVER, SMALL - GRAYManufacturer no. 9171412103 1Quote Ask for a quote
6D ADDUCTOR COVER, LARGE - GRAYManufacturer no. 9171412104 1Quote Ask for a quote
6E ADDUCTOR COVER, SMALL - BLACKManufacturer no. 9171401102 1Quote Ask for a quote
6F ADDUCTOR COVER, LARGE - BLACKManufacturer no. 9171401103 1Quote Ask for a quote
7A ADDUCTION PAD, SMALL B662Manufacturer no. 882446 1Quote Ask for a quote
7B ADDUCTION PAD, LARGE B672Manufacturer no. 882447 1Quote Ask for a quote
8A SMALL ADDUCTOR PLATEManufacturer no. 882448 1Quote Ask for a quote
8B LARGE ADDUCTOR PLATEManufacturer no. 882449 1Quote Ask for a quote

Swing-Away Lateral Trunk Support

20 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Swing-Away Lateral Trunk Support
No.PartQtyPriceAction
1 LATERAL PLATE - XPManufacturer no. 102770S 1Quote Ask for a quote
2 WASHER FLAT THIN AN 1/4 ROHSManufacturer no. 106944 1Quote Ask for a quote
3 MACH SCREW 1/4-20 x 5/16 SHCS ANSManufacturer no. 2294 1Quote Ask for a quote
4 MACH SCREW #10-32 x 3/8 FHP ANSManufacturer no. 9612120606 1Quote Ask for a quote
5 LATERAL NUTPLATE - XPManufacturer no. 102771S 1Quote Ask for a quote
6 MACH SCREW 1/4-20 x 1/2 SHCS ANSManufacturer no. 9610000908 1Quote Ask for a quote
7 ADJ LATERAL SWING AWAY - XPManufacturer no. 9591010005S 1Quote Ask for a quote
8 T-NUT 1/4-20 x 1/4 SLOT BASE ZPSManufacturer no. 9683120104 1Quote Ask for a quote
9A LATERAL FOAM 2-3/4"Manufacturer no. 9490503111 1Quote Ask for a quote
9B LATERAL FOAM 1-3/4"Manufacturer no. 9490502111 1Quote Ask for a quote
10A LATERAL COVER 2-3/4" - NAVYManufacturer no. 9170618101 1Quote Ask for a quote
10B LATERAL COVER 2-3/4" - GRAYManufacturer no. 9170612102 1Quote Ask for a quote
10C LATERAL COVER 2-3/4" - BLACKManufacturer no. 9170601101 1Quote Ask for a quote
10D LATERAL COVER 1-3/4" - NAVYManufacturer no. 9170618102 1Quote Ask for a quote
10E LATERAL COVER 1-3/4" - GRAYManufacturer no. 9170612103 1Quote Ask for a quote
10F LATERAL COVER 1-3/4" - BLACKManufacturer no. 9170601102 1Quote Ask for a quote
11A LATERAL PLASTIC CONTOUR 2-3/4"Manufacturer no. 119208S 1Quote Ask for a quote
11B LATERAL PLASTIC CONTOUR 1-3/4"Manufacturer no. 119207S 1Quote Ask for a quote
11C LATERAL PLASTIC PLANAR 2-3/4"Manufacturer no. 119210S 1Quote Ask for a quote
11D LATERAL PLASTIC PLANAR 1-3/4"Manufacturer no. 119211S 1Quote Ask for a quote

Swing-Away Lateral Trunk Support Discontinued

18 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Swing-Away Lateral Trunk Support Discontinued
No.PartQtyPriceAction
1 LATERAL BASE PLATEManufacturer no. 9510104001 1Quote Ask for a quote
2 MACH SCREW #10-32 x 3/8 FHP ANSManufacturer no. 9612120606 1Quote Ask for a quote
3 LATERAL RETAINERManufacturer no. 9530100001 1Quote Ask for a quote
4 MACH SCREW 1/4-20 x 1/2 SHCS ANSManufacturer no. 9610000908 1Quote Ask for a quote
5 ADJ LATERAL SWING AWAY - XPManufacturer no. 9591010005S 1Quote Ask for a quote
6 WASHER FLAT THIN AN 1/4 ROHSManufacturer no. 106944 1Quote Ask for a quote
7 MACH SCREW 1/4-20 x 1/2 SBHCS ANSManufacturer no. 9611000908 1Quote Ask for a quote
8 T-NUT 1/4-20 x 1/4 SLOT BASE ZPSManufacturer no. 9683120104 1Quote Ask for a quote
9A LATERAL FOAM 2-3/4"Manufacturer no. 9490503111 1Quote Ask for a quote
9B LATERAL FOAM 1-3/4"Manufacturer no. 9490502111 1Quote Ask for a quote
10A LATERAL COVER 2-3/4" - NAVYManufacturer no. 211397 1Quote Ask for a quote
10B LATERAL COVER 2-3/4" - GRAYManufacturer no. 211398 1Quote Ask for a quote
10C LATERAL COVER 1-3/4" - NAVYManufacturer no. 211439 1Quote Ask for a quote
10D LATERAL COVER 1-3/4" - GRAYManufacturer no. 211440 1Quote Ask for a quote
11A LATERAL PLASTIC - CONTOUR 2-3/4"Manufacturer no. 9553050302 1Quote Ask for a quote
11B LATERAL PLASTIC - CONTOUR 1-3/4" singleManufacturer no. 9553050202 1Quote Ask for a quote
11C LATERAL PLASTIC - PLANAR 2-3/4"Manufacturer no. 9553050301 1Quote Ask for a quote
11D LATERAL PLASTIC - PLANAR 1-3/4"Manufacturer no. 9553050201 1Quote Ask for a quote

Non-Swing-Away (Fixed)Lateral Trunk Support

20 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Non-Swing-Away (Fixed)Lateral Trunk Support
No.PartQtyPriceAction
1 FIXED LATERAL BASEManufacturer no. 9510401004 1Quote Ask for a quote
2 MACH SCREW 1/4-20 x 5/16 SHCS ANSManufacturer no. 2294 1Quote Ask for a quote
3 WASHER FLAT THIN AN 1/4 ROHSManufacturer no. 106944 1Quote Ask for a quote
4 MACH SCREW #10-32 x 3/8 FHP ANSManufacturer no. 9612120606 1Quote Ask for a quote
5 LATERAL PLATEManufacturer no. 102770S 1Quote Ask for a quote
6 LATERAL NUT PLATEManufacturer no. 102771S 1Quote Ask for a quote
7 FIXED LAT SPACERManufacturer no. 102772 1Quote Ask for a quote
8 MACH SCREW 1/4-20 x 1/2 SHCS ANSManufacturer no. 9611000908 1Quote Ask for a quote
9 FIXED LATERAL BLADE MOUNTManufacturer no. 9510304002 1Quote Ask for a quote
10 T-NUT 1/4-20 x 1/4 SLOT-BASE ZPSManufacturer no. 9683120104 1Quote Ask for a quote
11A LATERAL PLASTIC PLANAR 2-3/4"Manufacturer no. 119210S 1Quote Ask for a quote
11B LATERAL PLASTIC PLANAR 1-3/4"Manufacturer no. 119211S 1Quote Ask for a quote
12A LATERAL FOAM 2-3/4"Manufacturer no. 9490503111 1Quote Ask for a quote
12B LATERAL FOAM 1-3/4"Manufacturer no. 9490502111 1Quote Ask for a quote
13A LATERAL COVER 2-3/4" - NAVYManufacturer no. 211397 1Quote Ask for a quote
13A LATERAL COVER 2-3/4" - GRAYManufacturer no. 211398 1Quote Ask for a quote
13A LATERAL COVER 2-3/4" - BLACKManufacturer no. 9170601101 1Quote Ask for a quote
13B LATERAL COVER 1-3/4" - NAVYManufacturer no. 211439 1Quote Ask for a quote
13B LATERAL COVER 1-3/4" - GRAYManufacturer no. 211440 1Quote Ask for a quote
13B LATERAL COVER 1-3/4" - BLACKManufacturer no. 9170601102 1Quote Ask for a quote

Exploded view, page 63

17 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 63
No.PartQtyPriceAction
1 FIXED LATERAL BASEManufacturer no. 9510401004 1Quote Ask for a quote
2 MACH SCREW #10-32 x 3/8 FHP ANSManufacturer no. 9612120606 1Quote Ask for a quote
3 LATERAL RETAINERManufacturer no. 9530100001 1Quote Ask for a quote
4 LATERAL BASE PLATEManufacturer no. 9510104001 1Quote Ask for a quote
5 MACH SCREW 1/4-20 x 1/2 SBHCS ANSManufacturer no. 9611000908 1Quote Ask for a quote
6 MACH SCREW 1/4-20 x 1/2 SHCS ANSManufacturer no. 9610000908 1Quote Ask for a quote
7 WASHER FLAT THIN AN 1/4 ROHSManufacturer no. 106944 1Quote Ask for a quote
8 FIXED LATERAL BLADEManufacturer no. 9510304002 1Quote Ask for a quote
9 T-NUT 1/4-20 x 1/4 SLOT-BASE ZPSManufacturer no. 9683120104 1Quote Ask for a quote
10A LATERAL PLASTIC PLANAR 2-3/4"Manufacturer no. 9553050301 1Quote Ask for a quote
10B LATERAL PLASTIC PLANAR 1-3/4"Manufacturer no. 9553050201 1Quote Ask for a quote
11A LATERAL FOAM 2-3/4"Manufacturer no. 9490503111 1Quote Ask for a quote
11B LATERAL FOAM 1-3/4"Manufacturer no. 9490502111 1Quote Ask for a quote
12A LATERAL COVER 2-3/4" - NAVYManufacturer no. 211397 1Quote Ask for a quote
12A LATERAL COVER 2-3/4" - GRAYManufacturer no. 211398 1Quote Ask for a quote
12B LATERAL COVER 1-3/4" - NAVYManufacturer no. 211439 1Quote Ask for a quote
12B LATERAL COVER 1-3/4" - GRAYManufacturer no. 211440 1Quote Ask for a quote

Anterior Trunk Support

9 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Anterior Trunk Support
No.PartQtyPriceAction
1 BUTTERFLY STRAP ASSY - 23"Manufacturer no. 9180312301 1Quote Ask for a quote
2A BUTTERFLY PAD - BLACK - XXSMALLManufacturer no. 9160150111 1Quote Ask for a quote
2B BUTTERFLY PAD - BLACK - XSMALLManufacturer no. 9160150211 1Quote Ask for a quote
2C BUTTERFLY PAD - BLACK - SMALLManufacturer no. 9160150311 1Quote Ask for a quote
2D BUTTERFLY PAD - BLACK - MEDIUMManufacturer no. 9160150411 1Quote Ask for a quote
2E BUTTERFLY PAD - BLACK - LARGEManufacturer no. 9160150511 1Quote Ask for a quote
3 MACH SCREW 1/4-20 x 5/8 SBHCS ANSManufacturer no. 9611000910 1Quote Ask for a quote
4 T-NUT 1/4-20 x 1/4 ROUND ZPSManufacturer no. 9681120104 1Quote Ask for a quote
5 OPTIONAL SHOULDER STRAP PADSManufacturer no. 9171801101 1Quote Ask for a quote

Abductor Block

12 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Abductor Block
No.PartQtyPriceAction
1A ABDUCTOR COVER, SMALL - GRAYManufacturer no. 9171213105 1Quote Ask for a quote
1C ABDUCTOR COVER, SMALL - BLACKManufacturer no. 9171201101 1Quote Ask for a quote
1D ABDUCTOR COVER, LARGE - GRAYManufacturer no. 211450 1Quote Ask for a quote
1F ABDUCTOR COVER, LARGE - BLACKManufacturer no. 9171201102 1Quote Ask for a quote
2A-8 ABDUCTION BLOCK, SMALL w/HDWRManufacturer no. 9161099004 1Quote Ask for a quote
2B-8 ABDUCTION BLOCK, LARGE w/HDWRManufacturer no. 9161099005 1Quote Ask for a quote
3 SNAP BUTTON - SINGLE, B-100Manufacturer no. 9691121001 1Quote Ask for a quote
4 MACH SCREW 1/4-20 x 7/8 SBHCS ANSManufacturer no. 9611000914 1Quote Ask for a quote
5 STEEL ANGLE - ABDUC HDWRManufacturer no. 9510402003 1Quote Ask for a quote
6 WASHER 1/4" SSManufacturer no. 9640140867 1Quote Ask for a quote
7 NYLOCK NUT, LOW 1/4-20 ZPSManufacturer no. 9650701012 1Quote Ask for a quote
8 ANTI-SPIN PLATE - ABDUC HDWRManufacturer no. 9510101004 1Quote Ask for a quote

Fixed Height Feeder Base

15 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Fixed Height Feeder Base
No.PartQtyPriceAction
1 T-I-S BLOCK VENT MOBASE - RManufacturer no. 9530650001 1Quote Ask for a quote
1 T-I-S BLOCK VENT MOBASE - LManufacturer no. 9530650002 1Quote Ask for a quote
2 T-NUT 5/16-18 x 3/4 ROUND STEEL ZPSManufacturer no. 9681140112 1Quote Ask for a quote
3 T-NUT 1/4-20 x 3/8 ROUND STEEL ZPSManufacturer no. 9681120106 1Quote Ask for a quote
4 CASTER 2-3/8" w/BRAKEManufacturer no. 9290212001 1Quote Ask for a quote
5 CASTER 2-3/8" PLASTICManufacturer no. 9290202001 1Quote Ask for a quote
6 MACH SCREW 5/16-18 x 3 THP ZPSManufacturer no. 9619101148 1Quote Ask for a quote
7 WASHER 5/16 x 3/4 x 1/8 NYLONManufacturer no. 9640151225 1Quote Ask for a quote
8 MACH SCREW 1/4-20 x 1-1/2 SBHCS ANSManufacturer no. 9611000924 1Quote Ask for a quote
9 WASHER FLAT THIN AN 1/4 ROHSManufacturer no. 106944 1Quote Ask for a quote
10 MACH SCREW 1/2-20 x 2 SBHCS ANSManufacturer no. 9611001832 1Quote Ask for a quote
11 NYLOCK NUT, LOW 3/8-16 ZPSManufacturer no. 9650701016 1Quote Ask for a quote
12 MACH SCREW 3/8-16 x 2-1/4Manufacturer no. 9610001336 1Quote Ask for a quote
13 FRONT CASTER POST FEEDER BASEManufacturer no. 9530301001 1Quote Ask for a quote
1-14 FEEDER BASE - FIXED HEIGHT Available in Black onlyManufacturer no. 9151221201 1Quote Ask for a quote

Booster Base - Top

17 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Booster Base - Top
No.PartQtyPriceAction
1 SLIDE PEG - FEEDERBASEManufacturer no. 9540610401 1Quote Ask for a quote
2 T-NUT 1/4-20 x 3/8 ROUND ZPSManufacturer no. 9681120106 1Quote Ask for a quote
3 PIVOT POST - FEEDERBASE - XPManufacturer no. 9540614002 1Quote Ask for a quote
4 WASHER 1/4"x3/4"x1/16" - BLACKManufacturer no. 9640141205 1Quote Ask for a quote
5 SHELL HANDLE STANDOFFManufacturer no. 9670321212 1Quote Ask for a quote
6 MACH SCREW 1/4-20 x 1/2 FHS ANSManufacturer no. 9612000908 1Quote Ask for a quote
7 HANDLE BAR BOOSTERManufacturer no. 9452145001 1Quote Ask for a quote
8 MACH SCREW 1/4-20 x 2 SBHCS ANSManufacturer no. 9611000932 1Quote Ask for a quote
9 MACH SCREW 1/4-20 x 7/8 FHS ANSManufacturer no. 9612000914 1Quote Ask for a quote
10 SHELL SUPPORT PLATE - R RightManufacturer no. 9532407001 1Quote Ask for a quote
10 SHELL SUPPORT PLATE - L LeftManufacturer no. 9532407002 1Quote Ask for a quote
11 SCREW #10 x 1-1/2 FHP SMS ZPSManufacturer no. 9625121024 1Quote Ask for a quote
12 NYLOCK NUT 5/16-18 ZPSManufacturer no. 9650501014 1Quote Ask for a quote
13 MACH SCREW 5/16-18 x 1-1/2 THP ZPSManufacturer no. 9619101124 1Quote Ask for a quote
14 TOP CROSSBRACE ASSY - XP BOOSTERManufacturer no. 900068 1Quote Ask for a quote
15 GAS SPRING w/LOCKING HEADManufacturer no. 9299904001 1Quote Ask for a quote
16 WASHER 5/16" FLAT ZPSManufacturer no. 9640161401 1Quote Ask for a quote

Booster Base - Bottom

17 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Booster Base - Bottom
No.PartQtyPriceAction
1 SCISSOR PIVOT BLOCKManufacturer no. 9530201012 1Quote Ask for a quote
2 NYLOCK NUT, LOW 1/4-20 ZPSManufacturer no. 9650701012 1Quote Ask for a quote
3 WASHER #12 FLAT ZPSManufacturer no. 9640120601 1Quote Ask for a quote
4 MACH SCREW 1/4-20 x 2-1/4 SBHCS ANSManufacturer no. 9611000936 1Quote Ask for a quote
5 PIVOT POSTManufacturer no. 9540614002 1Quote Ask for a quote
6 MACH SCREW 1/4-20 x 7/8 FHS ANSManufacturer no. 9612000914 1Quote Ask for a quote
7 CASTER 2-3/8" - PLASTICManufacturer no. 9290202001 1Quote Ask for a quote
8 OUTSIDE DIAGONAL ASSY BOOSTERManufacturer no. 900073 1Quote Ask for a quote
9 INSIDE DIAGONAL ASSY BOOSTERManufacturer no. 900074 1Quote Ask for a quote
10 SMS #10 x 1-1/2 FHPManufacturer no. 9625121024 1Quote Ask for a quote
11 REAR HOOP BRACKETManufacturer no. 9530201014 1Quote Ask for a quote
12 BASE FRAME ASSY - XP BOOSTERManufacturer no. 900075 1Quote Ask for a quote
13 CASTER 2-3/8" w/BRAKEManufacturer no. 9290212001 1Quote Ask for a quote
1-4 PIVOT BLOCK ASSY - XP BOOSTERManufacturer no. 900076 1Quote Ask for a quote
10-12 BOTTOM FRAME ASSY - XP BOOSTERManufacturer no. 900077 1Quote Ask for a quote
1-13 COMPLETE BOTTOM FRAME BOOSTERManufacturer no. 900078 1Quote Ask for a quote
14 BOOSTER BASE FRAME - XP Available in Black onlyManufacturer no. 9151231201 1Quote Ask for a quote

SPICA PLATFORM (Discontinued)

11 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in SPICA PLATFORM (Discontinued)
No.PartQtyPriceAction
1 LEG SUPPORT PANEL SPICAManufacturer no. 9552132402 1Quote Ask for a quote
2 LEG SUPPORT PANEL FOAM SPICAManufacturer no. 9490924131 1Quote Ask for a quote
3A LEG SUP COVER SPICA - PACK - BLACKManufacturer no. 9170801001 1Quote Ask for a quote
3B LEG SUP COVER SPICA - VINYL - BLACKManufacturer no. 9170801201 1Quote Ask for a quote
4 MACH SCREW 1/4-20 x 7/8 SBHCS ANSManufacturer no. 9611000914 1Quote Ask for a quote
5 MACH SCREW 1/4-20 x 1/2 FHS ANSManufacturer no. 9612000908 1Quote Ask for a quote
6 BATTERY TRAY SUPPORT BLOCK TB LEGManufacturer no. 9530201009 1Quote Ask for a quote
7 RETEN PLATE LEG SUP PANEL SPICAManufacturer no. 9510201007 1Quote Ask for a quote
8 MACH SCREW #10-24 x 5/8 FHP ANSManufacturer no. 9612120610 1Quote Ask for a quote
9 XP SPICA VELCRO® KITManufacturer no. 900082 1Quote Ask for a quote
10 FOOTBED MOUNTING BRACKETManufacturer no. 9530103002 1Quote Ask for a quote

Adjustment Tools

2 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Adjustment Tools
No.PartQtyPriceAction
1 HEX SOCKET DRIVER 5/32", BALL POINTManufacturer no. 9790105001 1Quote Ask for a quote
2 HEX SOCKET WRENCH 3/16", SHRT ARMManufacturer no. 9790206003 1Quote Ask for a quote

Shoe Holder Assembly

9 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Shoe Holder Assembly
No.PartQtyPriceAction
1 T-NUT #10-24 x 5/16 ROUND ZPSManufacturer no. 9681100105 1Quote Ask for a quote
2 WASHER 1/4" FENDER ZPSManufacturer no. 9640141801 1Quote Ask for a quote
3 MACH SCREW #10-24 x 1/2 SBHCS ANSManufacturer no. 9611000608 1Quote Ask for a quote
4A SHOE HOLDER STRAP ASSY - 10-3/8"Manufacturer no. 9180311201 1Quote Ask for a quote
4B SHOE HOLDER STRAP ASSY - 13-1/8"Manufacturer no. 9180311501 1Quote Ask for a quote
5A SHOE HOLDER, SMALL - 6"Manufacturer no. 451134-QU 1Quote Ask for a quote
5B SHOE HOLDER, MEDIUM - 8"Manufacturer no. 451135-QU 1Quote Ask for a quote
6A FOOT STRAP ASSEMBLY - 16"Manufacturer no. 9161070001 1Quote Ask for a quote
6B FOOT STRAP ASSEMBLY - 18"Manufacturer no. 9161070002 1Quote Ask for a quote

Upper Extremity Support Tray - Xpress

12 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Upper Extremity Support Tray - Xpress
No.PartQtyPriceAction
1 MACH SCREW 1/4-20 x 1 FHS ANSManufacturer no. 9612000916 1Quote Ask for a quote
2A THERA TRAY - LIGHT GRAYManufacturer no. 9556221604 1Quote Ask for a quote
2B THERA TRAY - CLEARManufacturer no. 9556221605 1Quote Ask for a quote
2C THERA-TRAY, NO CUT-OUT - LIGHT GRAYManufacturer no. 9556221607 1Quote Ask for a quote
2D THERA-TRAY, NO CUT-OUT - CLEARManufacturer no. 9556221608 1Quote Ask for a quote
3 TRAY CLAMP PLATE SET (L/R PAIR)Manufacturer no. 9420502001 1Quote Ask for a quote
4 NYLOCK NUT, LOW 1/4-20 ZPSManufacturer no. 9651602012 1Quote Ask for a quote
5 CLAMP SPINDLE w/NUTSManufacturer no. 9730120001 1Quote Ask for a quote
6 CLAMP BODYManufacturer no. 9730110001 1Quote Ask for a quote
7 NYLOCK NUT #8-32 ZPSManufacturer no. 9650501008 1Quote Ask for a quote
8 SMS #6 x 5/8 PHP ZPSManufacturer no. 9625120610 1Quote Ask for a quote
6-8 CLAMP SET w/o SPINDLEManufacturer no. 9180902001 1Quote Ask for a quote

Vent And Battery Tray

9 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Vent And Battery Tray
No.PartQtyPriceAction
1 BATTERY / VENT TRAY STRAP - TCManufacturer no. 9180313601S 1Quote Ask for a quote
2 BATTERY / VENT TRAY CLIP - TCManufacturer no. 9530302001 1Quote Ask for a quote
3 NYLOCK NUT 1/4-20 ZPSManufacturer no. 9650501012 1Quote Ask for a quote
4 MACH SCREW 1/4-20 x 1-1/2 SBHCS ZPSManufacturer no. 9611000924 1Quote Ask for a quote
5 MACH SCREW 1/4-20 x 7/8 FHP ZPSManufacturer no. 9612120914 1Quote Ask for a quote
6 BATTERY / VENTILATOR TRAY 13" x 26"Manufacturer no. 9512613001 1Quote Ask for a quote
7 BATTERY SUPPORT PLATEManufacturer no. 9559060301 1Quote Ask for a quote
8 NYLOCK NUT 1/4-20 ZPSManufacturer no. 9650501012 1Quote Ask for a quote
1-8 BATTERY / VENTILATOR TRAY ASSYManufacturer no. 9180104002 1Quote Ask for a quote

Tbird Vent Tray & Battery Tray

0 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

O2 Holder

16 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in O2 Holder
No.PartQtyPriceAction
1 TUBE PLUG - 7/8" ROUNDManufacturer no. 561198 1Quote Ask for a quote
2-5 O2 TANK HOLDER RING SETManufacturer no. 9339000001 1Quote Ask for a quote
6 O2 (FRAME) TUBE - TCManufacturer no. 9453190001 1Quote Ask for a quote
7 NYLOCK NUT 1/4-20 ZPSManufacturer no. 9650501012 1Quote Ask for a quote
8 SMS #8 x 3/4 RHP ZPSManufacturer no. 9616100412 1Quote Ask for a quote
9 MACH SCREW 1/4-20 SShS 1/2 SSManufacturer no. 9610710808 1Quote Ask for a quote
10 MACH SCREW 1/4-20 x 1 SBHCS ANSManufacturer no. 9611000916 1Quote Ask for a quote
11 O2 CLAMP BLOCK (ATTACH)Manufacturer no. 9481010101 1Quote Ask for a quote
12 MACH SCREW 1/4-20 x 1-1/4 SBHCS ANSManufacturer no. 9611000920 1Quote Ask for a quote
13 O2 HOLDER BRACKET - UPPERManufacturer no. 9510401003 1Quote Ask for a quote
14 SPACER 1/4"x1/2"x1/4" NYLONManufacturer no. 9670320804 1Quote Ask for a quote
15 RUBBER BAND - 1" WIDE - EPDMManufacturer no. 9492030801 1Quote Ask for a quote
16 O2 (BRACKET) LOCK LEVERManufacturer no. 9530402001 1Quote Ask for a quote
17 O2 HOLDER BRACKET (LOWER)Manufacturer no. 9510602001 1Quote Ask for a quote
9-11 MNTG BRACKET ASSY ACCESSORYManufacturer no. 9180105003 1Quote Ask for a quote
1-17 O2 TANK HOLDER ASSEMBLYManufacturer no. 9180107003 1Quote Ask for a quote

Iv Pole Assembly W/Base

22 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Iv Pole Assembly W/Base
No.PartQtyPriceAction
1 HAND KNOB #10-24 x 1/2 - BLACKManufacturer no. 9761100002 1Quote Ask for a quote
2 IV POLE LOCK COLLARManufacturer no. 9530101001 1Quote Ask for a quote
3 MACH SCREW 1/4-20 SShS 1/2 SSManufacturer no. 9610710808 1Quote Ask for a quote
4 O2 HOLDER BRACKET - UPPERManufacturer no. 9510401003 1Quote Ask for a quote
5 IV HOLDER BLOCKManufacturer no. 9530102001 1Quote Ask for a quote
6 O2 (FRAME) TUBEManufacturer no. 9453190001 1Quote Ask for a quote
7 IV POLE BRACKET - LOWERManufacturer no. 9510304001 1Quote Ask for a quote
8 SMS #8 x 3/4 PHP ZPSManufacturer no. 9616100412 1Quote Ask for a quote
9 MACH SCREW 1/4-20 x 1 SBHCS ANSManufacturer no. 9611000916 1Quote Ask for a quote
10 O2 CLAMP BLOCKManufacturer no. 9481010101 1Quote Ask for a quote
11 MACH SCREW 1/4-20 x 1-1/4 SBHCS ANSManufacturer no. 9611000920 1Quote Ask for a quote
12 SPACER 1/4"x1/2"x1/4" NYLONManufacturer no. 9670320804 1Quote Ask for a quote
13 RUBBER BAND - 1" WIDE - EPDMManufacturer no. 9492030801 1Quote Ask for a quote
14 O2 LOCK LEVERManufacturer no. 9530402001 1Quote Ask for a quote
15 NYLOCK NUT 1/4-20 ZPSManufacturer no. 9650501012 1Quote Ask for a quote
16 IV HOOKManufacturer no. 9470420701 1Quote Ask for a quote
17 IV HOOK LOCK COLLARManufacturer no. 9530101002 1Quote Ask for a quote
18 IV HOOK ADJ COLLARManufacturer no. 9471020101 1Quote Ask for a quote
19 SET SCREW #8-32 x 3/16 ANSManufacturer no. 9627020903 1Quote Ask for a quote
20 IV POLEManufacturer no. 9451550001 1Quote Ask for a quote
1-15 IV POLE BASE ASSY ONLYManufacturer no. 9180105006 1Quote Ask for a quote
1-20 IV POLE ASSEMBLY w/BASEManufacturer no. 9180105005 1Quote Ask for a quote

O2 Holder And Iv Assembly

23 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in O2 Holder And Iv Assembly
No.PartQtyPriceAction
1 TUBE PLUG 7/8" ROUNDManufacturer no. 561198 1Quote Ask for a quote
2 IV POLE LOCK COLLARManufacturer no. 9530101001 1Quote Ask for a quote
3-6 O2 TANK HOLDER RING SETManufacturer no. 9339000001 1Quote Ask for a quote
7 O2 (FRAME) TUBEManufacturer no. 9453190001 1Quote Ask for a quote
8 NYLOCK NUT 1/4-20 ZPSManufacturer no. 9650501012 1Quote Ask for a quote
9 SMS #8 x 3/4 RHP ZPSManufacturer no. 9616100412 1Quote Ask for a quote
10 MACH SCREW 1/4-20 SShS 1/2 SSManufacturer no. 9610710808 1Quote Ask for a quote
11 MACH SCREW 1/4-20 x 1Manufacturer no. 9611000916 1Quote Ask for a quote
12 O2 CLAMP BLOCK (ATTACH)Manufacturer no. 9481010101 1Quote Ask for a quote
13 MACH SCREW 1/4-20 x 1-1/4Manufacturer no. 9611000920 1Quote Ask for a quote
14 O2 HOLDER BRACKET - UPPERManufacturer no. 9510401003 1Quote Ask for a quote
15 SPACER 1/4"x1/2"x1/4" NYLONManufacturer no. 9670320804 1Quote Ask for a quote
16 RUBBER BAND - 1" WIDE - EPDMManufacturer no. 9492030801 1Quote Ask for a quote
17 O2 (BRACKET) LOCK LEVERManufacturer no. 9530402001 1Quote Ask for a quote
18 O2 HOLDER BRACKET (LOWER)Manufacturer no. 9510602001 1Quote Ask for a quote
19 IV HOOKManufacturer no. 9470420701 1Quote Ask for a quote
20 IV HOOK LOCK COLLARManufacturer no. 9530101002 1Quote Ask for a quote
21 IV HOOK ADJ. COLLARManufacturer no. 9471020101 1Quote Ask for a quote
22 SET SCREW #8-32 x 3/16Manufacturer no. 9627020903 1Quote Ask for a quote
23 IV POLE - TCManufacturer no. 9451550001 1Quote Ask for a quote
10-12 MNTG BRACKET ASSY ACCESSORYManufacturer no. 9180105003 1Quote Ask for a quote
1-23 O2 TANK HOLDER & IV POLE ASSYManufacturer no. 9180107004 1Quote Ask for a quote
24 KNOB #10-24 x 1/2 - BLACKManufacturer no. 9761100002 1Quote Ask for a quote

Tire Pump

2 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Tire Pump
No.PartQtyPriceAction
1 TIRE PUMPManufacturer no. 389050 1Quote Ask for a quote
2 VALVE ADAPTER PRESTAManufacturer no. 381230 1Quote Ask for a quote

Raincape

7 parts

Exploded view from the manufacturer's parts manual (Kid Kart Xpress Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Raincape
No.PartQtyPriceAction
1 RAIN CAPE, XP - JAZZ (PATTERN) Color discontinued, parts onlyManufacturer no. 751004 1Quote Ask for a quote
1 RAIN CAPE, XP - CLASSIC (NAVY) Color discontinued, parts onlyManufacturer no. 751005 1Quote Ask for a quote
1 RAIN CAPE, XP - ORIGINAL (TEAL) Color discontinued, parts onlyManufacturer no. 751006 1Quote Ask for a quote
1 RAIN CAPE, XP - RED/BLACK Color discontinued, parts onlyManufacturer no. 102901 1Quote Ask for a quote
1 RAIN CAPE, XP - KHAKI/SMOKE Color discontinued, parts onlyManufacturer no. 102902 1Quote Ask for a quote
1 RAIN CAPE, XP - GENERIC Color discontinued, parts onlyManufacturer no. 211467 1Quote Ask for a quote
1 RAIN CAPE XP GREYManufacturer no. 211512 1Quote Ask for a quote

Parts manuals for this model

The manufacturer parts lists and exploded diagrams we hold. If you can find the number on one of these, quote it to us and we will match it.

Kid Kart Xpress Parts Manual

Manufacturer parts document, PDF.

Not sure which part you need?

Send us a photo of the part, or of where it sits, and tell us what it is doing. Our order desk identifies parts for this equipment every day, and we would rather ask you one question than ship you the wrong bolt.

Or call 905 451-7743 and describe it to us.

Where to go next

The product page

Specifications, documents and the full product page for the Zippie Xpress Early Intervention Stroller.

All replacement parts

Search every part we stock, or browse by the equipment it fits.

Have us fit it

Our technicians service what we sell, in the home and in the showroom.
