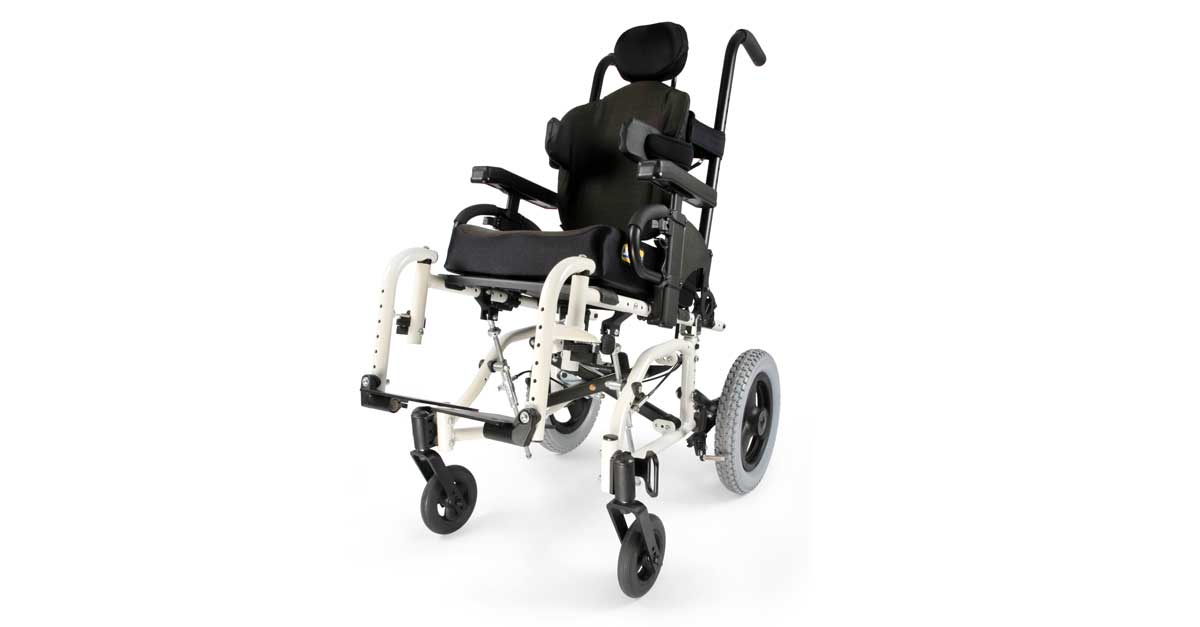

Zippie Ts Pediatric Tilt Wheelchair

Parts finder

Replacement parts for the Zippie Ts Pediatric Tilt Wheelchair

The exploded view below is numbered. Click a number on the drawing to jump to that part, or search the list. Every price shown is the current online price; anything quoted is priced by our order desk.

Ask about a part Product page 3012 parts listed

Showing all 3012 parts

1 of 283

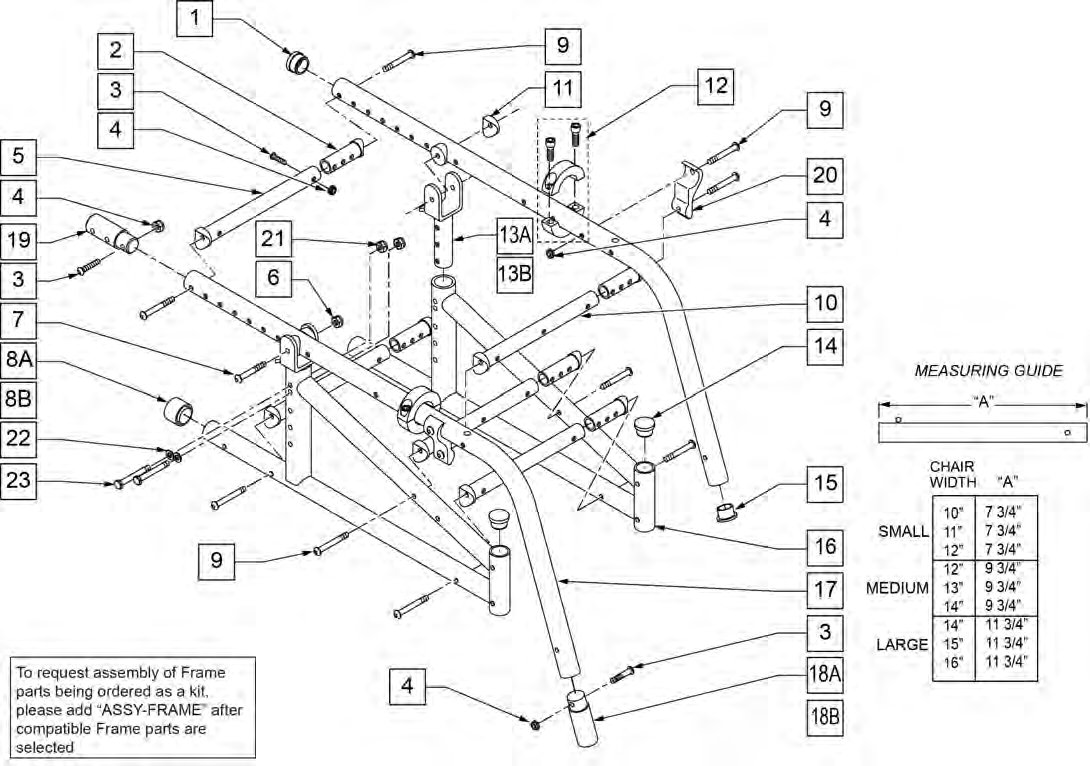

Exploded view of the Frame (Fixed Front)

Loading the drawing

Frame (Fixed Front). Numbers match the list.
Frame (Fixed Front) Disc. 11/16/99. Numbers match the list.
SE (Chairs w/ S/N Prefix Z1A & Z1SE). Numbers match the list.
Frame (Swing-Away). Numbers match the list.
SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 10). Numbers match the list.
Frame (Swing-Away) Disc. 11/16/99. Numbers match the list.
SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 12). Numbers match the list.
Locking Mechanism. Numbers match the list.
SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 14). Numbers match the list.
Locking Mechanism Disc. 11/16/99. Numbers match the list.
SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 16). Numbers match the list.
Foot Release. Numbers match the list.
Exploded view, page 18. Numbers match the list.
Transit Kit Zippie Ts (page 19). Numbers match the list.
adjustment hole is the only difference.. Numbers match the list.
SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 20). Numbers match the list.
Cross Tube Assembly. Numbers match the list.
SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 22). Numbers match the list.
Locking Mechanism New Zippie Ts. Numbers match the list.
SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 24). Numbers match the list.
Axle Bracket 12" & 16" (page 25). Numbers match the list.
SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 26). Numbers match the list.
Transit Kit Zippie Ts. Numbers match the list.
Axle Bracket. Numbers match the list.
Caster Stem & Fork Assembly. Numbers match the list.
Axle Bracket 12" & 16". Numbers match the list.
Caster Pin Lock (page 29). Numbers match the list.
Quick Release Axles. Numbers match the list.
Fork & Stem Assemblies. Numbers match the list.
SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 30). Numbers match the list.
Caster Stems. Numbers match the list.
Caster Pin Lock. Numbers match the list.
SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 32). Numbers match the list.
3 Spoke Casters (page 33). Numbers match the list.
Caster Plate. Numbers match the list.
Caster Tires & Tubes. Numbers match the list.
Soft Roll Casters (page 35). Numbers match the list.
Micro Casters. Numbers match the list.
SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 36). Numbers match the list.
3 Spoke Casters. Numbers match the list.
Anti Tips (page 37). Numbers match the list.
Front Anti-Tip (page 39). Numbers match the list.
Soft Roll Casters. Numbers match the list.
8" x 2" CASTERS. Numbers match the list.
SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 40). Numbers match the list.
Anti Tips. Numbers match the list.
SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 42). Numbers match the list.
Front Anti-Tip. Numbers match the list.
Anti-Tips (Fits 12" & 16" Rear Wheels). Numbers match the list.
SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 44). Numbers match the list.
High Mount Pull Wheel Lock. Numbers match the list.
High Wheel Lock Push (Long Slide). Numbers match the list.
Foot Lock. Numbers match the list.
High Wheel Lock Pull (Long Slide). Numbers match the list.
SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 48). Numbers match the list.
Foot Lock 12" Wheel. Numbers match the list.
SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 50). Numbers match the list.
Traditional 6 Spoke Mag (page 51). Numbers match the list.
Grade Aid Only Assembly. Numbers match the list.
Z-Lock. Numbers match the list.
Spinergy Spox (18 Spoke) (page 55). Numbers match the list.
16" Mag. Numbers match the list.
Pneumatic & Pneu. Airless Tire (page 57). Numbers match the list.
SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 58). Numbers match the list.
Traditional 6 Spoke Mag. Numbers match the list.
Low Poly Tire (page 59). Numbers match the list.
SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 60). Numbers match the list.
Kevlar Tire (page 61). Numbers match the list.
SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 62). Numbers match the list.
Spinergy Spox (18 Spoke). Numbers match the list.
Growing Seat Pan (page 63). Numbers match the list.
Pneumatic & Pneu. Airless Tire. Numbers match the list.
Full Poly Tire. Numbers match the list.
Solid Seat & Solid Back (page 65). Numbers match the list.
Low Poly Tire. Numbers match the list.
High Pressure Clincher Tire. Numbers match the list.
Kevlar Tire. Numbers match the list.
SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 68). Numbers match the list.
Tubes And Airless Inserts. Numbers match the list.
Growing Seat Pan. Numbers match the list.
SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 70). Numbers match the list.
SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 72). Numbers match the list.
Solid Seat & Solid Back. Numbers match the list.
Backrest Zippie Ts/2. Numbers match the list.
Exploded view, page 75. Numbers match the list.
Fixed Height Stroller Handle Backpost. Numbers match the list.
Swing-Away Adj Stroller Handle. Numbers match the list.
Exploded view, page 79. Numbers match the list.
Swing-Away Adj Stroller Handle Retro Kit. Numbers match the list.
Stroller Handle Extension-Removable. Numbers match the list.
Stroller Handle Extension-Removable (page 81). Numbers match the list.
Rigid-Izer. Numbers match the list.
Rigid-Izer (page 83). Numbers match the list.
60 Deg S/A Hanger (Disc 4-21-15). Numbers match the list.
SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 84). Numbers match the list.
60 Deg S/A Hanger (Disc.8-13-01). Numbers match the list.
SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 86). Numbers match the list.
60 Deg S/A Hanger (Disc.10-23-99). Numbers match the list.
70 Deg Hanger Swing In-Out (page 87). Numbers match the list.
70 Deg S/A Hanger (Disc 4-21-15). Numbers match the list.
SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 88). Numbers match the list.
Composite Footplate. Numbers match the list.
SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 90). Numbers match the list.
Adult Angle-Adjustable Footplate Ext Mount. Numbers match the list.
Kids Angle Adj Footplate Assm-Extension Mount. Numbers match the list.
Composite Angle Adjustable Footplate. Numbers match the list.
Platform Flip-Up Footplate. Numbers match the list.
Double D Footrest Extension Tube "Old Style". Numbers match the list.
Kids Angle Adj Footplate Extension Mount (page 99). Numbers match the list.
70 Deg Hanger Swing In-Out. Numbers match the list.
Adult Angle-Adj Footplate Ext Mount (page 103). Numbers match the list.
Composite Footplate (page 103). Numbers match the list.
Platform Flip-Up Footplate (page 107). Numbers match the list.
Adult Angle-Adj Footplate Ext Mount. Numbers match the list.
High Mount Extension Tube. Numbers match the list.
70 Deg Front Mount Hanger Swing In-Out (page 111). Numbers match the list.
Kids Angle Adj Footplate Extension Mount. Numbers match the list.
80 Deg Front Mount Hanger Swing In-Out (page 113). Numbers match the list.
90 Deg Front Mount Hanger Swing In-Out (page 115). Numbers match the list.
Platform Flip-Up Footplate (page 116). Numbers match the list.
70 Deg Lift-Off Hanger (page 117). Numbers match the list.
80 Deg Lift-Off Hanger (page 119). Numbers match the list.
Exploded view, page 119. Numbers match the list.
70 Deg Front Mount Hanger Swing In-Out. Numbers match the list.
90 Deg Lift-Off Hanger (page 121). Numbers match the list.
70 Deg S/A Front Mount Hanger. Numbers match the list.
Front Mount Hanger Ext (page 123). Numbers match the list.
80 Deg Front Mount Hanger Swing In-Out. Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE). Numbers match the list.
Exploded view, page 125. Numbers match the list.
80 Deg S/A Front Mount Hanger. Numbers match the list.
Adult Angle-Adj Footplate Front Mount (page 127). Numbers match the list.
90 Deg Front Mount Hanger Swing In-Out. Numbers match the list.
90 Deg Footboard (page 129). Numbers match the list.
90 Deg S/A Front Mount Hanger. Numbers match the list.
70 Deg Lift-Off Hanger. Numbers match the list.
90 Deg Elevating Calf Pad (page 133). Numbers match the list.
80 Deg Lift-Off Hanger. Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 134). Numbers match the list.
Kids Angle Adj Footplate Front Mount (page 135). Numbers match the list.
90 Deg Lift-Off Hanger. Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 136). Numbers match the list.
Front Mount Hanger Ext. Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 138). Numbers match the list.
Kids Angle Adj Footplate Front Mount. Numbers match the list.
Exploded view, page 140. Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 140). Numbers match the list.
Adult Angle-Adj Footplate Front Mount. Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 142). Numbers match the list.
Elr & Alr Calf Pad 16-20" (page 143). Numbers match the list.
90 Deg Footboard. Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 144). Numbers match the list.
Elevating Hanger. Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 146). Numbers match the list.
Elr & Alr Calf Pad 14 -15". Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 148). Numbers match the list.
Elr & Alr Calf Pad 16-20". Numbers match the list.
Double D Footrest Extension Tube "Old Style" (page 150). Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 150). Numbers match the list.
Elr Aluminum Footplate. Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 152). Numbers match the list.
Composite Footplate (page 154). Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 154). Numbers match the list.
Adult Angle-Adjustable Footplate Ext Mount (page 156). Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 156). Numbers match the list.
Round Extension Tube (page 157). Numbers match the list.
Kids Angle Adj Footplate Assm-Extension Mount (page 158). Numbers match the list.
Composite Footplate (page 159). Numbers match the list.
Kids Angle Adjustable Footplate Ext Mount. Numbers match the list.
90 Deg Elevating Calf Pad. Numbers match the list.
Adult Angle-Adjustable Footplate Ext Mount (page 163). Numbers match the list.
Kids Angle Adj Footplate Front Mount (page 163). Numbers match the list.
Exploded view, page 164. Numbers match the list.
Multi-Position Latch Stud Support (page 165). Numbers match the list.
Adult Angle-Adj Footplate Front Mount (page 166). Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 166). Numbers match the list.
Z-Finity Swing I/O Direct Mount Hangers. Numbers match the list.
Articulating Hanger. Numbers match the list.
Articulating Legrest Disc. 12/12/02. Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 170). Numbers match the list.
Exploded view, page 171. Numbers match the list.
Articulating Hanger Calf Pad. Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 172). Numbers match the list.
Round Extension Tube. Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 174). Numbers match the list.
Composite Footplate (page 175). Numbers match the list.
Adult Angle-Adjustable Footplate Ext Mount (page 177). Numbers match the list.
Flip-Up Footrest Direct Mount. Numbers match the list.
60 Deg Swing In/Out Hanger. Numbers match the list.
Kids Angle Adj Footplate Assm-Extension Mount (page 179). Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 180). Numbers match the list.
80 Deg Swing In/Out Hanger. Numbers match the list.
90 Deg Articulating Hanger. Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 182). Numbers match the list.
70 Deg Swing In/Out Hemi Hanger. Numbers match the list.
90 Deg Articulating Hanger Calf Pad. Numbers match the list.
Kids Angle Adj Footplate Front Mount (page 184). Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 184). Numbers match the list.
Exploded view, page 185. Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 186). Numbers match the list.
Adult Angle-Adj Footplate Front Mount (page 187). Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 188). Numbers match the list.
Multi-Position Latch Stud Support. Numbers match the list.
Exploded view, page 190. Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 190). Numbers match the list.
Adult Angle-Adj Footplate Front Mount (page 191). Numbers match the list.
T Post Armrest. Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 192). Numbers match the list.
Kids Angle Adj Footplate Front Mount (page 193). Numbers match the list.
Flip-Up Armrest. Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 194). Numbers match the list.
Exploded view, page 195. Numbers match the list.
Exploded view, page 196. Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 196). Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 198). Numbers match the list.
Exploded view, page 199. Numbers match the list.
Kids Single Post Armrest Receiver. Numbers match the list.
Adult Single Post Armrest Receiver. Numbers match the list.
Elr & Alr Calf Pad 14 -15" (page 201). Numbers match the list.
Backpacks And Seat Pouches. Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 202). Numbers match the list.
Elr/Alr Aluminum Footplate. Numbers match the list.
Quickie Side Pocket. Numbers match the list.
Adjustable Leg Strap. Numbers match the list.
Exploded view, page 205. Numbers match the list.
Soft Feel Leg Strap. Numbers match the list.
90 Deg Elevating Calf Pad (page 207). Numbers match the list.
Hardware.. Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 208). Numbers match the list.
Auto Buckle Positioning Belt & Attachment Kits. Numbers match the list.
Exploded view, page 209. Numbers match the list.
Composite Footplate (page 211). Numbers match the list.
Padded Double Pull Hip Belt. Numbers match the list.
Plastic Side Guard. Numbers match the list.
Composite Angle Adjustable Foot Plate. Numbers match the list.
Tuffak Tray (Manual & Pediatric Chairs). Numbers match the list.
Tray Hardware. Numbers match the list.
Tray Ribs Tuffak. Numbers match the list.
Exploded view, page 219. Numbers match the list.
One-Arm Drive Retro Kit. Numbers match the list.
Tire Pump. Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 222). Numbers match the list.
Tool Kit. Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 226). Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 228). Numbers match the list.
Exploded view, page 229. Numbers match the list.
90 Deg Elevating Calf Pad (page 231). Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 232). Numbers match the list.
Adult Angle-Adj Footplate Front Mount (page 233). Numbers match the list.
Kids Angle Adj Footplate Front Mount (page 235). Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 236). Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 238). Numbers match the list.
Exploded view, page 239. Numbers match the list.
Exploded view, page 241. Numbers match the list.
Elr & Alr Calf Pad 14 -15" (page 243). Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 244). Numbers match the list.
Composite Footplate (page 245). Numbers match the list.
Composite Angle Adjustable Foot Plate (page 249). Numbers match the list.
Exploded view, page 253. Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 256). Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 258). Numbers match the list.
Single Post Height Adjustable Armrest. Numbers match the list.
T Post Armrest (page 263). Numbers match the list.
Flip-Up Armrest (page 265). Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 266). Numbers match the list.
Exploded view, page 267. Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 270). Numbers match the list.
Single Post Armrest Receiver - Low. Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 274). Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 276). Numbers match the list.
Soft Feel Leg Strap (page 277). Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 278). Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 280). Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 282). Numbers match the list.
Side Guards (Zts & Zgs). Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 284). Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 286). Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 288). Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 290). Numbers match the list.
Canopy. Numbers match the list.
One-Arm Drive Retro Kit (page 293). Numbers match the list.
Tire Pump (page 295). Numbers match the list.
TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 296). Numbers match the list.

Frame (Fixed Front)

17 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Frame (Fixed Front)
No.PartQtyPriceAction
1 1" INSERT PLUG ALUM ZP TSManufacturer no. 483039 1Quote Ask for a quote
2 STRUT SADDLE GROWINGManufacturer no. 483184 1Quote Ask for a quote
3 1/4-28 x 1 1/4 BH C/SManufacturer no. 106961 1Quote Ask for a quote
4 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
5 STRUT TUBE 10"ZP/KZ 10 -12" WIDEManufacturer no. 522802 1Quote Ask for a quote
5 STRUT TUBE 12" ZP/P5/KZ 12 -14" WIDEManufacturer no. 522804 1Quote Ask for a quote
5 STRUT TUBE 14" ZP/P5/KZ 14 -16" WIDEManufacturer no. 522806 1Quote Ask for a quote
6 1/4-28 NYLOCK NUTManufacturer no. 106934 1Quote Ask for a quote
7 1/4-28 x 2 BH C/SManufacturer no. 106964 1Quote Ask for a quote
8A 1" MED CAPManufacturer no. 561014 1Quote Ask for a quote
8B 1" TUBE END BUSHING THICKManufacturer no. 561018 1Quote Ask for a quote
9 1/4-28 x 1 1/2 BH C/SManufacturer no. 226130 1Quote Ask for a quote
10 STRUT TUBE 10" ZPTS GRW 10 -12" WIDEManufacturer no. 522829 1Quote Ask for a quote
10 STRUT TUBE 12" ZPTS GRW 12 -14" WIDEManufacturer no. 522830 1Quote Ask for a quote
10 STRUT TUBE 14" ZPTS GRW 14 -16" WIDEManufacturer no. 522831 1Quote Ask for a quote
11 1" SADDLE 1/4" HOLEManufacturer no. 561004 1Quote Ask for a quote
12 ADJ SEAT STOP 1" BLACK; if replacing silver order qty 2Manufacturer no. 342048 1Quote Ask for a quote

Frame (Fixed Front) Disc. 11/16/99

5 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Frame (Fixed Front) Disc. 11/16/99
No.PartQtyPriceAction
1 1" INSERT PLUG ALUM ZP TSManufacturer no. 483039 1Quote Ask for a quote
2A STRUT SADDLE ZGSManufacturer no. 483184 1Quote Ask for a quote
2B STRUT SADDLE S525Manufacturer no. 483161 1Quote Ask for a quote
3 1/4-28 x 1 1/4 BH C/SManufacturer no. 106961 1Quote Ask for a quote
4 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote

SE (Chairs w/ S/N Prefix Z1A & Z1SE)

19 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in SE (Chairs w/ S/N Prefix Z1A & Z1SE)
No.PartQtyPriceAction
1 REAR FRAME EXT .065 15 -16" ZPManufacturer no. 483088 1Quote Ask for a quote
2 SEAT TUBE PLUG S/A TS/P5Manufacturer no. 483089 1Quote Ask for a quote
3 1" SADDLE 1/4" HOLEManufacturer no. 561004 1Quote Ask for a quote
5 NUT NYLOCK 1/4 -28 ROHSManufacturer no. 106934 1Quote Ask for a quote
6 TILT BRACKET ZP TS 45°Manufacturer no. 505251 1Quote Ask for a quote
7 WASER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
8 BHCS 1/4 -28 x 2 SHLDR ROHSManufacturer no. 106965 1Quote Ask for a quote
9 NUT NYLOCK THIN 1/4 -28 ROHSManufacturer no. 106935 1Quote Ask for a quote
10 P-CLIP 3/16" VINYL COATManufacturer no. 112388 1Quote Ask for a quote
11 1" TUBE END BUSHING THICKManufacturer no. 561018 1Quote Ask for a quote
12 HHCS 1/4 -28 x 1 1/2 ROHSManufacturer no. 106972 1Quote Ask for a quote
14 BHCS 1/4 -28 x 1 1/2 ROHSManufacturer no. 107028 1Quote Ask for a quote
15 STRUT SADDLE ZGSManufacturer no. 483184 1Quote Ask for a quote
16 BHCS 1/4 -28 x 1 1/4 ROHSManufacturer no. 106961 1Quote Ask for a quote
18 BHCS 5/16 -18 x 1 3/4 SHLD ROHSManufacturer no. 106982 1Quote Ask for a quote
19 S/A LATCH STUD SUPPORT NUTManufacturer no. 105787 1Quote Ask for a quote
20 1" INSERT PLUG .065 RIBSManufacturer no. 561062 1Quote Ask for a quote
21 ADJ SEAT STOP 1" BLACK; if replacing silver order qty 2Manufacturer no. 342048 1Quote Ask for a quote
22 7/8" ROUND TUBE PLUG Use in place of SA HangerManufacturer no. 560735 1Quote Ask for a quote

Frame (Swing-Away)

14 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Frame (Swing-Away)
No.PartQtyPriceAction
2 SEAT TUBE PLUG S/A TS/P5Manufacturer no. 483089 1Quote Ask for a quote
3 STRUT SADDLE ZGSManufacturer no. 483184 1Quote Ask for a quote
4 1/4-28 x 1 1/4 BH C/SManufacturer no. 106961 1Quote Ask for a quote
5 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
6A STRUT TUBE 10" ZP/KZ 10 -12" WIDEManufacturer no. 522802 1Quote Ask for a quote
6B STRUT TUBE 12" ZP/P5/KZ 12 -14" WIDEManufacturer no. 522804 1Quote Ask for a quote
6C STRUT TUBE 14" ZP/P5/KZ 14 -16" WIDEManufacturer no. 522806 1Quote Ask for a quote
7 1/4-28 NYLOCK NUTManufacturer no. 106934 1Quote Ask for a quote
8 1/4-28 x 2 BH C/SManufacturer no. 106964 1Quote Ask for a quote
9 1" MED CAPManufacturer no. 561014 1Quote Ask for a quote
10 1/4-28 X 1 1/2 HEX C/SManufacturer no. 226130 1Quote Ask for a quote
11A STRUT TUBE TS 10" ZP TS 10 -12" WIDEManufacturer no. 522829 1Quote Ask for a quote
11B STRUT TUBE TS 12" ZP TS 12 -14" WIDEManufacturer no. 522830 1Quote Ask for a quote
11C STRUT TUBE TS 14" ZP TS 14 -16" WIDEManufacturer no. 522831 1Quote Ask for a quote

SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 10)

13 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 10)
No.PartQtyPriceAction
1 BHCS 1/4 -28 x 1 1/4 ROHSManufacturer no. 106961 1Quote Ask for a quote
2 REAR FRAME EXT .065 15 -16" ZPManufacturer no. 483088 1Quote Ask for a quote
3 SEAT TUBE PLUG S/A TS/P5Manufacturer no. 483089 1Quote Ask for a quote
4 NUT NYLOCK THIN 1/4 -28 ROHSManufacturer no. 106935 1Quote Ask for a quote
5 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
6 NUT NYLOCK 1/4 -28 ROHSManufacturer no. 106934 1Quote Ask for a quote
9 1" INSERT PLUG .065 RIBSManufacturer no. 561062 1Quote Ask for a quote
10 BHCS 5/16 -18 x 1 3/4 SHLD ROHSManufacturer no. 106982 1Quote Ask for a quote
12 ADJ SEAT STOP 1" BLACK; if replacing silver order qty 2Manufacturer no. 342048 1Quote Ask for a quote
13 BHCS 1/4 -28 x 2 SHLDR ROHSManufacturer no. 106965 1Quote Ask for a quote
14 1" SADDLE 1/4" HOLEManufacturer no. 561004 1Quote Ask for a quote
15 HHCS 1/4 -28 x 1 1/2 ROHSManufacturer no. 106972 1Quote Ask for a quote
16 P-CLIP 3/16" VINYL COATManufacturer no. 112388 1Quote Ask for a quote

Frame (Swing-Away) Disc. 11/16/99

4 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Frame (Swing-Away) Disc. 11/16/99
No.PartQtyPriceAction
2 SEAT TUBE PLUG S/A TS/P5Manufacturer no. 483089 1Quote Ask for a quote
3A STRUT SADDLE ZGSManufacturer no. 483184 1Quote Ask for a quote
3B STRUT SADDLE S525Manufacturer no. 483161 1Quote Ask for a quote
4 1/4-28 x 1 1/4 BH C/SManufacturer no. 106961 1Quote Ask for a quote

SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 12)

22 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 12)
No.PartQtyPriceAction
1 REAR FRAME EXT .065 15 -16" ZPManufacturer no. 483088 1Quote Ask for a quote
2 SEAT TUBE PLUG S/A TS/P5Manufacturer no. 483089 1Quote Ask for a quote
3 1" SADDLE 1/4" HOLEManufacturer no. 561004 1Quote Ask for a quote
5 NUT NYLOCK 1/4 -28 ROHSManufacturer no. 106934 1Quote Ask for a quote
6 TILT BRACKET ZP TS 45°Manufacturer no. 505251 1Quote Ask for a quote
7 WASER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
8 BHCS 1/4 -28 x 2 SHLDR ROHSManufacturer no. 106965 1Quote Ask for a quote
9 NUT NYLOCK THIN 1/4 -28 ROHSManufacturer no. 106935 1Quote Ask for a quote
10 P-CLIP 3/16" VINYL COATManufacturer no. 112388 1Quote Ask for a quote
11 1" TUBE END BUSHING THICKManufacturer no. 561018 1Quote Ask for a quote
12 HHCS 1/4 -28 x 1 1/2 ROHSManufacturer no. 106972 1Quote Ask for a quote
14 BHCS 1/4 -28 x 1 1/2 ROHSManufacturer no. 107028 1Quote Ask for a quote
15 STRUT SADDLE ZGSManufacturer no. 483184 1Quote Ask for a quote
16 BHCS 1/4 -28 x 1 1/4 ROHSManufacturer no. 106961 1Quote Ask for a quote
19 BHCS 5/16 -18 x 1 3/4 SHLD ROHSManufacturer no. 106982 1Quote Ask for a quote
20 1" INSERT PLUG .065 RIBSManufacturer no. 561062 1Quote Ask for a quote
21 ADJ SEAT STOP 1" BLACK; if replacing silver order qty 2Manufacturer no. 342048 1Quote Ask for a quote
22 7/8" ROUND TUBE PLUG Use in place of SA HangerManufacturer no. 560735 1Quote Ask for a quote
23 NUT HEX NYLOCK M6 X 1.0Manufacturer no. 104381 1Quote Ask for a quote
24 WAVE WASHER 6mmManufacturer no. 104414 1Quote Ask for a quote
25 HANGER LATCH RECEIVERManufacturer no. 118696 1Quote Ask for a quote
26 FHCS M6 X 1 X 35 FULL NPManufacturer no. 103500-010 1Quote Ask for a quote

Locking Mechanism

18 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Locking Mechanism
No.PartQtyPriceAction
1 10-32 x 5/8 PAN HD PHILManufacturer no. 281120 1Quote Ask for a quote
2 TRIGGER RELEASE PIN TS/QT/P5Manufacturer no. 349021 1Quote Ask for a quote
3 CYLINDER LOCK CABLE ASSEMBLYManufacturer no. 342057 1Quote Ask for a quote
4 10mm ID SPLIT COLLARManufacturer no. 342049 1Quote Ask for a quote
5 1/4-28 x 1 1/4 BH C/SManufacturer no. 106961 1Quote Ask for a quote
6 1/4-28 x 1 1/2 BH C/SManufacturer no. 226130 1Quote Ask for a quote
7 1/4 AN WASHER FLATManufacturer no. 106943 1Quote Ask for a quote
8 BHCS 5/16-18 X 1-3/4 SHLD ROHSManufacturer no. 106982 1Quote Ask for a quote
9 CYL LOCK LEVER ASSEMBLY QT/QR/P5Manufacturer no. 580110 1Quote Ask for a quote
10A MECH CYLINDER LOCK R BR RECLINERManufacturer no. 120625 1Quote Ask for a quote
10B MECH CYLINDER LOCK L BR RECLINERManufacturer no. 120626 1Quote Ask for a quote
11 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
12 CYLINDER BRACKET 1" TS/P5Manufacturer no. 500140 1Quote Ask for a quote
13 5/16-18 NYLOCK NUT THINManufacturer no. 106937 1Quote Ask for a quote
14 CYLINDER BRACKET TS 1 1/2"Manufacturer no. 500141 1Quote Ask for a quote
15 6mm WASHER WAVEManufacturer no. 262130 1Quote Ask for a quote
16 1/2" ID PLASTIC CLAMP BLKManufacturer no. 349511 1Quote Ask for a quote
17 ZIP TIE BLACKManufacturer no. 560410 1Quote Ask for a quote

SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 14)

9 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 14)
No.PartQtyPriceAction
1 BHCS 1/4 -28 x 1 1/4 ROHSManufacturer no. 106961 1Quote Ask for a quote
2 REAR FRAME EXT .065 15 -16" ZPManufacturer no. 483088 1Quote Ask for a quote
3 SEAT TUBE PLUG S/A TS/P5Manufacturer no. 483089 1Quote Ask for a quote
4 NUT NYLOCK THIN 1/4 -28 ROHSManufacturer no. 106935 1Quote Ask for a quote
5 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
6 NUT NYLOCK 1/4 -28 ROHSManufacturer no. 106934 1Quote Ask for a quote
8 1" INSERT PLUG .065 RIBSManufacturer no. 561062 1Quote Ask for a quote
9 1" TUBE END BUSHING THICKManufacturer no. 561018 1Quote Ask for a quote
11 BHCS 5/16 -18 x 1 3/4 SHLD ROHSManufacturer no. 106982 1Quote Ask for a quote

Locking Mechanism Disc. 11/16/99

8 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Locking Mechanism Disc. 11/16/99
No.PartQtyPriceAction
1 10-32 x 5/8 PAN HD PHILManufacturer no. 281120 1Quote Ask for a quote
2 TRIGGER RELEASE PIN TS/QT/P5Manufacturer no. 349021 1Quote Ask for a quote
3 CYLINDER LOCK CABLE ASSEMBLYManufacturer no. 342057 1Quote Ask for a quote
5 1/4-28 x 1 1/4 BH C/SManufacturer no. 106961 1Quote Ask for a quote
6 1/4-28 x 1 1/2 BH C/SManufacturer no. 226130 1Quote Ask for a quote
7 1/4 AN WASHER FLATManufacturer no. 106943 1Quote Ask for a quote
8 BHCS 5/16-18 X 1-3/4 SHLD ROHSManufacturer no. 106982 1Quote Ask for a quote
9 CYL LOCK LEVER ASSEMBLY QT/QR/P5Manufacturer no. 580110 1Quote Ask for a quote

SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 16)

16 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 16)
No.PartQtyPriceAction
1 NUT NYLOCK THIN 1/4 -28 ROHSManufacturer no. 106935 1Quote Ask for a quote
2 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
3 END CAP OVAL TUBE ZGSManufacturer no. 562845 1Quote Ask for a quote
4 1" WASHER 5/16 HOLEManufacturer no. 561016 1Quote Ask for a quote
5 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106945 1Quote Ask for a quote
7 BHCS 1/4 -28 x 2 ROHSManufacturer no. 106964 1Quote Ask for a quote
8A X-HINGE 10-12IN ZGS SMALL: FOR 10"-12" SEAT WIDTHSManufacturer no. 120996 1Quote Ask for a quote
8B X-HINGE 12-14IN ZGS MEDIUM: FOR 12"-14" SEAT WIDTHSManufacturer no. 120997 1Quote Ask for a quote
8C X-HINGE 14-16IN ZGS LARGE: FOR 14"-16" SEAT WIDTHSManufacturer no. 120998 1Quote Ask for a quote
8D X-HINGE 16-18IN ZGS X-LARGE: FOR 16"-18" SEAT WIDTHSManufacturer no. 120999 1Quote Ask for a quote
9 BHCS 1/4 -28 x 1" ROHSManufacturer no. 107355 1Quote Ask for a quote
10 HHCS 1/4 -28 x 2 1/2 ROHSManufacturer no. 109265 1Quote Ask for a quote
11 BHCS 1/4 -28 x 1 3/4 ROHSManufacturer no. 106962 1Quote Ask for a quote
12 .25 NYLON WASHERManufacturer no. 561028 1Quote Ask for a quote
13 Z2 X-HINGE SPACERManufacturer no. 481089 1Quote Ask for a quote
14 ZGS FOLDING STRAPManufacturer no. 750552 1Quote Ask for a quote

Foot Release

16 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Foot Release
No.PartQtyPriceAction
1 BLOCK MOUNT FOOT TILT RELManufacturer no. 111842 1Quote Ask for a quote
2 BHCS 5/16 -18 x 1 3/4 SHLD ROHSManufacturer no. 106982 1Quote Ask for a quote
3 WASHER SPLIT LOCK 5/16 ROHSManufacturer no. 106951 1Quote Ask for a quote
4 BHCS 5/16 -18 x 1 1/4 ROHSManufacturer no. 106980 1Quote Ask for a quote
5 SHAFT PIVOT PEDALManufacturer no. 106377 1Quote Ask for a quote
6 TORSION SPRING RHManufacturer no. 106668 1Quote Ask for a quote
7 PEDAL FOOT TILT RELEASEManufacturer no. 107165 1Quote Ask for a quote
8 5/16 FENDER WASHER SS 3/4 ODManufacturer no. 263109 1Quote Ask for a quote
9 BHCS 5/16 -18 x 3/4 ROHSManufacturer no. 106979 1Quote Ask for a quote
10 5/16-18 NYLOCK NUT THICK BLKManufacturer no. 202117 1Quote Ask for a quote
11 POST STOP FOOT RELEASEManufacturer no. 107167 1Quote Ask for a quote
12 SHCS 10 -32 x 1/2 ROHSManufacturer no. 107181 1Quote Ask for a quote
13 BRACKET CABLE FOOT TILT RELEASEManufacturer no. 109737 1Quote Ask for a quote
14A CABLE FOOT TILT REL STD RIGHT SIDE ONLY ON ALL QTY 1 ALL WIDTHSManufacturer no. 109733-001 1Quote Ask for a quote
14B CABLE FOOT TILT REL 10 -14" LEFT SIDE FITS 10-14" WManufacturer no. 109733-002 1Quote Ask for a quote
14C CABLE FOOT TILT REL 12 -16" LEFT SIDE FITS 12-16" WManufacturer no. 109733-003 1Quote Ask for a quote

Exploded view, page 18

19 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 18
No.PartQtyPriceAction
1 REAR FRAME EXT .065 15 -16" ZPManufacturer no. 483088 1Quote Ask for a quote
2 SEAT TUBE PLUG S/A TS/P5Manufacturer no. 483089 1Quote Ask for a quote
3 1" SADDLE 1/4" HOLEManufacturer no. 561004 1Quote Ask for a quote
5 NUT NYLOCK 1/4 -28 ROHSManufacturer no. 106934 1Quote Ask for a quote
6 TILT BRACKET ZP TS 45°Manufacturer no. 505251 1Quote Ask for a quote
7 WASER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
8 BHCS 1/4 -28 x 2 SHLDR ROHSManufacturer no. 106965 1Quote Ask for a quote
9 NUT NYLOCK THIN 1/4 -28 ROHSManufacturer no. 106935 1Quote Ask for a quote
10 P-CLIP 3/16" VINYL COATManufacturer no. 112388 1Quote Ask for a quote
11 1" TUBE END BUSHING THICKManufacturer no. 561018 1Quote Ask for a quote
12 HHCS 1/4 -28 x 1 1/2 ROHSManufacturer no. 106972 1Quote Ask for a quote
14 BHCS 1/4 -28 x 1 1/2 ROHSManufacturer no. 107028 1Quote Ask for a quote
15 STRUT SADDLE ZGSManufacturer no. 483184 1Quote Ask for a quote
16 BHCS 1/4 -28 x 1 1/4 ROHSManufacturer no. 106961 1Quote Ask for a quote
18 BHCS 5/16 -18 x 1 3/4 SHLD ROHSManufacturer no. 106982 1Quote Ask for a quote
19 S/A LATCH STUD SUPPORT NUTManufacturer no. 105787 1Quote Ask for a quote
20 1" INSERT PLUG .065 RIBSManufacturer no. 561062 1Quote Ask for a quote
21 ADJ SEAT STOP 1" BLACK; if replacing silver order qty 2Manufacturer no. 342048 1Quote Ask for a quote
22 7/8" ROUND TUBE PLUG Use in place of SA HangerManufacturer no. 560735 1Quote Ask for a quote

Transit Kit Zippie Ts (page 19)

11 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Transit Kit Zippie Ts (page 19)
No.PartQtyPriceAction
1 HHCS 1/4-28 X 2 1/4 ROHSManufacturer no. 107351 1Quote Ask for a quote
3 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
4 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
5 BHCS 1/4-28 X 2Manufacturer no. 106964 1Quote Ask for a quote
6 SADDLE BACKREST Q2 DAB RIGHTManufacturer no. 560518 1Quote Ask for a quote
6 SADDLE BACKREST Q2 DAB LEFTManufacturer no. 560519 1Quote Ask for a quote
7 1/4-28 X 2-1/8" C/S CLR ZNManufacturer no. 221202 1Quote Ask for a quote
8 ECCENTRIC WASHER TRANSPORTManufacturer no. 481430 1Quote Ask for a quote
10 1/4-28 AUTOMATION NUTManufacturer no. 106941 1Quote Ask for a quote
1-10 TRANSIT KIT ZIPPIE TS Chairs with s/n prefix ZPManufacturer no. 105169S 1Quote Ask for a quote
1-10 TRANSIT KIT NEW ZIPPIE TS Chairs with s/n prefix ZT, ZTS & ZTSE, Z1A & Z1SEManufacturer no. 105175S 1Quote Ask for a quote

adjustment hole is the only difference.

10 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in adjustment hole is the only difference.
No.PartQtyPriceAction
1 BHCS 1/4 -28 x 1 1/4 ROHSManufacturer no. 106961 1Quote Ask for a quote
2 REAR FRAME EXT .065 15 -16" ZPManufacturer no. 483088 1Quote Ask for a quote
3 SEAT TUBE PLUG S/A TS/P5Manufacturer no. 483089 1Quote Ask for a quote
4 NUT NYLOCK THIN 1/4 -28 ROHSManufacturer no. 106935 1Quote Ask for a quote
5 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
6 NUT NYLOCK 1/4 -28 ROHSManufacturer no. 106934 1Quote Ask for a quote
7 END CAP OVAL TUBE ZGSManufacturer no. 562845 1Quote Ask for a quote
9 1" WASHER 5/16 HOLEManufacturer no. 561016 1Quote Ask for a quote
10 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106945 1Quote Ask for a quote
12 BHCS 1/4 -28 x 2 ROHSManufacturer no. 106964 1Quote Ask for a quote

SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 20)

2 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 20)
No.PartQtyPriceAction
2 10 -32 X 5/8 PAN HD PHILManufacturer no. 281120 1Quote Ask for a quote
3 TRIGGER RELEASE PIN TS/QT/P5Manufacturer no. 349021 1Quote Ask for a quote

Cross Tube Assembly

17 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Cross Tube Assembly
No.PartQtyPriceAction
1 1/4-28 NYLOCK NUTManufacturer no. 106934 1Quote Ask for a quote
2 ZGS FOLDING STRAPManufacturer no. 750552 1Quote Ask for a quote
3 END CAP OVAL TUBE ZGSManufacturer no. 562845 1Quote Ask for a quote
5 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
6 1/4 AN WASHER FLATManufacturer no. 106943 1Quote Ask for a quote
7 1" WASHER 5/16" HOLEManufacturer no. 561016 1Quote Ask for a quote
8 1/4-28 x 1 BH C/S SHLDRManufacturer no. 226111 1Quote Ask for a quote
9 1/4-28 x 2 BH C/SManufacturer no. 106964 1Quote Ask for a quote
10 1/4" NYLON WASHERManufacturer no. 561028 1Quote Ask for a quote
11 1/4-28 x 2 1/2 G8 HEX C/SManufacturer no. 221181 1Quote Ask for a quote
12A X-HINGE 10-12IN ZGS SMALL - WORKS W/ 10-12 SEAT WIDTHSManufacturer no. 120996 1Quote Ask for a quote
12B X-HINGE 12-14IN ZGS MEDIUM - WORKS W/ 12-14 SEAT WIDTHSManufacturer no. 120997 1Quote Ask for a quote
12C X-HINGE 14-16IN ZGS LARGE - WORKS W/ 14-16 SEAT WIDTHSManufacturer no. 120998 1Quote Ask for a quote
12D X-HINGE 16-18IN ZGS X-LARGE - WORKS W/ 16-18 SEAT WIDTHSManufacturer no. 120999 1Quote Ask for a quote
13 Z2 X-HINGE SPACERManufacturer no. 481089 1Quote Ask for a quote
14 1/4-28 x 1 3/4 BH C/SManufacturer no. 226140 1Quote Ask for a quote
15 1/4" SAE WASHERManufacturer no. 106945 1Quote Ask for a quote

SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 22)

6 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 22)
No.PartQtyPriceAction
2 10 -32 X 5/8 PAN HD PHILManufacturer no. 281120 1Quote Ask for a quote
3 TRIGGER RELEASE PIN TS/QT/P5Manufacturer no. 349021 1Quote Ask for a quote
4 MECH CYLINDER LOCK R BR RCLINR RIGHTManufacturer no. 120625 1Quote Ask for a quote
4 MECH CYLINDER LOCK L BR RCLINR LEFTManufacturer no. 120626 1Quote Ask for a quote
5 NUT NYLOCK 1/4 -28 ROHSManufacturer no. 106934 1Quote Ask for a quote
6 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote

Locking Mechanism New Zippie Ts

14 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Locking Mechanism New Zippie Ts
No.PartQtyPriceAction
1 CYL LOCK LEVER ASSM QT/QR/P5Manufacturer no. 580110 1Quote Ask for a quote
2 10/32 x 5/8 PAN HD PHILManufacturer no. 281120 1Quote Ask for a quote
3 TRIGGER REL PIN TS/QT/P5Manufacturer no. 349021 1Quote Ask for a quote
5 10-32 NYLOCK NUTManufacturer no. 200100-QU 1Quote Ask for a quote
6 1/2" ID PLST CLAMP BLKManufacturer no. 349511 1Quote Ask for a quote
7 #10 AN WASHER .063Manufacturer no. 261204 1Quote Ask for a quote
8 10-32 x 1 1/2 BH C/S BLKManufacturer no. 226032-QU 1Quote Ask for a quote
9 1/4-28 x 1 1/4 BH C/S SHLDRManufacturer no. 226131 1Quote Ask for a quote
10 FLDG ZTS MCHLCK MNT SEAT FRMManufacturer no. 500609 1Quote Ask for a quote
11 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
12 1/4 AN WASHER FLATManufacturer no. 106943 1Quote Ask for a quote
13 1/4-28 NYLOCK NUTManufacturer no. 106934 1Quote Ask for a quote
14 MECH CYLINDER LOCK BR RCLNR RIGHTManufacturer no. 120625 1Quote Ask for a quote
14 MECH CYLINDER LOCK BR RCLNR LEFTManufacturer no. 120626 1Quote Ask for a quote

SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 24)

8 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 24)
No.PartQtyPriceAction
1A QR AXLE PLATE ZP TS R SHORT-RIGHTManufacturer no. 505320 1Quote Ask for a quote
1A QR AXLE PLATE ZP TS L SHORT-LEFTManufacturer no. 505321 1Quote Ask for a quote
1B AXLE BRACKET RIGHT LONG-RIGHTManufacturer no. 506120 1Quote Ask for a quote
1B AXLE BRACKET LEFT LONG-LEFTManufacturer no. 506121 1Quote Ask for a quote
2 NUT NYLOCK 1/4 -28 ROHSManufacturer no. 106934 1Quote Ask for a quote
3 1 1/8" HALF SADDLE 2 HOLE QTSManufacturer no. 561085 1Quote Ask for a quote
4A BHCS 1/4 -28 x 1 3/4 ROHS USE W/ LONG AXLE PLATEManufacturer no. 106962 1Quote Ask for a quote
4B BHCS 1/4 -28 x 2 ROHS USE W/ SHORT AXLE PLATEManufacturer no. 106964 1Quote Ask for a quote

Axle Bracket 12" & 16" (page 25)

7 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Axle Bracket 12" & 16" (page 25)
No.PartQtyPriceAction
1 1 1/8" SADDLE 1/4" HOLEManufacturer no. 561001 1Quote Ask for a quote
2 1" SADDLE 1/4" HOLEManufacturer no. 561004 1Quote Ask for a quote
3 NYLOCK NUT THIN 1/4 -28 ROHSManufacturer no. 106935 1Quote Ask for a quote
5 BHCS 1/4-28 x 1 3/4 ROHSManufacturer no. 106962 1Quote Ask for a quote
6 TUBE EXTENSION FRAMEManufacturer no. 109734 1Quote Ask for a quote
7 BHCS 1/4-28 X 1-3/4 FULL ROHSManufacturer no. 112390 1Quote Ask for a quote
1-7 QR AXLE PLATE TS 12" WHEEL W/ AT RECManufacturer no. 920161 1Quote Ask for a quote

SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 26)

6 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 26)
No.PartQtyPriceAction
1A QR AXLE MAG W/M-12 NUTManufacturer no. 102065 1Quote Ask for a quote
1B QR AXLE W/ QUAD NUT PUSH PUTTONManufacturer no. 116390 1Quote Ask for a quote
1C QR AXLE AND NUT SHORT BIG BUTTONManufacturer no. 107268 1Quote Ask for a quote
1D QR AXLE/NUT LONG BG BTTNManufacturer no. 109385 1Quote Ask for a quote
1E QR AXLE MAG W/M-12 NUTManufacturer no. 102063 1Quote Ask for a quote
2A MAG SPACER 6S W/ SET SCREWManufacturer no. 920117 1Quote Ask for a quote

Transit Kit Zippie Ts

11 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Transit Kit Zippie Ts
No.PartQtyPriceAction
1 HHCS 1/4-28 X 2 1/4 ROHSManufacturer no. 107351 1Quote Ask for a quote
3 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
4 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
5 BHCS 1/4-28 X 2Manufacturer no. 106964 1Quote Ask for a quote
6 SADDLE BACKREST Q2 DAB RIGHTManufacturer no. 560518 1Quote Ask for a quote
6 SADDLE BACKREST Q2 DAB LEFTManufacturer no. 560519 1Quote Ask for a quote
7 1/4-28 X 2-1/8" C/S CLR ZNManufacturer no. 221202 1Quote Ask for a quote
8 ECCENTRIC WASHER TRANSPORTManufacturer no. 481430 1Quote Ask for a quote
10 1/4-28 AUTOMATION NUTManufacturer no. 106941 1Quote Ask for a quote
1-10 TRANSIT KIT ZIPPIE TS Chairs with s/n prefix ZPManufacturer no. 105169S 1Quote Ask for a quote
1-10 TRANSIT KIT NEW ZIPPIE TS Chairs with s/n prefix ZT, ZTS & ZTSE, Z1A & Z1SEManufacturer no. 105175S 1Quote Ask for a quote

Axle Bracket

8 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Axle Bracket
No.PartQtyPriceAction
1A QR AXLE PLATE ZP TS R SHORT-RIGHTManufacturer no. 505320 1Quote Ask for a quote
1A QR AXLE PLATE ZP TS L SHORT-LEFTManufacturer no. 505321 1Quote Ask for a quote
1B AXLE BRACKET RIGHT LONG-RIGHTManufacturer no. 506120 1Quote Ask for a quote
1B AXLE BRACKET LEFT LONG-LEFTManufacturer no. 506121 1Quote Ask for a quote
2 NUT NYLOCK 1/4 -28 ROHSManufacturer no. 106934 1Quote Ask for a quote
3 1 1/8" HALF SADDLE 2 HOLE QTSManufacturer no. 561085 1Quote Ask for a quote
4A BHCS 1/4 -28 x 1 3/4 ROHS USE W/ LONG AXLE PLATEManufacturer no. 106962 1Quote Ask for a quote
4B BHCS 1/4 -28 x 2 ROHS USE W/ SHORT AXLE PLATEManufacturer no. 106964 1Quote Ask for a quote

Caster Stem & Fork Assembly

14 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Caster Stem & Fork Assembly
No.PartQtyPriceAction
1 NUT NYLON THIN 1/2 -20 ROHSManufacturer no. 106940 1Quote Ask for a quote
2 WASHER FLAT AN 1/2 ROHSManufacturer no. 106949 1Quote Ask for a quote
4 1/2 - 20 JAM NUTManufacturer no. 203110 1Quote Ask for a quote
1-3 REG CASTER STEM W/ HARDWARE STD STEMManufacturer no. 920050 1Quote Ask for a quote
7 + 3/4 CASTER STEM SPACER BLK +3/4" STEMManufacturer no. 521560 1Quote Ask for a quote
8 + 1 1/2 CASTER STEM SPACER BLK +1 1/2" STEMManufacturer no. 521562 1Quote Ask for a quote
9A FORK CASTER 5 1/4" WORKS WITH 4", 5", 6", & 8" CASTERSManufacturer no. 105839-001 1Quote Ask for a quote
9B FORK CASTER 6" WORKS WITH 4", 5", 6", & 8" CASTERSManufacturer no. 105839-002 1Quote Ask for a quote
9C FORK CASTER 7" WORKS WITH 4", 5", 6", & 8" CASTERSManufacturer no. 105839-003 1Quote Ask for a quote
9D 8" FORK P100 ONLY WORKS WITH 8" x 2" CASTER ONLYManufacturer no. 550730 1Quote Ask for a quote
9E FORK CASTER 3" WORKS WITH 3" CASTERS ONLYManufacturer no. 106810 1Quote Ask for a quote
10A HHCS 5/16 -24 x 2 1/2 ROHSManufacturer no. 106987 1Quote Ask for a quote
10B HHCS 5/16 -24 x 3 1/4 ROHS Used w/ 8x2 fork only.Manufacturer no. 106988 1Quote Ask for a quote
11 WASHER FLAT AN 5/16 ROHS Used w/ 8x2 fork. Used with 5" Soft Roll CasterManufacturer no. 106946 1Quote Ask for a quote

Axle Bracket 12" & 16"

7 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Axle Bracket 12" & 16"
No.PartQtyPriceAction
1 1 1/8" SADDLE 1/4" HOLEManufacturer no. 561001 1Quote Ask for a quote
2 1" SADDLE 1/4" HOLEManufacturer no. 561004 1Quote Ask for a quote
3 NYLOCK NUT THIN 1/4 -28 ROHSManufacturer no. 106935 1Quote Ask for a quote
5 BHCS 1/4-28 x 1 3/4 ROHSManufacturer no. 106962 1Quote Ask for a quote
6 TUBE EXTENSION FRAMEManufacturer no. 109734 1Quote Ask for a quote
7 BHCS 1/4-28 X 1-3/4 FULL ROHSManufacturer no. 112390 1Quote Ask for a quote
1-7 QR AXLE PLATE TS 12" WHEEL W/ AT RECManufacturer no. 920161 1Quote Ask for a quote

Caster Pin Lock (page 29)

15 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Caster Pin Lock (page 29)
No.PartQtyPriceAction
1 PIN LOCK ARM W/ PIN S/A RIGHTManufacturer no. 880761 1Quote Ask for a quote
1 PIN LOCK ARM W/ PIN S/A LEFTManufacturer no. 880762 1Quote Ask for a quote
2 CASTER PIN LOCK BLOCK S/A BLKManufacturer no. 500262 1Quote Ask for a quote
3 .650L x 6 COIL SPRINGManufacturer no. 321141 1Quote Ask for a quote
4 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
5 1/4" E-CLIPManufacturer no. 342000 1Quote Ask for a quote
6 CASTER PIN LOCK PLATEManufacturer no. 505012 1Quote Ask for a quote
7A BHCS 1/4 -28 x 5/8 ROHS USED W/ S/A HANGER FRT FRAME ONLYManufacturer no. 106959 1Quote Ask for a quote
7B HHCS 1/4 -28 x 1 3/4 ROHS USED W/ TRANSIT OPTIONManufacturer no. 107015 1Quote Ask for a quote
7C HHCS 1/4 -28 x 2 ROHS USED FOR GP FIXED FRT FRAME ONLYManufacturer no. 106973 1Quote Ask for a quote
8 1/4 -28 X 5/8 BH C/SManufacturer no. 106959 1Quote Ask for a quote
9 PIN LOCK PLATE HI-ANGLE CASTERManufacturer no. 505667 1Quote Ask for a quote
10 PIN LOCK BLOCK HI-ANGLE CASTERManufacturer no. 505666 1Quote Ask for a quote
1-5 CASTER PIN LOCK S/A RIGHTManufacturer no. 880750 1Quote Ask for a quote
1-5 CASTER PIN LOCK S/A LEFTManufacturer no. 880751 1Quote Ask for a quote

Quick Release Axles

6 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Quick Release Axles
No.PartQtyPriceAction
1A QR AXLE MAG W/M-12 NUTManufacturer no. 102065 1Quote Ask for a quote
1B QR AXLE W/ QUAD NUT PUSH PUTTONManufacturer no. 116390 1Quote Ask for a quote
1C QR AXLE AND NUT SHORT BIG BUTTONManufacturer no. 107268 1Quote Ask for a quote
1D QR AXLE M12 NUT CLR BIG BUTTONManufacturer no. 102064 1Quote Ask for a quote
1E QR AXLE MAG W/M-12 NUTManufacturer no. 102063 1Quote Ask for a quote
2A MAG SPACER 6S W/ SET SCREWManufacturer no. 920117 1Quote Ask for a quote

Fork & Stem Assemblies

37 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Fork & Stem Assemblies
No.PartQtyPriceAction
1A 5 1/4" STD STEM W/ HDWR BLKManufacturer no. 780800 1Quote Ask for a quote
1A 5 1/4" STD STEM PL R W/ HDWR BLK RIGHTManufacturer no. 780802 1Quote Ask for a quote
1A 5 1/4" STD STEM PL L W/ HDWR BLK LEFTManufacturer no. 780803 1Quote Ask for a quote
1A 5 1/4" + 3/4 STEM W/ HDWR BLKManufacturer no. 780804 1Quote Ask for a quote
1A 5 1/4" + 3/4 STEM PL R W/ HDWR BLK RIGHTManufacturer no. 780806 1Quote Ask for a quote
1A 5 1/4" + 3/4 STEM PL L W/ HDWR BLK LEFTManufacturer no. 780807 1Quote Ask for a quote
1A 5 1/4 QR W/ HDWR O/SManufacturer no. 780812 1Quote Ask for a quote
1B 6" STD STEM W/ HDWR BLKManufacturer no. 780840 1Quote Ask for a quote
1B 6" STD STEM PL R W/ HDWR BLK RIGHTManufacturer no. 780842 1Quote Ask for a quote
1B 6" STD STEM PL L W/ HDWR BLK LEFTManufacturer no. 780843 1Quote Ask for a quote
1B 6 + 3/4 STEM W/ HDWR BLKManufacturer no. 780844 1Quote Ask for a quote
1B 6 + 3/4 STEM PL R W/ HDWR BLK RIGHTManufacturer no. 780846 1Quote Ask for a quote
1B 6 + 3/4 STEM PL L W/ HDWR BLK LEFTManufacturer no. 780847 1Quote Ask for a quote
1B 6" QR W/ HDWR O/SManufacturer no. 780852 1Quote Ask for a quote
1C 7" STD STEM W/ HDWR BLKManufacturer no. 780880 1Quote Ask for a quote
1C 7" STD STEM PL R W/ HDWR BLK RIGHTManufacturer no. 780882 1Quote Ask for a quote
1C 7" STD STEM PL L W/ HDWR BLK LEFTManufacturer no. 780883 1Quote Ask for a quote
1C 7 3/4" STEM W/ HDWR BLKManufacturer no. 780884 1Quote Ask for a quote
1C 7 3/4" STD STEM PL R W/ HDWR BLK RIGHTManufacturer no. 780886 1Quote Ask for a quote
1C 7 3/4" STD STEM PL L W/ HDWR BLK LEFTManufacturer no. 780887 1Quote Ask for a quote
1C 7" QR W/ HDWR O/SManufacturer no. 780892 1Quote Ask for a quote
1D 4 3/4" FORK STD STEM W/ HDWR BLKManufacturer no. 780980 1Quote Ask for a quote
1D 4 3/4" STD STEM PL W/ HDWR R BLK RIGHTManufacturer no. 780981 1Quote Ask for a quote
1D 4 3/4" STEM PL W/ HDWR BLKManufacturer no. 780982 1Quote Ask for a quote
1D 4 3/4"+3/4 STM PL W/HDWR R BLK RIGHTManufacturer no. 780983 1Quote Ask for a quote
1D 4 3/4 + 3/4 STEM PL L W/ HDWR BLK LEFTManufacturer no. 780987 1Quote Ask for a quote
1E 8" x 2" FORK STD STEM W/ HDWRManufacturer no. 787111 1Quote Ask for a quote
1E 8" x 2 + 3/4" STEM W/ HDWRManufacturer no. 787112 1Quote Ask for a quote
2A 5/16-24 NYLOCK NUT THINManufacturer no. 106939 1Quote Ask for a quote
2B 5/16-24 NYLOCK NUT ALUMINUMManufacturer no. 330005 1Quote Ask for a quote
3 SPACER 5/16 x .380Manufacturer no. 481113 1Quote Ask for a quote
4A 5/16-24 x 2 1/2 HEX C/SManufacturer no. 106987 1Quote Ask for a quote
4B 5/16-24 x 2 1/2 HEX C/S TiManufacturer no. 330110 1Quote Ask for a quote
5 NUT NYLOCK THIN 1/2-20Manufacturer no. 106940 1Quote Ask for a quote
6 1/2 AN WASHER FLATManufacturer no. 106949 1Quote Ask for a quote
7 5/16-24 x 3 1/4 HEX C/SManufacturer no. 222253 1Quote Ask for a quote
8 5/16 AN WASHER FLATManufacturer no. 106947 1Quote Ask for a quote

SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 30)

0 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Caster Stems

7 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Caster Stems
No.PartQtyPriceAction
1 NUT NYLOCK THIN 1/2-20Manufacturer no. 106940 1Quote Ask for a quote
2 1/2 AN WASHER FLATManufacturer no. 106949 1Quote Ask for a quote
4 1/2 - 20 JAM NUTManufacturer no. 203110 1Quote Ask for a quote
7 + 3/4" CASTER STEM SPACER BLKManufacturer no. 521560 1Quote Ask for a quote
8 + 1 1/2" CASTER STEM SPACER BLKManufacturer no. 521562 1Quote Ask for a quote
9 1/2 - 20 x 4" GR 8 HEX C/SManufacturer no. 222292 1Quote Ask for a quote
1-3 REG CASTER STEM W/ HARDWAREManufacturer no. 920050 1Quote Ask for a quote

Caster Pin Lock

15 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Caster Pin Lock
No.PartQtyPriceAction
1 PIN LOCK ARM W/ PIN S/A RIGHTManufacturer no. 880761 1Quote Ask for a quote
1 PIN LOCK ARM W/ PIN S/A LEFTManufacturer no. 880762 1Quote Ask for a quote
2 CASTER PIN LOCK BLOCK S/A BLKManufacturer no. 500262 1Quote Ask for a quote
3 .650L x 6 COIL SPRINGManufacturer no. 321141 1Quote Ask for a quote
4 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
5 1/4" E-CLIPManufacturer no. 342000 1Quote Ask for a quote
6 CASTER PIN LOCK PLATEManufacturer no. 505012 1Quote Ask for a quote
7A BHCS 1/4 -28 x 5/8 ROHS USED W/ S/A HANGER FRT FRAME ONLYManufacturer no. 106959 1Quote Ask for a quote
7B HHCS 1/4 -28 x 1 3/4 ROHS USED W/ TRANSIT OPTIONManufacturer no. 107015 1Quote Ask for a quote
7C HHCS 1/4 -28 x 2 ROHS USED FOR GP FIXED FRT FRAME ONLYManufacturer no. 106973 1Quote Ask for a quote
8 1/4 -28 X 5/8 BH C/SManufacturer no. 106959 1Quote Ask for a quote
9 PIN LOCK PLATE HI-ANGLE CASTERManufacturer no. 505667 1Quote Ask for a quote
10 PIN LOCK BLOCK HI-ANGLE CASTERManufacturer no. 505666 1Quote Ask for a quote
1-5 CASTER PIN LOCK S/A RIGHTManufacturer no. 880750 1Quote Ask for a quote
1-5 CASTER PIN LOCK S/A LEFTManufacturer no. 880751 1Quote Ask for a quote

SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 32)

6 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 32)
No.PartQtyPriceAction
1 7/8"x 5/16" BEARINGManufacturer no. 349502 1Quote Ask for a quote
2A 4" MICRO CASTER LIGHTED K0077 4" MICRO LIGHTEDManufacturer no. 400108 1Quote Ask for a quote
2B 3" MICRO CASTER W/ BEARING -PAIR K0077 PAIR 3" MICROManufacturer no. 920025 1Quote Ask for a quote
2C 3" MICRO CASTER LIGHTED K0077 3" MICRO LIGHTEDManufacturer no. 400107 1Quote Ask for a quote
3 5" MICRO CASTER LIGHTED K0077 5" MICRO LIGHTEDManufacturer no. 052129 1Quote Ask for a quote
4 WASHER FLAT THIN AN 5/16 ROHManufacturer no. 106947 1Quote Ask for a quote

3 Spoke Casters (page 33)

1 part

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 3 Spoke Casters (page 33)
No.PartQtyPriceAction
3 CASTERSManufacturer no. SPOKE 1Quote Ask for a quote

Caster Plate

0 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Caster Tires & Tubes

7 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Caster Tires & Tubes
No.PartQtyPriceAction
1A 8" PNEUMATIC TIREManufacturer no. 383250 1Quote Ask for a quote
1B 6" PNEUMATIC TIREManufacturer no. 383240 1Quote Ask for a quote
2A 8" TUBEManufacturer no. 382250 1Quote Ask for a quote
2B 6" TUBEManufacturer no. 382245 1Quote Ask for a quote
3 TIRE FOAMED INSERT 8" x 2"Manufacturer no. 384701 1Quote Ask for a quote
4 TIRE PNEUMATIC 8" x 2"Manufacturer no. 384700 1Quote Ask for a quote
5 INNER TUBE CASTER 8" x 2"Manufacturer no. 384730 1Quote Ask for a quote

Soft Roll Casters (page 35)

2 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Soft Roll Casters (page 35)
No.PartQtyPriceAction
1 CASTER 5" SOFT ROLL W/BRNGS K0077 5" SOFT ROLL SEMI PNEU (GREY)Manufacturer no. 400103 1Quote Ask for a quote
2 7/8"x 5/16" BEARINGManufacturer no. 349502 1Quote Ask for a quote

Micro Casters

6 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Micro Casters
No.PartQtyPriceAction
1 7/8"x 5/16" BEARINGManufacturer no. 349502 1Quote Ask for a quote
2A 4" MICRO CASTER LIGHTED K0077 4" MICRO LIGHTEDManufacturer no. 400108 1Quote Ask for a quote
2B 3" MICRO CASTER W/ BEARING -PAIR K0077 PAIR 3" MICROManufacturer no. 920025 1Quote Ask for a quote
2C 3" MICRO CASTER LIGHTED K0077 3" MICRO LIGHTEDManufacturer no. 400107 1Quote Ask for a quote
3 5" MICRO CASTER LIGHTED K0077 5" MICRO LIGHTEDManufacturer no. 052129 1Quote Ask for a quote
4 WASHER FLAT THIN AN 5/16 ROHManufacturer no. 106947 1Quote Ask for a quote

SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 36)

5 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 36)
No.PartQtyPriceAction
1 7/8"x 5/16" BEARINGManufacturer no. 349502 1Quote Ask for a quote
2A 8" X 2" CMPST W/PNEU & BEARING 8" x 2" PNEUMATICManufacturer no. 400700 1Quote Ask for a quote
2B 8" X 2" CMPST W/PNEU INSRT&BRG 8" x 2" PNEUMATIC W/ INSERTManufacturer no. 400702 1Quote Ask for a quote
2C TIRE PNEUMATIC 8" x 2"Manufacturer no. 384700 1Quote Ask for a quote
2D INNER TUBE CASTER 8" x 2"Manufacturer no. 384730 1Quote Ask for a quote

3 Spoke Casters

1 part

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 3 Spoke Casters
No.PartQtyPriceAction
3 CASTERSManufacturer no. SPOKE 1Quote Ask for a quote

Anti Tips (page 37)

11 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Anti Tips (page 37)
No.PartQtyPriceAction
1A NUT NYLOCK THIN 1/4 -28 ROHSManufacturer no. 106935 1Quote Ask for a quote
1B NUT NYLOCK 1/4 -28 ROHSManufacturer no. 106934 1Quote Ask for a quote
2 BHCS 1/4 -28 x 2 1/4 ROHSManufacturer no. 106966 1Quote Ask for a quote
3 ANTI-TIP RECEIVERS PAIRManufacturer no. 920407 1Quote Ask for a quote
4 SNAP BUTTON DUAL ONE SIDEManufacturer no. 301109 1Quote Ask for a quote
6 SNAP BUTTON 1/4" SINGLEManufacturer no. 301100 1Quote Ask for a quote
7A ANTI-TIP SLEEVE W/WHEELS BLK (4H) USED FOR 16", 18", 20", 22" & 24" REAR WHEELSManufacturer no. 881512 1Quote Ask for a quote
7B ANTI TIP SLEEVE W/ WHLS BZ/ZP USED FOR 12" WHEELS ONLYManufacturer no. 880486 1Quote Ask for a quote
8 1" SADDLE 1/4" HOLEManufacturer no. 561004 1Quote Ask for a quote
9 TUBE EXTENSION FRAMEManufacturer no. 109734 1Quote Ask for a quote
10 BHCS 1/4 -28 x 1 3/4 FULL ROHSManufacturer no. 112390 1Quote Ask for a quote

Front Anti-Tip (page 39)

6 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Front Anti-Tip (page 39)
No.PartQtyPriceAction
1 HHCS 1/4 -28 x 2 ROHSManufacturer no. 106973 1Quote Ask for a quote
2 BHCS 1/4 -28 x 1 1/4 ROHSManufacturer no. 106961 1Quote Ask for a quote
3 ANTI-TIP RECEIVER BLOCK FRONTManufacturer no. 505340 1Quote Ask for a quote
4 BHCS 10 -32 x 1 1/8 ROHSManufacturer no. 113283 1Quote Ask for a quote
5 NUT NYLOCK 10 -32 ROHSManufacturer no. 106930 1Quote Ask for a quote
1-5 FRONT ANTI-TIP REC CASTER MOUNT PAIRManufacturer no. 920408 1Quote Ask for a quote

Soft Roll Casters

2 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Soft Roll Casters
No.PartQtyPriceAction
1 CASTER 5" SOFT ROLL W/BRNGS K0077 5" SOFT ROLL SEMI PNEU (GREY)Manufacturer no. 400103 1Quote Ask for a quote
2 7/8"x 5/16" BEARINGManufacturer no. 349502 1Quote Ask for a quote

8" x 2" CASTERS

5 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 8" x 2" CASTERS
No.PartQtyPriceAction
1 7/8"x 5/16" BEARINGManufacturer no. 349502 1Quote Ask for a quote
2A 8" X 2" CMPST W/PNEU & BEARING 8" x 2" PNEUMATICManufacturer no. 400700 1Quote Ask for a quote
2B 8" X 2" CMPST W/PNEU INSRT&BRG 8" x 2" PNEUMATIC W/ INSERTManufacturer no. 400702 1Quote Ask for a quote
2C TIRE PNEUMATIC 8" x 2"Manufacturer no. 384700 1Quote Ask for a quote
2D INNER TUBE CASTER 8" x 2"Manufacturer no. 384730 1Quote Ask for a quote

SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 40)

15 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 40)
No.PartQtyPriceAction
1 HUB LOCK LEVER ASSM R DOES NOT INCLUDE CABLEManufacturer no. 112426 1Quote Ask for a quote
1 HUB LOCK LEVER ASSM L DOES NOT INCLUDE CABLEManufacturer no. 112427 1Quote Ask for a quote
2 CLIP CABLE 1" (QTY 10) PACK OF 10Manufacturer no. 108134 1Quote Ask for a quote
3 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
4A WHEEL HUBLOCK 12" PNEUManufacturer no. 112226-001 1Quote Ask for a quote
4B WHEEL HUBLOCK 12" AIRLESSManufacturer no. 112226-002 1Quote Ask for a quote
4C WHEEL HUBLOCK 12" LOW POLYManufacturer no. 112226-003 1Quote Ask for a quote
4D WHEEL HUBLOCK 16" PNEUManufacturer no. 112227-001 1Quote Ask for a quote
4E WHEEL HUBLOCK 16" AIRLESSManufacturer no. 112227-002 1Quote Ask for a quote
5 1 1/8" x 1/2" BEARINGManufacturer no. 349500 1Quote Ask for a quote
6 QR ALXE W/ M12 NUTManufacturer no. 102065 1Quote Ask for a quote
7 LOCK MECH HUB LOCK ZTS 12" R RIGHT-INCLUDES CABLEManufacturer no. 112816 1Quote Ask for a quote
7 LOCK MECH HUB LOCK ZTS 12" L LEFT -INCLUDES CABLEManufacturer no. 112817 1Quote Ask for a quote
8 BHCS 1/4-28 X 2 FULL ROHSManufacturer no. 112785 1Quote Ask for a quote
9 NUT NYLOCK THIN 1/4 -28 ROHSManufacturer no. 106935 1Quote Ask for a quote

Anti Tips

11 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Anti Tips
No.PartQtyPriceAction
1A NUT NYLOCK THIN 1/4 -28 ROHSManufacturer no. 106935 1Quote Ask for a quote
1B NUT NYLOCK 1/4 -28 ROHSManufacturer no. 106934 1Quote Ask for a quote
2 BHCS 1/4 -28 x 2 1/4 ROHSManufacturer no. 106966 1Quote Ask for a quote
3 ANTI-TIP RECEIVERS PAIRManufacturer no. 920407 1Quote Ask for a quote
4 SNAP BUTTON DUAL ONE SIDEManufacturer no. 301109 1Quote Ask for a quote
6 SNAP BUTTON 1/4" SINGLEManufacturer no. 301100 1Quote Ask for a quote
7A ANTI-TIP SLEEVE W/WHEELS BLK (4H) USED FOR 16", 18", 20", 22" & 24" REAR WHEELSManufacturer no. 881512 1Quote Ask for a quote
7B ANTI TIP SLEEVE W/ WHLS BZ/ZP USED FOR 12" WHEELS ONLYManufacturer no. 880486 1Quote Ask for a quote
8 1" SADDLE 1/4" HOLEManufacturer no. 561004 1Quote Ask for a quote
9 TUBE EXTENSION FRAMEManufacturer no. 109734 1Quote Ask for a quote
10 BHCS 1/4 -28 x 1 3/4 FULL ROHSManufacturer no. 112390 1Quote Ask for a quote

SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 42)

0 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Front Anti-Tip

6 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Front Anti-Tip
No.PartQtyPriceAction
1 HHCS 1/4 -28 x 2 ROHSManufacturer no. 106973 1Quote Ask for a quote
2 BHCS 1/4 -28 x 1 1/4 ROHSManufacturer no. 106961 1Quote Ask for a quote
3 ANTI-TIP RECEIVER BLOCK FRONTManufacturer no. 505340 1Quote Ask for a quote
4 BHCS 10 -32 x 1 1/8 ROHSManufacturer no. 113283 1Quote Ask for a quote
5 NUT NYLOCK 10 -32 ROHSManufacturer no. 106930 1Quote Ask for a quote
1-5 FRONT ANTI-TIP REC CASTER MOUNT PAIRManufacturer no. 920408 1Quote Ask for a quote

Anti-Tips (Fits 12" & 16" Rear Wheels)

5 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Anti-Tips (Fits 12" & 16" Rear Wheels)
No.PartQtyPriceAction
1 ANTI-TIP INSERT 12" WHEELManufacturer no. 483097 1Quote Ask for a quote
2 SNAP BUTTON DUAL ONE SIDEManufacturer no. 301109 1Quote Ask for a quote
4 1/4" SNAP BUTTON SINGLEManufacturer no. 301100 1Quote Ask for a quote
5A ANTI-TIP SLEEVE W/ WHEELS BZ/ZPManufacturer no. 880486 1Quote Ask for a quote
5B ANTI-TIP SLEEVE W/ WHEELS BLK 4HManufacturer no. 881512 1Quote Ask for a quote

SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 44)

7 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 44)
No.PartQtyPriceAction
1A WHEEL LOCK PUSH R FWD LONG Right, LongManufacturer no. 104216-005 1Quote Ask for a quote
1A WHEEL LOCK PUSH L FWD LONG Left, LongManufacturer no. 104216-006 1Quote Ask for a quote
1B WHEEL LOCK PUSH R REV LONG Right, LongManufacturer no. 104216-007 1Quote Ask for a quote
1B WHEEL LOCK PUSH L REV LONG Left, LongManufacturer no. 104216-008 1Quote Ask for a quote
3 SHCS 1/4 -28 x 1 ROHSManufacturer no. 107032 1Quote Ask for a quote
4 WASHER LOCK HI COLLAR 1/4 ROHSManufacturer no. 107367 1Quote Ask for a quote
5 WHEEL LOCK EXTENSION ASSY KIT EACHManufacturer no. 161929 1Quote Ask for a quote

High Mount Pull Wheel Lock

0 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

High Wheel Lock Push (Long Slide)

19 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in High Wheel Lock Push (Long Slide)
No.PartQtyPriceAction
1 1/4 x 1/4 ALUM SPACER BLKManufacturer no. 483027 1Quote Ask for a quote
2 GRADE AID PLATE W/WHEEL BLK RIGHTManufacturer no. 880904 1Quote Ask for a quote
2 GRADE AID PLATE W/WHEEL BLK LEFTManufacturer no. 880905 1Quote Ask for a quote
3 1/4" NYLON WASHERManufacturer no. 561028 1Quote Ask for a quote
4 HB PLASTIC COVERManufacturer no. 560500-QU 1Quote Ask for a quote
6 .250 ID .312 OD BUSHING PLSTManufacturer no. 560126 1Quote Ask for a quote
7 1/4-28 X 1 1/8 BH C/SManufacturer no. 226125 1Quote Ask for a quote
7 1/4-28 x 1 1/2 BH C/S (W/GRADE AID)Manufacturer no. 226130 1Quote Ask for a quote
8 WHL LOCK SLIDE BLOCK LONG 5.5" longManufacturer no. 550447 1Quote Ask for a quote
9 1/4-28 AUTOMATION NUTManufacturer no. 106941 1Quote Ask for a quote
10 1/4-28 x 1 SOC C/S BLKManufacturer no. 107032 1Quote Ask for a quote
11 1/4 WASHER HI COLLAR LOCK ZNManufacturer no. 262114 1Quote Ask for a quote
12 CLAMP 1 1/4" RECESS HALF BLKManufacturer no. 550659 1Quote Ask for a quote
13 CLAMP 1 1/4" THREADED BLKManufacturer no. 550658 1Quote Ask for a quote
10-13 WHL LCK CLMP ASMManufacturer no. 107639 1Quote Ask for a quote
3-9 WHEEL LOCK PUSH LARGE W/O CLAMP RIGHTManufacturer no. 881946 1Quote Ask for a quote
3-9 WHEEL LOCK PUSH LARGE W/O CLAMP LEFTManufacturer no. 881947 1Quote Ask for a quote
1-9 WHL LOCK PUSH LARGE W/GRADE AID RIGHTManufacturer no. 882023 1Quote Ask for a quote
1-9 WHL LOCK PUSH LARGE W/GRADE AID LEFTManufacturer no. 882024 1Quote Ask for a quote

Foot Lock

20 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Foot Lock
No.PartQtyPriceAction
1 SHCS 12/4 -28 x 1 ROHSManufacturer no. 107032 1Quote Ask for a quote
2 SLIDE ADJUSTABLE FOOT LOCKManufacturer no. 112408 1Quote Ask for a quote
3 SPACER ATTENDANT WHEEL LOCKManufacturer no. 506184 1Quote Ask for a quote
4 REMOTE LOCK RIGHT SIDE USManufacturer no. 119952 1Quote Ask for a quote
4 REMOTE LOCK LEFT SIDE USManufacturer no. 119953 1Quote Ask for a quote
5 SHCS M6 x 1 x 60Manufacturer no. 103190-013 1Quote Ask for a quote
6 NUT HEX NYLOCK M6 x 1.0Manufacturer no. 104381 1Quote Ask for a quote
9 ATTENDT WHL LCK MT BRKTManufacturer no. 123517 1Quote Ask for a quote
10 NUT NYLOCK 1/4 -20 ROHSManufacturer no. 106932 1Quote Ask for a quote
11 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
12 SHLDR SCREW .312 DIA x .375 LGManufacturer no. 281048 1Quote Ask for a quote
13 BEARING SPACERManufacturer no. 481353 1Quote Ask for a quote
14 HHCS 1/4 -20 x 2 ROHSManufacturer no. 106992 1Quote Ask for a quote
16 SHLDR SCREW .312 DIA x 1.75 LGManufacturer no. 281041 1Quote Ask for a quote
19 HHCS 1/4 -28 x 1 3/4 ROHSManufacturer no. 107015 1Quote Ask for a quote
20 SADDLE ALUM 1" THICK P1/P5Manufacturer no. 483713 1Quote Ask for a quote
21 MOUNT PEDAL FOOT LOCKManufacturer no. 112263 1Quote Ask for a quote
22 WASHER LOCK HI COLLAR 1/4 ROHSManufacturer no. 107367 1Quote Ask for a quote
23 WASHER FLAT M6 ROHSManufacturer no. 107383 1Quote Ask for a quote
1-23 FTLCK ZTS KITManufacturer no. 115742 1Quote Ask for a quote

High Wheel Lock Pull (Long Slide)

20 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in High Wheel Lock Pull (Long Slide)
No.PartQtyPriceAction
1 1/4 x 1/4 ALUM SPACER BLKManufacturer no. 483027 1Quote Ask for a quote
2 GRADE AID PLATE W/ WHEEL BLK RIGHTManufacturer no. 880904 1Quote Ask for a quote
2 GRADE AID PLATE W/ WHEEL BLK LEFTManufacturer no. 880905 1Quote Ask for a quote
3 1/4" NYLON WASHERManufacturer no. 561028 1Quote Ask for a quote
4 HB PLASTIC COVERManufacturer no. 560500-QU 1Quote Ask for a quote
6 .250 ID .312 OD BUSHING PLSTManufacturer no. 560126 1Quote Ask for a quote
7 1/4-28 x 1 BH C/SManufacturer no. 226110 1Quote Ask for a quote
7 1/4-28 x 1 1/2 BH C/S (W/GRADE AID)Manufacturer no. 226130 1Quote Ask for a quote
8 WHL LCK SLIDE BLOCK LNGManufacturer no. 550447 1Quote Ask for a quote
9 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
10 SHCS 1/4-28 X 1Manufacturer no. 107032 1Quote Ask for a quote
11 1/4 WASHER HI COLLAR LOCK ZNManufacturer no. 262114 1Quote Ask for a quote
12 CLAMP 1 1/4" RECESS HALF BLKManufacturer no. 550659 1Quote Ask for a quote
13 CCLAMP 1 1/4" THREADED BLKManufacturer no. 550658 1Quote Ask for a quote
10-13 WHL LCK CLMP ASMManufacturer no. 107639 1Quote Ask for a quote
3-9 WHL LOCK PULL LARGE W/O CLMP RIGHTManufacturer no. 881948 1Quote Ask for a quote
3-9 WHL LOCK PULL LARGE W/O CLMP LEFTManufacturer no. 881949 1Quote Ask for a quote
1-9 WHL LOCK PULL LARGE W/GRADE AID RIGHTManufacturer no. 882025 1Quote Ask for a quote
1-9 WHL LOCK PULL LARGE W/GRADE AID LEFTManufacturer no. 882026 1Quote Ask for a quote
14 WHL LCK PULL LG R REV RIGHTManufacturer no. 120043 1Quote Ask for a quote

SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 48)

0 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Foot Lock 12" Wheel

29 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Foot Lock 12" Wheel
No.PartQtyPriceAction
1 SHCS 1/4-28 X 1Manufacturer no. 107032 1Quote Ask for a quote
2 1/4 WASHER HI COLLAR LOCK ZNManufacturer no. 262114 1Quote Ask for a quote
3 CLAMP 1 1/4" RECESS HALF BLKManufacturer no. 550659 1Quote Ask for a quote
4 CLAMP 1 1/4" THREADED BLKManufacturer no. 550658 1Quote Ask for a quote
5 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
6 WHEEL LOCK FOOT SLIDE BLOCKManufacturer no. 550268 1Quote Ask for a quote
7 1/4-20 x 1 BH C/S W/PATCHManufacturer no. 226061 1Quote Ask for a quote
8 WASHER FLAT THIN AN 1/4 ROHSManufacturer no. 106944 1Quote Ask for a quote
9 8 x .705 x .188 FOAM TUBEManufacturer no. 560612 1Quote Ask for a quote
11 1/4" NYLON WASHERManufacturer no. 561028 1Quote Ask for a quote
12 1/4" NYLON FLANGE BUSHINGManufacturer no. 262115 1Quote Ask for a quote
13 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
14 LOCK TOGGLE AND GRIPManufacturer no. 880531 1Quote Ask for a quote
15 1/4-28 x 1.10 BH C/SManufacturer no. 226122 1Quote Ask for a quote
16 TOGGLE LINK 1.125Manufacturer no. 504995 1Quote Ask for a quote
17 1/4-28 x 3/4 BH C/SManufacturer no. 226100 1Quote Ask for a quote
18 6mm WASHER WAVEManufacturer no. 262130 1Quote Ask for a quote
19 FOOT WHEEL LOCK LEVERManufacturer no. 505153 1Quote Ask for a quote
20 1/4-28 x 1 BH C/SManufacturer no. 226110 1Quote Ask for a quote
21 4 x .375 ID x .125 FOAM GRIPManufacturer no. 560305 1Quote Ask for a quote
1-4 WHL LCK CLMP ASMManufacturer no. 107639 1Quote Ask for a quote
1-21 FOOT WHEEL LOCK ASSM 10"Manufacturer no. 900740 1Quote Ask for a quote
1-21 FOOT WHEEL LOCK ASSM 11"Manufacturer no. 900741 1Quote Ask for a quote
1-21 FOOT WHEEL LOCK ASSM 12"Manufacturer no. 900742 1Quote Ask for a quote
1-21 FOOT WHEEL LOCK ASSM 13"Manufacturer no. 900743 1Quote Ask for a quote
1-21 FOOT WHEEL LOCK ASSM 14"Manufacturer no. 900744 1Quote Ask for a quote
1-21 FOOT WHEEL LOCK ASSM 15"Manufacturer no. 900745 1Quote Ask for a quote
1-21 FOOT WHEEL LOCK ASSM 16"Manufacturer no. 900746 1Quote Ask for a quote
1-21 FOOT WHEEL LOCK ASSM 17"Manufacturer no. 900747 1Quote Ask for a quote

SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 50)

6 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 50)
No.PartQtyPriceAction
1A 16 IN MAG PNEU 3 SPOKEManufacturer no. 101667 1Quote Ask for a quote
1B 16 IN MAG PNEU W/INSERTManufacturer no. 101668 1Quote Ask for a quote
1C 16" X 1.75" PNEU TIRE Tire OnlyManufacturer no. 385237 1Quote Ask for a quote
2 1 1/8 X 1/2 BEARINGManufacturer no. 349500 1Quote Ask for a quote
3A 16" X 1.75" INNER TUBEManufacturer no. 384738 1Quote Ask for a quote
3B 16IN AIRLESS INSERTManufacturer no. 102973-001 1Quote Ask for a quote

Traditional 6 Spoke Mag (page 51)

0 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Grade Aid Only Assembly

16 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Grade Aid Only Assembly
No.PartQtyPriceAction
1 1/4-28 x 1 SOC C/S BLKManufacturer no. 107032 1Quote Ask for a quote
2 1/4 WASHER HI COLLAR LOCK ZNManufacturer no. 262114 1Quote Ask for a quote
3 CLAMP 1 1/4" RECESS HALF BLKManufacturer no. 550659 1Quote Ask for a quote
4 GRADE AID PLATE BLKManufacturer no. 500274 1Quote Ask for a quote
5 1/4" NYLON WASHERManufacturer no. 561028 1Quote Ask for a quote
6 1/4-28 x 1.10 BH C/SManufacturer no. 226122 1Quote Ask for a quote
7 GRADE AID ROD W/PIN WHEEL LOCKManufacturer no. 481021 1Quote Ask for a quote
8 GRADE AID WHEEL R NEW RIGHTManufacturer no. 561090 1Quote Ask for a quote
8 GRADE AID WHEEL L NEW LEFTManufacturer no. 561091 1Quote Ask for a quote
9 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
10 WHEEL LOCK SLIDE BLOCK 3 1/2" BLACK 3.5" longManufacturer no. 550374 1Quote Ask for a quote
11 CLAMP 1 1/4" THREADED BLACKManufacturer no. 550658 1Quote Ask for a quote
12 1/4 x 1/4 ALUM SPACER BLKManufacturer no. 483027 1Quote Ask for a quote
13 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
14 GRADE AID SPRINGManufacturer no. 321130 1Quote Ask for a quote
15 WASHER FLAT THIN AN 5/16 ROHSManufacturer no. 106947 1Quote Ask for a quote

Z-Lock

7 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Z-Lock
No.PartQtyPriceAction
1-3 HUB LOCK CLAMP ASSM RIGHTManufacturer no. 922331 1Quote Ask for a quote
1-3 HUB LOCK CLAMP ASSM LEFTManufacturer no. 922332 1Quote Ask for a quote
6-8 12" PNEU W/LOCKING HUB PNEUMATIC TIREManufacturer no. 922334 1Quote Ask for a quote
6-8 12" PNEU INSERT W/LOCKING HUB PNEUMATIC TIRE W/ INSERTManufacturer no. 922335 1Quote Ask for a quote
6-8 12" POLY W/ LOCKING HUB POLY TIREManufacturer no. 105627 1Quote Ask for a quote
9 LOWER HUB LOCK ASSM RIGHTManufacturer no. 922329 1Quote Ask for a quote
9 LOWER HUB LOCK ASSM LEFTManufacturer no. 922330 1Quote Ask for a quote

Spinergy Spox (18 Spoke) (page 55)

0 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

16" Mag

6 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 16" Mag
No.PartQtyPriceAction
1A 16 IN MAG PNEU 3 SPOKEManufacturer no. 101667 1Quote Ask for a quote
1B 16 IN MAG PNEU W/INSERTManufacturer no. 101668 1Quote Ask for a quote
1C 16" X 1.75" PNEU TIRE Tire OnlyManufacturer no. 385237 1Quote Ask for a quote
2 1 1/8 X 1/2 BEARINGManufacturer no. 349500 1Quote Ask for a quote
3A 16" X 1.75" INNER TUBEManufacturer no. 384738 1Quote Ask for a quote
3B 16IN AIRLESS INSERTManufacturer no. 102973-001 1Quote Ask for a quote

Pneumatic & Pneu. Airless Tire (page 57)

6 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Pneumatic & Pneu. Airless Tire (page 57)
No.PartQtyPriceAction
1 16" X 1.75" PNEU TIREManufacturer no. 385237 1Quote Ask for a quote
1 20" PNEUMATIC TIREManufacturer no. 385250 1Quote Ask for a quote
1 22" PNEUMATIC TIRE 22" x 1 3/8 (501mm)Manufacturer no. 385275 1Quote Ask for a quote
1 24" PNEUMATIC TIRE 24" x 1 3/8 (540mm)Manufacturer no. 385300 1Quote Ask for a quote
1 26" PNEUMATIC TIRE 26" x 1 3/8 (590mm)Manufacturer no. 385325 1Quote Ask for a quote
1 24" x 2.125 PNEUMATIC TIRE 24"x2 1/8 (540mm) used w/ M6Manufacturer no. 384614 1Quote Ask for a quote

SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 58)

3 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 58)
No.PartQtyPriceAction
1 20" POLY TIRE STD 20"Manufacturer no. 386232 1Quote Ask for a quote
1 22" POLY TIRE STD 22" (501mm)Manufacturer no. 386242 1Quote Ask for a quote
1 24" POLY TIRE STD 24" (540mm)Manufacturer no. 386252 1Quote Ask for a quote

Traditional 6 Spoke Mag

0 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Low Poly Tire (page 59)

3 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Low Poly Tire (page 59)
No.PartQtyPriceAction
1 20" LP POLY TIRE BR 20" =16" diaManufacturer no. 386262 1Quote Ask for a quote
1 22" LP POLY TIRE BR 22"(501mm) = 18"diaManufacturer no. 386263 1Quote Ask for a quote
1 24" POLY LOW PROFILE 24"(540mm)= 23" diaManufacturer no. 386254 1Quote Ask for a quote

SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 60)

5 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 60)
No.PartQtyPriceAction
1 22" x 1" HI PRES CLINCHER 22" (501mm)Manufacturer no. 385280 1Quote Ask for a quote
1 24" x 1" HI PRES CLNCHR TIRE 24" (540mm)Manufacturer no. 389020 1Quote Ask for a quote
1 QP 24" x 1" HT TURB BLK WR/BD 559 25" (559mm)Manufacturer no. 389012 1Quote Ask for a quote
1 26" x 1" HI PRES CLNCHR TIRE 26" (590mm)Manufacturer no. 389030 1Quote Ask for a quote
1 22" x 1" HI PRESS CLNCHR ULTRALIGHT 22" (489mm)Manufacturer no. 105919 1Quote Ask for a quote

Kevlar Tire (page 61)

1 part

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Kevlar Tire (page 61)
No.PartQtyPriceAction
1 24" KEVLAR TIREManufacturer no. 385350 1Quote Ask for a quote

SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 62)

22 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 62)
No.PartQtyPriceAction
1A INNER TUBE 12-1/2" X 2-1/4"Manufacturer no. 384736 1Quote Ask for a quote
1A 16" X 1.75" INNER TUBEManufacturer no. 384738 1Quote Ask for a quote
1A TUBE 18" TIRE 18" X 1-3/4" TUBEManufacturer no. 382255 1Quote Ask for a quote
1A 20" TUBE 20" 1-3/8" TUBEManufacturer no. 382275 1Quote Ask for a quote
1A 22" TUBE 22" X 1-3/8" TUBEManufacturer no. 382300 1Quote Ask for a quote
1A TUBE PRIMO 24" 25-540 SV 24" X 1" TUBEManufacturer no. 382336 1Quote Ask for a quote
1A 24 X 1.3/8IN TUBE REGManufacturer no. 382325 1Quote Ask for a quote
1A TUBE INLINE 24 X 1.75Manufacturer no. 382334 1Quote Ask for a quote
1A 26" X 1" TUBE SCHRADERManufacturer no. 384551 1Quote Ask for a quote
1A 26" TUBE 26" X 1-3/8" TUBEManufacturer no. 382350 1Quote Ask for a quote
1A TUBE 26 X 1.5/1.95/ S/VManufacturer no. 382361 1Quote Ask for a quote
1A 26 X 1.25/1.5 TUBE SHRADERManufacturer no. 382365 1Quote Ask for a quote
1A 24" x 2.125 TUBEManufacturer no. 382375 1Quote Ask for a quote
1B 12 1/2 IN AIRLESS INSERT 12-1/2" X 2-1/4"Manufacturer no. 102972-001 1Quote Ask for a quote
1B 16IN AIRLESS INSERT 16" X 1-3/4"Manufacturer no. 102973-001 1Quote Ask for a quote
1B 18IN AIRLESS INSERT 18" X 1-3/4"Manufacturer no. 102973-002 1Quote Ask for a quote
1B 20IN AIRLESS INSERT 20" X 1-3/8"Manufacturer no. 102973-003 1Quote Ask for a quote
1B AIRLESS INSERT 20 X 2-1/8 P3Manufacturer no. 102972-002 1Quote Ask for a quote
1B 22IN AIRLESS INSERT 22" X 1-3/8"Manufacturer no. 102973-004 1Quote Ask for a quote
1B 24IN AIRLESS INSERT 24" X 1-3/8"Manufacturer no. 102973-005 1Quote Ask for a quote
1B AIRLESS INSERT 24 X 2-1/8Manufacturer no. 102972-003 1Quote Ask for a quote
1B 26" AIRLESS INSERT 26" X 1-3/8"Manufacturer no. 108259 1Quote Ask for a quote

Spinergy Spox (18 Spoke)

0 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Growing Seat Pan (page 63)

28 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Growing Seat Pan (page 63)
No.PartQtyPriceAction
1 HOOK FASTENER ZGS FRONTManufacturer no. 751047 1Quote Ask for a quote
2 1/4-28 x 9/16 SPEC ROUND HDManufacturer no. 455036-QU 1Quote Ask for a quote
3 FHCS 1/4 -28 x 3/4 ROHSManufacturer no. 113278 1Quote Ask for a quote
4 SEAT SNAP ZGSManufacturer no. 560112 1Quote Ask for a quote
5 NUT NYLOCK 1/4 -28 ROHSManufacturer no. 106934 1Quote Ask for a quote
6 SEAT PAN SMALL 10" x 10" ZGS FITS ZGS ONLY FITS 10" -12" SEAT DEPTHSManufacturer no. 124340 1Quote Ask for a quote
6 SEAT PAN SMALL 10" x 12" ZGS FITS 10" -12" SEAT DEPTHSManufacturer no. 124341 1Quote Ask for a quote
6 SEAT PAN SMALL 10" x 14" ZGS FITS 10" -12" SEAT DEPTHSManufacturer no. 124342 1Quote Ask for a quote
6 SEAT PAN SMALL 10 x 16" ZGS FITS 10" -12" SEAT DEPTHSManufacturer no. 124359 1Quote Ask for a quote
6 SEAT PAN MED 12" x 10" ZGS FITS ZGS ONLY FITS 12" -16" SEAT DEPTHSManufacturer no. 124343 1Quote Ask for a quote
6 SEAT PAN MED 12" x 12" ZGS FITS 12" -16" SEAT DEPTHSManufacturer no. 124344 1Quote Ask for a quote
6 SEAT PAN MED 12" x 14" ZGS FITS 12" -16" SEAT DEPTHSManufacturer no. 124345 1Quote Ask for a quote
6 SEAT PAN MED 12 x 16" ZGS FITS 12" -16" SEAT DEPTHSManufacturer no. 124360 1Quote Ask for a quote
6 SEAT PAN LARGE 14" x 10" ZGS FITS ZGS ONLY FITS 14" -18" SEAT DEPTHSManufacturer no. 124346 1Quote Ask for a quote
6 SEAT PAN LARGE 14" x 12" ZGS FITS 14" -18" SEAT DEPTHSManufacturer no. 124347 1Quote Ask for a quote
6 SEAT PAN LARGE 14" x 14" ZGS FITS 14" -18" SEAT DEPTHSManufacturer no. 124348 1Quote Ask for a quote
6 SEAT PAN LARGE 14 X 16" ZGS FITS 14" -18" SEAT DEPTHSManufacturer no. 124361 1Quote Ask for a quote
6 SEAT PAN X-LARGE 16 x 10" ZGS FITS ZGS ONLY FITS 16" -20" DEPTHSManufacturer no. 124362 1Quote Ask for a quote
6 SEAT PAN X-LARGE 16 x 12" ZGS FITS 16" -20" SEAT DEPTHSManufacturer no. 124363 1Quote Ask for a quote
6 SEAT PAN X-LARGE 16 x 14" ZGS FITS 16" -20" SEAT DEPTHSManufacturer no. 124364 1Quote Ask for a quote
6 SEAT PAN X-LARGE 16 x 16" ZGS FITS 16" -20" SEAT DEPTHSManufacturer no. 124365 1Quote Ask for a quote
7 SEAT PAN SMALL OFFSET 10" x 10" ZGS FITS ZGS ONLY FITS 10" -12" SEAT DEPTHSManufacturer no. 124350 1Quote Ask for a quote
7 SEAT PAN SMALL OFFSET 10" x 12" ZGS FITS 10" -12" SEAT DEPTHSManufacturer no. 124351 1Quote Ask for a quote
7 SEAT PAN SMALL OFFSET 10" x 14" ZGS FITS 10" -12" SEAT DEPTHSManufacturer no. 124352 1Quote Ask for a quote
7 SEAT PAN OFFSET SMALL 10 x 16" ZGS FITS 10" -12" SEAT DEPTHSManufacturer no. 124370 1Quote Ask for a quote
7 SEAT PAN MED OFFSET 12" x 10" ZGS FITS ZGS ONLY FITS 14" -18" SEAT DEPTHSManufacturer no. 124353 1Quote Ask for a quote
7 SEAT PAN MED OFFSET 12" x 12" ZGS FITS 14" -18" SEAT DEPTHSManufacturer no. 124354 1Quote Ask for a quote
7 SEAT PAN MED OFFSET 12" x 14" ZGS FITS 14" -18" SEAT DEPTHSManufacturer no. 124355 1Quote Ask for a quote

Pneumatic & Pneu. Airless Tire

6 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Pneumatic & Pneu. Airless Tire
No.PartQtyPriceAction
1 16" X 1.75" PNEU TIREManufacturer no. 385237 1Quote Ask for a quote
1 20" PNEUMATIC TIREManufacturer no. 385250 1Quote Ask for a quote
1 22" PNEUMATIC TIRE 22" x 1 3/8 (501mm)Manufacturer no. 385275 1Quote Ask for a quote
1 24" PNEUMATIC TIRE 24" x 1 3/8 (540mm)Manufacturer no. 385300 1Quote Ask for a quote
1 26" PNEUMATIC TIRE 26" x 1 3/8 (590mm)Manufacturer no. 385325 1Quote Ask for a quote
1 24" x 2.125 PNEUMATIC TIRE 24"x2 1/8 (540mm) used w/ M6Manufacturer no. 384614 1Quote Ask for a quote

Full Poly Tire

3 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Full Poly Tire
No.PartQtyPriceAction
1 20" POLY TIRE STD 20"Manufacturer no. 386232 1Quote Ask for a quote
1 22" POLY TIRE STD 22" (501mm)Manufacturer no. 386242 1Quote Ask for a quote
1 24" POLY TIRE STD 24" (540mm)Manufacturer no. 386252 1Quote Ask for a quote

Solid Seat & Solid Back (page 65)

0 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Low Poly Tire

3 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Low Poly Tire
No.PartQtyPriceAction
1 20" LP POLY TIRE BR 20" =16" diaManufacturer no. 386262 1Quote Ask for a quote
1 22" LP POLY TIRE BR 22"(501mm) = 18"diaManufacturer no. 386263 1Quote Ask for a quote
1 24" POLY LOW PROFILE 24"(540mm)= 23" diaManufacturer no. 386254 1Quote Ask for a quote

High Pressure Clincher Tire

5 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in High Pressure Clincher Tire
No.PartQtyPriceAction
1 22" x 1" HI PRES CLINCHER 22" (501mm)Manufacturer no. 385280 1Quote Ask for a quote
1 24" x 1" HI PRES CLNCHR TIRE 24" (540mm)Manufacturer no. 389020 1Quote Ask for a quote
1 QP 24" x 1" HT TURB BLK WR/BD 559 25" (559mm)Manufacturer no. 389012 1Quote Ask for a quote
1 26" x 1" HI PRES CLNCHR TIRE 26" (590mm)Manufacturer no. 389030 1Quote Ask for a quote
1 22" x 1" HI PRESS CLNCHR ULTRALIGHT 22" (489mm)Manufacturer no. 105919 1Quote Ask for a quote

Kevlar Tire

1 part

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Kevlar Tire
No.PartQtyPriceAction
1 24" KEVLAR TIREManufacturer no. 385350 1Quote Ask for a quote

SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 68)

6 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 68)
No.PartQtyPriceAction
2 10 -32 X 5/8 PAN HD PHILManufacturer no. 281120 1Quote Ask for a quote
3 TRIGGER RELEASE PIN TS/QT/P5Manufacturer no. 349021 1Quote Ask for a quote
4 MECH CYLINDER LOCK R BR RCLINR RIGHTManufacturer no. 120625 1Quote Ask for a quote
4 MECH CYLINDER LOCK L BR RCLINR LEFTManufacturer no. 120626 1Quote Ask for a quote
5 NUT NYLOCK 1/4 -28 ROHSManufacturer no. 106934 1Quote Ask for a quote
6 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote

Tubes And Airless Inserts

22 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Tubes And Airless Inserts
No.PartQtyPriceAction
1A INNER TUBE 12-1/2" X 2-1/4"Manufacturer no. 384736 1Quote Ask for a quote
1A 16" X 1.75" INNER TUBEManufacturer no. 384738 1Quote Ask for a quote
1A TUBE 18" TIRE 18" X 1-3/4" TUBEManufacturer no. 382255 1Quote Ask for a quote
1A 20" TUBE 20" 1-3/8" TUBEManufacturer no. 382275 1Quote Ask for a quote
1A 22" TUBE 22" X 1-3/8" TUBEManufacturer no. 382300 1Quote Ask for a quote
1A TUBE PRIMO 24" 25-540 SV 24" X 1" TUBEManufacturer no. 382336 1Quote Ask for a quote
1A 24 X 1.3/8IN TUBE REGManufacturer no. 382325 1Quote Ask for a quote
1A TUBE INLINE 24 X 1.75Manufacturer no. 382334 1Quote Ask for a quote
1A 26" X 1" TUBE SCHRADERManufacturer no. 384551 1Quote Ask for a quote
1A 26" TUBE 26" X 1-3/8" TUBEManufacturer no. 382350 1Quote Ask for a quote
1A TUBE 26 X 1.5/1.95/ S/VManufacturer no. 382361 1Quote Ask for a quote
1A 26 X 1.25/1.5 TUBE SHRADERManufacturer no. 382365 1Quote Ask for a quote
1A 24" x 2.125 TUBEManufacturer no. 382375 1Quote Ask for a quote
1B 12 1/2 IN AIRLESS INSERT 12-1/2" X 2-1/4"Manufacturer no. 102972-001 1Quote Ask for a quote
1B 16IN AIRLESS INSERT 16" X 1-3/4"Manufacturer no. 102973-001 1Quote Ask for a quote
1B 18IN AIRLESS INSERT 18" X 1-3/4"Manufacturer no. 102973-002 1Quote Ask for a quote
1B 20IN AIRLESS INSERT 20" X 1-3/8"Manufacturer no. 102973-003 1Quote Ask for a quote
1B AIRLESS INSERT 20 X 2-1/8 P3Manufacturer no. 102972-002 1Quote Ask for a quote
1B 22IN AIRLESS INSERT 22" X 1-3/8"Manufacturer no. 102973-004 1Quote Ask for a quote
1B 24IN AIRLESS INSERT 24" X 1-3/8"Manufacturer no. 102973-005 1Quote Ask for a quote
1B AIRLESS INSERT 24 X 2-1/8Manufacturer no. 102972-003 1Quote Ask for a quote
1B 26" AIRLESS INSERT 26" X 1-3/8"Manufacturer no. 108259 1Quote Ask for a quote

Growing Seat Pan

28 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Growing Seat Pan
No.PartQtyPriceAction
1 HOOK FASTENER ZGS FRONTManufacturer no. 751047 1Quote Ask for a quote
2 1/4-28 x 9/16 SPEC ROUND HDManufacturer no. 455036-QU 1Quote Ask for a quote
3 FHCS 1/4 -28 x 3/4 ROHSManufacturer no. 113278 1Quote Ask for a quote
4 SEAT SNAP ZGSManufacturer no. 560112 1Quote Ask for a quote
5 NUT NYLOCK 1/4 -28 ROHSManufacturer no. 106934 1Quote Ask for a quote
6 SEAT PAN SMALL 10" x 10" ZGS FITS ZGS ONLY FITS 10" -12" SEAT DEPTHSManufacturer no. 124340 1Quote Ask for a quote
6 SEAT PAN SMALL 10" x 12" ZGS FITS 10" -12" SEAT DEPTHSManufacturer no. 124341 1Quote Ask for a quote
6 SEAT PAN SMALL 10" x 14" ZGS FITS 10" -12" SEAT DEPTHSManufacturer no. 124342 1Quote Ask for a quote
6 SEAT PAN SMALL 10 x 16" ZGS FITS 10" -12" SEAT DEPTHSManufacturer no. 124359 1Quote Ask for a quote
6 SEAT PAN MED 12" x 10" ZGS FITS ZGS ONLY FITS 12" -16" SEAT DEPTHSManufacturer no. 124343 1Quote Ask for a quote
6 SEAT PAN MED 12" x 12" ZGS FITS 12" -16" SEAT DEPTHSManufacturer no. 124344 1Quote Ask for a quote
6 SEAT PAN MED 12" x 14" ZGS FITS 12" -16" SEAT DEPTHSManufacturer no. 124345 1Quote Ask for a quote
6 SEAT PAN MED 12 x 16" ZGS FITS 12" -16" SEAT DEPTHSManufacturer no. 124360 1Quote Ask for a quote
6 SEAT PAN LARGE 14" x 10" ZGS FITS ZGS ONLY FITS 14" -18" SEAT DEPTHSManufacturer no. 124346 1Quote Ask for a quote
6 SEAT PAN LARGE 14" x 12" ZGS FITS 14" -18" SEAT DEPTHSManufacturer no. 124347 1Quote Ask for a quote
6 SEAT PAN LARGE 14" x 14" ZGS FITS 14" -18" SEAT DEPTHSManufacturer no. 124348 1Quote Ask for a quote
6 SEAT PAN LARGE 14 X 16" ZGS FITS 14" -18" SEAT DEPTHSManufacturer no. 124361 1Quote Ask for a quote
6 SEAT PAN X-LARGE 16 x 10" ZGS FITS ZGS ONLY FITS 16" -20" DEPTHSManufacturer no. 124362 1Quote Ask for a quote
6 SEAT PAN X-LARGE 16 x 12" ZGS FITS 16" -20" SEAT DEPTHSManufacturer no. 124363 1Quote Ask for a quote
6 SEAT PAN X-LARGE 16 x 14" ZGS FITS 16" -20" SEAT DEPTHSManufacturer no. 124364 1Quote Ask for a quote
6 SEAT PAN X-LARGE 16 x 16" ZGS FITS 16" -20" SEAT DEPTHSManufacturer no. 124365 1Quote Ask for a quote
7 SEAT PAN SMALL OFFSET 10" x 10" ZGS FITS ZGS ONLY FITS 10" -12" SEAT DEPTHSManufacturer no. 124350 1Quote Ask for a quote
7 SEAT PAN SMALL OFFSET 10" x 12" ZGS FITS 10" -12" SEAT DEPTHSManufacturer no. 124351 1Quote Ask for a quote
7 SEAT PAN SMALL OFFSET 10" x 14" ZGS FITS 10" -12" SEAT DEPTHSManufacturer no. 124352 1Quote Ask for a quote
7 SEAT PAN OFFSET SMALL 10 x 16" ZGS FITS 10" -12" SEAT DEPTHSManufacturer no. 124370 1Quote Ask for a quote
7 SEAT PAN MED OFFSET 12" x 10" ZGS FITS ZGS ONLY FITS 14" -18" SEAT DEPTHSManufacturer no. 124353 1Quote Ask for a quote
7 SEAT PAN MED OFFSET 12" x 12" ZGS FITS 14" -18" SEAT DEPTHSManufacturer no. 124354 1Quote Ask for a quote
7 SEAT PAN MED OFFSET 12" x 14" ZGS FITS 14" -18" SEAT DEPTHSManufacturer no. 124355 1Quote Ask for a quote

SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 70)

2 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 70)
No.PartQtyPriceAction
2 10 -32 X 5/8 PAN HD PHILManufacturer no. 281120 1Quote Ask for a quote
3 TRIGGER RELEASE PIN TS/QT/P5Manufacturer no. 349021 1Quote Ask for a quote

SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 72)

0 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Solid Seat & Solid Back

0 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Backrest Zippie Ts/2

14 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Backrest Zippie Ts/2
No.PartQtyPriceAction
1A QUICKIE GRIP 1" W/INSTR SHEETManufacturer no. 920027 1Quote Ask for a quote
1B QUICKIE GRIP 1" W/HOLE W/INSTRManufacturer no. 920023 1Quote Ask for a quote
2A 1" INSERT PLUG .083Manufacturer no. 561002 1Quote Ask for a quote
2B 1" TUBE END BUSHING THINManufacturer no. 561082 1Quote Ask for a quote
4 BACKPLATE DABManufacturer no. 506136 1Quote Ask for a quote
5 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
6 1/4 AN WASHER FLATManufacturer no. 106943 1Quote Ask for a quote
7 1/4-28 x 2 BH C/SManufacturer no. 106964 1Quote Ask for a quote
8 SADDLE BACKREST Q2 DAB RIGHTManufacturer no. 560518 1Quote Ask for a quote
8 SADDLE BACKREST Q2 DAB LEFTManufacturer no. 560519 1Quote Ask for a quote
9 1" SADDLE 1/4" HOLEManufacturer no. 561004 1Quote Ask for a quote
10 BACK RELEASE STOP PIN QTSManufacturer no. 481042 1Quote Ask for a quote
11 S/A LATCH SPRINGManufacturer no. 321110 1Quote Ask for a quote
12 BACK RELEASE LATCHManufacturer no. 483019 1Quote Ask for a quote

Exploded view, page 75

18 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 75
No.PartQtyPriceAction
1 7/8" INSERT PLUG .083Manufacturer no. 561007 1Quote Ask for a quote
2 QUICKIE GRIP 7/8" W/INSTR SH.Manufacturer no. 920024 1Quote Ask for a quote
3 BHCS 1/4 -28 x 1 1/4 SHLDR ROHS not used for S/A option; use p/n 111565Manufacturer no. 107027 1Quote Ask for a quote
4 WASHER FLAT AN 1/4 ROHS not used for S/A option; use p/n 111565Manufacturer no. 106943 1Quote Ask for a quote
5 NUT NYLOCK THIN 1/4 -28 ROHS not used for S/A option; use p/n 111565Manufacturer no. 106935 1Quote Ask for a quote
6 BLOCK-LATCH STOPManufacturer no. 124612 1Quote Ask for a quote
7 BLOCK ANGLE BACKREST MOUNTManufacturer no. 560517 1Quote Ask for a quote
8 BHCS 1/4 -28 x 2 SHLDR ROHSManufacturer no. 106965 1Quote Ask for a quote
9 PLATE BACKRESTManufacturer no. 109739 1Quote Ask for a quote
10 PUSH ON ROUND CAPManufacturer no. 126238 1Quote Ask for a quote
11 S/A LATCH .885 ODManufacturer no. 560173 1Quote Ask for a quote
12 S/A LATCH SPRINGManufacturer no. 321110 1Quote Ask for a quote
13 BACK REST SADDLE W/ HDWR PAIR Pair-Replacement Latch Stop KitManufacturer no. 126099 1Quote Ask for a quote
13 BACK REST SADDLE W/ HDWR EACH Each-Replacement Latch Stop KitManufacturer no. 126100 1Quote Ask for a quote
14A TUBE BACK FRAME LOWER STD (16"-22" BACK HEIGHTS)Manufacturer no. 520757 1Quote Ask for a quote
14B TUBE BACK FRAME LOWER -TALL TALL (19"-25" BACK HEIGHTS)Manufacturer no. 107171 1Quote Ask for a quote
16 BACK REL PIN Z2/QT/EXManufacturer no. 481084 1Quote Ask for a quote
17 QR PIN 1/4" W/ LANYARD used for S/A option ONLYManufacturer no. 111565 1Quote Ask for a quote

Fixed Height Stroller Handle Backpost

15 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Fixed Height Stroller Handle Backpost
No.PartQtyPriceAction
1A 1" INSERT PLUG .083Manufacturer no. 561002 1Quote Ask for a quote
1B 1" TUBE END BUSHING THIN USED W/ REMOVABLE STROLLER HANDLEManufacturer no. 561082 1Quote Ask for a quote
2A QUICKIE GRIP 1" W/INSTR SHEETManufacturer no. 920027 1Quote Ask for a quote
2B QUICKIE GRIP 1" W/HOLE W/INSTR USED W/ REMOVABLE STROLLER HANDLEManufacturer no. 920023 1Quote Ask for a quote
4 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
5 NUT NYLOCK THIN 1/4 -28 ROHSManufacturer no. 106935 1Quote Ask for a quote
6 1" SADDLE 1/4" HOLEManufacturer no. 561004 1Quote Ask for a quote
7 BLOCK ANGLE BACKREST MOUNTManufacturer no. 560517 1Quote Ask for a quote
8 BHCS 1/4 -28 x 2 SHLDR ROHSManufacturer no. 106965 1Quote Ask for a quote
9 PLATE BACKRESTManufacturer no. 109739 1Quote Ask for a quote
10 PUSH ON ROUND CAPManufacturer no. 126238 1Quote Ask for a quote
11 BACK RELEASE LATCHManufacturer no. 483019 1Quote Ask for a quote
12 S/A LATCH SPRINGManufacturer no. 321110 1Quote Ask for a quote
13 BACK REL STOP PIN QTSManufacturer no. 481042 1Quote Ask for a quote
14 BACK REL PIN Z2/QT/EXManufacturer no. 481084 1Quote Ask for a quote

Swing-Away Adj Stroller Handle

5 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Swing-Away Adj Stroller Handle
No.PartQtyPriceAction
1 QUICKIE GRIP 3/4" W/INSTR SH.Manufacturer no. 920026 1Quote Ask for a quote
2 3/4" INSERT PLUG .083Manufacturer no. 561000-QU 1Quote Ask for a quote
3 10-32 x .010-.080 RIVNUTManufacturer no. 341500 1Quote Ask for a quote
4 1" TUBE END BUSHING THINManufacturer no. 561082 1Quote Ask for a quote
5 S/A ADJ STROLLER RING ZP/QTManufacturer no. 483096 1Quote Ask for a quote

Exploded view, page 79

10 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 79
No.PartQtyPriceAction
2 FOAM GRIP .840 ID SHORTManufacturer no. 560638 1Quote Ask for a quote
3 BHCS 1/4 -28 x 1 1/4 SHLDR ROHSManufacturer no. 107027 1Quote Ask for a quote
4 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
5 NUT NYLOCK THIN 1/4 -28 ROHSManufacturer no. 106935 1Quote Ask for a quote
6 BLOCK-LATCH STOPManufacturer no. 124612 1Quote Ask for a quote
7 BLOCK ANGLE BACKREST MOUNTManufacturer no. 560517 1Quote Ask for a quote
8 BHCS 1/4 -28 x 2 SHLDR ROHSManufacturer no. 106965 1Quote Ask for a quote
9 PLATE BACKRESTManufacturer no. 109739 1Quote Ask for a quote
10 PUSH ON ROUND CAPManufacturer no. 126238 1Quote Ask for a quote
11 S/A LATCH .885 ODManufacturer no. 560173 1Quote Ask for a quote

Swing-Away Adj Stroller Handle Retro Kit

23 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Swing-Away Adj Stroller Handle Retro Kit
No.PartQtyPriceAction
1 3/4" INSERT PLUG .083Manufacturer no. 561000-QU 1Quote Ask for a quote
2 QUICKIE GRIP 3/4" W/INSTR SH.Manufacturer no. 920026 1Quote Ask for a quote
3 10-32 x .020-.130 RIVNUT GOLD Rivnut tool required for installation of this partManufacturer no. 341497 1Quote Ask for a quote
4 S/A ADJ BACK TUBE ONLY ZP/QT RIGHTManufacturer no. 521791 1Quote Ask for a quote
4 S/A ADJ BACK TUBE ONLY ZP/QT LEFTManufacturer no. 521792 1Quote Ask for a quote
5 1/4-20 x 1 1/2 BH C/S BLKManufacturer no. 226136 1Quote Ask for a quote
6 KNOB S/A ADJ STROLLER ZPManufacturer no. 349018 1Quote Ask for a quote
7 S/A ADJ STROLLER INSERT ZP/QTManufacturer no. 483095 1Quote Ask for a quote
8 S/A ADJ STROLLER RING ZP/QTManufacturer no. 483096 1Quote Ask for a quote
9 1" TUBE END BUSHING THINManufacturer no. 561082 1Quote Ask for a quote
11 CYL LOCK CABLE ASSEMBLY (ZP/TS)Manufacturer no. 342057 1Quote Ask for a quote
11 CYL LOCK CABLE ASSEMBLY T45 (QTS)Manufacturer no. 342056 1Quote Ask for a quote
12 1/2" ID PLASTIC CLAMP BLKManufacturer no. 349511 1Quote Ask for a quote
13 10-32 x 5/8 PAN HD PHILManufacturer no. 281120 1Quote Ask for a quote
14 1/4" E-CLIPManufacturer no. 342000 1Quote Ask for a quote
15 S/A SPRING RETAINERManufacturer no. 483020 1Quote Ask for a quote
16 S/A LATCH SPRINGManufacturer no. 321110 1Quote Ask for a quote
17 BACK RELEASE LATCHManufacturer no. 483019 1Quote Ask for a quote
18 BACK RELEASE PIN Z2/QT/EXManufacturer no. 481084 1Quote Ask for a quote
19 PUSH ON ROUND CAPManufacturer no. 126238 1Quote Ask for a quote
20 10-32 x 5/8 PAN HD PHILManufacturer no. 281120 1Quote Ask for a quote
21 TRIGGER RELEASE PIN TS/QT/P5Manufacturer no. 349021 1Quote Ask for a quote
22 CYL LOCK LEVER ASSEMBLY QT/QR/P5Manufacturer no. 580110 1Quote Ask for a quote

Stroller Handle Extension-Removable

6 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Stroller Handle Extension-Removable
No.PartQtyPriceAction
2 5/16 SNAP BUTTON DUAL ONE SIDEManufacturer no. 301108 1Quote Ask for a quote
3A STROLLER EXTENSION GRIP 10 -13" 10 -13" WIDEManufacturer no. 560615 1Quote Ask for a quote
3B STROLLER EXTENSION GRIP 14 -17" 14 -17" WIDEManufacturer no. 560616 1Quote Ask for a quote
3C STROLLER EXTENSION GRIP 18 -20" 18 -20" WIDEManufacturer no. 560617 1Quote Ask for a quote
4 1" TUBE END BUSHING THINManufacturer no. 561082 1Quote Ask for a quote
5 QUICKIE GRIP 1 W/ HOLEManufacturer no. 920023 1Quote Ask for a quote

Stroller Handle Extension-Removable (page 81)

6 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Stroller Handle Extension-Removable (page 81)
No.PartQtyPriceAction
2 5/16 SNAP BUTTON DUAL ONE SIDEManufacturer no. 301108 1Quote Ask for a quote
3A STROLLER EXTENSION GRIP 10 -13" 10 -13" WIDEManufacturer no. 560615 1Quote Ask for a quote
3B STROLLER EXTENSION GRIP 14 -17" 14 -17" WIDEManufacturer no. 560616 1Quote Ask for a quote
3C STROLLER EXTENSION GRIP 18 -20" 18 -20" WIDEManufacturer no. 560617 1Quote Ask for a quote
4 1" TUBE END BUSHING THINManufacturer no. 561082 1Quote Ask for a quote
5 QUICKIE GRIP 1 W/ HOLEManufacturer no. 920023 1Quote Ask for a quote

Rigid-Izer

5 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Rigid-Izer
No.PartQtyPriceAction
1 SHCS 1/4-20 X 1 ROHSManufacturer no. 107033 1Quote Ask for a quote
1-8 RIGIDIZER ZTS 10 -12"Manufacturer no. 882056 1Quote Ask for a quote
1-8 RIGIDIZER ZTS 12 -14"Manufacturer no. 882057 1Quote Ask for a quote
1-8 RIGIDIZER ZTS 14 -16"Manufacturer no. 882058 1Quote Ask for a quote
1-8 RIGIDIZER ZTS 16 -18"Manufacturer no. 882059 1Quote Ask for a quote

Rigid-Izer (page 83)

5 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Rigid-Izer (page 83)
No.PartQtyPriceAction
1 SHCS 1/4-20 X 1 ROHSManufacturer no. 107033 1Quote Ask for a quote
1-8 RIGIDIZER ZTS 10 -12"Manufacturer no. 882056 1Quote Ask for a quote
1-8 RIGIDIZER ZTS 12 -14"Manufacturer no. 882057 1Quote Ask for a quote
1-8 RIGIDIZER ZTS 14 -16"Manufacturer no. 882058 1Quote Ask for a quote
1-8 RIGIDIZER ZTS 16 -18"Manufacturer no. 882059 1Quote Ask for a quote

60 Deg S/A Hanger (Disc 4-21-15)

0 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 84)

18 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 84)
No.PartQtyPriceAction
1 BHCS 1/4-28 X 2-1/2 SHLDR ROHSManufacturer no. 106967 1Quote Ask for a quote
2 BHCS M6 X 1 X 12 FULL PLManufacturer no. 103185-005 1Quote Ask for a quote
3 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
4 SHLDR SCREW M6 X 8MM OD X 45MMManufacturer no. 011649-003 1Quote Ask for a quote
5 BACK REL SADDLE RIGIDManufacturer no. 561087 1Quote Ask for a quote
6 WASHER NYLON 1IN OD X .312 IDManufacturer no. 113268 1Quote Ask for a quote
7 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
8 PIVOT DYNAMIC BACKRESTManufacturer no. 119410 1Quote Ask for a quote
9 ZP RUBBER STOPManufacturer no. 349560 1Quote Ask for a quote
10 IGLIDE BUSHING .22 DEEPManufacturer no. 119418 1Quote Ask for a quote
11A SOFT RED SUSPENSION KITManufacturer no. 124044 1Quote Ask for a quote
11B MED BLUE SUSPENSION KITManufacturer no. 124060 1Quote Ask for a quote
11C FIRM GREEN SUSPENSION KITManufacturer no. 124064 1Quote Ask for a quote
11D X-FIRM BLACK SUSPENSION KITManufacturer no. 124082 1Quote Ask for a quote
12 5/16 WASHER SPRING DISCManufacturer no. 262134 1Quote Ask for a quote
13 WASHER FLAT THIN AN 5/16 ROHSManufacturer no. 106947 1Quote Ask for a quote
14 SHLDR SCREW 8MM OD X 16MM LGManufacturer no. 011649-001 1Quote Ask for a quote
15 FHCS M6 X 1 X 10MM W/PCHManufacturer no. 013450 1Quote Ask for a quote

60 Deg S/A Hanger (Disc.8-13-01)

12 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 60 Deg S/A Hanger (Disc.8-13-01)
No.PartQtyPriceAction
1 5/16-18 x 2 BH C/S SHT THREADManufacturer no. 106983 1Quote Ask for a quote
2 1/4-20 x 1/4 SS KNRLD CP W/PTCHManufacturer no. 225112 1Quote Ask for a quote
3 END PLUG DBL "D" S525Manufacturer no. 561378 1Quote Ask for a quote
4 PLASTIC PIVOT SADDLEManufacturer no. 561197 1Quote Ask for a quote
5 10-24 x .725 BH SOC BZManufacturer no. 226057 1Quote Ask for a quote
6 S/A LATCH LEVERManufacturer no. 561079 1Quote Ask for a quote
7 S/A SPRING L RED LEFTManufacturer no. 321136 1Quote Ask for a quote
7 S/A SPRING R CLEAR RIGHTManufacturer no. 321137 1Quote Ask for a quote
8 S/A LATCH BLOCK RIGHTManufacturer no. 881500 1Quote Ask for a quote
8 S/A LATCH BLOCK LEFTManufacturer no. 881501 1Quote Ask for a quote
5-8 S/A LATCH KIT RIGHTManufacturer no. 881521 1Quote Ask for a quote
5-8 S/A LATCH KIT LEFTManufacturer no. 881522 1Quote Ask for a quote

SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 86)

11 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 86)
No.PartQtyPriceAction
2 5/16-18 X 2 BH C/S SHT THREADManufacturer no. 106983 1Quote Ask for a quote
5 SWING I/O LATCH LEVER RIGHT RightManufacturer no. 052296 1Quote Ask for a quote
5 SWING I/O LATCH LEVER LEFT LeftManufacturer no. 052297 1Quote Ask for a quote
6 BHCS M5 X .8 X 12 W/PL INORGManufacturer no. 102259-001 1Quote Ask for a quote
7 M5-30 BTTN HD SOC C/S BLKManufacturer no. 230494 1Quote Ask for a quote
8 BUSHING PIVOT HANGER SWING I/OManufacturer no. 052054 1Quote Ask for a quote
11 1" INSERT PLUG .065 RIBSManufacturer no. 561062 1Quote Ask for a quote
15 BUSHING FOOTRESTManufacturer no. 104160 1Quote Ask for a quote
1-15 HANGER 60 Deg S/A ASSM R SPECIFY COLOR,RIGHTManufacturer no. 111243S 1Quote Ask for a quote
1-15 HANGER 60 Deg S/A ASSM L SPECIFY COLOR,LEFTManufacturer no. 111242S 1Quote Ask for a quote
12-15 FOOTREST CLAMP ASSMManufacturer no. 107485 1Quote Ask for a quote

60 Deg S/A Hanger (Disc.10-23-99)

12 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 60 Deg S/A Hanger (Disc.10-23-99)
No.PartQtyPriceAction
1 5/16-18 x 2 BH C/S SHT THREADManufacturer no. 106983 1Quote Ask for a quote
3 1" TUBE END BUSHING THINManufacturer no. 561082 1Quote Ask for a quote
4 1" INSERT PLUG .083Manufacturer no. 561002 1Quote Ask for a quote
5 PLASTIC PIVOT SADDLEManufacturer no. 561197 1Quote Ask for a quote
6 10-24 x .725 BH C/S W/PATCHManufacturer no. 226010 1Quote Ask for a quote
7 S/A LATCH LEVERManufacturer no. 561079 1Quote Ask for a quote
8 S/A SPRING R CLEAR RIGHTManufacturer no. 321137 1Quote Ask for a quote
8 S/A SPRING L RED LEFTManufacturer no. 321136 1Quote Ask for a quote
6-10 S/A LATCH KIT CASTING RIGHT RIGHTManufacturer no. 881521 1Quote Ask for a quote
6-10 S/A LATCH KIT CASTING LEFT LEFTManufacturer no. 881522 1Quote Ask for a quote
1-10 HANGER 60D L PNTD S/A RIGHTManufacturer no. 641170S 1Quote Ask for a quote
1-10 HANGER 60D R PNTD S/A LEFTManufacturer no. 641150S 1Quote Ask for a quote

70 Deg Hanger Swing In-Out (page 87)

11 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 70 Deg Hanger Swing In-Out (page 87)
No.PartQtyPriceAction
2 5/16-18 X 2 BH C/S SHT THREADManufacturer no. 106983 1Quote Ask for a quote
5 SWING I/O LATCH LEVER RIGHT RightManufacturer no. 052296 1Quote Ask for a quote
5 SWING I/O LATCH LEVER LEFT LeftManufacturer no. 052297 1Quote Ask for a quote
6 BHCS M5 X .8 X 12 W/PL INORGManufacturer no. 102259-001 1Quote Ask for a quote
7 M5-30 BTTN HD SOC C/S BLKManufacturer no. 230494 1Quote Ask for a quote
8 BUSHING PIVOT HANGER SWING I/OManufacturer no. 052054 1Quote Ask for a quote
11 1" INSERT PLUG .065 RIBSManufacturer no. 561062 1Quote Ask for a quote
15 BUSHING FOOTRESTManufacturer no. 104160 1Quote Ask for a quote
1-15 70 DEG SWING IN/OUT HANGER ASSEMBLY LEFT SPECIFY COLOR,LEFTManufacturer no. 107671S 1Quote Ask for a quote
1-15 70 DEG SWING IN/OUT HANGER ASSEMBLY RIGHT SPECIFY COLOR,RIGHTManufacturer no. 107670S 1Quote Ask for a quote
12-15 FOOTREST CLAMP ASSMManufacturer no. 107485 1Quote Ask for a quote

70 Deg S/A Hanger (Disc 4-21-15)

15 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 70 Deg S/A Hanger (Disc 4-21-15)
No.PartQtyPriceAction
1A EXT TBE S/A ONLY SHT SHORTManufacturer no. 550819 1Quote Ask for a quote
1B EXT TBE S/A ONLY MED MEDIUMManufacturer no. 550820 1Quote Ask for a quote
1C EXT TBE S/A ONLY LONG LONGManufacturer no. 550821 1Quote Ask for a quote
2 HANGER SADDLEManufacturer no. 483717 1Quote Ask for a quote
3 1/4-28 x 3/4 HEX HEAD C/S BLK W/PTCHManufacturer no. 221102 1Quote Ask for a quote
4 INSERT D2 EXT TUBEManufacturer no. 500078 1Quote Ask for a quote
5 5/16-18 X 2" BH C/S BLKManufacturer no. 226217 1Quote Ask for a quote
6 END PLUG DBL "D" S525Manufacturer no. 561378 1Quote Ask for a quote
7 PLASTIC PIVOT SADDLEManufacturer no. 561197 1Quote Ask for a quote
8 10/24 X .725 BTTN HD SOC BZManufacturer no. 226057 1Quote Ask for a quote
9 S/A LATCH LEVERManufacturer no. 561079 1Quote Ask for a quote
10 S/A SPRING L REDManufacturer no. 321136 1Quote Ask for a quote
10 S/A SPRING R CLEARManufacturer no. 321137 1Quote Ask for a quote
8-12 S/A LATCH KIT CASTING RIGHTManufacturer no. 881521 1Quote Ask for a quote
8-12 S/A LATCH KIT CASTING LEFTManufacturer no. 881522 1Quote Ask for a quote

SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 88)

11 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 88)
No.PartQtyPriceAction
2 5/16-18 X 2 BH C/S SHT THREADManufacturer no. 106983 1Quote Ask for a quote
5 SWING I/O LATCH LEVER RIGHT RightManufacturer no. 052296 1Quote Ask for a quote
5 SWING I/O LATCH LEVER LEFT LeftManufacturer no. 052297 1Quote Ask for a quote
6 BHCS M5 X .8 X 12 W/PL INORGManufacturer no. 102259-001 1Quote Ask for a quote
7 M5-30 BTTN HD SOC C/S BLKManufacturer no. 230494 1Quote Ask for a quote
8 BUSHING PIVOT HANGER SWING I/OManufacturer no. 052054 1Quote Ask for a quote
11 1" INSERT PLUG .065 RIBSManufacturer no. 561062 1Quote Ask for a quote
15 BUSHING FOOTRESTManufacturer no. 104160 1Quote Ask for a quote
1-15 80 DEG HNGR SWING I/O L SPECIFY COLOR,LEFTManufacturer no. 107673S 1Quote Ask for a quote
1-15 80 DEG HNGR SWING I/O R SPECIFY COLOR,RIGHTManufacturer no. 107672S 1Quote Ask for a quote
12-15 FOOTREST CLAMP ASSMManufacturer no. 107485 1Quote Ask for a quote

Composite Footplate

19 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Composite Footplate
No.PartQtyPriceAction
1 1/4 - 28 NYLOCK NUTManufacturer no. 106935 1Quote Ask for a quote
2 1/4 - 28 x 2 1/2 SOC C/SManufacturer no. 226165 1Quote Ask for a quote
3 COMPOSITE FOOTPLATE 14 -15 (16 -18 V ) 14 -15 OR 16 -18VManufacturer no. 561200 1Quote Ask for a quote
3 COMPOSITE FOOTPLATE 16 -17 (19 -20 V ) 16 -17 OR 19 -20VManufacturer no. 561210 1Quote Ask for a quote
3 COMPOSITE FOOTPLATE 18 -20 18 -20Manufacturer no. 561220 1Quote Ask for a quote
4A HEEL LOOP 14-15 COMPOSITE (14 -15 or 16 -18V) 14 -15 OR 16 -18VManufacturer no. 741151 1Quote Ask for a quote
4A HEEL LOOP 16 -17 or 19 -20V 16 -17 OR 19 -20VManufacturer no. 741156 1Quote Ask for a quote
4A HEEL LOOP 18 -20 COMPOSITE/14-15 ANG ADJ 18 -20Manufacturer no. 741153 1Quote Ask for a quote
4A HEEL LOOP COMPOSITE FT 14-15 PAIR 14 -15 OR 16 -18VManufacturer no. 902270 1Quote Ask for a quote
4A HEEL LOOP COMPOSITE FT 16-17 PAIR 16 -17 OR 19 -20VManufacturer no. 902271 1Quote Ask for a quote
4A HEEL LOOP COMPOSITE FT 18-20 PAIR 18 -20Manufacturer no. 902272 1Quote Ask for a quote
4B HEEL LOOP 14-15 COMPOSITE HEMI 14 -15 HEMIManufacturer no. 741154 1Quote Ask for a quote
4B HEEL LOOP 16-17 COMPOSITE HEMI 16 -17 HEMIManufacturer no. 741155 1Quote Ask for a quote
4B HEEL LOOP 18-20 COMPOSITE HEMI 18 -10 HEMIManufacturer no. 741153 1Quote Ask for a quote
4B HEEL LOOPS HEMI COMPOSITE 14-15 PAIR 14 -15 HEMIManufacturer no. 902260 1Quote Ask for a quote
4B HEEL LOOPS HEMI COMPOSITE 16-17 PAIR 16 -17 HEMIManufacturer no. 902261 1Quote Ask for a quote
4B HEEL LOOPS HEMI COMPOSITE 18-20 PAIR 18 -20 HEMIManufacturer no. 902262 1Quote Ask for a quote
5 HEEL LOOP PEGManufacturer no. 561040 1Quote Ask for a quote
6 1/4 AN WASHER FLAT THINManufacturer no. 106944 1Quote Ask for a quote

SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 90)

0 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Adult Angle-Adjustable Footplate Ext Mount

2 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Adult Angle-Adjustable Footplate Ext Mount
No.PartQtyPriceAction
1 1/4-28 x 7/8 FH C/SManufacturer no. 106978 1Quote Ask for a quote
2 1/4-28 AUTOMATION NUTManufacturer no. 106941 1Quote Ask for a quote

Kids Angle Adj Footplate Assm-Extension Mount

16 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Kids Angle Adj Footplate Assm-Extension Mount
No.PartQtyPriceAction
1 1/4-28 X 7/8 FH C/SManufacturer no. 106978 1Quote Ask for a quote
2 KIDS ANGLE ADJ FOOTPLATE 10" RManufacturer no. 500635 1Quote Ask for a quote
2 KIDS ANGLE ADJ FOOTPLATE 10" LManufacturer no. 500636 1Quote Ask for a quote
2 KIDS ANGLE ADJ FOOTPLATE 11" RManufacturer no. 500637 1Quote Ask for a quote
2 KIDS ANGLE ADJ FOOTPLATE 11" LManufacturer no. 500638 1Quote Ask for a quote
2 KIDS ANGLE ADJ FOOTPLATE 12" RManufacturer no. 500639 1Quote Ask for a quote
2 KIDS ANGLE ADJ FOOTPLATE 12" LManufacturer no. 500640 1Quote Ask for a quote
2 KIDS ANGLE ADJ FOOTPLATE 13" RManufacturer no. 500641 1Quote Ask for a quote
2 KIDS ANGLE ADJ FOOTPLATE 13" LManufacturer no. 500642 1Quote Ask for a quote
2 KIDS ANGLE ADJ FOOTPLATE 14" RManufacturer no. 500643 1Quote Ask for a quote
2 KIDS ANGLE ADJ FOOTPLATE 14" LManufacturer no. 500644 1Quote Ask for a quote
2 KIDS ANGLE ADJ FOOTPLATE 15" RManufacturer no. 500645 1Quote Ask for a quote
2 KIDS ANGLE ADJ FOOTPLATE 15" LManufacturer no. 500646 1Quote Ask for a quote
2 KIDS ANGLE ADJ FOOTPLATE 16" RManufacturer no. 500647 1Quote Ask for a quote
2 KIDS ANGLE ADJ FOOTPLATE 16" LManufacturer no. 500648 1Quote Ask for a quote
3 3/4" CLAMP ADJ FOOTPLATEManufacturer no. 550350 1Quote Ask for a quote

Composite Angle Adjustable Footplate

0 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Platform Flip-Up Footplate

16 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Platform Flip-Up Footplate
No.PartQtyPriceAction
1 1/4 AN WASHER FLAT THINManufacturer no. 106944 1Quote Ask for a quote
2 1/4-28 AUTOMATION NUTManufacturer no. 106941 1Quote Ask for a quote
3 FHCS 1/4-28 X 7/8 ROHSManufacturer no. 106978 1Quote Ask for a quote
4 PLATFORM F/PLT 6" x 5 1/2"Manufacturer no. 500650 1Quote Ask for a quote
4 PLATFORM F/PLT 8 x 5 1/2"Manufacturer no. 500651 1Quote Ask for a quote
4 PLATFORM F/PLT 10" x 5 1/2"Manufacturer no. 500652 1Quote Ask for a quote
4 PLATFORM F/PLT 12" x 5 1/2"Manufacturer no. 500653 1Quote Ask for a quote
4 PLATFORM F/PLT 14" x 5 1/2"Manufacturer no. 500654 1Quote Ask for a quote
5 PLUD DOUBLE D EXT TUBEManufacturer no. 113221 1Quote Ask for a quote
6 F/UP FOOTREST KEY STUD D2Manufacturer no. 540410 1Quote Ask for a quote
7 3/8 WASHER CURVEDManufacturer no. 262137 1Quote Ask for a quote
8 FOOTREST RETAINING BRACKETManufacturer no. 505078 1Quote Ask for a quote
9C EXT TUBE F/UP KEY ONLY LONGManufacturer no. 550830 1Quote Ask for a quote
9A EXT TUBE F/UP KEY ONLY SHORTManufacturer no. 550828 1Quote Ask for a quote
9B EXT TUBE F/UP KEY ONLY MEDManufacturer no. 550829 1Quote Ask for a quote
10C EXT TUBE F/UP SLT ONLY LONGManufacturer no. 550827 1Quote Ask for a quote

Double D Footrest Extension Tube "Old Style"

1 part

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Double D Footrest Extension Tube "Old Style"
No.PartQtyPriceAction
1A EXT TUBE S/A ONLY SHT Short Ext-Swing Away HangerManufacturer no. 550819 1Quote Ask for a quote

Kids Angle Adj Footplate Extension Mount (page 99)

5 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Kids Angle Adj Footplate Extension Mount (page 99)
No.PartQtyPriceAction
1A TUBE FOOTREST EXT STRAIGHT SHORT 80 deg hangers onlyManufacturer no. 107119 1Quote Ask for a quote
1B TUBE FOOTREST EXT STRAIGHT MED 80 deg hangers onlyManufacturer no. 107120 1Quote Ask for a quote
1C TUBE FOOTREST EXT STRAIGHT LONG 80 deg hangers onlyManufacturer no. 107121 1Quote Ask for a quote
1D TUBE FOOTREST EXT SHORT 60,70,70 Hemi HangersManufacturer no. 107126 1Quote Ask for a quote
1E TUBE FOOTREST EXT MED 60,70,70 Hemi HangersManufacturer no. 107127 1Quote Ask for a quote

70 Deg Hanger Swing In-Out

11 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 70 Deg Hanger Swing In-Out
No.PartQtyPriceAction
2 5/16-18 X 2 BH C/S SHT THREADManufacturer no. 106983 1Quote Ask for a quote
5 SWING I/O LATCH LEVER RIGHT RightManufacturer no. 052296 1Quote Ask for a quote
5 SWING I/O LATCH LEVER LEFT LeftManufacturer no. 052297 1Quote Ask for a quote
6 BHCS M5 X .8 X 12 W/PL INORGManufacturer no. 102259-001 1Quote Ask for a quote
7 M5-30 BTTN HD SOC C/S BLKManufacturer no. 230494 1Quote Ask for a quote
8 BUSHING PIVOT HANGER SWING I/OManufacturer no. 052054 1Quote Ask for a quote
11 1" INSERT PLUG .065 RIBSManufacturer no. 561062 1Quote Ask for a quote
15 BUSHING FOOTRESTManufacturer no. 104160 1Quote Ask for a quote
1-15 70 DEG SWING IN/OUT HANGER ASSEMBLY LEFT SPECIFY COLOR,LEFTManufacturer no. 107671S 1Quote Ask for a quote
1-15 70 DEG SWING IN/OUT HANGER ASSEMBLY RIGHT SPECIFY COLOR,RIGHTManufacturer no. 107670S 1Quote Ask for a quote
12-15 FOOTREST CLAMP ASSMManufacturer no. 107485 1Quote Ask for a quote

Adult Angle-Adj Footplate Ext Mount (page 103)

0 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Composite Footplate (page 103)

0 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Platform Flip-Up Footplate (page 107)

17 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Platform Flip-Up Footplate (page 107)
No.PartQtyPriceAction
1 WASHER FLAT THIN AN 1/4 ROHSManufacturer no. 106944 1Quote Ask for a quote
2 NUT AUTOMATION 1/4-28 ROHSManufacturer no. 106941 1Quote Ask for a quote
3 FHCS 1/4-28 X 7/8 ROHSManufacturer no. 106978 1Quote Ask for a quote
4A PLATFORM F/PLT 8 x 5 1/2" 12 -14" Footrest WidthManufacturer no. 500651 1Quote Ask for a quote
4B PLATFORM F/PLT 10" x 5 1/2" 15 -17" Footrest WidthManufacturer no. 500652 1Quote Ask for a quote
4C PLATFORM F/PLT 12" x 5 1/2" 18 -20" Footrest WidthManufacturer no. 500653 1Quote Ask for a quote
4D PLATFORM F/PLT 14" x 5 1/2 21 -22" Footrest WidthManufacturer no. 500654 1Quote Ask for a quote
5 PLUG DOUBLE D EXT TUBEManufacturer no. 113221 1Quote Ask for a quote
6 F/UP FOOTREST KEY STUD D2Manufacturer no. 540410 1Quote Ask for a quote
7 WASHER CURVED 3/8 ROHSManufacturer no. 107385 1Quote Ask for a quote
8 FOOTREST RETAINING BRACKETManufacturer no. 505078 1Quote Ask for a quote
9A EXT TBE F/UP KEY SHT Short -Latch SideManufacturer no. 106875 1Quote Ask for a quote
9B EXT TBE F/UP KEY LNG Long -Latch SideManufacturer no. 106876 1Quote Ask for a quote
10A EXT TBE F/UP SLT SHT Short -Pivot SideManufacturer no. 106873 1Quote Ask for a quote
10B EXT TBE F/UP SLT LNG Long -Pivot SideManufacturer no. 106874 1Quote Ask for a quote
11 3/4" SADDLE THINManufacturer no. 561003 1Quote Ask for a quote
12 SHORT DOME PLUGManufacturer no. 561034 1Quote Ask for a quote

Adult Angle-Adj Footplate Ext Mount

0 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

High Mount Extension Tube

0 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

70 Deg Front Mount Hanger Swing In-Out (page 111)

0 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Kids Angle Adj Footplate Extension Mount

5 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Kids Angle Adj Footplate Extension Mount
No.PartQtyPriceAction
1A TUBE FOOTREST EXT STRAIGHT SHORT 80 deg hangers onlyManufacturer no. 107119 1Quote Ask for a quote
1B TUBE FOOTREST EXT STRAIGHT MED 80 deg hangers onlyManufacturer no. 107120 1Quote Ask for a quote
1C TUBE FOOTREST EXT STRAIGHT LONG 80 deg hangers onlyManufacturer no. 107121 1Quote Ask for a quote
1D TUBE FOOTREST EXT SHORT 60,70,70 Hemi HangersManufacturer no. 107126 1Quote Ask for a quote
1E TUBE FOOTREST EXT MED 60,70,70 Hemi HangersManufacturer no. 107127 1Quote Ask for a quote

80 Deg Front Mount Hanger Swing In-Out (page 113)

0 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

90 Deg Front Mount Hanger Swing In-Out (page 115)

0 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Platform Flip-Up Footplate (page 116)

17 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Platform Flip-Up Footplate (page 116)
No.PartQtyPriceAction
1 WASHER FLAT THIN AN 1/4 ROHSManufacturer no. 106944 1Quote Ask for a quote
2 NUT AUTOMATION 1/4-28 ROHSManufacturer no. 106941 1Quote Ask for a quote
3 FHCS 1/4-28 X 7/8 ROHSManufacturer no. 106978 1Quote Ask for a quote
4A PLATFORM F/PLT 8 x 5 1/2" 12 -14" Footrest WidthManufacturer no. 500651 1Quote Ask for a quote
4B PLATFORM F/PLT 10" x 5 1/2" 15 -17" Footrest WidthManufacturer no. 500652 1Quote Ask for a quote
4C PLATFORM F/PLT 12" x 5 1/2" 18 -20" Footrest WidthManufacturer no. 500653 1Quote Ask for a quote
4D PLATFORM F/PLT 14" x 5 1/2 21 -22" Footrest WidthManufacturer no. 500654 1Quote Ask for a quote
5 PLUG DOUBLE D EXT TUBEManufacturer no. 113221 1Quote Ask for a quote
6 F/UP FOOTREST KEY STUD D2Manufacturer no. 540410 1Quote Ask for a quote
7 WASHER CURVED 3/8 ROHSManufacturer no. 107385 1Quote Ask for a quote
8 FOOTREST RETAINING BRACKETManufacturer no. 505078 1Quote Ask for a quote
9A EXT TBE F/UP KEY SHT Short -Latch SideManufacturer no. 106875 1Quote Ask for a quote
9B EXT TBE F/UP KEY LNG Long -Latch SideManufacturer no. 106876 1Quote Ask for a quote
10A EXT TBE F/UP SLT SHT Short -Pivot SideManufacturer no. 106873 1Quote Ask for a quote
10B EXT TBE F/UP SLT LNG Long -Pivot SideManufacturer no. 106874 1Quote Ask for a quote
11 3/4" SADDLE THINManufacturer no. 561003 1Quote Ask for a quote
12 SHORT DOME PLUGManufacturer no. 561034 1Quote Ask for a quote

70 Deg Lift-Off Hanger (page 117)

11 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 70 Deg Lift-Off Hanger (page 117)
No.PartQtyPriceAction
1 BHCS 5/16 -18 x 2 SHLDR ROHSManufacturer no. 106983 1Quote Ask for a quote
3 T45 HANGER BRACKET 70ø R length of bracket: 6 3/4"Manufacturer no. 550152 1Quote Ask for a quote
4 NUT NYLOCK THIN 1/4 -28 ROHSManufacturer no. 106935 1Quote Ask for a quote
5 1" INSERT PLUG .083Manufacturer no. 561002 1Quote Ask for a quote
6 PLASTIC PIVOT SADDLEManufacturer no. 561197 1Quote Ask for a quote
7 FOOTREST BLOCK T45Manufacturer no. 880053 1Quote Ask for a quote
8 5/16-18 NYLOCK NUT THICK BLKManufacturer no. 202117 1Quote Ask for a quote
9 .650 x 6 COIL SPRINGManufacturer no. 321141 1Quote Ask for a quote
10 T45 FOOTREST BLOCK RECESSEDManufacturer no. 560684 1Quote Ask for a quote
11 BHCS 5/16 -18 x 1 5/8 SHLD ROHSManufacturer no. 107029 1Quote Ask for a quote
12 HHCS 1/4 -28 x 3/4 ROHSManufacturer no. 107014 1Quote Ask for a quote

80 Deg Lift-Off Hanger (page 119)

11 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 80 Deg Lift-Off Hanger (page 119)
No.PartQtyPriceAction
1 BHCS 5/16 -18 x 2 SHLDR ROHSManufacturer no. 106983 1Quote Ask for a quote
3 T45 HANGER BRACKET 80ø R length of bracket: 6"Manufacturer no. 550154 1Quote Ask for a quote
4 NUT NYLOCK THIN 1/4 -28 ROHSManufacturer no. 106935 1Quote Ask for a quote
5 1" INSERT PLUG .083Manufacturer no. 561002 1Quote Ask for a quote
6 PLASTIC PIVOT SADDLEManufacturer no. 561197 1Quote Ask for a quote
7 FOOTREST BLOCK T45Manufacturer no. 880053 1Quote Ask for a quote
8 5/16-18 NYLOCK NUT THICK BLKManufacturer no. 202117 1Quote Ask for a quote
9 .650L x 6 COIL SPRINGManufacturer no. 321141 1Quote Ask for a quote
10 T45 FOOTREST BLOCK RECESSEDManufacturer no. 560684 1Quote Ask for a quote
11 BHCS 5/16 -18 x 1 5/8 SHLD ROHSManufacturer no. 107029 1Quote Ask for a quote
12 HHCS 1/4 -28 x 3/4 ROHSManufacturer no. 107014 1Quote Ask for a quote

Exploded view, page 119

0 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

70 Deg Front Mount Hanger Swing In-Out

0 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

90 Deg Lift-Off Hanger (page 121)

0 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

70 Deg S/A Front Mount Hanger

9 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 70 Deg S/A Front Mount Hanger
No.PartQtyPriceAction
1 5/16-18 x 2 BH C/S BLKManufacturer no. 226217 1Quote Ask for a quote
2 1" INSERT PLUG .083Manufacturer no. 561002 1Quote Ask for a quote
3 PLASTIC PIVOT SADDLEManufacturer no. 561197 1Quote Ask for a quote
4 10/24 x .725 BTTN HD SOC BZManufacturer no. 226057 1Quote Ask for a quote
5 S/A LATCH LEVERManufacturer no. 561079 1Quote Ask for a quote
6 S/A SPRING L RED LEFTManufacturer no. 321136 1Quote Ask for a quote
6 S/A SPRING R CLEAR RIGHTManufacturer no. 321137 1Quote Ask for a quote
4-8 S/A LATCH KIT CASTING RIGHTManufacturer no. 881521 1Quote Ask for a quote
4-8 S/A LATCH KIT CASTING LEFTManufacturer no. 881522 1Quote Ask for a quote

Front Mount Hanger Ext (page 123)

3 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Front Mount Hanger Ext (page 123)
No.PartQtyPriceAction
1 NUT NYLOCK THIN 1/4 -28 ROHSManufacturer no. 106935 1Quote Ask for a quote
2 BHCS 1/4 -28 x 1 1/4 ROHSManufacturer no. 106961 1Quote Ask for a quote
1-3 2" FOOTREST EXTENSION TUBE W/ HDWR ASSM 2" EXT (PAIR)Manufacturer no. 111505 1Quote Ask for a quote

80 Deg Front Mount Hanger Swing In-Out

0 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE)

18 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE)
No.PartQtyPriceAction
1 FHCS 1/4-28 X 7/8 ROHSManufacturer no. 106978 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 10 RIGHTManufacturer no. 500635 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 10 LEFTManufacturer no. 500636 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 11 RIGHTManufacturer no. 500637 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 11 LEFTManufacturer no. 500638 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 12 RIGHTManufacturer no. 500639 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 12 LEFTManufacturer no. 500640 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 13 RIGHTManufacturer no. 500641 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 13 LEFTManufacturer no. 500642 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 14 RIGHTManufacturer no. 500643 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 14 LEFTManufacturer no. 500644 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 15 RIGHTManufacturer no. 500645 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 15 LEFTManufacturer no. 500646 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 16 RIGHTManufacturer no. 500647 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 16 LEFTManufacturer no. 500648 1Quote Ask for a quote
3 3/4 CLAMP ADJ FOOTPLATEManufacturer no. 550350 1Quote Ask for a quote
4 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
5 1/4-28 X 1.85 BH C/S BLK ZNManufacturer no. 226147 1Quote Ask for a quote

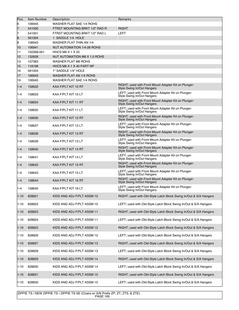

Exploded view, page 125

39 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 125
No.PartQtyPriceAction
6 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106945 1Quote Ask for a quote
7 FTRST MOUNTING BRKT 1/2" RAD R RIGHTManufacturer no. 541000 1Quote Ask for a quote
7 FTRST MOUNTING BRKT 1/2" RAD L LEFTManufacturer no. 541001 1Quote Ask for a quote
8 1 SADDLE 1/4 HOLEManufacturer no. 561004 1Quote Ask for a quote
9 WASHER FLAT THIN AN 1/4Manufacturer no. 106943 1Quote Ask for a quote
10 NUT AUTOMATION 1/4-28 ROHSManufacturer no. 106941 1Quote Ask for a quote
11 HHCS M6 X 1 X 25Manufacturer no. 102268-001 1Quote Ask for a quote
12 NUT AUTOMATION M6 X 1.0 ROHSManufacturer no. 132626 1Quote Ask for a quote
13 WASHER FLAT M6 ROHSManufacturer no. 107383 1Quote Ask for a quote
15 HHCS M6 X 1 X 40 PART NPManufacturer no. 118198 1Quote Ask for a quote
16 1" SADDLE 1/4" HOLEManufacturer no. 561004 1Quote Ask for a quote
17 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
19 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106945 1Quote Ask for a quote
1-4 KAA F/PLT KIT 10 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158632 1Quote Ask for a quote
1-4 KAA F/PLT KIT 10 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158633 1Quote Ask for a quote
1-4 KAA F/PLT KIT 11 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158634 1Quote Ask for a quote
1-4 KAA F/PLT KIT 11 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158635 1Quote Ask for a quote
1-4 KAA F/PLT KIT 12 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158636 1Quote Ask for a quote
1-4 KAA F/PLT KIT 12 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158637 1Quote Ask for a quote
1-4 KAA F/PLT KIT 13 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158638 1Quote Ask for a quote
1-4 KAA F/PLT KIT 13 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158639 1Quote Ask for a quote
1-4 KAA F/PLT KIT 14 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158640 1Quote Ask for a quote
1-4 KAA F/PLT KIT 14 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158641 1Quote Ask for a quote
1-4 KAA F/PLT KIT 15 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158642 1Quote Ask for a quote
1-4 KAA F/PLT KIT 15 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158643 1Quote Ask for a quote
1-4 KAA F/PLT KIT 16 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158644 1Quote Ask for a quote
1-4 KAA F/PLT KIT 16 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158645 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 10 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828821 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 10 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828822 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 11 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828823 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 11 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828824 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 12 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828825 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 12 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828826 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 13 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828827 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 13 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828828 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 14 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828829 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 14 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828830 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 15 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828831 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 15 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828832 1Quote Ask for a quote

80 Deg S/A Front Mount Hanger

0 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

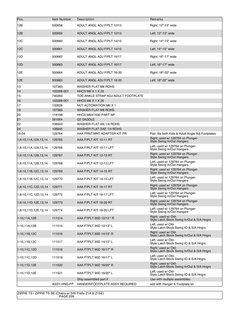

Adult Angle-Adj Footplate Front Mount (page 127)

22 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Adult Angle-Adj Footplate Front Mount (page 127)
No.PartQtyPriceAction
1 FHCS 1/4-28 X 7/8 ROHSManufacturer no. 106978 1Quote Ask for a quote
2 NUT AUTOMATION 1/4-28 ROHSManufacturer no. 106941 1Quote Ask for a quote
3 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
4 1" SADDLE 1/4" HOLEManufacturer no. 561004 1Quote Ask for a quote
5 FOOTREST MOUNTING BRKT 1/2" RAD R RIGHTManufacturer no. 541000 1Quote Ask for a quote
5 FOOTREST MOUNTING BRKT 1/2" RAD L LEFTManufacturer no. 541001 1Quote Ask for a quote
6 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106945 1Quote Ask for a quote
7 BHCS 1/4-28 X 2Manufacturer no. 106964 1Quote Ask for a quote
8 3/4" CLAMP ADJ FOOTPLATEManufacturer no. 550350 1Quote Ask for a quote
9 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
10 HEEL LOOP PEGManufacturer no. 561040 1Quote Ask for a quote
11 HEEL LOOP 18-20 CMPST/14-15 ANG ADJ USED W/ 14-15"/16-17" ADULT ANG ADJ FTPLTSManufacturer no. 741153 1Quote Ask for a quote
11 HEEL LOOP ADLT ADJ F/PLT 18-20 USED W/ 18 -20" ADULT ANG ADJ FTPLTSManufacturer no. 741253 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 10/11 RIGHTManufacturer no. 500656 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 10/11 LEFTManufacturer no. 500657 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 12/13 RIGHTManufacturer no. 500658 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 12/13 LEFTManufacturer no. 500659 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 14/15 RIGHTManufacturer no. 500660 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 14/15 LEFTManufacturer no. 500661 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 16/17 RIGHTManufacturer no. 500662 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 16/17 LEFTManufacturer no. 500663 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 18-20 RIGHTManufacturer no. 500664 1Quote Ask for a quote

90 Deg Front Mount Hanger Swing In-Out

0 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

90 Deg Footboard (page 129)

14 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 90 Deg Footboard (page 129)
No.PartQtyPriceAction
1A SLD FOOTPLATE ONLY 8" x 8" (10"-12" W) 10 -12" WIDEManufacturer no. 562610 1Quote Ask for a quote
1B SLD FOOTPLATE ONLY 10" x 8" (13"-14" W) 13 -14" WIDEManufacturer no. 562612 1Quote Ask for a quote
1C SLD FT PLT ALUM ONLY 12" x 8" (15"-16" W) 15 -16" WIDEManufacturer no. 500709 1Quote Ask for a quote
2 NUT NYLOCK THIN 1/4-20 ROHSManufacturer no. 106933 1Quote Ask for a quote
3 SLD FT/ANGLE ADJ DOUBLE T BOLTManufacturer no. 330120 1Quote Ask for a quote
4 SOLID FOOT/ANG ADJ CLAMP BLKManufacturer no. 550444 1Quote Ask for a quote
5 BHCS 1/4-28 X 1-1/2 ROHSManufacturer no. 107028 1Quote Ask for a quote
7 SHORT DOME PLUGManufacturer no. 561034 1Quote Ask for a quote
8 SOLID FOOT INSERT SADDLE BLKManufacturer no. 483236 1Quote Ask for a quote
10 CLAMP 1 1/4" THREADED BLKManufacturer no. 550658 1Quote Ask for a quote
11 CLAMP 1 1/4" RECESS FULL BLKManufacturer no. 550657 1Quote Ask for a quote
12 SHCS 1/4-28 X 1 ROHSManufacturer no. 107032 1Quote Ask for a quote
14 3/4" ID NY-LINERManufacturer no. 560402 1Quote Ask for a quote
15A SLD FOOT SUPPORT TUBE BLK 10"-12" 10 -12" WIDEManufacturer no. 521621 1Quote Ask for a quote

90 Deg S/A Front Mount Hanger

0 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

70 Deg Lift-Off Hanger

11 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 70 Deg Lift-Off Hanger
No.PartQtyPriceAction
1 BHCS 5/16 -18 x 2 SHLDR ROHSManufacturer no. 106983 1Quote Ask for a quote
3 T45 HANGER BRACKET 70ø R length of bracket: 6 3/4"Manufacturer no. 550152 1Quote Ask for a quote
4 NUT NYLOCK THIN 1/4 -28 ROHSManufacturer no. 106935 1Quote Ask for a quote
5 1" INSERT PLUG .083Manufacturer no. 561002 1Quote Ask for a quote
6 PLASTIC PIVOT SADDLEManufacturer no. 561197 1Quote Ask for a quote
7 FOOTREST BLOCK T45Manufacturer no. 880053 1Quote Ask for a quote
8 5/16-18 NYLOCK NUT THICK BLKManufacturer no. 202117 1Quote Ask for a quote
9 .650 x 6 COIL SPRINGManufacturer no. 321141 1Quote Ask for a quote
10 T45 FOOTREST BLOCK RECESSEDManufacturer no. 560684 1Quote Ask for a quote
11 BHCS 5/16 -18 x 1 5/8 SHLD ROHSManufacturer no. 107029 1Quote Ask for a quote
12 HHCS 1/4 -28 x 3/4 ROHSManufacturer no. 107014 1Quote Ask for a quote

90 Deg Elevating Calf Pad (page 133)

10 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 90 Deg Elevating Calf Pad (page 133)
No.PartQtyPriceAction
1 5/16-18 x 2" BH C/S BLKManufacturer no. 226217 1Quote Ask for a quote
2 CALF PAD TROUGH STYLE KIDSManufacturer no. 755013 1Quote Ask for a quote
3 1" WASHER 5/16" HOLEManufacturer no. 561016 1Quote Ask for a quote
4 ELR ELEVATING TUBE CLAMPManufacturer no. 561097 1Quote Ask for a quote
5 5/16 -18 NYLOCK NUT THINManufacturer no. 106937 1Quote Ask for a quote
6 HHCS 1/4-20 X 1 ROHSManufacturer no. 106958 1Quote Ask for a quote
7 6mm WASHER WAVEManufacturer no. 262130 1Quote Ask for a quote
8 1/4 x 1/4 ALUMINUM SPACERManufacturer no. 483027 1Quote Ask for a quote
9 KIDS ALR RETAINING PLUGManufacturer no. 500151 1Quote Ask for a quote
1-9 ELR TROUGH PAD ASSM KIDSManufacturer no. 880533 1Quote Ask for a quote

80 Deg Lift-Off Hanger

11 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 80 Deg Lift-Off Hanger
No.PartQtyPriceAction
1 BHCS 5/16 -18 x 2 SHLDR ROHSManufacturer no. 106983 1Quote Ask for a quote
3 T45 HANGER BRACKET 80ø R length of bracket: 6"Manufacturer no. 550154 1Quote Ask for a quote
4 NUT NYLOCK THIN 1/4 -28 ROHSManufacturer no. 106935 1Quote Ask for a quote
5 1" INSERT PLUG .083Manufacturer no. 561002 1Quote Ask for a quote
6 PLASTIC PIVOT SADDLEManufacturer no. 561197 1Quote Ask for a quote
7 FOOTREST BLOCK T45Manufacturer no. 880053 1Quote Ask for a quote
8 5/16-18 NYLOCK NUT THICK BLKManufacturer no. 202117 1Quote Ask for a quote
9 .650L x 6 COIL SPRINGManufacturer no. 321141 1Quote Ask for a quote
10 T45 FOOTREST BLOCK RECESSEDManufacturer no. 560684 1Quote Ask for a quote
11 BHCS 5/16 -18 x 1 5/8 SHLD ROHSManufacturer no. 107029 1Quote Ask for a quote
12 HHCS 1/4 -28 x 3/4 ROHSManufacturer no. 107014 1Quote Ask for a quote

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 134)

3 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 134)
No.PartQtyPriceAction
1 NUT NYLOCK THIN 1/4 -28 ROHSManufacturer no. 106935 1Quote Ask for a quote
2 BHCS 1/4 -28 x 1 1/4 ROHSManufacturer no. 106961 1Quote Ask for a quote
1-3 2" FOOTREST EXTENSION TUBE W/ HDWR ASSM 2" EXT (PAIR)Manufacturer no. 111505 1Quote Ask for a quote

Kids Angle Adj Footplate Front Mount (page 135)

18 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Kids Angle Adj Footplate Front Mount (page 135)
No.PartQtyPriceAction
1 FHCS 1/4-28 X 7/8 ROHSManufacturer no. 106978 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 10 RIGHTManufacturer no. 500635 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 10 LEFTManufacturer no. 500636 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 11 RIGHTManufacturer no. 500637 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 11 LEFTManufacturer no. 500638 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 12 RIGHTManufacturer no. 500639 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 12 LEFTManufacturer no. 500640 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 13 RIGHTManufacturer no. 500641 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 13 LEFTManufacturer no. 500642 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 14 RIGHTManufacturer no. 500643 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 14 LEFTManufacturer no. 500644 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 15 RIGHTManufacturer no. 500645 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 15 LEFTManufacturer no. 500646 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 16 RIGHTManufacturer no. 500647 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 16 LEFTManufacturer no. 500648 1Quote Ask for a quote
3 3/4 CLAMP ADJ FOOTPLATEManufacturer no. 550350 1Quote Ask for a quote
4 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
5 1/4-28 X 1.85 BH C/S BLK ZNManufacturer no. 226147 1Quote Ask for a quote

90 Deg Lift-Off Hanger

0 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

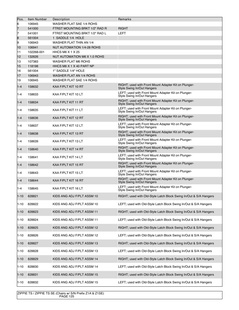

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 136)

39 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 136)
No.PartQtyPriceAction
6 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106945 1Quote Ask for a quote
7 FTRST MOUNTING BRKT 1/2" RAD R RIGHTManufacturer no. 541000 1Quote Ask for a quote
7 FTRST MOUNTING BRKT 1/2" RAD L LEFTManufacturer no. 541001 1Quote Ask for a quote
8 1 SADDLE 1/4 HOLEManufacturer no. 561004 1Quote Ask for a quote
9 WASHER FLAT THIN AN 1/4Manufacturer no. 106943 1Quote Ask for a quote
10 NUT AUTOMATION 1/4-28 ROHSManufacturer no. 106941 1Quote Ask for a quote
11 HHCS M6 X 1 X 25Manufacturer no. 102268-001 1Quote Ask for a quote
12 NUT AUTOMATION M6 X 1.0 ROHSManufacturer no. 132626 1Quote Ask for a quote
13 WASHER FLAT M6 ROHSManufacturer no. 107383 1Quote Ask for a quote
15 HHCS M6 X 1 X 40 PART NPManufacturer no. 118198 1Quote Ask for a quote
16 1" SADDLE 1/4" HOLEManufacturer no. 561004 1Quote Ask for a quote
17 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
19 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106945 1Quote Ask for a quote
1-4 KAA F/PLT KIT 10 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158632 1Quote Ask for a quote
1-4 KAA F/PLT KIT 10 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158633 1Quote Ask for a quote
1-4 KAA F/PLT KIT 11 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158634 1Quote Ask for a quote
1-4 KAA F/PLT KIT 11 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158635 1Quote Ask for a quote
1-4 KAA F/PLT KIT 12 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158636 1Quote Ask for a quote
1-4 KAA F/PLT KIT 12 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158637 1Quote Ask for a quote
1-4 KAA F/PLT KIT 13 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158638 1Quote Ask for a quote
1-4 KAA F/PLT KIT 13 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158639 1Quote Ask for a quote
1-4 KAA F/PLT KIT 14 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158640 1Quote Ask for a quote
1-4 KAA F/PLT KIT 14 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158641 1Quote Ask for a quote
1-4 KAA F/PLT KIT 15 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158642 1Quote Ask for a quote
1-4 KAA F/PLT KIT 15 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158643 1Quote Ask for a quote
1-4 KAA F/PLT KIT 16 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158644 1Quote Ask for a quote
1-4 KAA F/PLT KIT 16 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158645 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 10 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828821 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 10 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828822 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 11 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828823 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 11 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828824 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 12 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828825 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 12 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828826 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 13 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828827 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 13 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828828 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 14 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828829 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 14 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828830 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 15 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828831 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 15 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828832 1Quote Ask for a quote

Front Mount Hanger Ext

3 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Front Mount Hanger Ext
No.PartQtyPriceAction
1 NUT NYLOCK THIN 1/4 -28 ROHSManufacturer no. 106935 1Quote Ask for a quote
2 BHCS 1/4 -28 x 1 1/4 ROHSManufacturer no. 106961 1Quote Ask for a quote
1-3 2" FOOTREST EXTENSION TUBE W/ HDWR ASSM 2" EXT (PAIR)Manufacturer no. 111505 1Quote Ask for a quote

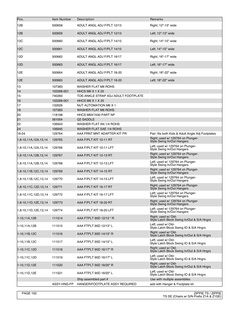

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 138)

22 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 138)
No.PartQtyPriceAction
1 FHCS 1/4-28 X 7/8 ROHSManufacturer no. 106978 1Quote Ask for a quote
2 NUT AUTOMATION 1/4-28 ROHSManufacturer no. 106941 1Quote Ask for a quote
3 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
4 1" SADDLE 1/4" HOLEManufacturer no. 561004 1Quote Ask for a quote
5 FOOTREST MOUNTING BRKT 1/2" RAD R RIGHTManufacturer no. 541000 1Quote Ask for a quote
5 FOOTREST MOUNTING BRKT 1/2" RAD L LEFTManufacturer no. 541001 1Quote Ask for a quote
6 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106945 1Quote Ask for a quote
7 BHCS 1/4-28 X 2Manufacturer no. 106964 1Quote Ask for a quote
8 3/4" CLAMP ADJ FOOTPLATEManufacturer no. 550350 1Quote Ask for a quote
9 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
10 HEEL LOOP PEGManufacturer no. 561040 1Quote Ask for a quote
11 HEEL LOOP 18-20 CMPST/14-15 ANG ADJ USED W/ 14-15"/16-17" ADULT ANG ADJ FTPLTSManufacturer no. 741153 1Quote Ask for a quote
11 HEEL LOOP ADLT ADJ F/PLT 18-20 USED W/ 18 -20" ADULT ANG ADJ FTPLTSManufacturer no. 741253 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 10/11 RIGHTManufacturer no. 500656 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 10/11 LEFTManufacturer no. 500657 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 12/13 RIGHTManufacturer no. 500658 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 12/13 LEFTManufacturer no. 500659 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 14/15 RIGHTManufacturer no. 500660 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 14/15 LEFTManufacturer no. 500661 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 16/17 RIGHTManufacturer no. 500662 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 16/17 LEFTManufacturer no. 500663 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 18-20 RIGHTManufacturer no. 500664 1Quote Ask for a quote

Kids Angle Adj Footplate Front Mount

18 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Kids Angle Adj Footplate Front Mount
No.PartQtyPriceAction
1 FHCS 1/4-28 X 7/8 ROHSManufacturer no. 106978 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 10 RIGHTManufacturer no. 500635 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 10 LEFTManufacturer no. 500636 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 11 RIGHTManufacturer no. 500637 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 11 LEFTManufacturer no. 500638 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 12 RIGHTManufacturer no. 500639 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 12 LEFTManufacturer no. 500640 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 13 RIGHTManufacturer no. 500641 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 13 LEFTManufacturer no. 500642 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 14 RIGHTManufacturer no. 500643 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 14 LEFTManufacturer no. 500644 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 15 RIGHTManufacturer no. 500645 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 15 LEFTManufacturer no. 500646 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 16 RIGHTManufacturer no. 500647 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 16 LEFTManufacturer no. 500648 1Quote Ask for a quote
3 3/4 CLAMP ADJ FOOTPLATEManufacturer no. 550350 1Quote Ask for a quote
4 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
5 1/4-28 X 1.85 BH C/S BLK ZNManufacturer no. 226147 1Quote Ask for a quote

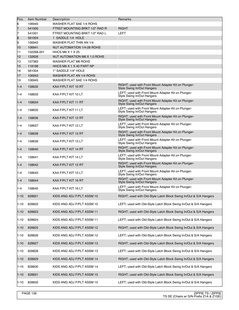

Exploded view, page 140

39 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 140
No.PartQtyPriceAction
6 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106945 1Quote Ask for a quote
7 FTRST MOUNTING BRKT 1/2" RAD R RIGHTManufacturer no. 541000 1Quote Ask for a quote
7 FTRST MOUNTING BRKT 1/2" RAD L LEFTManufacturer no. 541001 1Quote Ask for a quote
8 1 SADDLE 1/4 HOLEManufacturer no. 561004 1Quote Ask for a quote
9 WASHER FLAT THIN AN 1/4Manufacturer no. 106943 1Quote Ask for a quote
10 NUT AUTOMATION 1/4-28 ROHSManufacturer no. 106941 1Quote Ask for a quote
11 HHCS M6 X 1 X 25Manufacturer no. 102268-001 1Quote Ask for a quote
12 NUT AUTOMATION M6 X 1.0 ROHSManufacturer no. 132626 1Quote Ask for a quote
13 WASHER FLAT M6 ROHSManufacturer no. 107383 1Quote Ask for a quote
15 HHCS M6 X 1 X 40 PART NPManufacturer no. 118198 1Quote Ask for a quote
16 1" SADDLE 1/4" HOLEManufacturer no. 561004 1Quote Ask for a quote
17 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
19 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106945 1Quote Ask for a quote
1-4 KAA F/PLT KIT 10 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158632 1Quote Ask for a quote
1-4 KAA F/PLT KIT 10 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158633 1Quote Ask for a quote
1-4 KAA F/PLT KIT 11 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158634 1Quote Ask for a quote
1-4 KAA F/PLT KIT 11 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158635 1Quote Ask for a quote
1-4 KAA F/PLT KIT 12 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158636 1Quote Ask for a quote
1-4 KAA F/PLT KIT 12 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158637 1Quote Ask for a quote
1-4 KAA F/PLT KIT 13 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158638 1Quote Ask for a quote
1-4 KAA F/PLT KIT 13 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158639 1Quote Ask for a quote
1-4 KAA F/PLT KIT 14 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158640 1Quote Ask for a quote
1-4 KAA F/PLT KIT 14 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158641 1Quote Ask for a quote
1-4 KAA F/PLT KIT 15 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158642 1Quote Ask for a quote
1-4 KAA F/PLT KIT 15 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158643 1Quote Ask for a quote
1-4 KAA F/PLT KIT 16 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158644 1Quote Ask for a quote
1-4 KAA F/PLT KIT 16 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158645 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 10 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828821 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 10 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828822 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 11 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828823 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 11 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828824 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 12 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828825 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 12 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828826 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 13 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828827 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 13 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828828 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 14 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828829 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 14 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828830 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 15 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828831 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 15 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828832 1Quote Ask for a quote

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 140)

17 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 140)
No.PartQtyPriceAction
1 1/4-28 X 1 1/4 BH C/SManufacturer no. 106961 1Quote Ask for a quote
2 ELR CLEVISManufacturer no. 505281 1Quote Ask for a quote
3 BHCS 5/16-24 X 1-1/2 SHLD ROHSManufacturer no. 107037 1Quote Ask for a quote
4 ELR PIVOT PRSManufacturer no. 540252 1Quote Ask for a quote
5 WASHER FLAT AN 5/16 ROHSManufacturer no. 106946 1Quote Ask for a quote
6 NUT NYLOCK THIN 5/16-24 ROHSManufacturer no. 106939 1Quote Ask for a quote
7 ELR UPPER PIVOT PLSTManufacturer no. 560420 1Quote Ask for a quote
8 ELR ADJUSTMENT STOPManufacturer no. 560784 1Quote Ask for a quote
9 ELR LOCK RODManufacturer no. 481117 1Quote Ask for a quote
10 ELR CAM LOCKING POWDERED METALManufacturer no. 481119 1Quote Ask for a quote
11 BHCS 5/16 -18 x 1 3/4 SHLD ROHSManufacturer no. 106982 1Quote Ask for a quote
12 1" INSERT PLUG .065 RIBSManufacturer no. 561062 1Quote Ask for a quote
14 ELR ALUM PIVOT SADDLEManufacturer no. 122729 1Quote Ask for a quote
15 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
16 BHCS 10-24 X .725 PL ROHSManufacturer no. 107035 1Quote Ask for a quote
17 3/4 OD x .318 ID WASHERManufacturer no. 561059 1Quote Ask for a quote
18 5/16-24 ACORN NUT HEXManufacturer no. 202109 1Quote Ask for a quote

Adult Angle-Adj Footplate Front Mount

22 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Adult Angle-Adj Footplate Front Mount
No.PartQtyPriceAction
1 FHCS 1/4-28 X 7/8 ROHSManufacturer no. 106978 1Quote Ask for a quote
2 NUT AUTOMATION 1/4-28 ROHSManufacturer no. 106941 1Quote Ask for a quote
3 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
4 1" SADDLE 1/4" HOLEManufacturer no. 561004 1Quote Ask for a quote
5 FOOTREST MOUNTING BRKT 1/2" RAD R RIGHTManufacturer no. 541000 1Quote Ask for a quote
5 FOOTREST MOUNTING BRKT 1/2" RAD L LEFTManufacturer no. 541001 1Quote Ask for a quote
6 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106945 1Quote Ask for a quote
7 BHCS 1/4-28 X 2Manufacturer no. 106964 1Quote Ask for a quote
8 3/4" CLAMP ADJ FOOTPLATEManufacturer no. 550350 1Quote Ask for a quote
9 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
10 HEEL LOOP PEGManufacturer no. 561040 1Quote Ask for a quote
11 HEEL LOOP 18-20 CMPST/14-15 ANG ADJ USED W/ 14-15"/16-17" ADULT ANG ADJ FTPLTSManufacturer no. 741153 1Quote Ask for a quote
11 HEEL LOOP ADLT ADJ F/PLT 18-20 USED W/ 18 -20" ADULT ANG ADJ FTPLTSManufacturer no. 741253 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 10/11 RIGHTManufacturer no. 500656 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 10/11 LEFTManufacturer no. 500657 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 12/13 RIGHTManufacturer no. 500658 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 12/13 LEFTManufacturer no. 500659 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 14/15 RIGHTManufacturer no. 500660 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 14/15 LEFTManufacturer no. 500661 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 16/17 RIGHTManufacturer no. 500662 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 16/17 LEFTManufacturer no. 500663 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 18-20 RIGHTManufacturer no. 500664 1Quote Ask for a quote

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 142)

8 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 142)
No.PartQtyPriceAction
1 BHCS 5/16-18 X 1-1/4 ROHSManufacturer no. 106980 1Quote Ask for a quote
2 CALF PAD TROUGH STYLE 14"/16"Manufacturer no. 755014 1Quote Ask for a quote
3 1/4-28 X 5/8 HEX C/S BZManufacturer no. 221097 1Quote Ask for a quote
4 1" WASHER 5/16" HOLEManufacturer no. 561016 1Quote Ask for a quote
5 CALF PAD BRACKET ASSEMBLYManufacturer no. 881413 1Quote Ask for a quote
6 NUT NYLOCK 1/4-28 ROHSManufacturer no. 106934 1Quote Ask for a quote
7 NUT NYLOCK THIN 5/16-18Manufacturer no. 106937 1Quote Ask for a quote
1-7 CALF PAD J-HOOK 14"-15" ASSEMBLYManufacturer no. 881414 1Quote Ask for a quote

Elr & Alr Calf Pad 16-20" (page 143)

9 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Elr & Alr Calf Pad 16-20" (page 143)
No.PartQtyPriceAction
1 NUT NYLOCK 1/4-28 ROHSManufacturer no. 106934 1Quote Ask for a quote
2A HHCS 5/16-18 X 2-1/2 ROHS 16"-17" wide onlyManufacturer no. 107018 1Quote Ask for a quote
2B HHCS 5/16-18 X 3-1/2 ROHS 18"-20" wide onlyManufacturer no. 107019 1Quote Ask for a quote
3 HHCS 1/4-28 X 5/8 ROHSManufacturer no. 107013 1Quote Ask for a quote
4 CALF PAD BRACKET ASSEMBLYManufacturer no. 881413 1Quote Ask for a quote
5 ELR CALF HINGE SPACER 18"-20" wide onlyManufacturer no. 560199 1Quote Ask for a quote
6 CALF PAD MOLDED 16"-20"Manufacturer no. 560108 1Quote Ask for a quote
7 NUT NYLOCK 5/16-18 ROHSManufacturer no. 106936 1Quote Ask for a quote
8 CALF PAD COVERManufacturer no. 751045 1Quote Ask for a quote

90 Deg Footboard

14 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 90 Deg Footboard
No.PartQtyPriceAction
1A SLD FOOTPLATE ONLY 8" x 8" (10"-12" W) 10 -12" WIDEManufacturer no. 562610 1Quote Ask for a quote
1B SLD FOOTPLATE ONLY 10" x 8" (13"-14" W) 13 -14" WIDEManufacturer no. 562612 1Quote Ask for a quote
1C SLD FT PLT ALUM ONLY 12" x 8" (15"-16" W) 15 -16" WIDEManufacturer no. 500709 1Quote Ask for a quote
2 NUT NYLOCK THIN 1/4-20 ROHSManufacturer no. 106933 1Quote Ask for a quote
3 SLD FT/ANGLE ADJ DOUBLE T BOLTManufacturer no. 330120 1Quote Ask for a quote
4 SOLID FOOT/ANG ADJ CLAMP BLKManufacturer no. 550444 1Quote Ask for a quote
5 BHCS 1/4-28 X 1-1/2 ROHSManufacturer no. 107028 1Quote Ask for a quote
7 SHORT DOME PLUGManufacturer no. 561034 1Quote Ask for a quote
8 SOLID FOOT INSERT SADDLE BLKManufacturer no. 483236 1Quote Ask for a quote
10 CLAMP 1 1/4" THREADED BLKManufacturer no. 550658 1Quote Ask for a quote
11 CLAMP 1 1/4" RECESS FULL BLKManufacturer no. 550657 1Quote Ask for a quote
12 SHCS 1/4-28 X 1 ROHSManufacturer no. 107032 1Quote Ask for a quote
14 3/4" ID NY-LINERManufacturer no. 560402 1Quote Ask for a quote
15A SLD FOOT SUPPORT TUBE BLK 10"-12" 10 -12" WIDEManufacturer no. 521621 1Quote Ask for a quote

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 144)

1 part

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 144)
No.PartQtyPriceAction
1A EXT TUBE S/A ONLY SHT Short Ext-Swing Away HangerManufacturer no. 550819 1Quote Ask for a quote

Elevating Hanger

17 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Elevating Hanger
No.PartQtyPriceAction
1 1/4-28 X 1 1/4 BH C/SManufacturer no. 106961 1Quote Ask for a quote
2 ELR CLEVISManufacturer no. 505281 1Quote Ask for a quote
3 BHCS 5/16-24 X 1-1/2 SHLD ROHSManufacturer no. 107037 1Quote Ask for a quote
4 ELR PIVOT PRSManufacturer no. 540252 1Quote Ask for a quote
5 WASHER FLAT AN 5/16 ROHSManufacturer no. 106946 1Quote Ask for a quote
6 NUT NYLOCK THIN 5/16-24 ROHSManufacturer no. 106939 1Quote Ask for a quote
7 ELR UPPER PIVOT PLSTManufacturer no. 560420 1Quote Ask for a quote
8 ELR ADJUSTMENT STOPManufacturer no. 560784 1Quote Ask for a quote
9 ELR LOCK RODManufacturer no. 481117 1Quote Ask for a quote
10 ELR CAM LOCKING POWDERED METALManufacturer no. 481119 1Quote Ask for a quote
11 BHCS 5/16 -18 x 1 3/4 SHLD ROHSManufacturer no. 106982 1Quote Ask for a quote
12 1" INSERT PLUG .065 RIBSManufacturer no. 561062 1Quote Ask for a quote
14 ELR ALUM PIVOT SADDLEManufacturer no. 122729 1Quote Ask for a quote
15 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
16 BHCS 10-24 X .725 PL ROHSManufacturer no. 107035 1Quote Ask for a quote
17 3/4 OD x .318 ID WASHERManufacturer no. 561059 1Quote Ask for a quote
18 5/16-24 ACORN NUT HEXManufacturer no. 202109 1Quote Ask for a quote

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 146)

19 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 146)
No.PartQtyPriceAction
1 1/4 - 28 NYLOCK NUTManufacturer no. 106935 1Quote Ask for a quote
2 1/4 - 28 x 2 1/2 SOC C/SManufacturer no. 226165 1Quote Ask for a quote
3 COMPOSITE FOOTPLATE 14 -15 (16 -18 V ) 14 -15 OR 16 -18VManufacturer no. 561200 1Quote Ask for a quote
3 COMPOSITE FOOTPLATE 16 -17 (19 -20 V ) 16 -17 OR 19 -20VManufacturer no. 561210 1Quote Ask for a quote
3 COMPOSITE FOOTPLATE 18 -20 18 -20Manufacturer no. 561220 1Quote Ask for a quote
4A HEEL LOOP 14-15 COMPOSITE (14 -15 or 16 -18V) 14 -15 OR 16 -18VManufacturer no. 741151 1Quote Ask for a quote
4A HEEL LOOP 16 -17 or 19 -20V 16 -17 OR 19 -20VManufacturer no. 741156 1Quote Ask for a quote
4A HEEL LOOP 18 -20 COMPOSITE/14-15 ANG ADJ 18 -20Manufacturer no. 741153 1Quote Ask for a quote
4A HEEL LOOP COMPOSITE FT 14-15 PAIR 14 -15 OR 16 -18VManufacturer no. 902270 1Quote Ask for a quote
4A HEEL LOOP COMPOSITE FT 16-17 PAIR 16 -17 OR 19 -20VManufacturer no. 902271 1Quote Ask for a quote
4A HEEL LOOP COMPOSITE FT 18-20 PAIR 18 -20Manufacturer no. 902272 1Quote Ask for a quote
4B HEEL LOOP 14-15 COMPOSITE HEMI 14 -15 HEMIManufacturer no. 741154 1Quote Ask for a quote
4B HEEL LOOP 16-17 COMPOSITE HEMI 16 -17 HEMIManufacturer no. 741155 1Quote Ask for a quote
4B HEEL LOOP 18-20 COMPOSITE HEMI 18 -10 HEMIManufacturer no. 741153 1Quote Ask for a quote
4B HEEL LOOPS HEMI COMPOSITE 14-15 PAIR 14 -15 HEMIManufacturer no. 902260 1Quote Ask for a quote
4B HEEL LOOPS HEMI COMPOSITE 16-17 PAIR 16 -17 HEMIManufacturer no. 902261 1Quote Ask for a quote
4B HEEL LOOPS HEMI COMPOSITE 18-20 PAIR 18 -20 HEMIManufacturer no. 902262 1Quote Ask for a quote
5 HEEL LOOP PEGManufacturer no. 561040 1Quote Ask for a quote
6 1/4 AN WASHER FLAT THINManufacturer no. 106944 1Quote Ask for a quote

Elr & Alr Calf Pad 14 -15"

8 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Elr & Alr Calf Pad 14 -15"
No.PartQtyPriceAction
1 BHCS 5/16-18 X 1-1/4 ROHSManufacturer no. 106980 1Quote Ask for a quote
2 CALF PAD TROUGH STYLE 14"/16"Manufacturer no. 755014 1Quote Ask for a quote
3 1/4-28 X 5/8 HEX C/S BZManufacturer no. 221097 1Quote Ask for a quote
4 1" WASHER 5/16" HOLEManufacturer no. 561016 1Quote Ask for a quote
5 CALF PAD BRACKET ASSEMBLYManufacturer no. 881413 1Quote Ask for a quote
6 NUT NYLOCK 1/4-28 ROHSManufacturer no. 106934 1Quote Ask for a quote
7 NUT NYLOCK THIN 5/16-18Manufacturer no. 106937 1Quote Ask for a quote
1-7 CALF PAD J-HOOK 14"-15" ASSEMBLYManufacturer no. 881414 1Quote Ask for a quote

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 148)

1 part

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 148)
No.PartQtyPriceAction
1 FHCS 1/4 -28 x 7/8 ROHSManufacturer no. 106978 1Quote Ask for a quote

Elr & Alr Calf Pad 16-20"

9 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Elr & Alr Calf Pad 16-20"
No.PartQtyPriceAction
1 NUT NYLOCK 1/4-28 ROHSManufacturer no. 106934 1Quote Ask for a quote
2A HHCS 5/16-18 X 2-1/2 ROHS 16"-17" wide onlyManufacturer no. 107018 1Quote Ask for a quote
2B HHCS 5/16-18 X 3-1/2 ROHS 18"-20" wide onlyManufacturer no. 107019 1Quote Ask for a quote
3 HHCS 1/4-28 X 5/8 ROHSManufacturer no. 107013 1Quote Ask for a quote
4 CALF PAD BRACKET ASSEMBLYManufacturer no. 881413 1Quote Ask for a quote
5 ELR CALF HINGE SPACER 18"-20" wide onlyManufacturer no. 560199 1Quote Ask for a quote
6 CALF PAD MOLDED 16"-20"Manufacturer no. 560108 1Quote Ask for a quote
7 NUT NYLOCK 5/16-18 ROHSManufacturer no. 106936 1Quote Ask for a quote
8 CALF PAD COVERManufacturer no. 751045 1Quote Ask for a quote

Double D Footrest Extension Tube "Old Style" (page 150)

1 part

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Double D Footrest Extension Tube "Old Style" (page 150)
No.PartQtyPriceAction
1A EXT TUBE S/A ONLY SHT Short Ext-Swing Away HangerManufacturer no. 550819 1Quote Ask for a quote

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 150)

2 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 150)
No.PartQtyPriceAction
1 1/4-28 x 7/8 FH C/SManufacturer no. 106978 1Quote Ask for a quote
2 1/4-28 AUTOMATION NUTManufacturer no. 106941 1Quote Ask for a quote

Elr Aluminum Footplate

0 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 152)

0 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Composite Footplate (page 154)

19 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Composite Footplate (page 154)
No.PartQtyPriceAction
1 1/4 - 28 NYLOCK NUTManufacturer no. 106935 1Quote Ask for a quote
2 1/4 - 28 x 2 1/2 SOC C/SManufacturer no. 226165 1Quote Ask for a quote
3 COMPOSITE FOOTPLATE 14 -15 (16 -18 V ) 14 -15 OR 16 -18VManufacturer no. 561200 1Quote Ask for a quote
3 COMPOSITE FOOTPLATE 16 -17 (19 -20 V ) 16 -17 OR 19 -20VManufacturer no. 561210 1Quote Ask for a quote
3 COMPOSITE FOOTPLATE 18 -20 18 -20Manufacturer no. 561220 1Quote Ask for a quote
4A HEEL LOOP 14-15 COMPOSITE (14 -15 or 16 -18V) 14 -15 OR 16 -18VManufacturer no. 741151 1Quote Ask for a quote
4A HEEL LOOP 16 -17 or 19 -20V 16 -17 OR 19 -20VManufacturer no. 741156 1Quote Ask for a quote
4A HEEL LOOP 18 -20 COMPOSITE/14-15 ANG ADJ 18 -20Manufacturer no. 741153 1Quote Ask for a quote
4A HEEL LOOP COMPOSITE FT 14-15 PAIR 14 -15 OR 16 -18VManufacturer no. 902270 1Quote Ask for a quote
4A HEEL LOOP COMPOSITE FT 16-17 PAIR 16 -17 OR 19 -20VManufacturer no. 902271 1Quote Ask for a quote
4A HEEL LOOP COMPOSITE FT 18-20 PAIR 18 -20Manufacturer no. 902272 1Quote Ask for a quote
4B HEEL LOOP 14-15 COMPOSITE HEMI 14 -15 HEMIManufacturer no. 741154 1Quote Ask for a quote
4B HEEL LOOP 16-17 COMPOSITE HEMI 16 -17 HEMIManufacturer no. 741155 1Quote Ask for a quote
4B HEEL LOOP 18-20 COMPOSITE HEMI 18 -10 HEMIManufacturer no. 741153 1Quote Ask for a quote
4B HEEL LOOPS HEMI COMPOSITE 14-15 PAIR 14 -15 HEMIManufacturer no. 902260 1Quote Ask for a quote
4B HEEL LOOPS HEMI COMPOSITE 16-17 PAIR 16 -17 HEMIManufacturer no. 902261 1Quote Ask for a quote
4B HEEL LOOPS HEMI COMPOSITE 18-20 PAIR 18 -20 HEMIManufacturer no. 902262 1Quote Ask for a quote
5 HEEL LOOP PEGManufacturer no. 561040 1Quote Ask for a quote
6 1/4 AN WASHER FLAT THINManufacturer no. 106944 1Quote Ask for a quote

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 154)

14 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 154)
No.PartQtyPriceAction
1 5/16-18 x 2 BH C/S SHT THREADManufacturer no. 106983 1Quote Ask for a quote
2 ALR COVER STDManufacturer no. 562720 1Quote Ask for a quote
3 5/16-18 NYLOCK NUT THINManufacturer no. 106937 1Quote Ask for a quote
4 1/4-28 NYLOCK NUT THINManufacturer no. 106935 1Quote Ask for a quote
5 ALR RELEASE LEVER COVERManufacturer no. 560501 1Quote Ask for a quote
6 ALR RELEASE LEVERManufacturer no. 505902 1Quote Ask for a quote
7 650L x 6 COIL SPRINGManufacturer no. 321141 1Quote Ask for a quote
8 ALR SPRING PLUGManufacturer no. 483060 1Quote Ask for a quote
9 ALR BRACKET W/LINK R RIGHTManufacturer no. 880526 1Quote Ask for a quote
9 ALR BRACKET W/LINK L LEFTManufacturer no. 880527 1Quote Ask for a quote
10 1/4" E-CLIPManufacturer no. 342000 1Quote Ask for a quote
11 ALR RETAINING STUDManufacturer no. 481052 1Quote Ask for a quote
12 1/4-28 NYLOCK NUTManufacturer no. 106934 1Quote Ask for a quote
13 ALR PIVOT SADDLE WITH LEDGEManufacturer no. 122991 1Quote Ask for a quote

Adult Angle-Adjustable Footplate Ext Mount (page 156)

2 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Adult Angle-Adjustable Footplate Ext Mount (page 156)
No.PartQtyPriceAction
1 1/4-28 x 7/8 FH C/SManufacturer no. 106978 1Quote Ask for a quote
2 1/4-28 AUTOMATION NUTManufacturer no. 106941 1Quote Ask for a quote

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 156)

11 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 156)
No.PartQtyPriceAction
1 5/16-18 NYLOCK NUT THICKManufacturer no. 106936 1Quote Ask for a quote
2 ALR/ELR PADManufacturer no. 755010 1Quote Ask for a quote
3 ALR/ELR CALF PAD BRACKETManufacturer no. 561096 1Quote Ask for a quote
4 1/4-20 x 5/8 PAN PHILManufacturer no. 281182 1Quote Ask for a quote
5 CALF CLAMP ALRManufacturer no. 561099 1Quote Ask for a quote
6 HHCS 5/16-18 X 3-1/2 ROHSManufacturer no. 107019 1Quote Ask for a quote
7 1/4-20 x 1 1/4 G8 HEX C/SManufacturer no. 107017 1Quote Ask for a quote
8 1/4 x 1/4 ALUMINUM SPACER BLKManufacturer no. 483027 1Quote Ask for a quote
9 WAVE WASHER 6 MMManufacturer no. 104414 1Quote Ask for a quote
1-6 ALR CALF PAD W/BRACKETManufacturer no. 881399 1Quote Ask for a quote
1-9 ALR CALF PAD ASSEMBLY (EA)Manufacturer no. 881400 1Quote Ask for a quote

Round Extension Tube (page 157)

0 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Kids Angle Adj Footplate Assm-Extension Mount (page 158)

16 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Kids Angle Adj Footplate Assm-Extension Mount (page 158)
No.PartQtyPriceAction
1 1/4-28 X 7/8 FH C/SManufacturer no. 106978 1Quote Ask for a quote
2 KIDS ANGLE ADJ FOOTPLATE 10" RManufacturer no. 500635 1Quote Ask for a quote
2 KIDS ANGLE ADJ FOOTPLATE 10" LManufacturer no. 500636 1Quote Ask for a quote
2 KIDS ANGLE ADJ FOOTPLATE 11" RManufacturer no. 500637 1Quote Ask for a quote
2 KIDS ANGLE ADJ FOOTPLATE 11" LManufacturer no. 500638 1Quote Ask for a quote
2 KIDS ANGLE ADJ FOOTPLATE 12" RManufacturer no. 500639 1Quote Ask for a quote
2 KIDS ANGLE ADJ FOOTPLATE 12" LManufacturer no. 500640 1Quote Ask for a quote
2 KIDS ANGLE ADJ FOOTPLATE 13" RManufacturer no. 500641 1Quote Ask for a quote
2 KIDS ANGLE ADJ FOOTPLATE 13" LManufacturer no. 500642 1Quote Ask for a quote
2 KIDS ANGLE ADJ FOOTPLATE 14" RManufacturer no. 500643 1Quote Ask for a quote
2 KIDS ANGLE ADJ FOOTPLATE 14" LManufacturer no. 500644 1Quote Ask for a quote
2 KIDS ANGLE ADJ FOOTPLATE 15" RManufacturer no. 500645 1Quote Ask for a quote
2 KIDS ANGLE ADJ FOOTPLATE 15" LManufacturer no. 500646 1Quote Ask for a quote
2 KIDS ANGLE ADJ FOOTPLATE 16" RManufacturer no. 500647 1Quote Ask for a quote
2 KIDS ANGLE ADJ FOOTPLATE 16" LManufacturer no. 500648 1Quote Ask for a quote
3 3/4" CLAMP ADJ FOOTPLATEManufacturer no. 550350 1Quote Ask for a quote

Composite Footplate (page 159)

19 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Composite Footplate (page 159)
No.PartQtyPriceAction
1 1/4 - 28 NYLOCK NUTManufacturer no. 106935 1Quote Ask for a quote
2 1/4 - 28 x 2 1/2 SOC C/SManufacturer no. 226165 1Quote Ask for a quote
3 COMPOSITE FOOTPLATE 14 -15 (16 -18 V ) 14 -15 OR 16 -18VManufacturer no. 561200 1Quote Ask for a quote
3 COMPOSITE FOOTPLATE 16 -17 (19 -20 V ) 16 -17 OR 19 -20VManufacturer no. 561210 1Quote Ask for a quote
3 COMPOSITE FOOTPLATE 18 -20 18 -20Manufacturer no. 561220 1Quote Ask for a quote
4A HEEL LOOP 14-15 COMPOSITE (14 -15 or 16 -18V) 14 -15 OR 16 -18VManufacturer no. 741151 1Quote Ask for a quote
4A HEEL LOOP 16 -17 or 19 -20V 16 -17 OR 19 -20VManufacturer no. 741156 1Quote Ask for a quote
4A HEEL LOOP 18 -20 COMPOSITE/14-15 ANG ADJ 18 -20Manufacturer no. 741153 1Quote Ask for a quote
4A HEEL LOOP COMPOSITE FT 14-15 PAIR 14 -15 OR 16 -18VManufacturer no. 902270 1Quote Ask for a quote
4A HEEL LOOP COMPOSITE FT 16-17 PAIR 16 -17 OR 19 -20VManufacturer no. 902271 1Quote Ask for a quote
4A HEEL LOOP COMPOSITE FT 18-20 PAIR 18 -20Manufacturer no. 902272 1Quote Ask for a quote
4B HEEL LOOP 14-15 COMPOSITE HEMI 14 -15 HEMIManufacturer no. 741154 1Quote Ask for a quote
4B HEEL LOOP 16-17 COMPOSITE HEMI 16 -17 HEMIManufacturer no. 741155 1Quote Ask for a quote
4B HEEL LOOP 18-20 COMPOSITE HEMI 18 -10 HEMIManufacturer no. 741153 1Quote Ask for a quote
4B HEEL LOOPS HEMI COMPOSITE 14-15 PAIR 14 -15 HEMIManufacturer no. 902260 1Quote Ask for a quote
4B HEEL LOOPS HEMI COMPOSITE 16-17 PAIR 16 -17 HEMIManufacturer no. 902261 1Quote Ask for a quote
4B HEEL LOOPS HEMI COMPOSITE 18-20 PAIR 18 -20 HEMIManufacturer no. 902262 1Quote Ask for a quote
5 HEEL LOOP PEGManufacturer no. 561040 1Quote Ask for a quote
6 1/4 AN WASHER FLAT THINManufacturer no. 106944 1Quote Ask for a quote

Kids Angle Adjustable Footplate Ext Mount

1 part

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Kids Angle Adjustable Footplate Ext Mount
No.PartQtyPriceAction
1 FHCS 1/4 -28 x 7/8 ROHSManufacturer no. 106978 1Quote Ask for a quote

90 Deg Elevating Calf Pad

10 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 90 Deg Elevating Calf Pad
No.PartQtyPriceAction
1 5/16-18 x 2" BH C/S BLKManufacturer no. 226217 1Quote Ask for a quote
2 CALF PAD TROUGH STYLE KIDSManufacturer no. 755013 1Quote Ask for a quote
3 1" WASHER 5/16" HOLEManufacturer no. 561016 1Quote Ask for a quote
4 ELR ELEVATING TUBE CLAMPManufacturer no. 561097 1Quote Ask for a quote
5 5/16 -18 NYLOCK NUT THINManufacturer no. 106937 1Quote Ask for a quote
6 HHCS 1/4-20 X 1 ROHSManufacturer no. 106958 1Quote Ask for a quote
7 6mm WASHER WAVEManufacturer no. 262130 1Quote Ask for a quote
8 1/4 x 1/4 ALUMINUM SPACERManufacturer no. 483027 1Quote Ask for a quote
9 KIDS ALR RETAINING PLUGManufacturer no. 500151 1Quote Ask for a quote
1-9 ELR TROUGH PAD ASSM KIDSManufacturer no. 880533 1Quote Ask for a quote

Adult Angle-Adjustable Footplate Ext Mount (page 163)

2 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Adult Angle-Adjustable Footplate Ext Mount (page 163)
No.PartQtyPriceAction
1 1/4-28 x 7/8 FH C/SManufacturer no. 106978 1Quote Ask for a quote
2 1/4-28 AUTOMATION NUTManufacturer no. 106941 1Quote Ask for a quote

Kids Angle Adj Footplate Front Mount (page 163)

18 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Kids Angle Adj Footplate Front Mount (page 163)
No.PartQtyPriceAction
1 FHCS 1/4-28 X 7/8 ROHSManufacturer no. 106978 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 10 RIGHTManufacturer no. 500635 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 10 LEFTManufacturer no. 500636 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 11 RIGHTManufacturer no. 500637 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 11 LEFTManufacturer no. 500638 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 12 RIGHTManufacturer no. 500639 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 12 LEFTManufacturer no. 500640 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 13 RIGHTManufacturer no. 500641 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 13 LEFTManufacturer no. 500642 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 14 RIGHTManufacturer no. 500643 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 14 LEFTManufacturer no. 500644 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 15 RIGHTManufacturer no. 500645 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 15 LEFTManufacturer no. 500646 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 16 RIGHTManufacturer no. 500647 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 16 LEFTManufacturer no. 500648 1Quote Ask for a quote
3 3/4 CLAMP ADJ FOOTPLATEManufacturer no. 550350 1Quote Ask for a quote
4 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
5 1/4-28 X 1.85 BH C/S BLK ZNManufacturer no. 226147 1Quote Ask for a quote

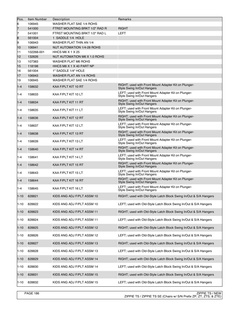

Exploded view, page 164

39 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 164
No.PartQtyPriceAction
6 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106945 1Quote Ask for a quote
7 FTRST MOUNTING BRKT 1/2" RAD R RIGHTManufacturer no. 541000 1Quote Ask for a quote
7 FTRST MOUNTING BRKT 1/2" RAD L LEFTManufacturer no. 541001 1Quote Ask for a quote
8 1 SADDLE 1/4 HOLEManufacturer no. 561004 1Quote Ask for a quote
9 WASHER FLAT THIN AN 1/4Manufacturer no. 106943 1Quote Ask for a quote
10 NUT AUTOMATION 1/4-28 ROHSManufacturer no. 106941 1Quote Ask for a quote
11 HHCS M6 X 1 X 25Manufacturer no. 102268-001 1Quote Ask for a quote
12 NUT AUTOMATION M6 X 1.0 ROHSManufacturer no. 132626 1Quote Ask for a quote
13 WASHER FLAT M6 ROHSManufacturer no. 107383 1Quote Ask for a quote
15 HHCS M6 X 1 X 40 PART NPManufacturer no. 118198 1Quote Ask for a quote
16 1" SADDLE 1/4" HOLEManufacturer no. 561004 1Quote Ask for a quote
17 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
19 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106945 1Quote Ask for a quote
1-4 KAA F/PLT KIT 10 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158632 1Quote Ask for a quote
1-4 KAA F/PLT KIT 10 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158633 1Quote Ask for a quote
1-4 KAA F/PLT KIT 11 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158634 1Quote Ask for a quote
1-4 KAA F/PLT KIT 11 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158635 1Quote Ask for a quote
1-4 KAA F/PLT KIT 12 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158636 1Quote Ask for a quote
1-4 KAA F/PLT KIT 12 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158637 1Quote Ask for a quote
1-4 KAA F/PLT KIT 13 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158638 1Quote Ask for a quote
1-4 KAA F/PLT KIT 13 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158639 1Quote Ask for a quote
1-4 KAA F/PLT KIT 14 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158640 1Quote Ask for a quote
1-4 KAA F/PLT KIT 14 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158641 1Quote Ask for a quote
1-4 KAA F/PLT KIT 15 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158642 1Quote Ask for a quote
1-4 KAA F/PLT KIT 15 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158643 1Quote Ask for a quote
1-4 KAA F/PLT KIT 16 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158644 1Quote Ask for a quote
1-4 KAA F/PLT KIT 16 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158645 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 10 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828821 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 10 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828822 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 11 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828823 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 11 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828824 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 12 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828825 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 12 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828826 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 13 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828827 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 13 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828828 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 14 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828829 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 14 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828830 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 15 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828831 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 15 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828832 1Quote Ask for a quote

Multi-Position Latch Stud Support (page 165)

3 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Multi-Position Latch Stud Support (page 165)
No.PartQtyPriceAction
1 LATCH STUD SUPPORT R MULTIPOS SingleManufacturer no. 112807 1Quote Ask for a quote
1 LATCH STUD SUPPORT L MULTIPOS SingleManufacturer no. 112808 1Quote Ask for a quote
1 LATCH STUD SUPPORT PR MULTIPOS PairManufacturer no. 112809 1Quote Ask for a quote

Adult Angle-Adj Footplate Front Mount (page 166)

22 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Adult Angle-Adj Footplate Front Mount (page 166)
No.PartQtyPriceAction
1 FHCS 1/4-28 X 7/8 ROHSManufacturer no. 106978 1Quote Ask for a quote
2 NUT AUTOMATION 1/4-28 ROHSManufacturer no. 106941 1Quote Ask for a quote
3 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
4 1" SADDLE 1/4" HOLEManufacturer no. 561004 1Quote Ask for a quote
5 FOOTREST MOUNTING BRKT 1/2" RAD R RIGHTManufacturer no. 541000 1Quote Ask for a quote
5 FOOTREST MOUNTING BRKT 1/2" RAD L LEFTManufacturer no. 541001 1Quote Ask for a quote
6 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106945 1Quote Ask for a quote
7 BHCS 1/4-28 X 2Manufacturer no. 106964 1Quote Ask for a quote
8 3/4" CLAMP ADJ FOOTPLATEManufacturer no. 550350 1Quote Ask for a quote
9 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
10 HEEL LOOP PEGManufacturer no. 561040 1Quote Ask for a quote
11 HEEL LOOP 18-20 CMPST/14-15 ANG ADJ USED W/ 14-15"/16-17" ADULT ANG ADJ FTPLTSManufacturer no. 741153 1Quote Ask for a quote
11 HEEL LOOP ADLT ADJ F/PLT 18-20 USED W/ 18 -20" ADULT ANG ADJ FTPLTSManufacturer no. 741253 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 10/11 RIGHTManufacturer no. 500656 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 10/11 LEFTManufacturer no. 500657 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 12/13 RIGHTManufacturer no. 500658 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 12/13 LEFTManufacturer no. 500659 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 14/15 RIGHTManufacturer no. 500660 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 14/15 LEFTManufacturer no. 500661 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 16/17 RIGHTManufacturer no. 500662 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 16/17 LEFTManufacturer no. 500663 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 18-20 RIGHTManufacturer no. 500664 1Quote Ask for a quote

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 166)

9 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 166)
No.PartQtyPriceAction
1 1" INSERT PLUG .065 RIBSManufacturer no. 561062 1Quote Ask for a quote
8 BUSHING, FOOTREST, DIRECTManufacturer no. 128357 1Quote Ask for a quote
13 FHCSM6X1X35FULLNPManufacturer no. 103500-010 1Quote Ask for a quote
14 NUT HEX NYLOCK M6X1.0Manufacturer no. 104381 1Quote Ask for a quote
15 WAVE WASHER 6 MMManufacturer no. 104414 1Quote Ask for a quote
1-11 80D HANGER R EXT Right-hangers that use extensionManufacturer no. 136186S 1Quote Ask for a quote
1-11 80D HANGER L EXT Left-hangers that use extensionManufacturer no. 136187S 1Quote Ask for a quote
8-11 FOOTREST CLAMP KITManufacturer no. 136188 1Quote Ask for a quote
12-15 LATCH RECEIVER KITManufacturer no. 119514 1Quote Ask for a quote

Z-Finity Swing I/O Direct Mount Hangers

7 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Z-Finity Swing I/O Direct Mount Hangers
No.PartQtyPriceAction
1 1" INSERT PLUG .065 RIBSManufacturer no. 561062 1Quote Ask for a quote
9 FHCSM6X1X35FULLNPManufacturer no. 103500-010 1Quote Ask for a quote
10 NUT HEX NYLOCK M6X1.0Manufacturer no. 104381 1Quote Ask for a quote
11 WAVE WASHER 6 MMManufacturer no. 104414 1Quote Ask for a quote
1-7 80D HANGER R DIRECT RightManufacturer no. 136184 1Quote Ask for a quote
1-7 80D HANGER L DIRECT LeftManufacturer no. 136185 1Quote Ask for a quote
8-11 LATCH RECEIVER KITManufacturer no. 119514 1Quote Ask for a quote

Articulating Hanger

14 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Articulating Hanger
No.PartQtyPriceAction
1 5/16-18 x 2 BH C/S SHT THREADManufacturer no. 106983 1Quote Ask for a quote
2 ALR COVER STDManufacturer no. 562720 1Quote Ask for a quote
3 5/16-18 NYLOCK NUT THINManufacturer no. 106937 1Quote Ask for a quote
4 1/4-28 NYLOCK NUT THINManufacturer no. 106935 1Quote Ask for a quote
5 ALR RELEASE LEVER COVERManufacturer no. 560501 1Quote Ask for a quote
6 ALR RELEASE LEVERManufacturer no. 505902 1Quote Ask for a quote
7 650L x 6 COIL SPRINGManufacturer no. 321141 1Quote Ask for a quote
8 ALR SPRING PLUGManufacturer no. 483060 1Quote Ask for a quote
9 ALR BRACKET W/LINK R RIGHTManufacturer no. 880526 1Quote Ask for a quote
9 ALR BRACKET W/LINK L LEFTManufacturer no. 880527 1Quote Ask for a quote
10 1/4" E-CLIPManufacturer no. 342000 1Quote Ask for a quote
11 ALR RETAINING STUDManufacturer no. 481052 1Quote Ask for a quote
12 1/4-28 NYLOCK NUTManufacturer no. 106934 1Quote Ask for a quote
13 ALR PIVOT SADDLE WITH LEDGEManufacturer no. 122991 1Quote Ask for a quote

Articulating Legrest Disc. 12/12/02

10 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Articulating Legrest Disc. 12/12/02
No.PartQtyPriceAction
1 ALR COVER STDManufacturer no. 562720 1Quote Ask for a quote
2 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
3 ALR RATCHET BLOCKManufacturer no. 505900 1Quote Ask for a quote
4 ALR RATCHET RODManufacturer no. 483062 1Quote Ask for a quote
5 1" SADDLE 5/16" HOLEManufacturer no. 561006 1Quote Ask for a quote
6 ALR TUBE ONLY (SPECIFY COLOR)Manufacturer no. 505026S 1Quote Ask for a quote
7 1" TUBE END BUSHING THINManufacturer no. 561082 1Quote Ask for a quote
8 ALR BRACKET W/LINK RIGHTManufacturer no. 880526 1Quote Ask for a quote
8 ALR BRACKET W/LINK LEFTManufacturer no. 880527 1Quote Ask for a quote
9 ALR RETAINING STUDManufacturer no. 481052 1Quote Ask for a quote

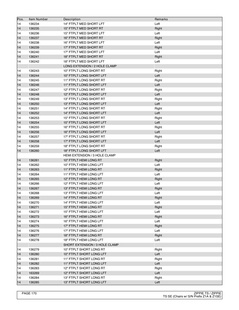

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 170)

53 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 170)
No.PartQtyPriceAction
14 14" FTPLT MED SHORT LFT LeftManufacturer no. 136234 1Quote Ask for a quote
14 15" FTPLT MED SHORT RT RightManufacturer no. 136235 1Quote Ask for a quote
14 15" FTPLT MED SHORT LFT LeftManufacturer no. 136236 1Quote Ask for a quote
14 16" FTPLT MED SHORT RT RightManufacturer no. 136237 1Quote Ask for a quote
14 16" FTPLT MED SHORT LFT LeftManufacturer no. 136238 1Quote Ask for a quote
14 17" FTPLT MED SHORT RT RightManufacturer no. 136239 1Quote Ask for a quote
14 17" FTPLT MED SHORT LFT LeftManufacturer no. 136240 1Quote Ask for a quote
14 18" FTPLT MED SHORT RT RightManufacturer no. 136241 1Quote Ask for a quote
14 18" FTPLT MED SHORT LFT LeftManufacturer no. 136242 1Quote Ask for a quote
14 10" FTPLT LONG SHORT RT RightManufacturer no. 136243 1Quote Ask for a quote
14 10" FTPLT LONG SHORT LFT LeftManufacturer no. 136244 1Quote Ask for a quote
14 11" FTPLT LONG SHORT RT RightManufacturer no. 136245 1Quote Ask for a quote
14 11" FTPLT LONG SHORT LFT LeftManufacturer no. 136246 1Quote Ask for a quote
14 12" FTPLT LONG SHORT RT RightManufacturer no. 136247 1Quote Ask for a quote
14 12" FTPLT LONG SHORT LFT LeftManufacturer no. 136248 1Quote Ask for a quote
14 13" FTPLT LONG SHORT RT RightManufacturer no. 136249 1Quote Ask for a quote
14 13" FTPLT LONG SHORT LFT LeftManufacturer no. 136250 1Quote Ask for a quote
14 14" FTPLT LONG SHORT RT RightManufacturer no. 136251 1Quote Ask for a quote
14 14" FTPLT LONG SHORT LFT LeftManufacturer no. 136252 1Quote Ask for a quote
14 15" FTPLT LONG SHORT RT RightManufacturer no. 136253 1Quote Ask for a quote
14 15" FTPLT LONG SHORT LFT LeftManufacturer no. 136254 1Quote Ask for a quote
14 16" FTPLT LONG SHORT RT RightManufacturer no. 136255 1Quote Ask for a quote
14 16" FTPLT LONG SHORT LFT LeftManufacturer no. 136256 1Quote Ask for a quote
14 17" FTPLT LONG SHORT RT RightManufacturer no. 136257 1Quote Ask for a quote
14 17" FTPLT LONG SHORT LFT LeftManufacturer no. 136258 1Quote Ask for a quote
14 18" FTPLT LONG SHORT RT RightManufacturer no. 136259 1Quote Ask for a quote
14 18" FTPLT LONG SHORT LFT LeftManufacturer no. 136260 1Quote Ask for a quote
14 10" FTPLT HEMI LONG RT RightManufacturer no. 136261 1Quote Ask for a quote
14 10" FTPLT HEMI LONG LFT LeftManufacturer no. 136262 1Quote Ask for a quote
14 11" FTPLT HEMI LONG RT RightManufacturer no. 136263 1Quote Ask for a quote
14 11" FTPLT HEMI LONG LFT LeftManufacturer no. 136264 1Quote Ask for a quote
14 12" FTPLT HEMI LONG RT RightManufacturer no. 136265 1Quote Ask for a quote
14 12" FTPLT HEMI LONG LFT LeftManufacturer no. 136266 1Quote Ask for a quote
14 13" FTPLT HEMI LONG RT RightManufacturer no. 136267 1Quote Ask for a quote
14 13" FTPLT HEMI LONG LFT LeftManufacturer no. 136268 1Quote Ask for a quote
14 14" FTPLT HEMI LONG RT RightManufacturer no. 136269 1Quote Ask for a quote
14 14" FTPLT HEMI LONG LFT LeftManufacturer no. 136270 1Quote Ask for a quote
14 15" FTPLT HEMI LONG RT RightManufacturer no. 136271 1Quote Ask for a quote
14 15" FTPLT HEMI LONG LFT LeftManufacturer no. 136272 1Quote Ask for a quote
14 16" FTPLT HEMI LONG RT RightManufacturer no. 136273 1Quote Ask for a quote
14 16" FTPLT HEMI LONG LFT LeftManufacturer no. 136274 1Quote Ask for a quote
14 17" FTPLT HEMI LONG RT RightManufacturer no. 136275 1Quote Ask for a quote
14 17" FTPLT HEMI LONG LFT LeftManufacturer no. 136276 1Quote Ask for a quote
14 18" FTPLT HEMI LONG RT RightManufacturer no. 136277 1Quote Ask for a quote
14 18" FTPLT HEMI LONG LFT LeftManufacturer no. 136278 1Quote Ask for a quote
14 10" FTPLT SHORT LONG RT RightManufacturer no. 136279 1Quote Ask for a quote
14 10" FTPLT SHORT LONG LFT LeftManufacturer no. 136280 1Quote Ask for a quote
14 11" FTPLT SHORT LONG RT RightManufacturer no. 136281 1Quote Ask for a quote
14 11" FTPLT SHORT LONG LFT LeftManufacturer no. 136282 1Quote Ask for a quote
14 12" FTPLT SHORT LONG RT RightManufacturer no. 136283 1Quote Ask for a quote
14 12" FTPLT SHORT LONG LFT LeftManufacturer no. 163269 1Quote Ask for a quote
14 13" FTPLT SHORT LONG RT RightManufacturer no. 136284 1Quote Ask for a quote
14 13" FTPLT SHORT LONG LFT LeftManufacturer no. 136285 1Quote Ask for a quote

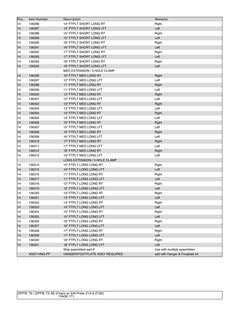

Exploded view, page 171

46 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 171
No.PartQtyPriceAction
14 14" FTPLT SHORT LONG RT RightManufacturer no. 136286 1Quote Ask for a quote
14 14" FTPLT SHORT LONG LFT LeftManufacturer no. 136287 1Quote Ask for a quote
14 15" FTPLT SHORT LONG RT RightManufacturer no. 136288 1Quote Ask for a quote
14 15" FTPLT SHORT LONG LFT LeftManufacturer no. 136289 1Quote Ask for a quote
14 16" FTPLT SHORT LONG RT RightManufacturer no. 136290 1Quote Ask for a quote
14 16" FTPLT SHORT LONG LFT LeftManufacturer no. 136291 1Quote Ask for a quote
14 17" FTPLT SHORT LONG RT RightManufacturer no. 136292 1Quote Ask for a quote
14 17" FTPLT SHORT LONG LFT LeftManufacturer no. 136293 1Quote Ask for a quote
14 18" FTPLT SHORT LONG RT RightManufacturer no. 136294 1Quote Ask for a quote
14 18" FTPLT SHORT LONG LFT LeftManufacturer no. 136295 1Quote Ask for a quote
14 10" FTPLT MED LONG RT RightManufacturer no. 136296 1Quote Ask for a quote
14 10" FTPLT MED LONG LFT LeftManufacturer no. 136297 1Quote Ask for a quote
14 11" FTPLT MED LONG RT RightManufacturer no. 136298 1Quote Ask for a quote
14 11" FTPLT MED LONG LFT LeftManufacturer no. 136299 1Quote Ask for a quote
14 12" FTPLT MED LONG RT RightManufacturer no. 136300 1Quote Ask for a quote
14 12" FTPLT MED LONG LFT LeftManufacturer no. 136301 1Quote Ask for a quote
14 13" FTPLT MED LONG RT RightManufacturer no. 136302 1Quote Ask for a quote
14 13" FTPLT MED LONG LFT LeftManufacturer no. 136303 1Quote Ask for a quote
14 14" FTPLT MED LONG RT RightManufacturer no. 136304 1Quote Ask for a quote
14 14" FTPLT MED LONG LFT LeftManufacturer no. 136305 1Quote Ask for a quote
14 15" FTPLT MED LONG RT RightManufacturer no. 136306 1Quote Ask for a quote
14 15" FTPLT MED LONG LFT LeftManufacturer no. 136307 1Quote Ask for a quote
14 16" FTPLT MED LONG RT RightManufacturer no. 136308 1Quote Ask for a quote
14 16" FTPLT MED LONG LFT LeftManufacturer no. 136309 1Quote Ask for a quote
14 17" FTPLT MED LONG RT RightManufacturer no. 136310 1Quote Ask for a quote
14 17" FTPLT MED LONG LFT LeftManufacturer no. 136311 1Quote Ask for a quote
14 18" FTPLT MED LONG RT RightManufacturer no. 136312 1Quote Ask for a quote
14 18" FTPLT MED LONG LFT LeftManufacturer no. 136313 1Quote Ask for a quote
14 10" FTPLT LONG LONG RT RightManufacturer no. 136314 1Quote Ask for a quote
14 10" FTPLT LONG LONG LFT LeftManufacturer no. 136315 1Quote Ask for a quote
14 11" FTPLT LONG LONG RT RightManufacturer no. 136316 1Quote Ask for a quote
14 11" FTPLT LONG LONG LFT LeftManufacturer no. 136317 1Quote Ask for a quote
14 12" FTPLT LONG LONG RT RightManufacturer no. 136318 1Quote Ask for a quote
14 12" FTPLT LONG LONG LFT LeftManufacturer no. 136319 1Quote Ask for a quote
14 13" FTPLT LONG LONG RT RightManufacturer no. 136320 1Quote Ask for a quote
14 13" FTPLT LONG LONG LFT LeftManufacturer no. 136321 1Quote Ask for a quote
14 14" FTPLT LONG LONG RT RightManufacturer no. 136322 1Quote Ask for a quote
14 14" FTPLT LONG LONG LFT LeftManufacturer no. 136323 1Quote Ask for a quote
14 15" FTPLT LONG LONG RT RightManufacturer no. 136324 1Quote Ask for a quote
14 15" FTPLT LONG LONG LFT LeftManufacturer no. 136325 1Quote Ask for a quote
14 16" FTPLT LONG LONG RT RightManufacturer no. 136326 1Quote Ask for a quote
14 16" FTPLT LONG LONG LFT LeftManufacturer no. 136327 1Quote Ask for a quote
14 17" FTPLT LONG LONG RT RightManufacturer no. 136328 1Quote Ask for a quote
14 17" FTPLT LONG LONG LFT LeftManufacturer no. 136329 1Quote Ask for a quote
14 18" FTPLT LONG LONG RT RightManufacturer no. 136330 1Quote Ask for a quote
14 18" FTPLT LONG LONG LFT LeftManufacturer no. 136331 1Quote Ask for a quote

Articulating Hanger Calf Pad

11 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Articulating Hanger Calf Pad
No.PartQtyPriceAction
1 5/16-18 NYLOCK NUT THICKManufacturer no. 106936 1Quote Ask for a quote
2 ALR/ELR PADManufacturer no. 755010 1Quote Ask for a quote
3 ALR/ELR CALF PAD BRACKETManufacturer no. 561096 1Quote Ask for a quote
4 1/4-20 x 5/8 PAN PHILManufacturer no. 281182 1Quote Ask for a quote
5 CALF CLAMP ALRManufacturer no. 561099 1Quote Ask for a quote
6 HHCS 5/16-18 X 3-1/2 ROHSManufacturer no. 107019 1Quote Ask for a quote
7 1/4-20 x 1 1/4 G8 HEX C/SManufacturer no. 107017 1Quote Ask for a quote
8 1/4 x 1/4 ALUMINUM SPACER BLKManufacturer no. 483027 1Quote Ask for a quote
9 WAVE WASHER 6 MMManufacturer no. 104414 1Quote Ask for a quote
1-6 ALR CALF PAD W/BRACKETManufacturer no. 881399 1Quote Ask for a quote
1-9 ALR CALF PAD ASSEMBLY (EA)Manufacturer no. 881400 1Quote Ask for a quote

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 172)

18 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 172)
No.PartQtyPriceAction
1A 10'' ALUM DIVIDED FTRSTManufacturer no. 128360 1Quote Ask for a quote
1B 11'' ALUM DIVIDED FTRSTManufacturer no. 128361 1Quote Ask for a quote
1C 12'' ALUM DIVIDED FTRSTManufacturer no. 128362 1Quote Ask for a quote
1D 13'' ALUM DIVIDED FTRSTManufacturer no. 128363 1Quote Ask for a quote
1E 14'' ALUM DIVIDED FTRSTManufacturer no. 128364 1Quote Ask for a quote
1F 15'' ALUM DIVIDED FTRSTManufacturer no. 128365 1Quote Ask for a quote
1G 16'' ALUM DIVIDED FTRSTManufacturer no. 128366 1Quote Ask for a quote
1H 17" ALUM DIVIDED FTRSTManufacturer no. 128367 1Quote Ask for a quote
1I 18" ALUM DIVIDED FTRSTManufacturer no. 128368 1Quote Ask for a quote
2A SHORT FOOTPLATE CLAMPManufacturer no. 128402 1Quote Ask for a quote
2B LONG FOOTPLATE CLAMPManufacturer no. 128403 1Quote Ask for a quote
3 SHCS, M6X1X25, FULL, PLManufacturer no. 102263-003 1Quote Ask for a quote
4 HALF EXTEN TUBE ADAPTORManufacturer no. 129058 1Quote Ask for a quote
5 BHCS 1/4-28 X 2Manufacturer no. 106964 1Quote Ask for a quote
6 WASHER FLAT M6Manufacturer no. 107383 1Quote Ask for a quote
7 NUT NYLOCK 1/4-28Manufacturer no. 106934 1Quote Ask for a quote
8 WASHER LOCK HI COLLAR 1/4 ROHSManufacturer no. 107367 1Quote Ask for a quote
9 HHCS M6 X 1 X 25Manufacturer no. 102268-001 1Quote Ask for a quote

Round Extension Tube

0 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 174)

18 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 174)
No.PartQtyPriceAction
1A 8" ALUM CONT FTRSTManufacturer no. 128380 1Quote Ask for a quote
1B 9" ALUM CONT FTRSTManufacturer no. 128381 1Quote Ask for a quote
1C 10" ALUM CONT FTRSTManufacturer no. 128382 1Quote Ask for a quote
1D 11'' ALUM CONT FTRSTManufacturer no. 128383 1Quote Ask for a quote
1E 12'' ALUM CONT FTRSTManufacturer no. 128384 1Quote Ask for a quote
1F 13'' ALUM CONT FTRSTManufacturer no. 128385 1Quote Ask for a quote
1G 14'' ALUM CONT FTRSTManufacturer no. 128386 1Quote Ask for a quote
1H 15'' ALUM CONT FTRSTManufacturer no. 128387 1Quote Ask for a quote
1I 16'' ALUM CONT FTRSTManufacturer no. 128388 1Quote Ask for a quote
1J 17'' ALUM CONT FTRSTManufacturer no. 128389 1Quote Ask for a quote
1K 18'' ALUM CONT FTRSTManufacturer no. 128390 1Quote Ask for a quote
2A SHORT FOOTPLATE CLAMPManufacturer no. 128402 1Quote Ask for a quote
2B LONG FOOTPLATE CLAMPManufacturer no. 128403 1Quote Ask for a quote
3 SHCS, M6X1X25, FULL, PLManufacturer no. 102263-003 1Quote Ask for a quote
4 HALF EXTEN TUBE ADAPTORManufacturer no. 129058 1Quote Ask for a quote
5 BHCS 1/4-28 X 2Manufacturer no. 106964 1Quote Ask for a quote
6 WASHER FLAT M6Manufacturer no. 107383 1Quote Ask for a quote
7 EXTEN MOUNT LOWER ADAPTORManufacturer no. 128229 1Quote Ask for a quote

Composite Footplate (page 175)

19 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Composite Footplate (page 175)
No.PartQtyPriceAction
1 1/4 - 28 NYLOCK NUTManufacturer no. 106935 1Quote Ask for a quote
2 1/4 - 28 x 2 1/2 SOC C/SManufacturer no. 226165 1Quote Ask for a quote
3 COMPOSITE FOOTPLATE 14 -15 (16 -18 V ) 14 -15 OR 16 -18VManufacturer no. 561200 1Quote Ask for a quote
3 COMPOSITE FOOTPLATE 16 -17 (19 -20 V ) 16 -17 OR 19 -20VManufacturer no. 561210 1Quote Ask for a quote
3 COMPOSITE FOOTPLATE 18 -20 18 -20Manufacturer no. 561220 1Quote Ask for a quote
4A HEEL LOOP 14-15 COMPOSITE (14 -15 or 16 -18V) 14 -15 OR 16 -18VManufacturer no. 741151 1Quote Ask for a quote
4A HEEL LOOP 16 -17 or 19 -20V 16 -17 OR 19 -20VManufacturer no. 741156 1Quote Ask for a quote
4A HEEL LOOP 18 -20 COMPOSITE/14-15 ANG ADJ 18 -20Manufacturer no. 741153 1Quote Ask for a quote
4A HEEL LOOP COMPOSITE FT 14-15 PAIR 14 -15 OR 16 -18VManufacturer no. 902270 1Quote Ask for a quote
4A HEEL LOOP COMPOSITE FT 16-17 PAIR 16 -17 OR 19 -20VManufacturer no. 902271 1Quote Ask for a quote
4A HEEL LOOP COMPOSITE FT 18-20 PAIR 18 -20Manufacturer no. 902272 1Quote Ask for a quote
4B HEEL LOOP 14-15 COMPOSITE HEMI 14 -15 HEMIManufacturer no. 741154 1Quote Ask for a quote
4B HEEL LOOP 16-17 COMPOSITE HEMI 16 -17 HEMIManufacturer no. 741155 1Quote Ask for a quote
4B HEEL LOOP 18-20 COMPOSITE HEMI 18 -10 HEMIManufacturer no. 741153 1Quote Ask for a quote
4B HEEL LOOPS HEMI COMPOSITE 14-15 PAIR 14 -15 HEMIManufacturer no. 902260 1Quote Ask for a quote
4B HEEL LOOPS HEMI COMPOSITE 16-17 PAIR 16 -17 HEMIManufacturer no. 902261 1Quote Ask for a quote
4B HEEL LOOPS HEMI COMPOSITE 18-20 PAIR 18 -20 HEMIManufacturer no. 902262 1Quote Ask for a quote
5 HEEL LOOP PEGManufacturer no. 561040 1Quote Ask for a quote
6 1/4 AN WASHER FLAT THINManufacturer no. 106944 1Quote Ask for a quote

Adult Angle-Adjustable Footplate Ext Mount (page 177)

2 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Adult Angle-Adjustable Footplate Ext Mount (page 177)
No.PartQtyPriceAction
1 1/4-28 x 7/8 FH C/SManufacturer no. 106978 1Quote Ask for a quote
2 1/4-28 AUTOMATION NUTManufacturer no. 106941 1Quote Ask for a quote

Flip-Up Footrest Direct Mount

18 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Flip-Up Footrest Direct Mount
No.PartQtyPriceAction
1A 8" ALUM CONT FTRSTManufacturer no. 128380 1Quote Ask for a quote
1B 9" ALUM CONT FTRESTManufacturer no. 128381 1Quote Ask for a quote
1C 10" ALUM CONT FTRSTManufacturer no. 128382 1Quote Ask for a quote
1D 11'' ALUM CONT FTRSTManufacturer no. 128383 1Quote Ask for a quote
1E 12'' ALUM CONT FTRSTManufacturer no. 128384 1Quote Ask for a quote
1F 13'' ALUM CONT FTRSTManufacturer no. 128385 1Quote Ask for a quote
1G 14'' ALUM CONT FTRSTManufacturer no. 128386 1Quote Ask for a quote
1H 15'' ALUM CONT FTRSTManufacturer no. 128387 1Quote Ask for a quote
1I 16'' ALUM CONT FTRSTManufacturer no. 128388 1Quote Ask for a quote
1J 17'' ALUM CONT FTRSTManufacturer no. 128389 1Quote Ask for a quote
1K 18'' ALUM CONT FTRSTManufacturer no. 128390 1Quote Ask for a quote
2A SHORT FOOTPLATE CLAMPManufacturer no. 128402 1Quote Ask for a quote
2B LONG FOOTPLATE CLAMPManufacturer no. 128403 1Quote Ask for a quote
3 SHCS, M6X1X25, FULL, PLManufacturer no. 102263-003 1Quote Ask for a quote
4 HALF EXTEN TUBE ADAPTORManufacturer no. 129058 1Quote Ask for a quote
5 BHCS 1/4-28 X 2Manufacturer no. 106964 1Quote Ask for a quote
6 WASHER FLAT M6Manufacturer no. 107383 1Quote Ask for a quote
7 NUT NYLOCK THIN 1/4-28Manufacturer no. 106935 1Quote Ask for a quote

60 Deg Swing In/Out Hanger

9 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 60 Deg Swing In/Out Hanger
No.PartQtyPriceAction
1 1" INSERT PLUG .065 RIBSManufacturer no. 561062 1Quote Ask for a quote
8 BUSHING FOOTRESTManufacturer no. 104160 1Quote Ask for a quote
13 FHCSM6X1X35FULLNPManufacturer no. 103500-010 1Quote Ask for a quote
14 NUT HEX NYLOCK M6X1.0Manufacturer no. 104381 1Quote Ask for a quote
15 WAVE WASHER 6 MMManufacturer no. 104414 1Quote Ask for a quote
1-11 60 D SWING I/O HNGR PNTD LManufacturer no. 122699S 1Quote Ask for a quote
1-11 60 D SWING I/O HNGR PNTD RManufacturer no. 122700S 1Quote Ask for a quote
8-11 FOOTREST CLAMP ASSMManufacturer no. 107485 1Quote Ask for a quote
12-15 LATCH RECEIVER KITManufacturer no. 119514 1Quote Ask for a quote

Kids Angle Adj Footplate Assm-Extension Mount (page 179)

16 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Kids Angle Adj Footplate Assm-Extension Mount (page 179)
No.PartQtyPriceAction
1 1/4-28 X 7/8 FH C/SManufacturer no. 106978 1Quote Ask for a quote
2 KIDS ANGLE ADJ FOOTPLATE 10" RManufacturer no. 500635 1Quote Ask for a quote
2 KIDS ANGLE ADJ FOOTPLATE 10" LManufacturer no. 500636 1Quote Ask for a quote
2 KIDS ANGLE ADJ FOOTPLATE 11" RManufacturer no. 500637 1Quote Ask for a quote
2 KIDS ANGLE ADJ FOOTPLATE 11" LManufacturer no. 500638 1Quote Ask for a quote
2 KIDS ANGLE ADJ FOOTPLATE 12" RManufacturer no. 500639 1Quote Ask for a quote
2 KIDS ANGLE ADJ FOOTPLATE 12" LManufacturer no. 500640 1Quote Ask for a quote
2 KIDS ANGLE ADJ FOOTPLATE 13" RManufacturer no. 500641 1Quote Ask for a quote
2 KIDS ANGLE ADJ FOOTPLATE 13" LManufacturer no. 500642 1Quote Ask for a quote
2 KIDS ANGLE ADJ FOOTPLATE 14" RManufacturer no. 500643 1Quote Ask for a quote
2 KIDS ANGLE ADJ FOOTPLATE 14" LManufacturer no. 500644 1Quote Ask for a quote
2 KIDS ANGLE ADJ FOOTPLATE 15" RManufacturer no. 500645 1Quote Ask for a quote
2 KIDS ANGLE ADJ FOOTPLATE 15" LManufacturer no. 500646 1Quote Ask for a quote
2 KIDS ANGLE ADJ FOOTPLATE 16" RManufacturer no. 500647 1Quote Ask for a quote
2 KIDS ANGLE ADJ FOOTPLATE 16" LManufacturer no. 500648 1Quote Ask for a quote
3 3/4" CLAMP ADJ FOOTPLATEManufacturer no. 550350 1Quote Ask for a quote

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 180)

9 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 180)
No.PartQtyPriceAction
1 1" INSERT PLUG .065 RIBSManufacturer no. 561062 1Quote Ask for a quote
8 BUSHING FOOTRESTManufacturer no. 104160 1Quote Ask for a quote
13 FHCSM6X1X35FULLNPManufacturer no. 103500-010 1Quote Ask for a quote
14 NUT HEX NYLOCK M6X1.0Manufacturer no. 104381 1Quote Ask for a quote
15 WAVE WASHER 6 MMManufacturer no. 104414 1Quote Ask for a quote
1-11 70 D SWING I/O HNGR PNTD L LeftManufacturer no. 119458S 1Quote Ask for a quote
1-11 70 D SWING I/O HNGR PNTD R RightManufacturer no. 119459S 1Quote Ask for a quote
8-11 FOOTREST CLAMP ASSMManufacturer no. 107485 1Quote Ask for a quote
12-15 LATCH RECEIVER KITManufacturer no. 119514 1Quote Ask for a quote

80 Deg Swing In/Out Hanger

9 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 80 Deg Swing In/Out Hanger
No.PartQtyPriceAction
1 1" INSERT PLUG .065 RIBSManufacturer no. 561062 1Quote Ask for a quote
8 BUSHING FOOTRESTManufacturer no. 104160 1Quote Ask for a quote
13 FHCSM6X1X35FULLNPManufacturer no. 103500-010 1Quote Ask for a quote
14 NUT HEX NYLOCK M6X1.0Manufacturer no. 104381 1Quote Ask for a quote
15 WAVE WASHER 6 MMManufacturer no. 104414 1Quote Ask for a quote
1-11 80 D SWING I/O HNGR PNTD L LeftManufacturer no. 119466S 1Quote Ask for a quote
1-11 80 D SWING I/O HNGR PNTD R RightManufacturer no. 119467S 1Quote Ask for a quote
8-11 FOOTREST CLAMP ASSMManufacturer no. 107485 1Quote Ask for a quote
12-15 LATCH RECEIVER KITManufacturer no. 119514 1Quote Ask for a quote

90 Deg Articulating Hanger

11 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 90 Deg Articulating Hanger
No.PartQtyPriceAction
1 5/16-18 x 2 BH C/S SHT THREADManufacturer no. 106983 1Quote Ask for a quote
2 ALR COVER STDManufacturer no. 562720 1Quote Ask for a quote
3 5/16-18 NYLOCK NUT THINManufacturer no. 106937 1Quote Ask for a quote
4 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
5 ALR RELEASE LEVER COVERManufacturer no. 560501 1Quote Ask for a quote
6 ALR RELEASE LEVERManufacturer no. 505902 1Quote Ask for a quote
7 650L x 6 COIL SPRINGManufacturer no. 321141 1Quote Ask for a quote
8 ALR SPRING PLUGManufacturer no. 483060 1Quote Ask for a quote
9 ALR BRACKET W/LINK RManufacturer no. 880526 1Quote Ask for a quote
9 ALR BRACKET W/LINK LManufacturer no. 880527 1Quote Ask for a quote
10 1/4" E-CLIPManufacturer no. 342000 1Quote Ask for a quote

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 182)

13 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 182)
No.PartQtyPriceAction
1 1" INSERT PLUG .065 RIBSManufacturer no. 561062 1Quote Ask for a quote
2 5/16-18 X 2" BH C/S BLKManufacturer no. 226217 1Quote Ask for a quote
4 PLASTIC PIVOT SADDLEManufacturer no. 561197 1Quote Ask for a quote
5 5/16-18 NYLOCK NUT THINManufacturer no. 202102 1Quote Ask for a quote
6 #8 LOW FLT HD TAP SCREWManufacturer no. 118695 1Quote Ask for a quote
8 BUSHING FOOTRESTManufacturer no. 104160 1Quote Ask for a quote
13 FHCSM6X1X35FULLNPManufacturer no. 103500-010 1Quote Ask for a quote
14 NUT HEX NYLOCK M6X1.0Manufacturer no. 104381 1Quote Ask for a quote
15 WAVE WASHER 6 MMManufacturer no. 104414 1Quote Ask for a quote
1-11 60 D SWING HANGER HEMI R RightManufacturer no. 129702S 1Quote Ask for a quote
1-11 60 D SWING HANGER HEMI L LeftManufacturer no. 129703S 1Quote Ask for a quote
8-11 FOOTREST CLAMP ASSMManufacturer no. 107485 1Quote Ask for a quote
12-15 LATCH RECEIVER KITManufacturer no. 119514 1Quote Ask for a quote

70 Deg Swing In/Out Hemi Hanger

13 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 70 Deg Swing In/Out Hemi Hanger
No.PartQtyPriceAction
1 1" INSERT PLUG .065 RIBSManufacturer no. 561062 1Quote Ask for a quote
2 5/16-18 X 2" BH C/S BLKManufacturer no. 226217 1Quote Ask for a quote
4 PLASTIC PIVOT SADDLEManufacturer no. 561197 1Quote Ask for a quote
5 5/16-18 NYLOCK NUT THINManufacturer no. 202102 1Quote Ask for a quote
6 #8 LOW FLT HD TAP SCREWManufacturer no. 118695 1Quote Ask for a quote
8 BUSHING FOOTRESTManufacturer no. 104160 1Quote Ask for a quote
13 FHCSM6X1X35FULLNPManufacturer no. 103500-010 1Quote Ask for a quote
14 NUT HEX NYLOCK M6X1.0Manufacturer no. 104381 1Quote Ask for a quote
15 WAVE WASHER 6 MMManufacturer no. 104414 1Quote Ask for a quote
1-11 70 D SWING HANGER HEMI R RightManufacturer no. 129704S 1Quote Ask for a quote
1-11 70 D SWING HANGER HEMI L LeftManufacturer no. 129705S 1Quote Ask for a quote
8-11 FOOTREST CLAMP ASSMManufacturer no. 107485 1Quote Ask for a quote
12-15 LATCH RECEIVER KITManufacturer no. 119514 1Quote Ask for a quote

90 Deg Articulating Hanger Calf Pad

12 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 90 Deg Articulating Hanger Calf Pad
No.PartQtyPriceAction
1 5/16-18 NYLOCK NUT THICKManufacturer no. 106936 1Quote Ask for a quote
2 4 x 5 OVAL PADManufacturer no. 755020 1Quote Ask for a quote
3 ALR/ELR CALF PAD BRACKETManufacturer no. 561096 1Quote Ask for a quote
4 1/4-20 x 3/4 PAN PHILManufacturer no. 281181 1Quote Ask for a quote
5 CALF CLAMP ALRManufacturer no. 561099 1Quote Ask for a quote
6 HHCS 5/16-18 X 3-1/2 ROHSManufacturer no. 107019 1Quote Ask for a quote
7 1/4-20 x 1 1/4 G8 HEX C/SManufacturer no. 107017 1Quote Ask for a quote
8 1/4 x 1/4 ALUMINUM SPACERManufacturer no. 483027 1Quote Ask for a quote
9 6mm WASHER WAVEManufacturer no. 262130 1Quote Ask for a quote
10 KIDS ALR RETAINING PLUGManufacturer no. 500151 1Quote Ask for a quote
1-6 KIDS ALR OVAL PAD W/BRACKETManufacturer no. 881401 1Quote Ask for a quote
1-10 KIDS ALR OVAL PAD ASSEMBLY (EA)Manufacturer no. 881402 1Quote Ask for a quote

Kids Angle Adj Footplate Front Mount (page 184)

18 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Kids Angle Adj Footplate Front Mount (page 184)
No.PartQtyPriceAction
1 FHCS 1/4-28 X 7/8 ROHSManufacturer no. 106978 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 10 RIGHTManufacturer no. 500635 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 10 LEFTManufacturer no. 500636 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 11 RIGHTManufacturer no. 500637 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 11 LEFTManufacturer no. 500638 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 12 RIGHTManufacturer no. 500639 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 12 LEFTManufacturer no. 500640 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 13 RIGHTManufacturer no. 500641 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 13 LEFTManufacturer no. 500642 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 14 RIGHTManufacturer no. 500643 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 14 LEFTManufacturer no. 500644 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 15 RIGHTManufacturer no. 500645 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 15 LEFTManufacturer no. 500646 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 16 RIGHTManufacturer no. 500647 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 16 LEFTManufacturer no. 500648 1Quote Ask for a quote
3 3/4 CLAMP ADJ FOOTPLATEManufacturer no. 550350 1Quote Ask for a quote
4 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
5 1/4-28 X 1.85 BH C/S BLK ZNManufacturer no. 226147 1Quote Ask for a quote

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 184)

23 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 184)
No.PartQtyPriceAction
1 1" INSERT PLUG .065 RIBSManufacturer no. 561062 1Quote Ask for a quote
2 5/16-18 X 2" BH C/S BLKManufacturer no. 226217 1Quote Ask for a quote
4 PLASTIC PIVOT SADDLEManufacturer no. 561197 1Quote Ask for a quote
5 5/16-18 NYLOCK NUT THINManufacturer no. 202102 1Quote Ask for a quote
6 #8 LOW FLT HD TAP SCREWManufacturer no. 118695 1Quote Ask for a quote
9 FHCSM6X1X35FULLNPManufacturer no. 103500-010 1Quote Ask for a quote
10 NUT HEX NYLOCK M6X1.0Manufacturer no. 104381 1Quote Ask for a quote
11 WAVE WASHER 6 MMManufacturer no. 104414 1Quote Ask for a quote
12 HHCS M6 X 1 X 25Manufacturer no. 102268-001 1Quote Ask for a quote
13 NUT HEX NYLOCK M6 X 1Manufacturer no. 104381 1Quote Ask for a quote
14 WASHER FLAT M6 ROHSManufacturer no. 107383 1Quote Ask for a quote
15 FOOTPLATE ADAPTER FM 3" tallManufacturer no. 119240 1Quote Ask for a quote
16 HHCS M6X1X40 PART NPManufacturer no. 118198 1Quote Ask for a quote
17 1" SADDLE 1/4" HOLEManufacturer no. 561004 1Quote Ask for a quote
18 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
19 FOOTREST MOUNTING BRKT 1/2" RAD R RightManufacturer no. 541000 1Quote Ask for a quote
19 FOOTREST MOUNTING BRKT 1/2" RAD L LeftManufacturer no. 541001 1Quote Ask for a quote
20 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106945 1Quote Ask for a quote
1-7 70 D FRNT MNT SWING IN/OUT HANGER L LeftManufacturer no. 119456S 1Quote Ask for a quote
1-7 70 D FRNT MNT SWING IN/OUT HANGER R RightManufacturer no. 119457S 1Quote Ask for a quote
8-11 LATCH RECEIVER KITManufacturer no. 119514 1Quote Ask for a quote
12-20 AAA FRNT MNT ADAPTER KIT PR PairManufacturer no. 129764 1Quote Ask for a quote
21 1" INSERT PLUG .083Manufacturer no. 561002 1Quote Ask for a quote

Exploded view, page 185

39 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 185
No.PartQtyPriceAction
6 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106945 1Quote Ask for a quote
7 FTRST MOUNTING BRKT 1/2" RAD R RIGHTManufacturer no. 541000 1Quote Ask for a quote
7 FTRST MOUNTING BRKT 1/2" RAD L LEFTManufacturer no. 541001 1Quote Ask for a quote
8 1 SADDLE 1/4 HOLEManufacturer no. 561004 1Quote Ask for a quote
9 WASHER FLAT THIN AN 1/4Manufacturer no. 106943 1Quote Ask for a quote
10 NUT AUTOMATION 1/4-28 ROHSManufacturer no. 106941 1Quote Ask for a quote
11 HHCS M6 X 1 X 25Manufacturer no. 102268-001 1Quote Ask for a quote
12 NUT AUTOMATION M6 X 1.0 ROHSManufacturer no. 132626 1Quote Ask for a quote
13 WASHER FLAT M6 ROHSManufacturer no. 107383 1Quote Ask for a quote
15 HHCS M6 X 1 X 40 PART NPManufacturer no. 118198 1Quote Ask for a quote
16 1" SADDLE 1/4" HOLEManufacturer no. 561004 1Quote Ask for a quote
17 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
19 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106945 1Quote Ask for a quote
1-4 KAA F/PLT KIT 10 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158632 1Quote Ask for a quote
1-4 KAA F/PLT KIT 10 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158633 1Quote Ask for a quote
1-4 KAA F/PLT KIT 11 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158634 1Quote Ask for a quote
1-4 KAA F/PLT KIT 11 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158635 1Quote Ask for a quote
1-4 KAA F/PLT KIT 12 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158636 1Quote Ask for a quote
1-4 KAA F/PLT KIT 12 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158637 1Quote Ask for a quote
1-4 KAA F/PLT KIT 13 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158638 1Quote Ask for a quote
1-4 KAA F/PLT KIT 13 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158639 1Quote Ask for a quote
1-4 KAA F/PLT KIT 14 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158640 1Quote Ask for a quote
1-4 KAA F/PLT KIT 14 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158641 1Quote Ask for a quote
1-4 KAA F/PLT KIT 15 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158642 1Quote Ask for a quote
1-4 KAA F/PLT KIT 15 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158643 1Quote Ask for a quote
1-4 KAA F/PLT KIT 16 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158644 1Quote Ask for a quote
1-4 KAA F/PLT KIT 16 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158645 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 10 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828821 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 10 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828822 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 11 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828823 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 11 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828824 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 12 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828825 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 12 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828826 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 13 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828827 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 13 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828828 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 14 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828829 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 14 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828830 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 15 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828831 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 15 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828832 1Quote Ask for a quote

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 186)

23 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 186)
No.PartQtyPriceAction
1 1" INSERT PLUG .065 RIBSManufacturer no. 561062 1Quote Ask for a quote
2 5/16-18 X 2" BH C/S BLKManufacturer no. 226217 1Quote Ask for a quote
4 PLASTIC PIVOT SADDLEManufacturer no. 561197 1Quote Ask for a quote
5 5/16-18 NYLOCK NUT THINManufacturer no. 202102 1Quote Ask for a quote
6 #8 LOW FLT HD TAP SCREWManufacturer no. 118695 1Quote Ask for a quote
9 FHCSM6X1X35FULLNPManufacturer no. 103500-010 1Quote Ask for a quote
10 NUT HEX NYLOCK M6X1.0Manufacturer no. 104381 1Quote Ask for a quote
11 WAVE WASHER 6 MMManufacturer no. 104414 1Quote Ask for a quote
12 HHCS M6 X 1 X 25Manufacturer no. 102268-001 1Quote Ask for a quote
13 NUT HEX NYLOCK M6 X 1Manufacturer no. 104381 1Quote Ask for a quote
14 WASHER FLAT M6 ROHSManufacturer no. 107383 1Quote Ask for a quote
15 FOOTPLATE ADAPTER FM 3" tallManufacturer no. 119240 1Quote Ask for a quote
16 HHCS M6X1X40 PART NPManufacturer no. 118198 1Quote Ask for a quote
17 1" SADDLE 1/4" HOLEManufacturer no. 561004 1Quote Ask for a quote
18 WASHER FLAT AN 1/4 ROHSManufacturer no. 106944 1Quote Ask for a quote
19 FOOTREST MOUNTING BRKT 1/2" RAD R RightManufacturer no. 541000 1Quote Ask for a quote
19 FOOTREST MOUNTING BRKT 1/2" RAD L LeftManufacturer no. 541001 1Quote Ask for a quote
20 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106944 1Quote Ask for a quote
1-7 80 D FRNT MNT SWING IN/OUT HANGER L LeftManufacturer no. 119464S 1Quote Ask for a quote
1-7 80 D FRNT MNT SWING IN/OUT HANGER R RightManufacturer no. 119465S 1Quote Ask for a quote
8-11 LATCH RECEIVER KITManufacturer no. 119514 1Quote Ask for a quote
21 1" INSERT PLUG .083Manufacturer no. 561002 1Quote Ask for a quote
12-20 AAA FRNT MNT ADAPTER KIT PR PairManufacturer no. 129764 1Quote Ask for a quote

Adult Angle-Adj Footplate Front Mount (page 187)

22 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Adult Angle-Adj Footplate Front Mount (page 187)
No.PartQtyPriceAction
1 FHCS 1/4-28 X 7/8 ROHSManufacturer no. 106978 1Quote Ask for a quote
2 NUT AUTOMATION 1/4-28 ROHSManufacturer no. 106941 1Quote Ask for a quote
3 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
4 1" SADDLE 1/4" HOLEManufacturer no. 561004 1Quote Ask for a quote
5 FOOTREST MOUNTING BRKT 1/2" RAD R RIGHTManufacturer no. 541000 1Quote Ask for a quote
5 FOOTREST MOUNTING BRKT 1/2" RAD L LEFTManufacturer no. 541001 1Quote Ask for a quote
6 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106945 1Quote Ask for a quote
7 BHCS 1/4-28 X 2Manufacturer no. 106964 1Quote Ask for a quote
8 3/4" CLAMP ADJ FOOTPLATEManufacturer no. 550350 1Quote Ask for a quote
9 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
10 HEEL LOOP PEGManufacturer no. 561040 1Quote Ask for a quote
11 HEEL LOOP 18-20 CMPST/14-15 ANG ADJ USED W/ 14-15"/16-17" ADULT ANG ADJ FTPLTSManufacturer no. 741153 1Quote Ask for a quote
11 HEEL LOOP ADLT ADJ F/PLT 18-20 USED W/ 18 -20" ADULT ANG ADJ FTPLTSManufacturer no. 741253 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 10/11 RIGHTManufacturer no. 500656 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 10/11 LEFTManufacturer no. 500657 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 12/13 RIGHTManufacturer no. 500658 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 12/13 LEFTManufacturer no. 500659 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 14/15 RIGHTManufacturer no. 500660 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 14/15 LEFTManufacturer no. 500661 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 16/17 RIGHTManufacturer no. 500662 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 16/17 LEFTManufacturer no. 500663 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 18-20 RIGHTManufacturer no. 500664 1Quote Ask for a quote

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 188)

22 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 188)
No.PartQtyPriceAction
1 1" INSERT PLUG .065 RIBSManufacturer no. 561062 1Quote Ask for a quote
2 5/16-18 X 2" BH C/S BLKManufacturer no. 226217 1Quote Ask for a quote
4 PLASTIC PIVOT SADDLEManufacturer no. 561197 1Quote Ask for a quote
5 5/16-18 NYLOCK NUT THINManufacturer no. 202102 1Quote Ask for a quote
6 #8 LOW FLT HD TAP SCREWManufacturer no. 118695 1Quote Ask for a quote
8 1" INSERT PLUG .083Manufacturer no. 561002 1Quote Ask for a quote
10 FHCSM6X1X35FULLNPManufacturer no. 103500-010 1Quote Ask for a quote
11 NUT HEX NYLOCK M6X1.0Manufacturer no. 104381 1Quote Ask for a quote
12 WAVE WASHER 6 MMManufacturer no. 104414 1Quote Ask for a quote
13 HHCS M6 X 1 X 25Manufacturer no. 102268-001 1Quote Ask for a quote
14 NUT HEX NYLOCK M6 X 1Manufacturer no. 104381 1Quote Ask for a quote
15 WASHER FLAT M6 ROHSManufacturer no. 107383 1Quote Ask for a quote
16 FOOTPLATE ADAPTER FM 3" tallManufacturer no. 119240 1Quote Ask for a quote
17 HHCS M6X1X40 PART NPManufacturer no. 118198 1Quote Ask for a quote
18 1" SADDLE 1/4" HOLEManufacturer no. 561004 1Quote Ask for a quote
19 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
20 FOOTREST MOUNTING BRKT 1/2" RAD R RightManufacturer no. 541000 1Quote Ask for a quote
20 FOOTREST MOUNTING BRKT 1/2" RAD L LeftManufacturer no. 541001 1Quote Ask for a quote
21 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106945 1Quote Ask for a quote
1-7 90 D FRNT MNT SWING IN/OUT HANGER R RightManufacturer no. 129644S 1Quote Ask for a quote
1-7 90 D FRNT MNT SWING IN/OUT HANGER L LeftManufacturer no. 129645S 1Quote Ask for a quote
9-12 LATCH RECEIVER KITManufacturer no. 119514 1Quote Ask for a quote

Multi-Position Latch Stud Support

3 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Multi-Position Latch Stud Support
No.PartQtyPriceAction
1 LATCH STUD SUPPORT R MULTIPOS SingleManufacturer no. 112807 1Quote Ask for a quote
1 LATCH STUD SUPPORT L MULTIPOS SingleManufacturer no. 112808 1Quote Ask for a quote
1 LATCH STUD SUPPORT PR MULTIPOS PairManufacturer no. 112809 1Quote Ask for a quote

Exploded view, page 190

23 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 190
No.PartQtyPriceAction
1 BHCS 1/4-28 x 1/2 ROHSManufacturer no. 107025 1Quote Ask for a quote
4A 1" INSERT PLUG .083Manufacturer no. 561002 1Quote Ask for a quote
4B 1" INSERT PLUG .065Manufacturer no. 561062 1Quote Ask for a quote
5A 7 x .940 x .20 FOAM GRIP SHORT PADManufacturer no. 560299 1Quote Ask for a quote
5B 9" X .93" X .155" FOAM GRIP LONG PADManufacturer no. 560640 1Quote Ask for a quote
6 BHCS 5/16-18 x 2 SHLDR ROHSManufacturer no. 106983 1Quote Ask for a quote
7 WASHER FLAT THIN AN 5/16 ROHSManufacturer no. 106947 1Quote Ask for a quote
8 ADJUSTABLE LOCK FLIP-UP ARM MOUNT RIGHTManufacturer no. 550168 1Quote Ask for a quote
8 ADJUSTABLE LOCK FLIP-UP ARM MOUNT LEFTManufacturer no. 550169 1Quote Ask for a quote
9 NYLOCK NUT THIN 1/4 -28 ROHSManufacturer no. 106935 1Quote Ask for a quote
10 5/16-18 NYLOCK NUT THICK BLKManufacturer no. 202117 1Quote Ask for a quote
11 HHCS 1/4-28 x 1 1/2 ROHSManufacturer no. 106972 1Quote Ask for a quote
12 ADJUSTABLE FLIP-BACK ARM BRACKET RIGHTManufacturer no. 550474 1Quote Ask for a quote
12 ADJUSTABLE FLIP-BACK ARM BRACKET LEFTManufacturer no. 550475 1Quote Ask for a quote
13 1" WASHER 5/16" HOLEManufacturer no. 561016 1Quote Ask for a quote
14 1" SADDLE 5/16" HOLEManufacturer no. 561006 1Quote Ask for a quote
15A ARMREST PAD 10" DESKManufacturer no. 561024 1Quote Ask for a quote
15B ARMREST PAD 14" FULLManufacturer no. 561031 1Quote Ask for a quote
17 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
18 SHCS 8 -32 x 3/8 ROHSManufacturer no. 107036 1Quote Ask for a quote
19 10-32 X 1/2" SET SCREWManufacturer no. 225110 1Quote Ask for a quote
20 BHCS 10-32 X 5/8 ROHSManufacturer no. 107022 1Quote Ask for a quote
21 1" COVED STEM BUMPERManufacturer no. 560252 1Quote Ask for a quote

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 190)

3 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 190)
No.PartQtyPriceAction
1 NUT NYLOCK THIN 1/4 -28 ROHSManufacturer no. 106935 1Quote Ask for a quote
2 BHCS 1/4 -28 x 1 1/4 ROHSManufacturer no. 106961 1Quote Ask for a quote
1-3 2" FOOTREST EXTENSION TUBE W/ HDWR ASSM 2" EXT (PAIR)Manufacturer no. 111505 1Quote Ask for a quote

Adult Angle-Adj Footplate Front Mount (page 191)

17 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Adult Angle-Adj Footplate Front Mount (page 191)
No.PartQtyPriceAction
1 FHCS 1/4-28 X 7/8Manufacturer no. 106978 1Quote Ask for a quote
2 NUT NYLOCK 1/4-28Manufacturer no. 106934 1Quote Ask for a quote
3 WASHER FLAT THIN AN 1/4Manufacturer no. 106944 1Quote Ask for a quote
4 Q2 SADDLEManufacturer no. 561004 1Quote Ask for a quote
5 FTRST MOUNTING BRKT 1/2" RAD R RightManufacturer no. 541000 1Quote Ask for a quote
5 FTRST MOUNTING BRKT 1/2" RAD L LeftManufacturer no. 541001 1Quote Ask for a quote
6 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106945 1Quote Ask for a quote
7 BHCS 1/4-28 X 2Manufacturer no. 106964 1Quote Ask for a quote
8 3/4 CLMP ADJ FT PLTManufacturer no. 550350 1Quote Ask for a quote
9 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
10 HEEL LOOP PEGManufacturer no. 561040 1Quote Ask for a quote
11A ADJ FOOTREST STRAP 14W Used on 10"-13" wideManufacturer no. 104380-001 1Quote Ask for a quote
11B ADJ FOOTREST STRAP 15-16W Used on 14"-15" wideManufacturer no. 104380-002 1Quote Ask for a quote
11C ADJ FOOTREST STRAP 17-18W Used on 16"-17" wideManufacturer no. 104380-003 1Quote Ask for a quote
11D ADJ FOOTREST STRAP 19-20W Used on 18"-20" wideManufacturer no. 104380-004 1Quote Ask for a quote
12A ADULT ANGL ADJ F/PLT 10/11 Right; 10"-11" wideManufacturer no. 500656 1Quote Ask for a quote
12A ADULT ANGL ADJ F/PLT 10/11 Left; 10"-11" wideManufacturer no. 500657 1Quote Ask for a quote

T Post Armrest

12 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in T Post Armrest
No.PartQtyPriceAction
1 ARMREST PAD SMALL 9"Manufacturer no. 561024 1Quote Ask for a quote
2 7/8" INSERT PLUG .083Manufacturer no. 561007 1Quote Ask for a quote
3 10-32 x 1 3/8 BH C/S BLKManufacturer no. 107023 1Quote Ask for a quote
5 KIDZ ARM STOPManufacturer no. 550105-QU 1Quote Ask for a quote
6 10-32 x 1/2 FH C/S BLKManufacturer no. 113279 1Quote Ask for a quote
7 ARMREST FOAM KIDZManufacturer no. 560309 1Quote Ask for a quote
8A TPHHA & SG CLAMP 1" Used w/ Zippie TS & GS & KidzManufacturer no. 502037 1Quote Ask for a quote
8B SIDE GUARD/KIDZ ARM REC Used w/ Zippie Iris & 2Manufacturer no. 550325 1Quote Ask for a quote
9 1/4-28 x 1 3/8 HEX C/SManufacturer no. 106971 1Quote Ask for a quote
10 1/4 AN WASHER FLAT THINManufacturer no. 106944 1Quote Ask for a quote
11A TPHAR & SGR CLAMP 1" Used w/ Zippie TS & GS & KidzManufacturer no. 502038 1Quote Ask for a quote
11B CLAMP P300 CHRGNG/ADJ FL KDS Used w/ Zippie Iris & 2Manufacturer no. 550251 1Quote Ask for a quote

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 192)

19 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 192)
No.PartQtyPriceAction
12B ADULT ANGL ADJ F/PLT 12/13 Right; 12"-13" wideManufacturer no. 500658 1Quote Ask for a quote
12B ADULT ANGL ADJ F/PLT 12/13 Left; 12"-13" wideManufacturer no. 500659 1Quote Ask for a quote
12C ADULT ANGL ADJ F/PLT 14/15 Right; 14"-15" wideManufacturer no. 500660 1Quote Ask for a quote
12C ADULT ANGL ADJ F/PLT 14/15 Left; 14"-15" wideManufacturer no. 500661 1Quote Ask for a quote
12D ADULT ANGL ADJ F/PLT 16/17 Right; 16"-17" wideManufacturer no. 500662 1Quote Ask for a quote
12D ADULT ANGL ADJ F/PLT 16/17 Left; 16"-17" wideManufacturer no. 500663 1Quote Ask for a quote
12E ADULT ANGL ADJ F/PLT 18-20 Right; 18"-22" wideManufacturer no. 500664 1Quote Ask for a quote
12E ADULT ANGL ADJ F/PLT 18-20 Left; 18"-22" wideManufacturer no. 500665 1Quote Ask for a quote
13 WASHER FLAT M6 ROHSManufacturer no. 107383 1Quote Ask for a quote
14 HHCS M6 X 1 X 25Manufacturer no. 102268-001 1Quote Ask for a quote
15 TOE-ANKLE STRAP ADJ ADULT FOOTPLATEManufacturer no. 740260 1Quote Ask for a quote
16 HHCS M6 X 1 X 25Manufacturer no. 102268-001 1Quote Ask for a quote
17 NUT AUTOMATION M6 X 1Manufacturer no. 132626 1Quote Ask for a quote
18 WASHER FLAT M6 ROHSManufacturer no. 107383 1Quote Ask for a quote
20 HHCS M6X1X40 PART NPManufacturer no. 118198 1Quote Ask for a quote
21 Q2 SADDLEManufacturer no. 561004 1Quote Ask for a quote
22 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
24 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106945 1Quote Ask for a quote
16-24 AAA FRNT MNT ADAPTER KIT PR Pair; fits both Kids & Adult Angle Adj FootplatesManufacturer no. 129764 1Quote Ask for a quote

Kids Angle Adj Footplate Front Mount (page 193)

18 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Kids Angle Adj Footplate Front Mount (page 193)
No.PartQtyPriceAction
1 FHCS 1/4-28 X 7/8 ROHSManufacturer no. 106978 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 10 RIGHTManufacturer no. 500635 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 10 LEFTManufacturer no. 500636 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 11 RIGHTManufacturer no. 500637 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 11 LEFTManufacturer no. 500638 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 12 RIGHTManufacturer no. 500639 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 12 LEFTManufacturer no. 500640 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 13 RIGHTManufacturer no. 500641 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 13 LEFTManufacturer no. 500642 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 14 RIGHTManufacturer no. 500643 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 14 LEFTManufacturer no. 500644 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 15 RIGHTManufacturer no. 500645 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 15 LEFTManufacturer no. 500646 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 16 RIGHTManufacturer no. 500647 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 16 LEFTManufacturer no. 500648 1Quote Ask for a quote
3 3/4 CLAMP ADJ FOOTPLATEManufacturer no. 550350 1Quote Ask for a quote
4 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
5 1/4-28 X 1.85 BH C/S BLK ZNManufacturer no. 226147 1Quote Ask for a quote

Flip-Up Armrest

11 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Flip-Up Armrest
No.PartQtyPriceAction
1 SHORT DOME PLUGManufacturer no. 561034 1Quote Ask for a quote
2 1/4-28 x 1 1/2 BH C/SManufacturer no. 107028 1Quote Ask for a quote
3 3/4" SADDLE THINManufacturer no. 561003 1Quote Ask for a quote
4 1/4-28 x 2 1/4 BH C/SManufacturer no. 106966 1Quote Ask for a quote
5 FLIP-UP ARM CAM ZP/P5Manufacturer no. 483041 1Quote Ask for a quote
6 1/4-28 NYLOCK NUT THINManufacturer no. 106935 1Quote Ask for a quote
7 1" SADDLE 1/4" HOLEManufacturer no. 561004 1Quote Ask for a quote
8 1/4 AN WASHER FLAT THINManufacturer no. 106944 1Quote Ask for a quote
9 8 x .705 x .200 FOAM GRIPManufacturer no. 560599 1Quote Ask for a quote
10 3/4" INSERT PLUG .083Manufacturer no. 561000-QU 1Quote Ask for a quote
12 1/4" WASHER INT LOCK ZNManufacturer no. 267350 1Quote Ask for a quote

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 194)

39 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 194)
No.PartQtyPriceAction
6 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106945 1Quote Ask for a quote
7 FTRST MOUNTING BRKT 1/2" RAD R RIGHTManufacturer no. 541000 1Quote Ask for a quote
7 FTRST MOUNTING BRKT 1/2" RAD L LEFTManufacturer no. 541001 1Quote Ask for a quote
8 1 SADDLE 1/4 HOLEManufacturer no. 561004 1Quote Ask for a quote
9 WASHER FLAT THIN AN 1/4Manufacturer no. 106943 1Quote Ask for a quote
10 NUT AUTOMATION 1/4-28 ROHSManufacturer no. 106941 1Quote Ask for a quote
11 HHCS M6 X 1 X 25Manufacturer no. 102268-001 1Quote Ask for a quote
12 NUT AUTOMATION M6 X 1.0 ROHSManufacturer no. 132626 1Quote Ask for a quote
13 WASHER FLAT M6 ROHSManufacturer no. 107383 1Quote Ask for a quote
15 HHCS M6 X 1 X 40 PART NPManufacturer no. 118198 1Quote Ask for a quote
16 1" SADDLE 1/4" HOLEManufacturer no. 561004 1Quote Ask for a quote
17 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
19 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106945 1Quote Ask for a quote
1-4 KAA F/PLT KIT 10 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158632 1Quote Ask for a quote
1-4 KAA F/PLT KIT 10 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158633 1Quote Ask for a quote
1-4 KAA F/PLT KIT 11 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158634 1Quote Ask for a quote
1-4 KAA F/PLT KIT 11 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158635 1Quote Ask for a quote
1-4 KAA F/PLT KIT 12 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158636 1Quote Ask for a quote
1-4 KAA F/PLT KIT 12 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158637 1Quote Ask for a quote
1-4 KAA F/PLT KIT 13 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158638 1Quote Ask for a quote
1-4 KAA F/PLT KIT 13 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158639 1Quote Ask for a quote
1-4 KAA F/PLT KIT 14 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158640 1Quote Ask for a quote
1-4 KAA F/PLT KIT 14 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158641 1Quote Ask for a quote
1-4 KAA F/PLT KIT 15 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158642 1Quote Ask for a quote
1-4 KAA F/PLT KIT 15 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158643 1Quote Ask for a quote
1-4 KAA F/PLT KIT 16 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158644 1Quote Ask for a quote
1-4 KAA F/PLT KIT 16 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158645 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 10 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828821 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 10 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828822 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 11 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828823 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 11 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828824 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 12 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828825 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 12 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828826 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 13 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828827 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 13 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828828 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 14 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828829 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 14 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828830 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 15 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828831 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 15 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828832 1Quote Ask for a quote

Exploded view, page 195

20 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 195
No.PartQtyPriceAction
1 1/4 AN WASHER FLATManufacturer no. 106943 1Quote Ask for a quote
2 1/4-28 x 1/2 BH C/SManufacturer no. 107025 1Quote Ask for a quote
4 1" INSERT PLUG .083Manufacturer no. 561002 1Quote Ask for a quote
5 9 x .93 x .155 FOAM GRIPManufacturer no. 560640 1Quote Ask for a quote
6 5/16-18 x 2 BH C/S SHT THREADManufacturer no. 106983 1Quote Ask for a quote
7 5/16 WASHER FLAT THINManufacturer no. 106947 1Quote Ask for a quote
8 ADJ LOCK FLIP-UP ARM MNT RManufacturer no. 550168 1Quote Ask for a quote
8 ADJ LOCK FLIP-UP ARM MNT LManufacturer no. 550169 1Quote Ask for a quote
9 1/4-28 NYLOCK NUT THINManufacturer no. 106935 1Quote Ask for a quote
10 5/16-18 NYLOCK NUT THICK BLKManufacturer no. 202117 1Quote Ask for a quote
11 1/4-28 x 1 1/2 G8 HEX C/SManufacturer no. 106972 1Quote Ask for a quote
12 ADJ FLIP-BACK ARM BRACKET RManufacturer no. 550474 1Quote Ask for a quote
12 ADJ FLIP BACK ARM BRACKET LManufacturer no. 550475 1Quote Ask for a quote
13 1" WASHER 5/16" HOLEManufacturer no. 561016 1Quote Ask for a quote
14 1" SADDLE 5/16" HOLEManufacturer no. 561006 1Quote Ask for a quote
15 1" COVED STEM BUMPERManufacturer no. 560252 1Quote Ask for a quote
3-5 ADJ FLIP-BACK TUBE W/LATCHManufacturer no. 880274 1Quote Ask for a quote
1-15 ADJ FLIP BACK ARMREST RManufacturer no. 880272 1Quote Ask for a quote
1-15 ADJ FLIP BACK ARMREST LManufacturer no. 880273 1Quote Ask for a quote
1-15 ADJ LOCK FLIP-UP ARMREST ASSM PAIRManufacturer no. 900449 1Quote Ask for a quote

Exploded view, page 196

15 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 196
No.PartQtyPriceAction
1A ARMREST PAD 10" DESK DESK PADManufacturer no. 561024 1Quote Ask for a quote
1B ARMREST PAD 14" FULL FULL PADManufacturer no. 561031 1Quote Ask for a quote
1C ARMREST PAD 10" L W/F LEFT - DESK WATERFALL PADManufacturer no. 561280 1Quote Ask for a quote
1C ARMREST PAD 10" R W/F RIGHT - DESK WATERFALL PADManufacturer no. 561281 1Quote Ask for a quote
1D ARMREST PAD 14" L W/F LEFT - FULL WATERFALL PADManufacturer no. 561284 1Quote Ask for a quote
1D ARMREST PAD 14" R W/F RIGHT - FULL WATERFALL PADManufacturer no. 561285 1Quote Ask for a quote
2 10-32 x 1 3/8 BH C/S BLKManufacturer no. 226038 1Quote Ask for a quote
4A 5" x .705 x .125 FOAM TUBE ADULTManufacturer no. 560610 1Quote Ask for a quote
4B 7-1/2" x .705 x .125 FOAM TUBE PEDS/KIDSManufacturer no. 560627 1Quote Ask for a quote
5A HT ADJ LOWER DC ARM ASSM STD R RIGHT - STANDARD/ADULTManufacturer no. 882084 1Quote Ask for a quote
5A HT ADJ LOWER DC ARM ASSM STD L LEFT - STANDARD/ADULTManufacturer no. 882085 1Quote Ask for a quote
5B HT ADJ LOWER DC ARM ASM KIDS R RIGHT - KIDSManufacturer no. 882082 1Quote Ask for a quote
5B HT ADJ LOWER DC ARM ASM KIDS L LEFT - KIDSManufacturer no. 882083 1Quote Ask for a quote
5C HT ADJ LOWER ARM ASSM PE D R RIGHT - PEDIATRICManufacturer no. 882080 1Quote Ask for a quote
5C HT ADJ LOWER ARM ASSM PE D L LEFT - PEDIATRICManufacturer no. 882081 1Quote Ask for a quote

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 196)

13 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 196)
No.PartQtyPriceAction
1 ALR KIT R Right-order item 27 when retro-fitting to chairManufacturer no. 129631S 1Quote Ask for a quote
1 ALR KIT L Left-order item 27 when retro-fitting to chairManufacturer no. 129632S 1Quote Ask for a quote
1 ALR PAIR KIT Pair-order item 27 when retro-fitting to chairManufacturer no. 129630S 1Quote Ask for a quote
3 BHCS 8-32 X 1/2 BLKManufacturer no. 127135 1Quote Ask for a quote
4 HEMI ALR SUB ASSMManufacturer no. 127153 1Quote Ask for a quote
5 ALR REL LEVER COVERManufacturer no. 560501 1Quote Ask for a quote
6 HEMI RECEIVER ASSM ELR ALR R RightManufacturer no. 127114 1Quote Ask for a quote
6 HEMI RECEIVER ASSM ELR ALR L LeftManufacturer no. 127115 1Quote Ask for a quote
7 ANGLE STOP ELRManufacturer no. 127129 1Quote Ask for a quote
8 SHCS 1/4-28 x 1/2Manufacturer no. 107350 1Quote Ask for a quote
9 1/4-28 NYLOCK NUT THIN BLK ZNManufacturer no. 106935 1Quote Ask for a quote
10 BHCS 1/4-28 x 1-1/2Manufacturer no. 108623 1Quote Ask for a quote
11 BHCS 1/4-28 X 2Manufacturer no. 106964 1Quote Ask for a quote

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 198)

4 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 198)
No.PartQtyPriceAction
1A HEMI ELR HNGR ASM 14-15 W/PADManufacturer no. 131774S 1Quote Ask for a quote
1B HEMI ELR HNGR ASM 16-17 W/PADManufacturer no. 131775S 1Quote Ask for a quote
1C HEMI ELR HNGR ASM 18-20 W/PADManufacturer no. 131776S 1Quote Ask for a quote
2 LATCH STUD KIT order qty 2 when retro-fitting to chairManufacturer no. 107491 1Quote Ask for a quote

Exploded view, page 199

13 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 199
No.PartQtyPriceAction
1 EXTENSION MOUNT ELR KIT R Right-order item 26 when retro-fitting to chairManufacturer no. 129638S 1Quote Ask for a quote
1 EXTENSION MOUNT ELR KIT L Left-order item 26 when retro-fitting to chairManufacturer no. 129639S 1Quote Ask for a quote
1 EXTENSION MOUNT ELR PAIR KIT Pair-order item 26 when retro-fitting to chairManufacturer no. 129637S 1Quote Ask for a quote
3 BHCS 8-32 X 1/2 BLKManufacturer no. 127135 1Quote Ask for a quote
4 HEMI ELR SUB ASSMManufacturer no. 126992 1Quote Ask for a quote
5 ALR REL LEVER COVERManufacturer no. 560501 1Quote Ask for a quote
6 HEMI RECEIVER ASSM ELR ALR R RightManufacturer no. 127114 1Quote Ask for a quote
6 HEMI RECEIVER ASSM ELR ALR L LeftManufacturer no. 127115 1Quote Ask for a quote
7 SHCS 1/4-28 x 1/2Manufacturer no. 107350 1Quote Ask for a quote
8 ANGLE STOP ELRManufacturer no. 127129 1Quote Ask for a quote
9 NUT HEX THIN 1/4-28Manufacturer no. 107249 1Quote Ask for a quote
10 1/4-28 NYLOCK NUT THIN BLK ZNManufacturer no. 106935 1Quote Ask for a quote
11 WAVE WASHER 6 MMManufacturer no. 104414 1Quote Ask for a quote

Kids Single Post Armrest Receiver

7 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Kids Single Post Armrest Receiver
No.PartQtyPriceAction
1 HEIGHT ADJUSTABLE RECEIVER CHANNELManufacturer no. 550485 1Quote Ask for a quote
2 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
3 1/4-28 x 5/8 HEX C/SManufacturer no. 221096 1Quote Ask for a quote
4 HEIGHT ADJUSTABLE RECEIVER LINERManufacturer no. 561134 1Quote Ask for a quote
5 HEIGHT ADJUSTABLE RECEIVER ZIPPIEManufacturer no. 550528 1Quote Ask for a quote
6 HEIGHT ADJUSTABLE RECIEVER CLAMP ZIPPIEManufacturer no. 550529 1Quote Ask for a quote
7 HHCS 1/4-28 X 1-1/4 ROHSManufacturer no. 106970 1Quote Ask for a quote

Adult Single Post Armrest Receiver

0 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Elr & Alr Calf Pad 14 -15" (page 201)

8 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Elr & Alr Calf Pad 14 -15" (page 201)
No.PartQtyPriceAction
1 BHCS 5/16-18 X 1-1/4 ROHSManufacturer no. 106980 1Quote Ask for a quote
2 CALF PAD TROUGH STYLE 14"/16"Manufacturer no. 755014 1Quote Ask for a quote
3 1/4-28 X 5/8 HEX C/S BZManufacturer no. 221097 1Quote Ask for a quote
4 1" WASHER 5/16" HOLEManufacturer no. 561016 1Quote Ask for a quote
5 CALF PAD BRACKET ASSEMBLYManufacturer no. 881413 1Quote Ask for a quote
6 NUT NYLOCK 1/4-28 ROHSManufacturer no. 106934 1Quote Ask for a quote
7 NUT NYLOCK THIN 5/16-18Manufacturer no. 106937 1Quote Ask for a quote
1-7 CALF PAD J-HOOK 14"-15" ASSEMBLYManufacturer no. 881414 1Quote Ask for a quote

Backpacks And Seat Pouches

3 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Backpacks And Seat Pouches
No.PartQtyPriceAction
1 BACK PACK QUICKIE Overall dimensions:width 12.5", height 18.5", depth 6.5"Manufacturer no. 750115 1Quote Ask for a quote
2 BACKPACK ZIPPIE Overall dimensions: width 12", height 16.5", depth 4.5"Manufacturer no. 104572 1Quote Ask for a quote
3 SEAT POUCH QUICKIE Dimensions: width 8.5", height 6", depth top 2.5", depth bottom 3.5"Manufacturer no. 750307 1Quote Ask for a quote

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 202)

9 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 202)
No.PartQtyPriceAction
1 NUT NYLOCK 1/4-28 ROHSManufacturer no. 106934 1Quote Ask for a quote
2A HHCS 5/16-18 X 2-1/2 ROHS 16"-17" wide onlyManufacturer no. 107018 1Quote Ask for a quote
2B HHCS 5/16-18 X 3-1/2 ROHS 18"-20" wide onlyManufacturer no. 107019 1Quote Ask for a quote
3 HHCS 1/4-28 X 5/8 ROHSManufacturer no. 107013 1Quote Ask for a quote
4 CALF PAD BRACKET ASSEMBLYManufacturer no. 881413 1Quote Ask for a quote
5 ELR CALF HINGE SPACER 18"-20" wide onlyManufacturer no. 560199 1Quote Ask for a quote
6 CALF PAD MOLDED 16"-20"Manufacturer no. 560108 1Quote Ask for a quote
7 NUT NYLOCK 5/16-18 ROHSManufacturer no. 106936 1Quote Ask for a quote
8 CALF PAD COVERManufacturer no. 751045 1Quote Ask for a quote

Elr/Alr Aluminum Footplate

15 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Elr/Alr Aluminum Footplate
No.PartQtyPriceAction
1 1/4-28 x 5/8 BH C/SManufacturer no. 226090 1Quote Ask for a quote
2 BRACKET FOOTPLATE ALUMManufacturer no. 118093 1Quote Ask for a quote
3 BHCS M6 X 1 X 50 INORGANICManufacturer no. 102262-008 1Quote Ask for a quote
4 #4 x 5/8 PAN PHIL S/TAPManufacturer no. 281043 1Quote Ask for a quote
5 END CAPS FOOTRESTManufacturer no. 560101 1Quote Ask for a quote
7 SHORT BENTManufacturer no. 107126 1Quote Ask for a quote
7 MED BENTManufacturer no. 107127 1Quote Ask for a quote
7 LONG BENTManufacturer no. 107128 1Quote Ask for a quote
7 TUBE FOOTREST EXT SHT HEMI Use for Hemi Extension optionManufacturer no. 128078 1Quote Ask for a quote
8 1/4-28 NYLOCK NUT THINManufacturer no. 106935 1Quote Ask for a quote
9 3/4" SADDLE THINManufacturer no. 561003 1Quote Ask for a quote
10 NUT AUTOMATION M6 X 1.0Manufacturer no. 132626 1Quote Ask for a quote
11 WASHER FLAT M6 ROHSManufacturer no. 107383 1Quote Ask for a quote
12-14 EXTENSION CLAMP KITManufacturer no. 119495 1Quote Ask for a quote
15 ALU FOOTPLATE HDWARE KIT Ext tube not included; bracket (118093) not includedManufacturer no. 129775 1Quote Ask for a quote

Quickie Side Pocket

1 part

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Quickie Side Pocket
No.PartQtyPriceAction
1 QUICKIE SIDE POCKET Size: 6.5"x 6.5"x 2"Manufacturer no. 013475 1Quote Ask for a quote

Adjustable Leg Strap

4 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Adjustable Leg Strap
No.PartQtyPriceAction
1A LEG STRAP 11"-12" BLKManufacturer no. 113255 1Quote Ask for a quote
1B LEG STRAP 13"-15" BLKManufacturer no. 113256 1Quote Ask for a quote
1C LEG STRAP 16"-18" BLKManufacturer no. 113257 1Quote Ask for a quote
1D LEG STRAP 19"-20" BLKManufacturer no. 113258 1Quote Ask for a quote

Exploded view, page 205

13 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 205
No.PartQtyPriceAction
1 DIRECT MOUNT ELR KIT R Right-order item 25 when retro-fitting to chairManufacturer no. 129635S 1Quote Ask for a quote
1 DIRECT MOUNT ELR KIT L Left-order item 25 when retro-fitting to chairManufacturer no. 129636S 1Quote Ask for a quote
1 DIRECT MOUNT ELR PAIR KIT Pair-order item 25 when retro-fitting to chairManufacturer no. 129634S 1Quote Ask for a quote
3 BHCS 8-32 X 1/2 BLKManufacturer no. 127135 1Quote Ask for a quote
4 HEMI ELR SUB ASSMManufacturer no. 126992 1Quote Ask for a quote
5 ALR REL LEVER COVERManufacturer no. 560501 1Quote Ask for a quote
6 HEMI RECEIVER ASSM ELR ALR R RightManufacturer no. 127114 1Quote Ask for a quote
6 HEMI RECEIVER ASSM ELR ALR L LeftManufacturer no. 127115 1Quote Ask for a quote
7 WAVE WASHER 6 MMManufacturer no. 104414 1Quote Ask for a quote
8 BHCS 1/4 -28 x 1 1/4 ROHSManufacturer no. 106961 1Quote Ask for a quote
9 1/4-28 NYLOCK NUT THIN BLK ZNManufacturer no. 106935 1Quote Ask for a quote
10 BHCS 1/4-28 x 1-1/2Manufacturer no. 108623 1Quote Ask for a quote
11 WASHER FLAT AN #10 ROHSManufacturer no. 113282 1Quote Ask for a quote

Soft Feel Leg Strap

4 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Soft Feel Leg Strap
No.PartQtyPriceAction
1A LEG STRAP SOFT FEEL Q 11 -12"Manufacturer no. 109356 1Quote Ask for a quote
1B LEG STRAP SOFT FEEL Q 13 -15"Manufacturer no. 109357 1Quote Ask for a quote
1C LEG STRAP SOFT FEEL Q 16 -18"Manufacturer no. 109366 1Quote Ask for a quote
1D LEG STRAP SOFT FEEL Q 19 -20"Manufacturer no. 111487 1Quote Ask for a quote

90 Deg Elevating Calf Pad (page 207)

10 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 90 Deg Elevating Calf Pad (page 207)
No.PartQtyPriceAction
1 5/16-18 x 2" BH C/S BLKManufacturer no. 226217 1Quote Ask for a quote
2 CALF PAD TROUGH STYLE KIDSManufacturer no. 755013 1Quote Ask for a quote
3 1" WASHER 5/16" HOLEManufacturer no. 561016 1Quote Ask for a quote
4 ELR ELEVATING TUBE CLAMPManufacturer no. 561097 1Quote Ask for a quote
5 5/16 -18 NYLOCK NUT THINManufacturer no. 106937 1Quote Ask for a quote
6 HHCS 1/4-20 X 1 ROHSManufacturer no. 106958 1Quote Ask for a quote
7 6mm WASHER WAVEManufacturer no. 262130 1Quote Ask for a quote
8 1/4 x 1/4 ALUMINUM SPACERManufacturer no. 483027 1Quote Ask for a quote
9 KIDS ALR RETAINING PLUGManufacturer no. 500151 1Quote Ask for a quote
1-9 ELR TROUGH PAD ASSM KIDSManufacturer no. 880533 1Quote Ask for a quote

Hardware.

13 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Hardware.
No.PartQtyPriceAction
1 SHCS M6 X 1 X 25 W/PL INORG MetricManufacturer no. 102263-003 1Quote Ask for a quote
2 WASHER FLAT M6 MetricManufacturer no. 250104 1Quote Ask for a quote
3 BHCS M6 X 1 X 12 FULL PL MetricManufacturer no. 103185-005 1Quote Ask for a quote
4 WASHER FLAT AN 1/4 ROHS Imperial (standard)Manufacturer no. 106943 1Quote Ask for a quote
5 1/4-20 X 1/2 BH C/S W/PATCH Imperial (standard)Manufacturer no. 226154 1Quote Ask for a quote
6 1/4-20 X 1 SOC HD BLK Imperial (standard)Manufacturer no. 221116 1Quote Ask for a quote
7 BHCS M6 X 1 X 12Manufacturer no. 230113 1Quote Ask for a quote
8 LOCKWASHER HIGH COLLAR M6Manufacturer no. 050129-001 1Quote Ask for a quote
9 NUT HEX NYLOCK M6 X 1.0Manufacturer no. 104381 1Quote Ask for a quote
10 WASHER FLAT M6Manufacturer no. 107383 1Quote Ask for a quote
11 HHCS M6 X 1 X 35 BLKManufacturer no. 102268-002 1Quote Ask for a quote
12 PSTN BELT CLAMP ASSM PR Metric; PairManufacturer no. 120750 1Quote Ask for a quote
13 POSITION BELT ATTACHMENT KIT Set of 2; Imperial (standard)Manufacturer no. 900116 1Quote Ask for a quote

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 208)

17 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 208)
No.PartQtyPriceAction
1 FHCS 1/4-28 X 7/8Manufacturer no. 106978 1Quote Ask for a quote
2 NUT NYLOCK 1/4-28Manufacturer no. 106934 1Quote Ask for a quote
3 WASHER FLAT THIN AN 1/4Manufacturer no. 106944 1Quote Ask for a quote
4 Q2 SADDLEManufacturer no. 561004 1Quote Ask for a quote
5 FTRST MOUNTING BRKT 1/2" RAD R RightManufacturer no. 541000 1Quote Ask for a quote
5 FTRST MOUNTING BRKT 1/2" RAD L LeftManufacturer no. 541001 1Quote Ask for a quote
6 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106945 1Quote Ask for a quote
7 BHCS 1/4-28 X 2Manufacturer no. 106964 1Quote Ask for a quote
8 3/4 CLMP ADJ FT PLTManufacturer no. 550350 1Quote Ask for a quote
9 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
10 HEEL LOOP PEGManufacturer no. 561040 1Quote Ask for a quote
11A ADJ FOOTREST STRAP 14W Used on 10"-13" wideManufacturer no. 104380-001 1Quote Ask for a quote
11B ADJ FOOTREST STRAP 15-16W Used on 14"-15" wideManufacturer no. 104380-002 1Quote Ask for a quote
11C ADJ FOOTREST STRAP 17-18W Used on 16"-17" wideManufacturer no. 104380-003 1Quote Ask for a quote
11D ADJ FOOTREST STRAP 19-20W Used on 18"-20" wideManufacturer no. 104380-004 1Quote Ask for a quote
12A ADULT ANGL ADJ F/PLT 10/11 Right; 10"-11" wideManufacturer no. 500656 1Quote Ask for a quote
12A ADULT ANGL ADJ F/PLT 10/11 Left; 10"-11" wideManufacturer no. 500657 1Quote Ask for a quote

Auto Buckle Positioning Belt & Attachment Kits

14 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Auto Buckle Positioning Belt & Attachment Kits
No.PartQtyPriceAction
1 SHCS M6 X 1 X 25 W/PL INORG MetricManufacturer no. 102263-003 1Quote Ask for a quote
2 WASHER FLAT M6 MetricManufacturer no. 250104 1Quote Ask for a quote
3 BHCS M6 X 1 X 12 FULL PL MetricManufacturer no. 103185-005 1Quote Ask for a quote
4 WASHER FLAT AN 1/4 ROHS Imperial (standard)Manufacturer no. 106943 1Quote Ask for a quote
5 1/4-20 X 1/2 BH C/S W/PATCH Imperial (standard)Manufacturer no. 226154 1Quote Ask for a quote
6 1/4-20 X 1 SOC HD BLK Imperial (standard)Manufacturer no. 221116 1Quote Ask for a quote
7 BHCS M6 X 1 X 12Manufacturer no. 230113 1Quote Ask for a quote
8 LOCKWASHER HIGH COLLAR M6Manufacturer no. 050129-001 1Quote Ask for a quote
9 NUT HEX NYLOCK M6 X 1.0Manufacturer no. 104381 1Quote Ask for a quote
10 WASHER FLAT M6Manufacturer no. 107383 1Quote Ask for a quote
11 HHCS M6 X 1 X 35 BLKManufacturer no. 102268-002 1Quote Ask for a quote
12 PSTN BELT CLAMP ASSM PR Metric; PairManufacturer no. 120750 1Quote Ask for a quote
13 POSITION BELT ATTACHMENT KIT Set of 2; Imperial (standard)Manufacturer no. 900116 1Quote Ask for a quote
14 OVAL CLAMP ASSM KIT Kit contains 1 ClampManufacturer no. 116268 1Quote Ask for a quote

Exploded view, page 209

19 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 209
No.PartQtyPriceAction
12B ADULT ANGL ADJ F/PLT 12/13 Right; 12"-13" wideManufacturer no. 500658 1Quote Ask for a quote
12B ADULT ANGL ADJ F/PLT 12/13 Left; 12"-13" wideManufacturer no. 500659 1Quote Ask for a quote
12C ADULT ANGL ADJ F/PLT 14/15 Right; 14"-15" wideManufacturer no. 500660 1Quote Ask for a quote
12C ADULT ANGL ADJ F/PLT 14/15 Left; 14"-15" wideManufacturer no. 500661 1Quote Ask for a quote
12D ADULT ANGL ADJ F/PLT 16/17 Right; 16"-17" wideManufacturer no. 500662 1Quote Ask for a quote
12D ADULT ANGL ADJ F/PLT 16/17 Left; 16"-17" wideManufacturer no. 500663 1Quote Ask for a quote
12E ADULT ANGL ADJ F/PLT 18-20 Right; 18"-22" wideManufacturer no. 500664 1Quote Ask for a quote
12E ADULT ANGL ADJ F/PLT 18-20 Left; 18"-22" wideManufacturer no. 500665 1Quote Ask for a quote
13 WASHER FLAT M6 ROHSManufacturer no. 107383 1Quote Ask for a quote
14 HHCS M6 X 1 X 25Manufacturer no. 102268-001 1Quote Ask for a quote
15 TOE-ANKLE STRAP ADJ ADULT FOOTPLATEManufacturer no. 740260 1Quote Ask for a quote
16 HHCS M6 X 1 X 25Manufacturer no. 102268-001 1Quote Ask for a quote
17 NUT AUTOMATION M6 X 1Manufacturer no. 132626 1Quote Ask for a quote
18 WASHER FLAT M6 ROHSManufacturer no. 107383 1Quote Ask for a quote
20 HHCS M6X1X40 PART NPManufacturer no. 118198 1Quote Ask for a quote
21 Q2 SADDLEManufacturer no. 561004 1Quote Ask for a quote
22 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
24 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106945 1Quote Ask for a quote
16-24 AAA FRNT MNT ADAPTER KIT PR Pair; fits both Kids & Adult Angle Adj FootplatesManufacturer no. 129764 1Quote Ask for a quote

Composite Footplate (page 211)

0 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Padded Double Pull Hip Belt

12 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Padded Double Pull Hip Belt
No.PartQtyPriceAction
1A BELT 1" DUAL ADJ. SQZ BKL PADManufacturer no. 450420-QU 1Quote Ask for a quote
1B BELT 1.5" DUAL ADJ. SQZ BKL PADManufacturer no. 450421-QU 1Quote Ask for a quote
1C BELT 2" DUAL ADJ. SQZ BKL PADManufacturer no. 450422-QU 1Quote Ask for a quote
2 PLASTIC WEBBING GROMMETManufacturer no. 451116-QU 1Quote Ask for a quote
3 1/4-28 x 9/16 SPEC ROUND HDManufacturer no. 455036-QU 1Quote Ask for a quote
4 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
5 CHAN.UNF NUT 1/4-28 W/SETSCRWManufacturer no. 479020 1Quote Ask for a quote
6 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
7 1/4-28 CHANNELNUTManufacturer no. 481106-QU 1Quote Ask for a quote
1A-5 BELT 1" DUAL ADJ.SQZ BKLPAD CZManufacturer no. 468420 1Quote Ask for a quote
1B-5 BELT 1.5" DUAL ADJ.SQZ BKLPAD CZManufacturer no. 468421 1Quote Ask for a quote
1C-5 BELT 2" DUAL ADJ.SQZ BKLPAD CZManufacturer no. 468422 1Quote Ask for a quote

Plastic Side Guard

9 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Plastic Side Guard
No.PartQtyPriceAction
1A PLASTIC SIDE GUARD KIDS RManufacturer no. 881150 1Quote Ask for a quote
1A PLASTIC SIDE GUARD KIDS LManufacturer no. 881151 1Quote Ask for a quote
1B PLASTIC SIDE GUARD STD RManufacturer no. 881152 1Quote Ask for a quote
1B PLASTIC SIDE GUARD STD LManufacturer no. 881153 1Quote Ask for a quote
2 1/4-28 x 1 3/8 HEX C/SManufacturer no. 106971 1Quote Ask for a quote
3 1/4 AN WASHER FLAT THINManufacturer no. 106944 1Quote Ask for a quote
4 CLAMP P300 CHARGING/ADJ FL KIDSManufacturer no. 550251 1Quote Ask for a quote
5 SIDE GUARD/KIDZ ARM RECEIVERManufacturer no. 550325 1Quote Ask for a quote
2-5 SIDE GUARD/KIDZ ARM RECEIVER W/CLAMPManufacturer no. 881200 1Quote Ask for a quote

Composite Angle Adjustable Foot Plate

2 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Composite Angle Adjustable Foot Plate
No.PartQtyPriceAction
1D TUBE FTRST EXT STRGHT SHT HEMI Use for Hemi Ext Tube optionManufacturer no. 128079 1Quote Ask for a quote
2A COMPOSITE FOOTPLATE RIGHT RIGHT 15" Footrest WidthManufacturer no. 063216-006 1Quote Ask for a quote

Tuffak Tray (Manual & Pediatric Chairs)

12 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Tuffak Tray (Manual & Pediatric Chairs)
No.PartQtyPriceAction
1 5/16-18 x 3 1/2 CARR BOLTManufacturer no. 226199 1Quote Ask for a quote
2 5/16 WASHER FENDERManufacturer no. 263112 1Quote Ask for a quote
3 5/16-18 NUT THINManufacturer no. 202110 1Quote Ask for a quote
4 TRAY CLAMPManufacturer no. 550400 1Quote Ask for a quote
5 SPACER 5/16 X .380Manufacturer no. 481113 1Quote Ask for a quote
6 5/16 AN WASHER FLATManufacturer no. 263100 1Quote Ask for a quote
7 KNURLED TRAY KNOBManufacturer no. 483026 1Quote Ask for a quote
8 5/16-18 ACORN LOCK NUTManufacturer no. 202114 1Quote Ask for a quote
9A TRAY TOP EX-SM W/RAILManufacturer no. 562619 1Quote Ask for a quote
9B TRAY TOP SM W/RAILManufacturer no. 562620 1Quote Ask for a quote
9C TRAY TOP MED W/RAILManufacturer no. 562621 1Quote Ask for a quote
9D TRAY TOP LRG W/RAILManufacturer no. 562622 1Quote Ask for a quote

Tray Hardware

20 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Tray Hardware
No.PartQtyPriceAction
1 5/16-18 x 1 1/2 BH C/S BLKManufacturer no. 2249 1Quote Ask for a quote
2 .625 x .135 x .031 NYLON WASHERManufacturer no. 2709 1Quote Ask for a quote
3 .609 x .250 x .250 NYLON SPACERManufacturer no. 2710 1Quote Ask for a quote
5 5/16-18" NUT THINManufacturer no. 202110 1Quote Ask for a quote
6 5/16-18" x 2 3/4" BUTTON HD C/SManufacturer no. 2021 1Quote Ask for a quote
7 TRAY BUSHINGManufacturer no. 14240 1Quote Ask for a quote
8 TRAY LOCK BARManufacturer no. 14230 1Quote Ask for a quote
9 1/4" FLAT WASHERManufacturer no. 2705 1Quote Ask for a quote
10 TRAY KNOBManufacturer no. 14220 1Quote Ask for a quote
11 5/16-18" ACORN LOCK NUTManufacturer no. 202114 1Quote Ask for a quote
12 5/16-18" x 3 1/2" CARR BOLTManufacturer no. 226199 1Quote Ask for a quote
13 5/16 WASHER FENDERManufacturer no. 263112 1Quote Ask for a quote
14 5/16-18" NUT THINManufacturer no. 202110 1Quote Ask for a quote
15 TRAY CLAMPManufacturer no. 550400 1Quote Ask for a quote
16 BEARING SPACERManufacturer no. 481013 1Quote Ask for a quote
17 5/16" AN WASHER FLATManufacturer no. 263100 1Quote Ask for a quote
18 KNURLED TRAY KNOBManufacturer no. 483026 1Quote Ask for a quote
19 5/16-18" ACORN LOCK NUTManufacturer no. 202114 1Quote Ask for a quote
1-5 TOGGLE CLAMP - HIDEAWAYManufacturer no. 4099 1Quote Ask for a quote
12-19 TRAY HDWR KIT TUFFAK NEW STYLE (9QH) PairManufacturer no. 881051 1Quote Ask for a quote

Tray Ribs Tuffak

20 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Tray Ribs Tuffak
No.PartQtyPriceAction
1A 19" WOOD TRAY RIBSManufacturer no. 9004 1Quote Ask for a quote
1A 21" WOOD TRAY RIBSManufacturer no. 9005 1Quote Ask for a quote
1A 23 1/2" WOOD TRAY RIBSManufacturer no. 9006-QU 1Quote Ask for a quote
1B 19" HEAVY DUTY RIB FOR WOOD TRAYManufacturer no. 9010 1Quote Ask for a quote
1B 21" HEAVY DUTY RIB FOR WOOD TRAYManufacturer no. 9013 1Quote Ask for a quote
1B 23 1/2" HEAVY DUTY RIB FOR WOOD TRAYManufacturer no. 9016 1Quote Ask for a quote
1C 19" HEAVY DUTY RIB FOR 3/8" TUFFAKManufacturer no. 9011-QU 1Quote Ask for a quote
1C 21" HEAVY DUTY RIB FOR 3/8" TUFFAKManufacturer no. 9014 1Quote Ask for a quote
1C 23 1/2" HEAVY DUTY RIB FOR 3/8" TUFFAKManufacturer no. 9017 1Quote Ask for a quote
2A 15 1/2" WOOD TRAY RIBSManufacturer no. 9003 1Quote Ask for a quote
2A 19" WOOD TRAY RIBSManufacturer no. 9004 1Quote Ask for a quote
2A 21" WOOD TRAY RIBSManufacturer no. 9005 1Quote Ask for a quote
2B 15 1/2" HEAVY DUTY RIB FOR WOOD TRAYManufacturer no. 9007-QU 1Quote Ask for a quote
2B 19" HEAVY DUTY RIB FOR WOOD TRAYManufacturer no. 9010 1Quote Ask for a quote
2B 21" HEAVY DUTY RIB FOR WOOD TRAYManufacturer no. 9013 1Quote Ask for a quote
2C 15 1/2" HEAVY DUTY RIB FOR 3/8" TUFFAKManufacturer no. 9008-QU 1Quote Ask for a quote
2C 19" HEAVY DUTY RIB FOR 3/8" TUFFAKManufacturer no. 9011-QU 1Quote Ask for a quote
2C 21" HEAVY DUTY RIB FOR 3/8" TUFFAKManufacturer no. 9014 1Quote Ask for a quote
3A #6 x 5/8" OVAL PHILLIPS SCREWManufacturer no. 2268 1Quote Ask for a quote
3B #6 x 3/4" FH PHIL S/M SCREWManufacturer no. 230047 1Quote Ask for a quote

Exploded view, page 219

16 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 219
No.PartQtyPriceAction
1D TUBE FTRST EXT STRGHT SHT HEMI Use for Hemi Ext Tube optionManufacturer no. 128079 1Quote Ask for a quote
2A ADULT ANG ADJ F/PLT 10/11" R RIGHT 10-11" Footrest WidthManufacturer no. 500656 1Quote Ask for a quote
2A ADULT ANG ADJ F/PLT 10/11" L LEFT 10-11" Footrest WidthManufacturer no. 500657 1Quote Ask for a quote
2B ADULT ANG ADJ F/PLT 12/13" R RIGHT 12-13" Footrest WidthManufacturer no. 500658 1Quote Ask for a quote
2B ADULT ANG ADJ F/PLT 12/13" L LEFT 12-13" Footrest WidthManufacturer no. 500659 1Quote Ask for a quote
2C ADLT ANGL ADJ F/PLT 14/15 RIGHT 14-15" Footrest WidthManufacturer no. 500660 1Quote Ask for a quote
2C ADLT ANGL ADJ F/PLT 14/15 LEFT 14-15" Footrest WidthManufacturer no. 500661 1Quote Ask for a quote
2D ADLT ANGL ADJ F/PLT 16/17 RIGHT 16-17" Footrest WidthManufacturer no. 500662 1Quote Ask for a quote
2D ADLT ANGL ADJ F/PLT 16/17 LEFT 16-17" Footrest WidthManufacturer no. 500663 1Quote Ask for a quote
2E ADLT ANGL ADJ F/PLT 18-20 RIGHT 18-22" Footrest WidthManufacturer no. 500664 1Quote Ask for a quote
2E ADLT ANGL ADJ F/PLT 18-20 LEFT 18-22" Footrest WidthManufacturer no. 500665 1Quote Ask for a quote
3 NUT AUTOMATION M6 X 1.0Manufacturer no. 132626 1Quote Ask for a quote
4 WASHER FLAT THIN AN 1/4 ROHSManufacturer no. 106944 1Quote Ask for a quote
5 HANGER EXTENSION SADDLEManufacturer no. 107199 1Quote Ask for a quote
6 3/4" SADDLE 1" ODManufacturer no. 561055 1Quote Ask for a quote
7 FTRST MOUNTING BRKT-3/8 RAD R RIGHTManufacturer no. 541002 1Quote Ask for a quote

One-Arm Drive Retro Kit

17 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in One-Arm Drive Retro Kit
No.PartQtyPriceAction
1 10-32 x 3/4 SOC C/S BLKManufacturer no. 106956 1Quote Ask for a quote
2 1/2-20 NYLOCK NUTManufacturer no. 106940 1Quote Ask for a quote
3 1/2 AN WASHER FLATManufacturer no. 106949 1Quote Ask for a quote
4 1 AD HUB CENTERManufacturer no. 106691 1Quote Ask for a quote
5A 1 AD HR ONLY 20" STD/22"SMManufacturer no. 529801 1Quote Ask for a quote
5B 1 AD HR ONLY 22" STD/24"SMManufacturer no. 529800 1Quote Ask for a quote
5C 1 AD HR ONLY 24" STDManufacturer no. 529802 1Quote Ask for a quote
6 3/16 SQ x 1-1/2 KEY STLManufacturer no. 341274 1Quote Ask for a quote
7 1 AD HANDRIM DRIVE SHAFTManufacturer no. 481131 1Quote Ask for a quote
8 1 AD SHAFT ASSM 12"Manufacturer no. 101097-001 1Quote Ask for a quote
8 1 AD SHAFT ASSM 13"Manufacturer no. 101097-002 1Quote Ask for a quote
8 1 AD SHAFT ASSM 14"Manufacturer no. 101097-003 1Quote Ask for a quote
8 1 AD SHAFT ASSM 15"Manufacturer no. 101097-004 1Quote Ask for a quote
8 1 AD SHAFT ASSM 16"Manufacturer no. 101097-005 1Quote Ask for a quote
8 1 AD SHAFT ASSM 17"Manufacturer no. 101097-006 1Quote Ask for a quote
8 1 AD SHAFT ASSM 18"Manufacturer no. 101097-007 1Quote Ask for a quote
9 1 AD WHEEL DRIVE SHAFTManufacturer no. 481132 1Quote Ask for a quote

Tire Pump

2 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Tire Pump
No.PartQtyPriceAction
1 TIRE PUMPManufacturer no. 389050 1Quote Ask for a quote
2 VALVE ADAPTER PRESTAManufacturer no. 381230 1Quote Ask for a quote

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 222)

5 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 222)
No.PartQtyPriceAction
1A TUBE FOOTREST EXT STRAIGHT SHORT 80 deg hangers onlyManufacturer no. 107119 1Quote Ask for a quote
1B TUBE FOOTREST EXT STRAIGHT MED 80 deg hangers onlyManufacturer no. 107120 1Quote Ask for a quote
1C TUBE FOOTREST EXT STRAIGHT LONG 80 deg hangers onlyManufacturer no. 107121 1Quote Ask for a quote
1D TUBE FOOTREST EXT SHORT 60,70,70 Hemi HangersManufacturer no. 107126 1Quote Ask for a quote
1E TUBE FOOTREST EXT MED 60,70,70 Hemi HangersManufacturer no. 107127 1Quote Ask for a quote

Tool Kit

2 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (ZT, ZTS, ZTE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Tool Kit
No.PartQtyPriceAction
1 QUICKIE COMBO TOOL KIT Includes pouchManufacturer no. 108314 1Quote Ask for a quote
2 6MM ALLEN WRENCH L, 7MM SHORT caster spline chairs onlyManufacturer no. 113403 1Quote Ask for a quote

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 226)

0 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 228)

2 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 228)
No.PartQtyPriceAction
1 SWNG I/O ELR ASSM FM W/PAD Kit includes both right & left sides with calf padsManufacturer no. 162048S 1Quote Ask for a quote
2 LATCH RECEIVER KIT order qty 2 when retro-fitting to chairManufacturer no. 119514 1Quote Ask for a quote

Exploded view, page 229

18 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 229
No.PartQtyPriceAction
1 SWNG I/O ELR ASSM FM LH LeftManufacturer no. 162049S 1Quote Ask for a quote
1 SWNG I/O ELR ASSM FM RH RightManufacturer no. 162050S 1Quote Ask for a quote
2 LATCH RECEIVER KIT order qty 2 when retro-fitting to chairManufacturer no. 119514 1Quote Ask for a quote
3 ALR REL LEVER COVERManufacturer no. 560501 1Quote Ask for a quote
4 HEMI ELR SUB ASSMManufacturer no. 126992 1Quote Ask for a quote
5 RECEIVER ASSY ELR ALR RHManufacturer no. 134188 1Quote Ask for a quote
5 RECEIVER ASSY ELR ALR LHManufacturer no. 134186 1Quote Ask for a quote
6 BHCS 1/4-28 x 1-1/2Manufacturer no. 108623 1Quote Ask for a quote
7 BHCS 1/4 -28 x 1 1/4 ROHSManufacturer no. 106961 1Quote Ask for a quote
8 1/4-28 NYLOCK NUT THIN BLK ZNManufacturer no. 106935 1Quote Ask for a quote
9 WAVE WASHER 6 MMManufacturer no. 104414 1Quote Ask for a quote
10 1" INSERT PLUG .083Manufacturer no. 561002 1Quote Ask for a quote
12 WASHER FLAT AN #10 ROHSManufacturer no. 113282 1Quote Ask for a quote
13 BHCS 8-32 X 1/2 BLKManufacturer no. 127135 1Quote Ask for a quote
11-13 ELR SHROUD KIT Kit w/ 2 screwsManufacturer no. 129640 1Quote Ask for a quote
14 SQUARE END CAP CNTR LEGManufacturer no. 010615 1Quote Ask for a quote
15 5/16-18 X 2" BH C/S BLKManufacturer no. 226217 1Quote Ask for a quote
16 ENDPLUG BACKREST TNTManufacturer no. 560110 1Quote Ask for a quote

90 Deg Elevating Calf Pad (page 231)

10 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 90 Deg Elevating Calf Pad (page 231)
No.PartQtyPriceAction
1 5/16-18 x 2" BH C/S BLKManufacturer no. 226217 1Quote Ask for a quote
2 CALF PAD TROUGH STYLE KIDSManufacturer no. 755013 1Quote Ask for a quote
3 1" WASHER 5/16" HOLEManufacturer no. 561016 1Quote Ask for a quote
4 ELR ELEVATING TUBE CLAMPManufacturer no. 561097 1Quote Ask for a quote
5 5/16 -18 NYLOCK NUT THINManufacturer no. 106937 1Quote Ask for a quote
6 HHCS 1/4-20 X 1 ROHSManufacturer no. 106958 1Quote Ask for a quote
7 6mm WASHER WAVEManufacturer no. 262130 1Quote Ask for a quote
8 1/4 x 1/4 ALUMINUM SPACERManufacturer no. 483027 1Quote Ask for a quote
9 KIDS ALR RETAINING PLUGManufacturer no. 500151 1Quote Ask for a quote
1-9 ELR TROUGH PAD ASSM KIDSManufacturer no. 880533 1Quote Ask for a quote

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 232)

3 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 232)
No.PartQtyPriceAction
1 NUT NYLOCK THIN 1/4 -28 ROHSManufacturer no. 106935 1Quote Ask for a quote
2 BHCS 1/4 -28 x 1 1/4 ROHSManufacturer no. 106961 1Quote Ask for a quote
1-3 2" FOOTREST EXTENSION TUBE W/ HDWR ASSM 2" EXT (PAIR)Manufacturer no. 111505 1Quote Ask for a quote

Adult Angle-Adj Footplate Front Mount (page 233)

22 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Adult Angle-Adj Footplate Front Mount (page 233)
No.PartQtyPriceAction
1 FHCS 1/4-28 X 7/8 ROHSManufacturer no. 106978 1Quote Ask for a quote
2 NUT AUTOMATION 1/4-28 ROHSManufacturer no. 106941 1Quote Ask for a quote
3 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
4 1" SADDLE 1/4" HOLEManufacturer no. 561004 1Quote Ask for a quote
5 FOOTREST MOUNTING BRKT 1/2" RAD R RIGHTManufacturer no. 541000 1Quote Ask for a quote
5 FOOTREST MOUNTING BRKT 1/2" RAD L LEFTManufacturer no. 541001 1Quote Ask for a quote
6 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106945 1Quote Ask for a quote
7 BHCS 1/4-28 X 2Manufacturer no. 106964 1Quote Ask for a quote
8 3/4" CLAMP ADJ FOOTPLATEManufacturer no. 550350 1Quote Ask for a quote
9 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
10 HEEL LOOP PEGManufacturer no. 561040 1Quote Ask for a quote
11 HEEL LOOP 18-20 CMPST/14-15 ANG ADJ USED W/ 14-15"/16-17" ADULT ANG ADJ FTPLTSManufacturer no. 741153 1Quote Ask for a quote
11 HEEL LOOP ADLT ADJ F/PLT 18-20 USED W/ 18 -20" ADULT ANG ADJ FTPLTSManufacturer no. 741253 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 10/11 RIGHTManufacturer no. 500656 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 10/11 LEFTManufacturer no. 500657 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 12/13 RIGHTManufacturer no. 500658 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 12/13 LEFTManufacturer no. 500659 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 14/15 RIGHTManufacturer no. 500660 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 14/15 LEFTManufacturer no. 500661 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 16/17 RIGHTManufacturer no. 500662 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 16/17 LEFTManufacturer no. 500663 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 18-20 RIGHTManufacturer no. 500664 1Quote Ask for a quote

Kids Angle Adj Footplate Front Mount (page 235)

18 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Kids Angle Adj Footplate Front Mount (page 235)
No.PartQtyPriceAction
1 FHCS 1/4-28 X 7/8 ROHSManufacturer no. 106978 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 10 RIGHTManufacturer no. 500635 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 10 LEFTManufacturer no. 500636 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 11 RIGHTManufacturer no. 500637 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 11 LEFTManufacturer no. 500638 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 12 RIGHTManufacturer no. 500639 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 12 LEFTManufacturer no. 500640 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 13 RIGHTManufacturer no. 500641 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 13 LEFTManufacturer no. 500642 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 14 RIGHTManufacturer no. 500643 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 14 LEFTManufacturer no. 500644 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 15 RIGHTManufacturer no. 500645 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 15 LEFTManufacturer no. 500646 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 16 RIGHTManufacturer no. 500647 1Quote Ask for a quote
2 KIDS ANGL ADJ F/PLT 16 LEFTManufacturer no. 500648 1Quote Ask for a quote
3 3/4 CLAMP ADJ FOOTPLATEManufacturer no. 550350 1Quote Ask for a quote
4 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
5 1/4-28 X 1.85 BH C/S BLK ZNManufacturer no. 226147 1Quote Ask for a quote

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 236)

39 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 236)
No.PartQtyPriceAction
6 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106945 1Quote Ask for a quote
7 FTRST MOUNTING BRKT 1/2" RAD R RIGHTManufacturer no. 541000 1Quote Ask for a quote
7 FTRST MOUNTING BRKT 1/2" RAD L LEFTManufacturer no. 541001 1Quote Ask for a quote
8 1 SADDLE 1/4 HOLEManufacturer no. 561004 1Quote Ask for a quote
9 WASHER FLAT THIN AN 1/4Manufacturer no. 106943 1Quote Ask for a quote
10 NUT AUTOMATION 1/4-28 ROHSManufacturer no. 106941 1Quote Ask for a quote
11 HHCS M6 X 1 X 25Manufacturer no. 102268-001 1Quote Ask for a quote
12 NUT AUTOMATION M6 X 1.0 ROHSManufacturer no. 132626 1Quote Ask for a quote
13 WASHER FLAT M6 ROHSManufacturer no. 107383 1Quote Ask for a quote
15 HHCS M6 X 1 X 40 PART NPManufacturer no. 118198 1Quote Ask for a quote
16 1" SADDLE 1/4" HOLEManufacturer no. 561004 1Quote Ask for a quote
17 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
19 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106945 1Quote Ask for a quote
1-4 KAA F/PLT KIT 10 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158632 1Quote Ask for a quote
1-4 KAA F/PLT KIT 10 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158633 1Quote Ask for a quote
1-4 KAA F/PLT KIT 11 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158634 1Quote Ask for a quote
1-4 KAA F/PLT KIT 11 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158635 1Quote Ask for a quote
1-4 KAA F/PLT KIT 12 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158636 1Quote Ask for a quote
1-4 KAA F/PLT KIT 12 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158637 1Quote Ask for a quote
1-4 KAA F/PLT KIT 13 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158638 1Quote Ask for a quote
1-4 KAA F/PLT KIT 13 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158639 1Quote Ask for a quote
1-4 KAA F/PLT KIT 14 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158640 1Quote Ask for a quote
1-4 KAA F/PLT KIT 14 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158641 1Quote Ask for a quote
1-4 KAA F/PLT KIT 15 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158642 1Quote Ask for a quote
1-4 KAA F/PLT KIT 15 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158643 1Quote Ask for a quote
1-4 KAA F/PLT KIT 16 RT RIGHT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158644 1Quote Ask for a quote
1-4 KAA F/PLT KIT 16 LT LEFT; used with Front Mount Adapter Kit on Plunger-Manufacturer no. 158645 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 10 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828821 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 10 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828822 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 11 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828823 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 11 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828824 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 12 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828825 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 12 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828826 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 13 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828827 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 13 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828828 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 14 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828829 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 14 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828830 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 15 RIGHT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828831 1Quote Ask for a quote
1-10 KIDS ANG ADJ F/PLT ASSM 15 LEFT; used with Old-Style Latch Block Swing In/Out & S/A HangersManufacturer no. 828832 1Quote Ask for a quote

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 238)

6 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 238)
No.PartQtyPriceAction
1A SWNG I/O ELR ASM 14-15 W/PAD PairManufacturer no. 161233S 1Quote Ask for a quote
1B SWNG I/O ELR ASM 16-17 W/PAD PairManufacturer no. 161234S 1Quote Ask for a quote
1C SWNG I/O ELR ASM 18-20 W/PAD PairManufacturer no. 161235S 1Quote Ask for a quote
2A SWNG I/O ALR ASM 14-15 W/PAD PairManufacturer no. 161236S 1Quote Ask for a quote
2B SWNG I/O ALR ASM 16-17 W/PAD PairManufacturer no. 161237S 1Quote Ask for a quote
2C SWNG I/O ALR ASM 18-20 W/PAD PairManufacturer no. 161238S 1Quote Ask for a quote

Exploded view, page 239

17 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 239
No.PartQtyPriceAction
1 SWNG I/O ELR ASSM RH RightManufacturer no. 161239S 1Quote Ask for a quote
1 SWNG I/O ELR ASSM LH LeftManufacturer no. 161240S 1Quote Ask for a quote
1 SWNG I/O ELR ASSM PR PairManufacturer no. 161241S 1Quote Ask for a quote
3 BHCS 8-32 X 1/2 BLKManufacturer no. 127135 1Quote Ask for a quote
4 HEMI ELR SUB ASSMManufacturer no. 126992 1Quote Ask for a quote
5 ALR REL LEVER COVERManufacturer no. 560501 1Quote Ask for a quote
6 RECEIVER ASSY ELR ALR RHManufacturer no. 134188 1Quote Ask for a quote
6 RECEIVER ASSY ELR ALR LHManufacturer no. 134186 1Quote Ask for a quote
7 SHCS 1/4-28 x 1/2Manufacturer no. 107350 1Quote Ask for a quote
8 ANGLE STOP ELRManufacturer no. 127129 1Quote Ask for a quote
9 NUT HEX THIN 1/4-28Manufacturer no. 107249 1Quote Ask for a quote
10 1/4-28 NYLOCK NUT THIN BLK ZNManufacturer no. 106935 1Quote Ask for a quote
11 WAVE WASHER 6 MMManufacturer no. 104414 1Quote Ask for a quote
12 BHCS 1/4 -28 x 1 1/4 ROHSManufacturer no. 106961 1Quote Ask for a quote
13 BHCS 1/4-28 x 1-1/2Manufacturer no. 108623 1Quote Ask for a quote
14 EXTENSION CLAMP KITManufacturer no. 119495 1Quote Ask for a quote
15 SQUARE END CAP CNTR LEGManufacturer no. 010615 1Quote Ask for a quote

Exploded view, page 241

18 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 241
No.PartQtyPriceAction
1 SWNG I/O ALR ASSM RH KIT RightManufacturer no. 161244S 1Quote Ask for a quote
1 SWNG I/O ALR ASSM LH KIT LeftManufacturer no. 161245S 1Quote Ask for a quote
1 SWNG I/O ALR ASSM PR KIT PairManufacturer no. 161246S 1Quote Ask for a quote
2 EXTENSION CLAMP KITManufacturer no. 119495 1Quote Ask for a quote
3 LATCH RECEIVER KIT order qty 2 when retro-fitting to chairManufacturer no. 119514 1Quote Ask for a quote
4 HEMI ALR SUB ASSMManufacturer no. 127153 1Quote Ask for a quote
5 ALR REL LEVER COVERManufacturer no. 560501 1Quote Ask for a quote
6 RECEIVER ASSY ELR ALR RHManufacturer no. 134188 1Quote Ask for a quote
6 RECEIVER ASSY ELR ALR LHManufacturer no. 134186 1Quote Ask for a quote
7 ANGLE STOP ELRManufacturer no. 127129 1Quote Ask for a quote
8 SHCS 1/4-28 x 1/2Manufacturer no. 107350 1Quote Ask for a quote
9 1/4-28 NYLOCK NUT THIN BLK ZNManufacturer no. 106935 1Quote Ask for a quote
10 BHCS 1/4-28 x 1-1/2Manufacturer no. 108623 1Quote Ask for a quote
11 BHCS 1/4-28 X 2Manufacturer no. 106964 1Quote Ask for a quote
12 1" HALF SADDLE 1/4" HOLEManufacturer no. 561086 1Quote Ask for a quote
13 WASHER NYLON 1IN OD X .312 IDManufacturer no. 113268 1Quote Ask for a quote
14 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
15 WASHER FLAT AN #10 ROHSManufacturer no. 113282 1Quote Ask for a quote

Elr & Alr Calf Pad 14 -15" (page 243)

8 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Elr & Alr Calf Pad 14 -15" (page 243)
No.PartQtyPriceAction
1 BHCS 5/16-18 X 1-1/4 ROHSManufacturer no. 106980 1Quote Ask for a quote
2 CALF PAD TROUGH STYLE 14"/16"Manufacturer no. 755014 1Quote Ask for a quote
3 1/4-28 X 5/8 HEX C/S BZManufacturer no. 221097 1Quote Ask for a quote
4 1" WASHER 5/16" HOLEManufacturer no. 561016 1Quote Ask for a quote
5 CALF PAD BRACKET ASSEMBLYManufacturer no. 881413 1Quote Ask for a quote
6 NUT NYLOCK 1/4-28 ROHSManufacturer no. 106934 1Quote Ask for a quote
7 NUT NYLOCK THIN 5/16-18Manufacturer no. 106937 1Quote Ask for a quote
1-7 CALF PAD J-HOOK 14"-15" ASSEMBLYManufacturer no. 881414 1Quote Ask for a quote

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 244)

9 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 244)
No.PartQtyPriceAction
1 NUT NYLOCK 1/4-28 ROHSManufacturer no. 106934 1Quote Ask for a quote
2A HHCS 5/16-18 X 2-1/2 ROHS 16"-17" wide onlyManufacturer no. 107018 1Quote Ask for a quote
2B HHCS 5/16-18 X 3-1/2 ROHS 18"-20" wide onlyManufacturer no. 107019 1Quote Ask for a quote
3 HHCS 1/4-28 X 5/8 ROHSManufacturer no. 107013 1Quote Ask for a quote
4 CALF PAD BRACKET ASSEMBLYManufacturer no. 881413 1Quote Ask for a quote
5 ELR CALF HINGE SPACER 18"-20" wide onlyManufacturer no. 560199 1Quote Ask for a quote
6 CALF PAD MOLDED 16"-20"Manufacturer no. 560108 1Quote Ask for a quote
7 NUT NYLOCK 5/16-18 ROHSManufacturer no. 106936 1Quote Ask for a quote
8 CALF PAD COVERManufacturer no. 751045 1Quote Ask for a quote

Composite Footplate (page 245)

0 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Composite Angle Adjustable Foot Plate (page 249)

2 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Composite Angle Adjustable Foot Plate (page 249)
No.PartQtyPriceAction
1D TUBE FTRST EXT STRGHT SHT HEMI Use for Hemi Ext Tube optionManufacturer no. 128079 1Quote Ask for a quote
2A COMPOSITE FOOTPLATE RIGHT RIGHT 15" Footrest WidthManufacturer no. 063216-006 1Quote Ask for a quote

Exploded view, page 253

16 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 253
No.PartQtyPriceAction
1D TUBE FTRST EXT STRGHT SHT HEMI Use for Hemi Ext Tube optionManufacturer no. 128079 1Quote Ask for a quote
2A ADULT ANG ADJ F/PLT 10/11" R RIGHT 10-11" Footrest WidthManufacturer no. 500656 1Quote Ask for a quote
2A ADULT ANG ADJ F/PLT 10/11" L LEFT 10-11" Footrest WidthManufacturer no. 500657 1Quote Ask for a quote
2B ADULT ANG ADJ F/PLT 12/13" R RIGHT 12-13" Footrest WidthManufacturer no. 500658 1Quote Ask for a quote
2B ADULT ANG ADJ F/PLT 12/13" L LEFT 12-13" Footrest WidthManufacturer no. 500659 1Quote Ask for a quote
2C ADLT ANGL ADJ F/PLT 14/15 RIGHT 14-15" Footrest WidthManufacturer no. 500660 1Quote Ask for a quote
2C ADLT ANGL ADJ F/PLT 14/15 LEFT 14-15" Footrest WidthManufacturer no. 500661 1Quote Ask for a quote
2D ADLT ANGL ADJ F/PLT 16/17 RIGHT 16-17" Footrest WidthManufacturer no. 500662 1Quote Ask for a quote
2D ADLT ANGL ADJ F/PLT 16/17 LEFT 16-17" Footrest WidthManufacturer no. 500663 1Quote Ask for a quote
2E ADLT ANGL ADJ F/PLT 18-20 RIGHT 18-22" Footrest WidthManufacturer no. 500664 1Quote Ask for a quote
2E ADLT ANGL ADJ F/PLT 18-20 LEFT 18-22" Footrest WidthManufacturer no. 500665 1Quote Ask for a quote
3 NUT AUTOMATION M6 X 1.0Manufacturer no. 132626 1Quote Ask for a quote
4 WASHER FLAT THIN AN 1/4 ROHSManufacturer no. 106944 1Quote Ask for a quote
5 HANGER EXTENSION SADDLEManufacturer no. 107199 1Quote Ask for a quote
6 3/4" SADDLE 1" ODManufacturer no. 561055 1Quote Ask for a quote
7 FTRST MOUNTING BRKT-3/8 RAD R RIGHTManufacturer no. 541002 1Quote Ask for a quote

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 256)

1 part

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 256)
No.PartQtyPriceAction
1 FHCS 1/4 -28 x 7/8 ROHSManufacturer no. 106978 1Quote Ask for a quote

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 258)

15 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 258)
No.PartQtyPriceAction
1 1/4-28 x 5/8 BH C/SManufacturer no. 226090 1Quote Ask for a quote
2 BRACKET FOOTPLATE ALUMManufacturer no. 118093 1Quote Ask for a quote
3 BHCS M6 X 1 X 50 INORGANICManufacturer no. 102262-008 1Quote Ask for a quote
4 #4 x 5/8 PAN PHIL S/TAPManufacturer no. 281043 1Quote Ask for a quote
5 END CAPS FOOTRESTManufacturer no. 560101 1Quote Ask for a quote
7 SHORT BENTManufacturer no. 107126 1Quote Ask for a quote
7 MED BENTManufacturer no. 107127 1Quote Ask for a quote
7 LONG BENTManufacturer no. 107128 1Quote Ask for a quote
7 TUBE FOOTREST EXT SHT HEMI Use for Hemi Extension optionManufacturer no. 128078 1Quote Ask for a quote
8 1/4-28 NYLOCK NUT THINManufacturer no. 106935 1Quote Ask for a quote
9 3/4" SADDLE THINManufacturer no. 561003 1Quote Ask for a quote
10 NUT AUTOMATION M6 X 1.0Manufacturer no. 132626 1Quote Ask for a quote
11 WASHER FLAT M6 ROHSManufacturer no. 107383 1Quote Ask for a quote
12-14 EXTENSION CLAMP KITManufacturer no. 119495 1Quote Ask for a quote
15 ALU FOOTPLATE HDWARE KIT Ext tube not included; bracket (118093) not includedManufacturer no. 129775 1Quote Ask for a quote

Single Post Height Adjustable Armrest

16 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Single Post Height Adjustable Armrest
No.PartQtyPriceAction
1A SPHA PAD DESK CONTOUR DESKManufacturer no. 104568-001 1Quote Ask for a quote
1B SPHA PAD FULL CONTOUR FULLManufacturer no. 104568-002 1Quote Ask for a quote
1C ARMREST PAD 10" DESK CLASSIC DESKManufacturer no. 561024 1Quote Ask for a quote
1D ARMREST PAD 14" FULL CLASSIC FULLManufacturer no. 561031 1Quote Ask for a quote
1E ARMREST PAD 10" LEFT W/F Left-Waterfall DeskManufacturer no. 561280 1Quote Ask for a quote
1E ARMREST PAD 10" RIGHT W/F Rightt-Waterfall DeskManufacturer no. 561281 1Quote Ask for a quote
1F ARMREST PAD 14" LEFT W/F Leftt-Waterfall FullManufacturer no. 561284 1Quote Ask for a quote
1F ARMREST PAD 14" RIGHT W/F Rightt-Waterfall FullManufacturer no. 561285 1Quote Ask for a quote
2 SNGL POST UPPR ASSM LOW LOW/SMALLManufacturer no. 116312 1Quote Ask for a quote
2 SNGL POST UPPR ASSM STD STANDARDManufacturer no. 116313 1Quote Ask for a quote
3 SHCS 10-32 X 3/4 ROHSManufacturer no. 106956 1Quote Ask for a quote
5A HT ADJ PD TUBE 10IN DESK POWE DeskManufacturer no. 521812 1Quote Ask for a quote
5B HT ADJ PD TUBE 14IN FULL POWE FullManufacturer no. 521813 1Quote Ask for a quote
6 BHCS 10-32 X 1 1/2 ROHSManufacturer no. 107024 1Quote Ask for a quote
7 7/8" ROUND TUBE PLUGManufacturer no. 560735 1Quote Ask for a quote
8 SHCS 10-32 X 1-1/4 PL Used with Full Length & WaterfallManufacturer no. 108534 1Quote Ask for a quote

T Post Armrest (page 263)

12 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in T Post Armrest (page 263)
No.PartQtyPriceAction
1 ARMREST PAD SMALL 9"Manufacturer no. 561024 1Quote Ask for a quote
2 7/8" INSERT PLUG .083Manufacturer no. 561007 1Quote Ask for a quote
3 10-32 x 1 3/8 BH C/S BLKManufacturer no. 107023 1Quote Ask for a quote
5 KIDZ ARM STOPManufacturer no. 550105-QU 1Quote Ask for a quote
6 10-32 x 1/2 FH C/S BLKManufacturer no. 113279 1Quote Ask for a quote
7 ARMREST FOAM KIDZManufacturer no. 560309 1Quote Ask for a quote
8A TPHHA & SG CLAMP 1" Used w/ Zippie TS & GS & KidzManufacturer no. 502037 1Quote Ask for a quote
8B SIDE GUARD/KIDZ ARM REC Used w/ Zippie Iris & 2Manufacturer no. 550325 1Quote Ask for a quote
9 1/4-28 x 1 3/8 HEX C/SManufacturer no. 106971 1Quote Ask for a quote
10 1/4 AN WASHER FLAT THINManufacturer no. 106944 1Quote Ask for a quote
11A TPHAR & SGR CLAMP 1" Used w/ Zippie TS & GS & KidzManufacturer no. 502038 1Quote Ask for a quote
11B CLAMP P300 CHRGNG/ADJ FL KDS Used w/ Zippie Iris & 2Manufacturer no. 550251 1Quote Ask for a quote

Flip-Up Armrest (page 265)

11 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Flip-Up Armrest (page 265)
No.PartQtyPriceAction
1 SHORT DOME PLUGManufacturer no. 561034 1Quote Ask for a quote
2 1/4-28 x 1 1/2 BH C/SManufacturer no. 107028 1Quote Ask for a quote
3 3/4" SADDLE THINManufacturer no. 561003 1Quote Ask for a quote
4 1/4-28 x 2 1/4 BH C/SManufacturer no. 106966 1Quote Ask for a quote
5 FLIP-UP ARM CAM ZP/P5Manufacturer no. 483041 1Quote Ask for a quote
6 1/4-28 NYLOCK NUT THINManufacturer no. 106935 1Quote Ask for a quote
7 1" SADDLE 1/4" HOLEManufacturer no. 561004 1Quote Ask for a quote
8 1/4 AN WASHER FLAT THINManufacturer no. 106944 1Quote Ask for a quote
9 8 x .705 x .200 FOAM GRIPManufacturer no. 560599 1Quote Ask for a quote
10 3/4" INSERT PLUG .083Manufacturer no. 561000-QU 1Quote Ask for a quote
12 1/4" WASHER INT LOCK ZNManufacturer no. 267350 1Quote Ask for a quote

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 266)

20 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 266)
No.PartQtyPriceAction
1 1/4 AN WASHER FLATManufacturer no. 106943 1Quote Ask for a quote
2 1/4-28 x 1/2 BH C/SManufacturer no. 107025 1Quote Ask for a quote
4 1" INSERT PLUG .083Manufacturer no. 561002 1Quote Ask for a quote
5 9 x .93 x .155 FOAM GRIPManufacturer no. 560640 1Quote Ask for a quote
6 5/16-18 x 2 BH C/S SHT THREADManufacturer no. 106983 1Quote Ask for a quote
7 5/16 WASHER FLAT THINManufacturer no. 106947 1Quote Ask for a quote
8 ADJ LOCK FLIP-UP ARM MNT RManufacturer no. 550168 1Quote Ask for a quote
8 ADJ LOCK FLIP-UP ARM MNT LManufacturer no. 550169 1Quote Ask for a quote
9 1/4-28 NYLOCK NUT THINManufacturer no. 106935 1Quote Ask for a quote
10 5/16-18 NYLOCK NUT THICK BLKManufacturer no. 202117 1Quote Ask for a quote
11 1/4-28 x 1 1/2 G8 HEX C/SManufacturer no. 106972 1Quote Ask for a quote
12 ADJ FLIP-BACK ARM BRACKET RManufacturer no. 550474 1Quote Ask for a quote
12 ADJ FLIP BACK ARM BRACKET LManufacturer no. 550475 1Quote Ask for a quote
13 1" WASHER 5/16" HOLEManufacturer no. 561016 1Quote Ask for a quote
14 1" SADDLE 5/16" HOLEManufacturer no. 561006 1Quote Ask for a quote
15 1" COVED STEM BUMPERManufacturer no. 560252 1Quote Ask for a quote
3-5 ADJ FLIP-BACK TUBE W/LATCHManufacturer no. 880274 1Quote Ask for a quote
1-15 ADJ FLIP BACK ARMREST RManufacturer no. 880272 1Quote Ask for a quote
1-15 ADJ FLIP BACK ARMREST LManufacturer no. 880273 1Quote Ask for a quote
1-15 ADJ LOCK FLIP-UP ARMREST ASSM PAIRManufacturer no. 900449 1Quote Ask for a quote

Exploded view, page 267

23 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 267
No.PartQtyPriceAction
1 BHCS 1/4-28 x 1/2 ROHSManufacturer no. 107025 1Quote Ask for a quote
4A 1" INSERT PLUG .083Manufacturer no. 561002 1Quote Ask for a quote
4B 1" INSERT PLUG .065Manufacturer no. 561062 1Quote Ask for a quote
5A 7 x .940 x .20 FOAM GRIP SHORT PADManufacturer no. 560299 1Quote Ask for a quote
5B 9" X .93" X .155" FOAM GRIP LONG PADManufacturer no. 560640 1Quote Ask for a quote
6 BHCS 5/16-18 x 2 SHLDR ROHSManufacturer no. 106983 1Quote Ask for a quote
7 WASHER FLAT THIN AN 5/16 ROHSManufacturer no. 106947 1Quote Ask for a quote
8 ADJUSTABLE LOCK FLIP-UP ARM MOUNT RIGHTManufacturer no. 550168 1Quote Ask for a quote
8 ADJUSTABLE LOCK FLIP-UP ARM MOUNT LEFTManufacturer no. 550169 1Quote Ask for a quote
9 NYLOCK NUT THIN 1/4 -28 ROHSManufacturer no. 106935 1Quote Ask for a quote
10 5/16-18 NYLOCK NUT THICK BLKManufacturer no. 202117 1Quote Ask for a quote
11 HHCS 1/4-28 x 1 1/2 ROHSManufacturer no. 106972 1Quote Ask for a quote
12 ADJUSTABLE FLIP-BACK ARM BRACKET RIGHTManufacturer no. 550474 1Quote Ask for a quote
12 ADJUSTABLE FLIP-BACK ARM BRACKET LEFTManufacturer no. 550475 1Quote Ask for a quote
13 1" WASHER 5/16" HOLEManufacturer no. 561016 1Quote Ask for a quote
14 1" SADDLE 5/16" HOLEManufacturer no. 561006 1Quote Ask for a quote
15A ARMREST PAD 10" DESKManufacturer no. 561024 1Quote Ask for a quote
15B ARMREST PAD 14" FULLManufacturer no. 561031 1Quote Ask for a quote
17 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
18 SHCS 8 -32 x 3/8 ROHSManufacturer no. 107036 1Quote Ask for a quote
19 10-32 X 1/2" SET SCREWManufacturer no. 225110 1Quote Ask for a quote
20 BHCS 10-32 X 5/8 ROHSManufacturer no. 107022 1Quote Ask for a quote
21 1" COVED STEM BUMPERManufacturer no. 560252 1Quote Ask for a quote

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 270)

6 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 270)
No.PartQtyPriceAction
1 SHCS 1/4 -28 x 1 1/4 ROHSManufacturer no. 106975 1Quote Ask for a quote
2 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
3 CLAMP, RECEIVER, 1" ODManufacturer no. 107123 1Quote Ask for a quote
4 NUT NYLOCK THIN 1/4 -28 ROHSManufacturer no. 106935 1Quote Ask for a quote
5 RECEIVER, SPHA 1" ODManufacturer no. 107124 1Quote Ask for a quote
1-5 SPHA RECEIVER W/ CLAMP KITManufacturer no. 108101 1Quote Ask for a quote

Single Post Armrest Receiver - Low

0 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 274)

1 part

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 274)
No.PartQtyPriceAction
1 QUICKIE SIDE POCKET Size: 6.5"x 6.5"x 2"Manufacturer no. 013475 1Quote Ask for a quote

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 276)

4 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 276)
No.PartQtyPriceAction
1A LEG STRAP 11"-12" BLKManufacturer no. 113255 1Quote Ask for a quote
1B LEG STRAP 13"-15" BLKManufacturer no. 113256 1Quote Ask for a quote
1C LEG STRAP 16"-18" BLKManufacturer no. 113257 1Quote Ask for a quote
1D LEG STRAP 19"-20" BLKManufacturer no. 113258 1Quote Ask for a quote

Soft Feel Leg Strap (page 277)

4 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Soft Feel Leg Strap (page 277)
No.PartQtyPriceAction
1A LEG STRAP SOFT FEEL Q 11 -12"Manufacturer no. 109356 1Quote Ask for a quote
1B LEG STRAP SOFT FEEL Q 13 -15"Manufacturer no. 109357 1Quote Ask for a quote
1C LEG STRAP SOFT FEEL Q 16 -18"Manufacturer no. 109366 1Quote Ask for a quote
1D LEG STRAP SOFT FEEL Q 19 -20"Manufacturer no. 111487 1Quote Ask for a quote

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 278)

13 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 278)
No.PartQtyPriceAction
1 SHCS M6 X 1 X 25 W/PL INORG MetricManufacturer no. 102263-003 1Quote Ask for a quote
2 WASHER FLAT M6 MetricManufacturer no. 250104 1Quote Ask for a quote
3 BHCS M6 X 1 X 12 FULL PL MetricManufacturer no. 103185-005 1Quote Ask for a quote
4 WASHER FLAT AN 1/4 ROHS Imperial (standard)Manufacturer no. 106943 1Quote Ask for a quote
5 1/4-20 X 1/2 BH C/S W/PATCH Imperial (standard)Manufacturer no. 226154 1Quote Ask for a quote
6 1/4-20 X 1 SOC HD BLK Imperial (standard)Manufacturer no. 221116 1Quote Ask for a quote
7 BHCS M6 X 1 X 12Manufacturer no. 230113 1Quote Ask for a quote
8 LOCKWASHER HIGH COLLAR M6Manufacturer no. 050129-001 1Quote Ask for a quote
9 NUT HEX NYLOCK M6 X 1.0Manufacturer no. 104381 1Quote Ask for a quote
10 WASHER FLAT M6Manufacturer no. 107383 1Quote Ask for a quote
11 HHCS M6 X 1 X 35 BLKManufacturer no. 102268-002 1Quote Ask for a quote
12 PSTN BELT CLAMP ASSM PR Metric; PairManufacturer no. 120750 1Quote Ask for a quote
13 POSITION BELT ATTACHMENT KIT Set of 2; Imperial (standard)Manufacturer no. 900116 1Quote Ask for a quote

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 280)

14 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 280)
No.PartQtyPriceAction
1 SHCS M6 X 1 X 25 W/PL INORG MetricManufacturer no. 102263-003 1Quote Ask for a quote
2 WASHER FLAT M6 MetricManufacturer no. 250104 1Quote Ask for a quote
3 BHCS M6 X 1 X 12 FULL PL MetricManufacturer no. 103185-005 1Quote Ask for a quote
4 WASHER FLAT AN 1/4 ROHS Imperial (standard)Manufacturer no. 106943 1Quote Ask for a quote
5 1/4-20 X 1/2 BH C/S W/PATCH Imperial (standard)Manufacturer no. 226154 1Quote Ask for a quote
6 1/4-20 X 1 SOC HD BLK Imperial (standard)Manufacturer no. 221116 1Quote Ask for a quote
7 BHCS M6 X 1 X 12Manufacturer no. 230113 1Quote Ask for a quote
8 LOCKWASHER HIGH COLLAR M6Manufacturer no. 050129-001 1Quote Ask for a quote
9 NUT HEX NYLOCK M6 X 1.0Manufacturer no. 104381 1Quote Ask for a quote
10 WASHER FLAT M6Manufacturer no. 107383 1Quote Ask for a quote
11 HHCS M6 X 1 X 35 BLKManufacturer no. 102268-002 1Quote Ask for a quote
12 PSTN BELT CLAMP ASSM PR Metric; PairManufacturer no. 120750 1Quote Ask for a quote
13 POSITION BELT ATTACHMENT KIT Set of 2; Imperial (standard)Manufacturer no. 900116 1Quote Ask for a quote
14 OVAL CLAMP ASSM KIT Kit contains 1 ClampManufacturer no. 116268 1Quote Ask for a quote

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 282)

12 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 282)
No.PartQtyPriceAction
1A BELT 1" DUAL ADJ. SQZ BKL PADManufacturer no. 450420-QU 1Quote Ask for a quote
1B BELT 1.5" DUAL ADJ. SQZ BKL PADManufacturer no. 450421-QU 1Quote Ask for a quote
1C BELT 2" DUAL ADJ. SQZ BKL PADManufacturer no. 450422-QU 1Quote Ask for a quote
2 PLASTIC WEBBING GROMMETManufacturer no. 451116-QU 1Quote Ask for a quote
3 1/4-28 x 9/16 SPEC ROUND HDManufacturer no. 455036-QU 1Quote Ask for a quote
4 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
5 CHAN.UNF NUT 1/4-28 W/SETSCRWManufacturer no. 479020 1Quote Ask for a quote
6 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
7 1/4-28 CHANNELNUTManufacturer no. 481106-QU 1Quote Ask for a quote
1A-5 BELT 1" DUAL ADJ.SQZ BKLPAD CZManufacturer no. 468420 1Quote Ask for a quote
1B-5 BELT 1.5" DUAL ADJ.SQZ BKLPAD CZManufacturer no. 468421 1Quote Ask for a quote
1C-5 BELT 2" DUAL ADJ.SQZ BKLPAD CZManufacturer no. 468422 1Quote Ask for a quote

Side Guards (Zts & Zgs)

12 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Side Guards (Zts & Zgs)
No.PartQtyPriceAction
1A SIDE GUARD ASSY STD STANDARDManufacturer no. 104164-001 1Quote Ask for a quote
1B SIDE GUARD ASSY SMALL SMALLManufacturer no. 104164-002 1Quote Ask for a quote
2 HHCS 1/4-28 X 1-1/4 ROHSManufacturer no. 106970 1Quote Ask for a quote
3 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
4 REC SIDE GUARD CLAMP THREADEDManufacturer no. 106714 1Quote Ask for a quote
6 RECEIVER SG PLASTIC INSERTManufacturer no. 108780 1Quote Ask for a quote
7 FHCS #6-32 X 1/4 BLKManufacturer no. 107135 1Quote Ask for a quote
8 SETSCREW 1/4-28 X 5/16 OVAL PTManufacturer no. 107136 1Quote Ask for a quote
5-8 RECIEVER SIDE GUARD ASSYManufacturer no. 108781 1Quote Ask for a quote
2-8 RECEIVER SIDE GUARD ASSYManufacturer no. 115651 1Quote Ask for a quote
1A-8 SIDE GUARD ASSY W/ CLAMP STD EACH - STANDARDManufacturer no. 115755 1Quote Ask for a quote
1B-8 SIDE GUARD ASSY W/ CLAMP SMALL EACH - SMALLManufacturer no. 115756 1Quote Ask for a quote

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 284)

13 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 284)
No.PartQtyPriceAction
1A SPOKE GUARD 22IN BASKETBALL 2 EachManufacturer no. 129250 1Quote Ask for a quote
1B SPOKE GUARD 24IN BASKETBALL 2 EachManufacturer no. 129251 1Quote Ask for a quote
2A SPOKE GUARD 22IN GRAFFITI EachManufacturer no. 129252 1Quote Ask for a quote
4B SPOKE GUARD 24IN GRAFFITI EachManufacturer no. 129253 1Quote Ask for a quote
3A SPOKE GUARD 22IN SUPERHERO EachManufacturer no. 129254 1Quote Ask for a quote
3B SPOKE GUARD 24IN SUPERHERO EachManufacturer no. 129255 1Quote Ask for a quote
4A SPOKE GUARDS 22IN HOT WHEELS EachManufacturer no. 129256 1Quote Ask for a quote
4B SPOKE GUARDS 24IN HOT WHEELS EachManufacturer no. 129257 1Quote Ask for a quote
5A SPOKE GUARDS 22IN CHROME WHEELS EachManufacturer no. 129258 1Quote Ask for a quote
5B SPOKE GUARDS 24IN CHROME WHEELS EachManufacturer no. 129259 1Quote Ask for a quote
6A SPOKE GUARD 22IN PRINCESS EachManufacturer no. 129328 1Quote Ask for a quote
6B SPOKE GUARD 24IN PRINCESS EachManufacturer no. 129329 1Quote Ask for a quote
7A SPOKE GUARD 22IN HAPPY LION EachManufacturer no. 129330 1Quote Ask for a quote

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 286)

8 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 286)
No.PartQtyPriceAction
1A SPK GRDS 20" QUICKIE BLK Pair-BLACK-FITS 20" WHEELSManufacturer no. 902001 1Quote Ask for a quote
1A SPK GRDS 22" QUICKIE BLK Pair-BLACK-FITS 22" WHEELS & 24" MOUNTAIN SPOKE WHEELSManufacturer no. 902011 1Quote Ask for a quote
1A SPK GRD 24" QUICKIE SCR MT BLK Pair-BLACK-FITS 24" (540) MAG & SPOKE WHEELSManufacturer no. 902021 1Quote Ask for a quote
1A SPK GRD 24" QUICKIE TAB MT BLK Pair-BLACK-FITS 25" (559) SPOKE WHEELS & 26" MOUNTAIN SPOKE WHEELSManufacturer no. 902025 1Quote Ask for a quote
1B SPOKE GUARD ZIPPIE 20" Pair-CLEAR-FITS 20" WHEELSManufacturer no. 112644-001 1Quote Ask for a quote
1B SPOKE GUARD ZIPPPIE 22" Pair-CLEAR-FITS 22" WHEELS & 24" MOUNTAIN SPOKE WHEELSManufacturer no. 112644-002 1Quote Ask for a quote
1B SPOKE GUARDZIPPIE 24" MAG Pair-CLEAR-FITS 24" (540) MAG WHEELSManufacturer no. 112644-003 1Quote Ask for a quote
1B SPOKE GUARD ZIPPIE 24" SPOKE Pair-CLEAR-FITS 24" (540) SPOKE WHEELSManufacturer no. 112644-004 1Quote Ask for a quote

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 288)

12 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 288)
No.PartQtyPriceAction
1 5/16-18 x 3 1/2 CARR BOLTManufacturer no. 226199 1Quote Ask for a quote
2 5/16 WASHER FENDERManufacturer no. 263112 1Quote Ask for a quote
3 5/16-18 NUT THINManufacturer no. 202110 1Quote Ask for a quote
4 TRAY CLAMPManufacturer no. 550400 1Quote Ask for a quote
5 SPACER 5/16 X .380Manufacturer no. 481113 1Quote Ask for a quote
6 5/16 AN WASHER FLATManufacturer no. 263100 1Quote Ask for a quote
7 KNURLED TRAY KNOBManufacturer no. 483026 1Quote Ask for a quote
8 5/16-18 ACORN LOCK NUTManufacturer no. 202114 1Quote Ask for a quote
9A TRAY TOP EX-SM W/RAILManufacturer no. 562619 1Quote Ask for a quote
9B TRAY TOP SM W/RAILManufacturer no. 562620 1Quote Ask for a quote
9C TRAY TOP MED W/RAILManufacturer no. 562621 1Quote Ask for a quote
9D TRAY TOP LRG W/RAILManufacturer no. 562622 1Quote Ask for a quote

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 290)

20 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 290)
No.PartQtyPriceAction
1 5/16-18 x 1 1/2 BH C/S BLKManufacturer no. 2249 1Quote Ask for a quote
2 .625 x .135 x .031 NYLON WASHERManufacturer no. 2709 1Quote Ask for a quote
3 .609 x .250 x .250 NYLON SPACERManufacturer no. 2710 1Quote Ask for a quote
5 5/16-18" NUT THINManufacturer no. 202110 1Quote Ask for a quote
6 5/16-18" x 2 3/4" BUTTON HD C/SManufacturer no. 2021 1Quote Ask for a quote
7 TRAY BUSHINGManufacturer no. 14240 1Quote Ask for a quote
8 TRAY LOCK BARManufacturer no. 14230 1Quote Ask for a quote
9 1/4" FLAT WASHERManufacturer no. 2705 1Quote Ask for a quote
10 TRAY KNOBManufacturer no. 14220 1Quote Ask for a quote
11 5/16-18" ACORN LOCK NUTManufacturer no. 202114 1Quote Ask for a quote
12 5/16-18" x 3 1/2" CARR BOLTManufacturer no. 226199 1Quote Ask for a quote
13 5/16 WASHER FENDERManufacturer no. 263112 1Quote Ask for a quote
14 5/16-18" NUT THINManufacturer no. 202110 1Quote Ask for a quote
15 TRAY CLAMPManufacturer no. 550400 1Quote Ask for a quote
16 BEARING SPACERManufacturer no. 481013 1Quote Ask for a quote
17 5/16" AN WASHER FLATManufacturer no. 263100 1Quote Ask for a quote
18 KNURLED TRAY KNOBManufacturer no. 483026 1Quote Ask for a quote
19 5/16-18" ACORN LOCK NUTManufacturer no. 202114 1Quote Ask for a quote
1-5 TOGGLE CLAMP - HIDEAWAYManufacturer no. 4099 1Quote Ask for a quote
12-19 TRAY HDWR KIT TUFFAK NEW STYLE (9QH) PairManufacturer no. 881051 1Quote Ask for a quote

Canopy

3 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Canopy
No.PartQtyPriceAction
1-14 CNPY MNT ASSM, IRIS/ZP IRIS,PR PairManufacturer no. 125761 1Quote Ask for a quote
15 CANOPY IRIS/ZP IRIS & X'CAPE Canopy w/ internal frame onlyManufacturer no. 126053 1Quote Ask for a quote
1-15 CNPY KIT ASSM,IRIS/ZP IRIS,BLK Complete retro kitManufacturer no. 125320 1Quote Ask for a quote

One-Arm Drive Retro Kit (page 293)

17 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in One-Arm Drive Retro Kit (page 293)
No.PartQtyPriceAction
1 10-32 x 3/4 SOC C/S BLKManufacturer no. 106956 1Quote Ask for a quote
2 1/2-20 NYLOCK NUTManufacturer no. 106940 1Quote Ask for a quote
3 1/2 AN WASHER FLATManufacturer no. 106949 1Quote Ask for a quote
4 1 AD HUB CENTERManufacturer no. 106691 1Quote Ask for a quote
5A 1 AD HR ONLY 20" STD/22"SMManufacturer no. 529801 1Quote Ask for a quote
5B 1 AD HR ONLY 22" STD/24"SMManufacturer no. 529800 1Quote Ask for a quote
5C 1 AD HR ONLY 24" STDManufacturer no. 529802 1Quote Ask for a quote
6 3/16 SQ x 1-1/2 KEY STLManufacturer no. 341274 1Quote Ask for a quote
7 1 AD HANDRIM DRIVE SHAFTManufacturer no. 481131 1Quote Ask for a quote
8 1 AD SHAFT ASSM 12"Manufacturer no. 101097-001 1Quote Ask for a quote
8 1 AD SHAFT ASSM 13"Manufacturer no. 101097-002 1Quote Ask for a quote
8 1 AD SHAFT ASSM 14"Manufacturer no. 101097-003 1Quote Ask for a quote
8 1 AD SHAFT ASSM 15"Manufacturer no. 101097-004 1Quote Ask for a quote
8 1 AD SHAFT ASSM 16"Manufacturer no. 101097-005 1Quote Ask for a quote
8 1 AD SHAFT ASSM 17"Manufacturer no. 101097-006 1Quote Ask for a quote
8 1 AD SHAFT ASSM 18"Manufacturer no. 101097-007 1Quote Ask for a quote
9 1 AD WHEEL DRIVE SHAFTManufacturer no. 481132 1Quote Ask for a quote

Tire Pump (page 295)

2 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Tire Pump (page 295)
No.PartQtyPriceAction
1 TIRE PUMPManufacturer no. 389050 1Quote Ask for a quote
2 VALVE ADAPTER PRESTAManufacturer no. 381230 1Quote Ask for a quote

TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 296)

2 parts

Exploded view from the manufacturer's parts manual (Zippie TS Parts Manual (Z1A and Z1SE)). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TS SE (Chairs w/ S/N Prefix Z1A & Z1SE) (page 296)
No.PartQtyPriceAction
1 QUICKIE COMBO TOOL KIT Includes pouchManufacturer no. 108314 1Quote Ask for a quote
2 6MM ALLEN WRENCH L, 7MM SHORT caster spline chairs onlyManufacturer no. 113403 1Quote Ask for a quote

Parts manuals for this model

The manufacturer parts lists and exploded diagrams we hold. If you can find the number on one of these, quote it to us and we will match it.

Zippie TS Parts Manual (ZT, ZTS, ZTE)

Manufacturer parts document, PDF.

Zippie TS Parts Manual (Z1A and Z1SE)

Manufacturer parts document, PDF.

Not sure which part you need?

Send us a photo of the part, or of where it sits, and tell us what it is doing. Our order desk identifies parts for this equipment every day, and we would rather ask you one question than ship you the wrong bolt.

Or call 905 451-7743 and describe it to us.

Where to go next

The product page

Specifications, documents and the full product page for the Zippie Ts Pediatric Tilt Wheelchair.

All replacement parts

Search every part we stock, or browse by the equipment it fits.

Have us fit it

Our technicians service what we sell, in the home and in the showroom.
