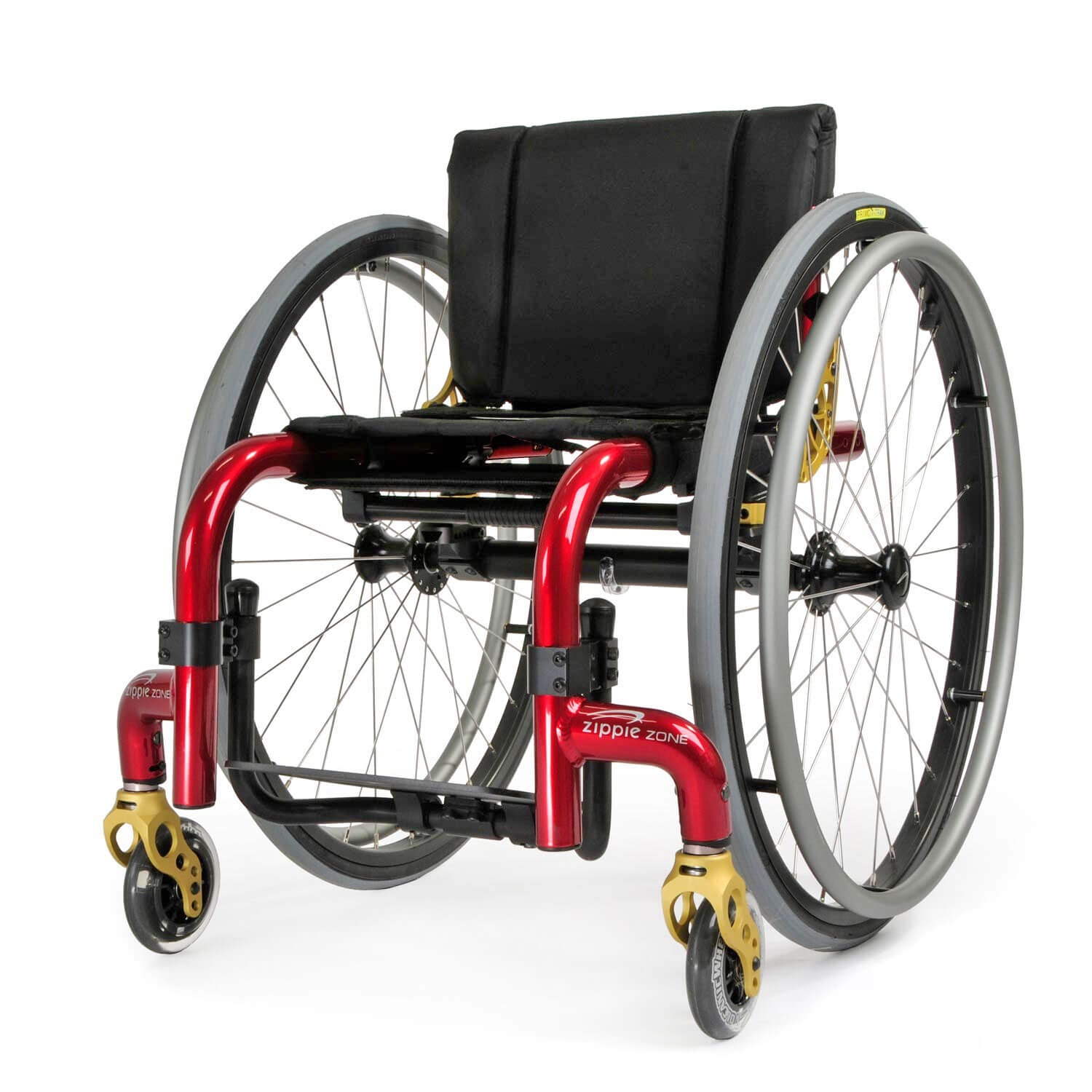

Zippie Zone Pediatric Rigid Wheelchair

Parts finder

Replacement parts for the Zippie Zone Pediatric Rigid Wheelchair

The exploded view below is numbered. Click a number on the drawing to jump to that part, or search the list. Every price shown is the current online price; anything quoted is priced by our order desk.

Ask about a part Product page 679 parts listed

Showing all 679 parts

1 of 78

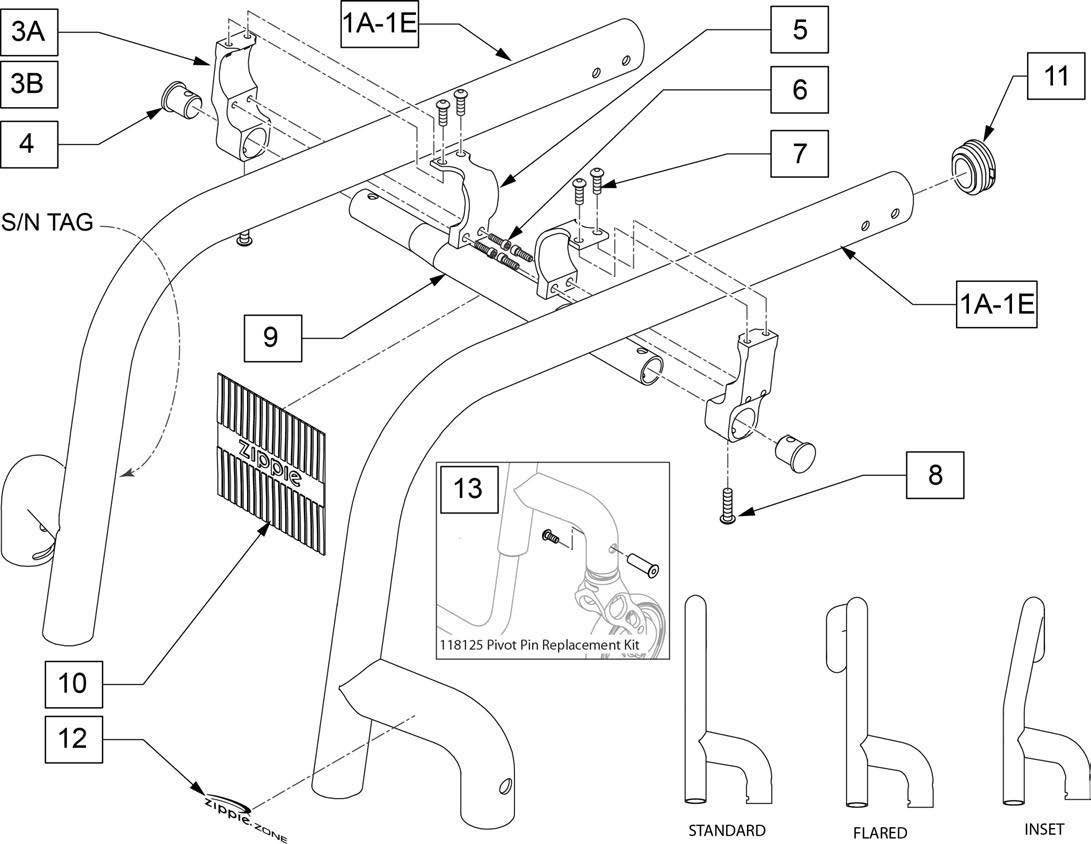

Exploded view of the Frame

Loading the drawing

Frame. Numbers match the list.
Transit Kit. Numbers match the list.
Axle Plate. Numbers match the list.
Quick Release Axles Matrix-Q7/Qri/Zone. Numbers match the list.
Camber Tube Assm. Numbers match the list.
Micro Casters. Numbers match the list.
3 Spoke Casters. Numbers match the list.
Soft Roll Casters. Numbers match the list.
Aluminum Soft Roll Casters. Numbers match the list.
Standard Multiple Position Fork. Numbers match the list.
Single Sided Multiple Position Fork. Numbers match the list.
Frog Leg Suspension Fork. Numbers match the list.
Anti Tips (Zippie Zone). Numbers match the list.
Dynamic Center Rear Caster. Numbers match the list.
High Mount Push Wheel Lock. Numbers match the list.
High Mount Pull Wheel Lock. Numbers match the list.
Compact Wheel Lock. Numbers match the list.
Hub Lock - Seat Frame Mount. Numbers match the list.
Hub Lock - Aluminum Side Guard Mount W/Fender. Numbers match the list.
Traditional 6 Spoke Mag. Numbers match the list.
Quickie Spoke. Numbers match the list.
5 Spoke Mag. Numbers match the list.
New Ultra Lite Spoke. Numbers match the list.
Spinergy Spox (18 Spoke). Numbers match the list.
Spinergy Lx (12 Spoke). Numbers match the list.
Spinergy Sport Lt Ex (18 Spoke). Numbers match the list.
Pneumatic & Pneu. Airless Tire. Numbers match the list.
Full Poly Tire. Numbers match the list.
Low Poly Tire. Numbers match the list.
High Pressure Clincher Tire. Numbers match the list.
Knobby V-Track Tire. Numbers match the list.
Schwalbe Marathon Plus Tire. Numbers match the list.
Schwalbe One Tire. Numbers match the list.
Tubes And Airless Inserts. Numbers match the list.
Aluminum Anodized (Screw Mount). Numbers match the list.
Plastic Coated (Screw Mount). Numbers match the list.
Plastic Coated (Reg Tab Mount). Numbers match the list.
Aluminum Anodized (Tab Mount). Numbers match the list.
Ultra Lite Anodized (Tab Mount). Numbers match the list.
Aluminum Anodized 5 Spoke Mag (Screw Mount). Numbers match the list.
Plastic Coated 5 Spoke Mag (Screw Mount). Numbers match the list.
Seat Sling Ultra Lite (Zone). Numbers match the list.
1" Seat Cushion. Numbers match the list.
2" Seat Cushion. Numbers match the list.
Folding Angle Adj Back Frame. Numbers match the list.
Folding Inset Angle Adj Back Frame. Numbers match the list.
Backrest Handles. Numbers match the list.
Telescoping Push Handles (Bolt On). Numbers match the list.
Standard Back Upholstery Zippie. Numbers match the list.
Integral Push Handle Backrest Upholstery Zippie. Numbers match the list.
Exploded view, page 91. Numbers match the list.
ALUMINUM TUBULAR prior to S/N R4-023230. Numbers match the list.
Footrest Cover & Wear Pads. Numbers match the list.
Aluminum Platform Footrest. Numbers match the list.
Exploded view, page 99. Numbers match the list.
Flip-Back Footrest. Numbers match the list.
High Mount Footrest Clamp. Numbers match the list.
Adaptive Flip-Back Footrest. Numbers match the list.
Padded Swing-Away Armrest. Numbers match the list.
Single Post Height Adjustable Armrest. Numbers match the list.
Kids T Post Armrest. Numbers match the list.
Padded Swing-Away Armrest Receiver. Numbers match the list.
Single Post Armrest Receiver. Numbers match the list.
Gel Pad For Padded Swing-Away Armrest. Numbers match the list.
Quickie Side Pocket. Numbers match the list.
Hardware.. Numbers match the list.
Auto Buckle Positioning Belt & Attachment Kits. Numbers match the list.
Plastic Side Guard. Numbers match the list.
Aluminum Side Guard. Numbers match the list.
Designer Spoke Guards. Numbers match the list.
SPOKE GUARDS ZIPPIE (Black & Clear). Numbers match the list.
Tuffak Tray (Manual & Pediatric Chairs). Numbers match the list.
Tray Hardware. Numbers match the list.
Quickie Caddy. Numbers match the list.
Crutch Holder (Rigid Chairs). Numbers match the list.
Adjustable Leg Strap. Numbers match the list.
Tire Pump. Numbers match the list.
Tool Kit. Numbers match the list.

Frame

14 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Frame
No.PartQtyPriceAction
4 ALUMINUM INSERT WITH FLATManufacturer no. 120705 1Quote Ask for a quote
6 SHCS M5X0.8X25 FULL PLManufacturer no. 113317 1Quote Ask for a quote
7 BHCS,M5X0.8X8,FULL,PLManufacturer no. 103184-002 1Quote Ask for a quote
8 BHCS M6 X 1 X 25 W/PL INORGManufacturer no. 102262-004 1Quote Ask for a quote
9 CROSS TUBE PED 8" ANNOManufacturer no. 120509 1Quote Ask for a quote
9 CROSS TUBE PED 9" ANNOManufacturer no. 120510 1Quote Ask for a quote
9 CROSS TUBE PED 10" ANNOManufacturer no. 120511 1Quote Ask for a quote
9 CROSS TUBE PED 11" ANNOManufacturer no. 120512 1Quote Ask for a quote
9 CROSS TUBE PED 12" ANNOManufacturer no. 120513 1Quote Ask for a quote
9 CROSS TUBE PED 13" ANNOManufacturer no. 120514 1Quote Ask for a quote
9 CROSS TUBE PED 14" ANNOManufacturer no. 120515 1Quote Ask for a quote
9 CROSS TUBE PED 15" ANNOManufacturer no. 120516 1Quote Ask for a quote
9 CROSS TUBE PED 16" ANNOManufacturer no. 120517 1Quote Ask for a quote
10 GRIP TOWEL BAR ZIPPIEManufacturer no. 112312 1Quote Ask for a quote

Transit Kit

5 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Transit Kit
No.PartQtyPriceAction
2 SHCS M5X0.8X16 FULL PLManufacturer no. 112341 1Quote Ask for a quote
3 ROUND NUT SIZE 4Manufacturer no. 112655 1Quote Ask for a quote
4 SHCS M12 1.75 ANGLE ADJ *For s/n prior to RZ-007453, this part must be installed to be Transit approvedManufacturer no. 481398 1Quote Ask for a quote
5 8MM ALLEN WRENCH L, SHORT For adjusting stem boltManufacturer no. 120953 1Quote Ask for a quote
1-5 OVAL TRANSIT KITManufacturer no. 118048 1Quote Ask for a quote

Axle Plate

11 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Axle Plate
No.PartQtyPriceAction
1 AXLE STEM SLEEVEManufacturer no. 066505 1Quote Ask for a quote
2B AXLE TUBE SPCR CSTM ANO Each-Choose custom anodized colorManufacturer no. 117171S 1Quote Ask for a quote
3 SHCS M5X0.8X16,FULL,PLManufacturer no. 112341 1Quote Ask for a quote
4 ROUND NUT SIZE 4Manufacturer no. 112655 1Quote Ask for a quote
5 ROUND NUT SIZE 2Manufacturer no. 112653 1Quote Ask for a quote
6 SHCS M5 X .8 X 14 W/PLManufacturer no. 103181 1Quote Ask for a quote
8 SET SCREW M8 X 16 DOG PTManufacturer no. 102267 1Quote Ask for a quote
9 AXLE TUBE SPACER Not used with short camber Axle PlugManufacturer no. 126800 1Quote Ask for a quote
10 AXLE TUBE SPACER THINManufacturer no. 126801 1Quote Ask for a quote
12 M6-1.0 X 16MM BUTTON HD SOCKETManufacturer no. 103185-006 1Quote Ask for a quote
14 SHCS M5X0.8X25 FULL PLManufacturer no. 113317 1Quote Ask for a quote

Quick Release Axles Matrix-Q7/Qri/Zone

6 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Quick Release Axles Matrix-Q7/Qri/Zone
No.PartQtyPriceAction
1A QR AXLE BIG BUTTON W/ SPACER Includes spacerManufacturer no. 922356 1Quote Ask for a quote
1B QR AXLE W/SPACER FOR 6S MAG Includes spacerManufacturer no. 116390 1Quote Ask for a quote
1C QR AXLE/NUT LONG BG BTTNManufacturer no. 109385 1Quote Ask for a quote
1D QR AXLE EX SHORT BIG BTNManufacturer no. 111843 1Quote Ask for a quote
1E QR AXLE AND NUT SHORT BIG BTTNManufacturer no. 107268 1Quote Ask for a quote
2 MAG SPACER 6S W/SET SCREWManufacturer no. 920117 1Quote Ask for a quote

Camber Tube Assm

21 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Camber Tube Assm
No.PartQtyPriceAction
1 CAMBER TUBE 8"W Zippie Zone onlyManufacturer no. 113218 1Quote Ask for a quote
1 CAMBER TUBE 9"W Zippie Zone onlyManufacturer no. 113219 1Quote Ask for a quote
1 CAMBER TUBE 10"W Zippie Zone onlyManufacturer no. 110204 1Quote Ask for a quote
1 CAMBER TUBE 11"W Zippie Zone onlyManufacturer no. 110205 1Quote Ask for a quote
1 CAMBER TUBE 12"WManufacturer no. 110206 1Quote Ask for a quote
1 CAMBER TUBE 13"WManufacturer no. 110207 1Quote Ask for a quote
1 CAMBER TUBE 14"WManufacturer no. 110208 1Quote Ask for a quote
1 CAMBER TUBE 15"WManufacturer no. 110209 1Quote Ask for a quote
1 CAMBER TUBE 16"WManufacturer no. 110210 1Quote Ask for a quote
1 CAMBER TUBE 17"W Q7 onlyManufacturer no. 110211 1Quote Ask for a quote
1 CAMBER TUBE 18"W Q7 onlyManufacturer no. 110212 1Quote Ask for a quote
1 CAMBER TUBE 19"W Q7 onlyManufacturer no. 110213 1Quote Ask for a quote
1 CAMBER TUBE 20"W Q7 onlyManufacturer no. 110214 1Quote Ask for a quote
2-6 BEARING LEVEL CAMBER TUBEManufacturer no. 050190 1Quote Ask for a quote
4 M4 NUT ACORN PLASTIC BLACKManufacturer no. 115918 1Quote Ask for a quote
5 SHCS M4X.7X45 BLK W/PL ORGManufacturer no. 102258 1Quote Ask for a quote
6 LOCKWASHER HIGH COLLAR M4Manufacturer no. 050129-002 1Quote Ask for a quote
7 CAMBER BLOCK KIT (10) QTY 10Manufacturer no. 114428 1Quote Ask for a quote
8A CAMBER PLUG 0 DEGManufacturer no. 110847 1Quote Ask for a quote
8B CAMBER PLUG 3 DEGManufacturer no. 110848 1Quote Ask for a quote
8C CAMBER PLUG 6 DEGManufacturer no. 110849 1Quote Ask for a quote

Micro Casters

6 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Micro Casters
No.PartQtyPriceAction
1 7/8"x 5/16" BEARINGManufacturer no. 349502 1Quote Ask for a quote
2A 4" MICRO CASTER LIGHTED K0077 4" MICRO LIGHTEDManufacturer no. 400108 1Quote Ask for a quote
2B 3" MICRO CASTER W/ BEARING -PAIR K0077 PAIR 3" MICROManufacturer no. 920025 1Quote Ask for a quote
2C 3" MICRO CASTER LIGHTED K0077 3" MICRO LIGHTEDManufacturer no. 400107 1Quote Ask for a quote
3 5" MICRO CASTER LIGHTED K0077 5" MICRO LIGHTEDManufacturer no. 052129 1Quote Ask for a quote
4 WASHER FLAT THIN AN 5/16 ROHManufacturer no. 106947 1Quote Ask for a quote

3 Spoke Casters

1 part

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 3 Spoke Casters
No.PartQtyPriceAction
3 CASTERSManufacturer no. SPOKE 1Quote Ask for a quote

Soft Roll Casters

2 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Soft Roll Casters
No.PartQtyPriceAction
1 CASTER 5" SOFT ROLL W/BRNGS K0077 5" SOFT ROLL SEMI PNEU (GREY)Manufacturer no. 400103 1Quote Ask for a quote
2 7/8"x 5/16" BEARINGManufacturer no. 349502 1Quote Ask for a quote

Aluminum Soft Roll Casters

7 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Aluminum Soft Roll Casters
No.PartQtyPriceAction
1 CASTR ASSM ULTRLT SFTRL 4X1.5" K0077 4" x 1.5" Aluminum Soft Roll - Black Tire - Silver HubManufacturer no. 251732 1Quote Ask for a quote
1 CASTR ASSM ULTRLT SFTRL 5X1.5" K0077 5" x 1.5" Aluminum Soft Roll - Black Tire - Silver HubManufacturer no. 251733 1Quote Ask for a quote
1 CASTR ASSM ULTRLT SFTRL 6X1.5" K0077 6" x 1.5" Aluminum Soft Roll - Black Tire - Silver HubManufacturer no. 251734 1Quote Ask for a quote
1 WHL CSTR 4" ULTRALT SFTRL ANO 4" x 1.5" Aluminum Soft Roll - Black Tire - Anodized HubManufacturer no. 162609S 1Quote Ask for a quote
1 WHL CSTR 5" ULTRALT SFTRLL ANO 5" x 1.5" Aluminum Soft Roll - Black Tire - Anodized HubManufacturer no. 162611S 1Quote Ask for a quote
1 WHL CSTR 6" ULTRALT SFTRLL ANO 6" x 1.5" Aluminum Soft Roll - Black Tire - Anodized HubManufacturer no. 162613S 1Quote Ask for a quote
2 7/8" X 5/16" BEARINGManufacturer no. 349502 1Quote Ask for a quote

Standard Multiple Position Fork

1 part

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Standard Multiple Position Fork
No.PartQtyPriceAction
1 PIVOT PIN, SOLIDManufacturer no. 123396 1Quote Ask for a quote

Single Sided Multiple Position Fork

4 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Single Sided Multiple Position Fork
No.PartQtyPriceAction
1 PIVOT PIN, SOLID See Fork Stem & Pin KitsManufacturer no. 123396 1Quote Ask for a quote
2 CASTER STEM, ADJ, HOLLOW See Fork Stem & Pin KitsManufacturer no. 123397 1Quote Ask for a quote
3 HELIUM COMBI SPLINEManufacturer no. 110163 1Quote Ask for a quote
4 SPLINE CASTER ANG ADJ LOWERManufacturer no. 502051 1Quote Ask for a quote

Frog Leg Suspension Fork

11 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Frog Leg Suspension Fork
No.PartQtyPriceAction
1 PIVOT PIN, SOLID See Fork Stem & Pin Kits for orderable partsManufacturer no. 123396 1Quote Ask for a quote
2 CASTER STEM, ADJ, HOLLOW See Fork Stem & Pin Kits for orderable partsManufacturer no. 123397 1Quote Ask for a quote
3 HELIUM COMBI SPLINEManufacturer no. 110163 1Quote Ask for a quote
4 SPLINE CASTER ANG ADJ LOWERManufacturer no. 502051 1Quote Ask for a quote
5 BHCS M4 X .7 X 8 INORGANICManufacturer no. 102257 1Quote Ask for a quote
6 HHCS M6 X 1.0 X 70 See Fork Stem & Pin Kits for orderable partsManufacturer no. 230063 1Quote Ask for a quote
7 E-STYLE BOWED CLIP See Fork Stem & Pin Kits for orderable partsManufacturer no. 114479 1Quote Ask for a quote
8A ELASTOMER FROGLEGS SOFT 0 -100 LbsManufacturer no. 050156-001 1Quote Ask for a quote
8B ELASTOMER FROGLEGS MEDIUM 101 -190 LbsManufacturer no. 050156-002 1Quote Ask for a quote
8C ELASTOMER FROGLEGS FIRM 191 -265 Lbs (not used w/ ZippieZone)Manufacturer no. 050156-003 1Quote Ask for a quote
10 FROG LEG FORK ASSEMBLY TOOLManufacturer no. 116351 1Quote Ask for a quote

Anti Tips (Zippie Zone)

0 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Dynamic Center Rear Caster

18 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Dynamic Center Rear Caster
No.PartQtyPriceAction
1 18" DYN CNTER REAR CASTER Fits chairs w/18" WheelsManufacturer no. 145132 1Quote Ask for a quote
1 20" DYN CNTER REAR CASTER Fits chairs w/20" WheelsManufacturer no. 145133 1Quote Ask for a quote
1 22" DYN CNTER REAR CASTER Fits chairs w/22" WheelsManufacturer no. 145134 1Quote Ask for a quote
1 24" DYN CNTER REAR CASTER Fits chairs w/24" WheelsManufacturer no. 145135 1Quote Ask for a quote
2 SHCS, M5X.8X16, FULL, PLManufacturer no. 112341 1Quote Ask for a quote
3 NUT HEX NYLOCK M4Manufacturer no. 050136 1Quote Ask for a quote
4 NUT HEX NYLOCK M5 BLACKManufacturer no. 220121 1Quote Ask for a quote
5 SHCS M4 X .7 X 45 PART, NPManufacturer no. 102258 1Quote Ask for a quote
6 SHCS, M5 X .8 X 35, PART, NPManufacturer no. 102260-003 1Quote Ask for a quote
7 ROUND NUT SIZE 4Manufacturer no. 112655 1Quote Ask for a quote
8 ROUND NUT SIZE 2Manufacturer no. 112653 1Quote Ask for a quote
9 CAMBER TUBE RESTRAINT COLLARManufacturer no. 129431 1Quote Ask for a quote
10 SHCS, M5X.8X16, FULL, PLManufacturer no. 112341 1Quote Ask for a quote
11 SET SCREW M6X8MM CUP TIPManufacturer no. 011825 1Quote Ask for a quote
12 18 & 20 DYN CASTER ARM Fits chairs w/18" or 20" WheelsManufacturer no. 145136 1Quote Ask for a quote
12 22 & 24 DYN CASTER ARM Fits chairs w/22" or 24" WheelsManufacturer no. 145138 1Quote Ask for a quote
13 18 & 22 CASTER FORK KIT Fits chairs w/18" or 22" WheelsManufacturer no. 145137 1Quote Ask for a quote
13 20 & 24 CASTER FORK KIT Fits chairs w/20" or 24" WheelsManufacturer no. 145139 1Quote Ask for a quote

High Mount Push Wheel Lock

15 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in High Mount Push Wheel Lock
No.PartQtyPriceAction
1A WHEEL LOCK PUSH R FWD LNG RIGHTManufacturer no. 104216-005 1Quote Ask for a quote
1A WHEEL LOCK PUSH L FWD LNG LEFTManufacturer no. 104216-006 1Quote Ask for a quote
1B WHEEL LOCK PUSH R FWD SHT RIGHTManufacturer no. 104216-001 1Quote Ask for a quote
1B WHEEL LOCK PUSH L FWD SHT LEFTManufacturer no. 104216-002 1Quote Ask for a quote
1C WHEEL LOCK PUSH R REV LNG RIGHTManufacturer no. 104216-007 1Quote Ask for a quote
1C WHEEL LOCK PUSH L REV LNG LEFTManufacturer no. 104216-008 1Quote Ask for a quote
1D WHEEL LOCK PUSH R REV SHT RIGHTManufacturer no. 104216-003 1Quote Ask for a quote
1D WHEEL LOCK PUSH L REV SHT LEFTManufacturer no. 104216-004 1Quote Ask for a quote
3 BHCS M5 x 0.8 x 20 W/ PL INORGManufacturer no. 102259-002 1Quote Ask for a quote
4 ROUND NUT SIZE 1Manufacturer no. 112652 1Quote Ask for a quote
5 BHCS M5X0.8X8 FULL PLManufacturer no. 103184-002 1Quote Ask for a quote
8 SHCS M5X0.8X25 FULL PLManufacturer no. 113317 1Quote Ask for a quote
2-8 WHEEL LOCK CLAMP KIT For High Mount Wheel LockManufacturer no. 114441 1Quote Ask for a quote
9 WHEEL LOCK EXTENSION ASSY KIT EACHManufacturer no. 161929 1Quote Ask for a quote
10 COVER CURVED WHEEL LOCK VINYLManufacturer no. 104141 1Quote Ask for a quote

High Mount Pull Wheel Lock

11 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in High Mount Pull Wheel Lock
No.PartQtyPriceAction
1A WHEEL LOCK PULL R FWD LNG RIGHTManufacturer no. 104227-005 1Quote Ask for a quote
1A WHEEL LOCK PULL L FWD LNG LEFTManufacturer no. 104227-006 1Quote Ask for a quote
1B WHEEL LOCK PULL R REV LNGManufacturer no. 104227-007 1Quote Ask for a quote
1B WHEEL LOCK PULL L REV LNGManufacturer no. 104227-008 1Quote Ask for a quote
3 BHCS M5 x 0.8 x 20 W/ PL INORGManufacturer no. 102259-002 1Quote Ask for a quote
4 ROUND NUT SIZE 1Manufacturer no. 112652 1Quote Ask for a quote
5 BHCS M5X0.8X8 FULL PLManufacturer no. 103184-002 1Quote Ask for a quote
8 SHCS M5X0.8X25 FULL PLManufacturer no. 113317 1Quote Ask for a quote
2-8 WHEEL LOCK CLAMP KITManufacturer no. 114441 1Quote Ask for a quote
9 WHEEL LOCK EXTENSION ASSY KIT EACHManufacturer no. 161929 1Quote Ask for a quote
10 COVER CURVED WHEEL LOCK VINYLManufacturer no. 104141 1Quote Ask for a quote

Compact Wheel Lock

5 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Compact Wheel Lock
No.PartQtyPriceAction
1 COMPACT BRAKE Left side Forward MountedManufacturer no. 66006100-301 1Quote Ask for a quote
1 COMPACT BRAKE Right side Forward MountedManufacturer no. 66006100-302 1Quote Ask for a quote
1 COMPACT BRAKE STD BACK LEFT Reverse MountedManufacturer no. 66006100-401 1Quote Ask for a quote
1 COMPACT BRAKE STD BACK RIGHT Reverse MountedManufacturer no. 66006100-402 1Quote Ask for a quote
2-7 FOOTREST CLAMP HEIGHT ADJ. CPLManufacturer no. 76806005 1Quote Ask for a quote

Hub Lock - Seat Frame Mount

14 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Hub Lock - Seat Frame Mount
No.PartQtyPriceAction
1A HUB LOCK ASSY XSHORT LH LEFT -INCLUDES CABLEManufacturer no. 116053 1Quote Ask for a quote
1A HUB LOCK ASSY XSHORT RH RIGHT-INCLUDES CABLEManufacturer no. 116054 1Quote Ask for a quote
1B HUB LOCK ASSY SHORT LH LEFT -INCLUDES CABLEManufacturer no. 116055 1Quote Ask for a quote
1B HUB LOCK ASSY SHORT RH RIGHT-INCLUDES CABLEManufacturer no. 116056 1Quote Ask for a quote
1C HUB LOCK ASSY MEDIUM LH LEFT -INCLUDES CABLEManufacturer no. 116057 1Quote Ask for a quote
1C HUB LOCK ASSY MEDIUM RH RIGHT-INCLUDES CABLEManufacturer no. 116058 1Quote Ask for a quote
1D HUB LOCK ASSY LONG LH LEFT -INCLUDES CABLEManufacturer no. 116059 1Quote Ask for a quote
1D HUB LOCK ASSY LONG RH RIGHT-INCLUDES CABLEManufacturer no. 116060 1Quote Ask for a quote
1E HUB LOCK ASSY XLONG LH LEFT -INCLUDES CABLEManufacturer no. 116061 1Quote Ask for a quote
1E HUB LOCK ASSY XLONG RH RIGHT-INCLUDES CABLEManufacturer no. 116062 1Quote Ask for a quote
2 BHCS M5X0.8X8 FULL PLManufacturer no. 103184-002 1Quote Ask for a quote
3 LOCK PLATE SPOKE WHEELManufacturer no. 113347 1Quote Ask for a quote
4 SHCS M6X1X16 FULL PLManufacturer no. 104522 1Quote Ask for a quote
5 ASSY LEVER HUB LOCK R RightManufacturer no. 112426 1Quote Ask for a quote

Hub Lock - Aluminum Side Guard Mount W/Fender

19 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Hub Lock - Aluminum Side Guard Mount W/Fender
No.PartQtyPriceAction
1 WASHER FLAT M6Manufacturer no. 250104 1Quote Ask for a quote
2 BHCS M5X0.8X8 FULL PLManufacturer no. 103184-002 1Quote Ask for a quote
3 LOCK PLATE SPOKE WHEELManufacturer no. 113347 1Quote Ask for a quote
4 SHCS M6X1X16 FULL PLManufacturer no. 104522 1Quote Ask for a quote
5A HUB LOCK ASSY 2Xl LH includes cableManufacturer no. 116125 1Quote Ask for a quote
5A HUB LOCK ASSY 2XL RH includes cableManufacturer no. 116126 1Quote Ask for a quote
5A HUB LOCK ASSY 3Xl LH includes cableManufacturer no. 116127 1Quote Ask for a quote
5A HUB LOCK ASSY 3XL RH includes cableManufacturer no. 116128 1Quote Ask for a quote
5A HUB LOCK ASSY 4Xl LH includes cableManufacturer no. 115411 1Quote Ask for a quote
5A HUB LOCK ASSY 4XL RH includes cableManufacturer no. 115412 1Quote Ask for a quote
5A HUB LOCK ASSY 5Xl LH includes cableManufacturer no. 115414 1Quote Ask for a quote
5A HUB LOCK ASSY 5XL RH includes cableManufacturer no. 115415 1Quote Ask for a quote
5B HUB LOCK ASSY NO CABLE RH Used w/ right hand operated Hub LockManufacturer no. 116129 1Quote Ask for a quote
5B HUB LOCK ASSY NO CABLE LH Used w/ left hand operated Hub LockManufacturer no. 116130 1Quote Ask for a quote
6 WLDMNT HUB LCK CROSS TUBE 8WManufacturer no. 116233 1Quote Ask for a quote
6 WLDMNT HUB LCK CROSS TUBE 9WManufacturer no. 116234 1Quote Ask for a quote
6 WLDMNT HUB LCK CROSS TUBE 10WManufacturer no. 116235 1Quote Ask for a quote
6 WLDMNT HUB LCK CROSS TUBE 11WManufacturer no. 116236 1Quote Ask for a quote
6 WLDMNT HUB LCK CROSS TUBE 12WManufacturer no. 116237 1Quote Ask for a quote

Traditional 6 Spoke Mag

6 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Traditional 6 Spoke Mag
No.PartQtyPriceAction
1-3 20" MAG W/BRNG 6 SPOKE 20"Manufacturer no. 401094 1Quote Ask for a quote
1-3 22" MAG W/BRNG 6 SPOKE 22"(501mm)Manufacturer no. 401093 1Quote Ask for a quote
1-3 24" MAG W/BRNG 6 SPOKE 24"(540mm)Manufacturer no. 401092 1Quote Ask for a quote
2 1 1/8 X 1/2 BEARINGManufacturer no. 349500 1Quote Ask for a quote
3 MAG BEARING SPACERManufacturer no. 521564 1Quote Ask for a quote
4 SPCR .194ID X .375 OD X .750 Used when previously ordered with Omit handrims or Natural Fit HandrimsManufacturer no. 101932 1Quote Ask for a quote

Quickie Spoke

11 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Quickie Spoke
No.PartQtyPriceAction
1A WHEEL ASSM PUSH BUTTON 18" 18"Manufacturer no. 401001 1Quote Ask for a quote
1B 20" RIM ASSM PUSH BUTTON 20"Manufacturer no. 401070 1Quote Ask for a quote
1C 22" RIM ASSM PUSH BUTTON 22"(501mm)Manufacturer no. 401072 1Quote Ask for a quote
1D 24" RIM ASSM PUSH BUTTON 24"(540mm)Manufacturer no. 401074 1Quote Ask for a quote
1E 26IN RIM ASSM PUSH BUTTON 26"(590mm)Manufacturer no. 401077 1Quote Ask for a quote
2 1 1/8 X 1/2 BEARINGManufacturer no. 349500 1Quote Ask for a quote
3A SPOKE 154MM X 2.0MMManufacturer no. 362247 1Quote Ask for a quote
3B QP SPOKE 201MM X 2.0MMManufacturer no. 362250 1Quote Ask for a quote
3C QP SPOKE 226MM X 2.0MMManufacturer no. 362275 1Quote Ask for a quote
3D QP SPOKE 244MM X 2.0MMManufacturer no. 362300 1Quote Ask for a quote
3E QP SPOKE 270MM X 2.0MMManufacturer no. 362325 1Quote Ask for a quote

5 Spoke Mag

1 part

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 5 Spoke Mag
No.PartQtyPriceAction
5 MAGManufacturer no. SPOKE 1Quote Ask for a quote

New Ultra Lite Spoke

0 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Spinergy Spox (18 Spoke)

15 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Spinergy Spox (18 Spoke)
No.PartQtyPriceAction
1 SPINERGY STD WHL 22" BLK SPK 22"(489mm)Manufacturer no. 109242 1Quote Ask for a quote
1 SPINERGY STD WHEEL 540 BLK SPK 24"(540mm)Manufacturer no. 762438 1Quote Ask for a quote
1 SPINERGY STD WHL 559 BLK SPK 25"(559mm)Manufacturer no. 762441 1Quote Ask for a quote
1 SPINERGY STD WHEEL 590 BLK SPK 26"(590mm)Manufacturer no. 762437 1Quote Ask for a quote
1 SPINERGY STD WHEEL 540 BLUE 24"(540mm)Manufacturer no. 762442 1Quote Ask for a quote
1 SPINERGY STD WHEEL 559 BLU 25"(559mm)Manufacturer no. 762444 1Quote Ask for a quote
1 SPINERGY STD WHEEL 590 BLUE 26"(590mm)Manufacturer no. 762446 1Quote Ask for a quote
1 SPINERGY STD WHEEL 540 RED 24"(540mm)Manufacturer no. 762443 1Quote Ask for a quote
1 SPINERGY STD WHEEL 559 RED 25"(559mm)Manufacturer no. 762445 1Quote Ask for a quote
1 SPINERGY STD WHEEL 590 RED 26"(590mm)Manufacturer no. 762447 1Quote Ask for a quote
1 SPINERGY STD WHEEL 540 WHT 24"(540mm)Manufacturer no. 762456 1Quote Ask for a quote
1 SPINERGY STD WHEEL 540 YELLOW 24"(540mm)Manufacturer no. 762433 1Quote Ask for a quote
1 SPINERGY STD WHL 559 YLW SPK 25"(559mm)Manufacturer no. 762462 1Quote Ask for a quote
1 SPINERGY STD WHEEL 590 YELLOW 26"(590mm)Manufacturer no. 762431 1Quote Ask for a quote
2 1 1/8 X 1/2 BEARINGManufacturer no. 349500 1Quote Ask for a quote

Spinergy Lx (12 Spoke)

0 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Spinergy Sport Lt Ex (18 Spoke)

0 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Pneumatic & Pneu. Airless Tire

6 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Pneumatic & Pneu. Airless Tire
No.PartQtyPriceAction
1 16" X 1.75" PNEU TIREManufacturer no. 385237 1Quote Ask for a quote
1 20" PNEUMATIC TIREManufacturer no. 385250 1Quote Ask for a quote
1 22" PNEUMATIC TIRE 22" x 1 3/8 (501mm)Manufacturer no. 385275 1Quote Ask for a quote
1 24" PNEUMATIC TIRE 24" x 1 3/8 (540mm)Manufacturer no. 385300 1Quote Ask for a quote
1 26" PNEUMATIC TIRE 26" x 1 3/8 (590mm)Manufacturer no. 385325 1Quote Ask for a quote
1 24" x 2.125 PNEUMATIC TIRE 24"x2 1/8 (540mm) used w/ M6Manufacturer no. 384614 1Quote Ask for a quote

Full Poly Tire

3 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Full Poly Tire
No.PartQtyPriceAction
1 20" POLY TIRE STD 20"Manufacturer no. 386232 1Quote Ask for a quote
1 22" POLY TIRE STD 22" (501mm)Manufacturer no. 386242 1Quote Ask for a quote
1 24" POLY TIRE STD 24" (540mm)Manufacturer no. 386252 1Quote Ask for a quote

Low Poly Tire

3 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Low Poly Tire
No.PartQtyPriceAction
1 20" LP POLY TIRE BR 20" =16" diaManufacturer no. 386262 1Quote Ask for a quote
1 22" LP POLY TIRE BR 22"(501mm) = 18"diaManufacturer no. 386263 1Quote Ask for a quote
1 24" POLY LOW PROFILE 24"(540mm)= 23" diaManufacturer no. 386254 1Quote Ask for a quote

High Pressure Clincher Tire

5 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in High Pressure Clincher Tire
No.PartQtyPriceAction
1 22" x 1" HI PRES CLINCHER 22" (501mm)Manufacturer no. 385280 1Quote Ask for a quote
1 24" x 1" HI PRES CLNCHR TIRE 24" (540mm)Manufacturer no. 389020 1Quote Ask for a quote
1 QP 24" x 1" HT TURB BLK WR/BD 559 25" (559mm)Manufacturer no. 389012 1Quote Ask for a quote
1 26" x 1" HI PRES CLNCHR TIRE 26" (590mm)Manufacturer no. 389030 1Quote Ask for a quote
1 22" x 1" HI PRESS CLNCHR ULTRALIGHT 22" (489mm)Manufacturer no. 105919 1Quote Ask for a quote

Knobby V-Track Tire

1 part

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Knobby V-Track Tire
No.PartQtyPriceAction
1 24" X 1-3/8" KNOBBIE TIRE 24"(540mm)Manufacturer no. 385354 1Quote Ask for a quote

Schwalbe Marathon Plus Tire

4 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Schwalbe Marathon Plus Tire
No.PartQtyPriceAction
1 TIRE SCHWALBE MP 489 BLK 22" (489mm)Manufacturer no. 102066-004 1Quote Ask for a quote
1 TIRE SCHWBL MPE 540 BLK 24" (540mm)Manufacturer no. 102066-001 1Quote Ask for a quote
1 TIRE SCHWBL MPE 559 BLK 25" (559mm)Manufacturer no. 102066-002 1Quote Ask for a quote
1 TIRE SCHWBL MPE 590 BLK 26" (590mm)Manufacturer no. 102066-003 1Quote Ask for a quote

Schwalbe One Tire

2 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Schwalbe One Tire
No.PartQtyPriceAction
1 TIRE SCHWALBE ONE 24 IN 24"(540mm)Manufacturer no. 113247 1Quote Ask for a quote
1 TIRE SCHWALBE ONE 25 IN 25"(559mm)Manufacturer no. 113248 1Quote Ask for a quote

Tubes And Airless Inserts

22 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Tubes And Airless Inserts
No.PartQtyPriceAction
1A INNER TUBE 12-1/2" X 2-1/4"Manufacturer no. 384736 1Quote Ask for a quote
1A 16" X 1.75" INNER TUBEManufacturer no. 384738 1Quote Ask for a quote
1A TUBE 18" TIRE 18" X 1-3/4" TUBEManufacturer no. 382255 1Quote Ask for a quote
1A 20" TUBE 20" 1-3/8" TUBEManufacturer no. 382275 1Quote Ask for a quote
1A 22" TUBE 22" X 1-3/8" TUBEManufacturer no. 382300 1Quote Ask for a quote
1A TUBE PRIMO 24" 25-540 SV 24" X 1" TUBEManufacturer no. 382336 1Quote Ask for a quote
1A 24 X 1.3/8IN TUBE REGManufacturer no. 382325 1Quote Ask for a quote
1A TUBE INLINE 24 X 1.75Manufacturer no. 382334 1Quote Ask for a quote
1A 26" X 1" TUBE SCHRADERManufacturer no. 384551 1Quote Ask for a quote
1A 26" TUBE 26" X 1-3/8" TUBEManufacturer no. 382350 1Quote Ask for a quote
1A TUBE 26 X 1.5/1.95/ S/VManufacturer no. 382361 1Quote Ask for a quote
1A 26 X 1.25/1.5 TUBE SHRADERManufacturer no. 382365 1Quote Ask for a quote
1A 24" x 2.125 TUBEManufacturer no. 382375 1Quote Ask for a quote
1B 12 1/2 IN AIRLESS INSERT 12-1/2" X 2-1/4"Manufacturer no. 102972-001 1Quote Ask for a quote
1B 16IN AIRLESS INSERT 16" X 1-3/4"Manufacturer no. 102973-001 1Quote Ask for a quote
1B 18IN AIRLESS INSERT 18" X 1-3/4"Manufacturer no. 102973-002 1Quote Ask for a quote
1B 20IN AIRLESS INSERT 20" X 1-3/8"Manufacturer no. 102973-003 1Quote Ask for a quote
1B AIRLESS INSERT 20 X 2-1/8 P3Manufacturer no. 102972-002 1Quote Ask for a quote
1B 22IN AIRLESS INSERT 22" X 1-3/8"Manufacturer no. 102973-004 1Quote Ask for a quote
1B 24IN AIRLESS INSERT 24" X 1-3/8"Manufacturer no. 102973-005 1Quote Ask for a quote
1B AIRLESS INSERT 24 X 2-1/8Manufacturer no. 102972-003 1Quote Ask for a quote
1B 26" AIRLESS INSERT 26" X 1-3/8"Manufacturer no. 108259 1Quote Ask for a quote

Aluminum Anodized (Screw Mount)

1 part

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Aluminum Anodized (Screw Mount)
No.PartQtyPriceAction
3C 10-32 X 2 1/8 PAN PHIL SS MAGManufacturer no. 281175 1Quote Ask for a quote

Plastic Coated (Screw Mount)

4 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Plastic Coated (Screw Mount)
No.PartQtyPriceAction
1-3 20" HR 6SMT PLST W/HDWR 20" SPOKEManufacturer no. 425933 1Quote Ask for a quote
1-3 22" HR 6SMT PLST W/HDWR 22" (501) SPOKEManufacturer no. 425943 1Quote Ask for a quote
1-3 24" HR 6SMT PLST W/HDWR 24" (540) SPOKEManufacturer no. 426004 1Quote Ask for a quote
4 10 -32 x 2 1/8 PAN PHIL SS 6 SPOKE MAGManufacturer no. 281175 1Quote Ask for a quote

Plastic Coated (Reg Tab Mount)

1 part

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Plastic Coated (Reg Tab Mount)
No.PartQtyPriceAction
2 PLST COATED TAB HNDRM HDWRManufacturer no. 159535 1Quote Ask for a quote

Aluminum Anodized (Tab Mount)

2 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Aluminum Anodized (Tab Mount)
No.PartQtyPriceAction
1 QP 24" HR .065 (6) TAB ANO 24" (540) CROSS SPOKE -SHORT & REG TABManufacturer no. 529529 1Quote Ask for a quote
2-4 AA TAB MOUNT HANDRIM HARDWARE SET OF 6Manufacturer no. 159515 1Quote Ask for a quote

Ultra Lite Anodized (Tab Mount)

8 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Ultra Lite Anodized (Tab Mount)
No.PartQtyPriceAction
1 HANDRIM 22" WHL MBL 1260 22" (489)Manufacturer no. 100739-001 1Quote Ask for a quote
1 HANDRIM 24" WHL MBL 1260 24" (540)Manufacturer no. 100739-002 1Quote Ask for a quote
1 HANDRIM 26" WHL MBL 1260 26" (590)Manufacturer no. 100739-003 1Quote Ask for a quote
2A BHCS M5 X .8 X 12 W/PL INORG QTY 6 REGManufacturer no. 102259-001 1Quote Ask for a quote
1 LIGHTWEIGHT HANDRIM 22" 22" (489)Manufacturer no. 066516-002 1Quote Ask for a quote
1 LIGHTWEIGHT HANDRIM 24" 24" (540)Manufacturer no. 066516-003 1Quote Ask for a quote
1 LIGHTWEIGHT HANDRIM 25" 26" (559)Manufacturer no. 066516-004 1Quote Ask for a quote
2B BHCS M5 X 10 W/PL BLK CL 10.9 QTY 6 REGManufacturer no. 012931 1Quote Ask for a quote

Aluminum Anodized 5 Spoke Mag (Screw Mount)

3 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Aluminum Anodized 5 Spoke Mag (Screw Mount)
No.PartQtyPriceAction
1-3 20" ALU ANO HND RIM KITManufacturer no. 136158 1Quote Ask for a quote
1-3 22" ALU ANO HND RIM KITManufacturer no. 136157 1Quote Ask for a quote
1-3 24" ALU ANO HND RIM KITManufacturer no. 136156 1Quote Ask for a quote

Plastic Coated 5 Spoke Mag (Screw Mount)

3 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Plastic Coated 5 Spoke Mag (Screw Mount)
No.PartQtyPriceAction
1-3 20" PLSTC COATED HND RIM KITManufacturer no. 136155 1Quote Ask for a quote
1-3 22" PLSTC COATED HND RIM KITManufacturer no. 136154 1Quote Ask for a quote
1-3 24" PLSTC COATED HND RIM KITManufacturer no. 136153 1Quote Ask for a quote

Seat Sling Ultra Lite (Zone)

32 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Seat Sling Ultra Lite (Zone)
No.PartQtyPriceAction
1-2 SLING TEN ADJ STRAP KIT 8W KIT See note 2Manufacturer no. 116717 1Quote Ask for a quote
1-2 SLING TEN ADJ STRAP KIT 9W KIT See note 2Manufacturer no. 116718 1Quote Ask for a quote
1-2 SLING TEN ADJ STRAP KIT 10W KIT See note 2Manufacturer no. 116719 1Quote Ask for a quote
1-2 SLING TEN ADJ STRAP KIT 11W KIT See note 2Manufacturer no. 116720 1Quote Ask for a quote
1-2 SLING TEN ADJ STRAP KIT 12W KIT See note 2Manufacturer no. 116721 1Quote Ask for a quote
1-2 SLING TEN ADJ STRAP KIT 13W KITManufacturer no. 116722 1Quote Ask for a quote
1-2 SLING TEN ADJ STRAP KIT 14W KITManufacturer no. 114525 1Quote Ask for a quote
1-2 SLING TEN ADJ STRAP KIT 15W KITManufacturer no. 114526 1Quote Ask for a quote
1-2 SLING TEN ADJ STRAP KIT 16W KITManufacturer no. 114527 1Quote Ask for a quote
1-2 SLING TEN ADJ STRAP KIT 17W KITManufacturer no. 114528 1Quote Ask for a quote
1-2 SLING TEN ADJ STRAP KIT 18W KITManufacturer no. 114529 1Quote Ask for a quote
1-3 ZONE ADJ SLNG 8WX8D KTManufacturer no. 116723 1Quote Ask for a quote
1-3 ZONE ADJ SLNG 8WX9D KTManufacturer no. 116724 1Quote Ask for a quote
1-3 ZONE ADJ SLNG 8WX10D KTManufacturer no. 116725 1Quote Ask for a quote
1-3 ZONE ADJ SLNG 8WX11D KTManufacturer no. 116726 1Quote Ask for a quote
1-3 ZONE ADJ SLNG 8WX12D KTManufacturer no. 116727 1Quote Ask for a quote
1-3 ZONE ADJ SLNG 8WX13D KTManufacturer no. 116728 1Quote Ask for a quote
1-3 ZONE ADJ SLNG 8WX14D KTManufacturer no. 116729 1Quote Ask for a quote
1-3 ZONE ADJ SLNG 8WX15D KTManufacturer no. 116730 1Quote Ask for a quote
1-3 ZONE ADJ SLNG 8WX16-18D KTManufacturer no. 116731 1Quote Ask for a quote
1-3 ZONE ADJ SLNG 9WX8D KTManufacturer no. 116732 1Quote Ask for a quote
1-3 ZONE ADJ SLNG 9WX9D KTManufacturer no. 116733 1Quote Ask for a quote
1-3 ZONE ADJ SLNG 9WX10D KTManufacturer no. 116734 1Quote Ask for a quote
1-3 ZONE ADJ SLNG 9WX11D KTManufacturer no. 116735 1Quote Ask for a quote
1-3 ZONE ADJ SLNG 9WX12D KTManufacturer no. 116736 1Quote Ask for a quote
1-3 ZONE ADJ SLNG 9WX13D KTManufacturer no. 116737 1Quote Ask for a quote
1-3 ZONE ADJ SLNG 9WX14D KTManufacturer no. 116738 1Quote Ask for a quote
1-3 ZONE ADJ SLNG 9WX15D KTManufacturer no. 116739 1Quote Ask for a quote
1-3 ZONE ADJ SLNG 9WX16-18D KTManufacturer no. 116740 1Quote Ask for a quote
1-3 ZONE ADJ SLNG 10WX8D KTManufacturer no. 116741 1Quote Ask for a quote
1-3 ZONE ADJ SLNG 10WX9D KTManufacturer no. 116742 1Quote Ask for a quote
1-3 ZONE ADJ SLNG 10WX10D KTManufacturer no. 116743 1Quote Ask for a quote

1" Seat Cushion

40 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 1" Seat Cushion
No.PartQtyPriceAction
1 Seat Cushion 1 Thk,8x8Manufacturer no. 115444 1Quote Ask for a quote
1 Seat Cushion 1 Thk, 8x9Manufacturer no. 115445 1Quote Ask for a quote
1 Seat Cushion 1 Thk, 8x10Manufacturer no. 115446 1Quote Ask for a quote
1 Seat Cushion 1 Thk, 8x11Manufacturer no. 115447 1Quote Ask for a quote
1 Seat Cushion 1 Thk, 8x12Manufacturer no. 115448 1Quote Ask for a quote
1 Seat Cushion 1 Thk, 8x13Manufacturer no. 115449 1Quote Ask for a quote
1 Seat Cushion 1 Thk, 8x14Manufacturer no. 115450 1Quote Ask for a quote
1 Seat Cushion 1 Thk, 9x9Manufacturer no. 115456 1Quote Ask for a quote
1 Seat Cushion 1 Thk, 9x10Manufacturer no. 115457 1Quote Ask for a quote
1 Seat Cushion 1 Thk, 9x11Manufacturer no. 115458 1Quote Ask for a quote
1 Seat Cushion 1 Thk, 9x12Manufacturer no. 115459 1Quote Ask for a quote
1 Seat Cushion 1 Thk, 9x13Manufacturer no. 115460 1Quote Ask for a quote
1 Seat Cushion 1 Thk, 9x14Manufacturer no. 115461 1Quote Ask for a quote
1 Seat Cushion 1 Thk, 9x15Manufacturer no. 115462 1Quote Ask for a quote
1 Seat Cushion 1 Thk, 10x10Manufacturer no. 115468 1Quote Ask for a quote
1 Seat Cushion 1 Thk, 10x11Manufacturer no. 115469 1Quote Ask for a quote
1 Seat Cushion 1 Thk, 10x12Manufacturer no. 115470 1Quote Ask for a quote
1 Seat Cushion 1 Thk, 10x13Manufacturer no. 115471 1Quote Ask for a quote
1 Seat Cushion 1 Thk, 10x14Manufacturer no. 115472 1Quote Ask for a quote
1 Seat Cushion 1 Thk, 10x15Manufacturer no. 115473 1Quote Ask for a quote
1 Seat Cushion 1 Thk,11x11Manufacturer no. 115480 1Quote Ask for a quote
1 Seat Cushion 1 Thk, 11x12Manufacturer no. 115481 1Quote Ask for a quote
1 Seat Cushion 1 Thk, 11x13Manufacturer no. 115482 1Quote Ask for a quote
1 Seat Cushion 1 Thk, 11x14Manufacturer no. 115483 1Quote Ask for a quote
1 Seat Cushion 1 Thk, 11x15Manufacturer no. 115484 1Quote Ask for a quote
1 Seat Cushion 1 Thk, 11x16Manufacturer no. 115485 1Quote Ask for a quote
1 Seat Cushion 1 Thk,12x12Manufacturer no. 115492 1Quote Ask for a quote
1 Seat Cushion 1 Thk, 12x13Manufacturer no. 115493 1Quote Ask for a quote
1 Seat Cushion 1 Thk, 12x14Manufacturer no. 115494 1Quote Ask for a quote
1 Seat Cushion 1 Thk, 12x15Manufacturer no. 115495 1Quote Ask for a quote
1 Seat Cushion 1 Thk, 12x16Manufacturer no. 115496 1Quote Ask for a quote
1 Seat Cushion 1 Thk, 12x17Manufacturer no. 115497 1Quote Ask for a quote
1 Seat Cushion 1 Thk, 13x13Manufacturer no. 115504 1Quote Ask for a quote
1 Seat Cushion 1 Thk, 13x14Manufacturer no. 115505 1Quote Ask for a quote
1 Seat Cushion 1 Thk, 13x15Manufacturer no. 115506 1Quote Ask for a quote
1 Seat Cushion 1 Thk, 13x16Manufacturer no. 115507 1Quote Ask for a quote
1 Seat Cushion 1 Thk, 13x17Manufacturer no. 115508 1Quote Ask for a quote
1 Seat Cushion 1 Thk, 13x18Manufacturer no. 115509 1Quote Ask for a quote
1 Seat Cushion 1 Thk, 14x14Manufacturer no. 115516 1Quote Ask for a quote
1 Seat Cushion 1 Thk, 14x15Manufacturer no. 115517 1Quote Ask for a quote

2" Seat Cushion

0 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Folding Angle Adj Back Frame

4 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Folding Angle Adj Back Frame
No.PartQtyPriceAction
1A ZONE STD BCKRST TUBE R Right - StdManufacturer no. 116832S 1Quote Ask for a quote
1A ZONE STD BCKRST TUBE L Left - StdManufacturer no. 116833S 1Quote Ask for a quote
1B ZONE TAL BCKRST TUBE R Right - TallManufacturer no. 116834S 1Quote Ask for a quote
1B ZONE TAL BCKRST TUBE L Left - TallManufacturer no. 116835S 1Quote Ask for a quote

Folding Inset Angle Adj Back Frame

2 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Folding Inset Angle Adj Back Frame
No.PartQtyPriceAction
1 ZONE INST BCKRST TUBE R RightManufacturer no. 116838S 1Quote Ask for a quote
1 ZONE INST BCKRST TUBE L LeftManufacturer no. 116839S 1Quote Ask for a quote

Backrest Handles

13 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Backrest Handles
No.PartQtyPriceAction
1 1" TUBE END BUSHING THINManufacturer no. 561082 1Quote Ask for a quote
2 BHCS M6 X 1 X 20 INORGANICManufacturer no. 102262-003 1Quote Ask for a quote
3 6MM WASHER WAVEManufacturer no. 262130 1Quote Ask for a quote
4 3/4" CAPManufacturer no. 561010 1Quote Ask for a quote
5 3/4" INSERT PLUG .083Manufacturer no. 561000-QU 1Quote Ask for a quote
7 PLUG BACKREST M6Manufacturer no. 050019 1Quote Ask for a quote
8 #12 X 3/4" PAN HD PHIL S/TAPManufacturer no. 281127 1Quote Ask for a quote
9 PAN HEAD PHIL 10-32 X 5/8 ROHSManufacturer no. 107384 1Quote Ask for a quote
11 QUICKIE GRIP 3/4" W/INSTR SH.Manufacturer no. 920026 1Quote Ask for a quote
12A FLDG PUSH HNDL ASSM PEDManufacturer no. 116841 1Quote Ask for a quote
12B FLDG PUSH HNDL ASSM 11"-14"Manufacturer no. 900165 1Quote Ask for a quote
12C FLDG PUSH HNDL ASSM 12"-16"Manufacturer no. 900166S 1Quote Ask for a quote
13 BUSHING BCKRST FOLDING HANDLEManufacturer no. 104369 1Quote Ask for a quote

Telescoping Push Handles (Bolt On)

15 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Telescoping Push Handles (Bolt On)
No.PartQtyPriceAction
1A ASSY HT ADJ PH DD TALL For Standard PH HeightManufacturer no. 129370 1Quote Ask for a quote
1B ASST HT ADJ PH DD X-TALL For Tall PH HeightManufacturer no. 129371 1Quote Ask for a quote
1-4 DD PH RPLCMENT KIT STD PAIR Std Double D upgrade for existing Bolt On PHManufacturer no. 145122 1Quote Ask for a quote
1-4 DD PH RPLCMENT KIT TALL PAIR Tall Double D upgrade for existing Bolt On PHManufacturer no. 145123 1Quote Ask for a quote
1-4 DD PH RPLCMENT KIT STD SINGLE Std Double D upgrade for existing Bolt On PH, 8-11 WDManufacturer no. 145125 1Quote Ask for a quote
1-4 DD PH RPLCMENT KIT TALL SINGLE Tall Double D upgrade for existing Bolt On PH, 8-11 WDManufacturer no. 145124 1Quote Ask for a quote
2 SHCS M5X0.8X18 FULL NPManufacturer no. 102260-001 1Quote Ask for a quote
3 NUT HEX NYLOCK M5 BLACKManufacturer no. 220121 1Quote Ask for a quote
4 INSERT FOR DD TUBEManufacturer no. 129349 1Quote Ask for a quote
5 HGT ADJ PH RECManufacturer no. 117074 1Quote Ask for a quote
6 1/4"-20 T-HANDLEManufacturer no. 113245 1Quote Ask for a quote
7A BHCS,M6X1X40,PART,PL Used w/ Std Back RestsManufacturer no. 113320 1Quote Ask for a quote
7B BHCS,M6X1X55,PART,PL Used w/ Inset backrestsManufacturer no. 058901-004 1Quote Ask for a quote
8 6mm WAVE WASHERManufacturer no. 262130 1Quote Ask for a quote
9 3/4" WASHER 1/4" HOLE Zippie Zone onlyManufacturer no. 561026 1Quote Ask for a quote

Standard Back Upholstery Zippie

10 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Standard Back Upholstery Zippie
No.PartQtyPriceAction
1A BCK UPH 8W, 6-8T W/TAIL (8" WIDE) 6-8" Tall for Ht Adj BackManufacturer no. 116012 1Quote Ask for a quote
1A BCK UPH 9W, 6-8T W/TAIL (9" WIDE) 6-8" Tall for Ht Adj BackManufacturer no. 116013 1Quote Ask for a quote
1A BCK UPH 10W, 6-8T W/TAIL (10" WIDE) 6-8" Tall for Ht Adj BackManufacturer no. 116014 1Quote Ask for a quote
1A BCK UPH 11W, 6-8T W/TAIL (11" WIDE) 6-8" Tall for Ht Adj BackManufacturer no. 116015 1Quote Ask for a quote
1A BCK UPH 12W, 6-8T W/TAIL (12" WIDE) 6-8" Tall for Ht Adj BackManufacturer no. 116016 1Quote Ask for a quote
1A BCK UPH 13W, 6-8T W/TAIL (13" WIDE) 6-8" Tall for Ht Adj BackManufacturer no. 116017 1Quote Ask for a quote
1A BCK UPH 14W, 6-8T W/TAIL (14" WIDE) 6-8" Tall for Ht Adj BackManufacturer no. 116018 1Quote Ask for a quote
1A BCK UPH 15W, 6-8T W/TAIL (15" WIDE) 6-8" Tall for Ht Adj BackManufacturer no. 116019 1Quote Ask for a quote
1A BCK UPH 16W, 6-8T W/TAIL (16" WIDE) 6-8" Tall for Ht Adj BackManufacturer no. 116020 1Quote Ask for a quote
1B BACK UPH 8" 9-14" W/TAIL (8" WIDE) 9-14" Tall for Ht Adj BackManufacturer no. 115572 1Quote Ask for a quote

Integral Push Handle Backrest Upholstery Zippie

14 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Integral Push Handle Backrest Upholstery Zippie
No.PartQtyPriceAction
1A BCK UPH 8", 9-13 8" Wide 9-13" BACK HEIGHTManufacturer no. 115616 1Quote Ask for a quote
1A BCK UPH 9", 9-13 9" Wide 9-13" BACK HEIGHTManufacturer no. 115619 1Quote Ask for a quote
1A BCK UPH 10", 9-13 10" Wide 9-13" BACK HEIGHTManufacturer no. 115622 1Quote Ask for a quote
1A BCK UPH 11", 9-13 11" Wide 9-13" BACK HEIGHTManufacturer no. 115625 1Quote Ask for a quote
1A BCK UPH 12", 9-13 12" Wide 9-13" BACK HEIGHTManufacturer no. 115628 1Quote Ask for a quote
1A BCK UPH 13", 9-13 13" Wide 9-13" BACK HEIGHTManufacturer no. 115631 1Quote Ask for a quote
1A BCK UPH 14", 9-13 14" Wide 9-13" BACK HEIGHTManufacturer no. 115634 1Quote Ask for a quote
1A BCK UPH 15", 9-13 15" Wide 9-13" BACK HEIGHTManufacturer no. 115637 1Quote Ask for a quote
1A BCK UPH 16", 9-13 16" Wide 9-13" BACK HEIGHManufacturer no. 115640 1Quote Ask for a quote
1B BCK UPH 8", 11-14/12-16 8" Wide 11 -14" & 12 -16" BACK HEIGHTManufacturer no. 115617 1Quote Ask for a quote
1B BCK UPH 9", 11-14/12-16 9" Wide 11 -14" & 12 -16" BACK HEIGHTManufacturer no. 115620 1Quote Ask for a quote
1B BCK UPH 10", 11-14/12-16 10" Wide 11 -14" & 12 -16" BACK HEIGHTManufacturer no. 115623 1Quote Ask for a quote
1B BCK UPH 11", 11-14/12-16 11" Wide 11 -14" & 12 -16" BACK HEIGHTManufacturer no. 115626 1Quote Ask for a quote
1B BCK UPH 12", 11-14/12-16 12" Wide 11 -14" & 12 -16" BACK HEIGHTManufacturer no. 115629 1Quote Ask for a quote

Exploded view, page 91

18 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 91
No.PartQtyPriceAction
2 TOP CAP, STD, 9-10 Used for omit push handle & Integral Push Handle onlyManufacturer no. 115285 1Quote Ask for a quote
2 TOP CAP, STD, 11-12 Used for omit push handle & Integral Push Handle onlyManufacturer no. 113712 1Quote Ask for a quote
2 TOP CAP, STD, 13-14 Used for omit push handle & Integral Push Handle onlyManufacturer no. 113713 1Quote Ask for a quote
2 TOP CAP, STD, 15-16 Used for omit push handle & Integral Push Handle onlyManufacturer no. 113714 1Quote Ask for a quote
2 TOP CAP, STD, 17-18 Used for omit push handle & Integral Push Handle onlyManufacturer no. 113715 1Quote Ask for a quote
3 STRAP PADDED 2IN, 9-10Manufacturer no. 115287 1Quote Ask for a quote
3 STRAP PADDED 2IN, 11-12Manufacturer no. 113727 1Quote Ask for a quote
3 STRAP PADDED 2IN, 13-14Manufacturer no. 113728 1Quote Ask for a quote
3 STRAP PADDED 2IN, 15-16Manufacturer no. 113729 1Quote Ask for a quote
3 STRAP PADDED 2IN, 17-18Manufacturer no. 113730 1Quote Ask for a quote
4 STRAP PADDED 1IN, 9-10Manufacturer no. 115288 1Quote Ask for a quote
4 STRAP PADDED 1IN, 11-12Manufacturer no. 113732 1Quote Ask for a quote
4 STRAP PADDED 1IN, 13-14Manufacturer no. 113733 1Quote Ask for a quote
4 STRAP PADDED 1IN, 15-16Manufacturer no. 113734 1Quote Ask for a quote
4 STRAP PADDED 1IN, 17-18Manufacturer no. 113735 1Quote Ask for a quote
4 STRAP PADDED 1IN, 19-20Manufacturer no. 113736 1Quote Ask for a quote
5 POSITION STRAP 1IN, 9-10Manufacturer no. 115775 1Quote Ask for a quote
5 POSITION STRAP 1IN, 11-12Manufacturer no. 113717 1Quote Ask for a quote

ALUMINUM TUBULAR prior to S/N R4-023230

9 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in ALUMINUM TUBULAR prior to S/N R4-023230
No.PartQtyPriceAction
1 FLT PT SS M8X1.25X8Manufacturer no. 112339 1Quote Ask for a quote
2 FOOTREST NUTManufacturer no. 112648 1Quote Ask for a quote
3 FOOTREST BUSHING OVAL TO ROUNDManufacturer no. 112348 1Quote Ask for a quote
4 KEY CLAMP, 19MMManufacturer no. 112651 1Quote Ask for a quote
5A LEG STRAP 11"-12" BLKManufacturer no. 113255 1Quote Ask for a quote
5B LEG STRAP 13"-15" BLKManufacturer no. 113256 1Quote Ask for a quote
5C LEG STRAP 16"-18" BLKManufacturer no. 113257 1Quote Ask for a quote
5D LEG STRAP 19"-20" BLKManufacturer no. 113258 1Quote Ask for a quote
7 FTRST MOUNT KITManufacturer no. 114934 1Quote Ask for a quote

Footrest Cover & Wear Pads

9 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Footrest Cover & Wear Pads
No.PartQtyPriceAction
1A COVER FOOTREST SNAP ON 9WManufacturer no. 101461-013 1Quote Ask for a quote
1B COVER FOOTREST SNAP-ON 11" WManufacturer no. 101461-001 1Quote Ask for a quote
1C COVER FOOTREST SNAP-ON 12" WManufacturer no. 101461-002 1Quote Ask for a quote
1D COVER FOOTREST SNAP-ON 13" WManufacturer no. 101461-003 1Quote Ask for a quote
1E COVER FOOTREST SNAP-ON 14" WManufacturer no. 101461-004 1Quote Ask for a quote
1F COVER FOOTREST SNAP-ON 15" WManufacturer no. 101461-005 1Quote Ask for a quote
1G COVER FOOTREST SNAP-ON 16" WManufacturer no. 101461-006 1Quote Ask for a quote
1H COVER FOOTREST SNAP-ON 17" WManufacturer no. 101461-007 1Quote Ask for a quote
1J COVER FOOTREST SNAP-ON 18" WManufacturer no. 101461-008 1Quote Ask for a quote

Aluminum Platform Footrest

1 part

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Aluminum Platform Footrest
No.PartQtyPriceAction
1A FHCS M6X1X25 FULL NPManufacturer no. 102265-003 1Quote Ask for a quote

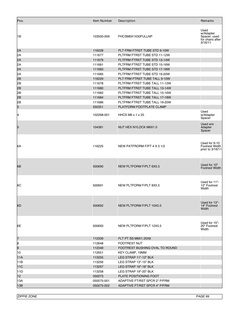

Exploded view, page 99

32 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exploded view, page 99
No.PartQtyPriceAction
1B FHCSM6X1X30FULLNPManufacturer no. 103500-009 1Quote Ask for a quote
2A PLT FRM FTRST TUBE STD 9-10WManufacturer no. 116228 1Quote Ask for a quote
2A PLTFRM FTRST TUBE STD 11-12WManufacturer no. 111677 1Quote Ask for a quote
2A PLTFRM FTRST TUBE STD 13-14WManufacturer no. 111679 1Quote Ask for a quote
2A PLTFRM FTRST TUBE STD 15-16WManufacturer no. 111681 1Quote Ask for a quote
2A PLTFRM FTRST TUBE STD 17-18WManufacturer no. 111683 1Quote Ask for a quote
2A PLTFRM FTRST TUBE STD 19-20WManufacturer no. 111685 1Quote Ask for a quote
2B PLT FRM FTRST TUBE TALL 9-10WManufacturer no. 116229 1Quote Ask for a quote
2B PLTFRM FTRST TUBE TALL 11-12WManufacturer no. 111678 1Quote Ask for a quote
2B PLTFRM FTRST TUBE TALL 13-14WManufacturer no. 111680 1Quote Ask for a quote
2B PLTFRM FTRST TUBE TALL 15-16WManufacturer no. 111682 1Quote Ask for a quote
2B PLTFRM FTRST TUBE TALL 17-18WManufacturer no. 111684 1Quote Ask for a quote
2B PLTFRM FTRST TUBE TALL 19-20WManufacturer no. 111686 1Quote Ask for a quote
3 PLATFORM FOOTPLATE CLAMPManufacturer no. 550351 1Quote Ask for a quote
4 HHCS M6 x 1 x 25Manufacturer no. 102268-001 1Quote Ask for a quote
5 NUT HEX NYLOCK M6X1.0Manufacturer no. 104381 1Quote Ask for a quote
6A NEW PATFRORM F/PT 4 X 5 1/2Manufacturer no. 116225 1Quote Ask for a quote
6B NEW PLTFORM F/PLT 6X5.5 Used for 10"Manufacturer no. 500690 1Quote Ask for a quote
6C NEW PLTFORM F/PLT 8X5.5Manufacturer no. 500691 1Quote Ask for a quote
6D NEW PLTFORM F/PLT 10X5.5Manufacturer no. 500692 1Quote Ask for a quote
6E NEW PLTFORM F/PLT 12X5.5Manufacturer no. 500693 1Quote Ask for a quote
7 FLT PT SS M8X1.25X8Manufacturer no. 112339 1Quote Ask for a quote
8 FOOTREST NUTManufacturer no. 112648 1Quote Ask for a quote
9 FOOTREST BUSHING OVAL TO ROUNDManufacturer no. 112348 1Quote Ask for a quote
10 KEY CLAMP, 19MMManufacturer no. 112651 1Quote Ask for a quote
11A LEG STRAP 11"-12" BLKManufacturer no. 113255 1Quote Ask for a quote
11B LEG STRAP 13"-15" BLKManufacturer no. 113256 1Quote Ask for a quote
11C LEG STRAP 16"-18" BLKManufacturer no. 113257 1Quote Ask for a quote
11D LEG STRAP 19"-20" BLKManufacturer no. 113258 1Quote Ask for a quote
12 PLATE POSITIONING FOOTManufacturer no. 050073 1Quote Ask for a quote
13A ADAPTIVE FT/RST SPCR 2" P/FRMManufacturer no. 050075-001 1Quote Ask for a quote
13B ADAPTIVE FT/RST SPCR 4" P/FRMManufacturer no. 050075-002 1Quote Ask for a quote

Flip-Back Footrest

2 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Flip-Back Footrest
No.PartQtyPriceAction
1A FOOTPLATE 8-9 PEDManufacturer no. 118891 1Quote Ask for a quote
1B FOOTPLATE 9-10 PEDManufacturer no. 118892 1Quote Ask for a quote

High Mount Footrest Clamp

6 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in High Mount Footrest Clamp
No.PartQtyPriceAction
2 SHCS M5 X .8 X 14 W/PLManufacturer no. 103181 1Quote Ask for a quote
3 BHCS,M5X0.8X8,FULL,PLManufacturer no. 103184-002 1Quote Ask for a quote
4 SHCS M5X0.8X25 FULL PLManufacturer no. 113317 1Quote Ask for a quote
6 FRAME INSERT, REAR SEAT TUBEManufacturer no. 110161 1Quote Ask for a quote
7 3/4" CAPManufacturer no. 561010 1Quote Ask for a quote
1-7 HIGH MOUNT FOOTREST KIT PairManufacturer no. 123463 1Quote Ask for a quote

Adaptive Flip-Back Footrest

10 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Adaptive Flip-Back Footrest
No.PartQtyPriceAction
1 F/BCK FTRST ADP STD ASSM 8 Fits: 8"Manufacturer no. 145100 1Quote Ask for a quote
1 F/BCK FTRST ADP STD ASSM 9 Fits: 9"Manufacturer no. 145101 1Quote Ask for a quote
1 F/BCK FTRST ADP STD ASSM 10 Fits: 10"Manufacturer no. 145102 1Quote Ask for a quote
1 F/BCK FTRST ADP STD ASSM 11 Fits: 11"Manufacturer no. 145103 1Quote Ask for a quote
1 F/BCK FTRST ADP STD ASSM 12 Fits: 12"Manufacturer no. 145104 1Quote Ask for a quote
1 F/BCK FTRST ADP STD ASSM 13 Fits: 13"Manufacturer no. 145105 1Quote Ask for a quote
1 F/BCK FTRST ADP STD ASSM 14 Fits: 14"Manufacturer no. 145106 1Quote Ask for a quote
1 F/BCK FTRST ADP STD ASSM 15 Fits: 15"Manufacturer no. 145107 1Quote Ask for a quote
1 F/BCK FTRST ADP STD ASSM 16 Fits: 16"Manufacturer no. 145108 1Quote Ask for a quote
1 F/BCK FTRST ADP STD ASSM 17 Fits: 17"Manufacturer no. 145109 1Quote Ask for a quote

Padded Swing-Away Armrest

9 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Padded Swing-Away Armrest
No.PartQtyPriceAction
1A-4 PAD S/A PED W/ BOLT ASSM L LEFT - PedManufacturer no. 116850 1Quote Ask for a quote
1A-4 PAD S/A PED W/ BOLT ASSM R RIGHT - PedManufacturer no. 116851 1Quote Ask for a quote
1B-4 PADDED S/A WITH BOLT ASSM L LEFT - StdManufacturer no. 115040 1Quote Ask for a quote
1B-4 PADDED S/A WITH BOLT ASSM R RIGHT - StdManufacturer no. 115041 1Quote Ask for a quote
1C-4 PAD S/A PED LNG W/BOLT L LEFT - Ped longManufacturer no. 120895 1Quote Ask for a quote
1C-4 PAD S/A PED LNG W/BOLT R RIGHT - Ped longManufacturer no. 120894 1Quote Ask for a quote
2 9X.940X.200 FOAM GRIP 1 gripManufacturer no. 920070 1Quote Ask for a quote
5 GEL PAD S/A ARM PAIRManufacturer no. 108315 1Quote Ask for a quote
6 SEXBOLTSA ARMREST KIT PAIRManufacturer no. 108118 1Quote Ask for a quote

Single Post Height Adjustable Armrest

16 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Single Post Height Adjustable Armrest
No.PartQtyPriceAction
1A SPHA PAD DESK CONTOUR DESKManufacturer no. 104568-001 1Quote Ask for a quote
1B SPHA PAD FULL CONTOUR FULLManufacturer no. 104568-002 1Quote Ask for a quote
1C ARMREST PAD 10" DESK CLASSIC DESKManufacturer no. 561024 1Quote Ask for a quote
1D ARMREST PAD 14" FULL CLASSIC FULLManufacturer no. 561031 1Quote Ask for a quote
1E ARMREST PAD 10" LEFT W/F Left-Waterfall DeskManufacturer no. 561280 1Quote Ask for a quote
1E ARMREST PAD 10" RIGHT W/F Rightt-Waterfall DeskManufacturer no. 561281 1Quote Ask for a quote
1F ARMREST PAD 14" LEFT W/F Leftt-Waterfall FullManufacturer no. 561284 1Quote Ask for a quote
1F ARMREST PAD 14" RIGHT W/F Rightt-Waterfall FullManufacturer no. 561285 1Quote Ask for a quote
2 SNGL POST UPPR ASSM LOW LOW/SMALLManufacturer no. 116312 1Quote Ask for a quote
2 SNGL POST UPPR ASSM STD STANDARDManufacturer no. 116313 1Quote Ask for a quote
3 SHCS 10-32 X 3/4 ROHSManufacturer no. 106956 1Quote Ask for a quote
5A HT ADJ PD TUBE 10IN DESK POWE DeskManufacturer no. 521812 1Quote Ask for a quote
5B HT ADJ PD TUBE 14IN FULL POWE FullManufacturer no. 521813 1Quote Ask for a quote
6 BHCS 10-32 X 1 1/2 ROHSManufacturer no. 107024 1Quote Ask for a quote
7 7/8" ROUND TUBE PLUGManufacturer no. 560735 1Quote Ask for a quote
8 SHCS 10-32 X 1-1/4 PL Used with Full Length & WaterfallManufacturer no. 108534 1Quote Ask for a quote

Kids T Post Armrest

15 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Kids T Post Armrest
No.PartQtyPriceAction
1 KIDZ T-POST ARM XTALL WLDMNTManufacturer no. 119867 1Quote Ask for a quote
1 KIDZ T-POST ARM 2XTALL WLDMNTManufacturer no. 119868 1Quote Ask for a quote
2 ARMREST FOAM KIDZManufacturer no. 560309 1Quote Ask for a quote
3 7/8 INSERT PLUG .083Manufacturer no. 561007 1Quote Ask for a quote
4 KIDZ ARM STOPManufacturer no. 550105-QU 1Quote Ask for a quote
5 10-32 X 1/2 FH C/S BLKManufacturer no. 226012 1Quote Ask for a quote
6 ASSY PLASTIC SIDE GUARD RECManufacturer no. 111695 1Quote Ask for a quote
7 PLASTIC SIDE GUARD INNER CLAMPManufacturer no. 112695 1Quote Ask for a quote
8 SHCS M5 X .8 X 20 FULL PLManufacturer no. 112697 1Quote Ask for a quote
9 BHCS M5 X .8 X8 FULL PLManufacturer no. 103184-002 1Quote Ask for a quote
1-5 T-POST ARM XTALL W/FOAM R RightManufacturer no. 119869 1Quote Ask for a quote
1-5 T-POST ARM XTALL W/FOAM L LeftManufacturer no. 119870 1Quote Ask for a quote
1-5 T-POST ARM 2XTALL W/FOAM R RightManufacturer no. 119871 1Quote Ask for a quote
1-5 T-POST ARM 2XTALL W/FOAM L LeftManufacturer no. 119872 1Quote Ask for a quote
6-9 PLST SDE GRD REC ASSM T-Post reciever, 1 sideManufacturer no. 115046 1Quote Ask for a quote

Padded Swing-Away Armrest Receiver

6 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Padded Swing-Away Armrest Receiver
No.PartQtyPriceAction
2 SLEEVE SWING AWAY ARMRESTManufacturer no. 106505 1Quote Ask for a quote
3 ARM PADDED TUBLAR MT PEDManufacturer no. 115169 1Quote Ask for a quote
4 NUT HEX NYLOCK M6 x 1.0Manufacturer no. 104381 1Quote Ask for a quote
5 BHCS M6 x 1 x 30 INORGManufacturer no. 102262-005 1Quote Ask for a quote
6 WASHER FLAT M6Manufacturer no. 250104 1Quote Ask for a quote
1-6 PADDED S/A REC MNT ASSMManufacturer no. 117839 1Quote Ask for a quote

Single Post Armrest Receiver

5 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Single Post Armrest Receiver
No.PartQtyPriceAction
1 HHCS M5 x 1 x 25 INORGManufacturer no. 113317 1Quote Ask for a quote
2 SPHA INNER CLAMPManufacturer no. 112694 1Quote Ask for a quote
3 BHCS M5 x 0.8 x 8 FULL PLManufacturer no. 103184-002 1Quote Ask for a quote
4 SPHA RECEIVER ASSYManufacturer no. 111691 1Quote Ask for a quote
1-4 SPHA RECEIVER ASSMManufacturer no. 115031 1Quote Ask for a quote

Gel Pad For Padded Swing-Away Armrest

1 part

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Gel Pad For Padded Swing-Away Armrest
No.PartQtyPriceAction
1 GEL PAD S/ ARM PairManufacturer no. 108315 1Quote Ask for a quote

Quickie Side Pocket

1 part

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Quickie Side Pocket
No.PartQtyPriceAction
1 QUICKIE SIDE POCKET Size: 6.5"x 6.5"x 2"Manufacturer no. 013475 1Quote Ask for a quote

Hardware.

14 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Hardware.
No.PartQtyPriceAction
1 SHCS M6 X 1 X 25 W/PL INORG MetricManufacturer no. 102263-003 1Quote Ask for a quote
2 WASHER FLAT M6 MetricManufacturer no. 250104 1Quote Ask for a quote
3 BHCS M6 X 1 X 12 FULL PL MetricManufacturer no. 103185-005 1Quote Ask for a quote
4 WASHER FLAT AN 1/4 ROHS Imperial (standard)Manufacturer no. 106943 1Quote Ask for a quote
5 1/4-20 X 1/2 BH C/S W/PATCH Imperial (standard)Manufacturer no. 226154 1Quote Ask for a quote
6 1/4-20 X 1 SOC HD BLK Imperial (standard)Manufacturer no. 221116 1Quote Ask for a quote
7 BHCS M6 X 1 X 12Manufacturer no. 230113 1Quote Ask for a quote
8 LOCKWASHER HIGH COLLAR M6Manufacturer no. 050129-001 1Quote Ask for a quote
9 NUT HEX NYLOCK M6 X 1.0Manufacturer no. 104381 1Quote Ask for a quote
10 WASHER FLAT M6Manufacturer no. 107383 1Quote Ask for a quote
11 HHCS M6 X 1 X 35 BLKManufacturer no. 102268-002 1Quote Ask for a quote
12 PSTN BELT CLAMP ASSM PR Metric; PairManufacturer no. 120750 1Quote Ask for a quote
13 POSITION BELT ATTACHMENT KIT Set of 2; Imperial (standard)Manufacturer no. 900116 1Quote Ask for a quote
14 OVAL CLAMP ASSM KIT Kit contains 1 ClampManufacturer no. 116268 1Quote Ask for a quote

Auto Buckle Positioning Belt & Attachment Kits

15 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Auto Buckle Positioning Belt & Attachment Kits
No.PartQtyPriceAction
1 SHCS M6 X 1 X 25 W/PL INORG MetricManufacturer no. 102263-003 1Quote Ask for a quote
2 WASHER FLAT M6 MetricManufacturer no. 250104 1Quote Ask for a quote
3 BHCS M6 X 1 X 12 FULL PL MetricManufacturer no. 103185-005 1Quote Ask for a quote
4 WASHER FLAT AN 1/4 ROHS Imperial (standard)Manufacturer no. 106943 1Quote Ask for a quote
5 1/4-20 X 1/2 BH C/S W/PATCH Imperial (standard)Manufacturer no. 226154 1Quote Ask for a quote
6 1/4-20 X 1 SOC HD BLK Imperial (standard)Manufacturer no. 221116 1Quote Ask for a quote
7 BHCS M6 X 1 X 12Manufacturer no. 230113 1Quote Ask for a quote
8 LOCKWASHER HIGH COLLAR M6Manufacturer no. 050129-001 1Quote Ask for a quote
9 NUT HEX NYLOCK M6 X 1.0Manufacturer no. 104381 1Quote Ask for a quote
10 WASHER FLAT M6Manufacturer no. 107383 1Quote Ask for a quote
11 HHCS M6 X 1 X 35 BLKManufacturer no. 102268-002 1Quote Ask for a quote
12 PSTN BELT CLAMP ASSM PR Metric; PairManufacturer no. 120750 1Quote Ask for a quote
13 POSITION BELT ATTACHMENT KIT Set of 2; Imperial (standard)Manufacturer no. 900116 1Quote Ask for a quote
14 OVAL CLAMP ASSM KIT Kit contains 1 ClampManufacturer no. 116268 1Quote Ask for a quote
15 POSITIONING BELT CLAMPS PRManufacturer no. 159122 1Quote Ask for a quote

Plastic Side Guard

11 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Plastic Side Guard
No.PartQtyPriceAction
1A SIDE GUARD ASSY STD StandardManufacturer no. 104164-001 1Quote Ask for a quote
1B SIDE GUARD ASSY SMALL LowManufacturer no. 104164-002 1Quote Ask for a quote
3 PLASTIC SG INNERManufacturer no. 112695 1Quote Ask for a quote
4 BHCS,M5X0.8X8,FULL,PLManufacturer no. 103184-002 1Quote Ask for a quote
5 SHCS,M5X0.8X20,FULL,PLManufacturer no. 112697 1Quote Ask for a quote
6 SHSS M5X0.8X8 NPManufacturer no. 112698 1Quote Ask for a quote
7 RECEIVER SG PLASTIC INSERTManufacturer no. 108780 1Quote Ask for a quote
8 FHCS #6-32 X 1/4Manufacturer no. 107135 1Quote Ask for a quote
2-8 PLST SDE GRD REC ASSMManufacturer no. 115046 1Quote Ask for a quote
1A-8 PLST SDE GRD REG W/ REC KIT (PR) Pair-StandardManufacturer no. 115047 1Quote Ask for a quote
1B-8 PLST SDE GRD LOW W/ REC KIT (PR) Pair- LowManufacturer no. 115048 1Quote Ask for a quote

Aluminum Side Guard

17 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Aluminum Side Guard
No.PartQtyPriceAction
1 MOUNT SIDE GUARD OVAL FRMManufacturer no. 111844 1Quote Ask for a quote
2 SPHA RECEIVER CLAMPManufacturer no. 111693 1Quote Ask for a quote
3A AL SIDE GUARD REAR REC prior to s/n RZ-005898Manufacturer no. 113299 1Quote Ask for a quote
3B AL S/G REAR REC M5 after s/n RZ-005898Manufacturer no. 118200 1Quote Ask for a quote
4 AL SIDE GUARD CLAMPManufacturer no. 113301 1Quote Ask for a quote
5A FH C/S M6 x 1 x 25 FULL PL prior to s/n RZ-005898Manufacturer no. 113360 1Quote Ask for a quote
5B FHCS, M5X0.8X25, FULL, PL after s/n RZ-005898Manufacturer no. 118450 1Quote Ask for a quote
6 WASHER FLAT M6Manufacturer no. 250104 1Quote Ask for a quote
7 3/4" WASHER 1/4" HOLEManufacturer no. 561026 1Quote Ask for a quote
10 SHSS M4 x 0.7 x 6 FULL NPManufacturer no. 113319 1Quote Ask for a quote
11 SHCS, M6 x 1 x 20, FULL, PLManufacturer no. 102263-005 1Quote Ask for a quote
12 SHCS, M6 x 1 x 25, FULL, PLManufacturer no. 102263-003 1Quote Ask for a quote
13 WASHER M6 X 18 REGULAR BLKManufacturer no. 011111 1Quote Ask for a quote
14 SIDE GUARD SLIDE BUSHINGManufacturer no. 115220 1Quote Ask for a quote
15 3/4 OD X .318 ID X .25 NYLONManufacturer no. 561112 1Quote Ask for a quote
17 SIDE GUARD AL PED LH LEFTManufacturer no. 117841 1Quote Ask for a quote
17 SIDE GUARD AL PED RH RIGHTManufacturer no. 117842 1Quote Ask for a quote

Designer Spoke Guards

14 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Designer Spoke Guards
No.PartQtyPriceAction
1A SPOKE GUARD 22IN BASKETBALL 2 EachManufacturer no. 129250 1Quote Ask for a quote
1B SPOKE GUARD 24IN BASKETBALL 2 EachManufacturer no. 129251 1Quote Ask for a quote
2A SPOKE GUARD 22IN GRAFFITI EachManufacturer no. 129252 1Quote Ask for a quote
4B SPOKE GUARD 24IN GRAFFITI EachManufacturer no. 129253 1Quote Ask for a quote
3A SPOKE GUARD 22IN SUPERHERO EachManufacturer no. 129254 1Quote Ask for a quote
3B SPOKE GUARD 24IN SUPERHERO EachManufacturer no. 129255 1Quote Ask for a quote
4A SPOKE GUARDS 22IN HOT WHEELS EachManufacturer no. 129256 1Quote Ask for a quote
4B SPOKE GUARDS 24IN HOT WHEELS EachManufacturer no. 129257 1Quote Ask for a quote
5A SPOKE GUARDS 22IN CHROME WHEELS EachManufacturer no. 129258 1Quote Ask for a quote
5B SPOKE GUARDS 24IN CHROME WHEELS EachManufacturer no. 129259 1Quote Ask for a quote
6A SPOKE GUARD 22IN PRINCESS EachManufacturer no. 129328 1Quote Ask for a quote
6B SPOKE GUARD 24IN PRINCESS EachManufacturer no. 129329 1Quote Ask for a quote
7A SPOKE GUARD 22IN HAPPY LION EachManufacturer no. 129330 1Quote Ask for a quote
7B SPOKE GUARD 24IN HAPPY LION EachManufacturer no. 129331 1Quote Ask for a quote

SPOKE GUARDS ZIPPIE (Black & Clear)

8 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in SPOKE GUARDS ZIPPIE (Black & Clear)
No.PartQtyPriceAction
1A SPK GRDS 20" QUICKIE BLK Pair-BLACK-FITS 20" WHEELSManufacturer no. 902001 1Quote Ask for a quote
1A SPK GRDS 22" QUICKIE BLK Pair-BLACK-FITS 22" WHEELS & 24" MOUNTAIN SPOKE WHEELSManufacturer no. 902011 1Quote Ask for a quote
1A SPK GRD 24" QUICKIE SCR MT BLK Pair-BLACK-FITS 24" (540) MAG & SPOKE WHEELSManufacturer no. 902021 1Quote Ask for a quote
1A SPK GRD 24" QUICKIE TAB MT BLK Pair-BLACK-FITS 25" (559) SPOKE WHEELS & 26" MOUNTAIN SPOKE WHEELSManufacturer no. 902025 1Quote Ask for a quote
1B SPOKE GUARD ZIPPIE 20" Pair-CLEAR-FITS 20" WHEELSManufacturer no. 112644-001 1Quote Ask for a quote
1B SPOKE GUARD ZIPPPIE 22" Pair-CLEAR-FITS 22" WHEELS & 24" MOUNTAIN SPOKE WHEELSManufacturer no. 112644-002 1Quote Ask for a quote
1B SPOKE GUARDZIPPIE 24" MAG Pair-CLEAR-FITS 24" (540) MAG WHEELSManufacturer no. 112644-003 1Quote Ask for a quote
1B SPOKE GUARD ZIPPIE 24" SPOKE Pair-CLEAR-FITS 24" (540) SPOKE WHEELSManufacturer no. 112644-004 1Quote Ask for a quote

Tuffak Tray (Manual & Pediatric Chairs)

13 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Tuffak Tray (Manual & Pediatric Chairs)
No.PartQtyPriceAction
1 5/16-18 x 3 1/2 CARR BOLTManufacturer no. 226199 1Quote Ask for a quote
2 5/16 WASHER FENDERManufacturer no. 263112 1Quote Ask for a quote
3 5/16-18 NUT THINManufacturer no. 202110 1Quote Ask for a quote
4 TRAY CLAMPManufacturer no. 550400 1Quote Ask for a quote
5 SPACER 5/16 X .380Manufacturer no. 481113 1Quote Ask for a quote
6 5/16 AN WASHER FLATManufacturer no. 263100 1Quote Ask for a quote
7 KNURLED TRAY KNOBManufacturer no. 483026 1Quote Ask for a quote
8 5/16-18 ACORN LOCK NUTManufacturer no. 202114 1Quote Ask for a quote
9A TRAY TOP EX-SM W/RAILManufacturer no. 562619 1Quote Ask for a quote
9B TRAY TOP SM W/RAILManufacturer no. 562620 1Quote Ask for a quote
9C TRAY TOP MED W/RAILManufacturer no. 562621 1Quote Ask for a quote
9D TRAY TOP LRG W/RAILManufacturer no. 562622 1Quote Ask for a quote
9E TRAY TOP X-LRG W/RAILManufacturer no. 562623 1Quote Ask for a quote

Tray Hardware

20 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Tray Hardware
No.PartQtyPriceAction
1 5/16-18 x 1 1/2 BH C/S BLKManufacturer no. 2249 1Quote Ask for a quote
2 .625 x .135 x .031 NYLON WASHERManufacturer no. 2709 1Quote Ask for a quote
3 .609 x .250 x .250 NYLON SPACERManufacturer no. 2710 1Quote Ask for a quote
5 5/16-18" NUT THINManufacturer no. 202110 1Quote Ask for a quote
6 5/16-18" x 2 3/4" BUTTON HD C/SManufacturer no. 2021 1Quote Ask for a quote
7 TRAY BUSHINGManufacturer no. 14240 1Quote Ask for a quote
8 TRAY LOCK BARManufacturer no. 14230 1Quote Ask for a quote
9 1/4" FLAT WASHERManufacturer no. 2705 1Quote Ask for a quote
10 TRAY KNOBManufacturer no. 14220 1Quote Ask for a quote
11 5/16-18" ACORN LOCK NUTManufacturer no. 202114 1Quote Ask for a quote
12 5/16-18" x 3 1/2" CARR BOLTManufacturer no. 226199 1Quote Ask for a quote
13 5/16 WASHER FENDERManufacturer no. 263112 1Quote Ask for a quote
14 5/16-18" NUT THINManufacturer no. 202110 1Quote Ask for a quote
15 TRAY CLAMPManufacturer no. 550400 1Quote Ask for a quote
16 BEARING SPACERManufacturer no. 481013 1Quote Ask for a quote
17 5/16" AN WASHER FLATManufacturer no. 263100 1Quote Ask for a quote
18 KNURLED TRAY KNOBManufacturer no. 483026 1Quote Ask for a quote
19 5/16-18" ACORN LOCK NUTManufacturer no. 202114 1Quote Ask for a quote
1-5 TOGGLE CLAMP - HIDEAWAYManufacturer no. 4099 1Quote Ask for a quote
12-19 TRAY HDWR KIT TUFFAK NEW STYLE (9QH) PairManufacturer no. 881051 1Quote Ask for a quote

Quickie Caddy

7 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Quickie Caddy
No.PartQtyPriceAction
1 1/4-28 x 1 1/4 SOC C/SManufacturer no. 106975 1Quote Ask for a quote
2 CADDY ARM Clamps on to Extension Tube (3/4" round and D2); Caddy Arm length is 7 1/2"Manufacturer no. 561105 1Quote Ask for a quote
3 CADDY CLAMP Clamps on to Extension Tube (3/4" round and D2)Manufacturer no. 561104 1Quote Ask for a quote
4 1/4-28 NYLOCK NUT THINManufacturer no. 106935 1Quote Ask for a quote
5 3/16" ALLEN WRENCHManufacturer no. 349998 1Quote Ask for a quote
6 CADDY TAPEManufacturer no. 580050 1Quote Ask for a quote
1-6 QUICKIE CADDY (PR)Manufacturer no. 902350 1Quote Ask for a quote

Crutch Holder (Rigid Chairs)

10 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Crutch Holder (Rigid Chairs)
No.PartQtyPriceAction
1 CLAMP SADDLE CRUTCH HOLDERManufacturer no. 050076 1Quote Ask for a quote
2 CLAMP CRUTCH HOLDERManufacturer no. 050077 1Quote Ask for a quote
3 SHCS M6 x 1 x 16 FULL NPManufacturer no. 102263-001 1Quote Ask for a quote
4 LOCKWASHER HIGH COLLAR M6Manufacturer no. 050129-001 1Quote Ask for a quote
5 3/4" INSERT PLUG .083Manufacturer no. 561000-QU 1Quote Ask for a quote
6 BHCS M6 X 1 X 25 W/PL INORGManufacturer no. 102262-004 1Quote Ask for a quote
8 CRUTCH HOLDER STRAP FManufacturer no. 750495 1Quote Ask for a quote
9 10-32 X 1/2 PAN PHILManufacturer no. 281110 1Quote Ask for a quote
10 10-32 NYLOCK NUTManufacturer no. 200100-QU 1Quote Ask for a quote
1-10 ASSM CRUTCH HOLDER GT W/HDWRManufacturer no. 050169 1Quote Ask for a quote

Adjustable Leg Strap

4 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Adjustable Leg Strap
No.PartQtyPriceAction
1A LEG STRAP 11"-12" BLKManufacturer no. 113255 1Quote Ask for a quote
1B LEG STRAP 13"-15" BLKManufacturer no. 113256 1Quote Ask for a quote
1C LEG STRAP 16"-18" BLKManufacturer no. 113257 1Quote Ask for a quote
1D LEG STRAP 19"-20" BLKManufacturer no. 113258 1Quote Ask for a quote

Tire Pump

2 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Tire Pump
No.PartQtyPriceAction
1 TIRE PUMPManufacturer no. 389050 1Quote Ask for a quote
2 VALVE ADAPTER PRESTAManufacturer no. 381230 1Quote Ask for a quote

Tool Kit

2 parts

Exploded view from the manufacturer's parts manual (Zippie Zone Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Tool Kit
No.PartQtyPriceAction
1 QUICKIE COMBO TOOL KIT Includes pouchManufacturer no. 108314 1Quote Ask for a quote
2 6MM ALLEN WRENCH L, 7MM SHORT caster spline chairs onlyManufacturer no. 113403 1Quote Ask for a quote

Parts manuals for this model

The manufacturer parts lists and exploded diagrams we hold. If you can find the number on one of these, quote it to us and we will match it.

Zippie Zone Parts Manual

Manufacturer parts document, PDF.

Not sure which part you need?

Send us a photo of the part, or of where it sits, and tell us what it is doing. Our order desk identifies parts for this equipment every day, and we would rather ask you one question than ship you the wrong bolt.

Or call 905 451-7743 and describe it to us.

Where to go next

The product page

Specifications, documents and the full product page for the Zippie Zone Pediatric Rigid Wheelchair.

All replacement parts

Search every part we stock, or browse by the equipment it fits.

Have us fit it

Our technicians service what we sell, in the home and in the showroom.
