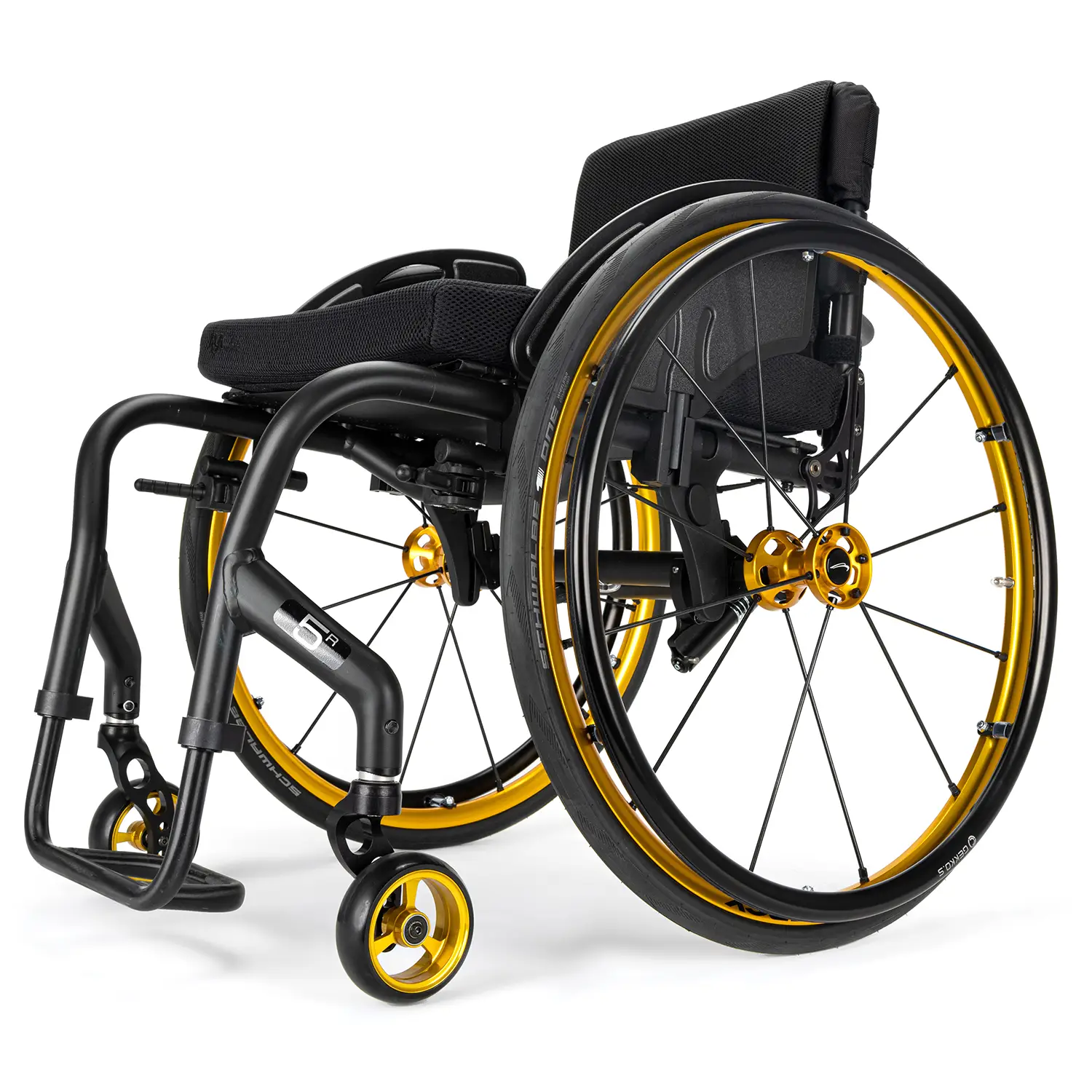

Quickie 5r Rigid Wheelchair

Parts finder

Replacement parts for the Quickie 5r Rigid Wheelchair

The exploded view below is numbered. Click a number on the drawing to jump to that part, or search the list. Every price shown is the current online price; anything quoted is priced by our order desk.

Ask about a part Product page 853 parts listed

Showing all 853 parts

1 of 100

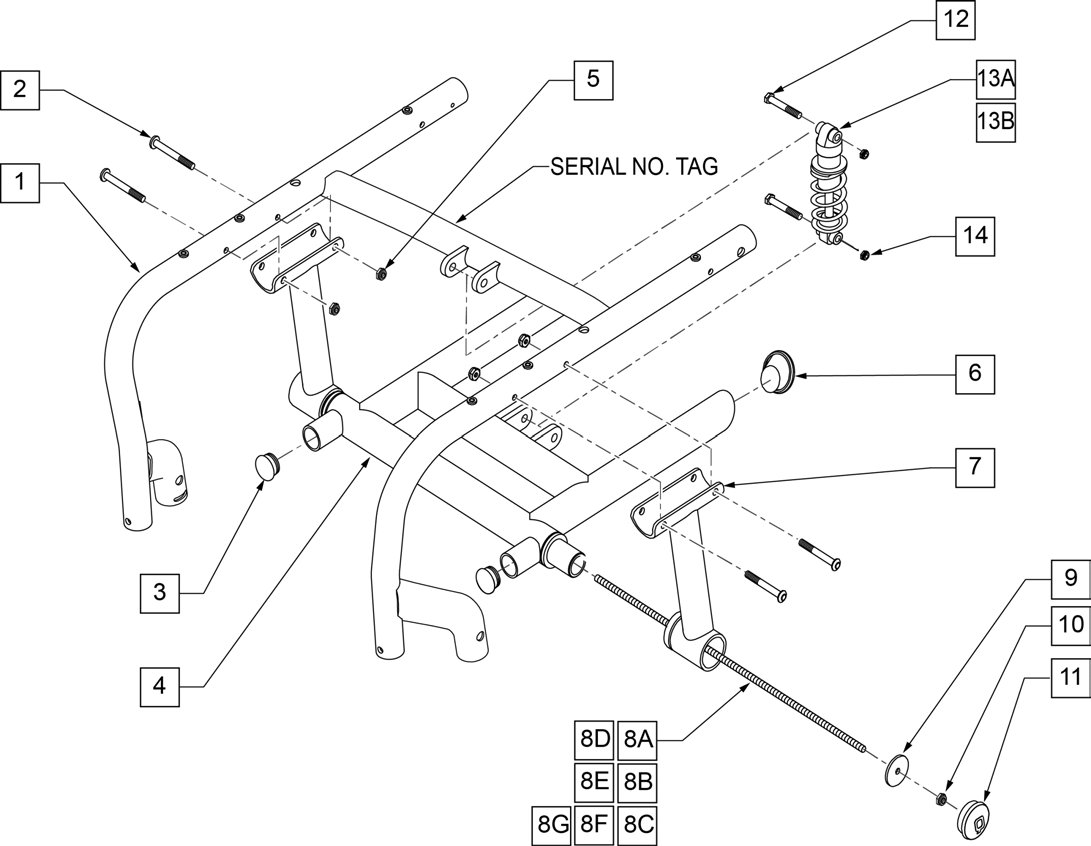

Exploded view of the 5R Suspension Frame (Xtr)

Loading the drawing

5R Suspension Frame (Xtr). Numbers match the list.
5R Wc-19 Transit. Numbers match the list.
5R Axle Plate. Numbers match the list.
Quick Release Axles Matrix. Numbers match the list.
Suspension Axle Plate 5R. Numbers match the list.
5R Camber Tube Assm. Numbers match the list.
5R Suspension Frame Camber Tube. Numbers match the list.
Multiple Position Fork. Numbers match the list.
Single Sided Multiple Position Fork. Numbers match the list.
Frog Leg Fork Suspension. Numbers match the list.
Micro Casters. Numbers match the list.
3 Spoke Casters. Numbers match the list.
Soft Roll Casters. Numbers match the list.
Aluminum Casters. Numbers match the list.
Aluminum Soft Roll Casters. Numbers match the list.
5R Anti-Tip. Numbers match the list.
Anti-Tip Suspension Frame. Numbers match the list.
Single Side Flip-Up Anti Tip. Numbers match the list.
High Mount Push Wheel Lock. Numbers match the list.
High Mount Pull Wheel Lock. Numbers match the list.
Wheel Lock For Suspension Frame (Push To Lock). Numbers match the list.
Compact Wheel Lock. Numbers match the list.
High Mount Ergo (Scissor) Wheel Lock. Numbers match the list.
Grade Aid Assembly. Numbers match the list.
Wheel Lock Extension Handle. Numbers match the list.
Topolino. Numbers match the list.
5 Spoke Mag. Numbers match the list.
New Ultra Lite Spoke. Numbers match the list.
Spinergy Lx (12 Spoke). Numbers match the list.
Spinergy Sport Lt Ex (18 Spoke). Numbers match the list.
Spinergy Spox (18 Spoke). Numbers match the list.
Mountain. Numbers match the list.
Black High Pressure Clincher. Numbers match the list.
Pneumatic & Pneu. Airless Tire. Numbers match the list.
Full Poly Tire. Numbers match the list.
Shox Tire. Numbers match the list.
Schwalbe Marathon Plus Tire. Numbers match the list.
Knobby V-Track Tire. Numbers match the list.
Mountain Tire. Numbers match the list.
Q-Grip (Tab Mount). Numbers match the list.
Q-Grip (Screw Mount). Numbers match the list.
The Surge (Tab Mount). Numbers match the list.
The Surge (Screw Mount). Numbers match the list.
Aluminum Anodized (Screw Mount). Numbers match the list.
Plastic Coated (Screw Mount). Numbers match the list.
Aluminum Anodized (Tab Mount). Numbers match the list.
Plastic Coated (Reg Tab Mount). Numbers match the list.
Natural Fit (Screw Mount). Numbers match the list.
Natural Fit (Tab Mount). Numbers match the list.
Aluminum Anodized 5 Spoke Mag (Screw Mount). Numbers match the list.
Plastic Coated 5 Spoke Mag (Screw Mount). Numbers match the list.
Tubes And Airless Inserts. Numbers match the list.
Rim Strip. Numbers match the list.
5R Seat Sling. Numbers match the list.
2" Seat Cushion. Numbers match the list.
Folding Backrest. Numbers match the list.
Non-Folding Backrest. Numbers match the list.
Push Handle & Back Post Options. Numbers match the list.
Bolt On Push Handles. Numbers match the list.
Std Back Uph Used W/ Omit Handles. Numbers match the list.
Std Back Uph Used W/ Integral Push Handles. Numbers match the list.
STD BACK EXO UPHOLSTERY (Rigid Chairs). Numbers match the list.
Tension Adjustable Ballistic Nylon Upholstery. Numbers match the list.
Tension Adjustable 3Dx Vented Upholstery. Numbers match the list.
TENSION ADJUSTABLE EXO UPHOLSTERY (Rigid Chairs). Numbers match the list.
Tubular Footrest. Numbers match the list.
Footrest Cover & Wear Pads. Numbers match the list.
Platform Footrest. Numbers match the list.
High Mount Platform Footrest. Numbers match the list.
5R Aluminum Flip-Back Footrest. Numbers match the list.
5R Adaptive Flip-Back Footrest. Numbers match the list.
Padded Swing-Away Armrest. Numbers match the list.
5R Padded Swing-Away Armrest Receiver. Numbers match the list.
Single Post Height Adjustable Armrest. Numbers match the list.
Single Post Armrest Receiver. Numbers match the list.
Xtender Internal Replacement Parts. Numbers match the list.
Xtender Power Assist 4X Parts. Numbers match the list.
4X Xtender Axle Plate Assm 5R. Numbers match the list.
Gen 2 Xtender Retro Kit 5R/Gt. Numbers match the list.
Gen 2 Xtender Axle Plate Assm 5R/Gt. Numbers match the list.
Xtender Gen 2 Wheel Parts. Numbers match the list.
Drive Unit Internal Parts. Numbers match the list.
Xtender Right Hand Control Spare Parts. Numbers match the list.
Battery And Charger. Numbers match the list.
Battery Backpack Parts. Numbers match the list.
Xtender Spoke Guard. Numbers match the list.
Hardware.. Numbers match the list.
Auto Buckle Positioning Belt & Attachment Kits. Numbers match the list.
Aluminum Side Guard 5R. Numbers match the list.
Carbon Side Guard. Numbers match the list.
Plastic Side Guards 1 1/8" Clamp. Numbers match the list.
Tuffak Tray (Manual & Pediatric Chairs). Numbers match the list.
Tray Ribs Tuffak. Numbers match the list.
Padded Stomach Cutout. Numbers match the list.
Protractor Pad. Numbers match the list.
Hinged Overlay Removable. Numbers match the list.
Hinged Overlay Non-Removable. Numbers match the list.
Crutch Holder (Rigid Chairs). Numbers match the list.
Tool Kit. Numbers match the list.
Water Bottle And Cage. Numbers match the list.

5R Suspension Frame (Xtr)

19 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 5R Suspension Frame (Xtr)
No.PartQtyPriceAction
5R FRAME (XTR)Manufacturer no. SUSPENSION 1Quote Ask for a quote
1 Q5R FRAME 14" WIDE ASSM XTR Performance Frame StyleManufacturer no. 176010S 1Quote Ask for a quote
1 Q5R FRAME 15" WIDE ASSM XTR Performance Frame StyleManufacturer no. 176011S 1Quote Ask for a quote
1 Q5R FRAME 16" WIDE ASSM XTR Performance Frame StyleManufacturer no. 176012S 1Quote Ask for a quote
1 Q5R FRAME 17" WIDE ASSM XTR Performance Frame StyleManufacturer no. 176013S 1Quote Ask for a quote
1 Q5R FRAME 18" WIDE ASSM XTR Performance Frame StyleManufacturer no. 176014S 1Quote Ask for a quote
1 Q5R FRAME 19" WIDE ASSM XTR Performance Frame StyleManufacturer no. 176015S 1Quote Ask for a quote
1 Q5R FRAME 20" WIDE ASSM XTR Performance Frame StyleManufacturer no. 176016S 1Quote Ask for a quote
2 BHCS M6 x 1 x 45 INORGManufacturer no. 102262-007 1Quote Ask for a quote
3 1" INSERT PLUG .083Manufacturer no. 561002 1Quote Ask for a quote
5 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
6 1 3/8" ANGLE TUBE END CAPManufacturer no. 561262 1Quote Ask for a quote
7 V BRACKET W/BUSHING R XTR RIGHTManufacturer no. 881030 1Quote Ask for a quote
7 V BRACKET W/BUSHING L XTR LEFTManufacturer no. 881031 1Quote Ask for a quote
8A 1/4-20 x 14.70 ALL THREAD 14" XTR 14" WIDEManufacturer no. 331070 1Quote Ask for a quote
8B 1/4-20 x 14.70 ALL THREAD 15" XTR 15" WIDEManufacturer no. 331071 1Quote Ask for a quote
8C 1/4-20 x 14.70 ALL THREAD 16" XTR 16" WIDEManufacturer no. 331072 1Quote Ask for a quote
8D 1/4-20 x 14.70 ALL THREAD 17" XTR 17" WIDEManufacturer no. 331073 1Quote Ask for a quote
8E 1/4-20 x 14.70 ALL THREAD 18" XTR 18" WIDEManufacturer no. 331074 1Quote Ask for a quote

5R Wc-19 Transit

8 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 5R Wc-19 Transit
No.PartQtyPriceAction
5R TRANSITManufacturer no. WC-19 1Quote Ask for a quote
2 5/16 WASHER 1/8" THKManufacturer no. 263113 1Quote Ask for a quote
3 BHCS, M8X1.25X16,FULL,PLManufacturer no. 013149 1Quote Ask for a quote
4 FHCS M6X1X45, PART, NPManufacturer no. 103500-012 1Quote Ask for a quote
5 WASHER FLAT M6Manufacturer no. 250104 1Quote Ask for a quote
6 NUT HEX NYLOCK M6X1.0Manufacturer no. 104381 1Quote Ask for a quote
7 SHCS M5X0.8X16 FULL PLManufacturer no. 112341 1Quote Ask for a quote
1-10 TRANSIT KIT 5RManufacturer no. 136557 1Quote Ask for a quote

5R Axle Plate

11 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 5R Axle Plate
No.PartQtyPriceAction
5R PLATEManufacturer no. AXLE 1Quote Ask for a quote
1A AXLE PLATE LONG KIT PAIR Complete kitManufacturer no. 136559S 1Quote Ask for a quote
1B AXLE PLATE SHORT KIT PAIR Complete kitManufacturer no. 136558S 1Quote Ask for a quote
1C AMP AXLE PLATE LONG KIT PAIR Complete kitManufacturer no. 136561S 1Quote Ask for a quote
1D AMP AXLE PLATE SHORT KIT PAIR Complete kitManufacturer no. 136560S 1Quote Ask for a quote
8 SHCS, M6X1X20 FULL, NPManufacturer no. 102263-002 1Quote Ask for a quote
9 LOCKWASHER HIGH COLLAR M6Manufacturer no. 050129-001 1Quote Ask for a quote
10 SHCS, M6X1X35, PART, NPManufacturer no. 102263-004 1Quote Ask for a quote
11 SHCS M6 X 1 X 30 BLKManufacturer no. 100846 1Quote Ask for a quote
12 SHCS M6 X 1 X 25 WAX CT BLKManufacturer no. 101699 1Quote Ask for a quote
13 AXLE PLATE FASTENER KITManufacturer no. 136565 1Quote Ask for a quote

Quick Release Axles Matrix

10 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Quick Release Axles Matrix
No.PartQtyPriceAction
1A QR AXLE M12 NUT CLR BIG BUTTONManufacturer no. 109385 1Quote Ask for a quote
1B QR AXLE W/ QUAD NUT PUSH BUTTON Not available with spinergyManufacturer no. 922170 1Quote Ask for a quote
1C QR AXLE NON-RECESSED HUB W/ NUTManufacturer no. 920130 1Quote Ask for a quote
1D QR AXLE NON-RECESSED W/ QUAD NUTManufacturer no. 920174 1Quote Ask for a quote
1E QR AXLE W/ NUT TIManufacturer no. 920137 1Quote Ask for a quote
1F QR AXLE TI W/ QUAD NUTManufacturer no. 920173 1Quote Ask for a quote
1G QR AXLE AND NUT SHORT BIG BTTNManufacturer no. 107268 1Quote Ask for a quote
2A MAG SPACER 6S W/SET SCREWManufacturer no. 109385 1Quote Ask for a quote
2B SPACER AXLE 220DX12.71X12MMManufacturer no. 100768-003 1Quote Ask for a quote
2C O-RING 1/2"IDX11/16"OD BUNA-NManufacturer no. 103093 1Quote Ask for a quote

Suspension Axle Plate 5R

11 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Suspension Axle Plate 5R
No.PartQtyPriceAction
1 BHCS M6 X 1 X 8 W/PL INORGManufacturer no. 102262-001 1Quote Ask for a quote
2 BEARING FLANGE 8MMIDX7.5MM LGManufacturer no. 050139 1Quote Ask for a quote
3 PIVOT SUSPENSIONManufacturer no. 050102 1Quote Ask for a quote
4 SHCS M6 X 1 X 35 INORGANICManufacturer no. 102263-004 1Quote Ask for a quote
5 LOCKWASHER HIGH COLLAR M6Manufacturer no. 050129-001 1Quote Ask for a quote
6 MOUNT PIVOT SUSPENSIONManufacturer no. 050096 1Quote Ask for a quote
7 MOUNT ELASTOMER SUSPENSIONManufacturer no. 050095 1Quote Ask for a quote
8A ELASTOMER SUSPENSION 55A (YEL) User weight of 0-100 LbsManufacturer no. 050098-001 1Quote Ask for a quote
8B ELASTOMER SUSPENSION 65A (RED) User weight of 101-190 LbsManufacturer no. 050098-002 1Quote Ask for a quote
8C ELASTOMER SUSPENSION 75A (BLUE) User weight of 191-265 LbsManufacturer no. 050098-003 1Quote Ask for a quote
9 SHCS M6 X 1 X 20 INORGANICManufacturer no. 102263-002 1Quote Ask for a quote

5R Camber Tube Assm

17 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 5R Camber Tube Assm
No.PartQtyPriceAction
5R TUBE ASSMManufacturer no. CAMBER 1Quote Ask for a quote
1 CAMBER TUBE ROUND 12WManufacturer no. 128846 1Quote Ask for a quote
1 CAMBER TUBE ROUND 13WManufacturer no. 128847 1Quote Ask for a quote
1 CAMBER TUBE ROUND 14WManufacturer no. 128848 1Quote Ask for a quote
1 CAMBER TUBE ROUND 15WManufacturer no. 128849 1Quote Ask for a quote
1 CAMBER TUBE ROUND 16WManufacturer no. 128850 1Quote Ask for a quote
1 CAMBER TUBE ROUND 17WManufacturer no. 128851 1Quote Ask for a quote
1 CAMBER TUBE ROUND 18WManufacturer no. 128852 1Quote Ask for a quote
1 CAMBER TUBE ROUND 19WManufacturer no. 128853 1Quote Ask for a quote
1 CAMBER TUBE ROUND 20WManufacturer no. 128854 1Quote Ask for a quote
2-6 BEARING LEVEL CAMBER TUBEManufacturer no. 050190 1Quote Ask for a quote
4 M4 NUT ACORN PLASTIC BLACKManufacturer no. 115918 1Quote Ask for a quote
6 LOCKWASHER HIGH COLLAR M4Manufacturer no. 050129-002 1Quote Ask for a quote
7 CAMBER BLOCK KIT (10) QTY 10Manufacturer no. 114428 1Quote Ask for a quote
8A CAMBER PLUG 0 DEG 0 DEGREESManufacturer no. 110847 1Quote Ask for a quote
8B CAMBER PLUG 3 DEG 3 DEGREESManufacturer no. 110848 1Quote Ask for a quote
8C CAMBER PLUG 6 DEG 6 DEGREESManufacturer no. 110849 1Quote Ask for a quote

5R Suspension Frame Camber Tube

20 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 5R Suspension Frame Camber Tube
No.PartQtyPriceAction
5R FRAME CAMBER TUBEManufacturer no. SUSPENSION 1Quote Ask for a quote
1 SWING ARM CLAMP XTRManufacturer no. 506150 1Quote Ask for a quote
2 1/4-28 x 1.1" BH C/S BLKManufacturer no. 226066 1Quote Ask for a quote
3 NUT NYLOCK THIN 1/4 -28 ROHSManufacturer no. 106935 1Quote Ask for a quote
4A 14" CAMBER TUBE 0 DEG 5R 14" Wide 0° CamberManufacturer no. 158650 1Quote Ask for a quote
4A 15" CAMBER TUBE 0 DEG 5R 15" Wide 0° CamberManufacturer no. 158651 1Quote Ask for a quote
4A 16" CAMBER TUBE 0 DEG 5R 16" Wide 0° CamberManufacturer no. 158652 1Quote Ask for a quote
4A 17" CAMBER TUBE 0 DEG 5R 17" Wide 0° CamberManufacturer no. 158653 1Quote Ask for a quote
4A 18" CAMBER TUBE 0 DEG 5R 18" Wide 0° CamberManufacturer no. 158654 1Quote Ask for a quote
4A 19" CAMBER TUBE 0 DEG 5R 19" Wide 0° CamberManufacturer no. 158655 1Quote Ask for a quote
4A 20" CAMBER TUBE 0 DEG 5R 20" Wide 0° CamberManufacturer no. 158656 1Quote Ask for a quote
4B CAMBER TUBE 4 DEG 14" 5R 14" Wide 4° CamberManufacturer no. 158657 1Quote Ask for a quote
4B CAMBER TUBE 4 DEG 15" 5R 15" Wide 4° CamberManufacturer no. 158658 1Quote Ask for a quote
4B CAMBER TUBE 4 DEG 16" 5R 16" Wide 4° CamberManufacturer no. 158659 1Quote Ask for a quote
4B CAMBER TUBE 4 DEG 17" 5R 17" Wide 4° CamberManufacturer no. 158672 1Quote Ask for a quote
4B CAMBER TUBE 4 DEG 18" 5R 18" Wide 4° CamberManufacturer no. 158660 1Quote Ask for a quote
4B CAMBER TUBE 4 DEG 19" 5R 19" Wide 4° CamberManufacturer no. 158661 1Quote Ask for a quote
4B CAMBER TUBE 4 DEG 20" 5R 20" Wide 4° CamberManufacturer no. 158662 1Quote Ask for a quote
4C CAMBER TUBE 8 DEG 14" 5R 14" Wide 8° CamberManufacturer no. 158663 1Quote Ask for a quote
4C CAMBER TUBE 8 DEG 15" 5R 15" Wide 8° CamberManufacturer no. 158664 1Quote Ask for a quote

Multiple Position Fork

4 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Multiple Position Fork
No.PartQtyPriceAction
1 PIVOT PIN, SOLIDManufacturer no. 123396 1Quote Ask for a quote
3 HELIUM COMBI SPLINEManufacturer no. 110163 1Quote Ask for a quote
4 SPLINE CASTER ANG ADJ LOWERManufacturer no. 502051 1Quote Ask for a quote
5 BRNG 28MM OD 12MM ID 8MM THKManufacturer no. 349104 1Quote Ask for a quote

Single Sided Multiple Position Fork

7 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Single Sided Multiple Position Fork
No.PartQtyPriceAction
1 PIVOT PIN, SOLID See Fork Stem & Pin Kits forManufacturer no. 123396 1Quote Ask for a quote
2 CASTER STEM, ADJ, HOLLOW See Fork Stem & Pin Kits forManufacturer no. 123397 1Quote Ask for a quote
3 HELIUM COMBI SPLINEManufacturer no. 110163 1Quote Ask for a quote
4 SPLINE CASTER ANG ADJ LOWERManufacturer no. 502051 1Quote Ask for a quote
5 BRNG 28MM OD 12MM ID 8MM THKManufacturer no. 349104 1Quote Ask for a quote
6 WSHR FLT 18MM OD 12MM ID 1.5MMManufacturer no. 265162 1Quote Ask for a quote
7 RING SNAP INTERNAL 28MMManufacturer no. 342093 1Quote Ask for a quote

Frog Leg Fork Suspension

12 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Frog Leg Fork Suspension
No.PartQtyPriceAction
1 PIVOT PIN, SOLID See Fork Stem & Pin Kits for orderable partsManufacturer no. 123396 1Quote Ask for a quote
2 CASTER STEM, ADJ, HOLLOW See Fork Stem & Pin Kits for orderable partsManufacturer no. 123397 1Quote Ask for a quote
3 HELIUM COMBI SPLINEManufacturer no. 110163 1Quote Ask for a quote
4 SPLINE CASTER ANG ADJ LOWERManufacturer no. 502051 1Quote Ask for a quote
5 BHCS M4 X .7 X 8 INORGANICManufacturer no. 102257 1Quote Ask for a quote
6 HHCS M6 X 1.0 X 70 See Fork Stem & Pin Kits for orderable partsManufacturer no. 230063 1Quote Ask for a quote
7 E-STYLE BOWED CLIP See Fork Stem & Pin Kits for orderable partsManufacturer no. 114479 1Quote Ask for a quote
8A ELASTOMER FROGLEGS SOFT 0 -100 LbsManufacturer no. 050156-001 1Quote Ask for a quote
8B ELASTOMER FROGLEGS MEDIUM 101 -190 LbsManufacturer no. 050156-002 1Quote Ask for a quote
8C ELASTOMER FROGLEGS FIRM 191 -265 Lbs-not used w/ ZippieZone)Manufacturer no. 050156-003 1Quote Ask for a quote
9 FORK FROG LEGS INT BRNGManufacturer no. 050155 1Quote Ask for a quote
10 FROG LEG FORK ASSEMBLY TOOLManufacturer no. 116351 1Quote Ask for a quote

Micro Casters

6 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Micro Casters
No.PartQtyPriceAction
1 7/8"x 5/16" BEARINGManufacturer no. 349502 1Quote Ask for a quote
2A 4" MICRO CASTER LIGHTED K0077 4" MICRO LIGHTEDManufacturer no. 400108 1Quote Ask for a quote
2B 3" MICRO CASTER W/ BEARING -PAIR K0077 PAIR 3" MICROManufacturer no. 920025 1Quote Ask for a quote
2C 3" MICRO CASTER LIGHTED K0077 3" MICRO LIGHTEDManufacturer no. 400107 1Quote Ask for a quote
3 5" MICRO CASTER LIGHTED K0077 5" MICRO LIGHTEDManufacturer no. 052129 1Quote Ask for a quote
4 WASHER FLAT THIN AN 5/16 ROHManufacturer no. 106947 1Quote Ask for a quote

3 Spoke Casters

1 part

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 3 Spoke Casters
No.PartQtyPriceAction
3 CASTERSManufacturer no. SPOKE 1Quote Ask for a quote

Soft Roll Casters

2 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Soft Roll Casters
No.PartQtyPriceAction
1 CASTER 5" SOFT ROLL W/BRNGS K0077 5" SOFT ROLL SEMI PNEU (GREY)Manufacturer no. 400103 1Quote Ask for a quote
2 7/8"x 5/16" BEARINGManufacturer no. 349502 1Quote Ask for a quote

Aluminum Casters

4 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Aluminum Casters
No.PartQtyPriceAction
1 7/8"x 5/16" BEARINGManufacturer no. 349502 1Quote Ask for a quote
2A CASTR 4X1 ALUM/POLY W/BRG CLR K0077 4" x 1" ALUMINUM POLYManufacturer no. 101946-001 1Quote Ask for a quote
2B CASTR 5X1 ALUM/POLY W/BRG CLR K0077 5" x 1" ALUMINUM POLYManufacturer no. 101946-002 1Quote Ask for a quote
2C CASTR 6X1 ALUM/POLY W/BRG CLR K0077 6" x 1" ALUMINUM POLYManufacturer no. 101946-003 1Quote Ask for a quote

Aluminum Soft Roll Casters

7 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Aluminum Soft Roll Casters
No.PartQtyPriceAction
1 CASTR ASSM ULTRLT SFTRL 4X1.5" K0077 4" x 1.5" Aluminum Soft Roll - Black Tire - Silver HubManufacturer no. 251732 1Quote Ask for a quote
1 CASTR ASSM ULTRLT SFTRL 5X1.5" K0077 5" x 1.5" Aluminum Soft Roll - Black Tire - Silver HubManufacturer no. 251733 1Quote Ask for a quote
1 CASTR ASSM ULTRLT SFTRL 6X1.5" K0077 6" x 1.5" Aluminum Soft Roll - Black Tire - Silver HubManufacturer no. 251734 1Quote Ask for a quote
1 WHL CSTR 4" ULTRALT SFTRL ANO 4" x 1.5" Aluminum Soft Roll - Black Tire - Anodized HubManufacturer no. 162609S 1Quote Ask for a quote
1 WHL CSTR 5" ULTRALT SFTRLL ANO 5" x 1.5" Aluminum Soft Roll - Black Tire - Anodized HubManufacturer no. 162611S 1Quote Ask for a quote
1 WHL CSTR 6" ULTRALT SFTRLL ANO 6" x 1.5" Aluminum Soft Roll - Black Tire - Anodized HubManufacturer no. 162613S 1Quote Ask for a quote
2 7/8" X 5/16" BEARINGManufacturer no. 349502 1Quote Ask for a quote

5R Anti-Tip

9 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 5R Anti-Tip
No.PartQtyPriceAction
1 SHCS M5 X .8 X 18 INORGANIC ORDER SEPARATELYManufacturer no. 102260-001 1Quote Ask for a quote
2A RECEIVER ANTI TIP GT Fits Left or Rt, order seperatelyManufacturer no. 050203 1Quote Ask for a quote
2B ANTI TIP RECEIVER AMP RIGHT For Amputee Axle Plate RightManufacturer no. 129828 1Quote Ask for a quote
2B ANTI TIP RECEIVER AMP LEFT For Amputee Axle Plate LeftManufacturer no. 129829 1Quote Ask for a quote
3 SNAP BUTTON DUAL ONE SIDEManufacturer no. 301109 1Quote Ask for a quote
5 1/4" SNAP BTTN SINGLEManufacturer no. 301100 1Quote Ask for a quote
6A ANTI TIP ARM ADJUSTER 20"&22"WHEELSManufacturer no. 104157 1Quote Ask for a quote
6B ANTI TIP ARM ADJ. MED 24",25"&26"WHEELSManufacturer no. 104639 1Quote Ask for a quote
7 7/8 ROUND TUBE PLUGManufacturer no. 560735 1Quote Ask for a quote

Anti-Tip Suspension Frame

11 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Anti-Tip Suspension Frame
No.PartQtyPriceAction
1 SNAP BUTTON DUAL ONE SIDEManufacturer no. 301109 1Quote Ask for a quote
3 1/4" SNAP BUTTON SINGLEManufacturer no. 301100 1Quote Ask for a quote
4 ANTI-TIP SLV W/ WHLS BLK 4HManufacturer no. 881512 1Quote Ask for a quote
5 1/4 -28 x 1/85 BH C/S BLK ZNManufacturer no. 226147 1Quote Ask for a quote
6 ANTI-TIP RECEIVER XTRManufacturer no. 540187 1Quote Ask for a quote
7 NUT NYLOCK THIN 1/4 -28 ROHSManufacturer no. 106935 1Quote Ask for a quote
8 ANTI-TIP SPACER XTRManufacturer no. 481380 1Quote Ask for a quote
5-8 ANTI-TIP RECEIVER ASSMManufacturer no. 880947 1Quote Ask for a quote
1-4 MED ANTI-TIP ASSM BLK RH RIGHTManufacturer no. 881128 1Quote Ask for a quote
1-4 MED ANTI-TIP ASSM BLK LH LEFTManufacturer no. 881129 1Quote Ask for a quote
1-8 ANTI-TIP REC ASSM RETRO KIT PAIR; kit includes Anti-tips & Receivers for both sidesManufacturer no. 920009 1Quote Ask for a quote

Single Side Flip-Up Anti Tip

5 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Single Side Flip-Up Anti Tip
No.PartQtyPriceAction
1 ANTI TIP SS FLIP UP RETROManufacturer no. 136596 1Quote Ask for a quote
2 ANTI TIP FLIP UP BRACKETManufacturer no. 129110 1Quote Ask for a quote
6-8 LOWER ANTITIP ASSMManufacturer no. 136598 1Quote Ask for a quote
9-11 ANTI TIP SS FLIP UP CASTERManufacturer no. 136597 1Quote Ask for a quote
13 S-A ANTI-TIP FASTENER KITManufacturer no. 159707 1Quote Ask for a quote

High Mount Push Wheel Lock

12 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in High Mount Push Wheel Lock
No.PartQtyPriceAction
1 SHCS M6 X 1 X 20Manufacturer no. 102263-002 1Quote Ask for a quote
2 LOCKWASHER HIGH COLLAR M6Manufacturer no. 050129-001 1Quote Ask for a quote
5A WHEEL LOCK PUSH R FWD SHT Right-forward-shortManufacturer no. 104216-001 1Quote Ask for a quote
5A WHEEL LOCK PUSH L FWD SHT Left-forward-shortManufacturer no. 104216-002 1Quote Ask for a quote
5B WHEEL LOCK PUSH R REV SHT Right-reverse-shortManufacturer no. 104216-003 1Quote Ask for a quote
5B WHEEL LOCK PUSH L REV SHT Left-reverse-shortManufacturer no. 104216-004 1Quote Ask for a quote
5C WHEEL LOCK PUSH R FWD LNG Right-forward-longManufacturer no. 104216-005 1Quote Ask for a quote
5C WHEEL LOCK PUSH L FWD LNG Left-forward-longManufacturer no. 104216-006 1Quote Ask for a quote
5D WHEEL LOCK PUSH R REV LNG Right-reverse-longManufacturer no. 104216-007 1Quote Ask for a quote
5D WHEEL LOCK PUSH L REV LNG Left-reverse-longManufacturer no. 104216-008 1Quote Ask for a quote
6 COVER CURVED WHEEL LOCK VINYLManufacturer no. 104141 1Quote Ask for a quote
1-4 WHEEL LOCK CLAMP ASSM BLK Short for 1 1/8" dia tubingManufacturer no. 050229 1Quote Ask for a quote

High Mount Pull Wheel Lock

12 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in High Mount Pull Wheel Lock
No.PartQtyPriceAction
1 SHCS M6 X 1 X 20Manufacturer no. 102263-002 1Quote Ask for a quote
2 LOCKWASHER HIGH COLLAR M6Manufacturer no. 050129-001 1Quote Ask for a quote
5A WHEEL LOCK PULL R FWD SHT Right-forward-shortManufacturer no. 104227-001 1Quote Ask for a quote
5A WHEEL LOCK PULL L FWD SHT Left-forward-shortManufacturer no. 104227-002 1Quote Ask for a quote
5B WHEEL LOCK PULL R REV SHT Right-reverse-shortManufacturer no. 104227-003 1Quote Ask for a quote
5B WHEEL LOCK PULL L REV SHT Left-reverse-shortManufacturer no. 104227-004 1Quote Ask for a quote
5C WHEEL LOCK PULL R FWD LNG Right-forward-longManufacturer no. 104227-005 1Quote Ask for a quote
5C WHEEL LOCK PULL L FWD LNG Left-forward-longManufacturer no. 104227-006 1Quote Ask for a quote
5D WHEEL LOCK PULL R REV LNG Right-reverse-longManufacturer no. 104227-007 1Quote Ask for a quote
5D WHEEL LOCK PULL L REV LNG Left-reverse-longManufacturer no. 104227-008 1Quote Ask for a quote
6 COVER CURVED WHEEL LOCK VINYLManufacturer no. 104141 1Quote Ask for a quote
1-4 WHEEL LOCK CLAMP ASSM BLK Short for 1 1/8" dia tubingManufacturer no. 050229 1Quote Ask for a quote

Wheel Lock For Suspension Frame (Push To Lock)

10 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Wheel Lock For Suspension Frame (Push To Lock)
No.PartQtyPriceAction
1 1/4 NYLON WASHERManufacturer no. 561028 1Quote Ask for a quote
2 HB PLASTIC COVERManufacturer no. 560500-QU 1Quote Ask for a quote
4 .250 ID .312 OD BUSHING PLASTICManufacturer no. 560126 1Quote Ask for a quote
5 1/4 -28 x 1 BH C/SManufacturer no. 226110 1Quote Ask for a quote
6 WHEEL LOCK SLIDE BLOCK LONG BLK 5.5" longManufacturer no. 550447 1Quote Ask for a quote
7 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
8 SHCS M6 x 1 x 20Manufacturer no. 102263-002 1Quote Ask for a quote
9 LOCKWASHER HIGH COLLAR M6Manufacturer no. 050129-001 1Quote Ask for a quote
10 CLAMP WHEEL LOCK LONG MALEManufacturer no. 050160 1Quote Ask for a quote
11 CLAMP WHEEL LOCK LONG FEMALEManufacturer no. 050161 1Quote Ask for a quote

Compact Wheel Lock

6 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Compact Wheel Lock
No.PartQtyPriceAction
1 COMPACT BRAKE Left side Forward MountedManufacturer no. 66006100-301 1Quote Ask for a quote
1 COMPACT BRAKE Right side Forward MountedManufacturer no. 66006100-302 1Quote Ask for a quote
1 COMPACT BRAKE STD BACK LEFT Reverse MountedManufacturer no. 66006100-401 1Quote Ask for a quote
1 COMPACT BRAKE STD BACK RIGHT Reverse MountedManufacturer no. 66006100-402 1Quote Ask for a quote
2 SHCS M6 X 1 X 20 INORGANICManufacturer no. 102263-002 1Quote Ask for a quote
3 LOCKWASHER HIGH COLLAR M6Manufacturer no. 050129-001 1Quote Ask for a quote

High Mount Ergo (Scissor) Wheel Lock

8 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in High Mount Ergo (Scissor) Wheel Lock
No.PartQtyPriceAction
1 SHCS M6 X 1 X 20 INORGANICManufacturer no. 102263-002 1Quote Ask for a quote
2 LOCKWASHER HIGH COLLAR M6Manufacturer no. 050129-001 1Quote Ask for a quote
3A CLAMP WHL LCK MALEManufacturer no. 050120 1Quote Ask for a quote
3B CLAMP WHL LCK LONG MALEManufacturer no. 050160 1Quote Ask for a quote
4A CLAMP WHL LCK FEMALEManufacturer no. 050121 1Quote Ask for a quote
4B CLAMP WHL LCK LONG FEMALEManufacturer no. 050161 1Quote Ask for a quote
5A ASSY WHL LOCK SCISSOR ERGO R RIGHT - STANDARDManufacturer no. 104726-001 1Quote Ask for a quote
5B ASSY WHL LOCK SCISSOR ERGO L LEFT - STANDARDManufacturer no. 104726-002 1Quote Ask for a quote

Grade Aid Assembly

6 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Grade Aid Assembly
No.PartQtyPriceAction
1 SHCS 1/4-28 X 1 ROHSManufacturer no. 107032 1Quote Ask for a quote
2 1/4 WASHER HI COLLAR LOCK BLKManufacturer no. 107367 1Quote Ask for a quote
5 WHEEL LOCK PUSH GRADE AID L LEFT (Push)Manufacturer no. 107665 1Quote Ask for a quote
5 WHEEL LOCK PUSH GRADE AID R RIGHT (Push)Manufacturer no. 107666 1Quote Ask for a quote
6 WHEEL LOCK PULL GRADE AID L LEFT (Pull)Manufacturer no. 107667 1Quote Ask for a quote
6 WHEEL LOCK PULL GRADE AID R RIGHT (Pull)Manufacturer no. 107668 1Quote Ask for a quote

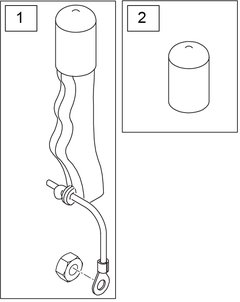

Wheel Lock Extension Handle

2 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Wheel Lock Extension Handle
No.PartQtyPriceAction
1 WHEEL LOCK EXT ASSY (PAIR) KIT PairManufacturer no. 161930 1Quote Ask for a quote
2 FOAM GRIP 1 1/2 X 0.705 X 0.1Manufacturer no. 560600 1Quote Ask for a quote

Topolino

1 part

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Topolino
No.PartQtyPriceAction
1 NO LONGER AVAILABLEManufacturer no. PRODUCT 1Quote Ask for a quote

5 Spoke Mag

1 part

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 5 Spoke Mag
No.PartQtyPriceAction
5 MAGManufacturer no. SPOKE 1Quote Ask for a quote

New Ultra Lite Spoke

0 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Spinergy Lx (12 Spoke)

0 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Spinergy Sport Lt Ex (18 Spoke)

0 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Spinergy Spox (18 Spoke)

15 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Spinergy Spox (18 Spoke)
No.PartQtyPriceAction
1 SPINERGY STD WHL 22" BLK SPK 22"(489mm)Manufacturer no. 109242 1Quote Ask for a quote
1 SPINERGY STD WHEEL 540 BLK SPK 24"(540mm)Manufacturer no. 762438 1Quote Ask for a quote
1 SPINERGY STD WHL 559 BLK SPK 25"(559mm)Manufacturer no. 762441 1Quote Ask for a quote
1 SPINERGY STD WHEEL 590 BLK SPK 26"(590mm)Manufacturer no. 762437 1Quote Ask for a quote
1 SPINERGY STD WHEEL 540 BLUE 24"(540mm)Manufacturer no. 762442 1Quote Ask for a quote
1 SPINERGY STD WHEEL 559 BLU 25"(559mm)Manufacturer no. 762444 1Quote Ask for a quote
1 SPINERGY STD WHEEL 590 BLUE 26"(590mm)Manufacturer no. 762446 1Quote Ask for a quote
1 SPINERGY STD WHEEL 540 RED 24"(540mm)Manufacturer no. 762443 1Quote Ask for a quote
1 SPINERGY STD WHEEL 559 RED 25"(559mm)Manufacturer no. 762445 1Quote Ask for a quote
1 SPINERGY STD WHEEL 590 RED 26"(590mm)Manufacturer no. 762447 1Quote Ask for a quote
1 SPINERGY STD WHEEL 540 WHT 24"(540mm)Manufacturer no. 762456 1Quote Ask for a quote
1 SPINERGY STD WHEEL 540 YELLOW 24"(540mm)Manufacturer no. 762433 1Quote Ask for a quote
1 SPINERGY STD WHL 559 YLW SPK 25"(559mm)Manufacturer no. 762462 1Quote Ask for a quote
1 SPINERGY STD WHEEL 590 YELLOW 26"(590mm)Manufacturer no. 762431 1Quote Ask for a quote
2 1 1/8 X 1/2 BEARINGManufacturer no. 349500 1Quote Ask for a quote

Mountain

4 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Mountain
No.PartQtyPriceAction
1 24 RIM ASSM X 1.5 SUN PSH BTTN 22" (507mm); 4 Tabs; overall whl size w/tire = to 24"(540mm)Manufacturer no. 401075 1Quote Ask for a quote
1 24" HT RIM ASSM SUN PUSH BTTN 25" (559mm); 6 Tabs; overall whl size w/tire = to 26"(590mm)Manufacturer no. 401076 1Quote Ask for a quote
1 6 TAB RIM ASSM 24IN X 1.5 22" (507mm); use w/ Natural Fit HR's; overall whl size w/tire = to 24"(540mm)Manufacturer no. 108304 1Quote Ask for a quote
2 1 1/8 X 1/2 BEARINGManufacturer no. 349500 1Quote Ask for a quote

Black High Pressure Clincher

3 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Black High Pressure Clincher
No.PartQtyPriceAction
1 22X1 HI PRESSURE CLINCHER BLKManufacturer no. 129903 1Quote Ask for a quote
1 24X1 HI PRESSURE CLINCHER BLKManufacturer no. 129904 1Quote Ask for a quote
1 26X1 HI PRESSURE CLINCHER BLKManufacturer no. 129905 1Quote Ask for a quote

Pneumatic & Pneu. Airless Tire

6 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Pneumatic & Pneu. Airless Tire
No.PartQtyPriceAction
1 16" X 1.75" PNEU TIREManufacturer no. 385237 1Quote Ask for a quote
1 20" PNEUMATIC TIREManufacturer no. 385250 1Quote Ask for a quote
1 22" PNEUMATIC TIRE 22" x 1 3/8 (501mm)Manufacturer no. 385275 1Quote Ask for a quote
1 24" PNEUMATIC TIRE 24" x 1 3/8 (540mm)Manufacturer no. 385300 1Quote Ask for a quote
1 26" PNEUMATIC TIRE 26" x 1 3/8 (590mm)Manufacturer no. 385325 1Quote Ask for a quote
1 24" x 2.125 PNEUMATIC TIRE 24"x2 1/8 (540mm) used w/ M6Manufacturer no. 384614 1Quote Ask for a quote

Full Poly Tire

3 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Full Poly Tire
No.PartQtyPriceAction
1 20" POLY TIRE STD 20"Manufacturer no. 386232 1Quote Ask for a quote
1 22" POLY TIRE STD 22" (501mm)Manufacturer no. 386242 1Quote Ask for a quote
1 24" POLY TIRE STD 24" (540mm)Manufacturer no. 386252 1Quote Ask for a quote

Shox Tire

4 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Shox Tire
No.PartQtyPriceAction
1 TIRE SHOX CEW20" 20"(457mm) BlackManufacturer no. 129924 1Quote Ask for a quote
1 TIRE SHOX CEW22" 22"(501mm) BlackManufacturer no. 129925 1Quote Ask for a quote
1 TIRE SHOX CEW24" 24"(540mm) BlackManufacturer no. 129926 1Quote Ask for a quote
1 TIRE SHOX CEW25" 25"(559mm) BlackManufacturer no. 129927 1Quote Ask for a quote

Schwalbe Marathon Plus Tire

4 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Schwalbe Marathon Plus Tire
No.PartQtyPriceAction
1 TIRE SCHWALBE MP 489 BLK 22" (489mm)Manufacturer no. 102066-004 1Quote Ask for a quote
1 TIRE SCHWBL MPE 540 BLK 24" (540mm)Manufacturer no. 102066-001 1Quote Ask for a quote
1 TIRE SCHWBL MPE 559 BLK 25" (559mm)Manufacturer no. 102066-002 1Quote Ask for a quote
1 TIRE SCHWBL MPE 590 BLK 26" (590mm)Manufacturer no. 102066-003 1Quote Ask for a quote

Knobby V-Track Tire

1 part

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Knobby V-Track Tire
No.PartQtyPriceAction
1 24" X 1-3/8" KNOBBIE TIRE 24"(540mm)Manufacturer no. 385354 1Quote Ask for a quote

Mountain Tire

2 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Mountain Tire
No.PartQtyPriceAction
1 TIRE CS 24 X 2.1 SMOKER 507MM 22"(501mm)Manufacturer no. 384604 1Quote Ask for a quote
1 TIRE CS 26 X 2.1 SMOKER 559MM 25"(559mm)Manufacturer no. 384606 1Quote Ask for a quote

Q-Grip (Tab Mount)

3 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Q-Grip (Tab Mount)
No.PartQtyPriceAction
1-4 24IN HANDRIM TAB Q-GRIP W/HDWRManufacturer no. 159501 1Quote Ask for a quote
1-4 25IN HANDRIM TAB Q-GRIP W/HDWRManufacturer no. 159502 1Quote Ask for a quote
2-4 HANDRIM TAB Q-GRIP HARDWARE set of 6Manufacturer no. 159503 1Quote Ask for a quote

Q-Grip (Screw Mount)

2 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Q-Grip (Screw Mount)
No.PartQtyPriceAction
1-3 24 HNDRIM RVNUT Q-GRIP W/HDWRManufacturer no. 159504 1Quote Ask for a quote
1-3 25 HNDRIM RVNUT Q-GRIP W/HDWRManufacturer no. 159505 1Quote Ask for a quote

The Surge (Tab Mount)

8 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in The Surge (Tab Mount)
No.PartQtyPriceAction
1-3 22IN TAB SURGE HANDRIM W/HDWRManufacturer no. 159492 1Quote Ask for a quote
1-3 24IN TAB SURGE HANDRIM W/HDWRManufacturer no. 159493 1Quote Ask for a quote
1-3 25IN TAB SURGE HANDRIM W/HDWRManufacturer no. 159494 1Quote Ask for a quote
1-3 26IN TAB SURGE HANDRIM W/HDWRManufacturer no. 159495 1Quote Ask for a quote
1-3 22IN TAB SURGE HANDRIM LT W/HDWRManufacturer no. 159496 1Quote Ask for a quote
1-3 24IN TAB SURGE HANDRIM LT W/HDWRManufacturer no. 159497 1Quote Ask for a quote
1-3 25IN TAB SURGE HANDRIM LT W/HDWRManufacturer no. 159498 1Quote Ask for a quote
1-3 26IN TAB SURGE HANDRIM LT W/HDWRManufacturer no. 159499 1Quote Ask for a quote

The Surge (Screw Mount)

8 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in The Surge (Screw Mount)
No.PartQtyPriceAction
1-3 22IN HANDRIM SURGE W/HDWRManufacturer no. 159483 1Quote Ask for a quote
1-3 24IN HANDRIM SURGE W/HDWRManufacturer no. 159484 1Quote Ask for a quote
1-3 25IN HANDRIM SURGE W/HDWRManufacturer no. 159485 1Quote Ask for a quote
1-3 26IN HANDRIM SURGE W/HDWRManufacturer no. 159486 1Quote Ask for a quote
1-3 22IN HANDRIM LT SURGE W/HDWRManufacturer no. 159487 1Quote Ask for a quote
1-3 24IN HANDRIM LT SURGE W/HDWRManufacturer no. 159488 1Quote Ask for a quote
1-3 25IN HANDRIM LT SURGE W/HDWRManufacturer no. 159489 1Quote Ask for a quote
1-3 26IN HANDRIM LT SURGE W/HDWRManufacturer no. 159490 1Quote Ask for a quote

Aluminum Anodized (Screw Mount)

1 part

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Aluminum Anodized (Screw Mount)
No.PartQtyPriceAction
3C 10-32 X 2 1/8 PAN PHIL SS MAGManufacturer no. 281175 1Quote Ask for a quote

Plastic Coated (Screw Mount)

4 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Plastic Coated (Screw Mount)
No.PartQtyPriceAction
1-3 20" HR 6SMT PLST W/HDWR 20" SPOKEManufacturer no. 425933 1Quote Ask for a quote
1-3 22" HR 6SMT PLST W/HDWR 22" (501) SPOKEManufacturer no. 425943 1Quote Ask for a quote
1-3 24" HR 6SMT PLST W/HDWR 24" (540) SPOKEManufacturer no. 426004 1Quote Ask for a quote
4 10 -32 x 2 1/8 PAN PHIL SS 6 SPOKE MAGManufacturer no. 281175 1Quote Ask for a quote

Aluminum Anodized (Tab Mount)

2 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Aluminum Anodized (Tab Mount)
No.PartQtyPriceAction
1 QP 24" HR .065 (6) TAB ANO 24" (540) CROSS SPOKE -SHORT & REG TABManufacturer no. 529529 1Quote Ask for a quote
2-4 AA TAB MOUNT HANDRIM HARDWARE SET OF 6Manufacturer no. 159515 1Quote Ask for a quote

Plastic Coated (Reg Tab Mount)

1 part

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Plastic Coated (Reg Tab Mount)
No.PartQtyPriceAction
2 PLST COATED TAB HNDRM HDWRManufacturer no. 159535 1Quote Ask for a quote

Natural Fit (Screw Mount)

8 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Natural Fit (Screw Mount)
No.PartQtyPriceAction
2 GUARD THUMB NAT FIT 22 PC BLK 22" (501)- Std Grip Thumb GuardManufacturer no. 102168-001 1Quote Ask for a quote
2 GUARD THUMB NAT FIT 24 PC BLK 24" (540)- Std Grip Thumb GuardManufacturer no. 102168-003 1Quote Ask for a quote
2 GUARD THUMB NAT FIT 25 PC BLK 25" (559)- Std Grip Thumb GuardManufacturer no. 102168-005 1Quote Ask for a quote
2 GUARD THUMB NAT FIT 26 PC BLK 26" (590)- Std Grip Thumb GuardManufacturer no. 102168-007 1Quote Ask for a quote
2 GUARD THUMB NAT FIT 22 SG BLK 22" (501)- Super Grip Thumb GuardManufacturer no. 102168-002 1Quote Ask for a quote
2 GUARD THUMB NAT FIT 24 SG BLK 24" (540)- Super Grip Thumb GuardManufacturer no. 102168-004 1Quote Ask for a quote
2 GUARD THUMB NAT FIT 25 SG BLK 25" (559)- Super Grip Thumb GuardManufacturer no. 102168-006 1Quote Ask for a quote
2 THUMB GUARD NAT FIT 26 SG BLK 26" (590)- Super Grip Thumb GuardManufacturer no. 102168-008 1Quote Ask for a quote

Natural Fit (Tab Mount)

11 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Natural Fit (Tab Mount)
No.PartQtyPriceAction
1 GUARD THUMB NAT FIT 22 PC BLK 22" (501)Manufacturer no. 102168-001 1Quote Ask for a quote
1 GUARD THUMB NAT FIT 24 PC BLK 24" (540)Manufacturer no. 102168-003 1Quote Ask for a quote
1 GUARD THUMB NAT FIT 25 PC BLK 25" (559)Manufacturer no. 102168-005 1Quote Ask for a quote
1 GUARD THUMB NAT FIT 26 PC BLK 26" (590)Manufacturer no. 102168-007 1Quote Ask for a quote
1 GUARD THUMB NAT FIT 22 SG BLK 22" (501)Manufacturer no. 102168-002 1Quote Ask for a quote
1 GUARD THUMB NAT FIT 24 SG BLK 24" (540)Manufacturer no. 102168-004 1Quote Ask for a quote
1 GUARD THUMB NAT FIT 25 SG BLK 25" (559)Manufacturer no. 102168-006 1Quote Ask for a quote
1 THUMB GUARD NAT FIT 26 SG BLK 26" (590)Manufacturer no. 102168-008 1Quote Ask for a quote
2-4 22 NAT-FIT LT TB HNDRIM W/HDWR 22" (501)Manufacturer no. 159525 1Quote Ask for a quote
2-4 24 NAT-FIT LT TB HNDRIM W/HDWR 24" (540)Manufacturer no. 159526 1Quote Ask for a quote
2-4 25 NAT-FIT LT TB HNDRIM W/HDWR 25" (559)Manufacturer no. 159527 1Quote Ask for a quote

Aluminum Anodized 5 Spoke Mag (Screw Mount)

3 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Aluminum Anodized 5 Spoke Mag (Screw Mount)
No.PartQtyPriceAction
1-3 20" ALU ANO HND RIM KITManufacturer no. 136158 1Quote Ask for a quote
1-3 22" ALU ANO HND RIM KITManufacturer no. 136157 1Quote Ask for a quote
1-3 24" ALU ANO HND RIM KITManufacturer no. 136156 1Quote Ask for a quote

Plastic Coated 5 Spoke Mag (Screw Mount)

3 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Plastic Coated 5 Spoke Mag (Screw Mount)
No.PartQtyPriceAction
1-3 20" PLSTC COATED HND RIM KITManufacturer no. 136155 1Quote Ask for a quote
1-3 22" PLSTC COATED HND RIM KITManufacturer no. 136154 1Quote Ask for a quote
1-3 24" PLSTC COATED HND RIM KITManufacturer no. 136153 1Quote Ask for a quote

Tubes And Airless Inserts

22 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Tubes And Airless Inserts
No.PartQtyPriceAction
1A INNER TUBE 12-1/2" X 2-1/4"Manufacturer no. 384736 1Quote Ask for a quote
1A 16" X 1.75" INNER TUBEManufacturer no. 384738 1Quote Ask for a quote
1A TUBE 18" TIRE 18" X 1-3/4" TUBEManufacturer no. 382255 1Quote Ask for a quote
1A 20" TUBE 20" 1-3/8" TUBEManufacturer no. 382275 1Quote Ask for a quote
1A 22" TUBE 22" X 1-3/8" TUBEManufacturer no. 382300 1Quote Ask for a quote
1A TUBE PRIMO 24" 25-540 SV 24" X 1" TUBEManufacturer no. 382336 1Quote Ask for a quote
1A 24 X 1.3/8IN TUBE REGManufacturer no. 382325 1Quote Ask for a quote
1A TUBE INLINE 24 X 1.75Manufacturer no. 382334 1Quote Ask for a quote
1A 26" X 1" TUBE SCHRADERManufacturer no. 384551 1Quote Ask for a quote
1A 26" TUBE 26" X 1-3/8" TUBEManufacturer no. 382350 1Quote Ask for a quote
1A TUBE 26 X 1.5/1.95/ S/VManufacturer no. 382361 1Quote Ask for a quote
1A 26 X 1.25/1.5 TUBE SHRADERManufacturer no. 382365 1Quote Ask for a quote
1A 24" x 2.125 TUBEManufacturer no. 382375 1Quote Ask for a quote
1B 12 1/2 IN AIRLESS INSERT 12-1/2" X 2-1/4"Manufacturer no. 102972-001 1Quote Ask for a quote
1B 16IN AIRLESS INSERT 16" X 1-3/4"Manufacturer no. 102973-001 1Quote Ask for a quote
1B 18IN AIRLESS INSERT 18" X 1-3/4"Manufacturer no. 102973-002 1Quote Ask for a quote
1B 20IN AIRLESS INSERT 20" X 1-3/8"Manufacturer no. 102973-003 1Quote Ask for a quote
1B AIRLESS INSERT 20 X 2-1/8 P3Manufacturer no. 102972-002 1Quote Ask for a quote
1B 22IN AIRLESS INSERT 22" X 1-3/8"Manufacturer no. 102973-004 1Quote Ask for a quote
1B 24IN AIRLESS INSERT 24" X 1-3/8"Manufacturer no. 102973-005 1Quote Ask for a quote
1B AIRLESS INSERT 24 X 2-1/8Manufacturer no. 102972-003 1Quote Ask for a quote
1B 26" AIRLESS INSERT 26" X 1-3/8"Manufacturer no. 108259 1Quote Ask for a quote

Rim Strip

11 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Rim Strip
No.PartQtyPriceAction
1 STRIP RIM 18" 18"Manufacturer no. 381235 1Quote Ask for a quote
1 20" RIM STRIP 20"Manufacturer no. 381250 1Quote Ask for a quote
1 22" RIM STRIP 22" (501)Manufacturer no. 381265 1Quote Ask for a quote
1 24" RIM STRIP 24" (540)Manufacturer no. 381275 1Quote Ask for a quote
1 QP 26" HT RIM STRIP 25" (559)Manufacturer no. 381350 1Quote Ask for a quote
1 26" RIM STRIP 26" (590)Manufacturer no. 381300 1Quote Ask for a quote
1 RIM STRIP 24 x 1.75/2.125 24" X 2.125" (USED ON 26" MT)Manufacturer no. 381301 1Quote Ask for a quote
1 RIMSTRIP 16mm RL 27" (700)Manufacturer no. 381210 1Quote Ask for a quote
1 20" MAG RIM STRIP 5 Spoke mag 20"Manufacturer no. 129325 1Quote Ask for a quote
1 22" MAG RIM STRIP 5 Spoke mag 22"Manufacturer no. 129324 1Quote Ask for a quote
1 24" MAG RIM STRIP 5 Spoke mag 24"Manufacturer no. 127912 1Quote Ask for a quote

5R Seat Sling

17 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 5R Seat Sling
No.PartQtyPriceAction
5R SLINGManufacturer no. SEAT 1Quote Ask for a quote
1 SEAT SLING 12"W X 11"D FOR 12" x 12"Manufacturer no. 109466 1Quote Ask for a quote
1 SEAT SLING 12"W X 12"D FOR 12" x 13"Manufacturer no. 109467 1Quote Ask for a quote
1 SEAT SLING 12"W X 13"D FOR 12" x 14"Manufacturer no. 109468 1Quote Ask for a quote
1 SEAT SLING 12"W X 14"D FOR 12" x 15"Manufacturer no. 109469 1Quote Ask for a quote
1 SEAT SLING 12"W X 15"D FOR 12" x 16"Manufacturer no. 109470 1Quote Ask for a quote
1 SEAT SLING 12"W X 16"D FOR 12" x 17"Manufacturer no. 109471 1Quote Ask for a quote
1 SEAT SLING 12"W X 17"D FOR 12" x 18"Manufacturer no. 109472 1Quote Ask for a quote
1 SEAT SLING 12"W X 18"D FOR 12" x 19"Manufacturer no. 109473 1Quote Ask for a quote
1 SEAT SLING 13"W X 11"D FOR 13" x 12"Manufacturer no. 109474 1Quote Ask for a quote
1 SEAT SLING 13"W X 12"D FOR 13" x 13"Manufacturer no. 109475 1Quote Ask for a quote
1 SEAT SLING 13"W X 13"D FOR 13" x 14"Manufacturer no. 109476 1Quote Ask for a quote
1 SEAT SLING 13"W X 14"D FOR 13" x 15"Manufacturer no. 109477 1Quote Ask for a quote
1 SEAT SLING 13"W X 15"D FOR 13" x 16"Manufacturer no. 109478 1Quote Ask for a quote
1 SEAT SLING 13"W X 16"D FOR 13" x 17"Manufacturer no. 109479 1Quote Ask for a quote
1 SEAT SLING 13"W X 17"D FOR 13" x 18"Manufacturer no. 109480 1Quote Ask for a quote
1 SEAT SLING 13"W X 18"D FOR 13" x 19"Manufacturer no. 109481 1Quote Ask for a quote

2" Seat Cushion

0 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Folding Backrest

17 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Folding Backrest
No.PartQtyPriceAction
1A FRM ALUM BKRST ADJ 12" STD STANDARD - 12" WIDEManufacturer no. 109303 1Quote Ask for a quote
1A FRM ALUM BKRST ADJ 13" STD STANDARD - 13" WIDEManufacturer no. 109304 1Quote Ask for a quote
1A FRM ALUM BKRST ADJ 14" STD STANDARD - 14" WIDEManufacturer no. 109305 1Quote Ask for a quote
1A FRM ALUM BKRST ADJ 15" STD STANDARD - 15" WIDEManufacturer no. 109306 1Quote Ask for a quote
1A FRM ALUM BKRST ADJ 16" STD STANDARD - 16" WIDEManufacturer no. 109307 1Quote Ask for a quote
1A FRM ALUM BKRST ADJ 17" STD STANDARD - 17" WIDEManufacturer no. 109308 1Quote Ask for a quote
1A FRM ALUM BKRST ADJ 18" STD STANDARD - 18" WIDEManufacturer no. 109309 1Quote Ask for a quote
1A FRM ALUM BKRST ADJ 19" STD STANDARD - 19" WIDEManufacturer no. 109310 1Quote Ask for a quote
1A FRM ALUM BKRST ADJ 20" STD STANDARD - 20" WIDEManufacturer no. 109311 1Quote Ask for a quote
1B FRM ALUM BKRST ADJ 12" TALL TALL - 12" WIDEManufacturer no. 109312 1Quote Ask for a quote
1B FRM ALUM BKRST ADJ 13" TALL TALL - 13" WIDEManufacturer no. 109313 1Quote Ask for a quote
1B FRM ALUM BKRST ADJ 14" TALL TALL - 14" WIDEManufacturer no. 109314 1Quote Ask for a quote
1B FRM ALUM BKRST ADJ 15" TALL TALL - 15" WIDEManufacturer no. 109315 1Quote Ask for a quote
1B FRM ALUM BKRST ADJ 16" TALL TALL - 16" WIDEManufacturer no. 109316 1Quote Ask for a quote
1B FRM ALUM BKRST ADJ 17" TALL TALL - 17" WIDEManufacturer no. 109317 1Quote Ask for a quote
1B FRM ALUM BKRST ADJ 18" TALL TALL - 18" WIDEManufacturer no. 109318 1Quote Ask for a quote
1B FRM ALUM BKRST ADJ 19" TALL TALL - 19" WIDEManufacturer no. 109319 1Quote Ask for a quote

Non-Folding Backrest

14 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Non-Folding Backrest
No.PartQtyPriceAction
1A FRM ALUM BKRST ADJ 12" STD STANDARD - 12" WIDEManufacturer no. 109303 1Quote Ask for a quote
1A FRM ALUM BKRST ADJ 13" STD STANDARD - 13" WIDEManufacturer no. 109304 1Quote Ask for a quote
1A FRM ALUM BKRST ADJ 14" STD STANDARD - 14" WIDEManufacturer no. 109305 1Quote Ask for a quote
1A FRM ALUM BKRST ADJ 15" STD STANDARD - 15" WIDEManufacturer no. 109306 1Quote Ask for a quote
1A FRM ALUM BKRST ADJ 16" STD STANDARD - 16" WIDEManufacturer no. 109307 1Quote Ask for a quote
1A FRM ALUM BKRST ADJ 17" STD STANDARD - 17" WIDEManufacturer no. 109308 1Quote Ask for a quote
1A FRM ALUM BKRST ADJ 18" STD STANDARD - 18" WIDEManufacturer no. 109309 1Quote Ask for a quote
1A FRM ALUM BKRST ADJ 19" STD STANDARD - 19" WIDEManufacturer no. 109310 1Quote Ask for a quote
1A FRM ALUM BKRST ADJ 20" STD STANDARD - 20" WIDEManufacturer no. 109311 1Quote Ask for a quote
1B FRM ALUM BKRST ADJ 12" TALL TALL - 12" WIDEManufacturer no. 109312 1Quote Ask for a quote
1B FRM ALUM BKRST ADJ 13" TALL TALL - 13" WIDEManufacturer no. 109313 1Quote Ask for a quote
1B FRM ALUM BKRST ADJ 14" TALL TALL - 14" WIDEManufacturer no. 109314 1Quote Ask for a quote
1B FRM ALUM BKRST ADJ 15" TALL TALL - 15" WIDEManufacturer no. 109315 1Quote Ask for a quote
1B FRM ALUM BKRST ADJ 16" TALL TALL - 16" WIDEManufacturer no. 109316 1Quote Ask for a quote

Push Handle & Back Post Options

0 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Bolt On Push Handles

8 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Bolt On Push Handles
No.PartQtyPriceAction
1 3/4 INSERT PLUG .083Manufacturer no. 561000-QU 1Quote Ask for a quote
2 QUICKIE GRIP 3/4" W/INSTR SH.Manufacturer no. 920026 1Quote Ask for a quote
3 PUSH BACK RECEIVER TOP RIGID BLKManufacturer no. 483015 1Quote Ask for a quote
4 PUSH BACK RECEIVER BOTTOM RIGID BLKManufacturer no. 483016 1Quote Ask for a quote
5 1/4-20 x 1 1/4 G8 HEX C/SManufacturer no. 107017 1Quote Ask for a quote
6 1/4-20 x 1 SET SCREWManufacturer no. 225200 1Quote Ask for a quote
8 1/4 AN WASHER FLATManufacturer no. 106943 1Quote Ask for a quote
1-8 PUSH HANDLE ASSM RIGID BLK PairManufacturer no. 900300 1Quote Ask for a quote

Std Back Uph Used W/ Omit Handles

21 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Std Back Uph Used W/ Omit Handles
No.PartQtyPriceAction
1A BACK UPH 12" 8-12" W/TAIL (12" WIDE) 8-12" for Ht Adj Back & 8,9,10" for Fixed Back HtsManufacturer no. 680212 1Quote Ask for a quote
1A BACK UPH 13" 8-12" W/TAIL (13" WIDE) 8-12" for Ht Adj Back & 8,9,10" for Fixed Back HtsManufacturer no. 680213 1Quote Ask for a quote
1A BACK UPH 14" 8-12" W/TAIL (14" WIDE) 8-12" for Ht Adj Back & 8,9,10" for Fixed Back HtsManufacturer no. 680308 1Quote Ask for a quote
1A BACK UPH 15" 8-12" W/TAIL (15" WIDE) 8-12" for Ht Adj Back & 8,9,10" for Fixed Back HtsManufacturer no. 680408 1Quote Ask for a quote
1A BACK UPH 16" 8-12" W/TAIL (16" WIDE) 8-12" for Ht Adj Back & 8,9,10" for Fixed Back HtsManufacturer no. 680508 1Quote Ask for a quote
1A BACK UPH 17" 8-12" W/TAIL (17" WIDE) 8-12" for Ht Adj Back & 8,9,10" for Fixed Back HtsManufacturer no. 680608 1Quote Ask for a quote
1A BACK UPH 18" 8-12" W/TAIL (18" WIDE) 8-12" for Ht Adj Back & 8,9,10" for Fixed Back HtsManufacturer no. 680708 1Quote Ask for a quote
1A BACK UPH 19" 8-12" W/TAIL (19" WIDE) 8-12" for Ht Adj Back & 8,9,10" for Fixed Back HtsManufacturer no. 680808 1Quote Ask for a quote
1B BACK UPH 12" 11-15" W/ TAIL (12" WIDE) 10-14" for Ht Adj Back & 11" for Fixed Back HtsManufacturer no. 680208 1Quote Ask for a quote
1B BACK UPH 13" 11-15" W/ TAIL (13" WIDE) 10-14" for Ht Adj Back & 11" for Fixed Back HtsManufacturer no. 680201 1Quote Ask for a quote
1B BACK UPH 14" 11-15" W/ TAIL (14" WIDE) 10-14" for Ht Adj Back & 11" for Fixed Back HtsManufacturer no. 680301 1Quote Ask for a quote
1B BACK UPH 15" 11-15" W/ TAIL (15" WIDE) 10-14" for Ht Adj Back & 11" for Fixed Back HtsManufacturer no. 680401 1Quote Ask for a quote
1B BACK UPH 16" 11-15" W/ TAIL (16" WIDE) 10-14" for Ht Adj Back & 11" for Fixed Back HtsManufacturer no. 680501 1Quote Ask for a quote
1B BACK UPH 17" 11-15" W/ TAIL (17" WIDE) 10-14" for Ht Adj Back & 11" for Fixed Back HtsManufacturer no. 680601 1Quote Ask for a quote
1B BACK UPH 18" 11-15" W/ TAIL (18" WIDE) 10-14" for Ht Adj Back & 11" for Fixed Back HtsManufacturer no. 680701 1Quote Ask for a quote
1B BACK UPH 19" 11-15" W/ TAIL (19" WIDE) 10-14" for Ht Adj Back & 11" for Fixed Back HtsManufacturer no. 680801 1Quote Ask for a quote
1B BACK UPH 20" 11-15" W/ TAIL (20" WIDE) 10-14" for Ht Adj Back & 11" for Fixed Back HtsManufacturer no. 680901 1Quote Ask for a quote
1C BACK UPH 12" 12-16" W/ TAIL (12" WIDE) 12 -16" for Ht Adj Back & 12"&13" for Fixed Back HtsManufacturer no. 680209 1Quote Ask for a quote
1C BACK UPH 13" 12-16" W/ TAIL (13" WIDE) 12 -16" for Ht Adj Back & 12"&13" for Fixed Back HtsManufacturer no. 680203 1Quote Ask for a quote
1C BACK UPH 14" 12-16" W/ TAIL (14" WIDE) 12 -16" for Ht Adj Back & 12"&13" for Fixed Back HtsManufacturer no. 680303 1Quote Ask for a quote
1C BACK UPH 15" 12-16" W/ TAIL (15" WIDE) 12 -16" for Ht Adj Back & 12"&13" for Fixed Back HtsManufacturer no. 680403 1Quote Ask for a quote

Std Back Uph Used W/ Integral Push Handles

9 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Std Back Uph Used W/ Integral Push Handles
No.PartQtyPriceAction
1A BACK UPH 12" 11-14/12-16 RDG 10 -14" & 12 -16" BACK HEIGHTManufacturer no. 680442 1Quote Ask for a quote
1A BACK UPH 13" 11-14/12-16 RDG 10 -14" & 12 -16" BACK HEIGHTManufacturer no. 680443 1Quote Ask for a quote
1A BACK UPH 14" 11-14/12-16 RDG 10 -14" & 12 -16" BACK HEIGHTManufacturer no. 680454 1Quote Ask for a quote
1A BACK UPH 15" 11-14/12-16 RDG 10 -14" & 12 -16" BACK HEIGHTManufacturer no. 680455 1Quote Ask for a quote
1A BACK UPH 16" 11-14/12-16 RDG 10 -14" & 12 -16" BACK HEIGHTManufacturer no. 680456 1Quote Ask for a quote
1A BACK UPH 17" 11-14/12-16 RDG 10 -14" & 12 -16" BACK HEIGHTManufacturer no. 680457 1Quote Ask for a quote
1A BACK UPH 18" 11-14/12-16 RDG 10 -14" & 12 -16" BACK HEIGHTManufacturer no. 680458 1Quote Ask for a quote
1A BACK UPH 19" 11-14/12-16 RDG 10 -14" & 12 -16" BACK HEIGHTManufacturer no. 680459 1Quote Ask for a quote
1A BACK UPH 20" 11-14/12-16 RDG 10 -14" & 12 -16" BACK HEIGHTManufacturer no. 680460 1Quote Ask for a quote

STD BACK EXO UPHOLSTERY (Rigid Chairs)

23 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in STD BACK EXO UPHOLSTERY (Rigid Chairs)
No.PartQtyPriceAction
1A BACK UPH STD 12W 8-10 HT (12" WIDE) 8,9,10" for Fixed Back HtsManufacturer no. 131533 1Quote Ask for a quote
1A BACK UPH STD 13W 8-10 HT (13" WIDE) 8,9,10" for Fixed Back HtsManufacturer no. 131534 1Quote Ask for a quote
1A BACK UPH STD 14W 8-10 HT (14" WIDE) 8,9,10" for Fixed Back HtsManufacturer no. 131535 1Quote Ask for a quote
1A BACK UPH STD 15W 8-10 HT (15" WIDE) 8,9,10" for Fixed Back HtsManufacturer no. 131536 1Quote Ask for a quote
1A BACK UPH STD 16W 8-10 HT (16" WIDE) 8,9,10" for Fixed Back HtsManufacturer no. 131537 1Quote Ask for a quote
1A BACK UPH STD 17W 8-10 HT (17" WIDE)8,9,10" for Fixed Back HtsManufacturer no. 131538 1Quote Ask for a quote
1A BACK UPH STD 18W 8-10 HT (18" WIDE) 8,9,10" for Fixed Back HtsManufacturer no. 131539 1Quote Ask for a quote
1A BACK UPH STD 19W 8-10 HT (19" WIDE) 8,9,10" for Fixed Back HtsManufacturer no. 131540 1Quote Ask for a quote
1A BACK UPH STD 20W 8-10 HT (20" WIDE) 8,9,10" for Fixed Back HtsManufacturer no. 131541 1Quote Ask for a quote
1B BACK UPH STD 12W 10-14 HT (12" WIDE) 10-14" for Ht Adj Back & 11,12,13" for Fxd Back HtsManufacturer no. 131544 1Quote Ask for a quote
1B BACK UPH STD 13W 10-14 HT (13" WIDE) 10-14" for Ht Adj Back & 11,12,13" for Fxd Back HtsManufacturer no. 131545 1Quote Ask for a quote
1B BACK UPH STD 14W 10-14 HT (13" WIDE) 10-14" for Ht Adj Back & 11,12,13" for Fxd Back HtsManufacturer no. 131546 1Quote Ask for a quote
1B BACK UPH STD 15W 10-14 HT (15" WIDE) 10-14" for Ht Adj Back & 11,12,13" for Fxd Back HtsManufacturer no. 131547 1Quote Ask for a quote
1B BACK UPH STD 16W 10-14 HT (16" WIDE) 10-14" for Ht Adj Back & 11,12,13" for Fxd Back HtsManufacturer no. 131548 1Quote Ask for a quote
1B BACK UPH STD 17W 10-14 HT (17" WIDE) 10-14" for Ht Adj Back & 11,12,13" for Fxd Back HtsManufacturer no. 131549 1Quote Ask for a quote
1B BACK UPH STD 18W 10-14 HT (18" WIDE) 10-14" for Ht Adj Back & 11,12,13" for Fxd Back HtsManufacturer no. 131550 1Quote Ask for a quote
1B BACK UPH STD 19W 10-14 HT (19" WIDE) 10-14" for Ht Adj Back & 11,12,13" for Fxd Back HtsManufacturer no. 131551 1Quote Ask for a quote
1B BACK UPH STD 20W 10-14 HT (20" WIDE) 10-14" for Ht Adj Back & 11,12,13" for Fxd Back HtsManufacturer no. 131552 1Quote Ask for a quote
1C BACK UPH STD 12W 12-16 HT (12" WIDE) 12 -16" for Ht Adj Back & 14,15,16 for Fxd Back HtsManufacturer no. 131555 1Quote Ask for a quote
1C BACK UPH STD 13W 12-16 HT (13" WIDE) 12 -16" for Ht Adj Back & 14,15,16 for Fxd Back HtsManufacturer no. 131556 1Quote Ask for a quote
1C BACK UPH STD 14W 12-16 HT (14" WIDE) 12 -16" for Ht Adj Back & 14,15,16 for Fxd Back HtsManufacturer no. 131557 1Quote Ask for a quote
1C BACK UPH STD 15W 12-16 HT (15" WIDE) 12 -16" for Ht Adj Back & 14,15,16 for Fxd Back HtsManufacturer no. 131558 1Quote Ask for a quote
1C BACK UPH STD 16W 12-16 HT (16" WIDE) 12 -16" for Ht Adj Back & 14,15,16 for Fxd Back HtsManufacturer no. 131559 1Quote Ask for a quote

Tension Adjustable Ballistic Nylon Upholstery

14 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Tension Adjustable Ballistic Nylon Upholstery
No.PartQtyPriceAction
2 TOP CAP, STD, 11 -12" Used for Omit Push Handle & Integral Push Handle onlyManufacturer no. 113712 1Quote Ask for a quote
2 TOP CAP, STD, 13 -14" Used for Omit Push Handle & Integral Push Handle onlyManufacturer no. 113713 1Quote Ask for a quote
2 TOP CAP, STD, 15 -16" Used for Omit Push Handle & Integral Push Handle onlyManufacturer no. 113714 1Quote Ask for a quote
2 TOP CAP, STD, 17 -18" Used for Omit Push Handle & Integral Push Handle onlyManufacturer no. 113715 1Quote Ask for a quote
2 TOP CAP, STD, 19 -20" Used for Omit Push Handle & Integral Push Handle onlyManufacturer no. 113716 1Quote Ask for a quote
3 STRAP PADDED 2", 11 -12"Manufacturer no. 113727 1Quote Ask for a quote
3 STRAP PADDED 2", 13 -14"Manufacturer no. 113728 1Quote Ask for a quote
3 STRAP PADDED 2", 15 -16"Manufacturer no. 113729 1Quote Ask for a quote
3 STRAP PADDED 2", 17 -18"Manufacturer no. 113730 1Quote Ask for a quote
3 STRAP PADDED 2", 19 -20"Manufacturer no. 113731 1Quote Ask for a quote
4 STRAP PADDED 1", 11 -12"Manufacturer no. 113732 1Quote Ask for a quote
4 STRAP PADDED 1", 13 -14"Manufacturer no. 113733 1Quote Ask for a quote
4 STRAP PADDED 1", 15 -16"Manufacturer no. 113734 1Quote Ask for a quote
4 STRAP PADDED 1", 16 -17"Manufacturer no. 113735 1Quote Ask for a quote

Tension Adjustable 3Dx Vented Upholstery

14 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Tension Adjustable 3Dx Vented Upholstery
No.PartQtyPriceAction
2 TOP CAP, STD, 11 -12" Used for Omit Push Handle & Integral Push Handle onlyManufacturer no. 113712 1Quote Ask for a quote
2 TOP CAP, STD, 13 -14" Used for Omit Push Handle & Integral Push Handle onlyManufacturer no. 113713 1Quote Ask for a quote
2 TOP CAP, STD, 15 -16" Used for Omit Push Handle & Integral Push Handle onlyManufacturer no. 113714 1Quote Ask for a quote
2 TOP CAP, STD, 17 -18" Used for Omit Push Handle & Integral Push Handle onlyManufacturer no. 113715 1Quote Ask for a quote
2 TOP CAP, STD, 19 -20" Used for Omit Push Handle & Integral Push Handle onlyManufacturer no. 113716 1Quote Ask for a quote
3 STRAP PADDED 2", 11 -12"Manufacturer no. 113727 1Quote Ask for a quote
3 STRAP PADDED 2", 13 -14"Manufacturer no. 113728 1Quote Ask for a quote
3 STRAP PADDED 2", 15 -16"Manufacturer no. 113729 1Quote Ask for a quote
3 STRAP PADDED 2", 17 -18"Manufacturer no. 113730 1Quote Ask for a quote
3 STRAP PADDED 2", 19 -20"Manufacturer no. 113731 1Quote Ask for a quote
4 STRAP PADDED 1", 11 -12"Manufacturer no. 113732 1Quote Ask for a quote
4 STRAP PADDED 1", 13 -14"Manufacturer no. 113733 1Quote Ask for a quote
4 STRAP PADDED 1", 15 -16"Manufacturer no. 113734 1Quote Ask for a quote
4 STRAP PADDED 1", 16 -17"Manufacturer no. 113735 1Quote Ask for a quote

TENSION ADJUSTABLE EXO UPHOLSTERY (Rigid Chairs)

9 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in TENSION ADJUSTABLE EXO UPHOLSTERY (Rigid Chairs)
No.PartQtyPriceAction
2 BACKREST PAD SMALL 12" Seat width 12"Manufacturer no. 244213 1Quote Ask for a quote
2 BACKREST PAD SMALL 13" Seat width 13"Manufacturer no. 244214 1Quote Ask for a quote
2 BACKREST PAD SMALL 14" Seat width 14"Manufacturer no. 244215 1Quote Ask for a quote
2 BACKREST PAD SMALL 15" Seat width 15"Manufacturer no. 244216 1Quote Ask for a quote
2 BACKREST PAD SMALL 16" Seat width 16"Manufacturer no. 131876 1Quote Ask for a quote
2 BACKREST PAD LARGE 17" Seat width 17"Manufacturer no. 244217 1Quote Ask for a quote
2 BACKREST PAD LARGE 18" Seat width 18"Manufacturer no. 244218 1Quote Ask for a quote
2 BACKREST PAD LARGE 19" Seat width 19"Manufacturer no. 244219 1Quote Ask for a quote
2 BACKREST PAD LARGE 20" Seat width 20"Manufacturer no. 131877 1Quote Ask for a quote

Tubular Footrest

28 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Tubular Footrest
No.PartQtyPriceAction
1 CLAMP FOOTRESTManufacturer no. 050025 1Quote Ask for a quote
2 BUSHING FOOTRESTManufacturer no. 050026 1Quote Ask for a quote
3 SET SCREW M8 X 16 DOG PTManufacturer no. 102267 1Quote Ask for a quote
4 KEY CLAMP FOOTRESTManufacturer no. 050052 1Quote Ask for a quote
5A LEG STRAP 11"-12" BLKManufacturer no. 113255 1Quote Ask for a quote
5B LEG STRAP 13"-15" BLKManufacturer no. 113256 1Quote Ask for a quote
5C LEG STRAP 16"-18" BLKManufacturer no. 113257 1Quote Ask for a quote
5D LEG STRAP 19"-20" BLKManufacturer no. 113258 1Quote Ask for a quote
6A FTRST TBLR ALUM STD 11"Manufacturer no. 050021-001 1Quote Ask for a quote
6A FTRST TBLR ALUM STD 12"Manufacturer no. 050021-003 1Quote Ask for a quote
6A FTRST TBLR ALUM STD 13"Manufacturer no. 050021-005 1Quote Ask for a quote
6A FTRST TBLR ALUM STD 14"Manufacturer no. 050021-007 1Quote Ask for a quote
6A FTRST TBLR ALUM STD 15"Manufacturer no. 050021-009 1Quote Ask for a quote
6A FTRST TBLR ALUM STD 16"Manufacturer no. 050021-011 1Quote Ask for a quote
6A FTRST TBLR ALUM STD 17"Manufacturer no. 050021-013 1Quote Ask for a quote
6A FTRST TBLR ALUM STD 18"Manufacturer no. 050021-015 1Quote Ask for a quote
6A FTRST TBLR ALUM STD 19"Manufacturer no. 050021-017 1Quote Ask for a quote
6A FTRST TBLR ALUM STD 20"Manufacturer no. 050021-019 1Quote Ask for a quote
6B FTRST TBLR ALUM LNG 11"Manufacturer no. 050021-002 1Quote Ask for a quote
6B FTRST TBLR ALUM LNG 12"Manufacturer no. 050021-004 1Quote Ask for a quote
6B FTRST TBLR ALUM LNG 13"Manufacturer no. 050021-006 1Quote Ask for a quote
6B FTRST TBLR ALUM LNG 14"Manufacturer no. 050021-008 1Quote Ask for a quote
6B FTRST TBLR ALUM LNG 15"Manufacturer no. 050021-010 1Quote Ask for a quote
6B FTRST TBLR ALUM LNG 16"Manufacturer no. 050021-012 1Quote Ask for a quote
6B FTRST TBLR ALUM LNG 17"Manufacturer no. 050021-014 1Quote Ask for a quote
6B FTRST TBLR ALUM LNG 18"Manufacturer no. 050021-016 1Quote Ask for a quote
6B FTRST TBLR ALUM LNG 19"Manufacturer no. 050021-018 1Quote Ask for a quote
6B FTRST TBLR ALUM LNG 20"Manufacturer no. 050021-020 1Quote Ask for a quote

Footrest Cover & Wear Pads

9 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Footrest Cover & Wear Pads
No.PartQtyPriceAction
1A COVER FOOTREST SNAP ON 9WManufacturer no. 101461-013 1Quote Ask for a quote
1B COVER FOOTREST SNAP-ON 11" WManufacturer no. 101461-001 1Quote Ask for a quote
1C COVER FOOTREST SNAP-ON 12" WManufacturer no. 101461-002 1Quote Ask for a quote
1D COVER FOOTREST SNAP-ON 13" WManufacturer no. 101461-003 1Quote Ask for a quote
1E COVER FOOTREST SNAP-ON 14" WManufacturer no. 101461-004 1Quote Ask for a quote
1F COVER FOOTREST SNAP-ON 15" WManufacturer no. 101461-005 1Quote Ask for a quote
1G COVER FOOTREST SNAP-ON 16" WManufacturer no. 101461-006 1Quote Ask for a quote
1H COVER FOOTREST SNAP-ON 17" WManufacturer no. 101461-007 1Quote Ask for a quote
1J COVER FOOTREST SNAP-ON 18" WManufacturer no. 101461-008 1Quote Ask for a quote

Platform Footrest

18 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Platform Footrest
No.PartQtyPriceAction
1A FHCS M6 X 1 X 16 INORGANIC USED W/O ADAPTER SPACERManufacturer no. 102265-003 1Quote Ask for a quote
1B FHCSM6X1X30FULLNP USED W/ ADAPTER SPACERManufacturer no. 103500-009 1Quote Ask for a quote
2A TUBE FTRST PLTFRM 11-13 STDManufacturer no. 050027-001 1Quote Ask for a quote
2B TUBE FTRST PLTFRM 11-13 LNGManufacturer no. 050027-002 1Quote Ask for a quote
2C TUBE FTRST PLTFRM 14-16 STDManufacturer no. 050027-003 1Quote Ask for a quote
2D TUBE FTRST PLTFRM 14-16 LNGManufacturer no. 050027-004 1Quote Ask for a quote
2E TUBE FTRST PLTFRM 16-18 STDManufacturer no. 050027-005 1Quote Ask for a quote
2F TUBE FTRST PLTFRM 16-18 LNGManufacturer no. 050027-006 1Quote Ask for a quote
2G TUBE FTRST PLTFRM 18-20 STDManufacturer no. 050027-007 1Quote Ask for a quote
2H TUBE FTRST PLTFRM 18-20 LNGManufacturer no. 050027-008 1Quote Ask for a quote
3 PLATFORM FOOTPLATE CLAMPManufacturer no. 550351 1Quote Ask for a quote
4 NUT HEX NYLOCK M6 X 1 USED W/O ADAPTER SPACERManufacturer no. 200113 1Quote Ask for a quote
5 KEY CLAMP FOOTRESTManufacturer no. 050052 1Quote Ask for a quote
6 SET SCREW M8 X 16 DOG PTManufacturer no. 102267 1Quote Ask for a quote
7 CLAMP FOOTRESTManufacturer no. 050025 1Quote Ask for a quote
8 HHCS M6 X 1 X 25 USED W/ ADAPTER SPACERManufacturer no. 102268-001 1Quote Ask for a quote
9A NEW PLTFORM F/PLT 6X5.5 SEE NOTEManufacturer no. 500690 1Quote Ask for a quote
9B NEW PLTFORM F/PLT 8X5.5 SEE NOTEManufacturer no. 500691 1Quote Ask for a quote

High Mount Platform Footrest

21 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in High Mount Platform Footrest
No.PartQtyPriceAction
1 CLAMP WHL LCK FEMALEManufacturer no. 050121 1Quote Ask for a quote
2 3/4" DOME PLUG .125Manufacturer no. 482028 1Quote Ask for a quote
3A TUBE FTRST PLTFRM 11 -13" STD StandardManufacturer no. 050027-001 1Quote Ask for a quote
3A TUBE FTRST PLTFRM 14 -16" STD StandardManufacturer no. 050027-003 1Quote Ask for a quote
3A TUBE FTRST PLTFRM 16 -18" STD StandardManufacturer no. 050027-005 1Quote Ask for a quote
3A TUBE FTRST PLTFRM 18 -20" STD StandardManufacturer no. 050027-007 1Quote Ask for a quote
3B TUBE FTRST PLTFRM 11 -13" LNG LongManufacturer no. 050027-002 1Quote Ask for a quote
3B TUBE FTRST PLTFRM 14 -16" LNG LongManufacturer no. 050027-004 1Quote Ask for a quote
3B TUBE FTRST PLTFRM 16 -18" LNG LongManufacturer no. 050027-006 1Quote Ask for a quote
3B TUBE FTRST PLTFRM 18 -20" LNG LongManufacturer no. 050027-008 1Quote Ask for a quote
4 TUBE TOE FTRST ALM 12W STD BLKManufacturer no. 050022-022 1Quote Ask for a quote
4 TUBE TOE FTRST ALM 13W STD BLKManufacturer no. 050022-023 1Quote Ask for a quote
4 TUBE TOE FTRST ALM 14W STD BLKManufacturer no. 050022-024 1Quote Ask for a quote
4 TUBE TOE FTRST ALM 15W STD BLKManufacturer no. 050022-025 1Quote Ask for a quote
4 TUBE TOE FTRST ALM 16W STD BLKManufacturer no. 050022-026 1Quote Ask for a quote
4 TUBE TOE FTRST ALM 17W STD BLKManufacturer no. 050022-027 1Quote Ask for a quote
4 TUBE TOE FTRST ALM 18W STD BLKManufacturer no. 050022-028 1Quote Ask for a quote
4 TUBE TOE FTRST ALM 19W STD BLKManufacturer no. 050022-029 1Quote Ask for a quote
4 TUBE TOE FTRST ALM 20W STD BLKManufacturer no. 050022-030 1Quote Ask for a quote
5 CLAMP WHL LOCK MALEManufacturer no. 050120 1Quote Ask for a quote
6 LOCKWASHER HIGH COLLAR M6Manufacturer no. 050129-001 1Quote Ask for a quote

5R Aluminum Flip-Back Footrest

11 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 5R Aluminum Flip-Back Footrest
No.PartQtyPriceAction
5R FLIP-BACK FOOTRESTManufacturer no. ALUMINUM 1Quote Ask for a quote
1A FOOTPLATE 8-9 PEDManufacturer no. 118891 1Quote Ask for a quote
1B FOOTPLATE 9-10 PEDManufacturer no. 118892 1Quote Ask for a quote
1C FOOTPLATE 10-11 PEDManufacturer no. 118893 1Quote Ask for a quote
1D FOOTPLATE 11-12 PEDManufacturer no. 118894 1Quote Ask for a quote
1E FOOTPLATE 12-13 PEDManufacturer no. 118895 1Quote Ask for a quote
1F FOOTPLATE 13-14 PEDManufacturer no. 118896 1Quote Ask for a quote
1G FOOTPLATE 14-15 PEDManufacturer no. 118897 1Quote Ask for a quote
1H FOOTPLATE 15-16 PEDManufacturer no. 118898 1Quote Ask for a quote
1J FOOTPLATE 16-17 PEDManufacturer no. 118899 1Quote Ask for a quote
1K FOOTPLATE 17-18 PEDManufacturer no. 118900 1Quote Ask for a quote

5R Adaptive Flip-Back Footrest

19 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 5R Adaptive Flip-Back Footrest
No.PartQtyPriceAction
5R FLIP-BACK FOOTRESTManufacturer no. ADAPTIVE 1Quote Ask for a quote
1 F/BCK FTRST ADP STD ASSM 8 Fits: 8"Manufacturer no. 145100 1Quote Ask for a quote
1 F/BCK FTRST ADP STD ASSM 9 Fits: 9"Manufacturer no. 145101 1Quote Ask for a quote
1 F/BCK FTRST ADP STD ASSM 10 Fits: 10"Manufacturer no. 145102 1Quote Ask for a quote
1 F/BCK FTRST ADP 5 STD ASSM 11 Fits: 11"Manufacturer no. 136640 1Quote Ask for a quote
1 F/BCK FTRST ADP 5 STD ASSM 12 Fits: 12"Manufacturer no. 136641 1Quote Ask for a quote
1 F/BCK FTRST ADP 5 STD ASSM 13 Fits: 13"Manufacturer no. 136642 1Quote Ask for a quote
1 F/BCK FTRST ADP 5 STD ASSM 14 Fits: 14"Manufacturer no. 136643 1Quote Ask for a quote
1 F/BCK FTRST ADP 5 STD ASSM 15 Fits: 15"Manufacturer no. 136644 1Quote Ask for a quote
1 F/BCK FTRST ADP 5 STD ASSM 16 Fits: 16"Manufacturer no. 136645 1Quote Ask for a quote
1 F/BCK FTRST ADP 5 STD ASSM 17 Fits: 17"Manufacturer no. 136646 1Quote Ask for a quote
1 F/BCK FTRST ADP 5 STD ASSM 18 Fits: 18"Manufacturer no. 136647 1Quote Ask for a quote
1 F/BCK FTRST ADP 5 LNG ASSM 11 Fits: 11"Manufacturer no. 136648 1Quote Ask for a quote
1 F/BCK FTRST ADP 5 LNG ASSM 12 Fits: 12"Manufacturer no. 136649 1Quote Ask for a quote
1 F/BCK FTRST ADP 5 LNG ASSM 13 Fits: 13"Manufacturer no. 136650 1Quote Ask for a quote
1 F/BCK FTRST ADP 5 LNG ASSM 14 Fits: 14"Manufacturer no. 136651 1Quote Ask for a quote
1 F/BCK FTRST ADP 5 LNG ASSM 15 Fits: 15"Manufacturer no. 136652 1Quote Ask for a quote
1 F/BCK FTRST ADP 5 LNG ASSM 16 Fits: 16"Manufacturer no. 136653 1Quote Ask for a quote
1 F/BCK FTRST ADP 5 LNG ASSM 17 Fits: 17"Manufacturer no. 136654 1Quote Ask for a quote

Padded Swing-Away Armrest

3 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Padded Swing-Away Armrest
No.PartQtyPriceAction
4 GEL PAD S/ ARM PAIRManufacturer no. 108315 1Quote Ask for a quote
5 9X.93X.155 FOAM GRIP Single replacement gripManufacturer no. 560640 1Quote Ask for a quote
6 SEXBOLTSA ARMREST KITManufacturer no. 108118 1Quote Ask for a quote

5R Padded Swing-Away Armrest Receiver

1 part

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 5R Padded Swing-Away Armrest Receiver
No.PartQtyPriceAction
5R SWING-AWAY ARMREST RECEIVERManufacturer no. PADDED 1Quote Ask for a quote

Single Post Height Adjustable Armrest

16 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Single Post Height Adjustable Armrest
No.PartQtyPriceAction
1A SPHA PAD DESK CONTOUR DESKManufacturer no. 104568-001 1Quote Ask for a quote
1B SPHA PAD FULL CONTOUR FULLManufacturer no. 104568-002 1Quote Ask for a quote
1C ARMREST PAD 10" DESK CLASSIC DESKManufacturer no. 561024 1Quote Ask for a quote
1D ARMREST PAD 14" FULL CLASSIC FULLManufacturer no. 561031 1Quote Ask for a quote
1E ARMREST PAD 10" LEFT W/F Left-Waterfall DeskManufacturer no. 561280 1Quote Ask for a quote
1E ARMREST PAD 10" RIGHT W/F Rightt-Waterfall DeskManufacturer no. 561281 1Quote Ask for a quote
1F ARMREST PAD 14" LEFT W/F Leftt-Waterfall FullManufacturer no. 561284 1Quote Ask for a quote
1F ARMREST PAD 14" RIGHT W/F Rightt-Waterfall FullManufacturer no. 561285 1Quote Ask for a quote
2 SNGL POST UPPR ASSM LOW LOW/SMALLManufacturer no. 116312 1Quote Ask for a quote
2 SNGL POST UPPR ASSM STD STANDARDManufacturer no. 116313 1Quote Ask for a quote
3 SHCS 10-32 X 3/4 ROHSManufacturer no. 106956 1Quote Ask for a quote
5A HT ADJ PD TUBE 10IN DESK POWE DeskManufacturer no. 521812 1Quote Ask for a quote
5B HT ADJ PD TUBE 14IN FULL POWE FullManufacturer no. 521813 1Quote Ask for a quote
6 BHCS 10-32 X 1 1/2 ROHSManufacturer no. 107024 1Quote Ask for a quote
7 7/8" ROUND TUBE PLUGManufacturer no. 560735 1Quote Ask for a quote
8 SHCS 10-32 X 1-1/4 PL Used with Full Length & WaterfallManufacturer no. 108534 1Quote Ask for a quote

Single Post Armrest Receiver

5 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Single Post Armrest Receiver
No.PartQtyPriceAction
1 HT ADJ REVManufacturer no. 550495 1Quote Ask for a quote
2 WASHER FLAT M6Manufacturer no. 250104 1Quote Ask for a quote
3 HHCS M6 x 1 x 35Manufacturer no. 102268-002 1Quote Ask for a quote
4 RECEIVER SPHA 1 1/8" OD ASSMManufacturer no. 109387 1Quote Ask for a quote
1-4 SPHA REC ASSM COMPLETEManufacturer no. 111157 1Quote Ask for a quote

Xtender Internal Replacement Parts

7 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Xtender Internal Replacement Parts
No.PartQtyPriceAction
1 YAMAHA SENSOR KITManufacturer no. 107008 1Quote Ask for a quote
2 YAMAHA RECEPTICAL KITManufacturer no. 107005 1Quote Ask for a quote
3 YAMAHA COUPLER HRNSManufacturer no. 107010 1Quote Ask for a quote
4 YAMAHA ROTARY TRANS KITManufacturer no. 107007 1Quote Ask for a quote
5 YAMAHA MOTOR REPLACEMENT KITManufacturer no. 107009 1Quote Ask for a quote
6 YAMAHA SWITCH KITManufacturer no. 107012 1Quote Ask for a quote
7 YAMAHA DRIVE BELT KITManufacturer no. 107006 1Quote Ask for a quote

Xtender Power Assist 4X Parts

0 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

4X Xtender Axle Plate Assm 5R

17 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 4X Xtender Axle Plate Assm 5R
No.PartQtyPriceAction
4X AXLE PLATE ASSM 5RManufacturer no. XTENDER 1Quote Ask for a quote
1 12W GT XTENDER SUSPENSION BARManufacturer no. 126069 1Quote Ask for a quote
1 13W GT XTENDER SUSPENSION BARManufacturer no. 126070 1Quote Ask for a quote
1 14W GT XTENDER SUSPENSION BARManufacturer no. 126071 1Quote Ask for a quote
1 15W GT XTENDER SUSPENSION BARManufacturer no. 126072 1Quote Ask for a quote
1 16W GT XTENDER SUSPENSION BARManufacturer no. 126073 1Quote Ask for a quote
1 17W GT XTENDER SUSPENSION BARManufacturer no. 126074 1Quote Ask for a quote
1 18W GT XTENDER SUSPENSION BARManufacturer no. 126075 1Quote Ask for a quote
1 19W GT XTENDER SUSPENSION BARManufacturer no. 126076 1Quote Ask for a quote
1 20W GT XTENDER SUSPENSION BARManufacturer no. 126077 1Quote Ask for a quote
2 WASHER FLAT M20Manufacturer no. 050131 1Quote Ask for a quote
3 NUT THIN M20Manufacturer no. 050137 1Quote Ask for a quote
4 INDEX AXLE WASHERManufacturer no. 505015 1Quote Ask for a quote
5 SHCS M6 x 1 x 20 BLKManufacturer no. 102263-002 1Quote Ask for a quote
6 CLAMP AXLE PLATEManufacturer no. 050057 1Quote Ask for a quote
7 M8 NYLOCK NUTManufacturer no. 210072 1Quote Ask for a quote
8 SLEEVE AXLE PLATEManufacturer no. 050101 1Quote Ask for a quote

Gen 2 Xtender Retro Kit 5R/Gt

7 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Gen 2 Xtender Retro Kit 5R/Gt
No.PartQtyPriceAction
3 JWX-2 BRACKET KIT LH LeftManufacturer no. 241916 1Quote Ask for a quote
3 JWX-2 BRACKET KIT RH RightManufacturer no. 241917 1Quote Ask for a quote
1-4 GT 12W JWX-2 KIT SS NI 24INManufacturer no. 161345 1Quote Ask for a quote
1-4 GT 13W JWX-2 KIT SS NI 24INManufacturer no. 161346 1Quote Ask for a quote
1-4 GT 14W JWX-2 KIT SS NI 24INManufacturer no. 161347 1Quote Ask for a quote
1-4 GT 15W JWX-2 KIT SS NI 24INManufacturer no. 161348 1Quote Ask for a quote
1-4 GT 16W JWX-2 KIT SS NI 24INManufacturer no. 161349 1Quote Ask for a quote

Gen 2 Xtender Axle Plate Assm 5R/Gt

8 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Gen 2 Xtender Axle Plate Assm 5R/Gt
No.PartQtyPriceAction
1 12W GT XTENDER SUSPENSION BARManufacturer no. 126069 1Quote Ask for a quote
1 13W GT XTENDER SUSPENSION BARManufacturer no. 126070 1Quote Ask for a quote
1 14W GT XTENDER SUSPENSION BARManufacturer no. 126071 1Quote Ask for a quote
1 15W GT XTENDER SUSPENSION BARManufacturer no. 126072 1Quote Ask for a quote
1 16W GT XTENDER SUSPENSION BARManufacturer no. 126073 1Quote Ask for a quote
1 17W GT XTENDER SUSPENSION BARManufacturer no. 126074 1Quote Ask for a quote
1 18W GT XTENDER SUSPENSION BARManufacturer no. 126075 1Quote Ask for a quote
1 19W GT XTENDER SUSPENSION BARManufacturer no. 126076 1Quote Ask for a quote

Xtender Gen 2 Wheel Parts

12 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Xtender Gen 2 Wheel Parts
No.PartQtyPriceAction
1 GEAR, WHEEL 3Manufacturer no. 242261 1Quote Ask for a quote
2 RR AXLE ASSYManufacturer no. 242237 1Quote Ask for a quote
3 RR SPOKE SET 22" for 22" Wheel; 36 spokes & 36 nipplesManufacturer no. 242235 1Quote Ask for a quote
3 RR SPOKE SET 24" for 24" Wheel; 36 spokes & 36 nipplesManufacturer no. 242236 1Quote Ask for a quote
4 RETAINERManufacturer no. 242255 1Quote Ask for a quote
8 DAMPERManufacturer no. 242252 1Quote Ask for a quote
9 ARM, MOVINGManufacturer no. 242270 1Quote Ask for a quote
10 COLLAR To fix Damper (item 8) & Arm (item 9)Manufacturer no. 242272 1Quote Ask for a quote
13 JWX-2 WHEEL CAP ASSEMBLY Black, Hub cover w/decalManufacturer no. 134003 1Quote Ask for a quote
14 SPRING CLIP 42MMManufacturer no. 242256 1Quote Ask for a quote
15 YAMAHA PLATE ASSY Handle Plate for the unit detachingManufacturer no. 242238 1Quote Ask for a quote
5-9 SPRING, LEVER RETURN EManufacturer no. 242244 1Quote Ask for a quote

Drive Unit Internal Parts

8 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Drive Unit Internal Parts
No.PartQtyPriceAction
1 JWX-2 O-RING 1Manufacturer no. 242250 1Quote Ask for a quote
2 YAMAHA HSG ASSY Unit Back Plate;Manufacturer no. 242230 1Quote Ask for a quote
5-8 PRINT BOARD ASSY 1 Pair, Main Electric BoardManufacturer no. 242273 1Quote Ask for a quote
9 JWX-2 SEAL 1 O-ring for Transparent CoverManufacturer no. 241969 1Quote Ask for a quote
10 YAMAHA COVER, TRANSMISSION Transparent Plastic CoverManufacturer no. 242240 1Quote Ask for a quote
11 CLIP C clip spring to fix Transparent CoverManufacturer no. 242260 1Quote Ask for a quote
12 GASKET 1 urethane flat O-ring, smallManufacturer no. 242258 1Quote Ask for a quote
13 GASKET 2 urethane flat O-ring, largeManufacturer no. 242259 1Quote Ask for a quote

Xtender Right Hand Control Spare Parts

8 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Xtender Right Hand Control Spare Parts
No.PartQtyPriceAction
1 WIRE 6 Connecting Wire from Battery Seat to Drive UnitManufacturer no. 242271 1Quote Ask for a quote
2 JWX-2 WIRE HARNESS ASSY RH Right Side WheelManufacturer no. 133999 1Quote Ask for a quote
2 JWX-2 WIRE HARNESS ASSY LH Left Side WheelManufacturer no. 242245 1Quote Ask for a quote
3 JWX-2 MAIN SWITCH SUB ASSY Power Switch Main UnitManufacturer no. 133995 1Quote Ask for a quote
4A JWX-2 POWER SWITCH ANGLE A Angle Bracket (A)Manufacturer no. 133993 1Quote Ask for a quote
4B JWX-2 POWER SWITCH ANGLE B Angle Bracket (B)Manufacturer no. 133994 1Quote Ask for a quote
5 JWX-2 XTENDER "A" BRACKETManufacturer no. 133992 1Quote Ask for a quote
6 JWX-2 XTENDER PLATE LOCKManufacturer no. 241957 1Quote Ask for a quote

Battery And Charger

4 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Battery And Charger
No.PartQtyPriceAction
1-3 JWX-2 NICKEL BATTERY BLACKManufacturer no. 134000 1Quote Ask for a quote
4 JWX-2 BATTERY CHARGER NIManufacturer no. 134001 1Quote Ask for a quote
5 POWER CORD BATT CHARGER YAMAHAManufacturer no. 134121 1Quote Ask for a quote
6-8 JWX-2 LI-ION BATTERY BLACKManufacturer no. 134002 1Quote Ask for a quote

Battery Backpack Parts

2 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Battery Backpack Parts
No.PartQtyPriceAction
1 JWX-2 BATTERY BOX ASSEMBLYManufacturer no. 241919 1Quote Ask for a quote
2 JWX-2 HANGER BAG Battery BagManufacturer no. 241918 1Quote Ask for a quote

Xtender Spoke Guard

2 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Xtender Spoke Guard
No.PartQtyPriceAction
1A JWX-2 SPOKE GUARD 22 IN Each; actual Outside Diameter is 18"Manufacturer no. 243342 1Quote Ask for a quote
1B JWX-2 SPOKE GUARD 24 IN Each; actual Outside Diameter is 20"Manufacturer no. 243343 1Quote Ask for a quote

Hardware.

14 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Hardware.
No.PartQtyPriceAction
1 SHCS M6 X 1 X 25 W/PL INORG MetricManufacturer no. 102263-003 1Quote Ask for a quote
2 WASHER FLAT M6 MetricManufacturer no. 250104 1Quote Ask for a quote
3 BHCS M6 X 1 X 12 FULL PL MetricManufacturer no. 103185-005 1Quote Ask for a quote
4 WASHER FLAT AN 1/4 ROHS Imperial (standard)Manufacturer no. 106943 1Quote Ask for a quote
5 1/4-20 X 1/2 BH C/S W/PATCH Imperial (standard)Manufacturer no. 226154 1Quote Ask for a quote
6 1/4-20 X 1 SOC HD BLK Imperial (standard)Manufacturer no. 221116 1Quote Ask for a quote
7 BHCS M6 X 1 X 12Manufacturer no. 230113 1Quote Ask for a quote
8 LOCKWASHER HIGH COLLAR M6Manufacturer no. 050129-001 1Quote Ask for a quote
9 NUT HEX NYLOCK M6 X 1.0Manufacturer no. 104381 1Quote Ask for a quote
10 WASHER FLAT M6Manufacturer no. 107383 1Quote Ask for a quote
11 HHCS M6 X 1 X 35 BLKManufacturer no. 102268-002 1Quote Ask for a quote
12 PSTN BELT CLAMP ASSM PR Metric; PairManufacturer no. 120750 1Quote Ask for a quote
13 POSITION BELT ATTACHMENT KIT Set of 2; Imperial (standard)Manufacturer no. 900116 1Quote Ask for a quote
14 OVAL CLAMP ASSM KIT Kit contains 1 ClampManufacturer no. 116268 1Quote Ask for a quote

Auto Buckle Positioning Belt & Attachment Kits

15 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Auto Buckle Positioning Belt & Attachment Kits
No.PartQtyPriceAction
1 SHCS M6 X 1 X 25 W/PL INORG MetricManufacturer no. 102263-003 1Quote Ask for a quote
2 WASHER FLAT M6 MetricManufacturer no. 250104 1Quote Ask for a quote
3 BHCS M6 X 1 X 12 FULL PL MetricManufacturer no. 103185-005 1Quote Ask for a quote
4 WASHER FLAT AN 1/4 ROHS Imperial (standard)Manufacturer no. 106943 1Quote Ask for a quote
5 1/4-20 X 1/2 BH C/S W/PATCH Imperial (standard)Manufacturer no. 226154 1Quote Ask for a quote
6 1/4-20 X 1 SOC HD BLK Imperial (standard)Manufacturer no. 221116 1Quote Ask for a quote
7 BHCS M6 X 1 X 12Manufacturer no. 230113 1Quote Ask for a quote
8 LOCKWASHER HIGH COLLAR M6Manufacturer no. 050129-001 1Quote Ask for a quote
9 NUT HEX NYLOCK M6 X 1.0Manufacturer no. 104381 1Quote Ask for a quote
10 WASHER FLAT M6Manufacturer no. 107383 1Quote Ask for a quote
11 HHCS M6 X 1 X 35 BLKManufacturer no. 102268-002 1Quote Ask for a quote
12 PSTN BELT CLAMP ASSM PR Metric; PairManufacturer no. 120750 1Quote Ask for a quote
13 POSITION BELT ATTACHMENT KIT Set of 2; Imperial (standard)Manufacturer no. 900116 1Quote Ask for a quote
14 OVAL CLAMP ASSM KIT Kit contains 1 ClampManufacturer no. 116268 1Quote Ask for a quote
15 POSITIONING BELT CLAMPS PRManufacturer no. 159122 1Quote Ask for a quote

Aluminum Side Guard 5R

16 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Aluminum Side Guard 5R
No.PartQtyPriceAction
1 CLAMP SIDE GUARDManufacturer no. 101914 1Quote Ask for a quote
2 CLAMP SEAT SIDEGUARDManufacturer no. 052174 1Quote Ask for a quote
3 AL S/G REAR REC M5Manufacturer no. 118200 1Quote Ask for a quote
4 AL SIDE GUARD CLAMPManufacturer no. 113301 1Quote Ask for a quote
5 FHCS,M5X0.8X20,FULL,NPManufacturer no. 103499-007 1Quote Ask for a quote
6 M6 x 1 x 25 FH C/S FULL PLManufacturer no. 102265-003 1Quote Ask for a quote
7 3/4" WASHER 1/4" HOLEManufacturer no. 561026 1Quote Ask for a quote
10 SHCS, M6 x 1 x 20, FULL, PLManufacturer no. 102263-005 1Quote Ask for a quote
11 SHCS, M6 x 1 x 25, FULL, PLManufacturer no. 102263-003 1Quote Ask for a quote
12 SIDE GUARD SLIDE BSHNG M5Manufacturer no. 118202 1Quote Ask for a quote
13 3/4 OD X .318 ID X .25 NYLONManufacturer no. 561112 1Quote Ask for a quote
14 SIDE GUARD AL W/O FENDER RH RightManufacturer no. 115053S 1Quote Ask for a quote
14 SIDE GUARD AL W/O FENDER LH LeftManufacturer no. 115052S 1Quote Ask for a quote
15 SIDE GUARD AL W/ FENDER RH RightManufacturer no. 115051S 1Quote Ask for a quote
15 SIDE GUARD AL W/ FENDER LH LeftManufacturer no. 115050S 1Quote Ask for a quote
16 SHSS M4 X .07 X 6 FULL NPManufacturer no. 113319 1Quote Ask for a quote

Carbon Side Guard

15 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Carbon Side Guard
No.PartQtyPriceAction
1 SIDEGARD CARBON W/ FENDER LEFTManufacturer no. 058455-001 1Quote Ask for a quote
1 SIDEGARD CARBON W/ FENDER RIGHTManufacturer no. 058455-002 1Quote Ask for a quote
2 FHCS M6 X 1 X 25 INORGANICManufacturer no. 102265-003 1Quote Ask for a quote
4 3/4" WASHER 1/4" HOLEManufacturer no. 561026 1Quote Ask for a quote
5 LOCKWASHER HIGH COLLAR M6Manufacturer no. 050129-001 1Quote Ask for a quote
6 SHCS M6 X 1 X 25 W/PL INORGManufacturer no. 102263-003 1Quote Ask for a quote
7 NUT HEX NYLOCK M6 X 1Manufacturer no. 200113 1Quote Ask for a quote
8 CLAMP BACK SIDEGUARDManufacturer no. 052176 1Quote Ask for a quote
9 CLAMP BACK TAB SIDEGUARDManufacturer no. 052177 1Quote Ask for a quote
10 CLAMP SEAT SIDEGUARDManufacturer no. 052174 1Quote Ask for a quote
11 CLAMP SIDE GUARDManufacturer no. 101914 1Quote Ask for a quote
12 WASHER FLAT M6Manufacturer no. 250104 1Quote Ask for a quote
13 PTFE WASHER D20Manufacturer no. 051469 1Quote Ask for a quote
14 SET SCREW M4X.7X6 NYLON PTManufacturer no. 102109 1Quote Ask for a quote
1-14 ASSY SIDEGUARD CARBON PAIRManufacturer no. 102115 1Quote Ask for a quote

Plastic Side Guards 1 1/8" Clamp

11 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Plastic Side Guards 1 1/8" Clamp
No.PartQtyPriceAction
1A SIDE GUARD ASSY STD STANDARDManufacturer no. 104164-001 1Quote Ask for a quote
1B SIDE GUARD ASSY SMALL SMALLManufacturer no. 104164-002 1Quote Ask for a quote
2 HHCS M6 x 1 x 35Manufacturer no. 102268-002 1Quote Ask for a quote
3 WASHER FLAT M6Manufacturer no. 250104 1Quote Ask for a quote
4 REC SIDE GRD CLMP THREADEDManufacturer no. 550063 1Quote Ask for a quote
6 RECEIVER SG PLASTIC INSERTManufacturer no. 108780 1Quote Ask for a quote
7 FHCS #6-32 X 1/4 BLKManufacturer no. 107135 1Quote Ask for a quote
2-7 SIDEGUARD RECEIVER 1 1/8" ASSMManufacturer no. 111172 1Quote Ask for a quote
5-7 RCVR SIDE GUARD LOW 1 1/8" OD ASMManufacturer no. 109388 1Quote Ask for a quote
1A-7 SIDEGUARD STD W/ RECEIVER 1 1/8" ASSM STANDARDManufacturer no. 111170 1Quote Ask for a quote
1B-7 SIDEGUARD SMALL W/ RECEIVER 1 1/8" ASSM SMALLManufacturer no. 111171 1Quote Ask for a quote

Tuffak Tray (Manual & Pediatric Chairs)

13 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Tuffak Tray (Manual & Pediatric Chairs)
No.PartQtyPriceAction
1 5/16-18 x 3 1/2 CARR BOLTManufacturer no. 226199 1Quote Ask for a quote
2 5/16 WASHER FENDERManufacturer no. 263112 1Quote Ask for a quote
3 5/16-18 NUT THINManufacturer no. 202110 1Quote Ask for a quote
4 TRAY CLAMPManufacturer no. 550400 1Quote Ask for a quote
5 SPACER 5/16 X .380Manufacturer no. 481113 1Quote Ask for a quote
6 5/16 AN WASHER FLATManufacturer no. 263100 1Quote Ask for a quote
7 KNURLED TRAY KNOBManufacturer no. 483026 1Quote Ask for a quote
8 5/16-18 ACORN LOCK NUTManufacturer no. 202114 1Quote Ask for a quote
9A TRAY TOP EX-SM W/RAILManufacturer no. 562619 1Quote Ask for a quote
9B TRAY TOP SM W/RAILManufacturer no. 562620 1Quote Ask for a quote
9C TRAY TOP MED W/RAILManufacturer no. 562621 1Quote Ask for a quote
9D TRAY TOP LRG W/RAILManufacturer no. 562622 1Quote Ask for a quote
9E TRAY TOP X-LRG W/RAILManufacturer no. 562623 1Quote Ask for a quote

Tray Ribs Tuffak

20 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Tray Ribs Tuffak
No.PartQtyPriceAction
1A 19" WOOD TRAY RIBSManufacturer no. 9004 1Quote Ask for a quote
1A 21" WOOD TRAY RIBSManufacturer no. 9005 1Quote Ask for a quote
1A 23 1/2" WOOD TRAY RIBSManufacturer no. 9006-QU 1Quote Ask for a quote
1B 19" HEAVY DUTY RIB FOR WOOD TRAYManufacturer no. 9010 1Quote Ask for a quote
1B 21" HEAVY DUTY RIB FOR WOOD TRAYManufacturer no. 9013 1Quote Ask for a quote
1B 23 1/2" HEAVY DUTY RIB FOR WOOD TRAYManufacturer no. 9016 1Quote Ask for a quote
1C 19" HEAVY DUTY RIB FOR 3/8" TUFFAKManufacturer no. 9011-QU 1Quote Ask for a quote
1C 21" HEAVY DUTY RIB FOR 3/8" TUFFAKManufacturer no. 9014 1Quote Ask for a quote
1C 23 1/2" HEAVY DUTY RIB FOR 3/8" TUFFAKManufacturer no. 9017 1Quote Ask for a quote
2A 15 1/2" WOOD TRAY RIBSManufacturer no. 9003 1Quote Ask for a quote
2A 19" WOOD TRAY RIBSManufacturer no. 9004 1Quote Ask for a quote
2A 21" WOOD TRAY RIBSManufacturer no. 9005 1Quote Ask for a quote
2B 15 1/2" HEAVY DUTY RIB FOR WOOD TRAYManufacturer no. 9007-QU 1Quote Ask for a quote
2B 19" HEAVY DUTY RIB FOR WOOD TRAYManufacturer no. 9010 1Quote Ask for a quote
2B 21" HEAVY DUTY RIB FOR WOOD TRAYManufacturer no. 9013 1Quote Ask for a quote
2C 15 1/2" HEAVY DUTY RIB FOR 3/8" TUFFAKManufacturer no. 9008-QU 1Quote Ask for a quote
2C 19" HEAVY DUTY RIB FOR 3/8" TUFFAKManufacturer no. 9011-QU 1Quote Ask for a quote
2C 21" HEAVY DUTY RIB FOR 3/8" TUFFAKManufacturer no. 9014 1Quote Ask for a quote
3A #6 x 5/8" OVAL PHILLIPS SCREWManufacturer no. 2268 1Quote Ask for a quote
3B #6 x 3/4" FH PHIL S/M SCREWManufacturer no. 230047 1Quote Ask for a quote

Padded Stomach Cutout

0 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Protractor Pad

11 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Protractor Pad
No.PartQtyPriceAction
1 HEADREST ADJUSTMENT BARManufacturer no. 450752 1Quote Ask for a quote
2 HEADREST PAD BUSHINGManufacturer no. 450751 1Quote Ask for a quote
3 #10 SAE FLAT WASHERManufacturer no. 2702 1Quote Ask for a quote
4 1/4 -20 NYLOCK NUT HIGHManufacturer no. 106932 1Quote Ask for a quote
5A 4X6 RECTANGULAR PADManufacturer no. 15022 1Quote Ask for a quote
5B 5 x 7 OVAL PADManufacturer no. 15013 1Quote Ask for a quote
5C 4 x 5 OVAL PADManufacturer no. 755020 1Quote Ask for a quote
5D 4 x 6 OVAL PADManufacturer no. 15018 1Quote Ask for a quote
6 HEADREST PAD BRACKETManufacturer no. 450750 1Quote Ask for a quote
7 1/4-20 x 3/4" HEX C/SManufacturer no. 221105-QU 1Quote Ask for a quote
8 5/16-18 x 1/4" SOC SET SCREWManufacturer no. 2270 1Quote Ask for a quote

Hinged Overlay Removable

8 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Hinged Overlay Removable
No.PartQtyPriceAction
1A 9-1 STYLE 2 OVERLAYManufacturer no. 17935 1Quote Ask for a quote
1B 9-2 STYLE 2 OVERLAYManufacturer no. 17936 1Quote Ask for a quote
1C 9-5 STYLE 2 OVERLAYManufacturer no. 17937 1Quote Ask for a quote
1D 9-6 STYLE 2 OVERLAYManufacturer no. 17938 1Quote Ask for a quote
1E STYLE #1 LEARNING BOARDManufacturer no. 17930 1Quote Ask for a quote
1F STYLE #1 FULL LEARNING BOARDManufacturer no. 17931 1Quote Ask for a quote
2 10-32 x 3/8 BH C/S BLKManufacturer no. 226017 1Quote Ask for a quote
3A 9-1 HINGED OVERLAY PIVOT BARManufacturer no. 17922 1Quote Ask for a quote

Hinged Overlay Non-Removable

11 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Hinged Overlay Non-Removable
No.PartQtyPriceAction
2 10-32 x 3/8 BH C/S BLKManufacturer no. 226017 1Quote Ask for a quote
3A 9-1 HINGED OVERLAY PIVOT BARManufacturer no. 17922 1Quote Ask for a quote
3B 9-2 HINGED OVERLAY PIVOT BARManufacturer no. 17923 1Quote Ask for a quote
3C 9-5 HINGED OVERLAY PIVOT BARManufacturer no. 17924 1Quote Ask for a quote
3D 9-6 HINGED OVERLAY PIVOT BARManufacturer no. 17929 1Quote Ask for a quote
4 #6 x 1/2" FL DH PHL SCREWManufacturer no. 2266 1Quote Ask for a quote
5 TRAY OVERLAY MOUNTING BRACKETManufacturer no. 4061 1Quote Ask for a quote
6A TRAY OVERLAY RODManufacturer no. 17925 1Quote Ask for a quote
6B 9-2 OVERLAY RODManufacturer no. 17926 1Quote Ask for a quote
6C 9-5 OVERLAY RODManufacturer no. 17927 1Quote Ask for a quote
6D 9-6 TRAY OVERLAY RODManufacturer no. 17928 1Quote Ask for a quote

Crutch Holder (Rigid Chairs)

10 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Crutch Holder (Rigid Chairs)
No.PartQtyPriceAction
1 CLAMP SADDLE CRUTCH HOLDERManufacturer no. 050076 1Quote Ask for a quote
2 CLAMP CRUTCH HOLDERManufacturer no. 050077 1Quote Ask for a quote
3 SHCS M6 x 1 x 16 FULL NPManufacturer no. 102263-001 1Quote Ask for a quote
4 LOCKWASHER HIGH COLLAR M6Manufacturer no. 050129-001 1Quote Ask for a quote
5 3/4" INSERT PLUG .083Manufacturer no. 561000-QU 1Quote Ask for a quote
6 BHCS M6 X 1 X 25 W/PL INORGManufacturer no. 102262-004 1Quote Ask for a quote
8 CRUTCH HOLDER STRAP FManufacturer no. 750495 1Quote Ask for a quote
9 10-32 X 1/2 PAN PHILManufacturer no. 281110 1Quote Ask for a quote
10 10-32 NYLOCK NUTManufacturer no. 200100-QU 1Quote Ask for a quote
1-10 ASSM CRUTCH HOLDER GT W/HDWRManufacturer no. 050169 1Quote Ask for a quote

Tool Kit

2 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Tool Kit
No.PartQtyPriceAction
1 QUICKIE COMBO TOOL KIT Includes pouchManufacturer no. 108314 1Quote Ask for a quote
2 6MM ALLEN WRENCH L, 7MM SHORT caster spline chairs onlyManufacturer no. 113403 1Quote Ask for a quote

Water Bottle And Cage

4 parts

Exploded view from the manufacturer's parts manual (Quickie 5R Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Water Bottle And Cage
No.PartQtyPriceAction
1 WATER BOTTLE CAGE W/ CLAMP BlackManufacturer no. 252135 1Quote Ask for a quote
2 QUICKIE WATER BOTTLE BlackManufacturer no. 252136 1Quote Ask for a quote
3 ADHESIVE RUBBER PADManufacturer no. 123526 1Quote Ask for a quote
1-3 WATER BOTTLE W/ CAGE AND CLAMPManufacturer no. 163680 1Quote Ask for a quote

Parts manuals for this model

The manufacturer parts lists and exploded diagrams we hold. If you can find the number on one of these, quote it to us and we will match it.

Quickie 5R Parts Manual

Manufacturer parts document, PDF.

Not sure which part you need?

Send us a photo of the part, or of where it sits, and tell us what it is doing. Our order desk identifies parts for this equipment every day, and we would rather ask you one question than ship you the wrong bolt.

Or call 905 451-7743 and describe it to us.

Where to go next

The product page

Specifications, documents and the full product page for the Quickie 5r Rigid Wheelchair.

All replacement parts

Search every part we stock, or browse by the equipment it fits.

Have us fit it

Our technicians service what we sell, in the home and in the showroom.
