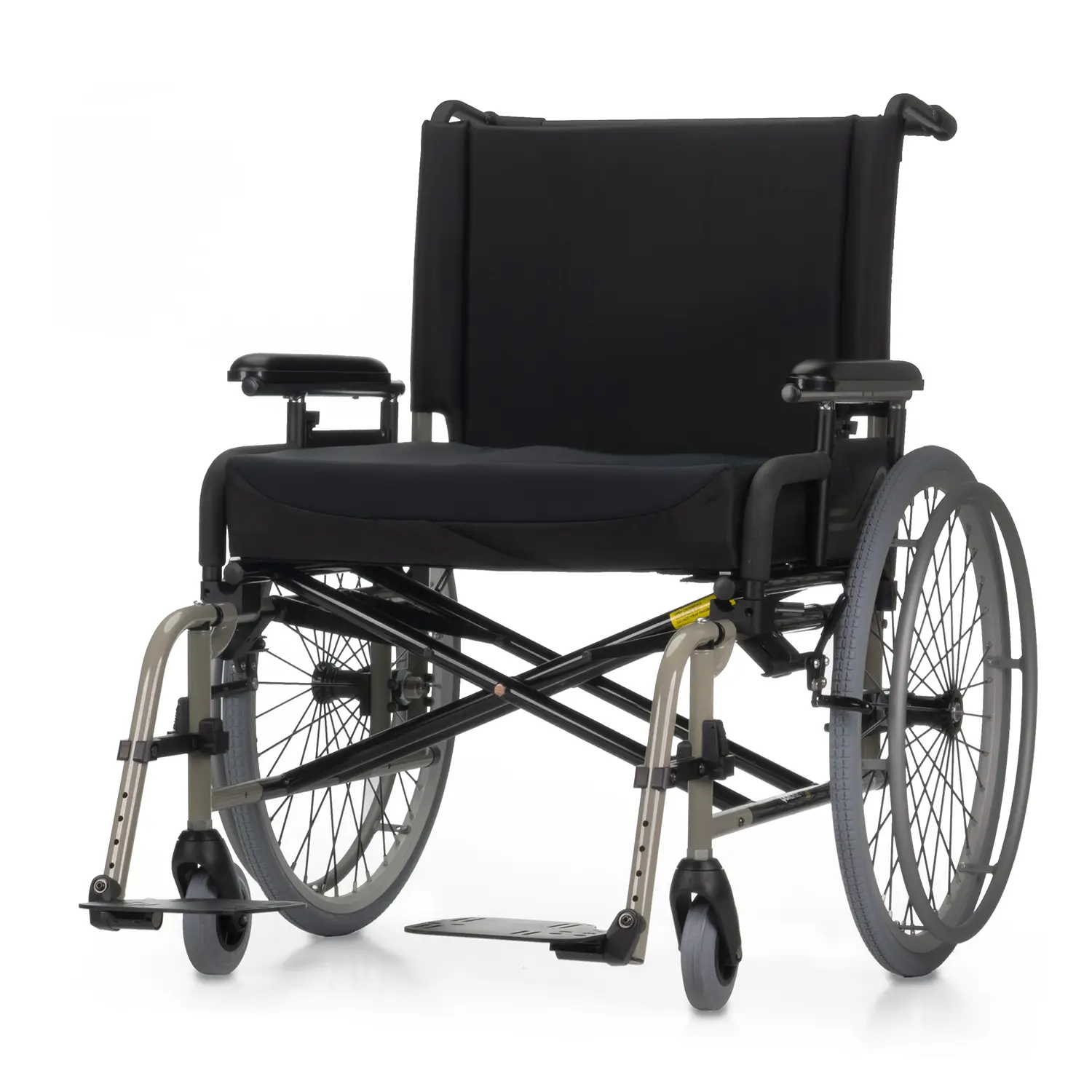

Quickie m6 Heavy Duty Folding Wheelchair

Parts finder

Replacement parts for the Quickie m6 Heavy Duty Folding Wheelchair

The exploded view below is numbered. Click a number on the drawing to jump to that part, or search the list. Every price shown is the current online price; anything quoted is priced by our order desk.

Ask about a part Product page 309 parts listed

Showing all 309 parts

1 of 37

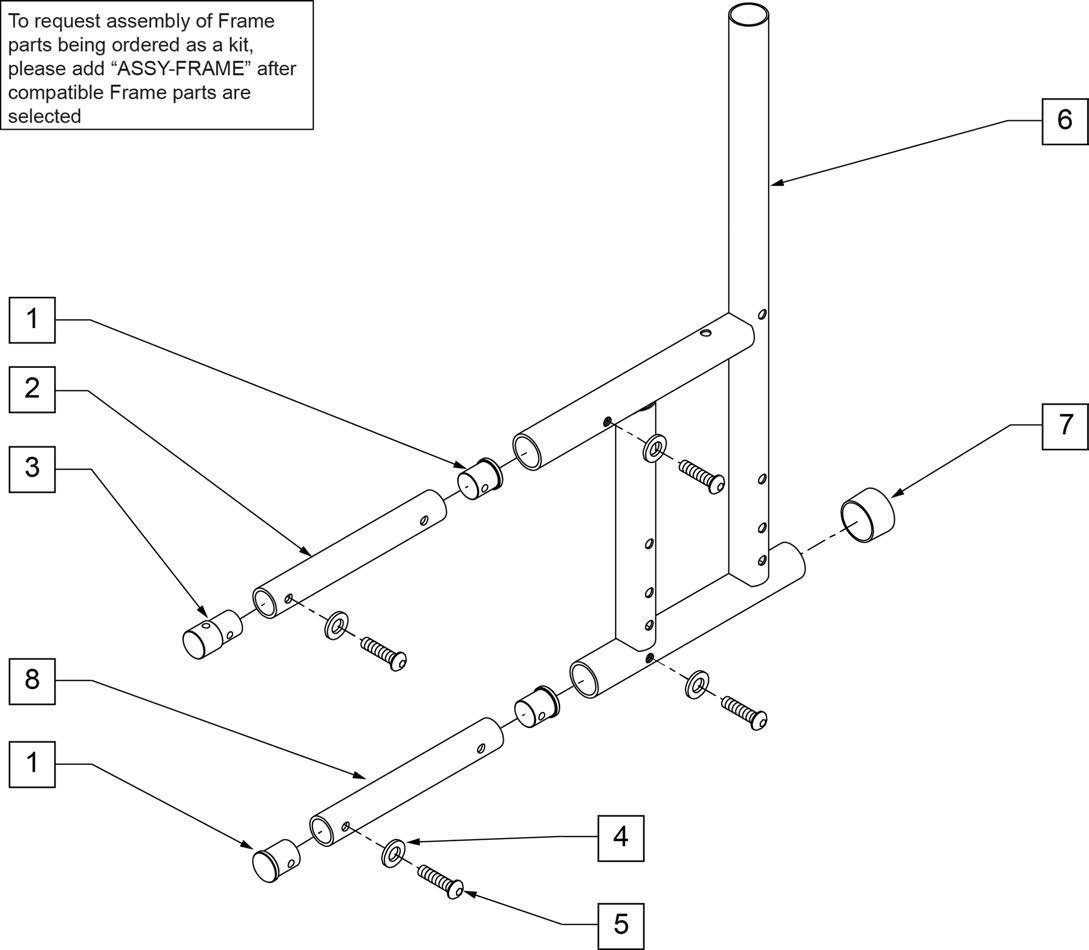

Exploded view of the Rear Side Frame

Loading the drawing

Rear Side Frame. Numbers match the list.
Swing Away Front Side Frame. Numbers match the list.
Cross Tube Assm. Numbers match the list.
Axle Plate. Numbers match the list.
Axle Sleeve. Numbers match the list.
Quick Release Axle W/ Nut. Numbers match the list.
M6 Fork, Stem & Caster Assm. Numbers match the list.
Soft Roll Casters. Numbers match the list.
8" x 2" CASTERS. Numbers match the list.
Anti-Tip. Numbers match the list.
High Wheel Lock (Push-To-Lock). Numbers match the list.
High Wheel Lock Extension Handle. Numbers match the list.
M6 Ss Spoke Obsolete. Numbers match the list.
Pneumatic & Pneu. Airless Tire M6. Numbers match the list.
Primo Orion Tire. Numbers match the list.
Plastic & Aluminum Anodized Screw Mount-M6. Numbers match the list.
Seat Cushion. Numbers match the list.
Seat Sling. Numbers match the list.
7/8" Push Handle Backrest, Stabilizer Bar & Uph. Numbers match the list.
60 Swing Away Hanger. Numbers match the list.
Round Extension Tube. Numbers match the list.
Composite Footplate. Numbers match the list.
Adult Angle-Adjustable Footplate Ext Mount. Numbers match the list.
70 Deg Lift-Off Hanger. Numbers match the list.
80 Deg Lift-Off Hanger. Numbers match the list.
Adult Angle-Adj Footplate Front Mount. Numbers match the list.
Elevating Legrest. Numbers match the list.
Elr Calf Pad. Numbers match the list.
Aluminum Footplate & Ext - M6. Numbers match the list.
Dual Post Height Adjustable Flip-Back Armrest. Numbers match the list.
Dual Post Height Adj Armrest Receiver. Numbers match the list.
Quickie Side Pocket. Numbers match the list.
Hardware.. Numbers match the list.
Auto Buckle Positioning Belt & Attachment Kits. Numbers match the list.
Oxygen Holder. Numbers match the list.
Tire Pump. Numbers match the list.
Tool Kit. Numbers match the list.

Rear Side Frame

8 parts

Exploded view from the manufacturer's parts manual (Quickie M6 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Rear Side Frame
No.PartQtyPriceAction
1 PLUG THREADED INSERTManufacturer no. 483224 1Quote Ask for a quote
2 TUBE S/F CONNECTING TOPManufacturer no. 520507 1Quote Ask for a quote
3 PLUG DUAL THREADED INSERTManufacturer no. 483223 1Quote Ask for a quote
4 6mm WASHER WAVEManufacturer no. 262130 1Quote Ask for a quote
5 1/4-20 x 1 BH C/S BLK ZNManufacturer no. 226123 1Quote Ask for a quote
7 1" MED CAPManufacturer no. 561014 1Quote Ask for a quote
8 TUBE S/F CONNECTING BOTTOMManufacturer no. 520508 1Quote Ask for a quote
1-8 REAR S/F PNTD M6 1"Manufacturer no. 620135S 1Quote Ask for a quote

Swing Away Front Side Frame

3 parts

Exploded view from the manufacturer's parts manual (Quickie M6 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Swing Away Front Side Frame
No.PartQtyPriceAction
1 1" INSERT PLUG .049Manufacturer no. 561019 1Quote Ask for a quote
2 BHCS 5/16-18 X 1-3/4 SHLD ROHSManufacturer no. 106982 1Quote Ask for a quote
5 7/8" ROUND TUBE PLUG Use in place of SA hangerManufacturer no. 560735 1Quote Ask for a quote

Cross Tube Assm

18 parts

Exploded view from the manufacturer's parts manual (Quickie M6 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Cross Tube Assm
No.PartQtyPriceAction
3 1" INSERT PLUG .049Manufacturer no. 561019 1Quote Ask for a quote
4 1/4-28 x 1 3/4 G8 HEX C/SManufacturer no. 107015 1Quote Ask for a quote
5 5/16-24 x 3 G8 HEX C/SManufacturer no. 222249 1Quote Ask for a quote
6 1/4" NYLON WASHERManufacturer no. 561028 1Quote Ask for a quote
7 1" WASHER 5/16" HOLEManufacturer no. 561016 1Quote Ask for a quote
8 5/16-24 NYLOCK NUT THINManufacturer no. 106939 1Quote Ask for a quote
9 1/4-28 NYLOCK NUTManufacturer no. 106934 1Quote Ask for a quote
10 WELDMENT X-HINGE 22" WIDEManufacturer no. 540650 1Quote Ask for a quote
10 WELDMENT X-HINGE 24" WIDEManufacturer no. 540651 1Quote Ask for a quote
10 WELDMENT X-HINGE 26" WIDEManufacturer no. 540652 1Quote Ask for a quote
10 WELDMENT X-HINGE 28" WIDEManufacturer no. 540653 1Quote Ask for a quote
10 WELDMENT X-HINGE 30" WIDEManufacturer no. 540654 1Quote Ask for a quote
11 1" WASHER 3/8" HOLEManufacturer no. 561043 1Quote Ask for a quote
1-11 X-TUBE ASSM 22" X 18" M6Manufacturer no. 673645 1Quote Ask for a quote
1-11 X-TUBE ASSM 22" X 19" M6Manufacturer no. 673646 1Quote Ask for a quote
1-11 X-TUBE ASSM 22" X 20" M6Manufacturer no. 673647 1Quote Ask for a quote
1-11 X-TUBE ASSM 22" X 21" M6Manufacturer no. 673648 1Quote Ask for a quote
1-11 X-TUBE ASSM 22" X 22" M6Manufacturer no. 673649 1Quote Ask for a quote

Axle Plate

5 parts

Exploded view from the manufacturer's parts manual (Quickie M6 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Axle Plate
No.PartQtyPriceAction
1 1/4-28 NYLOCK NUTManufacturer no. 106934 1Quote Ask for a quote
2A PLATE AXLE 18.5" & 20" SEAT HEIGHTManufacturer no. 550056 1Quote Ask for a quote
2B AXLE PLATE LOWER 17" SEAT HEIGHTManufacturer no. 502023 1Quote Ask for a quote
3 1/4 AN WASHER FLAT THINManufacturer no. 106944 1Quote Ask for a quote
4 1/4-28 x 1 3/4 G8 HEX C/SManufacturer no. 107015 1Quote Ask for a quote

Axle Sleeve

1 part

Exploded view from the manufacturer's parts manual (Quickie M6 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Axle Sleeve
No.PartQtyPriceAction
2 SLEEVE 5/8" AXLEManufacturer no. 481268 1Quote Ask for a quote

Quick Release Axle W/ Nut

1 part

Exploded view from the manufacturer's parts manual (Quickie M6 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Quick Release Axle W/ Nut
No.PartQtyPriceAction
1 QR AXLE W/NUT M6Manufacturer no. 920538 1Quote Ask for a quote

M6 Fork, Stem & Caster Assm

0 parts

Exploded view from the manufacturer's parts manual (Quickie M6 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Soft Roll Casters

2 parts

Exploded view from the manufacturer's parts manual (Quickie M6 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Soft Roll Casters
No.PartQtyPriceAction
1 CASTER 5" SOFT ROLL W/BRNGS K0077 5" SOFT ROLL SEMI PNEU (GREY)Manufacturer no. 400103 1Quote Ask for a quote
2 7/8"x 5/16" BEARINGManufacturer no. 349502 1Quote Ask for a quote

8" x 2" CASTERS

5 parts

Exploded view from the manufacturer's parts manual (Quickie M6 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 8" x 2" CASTERS
No.PartQtyPriceAction
1 7/8"x 5/16" BEARINGManufacturer no. 349502 1Quote Ask for a quote
2A 8" X 2" CMPST W/PNEU & BEARING 8" x 2" PNEUMATICManufacturer no. 400700 1Quote Ask for a quote
2B 8" X 2" CMPST W/PNEU INSRT&BRG 8" x 2" PNEUMATIC W/ INSERTManufacturer no. 400702 1Quote Ask for a quote
2C TIRE PNEUMATIC 8" x 2"Manufacturer no. 384700 1Quote Ask for a quote
2D INNER TUBE CASTER 8" x 2"Manufacturer no. 384730 1Quote Ask for a quote

Anti-Tip

6 parts

Exploded view from the manufacturer's parts manual (Quickie M6 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Anti-Tip
No.PartQtyPriceAction
1 1/4" SNAP BTTN SINGLEManufacturer no. 301100 1Quote Ask for a quote
2 ANTI-TIP SLEEVE W/ WHEELS 5H BLKManufacturer no. 881513 1Quote Ask for a quote
7 1/4-28 NYLOCK NUTManufacturer no. 106934 1Quote Ask for a quote
5 ANTI-TIP RECEIVER (PR) PAIRManufacturer no. 920407 1Quote Ask for a quote
6 1/4-28 x 2 G8 HEX C/SManufacturer no. 106973 1Quote Ask for a quote
4 SNAP BUTTON DUAL ONE SIDEManufacturer no. 301109 1Quote Ask for a quote

High Wheel Lock (Push-To-Lock)

12 parts

Exploded view from the manufacturer's parts manual (Quickie M6 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in High Wheel Lock (Push-To-Lock)
No.PartQtyPriceAction
3 .250 ID .312 OD BUSHING PLSTManufacturer no. 560126 1Quote Ask for a quote
4 1/4-28 x 1 BH C/SManufacturer no. 226110 1Quote Ask for a quote
5 1/4 WASHER HI COLLAR LOCK ZNManufacturer no. 262114 1Quote Ask for a quote
6 1/4-28 x 1 SOC C/S BLKManufacturer no. 107032 1Quote Ask for a quote
7 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
8 CLAMP 2 1/4" RECESS BLK M6Manufacturer no. 550568 1Quote Ask for a quote
9 WHEEL LOCK SLIDE BLOCK 5.5" longManufacturer no. 550447 1Quote Ask for a quote
10 CLAMP 2 1/4" THREADED BLKManufacturer no. 550576 1Quote Ask for a quote
11 1/4" NYLON WASHERManufacturer no. 561028 1Quote Ask for a quote
1-11 WHEEL LOCK PUSH R W/GROWING CLAMP BLK RIGHTManufacturer no. 881985 1Quote Ask for a quote
1-11 WHEEL LOCK PUSH L W/GROWING CLAMP BLK LEFTManufacturer no. 881986 1Quote Ask for a quote
1-11 WHL LOCK PUSH W/GRW CLAMP BLK (PR) PAIRManufacturer no. 901561 1Quote Ask for a quote

High Wheel Lock Extension Handle

5 parts

Exploded view from the manufacturer's parts manual (Quickie M6 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in High Wheel Lock Extension Handle
No.PartQtyPriceAction
1 1-1/2" x .705 x .187 FOAM GRIPManufacturer no. 560600 1Quote Ask for a quote
5 1 RIVET POP SD44BSLF BLKManufacturer no. 240104 1Quote Ask for a quote
6 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
1-6 WHL LOCK 6" EXT TUBE ASSM (EA)Manufacturer no. 161931 1Quote Ask for a quote
1-6 WHEEL LOCK 6" EXT TUBES (PR) PAIRManufacturer no. 920032 1Quote Ask for a quote

M6 Ss Spoke Obsolete

1 part

Exploded view from the manufacturer's parts manual (Quickie M6 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in M6 Ss Spoke Obsolete
No.PartQtyPriceAction
1 BEARING BALL 5/8" IDManufacturer no. 349538 1Quote Ask for a quote

Pneumatic & Pneu. Airless Tire M6

3 parts

Exploded view from the manufacturer's parts manual (Quickie M6 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Pneumatic & Pneu. Airless Tire M6
No.PartQtyPriceAction
1 24" x 2.125 PNEUMATIC TIRE 24"x2 1/8 (540mm)Manufacturer no. 384614 1Quote Ask for a quote
2 24" x 2.125 TUBEManufacturer no. 382375 1Quote Ask for a quote
3 AIRLESS INSERT 24 X 2-1/8Manufacturer no. 102972-003 1Quote Ask for a quote

Primo Orion Tire

1 part

Exploded view from the manufacturer's parts manual (Quickie M6 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Primo Orion Tire
No.PartQtyPriceAction
1 TIRE, POLY SOLID, ORION, 24" 24"(540mm)Manufacturer no. 254902 1Quote Ask for a quote

Plastic & Aluminum Anodized Screw Mount-M6

2 parts

Exploded view from the manufacturer's parts manual (Quickie M6 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Plastic & Aluminum Anodized Screw Mount-M6
No.PartQtyPriceAction
3 10-32 X 1 5/8 PAN PHIL SS SPOKEManufacturer no. 281170 1Quote Ask for a quote
4 HANDRIM SPACER (REG) SPOKEManufacturer no. 561036 1Quote Ask for a quote

Seat Cushion

0 parts

Exploded view from the manufacturer's parts manual (Quickie M6 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Seat Sling

24 parts

Exploded view from the manufacturer's parts manual (Quickie M6 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Seat Sling
No.PartQtyPriceAction
1 SEAT SLING VELCRO® STRIPManufacturer no. 901170 1Quote Ask for a quote
2 SEAT SLNG RFCD 22" X 18"Manufacturer no. 721215 1Quote Ask for a quote
2 SEAT SLNG RFCD 22" X 19"Manufacturer no. 721216 1Quote Ask for a quote
2 SEAT SLNG RFCD 22" X 20"Manufacturer no. 721217 1Quote Ask for a quote
2 SEAT SLNG RFCD 22" X 21"Manufacturer no. 721218 1Quote Ask for a quote
2 SEAT SLNG RFCD 22" X 22"Manufacturer no. 721219 1Quote Ask for a quote
2 SEAT SLNG RFCD 24" X 18"Manufacturer no. 721220 1Quote Ask for a quote
2 SEAT SLNG RFCD 24" X 19"Manufacturer no. 721221 1Quote Ask for a quote
2 SEAT SLNG RFCD 24" X 20"Manufacturer no. 721222 1Quote Ask for a quote
2 SEAT SLNG RFCD 24" X 21"Manufacturer no. 721223 1Quote Ask for a quote
2 SEAT SLNG RFCD 24" X 22"Manufacturer no. 721224 1Quote Ask for a quote
2 SEAT SLNG RFCD 26" X 18"Manufacturer no. 721225 1Quote Ask for a quote
2 SEAT SLNG RFCD 26" X 19"Manufacturer no. 721226 1Quote Ask for a quote
2 SEAT SLNG RFCD 26" X 20"Manufacturer no. 721227 1Quote Ask for a quote
2 SEAT SLNG RFCD 26" X 21"Manufacturer no. 721228 1Quote Ask for a quote
2 SEAT SLNG RFCD 26" X 22"Manufacturer no. 721229 1Quote Ask for a quote
2 SEAT SLNG RFCD 28" X 18"Manufacturer no. 721230 1Quote Ask for a quote
2 SEAT SLNG RFCD 28" X 19"Manufacturer no. 721231 1Quote Ask for a quote
2 SEAT SLNG RFCD 28" X 20"Manufacturer no. 721232 1Quote Ask for a quote
2 SEAT SLNG RFCD 28" X 21"Manufacturer no. 721233 1Quote Ask for a quote
2 SEAT SLNG RFCD 28" X 22"Manufacturer no. 721234 1Quote Ask for a quote
2 SEAT SLNG RFCD 30" X 18"Manufacturer no. 721235 1Quote Ask for a quote
2 SEAT SLNG RFCD 30" X 19"Manufacturer no. 721236 1Quote Ask for a quote
2 SEAT SLNG RFCD 30" X 20"Manufacturer no. 721237 1Quote Ask for a quote

7/8" Push Handle Backrest, Stabilizer Bar & Uph

22 parts

Exploded view from the manufacturer's parts manual (Quickie M6 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 7/8" Push Handle Backrest, Stabilizer Bar & Uph
No.PartQtyPriceAction
1 10-32 x 5/8 BH C/S BLKManufacturer no. 226020 1Quote Ask for a quote
2 STABILIZER BAR LOCKING PIN Q2Manufacturer no. 483534 1Quote Ask for a quote
3 1/4" SNAP BUTTON SINGLEManufacturer no. 301100 1Quote Ask for a quote
4 1/4-28 x 1 BH C/SManufacturer no. 226110 1Quote Ask for a quote
5 STABILIZER LATCH RELEASE BRManufacturer no. 560143 1Quote Ask for a quote
7 10-32 x 7/8" HEX SEX BOLT QTNTManufacturer no. 221213 1Quote Ask for a quote
8 10/32 x 5/8 PAN HD PHILManufacturer no. 281120 1Quote Ask for a quote
9 10-32 x .020-.130 RIVNUT GOLD Rivnut tool required for installation of this partManufacturer no. 341497 1Quote Ask for a quote
11 BACK UPH 22" TALL HEAVY DUTYManufacturer no. 680384 1Quote Ask for a quote
11 BACK UPH 24" TALL HEAVY DUTYManufacturer no. 680385 1Quote Ask for a quote
11 BACK UPH 26" TALL HEAVY DUTYManufacturer no. 680386 1Quote Ask for a quote
11 BACK UPH 28" TALL HEAVY DUTYManufacturer no. 680387 1Quote Ask for a quote
11 BACK UPH 30" TALL HEAVY DUTYManufacturer no. 680388 1Quote Ask for a quote
12 STABILIZER BAR PIVOT PIN Q2Manufacturer no. 483533 1Quote Ask for a quote
13 ZIP TIE BLKManufacturer no. 560410 1Quote Ask for a quote
14 2 HOLE TOGGLE BENT PLASTICManufacturer no. 560227 1Quote Ask for a quote
15 1/4-28 NYLOCK NUTManufacturer no. 106934 1Quote Ask for a quote
16 1/4-28 x 1 1/2 G8 HEX C/SManufacturer no. 106972 1Quote Ask for a quote
4-6 STABILIZER CROSS BAR 22"Manufacturer no. 820704 1Quote Ask for a quote
4-6 STABILIZER CROSS BAR 24"Manufacturer no. 820705 1Quote Ask for a quote
4-6 STABILIZER CROSS BAR 26"Manufacturer no. 820706 1Quote Ask for a quote
4-6 STABILIZER CROSS BAR 28"Manufacturer no. 820707 1Quote Ask for a quote

60 Swing Away Hanger

15 parts

Exploded view from the manufacturer's parts manual (Quickie M6 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 60 Swing Away Hanger
No.PartQtyPriceAction
60 AWAY HANGERManufacturer no. SWING 1Quote Ask for a quote
1 5/16-18 x 2 BH C/S SHT THREADManufacturer no. 106983 1Quote Ask for a quote
3 1" TUBE END BUSHING THICKManufacturer no. 561018 1Quote Ask for a quote
4 1" INSERT PLUG .065 RIBSManufacturer no. 561062 1Quote Ask for a quote
5 PLASTIC PIVOT SADDLEManufacturer no. 561197 1Quote Ask for a quote
6 10-24 X 0.692 SOCKET BHCSManufacturer no. 107035 1Quote Ask for a quote
7 S/A LATCH LEVERManufacturer no. 561079 1Quote Ask for a quote
8 S/A SPRING L RED LEFTManufacturer no. 321136 1Quote Ask for a quote
8 S/A SPRING R CLEAR RIGHTManufacturer no. 321137 1Quote Ask for a quote
9 LATCH BLOCK ASSM R RIGHTManufacturer no. 881500 1Quote Ask for a quote
9 LATCH BLOCK ASSM L LEFTManufacturer no. 881501 1Quote Ask for a quote
6-9 S/A LATCH KIT R RIGHTManufacturer no. 881521 1Quote Ask for a quote
6-9 S/A LATCH KIT L LEFTManufacturer no. 881522 1Quote Ask for a quote
1-9 HANGER 60D R PNTD S/A RIGHT (SPECIFY COLOR)Manufacturer no. 641150S 1Quote Ask for a quote
1-9 HANGER 60D L PNTD S/A LEFT (SPECIFY COLOR)Manufacturer no. 641170S 1Quote Ask for a quote

Round Extension Tube

13 parts

Exploded view from the manufacturer's parts manual (Quickie M6 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Round Extension Tube
No.PartQtyPriceAction
1 FOOTREST EXT TUBE ONLY SHT BLKManufacturer no. 521010 1Quote Ask for a quote
1 FOOTREST EXT TUBE ONLY MED BLKManufacturer no. 521011 1Quote Ask for a quote
1 FOOTREST EXT TUBE ONLY LNG BLKManufacturer no. 521012 1Quote Ask for a quote
1 FOOTREST EXT TUBE ONLY X-LNG BLKManufacturer no. 521013 1Quote Ask for a quote
2 WAVE WASHER 6 MMManufacturer no. 104414 1Quote Ask for a quote
3 HHCS 1/4-20 X 1 ROHSManufacturer no. 106958 1Quote Ask for a quote
4 3/4" INSERT PLUG .083Manufacturer no. 561000-QU 1Quote Ask for a quote
5 FOOTREST INSERT PLUG Q2Manufacturer no. 483553 1Quote Ask for a quote
6 NUT NYLOCK 1/4-20 ROHSManufacturer no. 106932 1Quote Ask for a quote
1-6 FOOTREST EXT TUBE SHT ASSM BLK (EA)Manufacturer no. 921221 1Quote Ask for a quote
1-6 FOOTREST EXT TUBE MED ASSM BLK (EA)Manufacturer no. 921222 1Quote Ask for a quote
1-6 FOOTREST EXT TUBE LNG ASSM BLK (EA)Manufacturer no. 921223 1Quote Ask for a quote
1-6 FOOTREST EXT TUBE X-LNG ASSM BLK (EA)Manufacturer no. 921224 1Quote Ask for a quote

Composite Footplate

20 parts

Exploded view from the manufacturer's parts manual (Quickie M6 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Composite Footplate
No.PartQtyPriceAction
1 1/4 - 28 NYLOCK NUTManufacturer no. 106935 1Quote Ask for a quote
2 1/4 - 28 x 2 1/2 SOC C/SManufacturer no. 226165 1Quote Ask for a quote
3 COMPOSITE FOOTPLATE 14 -15 (16 -18 V ) 14 -15 OR 16 -18VManufacturer no. 561200 1Quote Ask for a quote
3 COMPOSITE FOOTPLATE 16 -17 (19 -20 V ) 16 -17 OR 19 -20VManufacturer no. 561210 1Quote Ask for a quote
3 COMPOSITE FOOTPLATE 18 -20 18 -20Manufacturer no. 561220 1Quote Ask for a quote
4A HEEL LOOP 14-15 COMPOSITE (14 -15 or 16 -18V) 14 -15 OR 16 -18VManufacturer no. 741151 1Quote Ask for a quote
4A HEEL LOOP 16 -17 or 19 -20V 16 -17 OR 19 -20VManufacturer no. 741156 1Quote Ask for a quote
4A HEEL LOOP 18 -20 COMPOSITE/14-15 ANG ADJ 18 -20Manufacturer no. 741153 1Quote Ask for a quote
4A HEEL LOOP COMPOSITE FT 14-15 PAIR 14 -15 OR 16 -18VManufacturer no. 902270 1Quote Ask for a quote
4A HEEL LOOP COMPOSITE FT 16-17 PAIR 16 -17 OR 19 -20VManufacturer no. 902271 1Quote Ask for a quote
4A HEEL LOOP COMPOSITE FT 18-20 PAIR 18 -20Manufacturer no. 902272 1Quote Ask for a quote
4B HEEL LOOP 14-15 COMPOSITE HEMI 14 -15 HEMIManufacturer no. 741154 1Quote Ask for a quote
4B HEEL LOOP 16-17 COMPOSITE HEMI 16 -17 HEMIManufacturer no. 741155 1Quote Ask for a quote
4B HEEL LOOP 18-20 COMPOSITE HEMI 18 -10 HEMIManufacturer no. 741153 1Quote Ask for a quote
4B HEEL LOOPS HEMI COMPOSITE 14-15 PAIR 14 -15 HEMIManufacturer no. 902260 1Quote Ask for a quote
4B HEEL LOOPS HEMI COMPOSITE 16-17 PAIR 16 -17 HEMIManufacturer no. 902261 1Quote Ask for a quote
4B HEEL LOOPS HEMI COMPOSITE 18-20 PAIR 18 -20 HEMIManufacturer no. 902262 1Quote Ask for a quote
5 HEEL LOOP PEGManufacturer no. 561040 1Quote Ask for a quote
6 1/4 AN WASHER FLAT THINManufacturer no. 106944 1Quote Ask for a quote
7 HHCS 1/4-20 X 1 ROHSManufacturer no. 106958 1Quote Ask for a quote

Adult Angle-Adjustable Footplate Ext Mount

3 parts

Exploded view from the manufacturer's parts manual (Quickie M6 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Adult Angle-Adjustable Footplate Ext Mount
No.PartQtyPriceAction
1 1/4-28 x 7/8 FH C/SManufacturer no. 106978 1Quote Ask for a quote
2 1/4-28 AUTOMATION NUTManufacturer no. 106941 1Quote Ask for a quote
3 WASHER FLAT THIN AN 1/4Manufacturer no. 106944 1Quote Ask for a quote

70 Deg Lift-Off Hanger

12 parts

Exploded view from the manufacturer's parts manual (Quickie M6 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 70 Deg Lift-Off Hanger
No.PartQtyPriceAction
1 BHCS 5/16 -18 x 2 SHLDR ROHSManufacturer no. 106983 1Quote Ask for a quote
3 T45 HANGER BRACKET 70ø R length of bracket: 6 3/4"Manufacturer no. 550152 1Quote Ask for a quote
4 NUT NYLOCK THIN 1/4 -28 ROHSManufacturer no. 106935 1Quote Ask for a quote
5 1" INSERT PLUG .083Manufacturer no. 561002 1Quote Ask for a quote
6 PLASTIC PIVOT SADDLEManufacturer no. 561197 1Quote Ask for a quote
7 FOOTREST BLOCK T45Manufacturer no. 880053 1Quote Ask for a quote
8 5/16-18 NYLOCK NUT THICK BLKManufacturer no. 202117 1Quote Ask for a quote
9 .650 x 6 COIL SPRINGManufacturer no. 321141 1Quote Ask for a quote
10 T45 FOOTREST BLOCK RECESSEDManufacturer no. 560684 1Quote Ask for a quote
11 BHCS 5/16 -18 x 1 5/8 SHLD ROHSManufacturer no. 107029 1Quote Ask for a quote
12 HHCS 1/4 -28 x 3/4 ROHSManufacturer no. 107014 1Quote Ask for a quote
13 HHCS 1/4 -28 x 1 3/8 ROHSManufacturer no. 106971 1Quote Ask for a quote

80 Deg Lift-Off Hanger

12 parts

Exploded view from the manufacturer's parts manual (Quickie M6 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 80 Deg Lift-Off Hanger
No.PartQtyPriceAction
1 BHCS 5/16 -18 x 2 SHLDR ROHSManufacturer no. 106983 1Quote Ask for a quote
3 T45 HANGER BRACKET 80ø R length of bracket: 6"Manufacturer no. 550154 1Quote Ask for a quote
4 NUT NYLOCK THIN 1/4 -28 ROHSManufacturer no. 106935 1Quote Ask for a quote
5 1" INSERT PLUG .083Manufacturer no. 561002 1Quote Ask for a quote
6 PLASTIC PIVOT SADDLEManufacturer no. 561197 1Quote Ask for a quote
7 FOOTREST BLOCK T45Manufacturer no. 880053 1Quote Ask for a quote
8 5/16-18 NYLOCK NUT THICK BLKManufacturer no. 202117 1Quote Ask for a quote
9 .650L x 6 COIL SPRINGManufacturer no. 321141 1Quote Ask for a quote
10 T45 FOOTREST BLOCK RECESSEDManufacturer no. 560684 1Quote Ask for a quote
11 BHCS 5/16 -18 x 1 5/8 SHLD ROHSManufacturer no. 107029 1Quote Ask for a quote
12 HHCS 1/4 -28 x 3/4 ROHSManufacturer no. 107014 1Quote Ask for a quote
13 HHCS 1/4 -28 x 1 3/8 ROHSManufacturer no. 106971 1Quote Ask for a quote

Adult Angle-Adj Footplate Front Mount

23 parts

Exploded view from the manufacturer's parts manual (Quickie M6 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Adult Angle-Adj Footplate Front Mount
No.PartQtyPriceAction
1 FHCS 1/4-28 X 7/8 ROHSManufacturer no. 106978 1Quote Ask for a quote
2 NUT AUTOMATION 1/4-28 ROHSManufacturer no. 106941 1Quote Ask for a quote
3 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
4 1" SADDLE 1/4" HOLEManufacturer no. 561004 1Quote Ask for a quote
5 FOOTREST MOUNTING BRKT 1/2" RAD R RIGHTManufacturer no. 541000 1Quote Ask for a quote
5 FOOTREST MOUNTING BRKT 1/2" RAD L LEFTManufacturer no. 541001 1Quote Ask for a quote
6 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106945 1Quote Ask for a quote
7 BHCS 1/4-28 X 2Manufacturer no. 106964 1Quote Ask for a quote
8 3/4" CLAMP ADJ FOOTPLATEManufacturer no. 550350 1Quote Ask for a quote
9 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
10 HEEL LOOP PEGManufacturer no. 561040 1Quote Ask for a quote
11 HEEL LOOP 18-20 CMPST/14-15 ANG ADJ USED W/ 14-15"/16-17" ADULT ANG ADJ FTPLTSManufacturer no. 741153 1Quote Ask for a quote
11 HEEL LOOP ADLT ADJ F/PLT 18-20 USED W/ 18 -20" ADULT ANG ADJ FTPLTSManufacturer no. 741253 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 10/11 RIGHTManufacturer no. 500656 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 10/11 LEFTManufacturer no. 500657 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 12/13 RIGHTManufacturer no. 500658 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 12/13 LEFTManufacturer no. 500659 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 14/15 RIGHTManufacturer no. 500660 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 14/15 LEFTManufacturer no. 500661 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 16/17 RIGHTManufacturer no. 500662 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 16/17 LEFTManufacturer no. 500663 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 18-20 RIGHTManufacturer no. 500664 1Quote Ask for a quote
12 ADULT ANGL ADJ F/PLT 18-20 LEFTManufacturer no. 500665 1Quote Ask for a quote

Elevating Legrest

19 parts

Exploded view from the manufacturer's parts manual (Quickie M6 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Elevating Legrest
No.PartQtyPriceAction
1 ELR PIVOT BLOCK M6Manufacturer no. 550712 1Quote Ask for a quote
2 1/4-28 x 1 1/2 BH C/SManufacturer no. 226130 1Quote Ask for a quote
3 5/16-24 x 1 1/2 BH C/SManufacturer no. 226138 1Quote Ask for a quote
4 ELR PIVOT PRSManufacturer no. 540252 1Quote Ask for a quote
5 5/16-24 NYLOCK NUT THINManufacturer no. 106939 1Quote Ask for a quote
6 5/16-24 x 1 1/2 BH C/SManufacturer no. 226138 1Quote Ask for a quote
7 ELR UPPER PIVOT PLSTManufacturer no. 560420 1Quote Ask for a quote
8 5/16-24 NYLOCK NUT THINManufacturer no. 106939 1Quote Ask for a quote
9 ELR ADJUSTMENT TUBEManufacturer no. 550722S 1Quote Ask for a quote
10 ELR ADJUSTABLE STOP, STEELManufacturer no. 560787 1Quote Ask for a quote
11 ELR LOCK RODManufacturer no. 481117 1Quote Ask for a quote
12 ELR CAM LOCKING POWDERED METALManufacturer no. 481119 1Quote Ask for a quote
13 1/4-20 x 1 FH C/S BLKManufacturer no. 226121 1Quote Ask for a quote
14 ELR PLUG .125Manufacturer no. 483126 1Quote Ask for a quote
15 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
16 5/16-24 NYLOCK NUT THINManufacturer no. 106939 1Quote Ask for a quote
17 10/24 x .725 BTTN HD SOC BZManufacturer no. 226057 1Quote Ask for a quote
18 ELR HANGER BRKT R STL RIGHTManufacturer no. 505376 1Quote Ask for a quote
18 ELR HANGER BRKT L STL LEFTManufacturer no. 505377 1Quote Ask for a quote

Elr Calf Pad

0 parts

Exploded view from the manufacturer's parts manual (Quickie M6 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Aluminum Footplate & Ext - M6

10 parts

Exploded view from the manufacturer's parts manual (Quickie M6 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Aluminum Footplate & Ext - M6
No.PartQtyPriceAction
1 1/4-28 x 5/8 BH C/SManufacturer no. 106959 1Quote Ask for a quote
2 FOOTPLATE MNT BRKTManufacturer no. 550739 1Quote Ask for a quote
3 1/4-28 x 1.85 BH C/SManufacturer no. 226147 1Quote Ask for a quote
4 #4 x 5/8 PH PHIL S/TAPManufacturer no. 281043 1Quote Ask for a quote
5 END CAPS FOOTRESTManufacturer no. 560101 1Quote Ask for a quote
7A S/A HANGER EXT D2 SHORT BLKManufacturer no. 550764 1Quote Ask for a quote
7B S/A HANGER EXT D2 LONG BLKManufacturer no. 550766 1Quote Ask for a quote
8 NUT NYLOCK THIN 1/4-28 ROHSManufacturer no. 106935 1Quote Ask for a quote
9 3/4" SADDLE THINManufacturer no. 561003 1Quote Ask for a quote
4-6 ELR FOOTPLATE 22 -30"Manufacturer no. 883157 1Quote Ask for a quote

Dual Post Height Adjustable Flip-Back Armrest

13 parts

Exploded view from the manufacturer's parts manual (Quickie M6 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Dual Post Height Adjustable Flip-Back Armrest
No.PartQtyPriceAction
1A ARMREST PAD 10" LEFT W/F Left,Desk,WaterfallManufacturer no. 561280 1Quote Ask for a quote
1A ARMREST PAD 10" RIGHT W/F Right,Desk,WaterfallManufacturer no. 561281 1Quote Ask for a quote
1B ARMREST PAD 14" LEFT W/F Left,Full,WaterfallManufacturer no. 561284 1Quote Ask for a quote
1B ARMREST PAD 14" RIGHT W/F Right,Full,WaterfallManufacturer no. 561285 1Quote Ask for a quote
1C ARMREST PAD 10" DESK Desk PadManufacturer no. 561024 1Quote Ask for a quote
1D ARMREST PAD 14" FULL Full PadManufacturer no. 561031 1Quote Ask for a quote
2A DUAL PST ADJ UPPR ARM DESK PW DeskManufacturer no. 521841 1Quote Ask for a quote
2B DUAL PST ADJ UPPR ARM FULL PW FullManufacturer no. 521843 1Quote Ask for a quote
3 7/8" ROUND TUBE PLUGManufacturer no. 560735 1Quote Ask for a quote
4 10-32 x 1 3/8 BH C/S BLKManufacturer no. 226038 1Quote Ask for a quote
5A ARM ASSM LOWER HT ADJ REG R Right, RegularManufacturer no. 881556 1Quote Ask for a quote
5A ARM ASSM LOWER HT ADJ REG L Left, RegularManufacturer no. 881557 1Quote Ask for a quote
5B DUAL POST ADJ LOWER ARM LONG R Right, LongManufacturer no. 881558 1Quote Ask for a quote

Dual Post Height Adj Armrest Receiver

6 parts

Exploded view from the manufacturer's parts manual (Quickie M6 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Dual Post Height Adj Armrest Receiver
No.PartQtyPriceAction
1 1/4-20 x 1 BH C/S BLK ZNManufacturer no. 226123 1Quote Ask for a quote
3 1/4-28 x 1 3/4 BH C/SManufacturer no. 226140 1Quote Ask for a quote
4 RECEIVER ARMRST SEAT SADDLEManufacturer no. 550047 1Quote Ask for a quote
5 1" SADDLE 1/4" HOLEManufacturer no. 561004 1Quote Ask for a quote
6 1/4-28 NYLOCK NUTManufacturer no. 106934 1Quote Ask for a quote
3-6 DUAL POST REC REAR STDManufacturer no. 881258 1Quote Ask for a quote

Quickie Side Pocket

1 part

Exploded view from the manufacturer's parts manual (Quickie M6 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Quickie Side Pocket
No.PartQtyPriceAction
1 QUICKIE SIDE POCKET Size: 6.5"x 6.5"x 2"Manufacturer no. 013475 1Quote Ask for a quote

Hardware.

14 parts

Exploded view from the manufacturer's parts manual (Quickie M6 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Hardware.
No.PartQtyPriceAction
1 SHCS M6 X 1 X 25 W/PL INORG MetricManufacturer no. 102263-003 1Quote Ask for a quote
2 WASHER FLAT M6 MetricManufacturer no. 250104 1Quote Ask for a quote
3 BHCS M6 X 1 X 12 FULL PL MetricManufacturer no. 103185-005 1Quote Ask for a quote
4 WASHER FLAT AN 1/4 ROHS Imperial (standard)Manufacturer no. 106943 1Quote Ask for a quote
5 1/4-20 X 1/2 BH C/S W/PATCH Imperial (standard)Manufacturer no. 226154 1Quote Ask for a quote
6 1/4-20 X 1 SOC HD BLK Imperial (standard)Manufacturer no. 221116 1Quote Ask for a quote
7 BHCS M6 X 1 X 12Manufacturer no. 230113 1Quote Ask for a quote
8 LOCKWASHER HIGH COLLAR M6Manufacturer no. 050129-001 1Quote Ask for a quote
9 NUT HEX NYLOCK M6 X 1.0Manufacturer no. 104381 1Quote Ask for a quote
10 WASHER FLAT M6Manufacturer no. 107383 1Quote Ask for a quote
11 HHCS M6 X 1 X 35 BLKManufacturer no. 102268-002 1Quote Ask for a quote
12 PSTN BELT CLAMP ASSM PR Metric; PairManufacturer no. 120750 1Quote Ask for a quote
13 POSITION BELT ATTACHMENT KIT Set of 2; Imperial (standard)Manufacturer no. 900116 1Quote Ask for a quote
14 OVAL CLAMP ASSM KIT Kit contains 1 ClampManufacturer no. 116268 1Quote Ask for a quote

Auto Buckle Positioning Belt & Attachment Kits

15 parts

Exploded view from the manufacturer's parts manual (Quickie M6 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Auto Buckle Positioning Belt & Attachment Kits
No.PartQtyPriceAction
1 SHCS M6 X 1 X 25 W/PL INORG MetricManufacturer no. 102263-003 1Quote Ask for a quote
2 WASHER FLAT M6 MetricManufacturer no. 250104 1Quote Ask for a quote
3 BHCS M6 X 1 X 12 FULL PL MetricManufacturer no. 103185-005 1Quote Ask for a quote
4 WASHER FLAT AN 1/4 ROHS Imperial (standard)Manufacturer no. 106943 1Quote Ask for a quote
5 1/4-20 X 1/2 BH C/S W/PATCH Imperial (standard)Manufacturer no. 226154 1Quote Ask for a quote
6 1/4-20 X 1 SOC HD BLK Imperial (standard)Manufacturer no. 221116 1Quote Ask for a quote
7 BHCS M6 X 1 X 12Manufacturer no. 230113 1Quote Ask for a quote
8 LOCKWASHER HIGH COLLAR M6Manufacturer no. 050129-001 1Quote Ask for a quote
9 NUT HEX NYLOCK M6 X 1.0Manufacturer no. 104381 1Quote Ask for a quote
10 WASHER FLAT M6Manufacturer no. 107383 1Quote Ask for a quote
11 HHCS M6 X 1 X 35 BLKManufacturer no. 102268-002 1Quote Ask for a quote
12 PSTN BELT CLAMP ASSM PR Metric; PairManufacturer no. 120750 1Quote Ask for a quote
13 POSITION BELT ATTACHMENT KIT Set of 2; Imperial (standard)Manufacturer no. 900116 1Quote Ask for a quote
14 OVAL CLAMP ASSM KIT Kit contains 1 ClampManufacturer no. 116268 1Quote Ask for a quote
15 POSITIONING BELT CLAMPS PRManufacturer no. 159122 1Quote Ask for a quote

Oxygen Holder

10 parts

Exploded view from the manufacturer's parts manual (Quickie M6 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Oxygen Holder
No.PartQtyPriceAction
3 A1 LOW LOCK CLAMP BLK ANManufacturer no. 550210 1Quote Ask for a quote
4 A1 1/4-28 X 2 3/4 G8 HEXManufacturer no. 221193 1Quote Ask for a quote
5 A1 1/4-28 NYLOCK NUTManufacturer no. 106934 1Quote Ask for a quote
6 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
7 A1 SUSPENSION SPACER 1/2Manufacturer no. 330031 1Quote Ask for a quote
8 A1 1/4-28 X 1 BH C/SManufacturer no. 226110 1Quote Ask for a quote
9 A1 KNOB S/A ADJ STROLLERManufacturer no. 349018 1Quote Ask for a quote
10 A1 1/4-20 X 1 1/2 BH C/SManufacturer no. 226136 1Quote Ask for a quote
11 A1 1/4-20 NUT THINManufacturer no. 201121 1Quote Ask for a quote
1-11 O2 HOLDER ASSM M6Manufacturer no. 112262 1Quote Ask for a quote

Tire Pump

2 parts

Exploded view from the manufacturer's parts manual (Quickie M6 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Tire Pump
No.PartQtyPriceAction
1 TIRE PUMPManufacturer no. 389050 1Quote Ask for a quote
2 VALVE ADAPTER PRESTAManufacturer no. 381230 1Quote Ask for a quote

Tool Kit

2 parts

Exploded view from the manufacturer's parts manual (Quickie M6 Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Tool Kit
No.PartQtyPriceAction
1 QUICKIE COMBO TOOL KIT Includes pouchManufacturer no. 108314 1Quote Ask for a quote
2 6MM ALLEN WRENCH L, 7MM SHORT caster spline chairs onlyManufacturer no. 113403 1Quote Ask for a quote

Parts manuals for this model

The manufacturer parts lists and exploded diagrams we hold. If you can find the number on one of these, quote it to us and we will match it.

Quickie M6 Parts Manual

Manufacturer parts document, PDF.

Not sure which part you need?

Send us a photo of the part, or of where it sits, and tell us what it is doing. Our order desk identifies parts for this equipment every day, and we would rather ask you one question than ship you the wrong bolt.

Or call 905 451-7743 and describe it to us.

Where to go next

The product page

Specifications, documents and the full product page for the Quickie m6 Heavy Duty Folding Wheelchair.

All replacement parts

Search every part we stock, or browse by the equipment it fits.

Have us fit it

Our technicians service what we sell, in the home and in the showroom.
