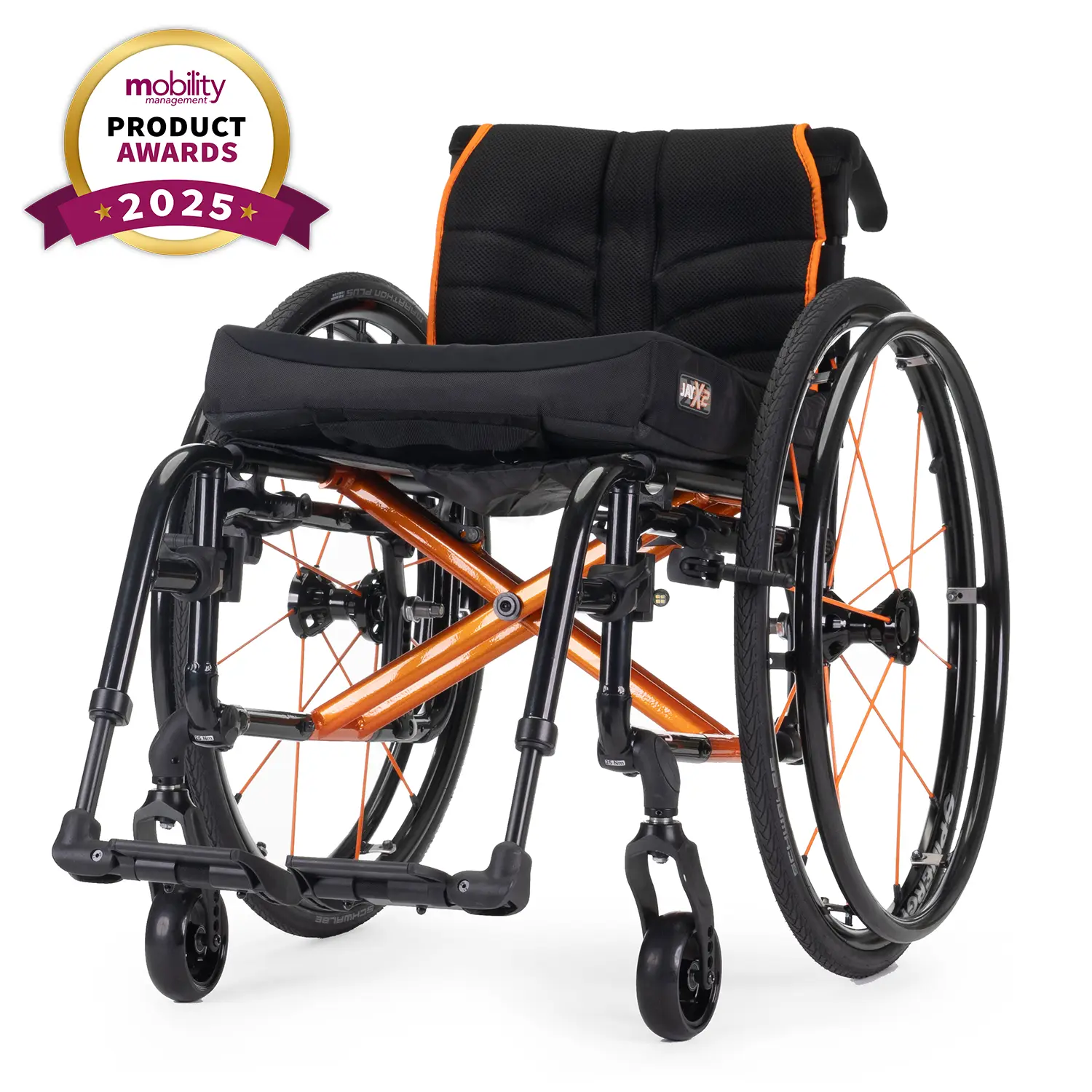

Quickie qs5 X Folding Ultralight Wheelchair

Parts finder

Replacement parts for the Quickie qs5 X Folding Ultralight Wheelchair

The exploded view below is numbered. Click a number on the drawing to jump to that part, or search the list. Every price shown is the current online price; anything quoted is priced by our order desk.

Ask about a part Product page 640 parts listed

Showing all 640 parts

1 of 86

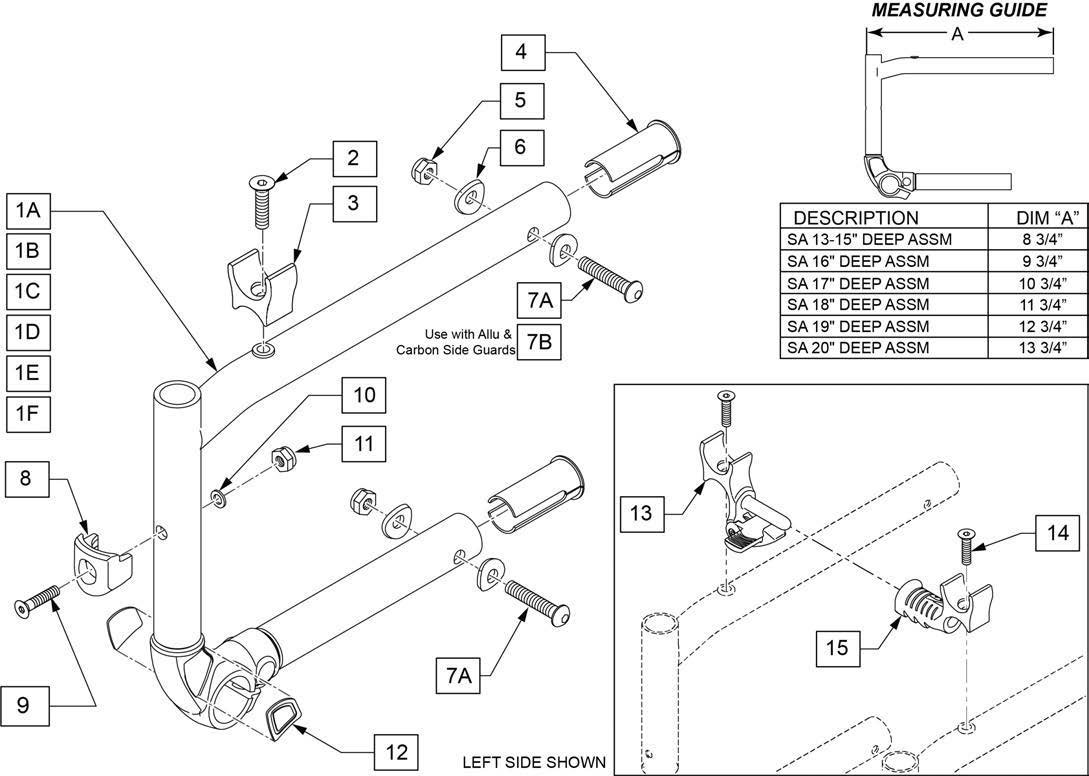

Exploded view of the Front Side Frame

Loading the drawing

Front Side Frame. Numbers match the list.
Fixed Front Side Frame. Numbers match the list.
Rear Side Frame. Numbers match the list.
Cross Frame. Numbers match the list.
Transit Kit. Numbers match the list.
Axle Plate. Numbers match the list.
Quick Release Axles. Numbers match the list.
FOLD DOWN PUSH WHEEL LOCK (Knee Lock). Numbers match the list.
PUSH TO LOCK WHEEL LOCK (Metric Forged). Numbers match the list.
PULL TO LOCK WHEEL LOCK (Metric Forged). Numbers match the list.
ERGO SCISSOR WHEEL LOCK (Metric Forged). Numbers match the list.
COMPACT WHEEL LOCK (Metric Forged). Numbers match the list.
Qs5 X Fork Assembly. Numbers match the list.
Qs5 X Single Side Fork Assembly. Numbers match the list.
Qs5 X Frog Leg Suspension Fork. Numbers match the list.
Aluminum Soft Roll Casters. Numbers match the list.
Anti-Tip. Numbers match the list.
Swing-Away Anti-Tip. Numbers match the list.
5 Spoke Mag. Numbers match the list.
Spinergy Spox (18 Spoke). Numbers match the list.
Spinergy Lx (12 Spoke). Numbers match the list.
Proton (24 Spoke). Numbers match the list.
Pneumatic & Pneu. Airless Tire. Numbers match the list.
Full Poly Tire. Numbers match the list.
Shox Tire. Numbers match the list.
Primo Orion Tire. Numbers match the list.
Black High Pressure Clincher. Numbers match the list.
Schwalbe Marathon Plus Tire. Numbers match the list.
Aluminum Anodized (Screw Mount). Numbers match the list.
Aluminum Anodized (Tab Mount). Numbers match the list.
Plastic Coated (Screw Mount). Numbers match the list.
Plastic Coated (Reg Tab Mount). Numbers match the list.
Natural Fit 5 Spoke Mag (Screw Mount). Numbers match the list.
Natural Fit (Screw Mount). Numbers match the list.
Natural Fit (Tab Mount). Numbers match the list.
Q-Grip (Screw Mount). Numbers match the list.
Q-Grip (Tab Mount). Numbers match the list.
Curve L Tetra (Tab Mount). Numbers match the list.
Ellipse 3R (Screw Mount). Numbers match the list.
Ellipse 3R (Tab Mount). Numbers match the list.
Ellipse 3R 5 Spoke Mag (Screw Mount). Numbers match the list.
Carbo Life Gekko (Screw Mount). Numbers match the list.
Carbo Life Gekko (Tab Mount). Numbers match the list.
Tubes, Airless Inserts And Etpu Insert. Numbers match the list.
Seat Sling. Numbers match the list.
Backrest Push Handles. Numbers match the list.
Half Fold Back. Numbers match the list.
Angle Adjustable Backrest. Numbers match the list.
Exo Tension Adj Upholstery. Numbers match the list.
Exo Pro Tension Adj Upholstery. Numbers match the list.
Tension Adjustable Ballistic Nylon Upholstery. Numbers match the list.
Telescoping Push Handles. Numbers match the list.
Telescoping Push Handles For Jay Back. Numbers match the list.
60, 70 & 80 Deg Swing In/Out Ext Mount Hangers. Numbers match the list.
Swing In-Out Ext Mount Elr & Alr Retrofit. Numbers match the list.
Swing In-Out Ext Mount Elr Replacement Parts. Numbers match the list.
Swing In-Out Alr Ext Mnt Replacement Parts. Numbers match the list.
Elr & Alr Calf Pads. Numbers match the list.
Composite Footplate. Numbers match the list.
Composite Angle Adjustable Foot Plate. Numbers match the list.
Multi Angle Adj Footplate. Numbers match the list.
Adult Aluminum Angle-Adj Footplate. Numbers match the list.
Elr/Alr Aluminum Footplate (Clamp). Numbers match the list.
Folding Platform Footplate. Numbers match the list.
Platform Ultra Lite Footplate. Numbers match the list.
Platform Carbon Fiber Footplate. Numbers match the list.
Auto-Fold Platform Carbon Footplate. Numbers match the list.
Padded Swing-Away Armrest. Numbers match the list.
Single Post Height Adj Armrest & Receiver. Numbers match the list.
Flip Back Height Adj Lite Armrest. Numbers match the list.
Plastic Side Guards. Numbers match the list.
Alu Side Guards Fixed. Numbers match the list.
Carbon Fiber Side Guards Slim & Large. Numbers match the list.
Backpacks And Seat Pouches. Numbers match the list.
Pelvic Positioning Belts. Numbers match the list.
Crutch Holder With Velcro Strap. Numbers match the list.
Tip Assist. Numbers match the list.
Travel Wheel. Numbers match the list.
Led Lights. Numbers match the list.
Impact Guard Neoprene & Gel Velcro Pads. Numbers match the list.
Adjustable Leg Strap. Numbers match the list.
SPOKE GUARDS QUICKIE (Black & Clear). Numbers match the list.
Water Bottle And Cage. Numbers match the list.
Quickie Caddy. Numbers match the list.
Mobile Phone Pocket. Numbers match the list.
Tool Kit. Numbers match the list.

Front Side Frame

5 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Front Side Frame
No.PartQtyPriceAction
4 FRAME BUSHING KITManufacturer no. 170134 1Quote Ask for a quote
7B BHCS,M6X1X40,FULL,NPManufacturer no. 102262-006 1Quote Ask for a quote
8-11 LATCH RECEIVER KITManufacturer no. 119514S 1Quote Ask for a quote
12 TOUCH POINT REPLACEMENT KIT 1 inside piece & 1 outside pieceManufacturer no. 170133 1Quote Ask for a quote
13-15 FRAME FOLD LOCK KIT STDManufacturer no. 170204 1Quote Ask for a quote

Fixed Front Side Frame

19 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Fixed Front Side Frame
No.PartQtyPriceAction
1A-7 FF FRM FX 75 ASSM13-15D QS5XManufacturer no. 169749S 1Quote Ask for a quote
1B-7 FF FRM FX 75 ASSM 16 D QS5XManufacturer no. 169750S 1Quote Ask for a quote
1C-7 FF FRM FX 75 ASSM 17 D QS5XManufacturer no. 169751S 1Quote Ask for a quote
1D-67 FF FRM FX 75 ASSM 18 D QS5XManufacturer no. 169752S 1Quote Ask for a quote
1E-7 FF FRM FX 75 ASSM 19 D QS5XManufacturer no. 169753S 1Quote Ask for a quote
1F-7 FF FRM FX 75 ASSM 20 D QS5XManufacturer no. 169754S 1Quote Ask for a quote
1G-7 FF FRM 85 FX ASSM13-15D QS5XManufacturer no. 169755S 1Quote Ask for a quote
1H-7 FF FRM 85 FX ASSM 16 D QS5XManufacturer no. 169756S 1Quote Ask for a quote
1I-7 FF FRM 85 FX ASSM 17 D QS5XManufacturer no. 169757S 1Quote Ask for a quote
1J-7 FF FRM 85 FX ASSM 18 D QS5XManufacturer no. 169758S 1Quote Ask for a quote
1K-7 FF FRM 85 FX ASSM 19 D QS5XManufacturer no. 169759S 1Quote Ask for a quote
1L-7 FF FRM FX 75 ASSM 20 D QS5XManufacturer no. 169760S 1Quote Ask for a quote
1M-7 FF FRM FX 13-15IN 85DEG 1I L Left 1" INSETManufacturer no. 169761S 1Quote Ask for a quote
1M-7 FF FRM FX 13-15IN 85DEG 1I R Right 1" INSETManufacturer no. 169762S 1Quote Ask for a quote
1N-7 FF FRM FX 16IN 85DEG 1I L Left 1" INSETManufacturer no. 169763S 1Quote Ask for a quote
1N-7 FF FRM FX 16IN 85DEG 1I R Right 1" INSETManufacturer no. 169764S 1Quote Ask for a quote
1O-7 FF FRM FX 17IN 85DEG 1I L Left 1" INSETManufacturer no. 169765S 1Quote Ask for a quote
1O-7 FF FRM FX 17IN 85DEG 1I R Right 1" INSETManufacturer no. 169766S 1Quote Ask for a quote
1P-7 FF FRM FX 18IN 85DEG 1I L Left 1" INSETManufacturer no. 169767S 1Quote Ask for a quote

Rear Side Frame

3 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Rear Side Frame
No.PartQtyPriceAction
5 REAR FRAME PROTECTION KIT Includes left & rightManufacturer no. 170135 1Quote Ask for a quote
1A-8 REAR SIDE FRAME ASSM STD LH LeftManufacturer no. 169773S 1Quote Ask for a quote
1B-8 REAR SIDE FRAME ASSM HT ADJ LH LeftManufacturer no. 169775S 1Quote Ask for a quote

Cross Frame

5 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Cross Frame
No.PartQtyPriceAction
4A-6 X-HINGE KIT 13-14WManufacturer no. 169791 1Quote Ask for a quote
4B-6 X-HINGE KIT 15-16WManufacturer no. 169792 1Quote Ask for a quote
4C-6 X-HINGE KIT 17-18WManufacturer no. 169793 1Quote Ask for a quote
4D-6 X-HINGE KIT 19-20WManufacturer no. 169794 1Quote Ask for a quote
10 3/4" NY-LINERManufacturer no. 560402S 1Quote Ask for a quote

Transit Kit

3 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Transit Kit
No.PartQtyPriceAction
1-3 FRONT TRANSIT KIT QS5XManufacturer no. 169801 1Quote Ask for a quote
5-15 REAR TRANSIT KIT QS5XManufacturer no. 169802 1Quote Ask for a quote
13-15 FASTENER KIT QS5X for one side - 2 of eachManufacturer no. 169803 1Quote Ask for a quote

Axle Plate

1 part

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Axle Plate
No.PartQtyPriceAction
6-9 AXLE SLEEVE KIT ONE SIDEManufacturer no. 169800 1Quote Ask for a quote

Quick Release Axles

3 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Quick Release Axles
No.PartQtyPriceAction
1A QR AXLE/NUT LONG BG BTTNManufacturer no. 109385S 1Quote Ask for a quote
1B QR AXLE MAG W/QUAD NUTManufacturer no. 922170 1Quote Ask for a quote
1C QR AXLE AND NUT SHORT BIG BTTNManufacturer no. 107268S 1Quote Ask for a quote

FOLD DOWN PUSH WHEEL LOCK (Knee Lock)

6 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in FOLD DOWN PUSH WHEEL LOCK (Knee Lock)
No.PartQtyPriceAction
1 KNEE LEVER WHEEL LOCK RIGHTManufacturer no. 71206000-002S 1Quote Ask for a quote
1 KNEE LEVER WHEEL LOCK LEFTManufacturer no. 71206000-001S 1Quote Ask for a quote
1-4 FOLD DW PUSH WL RHManufacturer no. 169804 1Quote Ask for a quote
1-4 FOLD DW PUSH WL LHManufacturer no. 169805 1Quote Ask for a quote
2-4 WHEEL LOCK CLAMP ASSMManufacturer no. 169806 1Quote Ask for a quote
5 BRAKE LEVER EXTENSIONManufacturer no. 71206035 1Quote Ask for a quote

PUSH TO LOCK WHEEL LOCK (Metric Forged)

10 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in PUSH TO LOCK WHEEL LOCK (Metric Forged)
No.PartQtyPriceAction
1A WHEEL LOCK ASSEMBLY PUSH RIGHT RIGHTManufacturer no. 259041S 1Quote Ask for a quote
1A WHEEL LOCK ASSEMBLY PUSH LEFT LEFTManufacturer no. 259042S 1Quote Ask for a quote
1B WHEEL LOCK PUSH R REV SHT RIGHTManufacturer no. 259043S 1Quote Ask for a quote
1B WHEEL LOCK PUSH L REV SHT LEFTManufacturer no. 259044S 1Quote Ask for a quote
1C WHEEL LOCK PUSH R FWD LNG RIGHTManufacturer no. 259045S 1Quote Ask for a quote
1C WHEEL LOCK PUSH L FWD LNG LEFTManufacturer no. 259046S 1Quote Ask for a quote
1D WHEEL LOCK PUSH R REV LNG RIGHTManufacturer no. 259047S 1Quote Ask for a quote
1D WHEEL LOCK PUSH L REV LNG LEFTManufacturer no. 259048S 1Quote Ask for a quote
2-4 WHEEL LOCK CLAMP ASSMManufacturer no. 169806 1Quote Ask for a quote
5 COVER CURVED WHEEL LOCK VINYLManufacturer no. 104141S 1Quote Ask for a quote

PULL TO LOCK WHEEL LOCK (Metric Forged)

19 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in PULL TO LOCK WHEEL LOCK (Metric Forged)
No.PartQtyPriceAction
1A WHEEL LOCK PULL R FWD SHT Right-forward-shortManufacturer no. 259049S 1Quote Ask for a quote
1A WHEEL LOCK PULL L FWD SHT Left-forward-shortManufacturer no. 259051S 1Quote Ask for a quote
1B WHEEL LOCK PULL R REV SHT Right-reverse-shortManufacturer no. 259052S 1Quote Ask for a quote
1B WHEEL LOCK PULL L REV SHT Left-reverse-shortManufacturer no. 259053S 1Quote Ask for a quote
1C WHEEL LOCK PULL R FWD LNG Right-forward-longManufacturer no. 259054S 1Quote Ask for a quote
1C WHEEL LOCK PULL L FWD LNG Left-forward-longManufacturer no. 259055S 1Quote Ask for a quote
1D WHEEL LOCK PULL R REV LNG Right-reverse-longManufacturer no. 259056S 1Quote Ask for a quote
1D WHEEL LOCK PULL L REV LNG Left-reverse-longManufacturer no. 259057S 1Quote Ask for a quote
2-4 WHEEL LOCK CLAMP ASSMManufacturer no. 169806 1Quote Ask for a quote
5 COVER CURVED WHEEL LOCK VINYLManufacturer no. 104141S 1Quote Ask for a quote
6 WHEEL LOCK EXTENSION ASSY KIT EACHManufacturer no. 161929 1Quote Ask for a quote
7 FOAM GRIP 1 1/2 X 0.705 X 0.1Manufacturer no. 560600S 1Quote Ask for a quote
1A-4 PULL WHEEL LOCK ASSM RH RIGHTManufacturer no. 169815 1Quote Ask for a quote
1A-4 PULL WHEEL LOCK ASSM LH LEFTManufacturer no. 169816 1Quote Ask for a quote
1B-4 PULL WHEEL LOCK REV ASSM RH RIGHTManufacturer no. 169817 1Quote Ask for a quote
1B-4 PULL WHEEL LOCK REV ASSM LH LEFTManufacturer no. 169818 1Quote Ask for a quote
1C-4 PULL WHL LOCK LNG ASSM RH RIGHTManufacturer no. 169819 1Quote Ask for a quote
1C-4 PULL WHL LOCK LNG ASSM LH LEFTManufacturer no. 169820 1Quote Ask for a quote
1D-4 PULL WHL LOCK LNG REV ASSM RH RIGHTManufacturer no. 169821 1Quote Ask for a quote

ERGO SCISSOR WHEEL LOCK (Metric Forged)

6 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in ERGO SCISSOR WHEEL LOCK (Metric Forged)
No.PartQtyPriceAction
1 ASSY WHL LOCK SCISSOR ERGO RIGHTManufacturer no. 104726-001S 1Quote Ask for a quote
1 ASSY WHL LOCK SCISSOR ERGO LEFTManufacturer no. 104726-002S 1Quote Ask for a quote
2-4 WHEEL LOCK CLAMP ASSMManufacturer no. 169806 1Quote Ask for a quote
5 COVER CURVED WHEELLOCK VINManufacturer no. 104141S 1Quote Ask for a quote
1-4 ERGO SCISSOR WHL LOCK ASSM RHManufacturer no. 169823 1Quote Ask for a quote
1-4 ERGO SCISSOR WHL LOCK ASSM LHManufacturer no. 169824 1Quote Ask for a quote

COMPACT WHEEL LOCK (Metric Forged)

9 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in COMPACT WHEEL LOCK (Metric Forged)
No.PartQtyPriceAction
1A COMPACT BRAKE STD FRONT RIGHT Forward MountedManufacturer no. 66006100-302S 1Quote Ask for a quote
1A COMPACT BRAKE STD FRONT LEFT Forward MountedManufacturer no. 66006100-301S 1Quote Ask for a quote
1B COMPACT BRAKE STD BACK RIGHT Reverse MountedManufacturer no. 66006100-402S 1Quote Ask for a quote
1B COMPACT BRAKE STD BACK LEFT Reverse MountedManufacturer no. 66006100-401S 1Quote Ask for a quote
2-4 WHEEL LOCK CLAMP ASSMManufacturer no. 169806 1Quote Ask for a quote
1A-4 COMPACT WHEEL LOCK ASSM FWD RH Forward MountedManufacturer no. 169825 1Quote Ask for a quote
1A-4 COMPACT WHEEL LOCK ASSM FWD LH Forward MountedManufacturer no. 169826 1Quote Ask for a quote
1B-4 COMPACT WHEEL LOCK ASSM RVS RH Reverse MountedManufacturer no. 169827 1Quote Ask for a quote
1B-4 COMPACT WHEEL LOCK ASSM RVS LH Reverse MountedManufacturer no. 169828 1Quote Ask for a quote

Qs5 X Fork Assembly

2 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Qs5 X Fork Assembly
No.PartQtyPriceAction
4 LINK CAP KIT PairManufacturer no. 170139 1Quote Ask for a quote
5-8 FORK STEM FASTENERSManufacturer no. 169831 1Quote Ask for a quote

Qs5 X Single Side Fork Assembly

10 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Qs5 X Single Side Fork Assembly
No.PartQtyPriceAction
4 LINK CAPManufacturer no. 170139 1Quote Ask for a quote
5-8 FORK STEM FASTENERSManufacturer no. 169831 1Quote Ask for a quote
11A ASSM FORK LOW SNGL SD LH W/BRG BlackManufacturer no. 112672 1Quote Ask for a quote
11A ASSM FORK LOW SNGL SD RH W/BRG BlackManufacturer no. 112673 1Quote Ask for a quote
11B ASSM FORK STD SNGL SD LH W/BRG BlackManufacturer no. 112242 1Quote Ask for a quote
11B ASSM FORK STD SNGL SD RH W/BRG BlackManufacturer no. 112243 1Quote Ask for a quote
11A FORK SNGL LOW CSTM ANO L Choose custom anodized colorManufacturer no. 117176S 1Quote Ask for a quote
11A FORK SNGL LOW CSTM ANO R Choose custom anodized colorManufacturer no. 117177S 1Quote Ask for a quote
11B FORK SNGL STD CSTM ANO L Choose custom anodized colorManufacturer no. 117178S 1Quote Ask for a quote
11B FORK SNGL STD CSTM ANO R Choose custom anodized colorManufacturer no. 117179S 1Quote Ask for a quote

Qs5 X Frog Leg Suspension Fork

4 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Qs5 X Frog Leg Suspension Fork
No.PartQtyPriceAction
2-5 FORK STEM FASTENERSManufacturer no. 169831 1Quote Ask for a quote
7 SPANNER WRENCH AF18Manufacturer no. 66009205S 1Quote Ask for a quote
8 TORQUE WRENCH WELDINGManufacturer no. 66009203S 1Quote Ask for a quote
9 FROG LEG FORK ASSEMBLY TOOLManufacturer no. 116351 1Quote Ask for a quote

Aluminum Soft Roll Casters

10 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Aluminum Soft Roll Casters
No.PartQtyPriceAction
1A CASTR ASSM ULTRLT SFTRL 4X1.5" K0077 4" x 1.5" Aluminum Soft Roll - Black Tire - Silver HubManufacturer no. 251732 1Quote Ask for a quote
1A CASTR ASSM ULTRLT SFTRL 5X1.5" K0077 5" x 1.5" Aluminum Soft Roll - Black Tire - Silver HubManufacturer no. 251733 1Quote Ask for a quote
1A CASTR ASSM ULTRLT SFTRL 6X1.5" K0077 6" x 1.5" Aluminum Soft Roll - Black Tire - Silver HubManufacturer no. 251734 1Quote Ask for a quote
1B WHL CSTR 4" ULTRALT SFTRLL ANO K0077 4" x 1.5" Aluminum Soft Roll - Black Tire - Anodized HubManufacturer no. 162609S 1Quote Ask for a quote
1B WHL CSTR 5" ULTRALT SFTRLL ANO K0077 5" x 1.5" Aluminum Soft Roll - Black Tire - Anodized HubManufacturer no. 162611S 1Quote Ask for a quote
1B WHL CSTR 6" ULTRALT SFTRLL ANO K0077 6" x 1.5" Aluminum Soft Roll - Black Tire - Anodized HubManufacturer no. 162613S 1Quote Ask for a quote
1C WHL CSTR 4" ULTRALT SFTRLL PNT K0077 4" x 1.5" Aluminum Soft Roll - Black Tire - Painted HubManufacturer no. 162603S 1Quote Ask for a quote
1C WHL CSTR 5" ULTRALT SFTRLL PNT K0077 5" x 1.5" Aluminum Soft Roll - Black Tire - Painted HubManufacturer no. 162605S 1Quote Ask for a quote
1C WHL CSTR 6" ULTRALT SFTRLL PNT K0077 6" x 1.5" Aluminum Soft Roll - Black Tire - Painted HubManufacturer no. 162607S 1Quote Ask for a quote
2 7/8" X 5/16" BEARINGManufacturer no. 349502 1Quote Ask for a quote

Anti-Tip

3 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Anti-Tip
No.PartQtyPriceAction
7A ANTI TIP ARM ADJUSTERManufacturer no. 104157S 1Quote Ask for a quote
7B ANTI TIP ARM ADJ. MEDManufacturer no. 104639S 1Quote Ask for a quote
7C ANTI TIP ARM ADJ. LONGManufacturer no. 104640S 1Quote Ask for a quote

Swing-Away Anti-Tip

2 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Swing-Away Anti-Tip
No.PartQtyPriceAction
1-5 ACCESSORY BRKT KITManufacturer no. 170158 1Quote Ask for a quote
2-5 ACCESSORY BRKT FASTENERSManufacturer no. 170159 1Quote Ask for a quote

5 Spoke Mag

5 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 5 Spoke Mag
No.PartQtyPriceAction
5 MAGManufacturer no. SPOKE 1Quote Ask for a quote
2 1 1/8 X 1/2 BEARINGManufacturer no. 349500S 1Quote Ask for a quote
3 20" MAG RIM STRIPManufacturer no. 129325S 1Quote Ask for a quote
3 22" MAG RIM STRIPManufacturer no. 129324S 1Quote Ask for a quote
3 24" MAG RIM STRIPManufacturer no. 127912S 1Quote Ask for a quote

Spinergy Spox (18 Spoke)

15 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Spinergy Spox (18 Spoke)
No.PartQtyPriceAction
1 SPINERGY STD WHL 22" BLK SPK 22"(489mm)Manufacturer no. 109242 1Quote Ask for a quote
1 SPINERGY STD WHEEL 540 BLK SPK 24"(540mm)Manufacturer no. 762438 1Quote Ask for a quote
1 SPINERGY STD WHL 559 BLK SPK 25"(559mm)Manufacturer no. 762441 1Quote Ask for a quote
1 SPINERGY STD WHEEL 590 BLK SPK 26"(590mm)Manufacturer no. 762437 1Quote Ask for a quote
1 SPINERGY STD WHEEL 540 BLUE 24"(540mm)Manufacturer no. 762442 1Quote Ask for a quote
1 SPINERGY STD WHEEL 559 BLU 25"(559mm)Manufacturer no. 762444 1Quote Ask for a quote
1 SPINERGY STD WHEEL 590 BLUE 26"(590mm)Manufacturer no. 762446 1Quote Ask for a quote
1 SPINERGY STD WHEEL 540 RED 24"(540mm)Manufacturer no. 762443 1Quote Ask for a quote
1 SPINERGY STD WHEEL 559 RED 25"(559mm)Manufacturer no. 762445 1Quote Ask for a quote
1 SPINERGY STD WHEEL 590 RED 26"(590mm)Manufacturer no. 762447 1Quote Ask for a quote
1 SPINERGY STD WHEEL 540 WHT 24"(540mm)Manufacturer no. 762456 1Quote Ask for a quote
1 SPINERGY STD WHEEL 540 YELLOW 24"(540mm)Manufacturer no. 762433 1Quote Ask for a quote
1 SPINERGY STD WHL 559 YLW SPK 25"(559mm)Manufacturer no. 762462 1Quote Ask for a quote
1 SPINERGY STD WHEEL 590 YELLOW 26"(590mm)Manufacturer no. 762431 1Quote Ask for a quote
2 1 1/8 X 1/2 BEARINGManufacturer no. 349500S 1Quote Ask for a quote

Spinergy Lx (12 Spoke)

19 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Spinergy Lx (12 Spoke)
No.PartQtyPriceAction
1A SPINGERY LT EX WHL 22" BLK 22"(489mm); 12 SpokeManufacturer no. 108858 1Quote Ask for a quote
1A SPINERGY LT EX WHL 22" BLU 22"(489mm); 12 SpokeManufacturer no. 109215 1Quote Ask for a quote
1A SPINERGY LT EX WHL 22" RED 22"(489mm); 12 SpokeManufacturer no. 109216 1Quote Ask for a quote
1A SPINERGY LT EX WHL 22" WHT 22"(489mm); 12 SpokeManufacturer no. 109217 1Quote Ask for a quote
1A SPINERGY LT EX WHL 22" YLW 22"(489mm); 12 SpokeManufacturer no. 109218 1Quote Ask for a quote
1A SPINERGY LT EX WHEEL 540 BLK 24"(540mm); 12 SpokeManufacturer no. 101989-001 1Quote Ask for a quote
1A SPINERGY LT EX WHEEL 540 BLU 24"(540mm); 12 SpokeManufacturer no. 101989-002 1Quote Ask for a quote
1A SPINERGY LT EX WHEEL 540 RED 24"(540mm); 12 SpokeManufacturer no. 101989-003 1Quote Ask for a quote
1A SPINERGY LT EX WHEEL 540 WHT 24"(540mm); 12 SpokeManufacturer no. 101989-005 1Quote Ask for a quote
1A SPINERGY LT EX WHEEL 540 YLW 24"(540mm); 12 SpokeManufacturer no. 101989-004 1Quote Ask for a quote
1A SPINERGY LT EX WHEEL 559 BLK 25"(559mm); 12 SpokeManufacturer no. 101991-001 1Quote Ask for a quote
1A SPINERGY LT EX WHEEL 559 BLU 25"(559mm); 12 SpokeManufacturer no. 101991-002 1Quote Ask for a quote
1A SPINERGY LT EX WHEEL 559 RED 25"(559mm); 12 SpokeManufacturer no. 101991-003 1Quote Ask for a quote
1A SPINERGY LT EX WHEEL 559 YLW 25"(559mm); 12 SpokeManufacturer no. 101991-004 1Quote Ask for a quote
1A SPINERGY LT EX WHEEL 590 BLK 26"(590mm); 12 SpokeManufacturer no. 101993-001 1Quote Ask for a quote
1A SPINERGY LT EX WHEEL 590 YLW 26"(590mm); 12 SpokeManufacturer no. 101993-004 1Quote Ask for a quote
2 1 1/8 X 1/2 BEARINGManufacturer no. 349500S 1Quote Ask for a quote
1B SPINERGY FLEXRIM LT 12 SPOKE 24"(540mm) BlackManufacturer no. 109232 1Quote Ask for a quote
1B RIM FLEX 25" SPINERGY BLK 25"(559mm) BlackManufacturer no. 109237 1Quote Ask for a quote

Proton (24 Spoke)

2 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Proton (24 Spoke)
No.PartQtyPriceAction
1A PROTON WHEEL 24 X 1Manufacturer no. 066511-003S 1Quote Ask for a quote
1B PROTON WHEEL 25 X 1Manufacturer no. 066511-004S 1Quote Ask for a quote

Pneumatic & Pneu. Airless Tire

6 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Pneumatic & Pneu. Airless Tire
No.PartQtyPriceAction
1 16" X 1.75" PNEU TIREManufacturer no. 385237 1Quote Ask for a quote
1 20" PNEUMATIC TIREManufacturer no. 385250S 1Quote Ask for a quote
1 22" PNEUMATIC TIRE 22" x 1 3/8 (501mm)Manufacturer no. 385275S 1Quote Ask for a quote
1 24" PNEUMATIC TIRE 24" x 1 3/8 (540mm)Manufacturer no. 385300S 1Quote Ask for a quote
1 26" PNEUMATIC TIRE 26" x 1 3/8 (590mm)Manufacturer no. 385325S 1Quote Ask for a quote
1 24" x 2.125 PNEUMATIC TIRE 24"x2 1/8 (540mm) used w/ M6Manufacturer no. 384614S 1Quote Ask for a quote

Full Poly Tire

3 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Full Poly Tire
No.PartQtyPriceAction
1 20" POLY TIRE STD 20"Manufacturer no. 386232S 1Quote Ask for a quote
1 22" POLY TIRE STD 22" (501mm)Manufacturer no. 386242S 1Quote Ask for a quote
1 24" POLY TIRE STD 24" (540mm)Manufacturer no. 386252S 1Quote Ask for a quote

Shox Tire

4 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Shox Tire
No.PartQtyPriceAction
1 TIRE SHOX CEW20" 20"(457mm) BlackManufacturer no. 129924S 1Quote Ask for a quote
1 TIRE SHOX CEW22" 22"(501mm) BlackManufacturer no. 129925S 1Quote Ask for a quote
1 TIRE SHOX CEW24" 24"(540mm) BlackManufacturer no. 129926S 1Quote Ask for a quote
1 TIRE SHOX CEW25" 25"(559mm) BlackManufacturer no. 129927 1Quote Ask for a quote

Primo Orion Tire

1 part

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Primo Orion Tire
No.PartQtyPriceAction
1 TIRE, POLY SOLID, ORION, 24" 24"(540mm)Manufacturer no. 254902S 1Quote Ask for a quote

Black High Pressure Clincher

3 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Black High Pressure Clincher
No.PartQtyPriceAction
1 22X1 HI PRESSURE CLINCHER BLKManufacturer no. 129903S 1Quote Ask for a quote
1 24X1 HI PRESSURE CLINCHER BLKManufacturer no. 129904S 1Quote Ask for a quote
1 26X1 HI PRESSURE CLINCHER BLKManufacturer no. 129905S 1Quote Ask for a quote

Schwalbe Marathon Plus Tire

4 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Schwalbe Marathon Plus Tire
No.PartQtyPriceAction
1 TIRE SCHWALBE MP 489 BLK 22" (489mm)Manufacturer no. 102066-004S 1Quote Ask for a quote
1 TIRE SCHWBL MPE 540 BLK 24" (540mm)Manufacturer no. 102066-001S 1Quote Ask for a quote
1 TIRE SCHWBL MPE 559 BLK 25" (559mm)Manufacturer no. 102066-002S 1Quote Ask for a quote
1 TIRE SCHWBL MPE 590 BLK 26" (590mm)Manufacturer no. 102066-003S 1Quote Ask for a quote

Aluminum Anodized (Screw Mount)

1 part

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Aluminum Anodized (Screw Mount)
No.PartQtyPriceAction
3C 10-32 X 2 1/8 PAN PHIL SS MAGManufacturer no. 281175S 1Quote Ask for a quote

Aluminum Anodized (Tab Mount)

3 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Aluminum Anodized (Tab Mount)
No.PartQtyPriceAction
1 QP 24" HR .065 (6) TAB ANO 24" (540) CROSS SPOKE -SHORT & REG TABManufacturer no. 529529S 1Quote Ask for a quote
1 QP 24" HR .065 (6) TAB ANO 24" (540) SPINERGYManufacturer no. 529529 1Quote Ask for a quote
2-4 AA TAB MOUNT HANDRIM HARDWARE SET OF 6Manufacturer no. 159515 1Quote Ask for a quote

Plastic Coated (Screw Mount)

4 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Plastic Coated (Screw Mount)
No.PartQtyPriceAction
1-3 20" HR 6SMT PLST W/HDWR 20" SPOKEManufacturer no. 425933 1Quote Ask for a quote
1-3 22" HR 6SMT PLST W/HDWR 22" (501) SPOKEManufacturer no. 425943 1Quote Ask for a quote
1-3 24" HR 6SMT PLST W/HDWR 24" (540) SPOKEManufacturer no. 426004 1Quote Ask for a quote
4 10 -32 x 2 1/8 PAN PHIL SS 6 SPOKE MAGManufacturer no. 281175S 1Quote Ask for a quote

Plastic Coated (Reg Tab Mount)

1 part

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Plastic Coated (Reg Tab Mount)
No.PartQtyPriceAction
2 PLST COATED TAB HNDRM HDWRManufacturer no. 159535 1Quote Ask for a quote

Natural Fit 5 Spoke Mag (Screw Mount)

4 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Natural Fit 5 Spoke Mag (Screw Mount)
No.PartQtyPriceAction
2A GUARD THUMB NAT FIT 24 SG BLK 24" (540)- Super Grip Thumb GuardManufacturer no. 102168-004S 1Quote Ask for a quote
2B GUARD THUMB NAT FIT 24 PC BLK 24" (540)- Standard Grip Thumb GuardManufacturer no. 102168-003S 1Quote Ask for a quote
3 SPCR .194ID X .375 OD X .750Manufacturer no. 101932S 1Quote Ask for a quote
4 10-32 X 2 1/8 PAN PHIL SSManufacturer no. 281175S 1Quote Ask for a quote

Natural Fit (Screw Mount)

8 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Natural Fit (Screw Mount)
No.PartQtyPriceAction
2A GUARD THUMB NAT FIT 22 PC BLK 22" (501)- Std Grip Thumb GuardManufacturer no. 102168-001S 1Quote Ask for a quote
2A GUARD THUMB NAT FIT 24 PC BLK 24" (540)- Std Grip Thumb GuardManufacturer no. 102168-003S 1Quote Ask for a quote
2A GUARD THUMB NAT FIT 25 PC BLK 25" (559)- Std Grip Thumb GuardManufacturer no. 102168-005S 1Quote Ask for a quote
2A GUARD THUMB NAT FIT 26 PC BLK 26" (590)- Std Grip Thumb GuardManufacturer no. 102168-007S 1Quote Ask for a quote
2B GUARD THUMB NAT FIT 22 SG BLK 22" (501)- Super Grip Thumb GuardManufacturer no. 102168-002S 1Quote Ask for a quote
2B GUARD THUMB NAT FIT 24 SG BLK 24" (540)- Super Grip Thumb GuardManufacturer no. 102168-004S 1Quote Ask for a quote
2B GUARD THUMB NAT FIT 25 SG BLK 25" (559)- Super Grip Thumb GuardManufacturer no. 102168-006S 1Quote Ask for a quote
2B THUMB GUARD NAT FIT 26 SG BLK 26" (590)- Super Grip Thumb GuardManufacturer no. 102168-008S 1Quote Ask for a quote

Natural Fit (Tab Mount)

15 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Natural Fit (Tab Mount)
No.PartQtyPriceAction
1A GUARD THUMB NAT FIT 22 PC BLK 22" (501)Manufacturer no. 102168-001S 1Quote Ask for a quote
1A GUARD THUMB NAT FIT 24 PC BLK 24" (540)Manufacturer no. 102168-003S 1Quote Ask for a quote
1A GUARD THUMB NAT FIT 25 PC BLK 25" (559)Manufacturer no. 102168-005S 1Quote Ask for a quote
1A GUARD THUMB NAT FIT 26 PC BLK 26" (590)Manufacturer no. 102168-007S 1Quote Ask for a quote
1B GUARD THUMB NAT FIT 22 SG BLK 22" (501)Manufacturer no. 102168-002S 1Quote Ask for a quote
1B GUARD THUMB NAT FIT 24 SG BLK 24" (540)Manufacturer no. 102168-004S 1Quote Ask for a quote
1B GUARD THUMB NAT FIT 25 SG BLK 25" (559)Manufacturer no. 102168-006S 1Quote Ask for a quote
1B THUMB GUARD NAT FIT 26 SG BLK 26" (590)Manufacturer no. 102168-008S 1Quote Ask for a quote
1A-4 22 NF HR TAB W/ STD THG ASM 22" (501)Manufacturer no. 170404 1Quote Ask for a quote
1A-4 24 NF HR TAB W/ STD THG ASM 24" (540)Manufacturer no. 170405 1Quote Ask for a quote
1A-4 25 NF HR TAB W/ STD THG ASM 25" (559)Manufacturer no. 170406 1Quote Ask for a quote
1A-4 26 NF HR TAB W/ STD THG ASM 26" (590)Manufacturer no. 170407 1Quote Ask for a quote
1B-4 22 NF HR TAB W/ SUP THG ASM 22" (501)Manufacturer no. 170408 1Quote Ask for a quote
1B-4 24 NF HR TAB W/ SUP THG ASM 24" (540)Manufacturer no. 170409 1Quote Ask for a quote
1B-4 25 NF HR TAB W/ SUP THG ASM 25" (559)Manufacturer no. 170410 1Quote Ask for a quote

Q-Grip (Screw Mount)

2 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Q-Grip (Screw Mount)
No.PartQtyPriceAction
1-3 24 HNDRIM RVNUT Q-GRIP W/HDWRManufacturer no. 159504 1Quote Ask for a quote
1-3 25 HNDRIM RVNUT Q-GRIP W/HDWRManufacturer no. 159505 1Quote Ask for a quote

Q-Grip (Tab Mount)

3 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Q-Grip (Tab Mount)
No.PartQtyPriceAction
1-4 24IN HANDRIM TAB Q-GRIP W/HDWRManufacturer no. 159501 1Quote Ask for a quote
1-4 25IN HANDRIM TAB Q-GRIP W/HDWRManufacturer no. 159502 1Quote Ask for a quote
2-4 HANDRIM TAB Q-GRIP HARDWARE set of 6Manufacturer no. 159503 1Quote Ask for a quote

Curve L Tetra (Tab Mount)

4 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Curve L Tetra (Tab Mount)
No.PartQtyPriceAction
1 HR CURVE L TETRA TAB 24" 512Manufacturer no. 256743S 1Quote Ask for a quote
1 HR CURVE L TETRA TAB 25" 535Manufacturer no. 256745S 1Quote Ask for a quote
1-3 HR CURVE L TETRA TAB 24 W/HDWRManufacturer no. 170116 1Quote Ask for a quote
1-3 HR CURVE L TETRA TAB 25 W/HDWRManufacturer no. 170117 1Quote Ask for a quote

Ellipse 3R (Screw Mount)

4 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Ellipse 3R (Screw Mount)
No.PartQtyPriceAction
1 24" HANDRIM 6 RIVNUT ELIPSEManufacturer no. 256584S 1Quote Ask for a quote
1 25" HANDRIM 6 RIVNUT ELIPSEManufacturer no. 256585S 1Quote Ask for a quote
1-3 HR ELLIPSE 3R SCREW 24 W/HDWRManufacturer no. 170124 1Quote Ask for a quote
1-3 HR ELLIPSE 3R SCREW 25 W/HDWRManufacturer no. 170125 1Quote Ask for a quote

Ellipse 3R (Tab Mount)

4 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Ellipse 3R (Tab Mount)
No.PartQtyPriceAction
1 24" HANDRIM 6 TAB ELIPSEManufacturer no. 256580S 1Quote Ask for a quote
1 25" HANDRIM 6 TAB ELIPSEManufacturer no. 256581S 1Quote Ask for a quote
1-3 HR ELIPSE 24 TAB W/HDWRManufacturer no. 170122 1Quote Ask for a quote
1-3 HR ELIPSE 25 TAB W/HDWRManufacturer no. 170123 1Quote Ask for a quote

Ellipse 3R 5 Spoke Mag (Screw Mount)

2 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Ellipse 3R 5 Spoke Mag (Screw Mount)
No.PartQtyPriceAction
1 24" HANDRIM 5 RIVNUT ELLIPSEManufacturer no. 256980S 1Quote Ask for a quote
1-3 ELLIPSE 3R SCREW 24 W/HDWR 5MGManufacturer no. 170126 1Quote Ask for a quote

Carbo Life Gekko (Screw Mount)

4 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Carbo Life Gekko (Screw Mount)
No.PartQtyPriceAction
1 HR GEKKO SCREW 24" 515 Silicone Strap IncludedManufacturer no. 256731S 1Quote Ask for a quote
1 HR GEKKO SCREW 25" 539 Silicone Strap IncludedManufacturer no. 256732S 1Quote Ask for a quote
2 HR GEKKO STRIP 24"Manufacturer no. 256726S 1Quote Ask for a quote
2 HR GEKKO STRIP 25"Manufacturer no. 256727S 1Quote Ask for a quote

Carbo Life Gekko (Tab Mount)

6 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Carbo Life Gekko (Tab Mount)
No.PartQtyPriceAction
1 HR GEKKO TAB 24" 512 Silicone Strap IncludedManufacturer no. 256721S 1Quote Ask for a quote
1 HR GEKKO TAB 25" 535 Silicone Strap IncludedManufacturer no. 256723S 1Quote Ask for a quote
1-3 HR GEKKO TAB 24" W/ HDWR Silicone Strap IncludedManufacturer no. 170109 1Quote Ask for a quote
1-3 HR GEKKO TAB 25" W/ HDWR Silicone Strap IncludedManufacturer no. 170110 1Quote Ask for a quote
4 HR GEKKO STRIP 24"Manufacturer no. 256726S 1Quote Ask for a quote
4 HR GEKKO STRIP 25"Manufacturer no. 256727S 1Quote Ask for a quote

Tubes, Airless Inserts And Etpu Insert

24 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Tubes, Airless Inserts And Etpu Insert
No.PartQtyPriceAction
1A INNER TUBE 12-1/2" X 2-1/4"Manufacturer no. 384736 1Quote Ask for a quote
1A 16" X 1.75" INNER TUBEManufacturer no. 384738 1Quote Ask for a quote
1A TUBE 18" TIRE 18" X 1-3/4" TUBEManufacturer no. 382255S 1Quote Ask for a quote
1A 20" TUBE 20" 1-3/8" TUBEManufacturer no. 382275S 1Quote Ask for a quote
1A 22" TUBE 22" X 1-3/8" TUBEManufacturer no. 382300S 1Quote Ask for a quote
1A TUBE PRIMO 24" 25-540 SV 24" X 1" TUBEManufacturer no. 382336S 1Quote Ask for a quote
1A 24 X 1.3/8IN TUBE REGManufacturer no. 382325S 1Quote Ask for a quote
1A TUBE INLINE 24 X 1.75Manufacturer no. 382334S 1Quote Ask for a quote
1A 26" X 1" TUBE SCHRADERManufacturer no. 384551S 1Quote Ask for a quote
1A 26" TUBE 26" X 1-3/8" TUBEManufacturer no. 382350S 1Quote Ask for a quote
1A TUBE 26 X 1.5/1.95/ S/VManufacturer no. 382361S 1Quote Ask for a quote
1A 26 X 1.25/1.5 TUBE SHRADERManufacturer no. 382365 1Quote Ask for a quote
1A TUBE 25" TIRE 25" X 1"Manufacturer no. 121122 1Quote Ask for a quote
1A 24" x 2.125 TUBEManufacturer no. 382375S 1Quote Ask for a quote
1B 12 1/2 IN AIRLESS INSERT 12-1/2" X 2-1/4"Manufacturer no. 102972-001S 1Quote Ask for a quote
1B 16IN AIRLESS INSERT 16" X 1-3/4"Manufacturer no. 102973-001S 1Quote Ask for a quote
1B 18IN AIRLESS INSERT 18" X 1-3/4"Manufacturer no. 102973-002S 1Quote Ask for a quote
1B 20IN AIRLESS INSERT 20" X 1-3/8"Manufacturer no. 102973-003S 1Quote Ask for a quote
1B AIRLESS INSERT 20 X 2-1/8 P3Manufacturer no. 102972-002S 1Quote Ask for a quote
1B 22IN AIRLESS INSERT 22" X 1-3/8"Manufacturer no. 102973-004S 1Quote Ask for a quote
1B 24IN AIRLESS INSERT 24" X 1-3/8"Manufacturer no. 102973-005S 1Quote Ask for a quote
1B AIRLESS INSERT 24 X 2-1/8Manufacturer no. 102972-003S 1Quote Ask for a quote
1B 26" AIRLESS INSERT 26" X 1-3/8"Manufacturer no. 108259S 1Quote Ask for a quote
1C INSERT, ETPU AIRLESS, 24"Manufacturer no. 254910S 1Quote Ask for a quote

Seat Sling

16 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Seat Sling
No.PartQtyPriceAction
1 SEAT SLING VELCRO STRIP ® 2"Manufacturer no. 901169 1Quote Ask for a quote
2 SEAT SLING ROD 15 15"Manufacturer no. 106587S 1Quote Ask for a quote
2 SEAT SLING ROD 16 16"Manufacturer no. 106588S 1Quote Ask for a quote
2 SEAT SLING ROD 17 17"Manufacturer no. 106589S 1Quote Ask for a quote
2 SEAT SLING ROD 18 18"Manufacturer no. 106590S 1Quote Ask for a quote
2 SEAT SLING ROD 19 19"Manufacturer no. 106591S 1Quote Ask for a quote
2 SEAT SLING ROD 20 20"Manufacturer no. 106592S 1Quote Ask for a quote
3 SEAT SLING 13W MULTI DEPTH sling with utility bagManufacturer no. 256178S 1Quote Ask for a quote
3 SEAT SLING 14W MULTI DEPTH sling with utility bagManufacturer no. 256179S 1Quote Ask for a quote
3 SEAT SLING 15W MULTI DEPTH sling with utility bagManufacturer no. 256180S 1Quote Ask for a quote
3 SEAT SLING 16W MULTI DEPTH sling with utility bagManufacturer no. 256181S 1Quote Ask for a quote
3 SEAT SLING 17W MULTI DEPTH sling with utility bagManufacturer no. 256182S 1Quote Ask for a quote
3 SEAT SLING 18W MULTI DEPTH sling with utility bagManufacturer no. 256183S 1Quote Ask for a quote
3 SEAT SLING 19W MULTI DEPTH sling with utility bagManufacturer no. 256186S 1Quote Ask for a quote
3 SEAT SLING 20W MULTI DEPTH sling with utility bagManufacturer no. 256187S 1Quote Ask for a quote
4 SEAT RAIL END PLUG KITManufacturer no. 108117 1Quote Ask for a quote

Backrest Push Handles

2 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Backrest Push Handles
No.PartQtyPriceAction
1 PAN HD PHIL 10/32 x 5/8 ROHSManufacturer no. 107384S 1Quote Ask for a quote
8B BHCS,M6X1X30,FULL,PLManufacturer no. 103185-011 1Quote Ask for a quote

Half Fold Back

2 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Half Fold Back
No.PartQtyPriceAction
1-4 BACK FOLDING MECHANISMManufacturer no. 76803016 1Quote Ask for a quote
8 PAN HD PHIL 10/32 x 5/8 ROHSManufacturer no. 107384S 1Quote Ask for a quote

Angle Adjustable Backrest

2 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Angle Adjustable Backrest
No.PartQtyPriceAction
2-6 QS5X ANGLE ADJ BACK HDWRManufacturer no. 169875 1Quote Ask for a quote
1-6 QS5X ANGLE ADJ BACK MECH Fits Left or Right sideManufacturer no. 169874 1Quote Ask for a quote

Exo Tension Adj Upholstery

34 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exo Tension Adj Upholstery
No.PartQtyPriceAction
1B UPPER BACK BELTManufacturer no. 06804026-000 1Quote Ask for a quote
3 SINGLE BACK BELTManufacturer no. 066853 1Quote Ask for a quote
4A BACK UPH EXO TA BLK 12W XSManufacturer no. 257717S 1Quote Ask for a quote
4A BACK UPH EXO TA BLK 12W SHManufacturer no. 257718S 1Quote Ask for a quote
4A BACK UPH EXO TA BLK 12W MDManufacturer no. 257719S 1Quote Ask for a quote
4A BACK UPH EXO TA BLK 12W TLManufacturer no. 257720S 1Quote Ask for a quote
4A BACK UPH EXO TA BLK 12W XTManufacturer no. 257721S 1Quote Ask for a quote
4A BACK UPH EXO TA BLK 13W XSManufacturer no. 257722S 1Quote Ask for a quote
4A BACK UPH EXO TA BLK 13W SHManufacturer no. 257723S 1Quote Ask for a quote
4A BACK UPH EXO TA BLK 13W MDManufacturer no. 257724S 1Quote Ask for a quote
4A BACK UPH EXO TA BLK 13W TLManufacturer no. 257725S 1Quote Ask for a quote
4A BACK UPH EXO TA BLK 13W XTManufacturer no. 257726S 1Quote Ask for a quote
4A BACK UPH EXO TA BLK 14W XSManufacturer no. 257727S 1Quote Ask for a quote
4A BACK UPH EXO TA BLK 14W SHManufacturer no. 257728S 1Quote Ask for a quote
4A BACK UPH EXO TA BLK 14W MDManufacturer no. 257729S 1Quote Ask for a quote
4A BACK UPH EXO TA BLK 14W TLManufacturer no. 257730S 1Quote Ask for a quote
4A BACK UPH EXO TA BLK 14W XTManufacturer no. 257731S 1Quote Ask for a quote
4A BACK UPH EXO TA BLK 15W XSManufacturer no. 257732S 1Quote Ask for a quote
4A BACK UPH EXO TA BLK 15W SHManufacturer no. 257733S 1Quote Ask for a quote
4A BACK UPH EXO TA BLK 15W MDManufacturer no. 257734S 1Quote Ask for a quote
4A BACK UPH EXO TA BLK 15W TLManufacturer no. 257735S 1Quote Ask for a quote
4A BACK UPH EXO TA BLK 15W XTManufacturer no. 257736S 1Quote Ask for a quote
4A BACK UPH EXO TA BLK 16W XSManufacturer no. 257737S 1Quote Ask for a quote
4A BACK UPH EXO TA BLK 16W SHManufacturer no. 257738S 1Quote Ask for a quote
4A BACK UPH EXO TA BLK 16W MDManufacturer no. 257739S 1Quote Ask for a quote
4A BACK UPH EXO TA BLK 16W TLManufacturer no. 257740S 1Quote Ask for a quote
4A BACK UPH EXO TA BLK 16W XTManufacturer no. 257741S 1Quote Ask for a quote
4A BACK UPH EXO TA BLK 17W XSManufacturer no. 257742S 1Quote Ask for a quote
4A BACK UPH EXO TA BLK 17W SHManufacturer no. 257743S 1Quote Ask for a quote
4A BACK UPH EXO TA BLK 17W MDManufacturer no. 257744S 1Quote Ask for a quote
4A BACK UPH EXO TA BLK 17W TLManufacturer no. 257745S 1Quote Ask for a quote
4A BACK UPH EXO TA BLK 17W XTManufacturer no. 257746S 1Quote Ask for a quote
4A BACK UPH EXO TA BLK 18W XSManufacturer no. 257747S 1Quote Ask for a quote
4A BACK UPH EXO TA BLK 18W SHManufacturer no. 257748S 1Quote Ask for a quote

Exo Pro Tension Adj Upholstery

34 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Exo Pro Tension Adj Upholstery
No.PartQtyPriceAction
1B UPPER BACK BELTManufacturer no. 06804026-000 1Quote Ask for a quote
3 SINGLE BACK BELTManufacturer no. 066853 1Quote Ask for a quote
4A BACK UPH EXO PRO TA BLK 12W XSManufacturer no. 257636S 1Quote Ask for a quote
4A BACK UPH EXO PRO TA BLK 12W SHManufacturer no. 257637S 1Quote Ask for a quote
4A BACK UPH EXO PRO TA BLK 12W MDManufacturer no. 257638S 1Quote Ask for a quote
4A BACK UPH EXO PRO TA BLK 12W TLManufacturer no. 257639S 1Quote Ask for a quote
4A BACK UPH EXO PRO TA BLK 12W XTManufacturer no. 257640S 1Quote Ask for a quote
4A BACK UPH EXO PRO TA BLK 13W XSManufacturer no. 257641S 1Quote Ask for a quote
4A BACK UPH EXO PRO TA BLK 13W SHManufacturer no. 257642S 1Quote Ask for a quote
4A BACK UPH EXO PRO TA BLK 13W MDManufacturer no. 257643S 1Quote Ask for a quote
4A BACK UPH EXO PRO TA BLK 13W TLManufacturer no. 257644S 1Quote Ask for a quote
4A BACK UPH EXO PRO TA BLK 13W XTManufacturer no. 257645S 1Quote Ask for a quote
4A BACK UPH EXO PRO TA BLK 14W XSManufacturer no. 257646S 1Quote Ask for a quote
4A BACK UPH EXO PRO TA BLK 14W SHManufacturer no. 257647S 1Quote Ask for a quote
4A BACK UPH EXO PRO TA BLK 14W MDManufacturer no. 257648S 1Quote Ask for a quote
4A BACK UPH EXO PRO TA BLK 14W TLManufacturer no. 257649S 1Quote Ask for a quote
4A BACK UPH EXO PRO TA BLK 14W XTManufacturer no. 257650S 1Quote Ask for a quote
4A BACK UPH EXO PRO TA BLK 15W XSManufacturer no. 257651S 1Quote Ask for a quote
4A BACK UPH EXO PRO TA BLK 15W SHManufacturer no. 257652S 1Quote Ask for a quote
4A BACK UPH EXO PRO TA BLK 15W MDManufacturer no. 257653S 1Quote Ask for a quote
4A BACK UPH EXO PRO TA BLK 15W TLManufacturer no. 257654S 1Quote Ask for a quote
4A BACK UPH EXO PRO TA BLK 15W XTManufacturer no. 257655S 1Quote Ask for a quote
4A BACK UPH EXO PRO TA BLK 16W XSManufacturer no. 257656S 1Quote Ask for a quote
4A BACK UPH EXO PRO TA BLK 16W SHManufacturer no. 257657S 1Quote Ask for a quote
4A BACK UPH EXO PRO TA BLK 16W MDManufacturer no. 257658S 1Quote Ask for a quote
4A BACK UPH EXO PRO TA BLK 16W TLManufacturer no. 257659S 1Quote Ask for a quote
4A BACK UPH EXO PRO TA BLK 16W XTManufacturer no. 257660S 1Quote Ask for a quote
4A BACK UPH EXO PRO TA BLK 17W XSManufacturer no. 257661S 1Quote Ask for a quote
4A BACK UPH EXO PRO TA BLK 17W SHManufacturer no. 257662S 1Quote Ask for a quote
4A BACK UPH EXO PRO TA BLK 17W MDManufacturer no. 257663S 1Quote Ask for a quote
4A BACK UPH EXO PRO TA BLK 17W TLManufacturer no. 257664S 1Quote Ask for a quote
4A BACK UPH EXO PRO TA BLK 17W XTManufacturer no. 257665S 1Quote Ask for a quote
4A BACK UPH EXO PRO TA BLK 18W XSManufacturer no. 257666S 1Quote Ask for a quote
4A BACK UPH EXO PRO TA BLK 18W SHManufacturer no. 257667S 1Quote Ask for a quote

Tension Adjustable Ballistic Nylon Upholstery

18 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Tension Adjustable Ballistic Nylon Upholstery
No.PartQtyPriceAction
2 TOP CAP, STD, 11 -12" Used for Omit Push Handle & Integral Push Handle onlyManufacturer no. 113712S 1Quote Ask for a quote
2 TOP CAP, STD, 13 -14" Used for Omit Push Handle & Integral Push Handle onlyManufacturer no. 113713S 1Quote Ask for a quote
2 TOP CAP, STD, 15 -16" Used for Omit Push Handle & Integral Push Handle onlyManufacturer no. 113714S 1Quote Ask for a quote
2 TOP CAP, STD, 17 -18" Used for Omit Push Handle & Integral Push Handle onlyManufacturer no. 113715S 1Quote Ask for a quote
2 TOP CAP, STD, 19 -20" Used for Omit Push Handle & Integral Push Handle onlyManufacturer no. 113716S 1Quote Ask for a quote
2 TOP CAP, STD, 21-22 Used for Omit Push Handle & Integral Push Handle onlyManufacturer no. 119083S 1Quote Ask for a quote
3 STRAP PADDED 2", 11 -12"Manufacturer no. 113727S 1Quote Ask for a quote
3 STRAP PADDED 2", 13 -14"Manufacturer no. 113728S 1Quote Ask for a quote
3 STRAP PADDED 2", 15 -16"Manufacturer no. 113729S 1Quote Ask for a quote
3 STRAP PADDED 2", 17 -18"Manufacturer no. 113730S 1Quote Ask for a quote
3 STRAP PADDED 2", 19 -20"Manufacturer no. 113731S 1Quote Ask for a quote
3 STRAP PDDED 2IN, 21-22Manufacturer no. 119081S 1Quote Ask for a quote
4 STRAP PADDED 1", 11 -12"Manufacturer no. 113732S 1Quote Ask for a quote
4 STRAP PADDED 1", 13 -14"Manufacturer no. 113733S 1Quote Ask for a quote
4 STRAP PADDED 1", 15 -16"Manufacturer no. 113734S 1Quote Ask for a quote
4 STRAP PADDED 1", 17 -18"Manufacturer no. 113735S 1Quote Ask for a quote
4 STRAP PADDED 1", 19-20"Manufacturer no. 113736S 1Quote Ask for a quote
4 STRAP PADDED 1IN, 21-22Manufacturer no. 119082S 1Quote Ask for a quote

Telescoping Push Handles

3 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Telescoping Push Handles
No.PartQtyPriceAction
1A HT ADJ PH TUBE ASSY 10-14 INManufacturer no. 257006 1Quote Ask for a quote
1B HT ADJ PH TUBE ASSY 14-20 INManufacturer no. 257007 1Quote Ask for a quote
2-9 HT ADJ PH CLAMP ASSM 1 side only, left or right compatibleManufacturer no. 170320 1Quote Ask for a quote

Telescoping Push Handles For Jay Back

3 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Telescoping Push Handles For Jay Back
No.PartQtyPriceAction
1A HT ADJ PH TUBE ASSY 10-14 INManufacturer no. 257006 1Quote Ask for a quote
1B HT ADJ PH TUBE ASSY 14-20 INManufacturer no. 257007 1Quote Ask for a quote
2-6 HT ADJ PH CLAMP ASSM JAY 1 side only, left or right compatibleManufacturer no. 170321 1Quote Ask for a quote

60, 70 & 80 Deg Swing In/Out Ext Mount Hangers

8 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 60, 70 & 80 Deg Swing In/Out Ext Mount Hangers
No.PartQtyPriceAction
1 1" INSERT PLUG .065 RIBSManufacturer no. 561062S 1Quote Ask for a quote
8 BUSHING FOOTRESTManufacturer no. 104160S 1Quote Ask for a quote
13 FHCSM6X1X35FULLNPManufacturer no. 103500-010 1Quote Ask for a quote
14 NUT HEX NYLOCK M6X1.0Manufacturer no. 104381 1Quote Ask for a quote
15 WAVE WASHER 6 MMManufacturer no. 104414S 1Quote Ask for a quote
8-11 FOOTREST CLAMP ASSM PAIRManufacturer no. 170101 1Quote Ask for a quote
12-15 LATCH RECEIVER KITManufacturer no. 119514S 1Quote Ask for a quote
16 Fixed Front touch pointManufacturer no. 71201061 1Quote Ask for a quote

Swing In-Out Ext Mount Elr & Alr Retrofit

6 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Swing In-Out Ext Mount Elr & Alr Retrofit
No.PartQtyPriceAction
1A SWNG I/O ELR ASM 14-15 W/PAD PairManufacturer no. 161233S 1Quote Ask for a quote
1B SWNG I/O ELR ASM 16-17 W/PAD PairManufacturer no. 161234S 1Quote Ask for a quote
1C SWNG I/O ELR ASM 18-20 W/PAD PairManufacturer no. 161235S 1Quote Ask for a quote
2A SWNG I/O ALR ASM 14-15 W/PAD PairManufacturer no. 161236S 1Quote Ask for a quote
2B SWNG I/O ALR ASM 16-17 W/PAD PairManufacturer no. 161237S 1Quote Ask for a quote
2C SWNG I/O ALR ASM 18-20 W/PAD PairManufacturer no. 161238S 1Quote Ask for a quote

Swing In-Out Ext Mount Elr Replacement Parts

18 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Swing In-Out Ext Mount Elr Replacement Parts
No.PartQtyPriceAction
1 SWNG I/O ELR ASSM RH RightManufacturer no. 161239S 1Quote Ask for a quote
1 SWNG I/O ELR ASSM LH LeftManufacturer no. 161240S 1Quote Ask for a quote
1 SWNG I/O ELR ASSM PR PairManufacturer no. 161241S 1Quote Ask for a quote
3 BHCS 8-32 X 1/2 BLKManufacturer no. 127135S 1Quote Ask for a quote
4 HEMI ELR SUB ASSMManufacturer no. 126992 1Quote Ask for a quote
5 ALR REL LEVER COVERManufacturer no. 560501 1Quote Ask for a quote
6 RECEIVER ASSY ELR ALR RHManufacturer no. 134188S 1Quote Ask for a quote
6 RECEIVER ASSY ELR ALR LHManufacturer no. 134186S 1Quote Ask for a quote
7 SHCS 1/4-28 x 1/2Manufacturer no. 107350 1Quote Ask for a quote
8 ANGLE STOP ELRManufacturer no. 127129 1Quote Ask for a quote
9 NUT HEX THIN 1/4-28Manufacturer no. 107249 1Quote Ask for a quote
10 1/4-28 NYLOCK NUT THIN BLK ZNManufacturer no. 106935 1Quote Ask for a quote
11 WAVE WASHER 6 MMManufacturer no. 104414S 1Quote Ask for a quote
12 BHCS 1/4 -28 x 1 1/4 ROHSManufacturer no. 106961 1Quote Ask for a quote
13 BHCS 1/4-28 x 1-1/2Manufacturer no. 108623 1Quote Ask for a quote
14 EXTENSION CLAMP KITManufacturer no. 119495 1Quote Ask for a quote
15 SQUARE END CAP CNTR LEGManufacturer no. 010615 1Quote Ask for a quote
16 5/16-18 X 2" BH C/S BLKManufacturer no. 226217 1Quote Ask for a quote

Swing In-Out Alr Ext Mnt Replacement Parts

19 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Swing In-Out Alr Ext Mnt Replacement Parts
No.PartQtyPriceAction
1 SWNG I/O ALR ASSM RH KIT RightManufacturer no. 161244S 1Quote Ask for a quote
1 SWNG I/O ALR ASSM LH KIT LeftManufacturer no. 161245S 1Quote Ask for a quote
1 SWNG I/O ALR ASSM PR KIT PairManufacturer no. 161246S 1Quote Ask for a quote
2 EXTENSION CLAMP KITManufacturer no. 119495 1Quote Ask for a quote
3 LATCH RECEIVER KIT order qty 2 when retro-fitting to chairManufacturer no. 119514S 1Quote Ask for a quote
4 HEMI ALR SUB ASSMManufacturer no. 127153 1Quote Ask for a quote
5 ALR REL LEVER COVERManufacturer no. 560501 1Quote Ask for a quote
6 RECEIVER ASSY ELR ALR RHManufacturer no. 134188S 1Quote Ask for a quote
6 RECEIVER ASSY ELR ALR LHManufacturer no. 134186S 1Quote Ask for a quote
7 ANGLE STOP ELRManufacturer no. 127129 1Quote Ask for a quote
8 SHCS 1/4-28 x 1/2Manufacturer no. 107350 1Quote Ask for a quote
9 1/4-28 NYLOCK NUT THIN BLK ZNManufacturer no. 106935 1Quote Ask for a quote
10 BHCS 1/4-28 x 1-1/2Manufacturer no. 108623 1Quote Ask for a quote
11 BHCS 1/4-28 X 2Manufacturer no. 106964 1Quote Ask for a quote
12 1" HALF SADDLE 1/4" HOLEManufacturer no. 561086S 1Quote Ask for a quote
13 WASHER NYLON 1IN OD X .312 IDManufacturer no. 113268S 1Quote Ask for a quote
14 WASHER FLAT AN 1/4 ROHSManufacturer no. 106943 1Quote Ask for a quote
15 WASHER FLAT AN #10 ROHSManufacturer no. 113282 1Quote Ask for a quote
16 BHCS 8-32 X 1/2 BLKManufacturer no. 127135 1Quote Ask for a quote

Elr & Alr Calf Pads

0 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Composite Footplate

16 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Composite Footplate
No.PartQtyPriceAction
2A FOOTPLATE COMPOSITE 157 RManufacturer no. 063216-006S 1Quote Ask for a quote
2A FOOTPLATE COMPOSITE 157 LManufacturer no. 063216-012S 1Quote Ask for a quote
2B FOOTPLATE COMPOSITE 182 RManufacturer no. 063216-005S 1Quote Ask for a quote
2B FOOTPLATE COMPOSITE 182 LManufacturer no. 063216-011S 1Quote Ask for a quote
2C FOOTPLATE COMPOSITE 207 RManufacturer no. 063216-004S 1Quote Ask for a quote
2C FOOTPLATE COMPOSITE 207 LManufacturer no. 063216-010S 1Quote Ask for a quote
2D FOOTPLATE COMPOSITE 232 RManufacturer no. 063216-003S 1Quote Ask for a quote
2D FOOTPLATE COMPOSITE 232 LManufacturer no. 063216-009S 1Quote Ask for a quote
3 3/4" SADDLE THINManufacturer no. 104377 1Quote Ask for a quote
4 SHCS M6 X 1 X 40, PART, NPManufacturer no. 103175 1Quote Ask for a quote
5 NUT AUTOMATION 1/4-28 ROHSManufacturer no. 132626 1Quote Ask for a quote
6 POST HEEL LOOPManufacturer no. 104328 1Quote Ask for a quote
7A ADJ FOOTREST STRAP 15-16WManufacturer no. 104380-002S 1Quote Ask for a quote
7B ADJ FOOTREST STRAP 17-18WManufacturer no. 104380-003 1Quote Ask for a quote
7C ADJ FOOTREST STRAP 19-20WManufacturer no. 104380-004 1Quote Ask for a quote
8 HHCS M6 X 1 X 25 BLKManufacturer no. 102268-001 1Quote Ask for a quote

Composite Angle Adjustable Foot Plate

15 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Composite Angle Adjustable Foot Plate
No.PartQtyPriceAction
1D TUBE FTRST EXT STRGHT SHT HEMI Use for Hemi Ext Tube optionManufacturer no. 128079S 1Quote Ask for a quote
2A COMPOSITE FOOTPLATE RIGHT RIGHT 15" Footrest WidthManufacturer no. 063216-006S 1Quote Ask for a quote
2A COMPOSITE FOOTPLATE LEFT LEFT 15" Footrest WidthManufacturer no. 063216-012S 1Quote Ask for a quote
2B COMPOSITE FOOTPLATE RIGHT RIGHT 16" Footrest WidthManufacturer no. 063216-015S 1Quote Ask for a quote
2B COMPOSITE FOOTPLATE LEFT LEFT 16" Footrest WidthManufacturer no. 063216-018S 1Quote Ask for a quote
2C COMPOSITE FOOTPLATE RIGHT RIGHT 17" Footrest WidthManufacturer no. 063216-005S 1Quote Ask for a quote
2C COMPOSITE FOOTPLATE LEFT LEFT 17" Footrest WidthManufacturer no. 063216-011S 1Quote Ask for a quote
2D COMPOSITE FOOTPLATE RIGHT RIGHT 18" Footrest WidthManufacturer no. 063216-014S 1Quote Ask for a quote
2D COMPOSITE FOOTPLATE LEFT LEFT 18" Footrest WidthManufacturer no. 063216-017S 1Quote Ask for a quote
2E COMPOSITE FOOTPLATE RIGHT RIGHT 19" Footrest WidthManufacturer no. 063216-004S 1Quote Ask for a quote
2E COMPOSITE FOOTPLATE LEFT LEFT 19" Footrest WidthManufacturer no. 063216-010S 1Quote Ask for a quote
2F COMPOSITE FOOTPLATE RIGHT RIGHT 20" Footrest WidthManufacturer no. 063216-013S 1Quote Ask for a quote
2F COMPOSITE FOOTPLATE LEFT LEFT 20" Footrest WidthManufacturer no. 063216-016S 1Quote Ask for a quote
2G COMPOSITE FOOTPLATE RIGHT RIGHT 21" & 22" Footrest WidthManufacturer no. 063216-003S 1Quote Ask for a quote
2G COMPOSITE FOOTPLATE LEFT LEFT 21" & 22" Footrest WidthManufacturer no. 063216-009S 1Quote Ask for a quote

Multi Angle Adj Footplate

11 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Multi Angle Adj Footplate
No.PartQtyPriceAction
1A DIVIDED FOOT PLATE LEFT 75MM 13-14Manufacturer no. 71205015-003S 1Quote Ask for a quote
1A DIVIDED FOOT PLATE RIGHT 75MM 13-14Manufacturer no. 71205015-004S 1Quote Ask for a quote
1B DIVIDED FOOT PLATE LEFT 100MM 15-16Manufacturer no. 71205015-005S 1Quote Ask for a quote
1B DIVIDED FOOT PLATE RIGHT 100MM 15-16Manufacturer no. 71205015-006S 1Quote Ask for a quote
1C DIVIDED FOOT PLATE LEFT 125MM 17-18Manufacturer no. 71205015-007S 1Quote Ask for a quote
1C DIVIDED FOOT PLATE RIGHT 125MM 17-18Manufacturer no. 71205015-008S 1Quote Ask for a quote
1D DIVIDED FOOT PLATE LEFT 150MM 19-20Manufacturer no. 71205015-009 1Quote Ask for a quote
1D DIVIDED FOOT PLATE RIGHT 150MM 19-20Manufacturer no. 71205015-010 1Quote Ask for a quote
2G Footrest Pivot Assy 125mm 13-14,LongManufacturer no. 71205014-003 1Quote Ask for a quote
2H Footrest Pivot Assy 150mm 15-18,LongManufacturer no. 71205014-002 1Quote Ask for a quote
2I FOOTREST PIVOT ASSY 200MM 19-20,LongManufacturer no. 71205014-004 1Quote Ask for a quote

Adult Aluminum Angle-Adj Footplate

20 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Adult Aluminum Angle-Adj Footplate
No.PartQtyPriceAction
1D TUBE FTRST EXT STRGHT SHT HEMI Use for Hemi Ext Tube optionManufacturer no. 128079S 1Quote Ask for a quote
2A ADULT ANG ADJ F/PLT 10/11" R RIGHT 10-11" Footrest WidthManufacturer no. 500656 1Quote Ask for a quote
2A ADULT ANG ADJ F/PLT 10/11" L LEFT 10-11" Footrest WidthManufacturer no. 500657 1Quote Ask for a quote
2B ADULT ANG ADJ F/PLT 12/13" R RIGHT 12-13" Footrest WidthManufacturer no. 500658 1Quote Ask for a quote
2B ADULT ANG ADJ F/PLT 12/13" L LEFT 12-13" Footrest WidthManufacturer no. 500659 1Quote Ask for a quote
2C ADLT ANGL ADJ F/PLT 14/15 RIGHT 14-15" Footrest WidthManufacturer no. 500660 1Quote Ask for a quote
2C ADLT ANGL ADJ F/PLT 14/15 LEFT 14-15" Footrest WidthManufacturer no. 500661 1Quote Ask for a quote
2D ADLT ANGL ADJ F/PLT 16/17 RIGHT 16-17" Footrest WidthManufacturer no. 500662 1Quote Ask for a quote
2D ADLT ANGL ADJ F/PLT 16/17 LEFT 16-17" Footrest WidthManufacturer no. 500663 1Quote Ask for a quote
2E ADLT ANGL ADJ F/PLT 18-20 RIGHT 18-22" Footrest WidthManufacturer no. 500664 1Quote Ask for a quote
2E ADLT ANGL ADJ F/PLT 18-20 LEFT 18-22" Footrest WidthManufacturer no. 500665 1Quote Ask for a quote
3 NUT AUTOMATION M6 X 1.0Manufacturer no. 132626 1Quote Ask for a quote
4 WASHER FLAT THIN AN 1/4 ROHSManufacturer no. 106944 1Quote Ask for a quote
5 HANGER EXTENSION SADDLEManufacturer no. 107199 1Quote Ask for a quote
6 3/4" SADDLE 1" ODManufacturer no. 561055 1Quote Ask for a quote
7 FTRST MOUNTING BRKT-3/8 RAD R RIGHTManufacturer no. 541002 1Quote Ask for a quote
7 FTRST MOUNTING BRKT-3/8 RAD L LEFTManufacturer no. 541003 1Quote Ask for a quote
8 WASHER FLAT SAE 1/4 ROHSManufacturer no. 106945 1Quote Ask for a quote
9 SHCS M6X1X45 12 MM PART THDManufacturer no. 104399 1Quote Ask for a quote
10 FHCS 1/4-28 X 7/8 ROHSManufacturer no. 106978 1Quote Ask for a quote

Elr/Alr Aluminum Footplate (Clamp)

15 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Elr/Alr Aluminum Footplate (Clamp)
No.PartQtyPriceAction
1 1/4-28 x 5/8 BH C/SManufacturer no. 226090 1Quote Ask for a quote
2 BRACKET FOOTPLATE ALUMManufacturer no. 118093 1Quote Ask for a quote
3 BHCS M6 X 1 X 50 INORGANICManufacturer no. 102262-008S 1Quote Ask for a quote
4 #4 x 5/8 PAN PHIL S/TAPManufacturer no. 281043 1Quote Ask for a quote
5 END CAPS FOOTRESTManufacturer no. 560101S 1Quote Ask for a quote
7 SHORT BENTManufacturer no. 107126 1Quote Ask for a quote
7 MED BENTManufacturer no. 107127 1Quote Ask for a quote
7 LONG BENTManufacturer no. 107128 1Quote Ask for a quote
7 TUBE FOOTREST EXT SHT HEMI Use for Hemi Extension optionManufacturer no. 128078 1Quote Ask for a quote
8 1/4-28 NYLOCK NUT THINManufacturer no. 106935 1Quote Ask for a quote
9 3/4" SADDLE THINManufacturer no. 561003 1Quote Ask for a quote
10 NUT AUTOMATION M6 X 1.0Manufacturer no. 132626 1Quote Ask for a quote
11 WASHER FLAT M6 ROHSManufacturer no. 107383 1Quote Ask for a quote
12-14 EXTENSION CLAMP KITManufacturer no. 119495 1Quote Ask for a quote
15 ALU FOOTPLATE HDWARE KIT Ext tube not included; bracket (118093) not includedManufacturer no. 129775 1Quote Ask for a quote

Folding Platform Footplate

7 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Folding Platform Footplate
No.PartQtyPriceAction
3A FOOTREST PIVOT ASSY 100MMManufacturer no. 71205014-001 1Quote Ask for a quote
3B FOOTREST PIVOT ASSY 125MMManufacturer no. 71205014-002 1Quote Ask for a quote
3C FOOTREST PIVOT ASSY 150MMManufacturer no. 71205014-003 1Quote Ask for a quote
3D FOOTREST PIVOT ASSY 200MMManufacturer no. 71205014-004 1Quote Ask for a quote
2 FOOT REST FORKManufacturer no. 71205033 1Quote Ask for a quote
4 RECEIVER WITH FOOT REST TUBEManufacturer no. 71205025 1Quote Ask for a quote
5 FOLDING PLTFRM FP FASTENERS 2 OF EACHManufacturer no. 169898 1Quote Ask for a quote

Platform Ultra Lite Footplate

1 part

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Platform Ultra Lite Footplate
No.PartQtyPriceAction
3 TUBE FRONT COVERManufacturer no. 066203-000 1Quote Ask for a quote

Platform Carbon Fiber Footplate

14 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Platform Carbon Fiber Footplate
No.PartQtyPriceAction
5-8 FOOTREST CLAMPManufacturer no. 06802227 1Quote Ask for a quote
10-13 STOP BRACKET FOR FOOTBOARDManufacturer no. 068890 1Quote Ask for a quote
14A ANTISLIP STCKR CRBN FTPT S KIT 11-12Manufacturer no. 132004 1Quote Ask for a quote
14B ANTISLIP STCKR CRBN FTPT M KIT 13-14Manufacturer no. 132005 1Quote Ask for a quote
14C ANTISLIP STCKR CRBN FTPT L KIT 15-20Manufacturer no. 132006 1Quote Ask for a quote
1-9 COMP PLATFORM FP 11WManufacturer no. 169937 1Quote Ask for a quote
1-9 COMP PLATFORM FP 12WManufacturer no. 169938 1Quote Ask for a quote
1-9 COMP PLATFORM FP 13WManufacturer no. 169939 1Quote Ask for a quote
1-9 COMP PLATFORM FP 14WManufacturer no. 169940 1Quote Ask for a quote
1-9 COMP PLATFORM FP 15WManufacturer no. 169941 1Quote Ask for a quote
1-9 COMP PLATFORM FP 16WManufacturer no. 169942 1Quote Ask for a quote
1-9 COMP PLATFORM FP 17WManufacturer no. 169943 1Quote Ask for a quote
1-9 COMP PLATFORM FP 18WManufacturer no. 169944 1Quote Ask for a quote
1-9 COMP PLATFORM FP 19-20WManufacturer no. 169945 1Quote Ask for a quote

Auto-Fold Platform Carbon Footplate

18 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Auto-Fold Platform Carbon Footplate
No.PartQtyPriceAction
9-12 STOP BRACKET FOR FOOTBOARD 2 pcs/packManufacturer no. 068890 1Quote Ask for a quote
5-8 FOOTREST CLAMP ASSM PAIRManufacturer no. 170101 1Quote Ask for a quote
1-4 AUTOFOLD FOOTBOARD MECH 32W S short extension tubeManufacturer no. 260332S 1Quote Ask for a quote
1-4 AUTOFOLD FOOTBOARD MECH 34W S short extension tubeManufacturer no. 260333S 1Quote Ask for a quote
1-4 AUTOFOLD FOOTBOARD MECH 36W S short extension tubeManufacturer no. 260334S 1Quote Ask for a quote
1-4 AUTOFOLD FOOTBOARD MECH 38W S short extension tubeManufacturer no. 260335S 1Quote Ask for a quote
1-4 AUTOFOLD FOOTBOARD MECH 40W S short extension tubeManufacturer no. 260336S 1Quote Ask for a quote
1-4 AUTOFOLD FOOTBOARD MECH 42W S short extension tubeManufacturer no. 260337S 1Quote Ask for a quote
1-4 AUTOFOLD FOOTBOARD MECH 44W S short extension tubeManufacturer no. 260338S 1Quote Ask for a quote
1-4 AUTOFOLD FOOTBOARD MECH 46W S short extension tubeManufacturer no. 260339S 1Quote Ask for a quote
1-4 AUTOFOLD FOOTBOARD MECH 48W S short extension tubeManufacturer no. 260340S 1Quote Ask for a quote
1-4 AUTOFOLD FOOTBOARD MECH 50W S short extension tubeManufacturer no. 260341S 1Quote Ask for a quote
1-4 AUTOFOLD FOOTBOARD MECH 32W M med extension tubeManufacturer no. 260342S 1Quote Ask for a quote
1-4 AUTOFOLD FOOTBOARD MECH 34W M med extension tubeManufacturer no. 260343S 1Quote Ask for a quote
1-4 AUTOFOLD FOOTBOARD MECH 36W M med extension tubeManufacturer no. 260344S 1Quote Ask for a quote
1-4 AUTOFOLD FOOTBOARD MECH 38W M med extension tubeManufacturer no. 260345S 1Quote Ask for a quote
1-4 AUTOFOLD FOOTBOARD MECH 40W M med extension tubeManufacturer no. 260346S 1Quote Ask for a quote
1-4 AUTOFOLD FOOTBOARD MECH 42W M med extension tubeManufacturer no. 260347S 1Quote Ask for a quote

Padded Swing-Away Armrest

6 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Padded Swing-Away Armrest
No.PartQtyPriceAction
4 GEL PAD S/ ARM PAIRManufacturer no. 108315S 1Quote Ask for a quote
5 9X.93X.155 FOAM GRIP Single replacement gripManufacturer no. 560640S 1Quote Ask for a quote
6 SEXBOLTSA ARMREST KITManufacturer no. 108118 1Quote Ask for a quote
7 SLEEVE SWING AWAY ARMRESTManufacturer no. 106505S 1Quote Ask for a quote
7-10 PADDED SA RECEIVER KIT RHManufacturer no. 169946 1Quote Ask for a quote
7-10 PADDED SA RECEIVER KIT LHManufacturer no. 169947 1Quote Ask for a quote

Single Post Height Adj Armrest & Receiver

13 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Single Post Height Adj Armrest & Receiver
No.PartQtyPriceAction
1B CLASSIC PAD DESK with FastenersManufacturer no. 161633 1Quote Ask for a quote
1C CLASSIC PAD FULL with FastenersManufacturer no. 161634 1Quote Ask for a quote
1D ARMREST PAD 10" LEFT W/FManufacturer no. 561280 1Quote Ask for a quote
1D ARMREST PAD 10" RIGHT W/FManufacturer no. 561281 1Quote Ask for a quote
1E ARMREST PAD 14" LEFT W/FManufacturer no. 561284 1Quote Ask for a quote
1E ARMREST PAD 14" RIGHT W/FManufacturer no. 561285 1Quote Ask for a quote
2 BHCS 10-32 X 1 1/2 ROHSManufacturer no. 107024 1Quote Ask for a quote
3B HT ADJ PD TUBE 10IN DESK POWE DeskManufacturer no. 521812 1Quote Ask for a quote
3C HT ADJ PD TUBE 14IN FULL POWE FullManufacturer no. 521813 1Quote Ask for a quote
4 7/8" ROUND TUBE PLUGManufacturer no. 560735S 1Quote Ask for a quote
5 SHCS 10-32 X 1-1/4 PL Used w/ Full Length Classic & Full Length WaterfallManufacturer no. 108534 1Quote Ask for a quote
6A SNGL POST UPPR ASSM STD StandardManufacturer no. 116313 1Quote Ask for a quote
6B SNGL POST UPPR ASSM LOW Low/SmallManufacturer no. 116312 1Quote Ask for a quote

Flip Back Height Adj Lite Armrest

8 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Flip Back Height Adj Lite Armrest
No.PartQtyPriceAction
2 10-32 X 1 1/2 BH C/S BLKManufacturer no. 107024S 1Quote Ask for a quote
3A HEIGHT ADJ UPPER ARM TUBE MEDManufacturer no. 243044S 1Quote Ask for a quote
3B HT ADJ PD TUBE 10IN DESK POWEManufacturer no. 521812S 1Quote Ask for a quote
3C HT ADJ PD TUBE 14IN FULL POWEManufacturer no. 521813S 1Quote Ask for a quote
4 7/8" ROUND TUBE PLUGManufacturer no. 560735S 1Quote Ask for a quote
5 10-32 x 1 1/4 SOC C/S BLK FullManufacturer no. 226031 1Quote Ask for a quote
6 SPHA ARM PAD MOUNTManufacturer no. 116313S 1Quote Ask for a quote
8-12 SPHA FB LT RECEIVER FRNTManufacturer no. 161651S 1Quote Ask for a quote

Plastic Side Guards

6 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Plastic Side Guards
No.PartQtyPriceAction
1A SIDE GUARD ASSY STDManufacturer no. 104164-001S 1Quote Ask for a quote
1B SIDE GUARD ASSY SMALLManufacturer no. 104164-002S 1Quote Ask for a quote
2 BHCS,M6X1X30,FULL,NPManufacturer no. 102262-005 1Quote Ask for a quote
5-8 RECEIVER SIDE GUARD ASSYManufacturer no. 108781S 1Quote Ask for a quote
2-8 SIDE GUARD RECIEVER one side, left or rightManufacturer no. 169952 1Quote Ask for a quote
9 FASTENERS SIDE GUARD RECVR one side, left or rightManufacturer no. 169953 1Quote Ask for a quote

Alu Side Guards Fixed

3 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Alu Side Guards Fixed
No.PartQtyPriceAction
2-10 ALU SIDE GRD W/FENDER 5X RHManufacturer no. 169973 1Quote Ask for a quote
2-10 ALU SIDE GRD W/FENDER 5X LHManufacturer no. 169974 1Quote Ask for a quote
11 ALU SD GRD FXD FASTENER KIT 5XManufacturer no. 169975 1Quote Ask for a quote

Carbon Fiber Side Guards Slim & Large

5 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Carbon Fiber Side Guards Slim & Large
No.PartQtyPriceAction
1 SLIMSTYLE SIDEGUARD LEFTManufacturer no. 058455-001S 1Quote Ask for a quote
1 SLIMSTYLE SIDEGUARD RIGHTManufacturer no. 058455-002S 1Quote Ask for a quote
2-10 CARBON SIDE GRD LRG RHManufacturer no. 169985 1Quote Ask for a quote
2-10 CARBON SIDE GRD LRG LHManufacturer no. 169986 1Quote Ask for a quote
11 ALU SD GRD FXD FASTENER KIT 5XManufacturer no. 169975 1Quote Ask for a quote

Backpacks And Seat Pouches

3 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Backpacks And Seat Pouches
No.PartQtyPriceAction
1 BACK PACK QUICKIE Overall dimensions:width 12.5", height 18.5", depth 6.5"Manufacturer no. 750115 1Quote Ask for a quote
2 BACKPACK ZIPPIE Overall dimensions: width 12", height 16.5", depth 4.5"Manufacturer no. 104572S 1Quote Ask for a quote
3 SEAT POUCH QUICKIE Dimensions: width 8.5", height 6", depth top 2.5", depth bottom 3.5"Manufacturer no. 750307S 1Quote Ask for a quote

Pelvic Positioning Belts

9 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Pelvic Positioning Belts
No.PartQtyPriceAction
1A APB, 1.5" PB, SINGLE, SM PADS (7.5"Pad), Push ButtonManufacturer no. APB7212 1Quote Ask for a quote
1B APB, 1.5" PB, SINGLE, MED PADS (9.5"Pad), Push ButtonManufacturer no. APB7213 1Quote Ask for a quote
1C APB, 2" PB, SINGLE, MED PADS (7.5"Pad), Push ButtonManufacturer no. APB7313 1Quote Ask for a quote
1D APB, 2" PB, SINGLE, LG PADS (9.5"Pad), Push ButtonManufacturer no. APB7314 1Quote Ask for a quote
2A BELT 2" AIRCRAFT BUCKLE Max length of belt 64"Manufacturer no. 450418-QU 1Quote Ask for a quote
2B BELT 2" AIRCRAFT BUCKLE W/PAD Max length of belt 64"Manufacturer no. 450423-QU 1Quote Ask for a quote
2C BELT 2" AIRCRAFT BKL LONG W/PAD Max length of belt 72"Manufacturer no. 450424 1Quote Ask for a quote
2D BELT 2" AIRCRAFT BKL LONG Max length of belt 72"Manufacturer no. 450425 1Quote Ask for a quote
3 PSTN BELT CLAMP ASSM PR Metric; PairManufacturer no. 120750 1Quote Ask for a quote

Crutch Holder With Velcro Strap

4 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Crutch Holder With Velcro Strap
No.PartQtyPriceAction
1-5 ACCESSORY BRKT KITManufacturer no. 170158 1Quote Ask for a quote
1-4 ACCESSORY BRKT FASTENERSManufacturer no. 170159 1Quote Ask for a quote
6-11 CRUTCH HOLDER WITH VELCROManufacturer no. 740815120 1Quote Ask for a quote
11 TIP ASSIST THREAD CAPManufacturer no. 740815123 1Quote Ask for a quote

Tip Assist

3 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Tip Assist
No.PartQtyPriceAction
1-5 ACCESSORY BRKT KITManufacturer no. 170158 1Quote Ask for a quote
1-4 ACCESSORY BRKT FASTENERSManufacturer no. 170159 1Quote Ask for a quote
1-6 TIP ASSIST KITManufacturer no. 170164 1Quote Ask for a quote

Travel Wheel

3 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Travel Wheel
No.PartQtyPriceAction
1-5 ACCESSORY BRKT KITManufacturer no. 170158 1Quote Ask for a quote
1-4 ACCESSORY BRKT FASTENERSManufacturer no. 170159 1Quote Ask for a quote
1-6 TRANSIT WHEEL KIT PR PairManufacturer no. 170165 1Quote Ask for a quote

Led Lights

3 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Led Lights
No.PartQtyPriceAction
1-4 LED LIGHT SET PAIRManufacturer no. 169956 1Quote Ask for a quote
5 Hanger Latch ReceiverManufacturer no. 118696S 1Quote Ask for a quote
6 Charging cableManufacturer no. 71209037 1Quote Ask for a quote

Impact Guard Neoprene & Gel Velcro Pads

4 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Impact Guard Neoprene & Gel Velcro Pads
No.PartQtyPriceAction
1 IMPACT GUARDS NEOPRENE FIXED (PR) PAIR-Fixed Front FrameManufacturer no. 750316S 1Quote Ask for a quote
2 IMPACT GUARDS NEOPRENE S/A PAIR-S/A Footrest & Q7Manufacturer no. 750317S 1Quote Ask for a quote
3 GEL VELCRO PAD HANGER/FRAME PAIR- fits S/A & Fixed Front FrameManufacturer no. 109231S 1Quote Ask for a quote
4 GEL PAD SA ARM Single, fits Padded SA ArmrestManufacturer no. 108315S 1Quote Ask for a quote

Adjustable Leg Strap

4 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Adjustable Leg Strap
No.PartQtyPriceAction
1A LEG STRAP 11"-12" BLKManufacturer no. 113255S 1Quote Ask for a quote
1B LEG STRAP 13"-15" BLKManufacturer no. 113256S 1Quote Ask for a quote
1C LEG STRAP 16"-18" BLKManufacturer no. 113257S 1Quote Ask for a quote
1D LEG STRAP 19"-20" BLKManufacturer no. 113258S 1Quote Ask for a quote

SPOKE GUARDS QUICKIE (Black & Clear)

0 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Water Bottle And Cage

4 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Water Bottle And Cage
No.PartQtyPriceAction
1 WATER BOTTLE CAGE W/ CLAMP BlackManufacturer no. 252135 1Quote Ask for a quote
2 QUICKIE WATER BOTTLE BlackManufacturer no. 252136 1Quote Ask for a quote
3 ADHESIVE RUBBER PADManufacturer no. 123526 1Quote Ask for a quote
1-3 WATER BOTTLE W/ CAGE AND CLAMPManufacturer no. 163680 1Quote Ask for a quote

Quickie Caddy

5 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Quickie Caddy
No.PartQtyPriceAction
1 1/4-28 x 1 1/4 SOC C/SManufacturer no. 106975S 1Quote Ask for a quote
2 CADDY ARM Clamps on to Extension Tube (3/4" round and D2); Caddy Arm length is 7 1/2"Manufacturer no. 561105S 1Quote Ask for a quote
3 CADDY CLAMP Clamps on to Extension Tube (3/4" round and D2)Manufacturer no. 561104S 1Quote Ask for a quote
4 1/4-28 NYLOCK NUT THINManufacturer no. 106935 1Quote Ask for a quote
1-4 QUICKIE CADDY (PR)Manufacturer no. 902350S 1Quote Ask for a quote

Mobile Phone Pocket

1 part

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Mobile Phone Pocket
No.PartQtyPriceAction
1 CELLPHONE CASE W/LOGOManufacturer no. 000670004 1Quote Ask for a quote

Tool Kit

3 parts

Exploded view from the manufacturer's parts manual (Quickie QS5 X Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Tool Kit
No.PartQtyPriceAction
1 TOOL SETManufacturer no. 000604270 1Quote Ask for a quote
2 torque wrench weldingManufacturer no. 66009203S 1Quote Ask for a quote
3 spanner wrench AF18Manufacturer no. 66009205S 1Quote Ask for a quote

Parts manuals for this model

The manufacturer parts lists and exploded diagrams we hold. If you can find the number on one of these, quote it to us and we will match it.

Quickie QS5 X Parts Manual

Manufacturer parts document, PDF.

Not sure which part you need?

Send us a photo of the part, or of where it sits, and tell us what it is doing. Our order desk identifies parts for this equipment every day, and we would rather ask you one question than ship you the wrong bolt.

Or call 905 451-7743 and describe it to us.

Where to go next

The product page

Specifications, documents and the full product page for the Quickie qs5 X Folding Ultralight Wheelchair.

All replacement parts

Search every part we stock, or browse by the equipment it fits.

Have us fit it

Our technicians service what we sell, in the home and in the showroom.
