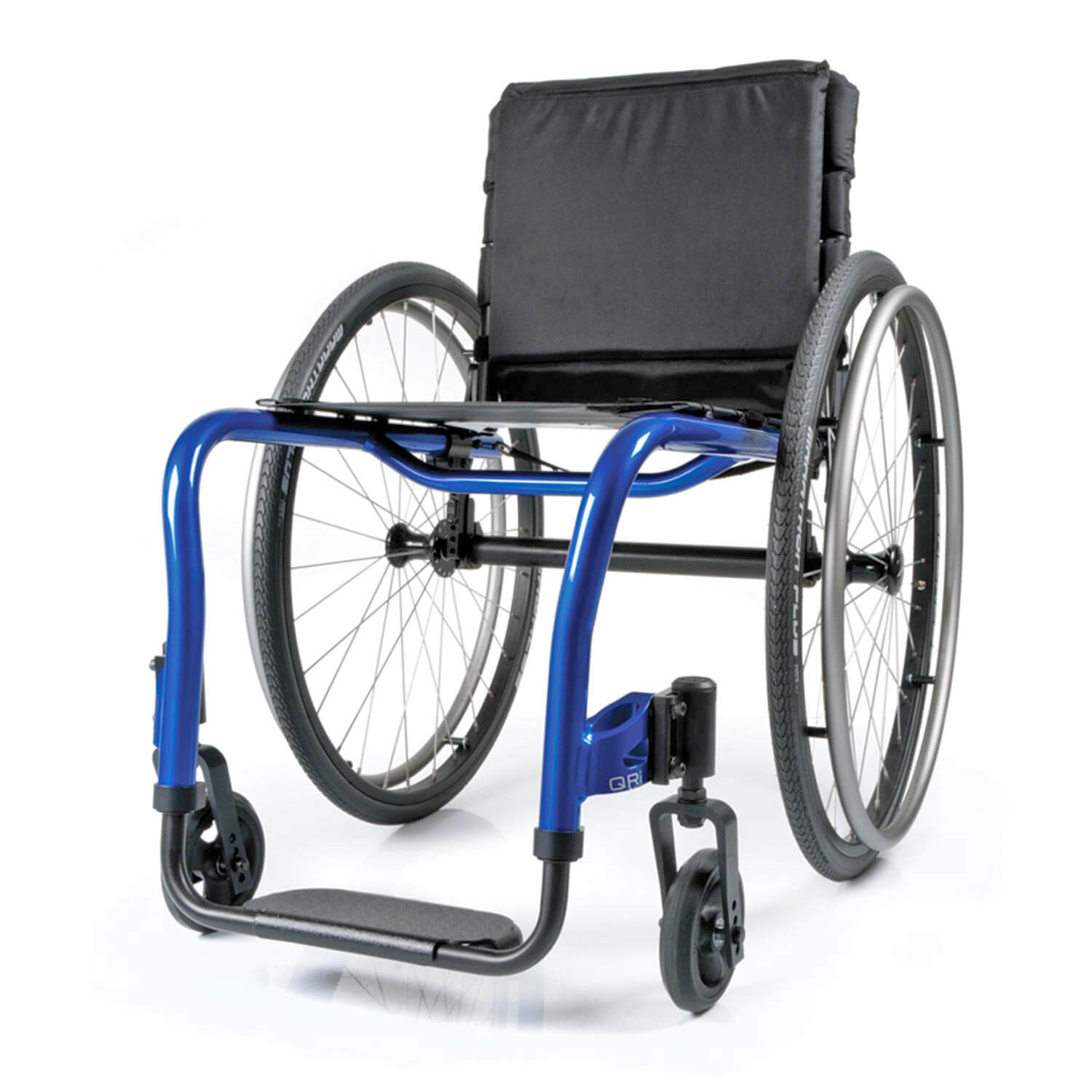

Quickie Qri Rigid Wheelchair

Parts finder

Replacement parts for the Quickie Qri Rigid Wheelchair

The exploded view below is numbered. Click a number on the drawing to jump to that part, or search the list. Every price shown is the current online price; anything quoted is priced by our order desk.

Ask about a part Product page 509 parts listed Model WM0000991

Showing all 509 parts

1 of 53

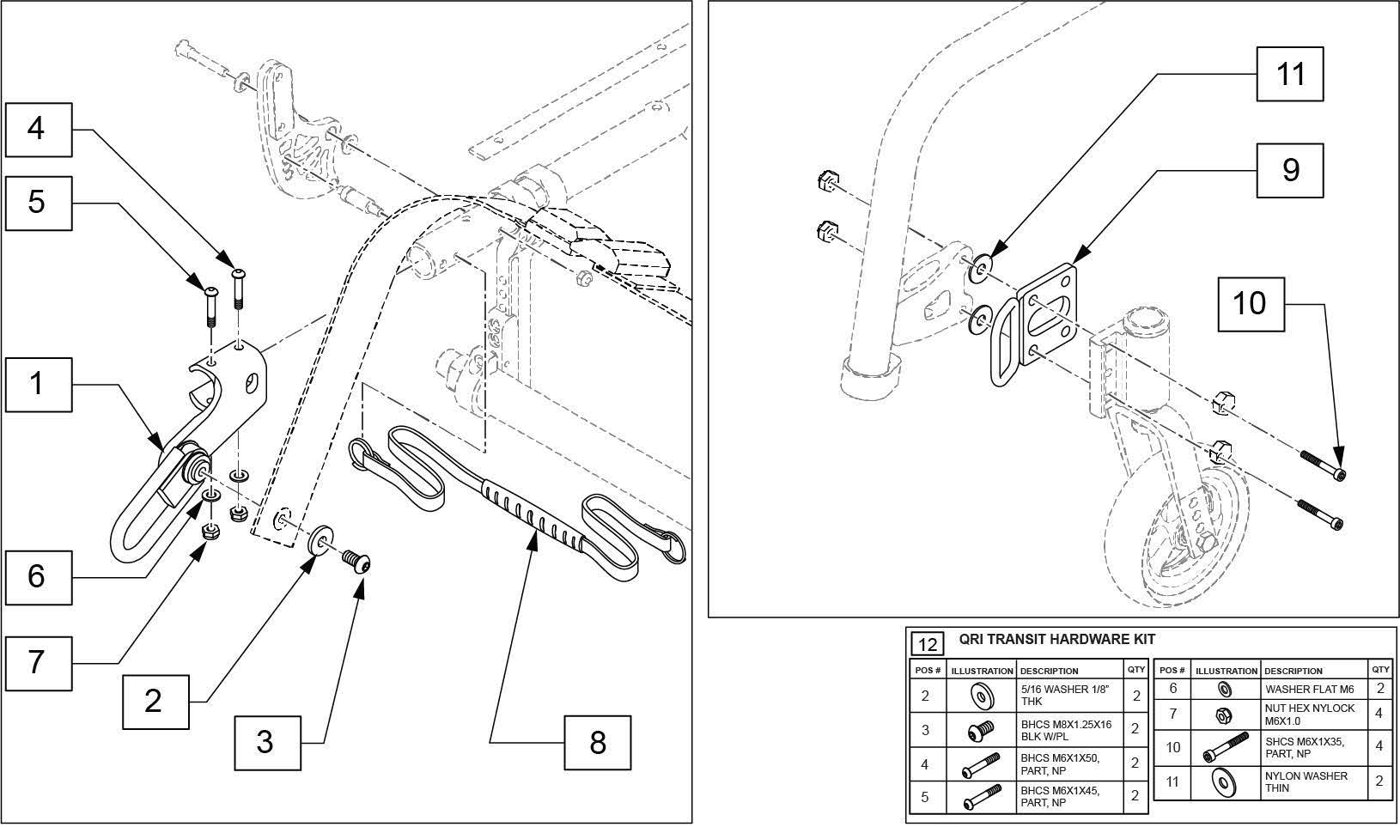

Exploded view of the Transit Kit

Loading the drawing

Transit Kit. Numbers match the list.
Quick Release Axles Matrix-Q7/Qri/Zone. Numbers match the list.
QRi AXLE PLATE ASSEMBLY. Numbers match the list.
QRi CAMBER TUBE ASSM. Numbers match the list.
3 Spoke Casters. Numbers match the list.
Aluminum Soft Roll Casters. Numbers match the list.
Caster Housing. Numbers match the list.
Caster Fork. Numbers match the list.
ANTI-TIP QRi. Numbers match the list.
WHEEL LOCK (PULL TO LOCK) QRi. Numbers match the list.
WHEEL LOCK (PUSH TO LOCK) QRi. Numbers match the list.
Compact Wheel Lock. Numbers match the list.
HIGH MOUNT ERGO (SCISSOR) WHEEL LOCK - QRi. Numbers match the list.
Wheel Lock Extension Handle. Numbers match the list.
Traditional 6 Spoke Mag. Numbers match the list.
New Ultra Lite Spoke. Numbers match the list.
Spinergy Spox (18 Spoke). Numbers match the list.
Pneumatic & Pneu. Airless Tire. Numbers match the list.
Full Poly Tire. Numbers match the list.
High Pressure Clincher Tire. Numbers match the list.
Knobby V-Track Tire. Numbers match the list.
Schwalbe Marathon Plus Tire. Numbers match the list.
Shox Tire. Numbers match the list.
Aluminum Anodized (Screw Mount). Numbers match the list.
Aluminum Anodized (Tab Mount). Numbers match the list.
Plastic Coated (Screw Mount). Numbers match the list.
Plastic Coated (Reg Tab Mount). Numbers match the list.
Natural Fit (Screw Mount). Numbers match the list.
Natural Fit (Tab Mount). Numbers match the list.
Tubes And Airless Inserts. Numbers match the list.
Seat Sling And Cushion Qri. Numbers match the list.
BACKREST HANDLES -QRi. Numbers match the list.
FOLDING BACKREST - QRi. Numbers match the list.
NON-FOLDING BACKREST- QRi. Numbers match the list.
Std Back Uph Used W/ Omit Handles. Numbers match the list.
Std Back Uph Used W/ Integral Push Handles. Numbers match the list.
Tension Adjustable Ballistic Nylon Upholstery. Numbers match the list.
Tension Adjustable 3Dx Vented Upholstery. Numbers match the list.
Bolt On Push Handles. Numbers match the list.
Tubular Footrest. Numbers match the list.
PLATFORM FOOTREST-QRi. Numbers match the list.
Footrest Cover. Numbers match the list.
Single Post Height Adjustable Armrest. Numbers match the list.
PADDED SWING-AWAY ARMREST QRi. Numbers match the list.
PADDED SWING AWAY ARMREST RECEIVER -QRi. Numbers match the list.
SINGLE POST ARMREST RECEIVER QRi. Numbers match the list.
Hardware.. Numbers match the list.
Auto Buckle Positioning Belt & Attachment Kits. Numbers match the list.
Plastic Side Guards 1 1/8" Clamp. Numbers match the list.
ALUMINUM SIDE GUARD QRi. Numbers match the list.
Crutch Holder (Rigid Chairs). Numbers match the list.
Tool Kit. Numbers match the list.
Tire Pump. Numbers match the list.

Transit Kit

27 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Transit Kit
No.PartQtyPriceAction
2 5/16 WASHER 1/8" THKManufacturer no. 263113 1Quote Ask for a quote
3 BHCS, M8X1.25X16,FULL,PLManufacturer no. 013149 1Quote Ask for a quote
4 BHCS M6 X 1 X 50 INORGANICManufacturer no. 102262-008 1Quote Ask for a quote
5 BHCS M6 X 1 X 45 INORGANICManufacturer no. 102262-007 1Quote Ask for a quote
6 WASHER FLAT M6Manufacturer no. 250104 1Quote Ask for a quote
7 NUT HEX NYLOCK M6X1.0Manufacturer no. 104381 1Quote Ask for a quote
8 LANYARD 13" RPO 12" W CHAIRSManufacturer no. 123829 1Quote Ask for a quote
8 LANYARD 14" RPO 13" W CHAIRSManufacturer no. 123830 1Quote Ask for a quote
8 LANYARD 15" RPO 14" W CHAIRSManufacturer no. 123831 1Quote Ask for a quote
8 LANYARD 16" RPO 15" W CHAIRSManufacturer no. 123832 1Quote Ask for a quote
8 LANYARD 17" RPO 16" W CHAIRSManufacturer no. 123833 1Quote Ask for a quote
8 LANYARD 18" RPO 17" W CHAIRSManufacturer no. 123834 1Quote Ask for a quote
8 LANYARD 19" RPO 18" W CHAIRSManufacturer no. 123835 1Quote Ask for a quote
8 LANYARD 20" RPO 19" W CHAIRSManufacturer no. 123836 1Quote Ask for a quote
8 LANYARD 21" RPO 20" W CHAIRSManufacturer no. 123837 1Quote Ask for a quote
10 SHCS M6 X 1 X 35 INORGANICManufacturer no. 102263-004 1Quote Ask for a quote
11 NYLON WASHER THINManufacturer no. 122093 1Quote Ask for a quote
12 QRI TRANSIT HARDWARE KITManufacturer no. 123827 1Quote Ask for a quote
1-11 QRI TRANSIT KIT 12 WIDE includes LanyardManufacturer no. 123818 1Quote Ask for a quote
1-11 QRI TRANSIT KIT 13 WIDE includes LanyardManufacturer no. 123819 1Quote Ask for a quote
1-11 QRI TRANSIT KIT 14 WIDE includes LanyardManufacturer no. 123820 1Quote Ask for a quote
1-11 QRI TRANSIT KIT 15 WIDE includes LanyardManufacturer no. 123821 1Quote Ask for a quote
1-11 QRI TRANSIT KIT 16 WIDE includes LanyardManufacturer no. 123822 1Quote Ask for a quote
1-11 QRI TRANSIT KIT 17 WIDE includes LanyardManufacturer no. 123823 1Quote Ask for a quote
1-11 QRI TRANSIT KIT 18 WIDE includes LanyardManufacturer no. 123824 1Quote Ask for a quote
1-11 QRI TRANSIT KIT 19 WIDE includes LanyardManufacturer no. 123825 1Quote Ask for a quote
1-11 QRI TRANSIT KIT 20 WIDE includes LanyardManufacturer no. 123826 1Quote Ask for a quote

Quick Release Axles Matrix-Q7/Qri/Zone

6 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Quick Release Axles Matrix-Q7/Qri/Zone
No.PartQtyPriceAction
1A QR AXLE BIG BUTTON W/ SPACER Includes spacerManufacturer no. 922356 1Quote Ask for a quote
1B QR AXLE W/SPACER FOR 6S MAG Includes spacerManufacturer no. 116390 1Quote Ask for a quote
1C QR AXLE/NUT LONG BG BTTNManufacturer no. 109385 1Quote Ask for a quote
1D QR AXLE EX SHORT BIG BTNManufacturer no. 111843 1Quote Ask for a quote
1E QR AXLE AND NUT SHORT BIG BTTNManufacturer no. 107268 1Quote Ask for a quote
2 MAG SPACER 6S W/SET SCREWManufacturer no. 920117 1Quote Ask for a quote

QRi AXLE PLATE ASSEMBLY

13 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in QRi AXLE PLATE ASSEMBLY
No.PartQtyPriceAction
1A PLATE AXLE L SHORT BLK LeftManufacturer no. 058505-002 1Quote Ask for a quote
1A PLATE AXLE R SHORT BLK RightManufacturer no. 058507-002 1Quote Ask for a quote
1B PLATE AXLE L LONG BLK LeftManufacturer no. 058505-001 1Quote Ask for a quote
1B PLATE AXLE R LONG BLK RightManufacturer no. 058507-001 1Quote Ask for a quote
2 SHCS M6 X 1 X 25 W/PL INORGManufacturer no. 102263-003 1Quote Ask for a quote
3 PLATE NUT AXLEManufacturer no. 050054 1Quote Ask for a quote
4 SLEEVE AXLE PLATEManufacturer no. 050101 1Quote Ask for a quote
5 AXLE CLAMP BLACKManufacturer no. 058504-001 1Quote Ask for a quote
6 SHCS M6 X 1 X 20 INORGANICManufacturer no. 102263-002 1Quote Ask for a quote
7 SHCS M6 X 1 X 35 INORGANICManufacturer no. 102263-004 1Quote Ask for a quote
8 LOCKWASHER HIGH COLLAR M6Manufacturer no. 050129-001 1Quote Ask for a quote
9 NUT HEX NYLOCK M6 X 1Manufacturer no. 200113 1Quote Ask for a quote
10 AXLE PLATE HARDWARE KIT PairManufacturer no. 123844 1Quote Ask for a quote

QRi CAMBER TUBE ASSM

12 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in QRi CAMBER TUBE ASSM
No.PartQtyPriceAction
1 CAMBER TUBE LITE 12W RPOManufacturer no. 123845 1Quote Ask for a quote
1 CAMBER TUBE LITE 13W RPOManufacturer no. 123846 1Quote Ask for a quote
1 CAMBER TUBE LITE 14W RPOManufacturer no. 123847 1Quote Ask for a quote
1 CAMBER TUBE LITE 15W RPOManufacturer no. 123848 1Quote Ask for a quote
1 CAMBER TUBE LITE 16W RPOManufacturer no. 123849 1Quote Ask for a quote
1 CAMBER TUBE LITE 17W RPOManufacturer no. 123850 1Quote Ask for a quote
1 CAMBER TUBE LITE 18W RPOManufacturer no. 123851 1Quote Ask for a quote
1 CAMBER TUBE LITE 19W RPOManufacturer no. 123852 1Quote Ask for a quote
1 CAMBER TUBE LITE 20W RPOManufacturer no. 123853 1Quote Ask for a quote
2 CAMBER BLOCK KIT (10) RPO QTY 10Manufacturer no. 123854 1Quote Ask for a quote
3A CAMBER PLUG 0 DEG RPO 0 DEGREESManufacturer no. 123855 1Quote Ask for a quote
3B CAMBER PLUG 3 DEG RPO 3 DEGREESManufacturer no. 123856 1Quote Ask for a quote

3 Spoke Casters

1 part

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in 3 Spoke Casters
No.PartQtyPriceAction
3 CASTERSManufacturer no. SPOKE 1Quote Ask for a quote

Aluminum Soft Roll Casters

7 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Aluminum Soft Roll Casters
No.PartQtyPriceAction
1 CASTR ASSM ULTRLT SFTRL 4X1.5" K0077 4" x 1.5" Aluminum Soft Roll - Black Tire - Silver HubManufacturer no. 251732 1Quote Ask for a quote
1 CASTR ASSM ULTRLT SFTRL 5X1.5" K0077 5" x 1.5" Aluminum Soft Roll - Black Tire - Silver HubManufacturer no. 251733 1Quote Ask for a quote
1 CASTR ASSM ULTRLT SFTRL 6X1.5" K0077 6" x 1.5" Aluminum Soft Roll - Black Tire - Silver HubManufacturer no. 251734 1Quote Ask for a quote
1 WHL CSTR 4" ULTRALT SFTRL ANO 4" x 1.5" Aluminum Soft Roll - Black Tire - Anodized HubManufacturer no. 162609S 1Quote Ask for a quote
1 WHL CSTR 5" ULTRALT SFTRLL ANO 5" x 1.5" Aluminum Soft Roll - Black Tire - Anodized HubManufacturer no. 162611S 1Quote Ask for a quote
1 WHL CSTR 6" ULTRALT SFTRLL ANO 6" x 1.5" Aluminum Soft Roll - Black Tire - Anodized HubManufacturer no. 162613S 1Quote Ask for a quote
2 7/8" X 5/16" BEARINGManufacturer no. 349502 1Quote Ask for a quote

Caster Housing

8 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Caster Housing
No.PartQtyPriceAction
1 NUT HEX NYLOCK M6X1.0Manufacturer no. 104381 1Quote Ask for a quote
3 CASTER CAP DOME PAIR RPO PairManufacturer no. 123879 1Quote Ask for a quote
4 1 1/8 x 1/2 BEARINGManufacturer no. 349500 1Quote Ask for a quote
5 ANTI-FLUTTER BUSHINGManufacturer no. 561050 1Quote Ask for a quote
6 WASHER ECCENTRIC HD 1/4 HOLEManufacturer no. 122423 1Quote Ask for a quote
7 NYLON WASHER THINManufacturer no. 122093 1Quote Ask for a quote
8A SHCS M6 X 1 X 30 W/PL INORGManufacturer no. 103174 1Quote Ask for a quote
8B SHCS, M6X1X35, PART, NP Use with transitManufacturer no. 102263-004 1Quote Ask for a quote

Caster Fork

13 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Caster Fork
No.PartQtyPriceAction
1A 1/2 CASTER STEM SPACERManufacturer no. 121863 1Quote Ask for a quote
1B 1.0 CASTER STEM SPACERManufacturer no. 121864 1Quote Ask for a quote
2A CASTER STEM STDManufacturer no. 481063 1Quote Ask for a quote
2B CASTER STEM THREAD 0.5"Manufacturer no. 122129 1Quote Ask for a quote
2C CASTER STEM THREAD 1.0"Manufacturer no. 122131 1Quote Ask for a quote
3A FORK 5-1/4" SHORT TRAIL RPOManufacturer no. 123815 1Quote Ask for a quote
3B FORK 6" SHORT TRAIL RPOManufacturer no. 123816 1Quote Ask for a quote
4 NUT NYLOCK THIN 1/2-20 ROHSManufacturer no. 106940 1Quote Ask for a quote
5 WASHER FLAT AN 1/2 ROHSManufacturer no. 106949 1Quote Ask for a quote
6 NUT HEX THIN 1/2-20Manufacturer no. 112389 1Quote Ask for a quote
7 NUT NYLOCK THIN 5/16 -24 ROHSManufacturer no. 106939 1Quote Ask for a quote
8 HHCS 5/16 -24 x 2 1/2 ROHSManufacturer no. 106987 1Quote Ask for a quote
9 SPACER 5/16 x 0.380 PAIRManufacturer no. 123817 1Quote Ask for a quote

ANTI-TIP QRi

7 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in ANTI-TIP QRi
No.PartQtyPriceAction
1 SHCS M5 X .8 X 18 INORGANIC ORDER SEPARATELYManufacturer no. 102260-001 1Quote Ask for a quote
2 RECEIVER ANTI TIP GT ORDER SEPARATELYManufacturer no. 050203 1Quote Ask for a quote
3 SNAP BUTTON DUAL ONE SIDEManufacturer no. 301109 1Quote Ask for a quote
5 1/4" SNAP BTTN SINGLEManufacturer no. 301100 1Quote Ask for a quote
7 7/8 ROUND TUBE PLUGManufacturer no. 560735 1Quote Ask for a quote
6A ANTI TIP ARM ADJUSTER 20"&22"WHEELSManufacturer no. 104157 1Quote Ask for a quote
6B ANTI TIP ARM ADJ. MED 24",25"&26"WHEELSManufacturer no. 104639 1Quote Ask for a quote

WHEEL LOCK (PULL TO LOCK) QRi

13 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in WHEEL LOCK (PULL TO LOCK) QRi
No.PartQtyPriceAction
1A WHL LOCK PULL RT FWD SHT RPO Right-forward-shortManufacturer no. 123883 1Quote Ask for a quote
1A WHL LOCK PULL LT FWD SHT RPO Left-forward-shortManufacturer no. 123884 1Quote Ask for a quote
1B WHL LOCK PULL RT REV SHT RPO Right-reverse-shortManufacturer no. 123885 1Quote Ask for a quote
1B WHL LOCK PULL LT REV SHT RPO Left-reverse-shortManufacturer no. 123886 1Quote Ask for a quote
1C WHL LOCK PULL RT FWD LNG RPO Right-forward-longManufacturer no. 123887 1Quote Ask for a quote
1C WHL LOCK PULL LT FWD LNG RPO Left-forward-longManufacturer no. 123888 1Quote Ask for a quote
1D WHL LOCK PULL RT REV LNG RPO Right-reverse-longManufacturer no. 123889 1Quote Ask for a quote
1D WHL LOCK PULL LT REV LNG RPO Left-reverse-longManufacturer no. 123890 1Quote Ask for a quote
2 SHCS M6X1X20 FULL NPManufacturer no. 102263-002 1Quote Ask for a quote
3 LOCKWASHER HIGH COLLAR M6Manufacturer no. 050129-001 1Quote Ask for a quote
2-5 WHEEL LOCK CLAMP ASSMManufacturer no. 123891 1Quote Ask for a quote
5 CLAMP WHL LCK FEMALEManufacturer no. 121842 1Quote Ask for a quote
6 COVER CURVED WHEEL LOCK VINYLManufacturer no. 104141 1Quote Ask for a quote

WHEEL LOCK (PUSH TO LOCK) QRi

0 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Compact Wheel Lock

6 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Compact Wheel Lock
No.PartQtyPriceAction
1 COMPACT BRAKE Left side Forward MountedManufacturer no. 66006100-301 1Quote Ask for a quote
1 COMPACT BRAKE Right side Forward MountedManufacturer no. 66006100-302 1Quote Ask for a quote
1 COMPACT BRAKE STD BACK LEFT Reverse MountedManufacturer no. 66006100-401 1Quote Ask for a quote
1 COMPACT BRAKE STD BACK RIGHT Reverse MountedManufacturer no. 66006100-402 1Quote Ask for a quote
2 SHCS M6 X 1 X 20 INORGANICManufacturer no. 102263-002 1Quote Ask for a quote
3 LOCKWASHER HIGH COLLAR M6Manufacturer no. 050129-001 1Quote Ask for a quote

HIGH MOUNT ERGO (SCISSOR) WHEEL LOCK - QRi

5 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in HIGH MOUNT ERGO (SCISSOR) WHEEL LOCK - QRi
No.PartQtyPriceAction
1 SHCS M6 X 1 X 20 INORGANICManufacturer no. 102263-002 1Quote Ask for a quote
2 LOCKWASHER HIGH COLLAR M6Manufacturer no. 050129-001 1Quote Ask for a quote
4A CLAMP WHL LCK FEMALEManufacturer no. 121842 1Quote Ask for a quote
5A SCISSOR WHL LOCK RT STD RPO RIGHT - STANDARDManufacturer no. 123936 1Quote Ask for a quote
5B SCISSOR WHL LOCK LT STD RPO LEFT - STANDARDManufacturer no. 123937 1Quote Ask for a quote

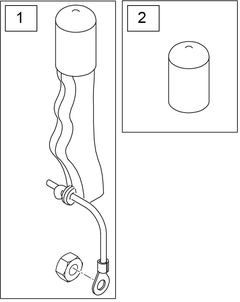

Wheel Lock Extension Handle

2 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Wheel Lock Extension Handle
No.PartQtyPriceAction
1 WHEEL LOCK EXT ASSY (PAIR) KIT PairManufacturer no. 161930 1Quote Ask for a quote
2 FOAM GRIP 1 1/2 X 0.705 X 0.1Manufacturer no. 560600 1Quote Ask for a quote

Traditional 6 Spoke Mag

6 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Traditional 6 Spoke Mag
No.PartQtyPriceAction
1-3 20" MAG W/BRNG 6 SPOKE 20"Manufacturer no. 401094 1Quote Ask for a quote
1-3 22" MAG W/BRNG 6 SPOKE 22"(501mm)Manufacturer no. 401093 1Quote Ask for a quote
1-3 24" MAG W/BRNG 6 SPOKE 24"(540mm)Manufacturer no. 401092 1Quote Ask for a quote
2 1 1/8 X 1/2 BEARINGManufacturer no. 349500 1Quote Ask for a quote
3 MAG BEARING SPACERManufacturer no. 521564 1Quote Ask for a quote
4 SPCR .194ID X .375 OD X .750 Used when previously ordered with Omit handrims or Natural Fit HandrimsManufacturer no. 101932 1Quote Ask for a quote

New Ultra Lite Spoke

0 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Spinergy Spox (18 Spoke)

15 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Spinergy Spox (18 Spoke)
No.PartQtyPriceAction
1 SPINERGY STD WHL 22" BLK SPK 22"(489mm)Manufacturer no. 109242 1Quote Ask for a quote
1 SPINERGY STD WHEEL 540 BLK SPK 24"(540mm)Manufacturer no. 762438 1Quote Ask for a quote
1 SPINERGY STD WHL 559 BLK SPK 25"(559mm)Manufacturer no. 762441 1Quote Ask for a quote
1 SPINERGY STD WHEEL 590 BLK SPK 26"(590mm)Manufacturer no. 762437 1Quote Ask for a quote
1 SPINERGY STD WHEEL 540 BLUE 24"(540mm)Manufacturer no. 762442 1Quote Ask for a quote
1 SPINERGY STD WHEEL 559 BLU 25"(559mm)Manufacturer no. 762444 1Quote Ask for a quote
1 SPINERGY STD WHEEL 590 BLUE 26"(590mm)Manufacturer no. 762446 1Quote Ask for a quote
1 SPINERGY STD WHEEL 540 RED 24"(540mm)Manufacturer no. 762443 1Quote Ask for a quote
1 SPINERGY STD WHEEL 559 RED 25"(559mm)Manufacturer no. 762445 1Quote Ask for a quote
1 SPINERGY STD WHEEL 590 RED 26"(590mm)Manufacturer no. 762447 1Quote Ask for a quote
1 SPINERGY STD WHEEL 540 WHT 24"(540mm)Manufacturer no. 762456 1Quote Ask for a quote
1 SPINERGY STD WHEEL 540 YELLOW 24"(540mm)Manufacturer no. 762433 1Quote Ask for a quote
1 SPINERGY STD WHL 559 YLW SPK 25"(559mm)Manufacturer no. 762462 1Quote Ask for a quote
1 SPINERGY STD WHEEL 590 YELLOW 26"(590mm)Manufacturer no. 762431 1Quote Ask for a quote
2 1 1/8 X 1/2 BEARINGManufacturer no. 349500 1Quote Ask for a quote

Pneumatic & Pneu. Airless Tire

6 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Pneumatic & Pneu. Airless Tire
No.PartQtyPriceAction
1 16" X 1.75" PNEU TIREManufacturer no. 385237 1Quote Ask for a quote
1 20" PNEUMATIC TIREManufacturer no. 385250 1Quote Ask for a quote
1 22" PNEUMATIC TIRE 22" x 1 3/8 (501mm)Manufacturer no. 385275 1Quote Ask for a quote
1 24" PNEUMATIC TIRE 24" x 1 3/8 (540mm)Manufacturer no. 385300 1Quote Ask for a quote
1 26" PNEUMATIC TIRE 26" x 1 3/8 (590mm)Manufacturer no. 385325 1Quote Ask for a quote
1 24" x 2.125 PNEUMATIC TIRE 24"x2 1/8 (540mm) used w/ M6Manufacturer no. 384614 1Quote Ask for a quote

Full Poly Tire

3 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Full Poly Tire
No.PartQtyPriceAction
1 20" POLY TIRE STD 20"Manufacturer no. 386232 1Quote Ask for a quote
1 22" POLY TIRE STD 22" (501mm)Manufacturer no. 386242 1Quote Ask for a quote
1 24" POLY TIRE STD 24" (540mm)Manufacturer no. 386252 1Quote Ask for a quote

High Pressure Clincher Tire

5 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in High Pressure Clincher Tire
No.PartQtyPriceAction
1 22" x 1" HI PRES CLINCHER 22" (501mm)Manufacturer no. 385280 1Quote Ask for a quote
1 24" x 1" HI PRES CLNCHR TIRE 24" (540mm)Manufacturer no. 389020 1Quote Ask for a quote
1 QP 24" x 1" HT TURB BLK WR/BD 559 25" (559mm)Manufacturer no. 389012 1Quote Ask for a quote
1 26" x 1" HI PRES CLNCHR TIRE 26" (590mm)Manufacturer no. 389030 1Quote Ask for a quote
1 22" x 1" HI PRESS CLNCHR ULTRALIGHT 22" (489mm)Manufacturer no. 105919 1Quote Ask for a quote

Knobby V-Track Tire

1 part

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Knobby V-Track Tire
No.PartQtyPriceAction
1 24" X 1-3/8" KNOBBIE TIRE 24"(540mm)Manufacturer no. 385354 1Quote Ask for a quote

Schwalbe Marathon Plus Tire

4 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Schwalbe Marathon Plus Tire
No.PartQtyPriceAction
1 TIRE SCHWALBE MP 489 BLK 22" (489mm)Manufacturer no. 102066-004 1Quote Ask for a quote
1 TIRE SCHWBL MPE 540 BLK 24" (540mm)Manufacturer no. 102066-001 1Quote Ask for a quote
1 TIRE SCHWBL MPE 559 BLK 25" (559mm)Manufacturer no. 102066-002 1Quote Ask for a quote
1 TIRE SCHWBL MPE 590 BLK 26" (590mm)Manufacturer no. 102066-003 1Quote Ask for a quote

Shox Tire

4 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Shox Tire
No.PartQtyPriceAction
1 TIRE SHOX CEW20" 20"(457mm) BlackManufacturer no. 129924 1Quote Ask for a quote
1 TIRE SHOX CEW22" 22"(501mm) BlackManufacturer no. 129925 1Quote Ask for a quote
1 TIRE SHOX CEW24" 24"(540mm) BlackManufacturer no. 129926 1Quote Ask for a quote
1 TIRE SHOX CEW25" 25"(559mm) BlackManufacturer no. 129927 1Quote Ask for a quote

Aluminum Anodized (Screw Mount)

1 part

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Aluminum Anodized (Screw Mount)
No.PartQtyPriceAction
3C 10-32 X 2 1/8 PAN PHIL SS MAGManufacturer no. 281175 1Quote Ask for a quote

Aluminum Anodized (Tab Mount)

2 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Aluminum Anodized (Tab Mount)
No.PartQtyPriceAction
1 QP 24" HR .065 (6) TAB ANO 24" (540) CROSS SPOKE -SHORT & REG TABManufacturer no. 529529 1Quote Ask for a quote
2-4 AA TAB MOUNT HANDRIM HARDWARE SET OF 6Manufacturer no. 159515 1Quote Ask for a quote

Plastic Coated (Screw Mount)

4 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Plastic Coated (Screw Mount)
No.PartQtyPriceAction
1-3 20" HR 6SMT PLST W/HDWR 20" SPOKEManufacturer no. 425933 1Quote Ask for a quote
1-3 22" HR 6SMT PLST W/HDWR 22" (501) SPOKEManufacturer no. 425943 1Quote Ask for a quote
1-3 24" HR 6SMT PLST W/HDWR 24" (540) SPOKEManufacturer no. 426004 1Quote Ask for a quote
4 10 -32 x 2 1/8 PAN PHIL SS 6 SPOKE MAGManufacturer no. 281175 1Quote Ask for a quote

Plastic Coated (Reg Tab Mount)

1 part

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Plastic Coated (Reg Tab Mount)
No.PartQtyPriceAction
2 PLST COATED TAB HNDRM HDWRManufacturer no. 159535 1Quote Ask for a quote

Natural Fit (Screw Mount)

8 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Natural Fit (Screw Mount)
No.PartQtyPriceAction
2 GUARD THUMB NAT FIT 22 PC BLK 22" (501)- Std Grip Thumb GuardManufacturer no. 102168-001 1Quote Ask for a quote
2 GUARD THUMB NAT FIT 24 PC BLK 24" (540)- Std Grip Thumb GuardManufacturer no. 102168-003 1Quote Ask for a quote
2 GUARD THUMB NAT FIT 25 PC BLK 25" (559)- Std Grip Thumb GuardManufacturer no. 102168-005 1Quote Ask for a quote
2 GUARD THUMB NAT FIT 26 PC BLK 26" (590)- Std Grip Thumb GuardManufacturer no. 102168-007 1Quote Ask for a quote
2 GUARD THUMB NAT FIT 22 SG BLK 22" (501)- Super Grip Thumb GuardManufacturer no. 102168-002 1Quote Ask for a quote
2 GUARD THUMB NAT FIT 24 SG BLK 24" (540)- Super Grip Thumb GuardManufacturer no. 102168-004 1Quote Ask for a quote
2 GUARD THUMB NAT FIT 25 SG BLK 25" (559)- Super Grip Thumb GuardManufacturer no. 102168-006 1Quote Ask for a quote
2 THUMB GUARD NAT FIT 26 SG BLK 26" (590)- Super Grip Thumb GuardManufacturer no. 102168-008 1Quote Ask for a quote

Natural Fit (Tab Mount)

11 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Natural Fit (Tab Mount)
No.PartQtyPriceAction
1 GUARD THUMB NAT FIT 22 PC BLK 22" (501)Manufacturer no. 102168-001 1Quote Ask for a quote
1 GUARD THUMB NAT FIT 24 PC BLK 24" (540)Manufacturer no. 102168-003 1Quote Ask for a quote
1 GUARD THUMB NAT FIT 25 PC BLK 25" (559)Manufacturer no. 102168-005 1Quote Ask for a quote
1 GUARD THUMB NAT FIT 26 PC BLK 26" (590)Manufacturer no. 102168-007 1Quote Ask for a quote
1 GUARD THUMB NAT FIT 22 SG BLK 22" (501)Manufacturer no. 102168-002 1Quote Ask for a quote
1 GUARD THUMB NAT FIT 24 SG BLK 24" (540)Manufacturer no. 102168-004 1Quote Ask for a quote
1 GUARD THUMB NAT FIT 25 SG BLK 25" (559)Manufacturer no. 102168-006 1Quote Ask for a quote
1 THUMB GUARD NAT FIT 26 SG BLK 26" (590)Manufacturer no. 102168-008 1Quote Ask for a quote
2-4 22 NAT-FIT LT TB HNDRIM W/HDWR 22" (501)Manufacturer no. 159525 1Quote Ask for a quote
2-4 24 NAT-FIT LT TB HNDRIM W/HDWR 24" (540)Manufacturer no. 159526 1Quote Ask for a quote
2-4 25 NAT-FIT LT TB HNDRIM W/HDWR 25" (559)Manufacturer no. 159527 1Quote Ask for a quote

Tubes And Airless Inserts

22 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Tubes And Airless Inserts
No.PartQtyPriceAction
1A INNER TUBE 12-1/2" X 2-1/4"Manufacturer no. 384736 1Quote Ask for a quote
1A 16" X 1.75" INNER TUBEManufacturer no. 384738 1Quote Ask for a quote
1A TUBE 18" TIRE 18" X 1-3/4" TUBEManufacturer no. 382255 1Quote Ask for a quote
1A 20" TUBE 20" 1-3/8" TUBEManufacturer no. 382275 1Quote Ask for a quote
1A 22" TUBE 22" X 1-3/8" TUBEManufacturer no. 382300 1Quote Ask for a quote
1A TUBE PRIMO 24" 25-540 SV 24" X 1" TUBEManufacturer no. 382336 1Quote Ask for a quote
1A 24 X 1.3/8IN TUBE REGManufacturer no. 382325 1Quote Ask for a quote
1A TUBE INLINE 24 X 1.75Manufacturer no. 382334 1Quote Ask for a quote
1A 26" X 1" TUBE SCHRADERManufacturer no. 384551 1Quote Ask for a quote
1A 26" TUBE 26" X 1-3/8" TUBEManufacturer no. 382350 1Quote Ask for a quote
1A TUBE 26 X 1.5/1.95/ S/VManufacturer no. 382361 1Quote Ask for a quote
1A 26 X 1.25/1.5 TUBE SHRADERManufacturer no. 382365 1Quote Ask for a quote
1A 24" x 2.125 TUBEManufacturer no. 382375 1Quote Ask for a quote
1B 12 1/2 IN AIRLESS INSERT 12-1/2" X 2-1/4"Manufacturer no. 102972-001 1Quote Ask for a quote
1B 16IN AIRLESS INSERT 16" X 1-3/4"Manufacturer no. 102973-001 1Quote Ask for a quote
1B 18IN AIRLESS INSERT 18" X 1-3/4"Manufacturer no. 102973-002 1Quote Ask for a quote
1B 20IN AIRLESS INSERT 20" X 1-3/8"Manufacturer no. 102973-003 1Quote Ask for a quote
1B AIRLESS INSERT 20 X 2-1/8 P3Manufacturer no. 102972-002 1Quote Ask for a quote
1B 22IN AIRLESS INSERT 22" X 1-3/8"Manufacturer no. 102973-004 1Quote Ask for a quote
1B 24IN AIRLESS INSERT 24" X 1-3/8"Manufacturer no. 102973-005 1Quote Ask for a quote
1B AIRLESS INSERT 24 X 2-1/8Manufacturer no. 102972-003 1Quote Ask for a quote
1B 26" AIRLESS INSERT 26" X 1-3/8"Manufacturer no. 108259 1Quote Ask for a quote

Seat Sling And Cushion Qri

20 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Seat Sling And Cushion Qri
No.PartQtyPriceAction
1 SEAT SLING 12"W X 11"D FOR 12" x 12"Manufacturer no. 109466 1Quote Ask for a quote
1 SEAT SLING 12"W X 12"D FOR 12" x 13"Manufacturer no. 109467 1Quote Ask for a quote
1 SEAT SLING 12"W X 13"D FOR 12" x 14"Manufacturer no. 109468 1Quote Ask for a quote
1 SEAT SLING 12"W X 14"D FOR 12" x 15"Manufacturer no. 109469 1Quote Ask for a quote
1 SEAT SLING 12"W X 15"D FOR 12" x 16"Manufacturer no. 109470 1Quote Ask for a quote
1 SEAT SLING 12"W X 16"D FOR 12" x 17"Manufacturer no. 109471 1Quote Ask for a quote
1 SEAT SLING 12"W X 17"D FOR 12" x 18"Manufacturer no. 109472 1Quote Ask for a quote
1 SEAT SLING 12"W X 18"D FOR 12" x 19"Manufacturer no. 109473 1Quote Ask for a quote
1 SEAT SLING 13"W X 11"D FOR 13" x 12"Manufacturer no. 109474 1Quote Ask for a quote
1 SEAT SLING 13"W X 12"D FOR 13" x 13"Manufacturer no. 109475 1Quote Ask for a quote
1 SEAT SLING 13"W X 13"D FOR 13" x 14"Manufacturer no. 109476 1Quote Ask for a quote
1 SEAT SLING 13"W X 14"D FOR 13" x 15"Manufacturer no. 109477 1Quote Ask for a quote
1 SEAT SLING 13"W X 15"D FOR 13" x 16"Manufacturer no. 109478 1Quote Ask for a quote
1 SEAT SLING 13"W X 16"D FOR 13" x 17"Manufacturer no. 109479 1Quote Ask for a quote
1 SEAT SLING 13"W X 17"D FOR 13" x 18"Manufacturer no. 109480 1Quote Ask for a quote
1 SEAT SLING 13"W X 18"D FOR 13" x 19"Manufacturer no. 109481 1Quote Ask for a quote
1 SEAT SLING 14"W X 11"D FOR 14" x 12"Manufacturer no. 109482 1Quote Ask for a quote
1 SEAT SLING 14"W X 12"D FOR 14" x 13"Manufacturer no. 109483 1Quote Ask for a quote
1 SEAT SLING 14"W X 13"D FOR 14" x 14"Manufacturer no. 109484 1Quote Ask for a quote
1 SEAT SLING 14"W X 14"D FOR 14" x 15"Manufacturer no. 109485 1Quote Ask for a quote

BACKREST HANDLES -QRi

12 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in BACKREST HANDLES -QRi
No.PartQtyPriceAction
1 1" TUBE END BUSHING THINManufacturer no. 561082 1Quote Ask for a quote
2 BHCS M6 X 1 X 20 INORGANICManufacturer no. 102262-003 1Quote Ask for a quote
3 M6 WASHER WAVEManufacturer no. 262130 1Quote Ask for a quote
4 3/4" CAPManufacturer no. 561010 1Quote Ask for a quote
5 3/4" INSERT PLUG .083Manufacturer no. 561000-QU 1Quote Ask for a quote
7 PLUG BACKREST M6Manufacturer no. 050019 1Quote Ask for a quote
8 #12 x 3/4" PAN HD PHIL S/ TAPManufacturer no. 281127 1Quote Ask for a quote
9 PAN HD PHIL 10/32 x 5/8 ROHSManufacturer no. 107384 1Quote Ask for a quote
11 QUIKIE GRIP 3/4" W/ INSTR SHManufacturer no. 920026 1Quote Ask for a quote
12A FOLDING PUSH HANDLE W/ INSERT 11 -14" See TableManufacturer no. 882605 1Quote Ask for a quote
12B FOLDING PUSH HANDLE W/ INSERT 12 -16" See TableManufacturer no. 882606 1Quote Ask for a quote
13 BUSHING BACKREST FOLDING HANDLEManufacturer no. 104369 1Quote Ask for a quote

FOLDING BACKREST - QRi

19 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in FOLDING BACKREST - QRi
No.PartQtyPriceAction
1A FRM ALUM BKRST ADJ 12" STD STANDARD - 12" WIDEManufacturer no. 109303 1Quote Ask for a quote
1A FRM ALUM BKRST ADJ 13" STD STANDARD - 13" WIDEManufacturer no. 109304 1Quote Ask for a quote
1A FRM ALUM BKRST ADJ 14" STD STANDARD - 14" WIDEManufacturer no. 109305 1Quote Ask for a quote
1A FRM ALUM BKRST ADJ 15" STD STANDARD - 15" WIDEManufacturer no. 109306 1Quote Ask for a quote
1A FRM ALUM BKRST ADJ 16" STD STANDARD - 16" WIDEManufacturer no. 109307 1Quote Ask for a quote
1A FRM ALUM BKRST ADJ 17" STD STANDARD - 17" WIDEManufacturer no. 109308 1Quote Ask for a quote
1A FRM ALUM BKRST ADJ 18" STD STANDARD - 18" WIDEManufacturer no. 109309 1Quote Ask for a quote
1A FRM ALUM BKRST ADJ 19" STD STANDARD - 19" WIDEManufacturer no. 109310 1Quote Ask for a quote
1A FRM ALUM BKRST ADJ 20" STD STANDARD - 20" WIDEManufacturer no. 109311 1Quote Ask for a quote
1B FRM ALUM BKRST ADJ 12" TALL TALL - 12" WIDEManufacturer no. 109312 1Quote Ask for a quote
1B FRM ALUM BKRST ADJ 13" TALL TALL - 13" WIDEManufacturer no. 109313 1Quote Ask for a quote
1B FRM ALUM BKRST ADJ 14" TALL TALL - 14" WIDEManufacturer no. 109314 1Quote Ask for a quote
1B FRM ALUM BKRST ADJ 15" TALL TALL - 15" WIDEManufacturer no. 109315 1Quote Ask for a quote
1B FRM ALUM BKRST ADJ 16" TALL TALL - 16" WIDEManufacturer no. 109316 1Quote Ask for a quote
1B FRM ALUM BKRST ADJ 17" TALL TALL - 17" WIDEManufacturer no. 109317 1Quote Ask for a quote
1B FRM ALUM BKRST ADJ 18" TALL TALL - 18" WIDEManufacturer no. 109318 1Quote Ask for a quote
1B FRM ALUM BKRST ADJ 19" TALL TALL - 19" WIDEManufacturer no. 109319 1Quote Ask for a quote
1B FRM ALUM BKRST ADJ 20" TALL TALL - 20" WIDEManufacturer no. 109320 1Quote Ask for a quote
2 SADDLE BACKREST TUBEManufacturer no. 109199 1Quote Ask for a quote

NON-FOLDING BACKREST- QRi

18 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in NON-FOLDING BACKREST- QRi
No.PartQtyPriceAction
1A FRM ALUM BKRST ADJ 12" STD STANDARD - 12" WIDEManufacturer no. 109303 1Quote Ask for a quote
1A FRM ALUM BKRST ADJ 13" STD STANDARD - 13" WIDEManufacturer no. 109304 1Quote Ask for a quote
1A FRM ALUM BKRST ADJ 14" STD STANDARD - 14" WIDEManufacturer no. 109305 1Quote Ask for a quote
1A FRM ALUM BKRST ADJ 15" STD STANDARD - 15" WIDEManufacturer no. 109306 1Quote Ask for a quote
1A FRM ALUM BKRST ADJ 16" STD STANDARD - 16" WIDEManufacturer no. 109307 1Quote Ask for a quote
1A FRM ALUM BKRST ADJ 17" STD STANDARD - 17" WIDEManufacturer no. 109308 1Quote Ask for a quote
1A FRM ALUM BKRST ADJ 18" STD STANDARD - 18" WIDEManufacturer no. 109309 1Quote Ask for a quote
1A FRM ALUM BKRST ADJ 19" STD STANDARD - 19" WIDEManufacturer no. 109310 1Quote Ask for a quote
1A FRM ALUM BKRST ADJ 20" STD STANDARD - 20" WIDEManufacturer no. 109311 1Quote Ask for a quote
1B FRM ALUM BKRST ADJ 12" TALL TALL - 12" WIDEManufacturer no. 109312 1Quote Ask for a quote
1B FRM ALUM BKRST ADJ 13" TALL TALL - 13" WIDEManufacturer no. 109313 1Quote Ask for a quote
1B FRM ALUM BKRST ADJ 14" TALL TALL - 14" WIDEManufacturer no. 109314 1Quote Ask for a quote
1B FRM ALUM BKRST ADJ 15" TALL TALL - 15" WIDEManufacturer no. 109315 1Quote Ask for a quote
1B FRM ALUM BKRST ADJ 16" TALL TALL - 16" WIDEManufacturer no. 109316 1Quote Ask for a quote
1B FRM ALUM BKRST ADJ 17" TALL TALL - 17" WIDEManufacturer no. 109317 1Quote Ask for a quote
1B FRM ALUM BKRST ADJ 18" TALL TALL - 18" WIDEManufacturer no. 109318 1Quote Ask for a quote
1B FRM ALUM BKRST ADJ 19" TALL TALL - 19" WIDEManufacturer no. 109319 1Quote Ask for a quote
1B FRM ALUM BKRST ADJ 20" TALL TALL - 20" WIDEManufacturer no. 109320 1Quote Ask for a quote

Std Back Uph Used W/ Omit Handles

21 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Std Back Uph Used W/ Omit Handles
No.PartQtyPriceAction
1A BACK UPH 12" 8-12" W/TAIL (12" WIDE) 8-12" for Ht Adj Back & 8,9,10" for Fixed Back HtsManufacturer no. 680212 1Quote Ask for a quote
1A BACK UPH 13" 8-12" W/TAIL (13" WIDE) 8-12" for Ht Adj Back & 8,9,10" for Fixed Back HtsManufacturer no. 680213 1Quote Ask for a quote
1A BACK UPH 14" 8-12" W/TAIL (14" WIDE) 8-12" for Ht Adj Back & 8,9,10" for Fixed Back HtsManufacturer no. 680308 1Quote Ask for a quote
1A BACK UPH 15" 8-12" W/TAIL (15" WIDE) 8-12" for Ht Adj Back & 8,9,10" for Fixed Back HtsManufacturer no. 680408 1Quote Ask for a quote
1A BACK UPH 16" 8-12" W/TAIL (16" WIDE) 8-12" for Ht Adj Back & 8,9,10" for Fixed Back HtsManufacturer no. 680508 1Quote Ask for a quote
1A BACK UPH 17" 8-12" W/TAIL (17" WIDE) 8-12" for Ht Adj Back & 8,9,10" for Fixed Back HtsManufacturer no. 680608 1Quote Ask for a quote
1A BACK UPH 18" 8-12" W/TAIL (18" WIDE) 8-12" for Ht Adj Back & 8,9,10" for Fixed Back HtsManufacturer no. 680708 1Quote Ask for a quote
1A BACK UPH 19" 8-12" W/TAIL (19" WIDE) 8-12" for Ht Adj Back & 8,9,10" for Fixed Back HtsManufacturer no. 680808 1Quote Ask for a quote
1B BACK UPH 12" 11-15" W/ TAIL (12" WIDE) 10-14" for Ht Adj Back & 11" for Fixed Back HtsManufacturer no. 680208 1Quote Ask for a quote
1B BACK UPH 13" 11-15" W/ TAIL (13" WIDE) 10-14" for Ht Adj Back & 11" for Fixed Back HtsManufacturer no. 680201 1Quote Ask for a quote
1B BACK UPH 14" 11-15" W/ TAIL (14" WIDE) 10-14" for Ht Adj Back & 11" for Fixed Back HtsManufacturer no. 680301 1Quote Ask for a quote
1B BACK UPH 15" 11-15" W/ TAIL (15" WIDE) 10-14" for Ht Adj Back & 11" for Fixed Back HtsManufacturer no. 680401 1Quote Ask for a quote
1B BACK UPH 16" 11-15" W/ TAIL (16" WIDE) 10-14" for Ht Adj Back & 11" for Fixed Back HtsManufacturer no. 680501 1Quote Ask for a quote
1B BACK UPH 17" 11-15" W/ TAIL (17" WIDE) 10-14" for Ht Adj Back & 11" for Fixed Back HtsManufacturer no. 680601 1Quote Ask for a quote
1B BACK UPH 18" 11-15" W/ TAIL (18" WIDE) 10-14" for Ht Adj Back & 11" for Fixed Back HtsManufacturer no. 680701 1Quote Ask for a quote
1B BACK UPH 19" 11-15" W/ TAIL (19" WIDE) 10-14" for Ht Adj Back & 11" for Fixed Back HtsManufacturer no. 680801 1Quote Ask for a quote
1B BACK UPH 20" 11-15" W/ TAIL (20" WIDE) 10-14" for Ht Adj Back & 11" for Fixed Back HtsManufacturer no. 680901 1Quote Ask for a quote
1C BACK UPH 12" 12-16" W/ TAIL (12" WIDE) 12 -16" for Ht Adj Back & 12"&13" for Fixed Back HtsManufacturer no. 680209 1Quote Ask for a quote
1C BACK UPH 13" 12-16" W/ TAIL (13" WIDE) 12 -16" for Ht Adj Back & 12"&13" for Fixed Back HtsManufacturer no. 680203 1Quote Ask for a quote
1C BACK UPH 14" 12-16" W/ TAIL (14" WIDE) 12 -16" for Ht Adj Back & 12"&13" for Fixed Back HtsManufacturer no. 680303 1Quote Ask for a quote
1C BACK UPH 15" 12-16" W/ TAIL (15" WIDE) 12 -16" for Ht Adj Back & 12"&13" for Fixed Back HtsManufacturer no. 680403 1Quote Ask for a quote

Std Back Uph Used W/ Integral Push Handles

9 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Std Back Uph Used W/ Integral Push Handles
No.PartQtyPriceAction
1A BACK UPH 12" 11-14/12-16 RDG 10 -14" & 12 -16" BACK HEIGHTManufacturer no. 680442 1Quote Ask for a quote
1A BACK UPH 13" 11-14/12-16 RDG 10 -14" & 12 -16" BACK HEIGHTManufacturer no. 680443 1Quote Ask for a quote
1A BACK UPH 14" 11-14/12-16 RDG 10 -14" & 12 -16" BACK HEIGHTManufacturer no. 680454 1Quote Ask for a quote
1A BACK UPH 15" 11-14/12-16 RDG 10 -14" & 12 -16" BACK HEIGHTManufacturer no. 680455 1Quote Ask for a quote
1A BACK UPH 16" 11-14/12-16 RDG 10 -14" & 12 -16" BACK HEIGHTManufacturer no. 680456 1Quote Ask for a quote
1A BACK UPH 17" 11-14/12-16 RDG 10 -14" & 12 -16" BACK HEIGHTManufacturer no. 680457 1Quote Ask for a quote
1A BACK UPH 18" 11-14/12-16 RDG 10 -14" & 12 -16" BACK HEIGHTManufacturer no. 680458 1Quote Ask for a quote
1A BACK UPH 19" 11-14/12-16 RDG 10 -14" & 12 -16" BACK HEIGHTManufacturer no. 680459 1Quote Ask for a quote
1A BACK UPH 20" 11-14/12-16 RDG 10 -14" & 12 -16" BACK HEIGHTManufacturer no. 680460 1Quote Ask for a quote

Tension Adjustable Ballistic Nylon Upholstery

14 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Tension Adjustable Ballistic Nylon Upholstery
No.PartQtyPriceAction
2 TOP CAP, STD, 11 -12" Used for Omit Push Handle & Integral Push Handle onlyManufacturer no. 113712 1Quote Ask for a quote
2 TOP CAP, STD, 13 -14" Used for Omit Push Handle & Integral Push Handle onlyManufacturer no. 113713 1Quote Ask for a quote
2 TOP CAP, STD, 15 -16" Used for Omit Push Handle & Integral Push Handle onlyManufacturer no. 113714 1Quote Ask for a quote
2 TOP CAP, STD, 17 -18" Used for Omit Push Handle & Integral Push Handle onlyManufacturer no. 113715 1Quote Ask for a quote
2 TOP CAP, STD, 19 -20" Used for Omit Push Handle & Integral Push Handle onlyManufacturer no. 113716 1Quote Ask for a quote
3 STRAP PADDED 2", 11 -12"Manufacturer no. 113727 1Quote Ask for a quote
3 STRAP PADDED 2", 13 -14"Manufacturer no. 113728 1Quote Ask for a quote
3 STRAP PADDED 2", 15 -16"Manufacturer no. 113729 1Quote Ask for a quote
3 STRAP PADDED 2", 17 -18"Manufacturer no. 113730 1Quote Ask for a quote
3 STRAP PADDED 2", 19 -20"Manufacturer no. 113731 1Quote Ask for a quote
4 STRAP PADDED 1", 11 -12"Manufacturer no. 113732 1Quote Ask for a quote
4 STRAP PADDED 1", 13 -14"Manufacturer no. 113733 1Quote Ask for a quote
4 STRAP PADDED 1", 15 -16"Manufacturer no. 113734 1Quote Ask for a quote
4 STRAP PADDED 1", 16 -17"Manufacturer no. 113735 1Quote Ask for a quote

Tension Adjustable 3Dx Vented Upholstery

14 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Tension Adjustable 3Dx Vented Upholstery
No.PartQtyPriceAction
2 TOP CAP, STD, 11 -12" Used for Omit Push Handle & Integral Push Handle onlyManufacturer no. 113712 1Quote Ask for a quote
2 TOP CAP, STD, 13 -14" Used for Omit Push Handle & Integral Push Handle onlyManufacturer no. 113713 1Quote Ask for a quote
2 TOP CAP, STD, 15 -16" Used for Omit Push Handle & Integral Push Handle onlyManufacturer no. 113714 1Quote Ask for a quote
2 TOP CAP, STD, 17 -18" Used for Omit Push Handle & Integral Push Handle onlyManufacturer no. 113715 1Quote Ask for a quote
2 TOP CAP, STD, 19 -20" Used for Omit Push Handle & Integral Push Handle onlyManufacturer no. 113716 1Quote Ask for a quote
3 STRAP PADDED 2", 11 -12"Manufacturer no. 113727 1Quote Ask for a quote
3 STRAP PADDED 2", 13 -14"Manufacturer no. 113728 1Quote Ask for a quote
3 STRAP PADDED 2", 15 -16"Manufacturer no. 113729 1Quote Ask for a quote
3 STRAP PADDED 2", 17 -18"Manufacturer no. 113730 1Quote Ask for a quote
3 STRAP PADDED 2", 19 -20"Manufacturer no. 113731 1Quote Ask for a quote
4 STRAP PADDED 1", 11 -12"Manufacturer no. 113732 1Quote Ask for a quote
4 STRAP PADDED 1", 13 -14"Manufacturer no. 113733 1Quote Ask for a quote
4 STRAP PADDED 1", 15 -16"Manufacturer no. 113734 1Quote Ask for a quote
4 STRAP PADDED 1", 16 -17"Manufacturer no. 113735 1Quote Ask for a quote

Bolt On Push Handles

8 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Bolt On Push Handles
No.PartQtyPriceAction
1 3/4 INSERT PLUG .083Manufacturer no. 561000-QU 1Quote Ask for a quote
2 QUICKIE GRIP 3/4" W/INSTR SH.Manufacturer no. 920026 1Quote Ask for a quote
3 PUSH BACK RECEIVER TOP RIGID BLKManufacturer no. 483015 1Quote Ask for a quote
4 PUSH BACK RECEIVER BOTTOM RIGID BLKManufacturer no. 483016 1Quote Ask for a quote
5 1/4-20 x 1 1/4 G8 HEX C/SManufacturer no. 107017 1Quote Ask for a quote
6 1/4-20 x 1 SET SCREWManufacturer no. 225200 1Quote Ask for a quote
8 1/4 AN WASHER FLATManufacturer no. 106943 1Quote Ask for a quote
1-8 PUSH HANDLE ASSM RIGID BLK PairManufacturer no. 900300 1Quote Ask for a quote

Tubular Footrest

28 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Tubular Footrest
No.PartQtyPriceAction
1 CLAMP FOOTRESTManufacturer no. 050025 1Quote Ask for a quote
2 BUSHING FOOTRESTManufacturer no. 050026 1Quote Ask for a quote
3 SET SCREW M8 X 16 DOG PTManufacturer no. 102267 1Quote Ask for a quote
4 KEY CLAMP FOOTRESTManufacturer no. 050052 1Quote Ask for a quote
5A LEG STRAP SOFT FEEL Q 11 -12"Manufacturer no. 109356 1Quote Ask for a quote
5B LEG STRAP SOFT FEEL Q 13 -15"Manufacturer no. 109357 1Quote Ask for a quote
5C LEG STRAP SOFT FEEL Q 16 -18"Manufacturer no. 109366 1Quote Ask for a quote
5D LEG STRAP SOFT FEEL Q 19 -20"Manufacturer no. 111487 1Quote Ask for a quote
6A FTRST TBLR ALUM STD 11"Manufacturer no. 050021-001 1Quote Ask for a quote
6A FTRST TBLR ALUM STD 12"Manufacturer no. 050021-003 1Quote Ask for a quote
6A FTRST TBLR ALUM STD 13"Manufacturer no. 050021-005 1Quote Ask for a quote
6A FTRST TBLR ALUM STD 14"Manufacturer no. 050021-007 1Quote Ask for a quote
6A FTRST TBLR ALUM STD 15"Manufacturer no. 050021-009 1Quote Ask for a quote
6A FTRST TBLR ALUM STD 16"Manufacturer no. 050021-011 1Quote Ask for a quote
6A FTRST TBLR ALUM STD 17"Manufacturer no. 050021-013 1Quote Ask for a quote
6A FTRST TBLR ALUM STD 18"Manufacturer no. 050021-015 1Quote Ask for a quote
6A FTRST TBLR ALUM STD 19"Manufacturer no. 050021-017 1Quote Ask for a quote
6A FTRST TBLR ALUM STD 20"Manufacturer no. 050021-019 1Quote Ask for a quote
6B FTRST TBLR ALUM LNG 11"Manufacturer no. 050021-002 1Quote Ask for a quote
6B FTRST TBLR ALUM LNG 12"Manufacturer no. 050021-004 1Quote Ask for a quote
6B FTRST TBLR ALUM LNG 13"Manufacturer no. 050021-006 1Quote Ask for a quote
6B FTRST TBLR ALUM LNG 14"Manufacturer no. 050021-008 1Quote Ask for a quote
6B FTRST TBLR ALUM LNG 15"Manufacturer no. 050021-010 1Quote Ask for a quote
6B FTRST TBLR ALUM LNG 16"Manufacturer no. 050021-012 1Quote Ask for a quote
6B FTRST TBLR ALUM LNG 17"Manufacturer no. 050021-014 1Quote Ask for a quote
6B FTRST TBLR ALUM LNG 18"Manufacturer no. 050021-016 1Quote Ask for a quote
6B FTRST TBLR ALUM LNG 19"Manufacturer no. 050021-018 1Quote Ask for a quote
6B FTRST TBLR ALUM LNG 20"Manufacturer no. 050021-020 1Quote Ask for a quote

PLATFORM FOOTREST-QRi

18 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in PLATFORM FOOTREST-QRi
No.PartQtyPriceAction
1 FHCSM6X1X30FULLNPManufacturer no. 103500-009 1Quote Ask for a quote
2A TUBE FTRST PLTFRM 11-13 STDManufacturer no. 050027-001 1Quote Ask for a quote
2B TUBE FTRST PLTFRM 11-13 LNGManufacturer no. 050027-002 1Quote Ask for a quote
2C TUBE FTRST PLTFRM 14-16 STDManufacturer no. 050027-003 1Quote Ask for a quote
2D TUBE FTRST PLTFRM 14-16 LNGManufacturer no. 050027-004 1Quote Ask for a quote
2E TUBE FTRST PLTFRM 16-18 STDManufacturer no. 050027-005 1Quote Ask for a quote
2F TUBE FTRST PLTFRM 16-18 LNGManufacturer no. 050027-006 1Quote Ask for a quote
2G TUBE FTRST PLTFRM 18-20 STDManufacturer no. 050027-007 1Quote Ask for a quote
2H TUBE FTRST PLTFRM 18-20 LNGManufacturer no. 050027-008 1Quote Ask for a quote
3 PLATFORM FOOTPLATE CLAMPManufacturer no. 550351 1Quote Ask for a quote
4A PLATFORM F/PLT 6 X 5.5 RPO 11"-13" Footrest widthsManufacturer no. 123756 1Quote Ask for a quote
4B PLATFORM F/PLT 8 X 5.5 RPO 14"-15" Footrest widthsManufacturer no. 123757 1Quote Ask for a quote
4C PLATFORM F/PLT 10 X 5.5 RPO 16"-18" Footrest widthsManufacturer no. 123758 1Quote Ask for a quote
4D PLATFORM F/PLT 12 X 5.5 RPO 18"-20" Footrest widthsManufacturer no. 123759 1Quote Ask for a quote
5 HHCS M6 X 1 X 25 Use with Adaptive Spacers 11A-11CManufacturer no. 102268-001 1Quote Ask for a quote
6 KEY CLAMP FOOTRESTManufacturer no. 050052 1Quote Ask for a quote
7 SET SCREW M8 X 16 DOG PTManufacturer no. 102267 1Quote Ask for a quote
8 CLAMP FOOTRESTManufacturer no. 050025 1Quote Ask for a quote

Footrest Cover

9 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Footrest Cover
No.PartQtyPriceAction
1A COVER FOOTREST SNAP ON 9WManufacturer no. 101461-013 1Quote Ask for a quote
1B COVER FOOTREST SNAP-ON 11" WManufacturer no. 101461-001 1Quote Ask for a quote
1C COVER FOOTREST SNAP-ON 12" WManufacturer no. 101461-002 1Quote Ask for a quote
1D COVER FOOTREST SNAP-ON 13" WManufacturer no. 101461-003 1Quote Ask for a quote
1E COVER FOOTREST SNAP-ON 14" WManufacturer no. 101461-004 1Quote Ask for a quote
1F COVER FOOTREST SNAP-ON 15" WManufacturer no. 101461-005 1Quote Ask for a quote
1G COVER FOOTREST SNAP-ON 16" WManufacturer no. 101461-006 1Quote Ask for a quote
1H COVER FOOTREST SNAP-ON 17" WManufacturer no. 101461-007 1Quote Ask for a quote
1J COVER FOOTREST SNAP-ON 18" WManufacturer no. 101461-008 1Quote Ask for a quote

Single Post Height Adjustable Armrest

16 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Single Post Height Adjustable Armrest
No.PartQtyPriceAction
1A SPHA PAD DESK CONTOUR DESKManufacturer no. 104568-001 1Quote Ask for a quote
1B SPHA PAD FULL CONTOUR FULLManufacturer no. 104568-002 1Quote Ask for a quote
1C ARMREST PAD 10" DESK CLASSIC DESKManufacturer no. 561024 1Quote Ask for a quote
1D ARMREST PAD 14" FULL CLASSIC FULLManufacturer no. 561031 1Quote Ask for a quote
1E ARMREST PAD 10" LEFT W/F Left-Waterfall DeskManufacturer no. 561280 1Quote Ask for a quote
1E ARMREST PAD 10" RIGHT W/F Rightt-Waterfall DeskManufacturer no. 561281 1Quote Ask for a quote
1F ARMREST PAD 14" LEFT W/F Leftt-Waterfall FullManufacturer no. 561284 1Quote Ask for a quote
1F ARMREST PAD 14" RIGHT W/F Rightt-Waterfall FullManufacturer no. 561285 1Quote Ask for a quote
2 SNGL POST UPPR ASSM LOW LOW/SMALLManufacturer no. 116312 1Quote Ask for a quote
2 SNGL POST UPPR ASSM STD STANDARDManufacturer no. 116313 1Quote Ask for a quote
3 SHCS 10-32 X 3/4 ROHSManufacturer no. 106956 1Quote Ask for a quote
5A HT ADJ PD TUBE 10IN DESK POWE DeskManufacturer no. 521812 1Quote Ask for a quote
5B HT ADJ PD TUBE 14IN FULL POWE FullManufacturer no. 521813 1Quote Ask for a quote
6 BHCS 10-32 X 1 1/2 ROHSManufacturer no. 107024 1Quote Ask for a quote
7 7/8" ROUND TUBE PLUGManufacturer no. 560735 1Quote Ask for a quote
8 SHCS 10-32 X 1-1/4 PL Used with Full Length & WaterfallManufacturer no. 108534 1Quote Ask for a quote

PADDED SWING-AWAY ARMREST QRi

6 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in PADDED SWING-AWAY ARMREST QRi
No.PartQtyPriceAction
1-3 PADDED S/A ARM ASSM PAIR RPO Pair w/boltsManufacturer no. 124273 1Quote Ask for a quote
1-3 PADDED S/A ARM ASSM RIGHT RPO Right w/boltsManufacturer no. 124274 1Quote Ask for a quote
1-3 PADDED S/A ARM ASSM LEFT RPO Left w/boltsManufacturer no. 124275 1Quote Ask for a quote
4 GEL PAD S/ ARM PAIRManufacturer no. 108315 1Quote Ask for a quote
5 9X.93X.155 FOAM GRIP Single replacement gripManufacturer no. 560640 1Quote Ask for a quote
6 SEXBOLT SA ARMREST KIT (2) PAIRManufacturer no. 108118 1Quote Ask for a quote

PADDED SWING AWAY ARMREST RECEIVER -QRi

8 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in PADDED SWING AWAY ARMREST RECEIVER -QRi
No.PartQtyPriceAction
1 RECIEVER MOUNT HDManufacturer no. 121916 1Quote Ask for a quote
2 BHCS M6 x 1 x 30 INORGManufacturer no. 102262-005 1Quote Ask for a quote
3 SLEEVE SWING AWAY ARMRESTManufacturer no. 106505 1Quote Ask for a quote
5 WASHER FLAT M6Manufacturer no. 250104 1Quote Ask for a quote
6 MOUNT ANGLE ADJManufacturer no. 109755 1Quote Ask for a quote
1-5 PADDED S/A REC ASSM PAIR RPO PairManufacturer no. 124270 1Quote Ask for a quote
1-5 PADDED S/A REC ASSM 1 SIDE RPO EachManufacturer no. 124271 1Quote Ask for a quote
2-5 PADDED S/A REC HDWR 1 SIDE RPO hardware for 1 sideManufacturer no. 124272 1Quote Ask for a quote

SINGLE POST ARMREST RECEIVER QRi

5 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in SINGLE POST ARMREST RECEIVER QRi
No.PartQtyPriceAction
1 HT ADJ REVManufacturer no. 550495 1Quote Ask for a quote
2 WASHER FLAT M6Manufacturer no. 250104 1Quote Ask for a quote
3 HHCS M6 x 1 x 35Manufacturer no. 102268-002 1Quote Ask for a quote
4 RECEIVER SPHA 1 1/8" OD ASSMManufacturer no. 109387 1Quote Ask for a quote
1-4 SPHA REC ASSM COMPLETEManufacturer no. 111157 1Quote Ask for a quote

Hardware.

14 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Hardware.
No.PartQtyPriceAction
1 SHCS M6 X 1 X 25 W/PL INORG MetricManufacturer no. 102263-003 1Quote Ask for a quote
2 WASHER FLAT M6 MetricManufacturer no. 250104 1Quote Ask for a quote
3 BHCS M6 X 1 X 12 FULL PL MetricManufacturer no. 103185-005 1Quote Ask for a quote
4 WASHER FLAT AN 1/4 ROHS Imperial (standard)Manufacturer no. 106943 1Quote Ask for a quote
5 1/4-20 X 1/2 BH C/S W/PATCH Imperial (standard)Manufacturer no. 226154 1Quote Ask for a quote
6 1/4-20 X 1 SOC HD BLK Imperial (standard)Manufacturer no. 221116 1Quote Ask for a quote
7 BHCS M6 X 1 X 12Manufacturer no. 230113 1Quote Ask for a quote
8 LOCKWASHER HIGH COLLAR M6Manufacturer no. 050129-001 1Quote Ask for a quote
9 NUT HEX NYLOCK M6 X 1.0Manufacturer no. 104381 1Quote Ask for a quote
10 WASHER FLAT M6Manufacturer no. 107383 1Quote Ask for a quote
11 HHCS M6 X 1 X 35 BLKManufacturer no. 102268-002 1Quote Ask for a quote
12 PSTN BELT CLAMP ASSM PR Metric; PairManufacturer no. 120750 1Quote Ask for a quote
13 POSITION BELT ATTACHMENT KIT Set of 2; Imperial (standard)Manufacturer no. 900116 1Quote Ask for a quote
14 OVAL CLAMP ASSM KIT Kit contains 1 ClampManufacturer no. 116268 1Quote Ask for a quote

Auto Buckle Positioning Belt & Attachment Kits

15 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Auto Buckle Positioning Belt & Attachment Kits
No.PartQtyPriceAction
1 SHCS M6 X 1 X 25 W/PL INORG MetricManufacturer no. 102263-003 1Quote Ask for a quote
2 WASHER FLAT M6 MetricManufacturer no. 250104 1Quote Ask for a quote
3 BHCS M6 X 1 X 12 FULL PL MetricManufacturer no. 103185-005 1Quote Ask for a quote
4 WASHER FLAT AN 1/4 ROHS Imperial (standard)Manufacturer no. 106943 1Quote Ask for a quote
5 1/4-20 X 1/2 BH C/S W/PATCH Imperial (standard)Manufacturer no. 226154 1Quote Ask for a quote
6 1/4-20 X 1 SOC HD BLK Imperial (standard)Manufacturer no. 221116 1Quote Ask for a quote
7 BHCS M6 X 1 X 12Manufacturer no. 230113 1Quote Ask for a quote
8 LOCKWASHER HIGH COLLAR M6Manufacturer no. 050129-001 1Quote Ask for a quote
9 NUT HEX NYLOCK M6 X 1.0Manufacturer no. 104381 1Quote Ask for a quote
10 WASHER FLAT M6Manufacturer no. 107383 1Quote Ask for a quote
11 HHCS M6 X 1 X 35 BLKManufacturer no. 102268-002 1Quote Ask for a quote
12 PSTN BELT CLAMP ASSM PR Metric; PairManufacturer no. 120750 1Quote Ask for a quote
13 POSITION BELT ATTACHMENT KIT Set of 2; Imperial (standard)Manufacturer no. 900116 1Quote Ask for a quote
14 OVAL CLAMP ASSM KIT Kit contains 1 ClampManufacturer no. 116268 1Quote Ask for a quote
15 POSITIONING BELT CLAMPS PRManufacturer no. 159122 1Quote Ask for a quote

Plastic Side Guards 1 1/8" Clamp

11 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Plastic Side Guards 1 1/8" Clamp
No.PartQtyPriceAction
1A SIDE GUARD ASSY STD STANDARDManufacturer no. 104164-001 1Quote Ask for a quote
1B SIDE GUARD ASSY SMALL SMALLManufacturer no. 104164-002 1Quote Ask for a quote
2 HHCS M6 x 1 x 35Manufacturer no. 102268-002 1Quote Ask for a quote
3 WASHER FLAT M6Manufacturer no. 250104 1Quote Ask for a quote
4 REC SIDE GRD CLMP THREADEDManufacturer no. 550063 1Quote Ask for a quote
6 RECEIVER SG PLASTIC INSERTManufacturer no. 108780 1Quote Ask for a quote
7 FHCS #6-32 X 1/4 BLKManufacturer no. 107135 1Quote Ask for a quote
2-7 SIDEGUARD RECEIVER 1 1/8" ASSMManufacturer no. 111172 1Quote Ask for a quote
5-7 RCVR SIDE GUARD LOW 1 1/8" OD ASMManufacturer no. 109388 1Quote Ask for a quote
1A-7 SIDEGUARD STD W/ RECEIVER 1 1/8" ASSM STANDARDManufacturer no. 111170 1Quote Ask for a quote
1B-7 SIDEGUARD SMALL W/ RECEIVER 1 1/8" ASSM SMALLManufacturer no. 111171 1Quote Ask for a quote

ALUMINUM SIDE GUARD QRi

17 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in ALUMINUM SIDE GUARD QRi
No.PartQtyPriceAction
1 CLAMP SIDE GUARDManufacturer no. 101914 1Quote Ask for a quote
2 CLAMP SEAT SIDEGUARDManufacturer no. 052174 1Quote Ask for a quote
3 AL S/G REAR REC M5Manufacturer no. 118200 1Quote Ask for a quote
4 AL SIDE GUARD CLAMPManufacturer no. 113301 1Quote Ask for a quote
5 FHCS, M5X0.8X25, FULL, PLManufacturer no. 118450 1Quote Ask for a quote
6 M6 x 1 x 25 FH C/S FULL PLManufacturer no. 102265-003 1Quote Ask for a quote
7 3/4" WASHER 1/4" HOLEManufacturer no. 561026 1Quote Ask for a quote
10 SHSS M4 x 0.7 x 6 FULL NPManufacturer no. 113319 1Quote Ask for a quote
11 SHCS, M6 x 1 x 20, FULL, PLManufacturer no. 102263-005 1Quote Ask for a quote
12 SHCS, M6 x 1 x 25, FULL, PLManufacturer no. 102263-003 1Quote Ask for a quote
13 WASHER M6 X 18 REGULAR BLKManufacturer no. 011111 1Quote Ask for a quote
14 SIDE GUARD SLIDE BSHNG M5Manufacturer no. 118202 1Quote Ask for a quote
15 3/4 OD X .318 ID X .25 NYLONManufacturer no. 561112 1Quote Ask for a quote
16 SIDE GRD AL W/O FNDR BLK RH RightManufacturer no. 123592 1Quote Ask for a quote
16 SIDE GRD AL W/O FNDR BLK LH LeftManufacturer no. 123593 1Quote Ask for a quote
17 SIDE GRD AL W/ FENDER BLK RH RightManufacturer no. 123594 1Quote Ask for a quote
17 SIDE GRD AL W/ FENDER BLK LH LeftManufacturer no. 123595 1Quote Ask for a quote

Crutch Holder (Rigid Chairs)

10 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Crutch Holder (Rigid Chairs)
No.PartQtyPriceAction
1 CLAMP SADDLE CRUTCH HOLDERManufacturer no. 050076 1Quote Ask for a quote
2 CLAMP CRUTCH HOLDERManufacturer no. 050077 1Quote Ask for a quote
3 SHCS M6 x 1 x 16 FULL NPManufacturer no. 102263-001 1Quote Ask for a quote
4 LOCKWASHER HIGH COLLAR M6Manufacturer no. 050129-001 1Quote Ask for a quote
5 3/4" INSERT PLUG .083Manufacturer no. 561000-QU 1Quote Ask for a quote
6 BHCS M6 X 1 X 25 W/PL INORGManufacturer no. 102262-004 1Quote Ask for a quote
8 CRUTCH HOLDER STRAP FManufacturer no. 750495 1Quote Ask for a quote
9 10-32 X 1/2 PAN PHILManufacturer no. 281110 1Quote Ask for a quote
10 10-32 NYLOCK NUTManufacturer no. 200100-QU 1Quote Ask for a quote
1-10 ASSM CRUTCH HOLDER GT W/HDWRManufacturer no. 050169 1Quote Ask for a quote

Tool Kit

2 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Tool Kit
No.PartQtyPriceAction
1 QUICKIE COMBO TOOL KIT Includes pouchManufacturer no. 108314 1Quote Ask for a quote
2 6MM ALLEN WRENCH L, 7MM SHORT caster spline chairs onlyManufacturer no. 113403 1Quote Ask for a quote

Tire Pump

2 parts

Exploded view from the manufacturer's parts manual (Quickie QRi Parts Manual). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Tire Pump
No.PartQtyPriceAction
1 TIRE PUMPManufacturer no. 389050 1Quote Ask for a quote
2 VALVE ADAPTER PRESTAManufacturer no. 381230 1Quote Ask for a quote

Parts manuals for this model

The manufacturer parts lists and exploded diagrams we hold. If you can find the number on one of these, quote it to us and we will match it.

Quickie QRi Parts Manual

Manufacturer parts document, PDF.

Not sure which part you need?

Send us a photo of the part, or of where it sits, and tell us what it is doing. Our order desk identifies parts for this equipment every day, and we would rather ask you one question than ship you the wrong bolt.

Or call 905 451-7743 and describe it to us.

Where to go next

The product page

Specifications, documents and the full product page for the Quickie Qri Rigid Wheelchair.

All replacement parts

Search every part we stock, or browse by the equipment it fits.

Have us fit it

Our technicians service what we sell, in the home and in the showroom.
