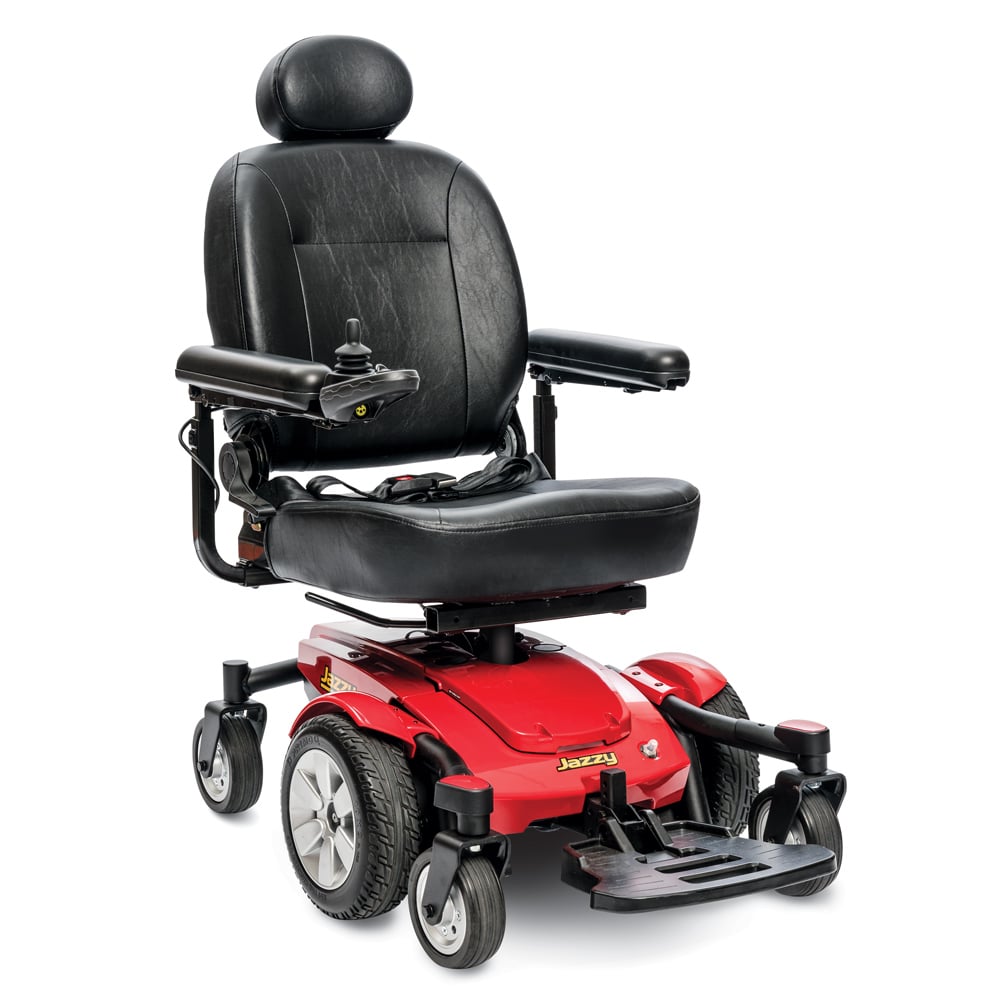

Jazzy Select 6 Power Wheelchair
The Jazzy Select 6 provides maximum front stability combined with the advantages of in-line motor technology. Active-Trac® Suspension and 6” front and rear casters offer superior performance indoors and out.
The Jazzy Select 6 incorporates sporty design and performance features for a truly unique ride experience. Pride’s patented Active-Trac® Suspension combined with six wheels on the ground and an innovative articulating beam allows for superior performance indoors and out, with added stability over uneven terrain and ramp transitions. The mid-wheel drive provides the tightest turning radiuses in their class and caster wheels absorb the shock of obstacles, offering outstanding handling and control
Jazzy Select 6 Features:
- 300 lbs. weight capacity
- Up to 4 mph
- 21.875″ turning radius
- Up to 15 miles per charge
- In-line joystick mount
- Jazzy Armor guards protect against daily wear and tear
- Flip-up, height adjustable foot platform
- Comfortable, depth-adjustable, limited recline comfort high back with headrest
- Red color-through shroud
- The mid-wheel drive offers a tight turning radius around doorways and corners
- Patented Active-Trac® Suspension ensures a smooth ride experience over uneven surfaces
- Dual-layer powder coated frame for increased durability
- Built with ease of service in mind
SPECIFICATIONS
CATEGORY | SPECIFICATION |
---|---|
Model |
Jazzy Select® 6
|
Weight Capacity | 300 lbs. |
Maximum Speed3 | Up to 4.0 mph |
Ground Clearance1 | 1.75″ |
Turning Radius1 | 21.875″ |
Overall Length1,2 | 35.375″ |
Overall Width1 | 23.5″ |
Drive Wheels | 10″ |
Front Wheels | 6″ solid casters |
Rear Wheels | 6″ solid casters |
Suspension | Active-Trac® (ATX) |
Drivetrain | Two motor, in-line, mid-wheel drive |
Braking System | Regenerative and electro-mechanical |
Standard Electronics | 40 amp, PG GC 3 controller4 |
Battery Charger | Off-board, 3.5 amp |
Per-Charge Range3,8 | Up to 15 miles |
Battery Requirements | (2) 12 volt, U-1 |
Battery Weight7 | 25 lbs. each |
Base Weight | 25 lbs. each |
Standard Seat | Weight 43 lbs. (comfort, high-back) |
Standard Seat Size | 16″ x 16″-18″, 18″ x 18″-20″, 20″ x 18″-20″ |
Max. Seat Dimensions | 20″ x 20″ |
Warranty | 5-year limited on frame 13-month limited on batteries 2-year limited on electronics 2-year limited on drive motors |
