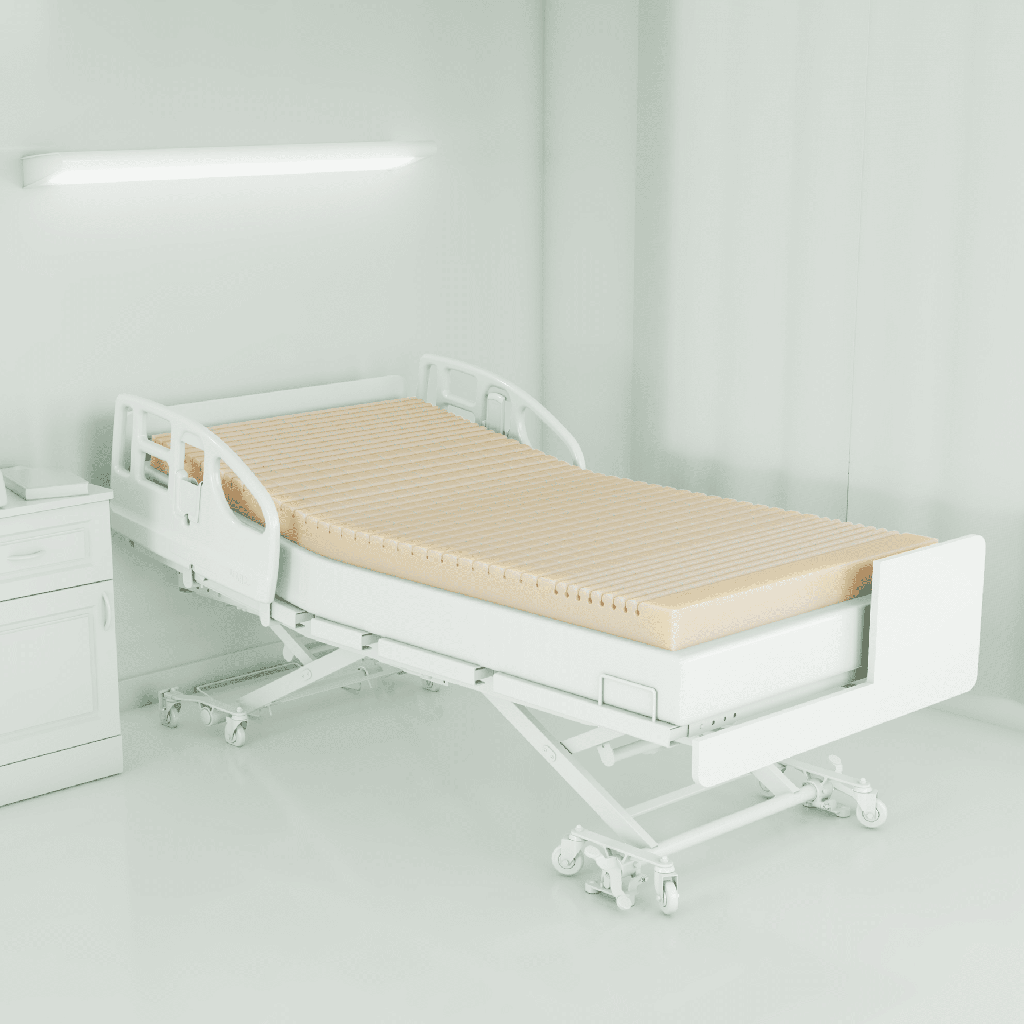

Span America Geo-Matt Overlay

The Span America Geo-Matt Overlay is a 3.5 inch non-powered segmented foam overlay that sits on the mattress you already have. Span America is a Savaria company. Westin Healthcare quotes it, delivers it, and places it on the bed for homes and care sites in Brampton and the Greater Toronto Area.

This page is the Geo-Matt mattress overlay only. Span cuts more than 800 individually responsive foam cells in three zones for the head, torso, and lower extremities. Ring-of-Air channels help move heat away from the skin. The standard size is 33 by 72 by 3.5 inches with a 250 lb weight limit. An 80 inch hospital length and Full, Queen, and King consumer sizes are on the picker. If a clinician has named a Geo-Mattress replacement surface, a Geo-Matt PRT seat, or a Geo-Matt cushion, ask us for that listing. Those are separate Span products.

Who this overlay is for

This overlay is for a person who already has a mattress, needs a wipeable non-powered prevention foam on top of it, and whose weight is within Span's 250 lb rating. Span writes it for pressure injury prevention in moderate to high risk patients in hospital, long-term care, and home settings.

Families and directors of care usually call us when the therapist has asked for a Geo-Matt overlay, not a full replacement mattress and not a pump. If the care team has asked for a complete foam mattress, we quote a Geo-Mattress tier. If they have asked for air therapy or a convertible surface, we already stock Span PressureGuard Custom Care and Span-Care surfaces and will quote those instead.

• An existing hospital or home mattress that needs a 3.5 inch segmented overlay
• A 250 lb rating with no pump to plug in
• Anyone replacing a worn overlay without changing the mattress underneath

Construction and how it works

The Geo-Matt Overlay is a non-powered foam overlay. Span cuts the top into more than 800 individually responsive cells. Smaller cells support the head and lower extremities. Larger cells support the heavier torso and thighs. Each cell can move on its own, so the surface follows the person's shape and reduces the effect of pressure and shear. There is no gel sheet and no pump.

Ring-of-Air channels help ventilate the surface and move heat away from the skin so moisture is less likely to build up. The wipe-and-clean model uses a bacteriostatic vinyl/nylon cover that is fire resistant, fluid-proof, tear resistant, cleanable, and replaceable. A pleated design ties the cover to the cells so the fabric is less likely to hammock. Side elastic bands help hold the overlay on the mattress. A side zipper with a flap helps keep fluids out. Soft Skin is the other cover path: a flexible, vapor-permeable sleeve that resists liquids.

Span America Geo-Matt Overlay specifications

These figures are for the adult Geo-Matt mattress overlay. They are not Geo-Mattress, Geo-Matt PRT, Geo-Matt seating, or convoluted overlay sheets. The specification tab holds the stored values.

Span lists a 250 lb weight limit and a standard size of 33 inches wide by 72 inches long by 3.5 inches high. Hospital length also includes 80 inches. Consumer sizes are Full (52 by 72 inches), Queen (58 by 75 inches), and King (two pads, 74 by 75 inches). The overlay is non-powered. Span's overlay sheets do not print a warranty year; ask us for the current Span America terms on your quote.

Size options

Use Choose Overlay Size. The default on this page is 72 in L x 33 in W x 3.5 in H, vinyl/nylon cover (50960-457).

• 72 in L x 33 in W x 3.5 in H, vinyl/nylon cover (50960-457)
• 80 in L, vinyl/nylon cover (50960-500)
• 72 in L x 33 in W x 3.5 in H, fitted Soft Skin (50960-580)
• 80 in L, fitted Soft Skin (50960-585)
• Full / Double 52 in W x 72 in L (SP760-000)
• Queen 58 in W x 75 in L (SP761-000)
• King, 2 pads, 74 in W x 75 in L (SP762-000)

Span also cuts 2 inch Geo-Matt overlays for isolettes, bassinets, and pediatric mattresses, plus a 20 inch operating-room width. Those codes are quoted with the room. If the care team named Span's convoluted pad, that is a separate comfort overlay.

Funding help for a therapeutic mattress in Ontario

Ontario's Assistive Devices Program (ADP) does not cover hospital beds or mattresses, so plan around other routes. Funding that may help instead: March of Dimes Canada, Veterans Affairs Canada (VAC), and community programs. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through before you buy.

Delivery and setup in Brampton and the GTA

Westin's own team delivers and sets up this overlay across Brampton and the Greater Toronto Area. We bring it in, place it on the mattress, and show you the cover and the elastic bands before we leave.

We have three stores in the Brampton and Toronto area if you would rather see an overlay first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased overlays are delivered and set up on a scheduled date.

Hospital overlays are oversized. The Canada-wide free ground-shipping offer on smaller goods does not apply. If the overlay is going outside the GTA, ask us for a freight quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.

Which mattresses and beds this overlay fits

The Geo-Matt Overlay sits on the mattress you already have. Span publishes the standard overlay as 33 inches wide by 72 inches long by 3.5 inches high. The 80 inch overlay is the length for an 80 inch mattress. Full, Queen, and King cuts are for mattresses of those names. On the vinyl/nylon cover, side elastic bands help secure the overlay to the mattress.

Span does not publish a bed-model list for this overlay. Match the overlay to the mattress footprint, then keep it centred so the person cannot slip into a gap at the rail. A 33 inch overlay is narrower than a 36 inch homecare mattress; choose the size that matches the mattress you have. If you also need a Span bed, the Span America Advantage is a 35 by 80 inch deck, and the Span America Encore expands from 36 to 42 inches. A common homecare frame is the Drive Delta 1000. See all hospital beds if you are still choosing a frame.

When a clinician has asked for a full replacement surface instead of an overlay, we already stock PressureGuard Custom Care Convertible LAL, non-powered Custom Care, and Span-Care Convertible. For a 36 inch foam hospital mattress we already sell, see the Gravity 7. See all medical mattresses if you need a different therapy class.

Service and warranty

When something on the overlay needs work, you call the shop that set it up. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.

Span America manufacturer warranty

Ask us for the current Span America warranty on the Geo-Matt Overlay when we quote. We handle the warranty claim with you. Ask us if an extended warranty is offered for your order.

Frequently asked questions

What is the Geo-Matt Overlay?

It is Span America's 3.5 inch non-powered segmented foam mattress overlay. More than 800 cells follow the person's shape. The standard size is 33 by 72 by 3.5 inches with a 250 lb weight limit. It sits on the mattress you already have.

How is the overlay different from a Geo-Mattress?

The Geo-Matt Overlay is a 3.5 inch pad that goes on top of an existing mattress. A Geo-Mattress (350, Plus, Pro, Max, UltraMax, HC, or Atlas) is a full replacement mattress, typically 5 to 7 inches high. If the care team named a Geo-Mattress tier, ask us for that listing.

Is this the same as Geo-Matt PRT or a Geo-Matt cushion?

No. This page is the mattress overlay. Geo-Matt PRT is a 3 inch wheelchair seat. Geo-Matt Contour, Cushion, and Wedge are seating and positioning products. Ask us for the seat or cushion if that is what the therapist named.

Does this overlay need a pump?

No. The Geo-Matt Overlay is non-powered. There is no pump to plug in or to hear at night.

What is the weight rating?

Span lists a 250 lb weight limit on the Geo-Matt Overlay. Tell us the person's weight when you order. For a higher rating, ask us about a replacement mattress such as Atlas or a PressureGuard surface.

What sizes can I get?

Standard hospital size is 33 by 72 by 3.5 inches. An 80 inch length is on the picker. Consumer sizes are Full 52 by 72, Queen 58 by 75, and King (two pads) 74 by 75. The default on this page is 72 by 33 inches with the vinyl/nylon cover (50960-457).

Which mattress does the Geo-Matt Overlay fit?

It sits on a mattress that matches the size you pick. The standard overlay is 33 by 72 inches. The 80 inch overlay is for an 80 inch mattress. Full, Queen, and King cuts are for those consumer mattresses. Side elastic bands on the vinyl/nylon cover help hold it in place.

How do I clean the cover?

The vinyl/nylon cover is bacteriostatic, fluid-proof, and wipeable. Span lists it as cleanable and replaceable. Wipe it with the disinfectant your clinician allows. Soft Skin is a sleeve you can replace if the care plan uses that path.

What is Ring-of-Air?

It is Span's channel cut between the foam cells. Span writes that the channels help ventilate the surface and move heat away from the person so moisture is less likely to collect on the skin.

What is the warranty?

Ask us for the current Span America warranty on the Geo-Matt Overlay when we quote. Westin Healthcare processes the warranty work.

Can funding help pay for this overlay in Ontario?

Ontario's Assistive Devices Program does not cover hospital beds or mattresses. March of Dimes Canada, Veterans Affairs Canada, and community programs may still help, depending on the person. Call (905) 451-7743 or use the funding page before you buy.

What is included?

You get the Span America Geo-Matt Overlay in the size and cover you pick. The bed frame and the mattress underneath are sold separately.
