Drive Free-Standing Trapeze - 13049SV

The Drive Free-Standing Trapeze 13049SV is a 650 lb overhead handle on its own floor base. It stands beside a hospital bed and does not clamp to the headboard. Drive designed it to assist larger individuals with changing position in bed and with transfers in and out of bed. Westin Healthcare sells it, delivers it, and sets it up in homes and care settings across Brampton and the Greater Toronto Area.

This is not a Hoyer-style patient lift. The person holds a triangle handle on a chain and uses their own arms to shift. Drive's owner manual for item 13049SV says the trapeze is not designed to support the total body weight of an individual and is for assistance only. If the person cannot pull themselves, see a floor lift such as the Drive deluxe hydraulic patient lift.

Who it is for

This trapeze is for a person who can use their arms to pull and who needs help changing position in bed or moving toward the edge of the bed. Drive writes that it is designed to assist larger individuals. The published capacity is 650 lb, with the assistance-only limit above.

Families usually call us when a metal headboard clamp will not work, when they want a frame that can move with a different bed, or when the person is above the 250 lb rating of the bed-mounted Drive trapeze bar 13009TRAPBV. If you need 1000 lb and a boom that swivels, see the Drive 13039SV free-standing trapeze.

• Home care beside a hospital-style bed, including the Drive Delta 1000
• Users within Drive's 650 lb assistance rating who can pull on the handle
• Rooms where the bed has no metal headboard to clamp to

How it lifts

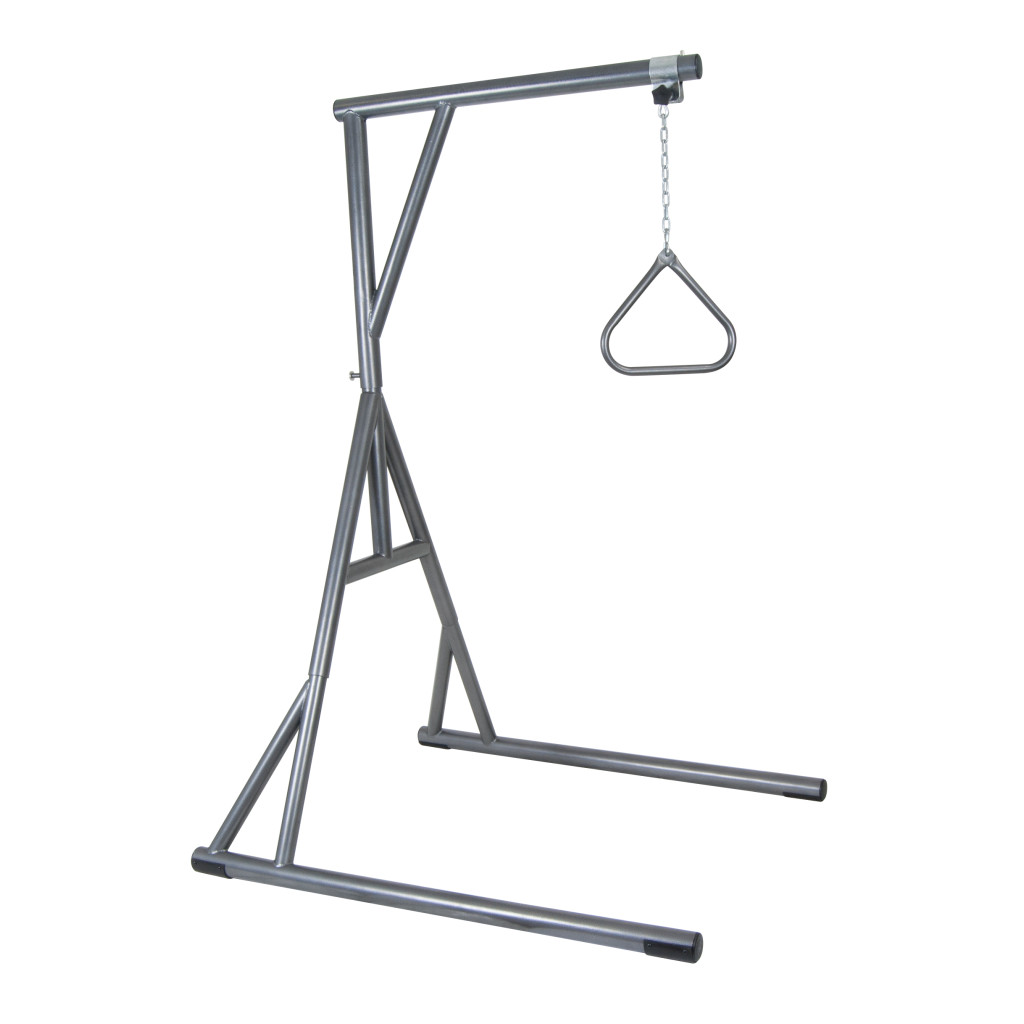

It does not lift the person with a motor or a sling. A free-standing steel base sits on the floor. An upright and a 37 inch boom hold a sliding chain and a triangle handle above the mattress. The person reaches up, holds the handle, and uses their arms to roll, sit up, or shift toward the edge of the bed. Drive says the chain slides from the edge of the headboard to the end of the boom.

Assembly is tool-free. Drive's owner manual walks through push-pin tubes, a locking pin on the boom, and a thumb screw on the chain ring. Tighten every joint before the first use. The frame is independent of the bed, so the bed can still raise, lower, and articulate underneath it. Place the base so the handle hangs where the person can reach it without leaning off the mattress.

Drive Free-Standing Trapeze 13049SV specifications

These figures are for Westin SKU 13049SV, Drive item 13049SV (bariatric trapeze, silver vein). The specification tab holds the stored values. Drive's current shop sheet prints:

• Weight capacity: 650 lb
• Boom length: 37"
• Product weight: 74 lb
• Carton shipping weight: 83 lb
• Warranty: limited lifetime
• HCPCS: E0912

Drive's owner manual for 13049SV repeats the 650 lb (295 kg) figure and adds that the trapeze is for assistance only, not total body weight. Drive does not print overall height, width, or depth on the current sheet. Do not treat vendor-published room dimensions as Drive numbers.

Slings and spreader bar

This product has no spreader bar and does not use a patient-lift sling. The person holds a triangle handle on a chain. If the care plan needs a full-body transfer in a sling, this trapeze is the wrong device. Ask us about a floor lift and the matching sling style from our universal slings, full-body slings, or divided-leg slings.

Funding help for a trapeze in Ontario

Funding routes exist for trapezes in Ontario and eligibility depends on the situation and assessment. Westin Healthcare's staff work with funding programs every week and will point you to the right route. Visit our funding page or call (905) 451-7743.

Delivery and setup in Brampton and the GTA

Westin's own team delivers and sets up this trapeze across Brampton and the Greater Toronto Area. We bring it in, assemble it, and show you the handle and chain before we leave.

We have three stores in the Brampton and Toronto area if you would rather see a trapeze first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Purchased trapezes are delivered and set up on a scheduled date.

Free-standing trapezes are oversized. The Canada-wide free ground-shipping offer on smaller goods does not apply. If the trapeze is going outside the GTA, ask us for a freight quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.

Need a patient lift instead?

This trapeze is sold as a bed-mobility aid. It is not listed on our rentals hub. If you need a Hoyer-style patient lift for a full transfer, Westin rents electric patient lifts with a sling. See current packages on the rentals hub or call (905) 451-7743. Current rates are on the rentals page.

Service and warranty

When something on the trapeze needs work, you call the shop that set it up, not a US parts desk. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.

Drive manufacturer warranty

Drive's owner manual for the 13049SV states a lifetime limited warranty for the original consumer purchaser: free of defects in materials and workmanship. It does not cover owner misuse, negligence, or normal wear and tear. It does not extend to non-durable components such as rubber accessories, casters, and grips. We handle the warranty claim with you. Ask us if an extended warranty is offered for your order.

Frequently asked questions

What is the weight capacity of the 13049SV?

Drive's current sheet and owner manual print 650 lb (295 kg). The same manual says the trapeze is not designed to support the person's total body weight. Use it for assistance only.

Does this trapeze attach to the bed?

No. The 13049SV is free-standing. The base sits on the floor beside the bed. If you want a bar that clamps to a metal headboard, see the Drive 13009TRAPBV trapeze bar.

Is this a Hoyer lift?

No. There is no motor, no sling, and no spreader bar. The person pulls on a triangle handle. For a full transfer in a sling, ask about a floor lift.

Can one person set it up?

Drive describes a tool-free, push-pin assembly. The carton is 83 lb and the assembled frame is 74 lb, so plan for two people to move the box. Tighten every pin before the first use.

Do I need slings for this trapeze?

No. Drive does not list slings for the 13049SV. Slings belong on a patient lift with a spreader bar.

How is the handle positioned?

Drive says the chain slides from the edge of the headboard to the end of the 37 inch boom. Set the handle where the person can reach it without leaning off the mattress.

What is the warranty?

Drive's 13049SV owner manual states a lifetime limited warranty for the original purchaser, excluding misuse, wear, and non-durable parts such as grips. Westin Healthcare processes the claim.

Can funding help pay for this trapeze in Ontario?

Funding routes exist and eligibility depends on the situation and assessment. Call (905) 451-7743 or use the funding page before you buy.

Can I rent this trapeze?

This SKU is not listed on the rentals hub. If you need a patient lift for a short stay, Westin rents electric floor lifts with a sling. Current rates are on the rentals hub.

How is this different from the 13039SV?

The 13049SV is the 650 lb, tool-free, 37 inch boom model. The 13039SV is the 1000 lb model with a 36 inch boom that swivels 0 to 180 degrees and needs a drill, mallet, and socket for assembly.
