Description

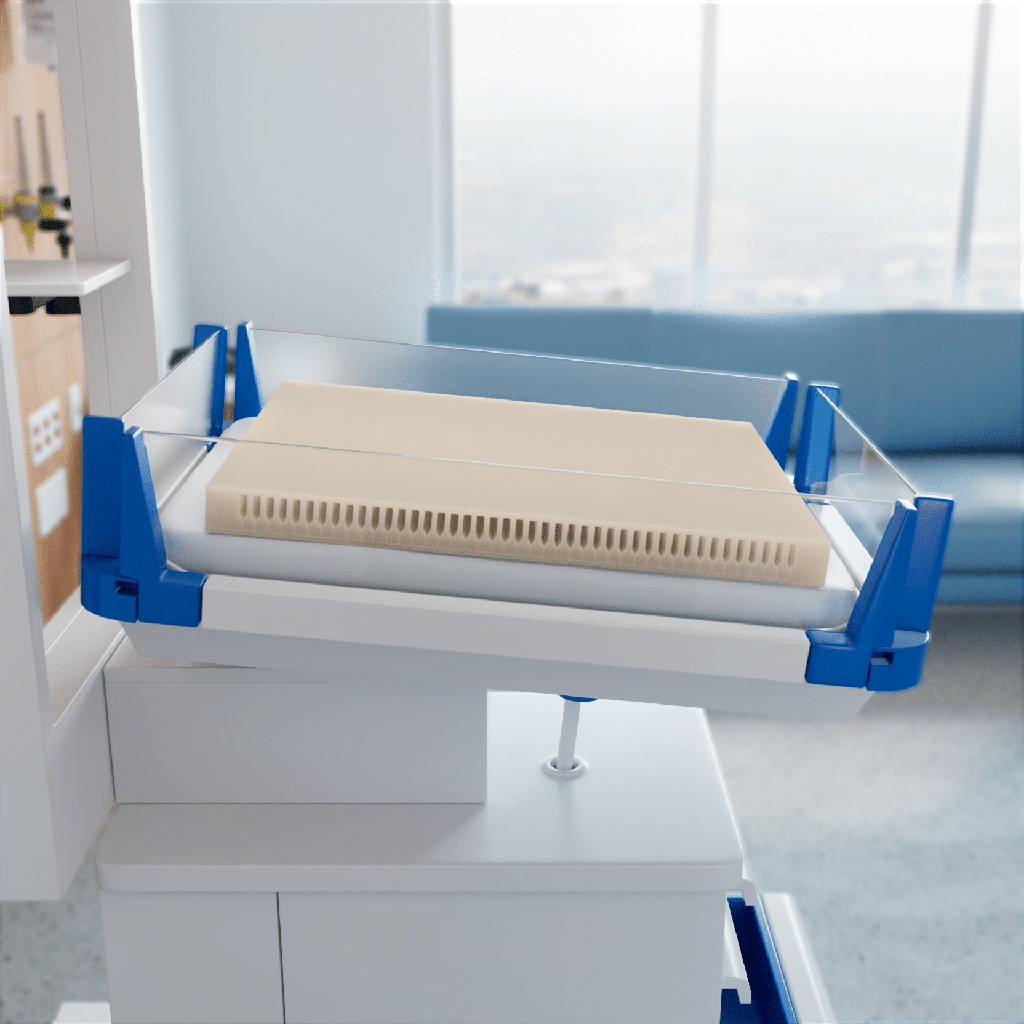

The Span America Delta Pediatric Overlay is Span America's non-powered foam overlay for infants and children. Span America is a Savaria company. Westin Healthcare quotes it, delivers it, and places it on the crib, isolette, warmer, or mattress for families and care sites in Brampton and the Greater Toronto Area.
This page is the Span America Delta Pediatric Overlay only. Span cuts a series of 5-sided cells into the middle layer so the body can immerse into the pad while the top stays flat. Span writes that this flat surface may assist in eliminating breathing interference when the person lies prone. Span designed the overlay to alleviate head and scapular pressures that arise because infants' heads are large and babies tend to lie on their backs for long periods. Span writes that it provides low interface pressures over the head and body of the infant. The line is for patients less than 70 lb. If a clinician has named Geo-Matt, Geo-Mattress, or a PressureGuard surface, ask us for that Span product. Those are separate surfaces.
Who this overlay is for
This overlay is for an infant or child whose weight is below Span's 70 lb rating and whose clinician has asked for a pediatric foam overlay for skin management. Span writes it for home or hospital pediatric settings. It sits on the existing isolette, warmer, crib, or mattress. It does not replace that surface.
Families and directors of care usually call us when the care team has asked for a Span Delta overlay in a crib, isolette, warmer, or 32 or 34 inch by 75 inch size. If the child is over 70 lb, or the team has asked for a full mattress or air therapy, we already stock Span PressureGuard Custom Care and Span-Care surfaces and will quote those instead.
- Crib, isolette, and warmer sizes that Span names on the Delta line
- 32 inch and 34 inch by 75 inch overlays when the sleep surface matches those dimensions
- Home or hospital rooms that need a non-powered pediatric overlay under 70 lb
Construction and how it works
The Delta Pediatric Overlay is a non-powered foam overlay. Span cuts unique 5-sided cells into the middle layer. The body can immerse into those cells while the person still feels a flat surface. Span writes that this may assist in eliminating breathing interference in the prone position, and that the design gives high conformance to body contours.
Span lists the overlay as safe, non-toxic, heat-resistant, and comfortable. Every Delta foam overlay includes Soft Skin. There is no pump and no air hose.
Span America Delta Pediatric Overlay specifications
These figures are for the Delta Pediatric Overlay in DELTA-204, DELTA-C11, DELTA-120, DELTA-200, and DELTA-202. They are not Geo-Matt pediatric or isolette sheets. The specification tab holds the stored values.
Span lists a line weight limit of less than 70 lb. Heights are 2.75 in on the crib, 3.5 in on the 32 and 34 inch overlays, 1.75 in on the isolette, and 2.25 in on the warmer. The overlay is non-powered. Span's catalog primary use is skin management in infants and children. Soft Skin is included on all five sizes.
Size options
Use Choose Overlay Size. The default on this page is Crib Overlay 26.5 in W x 53 in L x 2.75 in H (DELTA-204).
- Crib Overlay 26.5 in W x 53 in L x 2.75 in H (DELTA-204)
- Overlay 32 in W x 75 in L x 3.5 in H (DELTA-C11)
- Overlay 34 in W x 75 in L x 3.5 in H (DELTA-120)
- Isolette Matt Overlay 13.5 in W x 25 in L x 1.75 in H (DELTA-200)
- Warmer Overlay 29 in W x 23.75 in L x 2.25 in H (DELTA-202)
Span does not publish a 35, 36, or 80 inch Delta size. If the deck is a 35 inch Span America Advantage or a 36 to 42 inch Span America Encore, ask us for a Span mattress in that width.
Funding help for a therapeutic mattress in Ontario
Ontario's Assistive Devices Program (ADP) does not cover hospital beds or mattresses, so plan around other routes. Funding that may help instead: March of Dimes Canada, Veterans Affairs Canada (VAC), and community programs. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through before you buy.
Delivery and setup in Brampton and the GTA
Westin's own team delivers and sets up this overlay across Brampton and the Greater Toronto Area. We bring it in, place it on the crib, isolette, warmer, or mattress, and show you the Soft Skin cover before we leave.
We have three stores in the Brampton and Toronto area if you would rather see an overlay first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased overlays are delivered and set up on a scheduled date.
This overlay ships smaller than a full mattress, but we still treat it as a scheduled medical delivery inside the GTA. If it is going outside the GTA, ask us for a freight quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.
Which cribs and beds this overlay fits
Span publishes five Delta sizes and names the surface each one is for. Use the size that matches the isolette, warmer, crib, or mattress already in the room. The surface underneath is sold separately.
- Isolette Matt Overlay 13.5 in x 25 in x 1.75 in (DELTA-200), which Span names for an isolette
- Warmer Overlay 29 in x 23.75 in x 2.25 in (DELTA-202), which Span names for a warmer
- Crib Overlay 26.5 in x 53 in x 2.75 in (DELTA-204), which Span names for a crib
- Overlay 32 in x 75 in x 3.5 in (DELTA-C11), which Span names as a 32 by 75 inch overlay
- Overlay 34 in x 75 in x 3.5 in (DELTA-120), which Span names as a 34 by 75 inch overlay
Span does not list a Delta size for a 35 by 80 inch or 36 by 80 inch adult deck. The Span America Advantage and Span America Encore we already sell are adult Span beds. See all hospital beds if you are still choosing a frame, and all medical mattresses if you need a different therapy class.
When the child is over 70 lb, or a clinician has asked for a full Span mattress instead of this overlay, we already stock PressureGuard Custom Care Convertible LAL, non-powered Custom Care, and Span-Care Convertible. Ask us to add the matching width to the quote.
Service and warranty
When something on the overlay needs work, you call the shop that set it up. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.
Span America manufacturer warranty
Ask us for the current Span warranty on the Delta size you pick. We handle the warranty claim with you. Ask us if an extended warranty is offered for your order.
Frequently asked questions
What is the Span America Delta Pediatric Overlay?
It is Span America's non-powered foam overlay for infants and children. The middle layer has 5-sided cuts, the top stays flat, Soft Skin is included, and Span lists it for patients less than 70 lb.
Who is this overlay for?
Span writes it for skin management in infants and children whose weight is below 70 lb, in home or hospital pediatric settings. A clinician should name the size that matches the isolette, warmer, crib, or mattress in the room.
What sizes can I get?
Five Span codes: crib 26.5 by 53 by 2.75 inches (DELTA-204), overlay 32 by 75 by 3.5 inches (DELTA-C11), overlay 34 by 75 by 3.5 inches (DELTA-120), isolette 13.5 by 25 by 1.75 inches (DELTA-200), and warmer 29 by 23.75 by 2.25 inches (DELTA-202). The default on this page is the crib size.
Which crib or bed does it fit?
Span names DELTA-204 as the Crib Overlay, DELTA-200 as the Isolette Matt Overlay, and DELTA-202 as the Warmer Overlay. DELTA-C11 and DELTA-120 are 32 and 34 inch by 75 inch overlays. Measure the surface in the room and pick the matching code.
Does this overlay need a pump?
No. The Delta Pediatric Overlay is non-powered. There is no pump to plug in or to hear at night.
Does this overlay replace the mattress?
No. It is an overlay. It sits on the isolette, warmer, crib, or mattress that is already there. That surface is sold separately.
How is this different from Geo-Matt?
Geo-Matt is a separate Span overlay line with its own pediatric and isolette codes. This page is the Delta Pediatric Overlay only. Ask us if the care team named Geo-Matt.
What is the weight rating?
Span lists the Delta line for patients less than 70 lb. Tell us the child's weight when you order. For a higher rating, ask us about a Span mattress we already stock.
What is Soft Skin?
Span states that all Delta foam overlays include Soft Skin. Ask us for the current cover note on the size you pick.
What is the warranty?
Ask us for the current Span warranty on the Delta size you pick. Westin Healthcare processes the warranty work.
Can funding help pay for this overlay in Ontario?
Ontario's Assistive Devices Program does not cover hospital beds or mattresses. March of Dimes Canada, Veterans Affairs Canada, and community programs may still help, depending on the person. Call (905) 451-7743 or use the funding page before you buy.
What is included?
You get the Span America Delta Pediatric Overlay in the size you pick, with Soft Skin on it. The crib, isolette, warmer, or mattress underneath is sold separately.
Specifications
| Model | Delta Pediatric Overlay |
|---|---|
| Brands | Span America |
| Weight Capacity | Below 70 lb |
| Construction | Foam overlay with 5-sided cuts in the middle layer and a flat top surface |
| Cover | Soft Skin included on all Delta foam overlays |
| Safety | Safe, non-toxic, heat-resistant |
| Therapy Class | Non-powered foam pressure-redistribution overlay (pediatric) |
| Power | None. Non-powered. |
| Primary Use | Skin management in infants and children |
| Crib Overlay | 26.5 in W x 53 in L x 2.75 in H (DELTA-204) |
| Overlay 32 x 75 | 32 in W x 75 in L x 3.5 in H (DELTA-C11) |
| Overlay 34 x 75 | 34 in W x 75 in L x 3.5 in H (DELTA-120) |
| Isolette Overlay | 13.5 in W x 25 in L x 1.75 in H (DELTA-200) |
| Warmer Overlay | 29 in W x 23.75 in L x 2.25 in H (DELTA-202) |
| Care Settings | Home or hospital (Span catalog) |
| Qty per Case | 1 |
