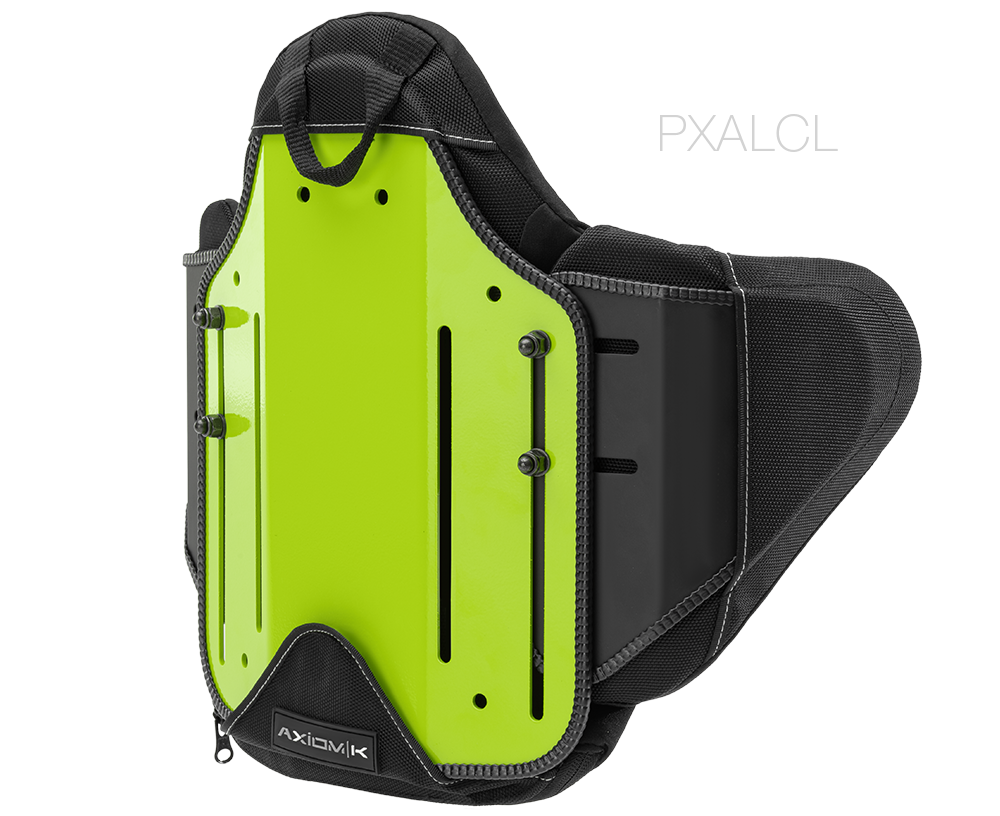

Axiom PXALCL Pediatric Back Support

The Axiom PXALCL back is Ki Mobility's pediatric adjustable back with contour laterals for Brampton and the Greater Toronto Area. Contour wings hug smaller torsos and move in width and height as the child grows. Widths run 10 to 16 inches (25.4 to 40.6 cm) and heights 10 to 18 inches (25.4 to 45.7 cm). Ki rates it at 165 lbs (75 kg). This is a quote-only kids back, built after a seating assessment.

Ki writes the PXALCL as exclusive to Axiom for Kids. DEX for Kids hardware is standard, with a lockout latch. A seating therapist names PXALCL versus the formed Axiom PXPL or the pad-style Axiom PXAL before we order.

Who this back is for

The Axiom PXALCL back fits a child whose therapist wants contour lateral wings on an adjustable shell, not a formed one-piece PXPL and not flat pads. Pair it with a kids Axiom cushion and a growth chair such as the Little Wave Clik or the Little Wave Arc.

• Contour lateral wings, width and height adjustable
• Laterals plus 2 in / minus 1 in
• 165 lb (75 kg) rating

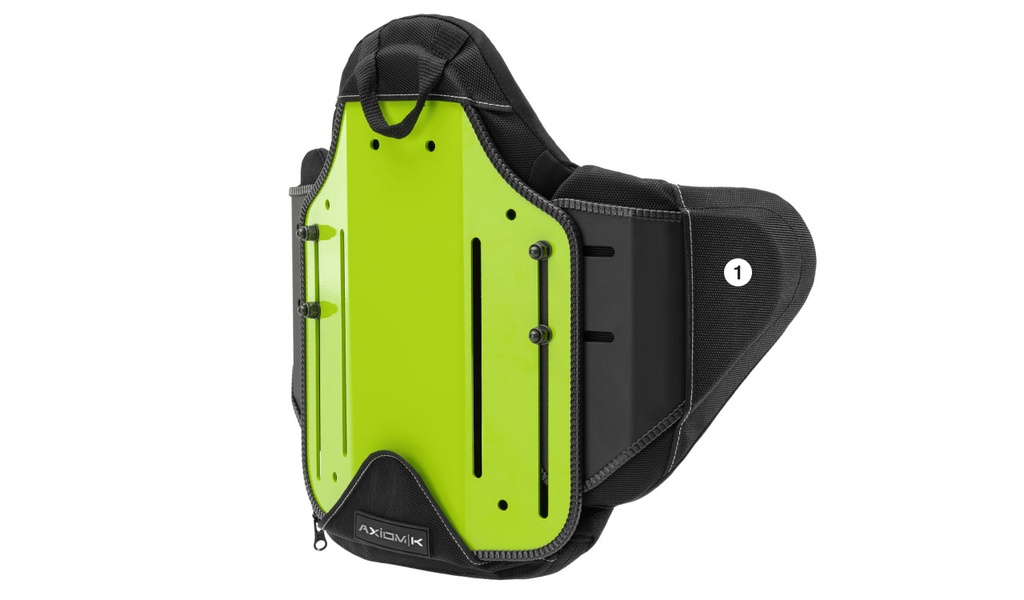

Growth, contour wings, and DEX for Kids

The smart shell fits wheelchair widths plus or minus 1 inch. Hardware depth is 2 inches standard and 4 inches with the optional extension. Angle is plus or minus 20 degrees. Height adjustability is 3.3 inches. Foam thickness is 1 inch. The contour wings move so the therapist can put support where it is needed now and again later. Brochure lateral travel is plus 2 inches and minus 1 inch.

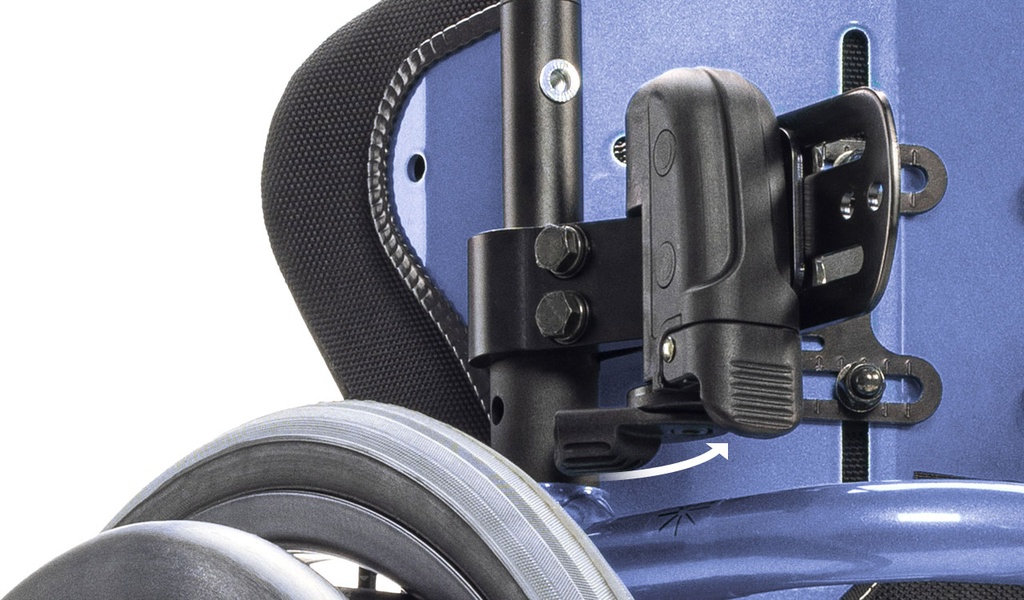

DEX for Kids is the standard mount. The brochure prints a fit of 3/4 inch to 1-1/8 inch tube diameter with no adaptors. A lockout latch is built in. An audible click confirms it is locked. We do not invent a hardware picker.

Axiom PXALCL Pediatric Back specifications

These figures are from Ki Mobility's current Axiom for Kids Backs card, brochure DCN1171.1, and the kids back owner's manual. The specification tab holds the stored values. We do not invent a size picker on this page.

Width 10 to 16 inches (25.4 to 40.6 cm). Height 10 to 18 inches (25.4 to 45.7 cm). Foam 1 inch (2.5 cm). Assembled weight with pediatric hardware 3.90 to 6.90 lb (1.8 to 3.1 kg). Weight capacity 165 lbs (75 kg). Transit tested to ANSI/RESNA WC-4 Section 20 as Ki prints it.

The Axiom for Kids Backs owner's manual prints 24 months on the shell and foam and 6 months on removable covers for the original purchaser in North America.

How a PXALCL is ordered

A seating therapist measures the child's trunk and decides how the contour wings should sit. Westin maps that to a 10 to 16 by 10 to 18 inch shell and DEX for Kids hardware that matches the chair canes. That work happens in a fitting, not on a product page.

Which Axiom wheelchair back fits

The Axiom PXALCL back is the kids contour-wing shell. The Axiom PXPL is the formed shell with a lumbar pad. The Axiom PXAL is the planar panel with optional fixed or swing-away pads. Adult stock shells start at the Axiom PB Back. Matching kids seats are the Axiom PXP and Axiom PXSP. Pair the back with a Little Wave Clik, Arc, XP, or Flip, or with the live Rogue XP or Spark.

Funding help for a wheelchair cushion or back support in Ontario

This cushion or back support is an ADP positioning device category item. Ontario's Assistive Devices Program (ADP) can fund 75% of the cost of positioning devices such as cushions and back supports when they are prescribed through an assessment by an ADP-registered occupational therapist or physiotherapist with an eligible mobility device, and some income-support programs cover the full cost. Not every product qualifies, so talk to us before you buy. March of Dimes Canada, Veterans Affairs Canada (VAC), and community programs can also help. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through.

Delivery and setup in Brampton and the GTA

Westin's own team delivers this kids wheelchair back support across Brampton and the Greater Toronto Area once the shell is built. We bring it in, check the hardware against the chair canes, and show you the contour wings and the lockout latch before we leave.

We have three stores in the Brampton and Toronto area if you would rather see an Axiom for Kids back first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased backs are delivered and set up on a scheduled date.

If the back is going outside the GTA, ask us for a shipping quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.

Related pediatric seating from Westin

• Axiom PXAL Pediatric Back Support, pad-style adjustable laterals
• Axiom PXSP Pediatric Cushion, dual-density kids foam
• Ki Mobility Little Wave Arc, folding pediatric tilt

Service and warranty

When something on the back needs work, you call the shop that set it up. Westin Healthcare has a service and repairs department.

Ki Mobility Axiom for Kids warranty

The Axiom for Kids Backs owner's manual prints 24 months on the shell and foam and 6 months on removable covers for the original purchaser in North America. Punctures, tears, and burns sit outside that term. We handle the claim on units we sold.

Frequently asked questions

What Size Kids Back Does A Child Need?

The Axiom PXALCL back is ordered in widths from 10 to 16 inches and heights from 10 to 18 inches. A seating therapist measures trunk width and torso height. Do not guess from clothing size.

How Is The PXALCL Different From The PXAL?

The Axiom PXALCL back uses contour lateral wings that hug the torso and move in width and height. The Axiom PXAL back uses interchangeable flat pads that can be fixed or swing-away. A seating therapist names which one.

Does ADP Cover Wheelchair Back Supports?

Ontario's Assistive Devices Program can help with a wheelchair cushion or back support after an ADP-registered therapist assessment with an eligible mobility device. Eligibility depends on the person. Call (905) 451-7743 or use the funding page before you buy.

What Cane Diameters Does DEX For Kids Fit?

DEX for Kids on the Axiom for Kids brochure fits 3/4 inch to 1-1/8 inch tube diameter with no adaptors. Westin checks the Little Wave or other pediatric canes before we order.

What Is The Weight Limit For The Axiom PXALCL Back?

The Axiom PXALCL back is rated at 165 lbs (75 kg) on Ki's current card and brochure.

Can This Back Sit On A Little Wave Chair?

Yes, when the therapist measures both. Westin pairs PXALCL shells with Little Wave Clik, Arc, XP, and Flip frames, and with Rogue XP or Spark, after the assessment.

How Long Is The Axiom For Kids Back Warranty?

The Axiom PXALCL back carries 24 months on the shell and foam and 6 months on removable covers in the kids back owner's manual, for the original purchaser.

Can I See An Axiom For Kids Back In Brampton?

Westin Healthcare can show Axiom for Kids seating in the Brampton and Toronto stores and deliver across the GTA. Call (905) 451-7743 to check what is on the floor and to book an assessment.
