Spex Stylo Head Support

The Spex Stylo Head Support is Sunrise Medical's Spex head support for Brampton and the Greater Toronto Area. Sunrise writes it for long reach and strong ball-and-socket joints when the pad has to sit away from the back or off centre.

This is a quote-only configured head support. The mounting block bolts to the back support. It is not a Whitmyer PLUSH pad on Axys hardware.

Who this head support is for

Sunrise writes Stylo for a person whose therapist needs the pad farther from the back, or offset, because of trunk shape. A seating therapist should confirm Stylo 160 or Stylo 260. This page does not give clinical positioning advice.

• Stylo 160: 160 mm forward reach
• Stylo 260: 260 mm forward reach
• Up to 270 degrees of angle on the ball mount

Stem, pad, and mount hardware

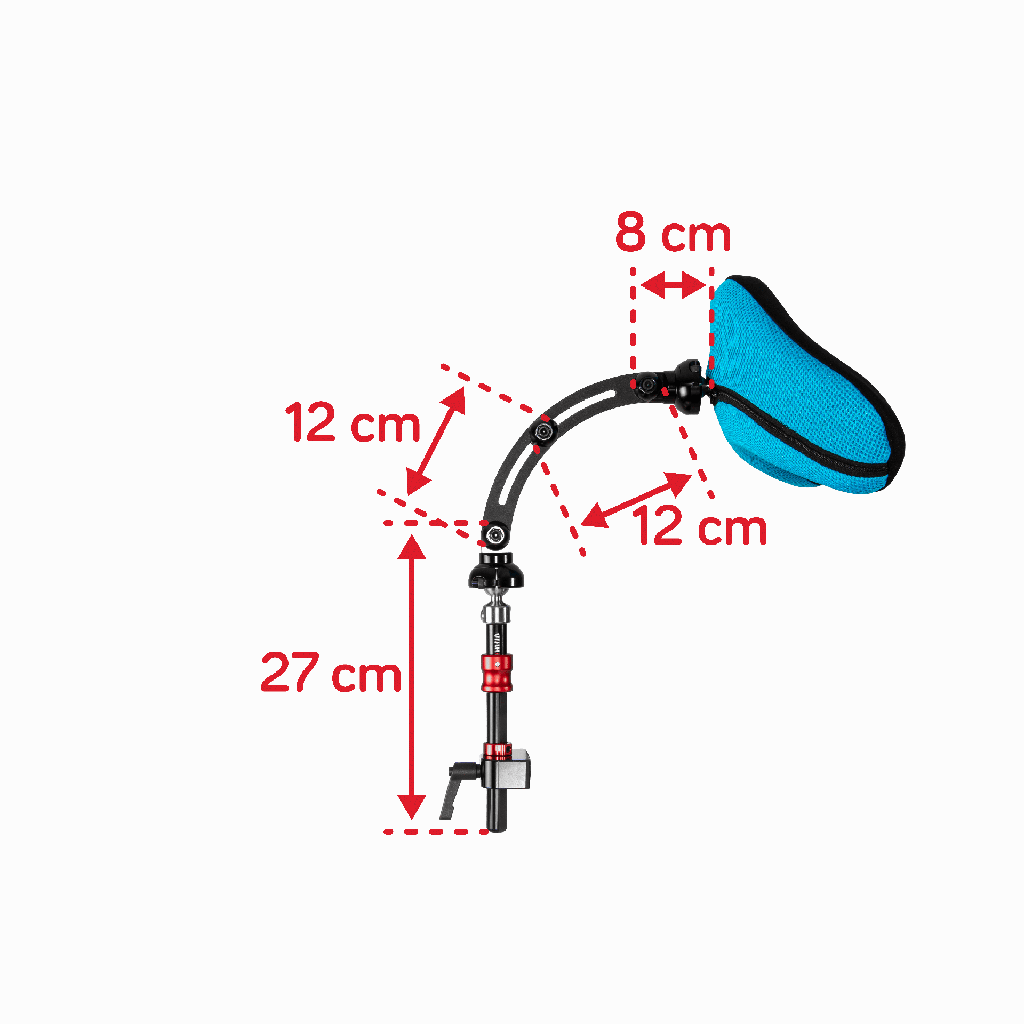

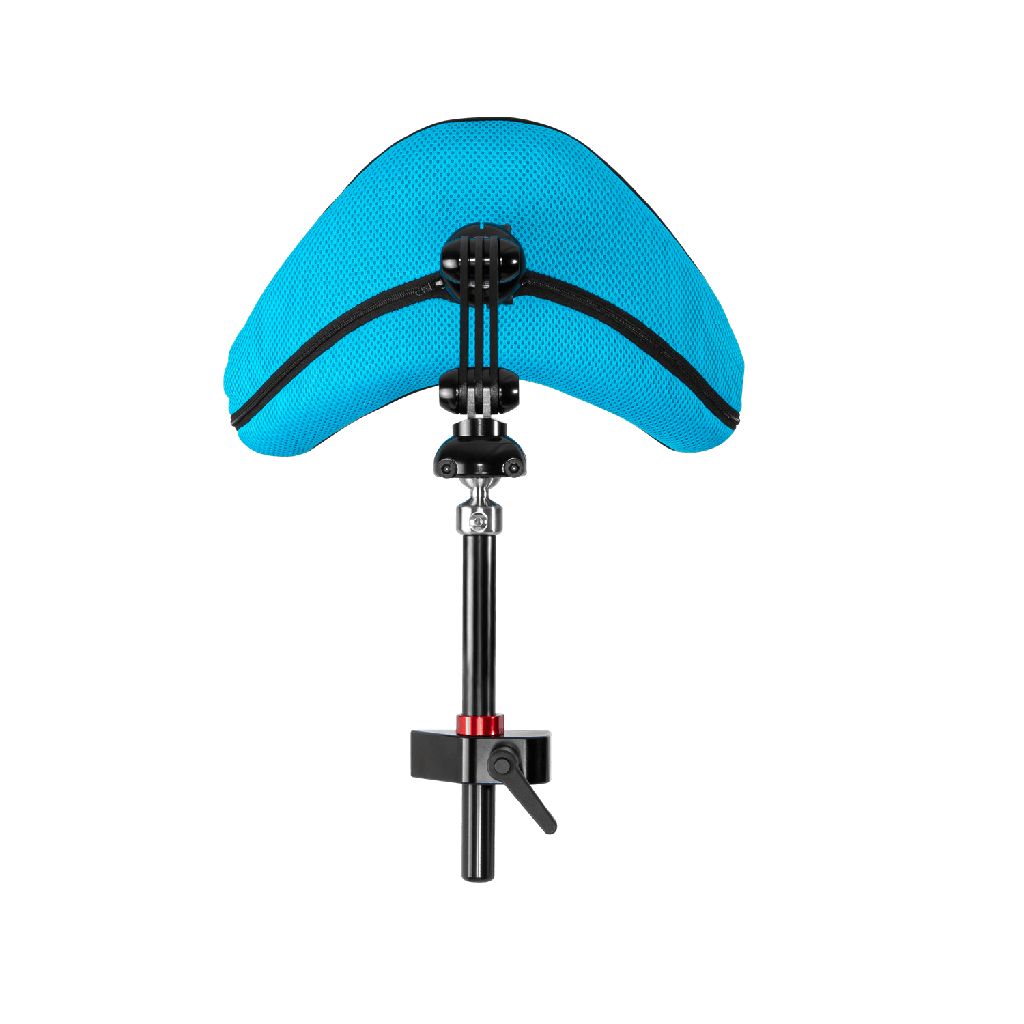

The Spex Stylo Head Support uses extended links and ball-and-socket joints. The machined aluminium stem has two flat edges so it does not rotate. Extra-strong clamps are how Sunrise describes lateral lock-up. The owner's manual prints a 400 lb (180 kg) maximum user weight. Hardware ships loose. The mounting block bolts to the back support. This is not a cane clamp unless a specific adaptor is on the order. We do not invent a cane diameter for Stylo.

Spex Stylo Head Support specifications

These figures are from the current Canadian Stylo card and the Spex Stylo owner's manual. The CA spec table itself is empty of numerics. The specification tab holds the stored values.

Forward reach 160 mm (Stylo 160) or 260 mm (Stylo 260). Angle adjustment up to 270 degrees. Maximum user weight 400 lbs (180 kg) in the owner's manual.

Warranty in the Stylo manual is 24 months for the original purchaser. The removable cover sits outside that term.

Which wheelchair head support

Stay with the Spex Stylo Head Support if long reach and a Spex stem are the brief. The Whitmyer PLUSH Head Support is Sunrise's basic posterior pad. The Whitmyer S.O.F.T. Single adds an independent occipital pad. The Whitmyer Heads Up adds anterior arms.

Funding help for a wheelchair cushion or back support in Ontario

This cushion or back support is an ADP positioning device category item. Ontario's Assistive Devices Program (ADP) can fund 75% of the cost of positioning devices such as cushions and back supports when they are prescribed through an assessment by an ADP-registered occupational therapist or physiotherapist with an eligible mobility device, and some income-support programs cover the full cost. Not every product qualifies, so talk to us before you buy. March of Dimes Canada, Veterans Affairs Canada (VAC), and community programs can also help. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through.

Delivery and setup in Brampton and the GTA

Westin's own team delivers this head support across Brampton and the Greater Toronto Area. We bring it in, check it against the wheelchair, and show you the cover and any hardware before we leave.

We have three stores in the Brampton and Toronto area if you would rather see a sample first. For a scheduled in-home drop-off, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased seating is delivered on a scheduled date after the assessment and quote.

If the order is going outside the GTA, ask us for a shipping quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.

Related seating from Westin

• Whitmyer PLUSH Head Support, basic posterior pad
• Whitmyer S.O.F.T. Single Sub-Occipital, occipital plus sub-occipital pads
• Whitmyer Heads Up Head Support, anterior arms plus a posterior pad

Service and warranty

When something on the seating needs work, you call the shop that set it up, not a US parts desk. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.

Sunrise Medical Spex warranty

The Spex Stylo owner's manual prints 24 months from purchase on the head support for the original purchaser. The removable cover sits outside that term. We handle the warranty claim with you.

Frequently asked questions

Does ADP Cover Wheelchair Head Supports?

Ontario's Assistive Devices Program lists positioning devices such as cushions, back supports, and head supports when they are required with a wheelchair. A specific pad still has to go through an ADP-registered therapist assessment. Call (905) 451-7743 or use the funding page before you buy.

Do I Order This Off The Shelf?

This is a quote-only seating product. Westin configures it after a seating assessment with an occupational therapist or physiotherapist. There is no add-to-cart delivery of a custom or made-to-order seat.

What Is The Difference Between Stylo 160 And Stylo 260?

The Spex Stylo Head Support is sold as Stylo 160 with 160 mm of forward reach or Stylo 260 with 260 mm. Both use the ball-and-socket stem. A seating therapist picks the reach.

Does Stylo Clamp To The Wheelchair Canes?

The Spex Stylo Head Support mounting block bolts to the back support. It is not described as a cane clamp. We will not invent a cane diameter.

What Is The Weight Limit For The Spex Stylo Head Support?

The Spex Stylo Head Support is rated at 400 lbs (180 kg) in the Spex Stylo owner's manual.

How Long Is The Spex Stylo Warranty?

The Spex Stylo Head Support carries 24 months from purchase in the owner's manual, for the original purchaser. The removable cover sits outside that term.

Can I Use A Whitmyer Pad On A Stylo Stem?

The Spex Stylo manual says only genuine Spex accessories, and that mounting Spex hardware to another brand of pad is outside the intended use unless Spex says otherwise. Ask us before mixing brands.

Can I See This Seating In Brampton?

Westin Healthcare can show Spex, Ride Designs, and Whitmyer samples in the Brampton and Toronto stores when they are on the floor, and can quote a configured product after a seating assessment. Call (905) 451-7743.
