HealthCraft SuperPole with SuperBar Bariatric

The HealthCraft SuperPole with SuperBar bariatric (SPB-HD) is HealthCraft's floor to ceiling grab pole with the 16 in (406 mm) SuperBar, made in Ottawa, Ontario, and rated 450 lb (204 kg). Westin Healthcare sells it and delivers it for homes across the Greater Toronto Area. The SuperBar has eight locking positions, one every 45 degrees. Lift the bar to move it. Lower it to lock.

This is the SuperPole with SuperBar, not the pole on its own. The pole-only bariatric sibling is the HealthCraft SuperPole bariatric (SP-HD). The standard 300 lb SuperPole with SuperBar is on HealthCraft SuperPole with SuperBar.

Who this SuperPole with SuperBar is for

The HealthCraft SuperPole with SuperBar bariatric is for a person who wants a floor to ceiling grab pole plus a 16 in SuperBar, stays at or under HealthCraft's 450 lb (204 kg) rating, and has a ceiling HealthCraft will accept: 93-99 in (2362-2515 mm) for this bariatric pole. Families here usually call when they want the bar in front of them at the bed, toilet, or chair.

• 450 lb (204 kg) SuperPole with SuperBar, SKU SPB-HD
• 16 in (406 mm) SuperBar, eight locks at 45 degrees
• Standard ceiling range 93-99 in (2362-2515 mm). Uni-Fit is not for SuperPole HD

Fit, ceiling height, and the SuperBar

HealthCraft prints a 1.50 in (38 mm) pole and a 16 in (406 mm) SuperBar. The SuperBar is typically installed 24-38 in (610-965 mm) from the floor. HealthCraft's height tip: just above the belt line when standing, or near the base of the ribcage when seated.

The stored 20 in figure on older titles is the ceiling plate, 20 in (508 mm), not the SuperBar. The base plate is 5 in (127 mm). Finish is anti-microbial white powder coat. Grip is latex-free PVC foam. HealthCraft prints a limited lifetime warranty and says the product is not intended for outdoor use.

HealthCraft's load rating is based on the user's weight. HealthCraft also prints that the SuperPole with SuperBar is not intended to support an entire full body weight, and that a typical sit-to-stand pull is a fraction of body weight. Stay at or under the 450 lb (204 kg) rating on SPB-HD.

Installation, as HealthCraft prints it

The SuperPole is a jackscrew tension mount between a structurally sound floor and ceiling. HealthCraft's current SuperPole FAQ: the ceiling top plate must extend across at least one ceiling beam, and the SuperPole bariatric ceiling top plate must be secured to the ceiling. Check the tension monthly.

HealthCraft SuperPole 101: place the pole under one joist, or between two joists with the plate under both. Do not install under a radiant ceiling. Do not install if you do not know what is above the ceiling. Do not install on a sloped floor or on loose rugs. An angled ceiling needs HealthCraft's Angled Ceiling Plate, which is screwed to a joist. Follow the HealthCraft instruction sheet in the carton. We follow that sheet when we install the pole.

HealthCraft's Uni-Fit Extender raises a standard SuperPole from 93-99 in to 100-120 in (2540-3048 mm). HealthCraft prints that Uni-Fit cannot be used with SuperPole HD. For a 450 lb user and a ceiling over 99 in, HealthCraft's next product is a floor-mounted Advantage Rail or Advantage Pole, not a stretched bariatric SuperPole.

HealthCraft SuperPole with SuperBar specifications

These figures are from HealthCraft's current SuperPole with SuperBar page and SuperPole 101. The specification tab holds the stored values. Use HealthCraft when they fight.

Maker: HealthCraft Products, Ottawa, Ontario. SKU SPB-HD. Alloy steel, anti-microbial white powder coat. Pole 1.50 in (38 mm). SuperBar 16 in (406 mm). SuperBar height typically 24-38 in (610-965 mm) from the floor. Ceiling 93-99 in (2362-2515 mm). Top plate 20 in (508 mm). Base plate 5 in (127 mm). Capacity 450 lb (204 kg). Eight lock positions. Limited lifetime. Not for outdoor use.

Weight capacity

SPB-HD is the 450 lb SuperPole with SuperBar. If you need the 300 lb SuperPole with SuperBar (SPB-S), or a standard pole with Uni-Fit for 8-10 ft ceilings, use HealthCraft SuperPole with SuperBar.

SuperPole, SuperBar, or Advantage Rail

This page is SuperPole plus SuperBar at 450 lb. The HealthCraft SuperPole bariatric is the same tension pole without the SuperBar. You can add a SuperBar later with HealthCraft's SuperBar Add-On Kit (the pole has to come down to fit it). The HealthCraft Advantage Rail is the floor-mounted version of this idea when the ceiling will not take a SuperPole. A wall grab bar, such as the HealthCraft Easy Mount knurled, fastens to a stud and is not a floor to ceiling grab pole.

Funding help for bathroom safety equipment in Ontario

Ontario's Assistive Devices Program (ADP) does not fund bathroom safety equipment, so plan around other routes. Funding that may help instead: March of Dimes Canada's Home and Vehicle Modification Program, Veterans Affairs Canada (VAC), extended health plans, and community programs. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through before you buy.

Delivery and setup in Brampton and the GTA

Westin's own team delivers this SuperPole with SuperBar across Brampton and the Greater Toronto Area. When we install it, we follow the HealthCraft sheet: find the joists, set the jackscrew, check the tension, and secure the bariatric ceiling plate the way HealthCraft prints it.

We have three stores in the Brampton and Toronto area if you would rather see the SuperBar swing first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased poles are delivered and set up on a scheduled date.

This is a long carton. If the pole is going outside the GTA, ask us for a freight quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.

Related bathroom safety products from Westin

• HealthCraft SuperPole Bariatric, the pole without the SuperBar
• HealthCraft SuperPole with SuperBar, the 300 lb and 8-10 ft page
• HealthCraft Advantage Rail, the floor-mounted pivot rail

Service and warranty

When the jackscrew or the SuperBar collar needs work, you call the shop that fitted the pole. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.

HealthCraft manufacturer warranty

HealthCraft prints a limited lifetime warranty on the SuperPole with SuperBar. The product is not intended for outdoor use. We handle the warranty claim with you. Ask us if an extended warranty is offered for your order.

Frequently asked questions

What Ceiling Height Does The SuperPole With SuperBar Need?

The HealthCraft SuperPole with SuperBar bariatric (SPB-HD) fits ceilings 93-99 in (2362-2515 mm). HealthCraft's Uni-Fit Extender for 100-120 in ceilings is not for SuperPole HD.

Does The SuperPole With SuperBar Need Screws In The Ceiling?

The HealthCraft SuperPole is a jackscrew tension mount. HealthCraft prints that the top plate must span at least one ceiling beam, and that the bariatric ceiling top plate must be secured to the ceiling. Follow the HealthCraft sheet. We follow that sheet when we install the pole.

What Is The Weight Capacity Of The SuperPole With SuperBar Bariatric?

HealthCraft rates the SuperPole with SuperBar bariatric (SPB-HD) at 450 lb (204 kg). HealthCraft also prints that it is not intended to support an entire full body weight. Stay at or under that rating.

How Many Positions Does The SuperBar Lock In?

The HealthCraft SuperBar on this SuperPole has eight locking positions, one every 45 degrees. Lift to unlock, lower to lock.

Is This The Same As The SuperPole Without A SuperBar?

No. This HealthCraft SuperPole with SuperBar includes the 16 in SuperBar. The HealthCraft SuperPole bariatric is the pole only.

Can I Add A SuperBar Later?

HealthCraft sells a SuperBar Add-On Kit for an existing SuperPole, standard or bariatric. The pole has to come down so the collar can slide on. Ask us if you already own a pole-only SuperPole.

Is This A Bed Rail Assist Pole?

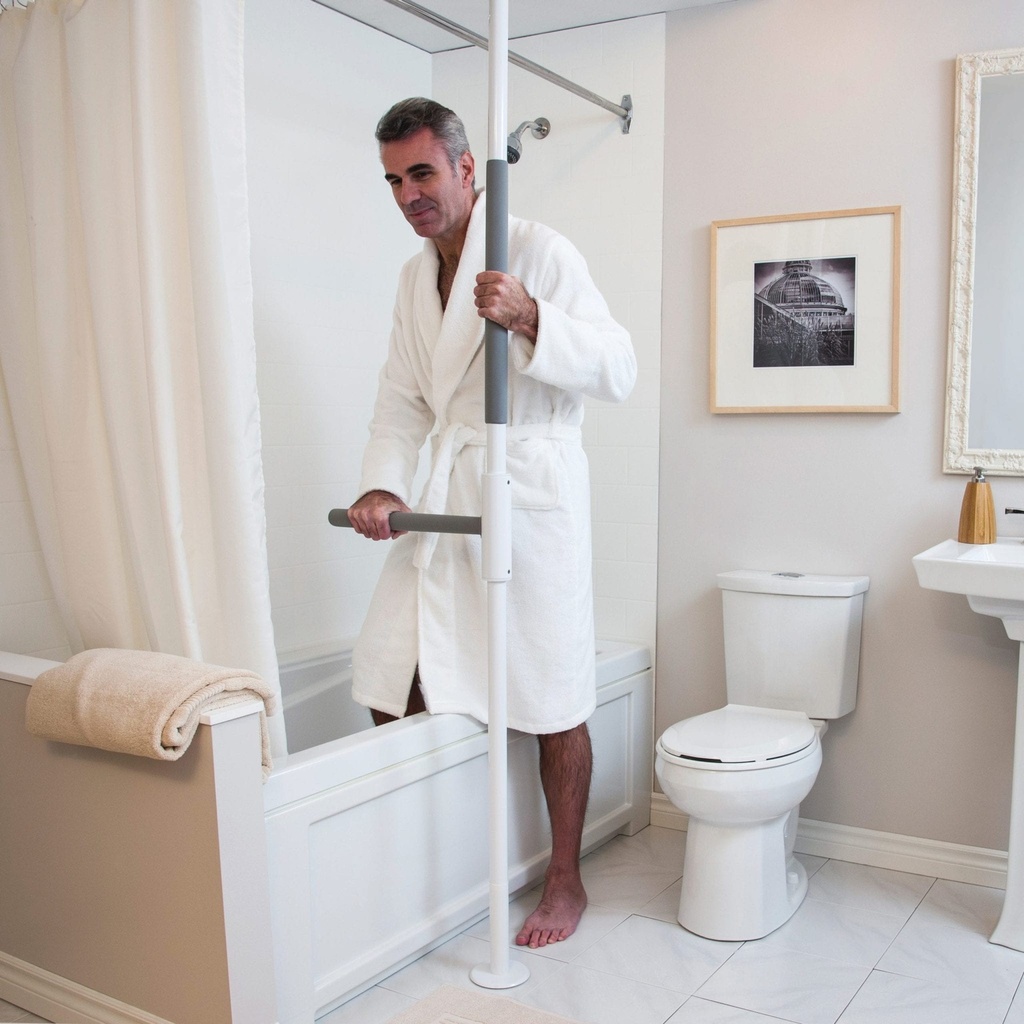

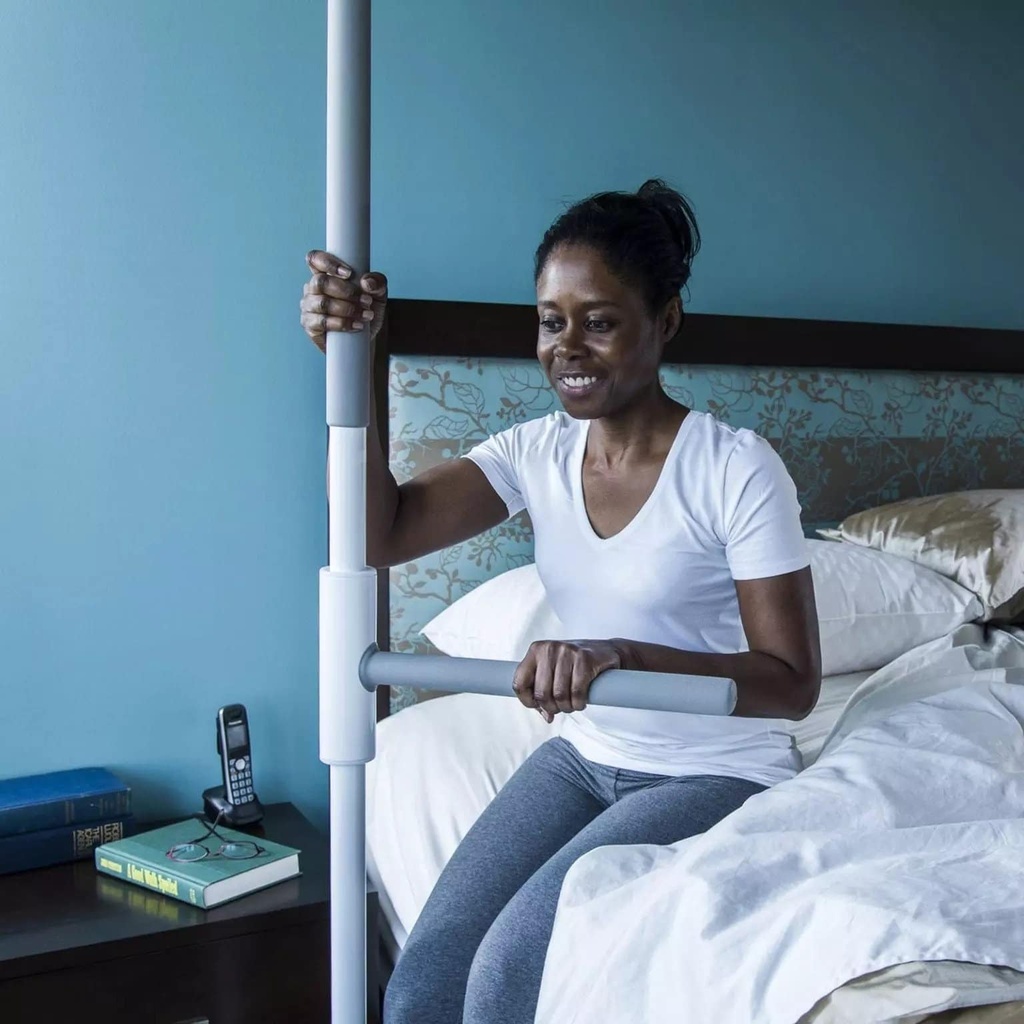

The HealthCraft SuperPole with SuperBar is a floor to ceiling grab pole that HealthCraft shows beside a bed, a toilet, and a chair. It is not a rail that clips to a mattress. HealthCraft SuperPole 101 lists bedside as a common placement.

What Is The Warranty?

HealthCraft prints a limited lifetime warranty on the SuperPole with SuperBar. Westin Healthcare processes the manufacturer claim with you.

Can Funding Help With A SuperPole In Ontario?

Some Ontario routes can help with bathroom safety equipment, depending on the person's situation. Call (905) 451-7743 or use the funding page before you buy.
