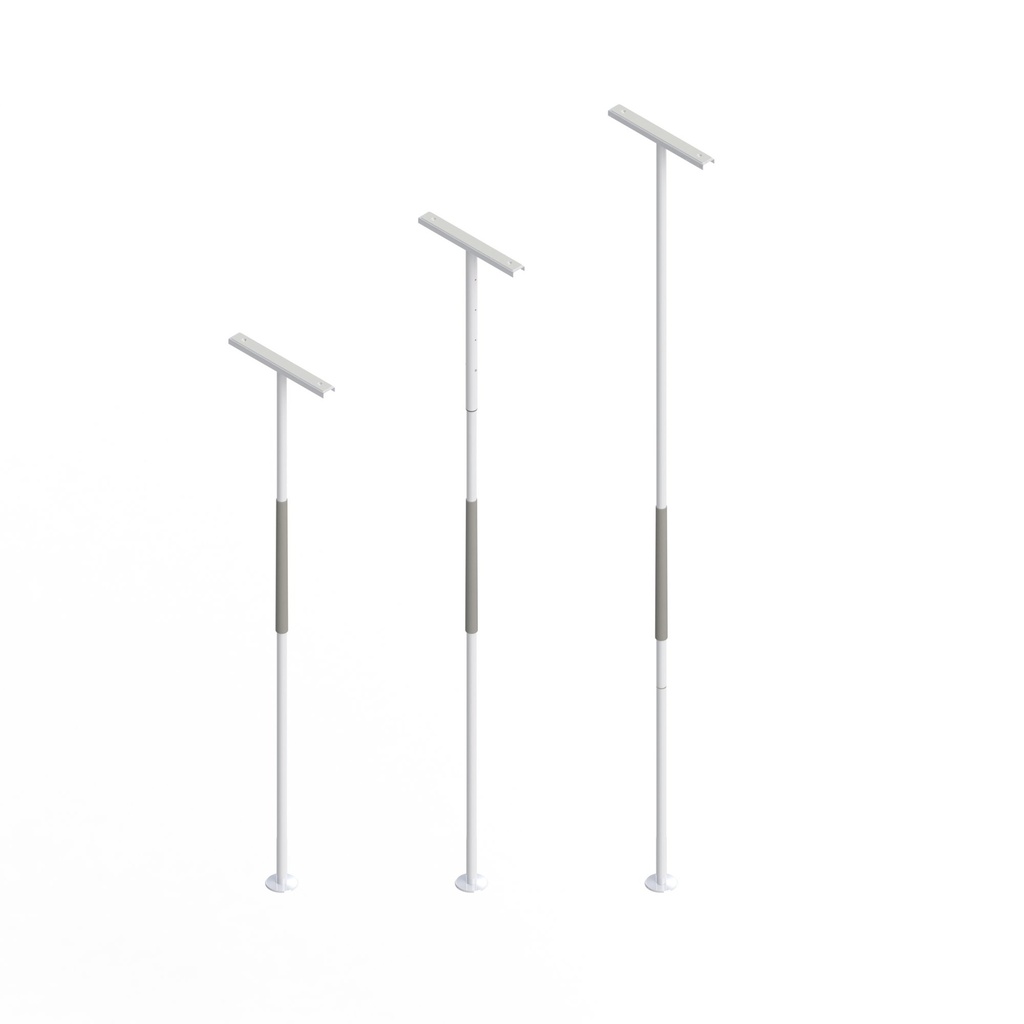

HealthCraft SuperPole Bariatric

The HealthCraft SuperPole bariatric (SP-HD) is HealthCraft's floor to ceiling grab pole without a SuperBar, made in Ottawa, Ontario, and rated 450 lb (204 kg). Westin Healthcare sells it and delivers it for homes across the Greater Toronto Area. It is a jackscrew tension pole for a 93-99 in (2362-2515 mm) ceiling.

This is the pole only. If you want the 16 in SuperBar on the same pole, use the HealthCraft SuperPole with SuperBar bariatric. HealthCraft also sells a SuperBar Add-On Kit if you start with this pole and add the bar later.

Who this SuperPole is for

The HealthCraft SuperPole bariatric is for a person who wants a floor to ceiling grab pole they can hold with both hands on the vertical grip, stays at or under HealthCraft's 450 lb (204 kg) rating, and has a 93-99 in ceiling HealthCraft will accept. Families here usually call when they want a pole beside the bed, toilet, or chair and do not need the pivoting SuperBar yet.

• 450 lb (204 kg) SuperPole, SKU SP-HD, no SuperBar
• Pole 1.50 in (38 mm), top plate 20 in (508 mm), base 5 in (127 mm)
• Ceiling 93-99 in (2362-2515 mm). Uni-Fit is not for SuperPole HD

Fit and ceiling height

HealthCraft prints a 1.50 in (38 mm) alloy-steel pole, a 20 in (508 mm) top plate, and a 5 in (127 mm) base plate. Finish is anti-microbial white powder coat. The grip is latex-free PVC foam. HealthCraft prints a limited lifetime warranty and says the product is not intended for outdoor use.

The stored spec that says Weight Capacity = Standard 300 lb is the SP-S line, not this SP-HD pole. HealthCraft rates SuperPole bariatric at 450 lb (204 kg). The 300 lb SuperPole is SP-S.

HealthCraft SuperPole 101: do not install under a radiant ceiling, on a sloped floor, or on loose rugs, and do not proceed if you do not know what is above the ceiling. Ceilings under 93 in need a HealthCraft custom cut. Cutting the pole yourself voids the warranty.

Installation, as HealthCraft prints it

The SuperPole is a jackscrew tension mount between a structurally sound floor and ceiling. HealthCraft's current SuperPole FAQ: the ceiling top plate must extend across at least one ceiling beam, and the SuperPole bariatric ceiling top plate must be secured to the ceiling. Check the tension monthly. Rubber pads on the plate are what HealthCraft tested on stippled ceilings.

HealthCraft SuperPole 101: place the pole under one joist, or between two joists with the plate under both. An angled ceiling needs HealthCraft's Angled Ceiling Plate, which is screwed to a joist. HealthCraft also requires screws when a power wheelchair may strike the pole. Follow the HealthCraft instruction sheet in the carton. We follow that sheet when we install the pole.

HealthCraft's Uni-Fit Extender raises a standard SuperPole from 93-99 in to 100-120 in (2540-3048 mm). HealthCraft prints that Uni-Fit cannot be used with SuperPole HD. For a 450 lb user and a ceiling over 99 in, HealthCraft's next product is a floor-mounted Advantage Rail or Advantage Pole.

HealthCraft SuperPole specifications

These figures are from HealthCraft's current SuperPole page and SuperPole 101. The specification tab holds the stored values. Use HealthCraft when they fight.

Maker: HealthCraft Products, Ottawa, Ontario. SKU SP-HD. Alloy steel, anti-microbial white powder coat. Pole 1.50 in (38 mm). Ceiling 93-99 in (2362-2515 mm). Top plate 20 in (508 mm). Base plate 5 in (127 mm). Capacity 450 lb (204 kg). Limited lifetime. Not for outdoor use. SuperBar is not included.

Pole only or SuperBar

This page is the SuperPole only. Use Choose Weigh Capacity only if you need the 300 lb SuperPole (SP-S) instead of this 450 lb SuperPole (SP-HD). The HealthCraft SuperPole with SuperBar bariatric is the same HD pole with the 16 in SuperBar already on it. The HealthCraft Advantage Pole bariatric is the floor-mounted pole when the ceiling will not take a SuperPole.

SuperPole or a bed rail assist pole

The HealthCraft SuperPole is a floor to ceiling grab pole. HealthCraft SuperPole 101 lists bedside as a common placement. It is not a rail that clips to a mattress, and it is not a wall grab bar. A wall bar such as the HealthCraft Easy Mount knurled needs a stud or HealthCraft's own hollow-wall anchor.

Funding help for bathroom safety equipment in Ontario

Ontario's Assistive Devices Program (ADP) does not fund bathroom safety equipment, so plan around other routes. Funding that may help instead: March of Dimes Canada's Home and Vehicle Modification Program, Veterans Affairs Canada (VAC), extended health plans, and community programs. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through before you buy.

Delivery and setup in Brampton and the GTA

Westin's own team delivers this SuperPole across Brampton and the Greater Toronto Area. When we install it, we follow the HealthCraft sheet: find the joists, set the jackscrew, check the tension, and secure the bariatric ceiling plate the way HealthCraft prints it.

We have three stores in the Brampton and Toronto area if you would rather see the pole and the 20 in plate first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased poles are delivered and set up on a scheduled date.

This is a long carton. If the pole is going outside the GTA, ask us for a freight quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.

Related bathroom safety products from Westin

• HealthCraft SuperPole with SuperBar Bariatric, the same HD pole with the SuperBar
• HealthCraft SuperPole with SuperBar, the 300 lb and 8-10 ft page
• HealthCraft Advantage Pole Bariatric, the floor-mounted pole

Service and warranty

When the jackscrew or the grip needs work, you call the shop that fitted the pole. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.

HealthCraft manufacturer warranty

HealthCraft prints a limited lifetime warranty on the SuperPole. The product is not intended for outdoor use. We handle the warranty claim with you. Ask us if an extended warranty is offered for your order.

Frequently asked questions

What Ceiling Height Does The SuperPole Need?

The HealthCraft SuperPole bariatric (SP-HD) fits ceilings 93-99 in (2362-2515 mm). HealthCraft's Uni-Fit Extender for 100-120 in ceilings is not for SuperPole HD.

Does The SuperPole Need Screws In The Ceiling?

The HealthCraft SuperPole is a jackscrew tension mount. HealthCraft prints that the top plate must span at least one ceiling beam, and that the bariatric ceiling top plate must be secured to the ceiling. Follow the HealthCraft sheet.

What Is The Weight Capacity Of The SuperPole Bariatric?

HealthCraft rates the SuperPole bariatric (SP-HD) at 450 lb (204 kg). The 300 lb SuperPole is SP-S. Stay at or under the rating on the pole you order.

Does This SuperPole Include A SuperBar?

The HealthCraft SuperPole bariatric on this page is the pole only. The SuperBar is on the SuperPole with SuperBar bariatric, or on HealthCraft's SuperBar Add-On Kit later.

Can I Move The SuperPole After It Is In?

HealthCraft SuperPole 101 says you can take the SuperPole down and move it. Unlock the jam nut, back off the jackscrew, and the top plate leaves the ceiling. The pole is heavy. HealthCraft suggests a second person if you cannot hold more than 10 lb.

Is This A Bed Rail Assist Pole?

The HealthCraft SuperPole is a floor to ceiling grab pole that HealthCraft shows beside a bed. It is not a rail that clips to a mattress.

What Is The Warranty?

HealthCraft prints a limited lifetime warranty on the SuperPole. Westin Healthcare processes the manufacturer claim with you.

Can Funding Help With A SuperPole In Ontario?

Some Ontario routes can help with bathroom safety equipment, depending on the person's situation. Call (905) 451-7743 or use the funding page before you buy.
