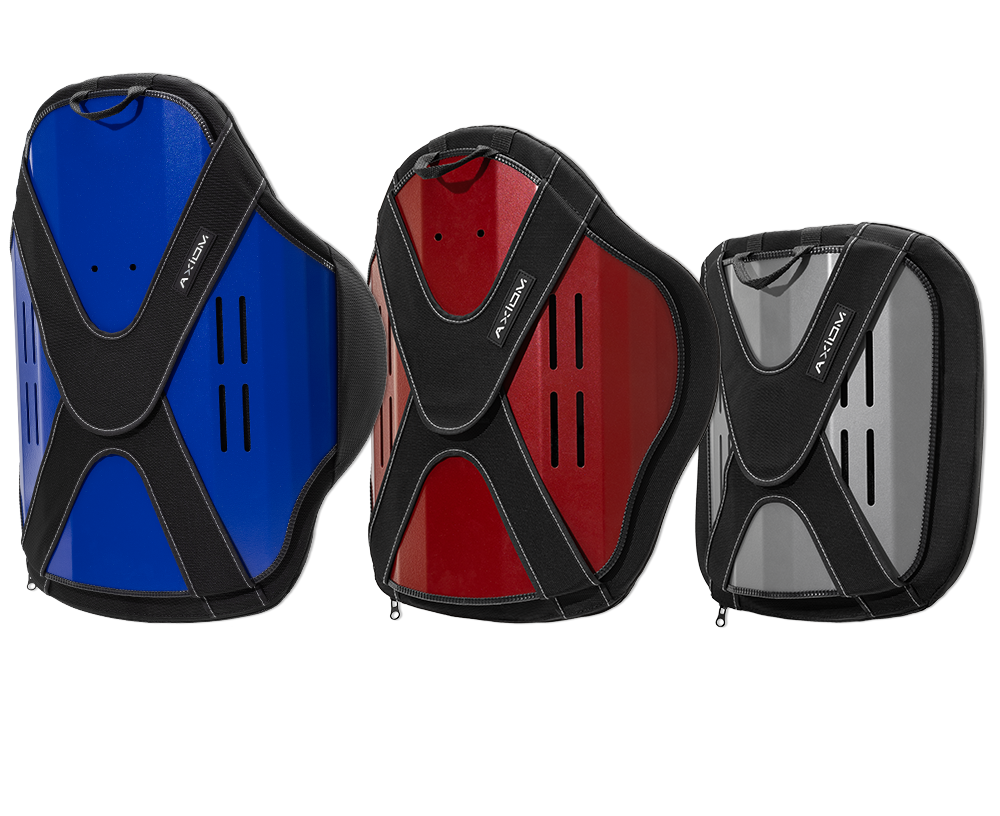

Axiom LB Back Support

The Axiom LB back is Ki Mobility's lateral wheelchair back support for Brampton and the Greater Toronto Area. Ki forms the aluminum shell to a 3.65 inch (93 mm) lateral profile and leaves the centre more planar, with no lumbar pad. Widths run 12 to 22 inches (30.5 to 55.9 cm). This is a quote-only custom back, built after a seating assessment.

Ki writes the Lateral Back for moderate lateral support with a more open profile. A seating therapist and an ADP authorizer choose the height band and the DEX, BTX, or FXT mount with Westin before anything is ordered.

Who this back is for

The Axiom LB back fits a person whose therapist wants 3.65 inches of shaped laterals without a built-in lumbar pad. Stay here when the centre of the shell should stay more planar than the Axiom PL Back. A seating therapist should confirm LB versus PL or the deeper Axiom DL Back before you order.

• 3.65 in laterals, no lumbar pad
• Low, Mid, and Tall height bands
• 300 lb (136 kg) with DEX or FXT, 400 lb (181 kg) with BTX

Contour, height, and hardware

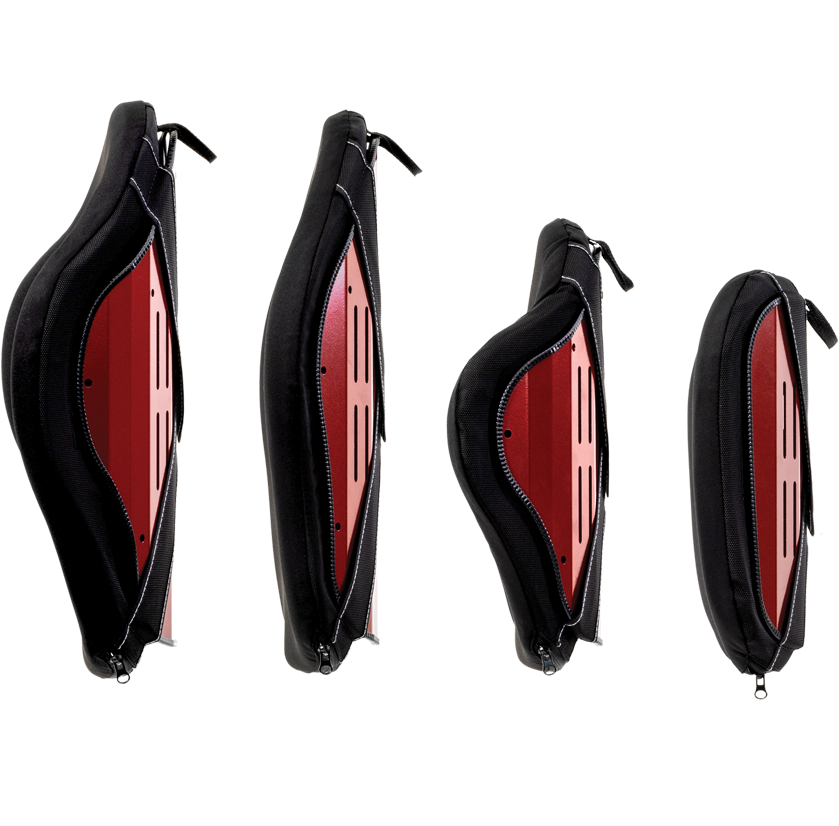

Ki prints the Lateral Back at the same 3.65 inch curve as the Posterior Lateral shell. The difference is the missing lumbar pad, so the middle of the shell stays more planar. The live spec table rounds that curve to 3.7 inches (9.3 cm). Height bands on the card are Low at 8 to 12 inches, Mid at 14 to 18 inches, and Tall at 20 to 22 inches. Widths are 12 to 22 inches. Hardware can cover plus or minus 2 inches from the chair width. Height, width, and depth adjust on the hardware (3.3 in, 2 in, and 1.5 in) with 20 degrees of angle. Foam thickness is 1.3 inches. The cover is a Nylon-Spandex blend with a waterproof elastic membrane.

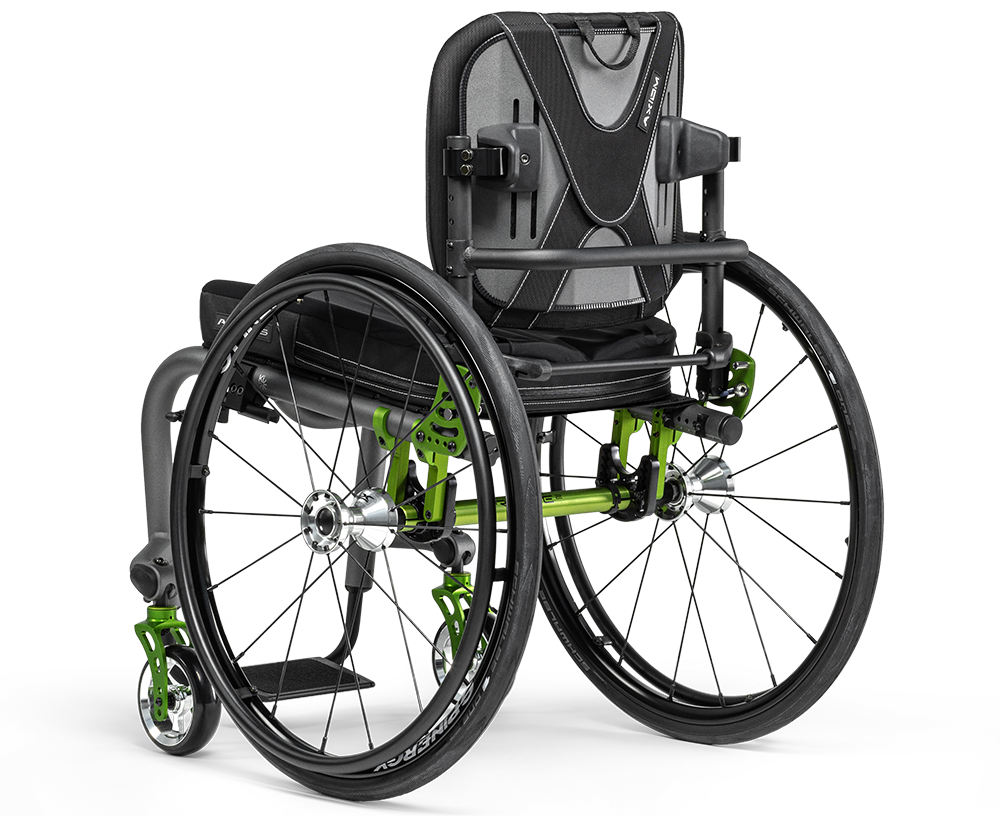

DEX uses auto-resetting release levers and the least space on the cane. Ki's technical manual sizes DEX clamp fasteners for 3/4, 7/8, 1, and 1-1/8 inch back canes. BTX is the heavier, one-handed mount with a safety lockout pin, rated at 400 lb, using the 1 inch locking clamp. FXT is the lightest, fixed mount, with 5 degrees of built-in angle, and the same 3/4 to 1-1/8 inch fastener key as DEX. We do not invent a hardware picker. A seating therapist names the mount after measuring the chair canes.

Axiom LB Back specifications

These figures are from Ki Mobility's current Axiom Backs card, the DCN0475.3 brochure, and the Axiom Back owner's manual. The specification tab holds the stored values. We do not invent a height or width picker on this page.

Width 12 to 22 inches (30.5 to 55.9 cm). Heights Low 8 to 12 inches, Mid 14 to 18 inches, Tall 20 to 22 inches. Lateral contour 3.65 inches (spec table 3.7 in / 9.3 cm), no lumbar pad. Shell: bend-formed aluminum. Weight capacity 300 lbs (136 kg) with DEX or FXT hardware and 400 lbs (181 kg) with BTX. Ki does not print a separate LB assembly-weight row.

The Axiom Back owner's manual prints 24 months on the shell and foam and 6 months on removable covers for the original purchaser in North America. Expected frame life is five years. Punctures, tears, and burns sit outside that term.

How an LB is ordered

A seating therapist measures torso height, trunk width, and whether a lumbar pad is wanted. Westin maps that to a Low, Mid, or Tall shell, a 12 to 22 inch width, and DEX, BTX, or FXT hardware that matches the chair canes. That work happens in a fitting, not on a product page.

Which Axiom wheelchair back fits

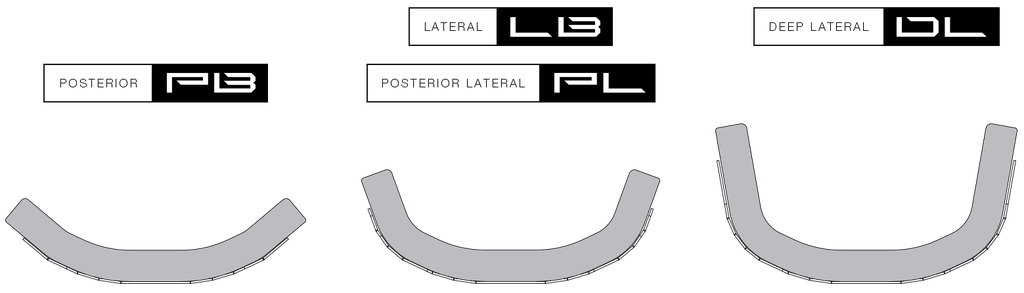

The Axiom LB back is the 3.65 inch shell without a lumbar pad. The Axiom PB Back is the 2.25 inch posterior shell with a lumbar pad, Low and Mid only. The Axiom PL Back keeps the 3.65 inch curve and adds the lumbar pad. The Axiom DL Back is the 6.0 inch deep-lateral shell, Mid and Tall. Unique shapes go to the Axiom Custom Back. The kids set is the Axiom PXPL, Axiom PXAL, and Axiom PXALCL. Pair an adult Axiom back with a current Axiom cushion such as the Axiom P Cushion when the assessment calls for both.

Funding help for a wheelchair cushion or back support in Ontario

This cushion or back support is an ADP positioning device category item. Ontario's Assistive Devices Program (ADP) can fund 75% of the cost of positioning devices such as cushions and back supports when they are prescribed through an assessment by an ADP-registered occupational therapist or physiotherapist with an eligible mobility device, and some income-support programs cover the full cost. Not every product qualifies, so talk to us before you buy. March of Dimes Canada, Veterans Affairs Canada (VAC), and community programs can also help. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through.

Delivery and setup in Brampton and the GTA

Westin's own team delivers this wheelchair back support across Brampton and the Greater Toronto Area once the shell is built. We bring it in, check the hardware against the chair canes, and show you the cover before we leave.

We have three stores in the Brampton and Toronto area if you would rather see an Axiom back first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased backs are delivered and set up on a scheduled date.

If the back is going outside the GTA, ask us for a shipping quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.

Related wheelchair backs from Westin

• Axiom PL Back Support, 3.65 in laterals with a lumbar pad
• Axiom DL Back Support, 6.0 in deep laterals
• Axiom PB Back Support, 2.25 in posterior shell

Service and warranty

When something on the back needs work, you call the shop that set it up, not a distant parts desk. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.

Ki Mobility Axiom warranty

The Axiom Back owner's manual prints 24 months on the shell and foam and 6 months on removable covers for the original purchaser in North America. Punctures, tears, and burns sit outside that term. Expected frame life is five years. We handle the warranty claim with you on units we sold.

Frequently asked questions

How Do I Choose A Wheelchair Back?

The Axiom LB back is chosen after a seating assessment. A therapist measures torso height and trunk width and decides whether a lumbar pad and how much lateral contour are needed. Do not pick a shell from a photo alone.

How Is The Axiom LB Different From The PL?

The Axiom LB back uses the same 3.65 inch lateral curve as the Axiom PL. The LB has no lumbar pad, so the centre of the shell stays more planar. The PL includes an adjustable lumbar pad.

Does ADP Cover Wheelchair Back Supports?

Ontario's Assistive Devices Program can help with a wheelchair cushion or back support after an ADP-registered therapist assessment with an eligible mobility device. Eligibility depends on the person. Call (905) 451-7743 or use the funding page before you buy.

What Is The Weight Limit For The Axiom LB Back?

The Axiom LB back is rated at 300 lbs (136 kg) with DEX or FXT hardware and 400 lbs (181 kg) with BTX hardware in Ki's current brochure and owner manual.

Will An Axiom Back Fit My Wheelchair Canes?

DEX and FXT hardware in Ki's technical manual use clamp fasteners for 3/4, 7/8, 1, and 1-1/8 inch back canes. BTX uses the 1 inch locking clamp. Westin checks the chair canes before the order is placed.

What Are DEX, BTX, And FXT?

DEX, BTX, and FXT are Ki's three Axiom back mounts, not separate products. DEX has auto-resetting levers. BTX is the heavier, one-handed mount rated at 400 lb. FXT is the lightest fixed mount with 5 degrees of built-in angle. A seating therapist names the mount.

How Long Is The Axiom Back Warranty?

The Axiom LB back carries 24 months on the shell and foam and 6 months on removable covers in the Axiom Back owner's manual, for the original purchaser.

Can I See An Axiom Back In Brampton?

Westin Healthcare can show an Axiom back in the Brampton and Toronto stores and deliver across the GTA. Call (905) 451-7743 to check what is on the floor and to book an assessment.
