Ride Designs Java Back

The Ride Designs Java Back is Ride's configurable wheelchair back support for Brampton and the Greater Toronto Area. Sunrise Medical's Canadian Ride card sends the reader to Ride Designs for the spec tables. The back is quote-only through Westin as a Ride certified provider.

It is not a Spex cube back and it is not a Ride Custom Back. FlexLoc hardware is not a Java Back option.

Who this back is for

The Ride Java Back fits a person whose seating therapist wants Ride's non-flat shell in Regular, Tall, or Grande height, with a 3 inch or 6 inch contour. A seating therapist should confirm the height and depth. This page does not give clinical positioning advice.

• Capacity 300 lbs (136 kg)
• Widths 14 to 20 inches
• Quick-release hardware, 20 degrees of angle

Heights, depths, and accessories

Regular sits below the scapulae at 14 inches. Tall sits mid-scapula at 18 inches. Grande sits at the top of the shoulder at 22 inches. Each height is Regular 3 inch or Deep 6 inch. Ride prints that laterals fit Regular contour, not Deep. Headrest compatibility starts at Tall. Shoulder harness is Grande only. A privacy flap is available.

Mount hardware

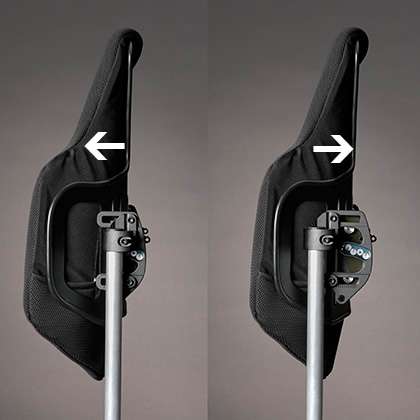

Java Back quick-release hardware is 1.3 lbs (0.6 kg), 20 degrees of angle (5 forward, 15 back), and 2 inches (5 cm) of seat depth. It fits round canes from 3/4 inch (1.9 cm) to 1 inch (2.5 cm). The owner's handbook says the clamp is for round tubing only. A permanent mount is also printed. Ride's FAQ says FlexLoc is not available on the Java Back.

Ride Designs Java Back specifications

These figures are from Ride's current Java Back page, brochure, and owner's handbook. The specification tab holds the stored values.

User weight 300 lbs (136 kg). Widths 14 to 20 inches. Heights 14, 18, or 22 inches. Contour 3 or 6 inches. Hardware 1.3 lbs (0.6 kg). Shell aluminium. Insert 3/4 inch polyurethane over 1/4 inch closed cell foam. Cover polyester spacer laminated to vapor-permeable urethane. Brochure also prints a WC20 and ISO 16480-4 crash-test line for this product.

Warranty is 24 months from delivery to the original purchaser.

How Ride custom seating is ordered

Ride Designs sells through Ride certified providers. Westin is that dealer path in Brampton and the GTA. A seating therapist and our staff assess first. For Custom 2, Custom AccuSoft from a shape, and Custom Back from a shape, Ride captures a bead-bag shape, scans it, and sends the scan, photos, and order form through the RideWorks app. Ride keeps the scan for later growth or a remake.

Ride also prints a made-from-measurements path for some Custom Back and AccuSoft orders, and AccuSoft can be specified from a trial Java Cushion. Ride says people with significant postural asymmetry get a better outcome from a scanned shape. Java and Forward cushions, and Java and Java Decaf backs, are configured stock shapes, not scanned custom, but they are still quote-only here.

Which Ride wheelchair back

Stay with the Ride Java Back if a configured Ride shell on 3/4 to 1 inch round canes is the brief. The Ride Java Decaf Back is the pediatric Java. The Ride Custom Back is scanned or measured custom on FlexLoc.

Funding help for a wheelchair cushion or back support in Ontario

This cushion or back support is an ADP positioning device category item. Ontario's Assistive Devices Program (ADP) can fund 75% of the cost of positioning devices such as cushions and back supports when they are prescribed through an assessment by an ADP-registered occupational therapist or physiotherapist with an eligible mobility device, and some income-support programs cover the full cost. Not every product qualifies, so talk to us before you buy. March of Dimes Canada, Veterans Affairs Canada (VAC), and community programs can also help. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through.

Delivery and setup in Brampton and the GTA

Westin's own team delivers this wheelchair back support across Brampton and the Greater Toronto Area. We bring it in, check it against the wheelchair, and show you the cover and any hardware before we leave.

We have three stores in the Brampton and Toronto area if you would rather see a sample first. For a scheduled in-home drop-off, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased seating is delivered on a scheduled date after the assessment and quote.

If the order is going outside the GTA, ask us for a shipping quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.

Related seating from Westin

• Ride Designs Java Decaf Back, pediatric Java, 200 lb rating
• Ride Designs Custom Back, scanned or measured custom, FlexLoc
• Ride Designs Java Cushion, matching Ride Java cushion

Service and warranty

When something on the seating needs work, you call the shop that set it up, not a US parts desk. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.

Ride Designs warranty

Ride Designs prints a 24 month limited warranty from the date of delivery to the original purchaser on the Java Back. See the Java Back owner's handbook that ships with the back. We handle the warranty claim with you.

Frequently asked questions

Does ADP Cover Wheelchair Cushions?

Ontario's Assistive Devices Program can help with a wheelchair cushion or back support after an ADP-registered therapist assessment with an eligible mobility device. Eligibility depends on the person. Call (905) 451-7743 or use the funding page before you buy.

Do I Order This Off The Shelf?

This is a quote-only seating product. Westin configures it after a seating assessment with an occupational therapist or physiotherapist. There is no add-to-cart delivery of a custom or made-to-order seat.

What Size Java Back Do I Need?

The Ride Java Back is quoted in widths 14 to 20 inches and Regular 14 in, Tall 18 in, or Grande 22 in heights, with a 3 inch or 6 inch contour. A seating therapist matches the person and the chair.

What Canes Does The Java Back Fit?

The Ride Java Back quick-release clamp fits round wheelchair canes from 3/4 inch (1.9 cm) to 1 inch (2.5 cm). The handbook says it is not for non-round tubing. FlexLoc is not a Java Back option.

What Is The Weight Limit For The Ride Java Back?

The Ride Java Back is rated at 300 lbs (136 kg) in Ride's brochure and owner's handbook.

How Long Is The Java Back Warranty?

The Ride Java Back carries 24 months from delivery to the original purchaser on Ride's warranty page.

Is The Java Back Crash Tested?

Ride's Java Back brochure prints that the product was crash tested to WC20 and ISO 16480-4. Ask us which hardware combination that test covers before you plan transport.

Can I See This Seating In Brampton?

Westin Healthcare can show Spex, Ride Designs, and Whitmyer samples in the Brampton and Toronto stores when they are on the floor, and can quote a configured product after a seating assessment. Call (905) 451-7743.
