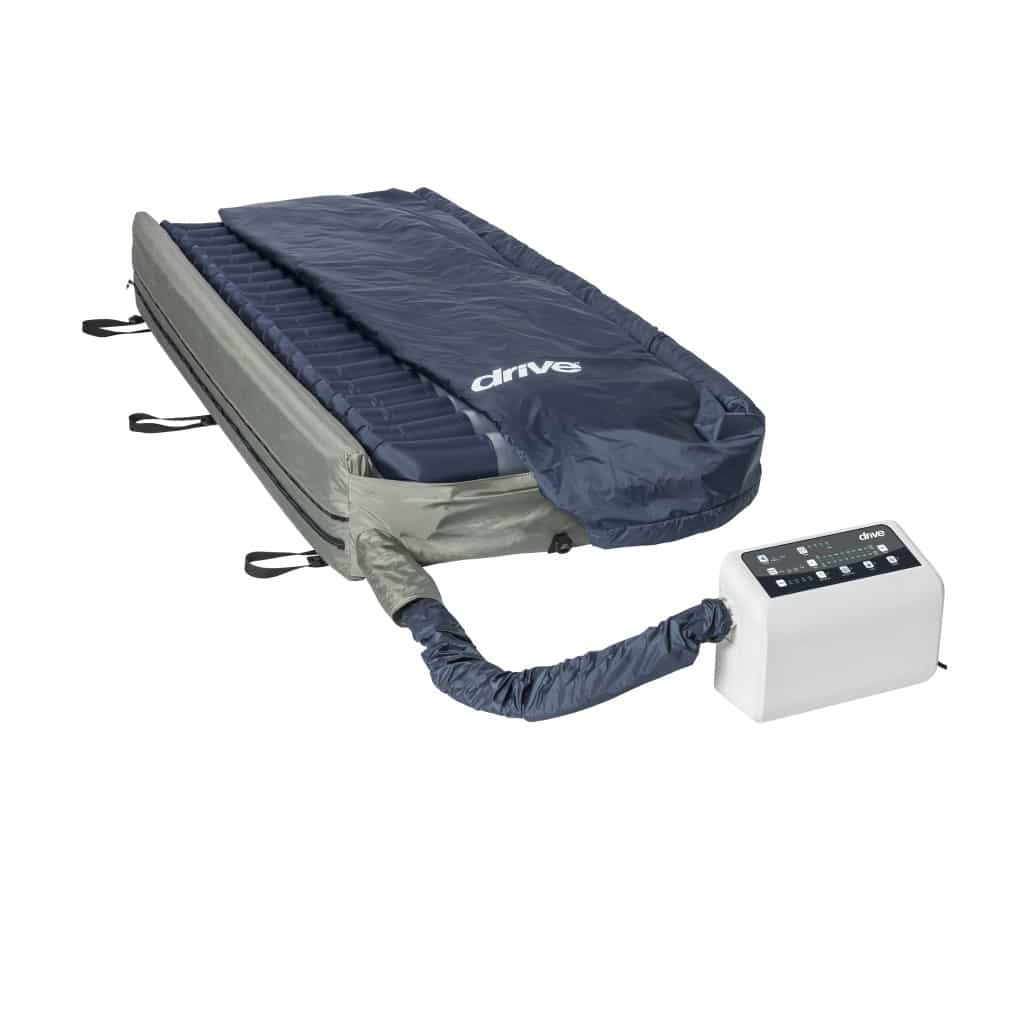

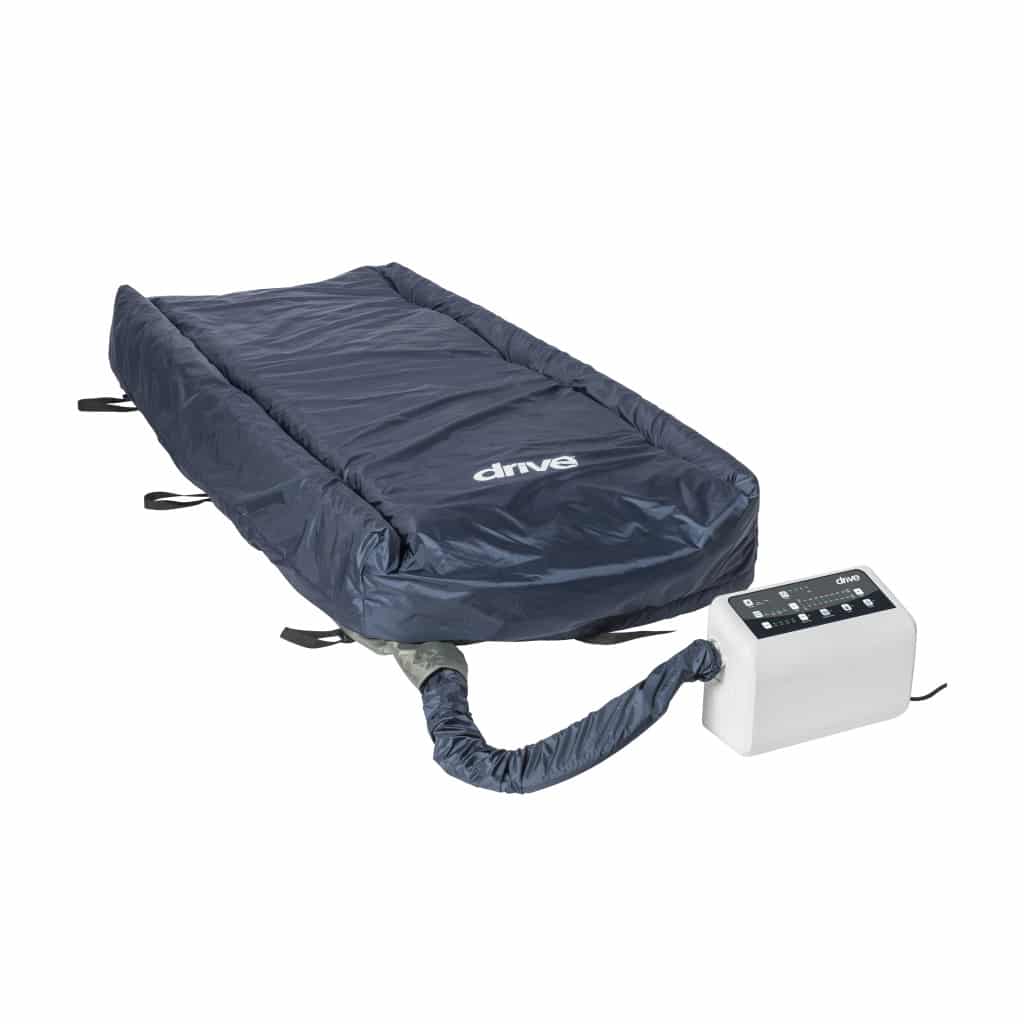

PreserveTech Lateral Rotation Mattress - Low Air Loss LS9500

The PreserveTech Lateral Rotation system is Drive Medical's combination surface: lateral rotation plus on-demand low air loss. Westin Healthcare sells it, delivers it, and sets it up for homes in Brampton and the Greater Toronto Area. Drive's current kit is LS9500N. Westin lists it as LS9500.

This is not a standard alternating-pressure mattress. Twenty 8-inch split cells turn the person on a chosen cycle and angle. Drive states the rotation is there to assist with pulmonary blood flow and mucosal drainage, and to aid in the prevention and treatment of pressure injuries. The LS9500NP control unit is rated 42 to 50 litres per minute.

Who this mattress is for

This mattress is for a person on a 36-inch hospital bed whose clinician has asked for lateral rotation, not only alternating pressure. Families usually call us when turning in bed has become hard and a therapist wants a programmed turn. Drive lists a 500 lb weight capacity. Suitability still belongs to the clinician who knows the person's lungs and skin.

If you need alternating pressure and low air loss without rotation, start with the Med Aire Plus 14029 or the PreserveTech Med-Aire Edge. Another rotation surface we list is the Blake Rhythm Turn. Drive lists cervical or skeletal traction as a contraindication on this class of surface; ask the clinician before you order.

• Home care on a 36-inch by 80-inch hospital bed when a programmed turn is required
• A therapist request for lateral rotation plus on-demand low air loss
• Anyone within Drive's 500 lb rating who needs selectable turn angles up to 40 degrees

Construction and how it works

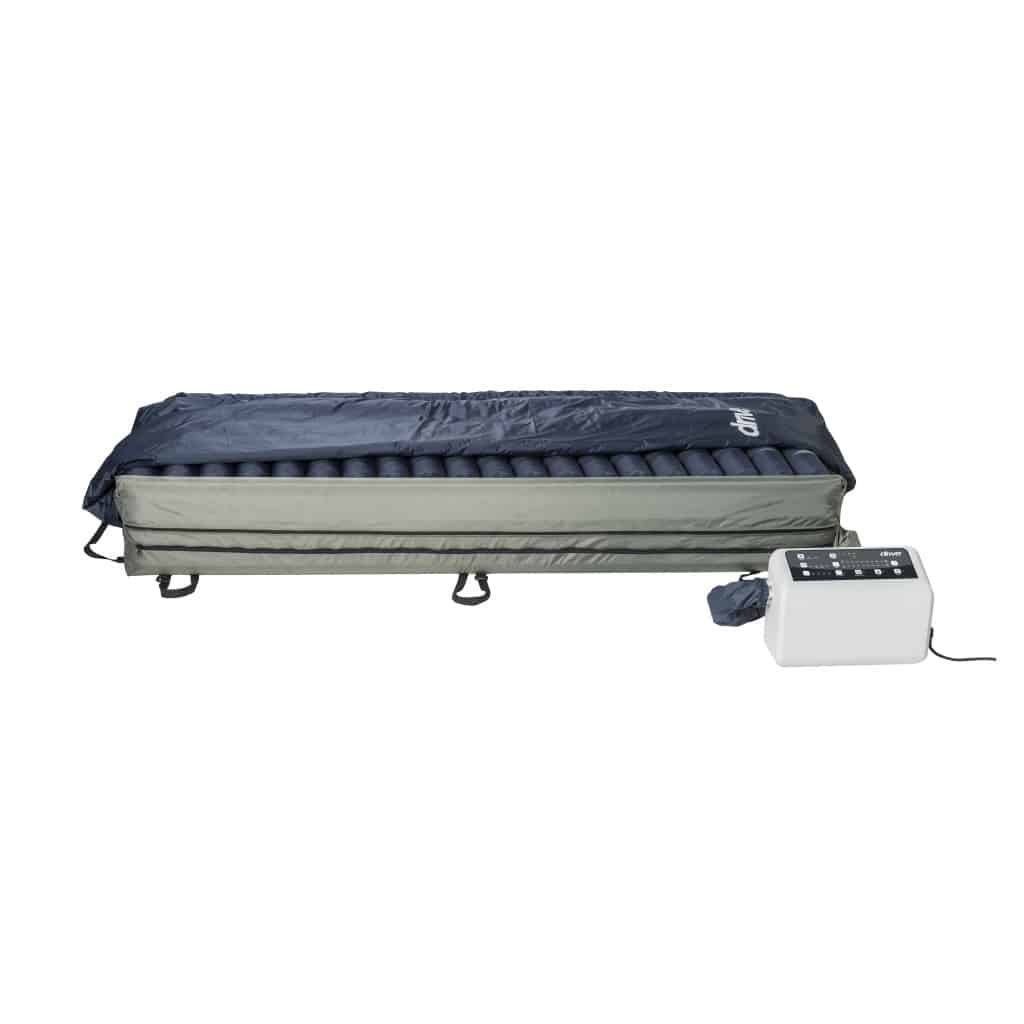

This is a mattress replacement. Twenty 8-inch split cells create the turn. A 2-inch foam base sits under the cells for power-outage protection. Ten-inch side air bolsters stay at 55 mmHg to help with transfers and to give a side wall. Low air loss is on demand: it vents air to help moisture when that mode is selected.

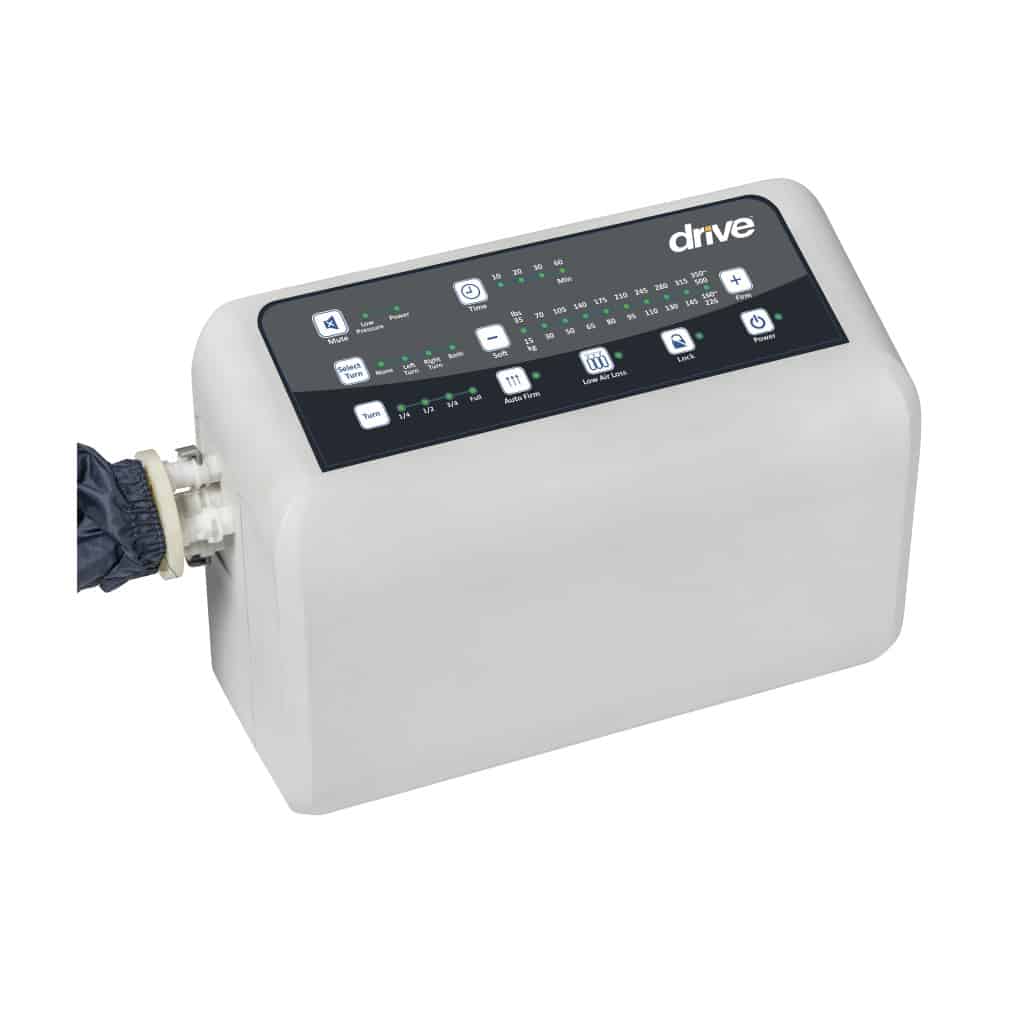

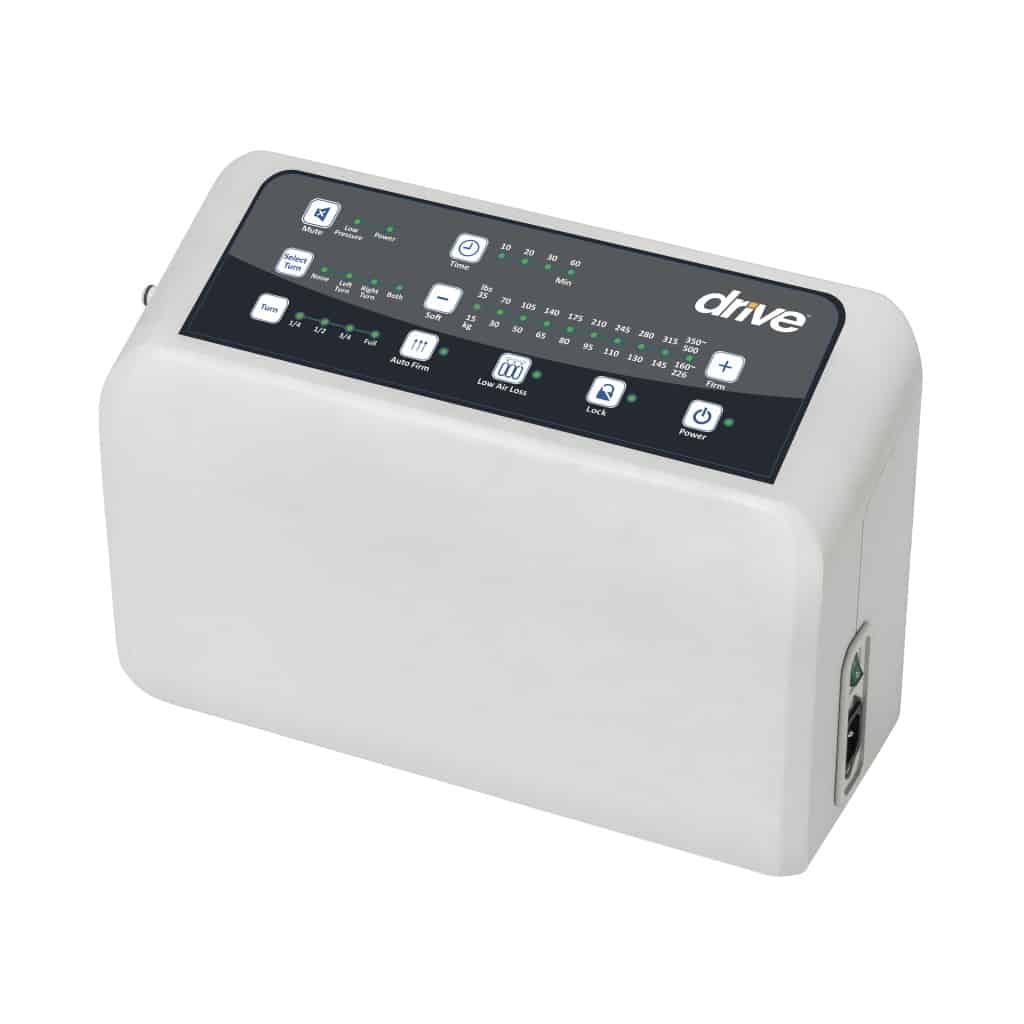

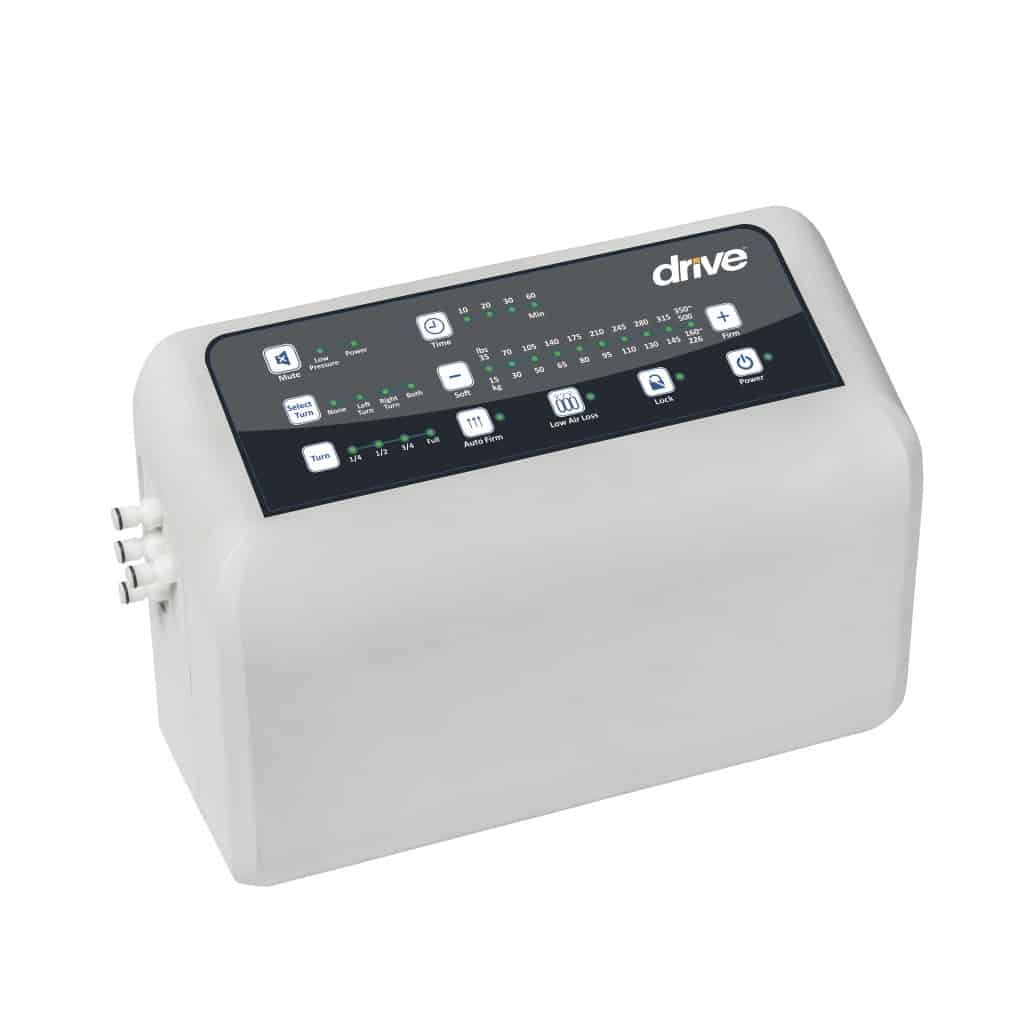

The LS9500NP digital unit offers 10 comfort levels and turning cycles of 10, 20, 30, and 60 minutes. Turning modes are 1/4, 1/2, 3/4, and adjustable positions up to 40 degrees, in left, right, both, or none (static). Auto-Firm, auto-recovery, and lock-out are on the panel. Audio and visual alarms flag low air pressure. Side-loop cable management keeps the hose off the floor.

The PreserveTech cover is a removable quilted 4-way stretch (43% polyurethane, 57% polyester) over a PVC/nylon base. Drive treats the cover with an antimicrobial to protect the fabric, not the person. It is fluid-resistant, low-shear, and vapour-permeable. A CPR connector dumps the air. Tubing uses EZ Lock / Quick Release. Head-end cells stay more static (pillow feature).

PreserveTech LS9500 specifications

These figures are for Drive's current LS9500N, the system Westin lists as LS9500. The specification tab holds the stored values. Drive's sheet lists 36 inches by 80 inches by 10 inches, a 500 lb capacity, and a 24-month warranty. The owner manual for the LS9500NP prints 42 to 50 litres per minute, 8 to 35 mmHg on the cells (bolsters stay at 55 mmHg), and turn cycles of 10, 20, 30, and 60 minutes.

Warranty for the original purchaser is 24 months on the control unit and mattress.

Size and what is included

This listing is one size: 36 inches by 80 inches by 10 inches. There is no size picker. You get the rotation mattress with side bolsters and the LS9500NP digital control unit. It is not a 42-inch or wider surface. Confirm the clinician wants rotation, not only alternating pressure, before we book delivery.

Funding help for a therapeutic mattress in Ontario

Ontario's Assistive Devices Program (ADP) does not cover hospital beds or mattresses, so plan around other routes. Funding that may help instead: ODSP, March of Dimes Canada, Veterans Affairs Canada (VAC), hardship funding programs, and community programs. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through before you buy.

Delivery and setup in Brampton and the GTA

Westin's own team delivers and sets up this mattress across Brampton and the Greater Toronto Area. We bring it in, place it on the bed, connect the control unit, and show you the pump before we leave.

We have three stores in the Brampton and Toronto area if you would rather see a mattress first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased mattresses are delivered and set up on a scheduled date.

Hospital-bed mattresses are oversized. The Canada-wide free ground-shipping offer on smaller goods does not apply. If the mattress is going outside the GTA, ask us for a freight quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.

Which Westin beds this mattress fits

The sleep surface is 36 inches by 80 inches. It belongs on a standard-width homecare bed. Confirm rails and the 10-inch bolster height with us so the bed-rail plan still makes sense.

• Drive Delta 1000, the 36-inch full-electric homecare bed
• Drive Delta 15235 hi-low, when a lower transfer height is also needed
• Drive PrimeCare P903, when the frame is an LTC deck that can take a 36-inch by 80-inch surface

Service and warranty

When the pump or a cell needs work, you call the shop that set it up, not a US parts desk. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.

Drive manufacturer warranty

Drive covers the original purchaser for 24 months on the LS9500N control unit and mattress. We handle the warranty claim with you. Ask us if an extended warranty is offered for your order.

Frequently asked questions

How is lateral rotation different from alternating pressure?

Alternating pressure inflates and deflates cells so the load on the skin moves while the person stays on their back. Lateral rotation turns the person to a chosen angle, up to 40 degrees on this Drive system, on a 10-, 20-, 30-, or 60-minute cycle. This SKU can also run static (no turn). A clinician should choose the class.

What does on-demand low air loss mean?

The pump can vent air through the surface to help moisture and microclimate when that mode is selected. It is not running as a blower-based true low-air-loss Harmony surface. Drive's airflow on this control unit is 42 to 50 litres per minute.

How do I clean the cover?

The PreserveTech cover is removable, fluid-resistant, and vapour-permeable. Follow Drive's user manual for disinfectant. The antimicrobial treatment protects the cover, not the person. Do not immerse the control unit.

What is the weight rating?

Drive lists 500 lbs for LS9500N. If the person is near that limit, or you need a wider deck, this 36-inch rotation surface is not the match.

What size bed does it fit?

36 inches by 80 inches by 10 inches, including the side bolsters. It is not a 42-inch or wider surface.

How loud is the pump?

Drive does not print a decibel number on the LS9500N sheet. This is a 42 to 50 LPM digital unit, a higher flow than the 8 LPM Med Aire pumps. Ask us if pump sound is a concern in a small bedroom.

What happens if the power goes out?

The 2-inch foam base stays under the person. The turn stops. Side bolsters are air, so they go soft with the cells. Resume the prescribed mode when power returns.

What is the warranty?

24 months on the control unit and mattress for the original purchaser. Westin Healthcare processes the claim.

Does funding cover this mattress in Ontario?

Some Ontario routes can help with a therapeutic support surface. Eligibility depends on the person's situation and assessment. Call (905) 451-7743 or use the funding page before you buy.

Can I rent a rotation mattress before I buy?

Westin Healthcare rents hospital-bed packages that include a therapeutic mattress. See current packages on the hospital bed rentals page. Ask us whether this rotation system can be added to a rental. Same-day wording belongs to the rental service, not automatically to a purchased LS9500.
