Description

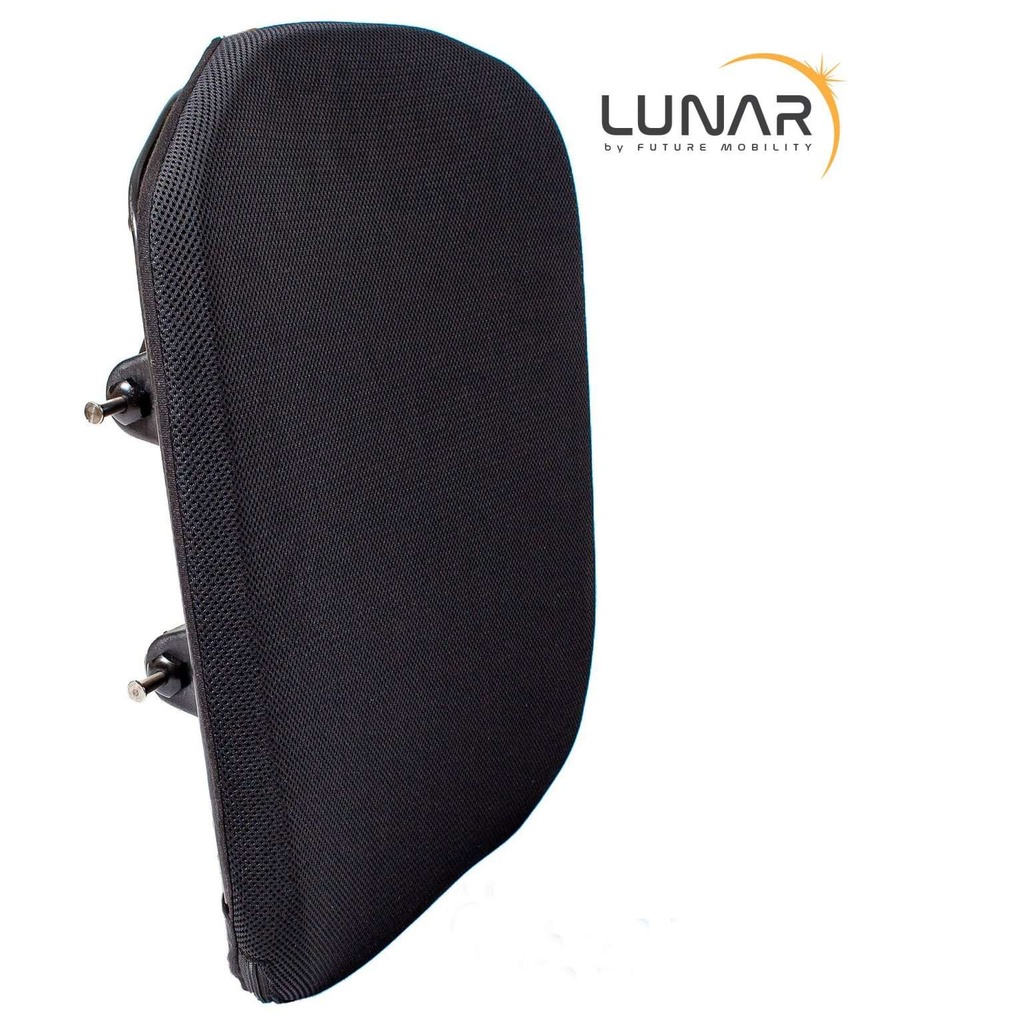

The Lunar Slim backrest is Future Mobility's slimmer foam wheelchair back support for people who need a full range of motion and still have complex positioning needs. Westin Healthcare fits it in Brampton and across the Greater Toronto Area after a seating check on the chair.
The size control covers Lunar Slim (350 lb / 159 kg) and Lunar Slim HD (500 lb / 227 kg) sizes. It is not Lunar Basic. The stored SKU LBSXXXX is the Slim prefix, not the Lunar Basic Low prefix.
Who this back support is for
The Lunar Slim backrest is for a person whose seating therapist wants a slimmer Lunar shell with poly and visco foam and a breathable incontinence-resistant cover, when range of motion is the priority. Slim HD sizes from 22 in wide are the 500 lb version of the same family.
A seating therapist should confirm Slim versus Slim HD and the height. Westin does not give clinical positioning advice. If you have questions about posture or transfers, ask the therapist who assessed you, or call us and we will book that conversation.
Hardware, laterals, and fit

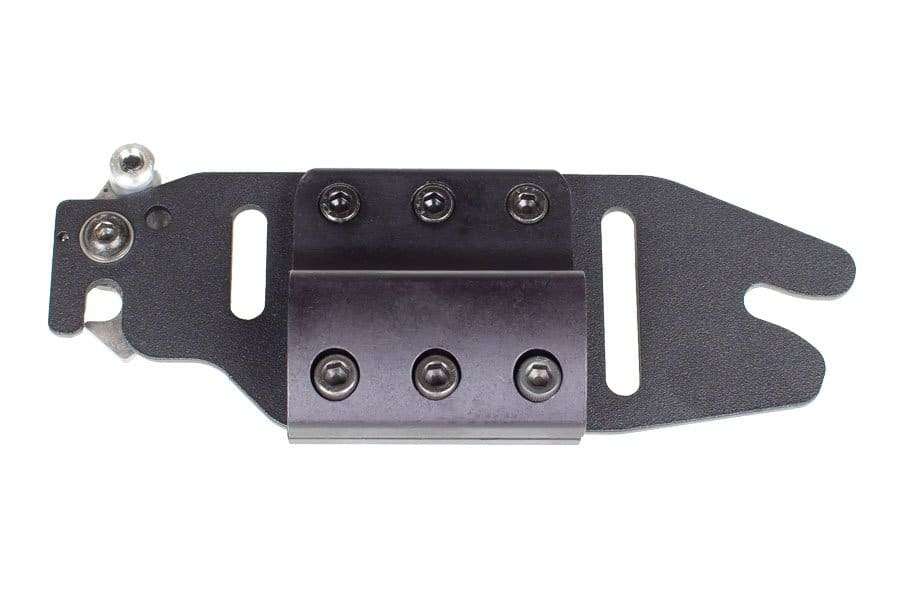

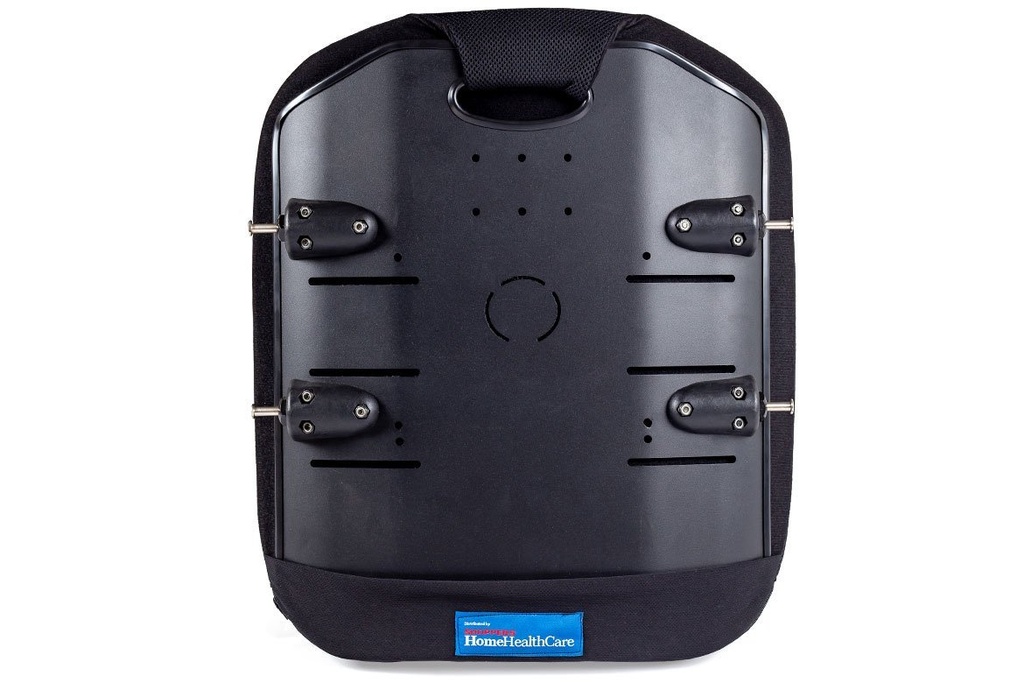

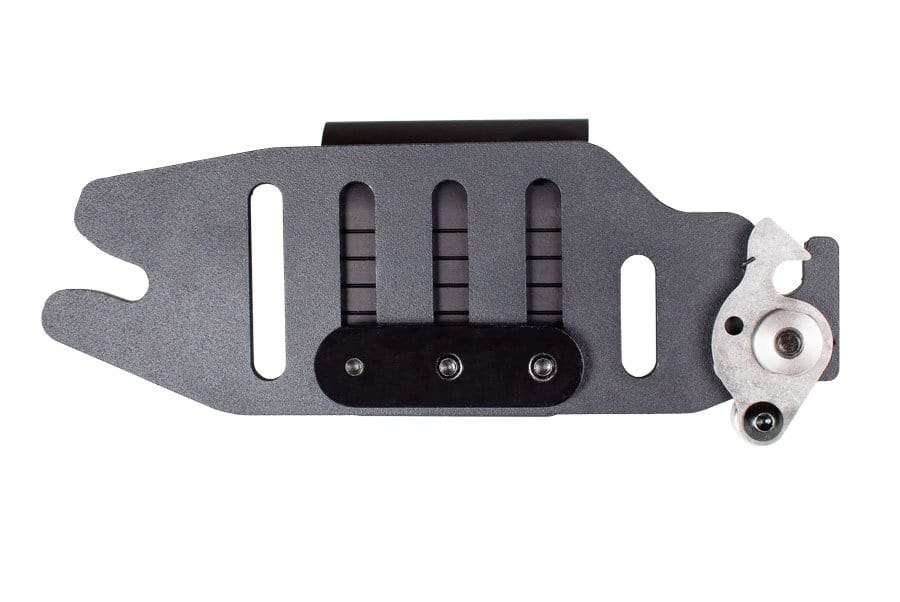

The shell is aluminum. Foam is a replaceable poly and visco combination. The cover is a newer breathable incontinence-resistant fabric on the factory card. Pins take up to a 2 in (5 cm) seat-width difference. Optional laterals: fixed, height-adjustable, fixed-offset, and adjustable swing-away. Three back heights: low, mid, and full.
The Slim product card does not reprint the 3/4 / 7/8 / 1 in tubing line that Lunar Basic prints. Ask us to confirm cane diameter before we mount it.
- Slim (350 lb): factory widths 12 to 20 in
- Slim HD (500 lb): factory widths 22 to 32 in
- Heights on the size control run from low 10-12 in through full 20-24 in depending on the pair you pick
Lunar Slim specifications
These figures are from Future Mobility's live Lunar Slim card and the CA brochure. The specification tab holds the stored values.
Product weight 5.0 lb (2.3 kg) at 18 in W x 18 in H Basic. User weight 350 lb (159 kg) on Slim and 500 lb (227 kg) on Slim HD. Warranty 2 years limited on the back, 90 days on the cover, and 1 year on hardware.
Sizes
Use Choose Cushion Size for the width by height pair. Pairs from 22 in wide are Slim HD on the factory grid. There is no colour control on the product. Ask us about cover colour when you order.
Lunar Slim, Lunar Basic, or Lunar HD
Stay here if you want the slimmer 5.0 lb shell. The Lunar Basic Mid Support is the 250 lb modular Lunar with three lateral styles built in. The Lunar Heavy Duty Full Support is the ribbed 500 lb shell when width and load are the priority. The Max Ultra is the Prism Max back with 3 in higher laterals.
Funding help for a wheelchair cushion or back support in Ontario
This cushion or back support is an ADP positioning device category item. Ontario's Assistive Devices Program (ADP) can fund 75% of the cost of positioning devices such as cushions and back supports when they are prescribed through an assessment by an ADP-registered occupational therapist or physiotherapist with an eligible mobility device, and some income-support programs cover the full cost. Not every product qualifies, so talk to us before you buy. March of Dimes Canada, Veterans Affairs Canada (VAC), and community programs can also help. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through.
Delivery and setup in Brampton and the GTA
Westin's own team delivers and fits this back support across Brampton and the Greater Toronto Area. We bring it in, mount it on the wheelchair canes, and show you the quick-release latches before we leave.
We have three stores in the Brampton and Toronto area if you would rather see a wheelchair back support first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased seating is delivered and set up on a scheduled date.
If the back support is going outside the GTA, ask us for a shipping quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.
Related wheelchair back supports from Westin
- Lunar Basic Mid Support, the 250 lb modular Lunar
- Lunar Heavy Duty Full Support, the ribbed 500 lb shell
- Max Ultra Backrest, the higher-lateral Prism Max back
Service and warranty
When something on the back support needs work, you call the shop that set it up, not a distant parts desk. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.
Future Mobility manufacturer warranty
Future Mobility prints 2 years limited on the Lunar Slim back, 90 days on the cover, and 1 year on the hardware, for the original purchaser. That back term is shorter than Lunar Basic. We handle the warranty claim with you. Ask us if an extended warranty is offered for your order.
Frequently asked questions
What Size Wheelchair Backrest Do I Need?
A wheelchair back support is ordered by seat width and back height, not by clothing size. Measure the wheelchair seat width and how high the shell should sit on the back canes, then use Choose Cushion Size for the matching width by height. A seating therapist should confirm the size before you order.
What Is A Wheelchair Back Support?
A wheelchair back support mounts to the rear canes and holds the trunk. The Lunar Slim backrest is a slimmer aluminum shell with poly and visco foam. It is not a seat cushion.
Does ADP Cover Wheelchair Cushions?
Ontario's Assistive Devices Program can help with a wheelchair cushion or back support after an ADP-registered therapist assessment, when the seating is required with an eligible mobility device. Eligibility depends on the person and the device. Call (905) 451-7743 or use the funding page before you buy.
What Is The Weight Capacity Of The Lunar Slim?
The Lunar Slim backrest is rated at 350 lb (159 kg) on widths through 20 in. Lunar Slim HD sizes from 22 in wide are rated at 500 lb (227 kg) on Future Mobility's current card.
How Much Does The Lunar Slim Weigh?
The Lunar Slim backrest weighs 5.0 lb (2.3 kg) at the 18 in by 18 in Basic size Future Mobility prints.
Is Lunar Slim The Same As Lunar Basic?
The Lunar Slim backrest is a separate Future Mobility series with a slimmer shell, poly plus visco foam, a 2-year back warranty, and Slim / Slim HD capacities. Lunar Basic is the 250 lb modular series with a 3-year back warranty.
What Cover Is On The Lunar Slim?
The Lunar Slim backrest uses a newer breathable incontinence-resistant fabric on the Future Mobility card. Ask us which colour we can order.
Can I Remove The Lunar Slim For Transport?
The Lunar Slim backrest uses Future Mobility's quick-release Lunar hardware so the shell can come off the cane clamps.
What Comes With The Lunar Slim?
The Lunar Slim backrest is ordered as the aluminum shell, poly and visco foam, cover, and mounting hardware for the size you pick. Optional laterals are extras.
Specifications
| Brands | Future Mobility |
|---|---|
| Warranty | 2 yr limited back; 1 yr hardware; 90 day cover |
| Weight Capacity | 350 lb (159 kg) Slim; 500 lb (227 kg) Slim HD (22 in and up) |
| Product Weight | 5.0 lb (2.3 kg) at 18 in W x 18 in H Basic |
| Cover | Breathable incontinence-resistant fabric (Future Mobility Slim card) |
| Classification | Range of motion with complex positioning (Future Mobility Lunar Slim) |
| Width | Slim 12-20 in; Slim HD 22-32 in as sold on one picker |
| ADP Device Code | SE0001243 Slim; SE0001244 Slim HD; confirm on current ADP list |
| Manufacturer Model | Lunar Slim / Lunar Slim HD (LBS*) |
| Foam | Replaceable poly plus visco combination |
