Description
The JAY Fusion with Cryo Technology cushion is Sunrise Medical's foam and CryoFluid wheelchair cushion for skin protection in Brampton and the Greater Toronto Area. The dedicated Cryo card rates 16 to 21 inch widths at 330 lbs (150 kg) and the 22 inch width at 500 lbs (227 kg). A 16 by 18 inch size weighs 5.3 lbs (2.4 kg). Standard height is 4 inches (10 cm). Reduced Profile is 3 inches (7.6 cm). Widths and depths on that card run 14 to 22 inches (36 to 56 cm).
Sunrise prints that CryoFluid is designed to reduce the risk of pressure injuries and to cool the seated skin surface for up to 8 hours in internal testing at 25 C (77 F). Results may vary. The Fusion you order here uses the Cryo insert, not JAY Flow or the air insert.
Who this cushion is for
The JAY Fusion with Cryo Technology cushion fits a person whose therapist wants an adjustable fluid cushion and the Cryo cooling option. Sunrise writes Fusion as the cushion that combines J2 skin-protection capability with J3 stability. A seating therapist should confirm Cryo versus standard JAY Flow, and should set the well, before first use.
- CryoFluid insert, paraffin-wax and graphite microbeads
- Pre-contoured closed-cell base with a posterior pelvic wall
- 330 lb (150 kg) to 500 lb (227 kg) on the Cryo card
CryoFluid, pressure, and cover

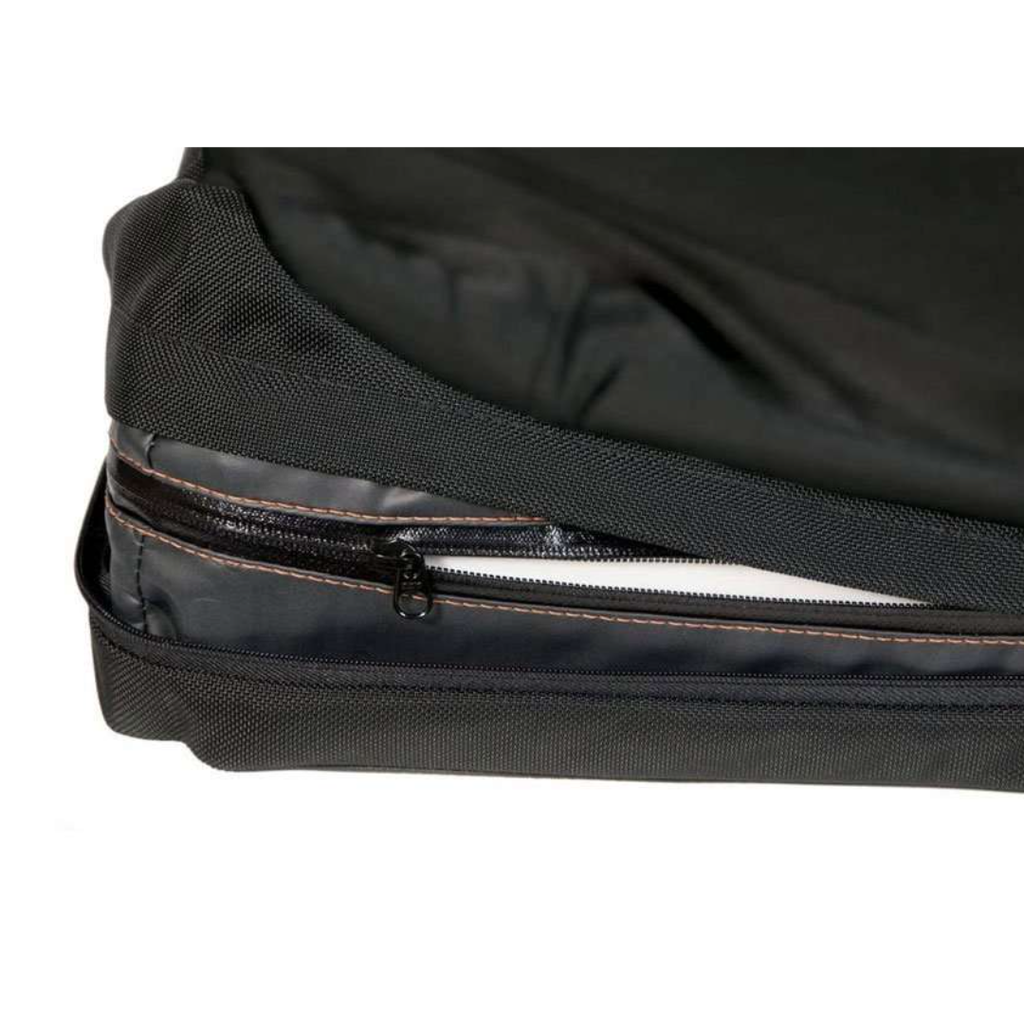

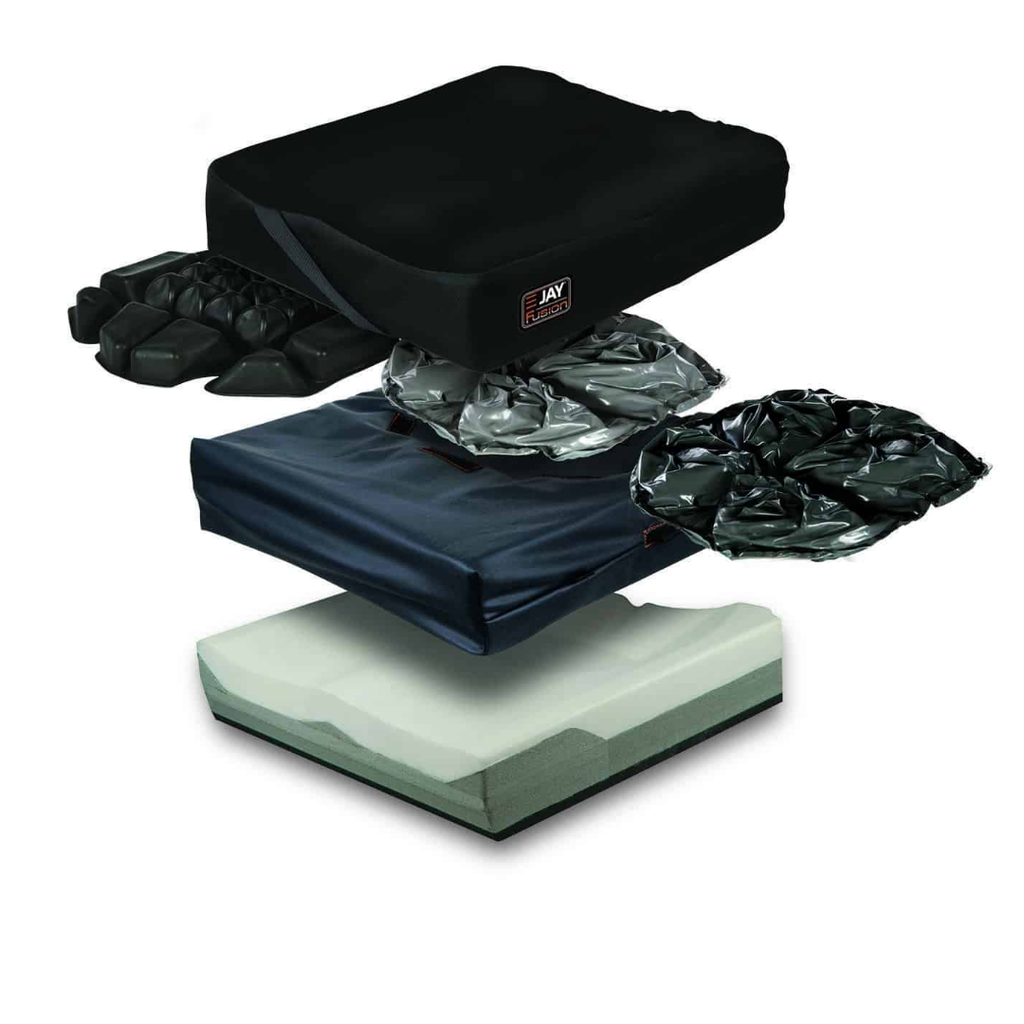

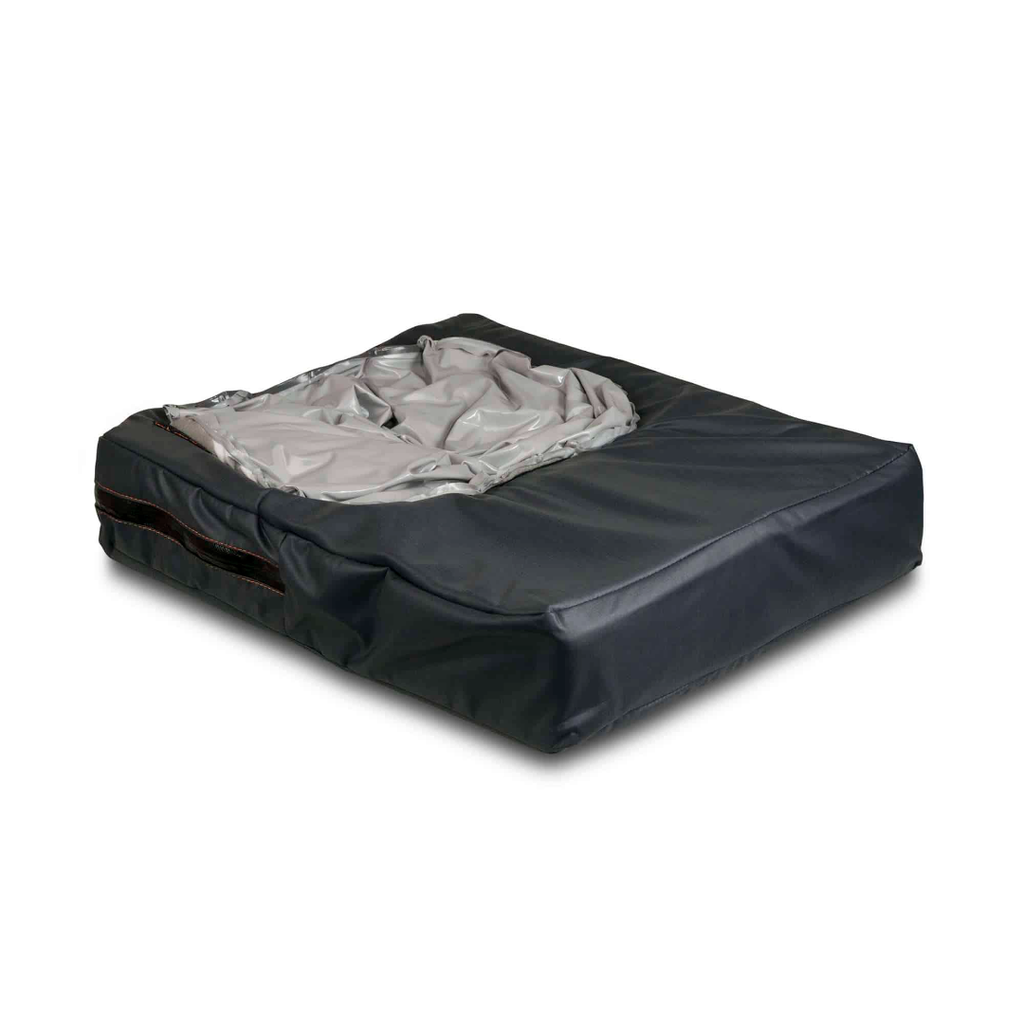

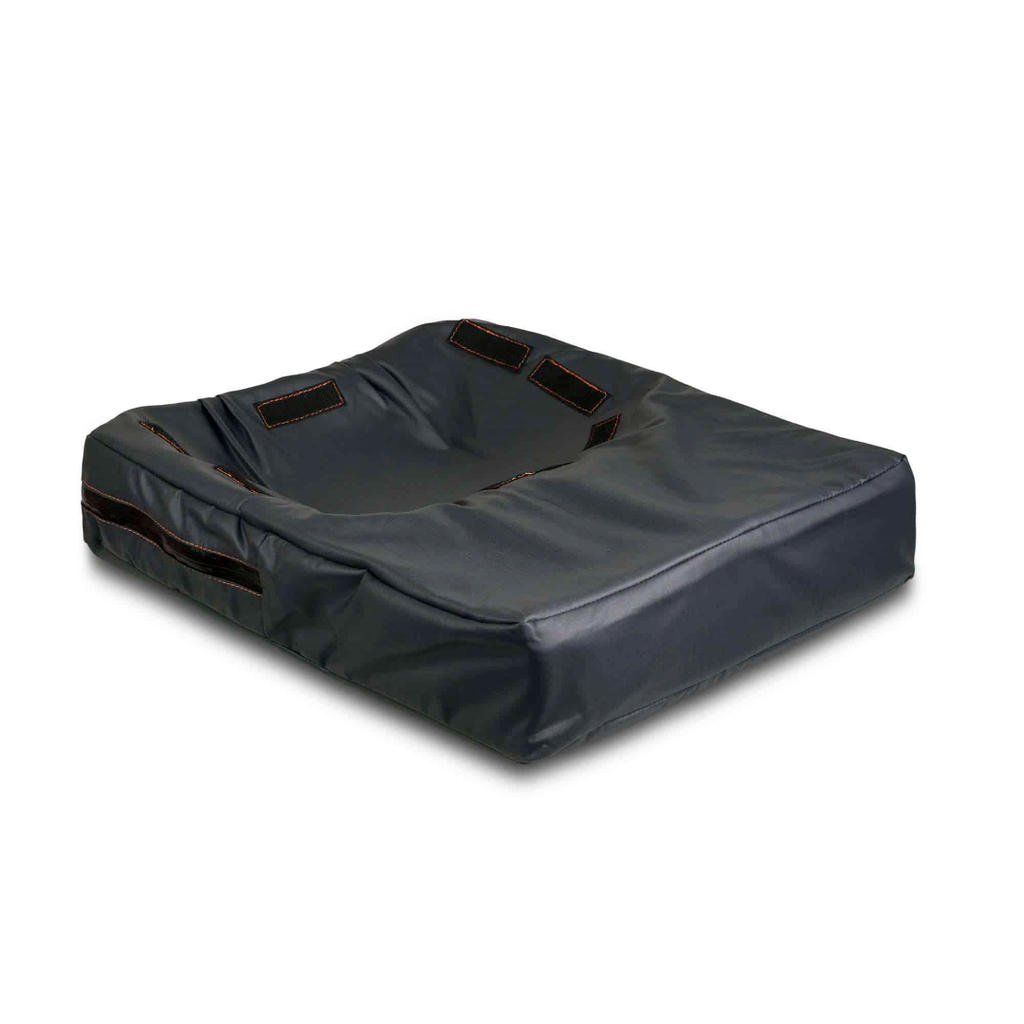

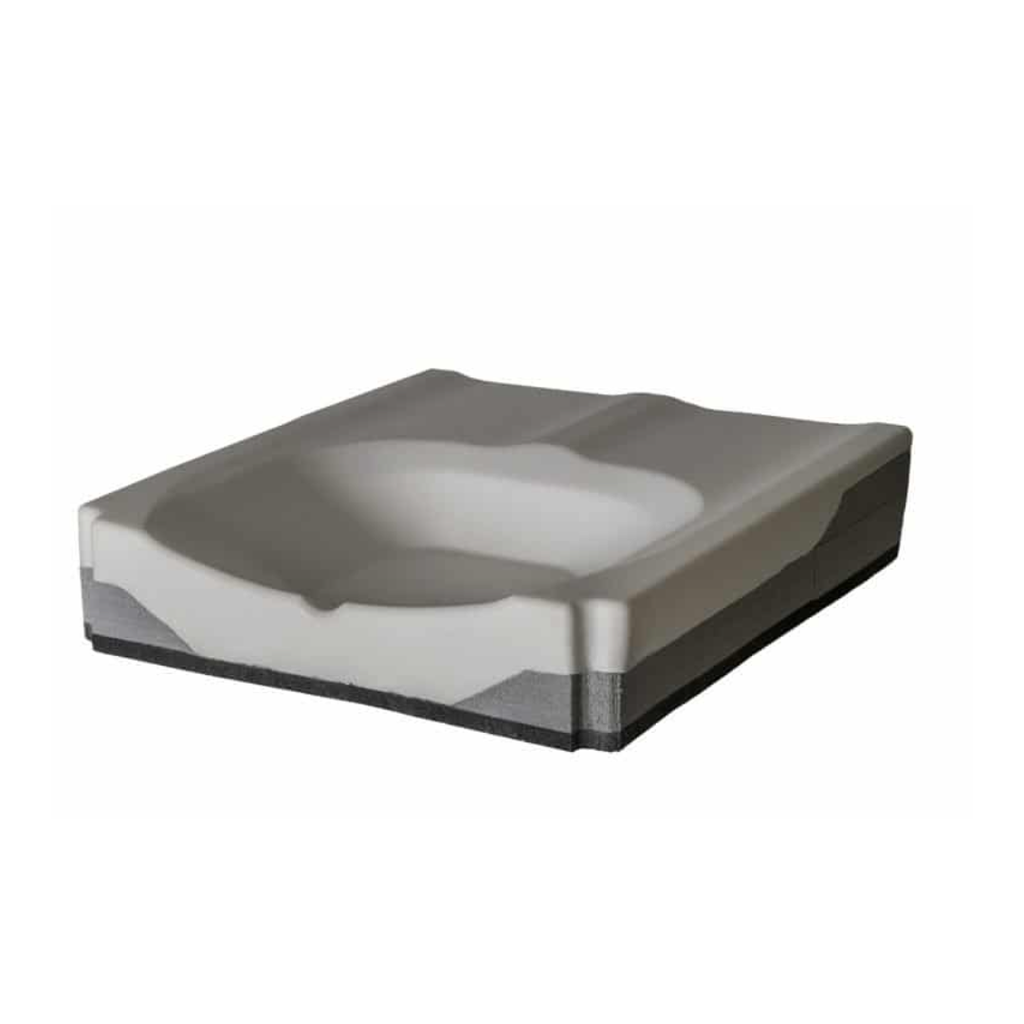

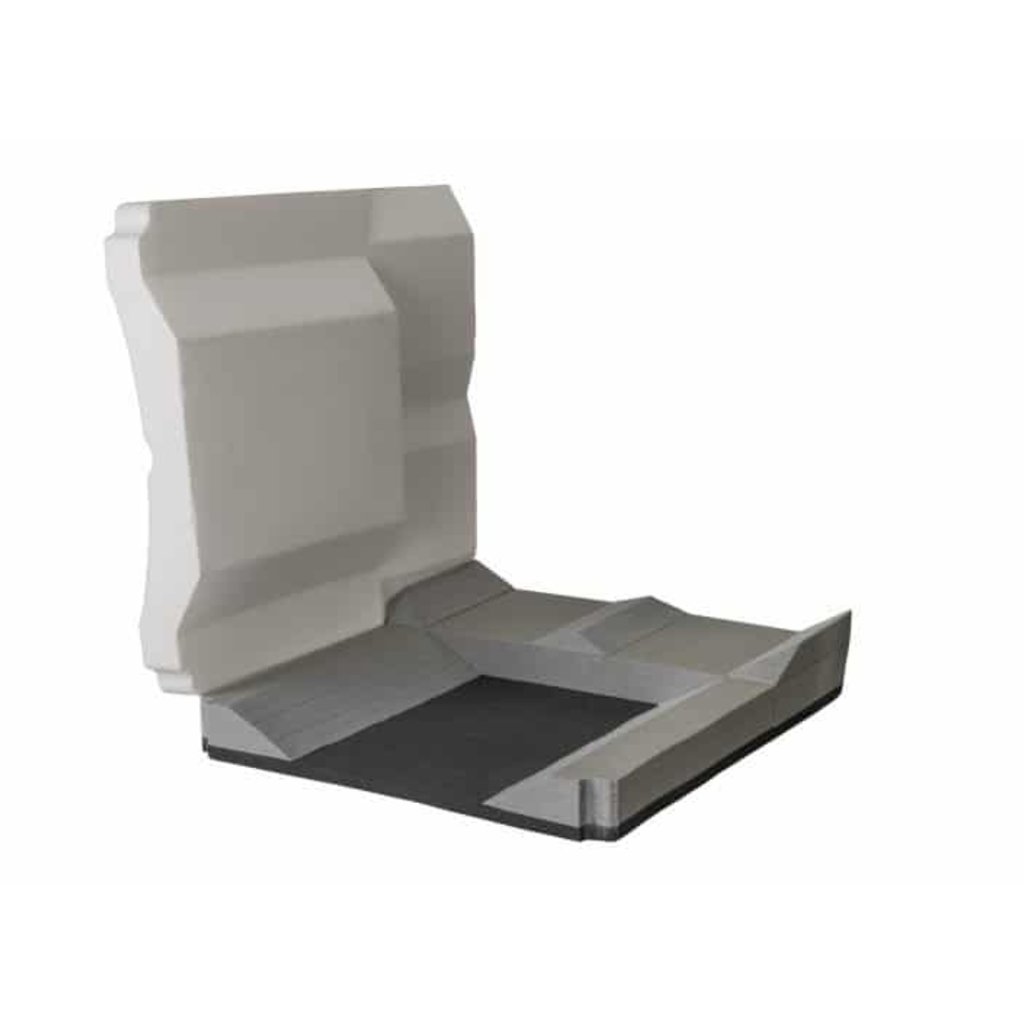

The JAY Fusion with Cryo Technology cushion uses a pre-contoured closed-cell foam base, a high-resiliency layer, and a posterior pelvic wall. CryoFluid sits in the pelvic loading area. Sunrise prints that heat from the skin melts the microbeads and that graphite spreads that heat, and that the beads re-solidify when the fluid returns to room temperature. The inner cover is Dartex-coated Lycra with a water-resistant zipper. The outer cover is machine-washable silver-thread stretch with 3DX spacer fabric.
Sunrise's cooling claim is maker testing at 25 C, with results that may vary. A seating therapist still owns the skin-care plan.
JAY Fusion with Cryo specifications
These figures are from Sunrise Medical's current Fusion Cryo card. The specification tab holds the stored values.
Height Standard 4 inches (10 cm), Reduced 3 inches (7.6 cm). Width 14 to 22 inches (36 to 56 cm). Depth 14 to 22 inches (36 to 56 cm). Product weight 5.3 lbs (2.4 kg) at 16 by 18 inches. User weight capacity 330 lbs (150 kg) on 16 to 21 inch widths and 500 lbs (227 kg) on 22 inch width. Insert: JAY CryoFluid. Dual cover as above.
Warranty in the Fusion owner's manual is 24 months on the cushion and 6 months on the removable cover, for the original purchaser. That term covers the CryoFluid insert.
Width and depth
Use Choose Width and Choose Depth. The Cryo card prints 14 to 22 inches. A seating therapist measures hip width in sitting. Ask us if you need the Reduced Profile height.
Which JAY wheelchair cushion fits
The JAY Fusion with Cryo Technology cushion is the current cooling-fluid JAY. Stay here if a therapist wants CryoFluid. The JAY Union Cushion is foam plus standard JAY Flow without Cryo. The JAY J2 Standard Cushion is the 2.5 inch fluid well still on Sunrise's current list. The JAY J2 Deep Contour Cushion is the 4.5 inch fluid well. The JAY Ion Cushion is foam only.
Funding help for a wheelchair cushion or back support in Ontario
This cushion or back support is an ADP positioning device category item. Ontario's Assistive Devices Program (ADP) can fund 75% of the cost of positioning devices such as cushions and back supports when they are prescribed through an assessment by an ADP-registered occupational therapist or physiotherapist with an eligible mobility device, and some income-support programs cover the full cost. Not every product qualifies, so talk to us before you buy. March of Dimes Canada, Veterans Affairs Canada (VAC), and community programs can also help. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through.
Delivery and setup in Brampton and the GTA
Westin's own team delivers this wheelchair cushion across Brampton and the Greater Toronto Area. We bring it in, check the size against the chair, and show you the CryoFluid pad orientation and the dual covers before we leave.
We have three stores in the Brampton and Toronto area if you would rather see a JAY cushion first. For a scheduled in-home drop-off, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased cushions are delivered on a scheduled date.
If the cushion is going outside the GTA, ask us for a shipping quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.
Related wheelchair cushions from Westin
- JAY Union Cushion, foam plus standard JAY Flow
- JAY J2 Deep Contour Cushion, 4.5 inch fluid well
- JAY Ion Cushion, foam skin protection and positioning
Service and warranty
When something on the cushion needs work, you call the shop that set it up, not a US parts desk. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.
Sunrise Medical JAY warranty
The JAY Fusion owner's manual prints 24 months on the cushion and 6 months on the removable cover, for the original purchaser. That term includes the CryoFluid insert. Punctures, tears, and burns sit outside that term. Sunrise notes that Canadian terms can follow provincial funding rules. We handle the warranty claim with you. Ask us if an extended warranty is offered for your order.
Frequently asked questions
What Size Wheelchair Cushion Do I Need?
The JAY Fusion with Cryo Technology cushion is ordered by seat width and depth. The Cryo card prints 14 to 22 inches. A seating therapist measures hip width in sitting. Use Choose Width and Choose Depth.
How Do I Choose Between Gel, Foam, And Air Cushions?

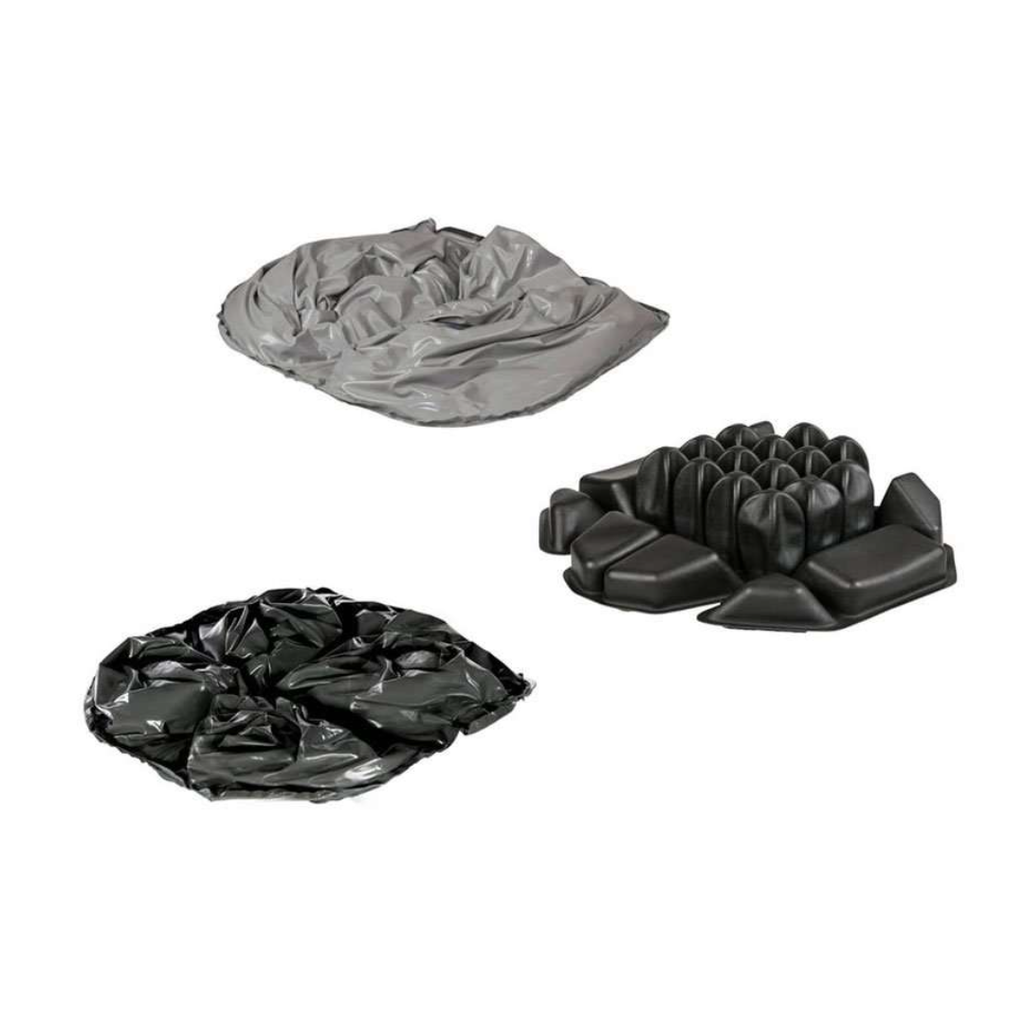

The JAY Fusion with Cryo Technology cushion uses CryoFluid, a JAY fluid with paraffin and graphite microbeads, not a gel pack. Parent Fusion can also take standard JAY Flow or a field-adjustable air insert. This page is the Cryo build.
Does ADP Cover Wheelchair Cushions?
Ontario's Assistive Devices Program can help with a wheelchair cushion or back support after an ADP-registered therapist assessment with an eligible mobility device. Eligibility depends on the person. Call (905) 451-7743 or use the funding page before you buy.
How Long Does CryoFluid Stay Cool?
The JAY Fusion with Cryo Technology cushion is printed by Sunrise as cooling the seated skin surface for up to 8 hours in internal testing at 25 C (77 F). Results may vary. The microbeads re-solidify when the fluid returns to room temperature.
What Is The Weight Limit For The JAY Fusion With Cryo?
The JAY Fusion with Cryo Technology cushion is rated at 330 lbs (150 kg) on 16 to 21 inch widths and 500 lbs (227 kg) on the 22 inch width on Sunrise's Cryo card.
How Do I Clean The JAY Fusion With Cryo?
The JAY Fusion with Cryo Technology cushion has a wipe-clean inner cover and a machine-washable outer cover. Do not soak the foam or the CryoFluid pad. Follow the Fusion owner's manual for monthly fluid checks.
How Long Is The JAY Fusion Warranty?
The JAY Fusion with Cryo Technology cushion carries 24 months on the cushion and 6 months on the cover in the Fusion owner's manual, for the original purchaser.
Can I See A JAY Cushion In Brampton?
Westin Healthcare can show a JAY cushion in the Brampton and Toronto stores and deliver across the GTA. Call (905) 451-7743 to check what is on the floor.
Specifications
| Height | Standard Profile: 4", Reduced Profile: 3" |
|---|---|
| Brands | JAY |
| Warranty | 24 months cushion; 6 months cover |
| Weight Capacity | 16-21": 330 lbs (150 kg); 22": 500 lbs (227 kg) |
| Product Weight | 5.3 lbs (2.4 kg) at 16x18 |
| Depth Range | 14" to 22" |
| Height Options | Standard Profile: 4", Reduced Profile: 3" |
| Insert | JAY CryoFluid |
| Product Type | Foam and CryoFluid, adjustable skin protection |
| User Weight Capacity | 330 lbs. (16"-21" widths), 500 lbs. (22" width) |
| Width Range | 14" to 22" |
| Base | Pre-contoured closed-cell foam, HR layer, posterior pelvic wall |
| Outer Cover | Silver-thread stretch with 3DX spacer fabric |
| Base Design | Pre-contoured closed cell foam base with high-resiliency foam layer |
| Inner Cover | Dartex-coated Lycra, water-resistant zipper |
| HCPCS Codes | E2622, E2623, E2624, E2625 |
| Custom Modifications | Available through JAY Your Way program |
| Product Height | Standard 4" (10 cm); Reduced 3" (7.6 cm) |
| Product Width | 14" to 22" (36 to 56 cm) on Cryo card |
| Product Depth | 14" to 22" (36 to 56 cm) on Cryo card |
