JAY J3 Back Support

The JAY J3 back is Sunrise Medical's configurable wheelchair back support for Brampton and the Greater Toronto Area. The live Canada card rates 12 to 20 inch widths at 300 lbs (136 kg) and 22 to 26 inch widths at 500 lbs (227 kg). Contour, height, and hardware are built to the seating assessment. This is a quote-only custom back, not a cart item that ships tomorrow.

Sunrise writes the J3 as a line of width, height, and contour-depth shells that fit the back to the client. A seating therapist and an ADP authorizer choose the shell with Westin before anything is ordered.

Who this back is for

The JAY J3 back fits a person whose therapist wants a solid contoured shell, not a strap-on foam pad. Stay here when posterior, lateral, or deep pelvic support has to be specified, not guessed. A seating therapist should confirm J3 versus the JAY GO Back or the JAY Encompass Back before you order.

• Five contour depths from 2.2 in to 6 in (56 mm to 152 mm)
• Four height bands from Lower Thoracic through Shoulder
• 300 lb (136 kg) to 500 lb (227 kg) by width

Contour, height, and hardware

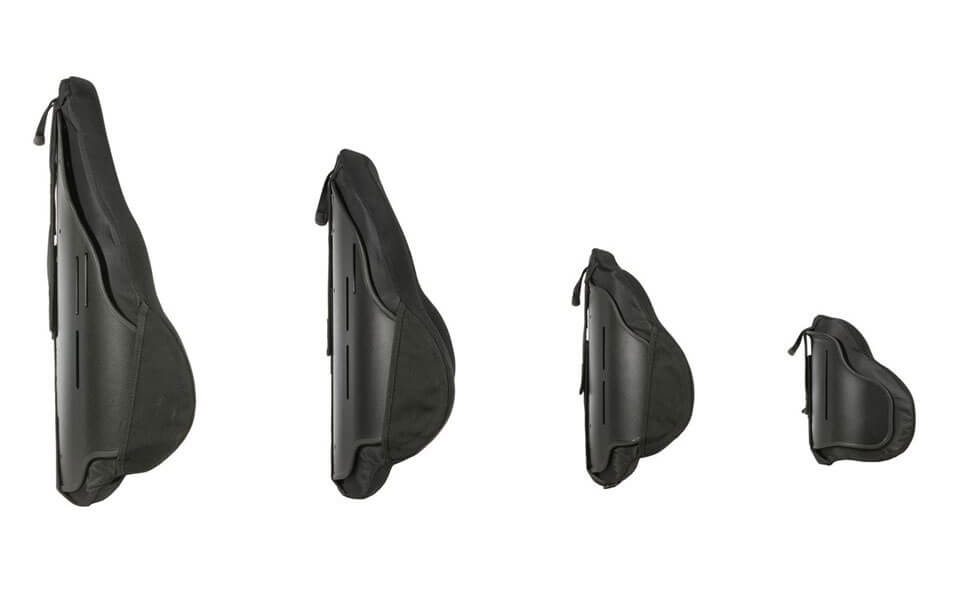

Sunrise prints five contour codes on the current J3 card. Posterior (PA) is 2.2 inches of lateral thoracic support. Posterior Lateral (PL) is 3 inches. Posterior Deep (PD), Posterior Deep Lateral (PDL), and Posterior Deep Contour (PDC) are 6 inches, with PDC aimed at the pelvis rather than the thorax. The popular 6 inch PD shell is offered in heights from 8 to 24 inches and widths from 12 to 20 inches, with curved 7 inch built-in laterals.

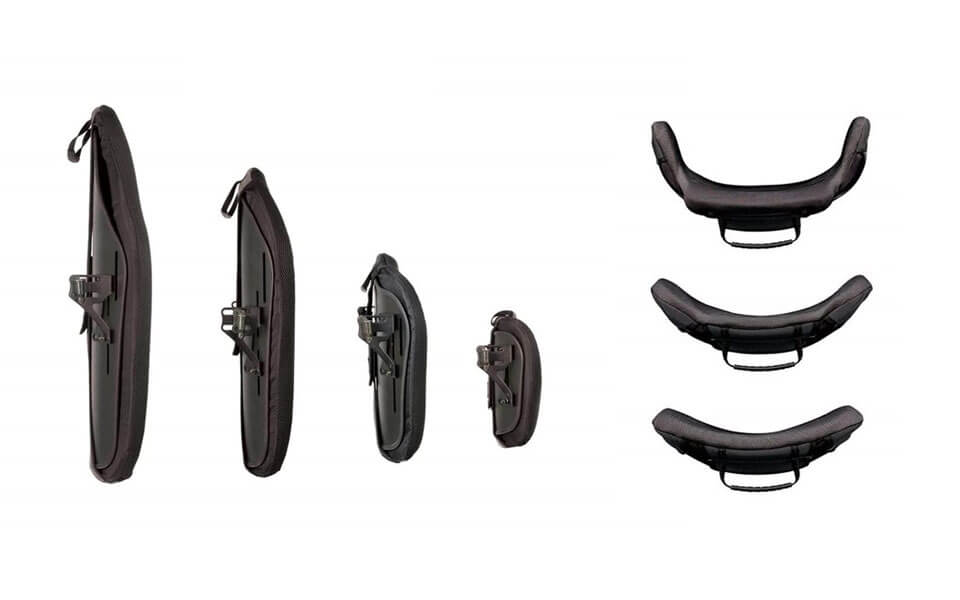

Height bands on the spec table are Lower Thoracic at 6.5, 8, and 9.5 inches; Mid Thoracic at 12, 13.5, and 15 inches; Upper Thoracic at 16.5, 18, and 19.5 inches; and Shoulder at 21, 22.5, and 24 inches. Hardware choices on the card are RH, SH, TH, and 4-Point, with 20 degrees of angle, +2 inches of width, and cane diameters from 3/4 inch to 1 1/8 inch. The foam insert is 1 1/2 inches. The outer cover is spacer fabric with a Lycra stretch layer. A headrest mount is available. Spine Align inserts, extra laterals, chest straps, and Whitmyer head supports are ordered with the back, not guessed on this page.

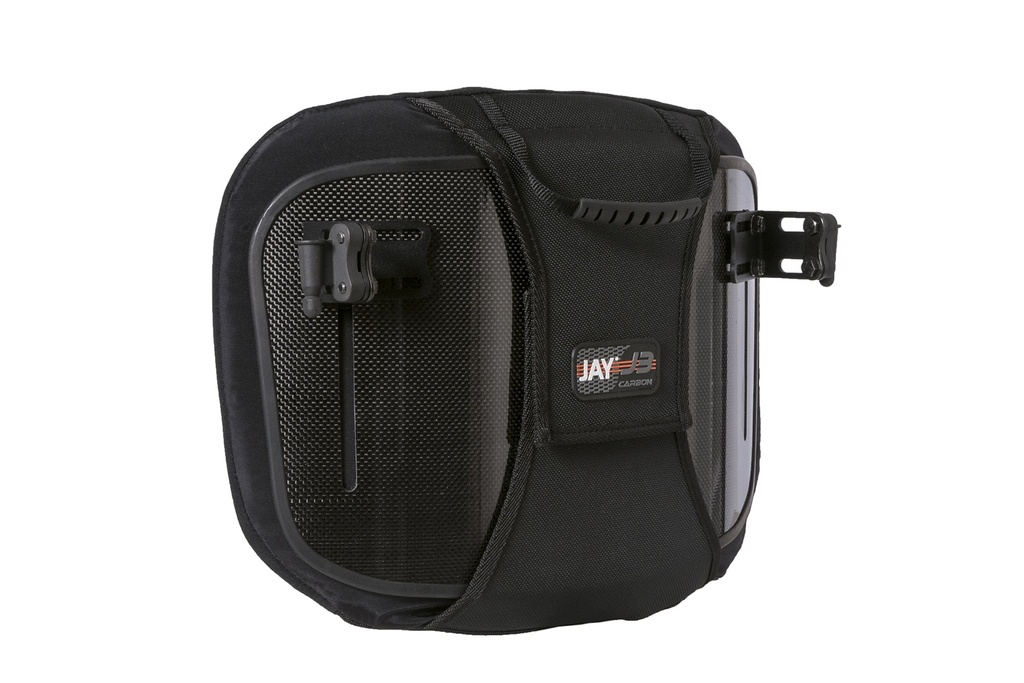

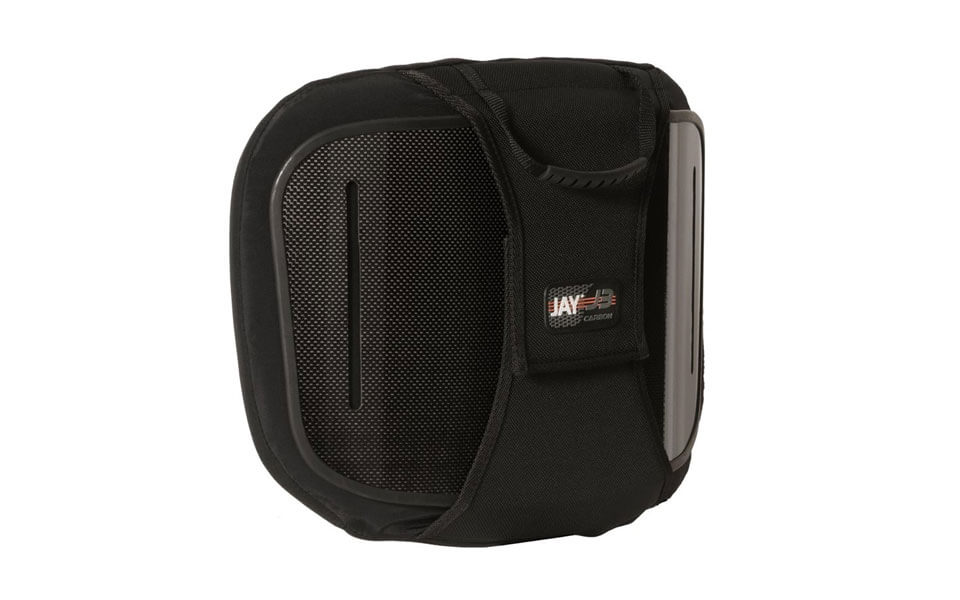

J3 Plus stays on this same Sunrise card as a Mid Thoracic option for a bariatric client, with a pivoting lower vanity shell, widths up to 26 inches, and the same 500 lb ceiling. J3 Carbon is a lighter shell Sunrise prints at as little as 2.2 lbs with RH hardware. We do not sell Plus or Carbon as their own pages. Ask us if the assessment points at either config.

JAY J3 Back specifications

These figures are from Sunrise Medical's current Canada J3 card. The specification tab holds the stored values. We do not invent a contour or height picker on this page.

Width 12 to 26 inches (30 to 66 cm). Product weight on the Canada card is 1.7 lbs (0.77 kg) and up without hardware. User weight capacity 300 lbs (136 kg) on 12 to 20 inch widths and 500 lbs (227 kg) on 22 to 26 inch widths. Shell: lightweight contoured. Insert: 1 1/2 inch soft foam. Cover: spacer fabric and Lycra stretch. JAY Your Way modifications are available.

The J3 Back owner's manual prints 24 months on materials and workmanship for the original purchaser. Sunrise notes that Canadian terms can follow provincial funding rules.

How a J3 is ordered

A seating therapist measures torso height, trunk width, and the support the person needs. Westin maps that to a contour code, a height band, a width, and hardware that matches the chair canes. There is no drop-down that can do that work. If leftover ERP rows for one Upper Thoracic or one J3 Plus size still sit in our system, they are not this family page. New orders go through this assessment.

Which JAY wheelchair back fits

The JAY J3 back is the full contour family. Stay here when the therapist wants PA, PL, PD, PDL, or PDC and a named height band. The JAY GO Back is the strap-on foam step for milder needs. The JAY Zip Back is the kids shell, 8 to 14 inches wide. The JAY Encompass Back is the three-piece swing-away lateral back, rated at 250 lbs (113 kg). Pair a J3 with a current JAY cushion such as the JAY Ion Cushion or the JAY LitePro Cushion when the assessment calls for both.

Funding help for a wheelchair cushion or back support in Ontario

This cushion or back support is an ADP positioning device category item. Ontario's Assistive Devices Program (ADP) can fund 75% of the cost of positioning devices such as cushions and back supports when they are prescribed through an assessment by an ADP-registered occupational therapist or physiotherapist with an eligible mobility device, and some income-support programs cover the full cost. Not every product qualifies, so talk to us before you buy. March of Dimes Canada, Veterans Affairs Canada (VAC), and community programs can also help. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through.

Delivery and setup in Brampton and the GTA

Westin's own team delivers this wheelchair back support across Brampton and the Greater Toronto Area once the shell is built. We bring it in, check the hardware against the chair canes, and show you the cover before we leave.

We have three stores in the Brampton and Toronto area if you would rather see a JAY back first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased backs are delivered and set up on a scheduled date.

If the back is going outside the GTA, ask us for a shipping quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.

Related wheelchair backs from Westin

• JAY GO Back Support, strap-on foam for milder needs
• JAY Zip Back Support, the kids JAY shell
• JAY Encompass Back Support, three-piece swing-away laterals

Service and warranty

When something on the back needs work, you call the shop that set it up, not a US parts desk. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.

Sunrise Medical JAY warranty

The JAY J3 Back owner's manual prints 24 months on materials and workmanship for the original purchaser. Punctures, tears, and burns sit outside that term. Sunrise notes that Canadian terms can follow provincial funding rules. We handle the warranty claim with you on units we sold.

Frequently asked questions

How Do I Choose A Wheelchair Back?

The JAY J3 back is chosen by contour code, height band, width, and hardware after a seating assessment. A therapist measures torso height and trunk width. Do not pick a shell from a photo alone.

What Do Shallow, Mid, And Deep J3 Contours Mean?

The JAY J3 back uses Sunrise codes, not those three words, on the order form. PA is 2.2 inches of lateral thoracic support, PL is 3 inches, and PD, PDL, and PDC are 6 inches. PDC is the pelvic 6 inch shell.

Does ADP Cover Wheelchair Back Supports?

Ontario's Assistive Devices Program can help with a wheelchair cushion or back support after an ADP-registered therapist assessment with an eligible mobility device. Eligibility depends on the person. Call (905) 451-7743 or use the funding page before you buy.

What Is The Weight Limit For The JAY J3 Back?

The JAY J3 back is rated at 300 lbs (136 kg) on 12 to 20 inch widths and 500 lbs (227 kg) on 22 to 26 inch widths on Sunrise's current card.

Will A J3 Fit My Wheelchair Canes?

The JAY J3 back hardware on the current card fits cane diameters from 3/4 inch to 1 1/8 inch. Westin checks the chair before the order is placed.

Is J3 Plus A Different Product?

The JAY J3 Plus back is a Mid Thoracic config on the same Sunrise J3 card, written for a bariatric client up to 500 lbs. It is not a separate page here. Ask us if the assessment points at Plus.

How Long Is The JAY J3 Warranty?

The JAY J3 back carries 24 months on materials and workmanship in the owner's manual, for the original purchaser.

Can I See A JAY Back In Brampton?

Westin Healthcare can show a JAY back in the Brampton and Toronto stores and deliver across the GTA. Call (905) 451-7743 to check what is on the floor and to book an assessment.
