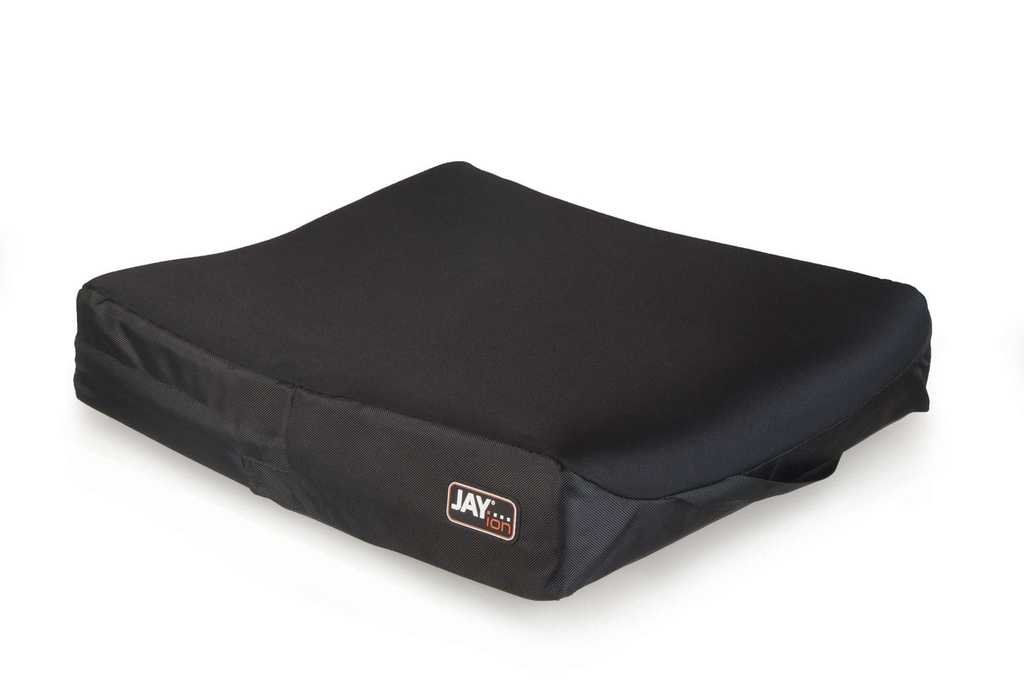

JAY Ion Cushion

The JAY Ion cushion is Sunrise Medical's 4 inch (10 cm) multi-layer foam wheelchair cushion for skin protection and positioning in Brampton and the Greater Toronto Area. The current card rates 14 to 21 inch widths at 330 lbs (150 kg) and 22 to 24 inch widths at 500 lbs (227 kg). An 18 by 18 inch size weighs 3.5 lbs (1.6 kg).

This is the adult foam pressure-relief step on the JAY ladder. Foam firmness changes with width. It is not an air-cell cushion and it has no inflation valve.

Who this cushion is for

The JAY Ion cushion fits a person whose therapist wants foam skin protection and positioning without a fluid pad. Sunrise writes it as a comfortable skin-protection and positioning wheelchair cushion. A seating therapist should confirm Ion versus Union or Fusion if sitting time is long or there is a history of skin breakdown.

• 4 inch (10 cm) multi-layer foam with a Visco top
• Dartex inner cover and silver-thread stretch outer cover
• 330 lb (150 kg) to 500 lb (227 kg) by width

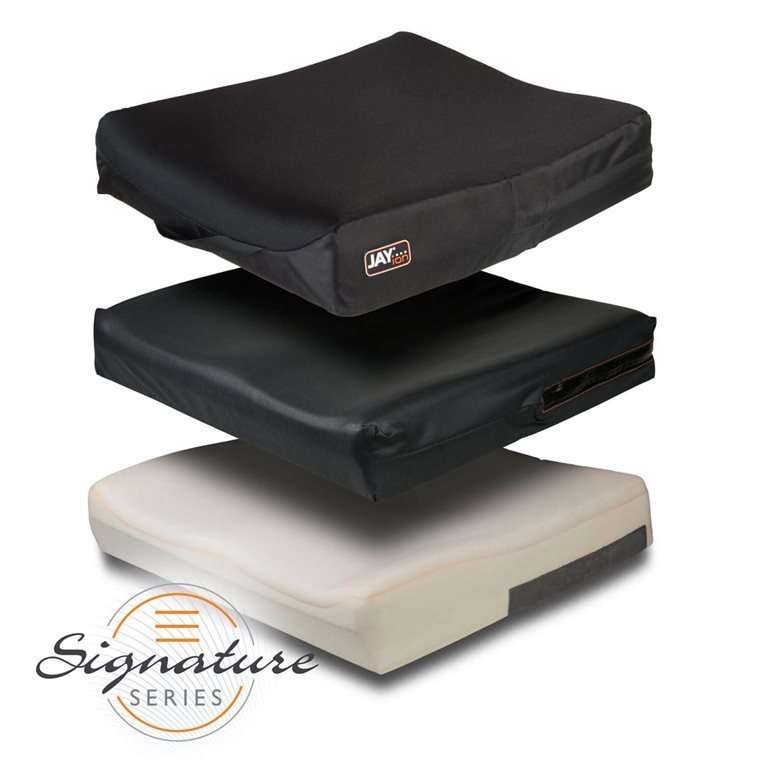

Foam layers and dual cover

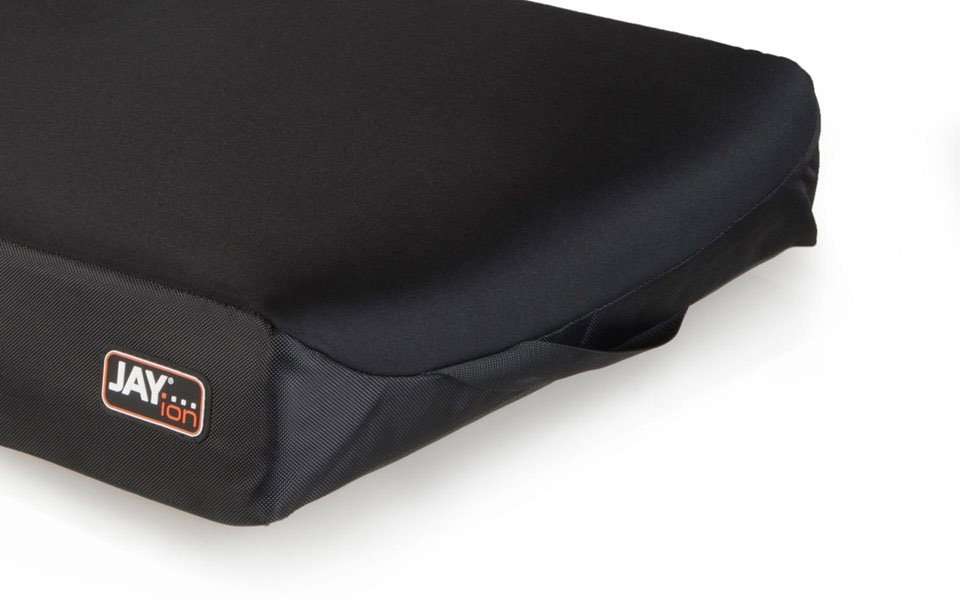

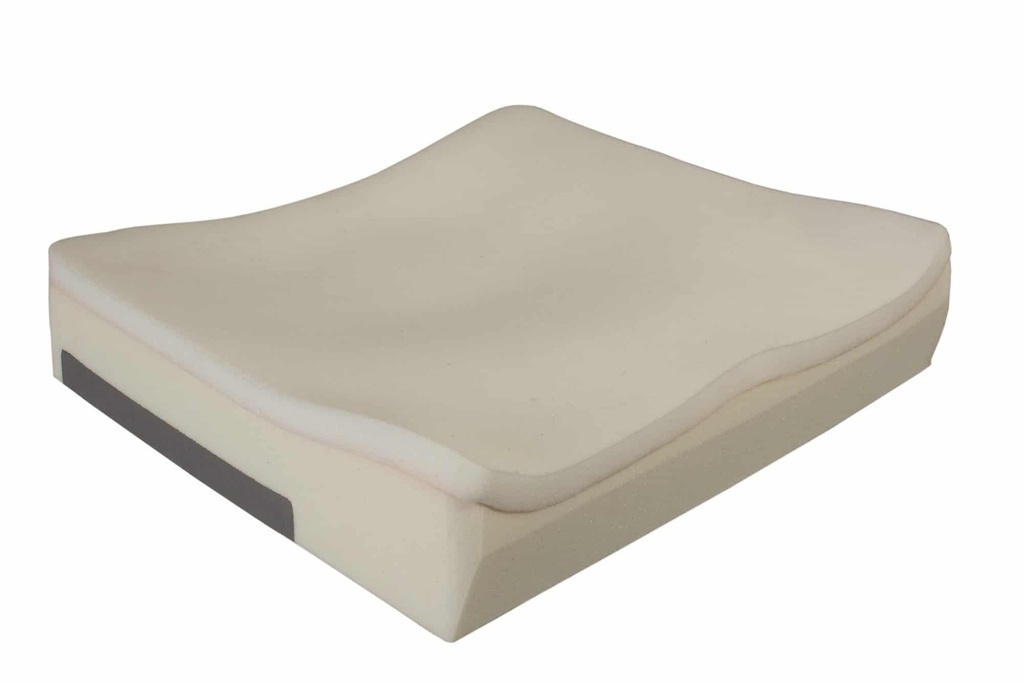

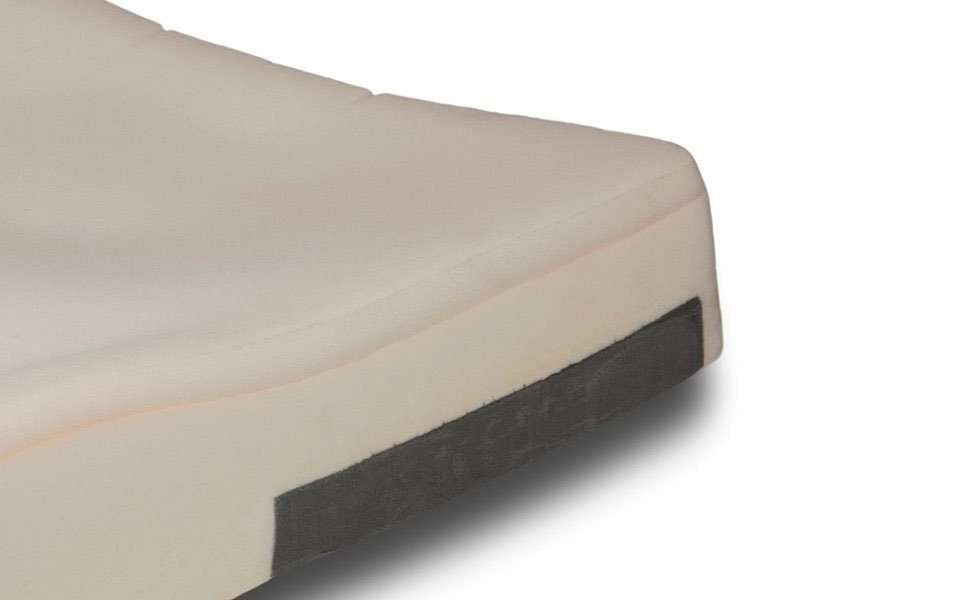

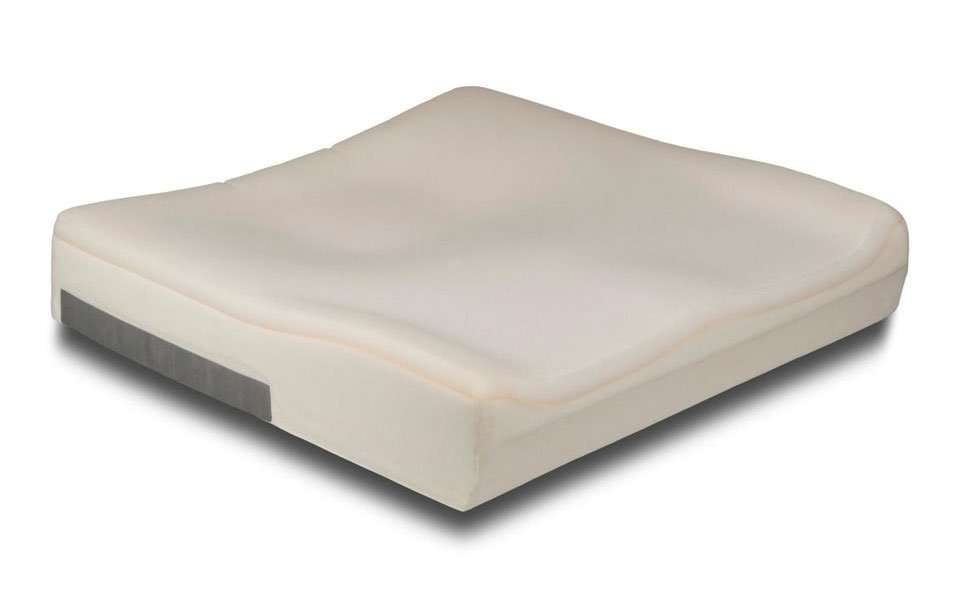

The JAY Ion cushion uses a dual-layer foam base. Sunrise sets foam firmness by cushion width so a wider cushion is not the same softness as a narrow one. A Visco memory-foam top layer is there to spread load. The inner cover is Dartex-coated Lycra with a water-resistant zipper and anti-wicking thread. The outer cover is a machine-washable four-way stretch with silver-impregnated fibre (Ionic+ on the US card, X-static on the CA card) and a 3DX spacer layer for airflow.

There is no air insert and no pump. If a therapist wants fluid under the pelvis, use the JAY Union Cushion or the JAY Fusion with Cryo.

JAY Ion Cushion specifications

These figures are from Sunrise Medical's current Ion card. The specification tab holds the stored values.

Height 4 inches (10 cm). Width 14 to 24 inches (36 to 61 cm). Depth 14 to 24 inches (36 to 61 cm). Product weight 3.5 lbs (1.6 kg) at 18 by 18 inches. User weight capacity 330 lbs (150 kg) on 14 to 21 inch widths and 500 lbs (227 kg) on 22 to 24 inch widths. Base: multi-layer foam with density by width and a Visco top. Inner cover: Dartex-coated Lycra. Outer cover: silver-thread stretch with 3DX spacer fabric.

Warranty in the Ion owner's manual is 24 months on the cushion for the original purchaser.

Width and depth

Use Choose Width and Choose Depth for 14 to 24 inches. A seating therapist measures hip width in sitting. Foam firmness follows the width you pick.

Which JAY wheelchair cushion fits

The JAY Ion cushion is the adult foam skin-protection and positioning JAY. Stay here if a therapist wants foam, not fluid. The JAY GO Cushion is a lower-risk dual-layer foam. The JAY Union Cushion adds JAY Flow fluid and MemGel. The JAY Fusion with Cryo is the current adjustable fluid and cooling step. The JAY Zip Cushion is the kids foam cousin.

Funding help for a wheelchair cushion or back support in Ontario

This cushion or back support is an ADP positioning device category item. Ontario's Assistive Devices Program (ADP) can fund 75% of the cost of positioning devices such as cushions and back supports when they are prescribed through an assessment by an ADP-registered occupational therapist or physiotherapist with an eligible mobility device, and some income-support programs cover the full cost. Not every product qualifies, so talk to us before you buy. March of Dimes Canada, Veterans Affairs Canada (VAC), and community programs can also help. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through.

Delivery and setup in Brampton and the GTA

Westin's own team delivers this wheelchair cushion across Brampton and the Greater Toronto Area. We bring it in, check the size against the chair, and show you the inner and outer covers before we leave.

We have three stores in the Brampton and Toronto area if you would rather see a JAY cushion first. For a scheduled in-home drop-off, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased cushions are delivered on a scheduled date.

If the cushion is going outside the GTA, ask us for a shipping quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.

Related wheelchair cushions from Westin

• JAY GO Cushion, dual-layer foam with a Dartex cover
• JAY Union Cushion, foam plus JAY Flow fluid
• JAY Fusion with Cryo Technology Cushion, fluid with cooling

Service and warranty

When something on the cushion needs work, you call the shop that set it up, not a US parts desk. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.

Sunrise Medical JAY warranty

The JAY Ion owner's manual prints 24 months on the cushion for the original purchaser. Punctures, tears, and burns sit outside that term. Sunrise notes that Canadian terms can follow provincial funding rules. We handle the warranty claim with you. Ask us if an extended warranty is offered for your order.

Frequently asked questions

What Size Wheelchair Cushion Do I Need?

The JAY Ion cushion is ordered by seat width and depth from 14 to 24 inches. A seating therapist measures hip width in sitting. Use Choose Width and Choose Depth. Foam firmness follows the width.

How Do I Choose Between Gel, Foam, And Air Cushions?

The JAY Ion cushion is multi-layer foam with a Visco top. It is not gel and not air. JAY Flow fluid sits in Union, Fusion, and J2. Fusion can also take an air insert. Pick Ion when a therapist wants foam skin protection and positioning.

Does ADP Cover Wheelchair Cushions?

Ontario's Assistive Devices Program can help with a wheelchair cushion or back support after an ADP-registered therapist assessment with an eligible mobility device. Eligibility depends on the person. Call (905) 451-7743 or use the funding page before you buy.

Does The JAY Ion Cushion Have Air Cells?

The JAY Ion cushion does not have air cells and does not have an inflation valve. It is a multi-layer foam cushion with a Visco top and a dual cover.

What Is The Weight Limit For The JAY Ion Cushion?

The JAY Ion cushion is rated at 330 lbs (150 kg) on 14 to 21 inch widths and 500 lbs (227 kg) on 22 to 24 inch widths on Sunrise's current card.

How Do I Clean The JAY Ion Cushion?

The JAY Ion cushion has a wipe-clean inner cover and a machine-washable outer cover. Do not soak the foam. The zipper and anti-wicking thread are there to keep fluid off the base.

How Long Is The JAY Ion Warranty?

The JAY Ion cushion carries 24 months from purchase in the owner's manual, for the original purchaser.

Can I See A JAY Cushion In Brampton?

Westin Healthcare can show a JAY cushion in the Brampton and Toronto stores and deliver across the GTA. Call (905) 451-7743 to check what is on the floor.
