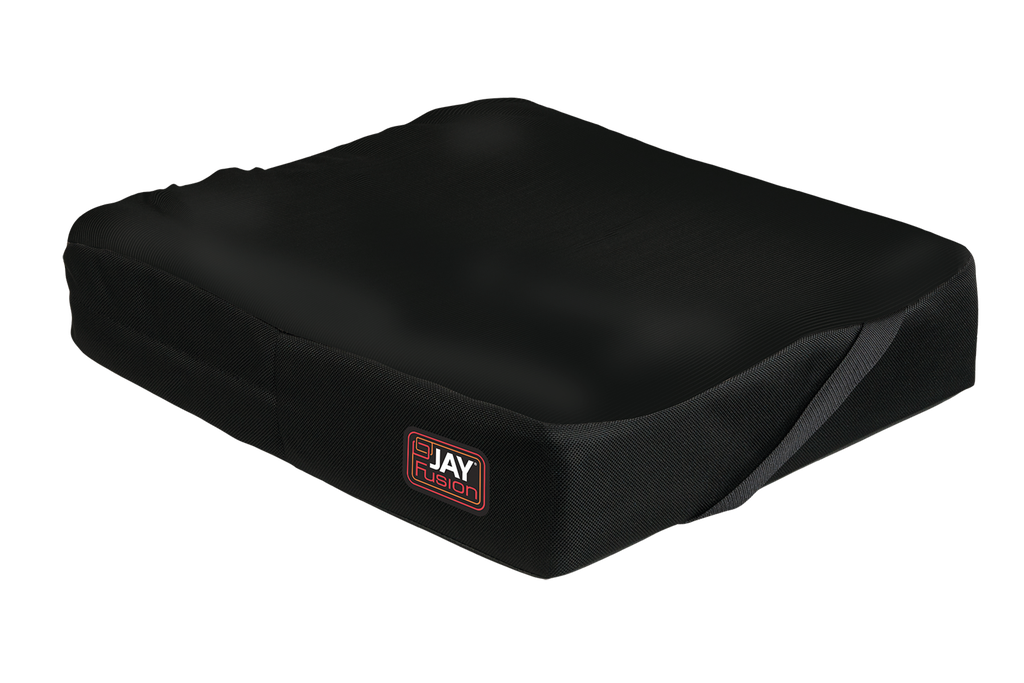

JAY Fusion Cushion

The JAY Fusion cushion is Sunrise Medical's adjustable wheelchair cushion for Brampton and the Greater Toronto Area. The current Canada card rates 14 to 21 inch widths at 330 lbs (150 kg) and 22 to 24 inch widths at 500 lbs (227 kg). A 16 by 18 inch size weighs 5.3 lbs (2.4 kg). Standard height is 4 inches (10 cm). Reduced Profile on the Canada card is 3 3/8 inches. This page is the parent Fusion. The dedicated Cryo build stays on JAY Fusion with Cryo Technology.

Sunrise writes Fusion as the cushion that combines J2 skin-protection capability with J3 stability. Inserts on this family are JAY Flow fluid, an air insert, or CryoFluid.

Who this cushion is for

The JAY Fusion cushion fits a person whose therapist wants an adjustable fluid or air well, not foam only. Stay here for JAY Flow or the air insert. Use the Cryo page when the order is CryoFluid. A seating therapist should set the well before first use.

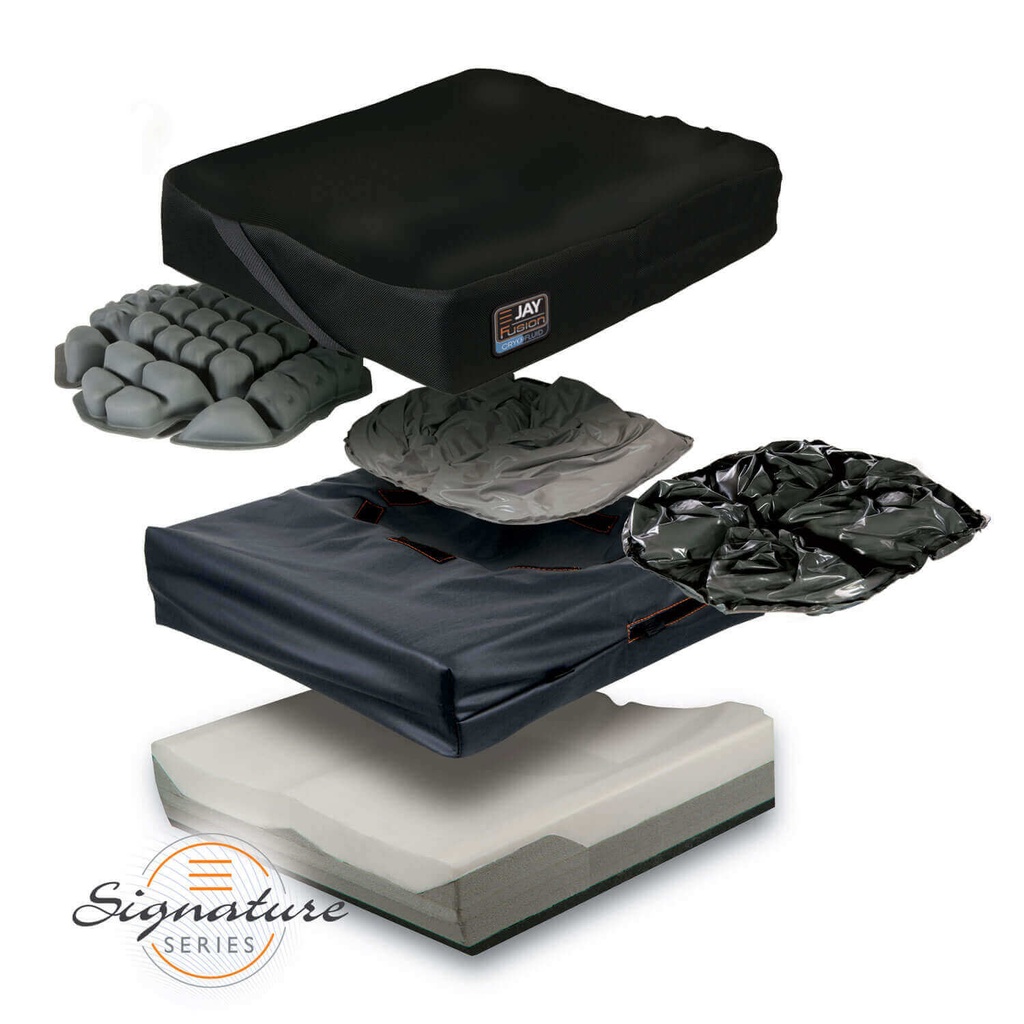

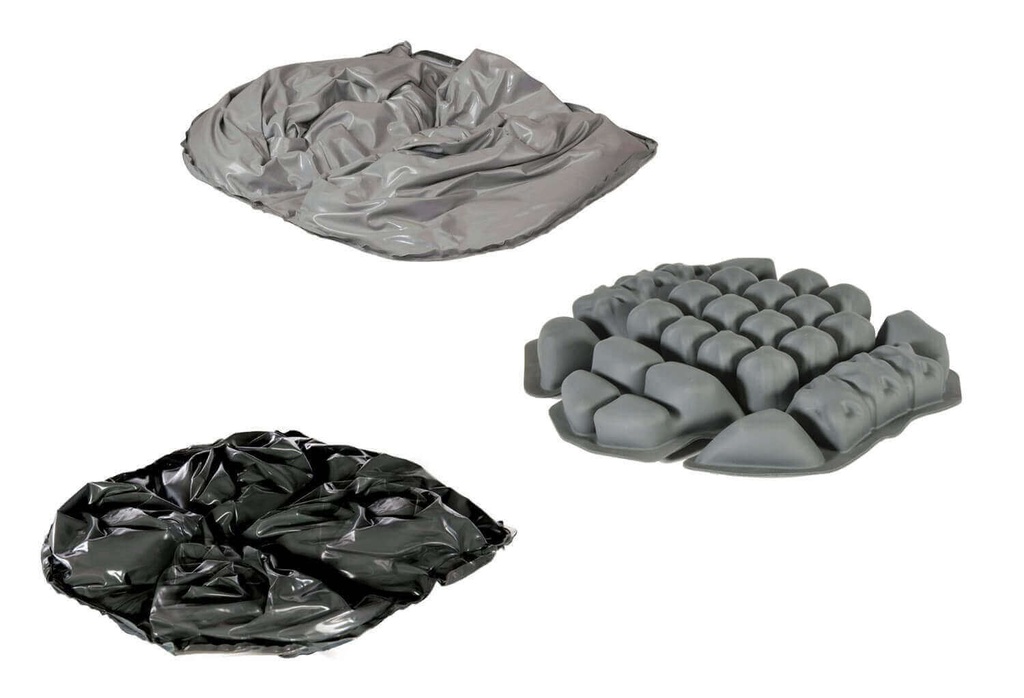

• JAY Flow, air (single or dual valve), or CryoFluid
• Pre-contoured closed-cell base with a posterior pelvic wall
• 330 lb (150 kg) to 500 lb (227 kg) by width

Inserts, well, and cover

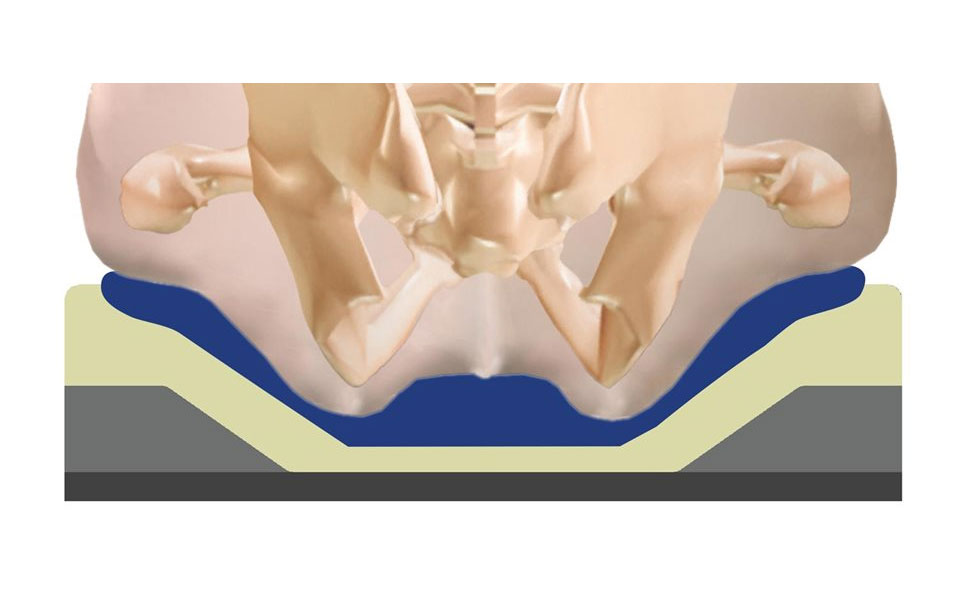

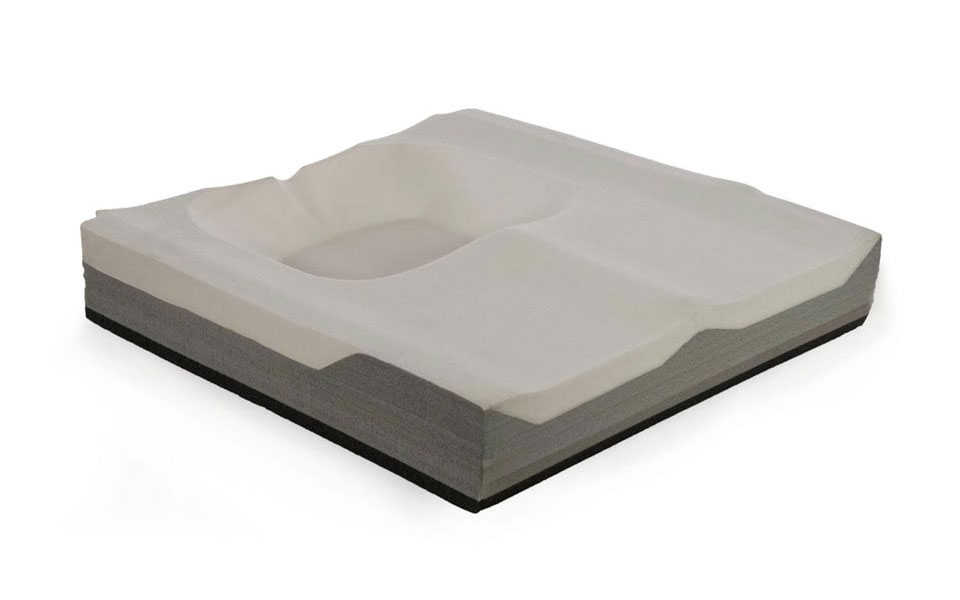

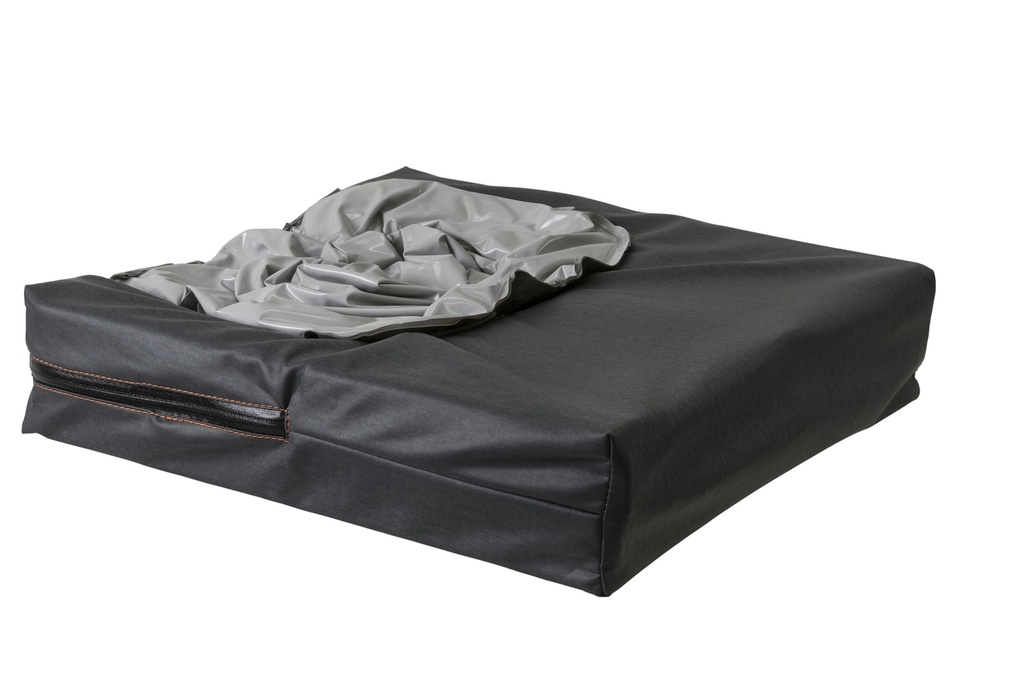

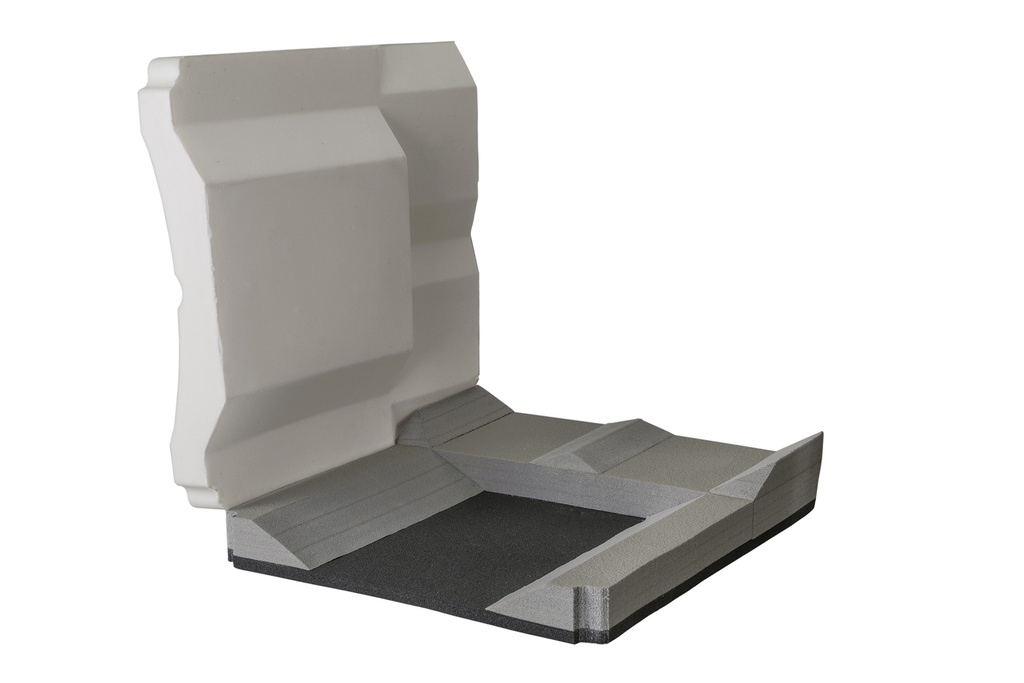

The JAY Fusion cushion uses a pre-contoured closed-cell foam base, a high-resiliency layer, and a posterior pelvic wall. The pelvic loading area follows average pelvic-bone width for each cushion width. JAY Flow is zero-maintenance fluid. The air insert is field-adjustable for asymmetry. CryoFluid is the cooling fluid option and is sold as its own Westin page. The inner cover is Dartex-coated Lycra with a water-resistant zipper. The outer cover on the Canada card is X-static silver-thread stretch with 3DX spacer fabric, a handle, a zipper flap, and waterfall seams.

JAY Fusion Cushion specifications

These figures are from Sunrise Medical's current Canada Fusion card. The specification tab holds the stored values.

Height Standard 4 inches (10 cm), Reduced 3 3/8 inches on the Canada card. Width 14 to 24 inches (36 to 61 cm). Depth 14 to 24 inches (36 to 61 cm). Product weight 5.3 lbs (2.4 kg) at 16 by 18 inches. User weight capacity 330 lbs (150 kg) on 14 to 21 inch widths and 500 lbs (227 kg) on 22 to 24 inch widths. Insert: JAY Flow, air, or CryoFluid. Dual cover as above. JAY Your Way modifications are available.

Warranty in the Fusion owner's manual is 24 months on the cushion and 6 months on the removable cover, for the original purchaser.

Width and depth

Use Seat Width and Seat Depth. Those controls on this product run 16 to 21 inches. Sunrise's family card also prints 14, 15, 22, 23, and 24 inches. Ask us if the assessment needs a size outside 16 to 21. A seating therapist measures hip width in sitting. Ask us if you need the Reduced Profile height.

Which JAY wheelchair cushion fits

The JAY Fusion cushion is the current adjustable fluid, air, or Cryo family. Stay here for JAY Flow or air. The JAY Fusion with Cryo Technology Cushion is the Cryo-only page. The JAY J2 Standard Cushion is the 2.5 inch fluid well. The JAY J2 Deep Contour Cushion is the 4.5 inch fluid well. The JAY Union Cushion is foam plus standard JAY Flow without an air option. The JAY Ion Cushion is foam only.

Funding help for a wheelchair cushion or back support in Ontario

This cushion or back support is an ADP positioning device category item. Ontario's Assistive Devices Program (ADP) can fund 75% of the cost of positioning devices such as cushions and back supports when they are prescribed through an assessment by an ADP-registered occupational therapist or physiotherapist with an eligible mobility device, and some income-support programs cover the full cost. Not every product qualifies, so talk to us before you buy. March of Dimes Canada, Veterans Affairs Canada (VAC), and community programs can also help. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through.

Delivery and setup in Brampton and the GTA

Westin's own team delivers this wheelchair cushion across Brampton and the Greater Toronto Area. We bring it in, check the size against the chair, and show you the insert orientation and the dual covers before we leave.

We have three stores in the Brampton and Toronto area if you would rather see a JAY cushion first. For a scheduled in-home drop-off, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased cushions are delivered on a scheduled date.

If the cushion is going outside the GTA, ask us for a shipping quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.

Related wheelchair cushions from Westin

• JAY Fusion with Cryo Technology Cushion, the Cryo-only build
• JAY Union Cushion, foam plus standard JAY Flow
• JAY J2 Deep Contour Cushion, 4.5 inch fluid well

Service and warranty

When something on the cushion needs work, you call the shop that set it up, not a US parts desk. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.

Sunrise Medical JAY warranty

The JAY Fusion owner's manual prints 24 months on the cushion and 6 months on the removable cover, for the original purchaser. That term includes the JAY Flow and CryoFluid inserts. Punctures, tears, and burns sit outside that term. Sunrise notes that Canadian terms can follow provincial funding rules. We handle the warranty claim with you. Ask us if an extended warranty is offered for your order.

Frequently asked questions

What Size Wheelchair Cushion Do I Need?

The JAY Fusion cushion family is ordered by seat width and depth from 14 to 24 inches. On this product, use Seat Width and Seat Depth for 16 to 21 inches. Ask us about 14, 15, or 22 to 24. A seating therapist measures hip width in sitting.

How Do I Choose Between Gel, Foam, And Air Cushions?

The JAY Fusion cushion uses JAY Flow fluid, an air insert, or CryoFluid. JAY Flow is a vegetable-oil fluid, not a gel pack. This page is the parent Fusion, not foam-only Ion.

Does ADP Cover Wheelchair Cushions?

Ontario's Assistive Devices Program can help with a wheelchair cushion or back support after an ADP-registered therapist assessment with an eligible mobility device. Eligibility depends on the person. Call (905) 451-7743 or use the funding page before you buy.

Is This The Same As Fusion With Cryo?

The JAY Fusion cushion on this page is the parent family. CryoFluid is one insert option. The dedicated Cryo build is the JAY Fusion with Cryo Technology Cushion.

What Is The Weight Limit For The JAY Fusion?

The JAY Fusion cushion is rated at 330 lbs (150 kg) on 14 to 21 inch widths and 500 lbs (227 kg) on 22 to 24 inch widths on Sunrise's current card.

How Do I Clean The JAY Fusion?

The JAY Fusion cushion has a wipe-clean inner cover and a machine-washable outer cover. Do not soak the foam or the fluid pad. Follow the Fusion owner's manual for monthly fluid checks.

How Long Is The JAY Fusion Warranty?

The JAY Fusion cushion carries 24 months on the cushion and 6 months on the cover in the Fusion owner's manual, for the original purchaser.

Can I See A JAY Cushion In Brampton?

Westin Healthcare can show a JAY cushion in the Brampton and Toronto stores and deliver across the GTA. Call (905) 451-7743 to check what is on the floor.
