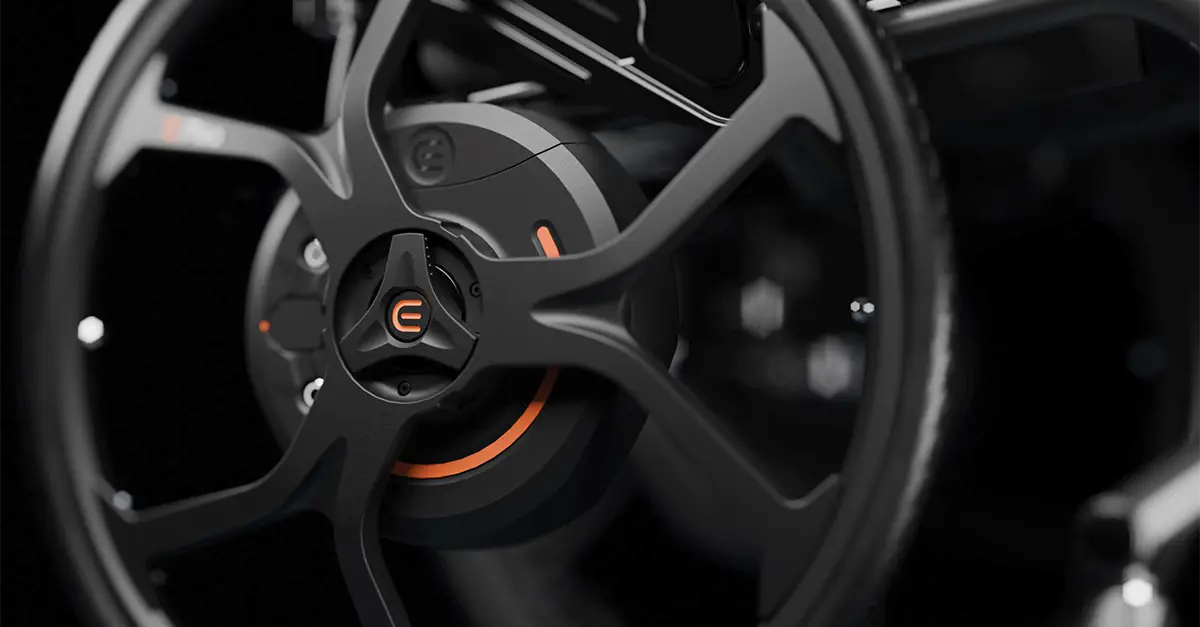

Empulse M90 Power Assist Wheels

The Empulse M90 is Sunrise Medical's 24 inch wheel-drive power assist for a manual wheelchair. Westin Healthcare quotes it and fits the chair-specific hubs for homes in Brampton and the Greater Toronto Area. This is not a power wheelchair. The motors live in the rear wheels. The clinic confirms a 24 inch wheel and zero camber before we order.

Sunrise's Canada page lists a 265 lb (120 kg) rating, 3.7 mph (6.0 km/h), and up to 9.3 miles (15.0 km). The complete set is 26 lbs (12 kg). Each wheel is 13 lbs (6 kg) with its 4.0 Ah pack, or 12 lbs (5 kg) with the pack off. Sunrise calls it the lightest wheel-drive in its class.

Who these wheels are for

The Empulse M90 is for a rider who wants power in the hubs without a front bike or an under-seat box. Drive it two ways on the same hardware: an all-way toggle, like a small power-chair stick, or a speed controller with handrim steering. Sunrise's chooser points the toggle at people with less endurance or hand function, and the handrim mode at people who still want to push.

If you only want handrim assist on a Quickie 2, 5R, GP, Nitrum, or Zippie X'CAPE, the Quickie Xtender is the older wheel add-on. If you want an under-seat push that does not change the wheels, see the Empulse R90.

• 24 inch wheels only, zero camber after the hardware is on

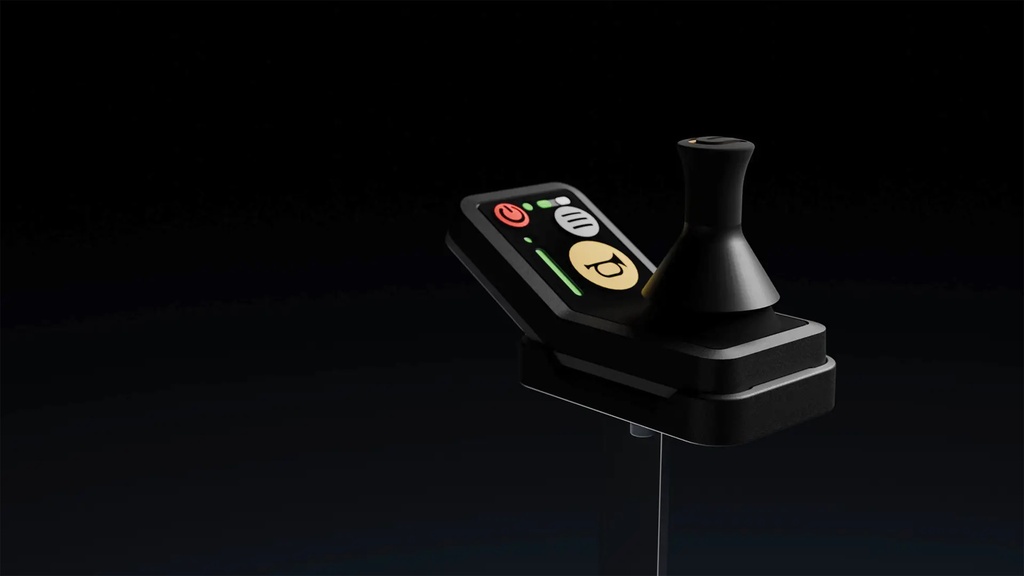

• Dual controller: all-way toggle or speed plus handrims
• Sunrise guide names Nitrum, Quickie 2, 5R, QRi, and QS5 X; other frames only after the guide

Range, speed, and batteries

The Empulse M90 travels up to 9.3 miles (15.0 km) per charge. Each hub holds a 4.0 Ah lithium-ion pack at 1.3 lbs (0.6 kg). Sunrise prints those packs under 100 Wh and lists them as UN3481 for air. Confirm the airline. Charge the packs on or off the chair. A spare pair extends the day.

Top speed is 3.7 mph (6.0 km/h). Indoor and outdoor profiles sit on the controller. The app (iOS and Android) sets Base, Standard, or Max. Cruise, terrain adjustment, and hill control are built in. Flip to free-roll when you want a plain manual push. Slope on the brochure is 6 degrees.

How it attaches and what it fits

The M90 uses a standard quick-release axle once the chair-specific brackets are on. There are no hanging wires. Keep the tires and handrims you already like, as long as the handrims are tab-mount in a standard or wide stance. Narrow rims are a no-go.

The July 2026 compatibility guide is the fit rule. 24 inch (540 mm) wheels only. Hardware flattens camber to zero. Casters of any size work; 5 inch or larger is recommended. Transit brackets may move inside the axle plate. The controller needs 1.2 inches (30 mm) of frame. Live chairs on the Sunrise matrix include the Quickie 2, the Nitrum, the 5R, the QRi, and the QS5 X (not at a 19.5 inch rear seat height). The Canada FAQ still says non-Sunrise frames are coming. We will not guess a chair that is not on the guide.

Empulse M90 specifications

These figures are for the Empulse M90 on Sunrise's current Canada page and the MK-130153 brochure. The specification tab holds the stored values.

Capacity 265 lbs (120 kg). Range up to 9.3 miles (15.0 km). Speed 3.7 mph (6.0 km/h). Total 26 lbs (12 kg). Each wheel 13 lbs (6 kg) with battery, 12 lbs (5 kg) without. Battery 1.3 lbs (0.6 kg), 4.0 Ah lithium-ion, under 100 Wh. Wheel 24 inch only. Motors 150 W / 24 V. Grade 6 degrees. Attachment: chair-specific quick-release hubs.

Warranty coverage may vary by province. Westin Healthcare processes the claim.

M90 or Xtender

The M90 is the 26 lb (12 kg) 24 inch hub set with a toggle and a handrim mode. The Xtender is the 35 to 37 lb handrim-only pair Sunrise lists for Quickie 2, 5R, GP, Nitrum, and Zippie X'CAPE. The R90 leaves your wheels alone and pushes from under the seat. The F35 pulls from the front.

Funding help for a power assist device in Ontario

Ontario's Assistive Devices Program (ADP) lists power add-ons for manual wheelchairs among its funded mobility devices. ADP can fund 75% of the cost of a qualifying power assist device when it is prescribed through an assessment by an ADP-registered occupational therapist or physiotherapist with an eligible wheelchair, and some income-support programs cover the full client share. Not every device or situation qualifies, so talk to us before you buy. March of Dimes Canada, Veterans Affairs Canada (VAC), and community programs can also help. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through.

Delivery and setup in Brampton and the GTA

Westin's own team delivers and sets up this power assist device across Brampton and the Greater Toronto Area after the assessment and the fit to the chair are in place. We bring it in, fit the hubs, and show you the dual controller, the free-roll switch, and the charger before we leave.

We have three stores in the Brampton and Toronto area if you would rather see a device first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased devices are delivered and set up on a scheduled date.

If the device is going outside the GTA, ask us for a freight quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.

Related mobility products from Westin

• Quickie Xtender, the handrim-only wheel add-on
• Empulse R90, the under-seat push that keeps your wheels
• Quickie 2, a live folding chair on the M90 matrix

Service and warranty

When something on the wheels needs work, you call the shop that set them up, not a distant parts desk. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.

Sunrise Medical manufacturer warranty

Sunrise's Canada page prints that warranty coverage may vary by province. We handle the claim with you. Ask us if an extended warranty is offered for your order.

Frequently asked questions

What Is The Empulse M90?

The Empulse M90 is a pair of 24 inch power-assist hubs that replace the manual rear wheels. Drive it with an all-way toggle or with a speed controller and the handrims.

How Far Will The Empulse M90 Go On One Charge?

The Empulse M90 travels up to 9.3 miles (15.0 km) per charge. Sunrise says range changes with surface, rider weight, driving, temperature, and terrain.

Which Chairs Take The M90?

The Empulse M90 needs 24 inch wheels and ends up at zero camber. Sunrise's July 2026 guide names Nitrum, Quickie 2, 5R, QRi, and QS5 X. Other frames only after that guide. Non-Sunrise chairs are not a blanket yes on the Canada FAQ.

How Do I Switch Between Toggle And Handrims?

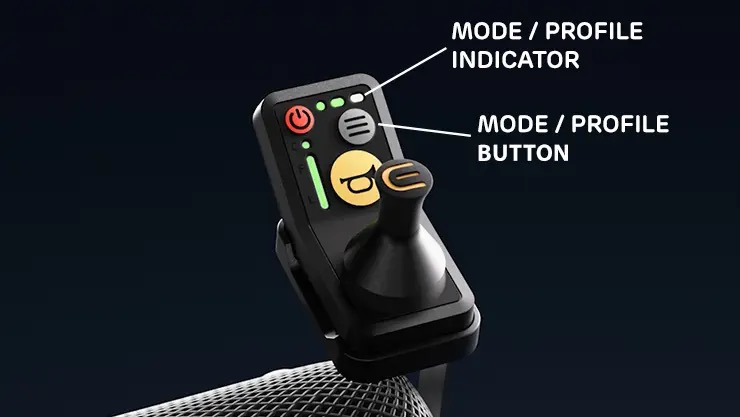

On the Empulse M90, press and hold the Drive Mode button after the controller is paired. A white profile light is all-way toggle. A blue profile light is speed plus handrims. A tap switches indoor and outdoor.

Can I Take The M90 On A Plane?

Sunrise prints the Empulse M90 packs as IATA UN3481 and still says you must confirm the airline. Each pack is under 100 Wh on the brochure.

How Much Do The Wheels Weigh?

The Empulse M90 set weighs 26 lbs (12 kg). Each wheel is 13 lbs (6 kg) with its battery, or 12 lbs (5 kg) with the pack off.

Does ADP Cover A Power Assist Device In Ontario?

Some Ontario funding routes can help with mobility equipment, depending on the person's situation and assessment. Call (905) 451-7743 or use the funding page before you order.

How Is The M90 Different From The Xtender?

The Empulse M90 is a 26 lb 24 inch hub set with a toggle and a handrim mode. The Quickie Xtender is a 35 to 37 lb handrim-only pair on 22 or 24 inch wheels.

What Is The Weight Capacity?

The Empulse M90 is rated at 265 lbs (120 kg). Stay at or under that rating.

What Is The Warranty?

Sunrise's Canada page says warranty coverage for the Empulse M90 may vary by province. Westin Healthcare processes the claim.
