Description
The Span America Geo-Matt Cushion is a 4 inch medium-density foam wheelchair seat. Span America is a Savaria company. Westin Healthcare quotes it and delivers it for homes and care sites in Brampton and the Greater Toronto Area.
This page is the flat Geo-Matt wheelchair cushion only. Span cuts it from medium-density foam and uses the Geo-Matt segmented top so each cell can follow the person, reduce shearing, and cradle bony prominences. Ring-of-Air channels help move heat and moisture away from the skin. Every model on this page is 18 by 16 by 4 inches with a 200 lb weight limit. If a clinician has named the 3 inch Geo-Matt PRT, the Geo-Matt overlay, Geo-Matt Contour, or the Geo-Matt Wedge, ask us for that product. Those are separate Span articles.
Who this cushion is for
This cushion is for a wheelchair user who needs a 4 inch non-powered foam seat on an 18 inch wide chair, and whose weight is within Span's 200 lb rating. Span writes it for comfort and for prevention of breakdown, with a taller medium-density seat than the 3 inch PRT.
Families and therapists usually call us when the seating plan asks for the Geo-Matt 4 inch cushion, not a mattress pad and not the high-density PRT. If the care team has asked for an in-bed Span surface, we already stock the Geo-Matt overlay and PressureGuard Custom Care and Span-Care mattresses and will quote those separately.
- An 18 inch wide wheelchair seat with a 16 inch depth
- Users who want a 4 inch medium-density foam seat
- Anyone replacing a worn 18 by 16 inch Geo-Matt cushion
Construction and how it works

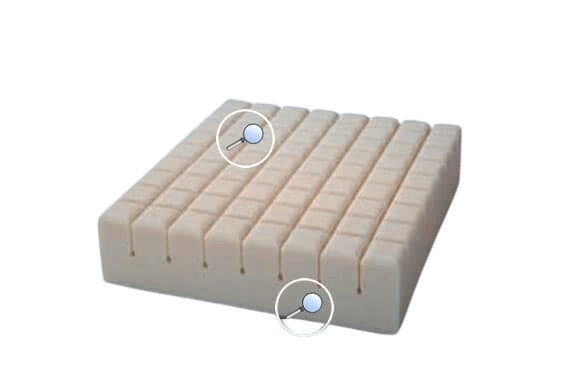

The Geo-Matt Cushion is a non-powered seat cushion. Span cuts the core from medium-density foam and segments the top into individually responsive cells. Those cells are the Geo-Matt geometry used across the family. Ring-of-Air channels help reduce heat and moisture at the skin.
Choose a cover under Choose Cover. Soft Skin is a durable sleeve you can wipe with warm water and soap. Fire-retardant Soft Skin is the same path with the fire-retardant sleeve. The anti-slip cover uses a nylon and vinyl fabric for protection from incontinence. Cushion only is the foam without a factory sleeve. Span allows a light covering of your choice over the cushion. Do not stack underpads on top of one another, because layered pads can change how the seat works.
Span America Geo-Matt Cushion specifications
These figures are for the 4 inch medium-density Geo-Matt Cushion in the 50746 codes on this page. They are not the Geo-Matt PRT sheet and not the Geo-Matt overlay sheet. The specification tab holds the stored values.
Span lists a 4 inch height, an 18 by 16 inch footprint, and a 200 lb weight limit on every model. The cushion is non-powered. Span lists an 18-month warranty.
Cover options
Use Choose Cover. The size is the same on every row: 18 in W x 16 in L x 4 in H. The default on this page is Soft Skin sleeve (50746-050).
- 18 in W x 16 in L x 4 in H, Soft Skin sleeve (50746-050)
- 18 in W x 16 in L x 4 in H, cushion only (50746-040)
- 18 in W x 16 in L x 4 in H, fire-retardant Soft Skin sleeve (50746-051)
- 18 in W x 16 in L x 4 in H, anti-slip cover (50746-084)
Facility six-packs and a replacement cover are quoted with the room. Ask us if the seating plan names those paths.
Delivery in Brampton and the GTA
Westin's own team can deliver this cushion across Brampton and the Greater Toronto Area, on its own or with a bed or lift setup. We have three stores in the Brampton and Toronto area if you would rather see a cushion first. For a scheduled drop-off, call (905) 451-7743 and we will book the next date that works.
This is a small carton. The Canada-wide free ground-shipping offer on smaller goods can apply when it ships without a bed or a lift. If it travels with a hospital bed, the bed is oversized and White-Glove Delivery is described on the shipping policy. Any charge is confirmed on your order.
Which wheelchairs this cushion fits
Span publishes the Geo-Matt Cushion in one seat size: 18 inches wide by 16 inches deep by 4 inches high. Choose it when the wheelchair seat sling or seat pan is 18 inches wide. Span does not name a wheelchair brand or model. Tell us the measured seat width and we will confirm the match.
Place the cushion in the chair with the zipper toward the back and the vinyl side down into the chair upholstery, using the Bottom rear mark on the cushion. A light covering of your choice is allowed. If the chair is 16, 20, 22, or wider inches, ask us for the Span America Geo-Matt PRT, which Span cuts in those wheelchair widths.
If the person also needs help standing from the chair, we already sell the Handicare ReTurn. If the room also needs a Span sleep surface, see the Span America Geo-Matt Overlay and the Span America Advantage, or ask us for the PressureGuard Custom Care or Span-Care mattress we already stock. Browse cushions, hospital beds, and medical mattresses when the seating plan is only part of the room.
Service and warranty
When something on the cushion needs work, you call the shop that sold it. Westin Healthcare has a service and repairs department.
Span America manufacturer warranty
Span lists an 18-month warranty on the Geo-Matt Cushion. We handle the warranty claim with you. Ask us if an extended warranty is offered for your order.
Frequently asked questions
What is the Geo-Matt Cushion?
It is Span America's 4 inch medium-density wheelchair seat with a Geo-Matt segmented top, Ring-of-Air channels, and a 200 lb weight limit. Every model is 18 by 16 by 4 inches.
Is this a mattress overlay?
No. This page is a wheelchair seat. The Geo-Matt overlay is a separate 3.5 inch mattress pad in bed sizes such as 33 by 72 inches. See the Geo-Matt Overlay if the clinician named that product.
How is this different from the Geo-Matt PRT?
This cushion is medium-density foam, 4 inches high, 18 by 16 inches only, and rated at 200 lb. The Geo-Matt PRT is high-density foam at 3 inches (4 inches on bariatric sizes), with a 250 or 500 lb rating and many seat widths. They do not share part numbers.
Does this cushion need a pump?
No. The Geo-Matt Cushion is non-powered foam. There is no pump to plug in.
What is the weight rating?
Span lists 200 lb on every 4 inch Geo-Matt Cushion. Tell us the person's weight when you order. For a higher rating or a wider seat, ask us about the Geo-Matt PRT.
What sizes can I get?
One size: 18 by 16 by 4 inches. Choose Cover sets Soft Skin (50746-050), cushion only (50746-040), fire-retardant Soft Skin (50746-051), or the anti-slip cover (50746-084). The default on this page is Soft Skin.
Which wheelchair does it fit?
Match it to an 18 inch wide wheelchair seat that is 16 inches deep. Span does not name a chair brand. Measure the seat and we will confirm.
How do I place and clean it?
Put the zipper toward the back of the chair and the vinyl side down, using the Bottom rear mark. Wipe Soft Skin with warm water and soap. Spot-clean the foam only; do not soak it. A light covering is allowed. Do not layer underpads.
What is Ring-of-Air?
It is Span's channel cut around the foam cells. Span writes that it helps reduce heat and moisture at the skin.
What is the warranty?
Span lists an 18-month warranty on the Geo-Matt Cushion. Westin Healthcare processes the warranty work.
What is included?
You get the Span America Geo-Matt Cushion in the cover you pick. The wheelchair, any extra covering, and any bed or mattress are sold separately.
Specifications
| Height | 4 in |
|---|---|
| Model | Geo-Matt 4 in medium-density wheelchair cushion (not PRT, overlay, Contour, or Wedge) |
| Brands | Span America |
| Warranty | 18 Months |
| Weight Capacity | 200 lb |
| Construction | Medium-density foam with Geo-Matt segmented cells and Ring-of-Air channels |
| Cover | Soft Skin sleeve (50746-050); cushion only; fire-retardant Soft Skin; anti-slip cover |
| Cleaning | Soft Skin: wipe with warm water and soap. Foam: spot clean only, do not immerse |
| Therapy Class | Non-powered medium-density foam seat cushion |
| Intended Use | Therapeutic wheelchair seat cushion |
| Power | None. Non-powered. |
| Placement | Zipper to the back; vinyl side down into the chair; Bottom rear mark |
| HCPCS (US) | E2603 fabric-cover versions only |
| Fits | 18 in wide by 16 in deep wheelchair seat (sling or seat pan) |
