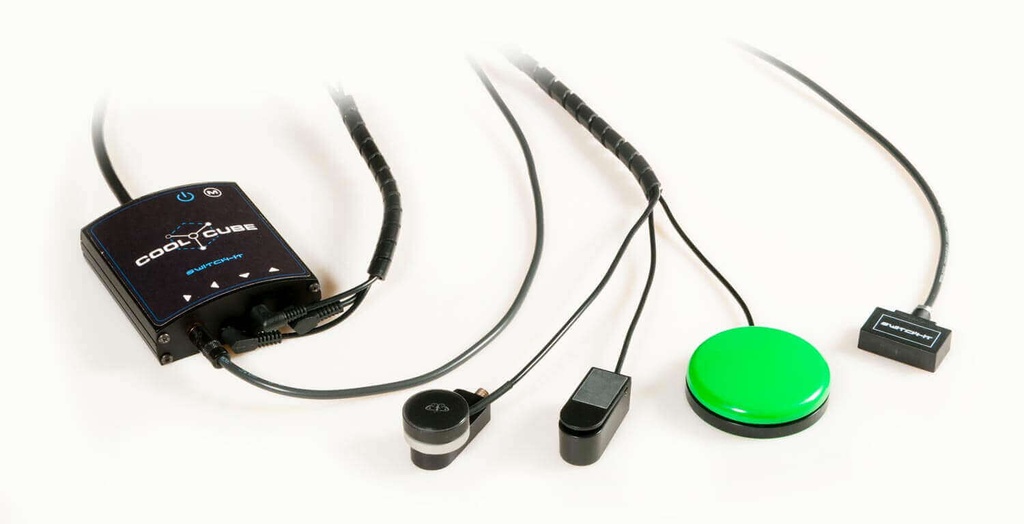

Switch-It Cool Cube Control Hub

The Switch-It Cool Cube is a central hub that takes many kinds of switches and turns them into drive or seating commands. Pro Spot pads add analog speed: first contact starts around 40 percent of programmed speed, then pressure takes it to 100 percent. This control is configured with the power wheelchair through the seating clinic and the ADP process. Westin Healthcare quotes it on a Quickie or Zippie order for homes in Brampton and the Greater Toronto Area.

Order the hub alone, or as a four or five Pro Spot system (models CCB, CCB-4PS, CCB-5PS, plus ZTS variants). The hub is 3.5 by 3.12 by 1.06 inches. Each Pro Spot is 2.10 inches across and 0.50 inch high. Activating force is 150 to 300 g.

What this control does

Plug in proximity or mechanical switches. The hub senses the type. Pro Spot pads can sit at the head, leg, tray, or hand. Each port can play a different tone (off, soft, or loud) so the person hears which pad fired. A dedicated mode port takes an egg, MicroLite, Piko, or a powered sensor.

Electronics are R-Net with an Omni display, or Q-Logic with an Enhanced Display. Not Invacare. Seating programs DS-S1 to DS-S4 need a dedicated seat-function box with mono plugs from the chair maker.

Who it suits

The Cool Cube suits a person who drives or changes seating with switches, and who may want analog speed instead of full-on / full-off. If the need is only a handful of buttons, see Buttons and Switches. If seating is the only target and the chair is SEDEO, see the CTRL Plus 5. Head-only drivers still start at the Dual Pro or a switched array.

Switch-It Cool Cube specifications

These figures are for Cool Cube on Sunrise's current Canada page and the MK-129435 flyer. The specification tab holds the stored values.

Type: proportional hub plus optional Pro Spot pads. Hub 3.5 by 3.12 by 1.06 inches. Pro Spot 2.10 inch diameter by 0.50 inch. Force 150 to 300 g. Models CCB, CCB-4PS, CCB-5PS, CCB-4ZTS, CCB-5ZTS. Connector: DB9 to Omni or Enhanced Display. Electronics: R-Net or Q-Logic. Not Invacare. Mounts: armrest, midline, headrest, tray, knee or leg.

Warranty coverage may vary by province. Westin Healthcare processes the claim.

Cool Cube or a single switch

The Cool Cube is the hub. Buttons and Switches are the individual pads that can plug into it. The CTRL Plus 5 is a seating box, not a drive hub. Pair the Cube with a live Q700 M.

Delivery and setup in Brampton and the GTA

Westin's own team delivers this control with the power wheelchair it is configured on, across Brampton and the Greater Toronto Area, after the seating clinic has set the order. We bring the chair in, check the hub, and show you the pads and the tones before we leave.

We have three stores in the Brampton and Toronto area if you would rather see a control on a floor chair first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased chairs are delivered and set up on a scheduled date.

If the chair is going outside the GTA, ask us for a freight quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.

Related mobility products from Westin

• Switch-It Buttons and Switches, the pads that can feed the hub
• Switch-It CTRL Plus 5, voice and button seating on SEDEO
• Quickie Q700 M, a live power base a Cool Cube is ordered on

Service and warranty

When something on the control needs work, you call the shop that set the chair up. Westin Healthcare has a service and repairs department.

Sunrise's Canada page prints that warranty coverage may vary by province. We handle the claim with you.

Frequently asked questions

What Does The Cool Cube Do?

The Switch-It Cool Cube is a hub that reads many switch types. With Pro Spot pads it can give analog speed, starting around 40 percent and rising to 100 percent with pressure.

Who Is The Cool Cube For?

The Switch-It Cool Cube suits a person who uses switches at the head, hand, tray, or leg, and who may need proportional speed rather than full on or full off.

Which Power Chairs Take The Cool Cube?

The Switch-It Cool Cube works with R-Net (Omni) and Q-Logic (Enhanced Display). It is not compatible with Invacare electronics. Some seating programs need a dedicated seat-function box.

Do I Have To Buy The Pro Spot Pads?

No. The Switch-It Cool Cube hub can be ordered alone. Four-pad and five-pad Pro Spot systems are the other kits. Existing mechanical or proximity switches can plug in.

How Is This Different From The CTRL Plus 5?

The Cool Cube is a drive and switch hub. The CTRL Plus 5 is an R-Net seating box with buttons, toggles, or voice. They solve different jobs.

Is This Sold Off The Shelf?

No. The Switch-It Cool Cube is configured with the power wheelchair through the seating clinic and the ADP process.

What Is The Warranty?

Sunrise's Canada page says warranty coverage for the Switch-It Cool Cube may vary by province. Westin Healthcare processes the claim.
