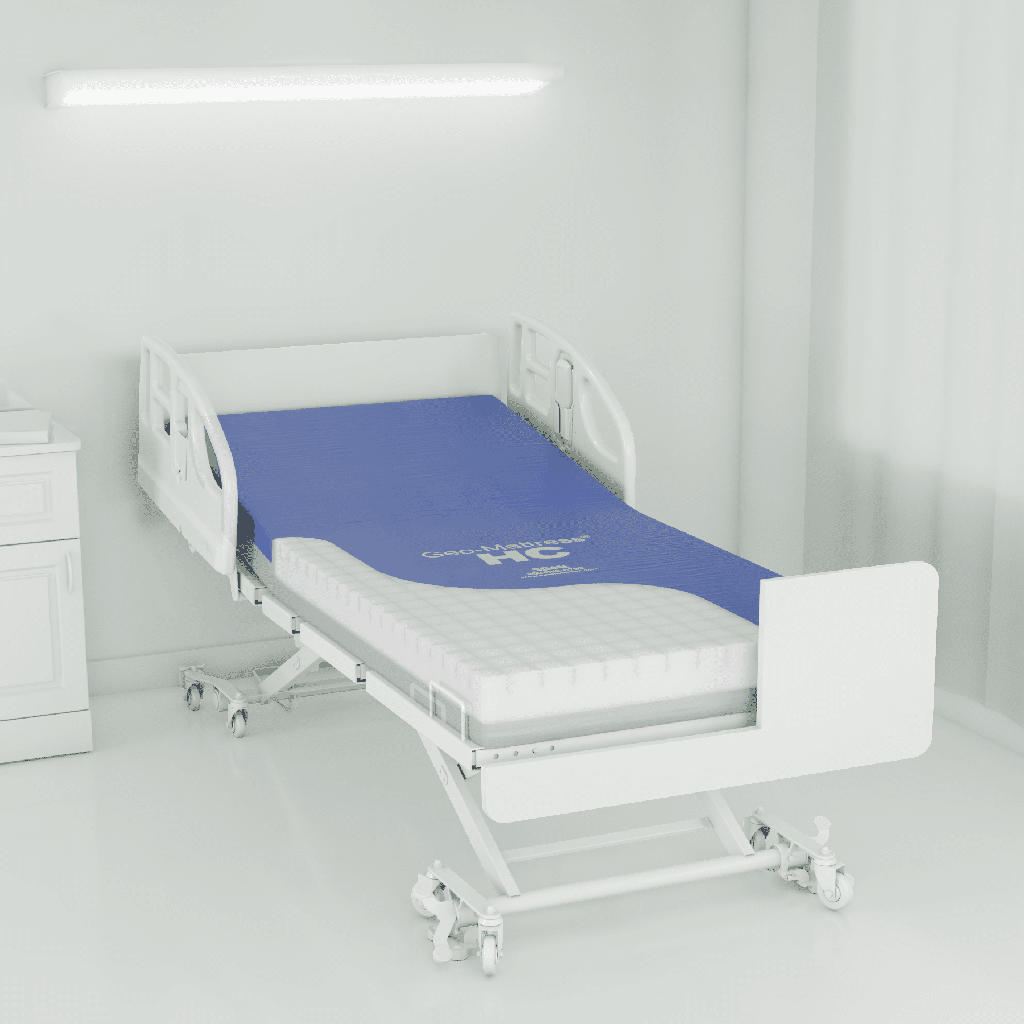

Span America Geo-Mattress Hc

The Span America Geo-Mattress HC is the home care foam mattress in the Geo-Mattress line. Span America is a Savaria company. Westin Healthcare quotes it, delivers it, and places it on the bed for homes in Brampton and the Greater Toronto Area.

This is a 5-inch, single-layer, non-powered foam mattress. There is no pump and no motor. Span rates it at 250 lbs. The top is a three-zone cross-cut. The cover is a fluid-proof nylon and vinyl surface that Span describes as bacteriostatic, cleanable, and replaceable. Span folds and boxes the mattress for freight and storage. Span's published warranty is 2 years, non-prorated, for home care use.

Who this mattress is for

This mattress is for a person who needs a therapeutic foam surface on a home care hospital bed, and whose own weight is within Span's 250 lb rating. Span designed Geo-Mattress HC to aid in pressure injury prevention in the home care setting. Families usually add it when they buy a Drive Delta 1000, a Drive SoLite Pro, or a Span America Advantage, or when they are replacing a basic mattress on a 35-inch or 36-inch deck that is already in the house.

Choose Geo-Mattress HC when the therapist has asked for a quiet home care foam mattress at this rating and thickness. The 350, Plus, Pro, Max, UltraMax, and Atlas Geo-Mattress tiers are separate listings. Those tiers are taller or heavier-rated builds. Heel Slope and the Geo-Matt segmented cell top sit on those other tiers. If the person needs a powered air surface, ask us about the SPAN PressureGuard Custom Care Convertible LAL, the non-powered Custom Care, or the Span-Care Convertible, which we already stock, or start with our medical mattresses.

• Home care on a 35-inch or 36-inch full-electric hospital bed
• Anyone who wants a 5-inch foam surface with no pump to plug in
• A 250 lb rating on a folded-and-boxed home care mattress

Construction and how it works

Geo-Mattress HC is cut from a single layer of combustion-modified foam. The cross-cut top is segmented into three distinct zones so the foam can give under the shoulders, seat, and heels instead of sitting as one hard slab. Span's words are that the cross-cut cells individually conform to the person's curves to assist in pressure redistribution. That is a construction claim, not a promise that a wound will heal.

The cover is fluid-proof nylon and vinyl. Span lists a vapor-barrier, bacteriostatically treated cover on every Geo-Mattress, including HC. The cover is pleated so it integrates with the foam and reduces hammocking. Span says the cover is fire resistant, fluid-proof, tear resistant, cleanable, and replaceable.

Geo-Mattress HC is the 5-inch home care tier. Heel Slope and the Geo-Matt 800-cell segmented top belong to the other Geo-Mattress tiers, which are listed separately.

Span folds the mattress and ships it in a box. Unfold it on the deck, let it lie flat, and keep it centred so gaps stay small.

Geo-Mattress HC specifications

These figures are for the Span America Geo-Mattress HC family we quote. The specification tab holds the stored values. Span's current catalogue sheet lists a 250 lb weight limit, a 5-inch height, and a 17 lb mattress weight for all three sizes. Official lengths are 75, 80, and 84 inches. Official width is 35 inches.

Span's catalogue warranty is 2 years, non-prorated, and applies in home care use. The fire-barrier builds (the -29 suffix) are certified to NFPA 101, ASTM E1590, California Technical Bulletin 117, and 16 CFR Parts 1632 and 1633.

Choose Mattress Size

Use Choose Mattress Size to set length. All three rows are 35 inches wide and 5 inches thick. The default on this page is the 80-inch length that matches a standard home care hospital-bed deck.

• 35 x 80 in (SP810-29)
• 35 x 75 in (SP812-29)
• 35 x 84 in (SP811-29)

Match the mattress length to the sleep deck. An 80-inch Delta, SoLite, or Advantage deck takes SP810-29. Use SP812-29 on a 75-inch or 76-inch deck. Use SP811-29 when the bed has been extended to 84 inches.

Funding help for a therapeutic mattress in Ontario

Ontario's Assistive Devices Program (ADP) does not cover hospital beds or mattresses, so plan around other routes. Funding that may help instead: March of Dimes Canada, Veterans Affairs Canada (VAC), and community programs. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through before you buy.

Delivery and setup in Brampton and the GTA

Westin's own team delivers and sets up this mattress across Brampton and the Greater Toronto Area. We bring it in, place it on the bed, and check the fit before we leave.

We have three stores in the Brampton and Toronto area if you would rather see a mattress first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased mattresses are delivered and set up on a scheduled date.

Hospital mattresses are oversized. The Canada-wide free ground-shipping offer on smaller goods does not apply. If the mattress is going outside the GTA, ask us for a freight quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.

Which Westin beds this mattress fits

Span publishes Geo-Mattress HC in 35 x 75, 35 x 80, and 35 x 84 inches. Span's Geo-Mattress family instructions say to confirm the mattress fits the bed frame and to keep gaps small so the person cannot slip into a space between the mattress and the frame.

The 35 x 80 size (SP810-29) matches the 35-inch by 80-inch sleep surface on the Span America Advantage. It also sits on a standard 36-inch by 80-inch home care deck, including the Drive Delta 1000 and the Drive SoLite Pro. Use the 75-inch row on a shorter deck and the 84-inch row when the deck has been extended.

The Span America Encore starts at 36 inches and opens to 39 and 42 inches with ReadyWide. Keep HC on the 36-inch position, or ask us for a wider SPAN surface if the deck will run at 39 or 42 inches. HC is 35 inches wide and rated 250 lbs, so it is the wrong width and rating for a 42-inch or bariatric bed.

We already sell other SPAN therapy surfaces (PressureGuard Custom Care Convertible LAL, non-powered Custom Care, and Span-Care Convertible) and a 36-inch foam hospital mattress, the Drive Gravity 7. See all medical mattresses if you are still choosing a surface.

Service and warranty

When something on the mattress needs work, you call the shop that delivered it, not a US parts desk. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.

Span America manufacturer warranty

Span America's published warranty on the Geo-Mattress HC catalogue sheet is 2 years, non-prorated, for the original purchaser in home care use. We handle the claim with you. Ask us if an extended warranty is offered for your order.

Frequently asked questions

How is Geo-Mattress HC different from the other Geo-Mattress tiers?

HC is the home care tier: one foam layer, 5 inches thick, 250 lb rating, a three-zone cross-cut top, and a 2-year home care warranty. The 350, Plus, Pro, Max, UltraMax, and Atlas tiers are separate listings with taller builds, higher weight ratings, Heel Slope, and the Geo-Matt segmented cell top.

How is Geo-Mattress HC different from an alternating-pressure mattress?

Geo-Mattress HC is foam. The surface stays still. An alternating-pressure mattress uses a pump to move air through cells on a cycle. There is no pump, no cycle, and no motor noise on HC. If a therapist has asked for a powered air surface, ask us about a PressureGuard system instead of this foam mattress.

How do I clean the Geo-Mattress HC cover?

Span's Geo-Mattress family user instructions say to wipe the cover with neutral soap suds and lukewarm water, rinse with a damp cloth, and air dry for 20 to 30 minutes. Do not immerse the mattress. Do not launder the cover. For disinfection, Span recommends a hospital-grade phenolic or quaternary cleaner used as the disinfectant label directs.

What is the weight rating on Geo-Mattress HC?

Span lists 250 lbs for every Geo-Mattress HC SKU. If the person is near that limit, or you need a wider deck, ask us about a higher-rated Geo-Mattress tier or a bariatric surface instead of stretching this mattress.

What size Geo-Mattress HC fits a standard hospital bed?

Most home care beds we sell have a 36 x 80 sleep deck, and the Span America Advantage has a 35 x 80 deck. Both take SP810-29 (35 x 80 in). Use SP812-29 on a 75-inch or 76-inch deck and SP811-29 on an 84-inch deck. Measure the deck before you pick Choose Mattress Size.

Does Geo-Mattress HC have a pump or make noise?

No. It is a foam mattress. There is nothing to plug in and nothing to cycle.

What is the warranty on the Geo-Mattress HC?

Span's current catalogue sheet lists a 2-year, non-prorated warranty for the original purchaser in home care use. Westin Healthcare processes the warranty work. Details are on our service and repairs page.

Can funding help pay for this mattress in Ontario?

Ontario's Assistive Devices Program does not cover hospital beds or mattresses. March of Dimes Canada, Veterans Affairs Canada, and community programs may still help, depending on the person. Call (905) 451-7743 and we will point you to the right route before anyone starts paperwork. The funding page is the starting point.

Can I rent a mattress like this before I buy?

Westin Healthcare rents hospital beds with a therapeutic medical mattress included. See current packages on the hospital bed rentals page. If you later buy a Geo-Mattress HC, ask about the Rental to Purchase First Month Credit program so we can apply the program rules.

What is included with the Geo-Mattress HC?

You get the Span America Geo-Mattress HC foam mattress in the length you pick under Choose Mattress Size. It arrives folded in a carton. Metal bed rails, a pump, and the bed frame are sold on the bed pages, not in this carton.

Does Geo-Mattress HC come in 39-inch or 42-inch widths?

Span's current HC sheet lists 35-inch widths only. If you need 39 or 42 inches, ask us about a wider SPAN surface instead of forcing this SKU.

Does this mattress have Heel Slope or the Geo-Matt cell top?

No. Span's catalogue note and the Geo-Mattress model comparison put Heel Slope and the Geo-Matt segmented cell top on the other Geo-Mattress tiers, not on HC. HC uses a three-zone cross-cut on a single foam layer.
